HORSEY
Come run with me, let's be free
intro | pics | specs | availability | timeline | faq | miscintro
Mar. 13 2025New colourway addedFinal prototype tested, thank you both choo and KevinOct. 26 2023A black/lime green colourway was added and I got a proto in itMX is tested and workingI moved so I might be kinda slow with this projectThis isn't dead yetJun. 21 2023
Added a soundtest for the old proto. Better late than never.
Apr. 26 2023
Yo — I don't want to mess with my formatting, so the updates are going here now.
KLC has been added as a vendor and they'll be selling this kit alongside their own custom EC parts. No need to harvest. More info down in the availability section.

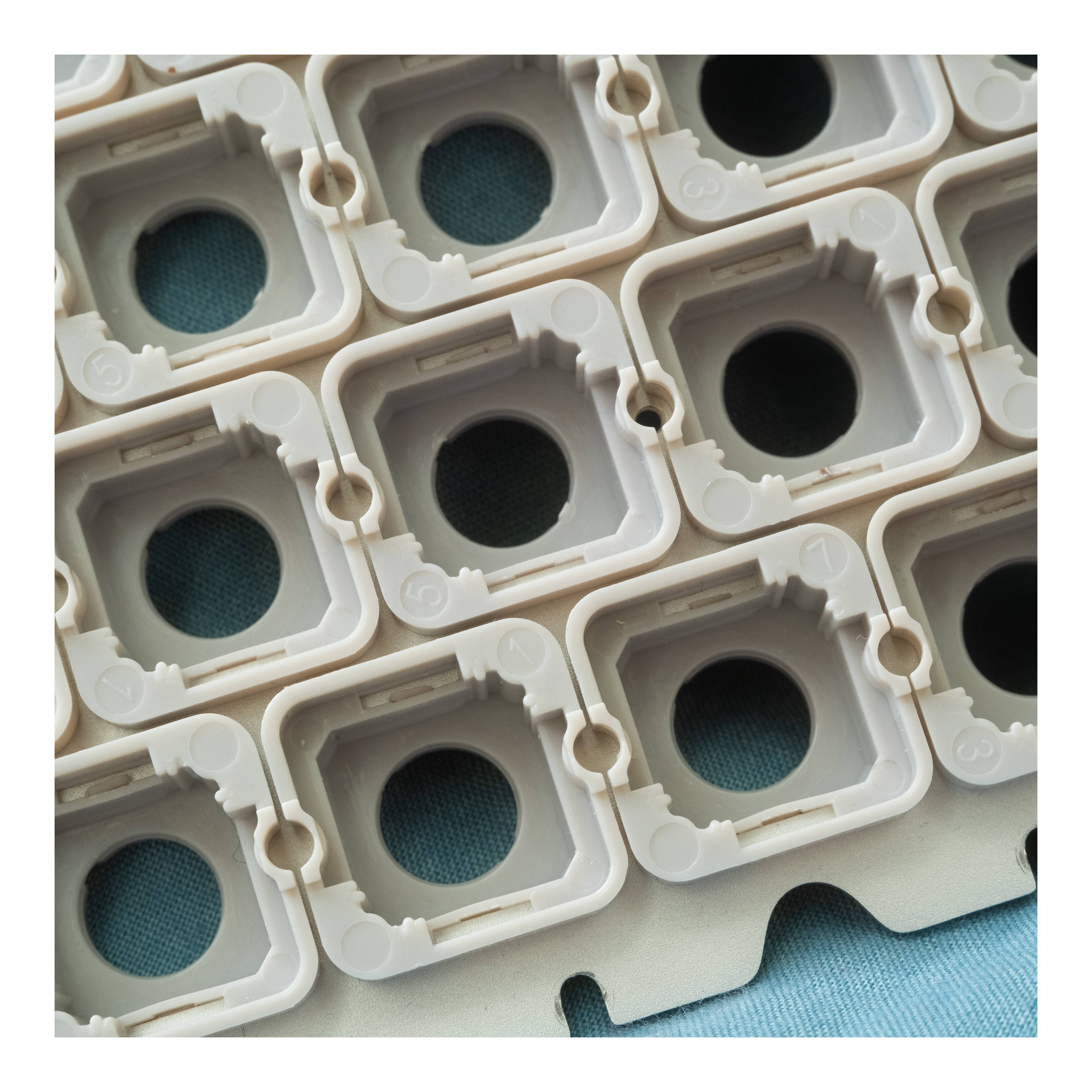

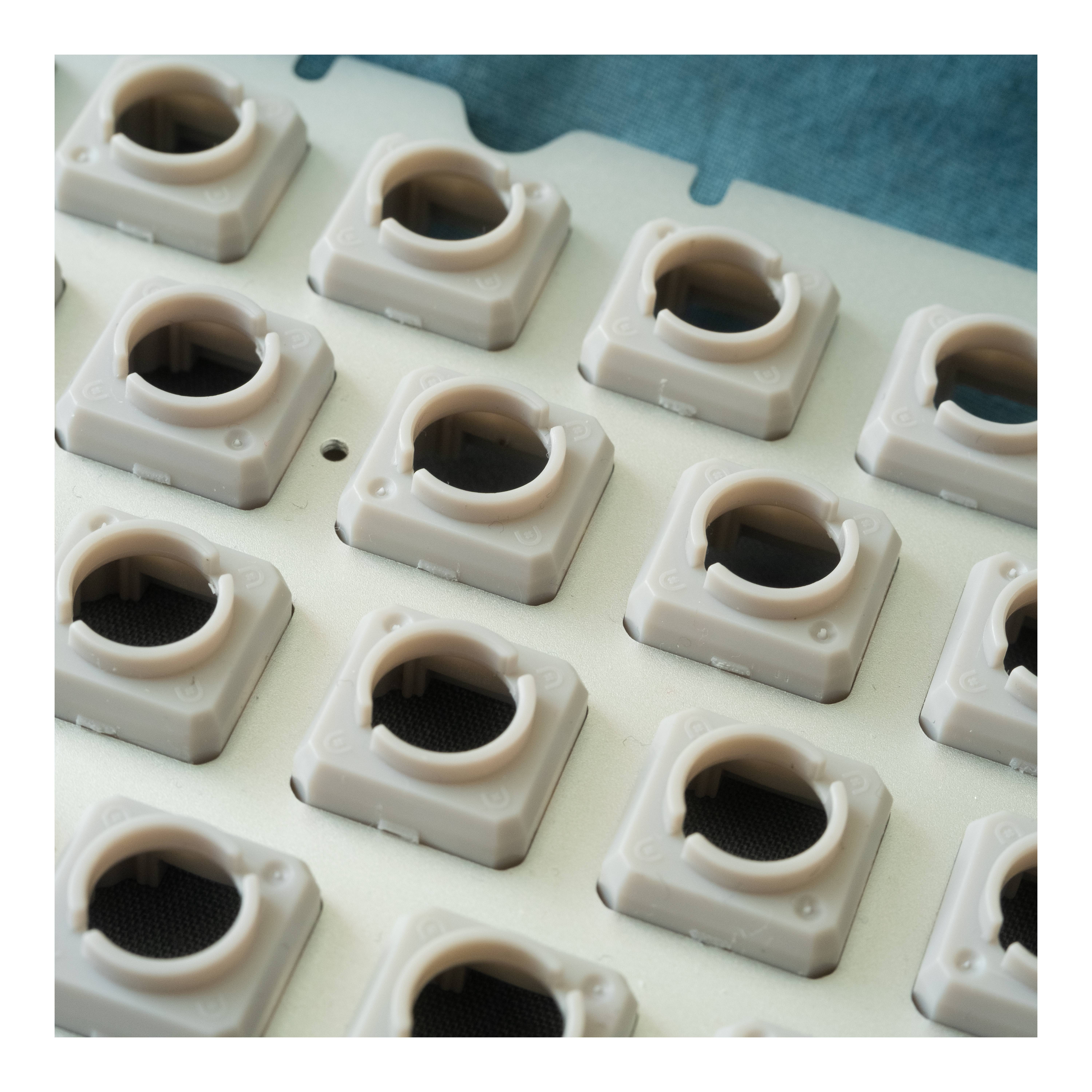

This is a keyboard that's inspired by an artist that I listen to a lot. It's designed for Topre and MX. Originally I wanted to have something a bit nicer than the stock Pro Classic case with the intention of harvesting most of the parts from it, but as it ended up taking Deskeys housings and a custom PCB, it's probably better off as a kit. No horses were harmed in the making of this project, although a f—k ton of polycarbonate was.
More
And as another side note – I’m going to be bringing this keyboard to the ASG Keyboard Meetup in Massachusetts on Saturday, if you feel like checking it out or yelling at me for my choice in engravings.

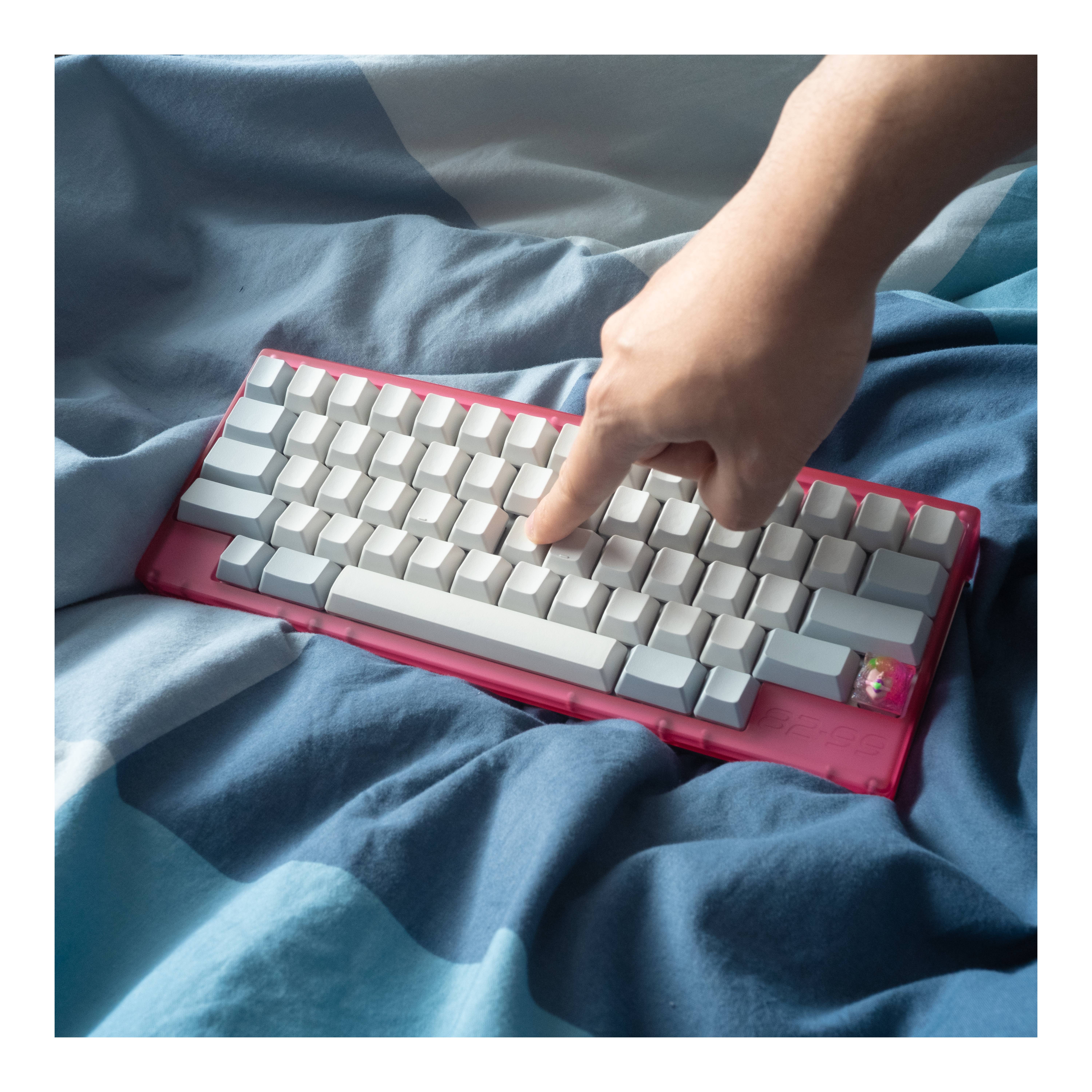

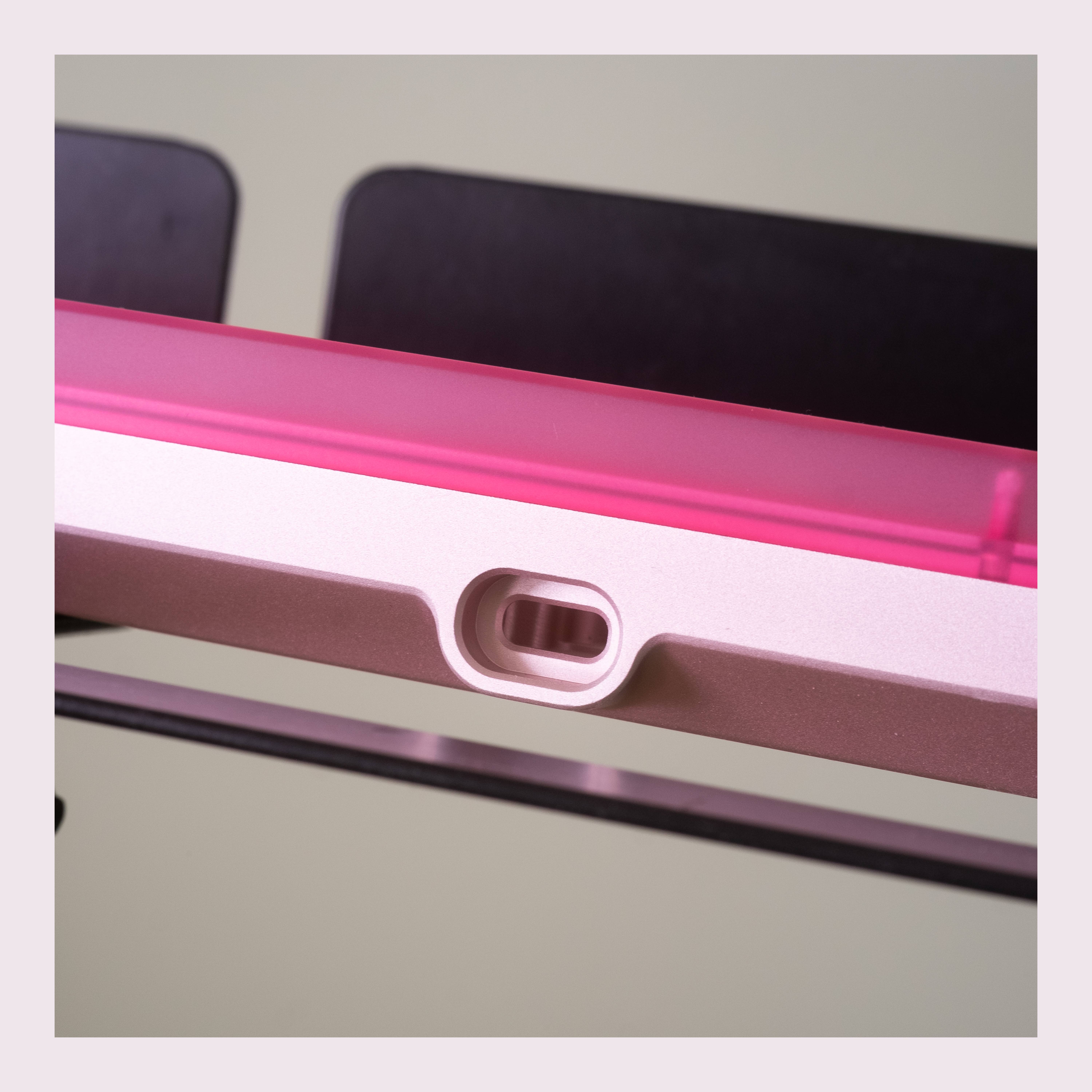

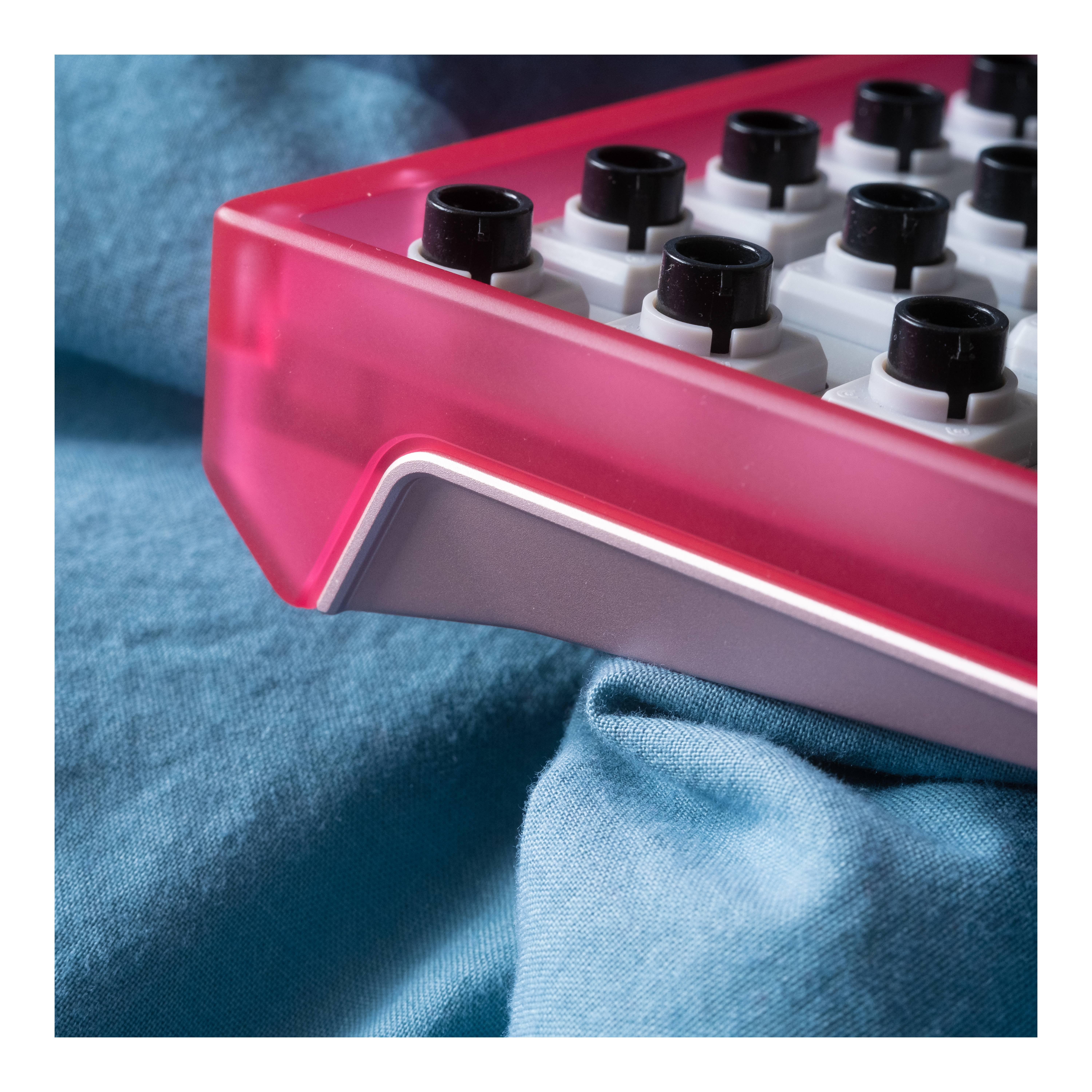

pics
Soundtest

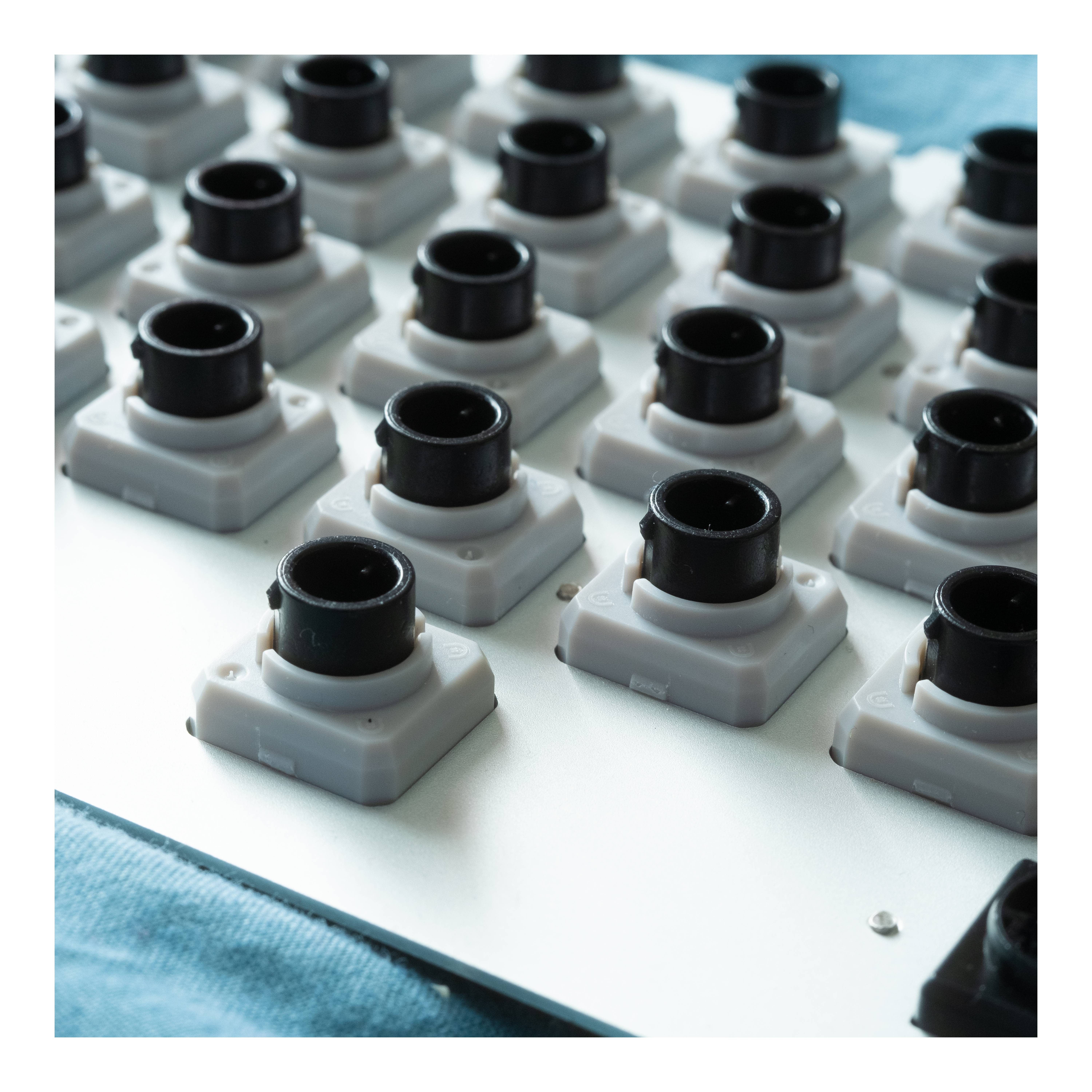

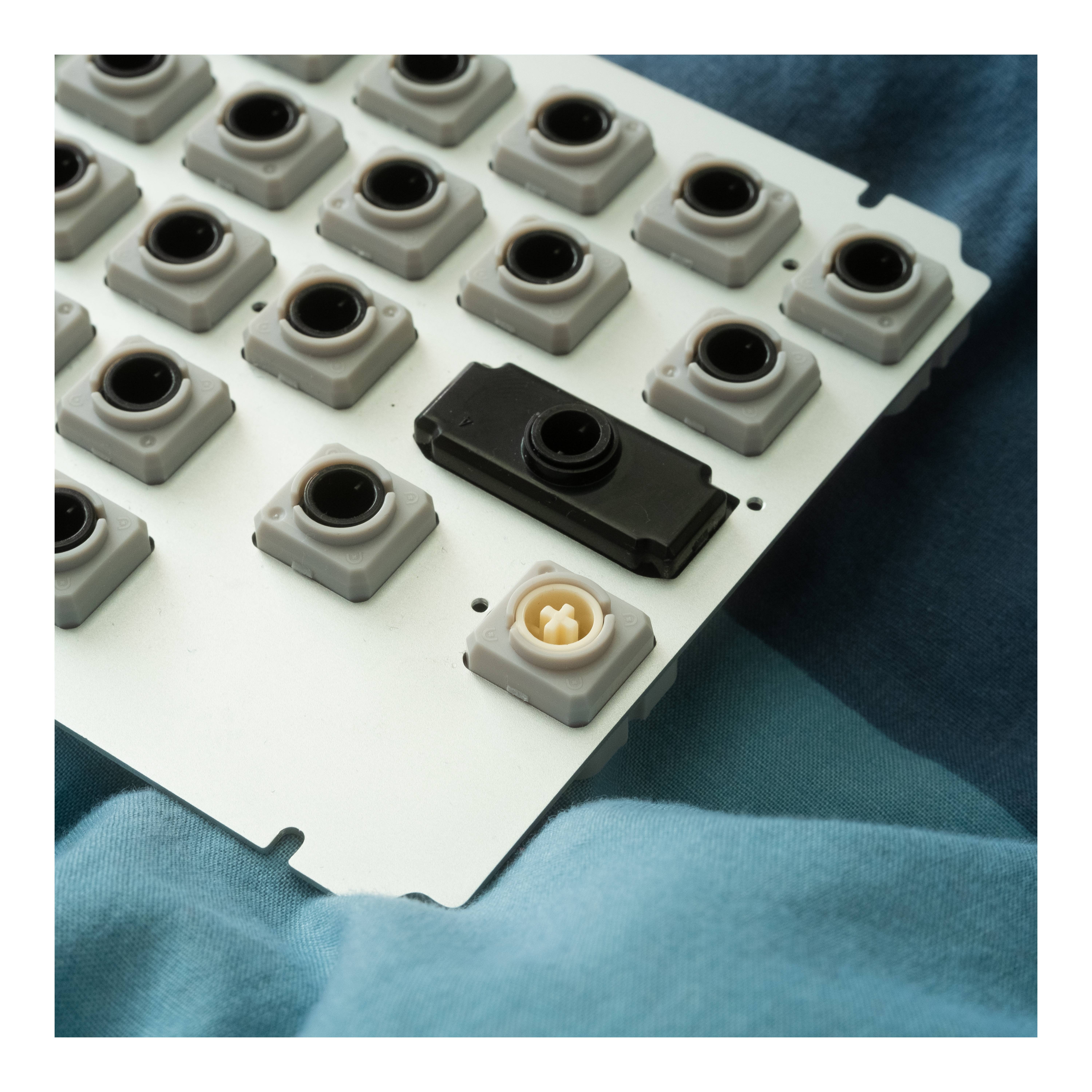

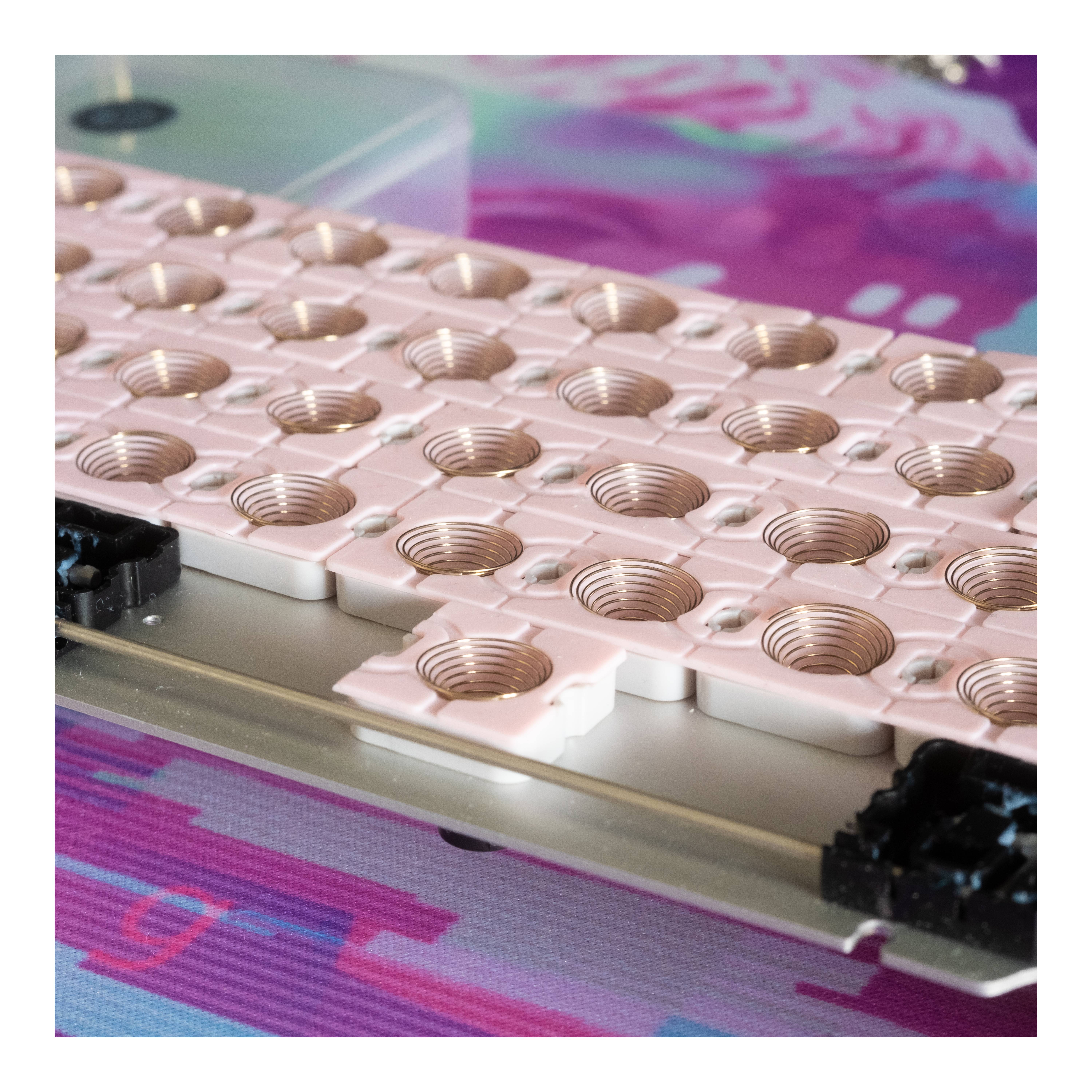

Build Process
More
Full Album
specs
Features

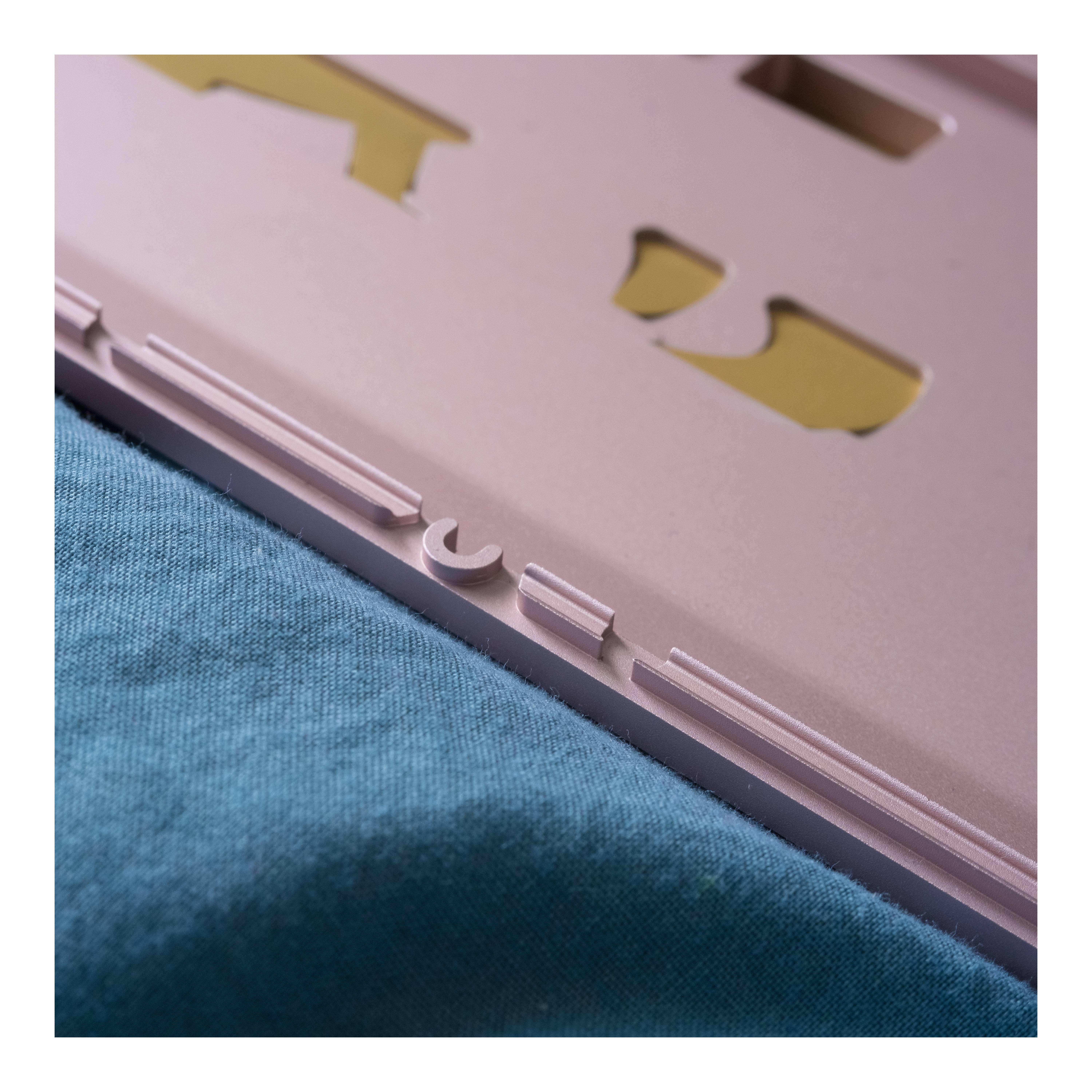

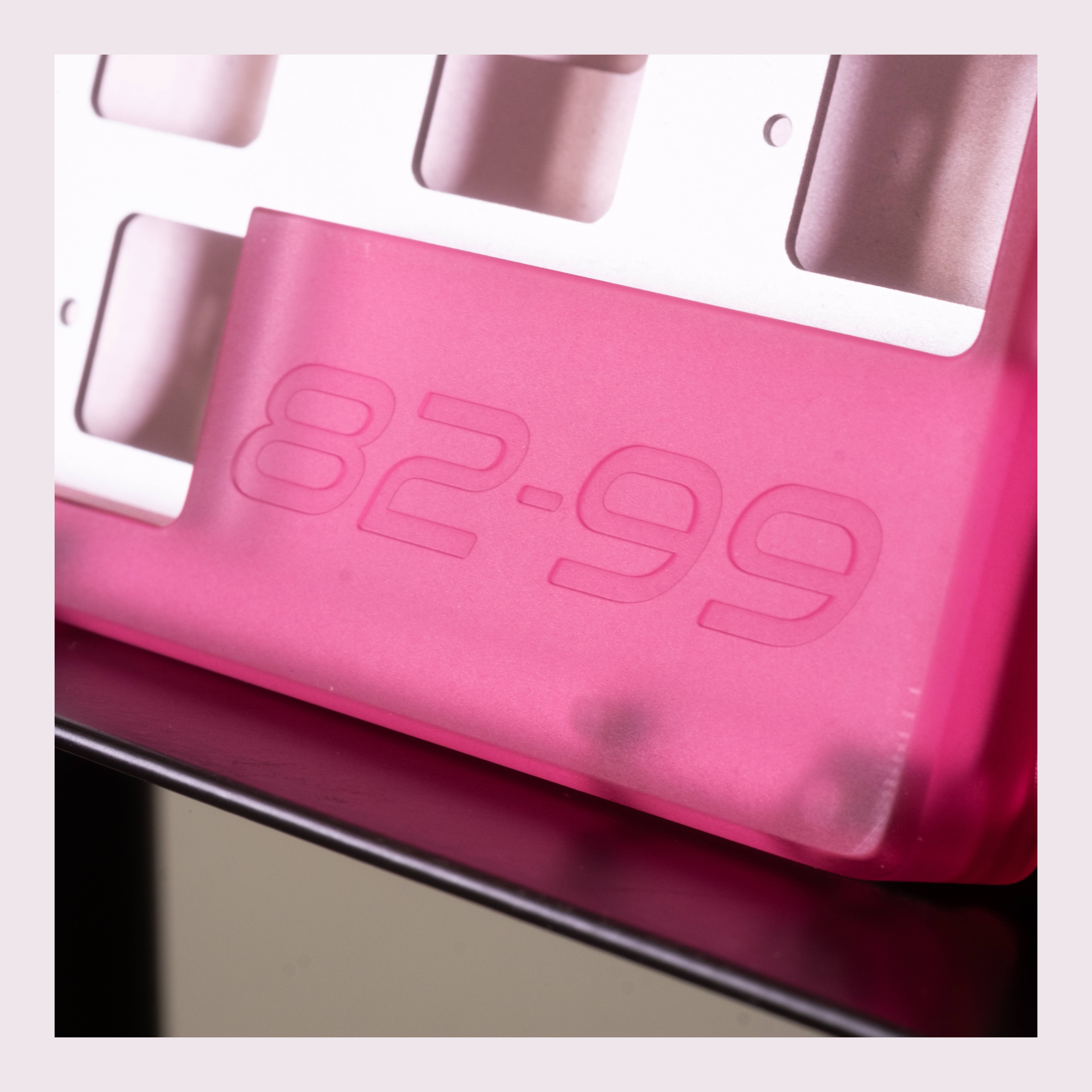

- Two tone unorthodox seam case
- Side exaggerated seams
- Low low front height
- Duck-inspired side profile
- G3 curvature corner fillets
- Thock stairs

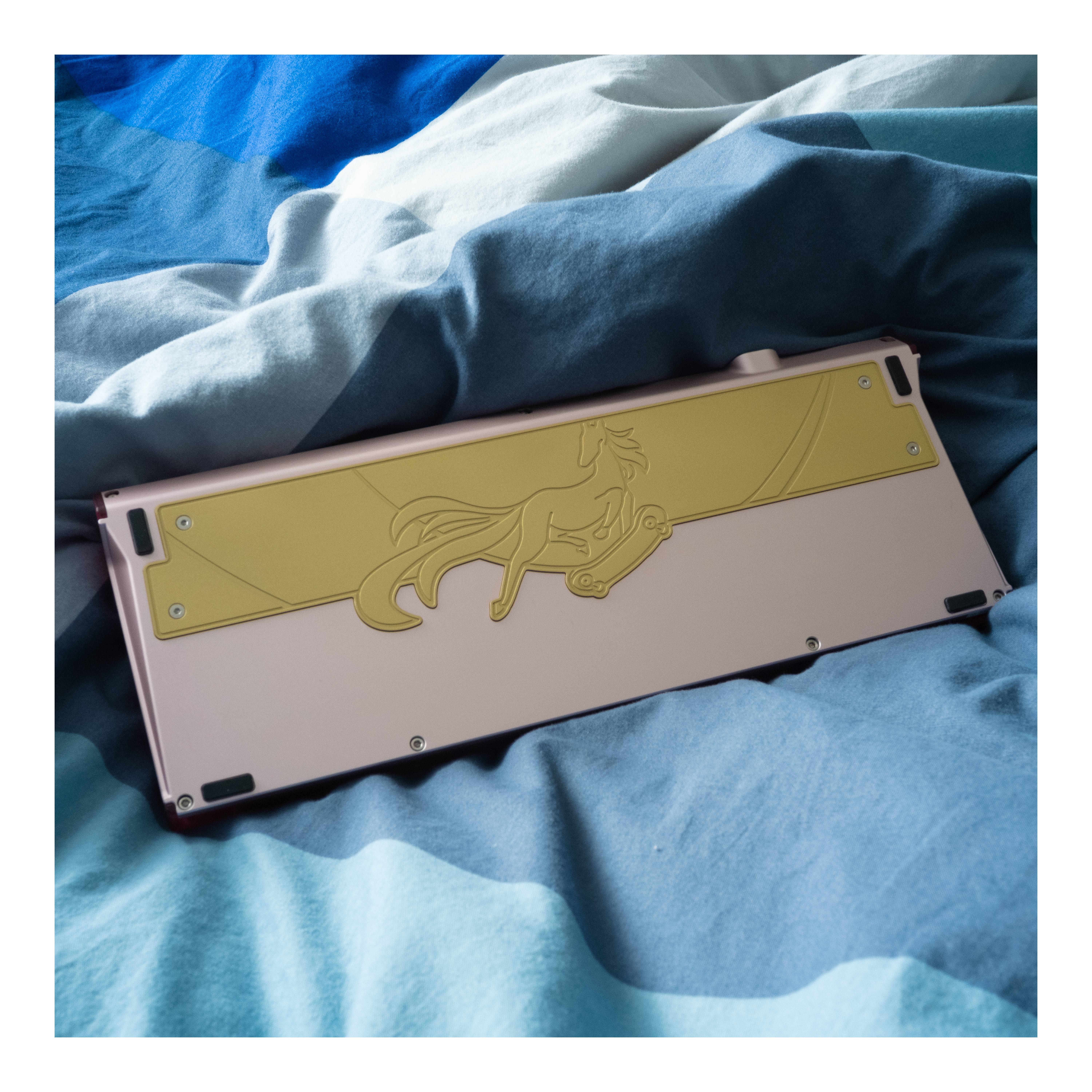

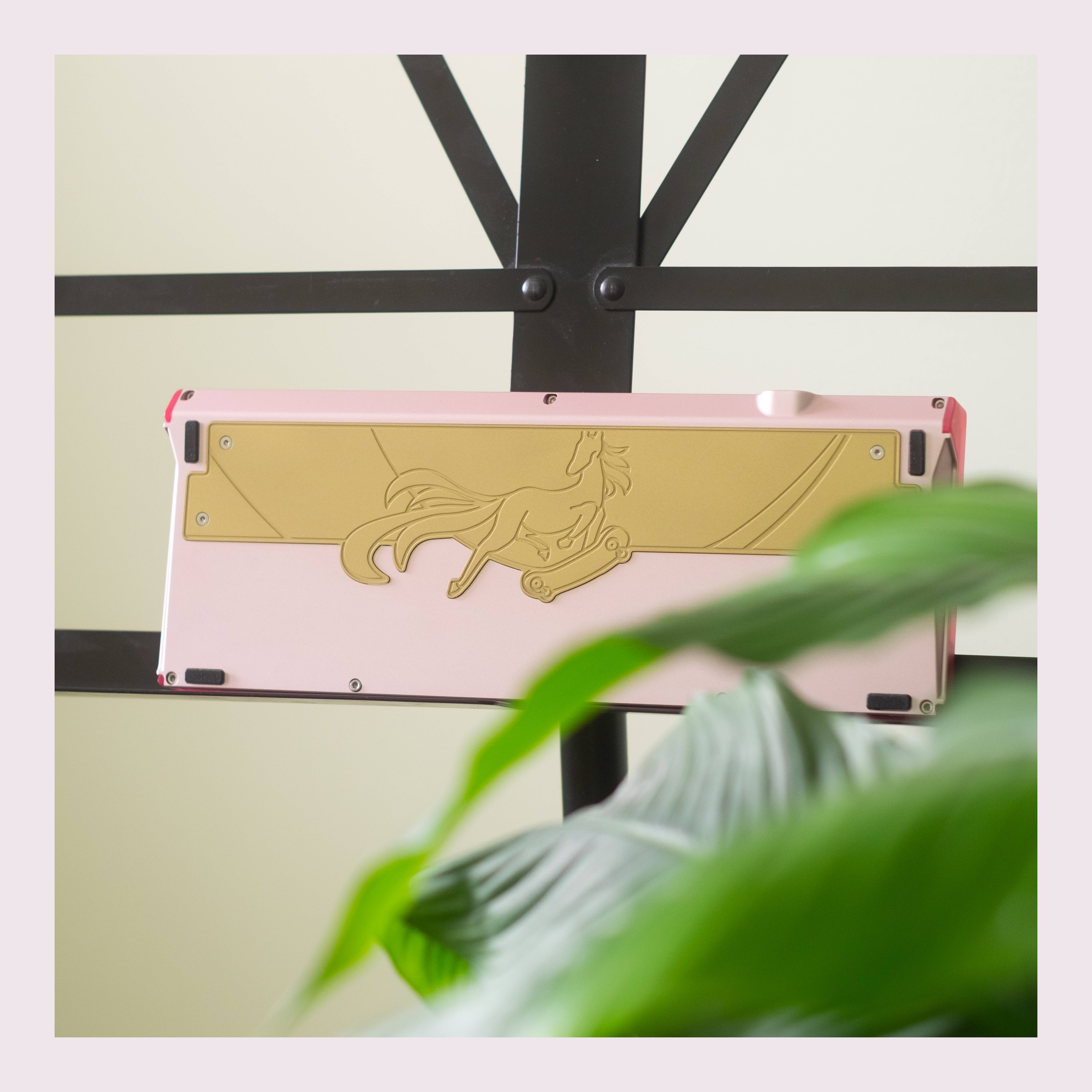

- Sick-ass external brass weight drawn by summerqm

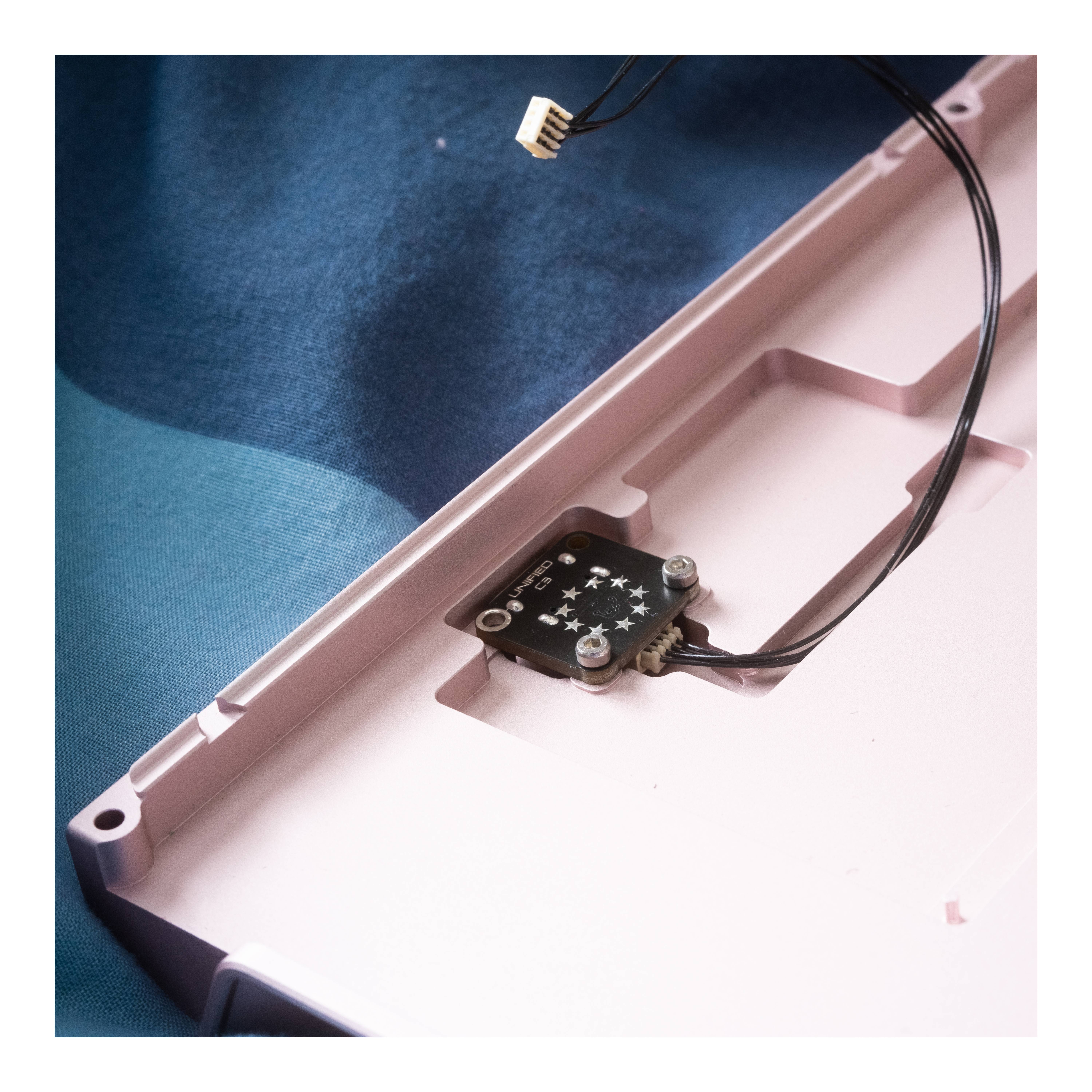

- C3/C4 Unified Daughterboard; I haven't picked which one yet

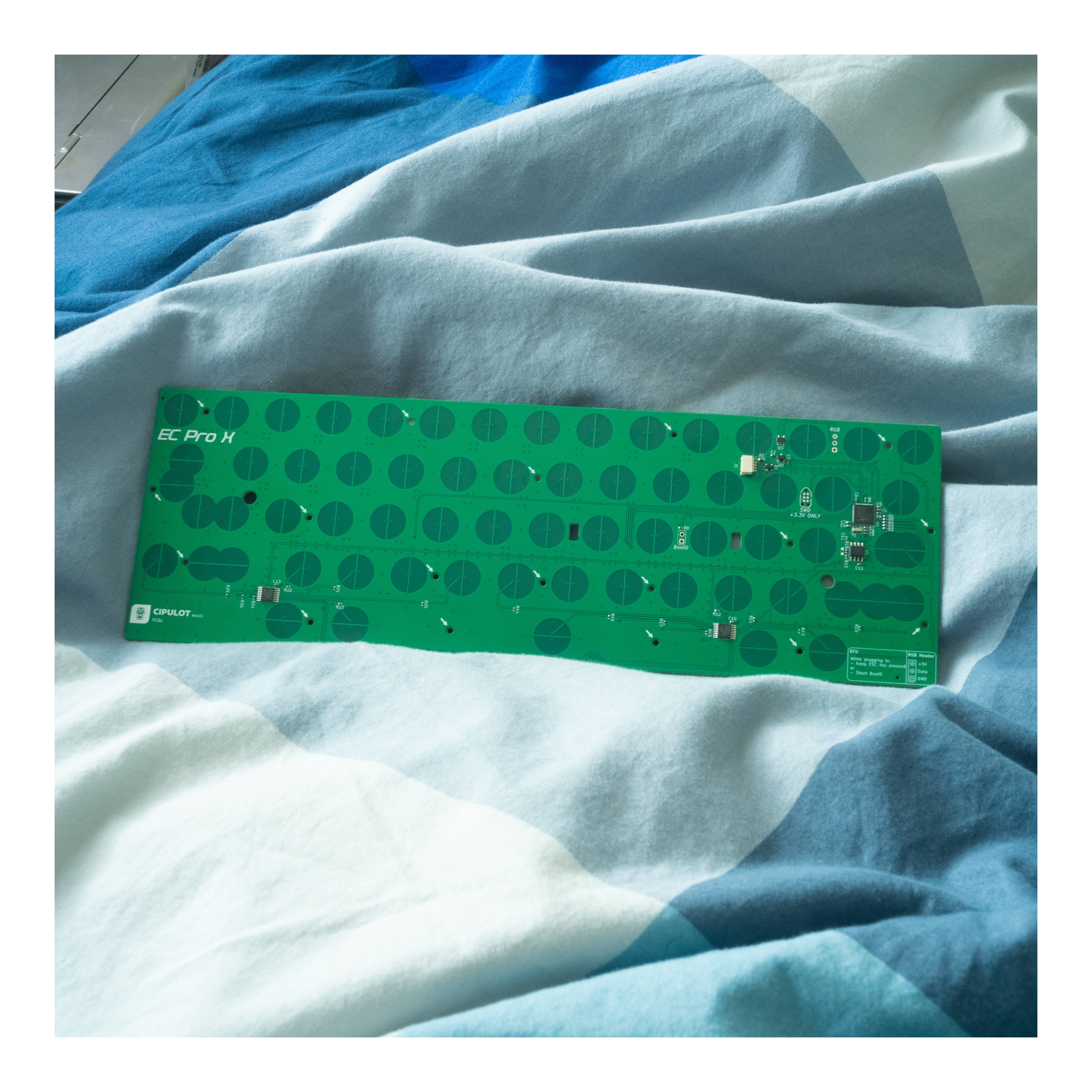

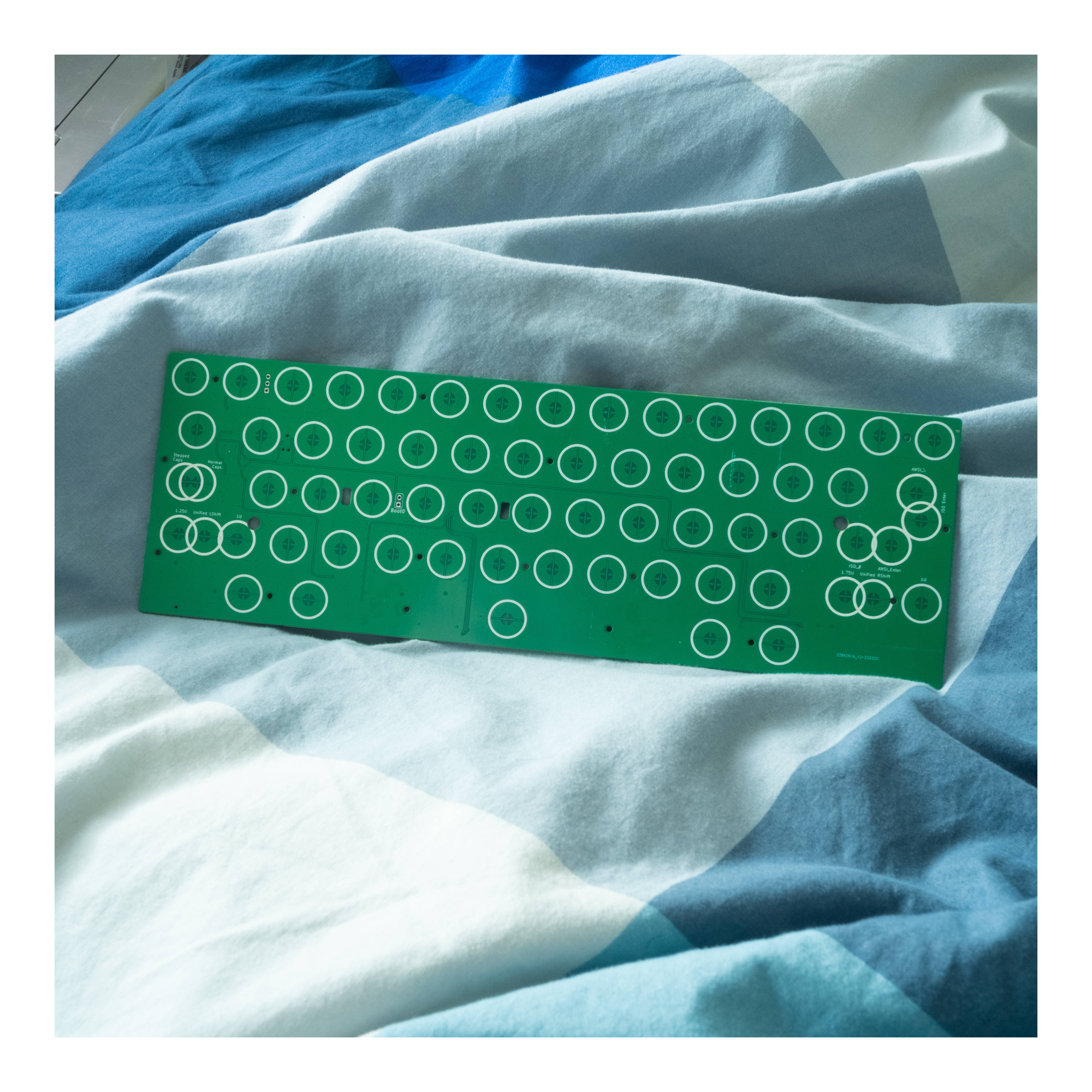

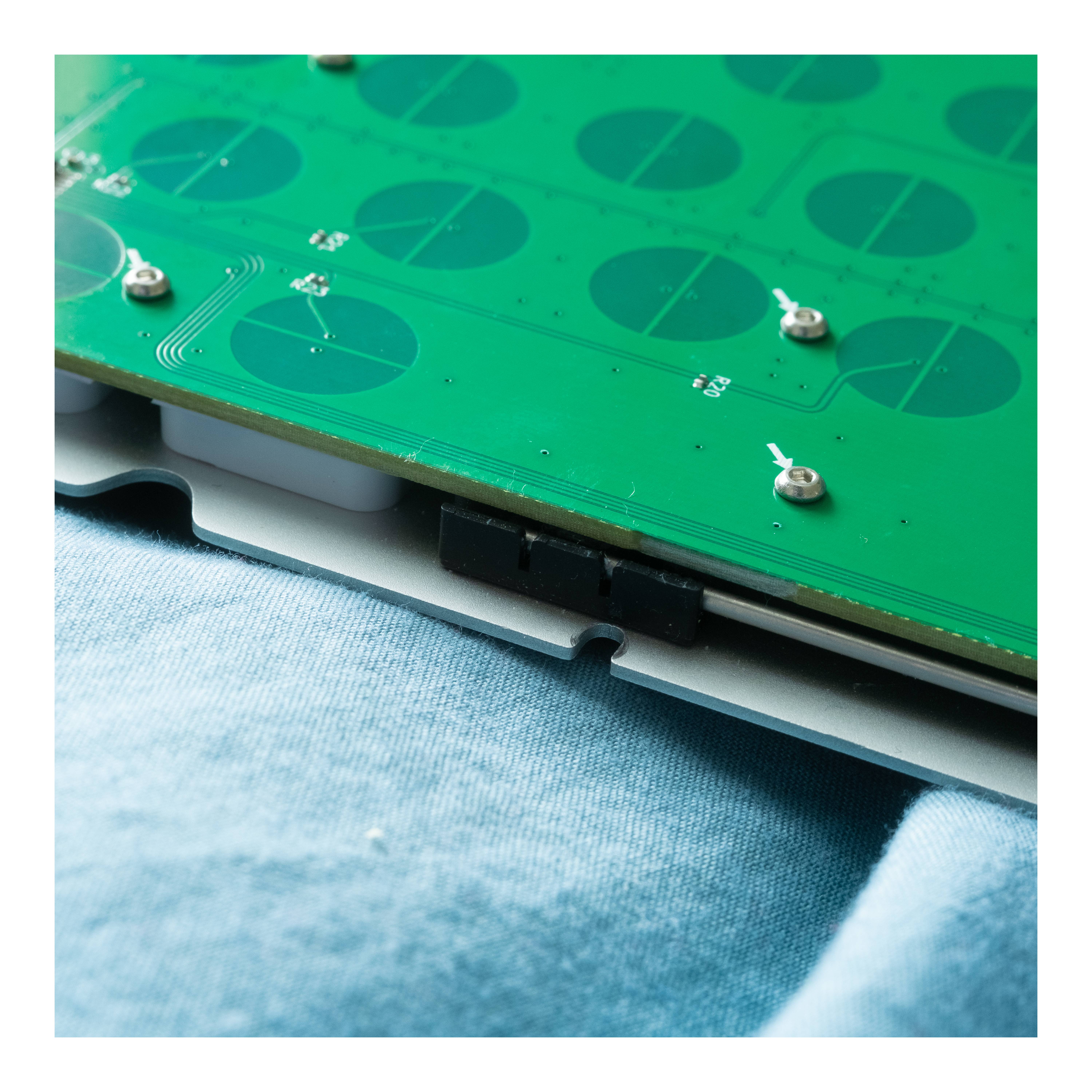

- EC Pro X PCB by Cipulot and modified BB60 by calliah

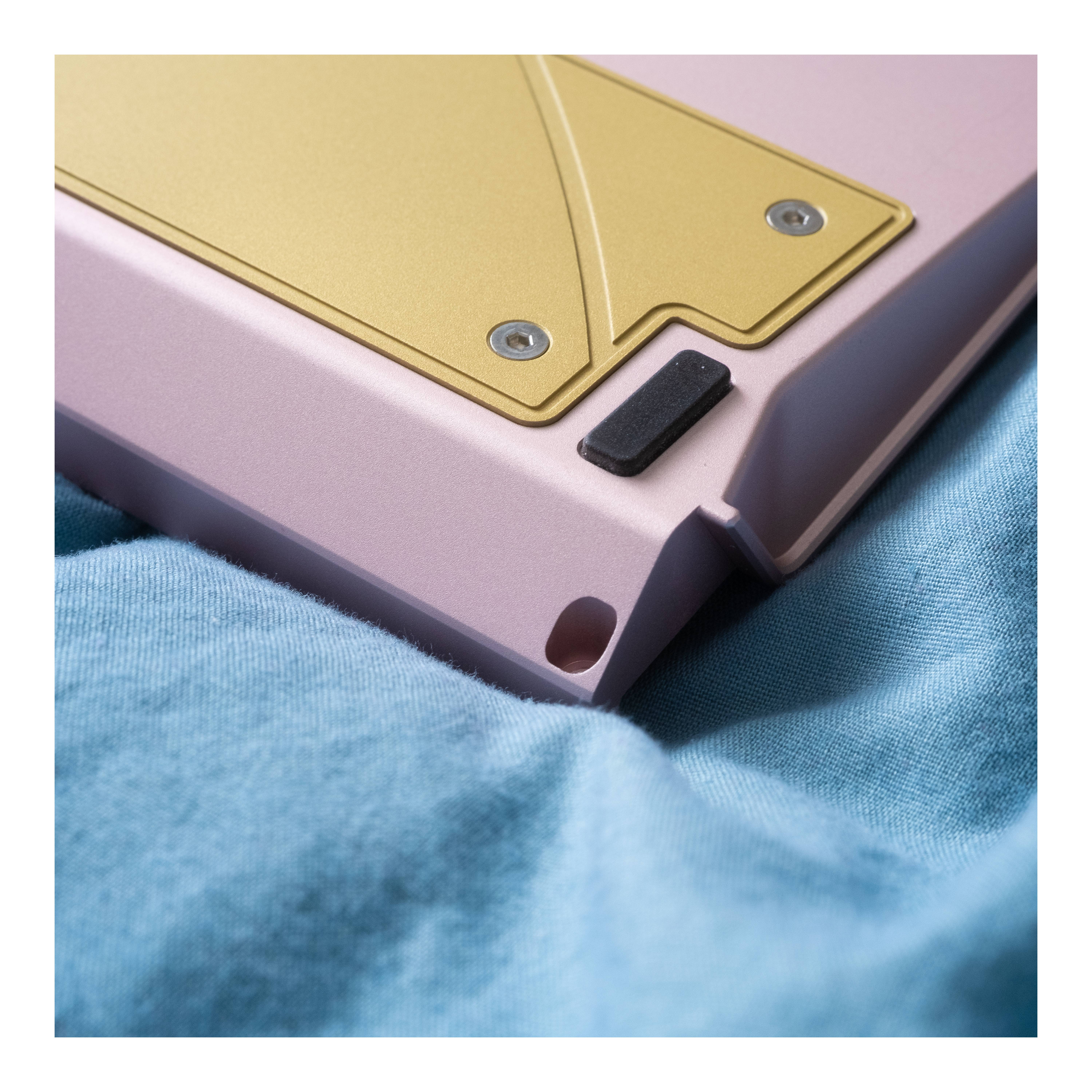

- AKB Bumpons
Tech SpecsLayoutFixed True HHKB
MountingTyping Angle8.299°

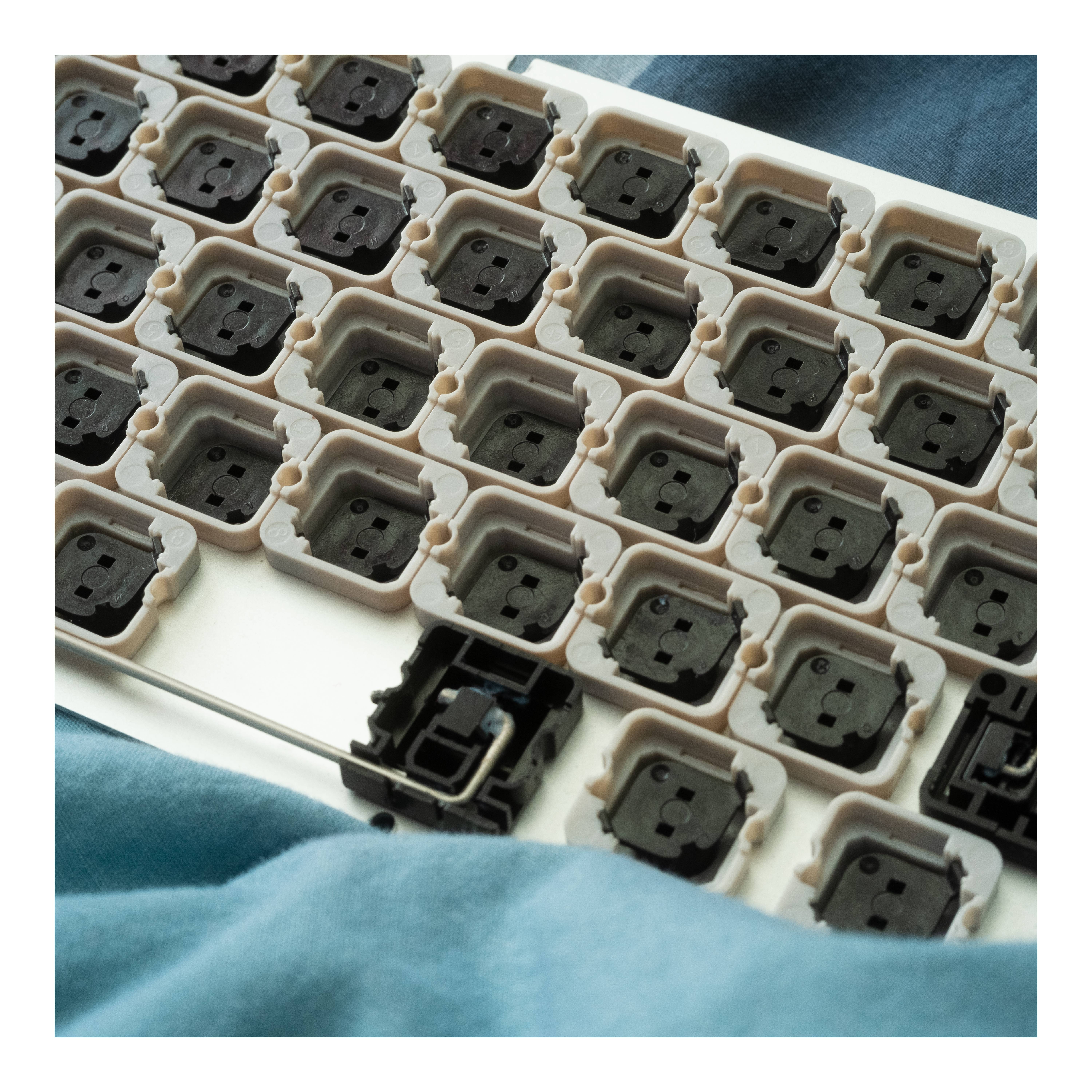

Switch CompatibilityEC, MX
Adjusted Front Height [2]16.179 mm
EKH [3]20.294 mm
Front Face Height15.3 mm
Case MaterialPC, 6063 Aluminum
Plate MaterialStainless Steel (EC), 5052 Aluminum (MX)
Weight MaterialClear coated/Powder coated brass

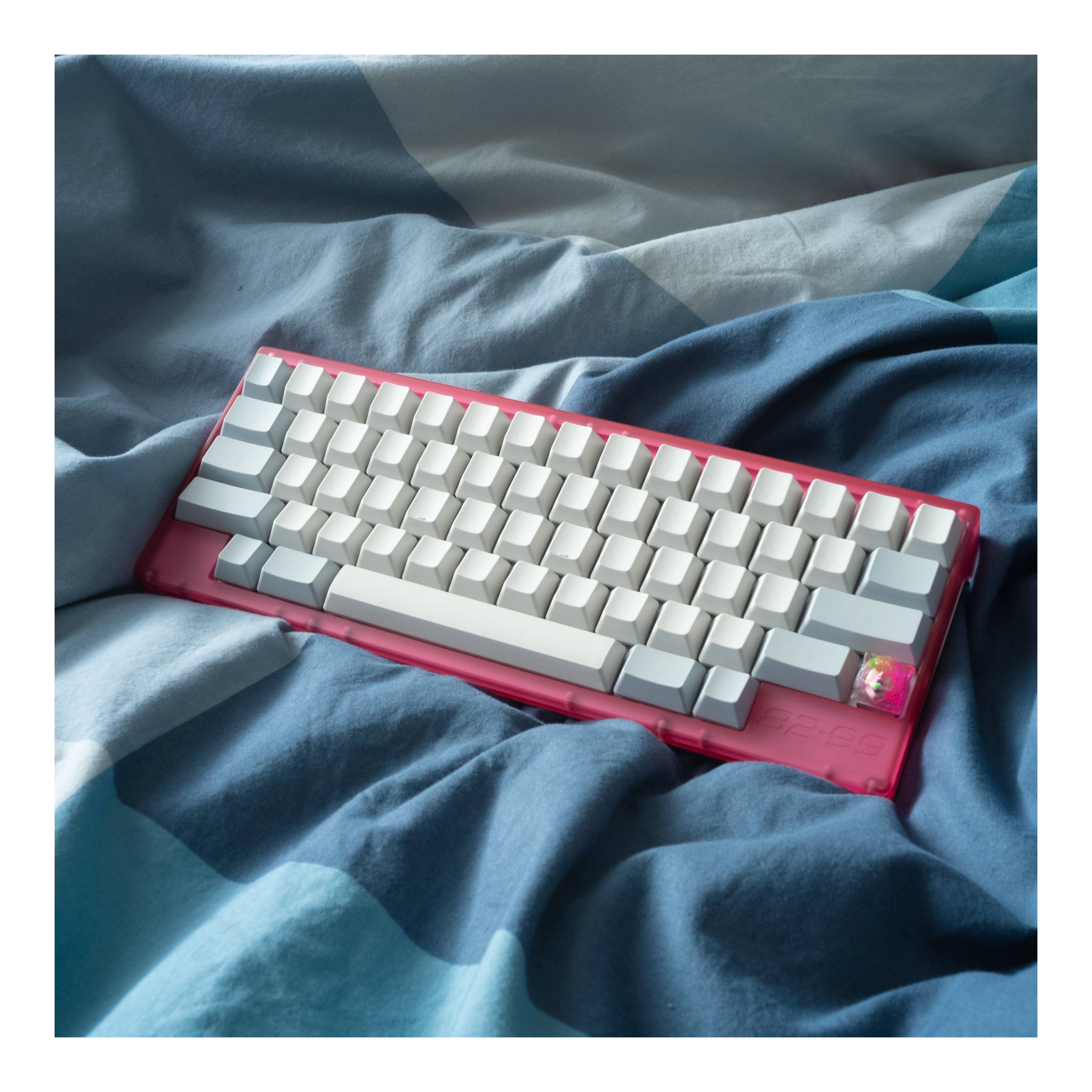

Colourways
- Magenta top, Pink bottom, Natural weight
- Black top, Pink bottom, Black weight
- Black top, Green bottom, Black weight
availability
The global vendor for this will be KLC.
I think at this point the unit count will ultimately be determined by how much the average keyboard hobbyist is interested in EC. Topre is still quite out there.
Time for a good social media presence to preach about the church?
KLC will be offering EC kits alongside this project, eliminating the need for donor boards. Cip says we should gut less Pro 2s in this world.
timeline
- Work out buy details
faq
Internal weight screws?
No, it raises price and machining more than I'd like. Plus I think my screwholes are cool.
Colours?
See here.
misc
Socials
Discord | Instagram | Site
Thanks
More
- Summer for putting up with my weird-ass requests
- calliah for teaching me how to order PCBs
- ankit for letting me scam him
- Syn for renders even though I didn’t end up putting his renders in this IC
- tay for helping me think of people to put here
- Macross
- and Cipulot, the best pope-yo for the press from Tokyo
^ 1. Not "true" F1 mount as the O-ring cord is cut and there's no topside isolation.^ 2. Measured without feet. ^ 3. Uses the MX style model in the plate which rests slightly higher than Topre; .2-.3 mm lower would be more accurate.
