Current Status:
Closed, all orders shipped
Houndstooth Keyboard Kit (QMK Compatible)
Join the buy here
https://www.etsy.com/listing/717316405/
Case Options
Basic case
Full case
High Profile Case
This is a Group buy, and will ship 6-8 weeks after the close date on July 25th

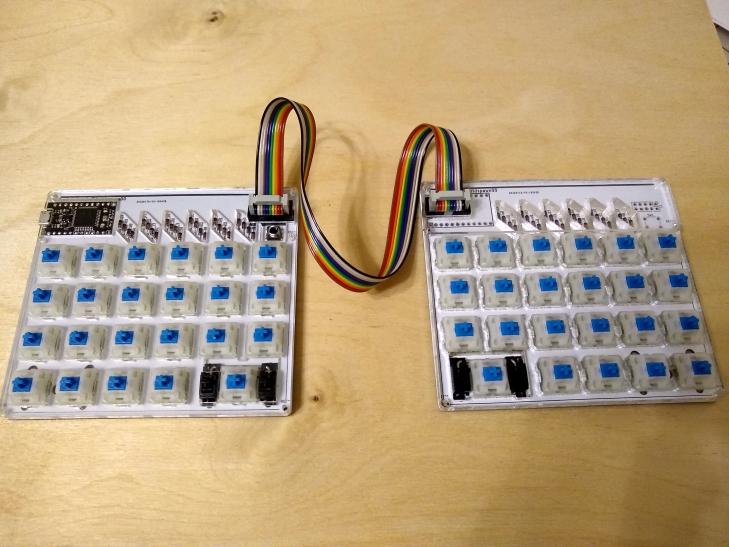

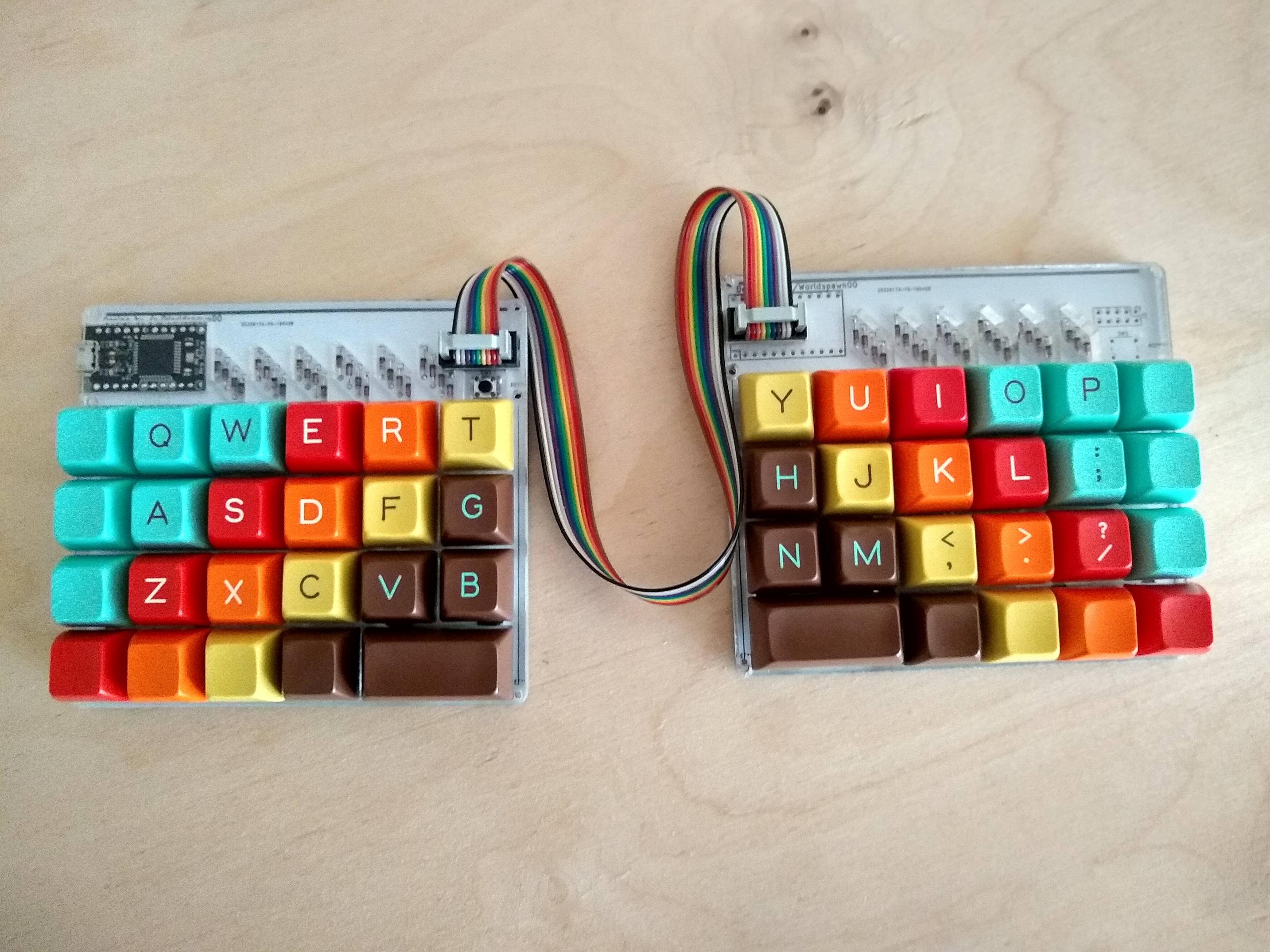

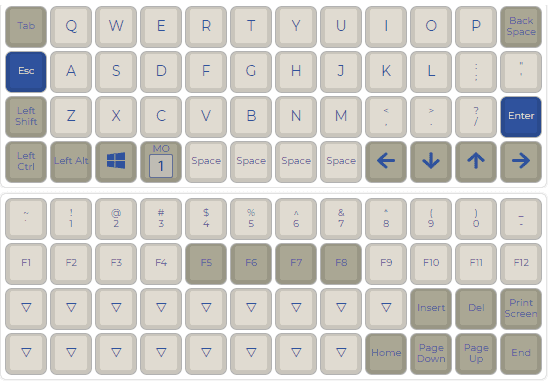

Playing on the theme from the Plaid and RoMac keyboard kits, this is a split keyboard design featuring only through hole soldering for the end-user. Layout options
http://tinyurl.com/y4qxt9c9Pricing:
PCB set $18
Kit with basic case $35
Kit with full case $45
Kit with hi pro case $50
Houndstooth Keyboard Kit (QMK Compatible)
All the parts you need to build the Houndstooth keyboard except switches and keycaps, compatible with MX and choc keyswitches.

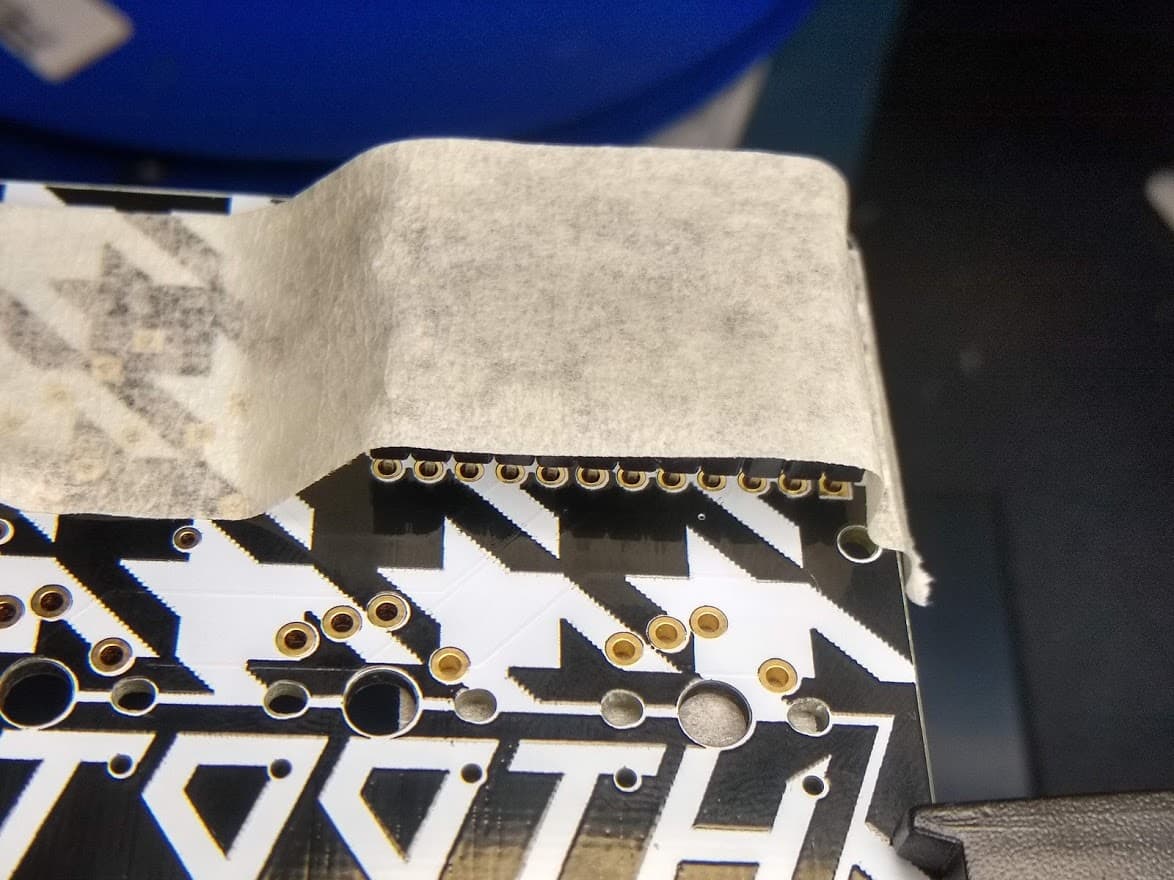

-2x Houndstooth PCBs (white PCB , black silkscreen, gold plated pads)
-1x case set (choose basic, full, or high profile, see below for description)
-1x hardware set for case

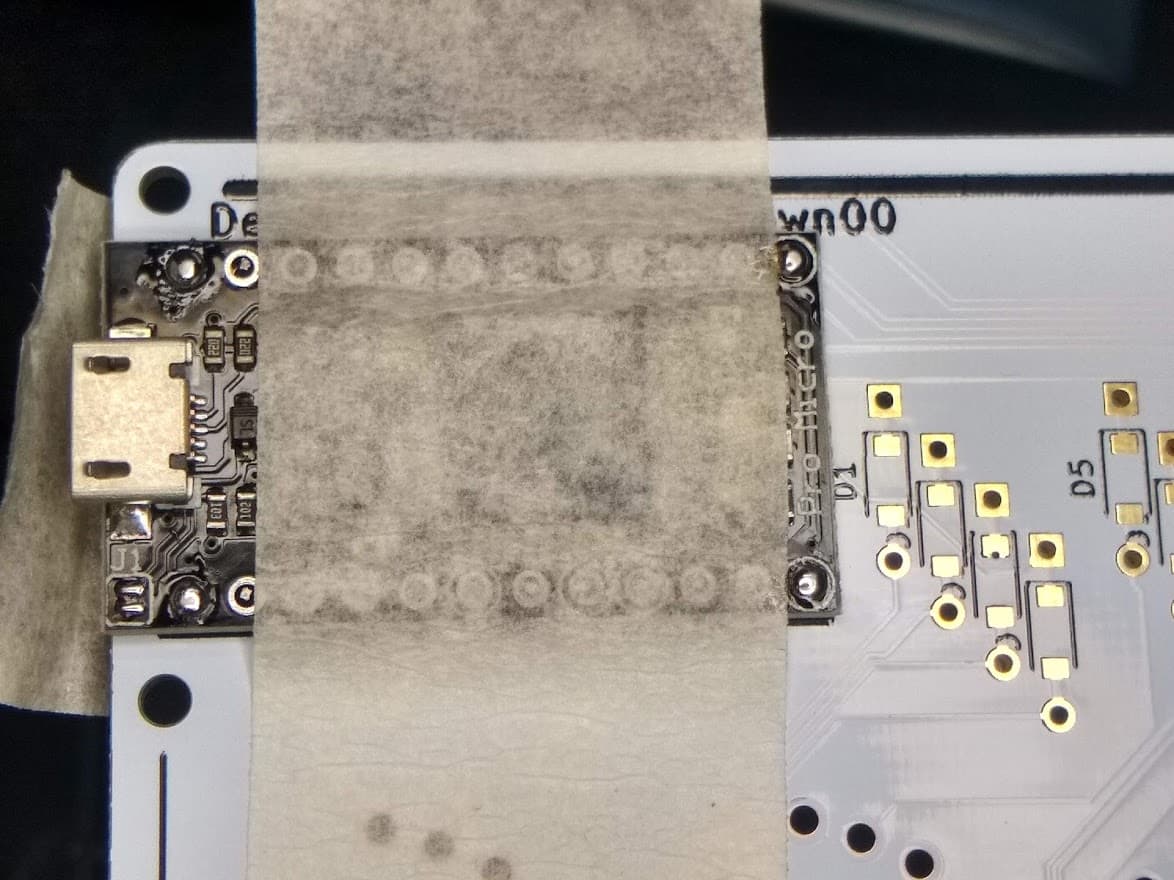

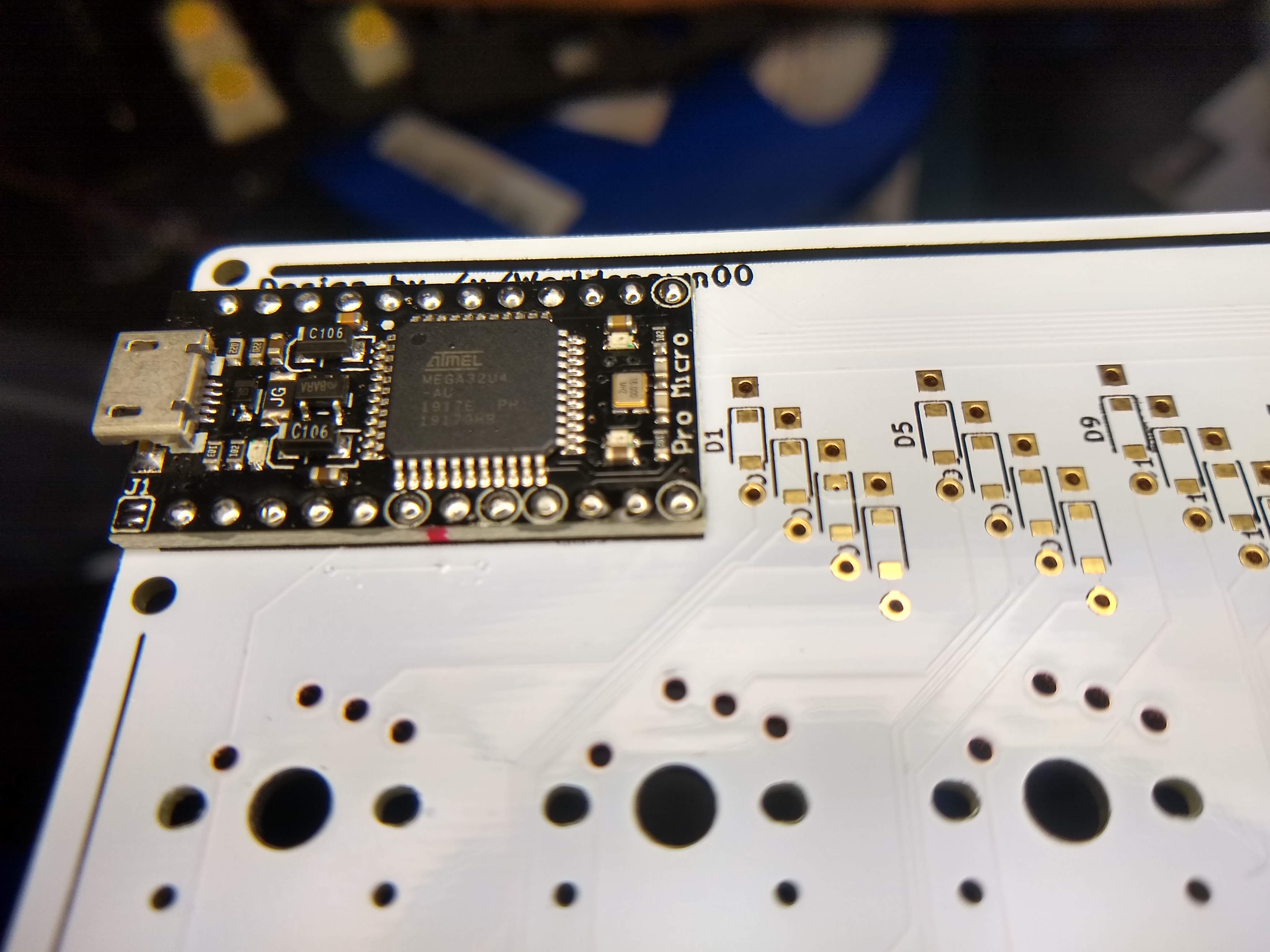

-1x Pro Micro microcontroller with headers (comes preprogrammed with a standard keymap, no programming necessary to get started!)

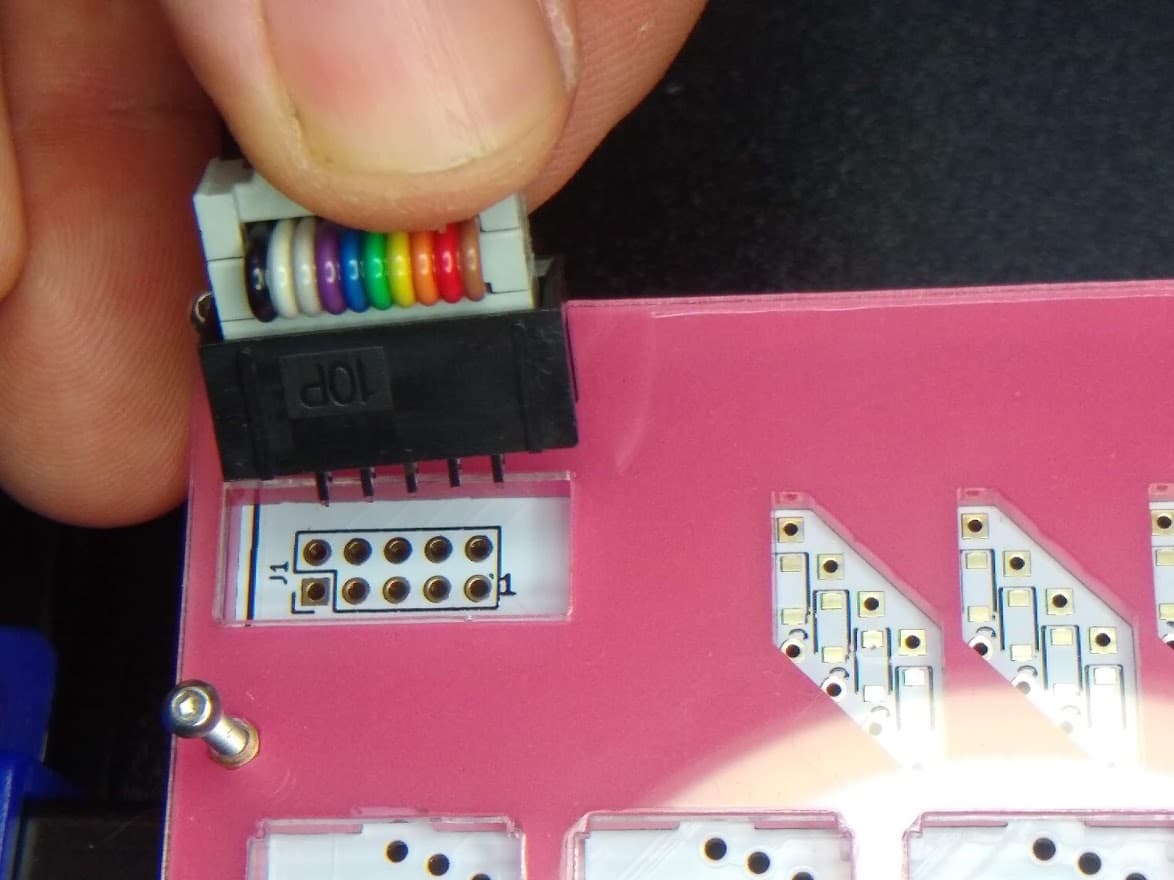

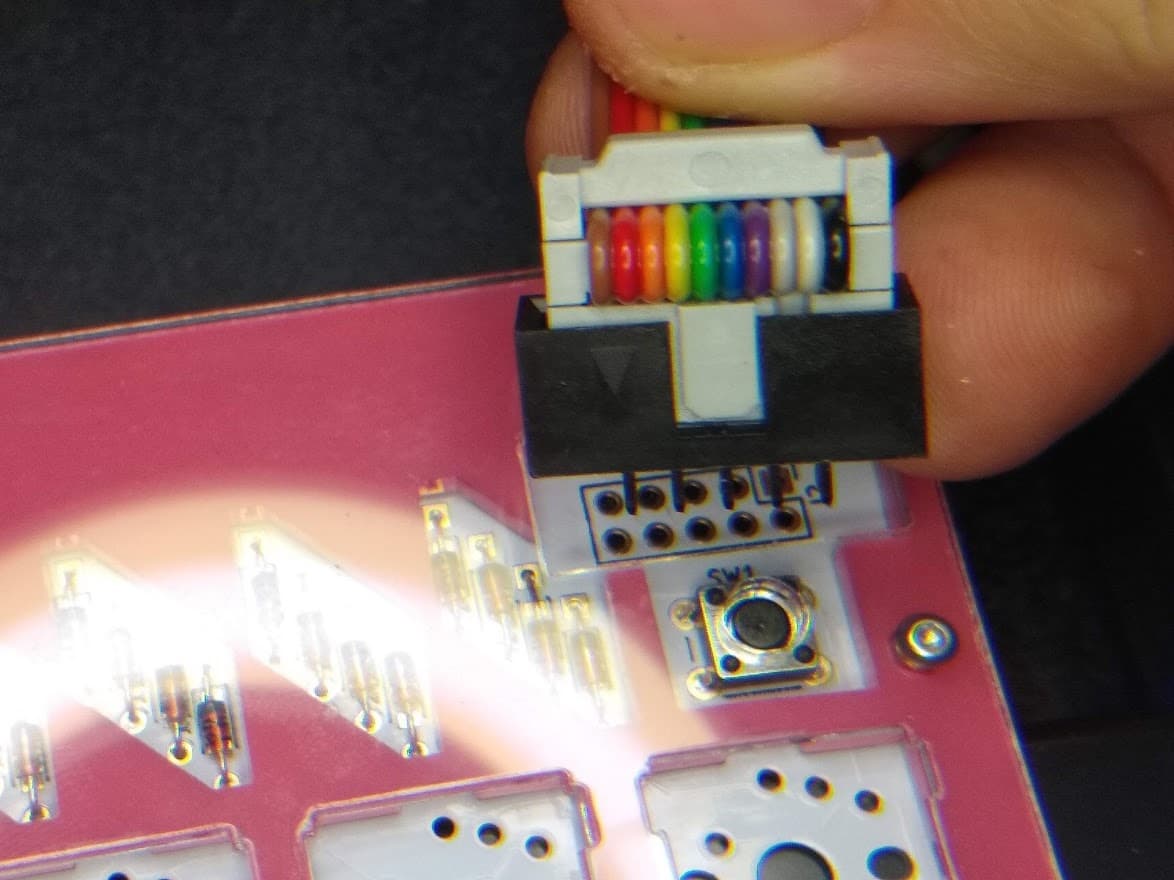

-diodes, ribbon connector, and other necessary electronics components

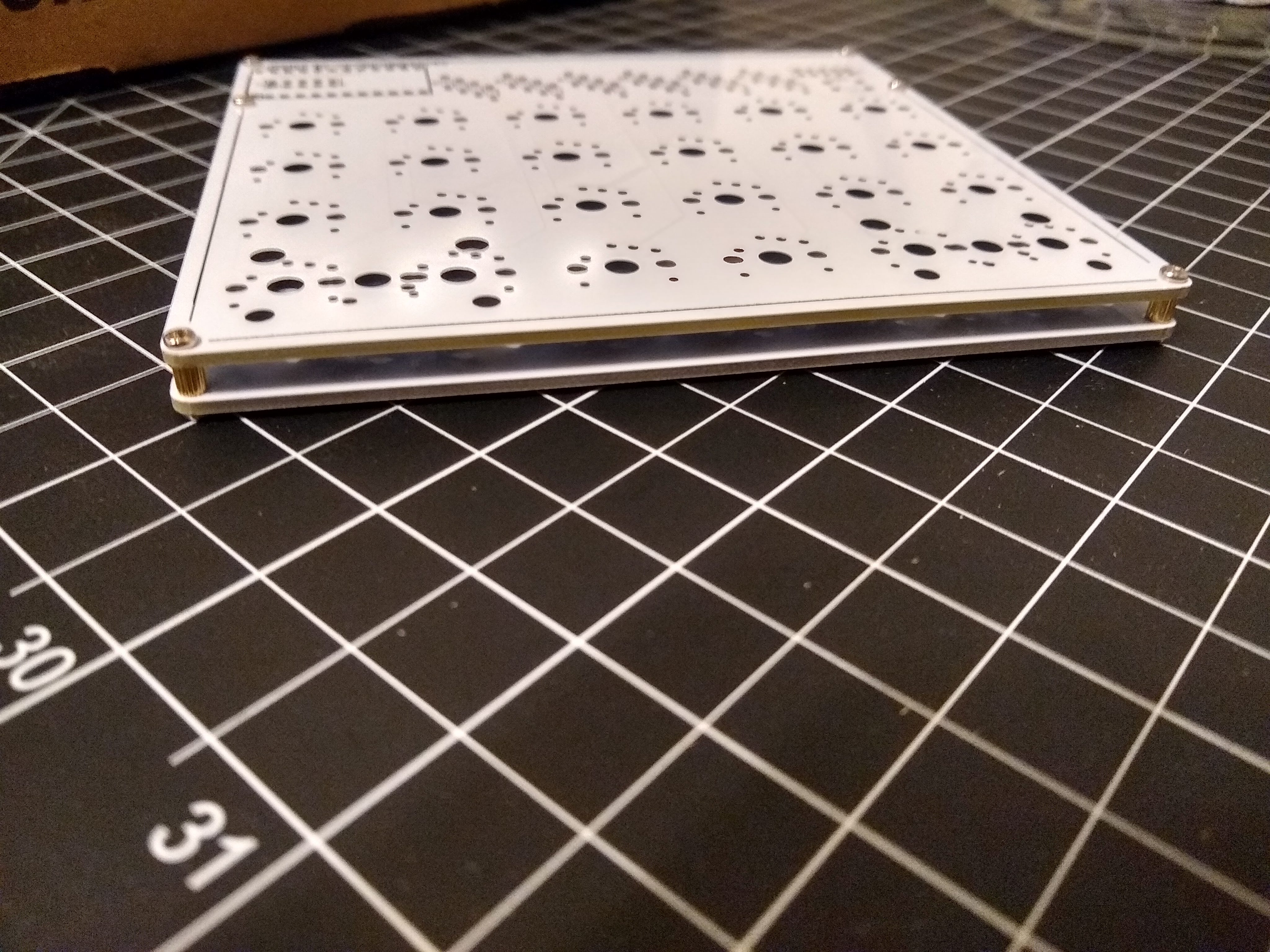

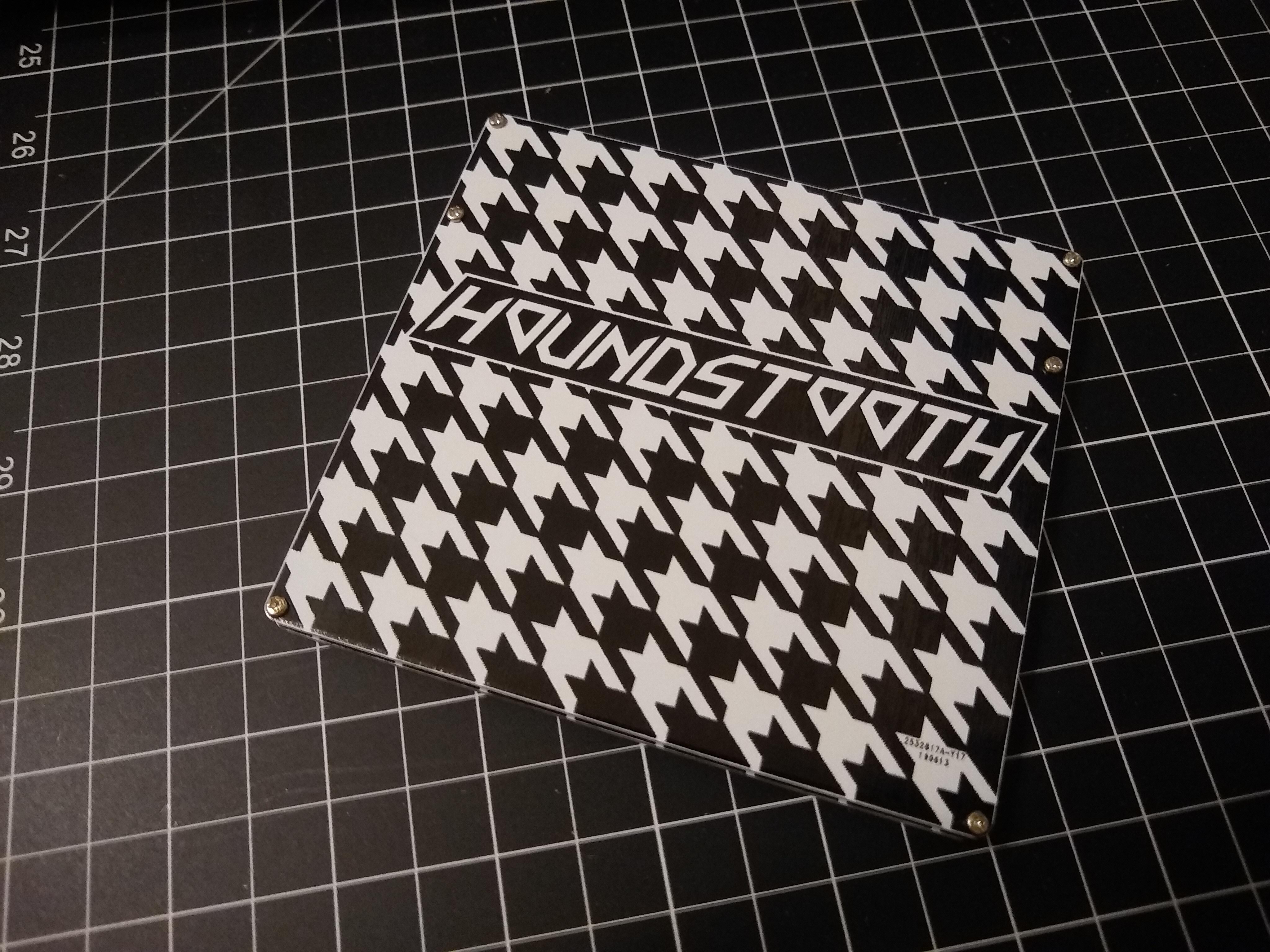

Basic case:
This includes just the bottom plate, sufficient to support the board and protect the soldered components from touching your desk.
includes necessary screws and standoffs
Full case:

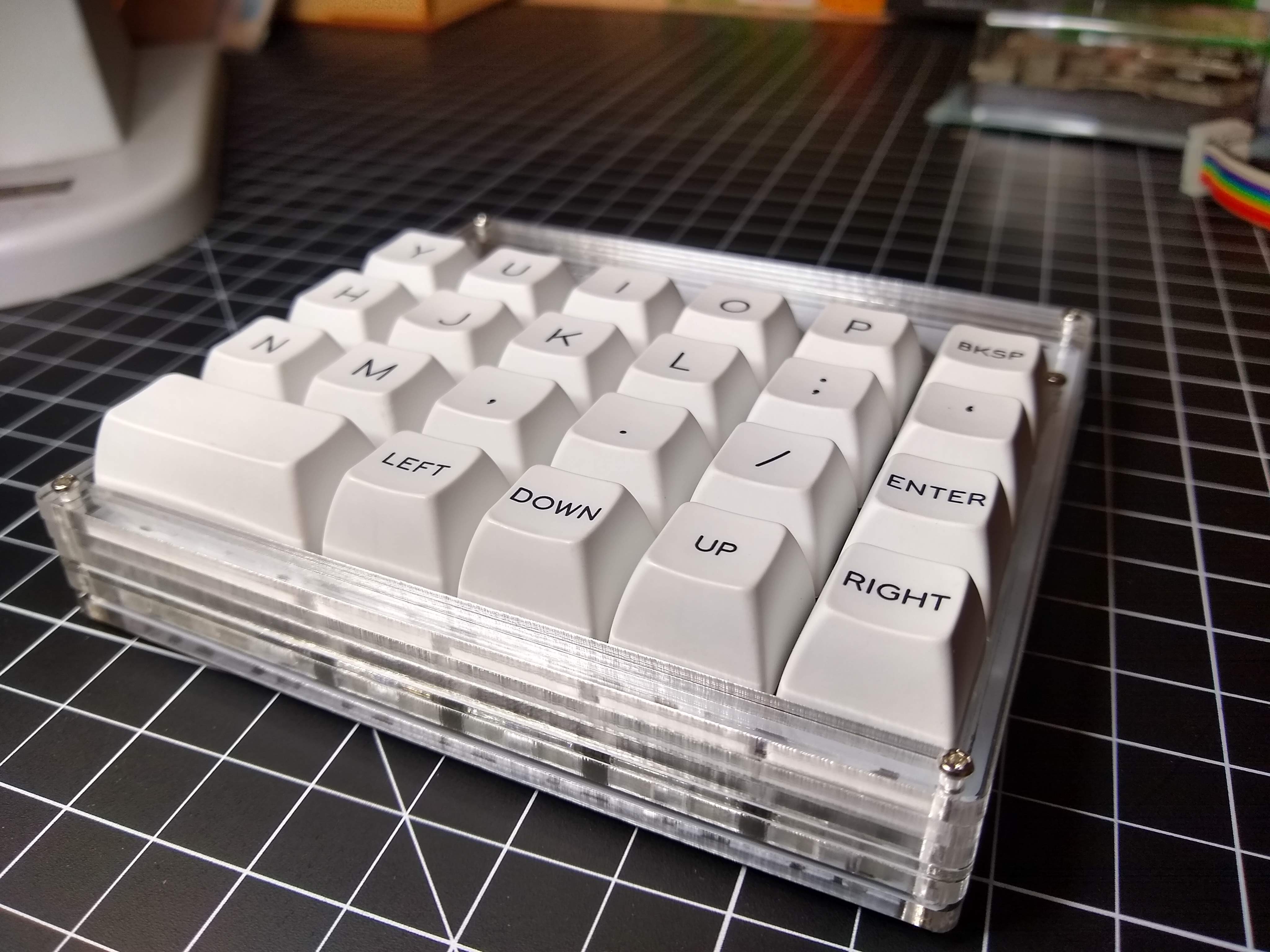

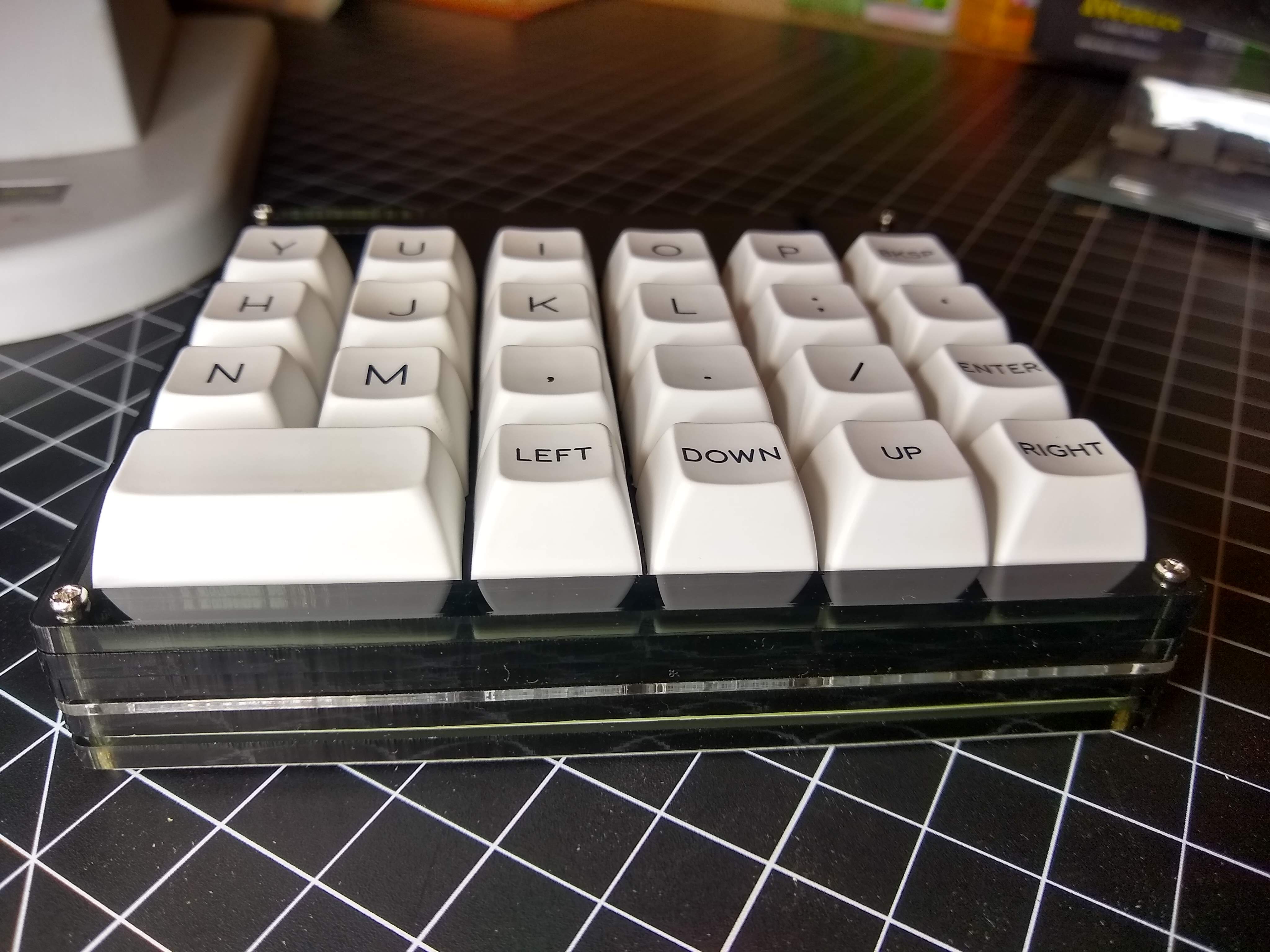

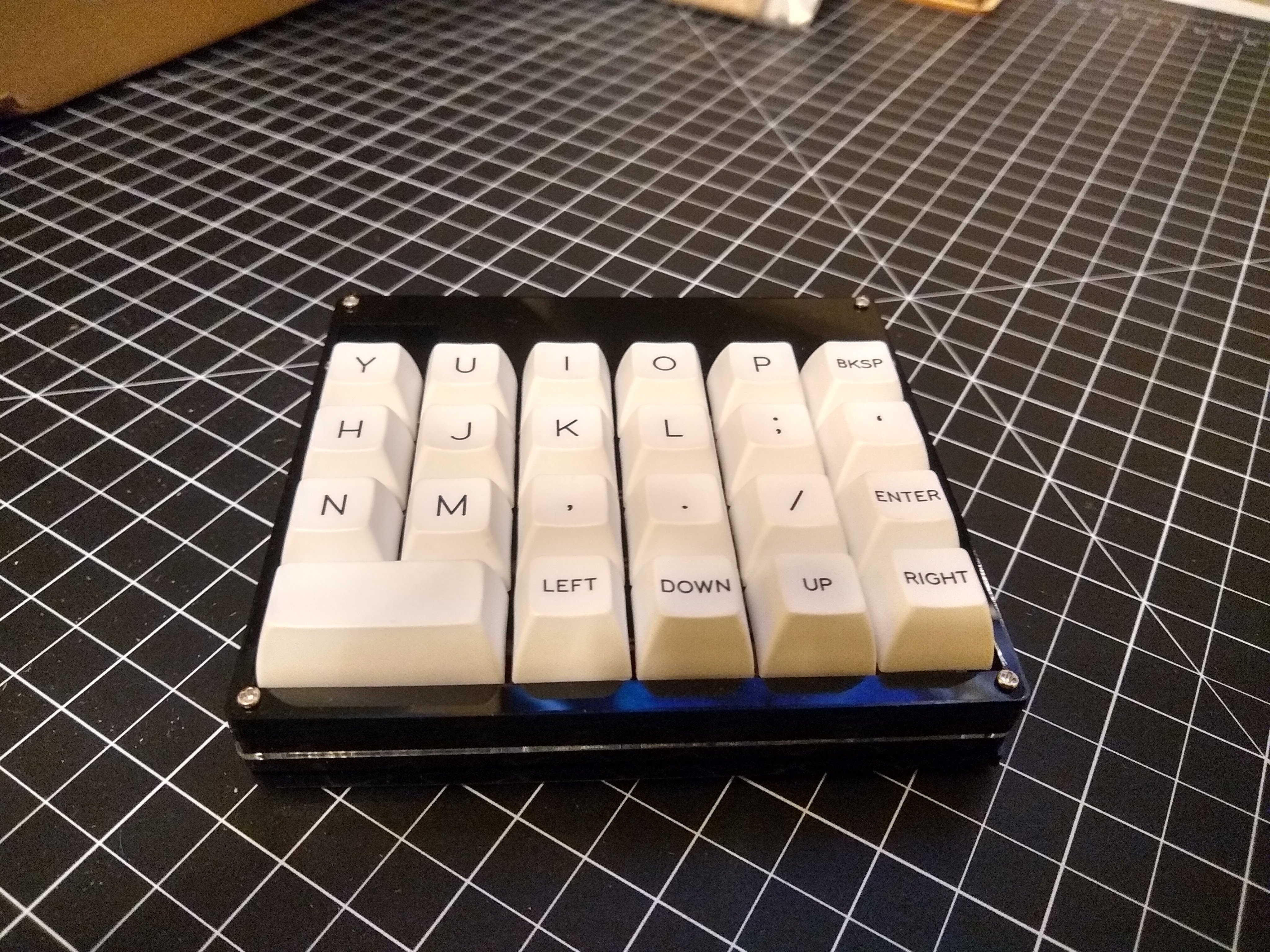

Basic case plus plate and midlayers to enclose the electronics.

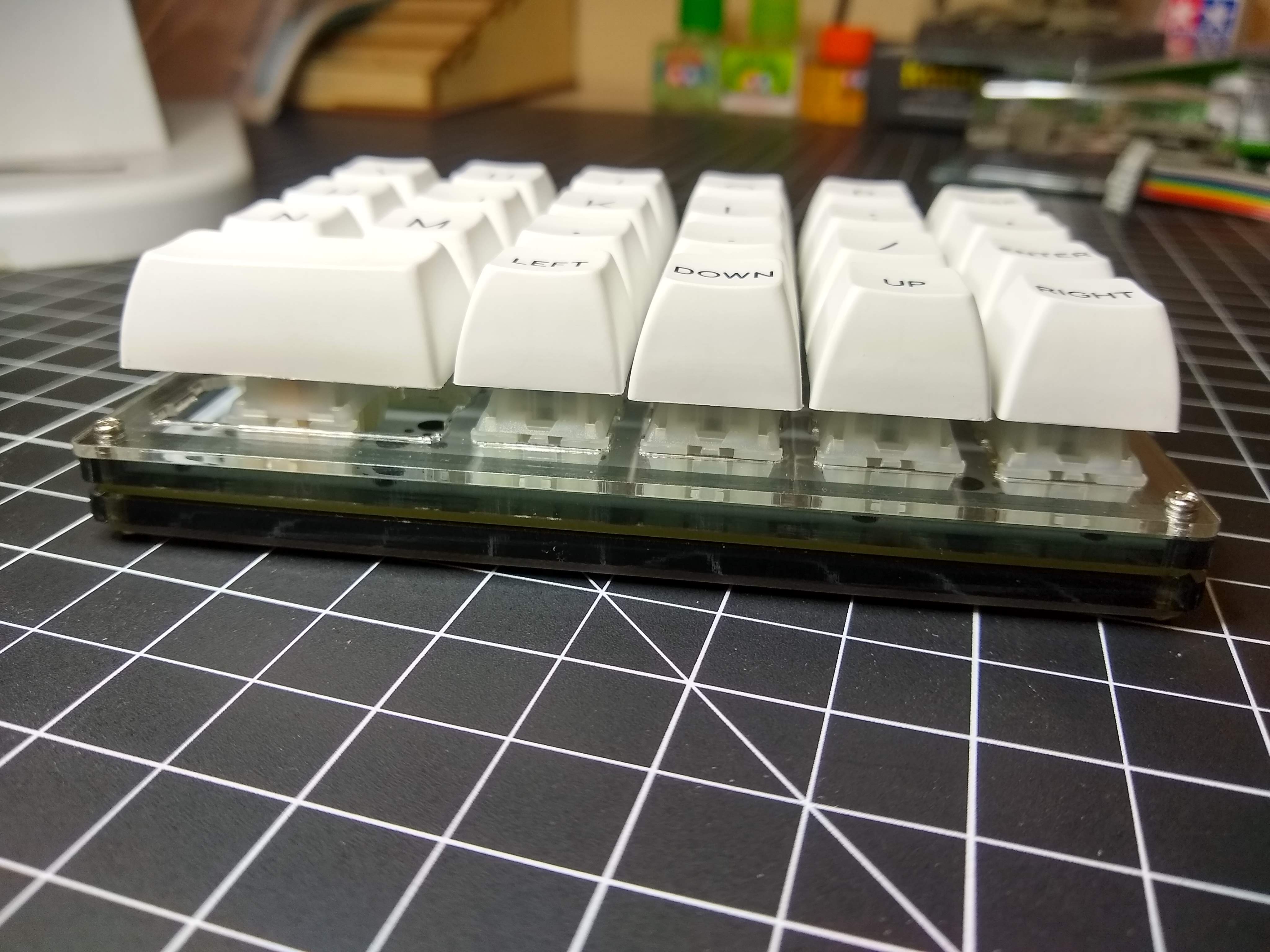

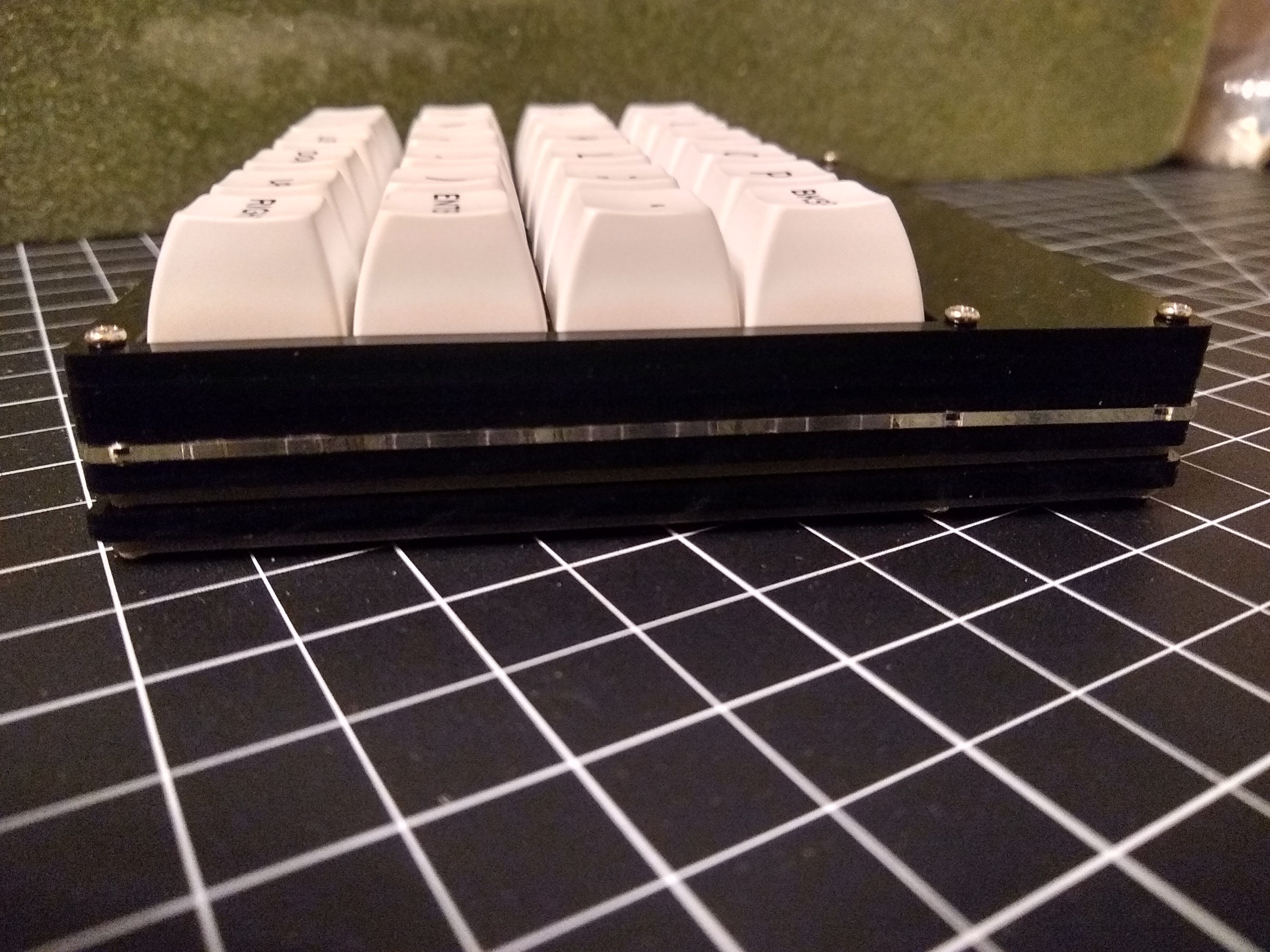

High profile case:
Same as the case above, but includes bezel pieces.
Cases are available in Clear, Black, or Gray.

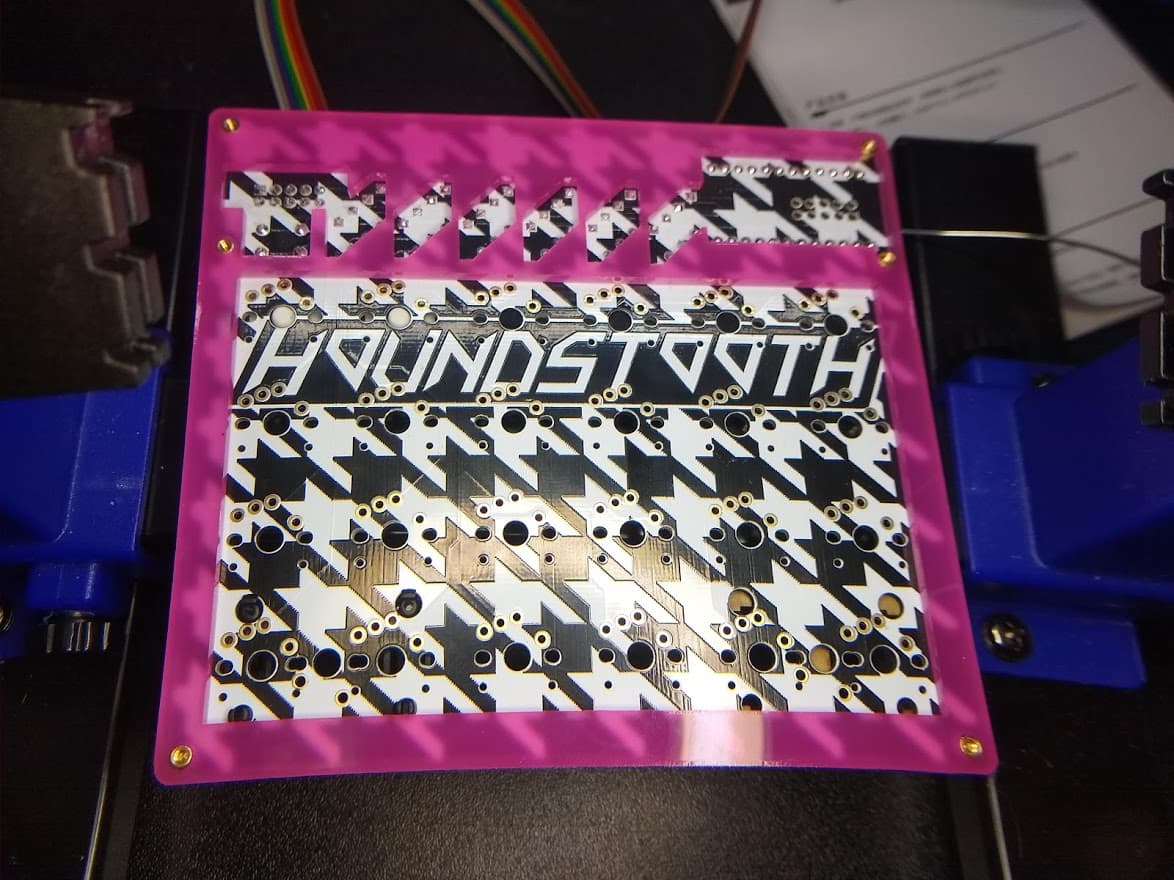

Houndstooth PCB
-Just a pair of PCBs, included in the kit above, this is for individual PCBs or extra PCBs, this does not include the bottom layer.
