humble40 - 12.5u WKL 40% - Extras are up! Shipping rates fixed!

Worldwide Vendor: Eye Oh Designs
75 FCFS units
GB ends 8 July
Estimated fulfillment: October 2022

Follow the active discussion on the 40s Discord Server. Head to the channel #join-ic-roles-here to join the #humble-40 channel and follow along!

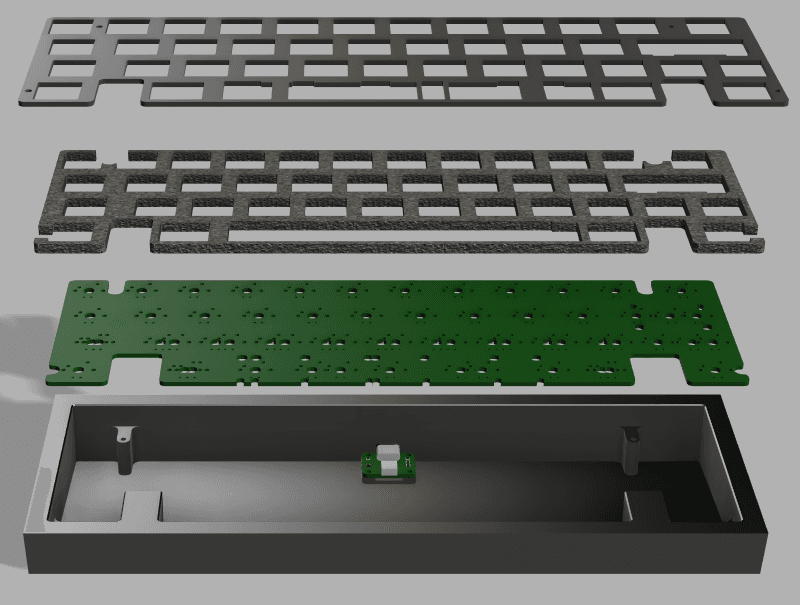

Case/Plate:

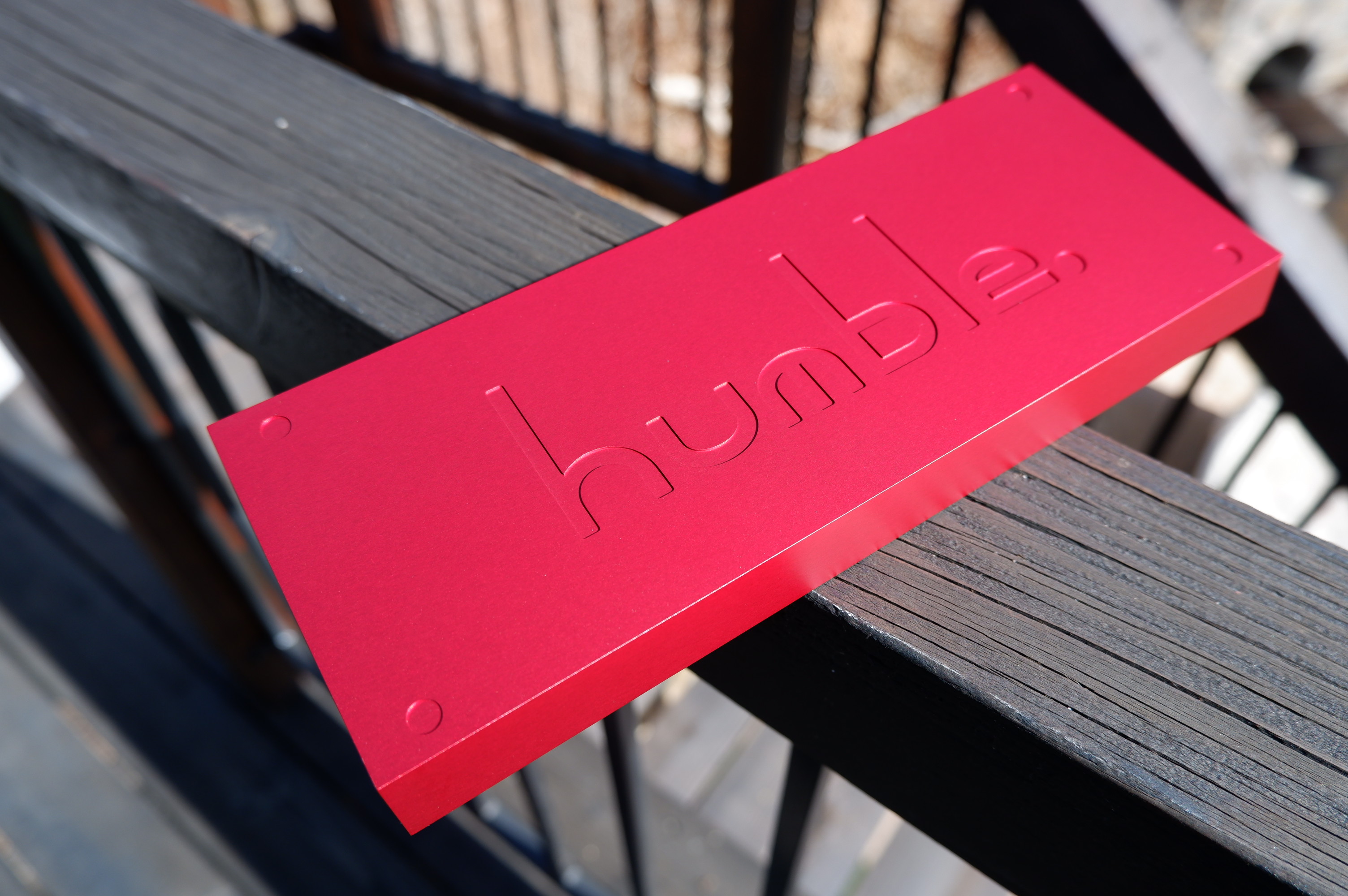

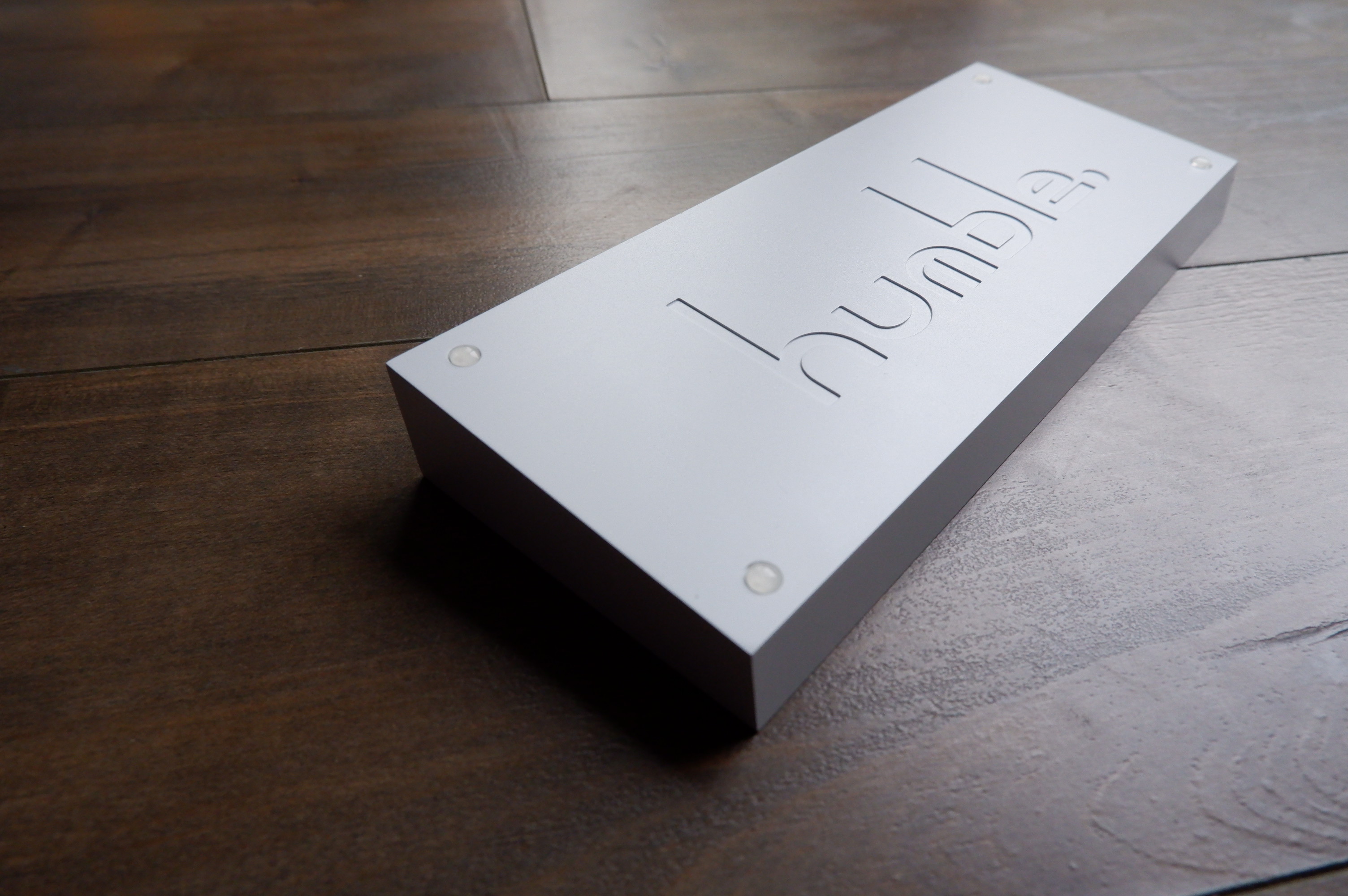

-Seamless, single piece CNC aluminum. Anodized colors are Void (black) and Heartbreak (red). Bleach (white) is e-coated.

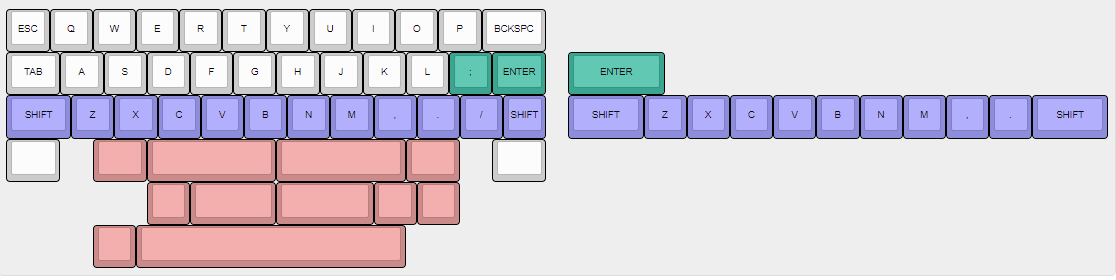

-12.5u WKL layout
-Bottom mount. Compared to other bottom mount boards, there is a decent amount of flex due to the cutouts for the blockers and using only 4 mounting points for the plate/PCB.

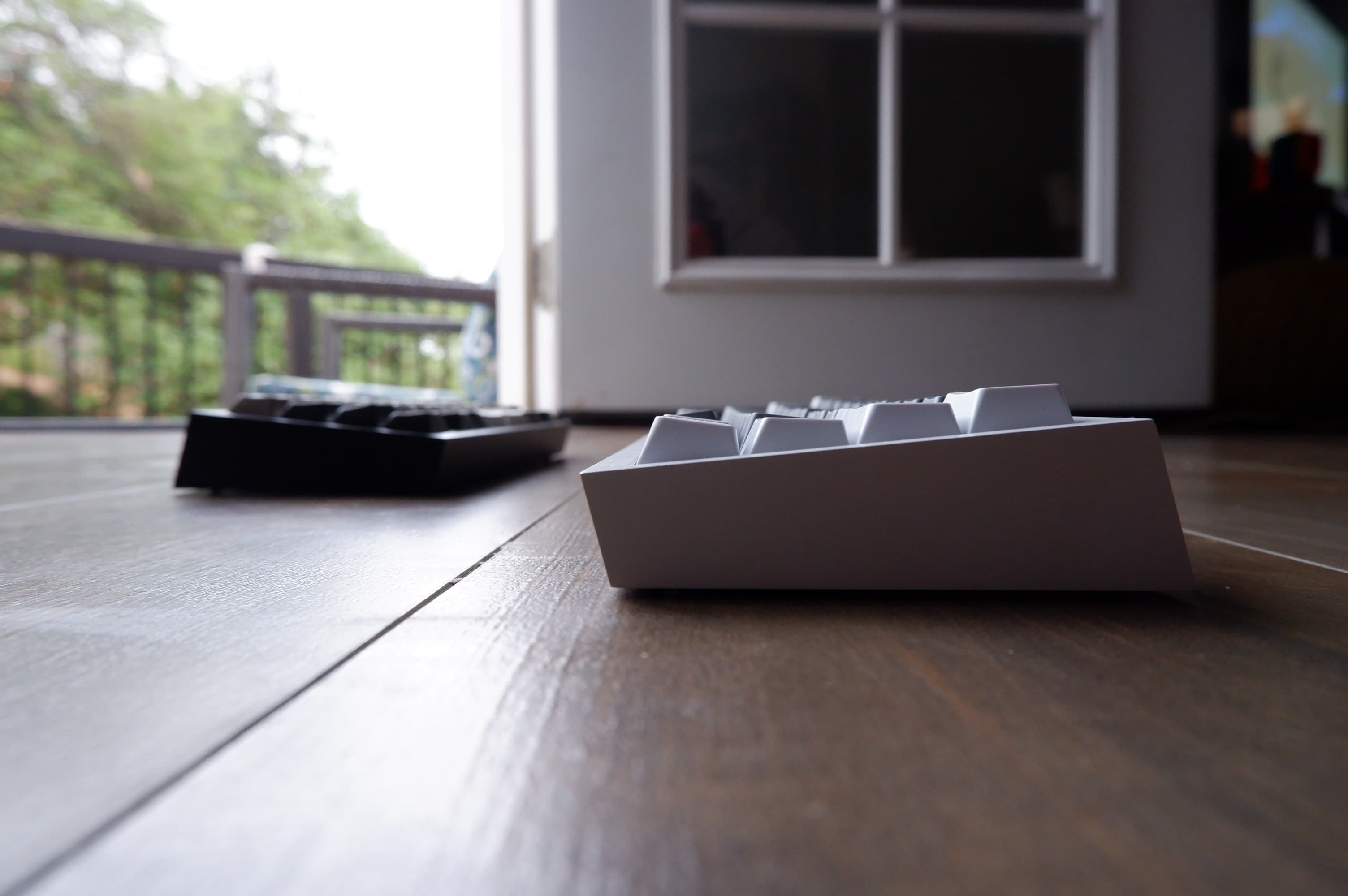

-5.5 degree typing angle with 19 mm front height.
-FR4 or Brass switch plate in standard stagger or uniform stagger configuration.

PCB:
-RP2040 powered board running Vial
-USB Type C with UDB
-MX switch compatibility
-1.2mm thick PCB
-LED backlight available (Lights not included)

Included with purchase:
-Case
-Plate
-Case Foam
-PCBs (mainboard and daughterboard) with JST cable
-Hardware
-Bump-ons

Pricing:
Anodized case with FR4 plate kit: $170
E-Coat: +$10
Brass plate: +$5
Extra PCB: $40
Extra Brass Plate: $30
Extra FR4 Plate: $25
Switch Plate Foam (thicc 4mm EVA for you ASMR fiends): $15

Sound Tests:
NK Dry Series Blacks lubed, filmed, and mill-maxed on a brass plate with case and plate foam. 2u/2.25u bars. DSS Lights Out

68g Koalas lubed and filmed on a POM plate with case foam and a double dense plate foam. 6.25u bar. DSA Dolch.

Gateron KS-3 lubed, filmed, and spring swapped with 68g prolong springs on an FR4 plate with case foam and plate foam. 3u bars. modernJA cherry profile PBT keycaps
