i7 - 65% + Macro Column + Animated Screen with Colour

i7
By EuaticL and 大帅比





Mecha Discord

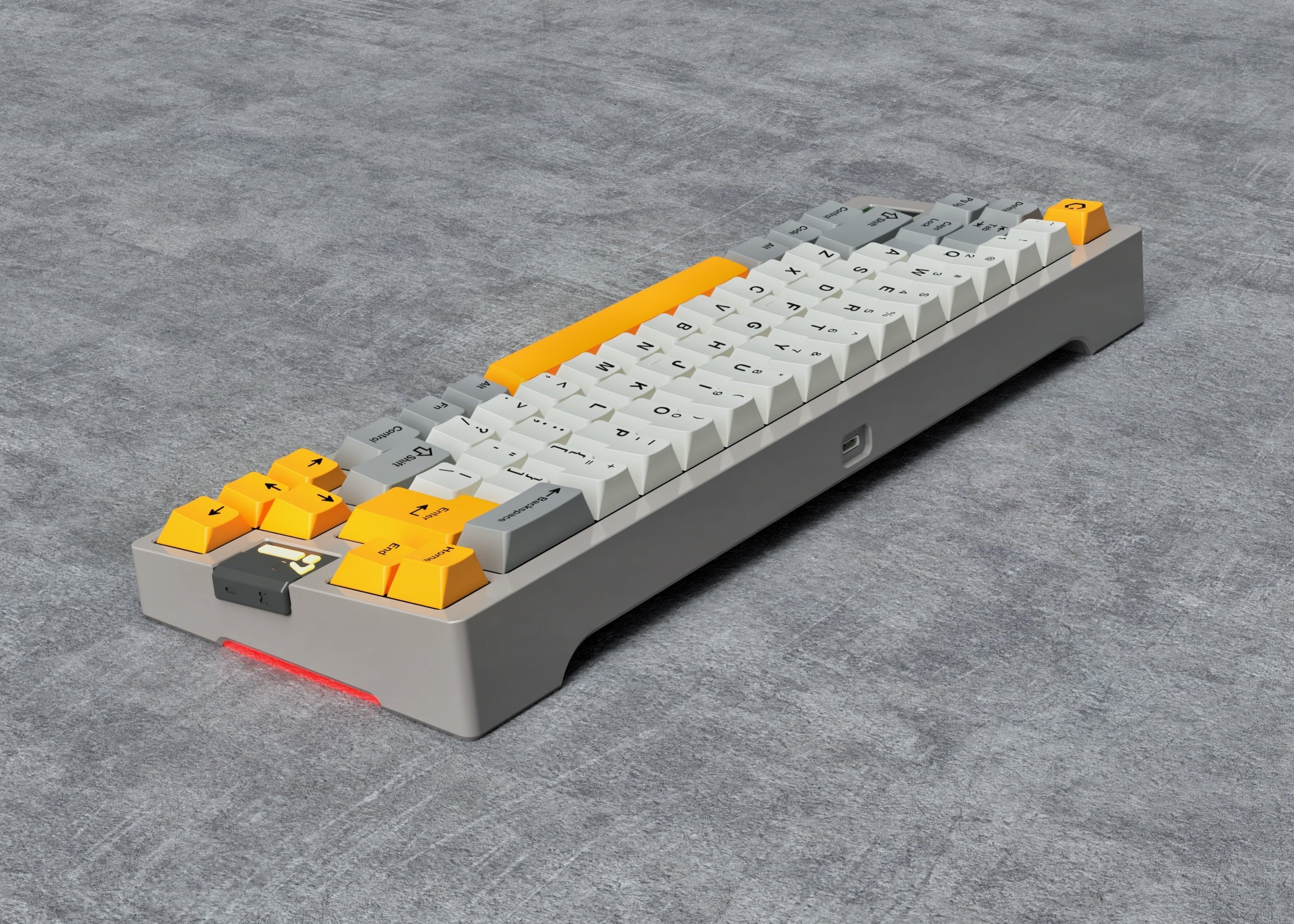

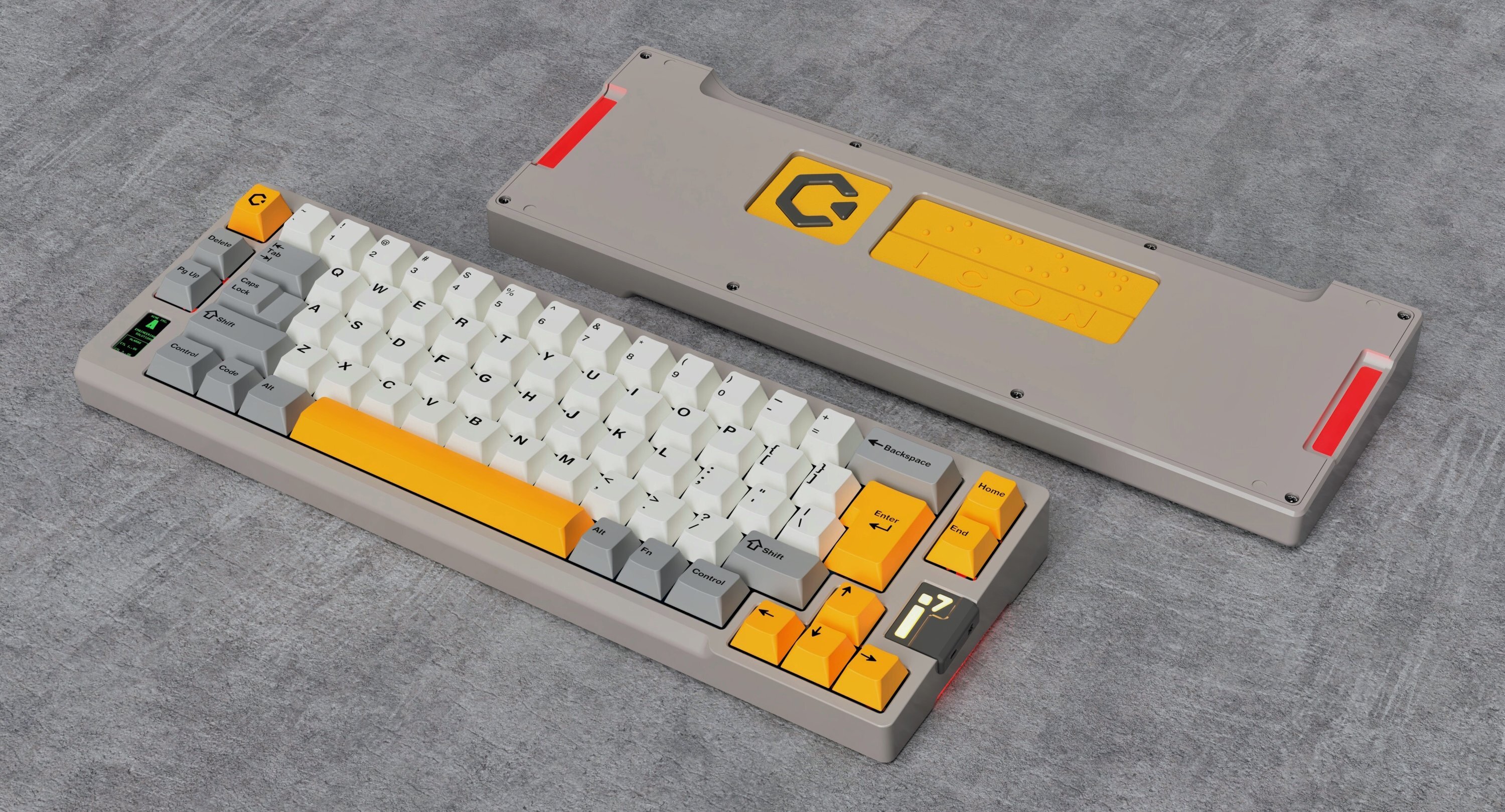

More renders/pictures

Details
Case
- Exploded 65% with Macro Column
- OLED Screen, capable of playing gifs in colour
- Magnetic Badge
- Poron Gasket Mount
- ANSI/ISO
- "Seamless"
- 1.48kg~ built
- 6 degree typing angle
- 1.2mm Thick FR4 Plate
- 21.5mm front height from top of lip to bottom without feet.


PCB

-1.2mm PCB thickness, will come with 0.4mm thick shims
- USB Daughterboard (Pinout is different from UDB)
- QMK/VIA
- 0.96 OLED Module
- Hotswap ONLY
- Ultra-soft JST cable

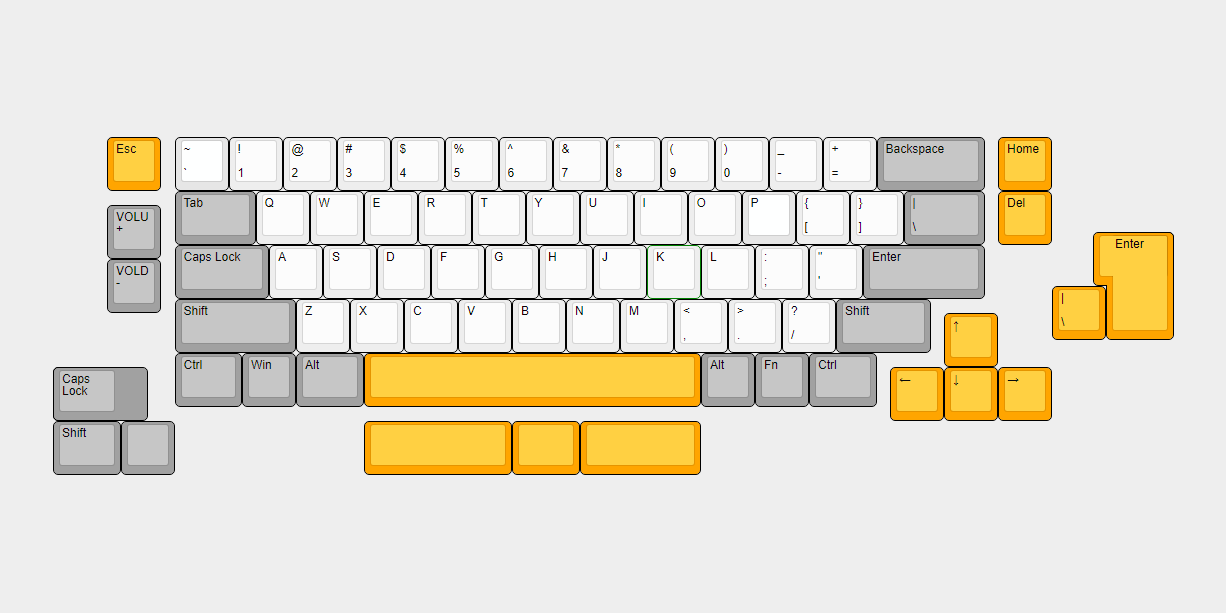

- 6.25u and 2.75u,1.25u,1.75u split spacebar support

Sale Info
DISCLAIMER: ALL INFORMATION IS SUBJECT TO CHANGE.
Fulfilment
This will be fulfilled in a group buy.
Due to the amount of options regarding the parts of the aluminium case, ordering a flat number of each colour for each piece and packaging it would be a logistical nightmare.

That being said, the cases are already currently being machined, and the orders will be submitted to the factory for coating after the machining is completed. This way, the lead time is significantly reduced, with the customer only needing to wait for the surface treatment to be completed.

Pricing
400SGD~ for e-coated colours at MOQ of 30 sets total, regardless of colour, pricing will be adjusted accordingly to demand.

60SGD - Extra PCB package, includes PCB, OLED, daughterboard, ribbon cable and JST cable

Colours
Due to current developments with the anode factory, there will not be anodised colours in favour of E-coated colours instead for the time being.

- Beige
- Dark Green
- Pink
- Blue
- Yellow
- Lilac
- Black


Package Contents

1x Aluminium Top, Bottom, Badge, Weight, Weight Accent(6063)
2x Case Polycarbonate Diffusers (#150 Grit)
1x Badge Polycarbonate Diffuser (#150 Grit)
1x Hotswap PCB
1x Daughterboard
1x Oled Module
1x FR4 Plate
10x 1.5mm Poron Gaskets
10x 2.0mm Poron Gaskets
4x Rubber Feet
8x M2.5x8mm Pan Head Steel Screw
5x M2x4mm Pan Head Steel Screw
3x M2x4mm Countersunk Steel Screw
1x Carrying Case w/ Microfiber Cloth

Definitely not biased video

IC FORM
We also have the i7 prototype on display in the physical store to try in person!
