DBD x GSD CCRE TKL

About the Board

• Layout: TKL
• Mounting Style: Leaf-spring top, gummy o-ring (clip-in stabs only)

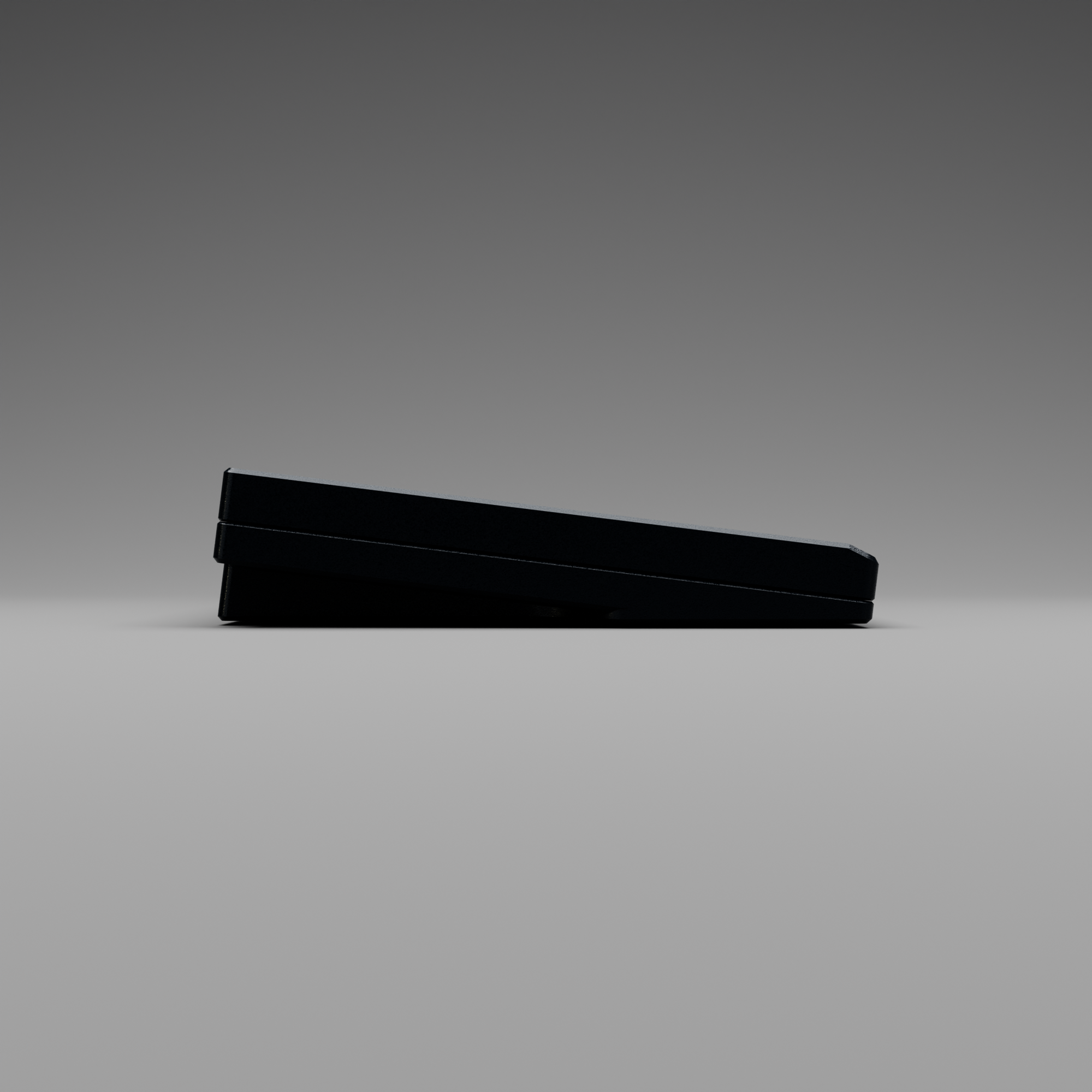

• Front Height: 16.5mm to 12.5mm (cherry lip)
• Typing Angle: 7 degrees
• Weight: 2.95kg unbuilt
• PCB Compatibility: Universal onboard right-side USB (north-facing SB for o-ring)

Kit Contents

• 1x Anodized 6063 aluminum top case
• 1x Anodized 6063 aluminum bottom case
• 1x Anodized 5052 aluminum plate

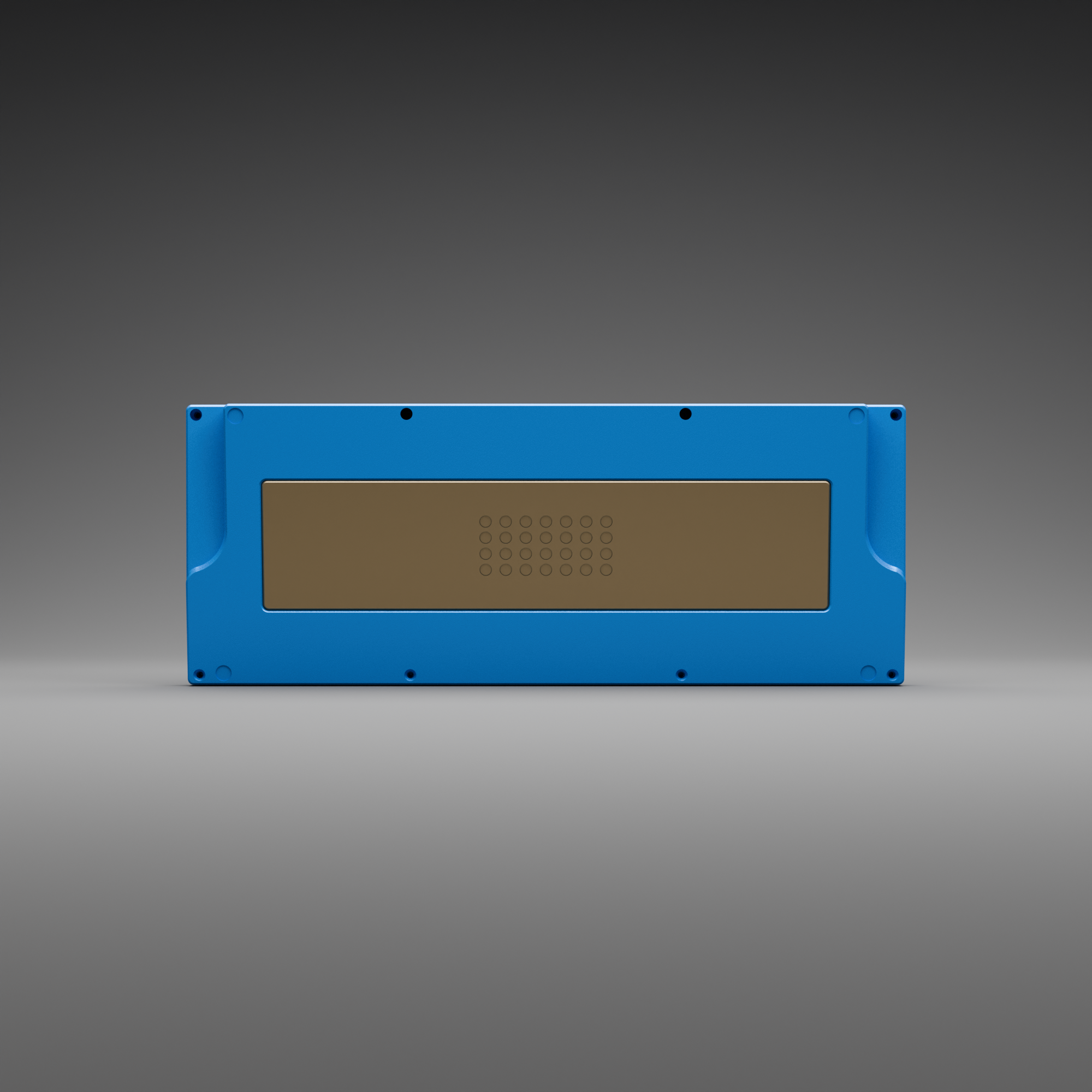

• 1x Sandblasted and clear-coated brass through weight
• 1x CC H87 / H88 TKL solder PCB
• 1x Cleaning cloth
• 1x 50a gummy o-ring
• 1x Custom GSD carrying case

Estimated Pricing

• $545 at 25 MOQ
• $520 at 50 MOQ
• $505 at 75 MOQ
• $490 at 100 MOQ

Pricing includes estimated DDP air shipping from the manufacturer to the organizer. Shipping from the organizer to customers would be separate. Direct shipping may also be offered. Vendor support is planned at higher MOQs; the payment question in the IC mainly applies to the 25 MOQ case.

Color Options

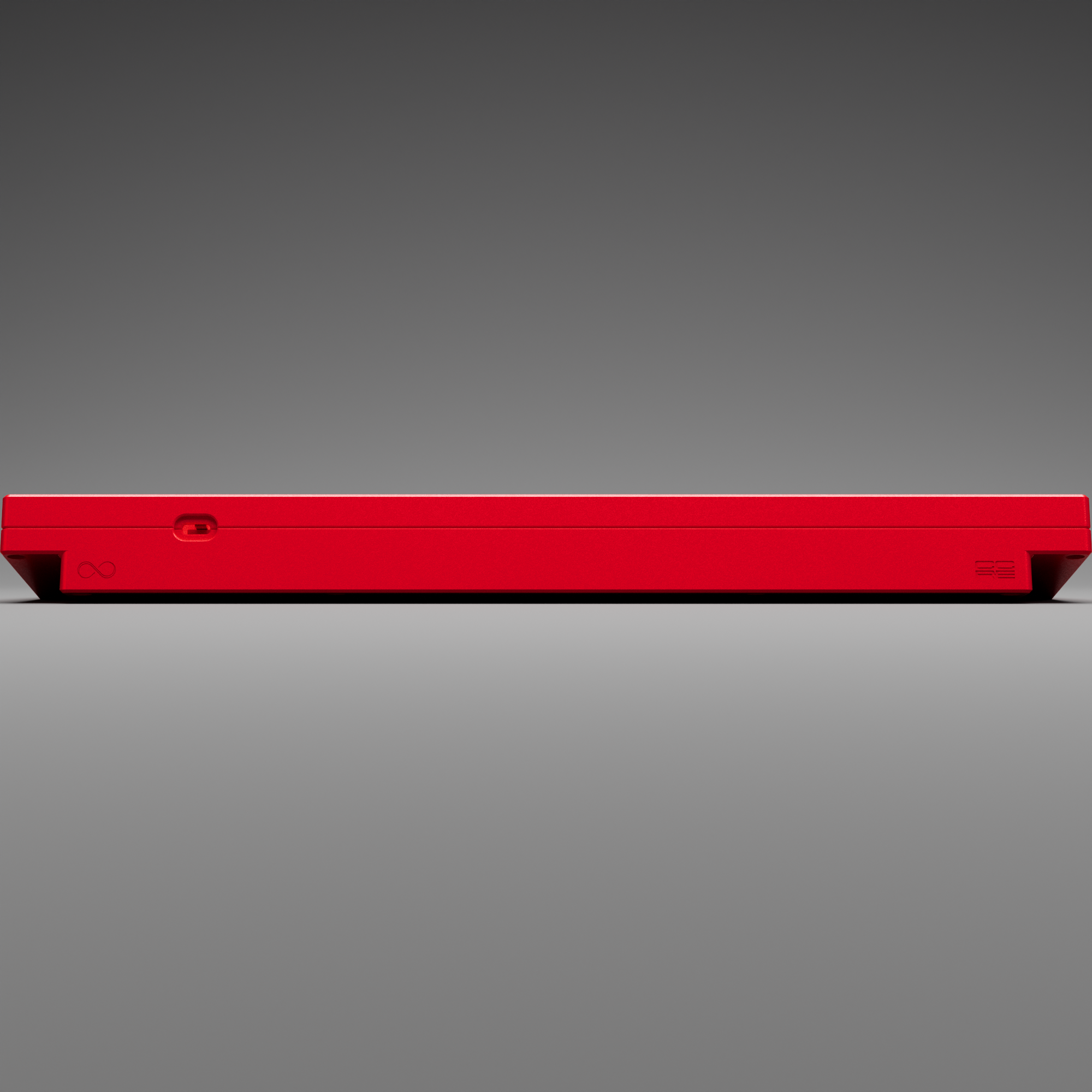

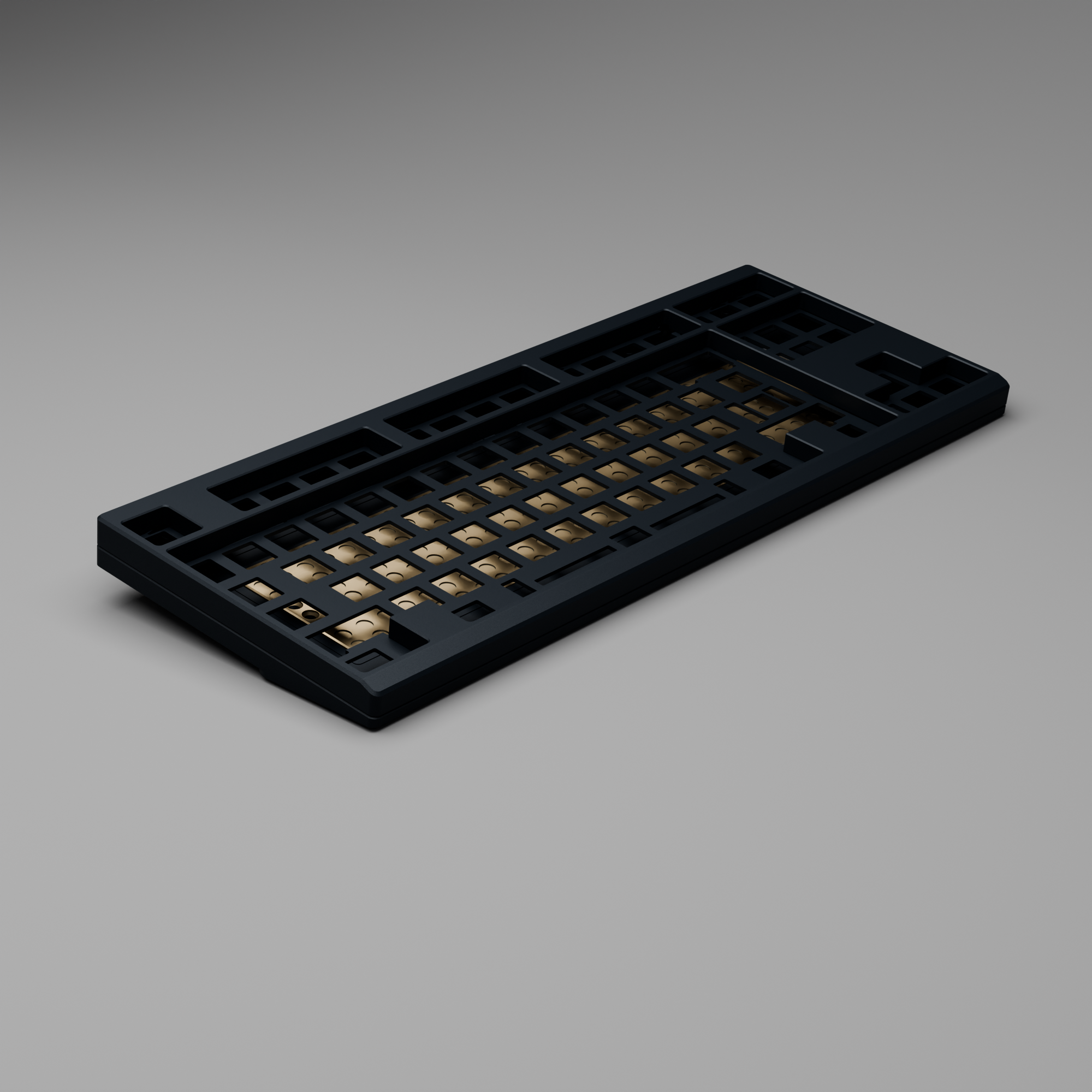

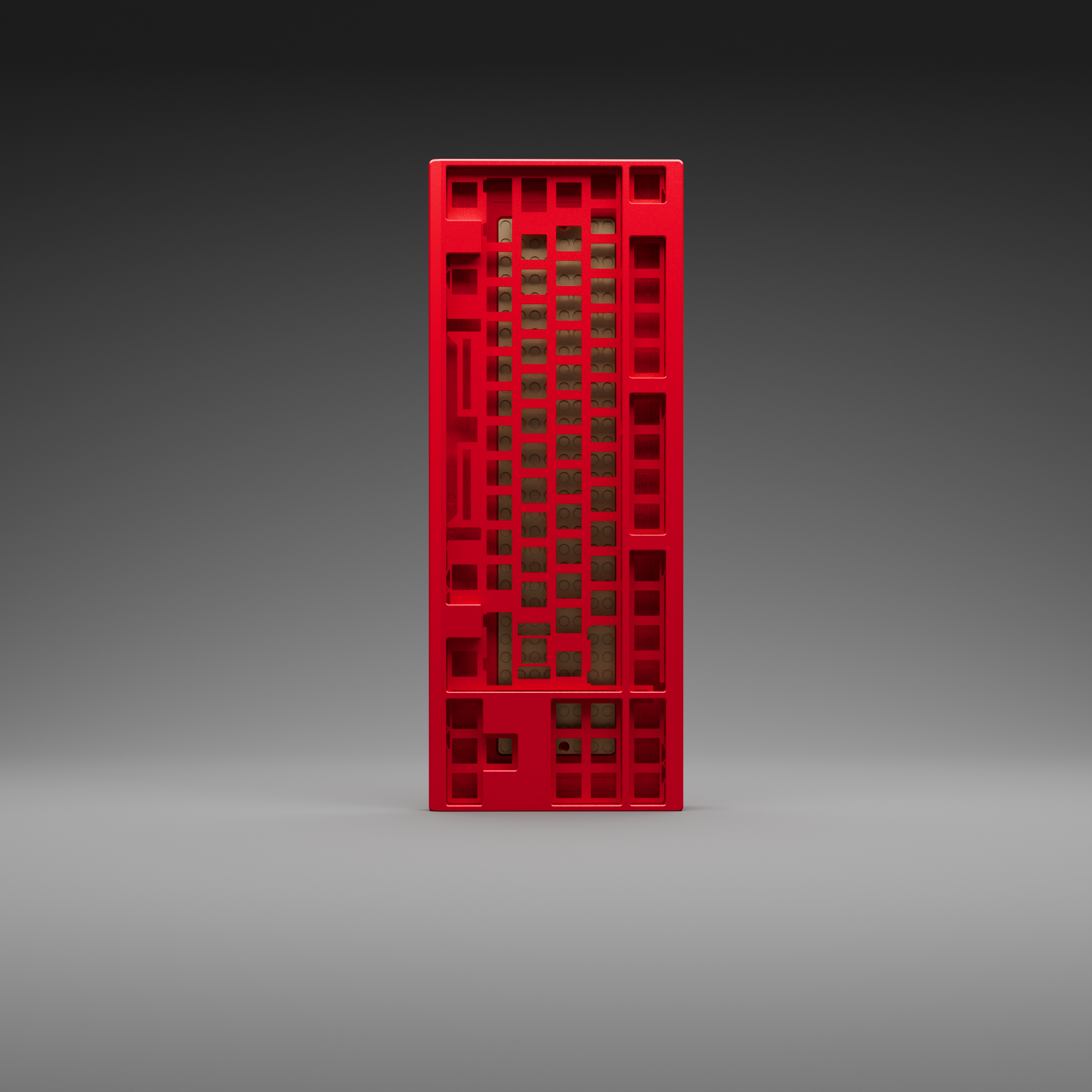

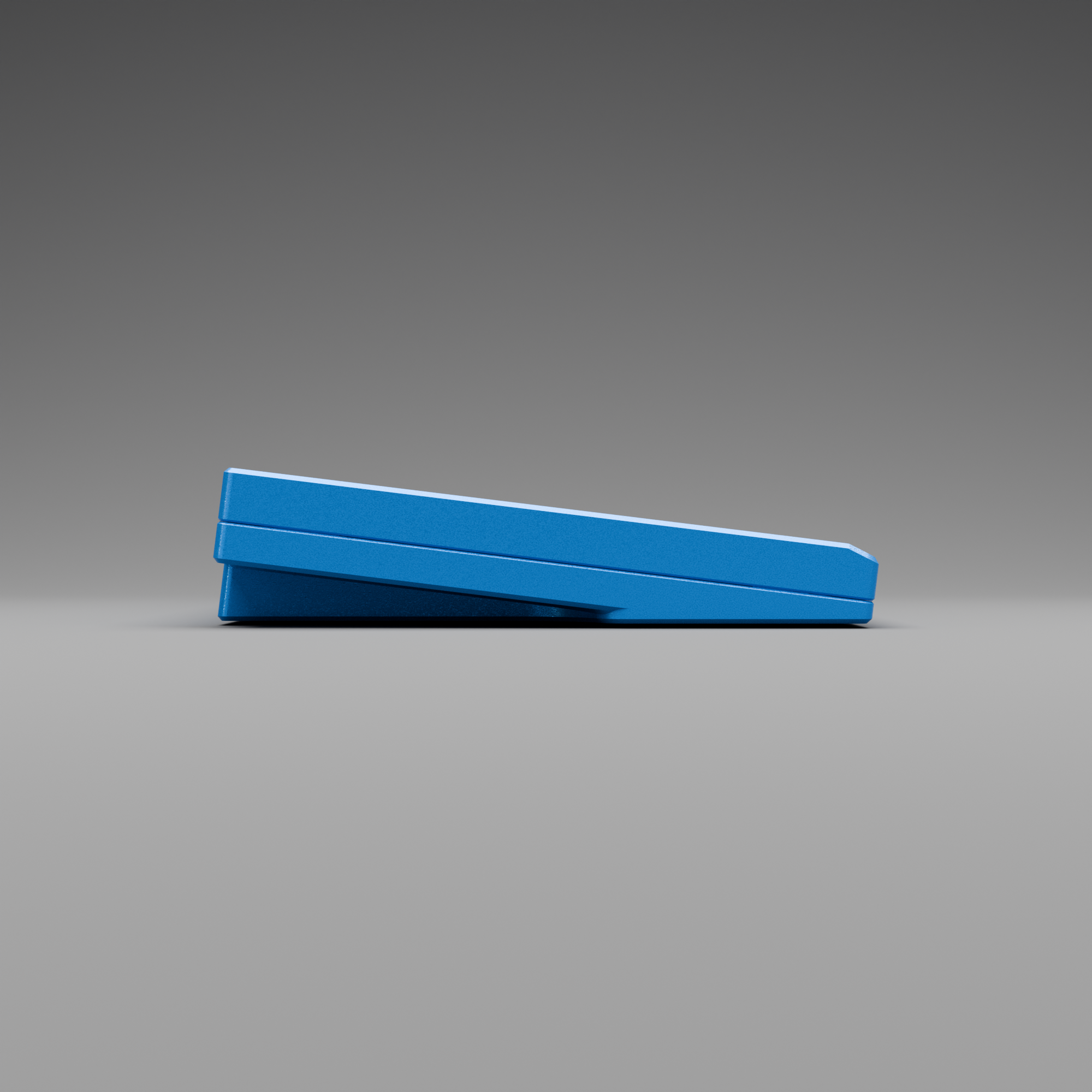

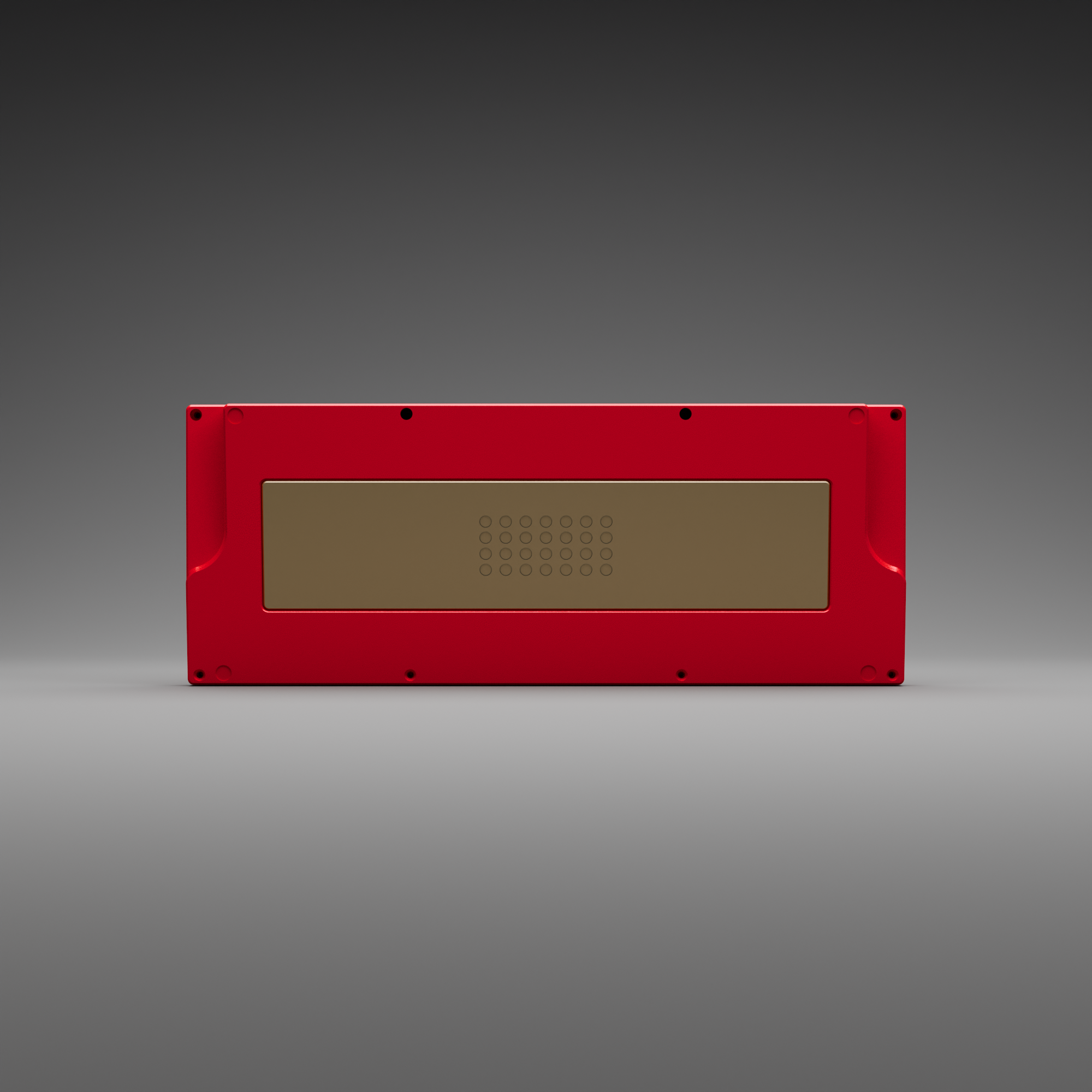

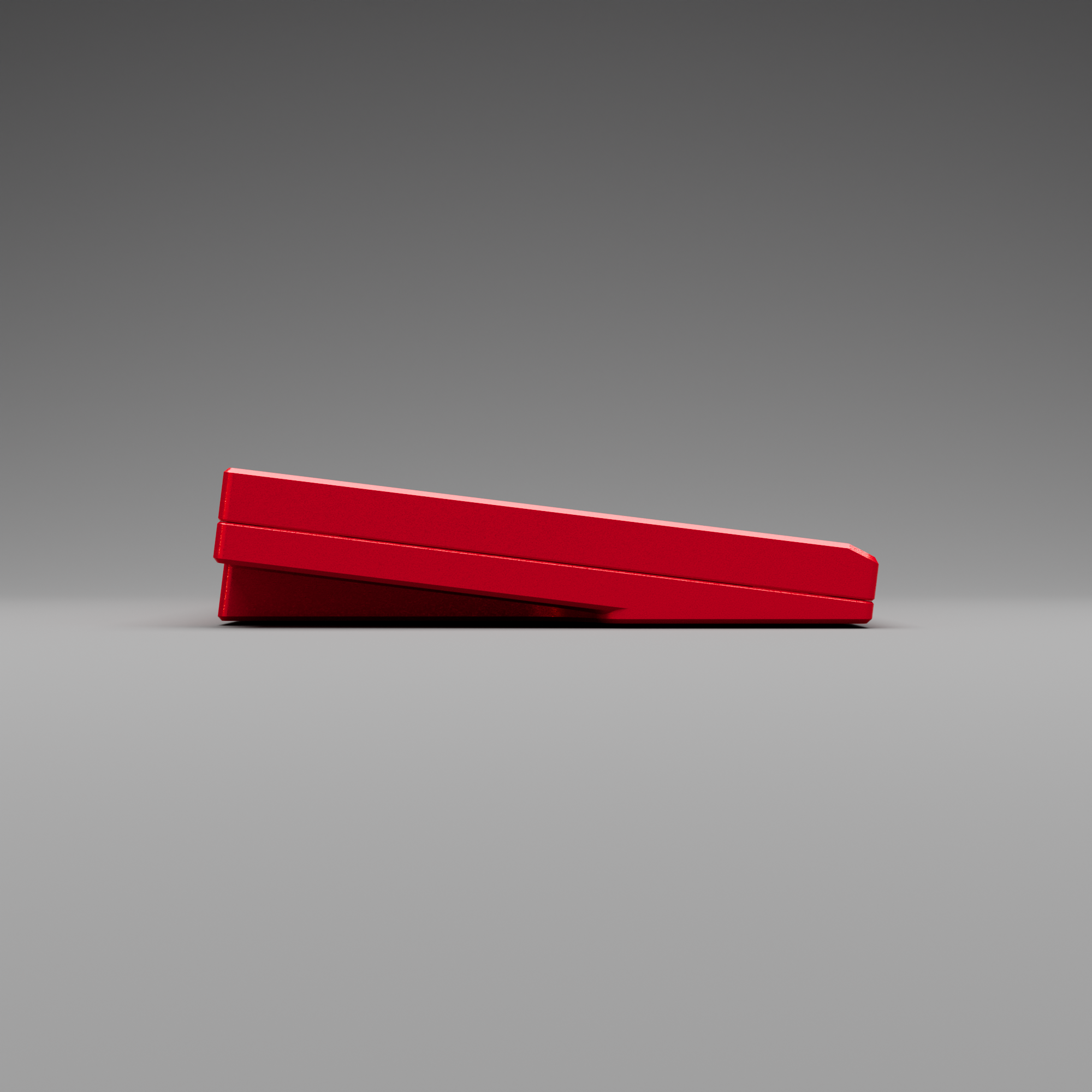

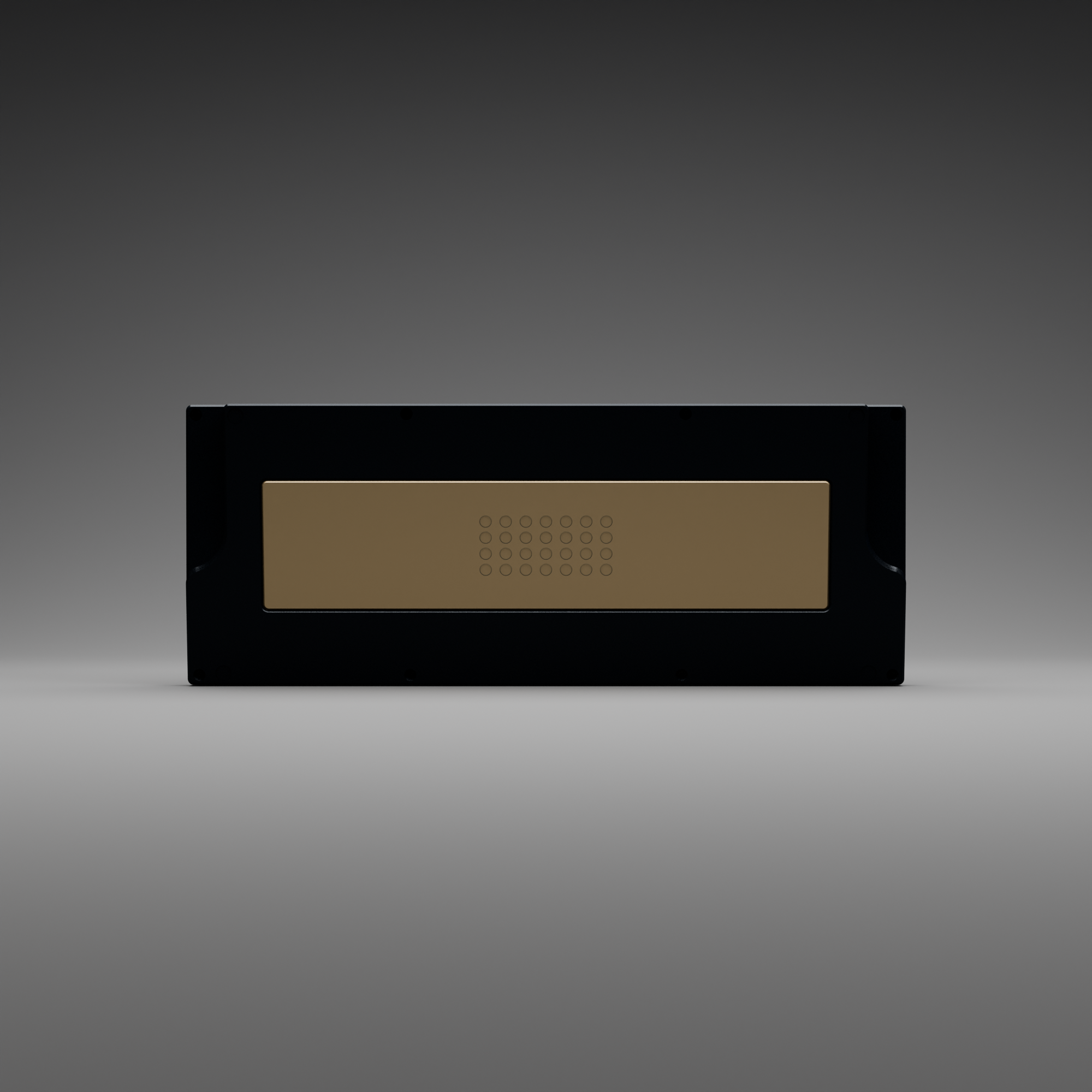

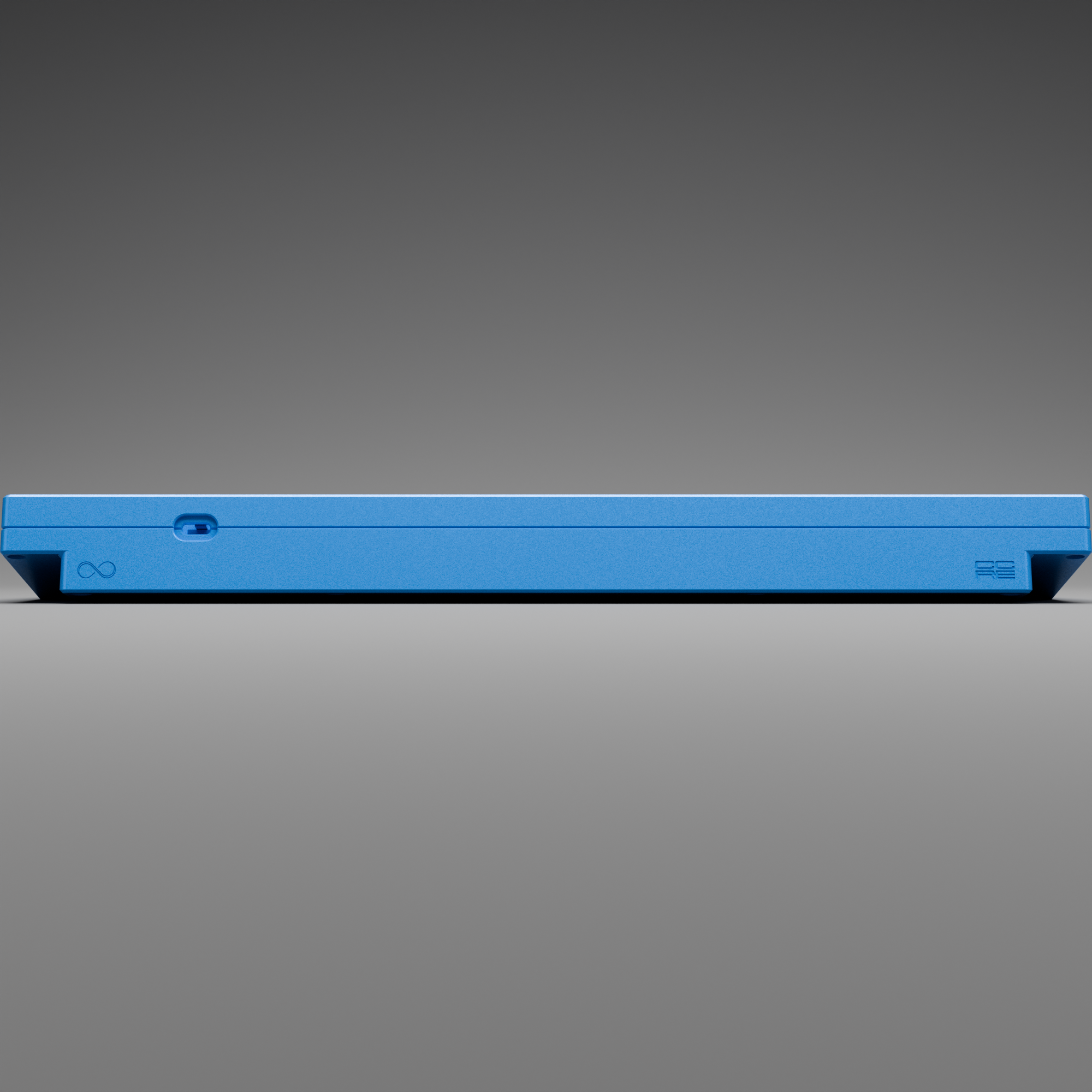

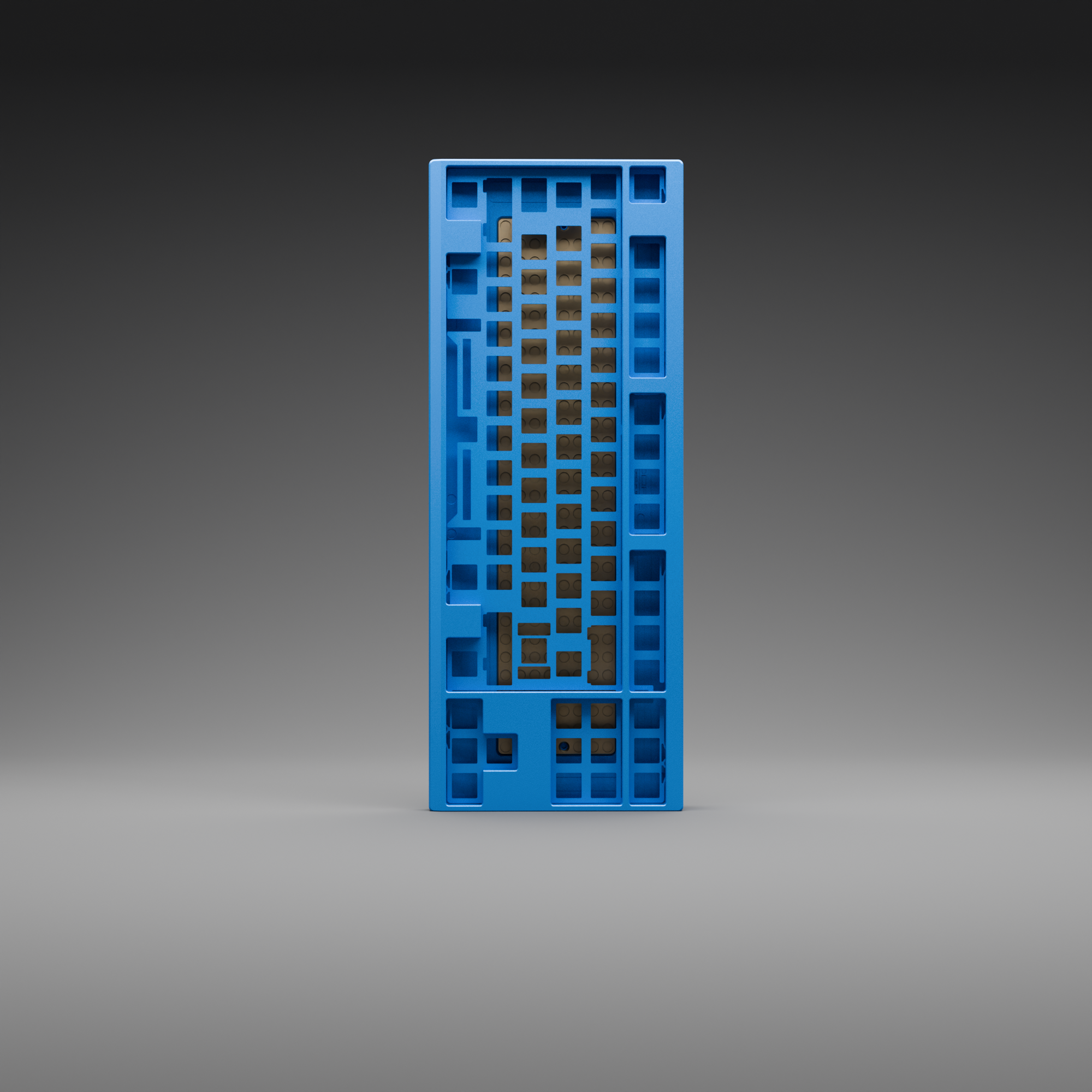

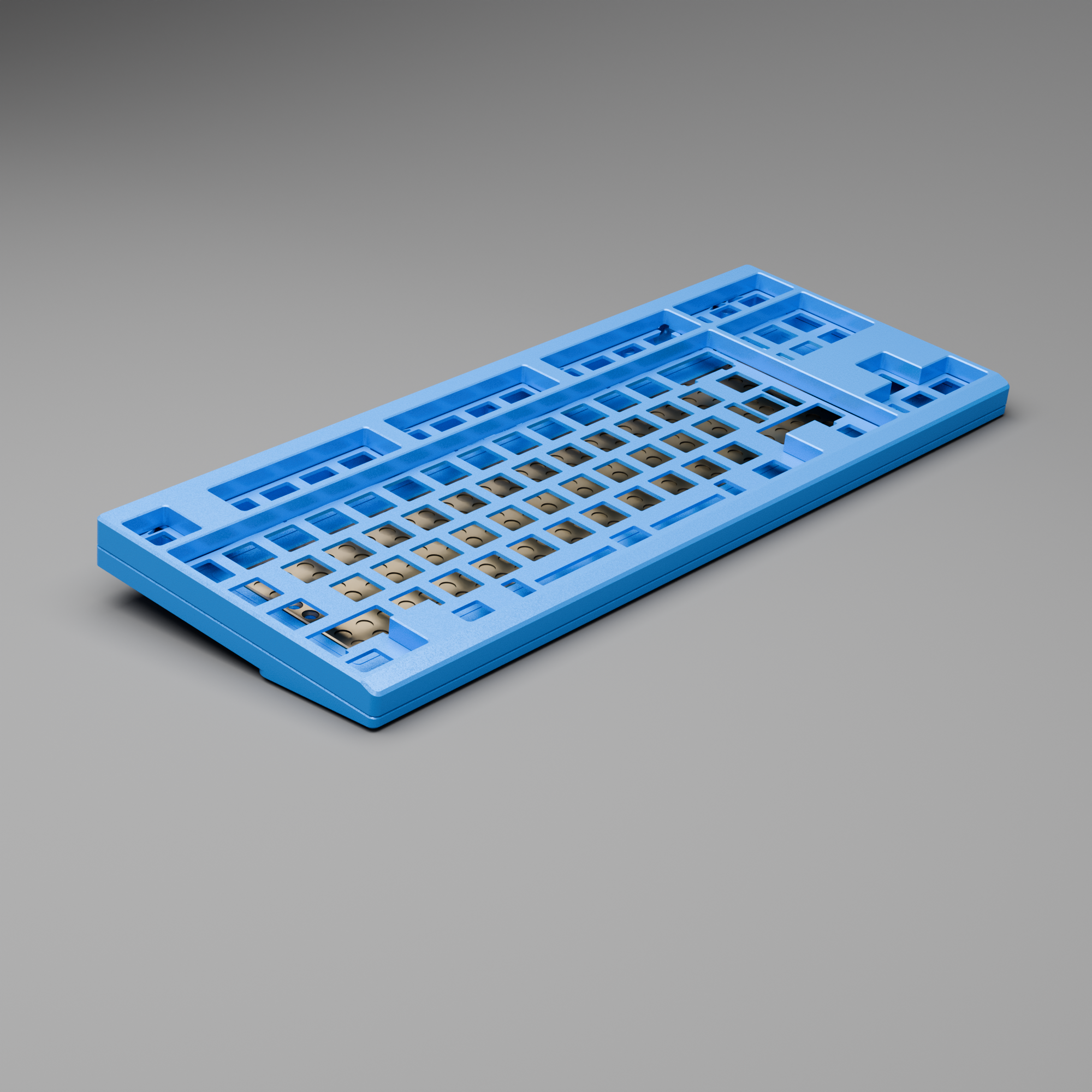

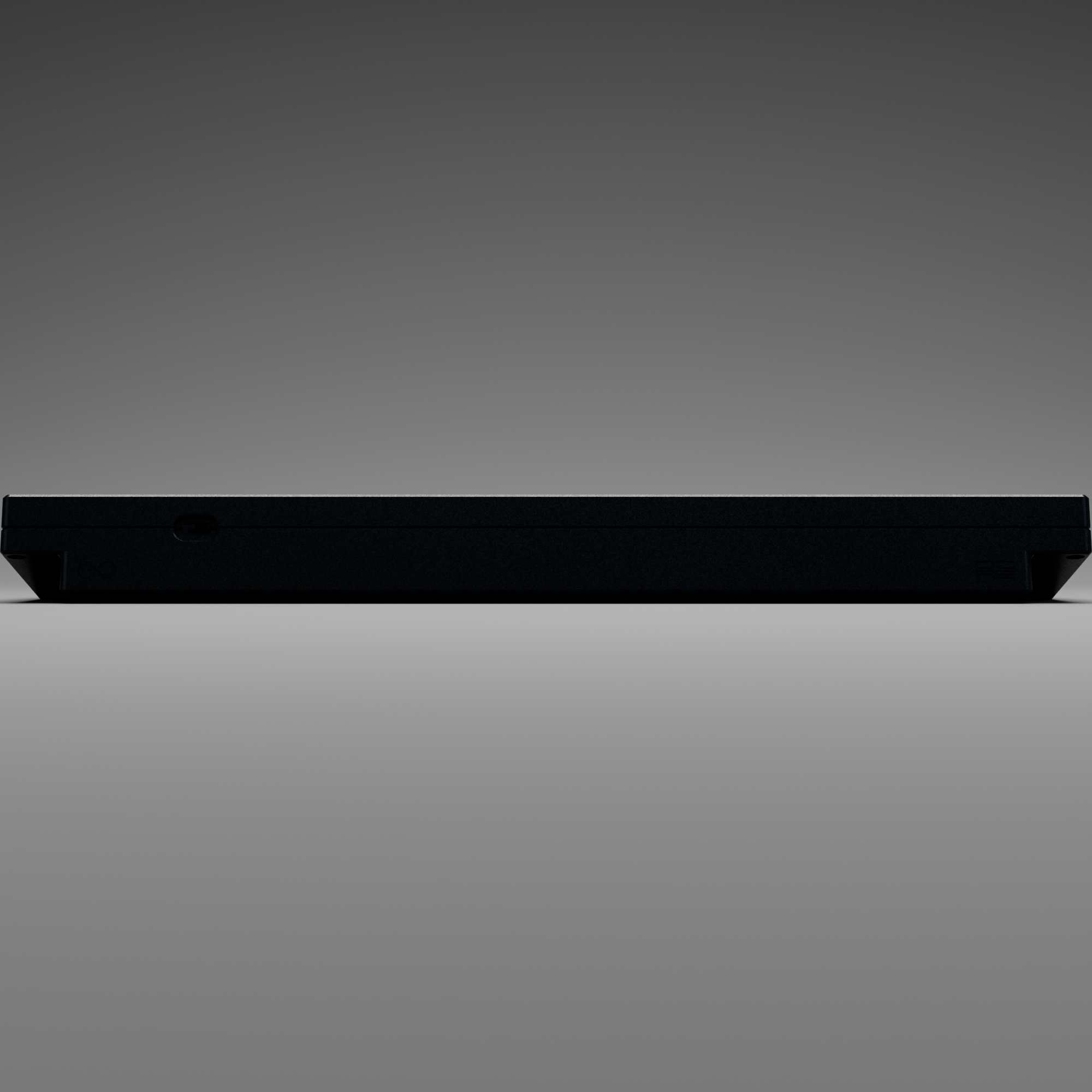

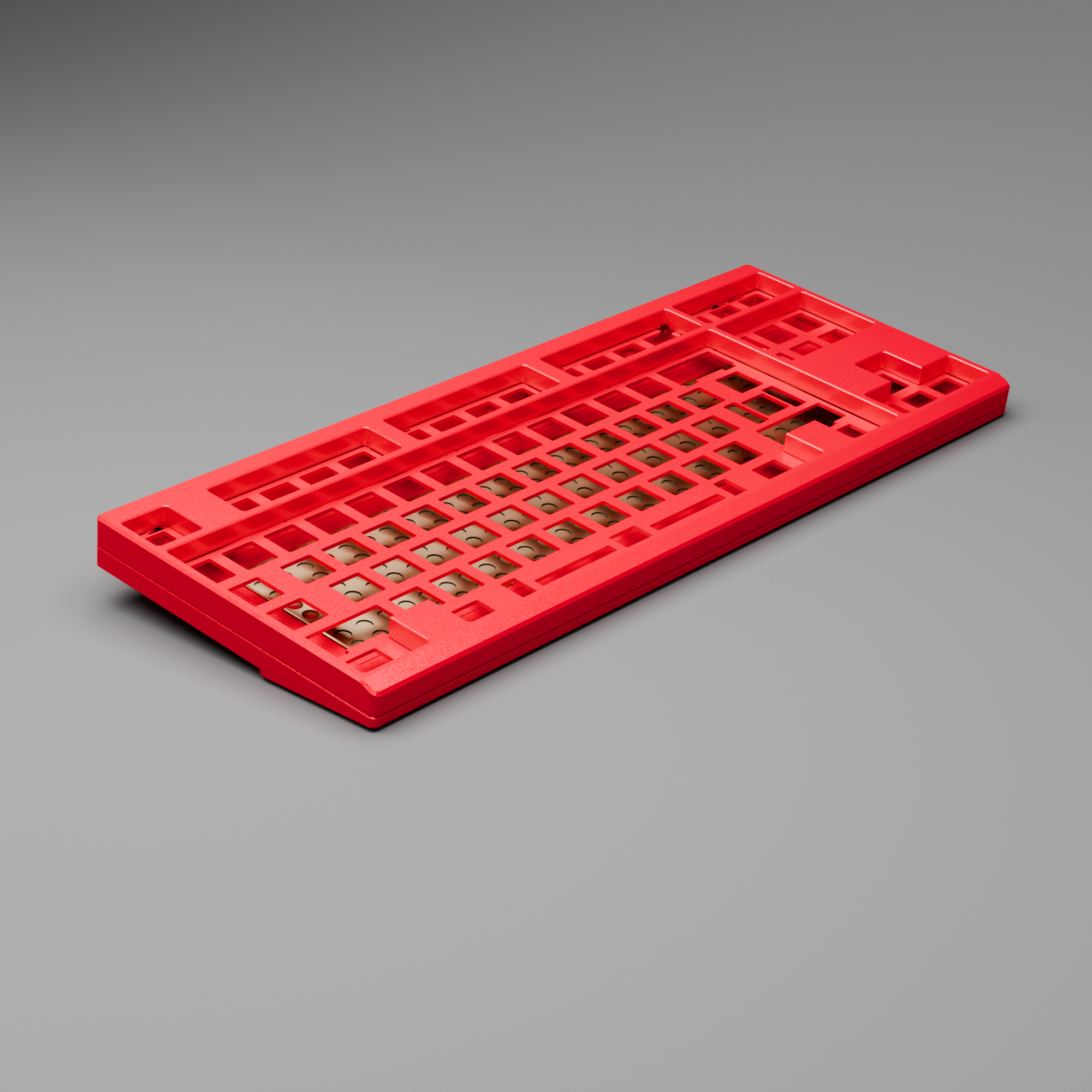

See the linked gallery and project images for the current color renders.

Interest Check

Fill out the IC form if you want to give layout, color, PCB, and regional feedback.
