Origami TKL
Interest Check thread

Sale date&time: March 2nd 2025, 9PM EST
Product details: https://plexkbd.com/origami/
Product listing: https://plexkbd.com/category/origami/


Taken by Alexotos

Join our Discord server
Follow our Instagram

The wait is over! Finally you can purchase Origami TKL in a few hours. Here's quick spec and details that might be useful for you when purchasing Origami TKL.

Specification:
WK (Winkey) and WKL (Winkeyless) top
7.5 degree typing angle
18mm Front Height
23.1mm Adjusted Keyboard Front Height
Aluminium 6063 top/bottom case
Aluminum 6063/brass external weight
Brass internal weight (included on every configuration)
Aluminium 6063/brass Crane weight. Additional Crane weight with other colors/materials available here
Aluminium 5052/Carbon Fiber/Polycarbonate/Polypropylene (must be added within your order)
VIA compatible solder/hotswap PCB comes with the kit (must be added within your order)
Carrying case comes with the kit
Weight (built): 2190g (with alu external weight) or 3350g (with brass external weight. If you upgrade to brass crane weight, it will be slightly heavier)

Mounting styles
1. Top mount
One of the most popular mounting style. This mounting style is liked by many people who like a typing feel that tends to be stiff. The stiffest mounting style offered in this keyboard.

2. Rubber Pin mount
This mounting style is inspired by Geonworks' Frog. Similar to top mount, but instead of using bolts, this mounting style uses custom Rubber Pins that we designed. Suitable for those of you who want a medium to stiff typing feel

3. Gummy o-ring mount
This mounting point utilize a 3.5mm o-ring that placed around the PCB and plate. Typing feel characteristic of this mounting point is the softest compared to the other two mounting styles offered in this keyboard.

One full kit includes:
Keyboard case (Top, bottom, internal brass weight, alu/brass external weight, alu/brass crane weight)
Plate of your choice (Alu 5052/Carbon fiber/Polycarbonate/Polypropylene)
PCB of your choice (Solder and hotswap)
Carrying case
Clear rubber bumpon feet
50A o-ring
50A rubber pins
Screw set

What you will need to fully assemble the keyboard:
Switches
Stabilizers
Keycaps

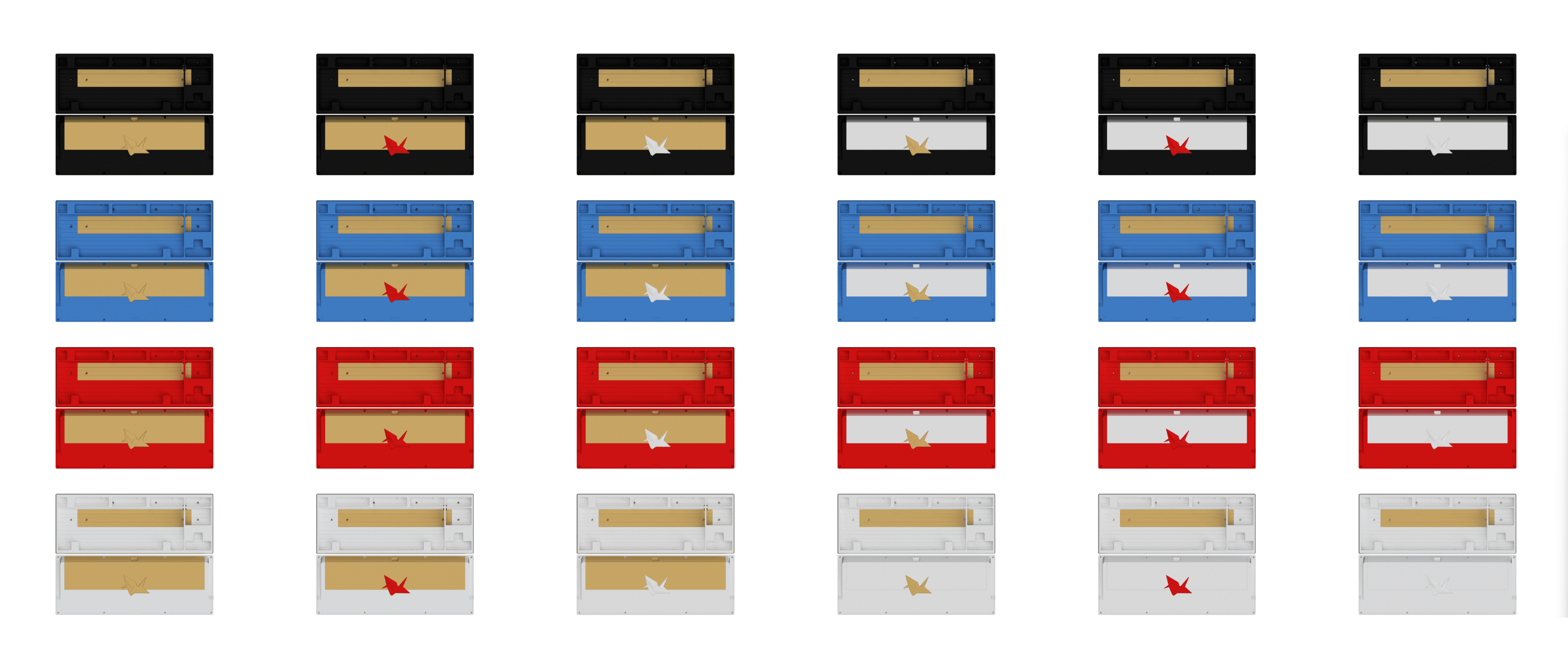

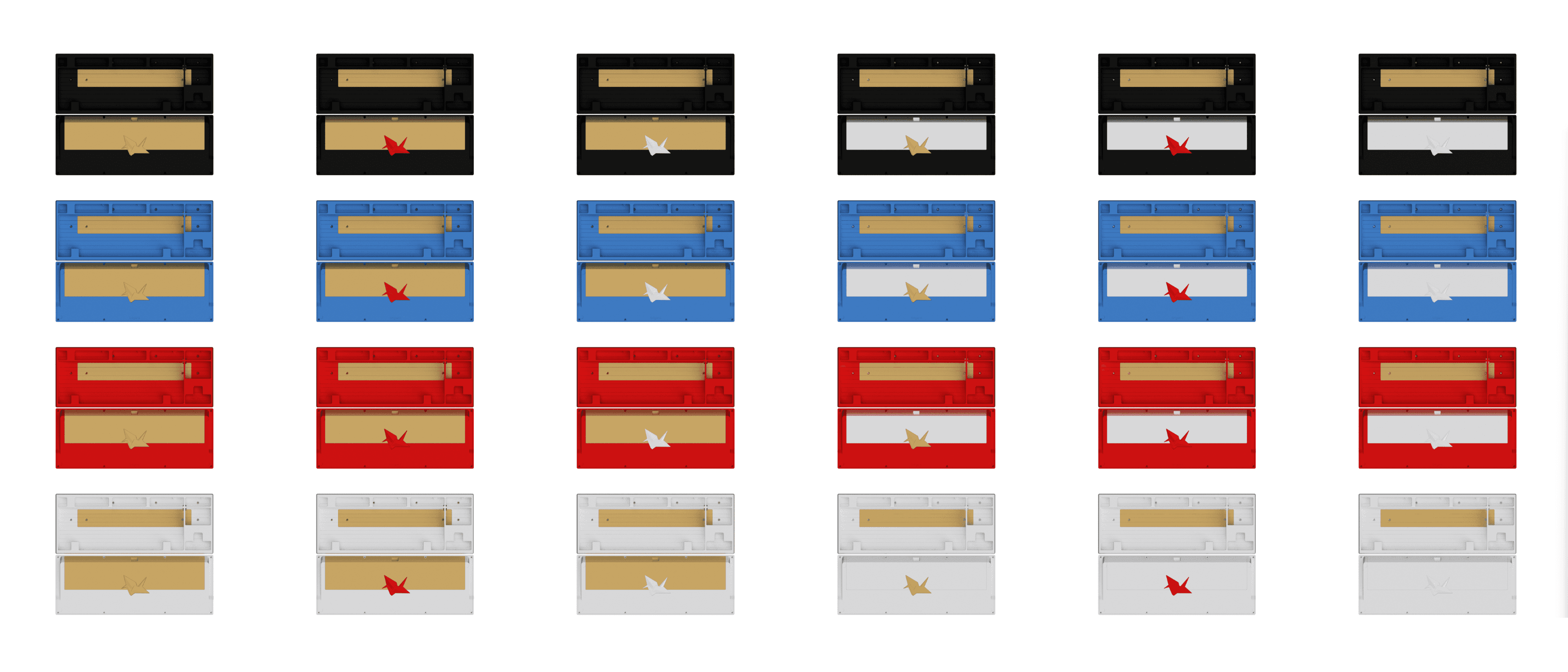

Case-weights (external and crane) combinations available. Visit our website for the full-res version


Pricing:
1. The "base":
- Standard alu external weight: 285USD
- Upgrade external weight to brass: 335USD
- Upgrade external weight and crane weight to brass: 345USD
2. PCB:
- Solder+DB: 45USD
- Hotswap+DB: 50USD
- Solder PCB only (without DB): 40USD
- Hotswap PCB only (without DB): 45USD
- DB+JST cable only: 10USD
3. Plate:
- Aluminium (red/silver): 30USD
- Carbon fiber: 30USD
- Polycarbonate: 20USD
- Polypropylene: 20USD
4. Additional crane weight:
- Aluminium (red/silver): 30USD
- Brass: 40USD

Some details you should know:
1. You cannot choose the color or material of the Crane Weight. The silver and red cases will come with red Crane Weight and the black and blue will come with silver. If you want a red/silver or brass Crane Weight, you can purchase an additional Crane Weight.
2. The WK top option will be available alongside the WKL option. However, only a few WK are available for each color. So, be quick in purchasing it later.
3. Listing for the base (where you choose top (WK/WKL), external weight (standard aluminium/upgrade ext. weight to brass/upgrade both ext. weight and crane weight to brass) will be different with plate and PCB.
4. You can choose any plate/PCB option you want. So you don't have to buy extra plates/PCBs if you don't need them.
5. You must add at least one plate & PCB to your purchase list, you can't just buy the case.
