[Instock] Keebscape.co Kronos 60% Keyboard

Index
1. Introduction
2. Specifications
3. Renders and Photos
4. Availability

Introduction

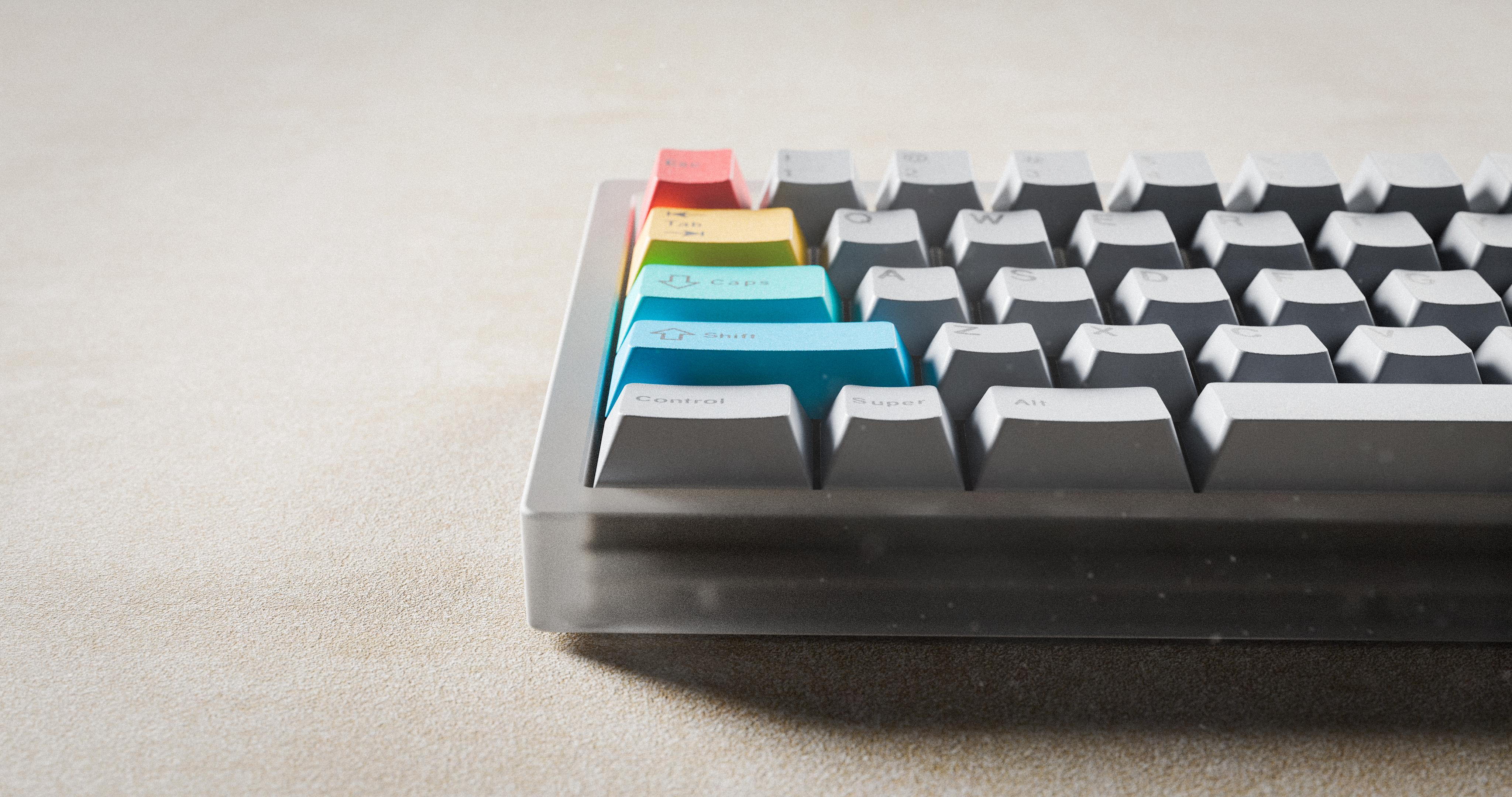

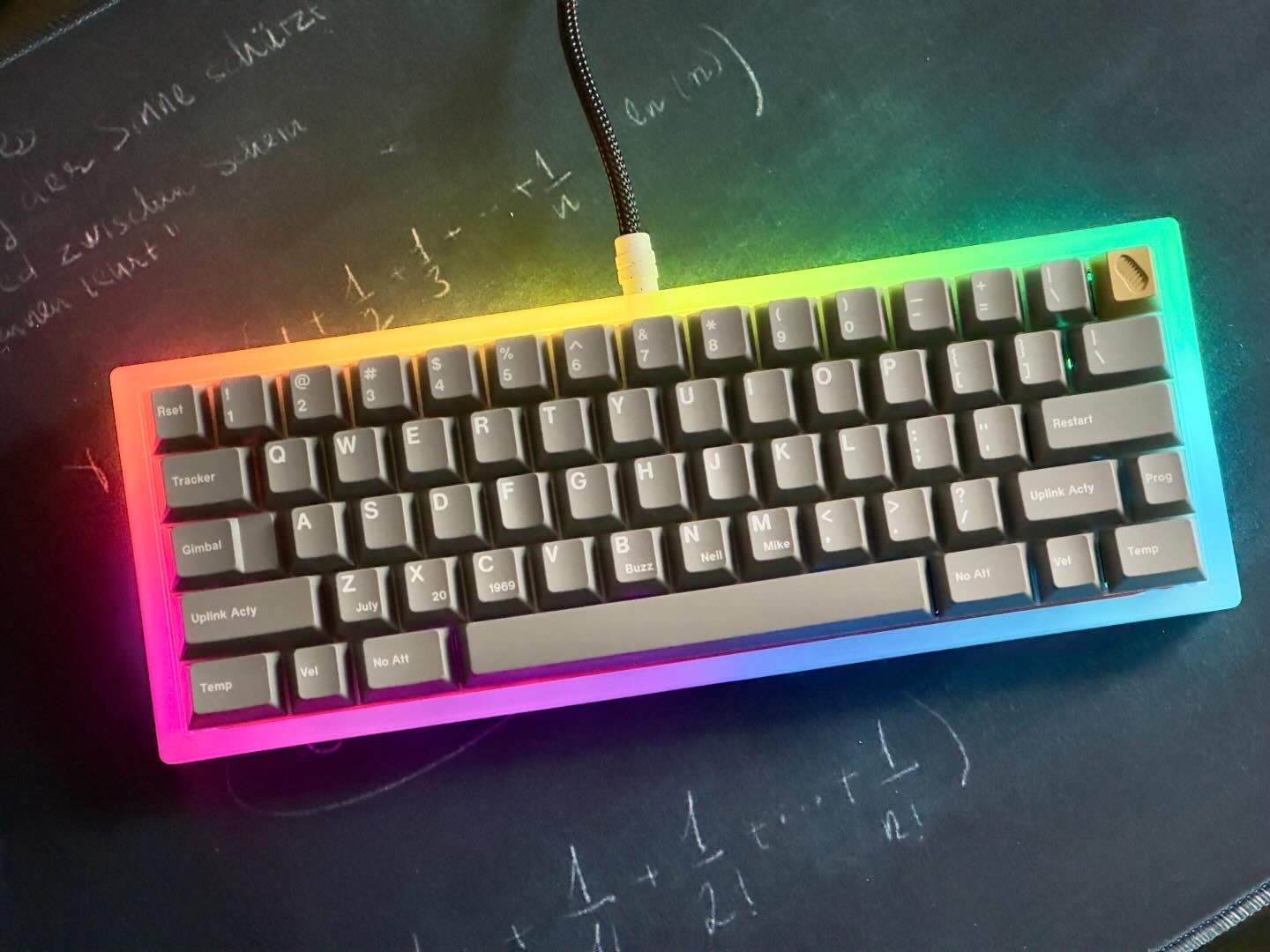

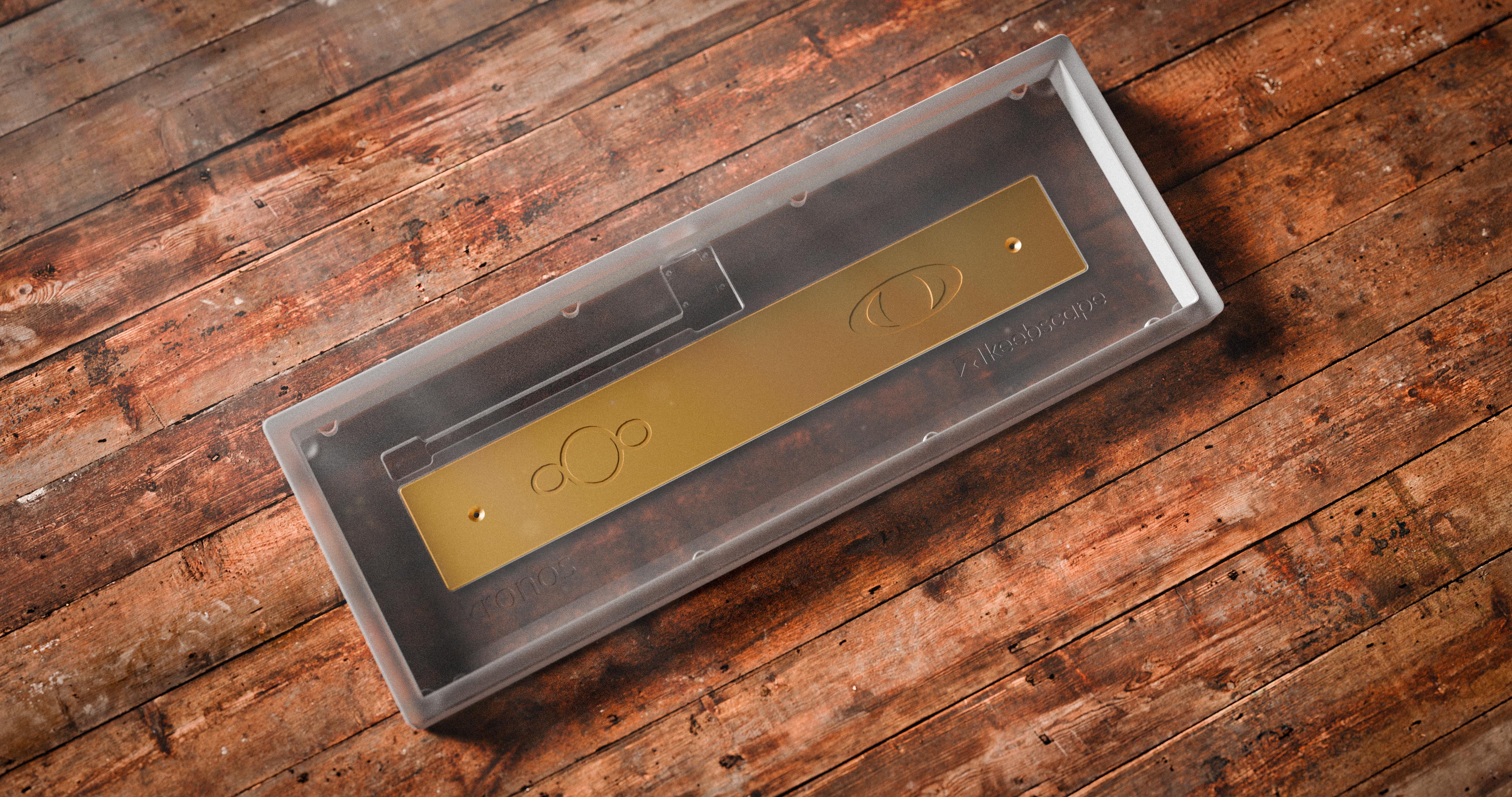

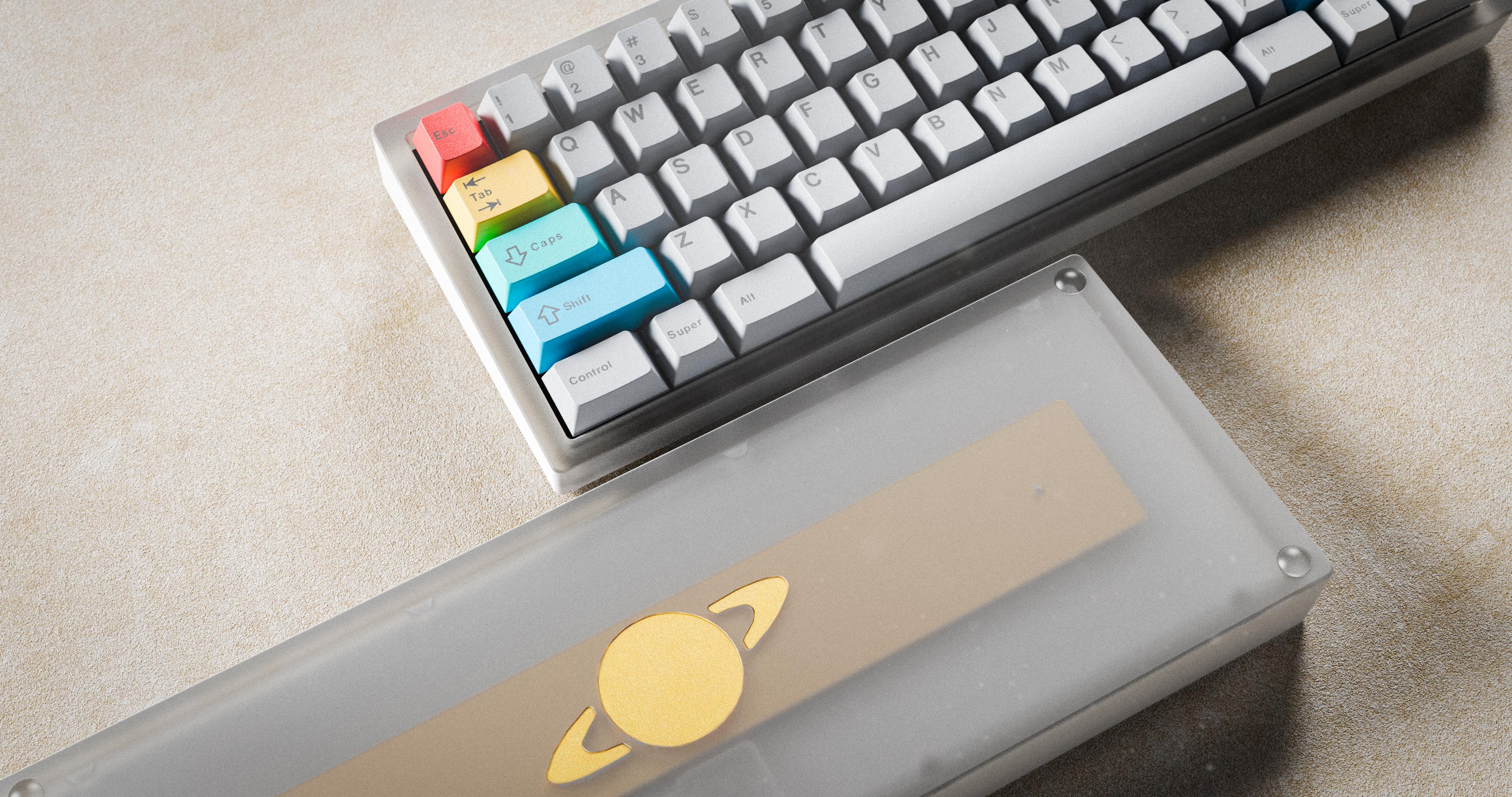

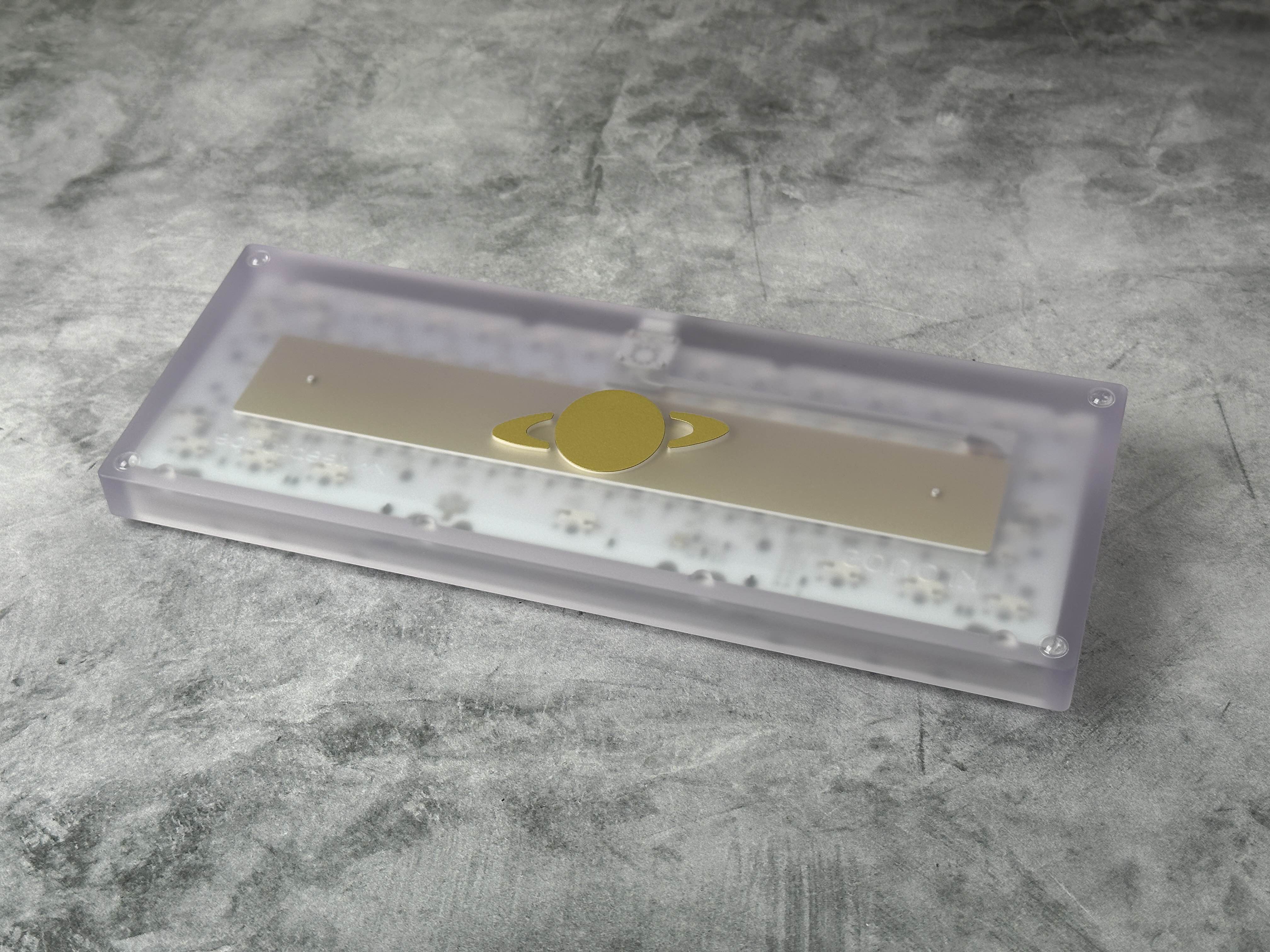

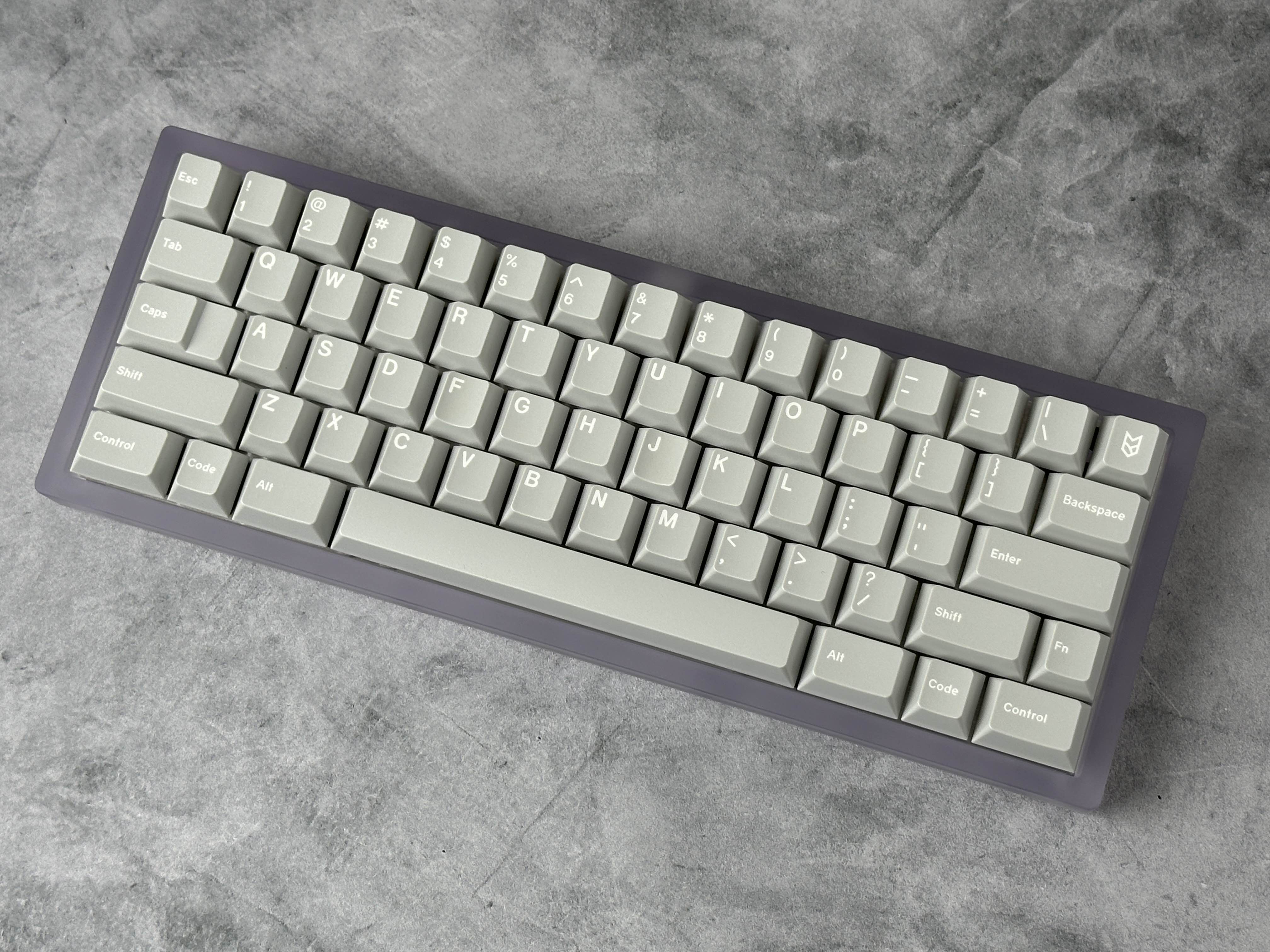

kronos is the first custom mechanical keyboard kit by keebscape co. It is an unassuming take on the classic 60% form factor O-ring mount design. The chassis is comprised of a single piece of polycarbonate with an internal brass weight. The weight fits through the bottom of the polycarbonate chassis in the shape of a minimalistic representation of Saturn. Named after the Greek deity, Kronos (also written as “Cronus”, or “Cronos”), the board features subtle engravings reminiscent of Galileo’s earliest sketches of Saturn, from 1610 and 1616. The sandblasted polycarbonate chassis in conjunction with RGB underglow from the PCB results in a pleasing diffusion of light throughout the uniform bezels. This board does not offer anything particularly groundbreaking in terms of design or materials used in construction, but our hope is that it will provide an in-stock, high-quality 60% O-ring mounted custom keyboard kit at a relatively affordable price to those who want it.

Specifications

Chassis

Materials: Clear 'Frosted' Polycarbonate, Brass
Layout: WK

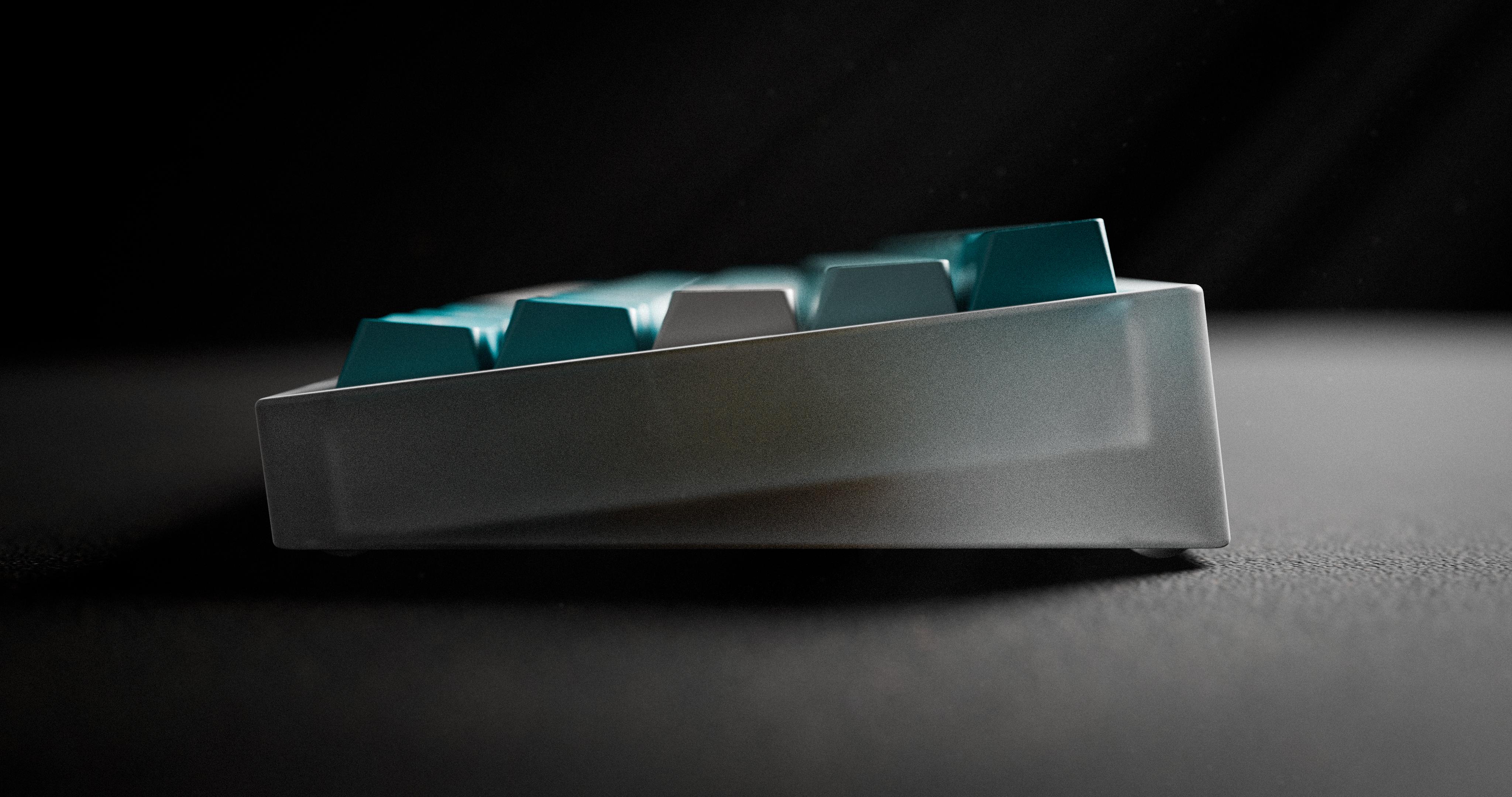

Typing Angle: 6.8 Degrees
Front Height: 17.4mm
Manufacturer: DDS

Mounting

Gummy O Ring
50A Durometer O Ring Included in Kit

PCB
Designed by Gondolindrim
Hotswappable (White) and Solderable (Black) Options Available
1.6mm Thick FR4
Gold Pads
JST Connector to Unified C5 Daughterboard
QMK/VIA Compatible





Remark: The plate included in the kit only supports 7U spacebars, but the solderable PCB supports both 7U and 6.25U spacebars. This is because the PCB was designed to be a “universal” 60% PCB. I.e., it was designed to be compatible with a wide range of existing and future 60% O Ring keyboards, conditional on the JST position. This goes both ways, meaning that solaris is compatible with “universal” 60% PCBs.
