ION x ai03: Equinox | WK/WKL 40% (GB Closed - Complete)

by Pwner

$270.00

geekhackenriched

0 followers0 bookmarks0 comments

byPwner

Description

Date: September 28th, 5PM EST
Interest Check Thread

Pricing & Availability:

Group Buy Close: October 12th, 2019
ETA: Late January 2020

Specs & Features:

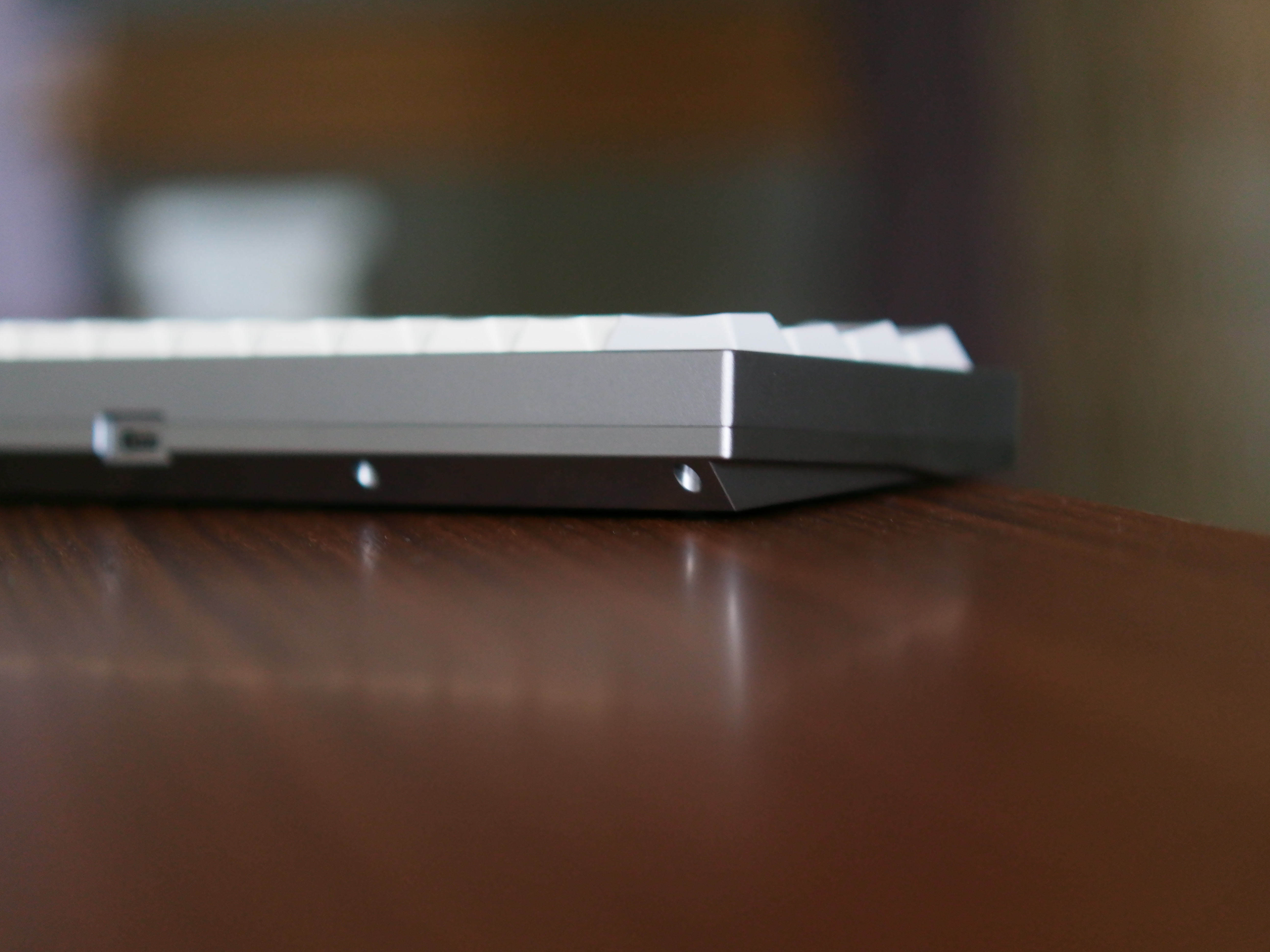

6° typing angle
6063 aluminium
17.25mm front height
QMK PCB designed by ai03 with VIA support
Gasket PCB mount
Backlight LED support

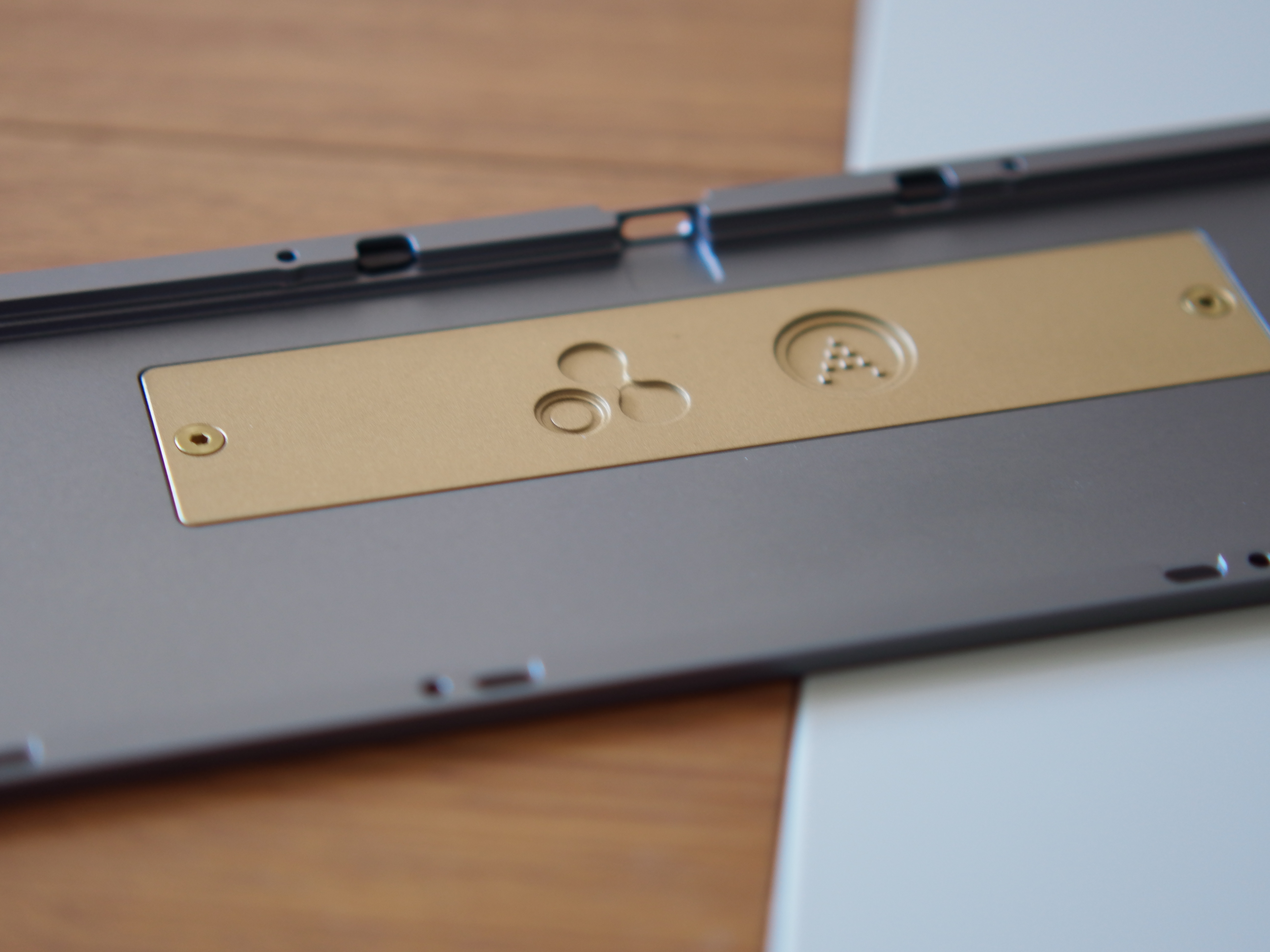

Brass internal weight (Sandblasted & Coated)
Weight: 740g fully assembled

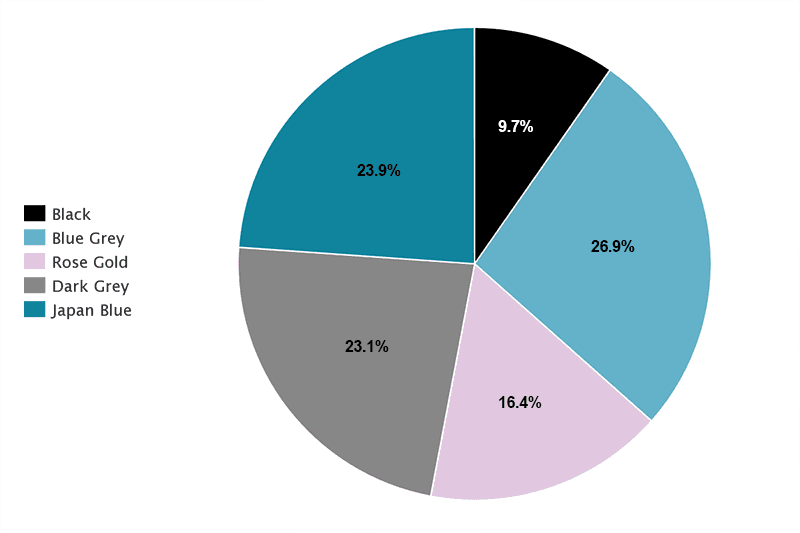

Case colors: Black, Blue Grey (Pantone 8181c), Rose Gold (Pantone 7520c), Dark Grey (RAL 7016), Japan Blue (Pantone 7700c) [Japan Exclusive]

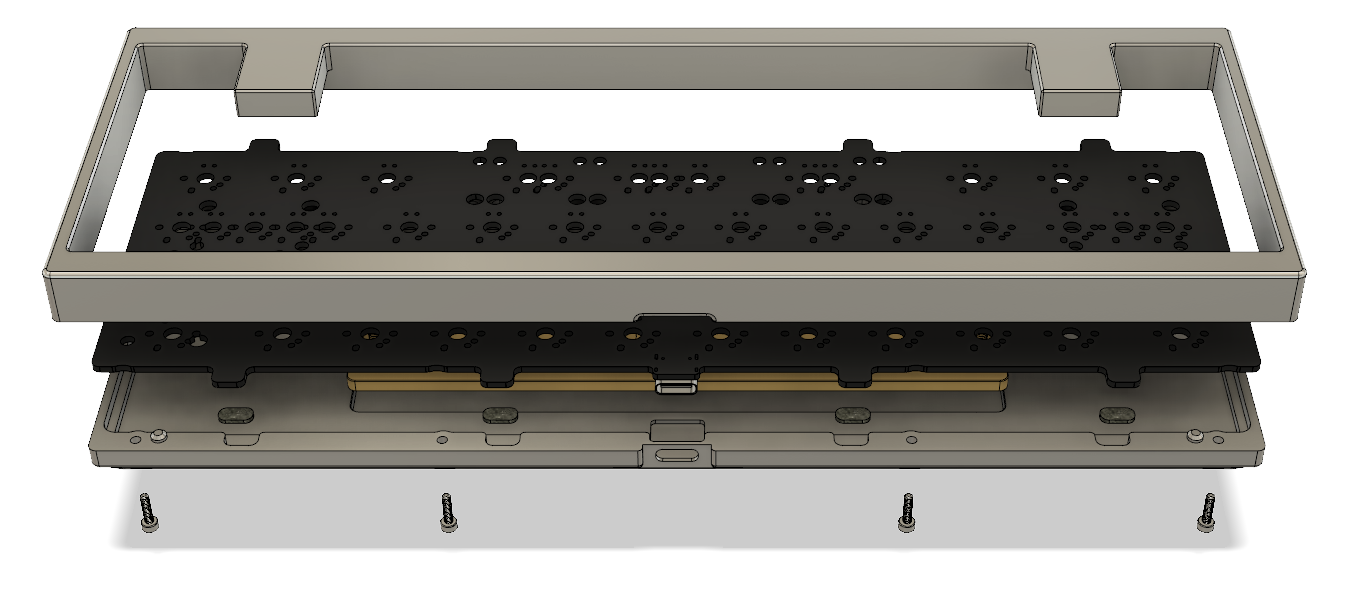

Render Gallery courtesy of ai03

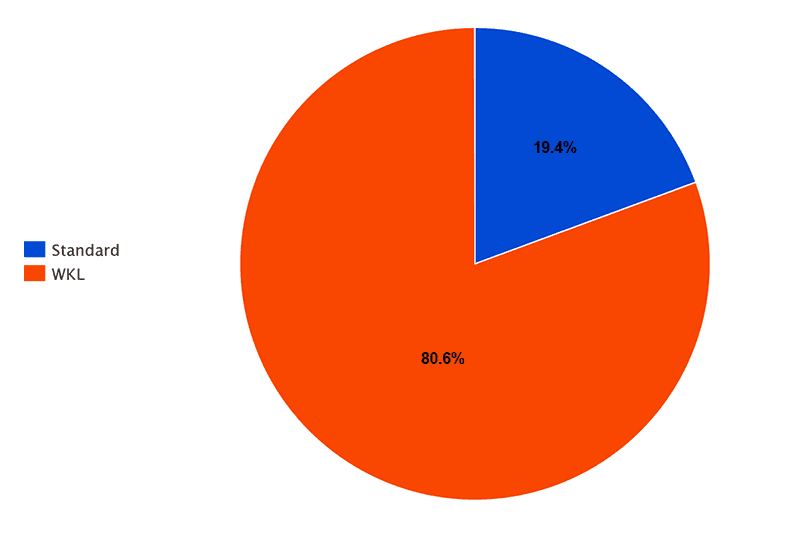

Case options: With or without wkl blocker options available
Compatible with most standard keyset base kits!

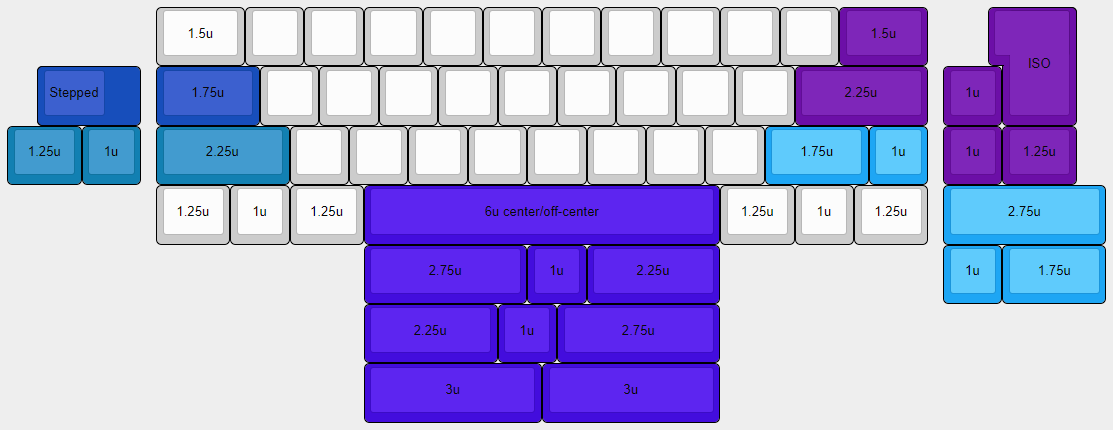

Layout support:

FAQ:

"What happened to the option for a plate?" - There wasn't much demand during the Interest Check phase for a plate although a file will be made available after the group buy.
"I don't live in Japan, can I get the blue case?" - The Japan blue is an exclusive to Japan.
"Can I use a proxy to buy from another vendor?" - Do so at your own risk.

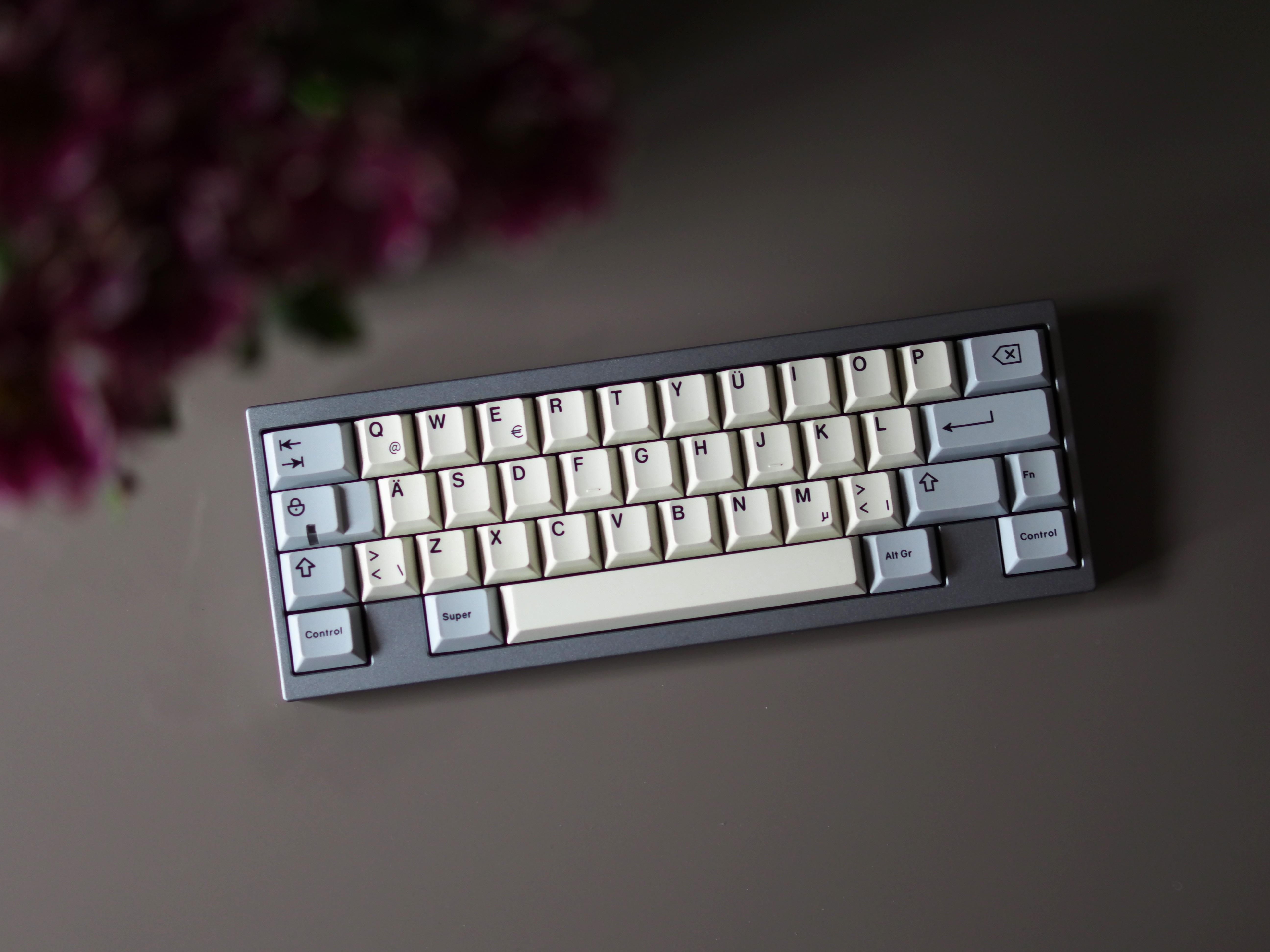

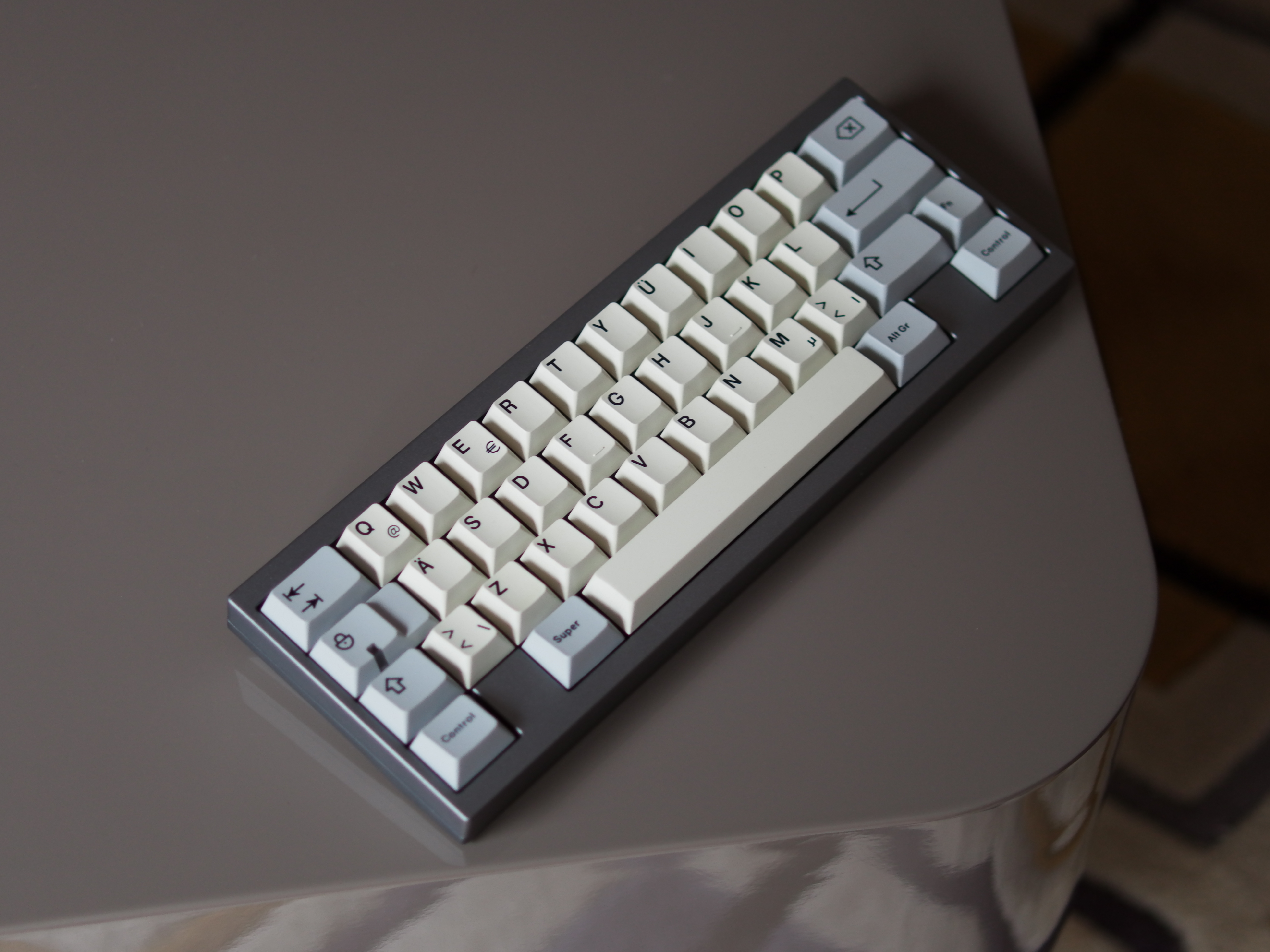

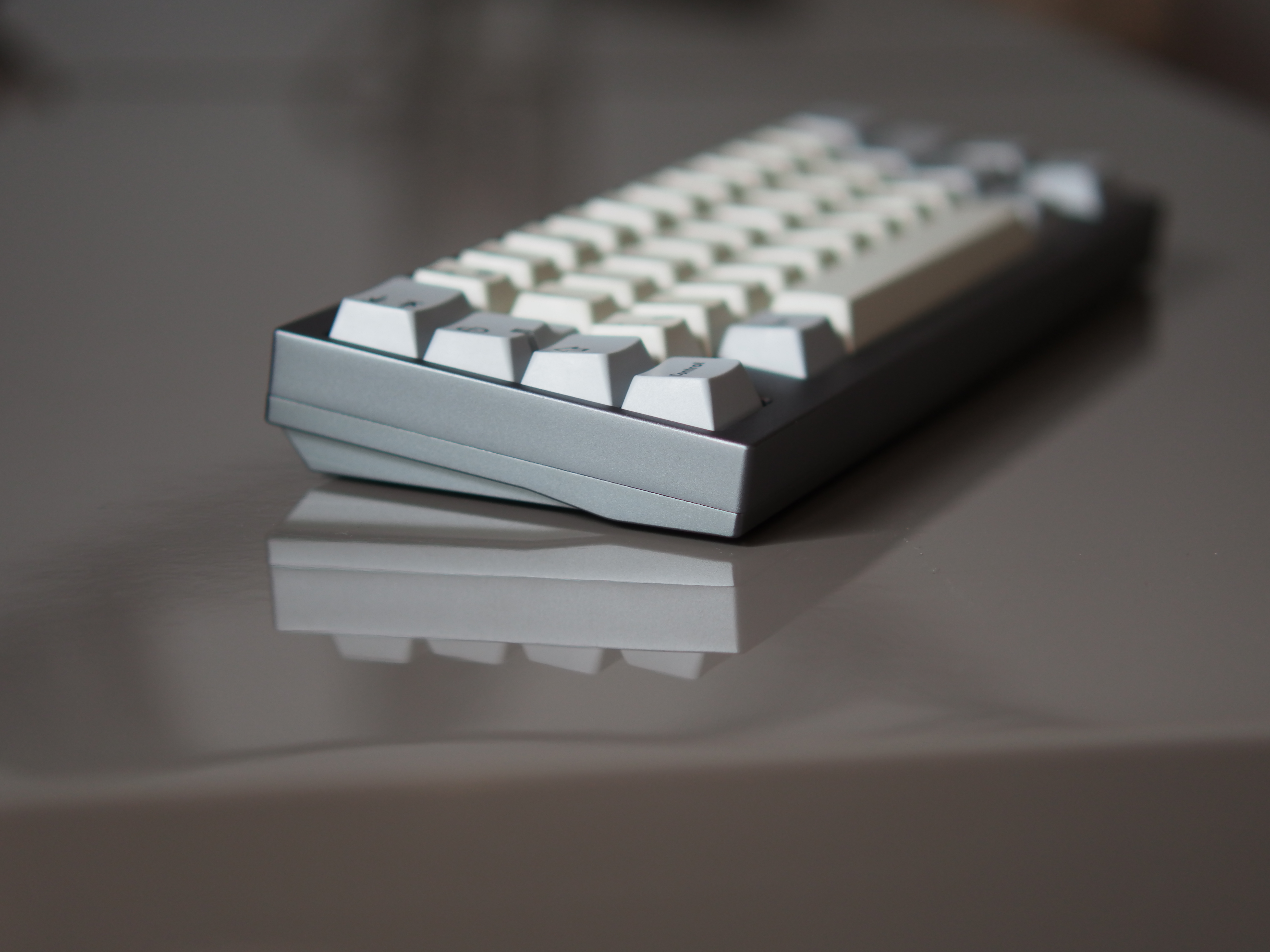

More pics:

Special thanks:

ai03 - For being a bad influence and always encouraging and supporting my bad ideas
Wilba & Olivia - For the VIA support! <2
Upas - For all his help and support in making this group buy happen
Mykeyboard & Yushakobo - For helping out with proxy services
Chris Swires - For the beautiful photos
And to the prototype purchasers who helped support bad ideas
