Equinox XLEquinox is back - The compact size and PCB-mount structure remain, but this time with more keys and a screwless exterior.
To stay up-to-date, it is highly recommended to join either
ai03's or
ION Keyboard's Discord server.

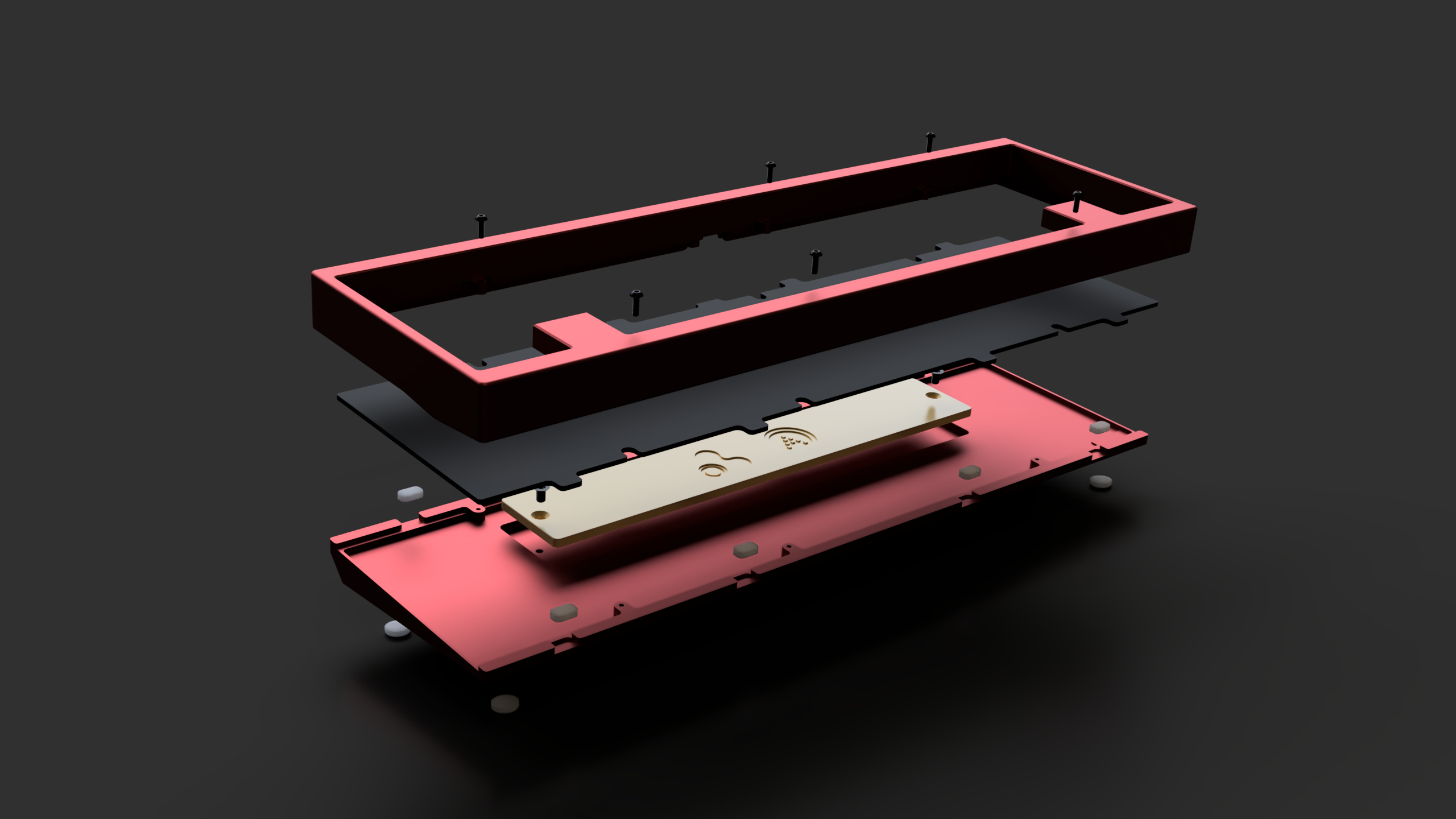

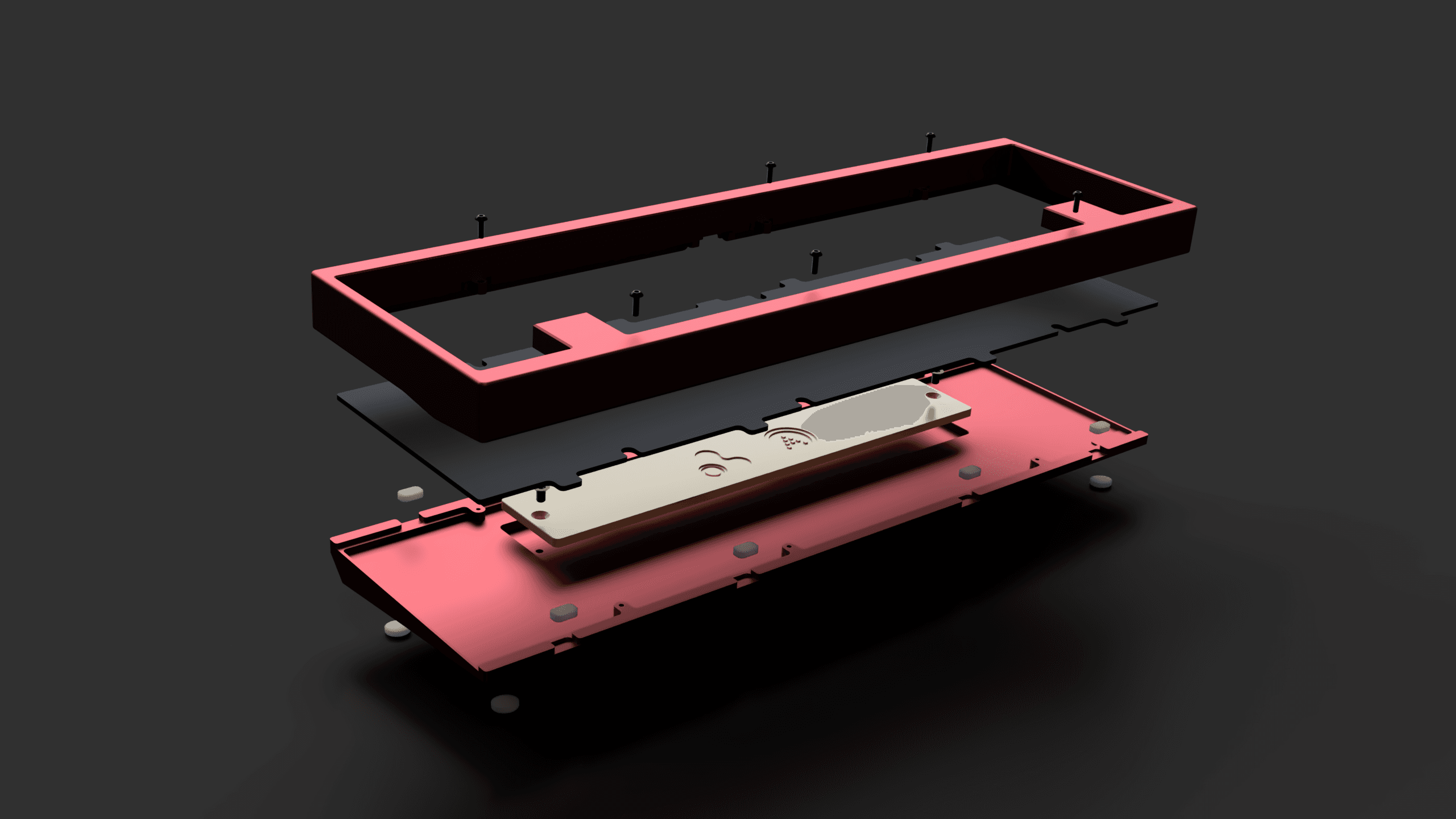

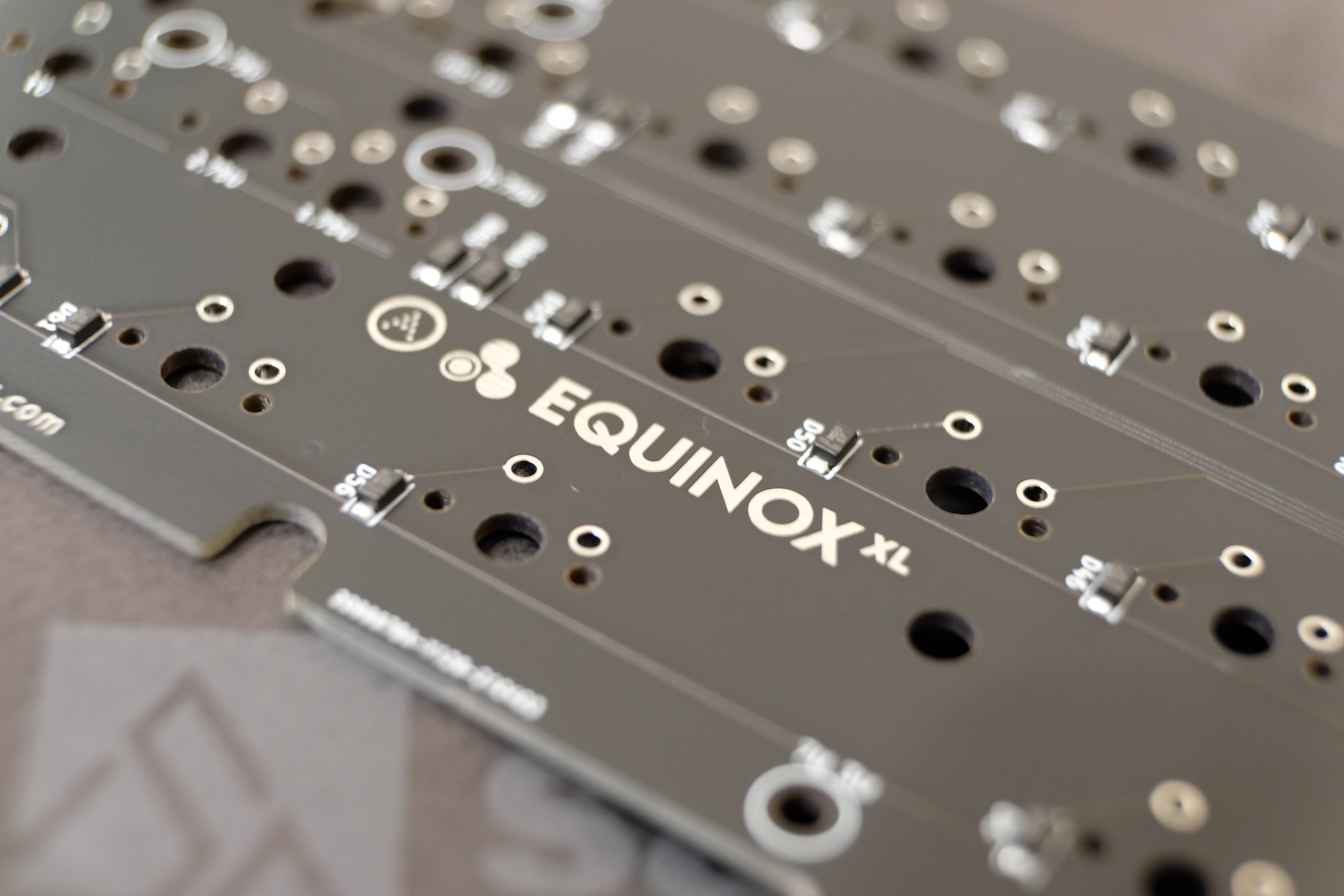

Visible EvolutionThe proven tabbed-gasket PCB mount structure from the original Equinox remains, offering an unusual yet comfortable typing feel designed primarily for plateless use.

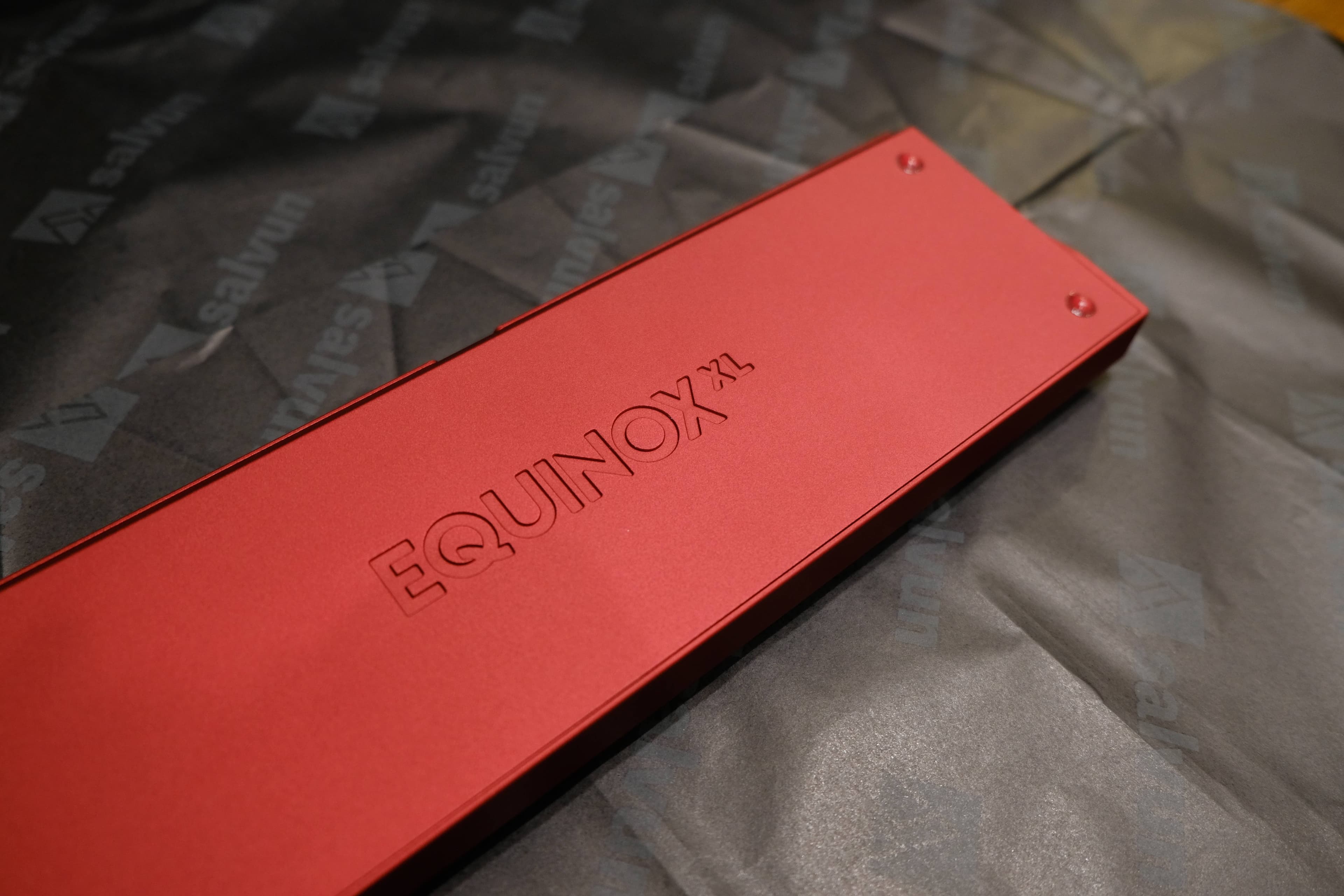

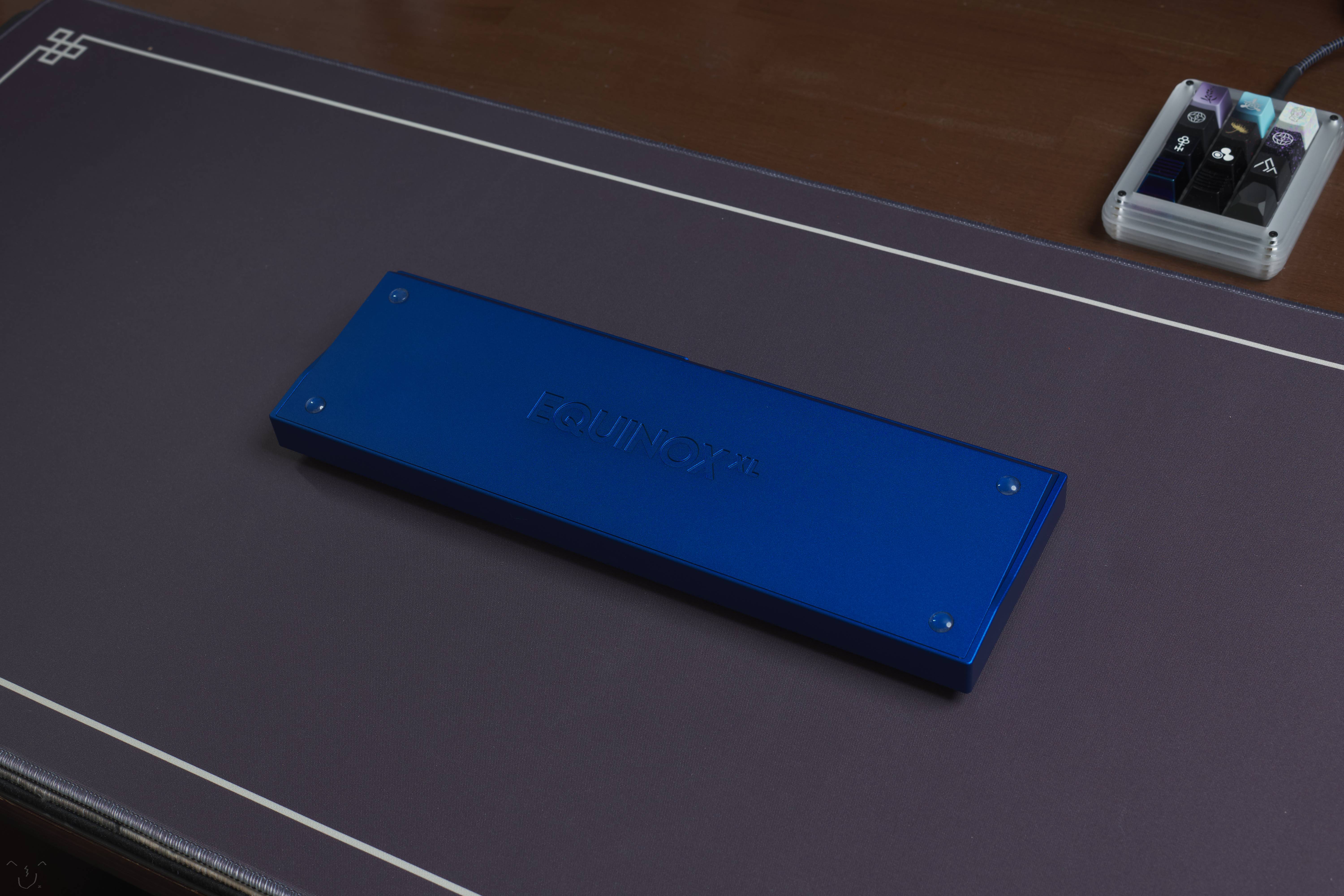

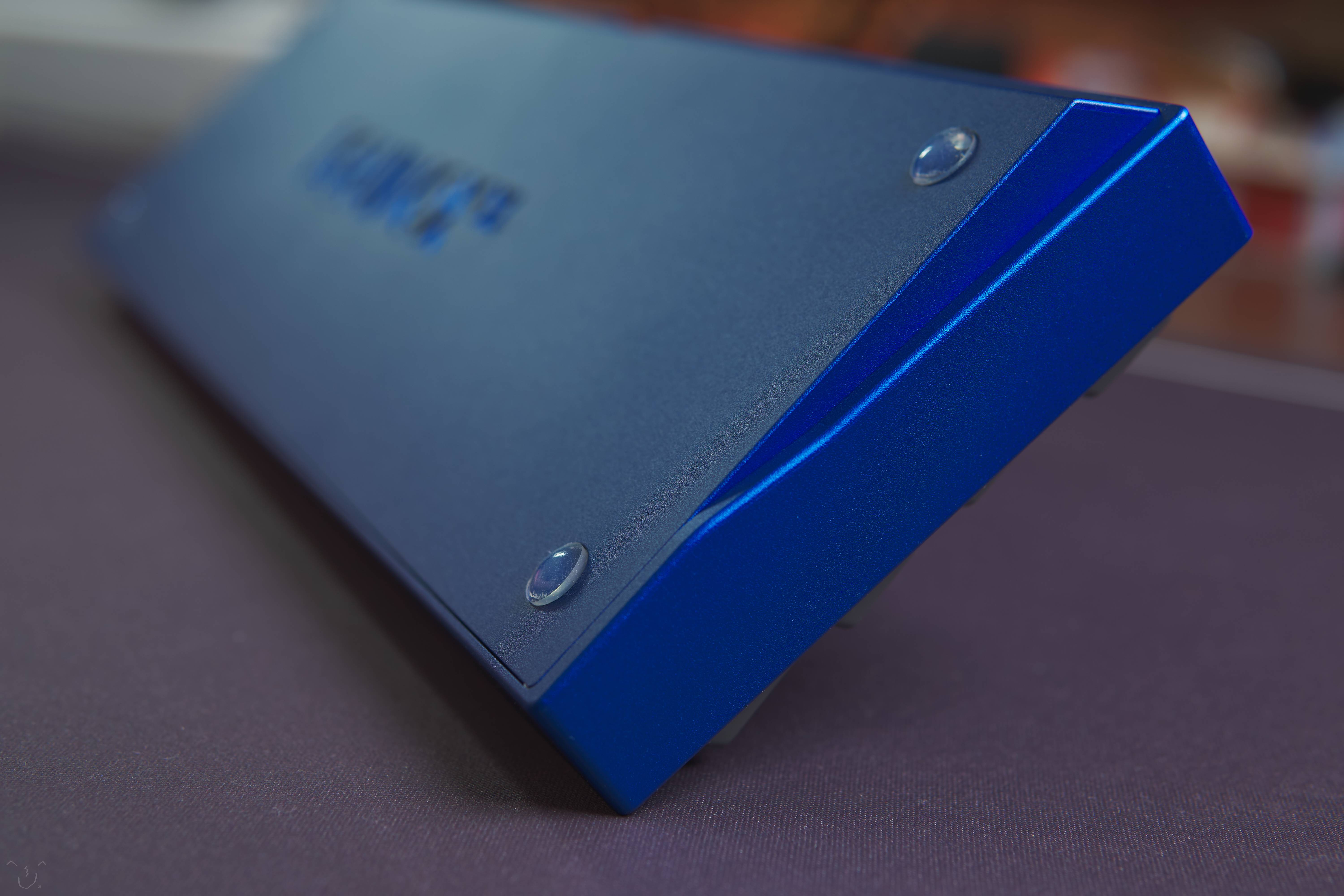

Equinox XL has been updated from the original with a seamless design and internal screws, making the exterior clean and sleek from any angle.

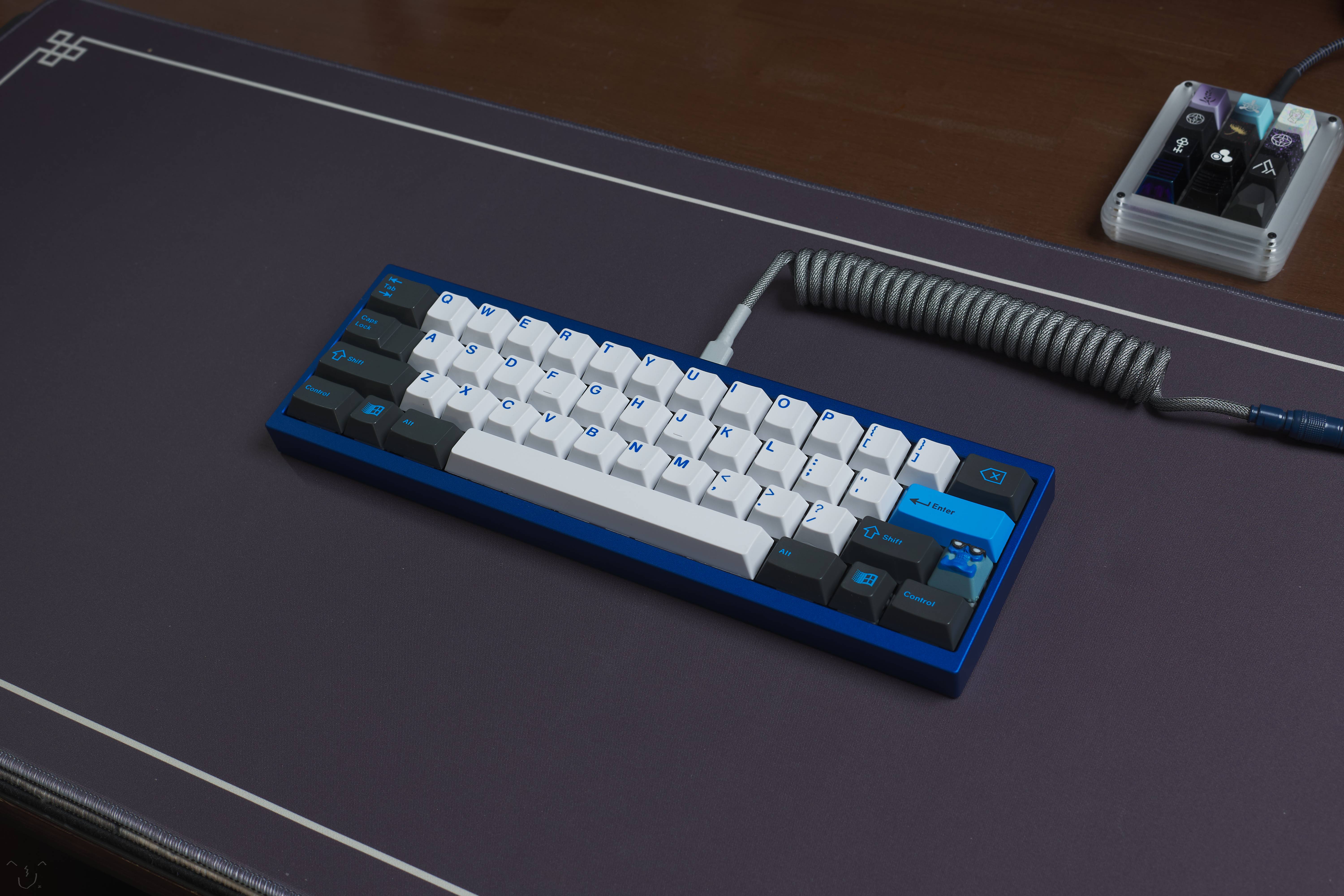

From the Desk to the WorldThe compact yet functional 50% key layout of the Equinox XL allows for easy migration from larger layouts while also ensuring compatibility with many keysets.

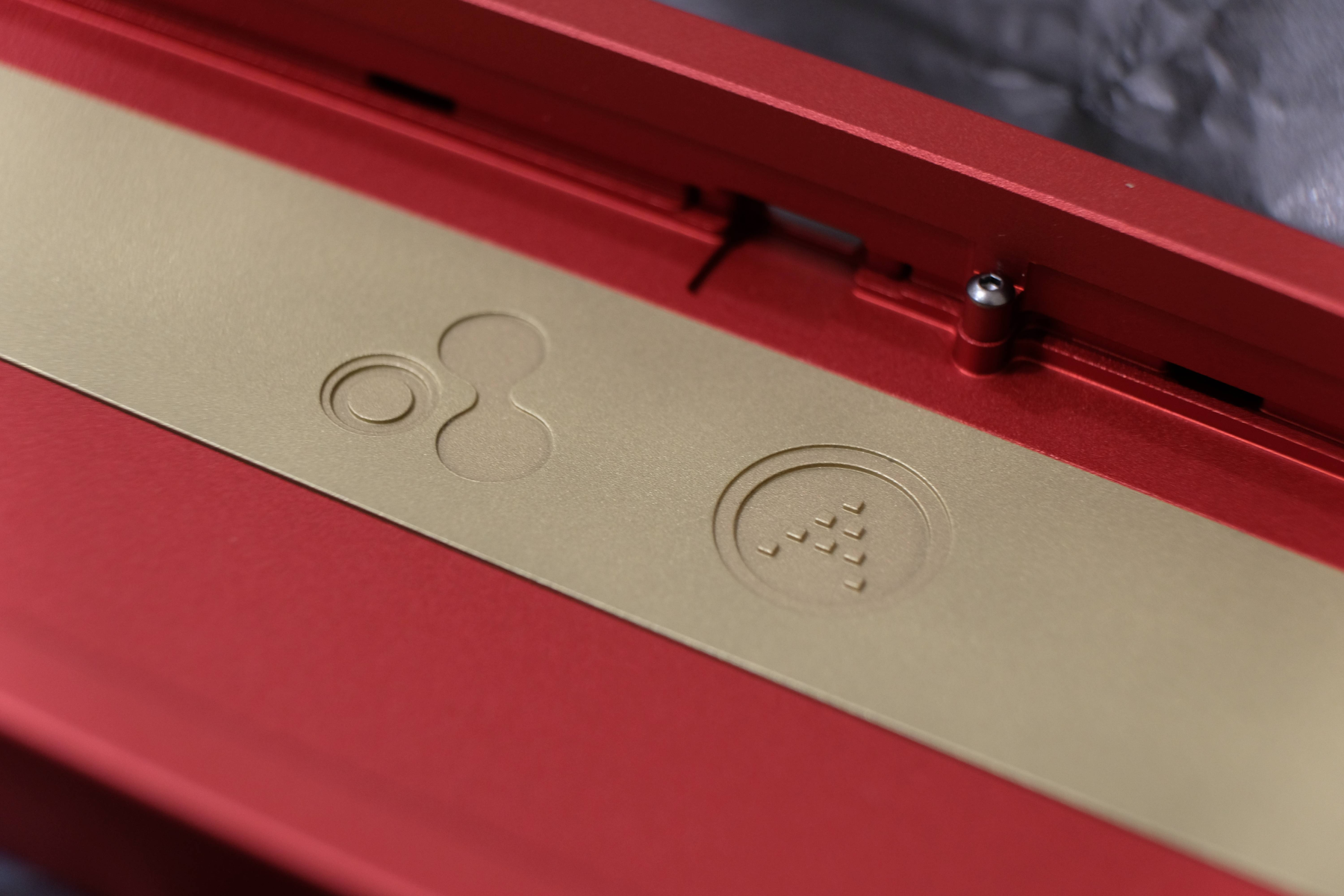

An internal brass weight balances the board’s mass - just light enough for portability, and just heavy enough for stability during use.

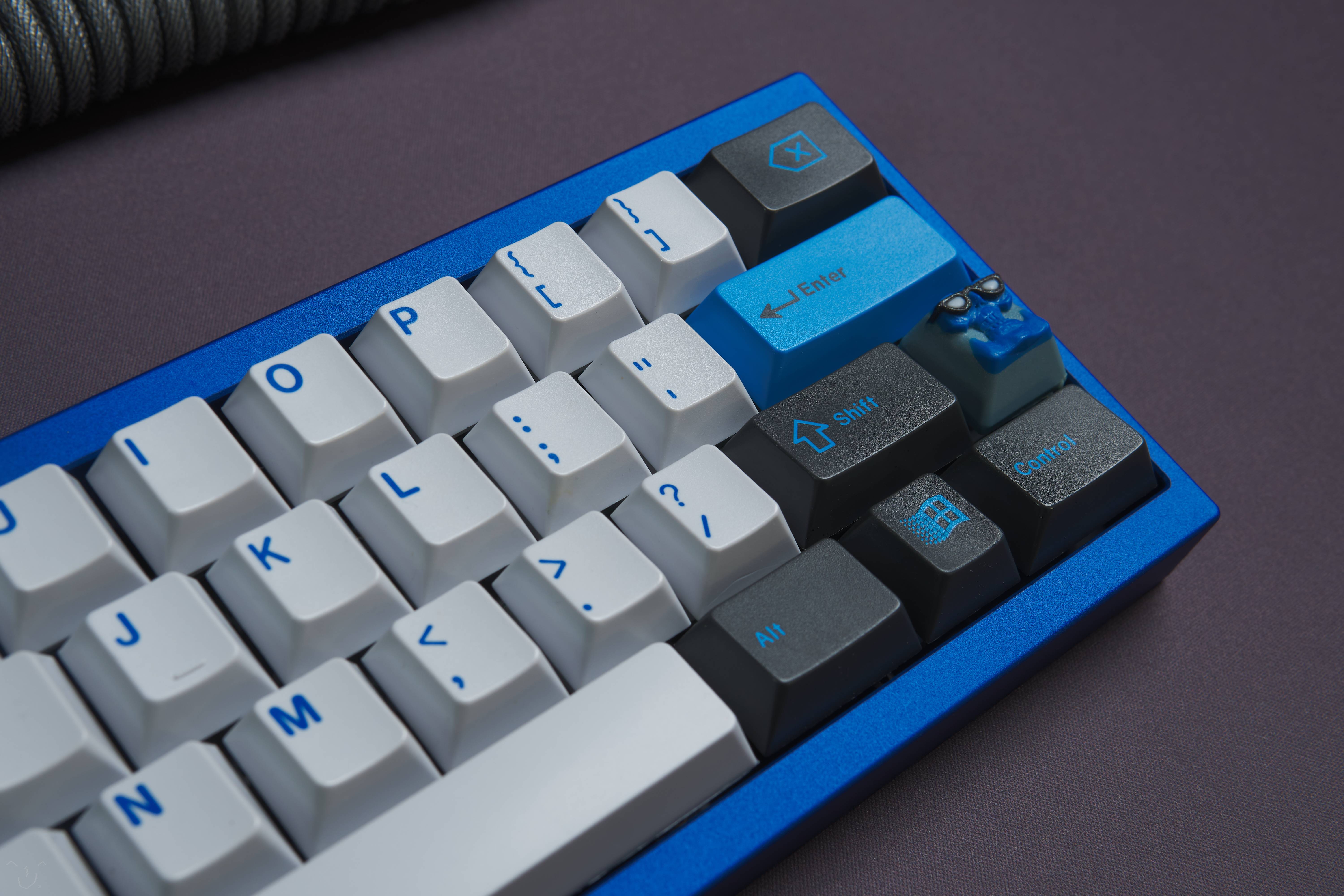

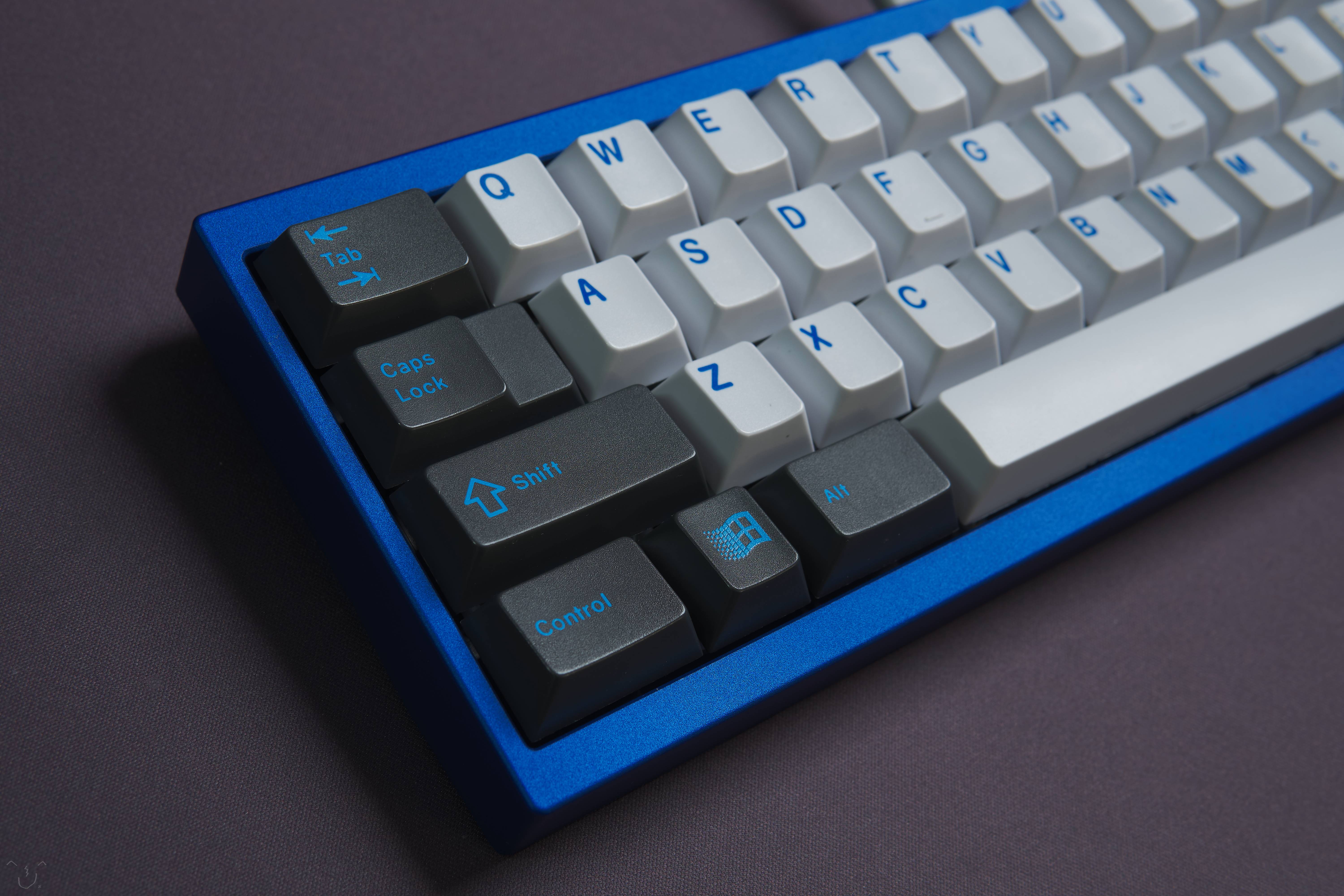

Tailored to the OccasionChoose between winkey and winkeyless variants to choose between maximum functionality and a classic aesthetic.

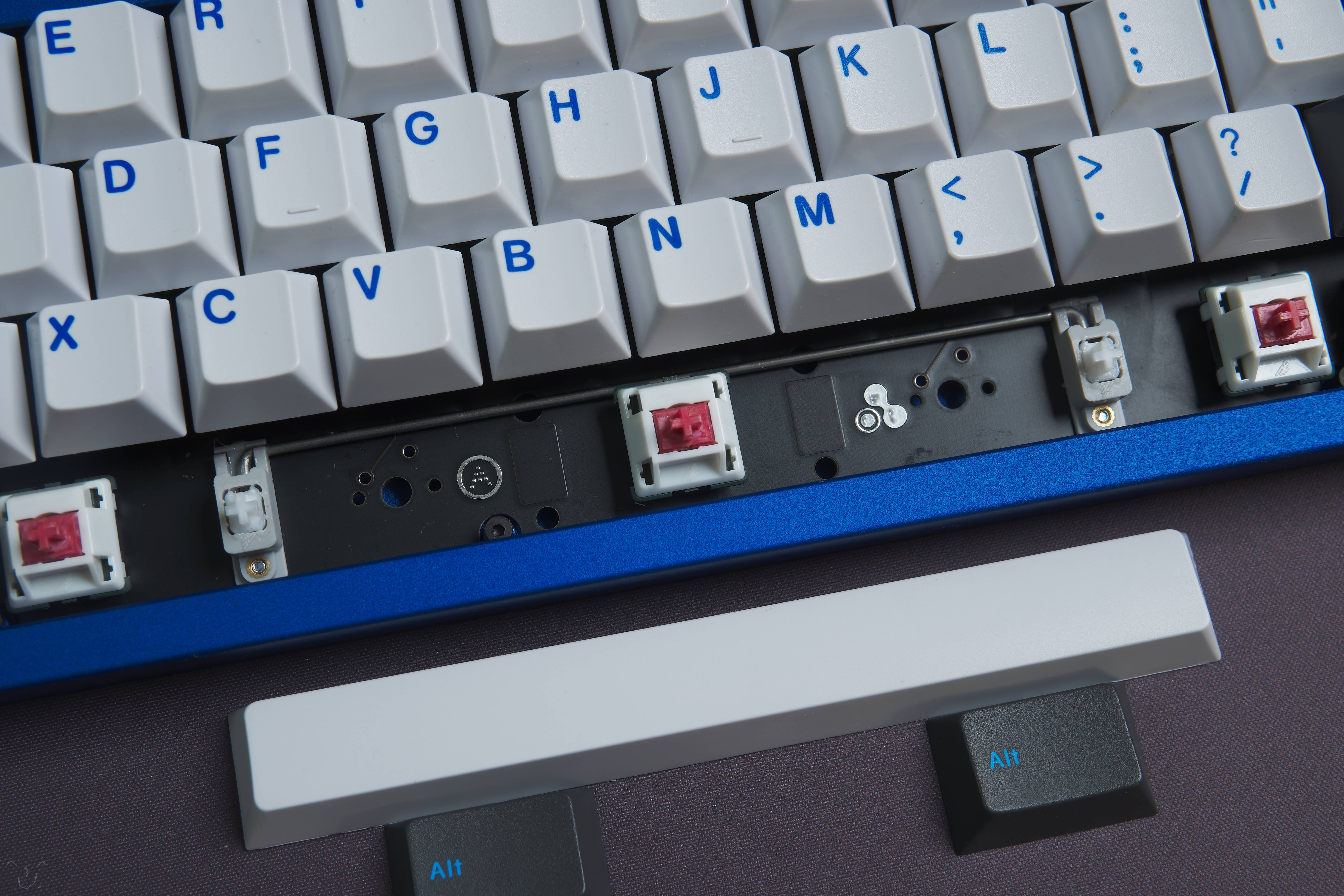

The PCB allows for 3U-1U-3U split spacebar to extend productivity further without sacrificing the symmetrical aesthetic.

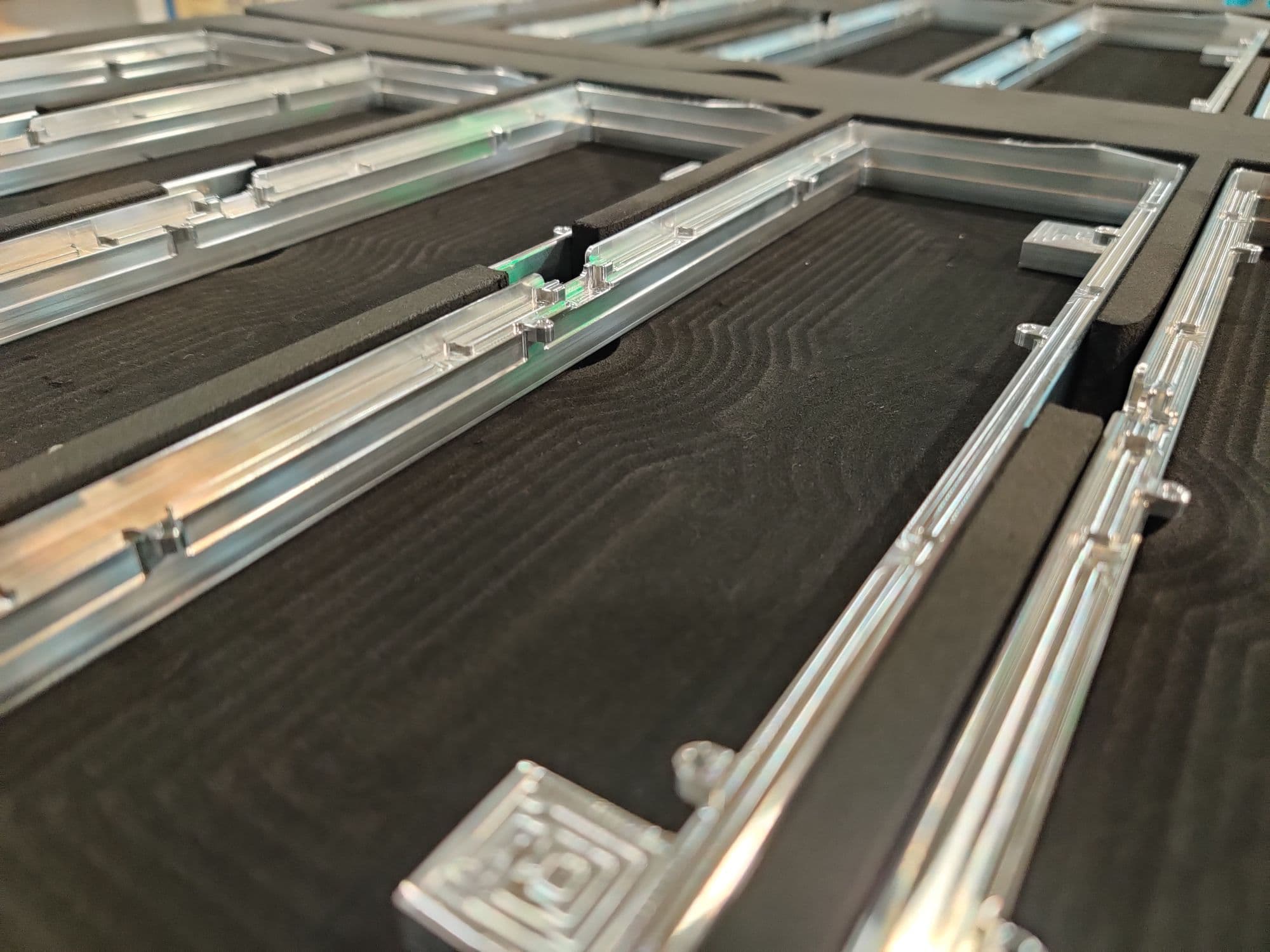

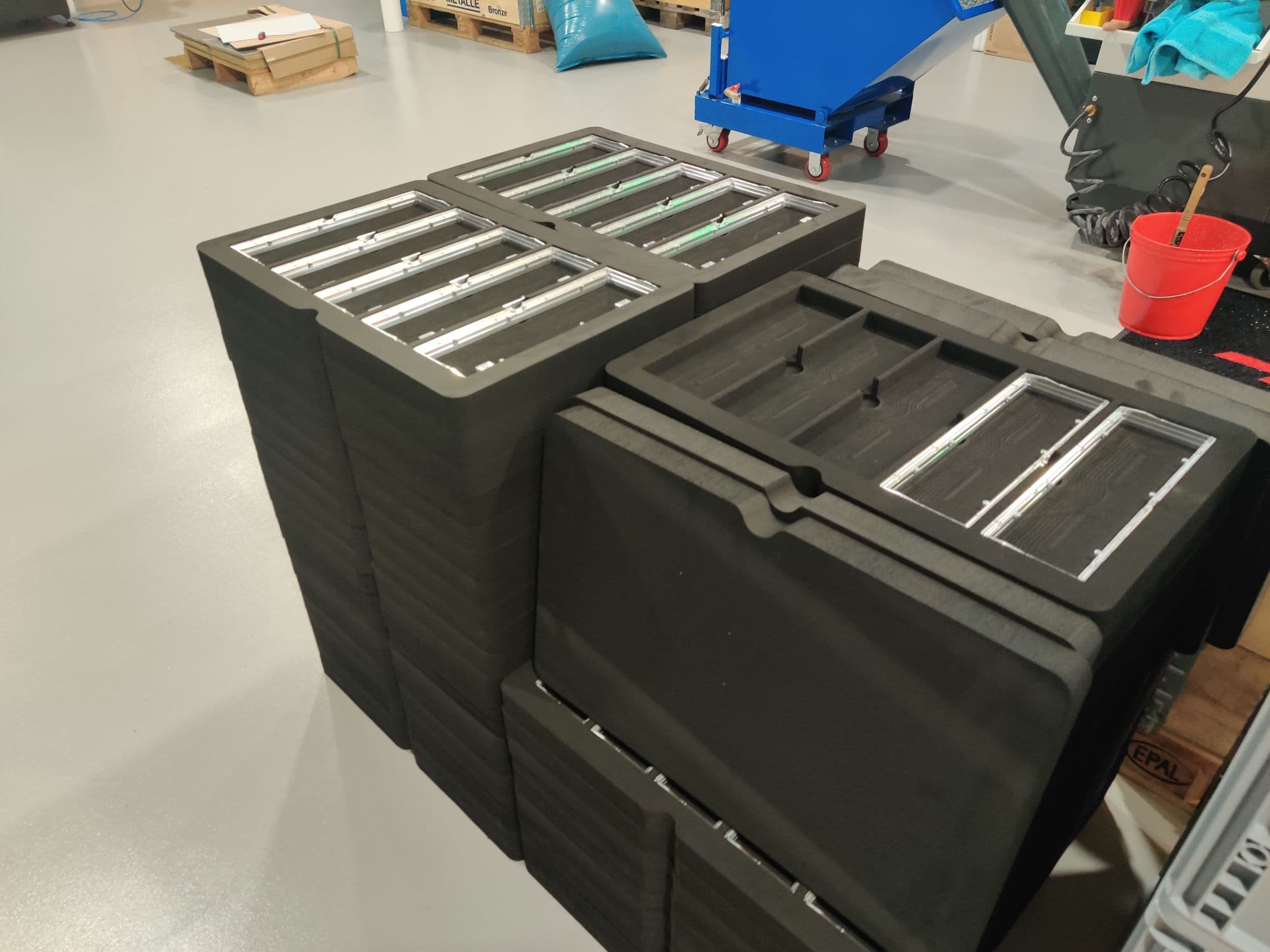

Specifications- Aluminum case, internal clear cerakote brass weight, manufactured by Salvun CNC
- Weight: ~670g for the case incl. internal weight

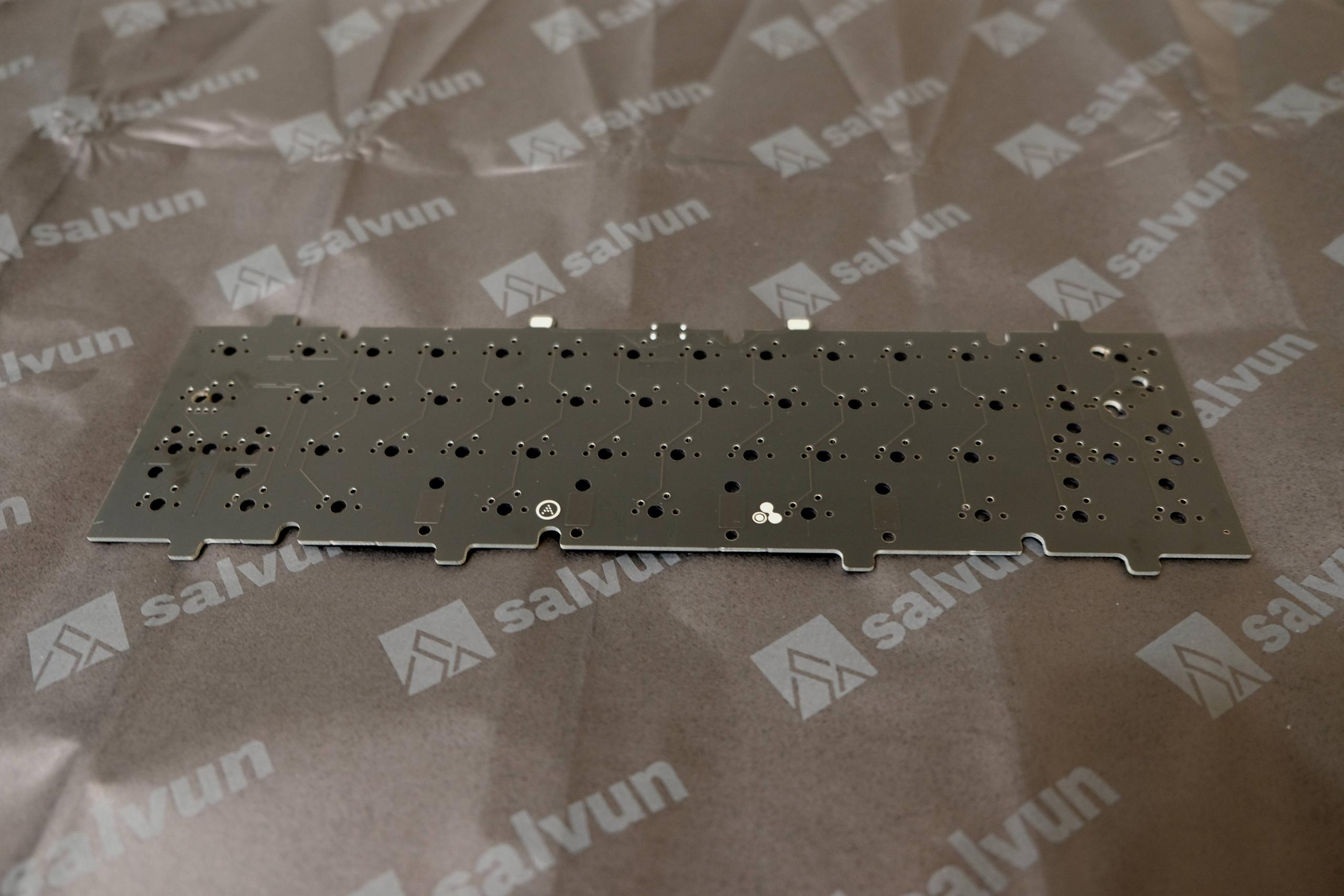

- PCB: Soldered (Non-hotswap), QMK/VIA
- Case colors: Black, Blue,
Grey,
Purple, Red
- Case variants: Winkey or Winkeyless
- Cost: $320USD
- GB Date: August 15th - August 29th, 2021
- Shipping: Q4 2022
- Vendors:
Cannonkeys,
Salvun,
Daily Clack,
Typeplus,
Yusha Kobo- Media coverage/streamer review:
Lightning Keyboards Build Stream,
Alexotos Build Stream,

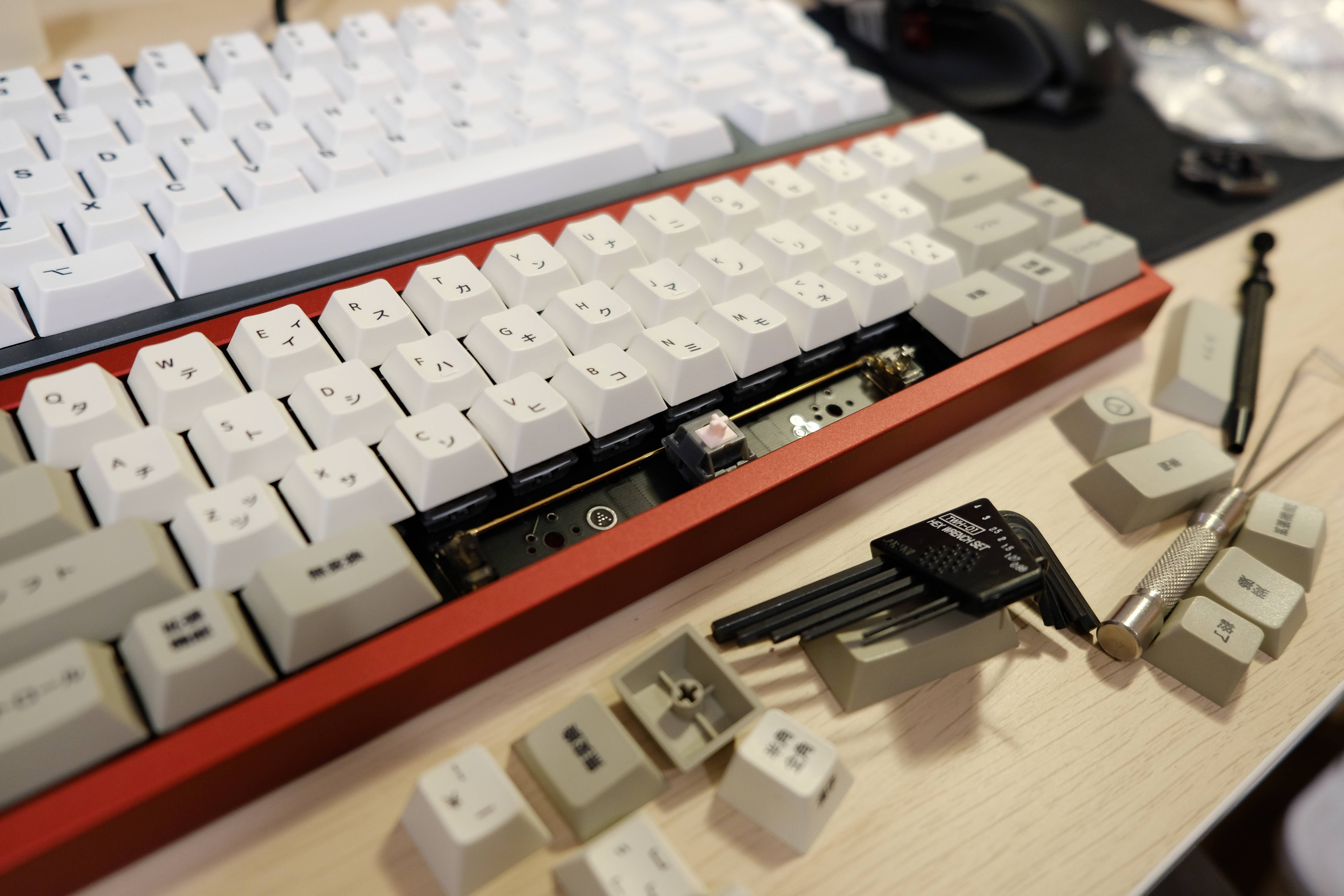

Apiary Keyboards Build Stream- Note: PCB-mounted structure. It is recommended to use PCB-mount switches without a plate.
If absolutely necessary, please use the bundled FR-4 plate, or cut a plate based on the provided plate files.

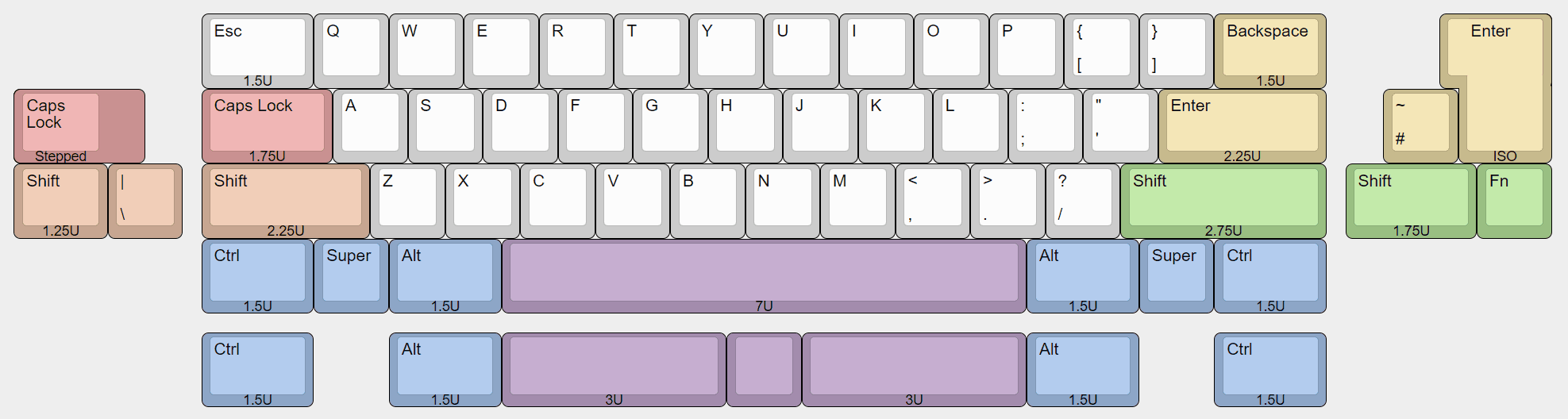

Layouts
Images
Typing Testsai03 x Ion Equinox XL Prototype with lubed MX Blacks Typing Soundsai03 x Ion Equinox XL Prototype with lubed Snag Linears Typing Sounds
