Launch Date: February 28th Pricing & Availability: -50 units -Time: 12:00PM PST -Price: $450 -Vendor: Switchplate Peripherals -ETA: 4-6 months after GB close
Specs & Features:

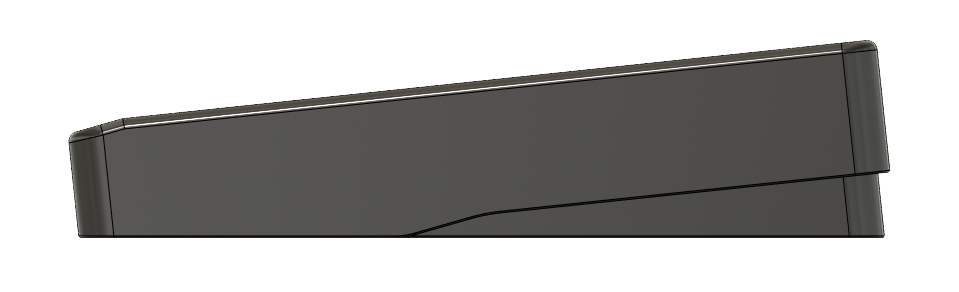

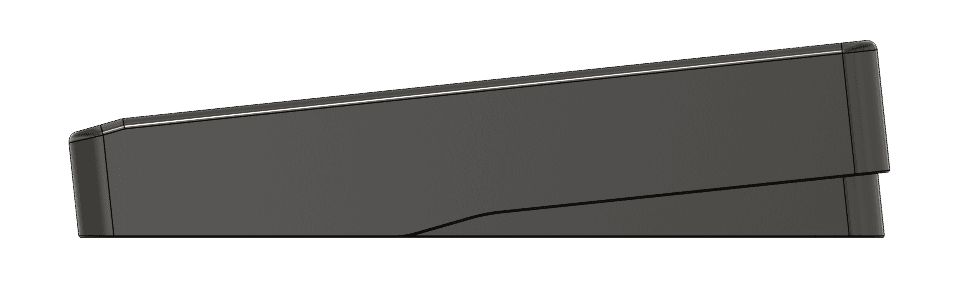

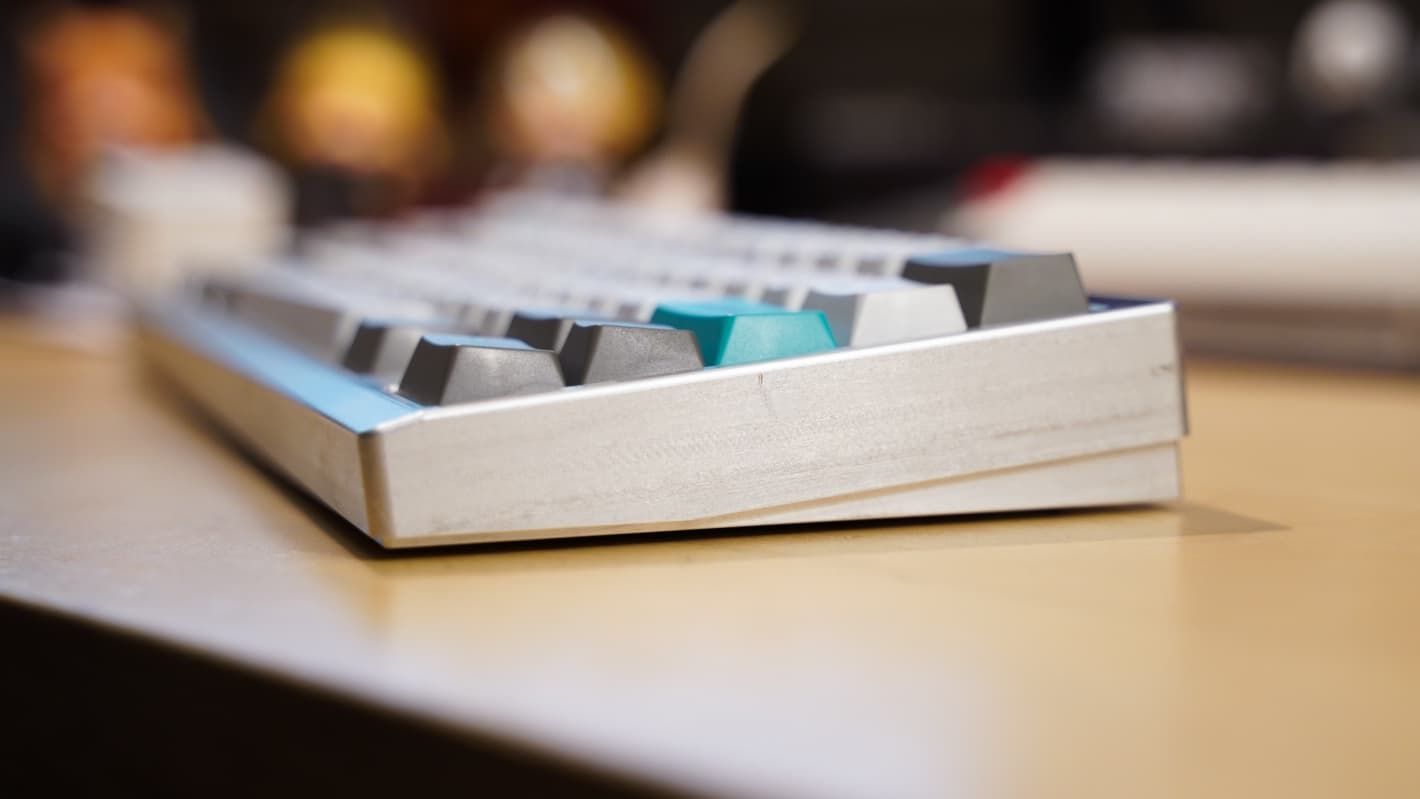

6° typing angle
6063 aluminium
17mm front height
Seamless

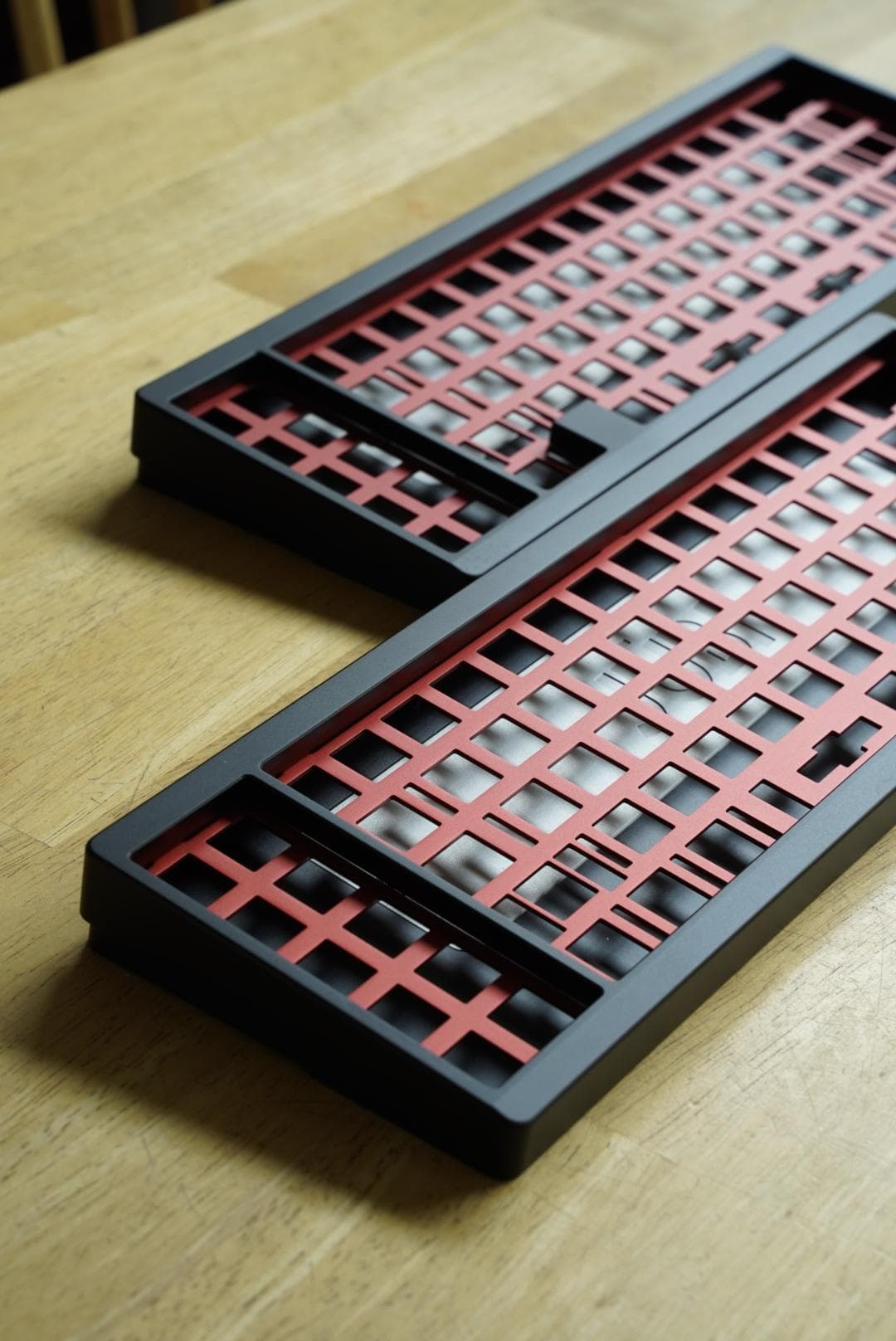

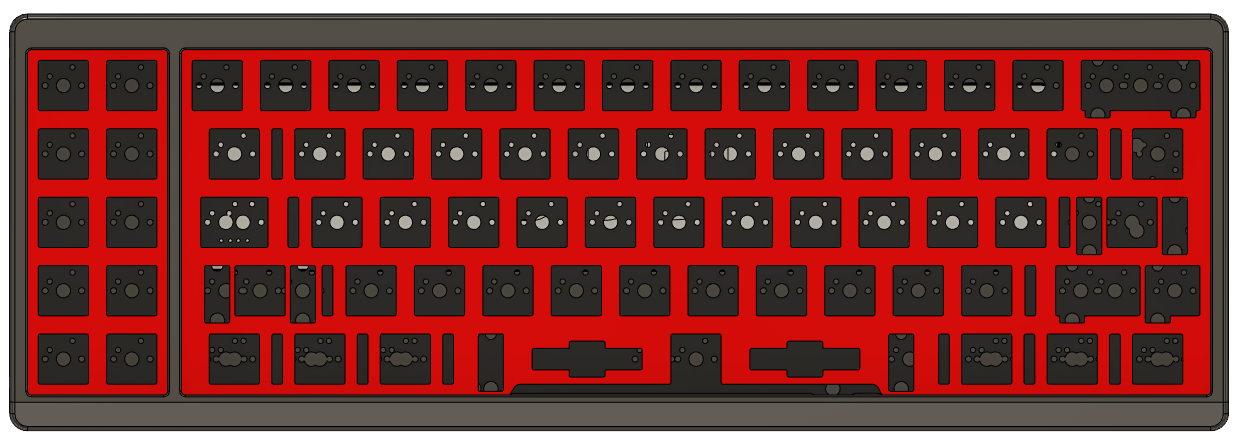

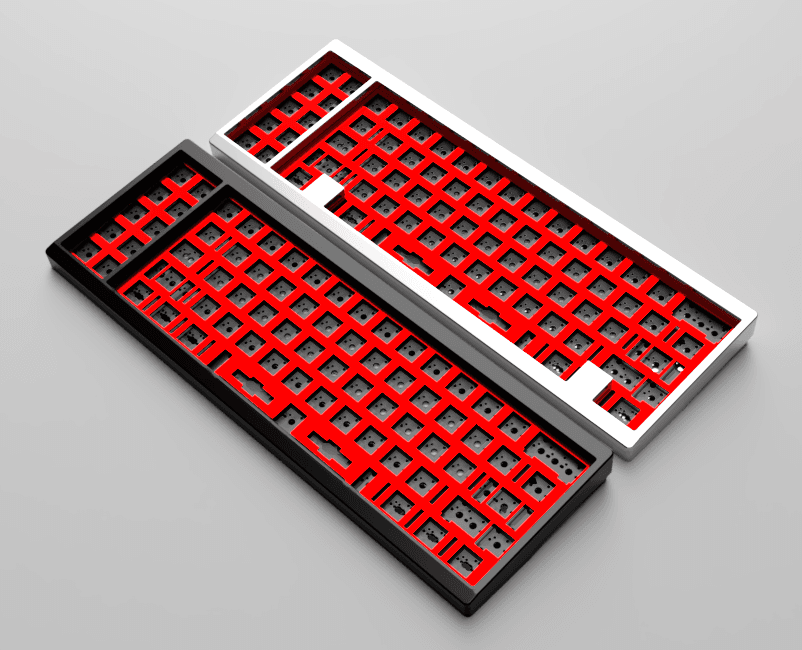

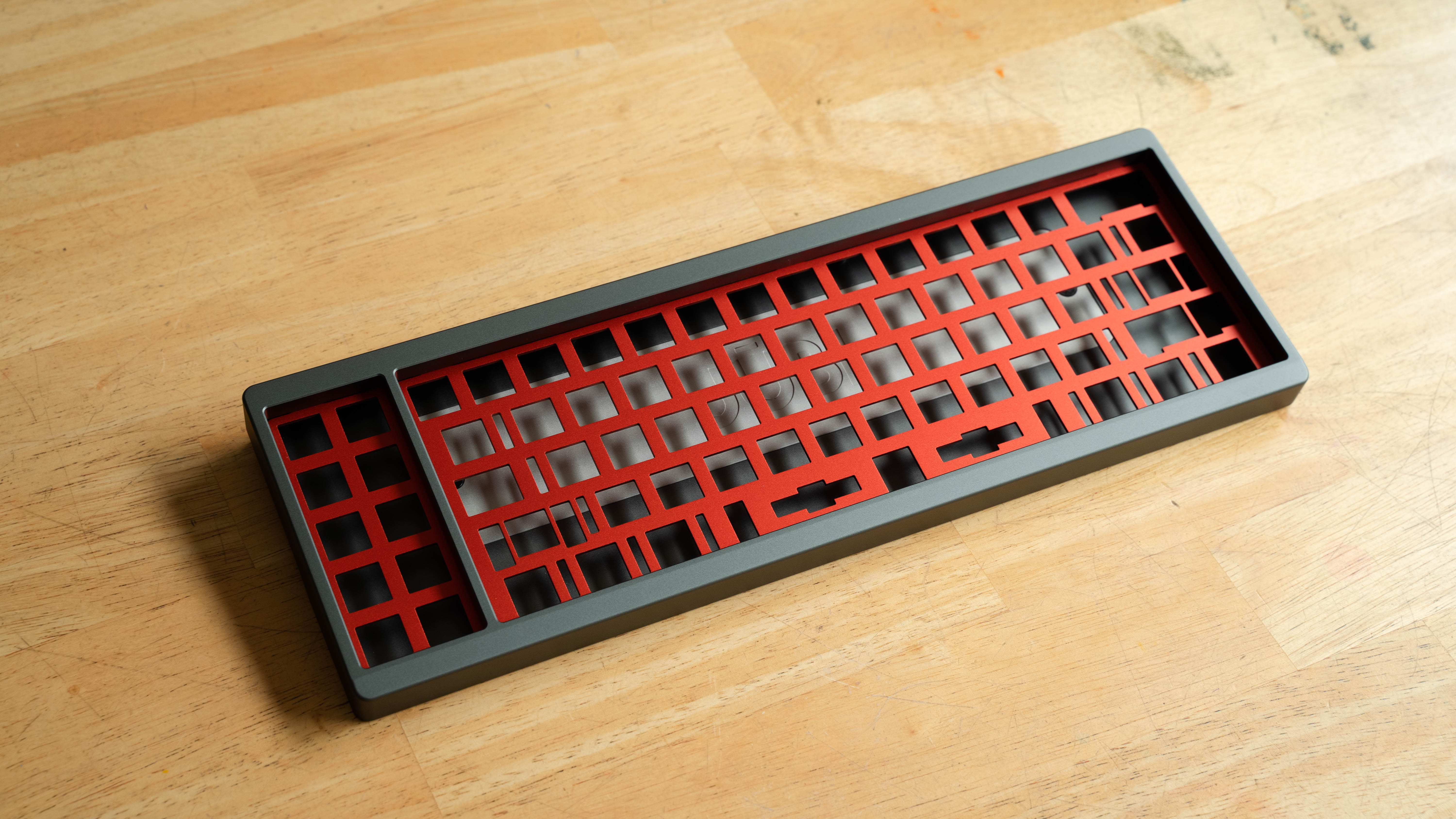

Top mounted Red aluminum plate or pcb mounted (modified version of what was used on the Equinox)
Semi-fixed aluminum plate (plate file will be made available)

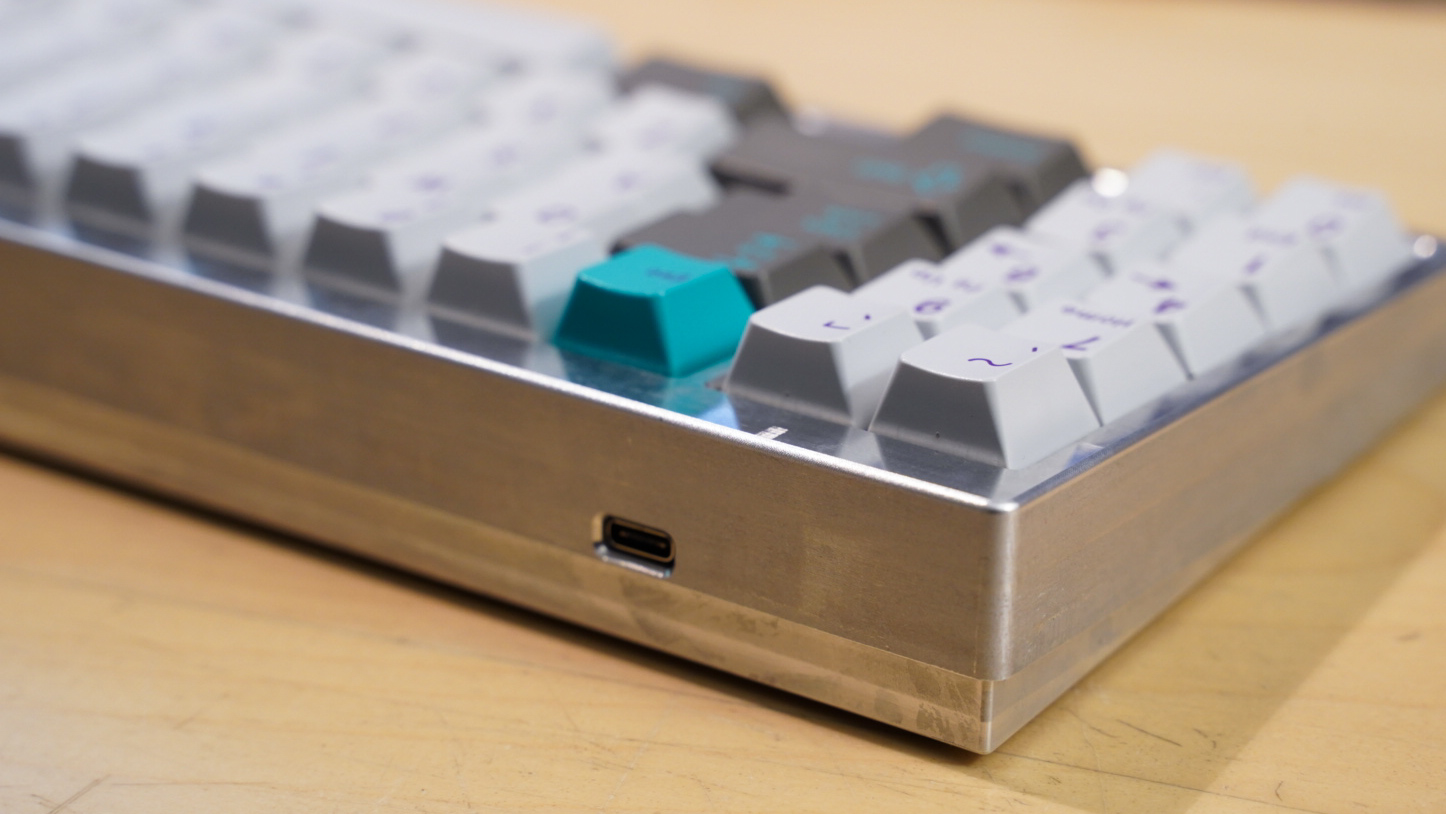

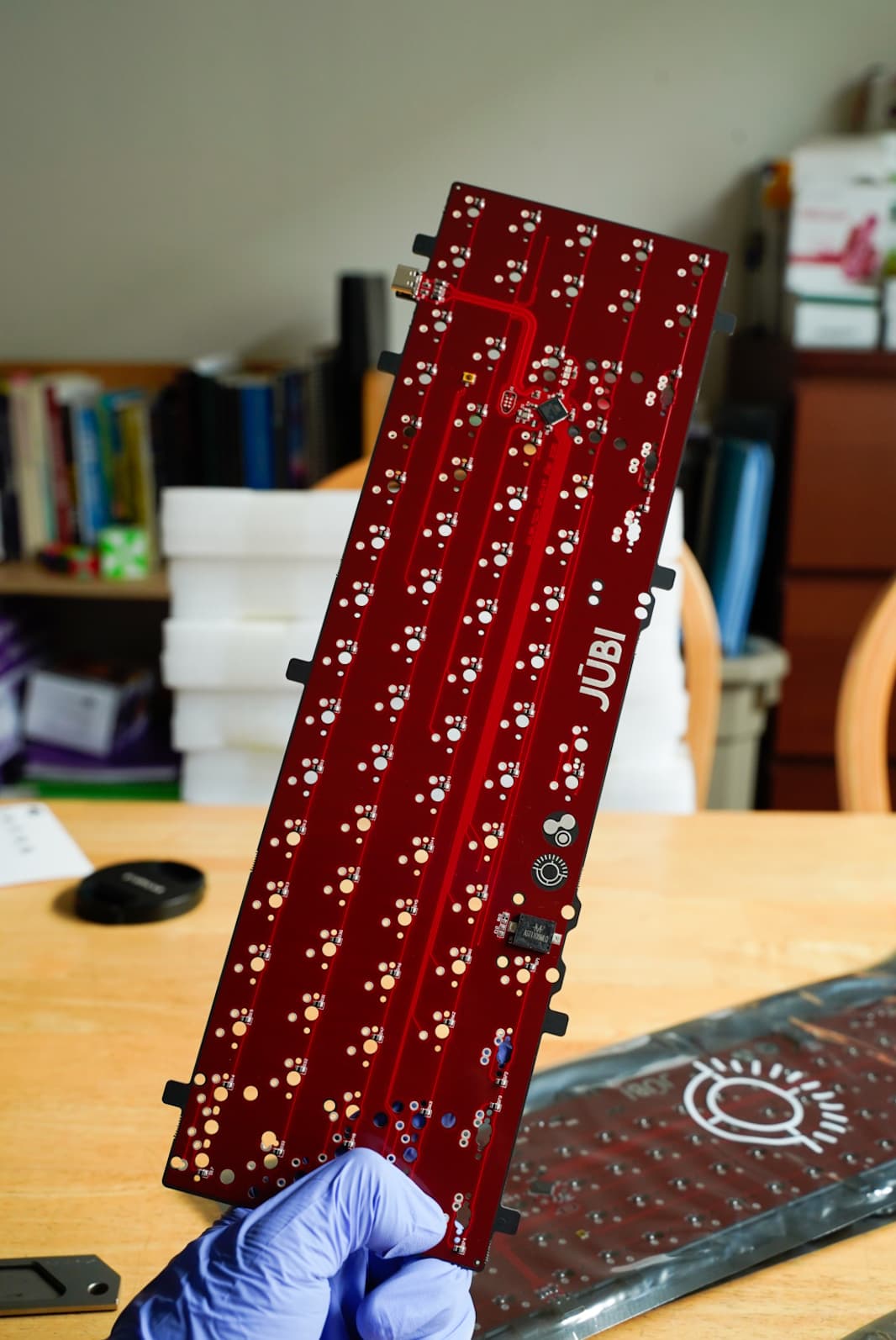

WT60-XT USB-C PCB by wilba.tech (QMK/VIA Compatible)
Case colors: Black, Silver, Dark Gray
Case options: Standard or WKL top

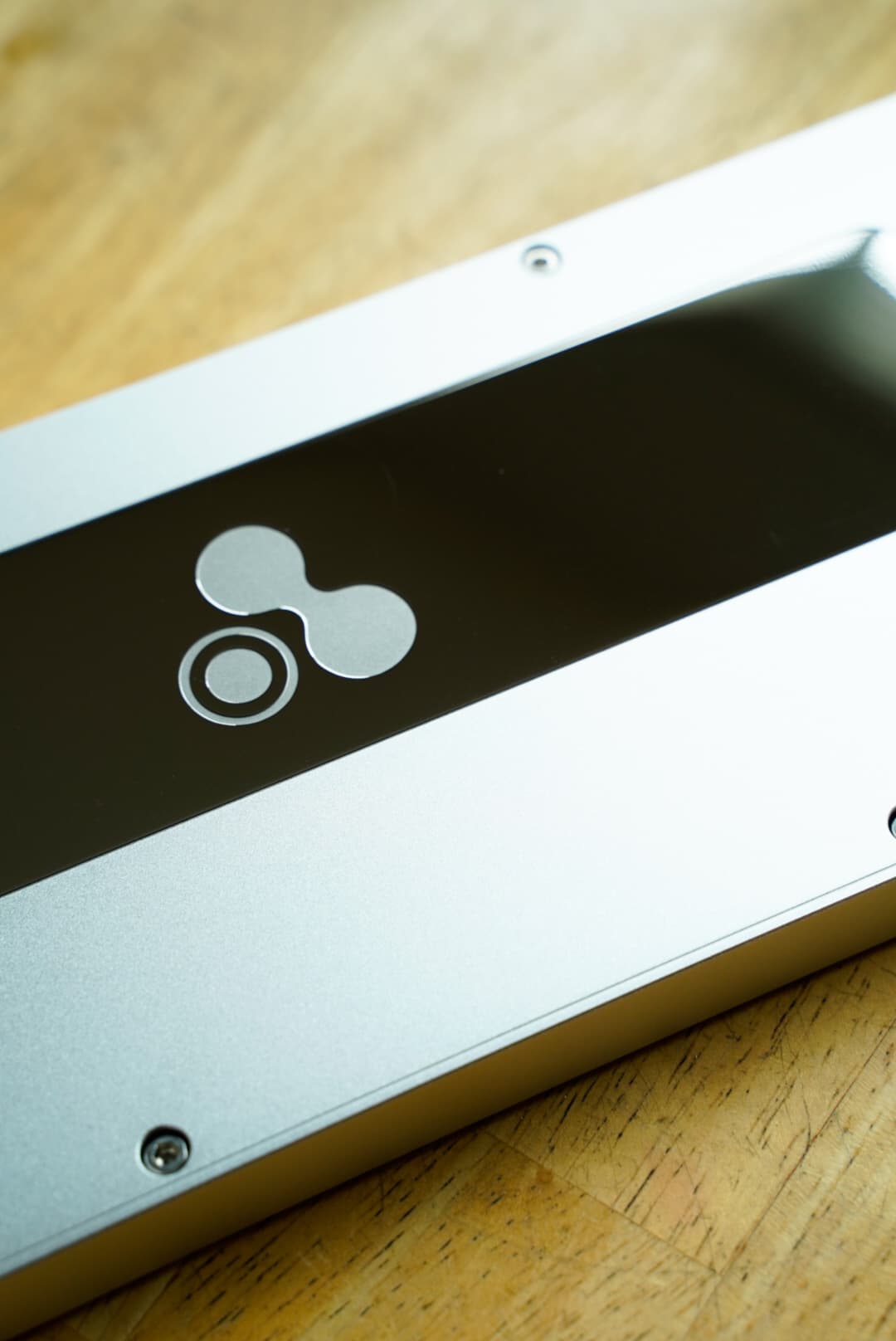

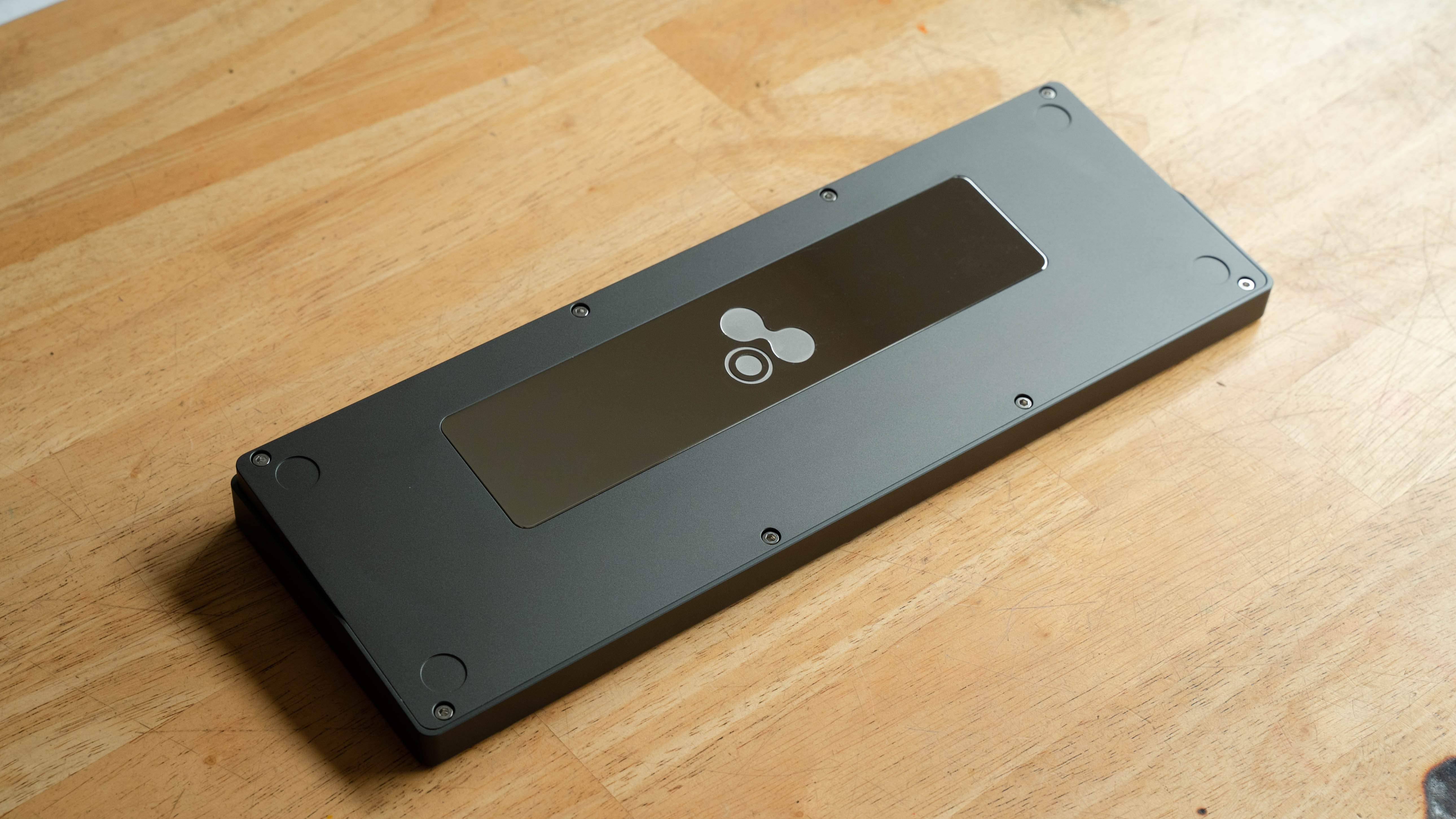

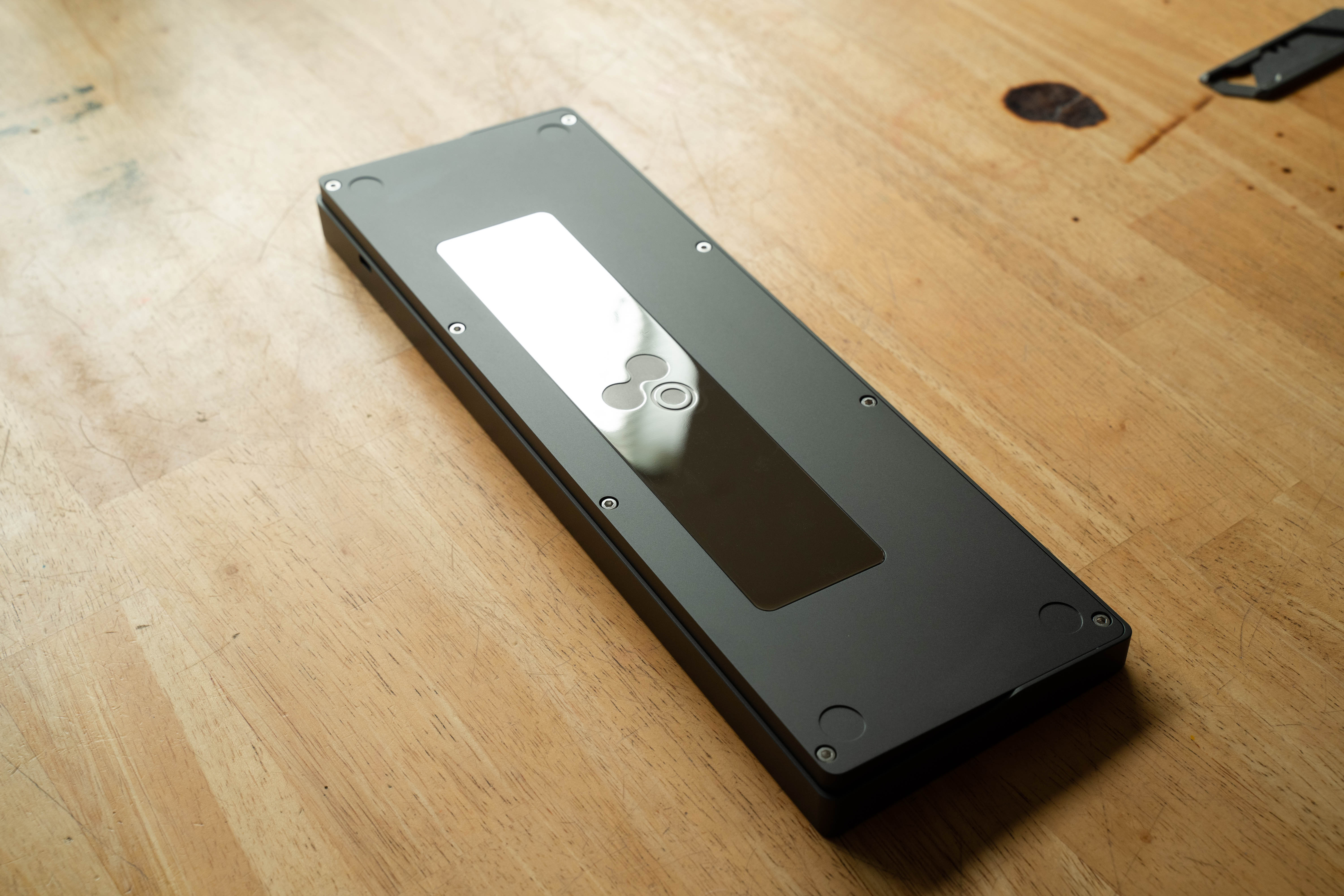

Polished stainless weight

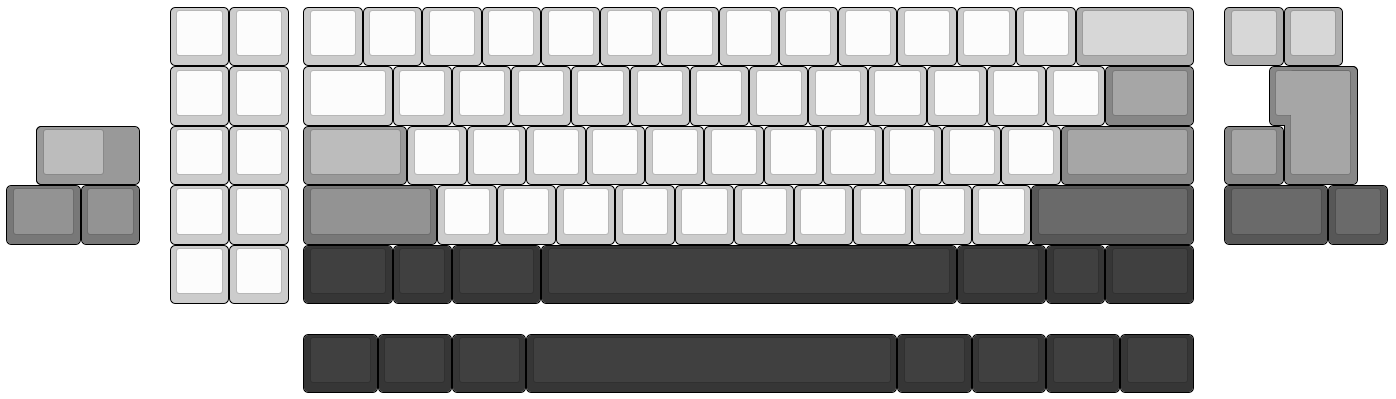

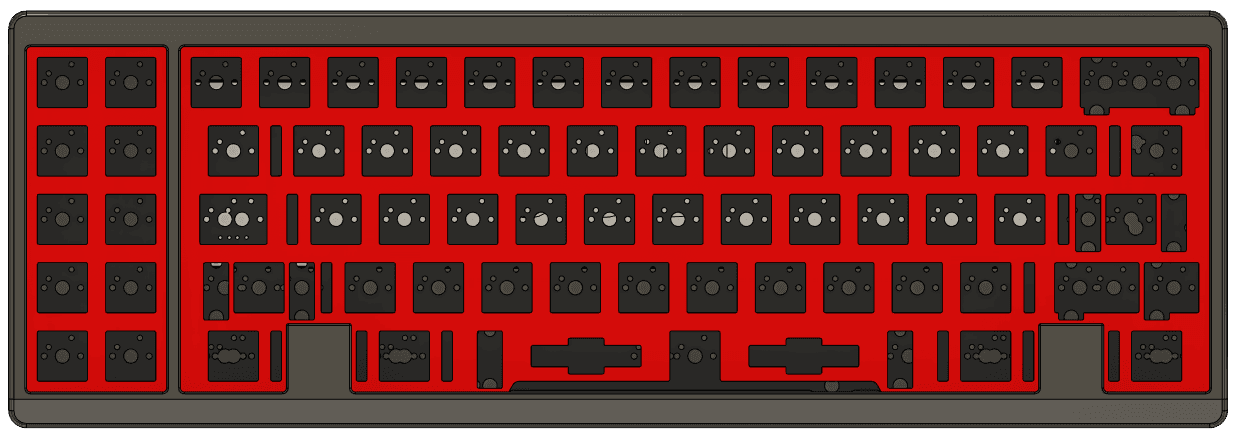

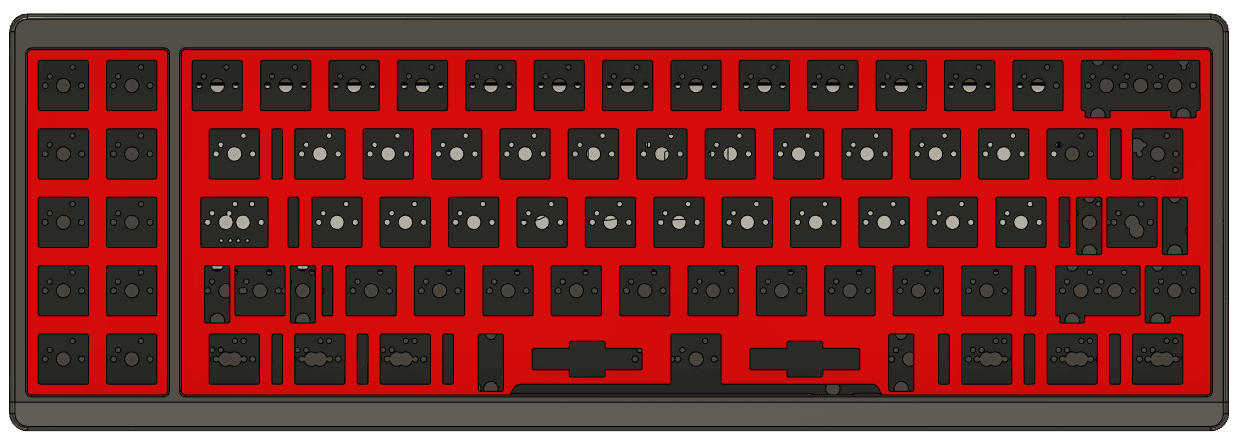

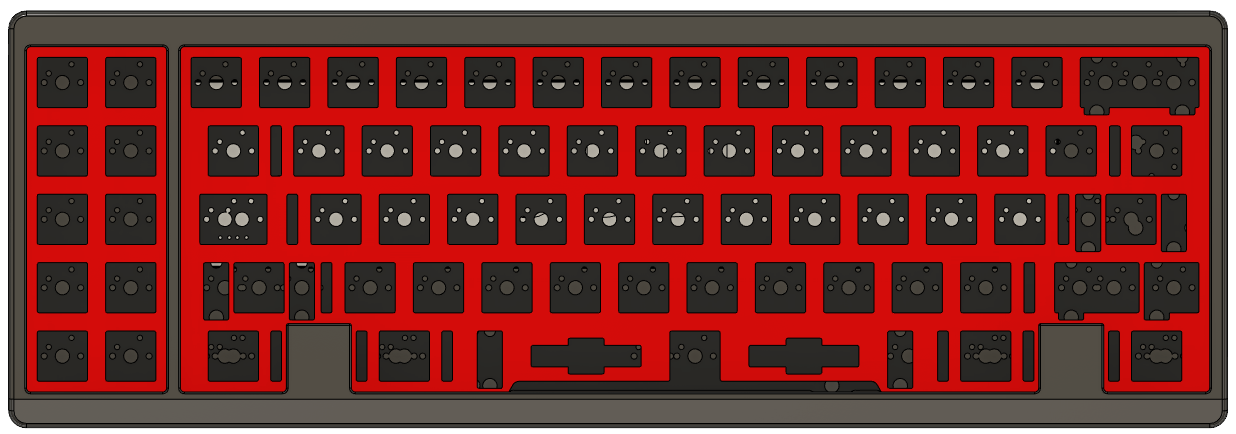

Layout support:

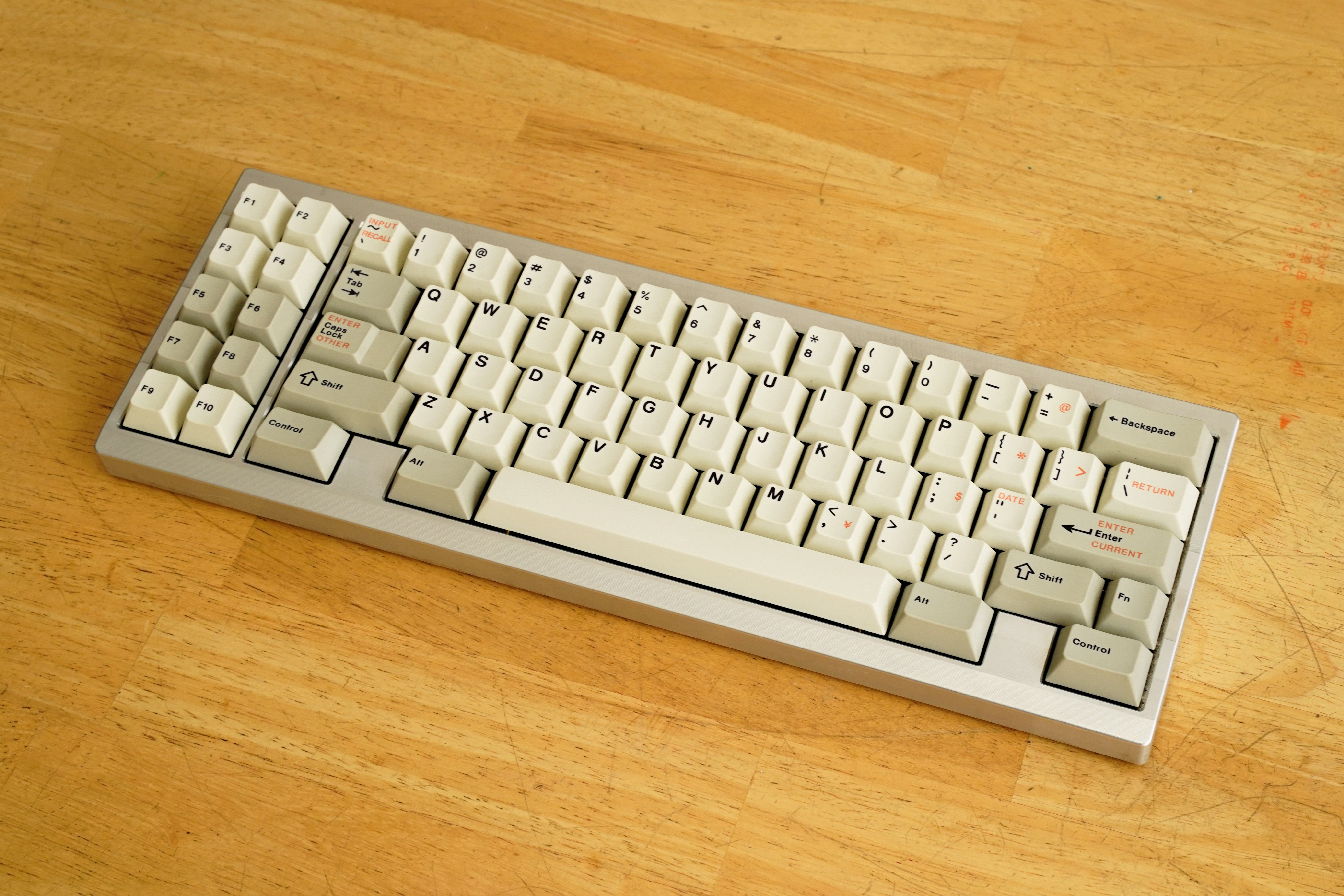

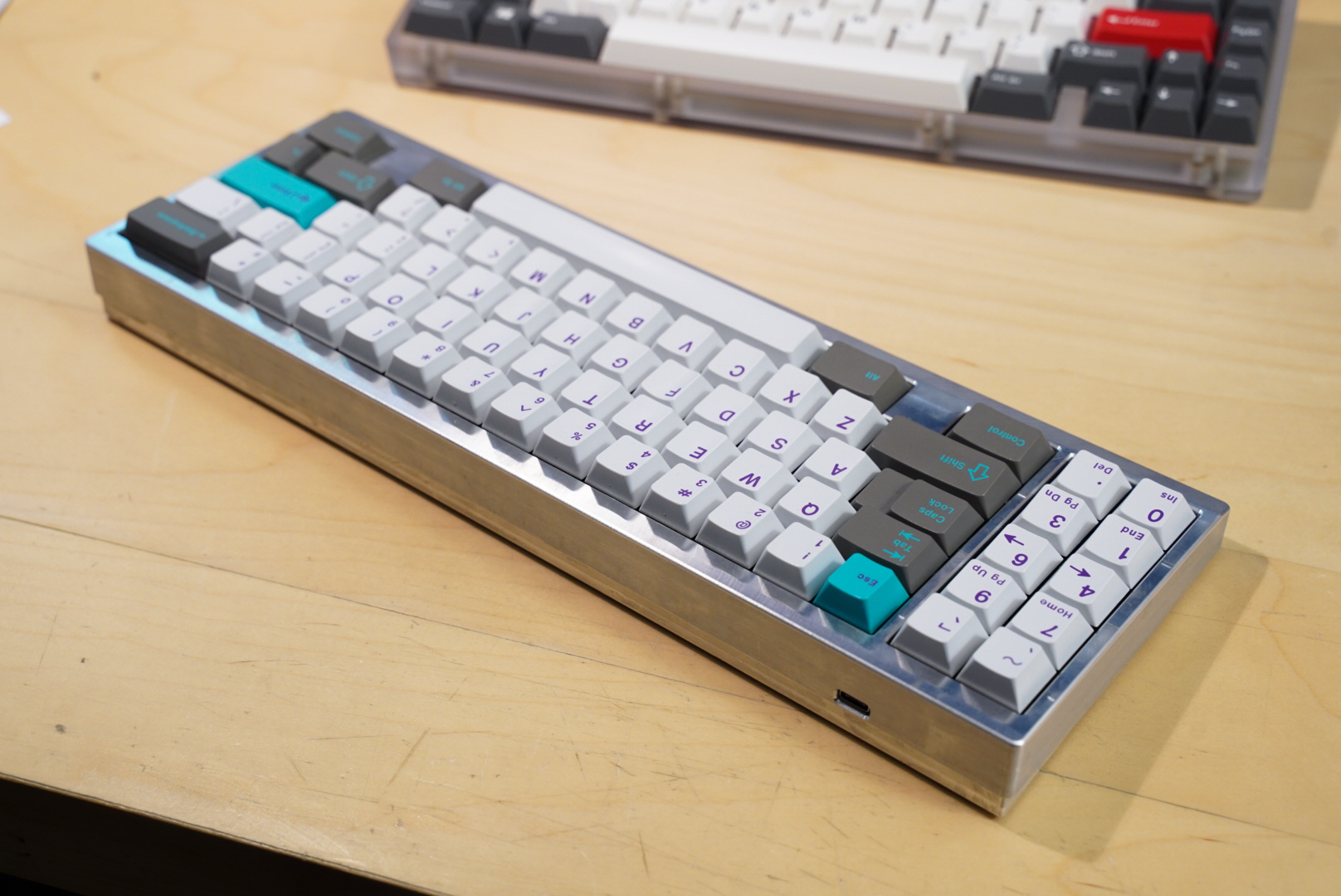

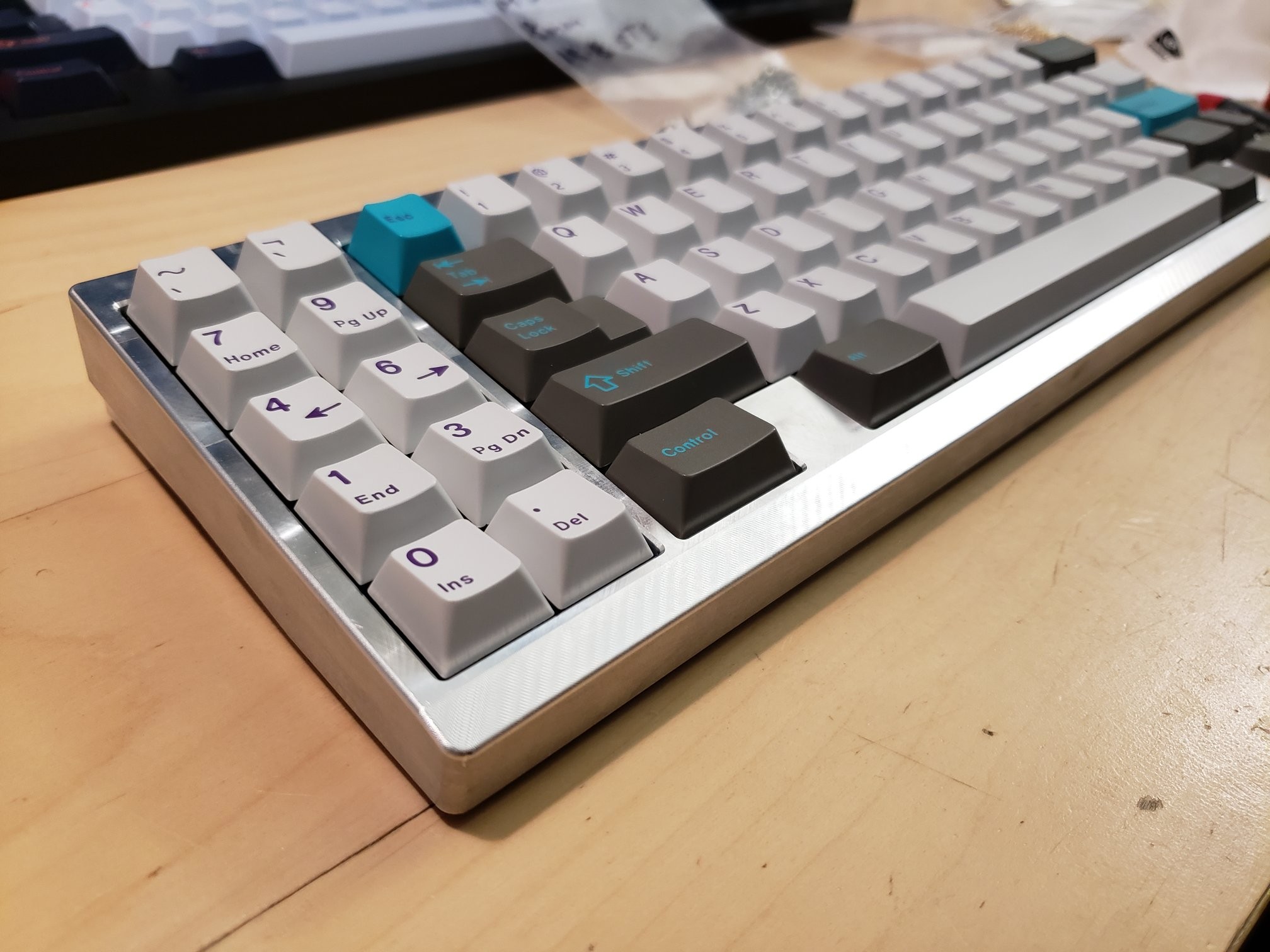

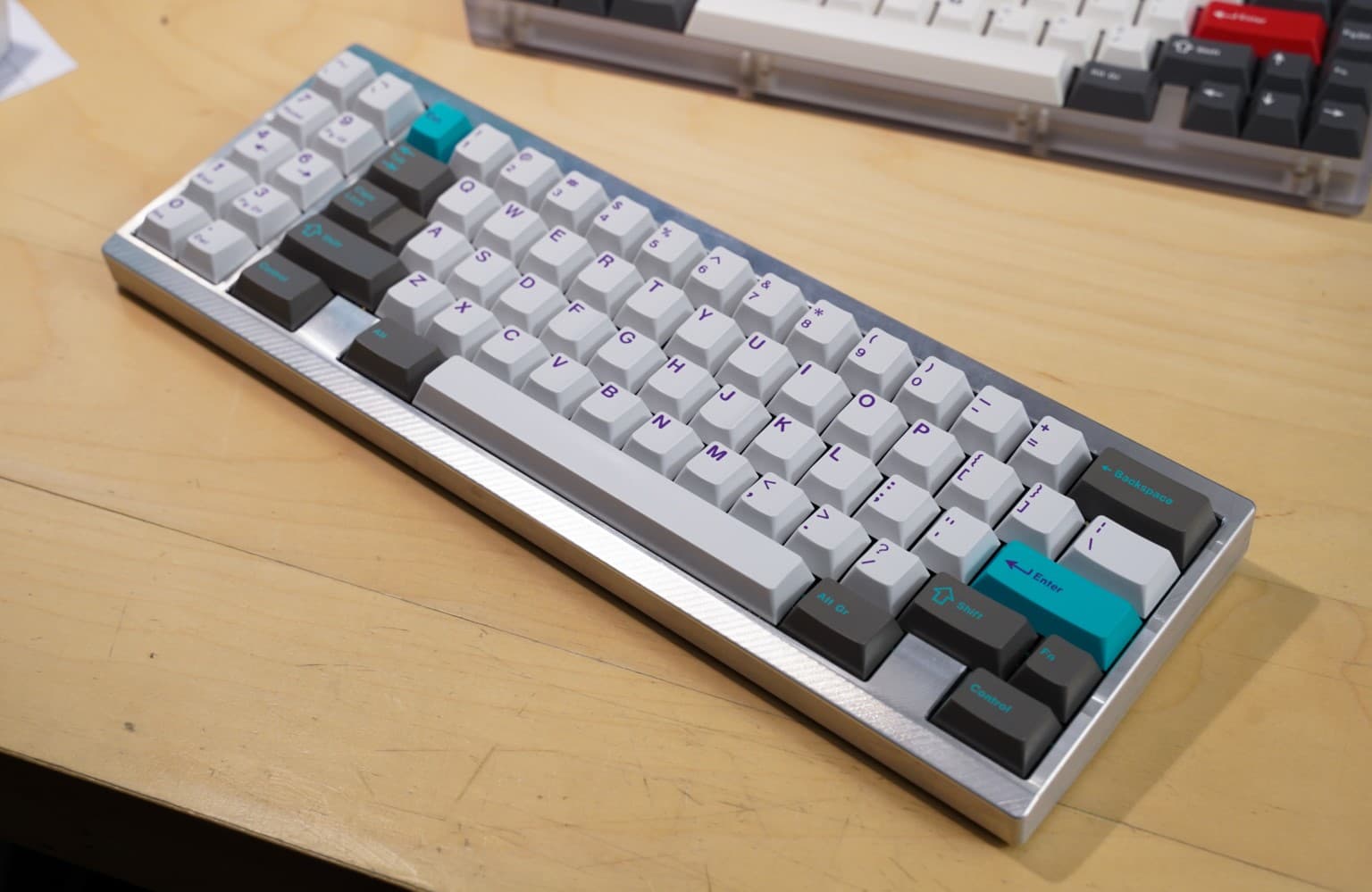

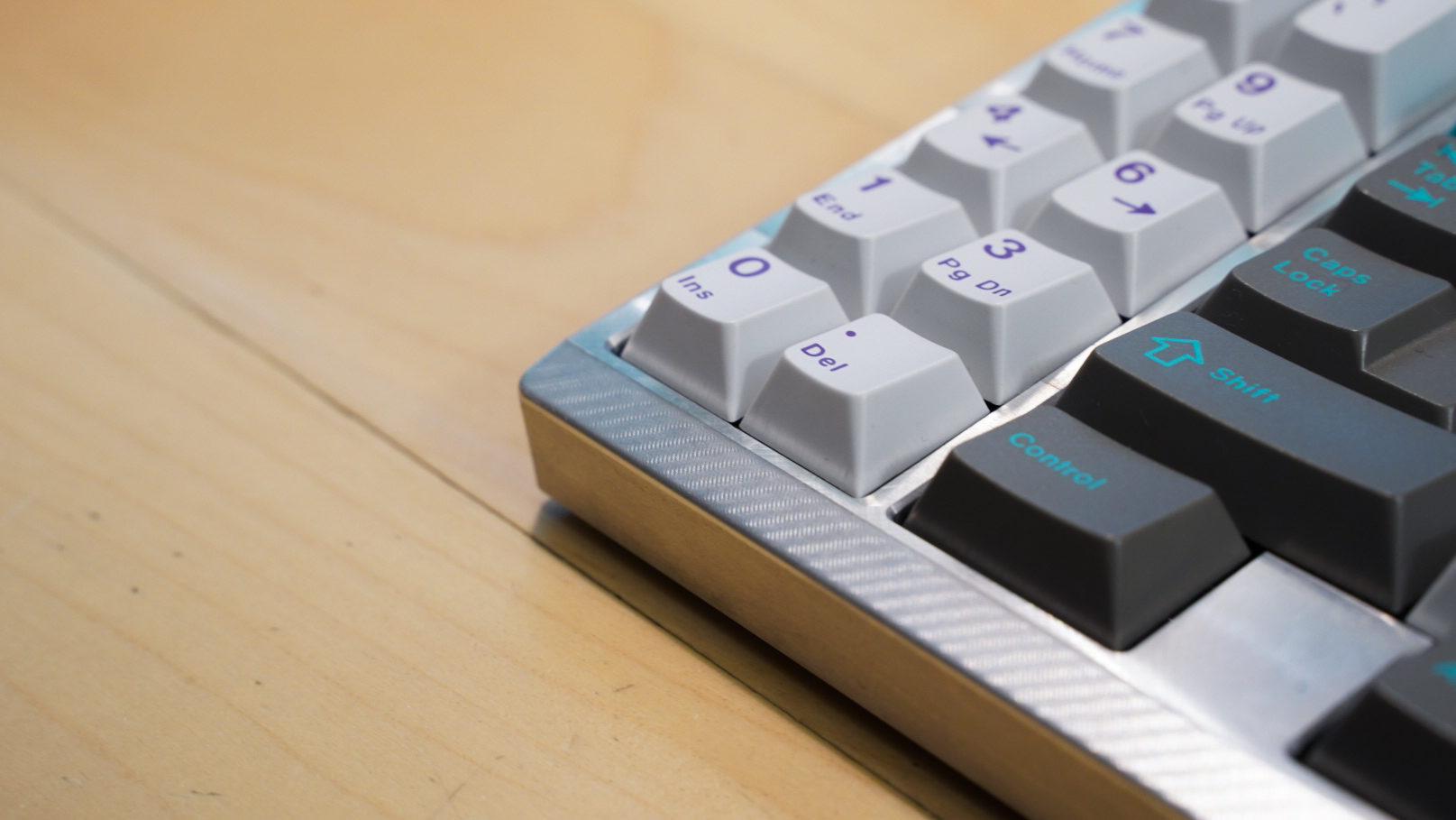

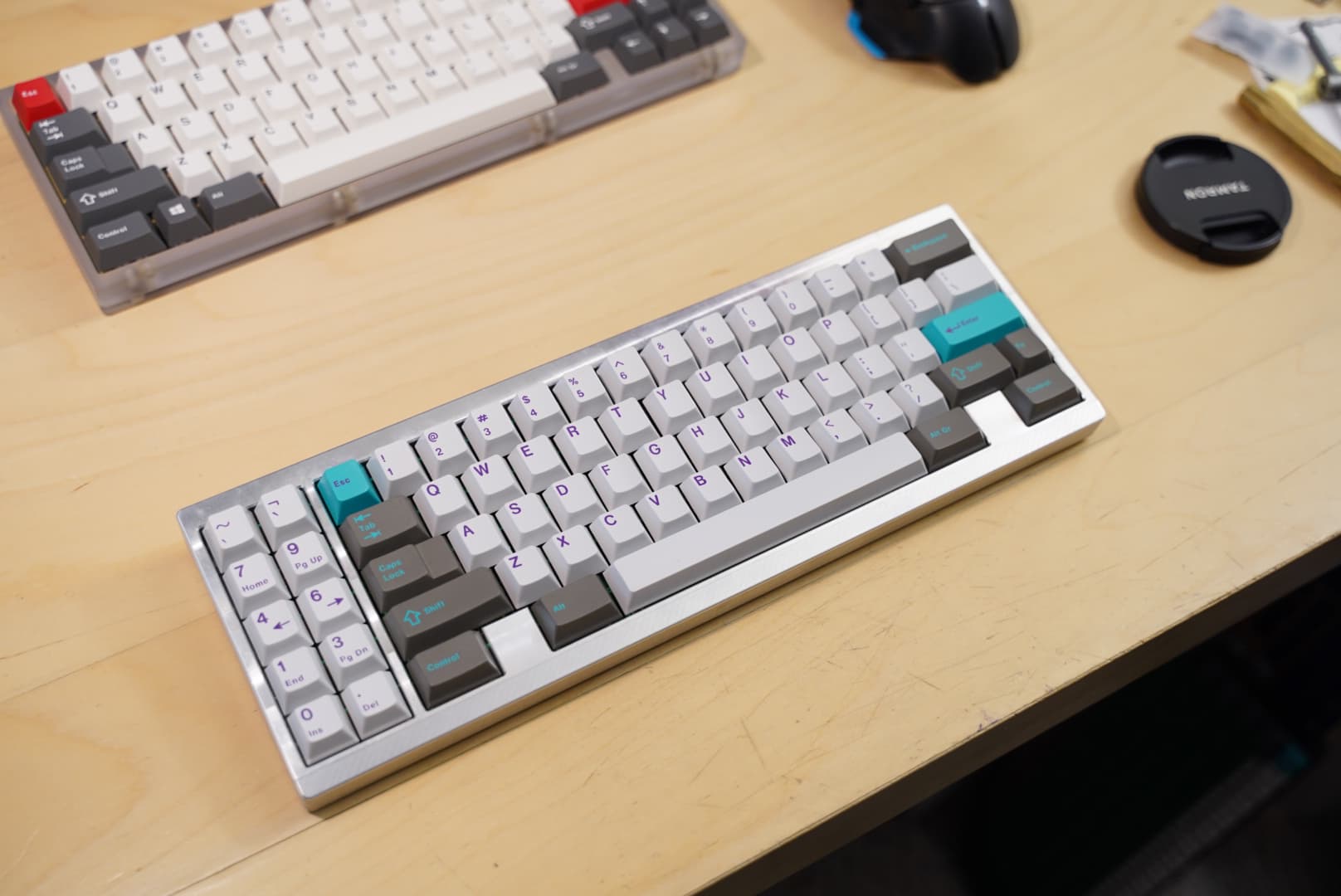

More images:

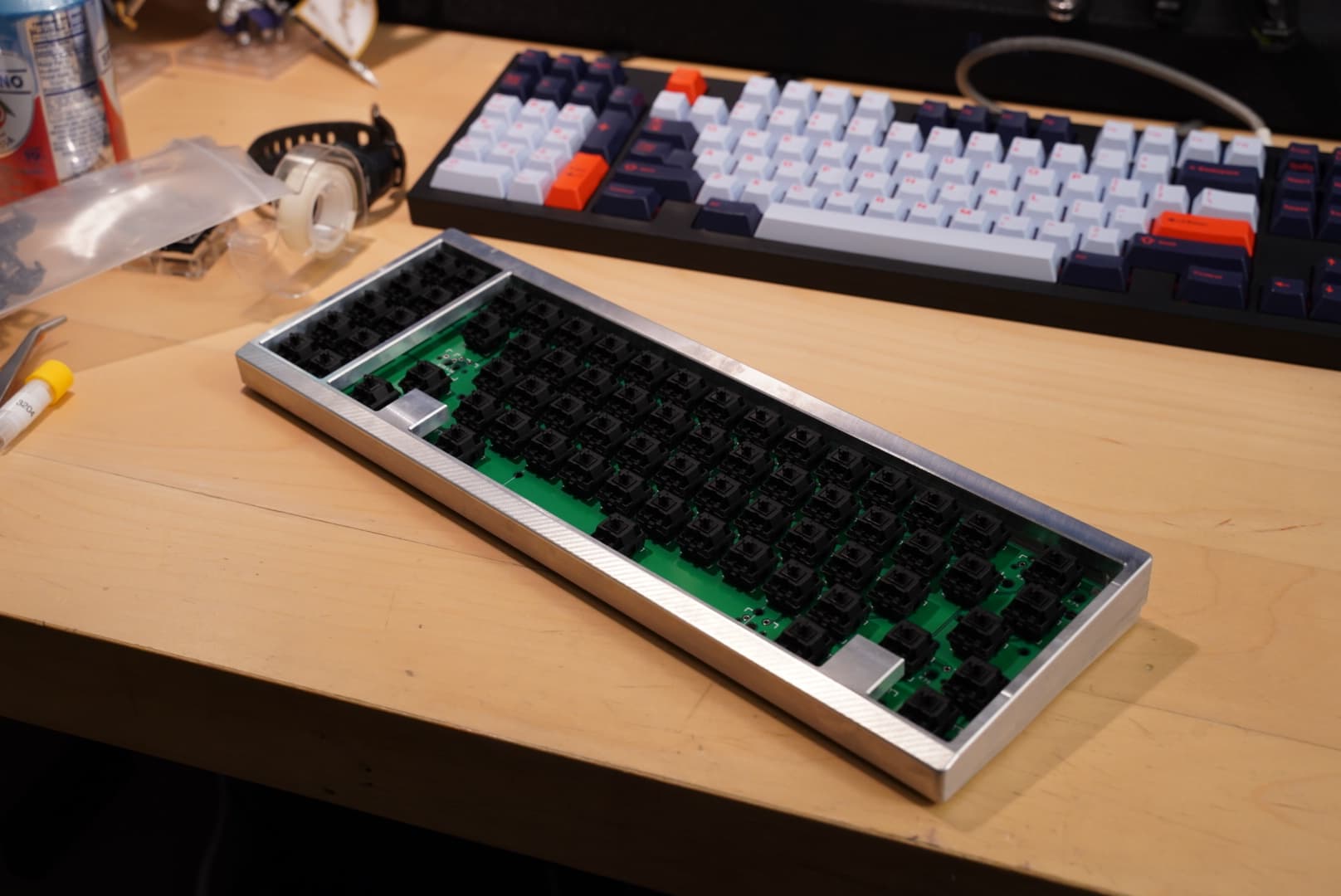

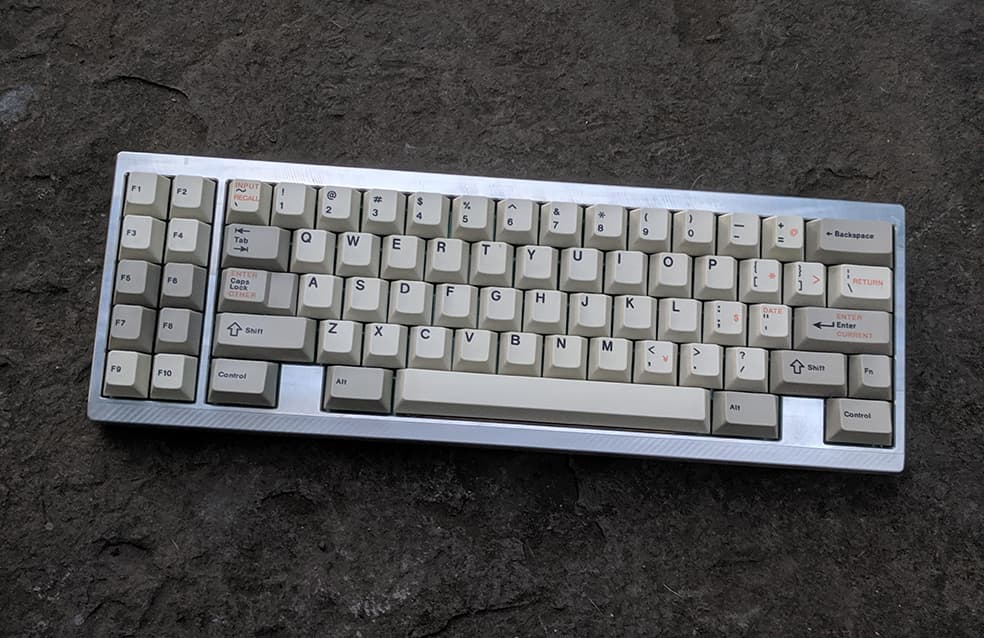

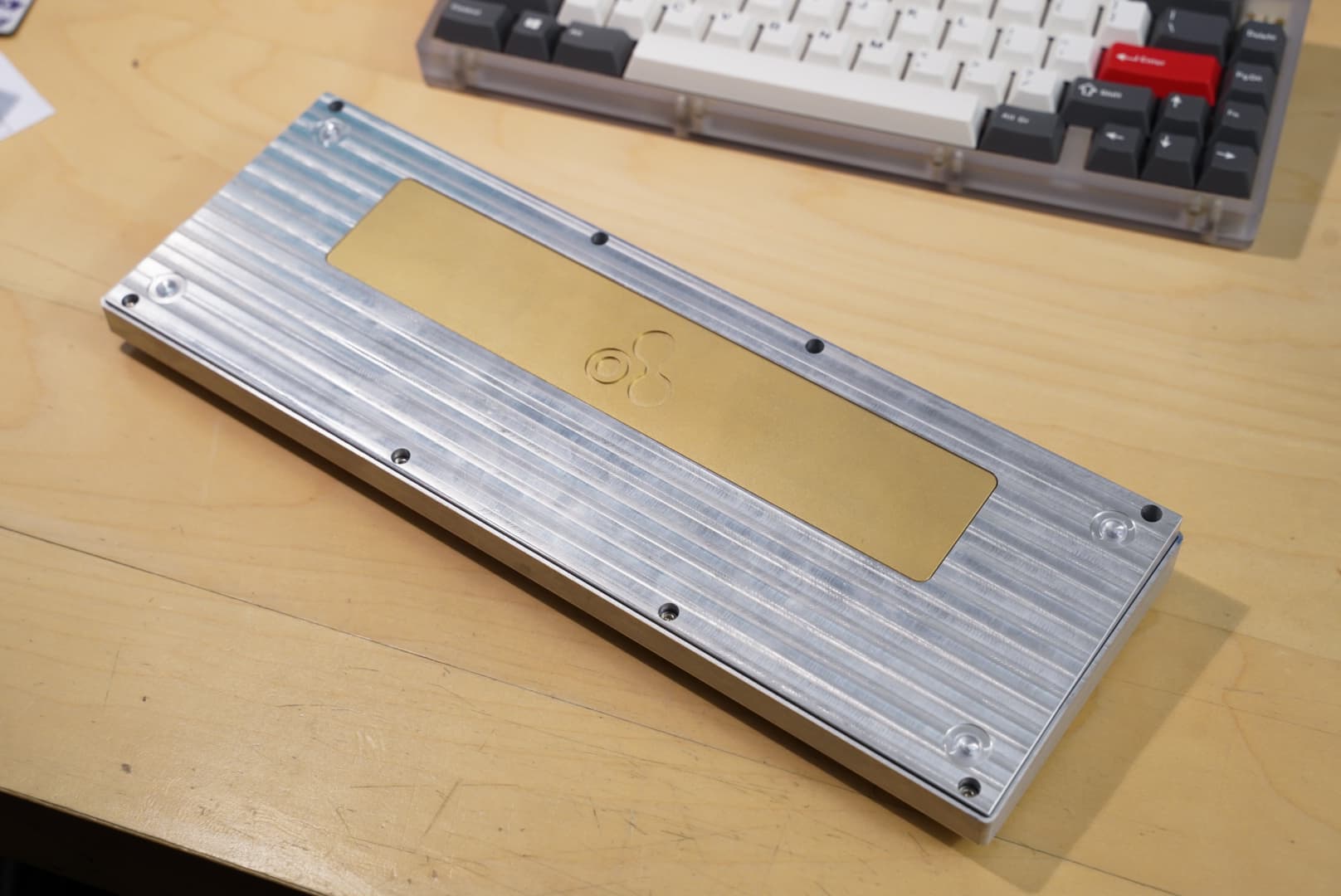

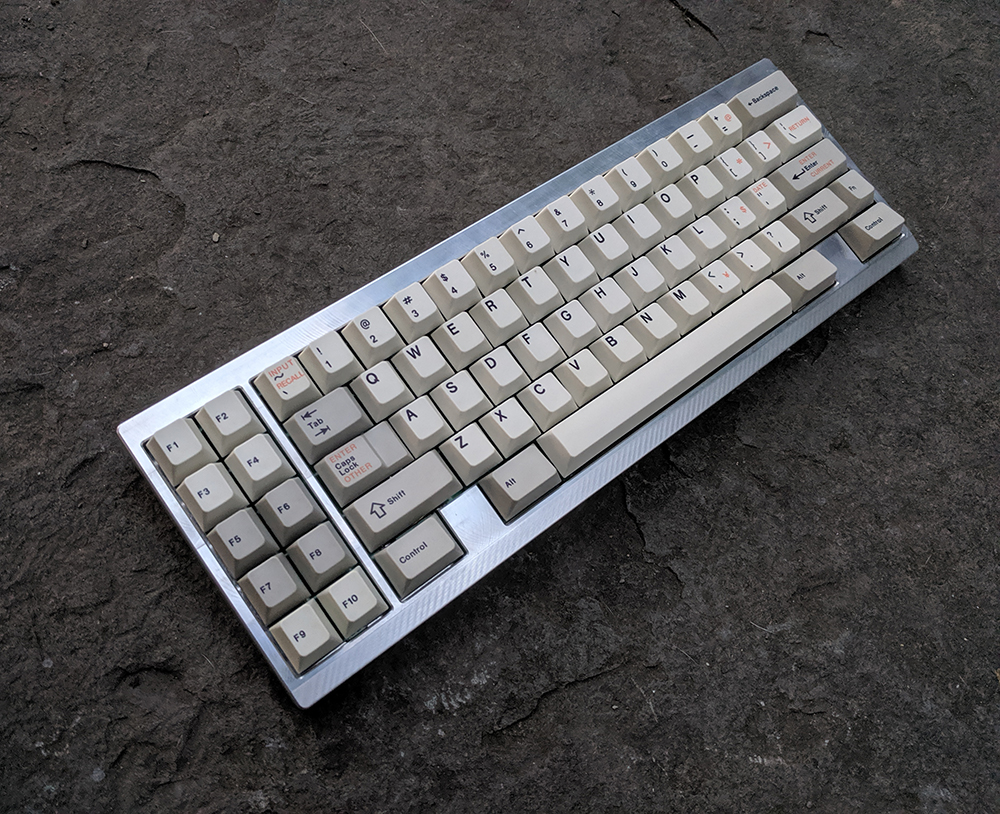

*Please note: The prototype was intentionally left raw, as such all machining marks are visible.*
Proto --> Production changelog:
Front edge of the top even with the base
Case corners increased fro 3mm to 5mm
Base corner fillets changed to match the top corner fillets
Top mount positions overhauled
PCB mount style overhauled
PCB mount positions overhauled
Weight position and size overhauled
FAQ/Other notes:
This board will NOT be made at the same factory as the Southpaw boards. This will be made at a factory that I have personally used and I will have full communication with the rep that will be handling this project. I will be providing all updates.
The dual mounting options will not interfere with each other no matter which option you choose to use.
Special thanks: @gang - <2 Kafka - For the name and the initial inspiration amtra5 - For the prototype PCB reconsiderit - For the proto, storefront and logistics
