Hello everyone, I'm Kenny.
Today I would like to introduce a new project from Grit Works � the Jahre 65%.
This kit takes inspiration from classic Porsche 911 design language while bringing refined elements to a 65% keyboard platform.
---
Design Inspiration
The Jahre 65% is inspired by the first three generations of the Porsche 911 (901, 930, 964), models that have stood the test of time and evolution.


Among these, the Porsche 964 Jubil�umsmodell �30 Jahre 911� stands out for its widebody and commemorative details.
The widebody form, badge treatment, and anniversary identity influenced the character of the Jahre � classic, elegant, and timeless.
---
Name Meaning
�Jahre� means �year� or �years� in German.
It represents longevity and endurance � qualities we hope this kit will embody.
---
Design Concept
The design integrates subtle automotive lines while maintaining a clean, refined, and elegant keyboard silhouette.
---

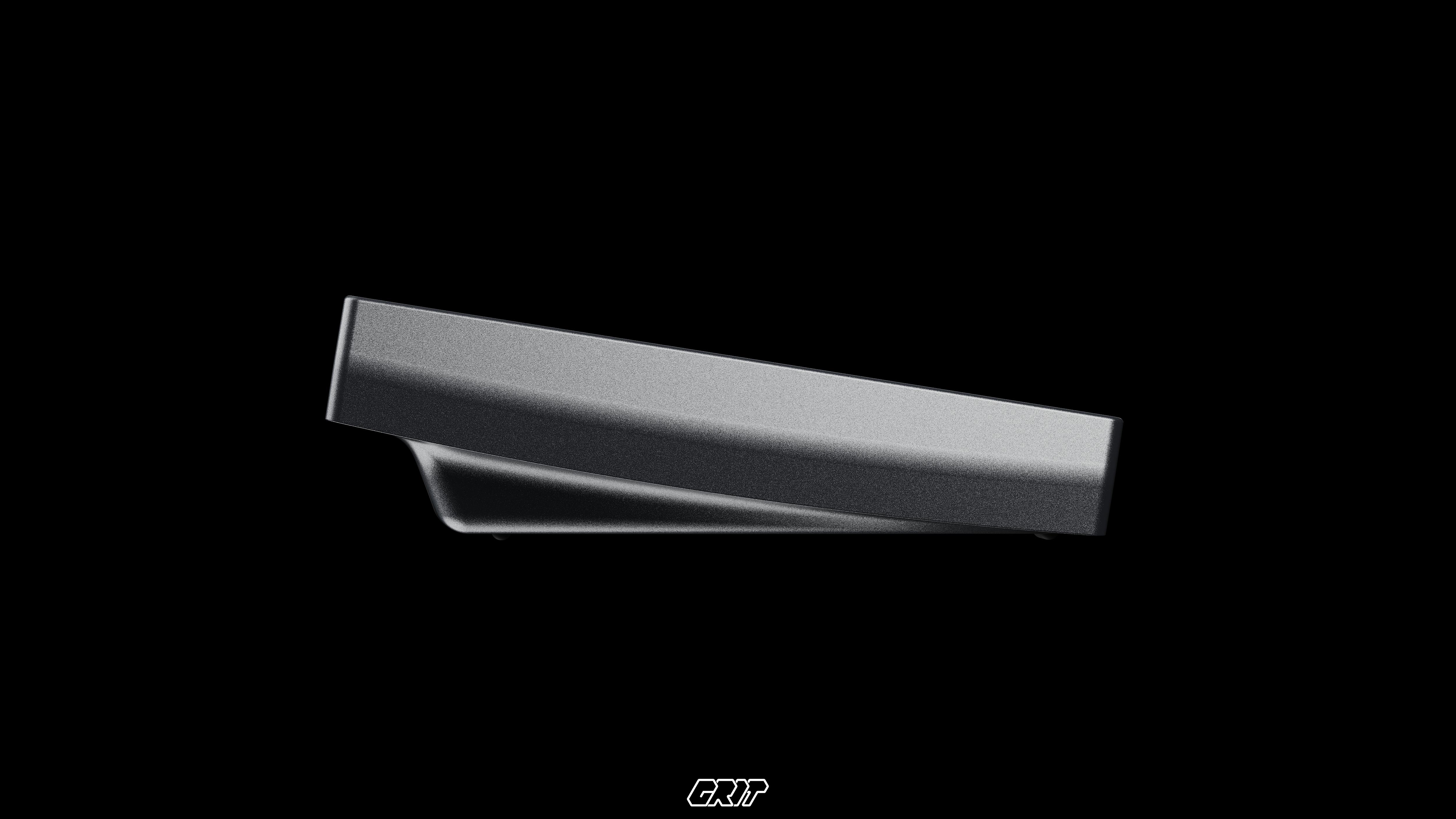

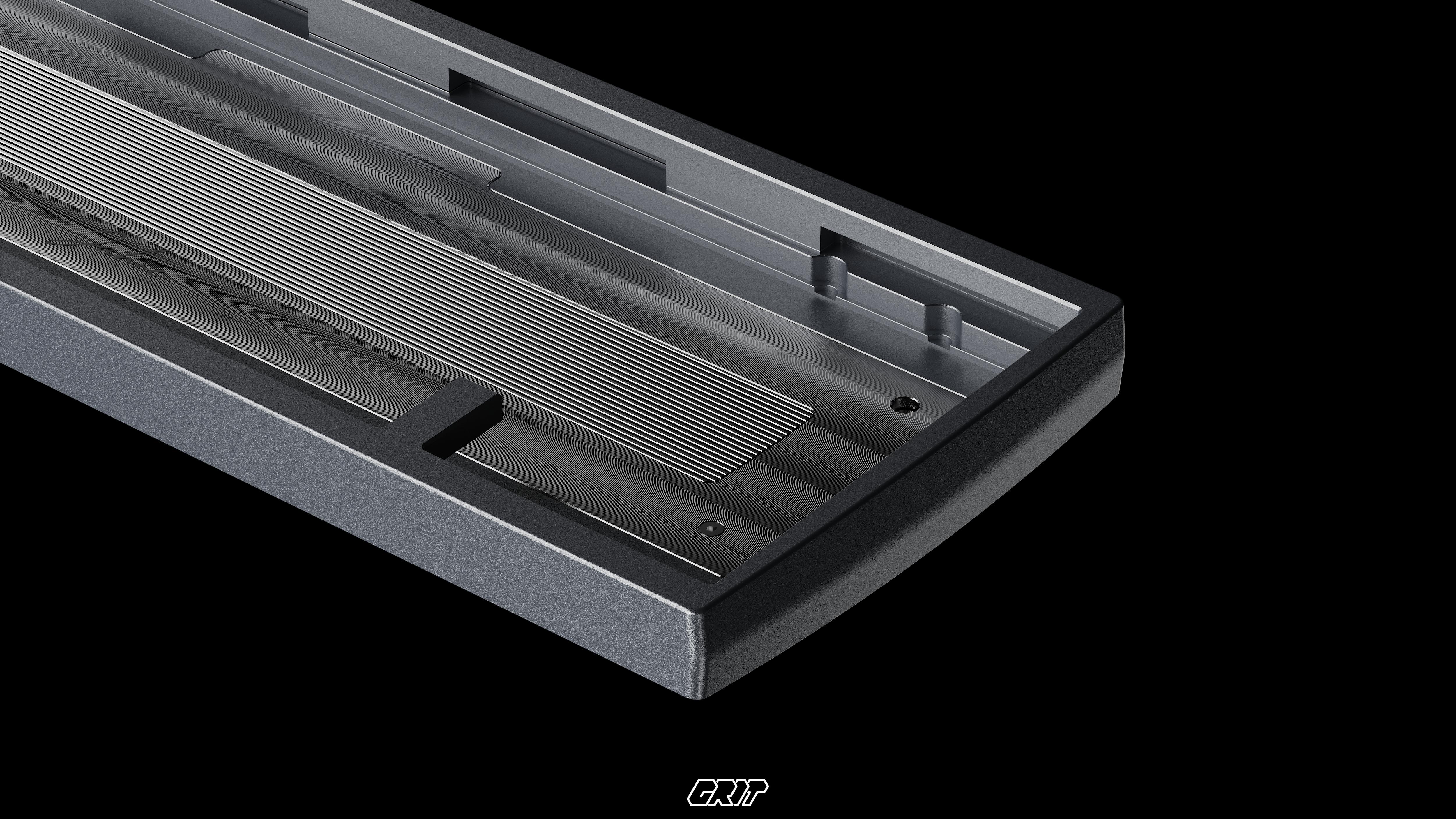

Top Case (Front + Side)



Each side of the top case features a shuttle-shaped curved edge that narrows slightly downward, referencing the subtle widebody stance of the 30 Jahre 911.
A fold line aligned with the bottom case curvature enhances the elegance of the side profile.
---

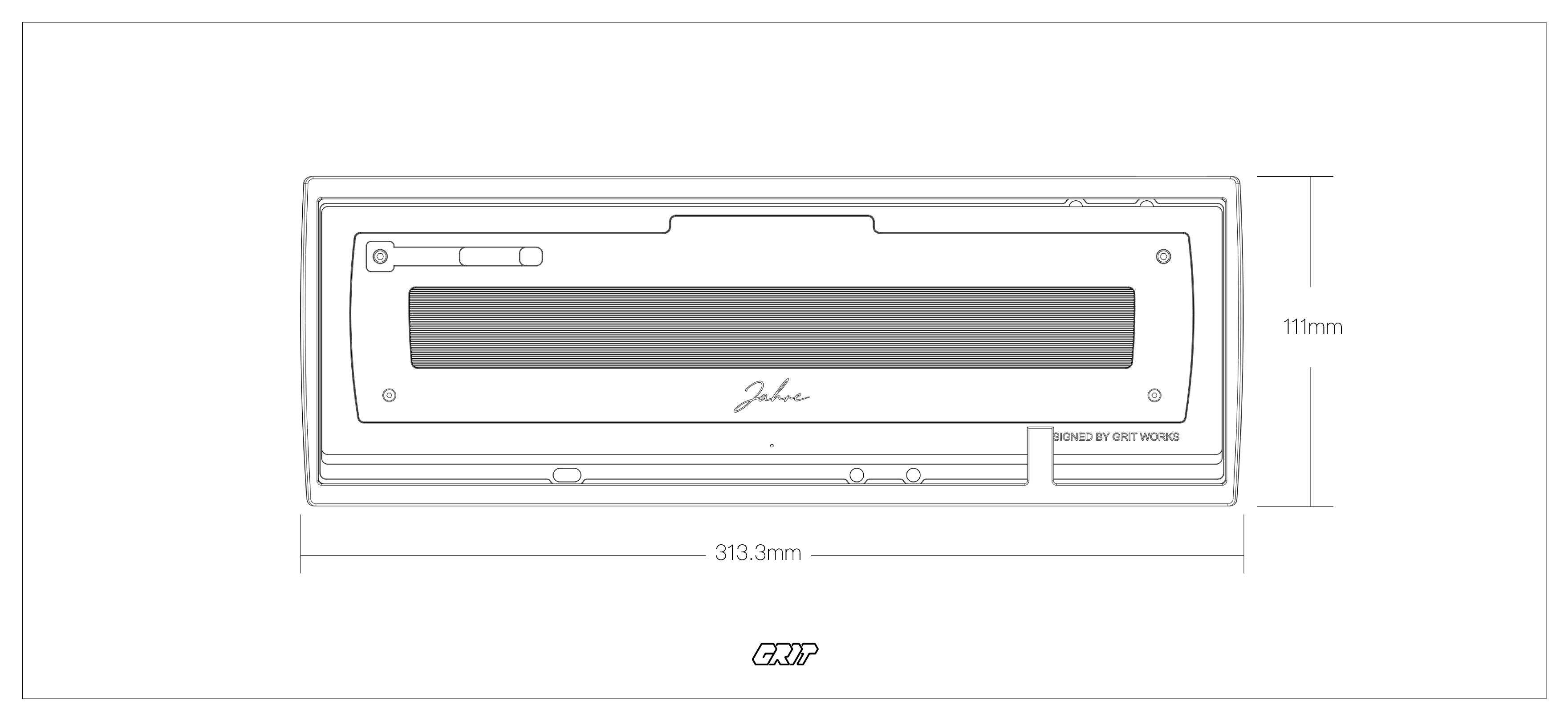

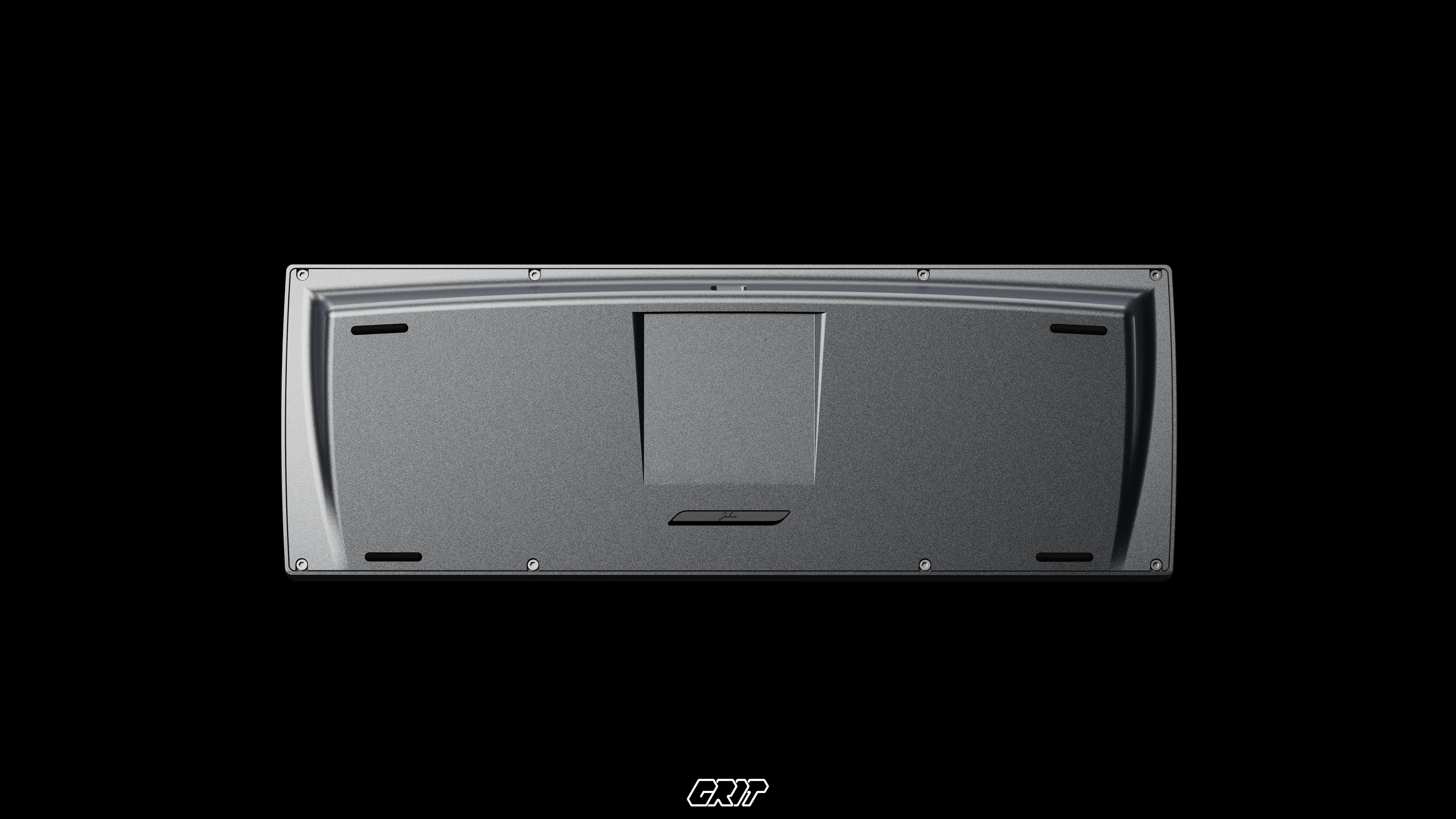

Bottom Case + Nameplate

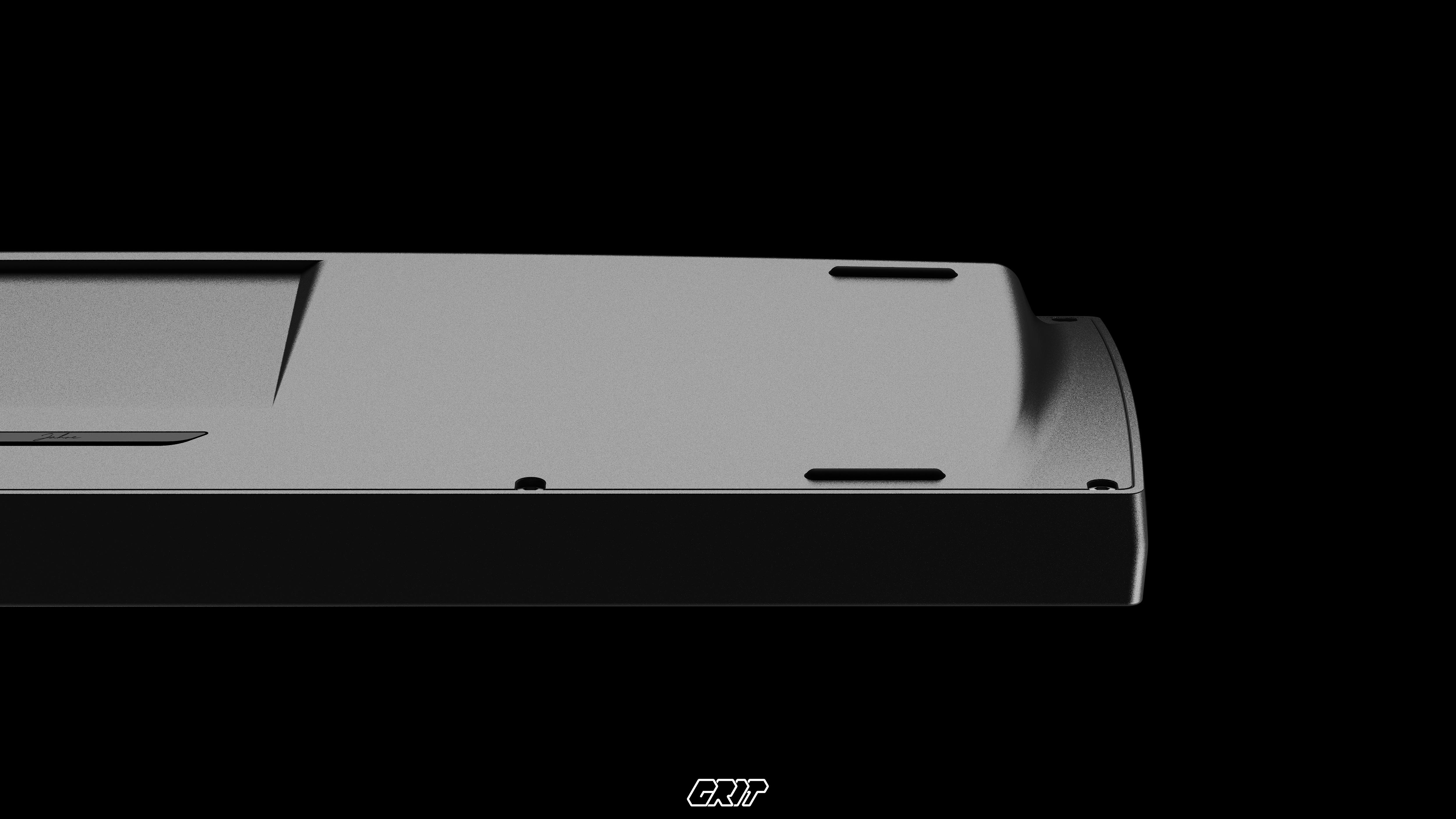

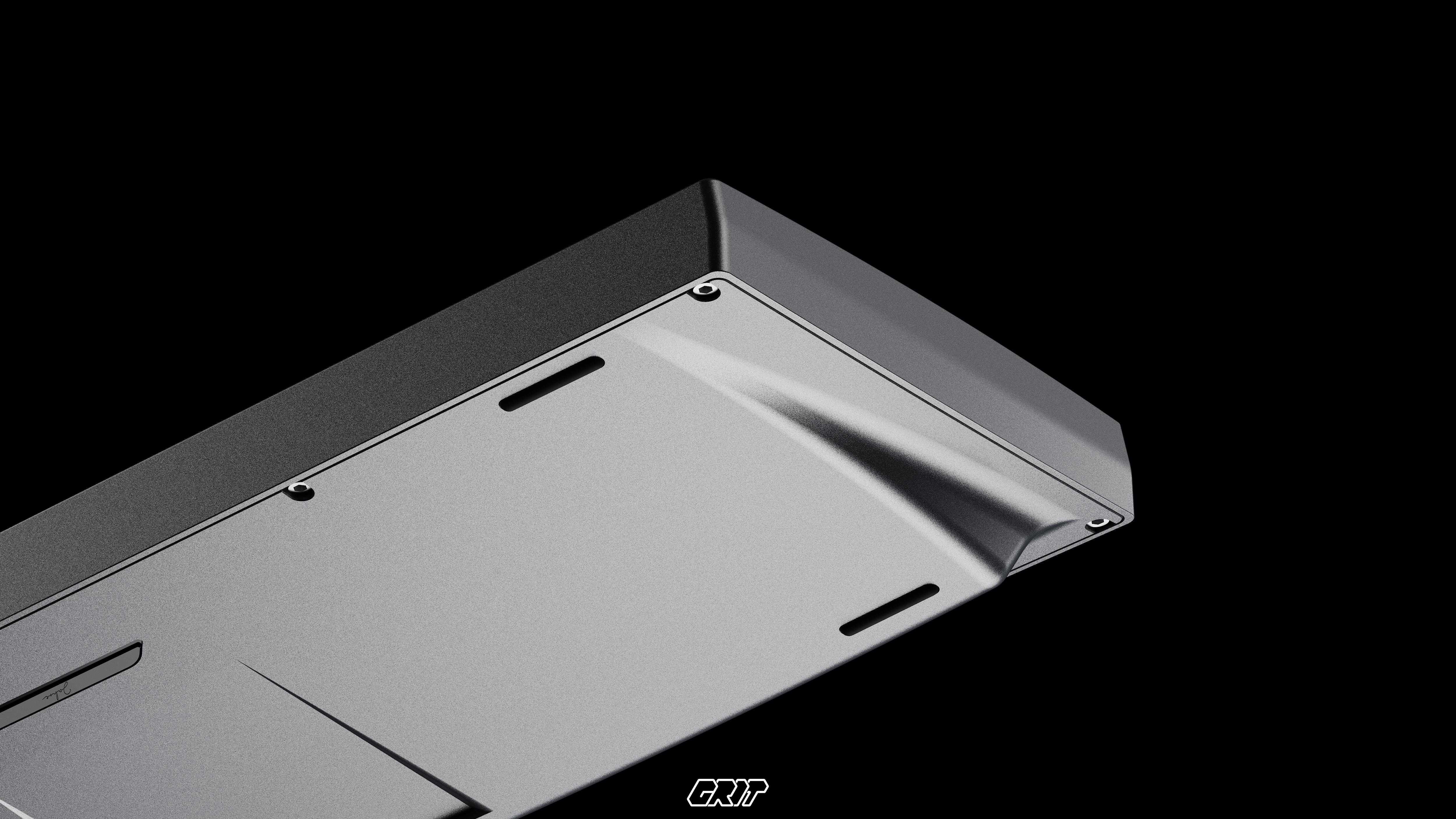

The bottom case incorporates rear fender tuck lines and hood intake elements into its surface treatment.

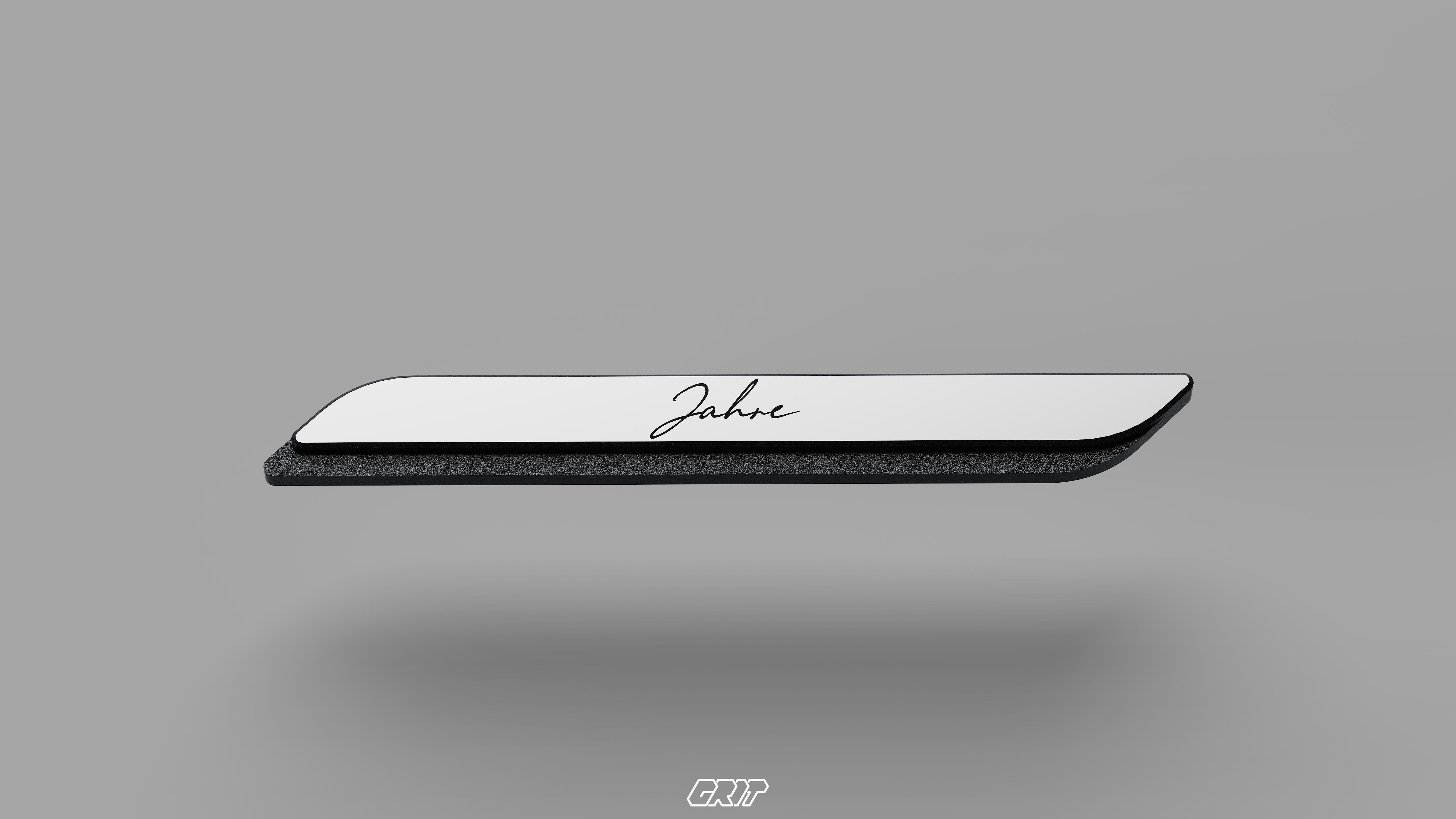

A sandblasted black anodized aluminum nameplate is embedded beneath, with flat polishing and secondary anodization highlights.
---

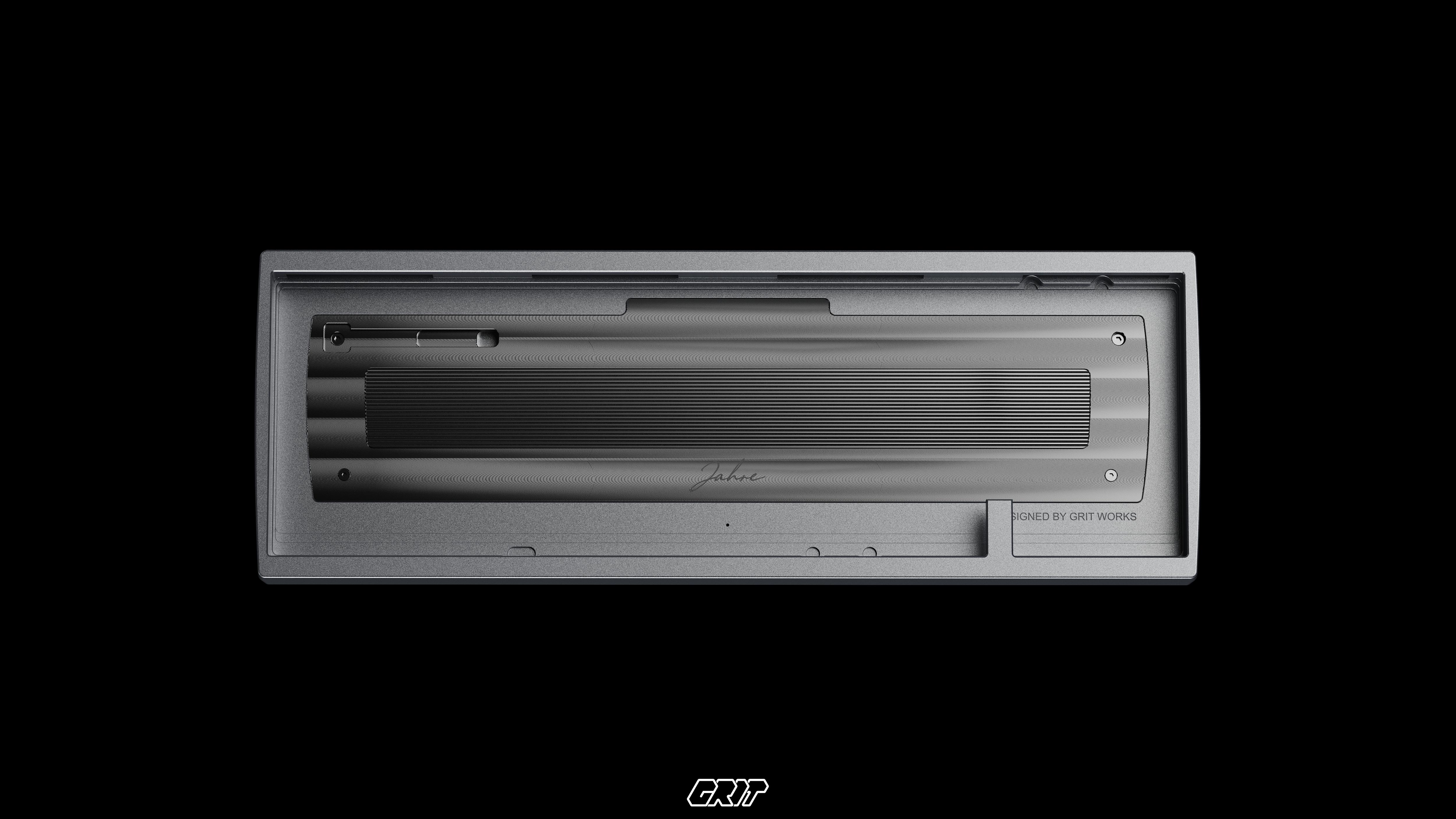

Internal Weights

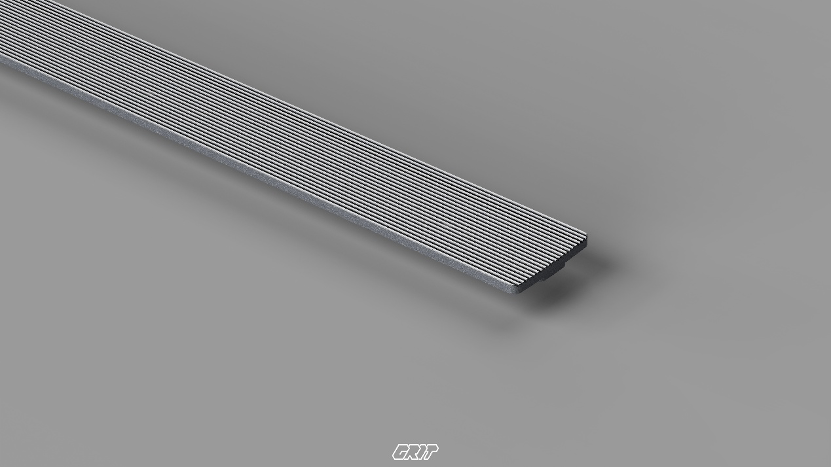

The internal weights reference the rear air intake grille form:

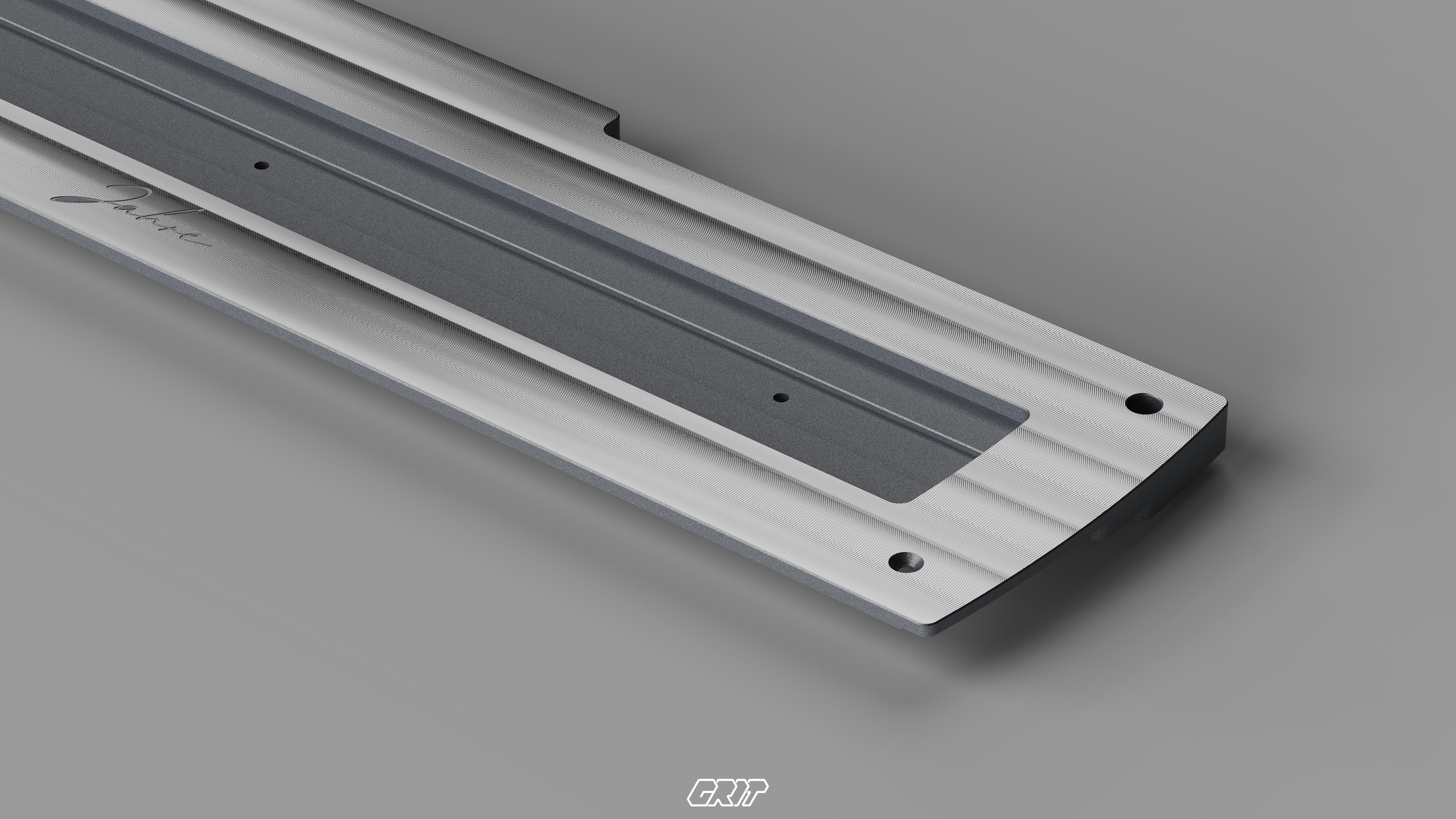

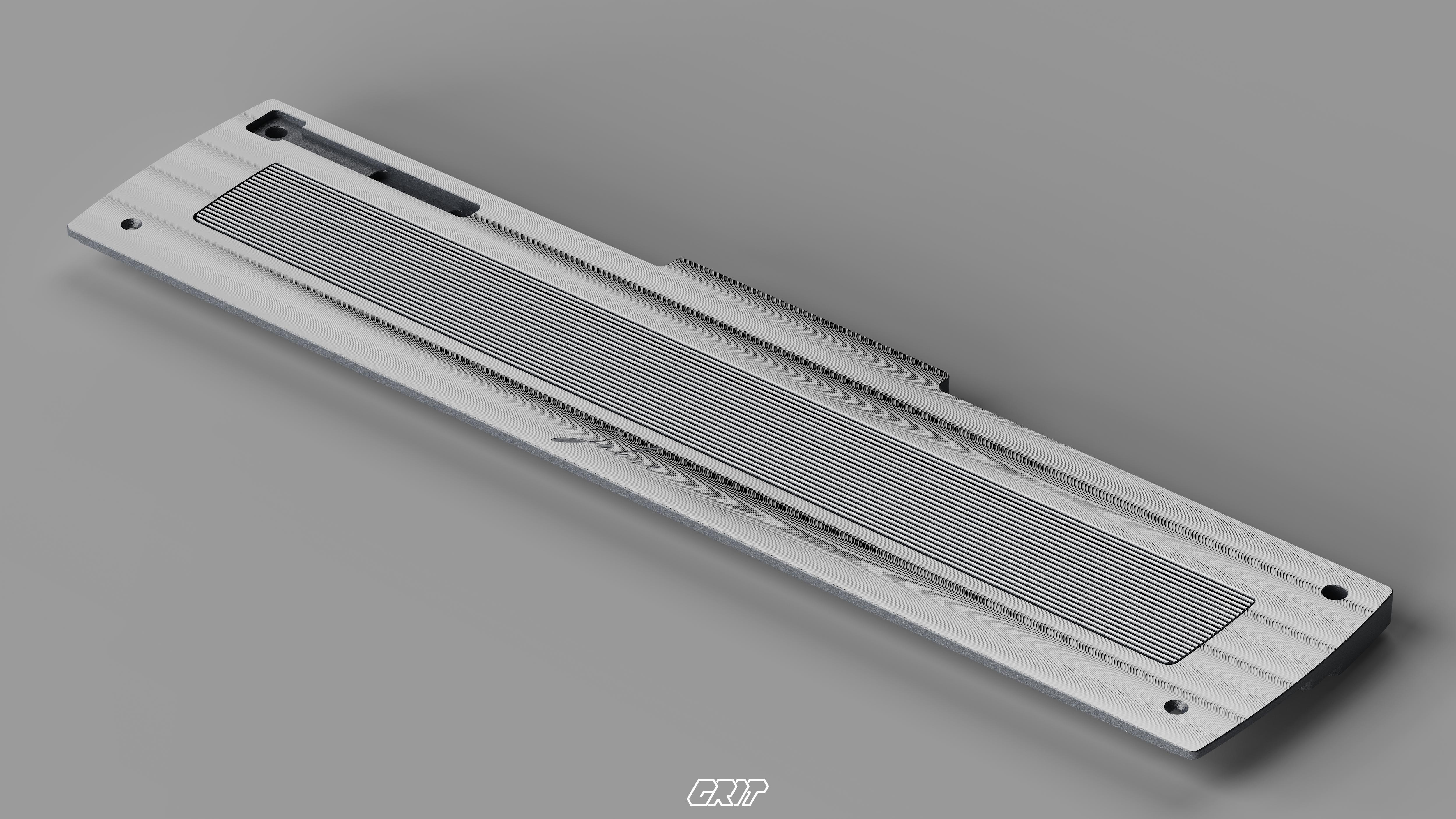

� Large stainless steel weight with RAW multi-line tool paths
� Engraved kit name
� Smaller weight with mirror silver PVD polishing




---

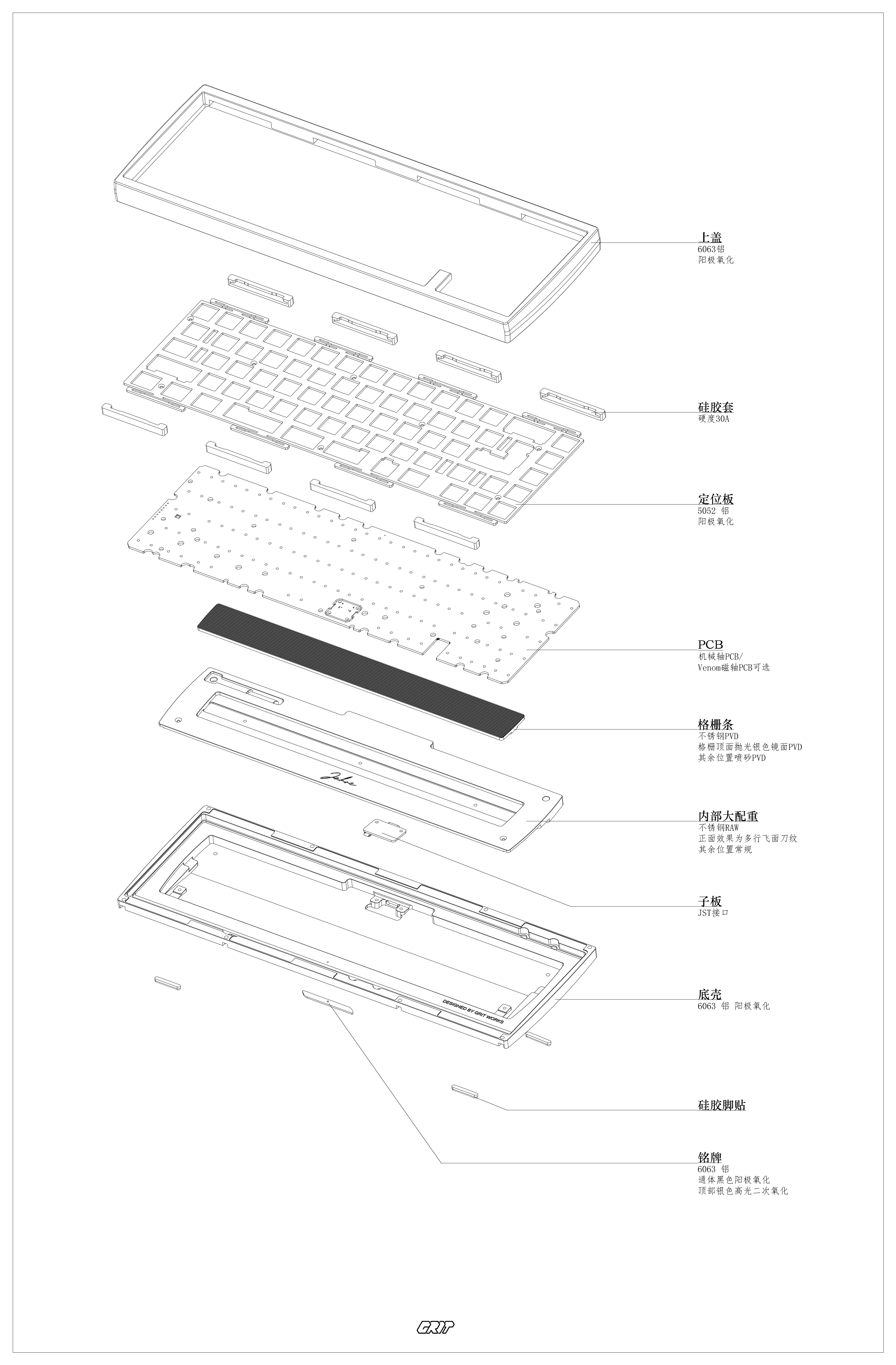

Structure

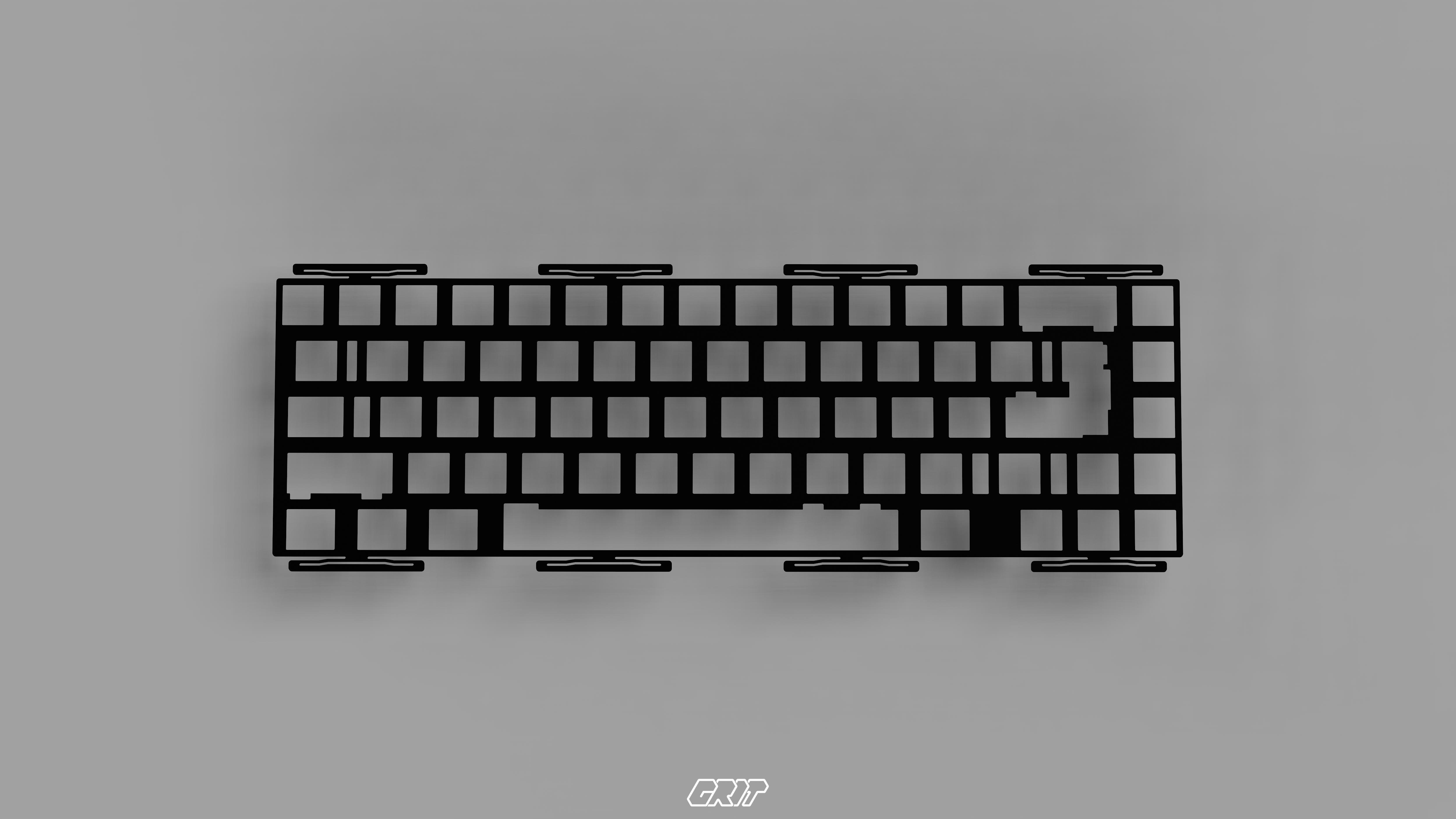

The Jahre 65% uses a silicone gasket mounting system with a Leaf Spring plate design.

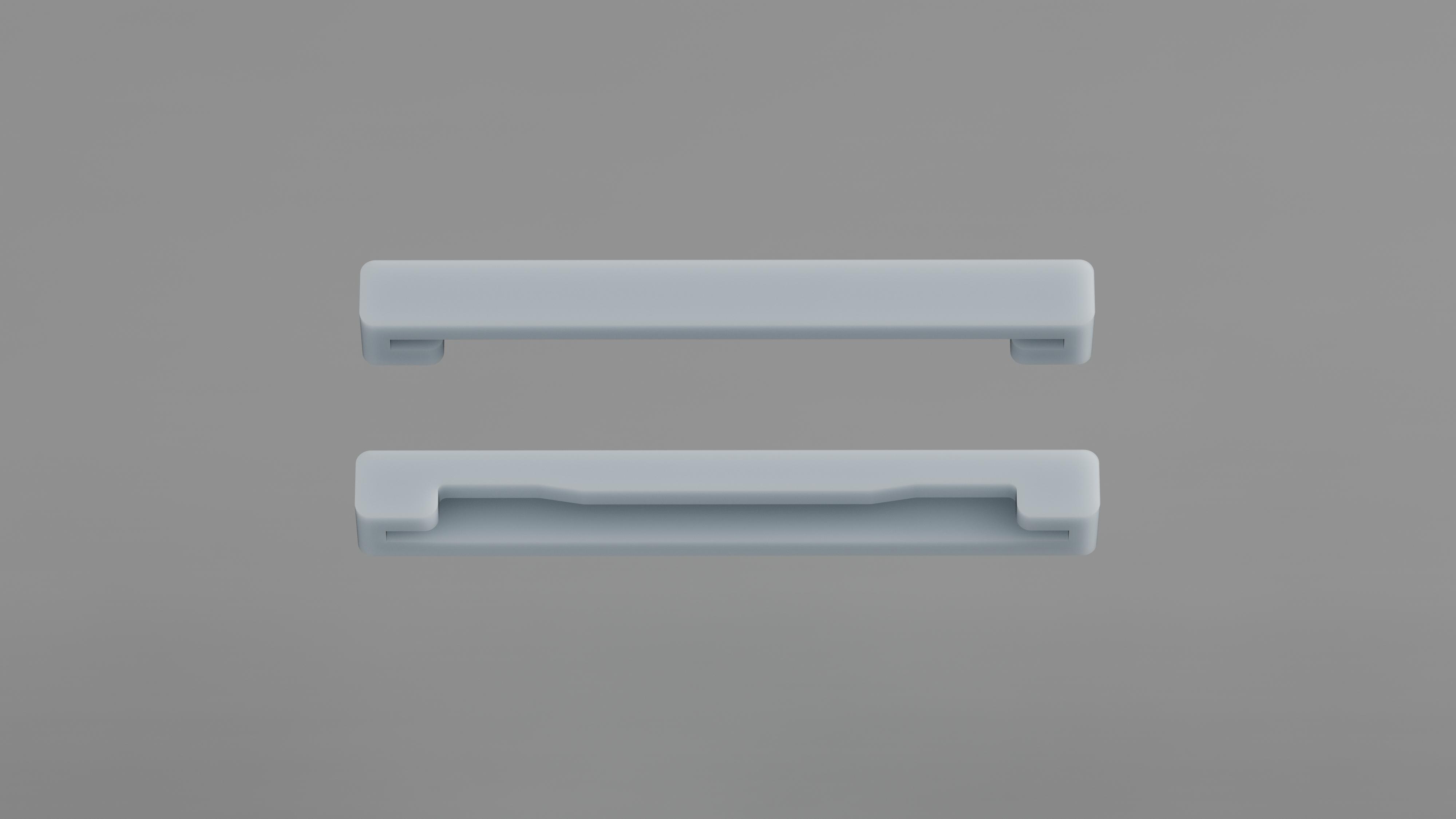

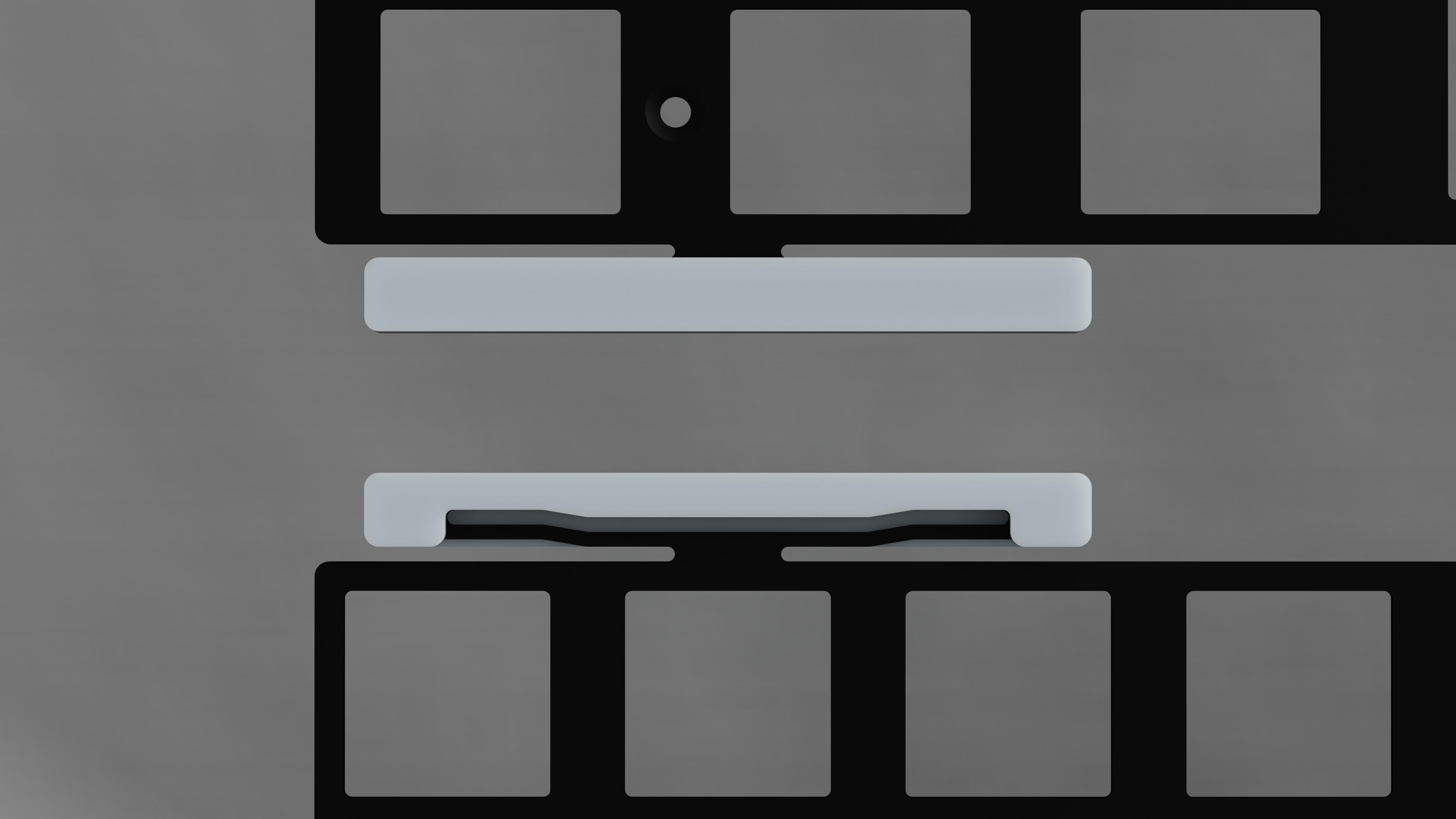

The included silicone gaskets are reversible:
� Narrow side down → increased flex and bounce
� Wide side down → firmer and more stable typing feel



---

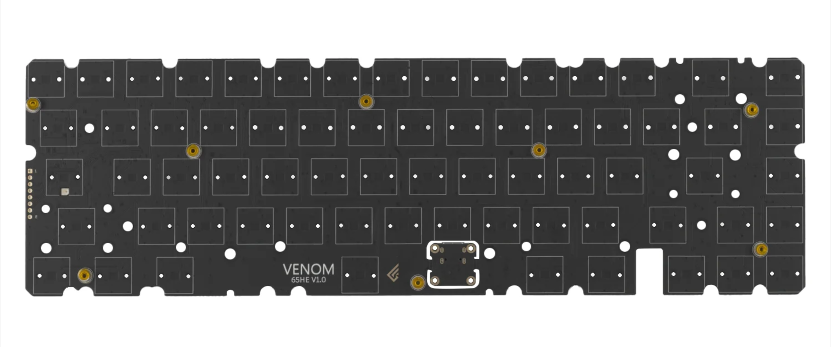

PCB
The 1.6mm black core PCB supports up to 8K Hz polling rate.
Available options:
� Mechanical Hot-swap
� Mechanical Soldered
� Venom 65% Magnetic PCB (compatible)




---
Specifications
� Name: Jahre 65%

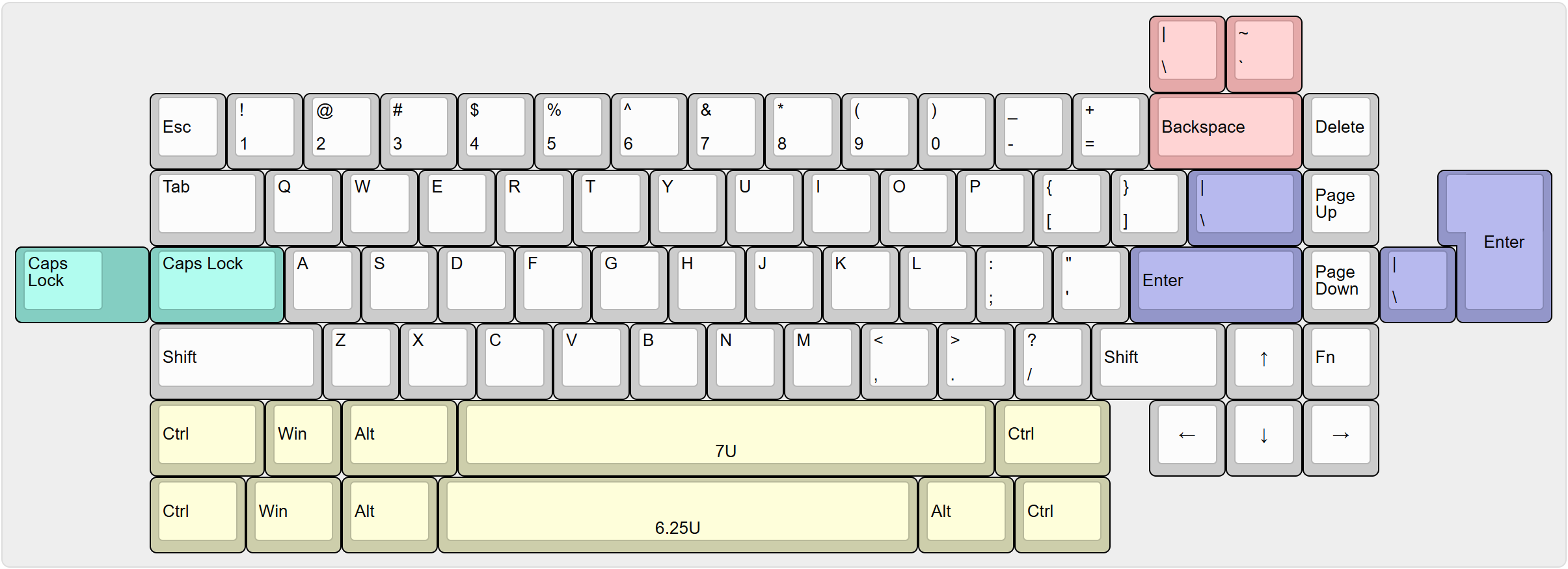

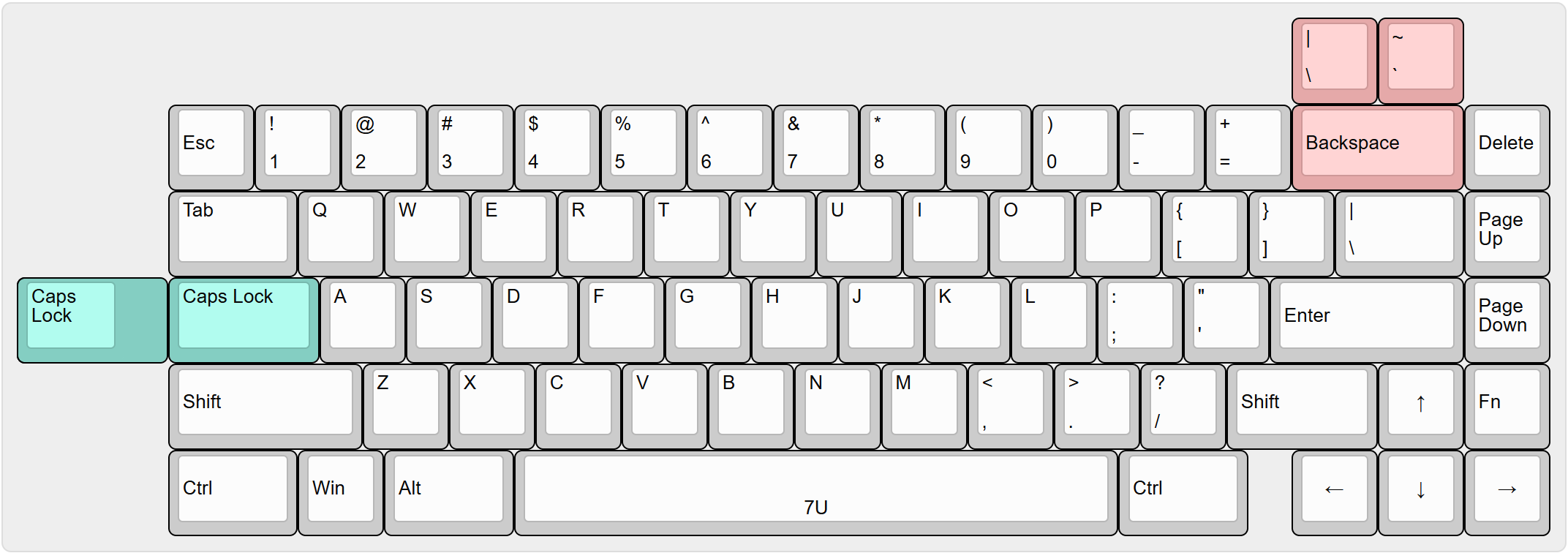

� Layout: 65%

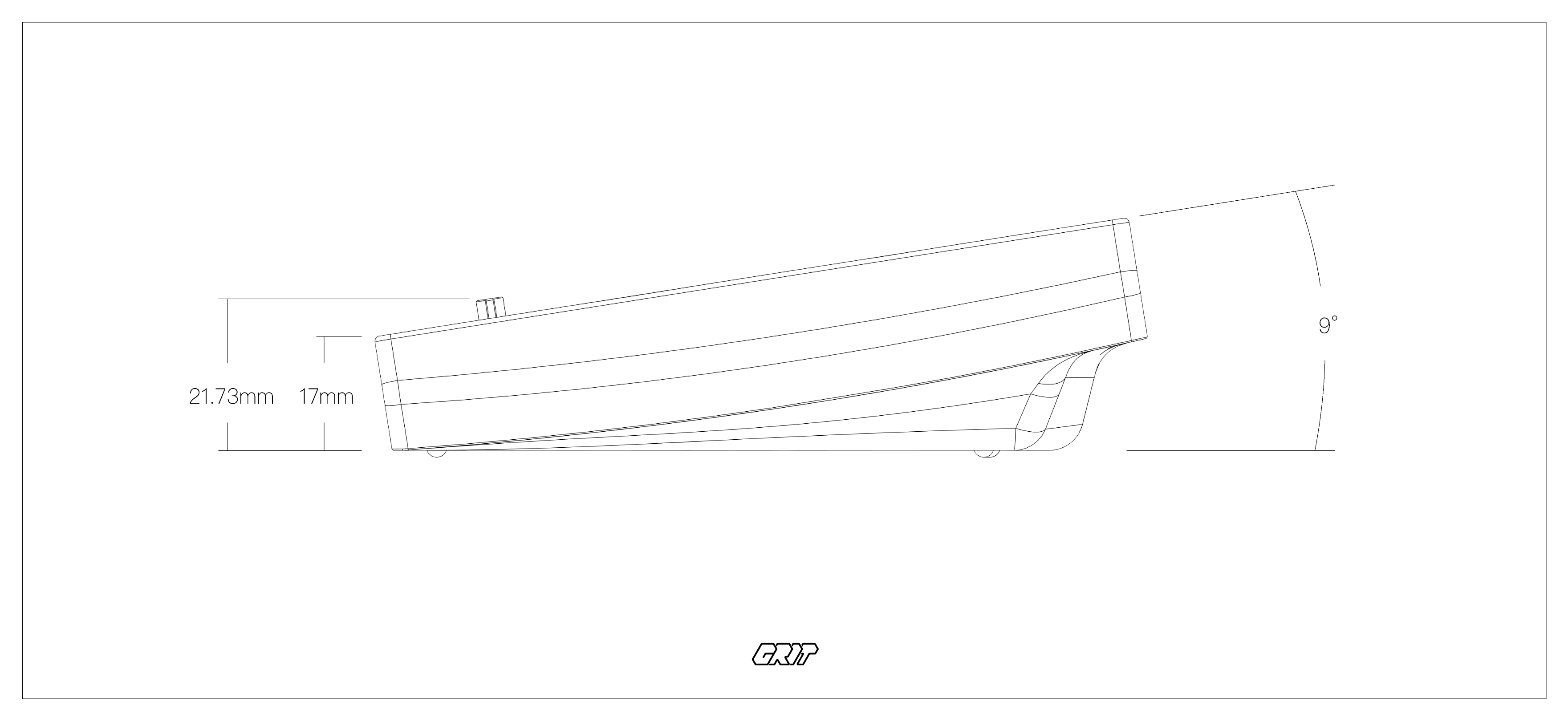

� Typing Angle: 9�
� Front Height: 17mm
� EKH: 21.73mm
� Mounting: Leaf Spring Gasket
� PCB Options: Hot-swap / Soldered / Magnetic
� Manufacturer: STR


---
Color Options
We welcome your feedback regarding potential group buy colors:
Jahre 65% Color Feedback Form
---
Current Progress
Production orders have been placed with STR.
Prototype samples are expected in approximately one month.
---
Community
Join our Discord for updates and discussion:
Join the Discord Server
See you at Group Buy!
