Join65% - Easy to build, affordable 65% GB live until 27th May

Thocc Supply is delighted to bring Join65 by KnifeLab to the GB phase! Join65 is a budget-friendly 65% featuring a fully CNCd case with a plate-gasket-mount to make building this a breeze. Also, KinfeLab has implemented interchangeable side pieces to allow further colour customizations

Changes since IC based on community feedback
Removing PCB flex cuts on the PCB for the production run
Update back weight engraving style
Remove Purple & Black, Teal Blue & E-White colour
Added Panda, Frost

Spec TLDR:

CNC’d aluminium case
PVD stainless steel weights and badges
Plate foam gasket mount
7-degree typing angle
front height ~20mm
Hot-swap 1.2mm PCB (VIA ready, no flex cuts)
Size 324mm x 135.5mm x 33.4 (thickest) mm
1.15~1.2kg net or ~1.38kg built
Custom moulded carry case

Price ~ $155 to $165 USD (your local vendor pricing may vary slightly)
GB Date: 6th May ~ 27th May (local timezone)
Fulfilment ~ End of Q3 2023

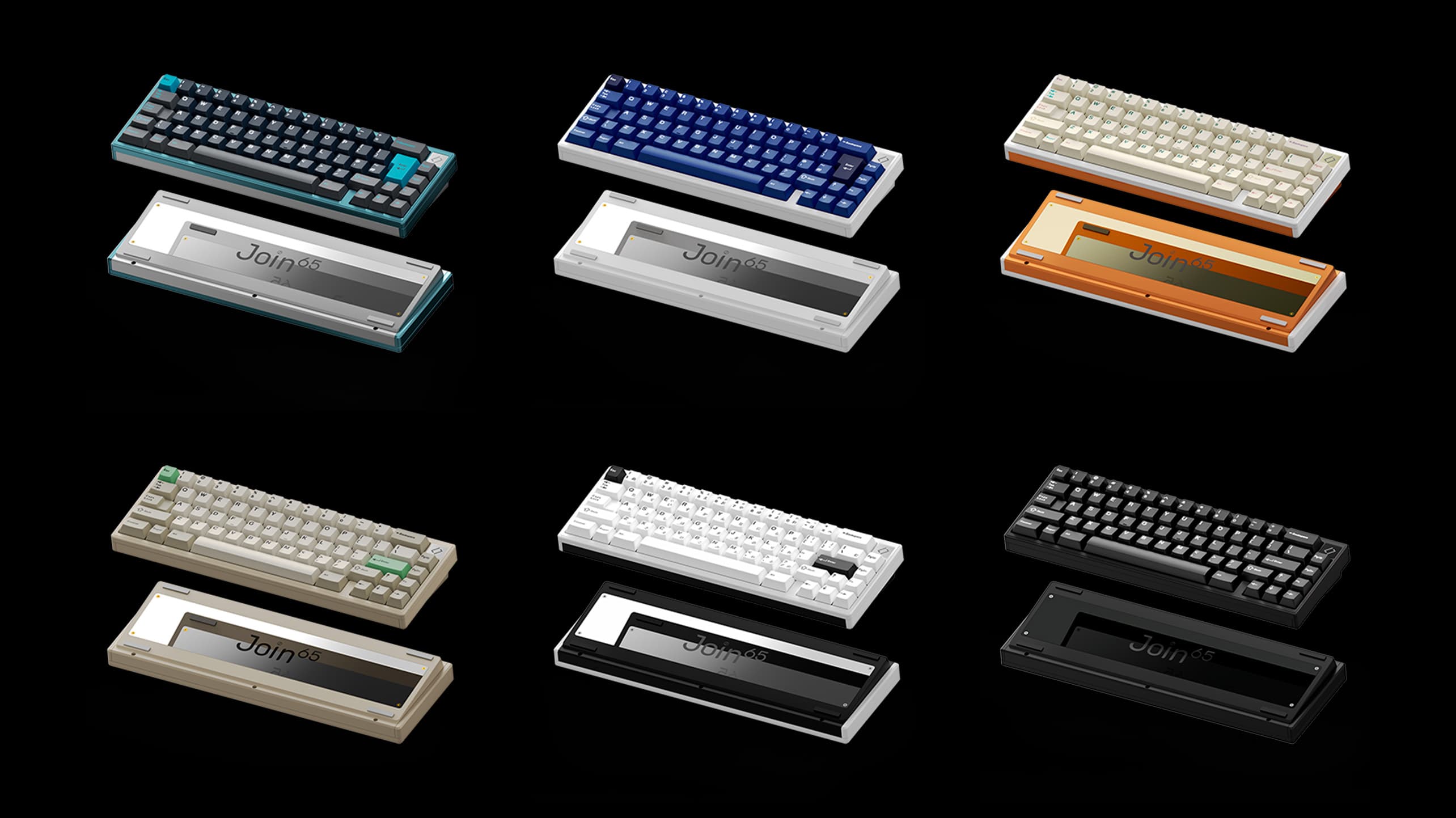

NameTop & BottomBadge ColourWeight ColourTeal BlueTeal Blue & SilverPVD SilverPVD SilverBlackBlack & BlackPVD BlackPVD BlackPandaE-White & BlackPVD SilverPVD SilverFrostE-WhitePVD SilverPVD SilverBeigeE-BeigePVD SilverPVD SilverE-White CopperE-White & CooperPVD GoldPVD Gold

Full Render Album (Updated) https://imgur.com/a/Zz8gg7m

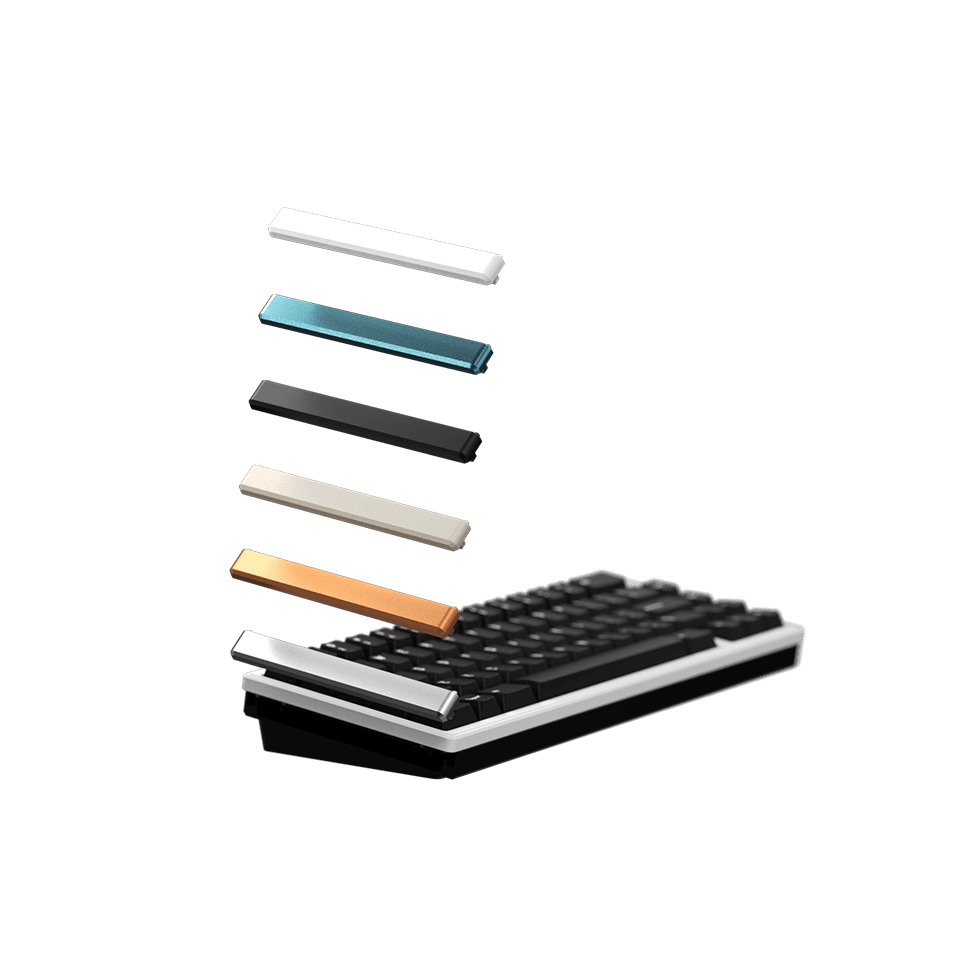

Full-Colour Sides Combo Album https://imgur.com/a/DowBOOe
Prototype Album with old weight engravings and flexcut PCB https://imgur.com/a/jVR5N48

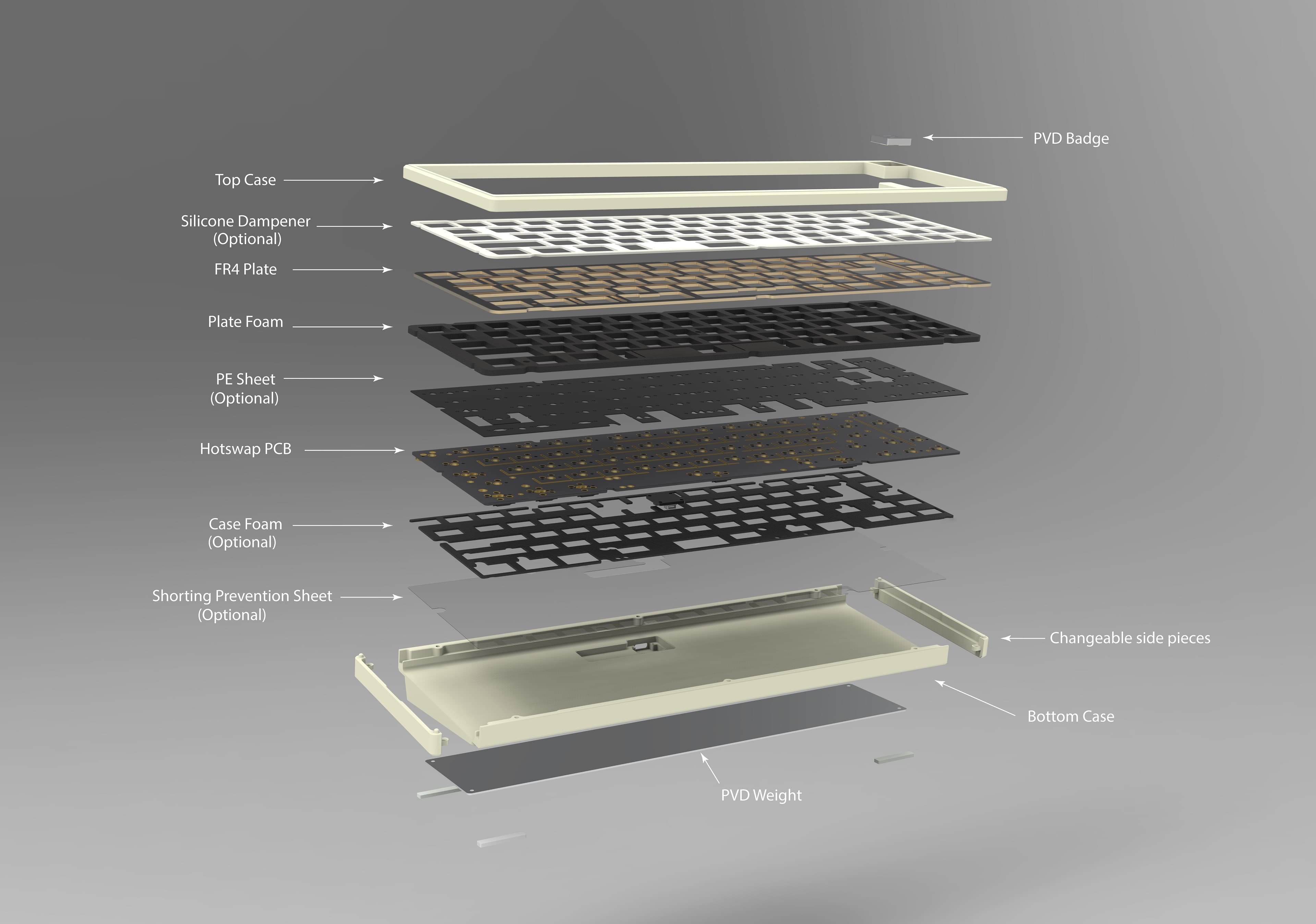

Exploded View

Standard KitOptional Extras1 x Case ( Top & Bottom+2 Sides)Solder or HS PCB kit1 x FR4 PlateAluminium, PC, FR4 plate1 x Foam Pack (Plate, Case, PE, AS Sheet)Foam Pack1 x HS PCB + Daughter BoardSilicon Top Sheet1 x Silicon Top SheetBadge (3 designs in 3 PVD finish)1 x BadgeWeights (3 PVD finish)1 x Weight1 x Carry Case & Assembly hardware

Hotswap PCB Layout
