JRIS65 - PCB Gasket Mount Custom Keyboard | September 27th - October 3rd
geekhackauto-imported
0 followers0 bookmarks0 comments
Description
Hi Everyone,
Great News. The JRIS65 Group Buy is launch today.
As we know, JRIS65 is a budget-friendly and high-quality PCB gasket-mounted, full CNC aluminum keyboard. To let everyone able to experience the higher-end customization, we are working on the typing sound, typing feel, craft, and quality of the kit, which benchmarks mainstream customized keyboards.
The pricing does not include any tax and shipping fee. The shipping fee to most countries is around USD30-USD40 from China by express. We also work with local Vendors, some vendors' prices may adjust slightly due to import tax and exchange rate, but the total cost will be cheaper than ordering from the Mykeyclub website.
GB Time: September 27th - October 3rd, 2022
Limited QTY: 3000 worldwide
Estimated Delivery: Start packing and sending to vendors and Mykeyclub direct customers early in January 2023
Please register the vendor's mail list or join their discord channel for fast updates.

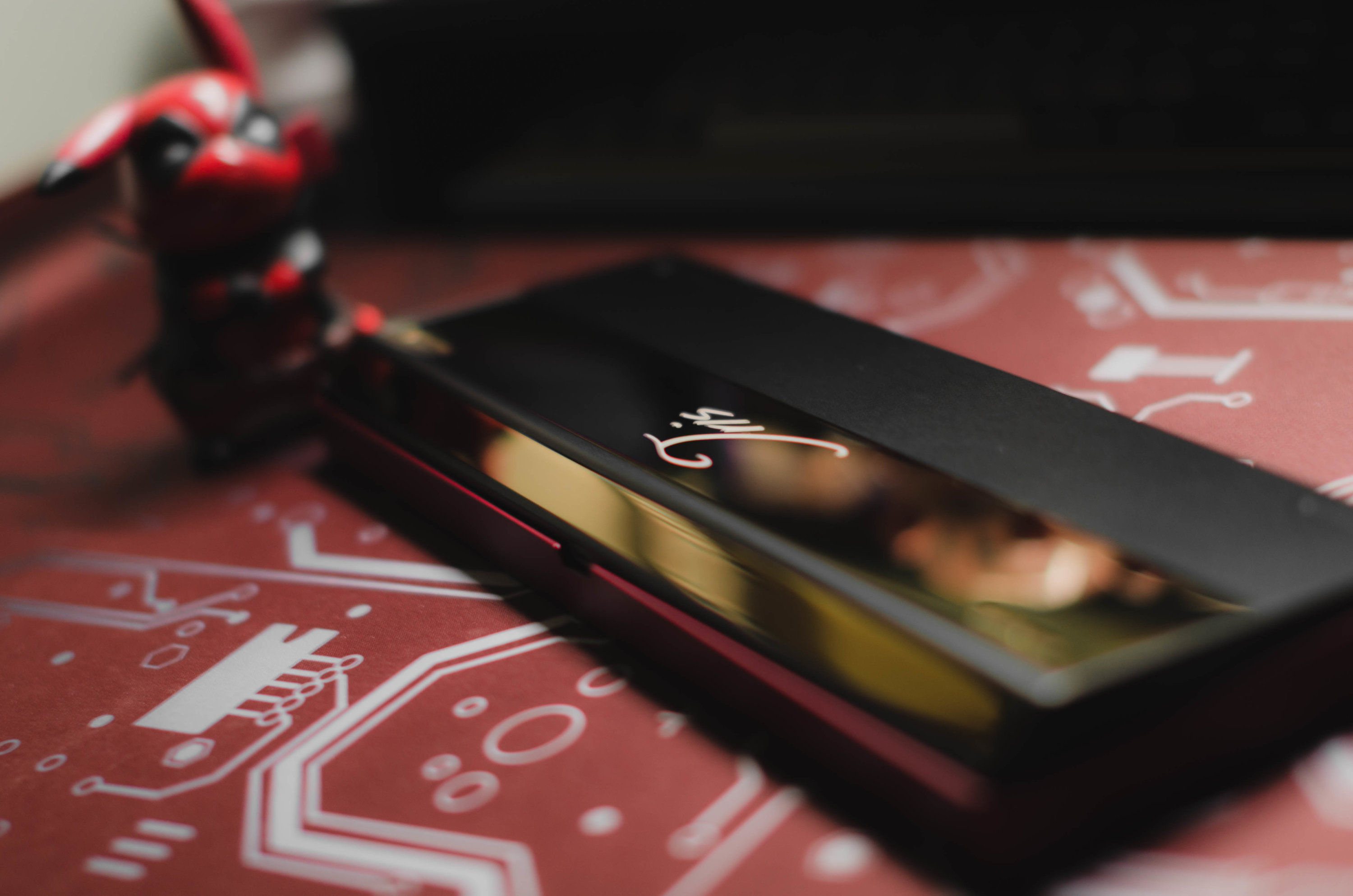

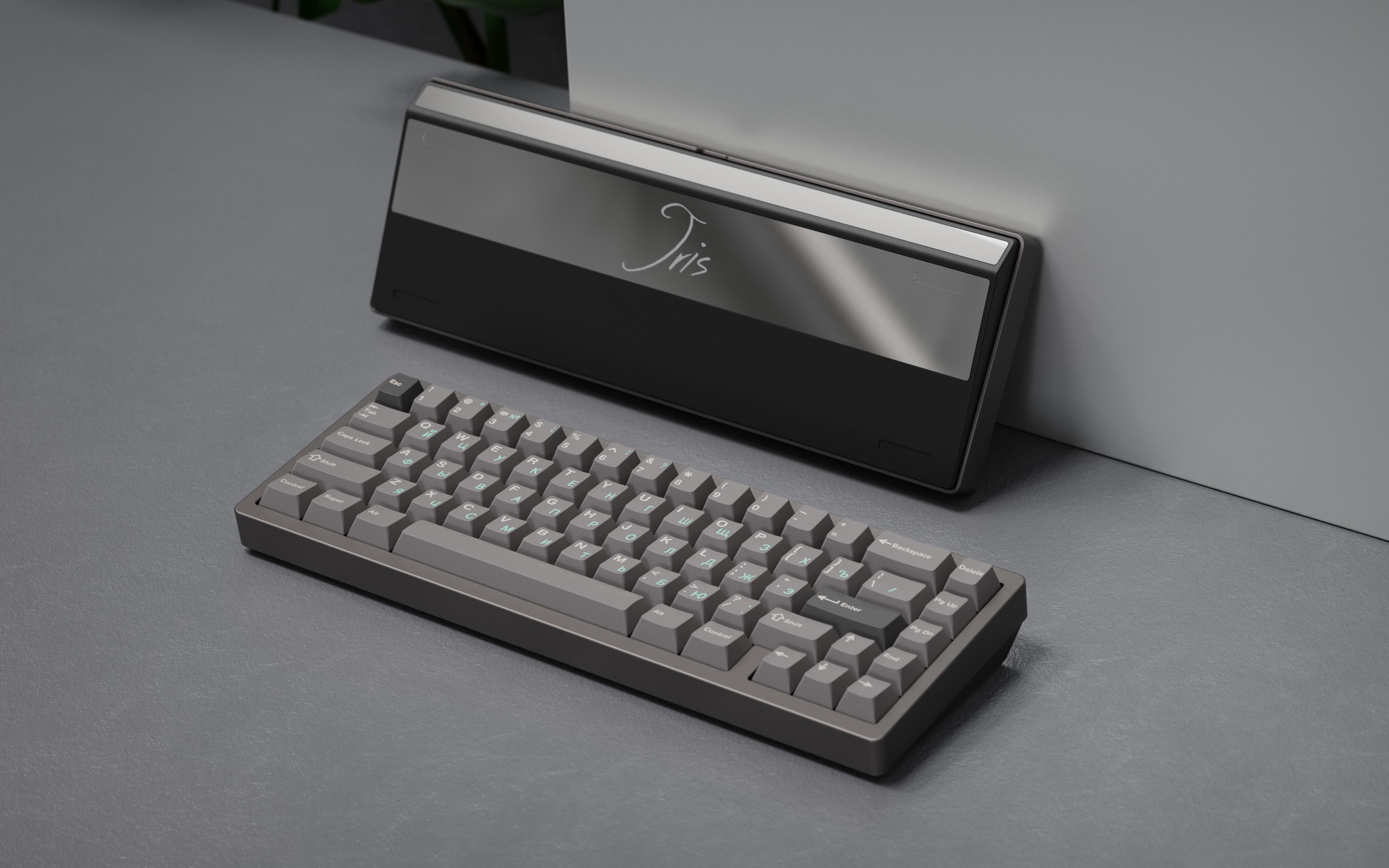

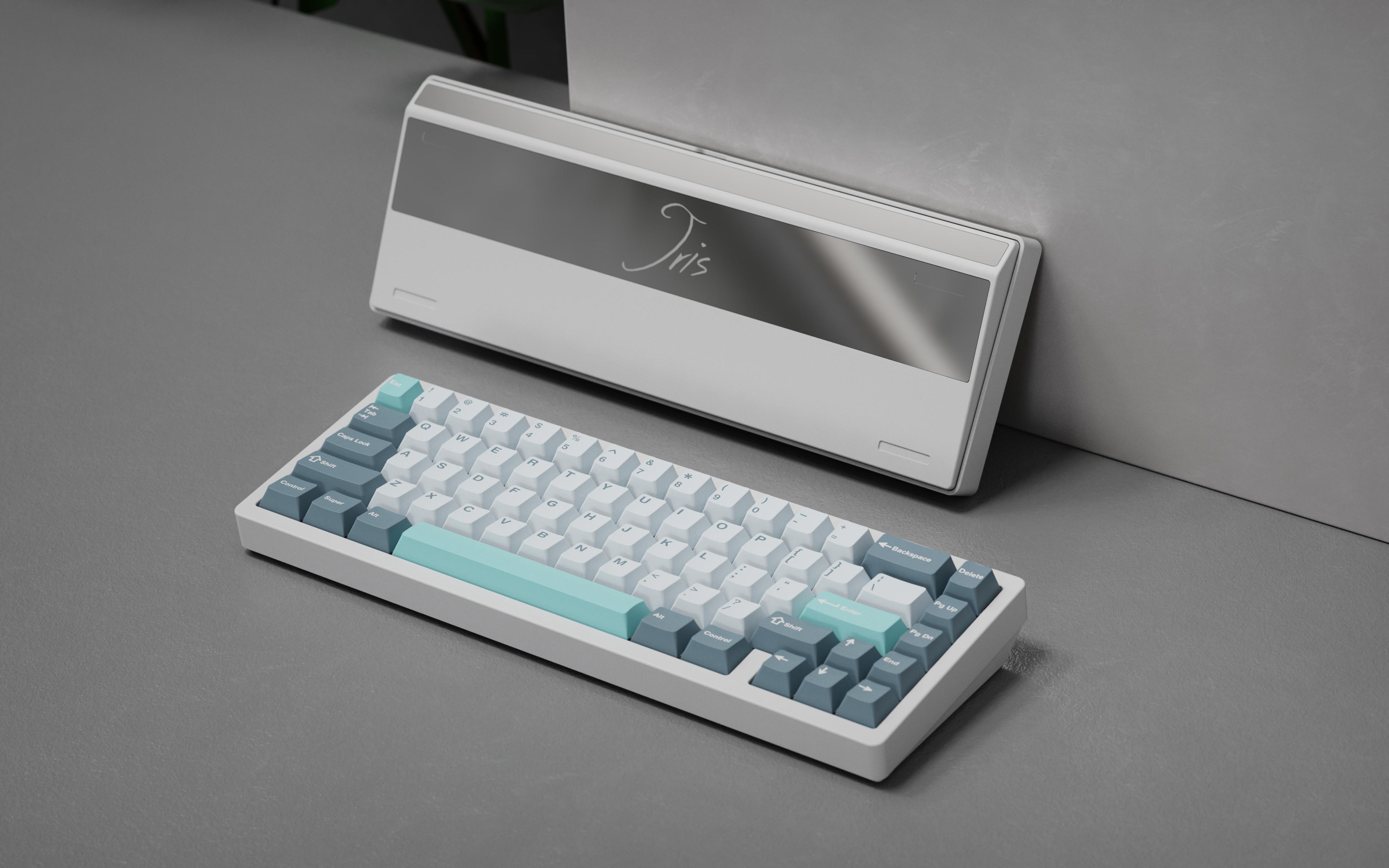

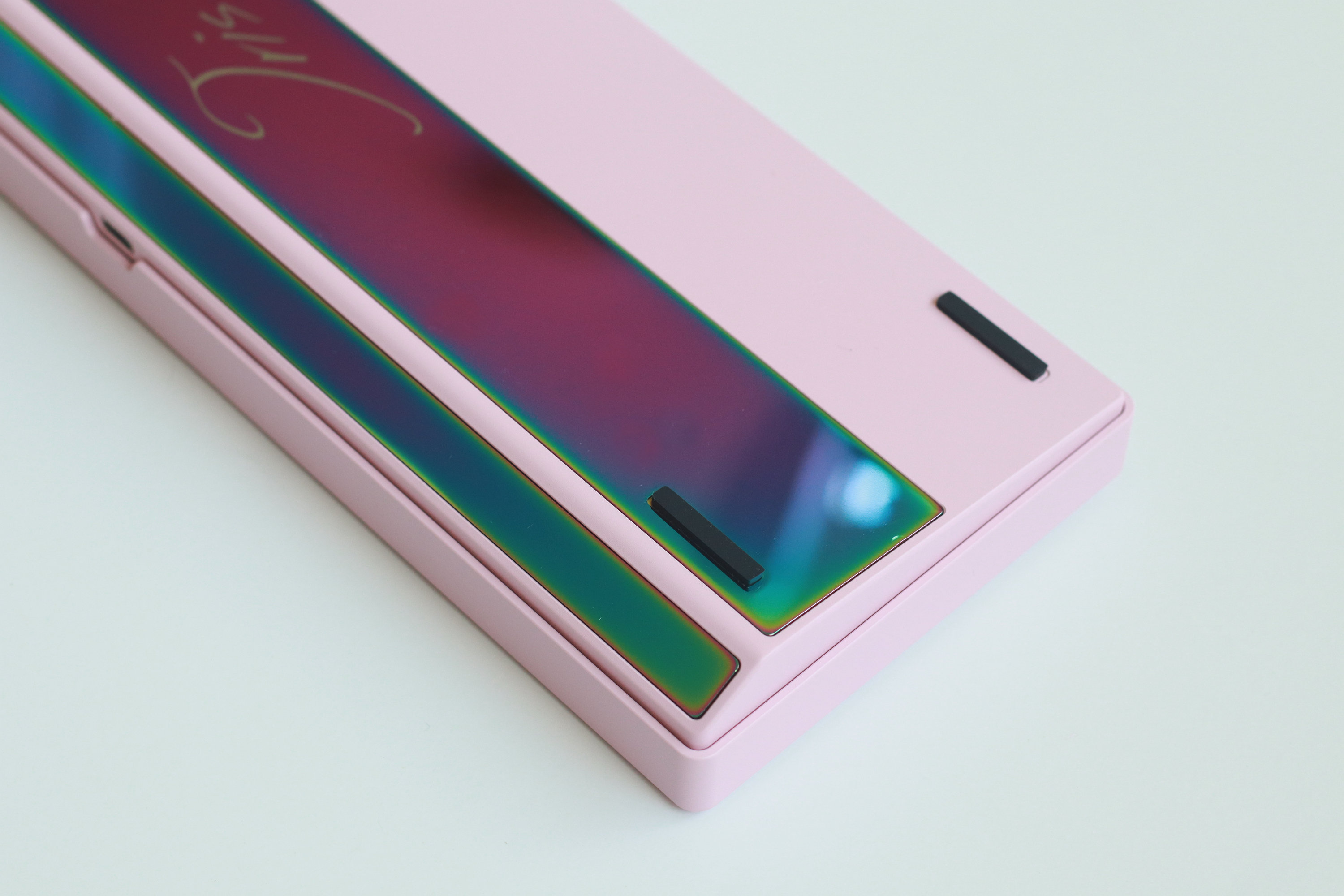

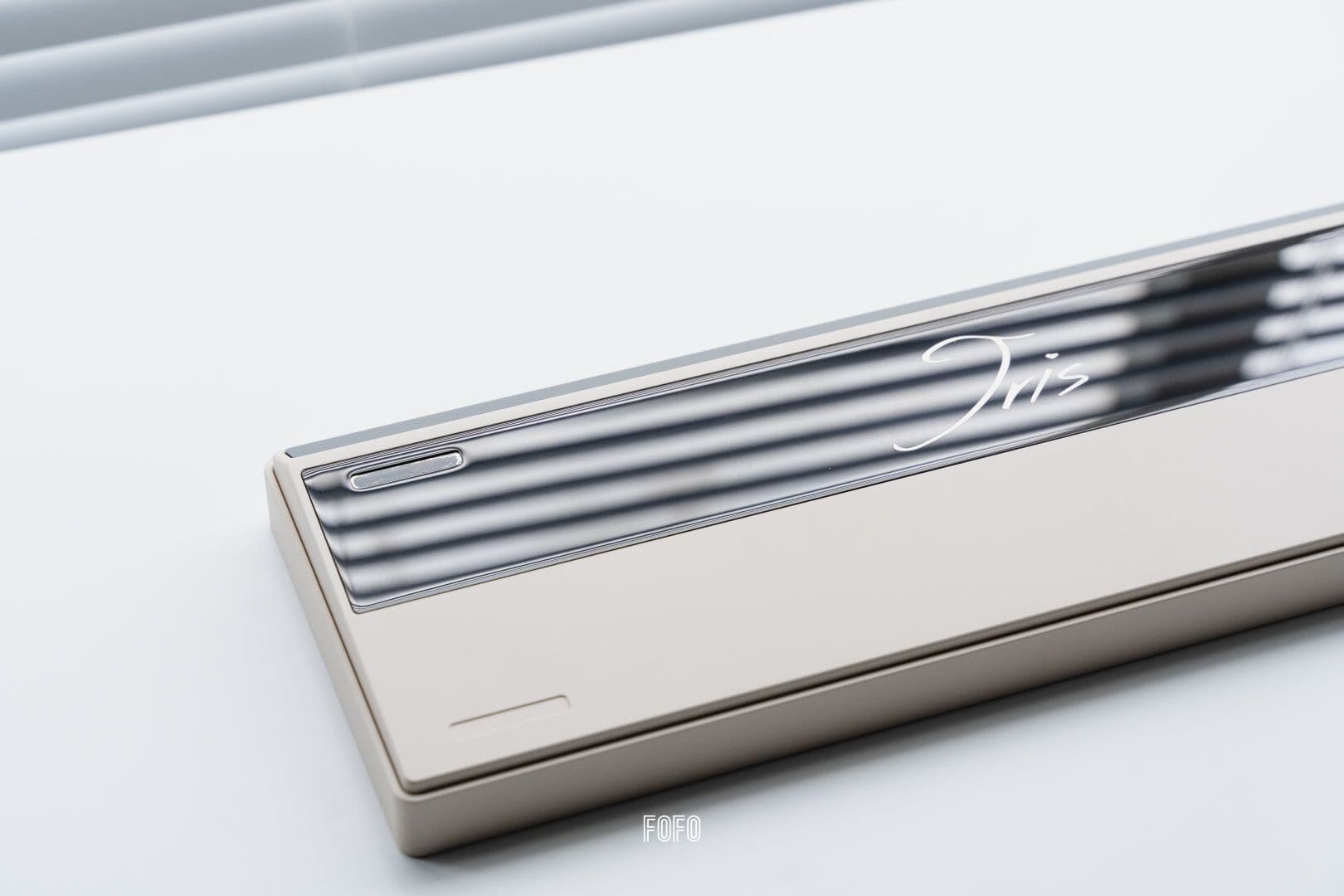

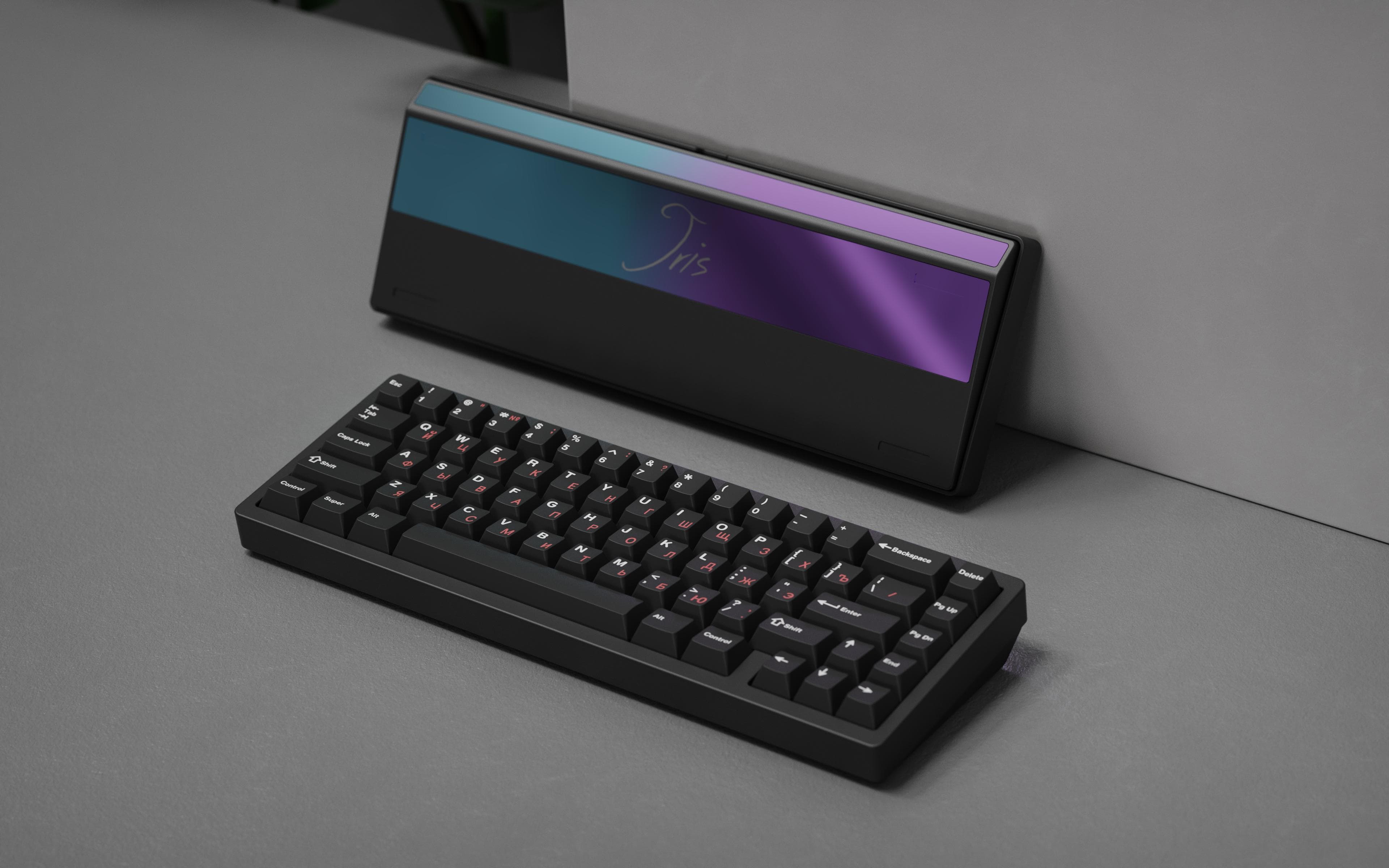

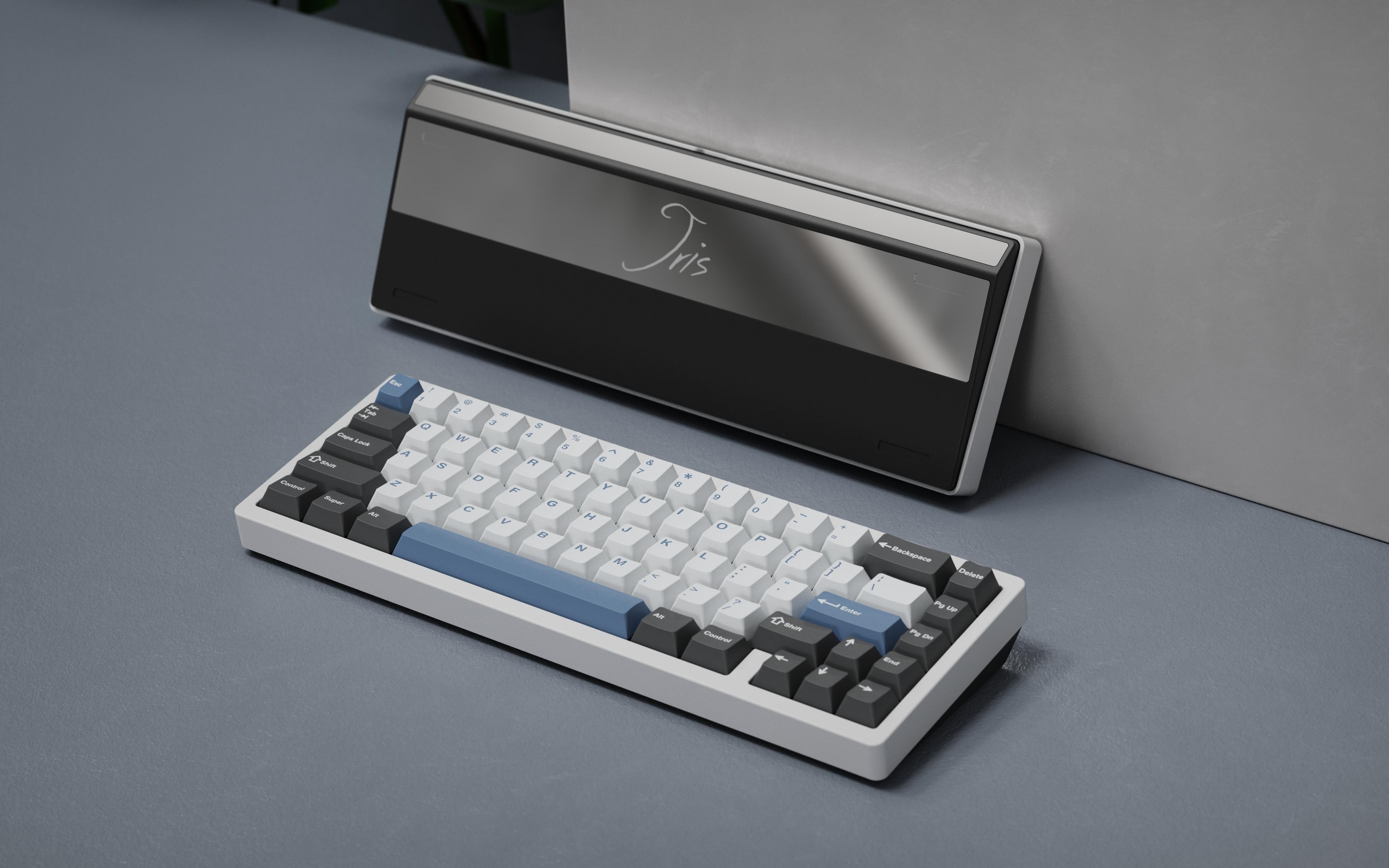

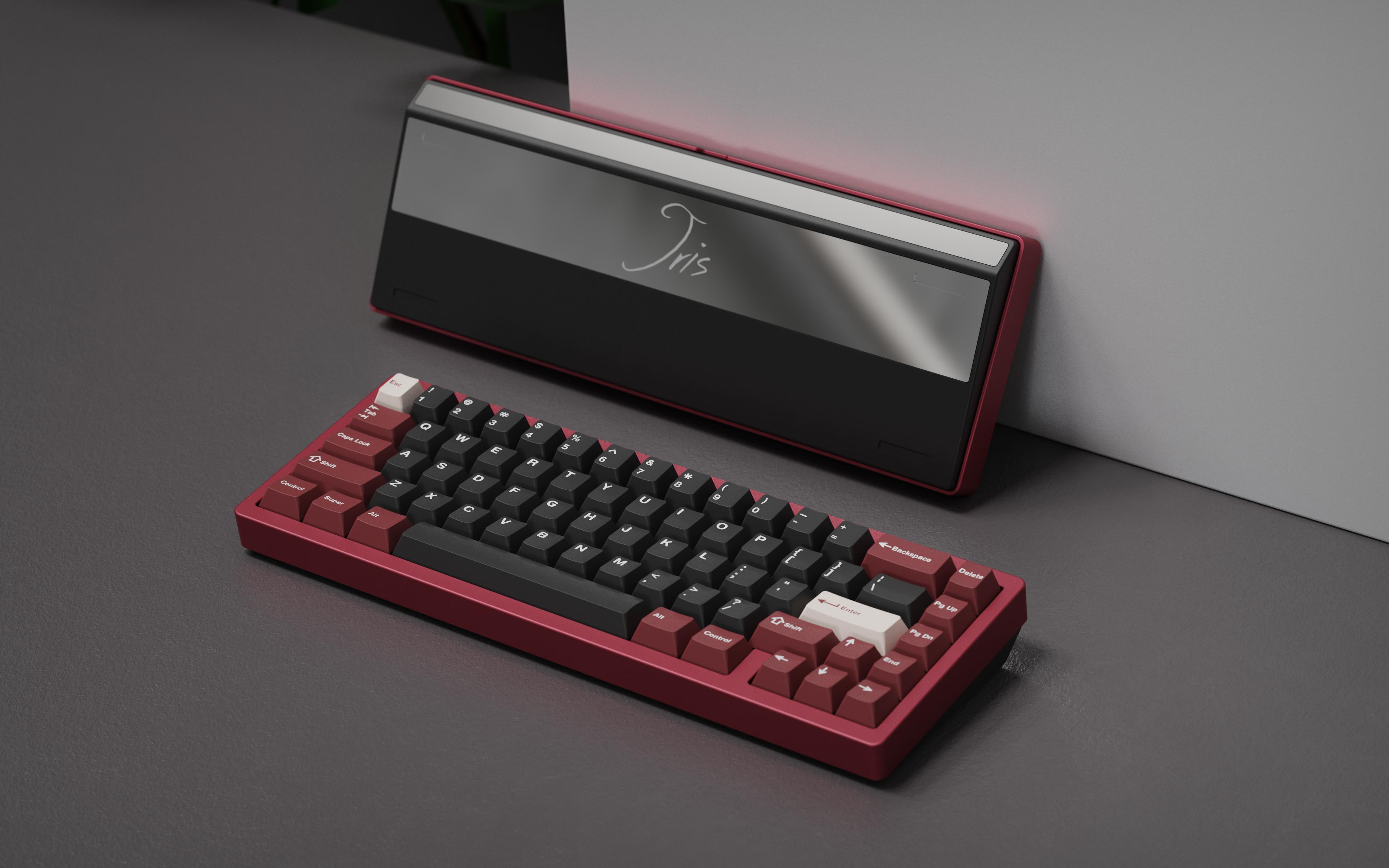

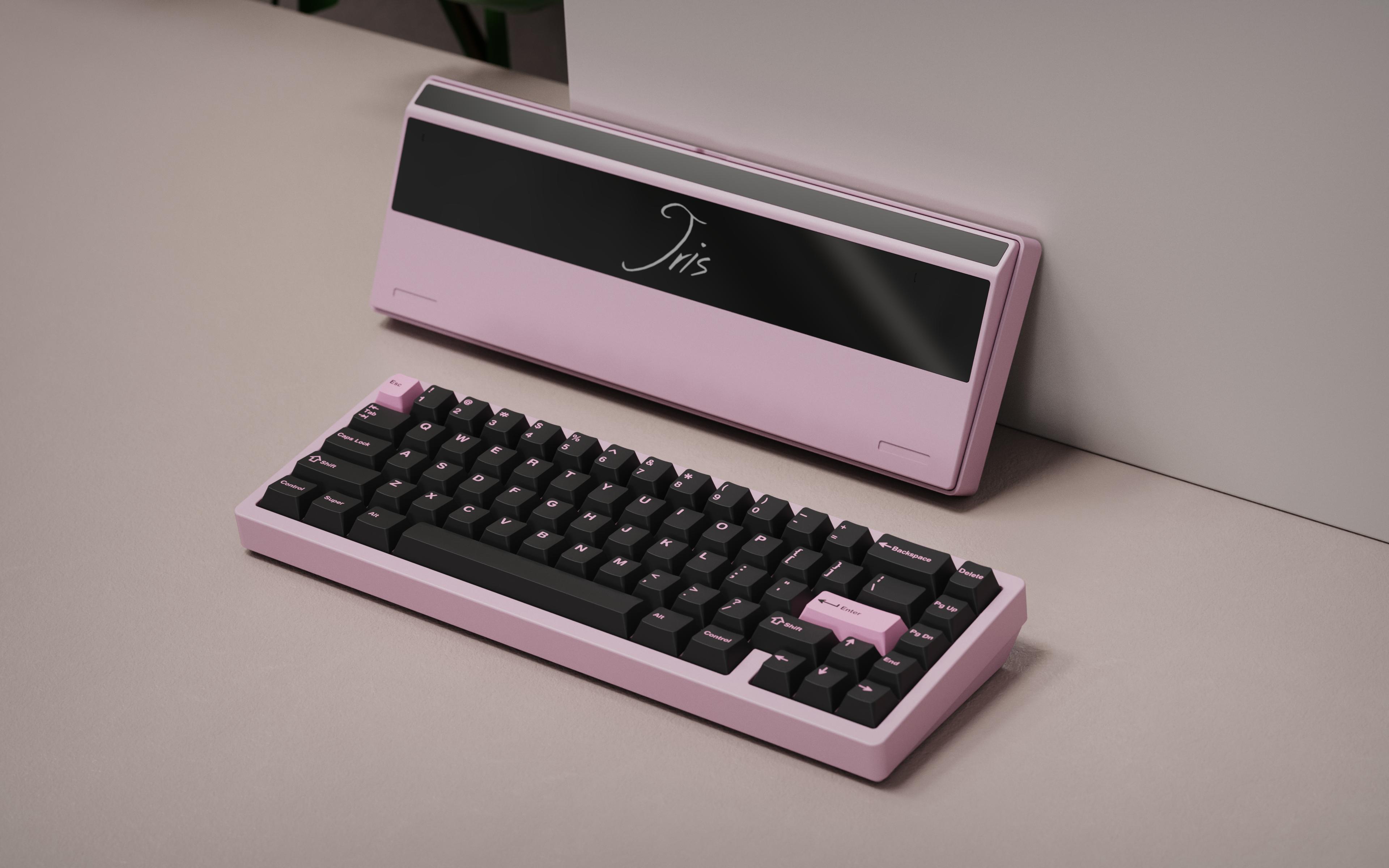

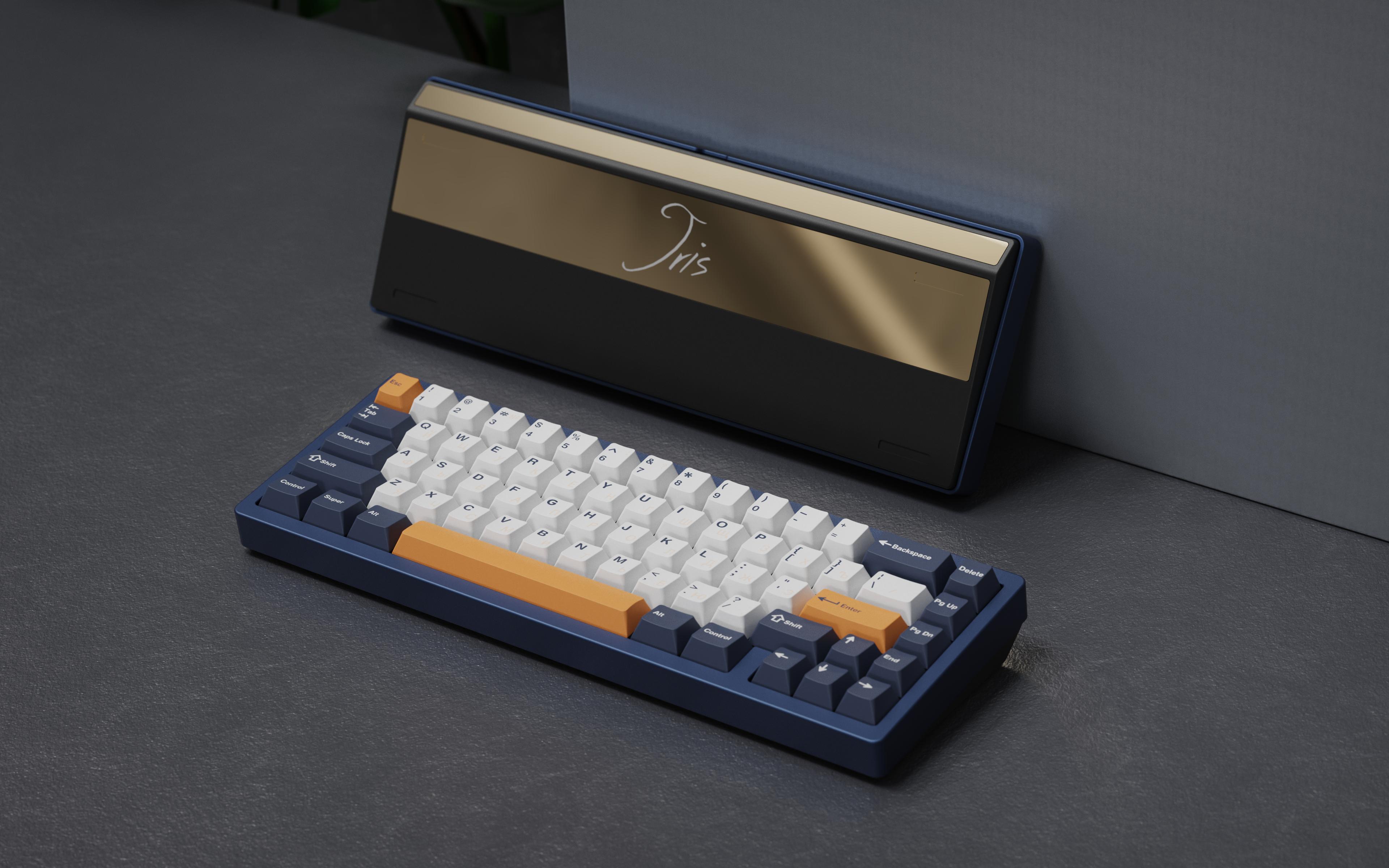

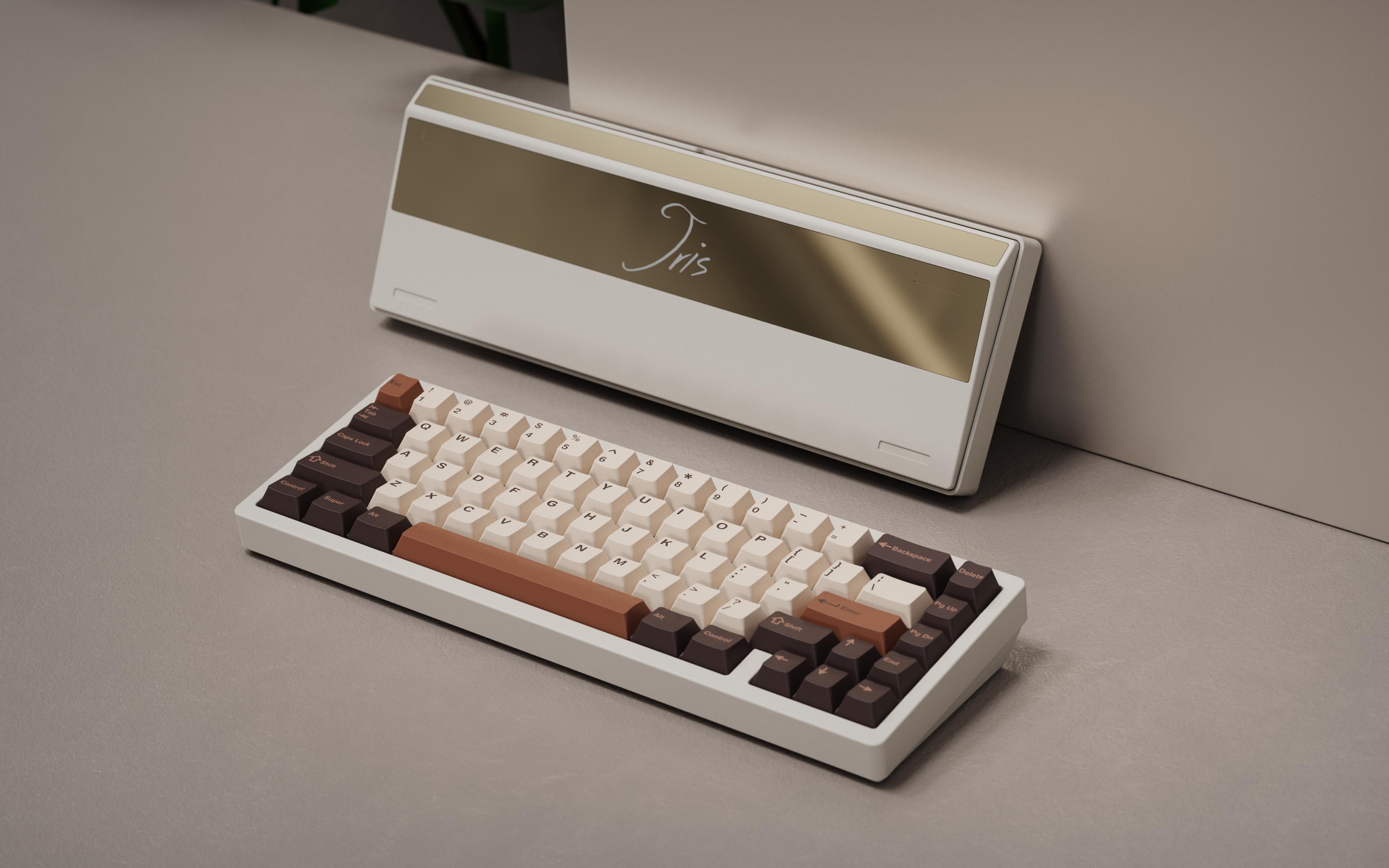

JRIS65 Info: JRIS65 design concept is elegant, simple, durable, and comfortable. Full CNC aluminum case: aluminum top case and aluminum bottom case Simple and atmospheric front side, and laser engraving of LOGO on the back The weight on the side is the same color as the bottom so that you can feel the nobility in daily use! The separate daughter board brings you a better typing experience. PCB gasket jackets or socks make your building more convenient and simple!

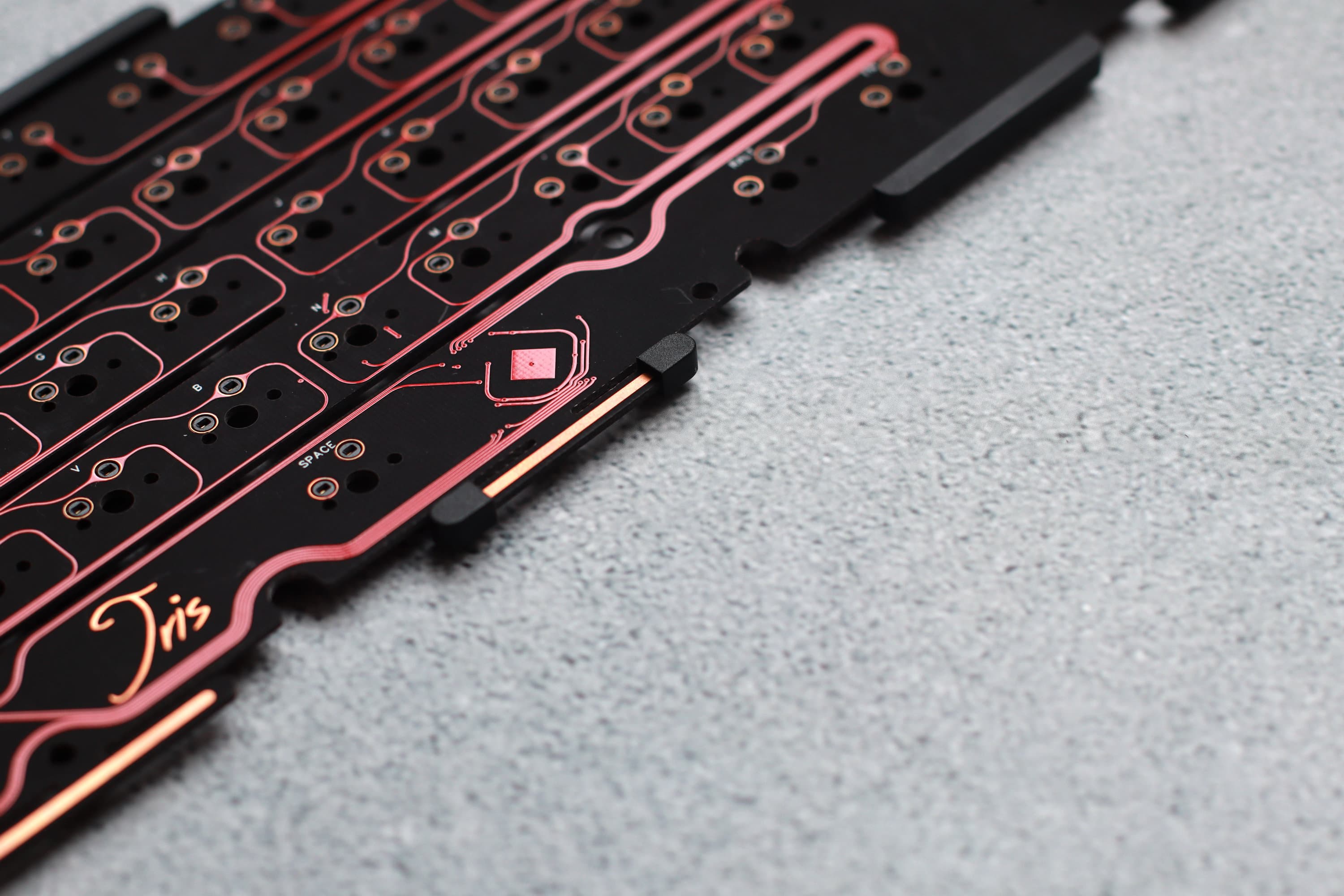

JRIS65 Specifications: Typing angle: 6° Front height:19.3mm PCB GASKETS structure PCB with USB-C daughterboard Both PCB and plate adopt flex cut design PCB gasket jackets or socks (included as default) QMK/VIA Supported Support PCB stabilizers

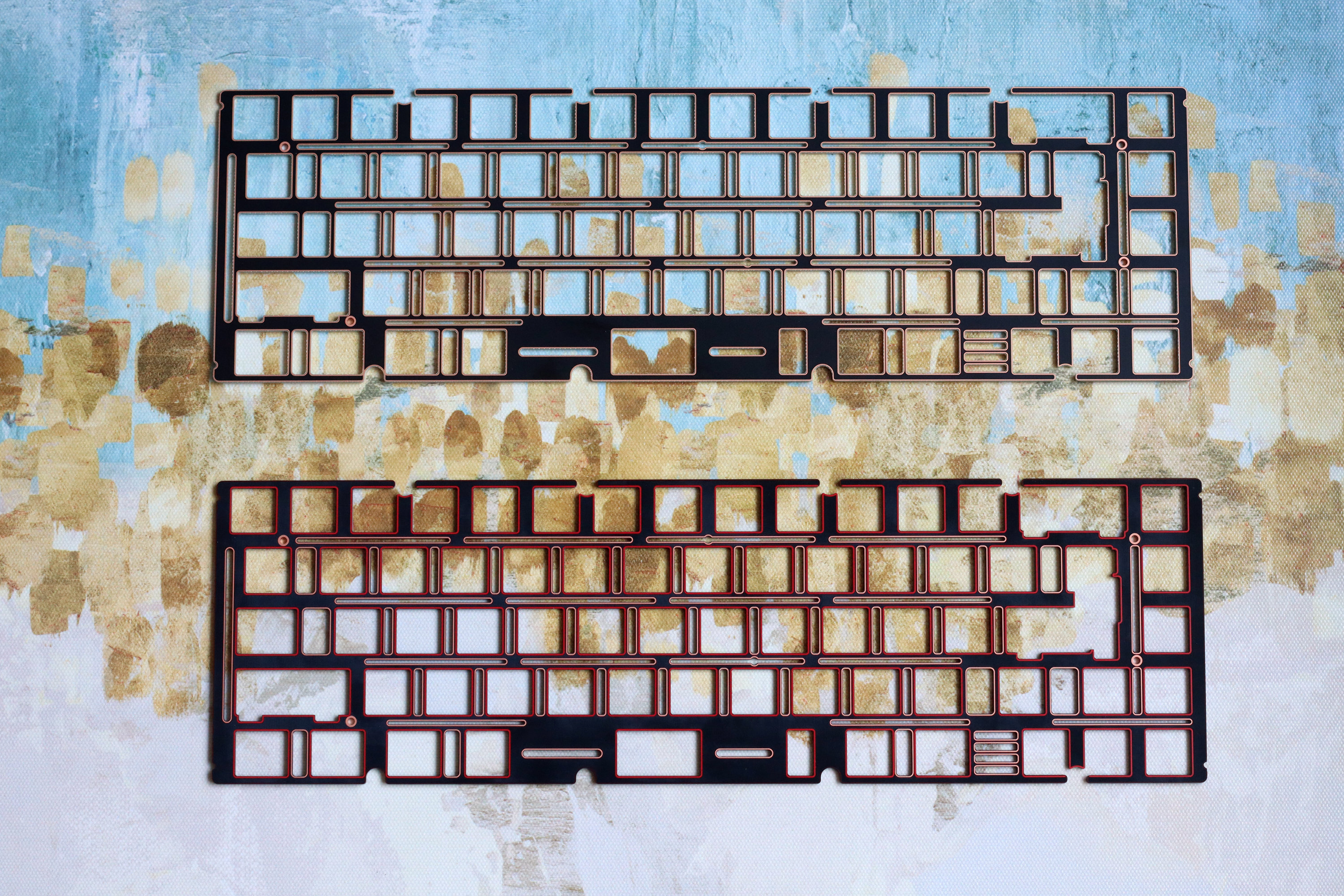

Plateless Options: We highly suggest building plateless with 5mm extra plate foam and solder PCB. The 5mm extra plate foam will bring a more soft typing feel, and the typing sound will be cleaner. But without the 5mm plate foam, it will also work fine, and the typing feel and sound are very different.

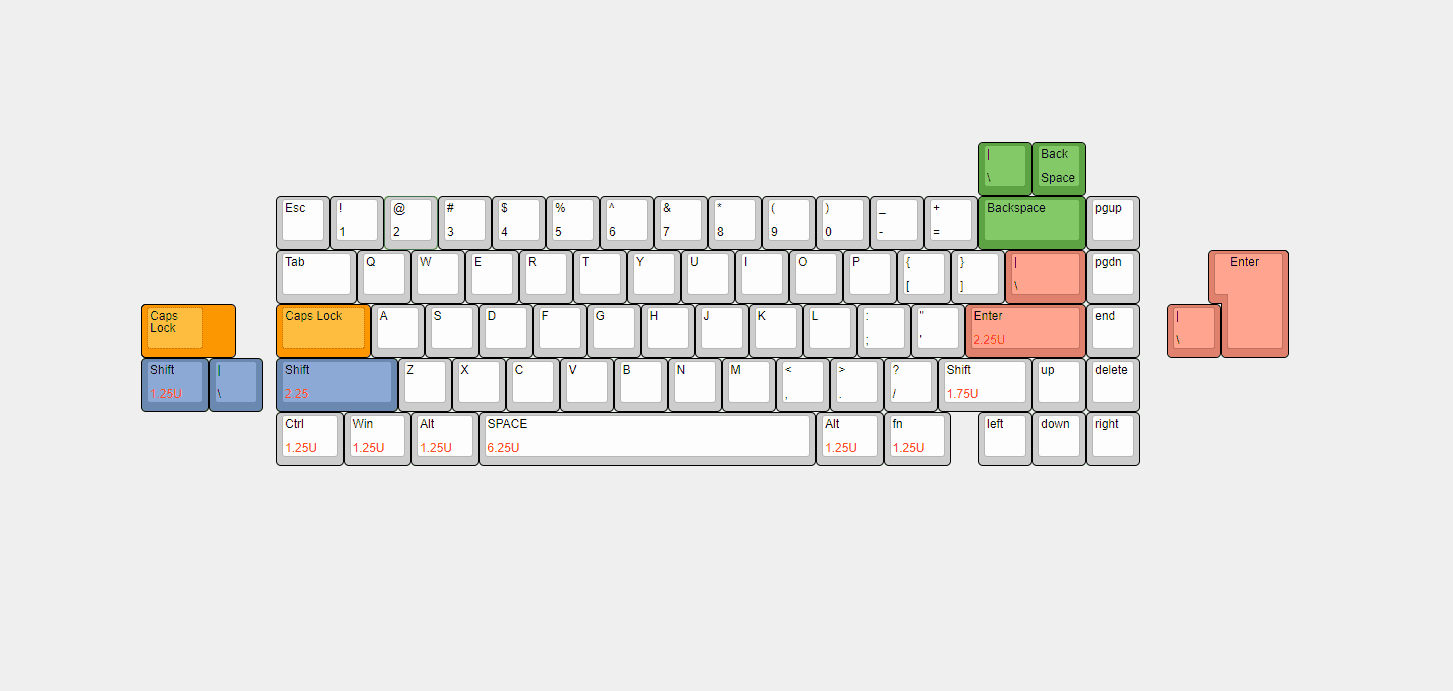

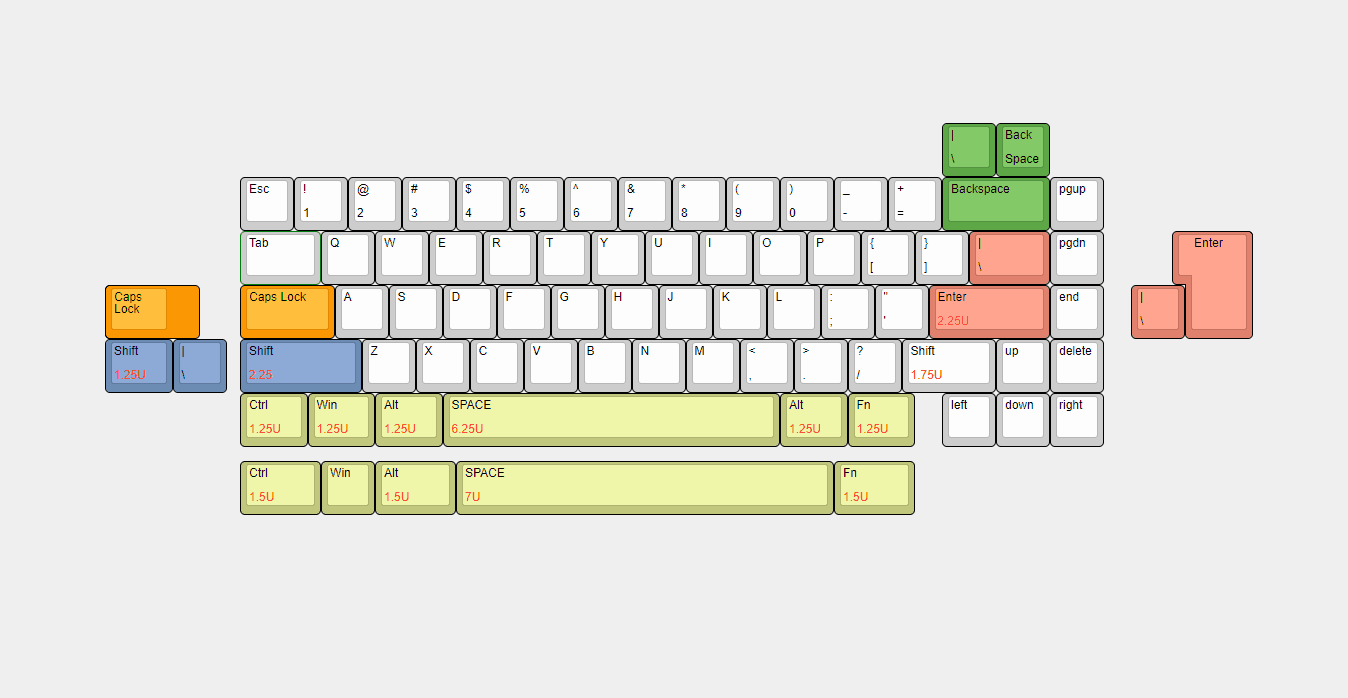

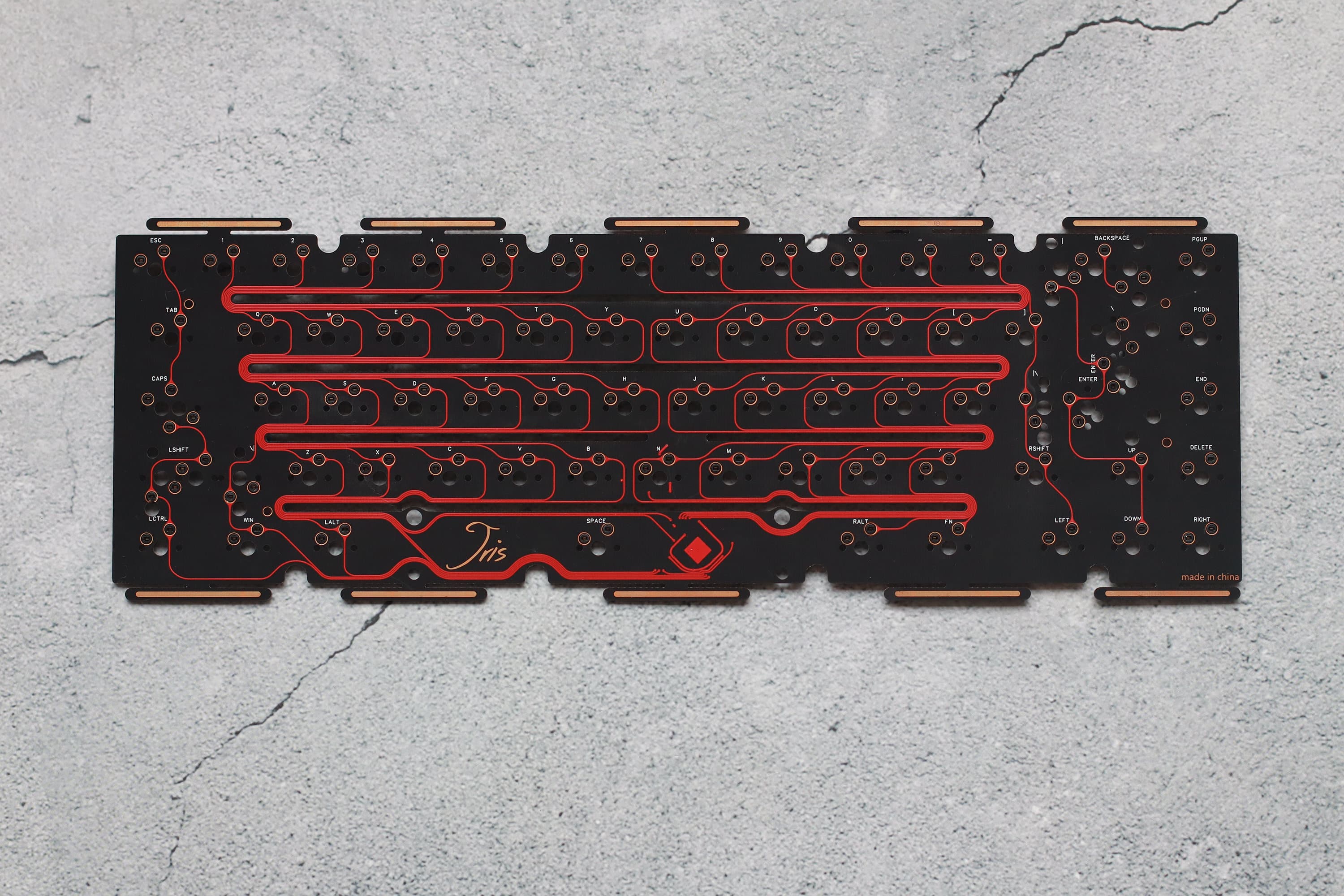

PCB Specifications Hotswap PCB support layout

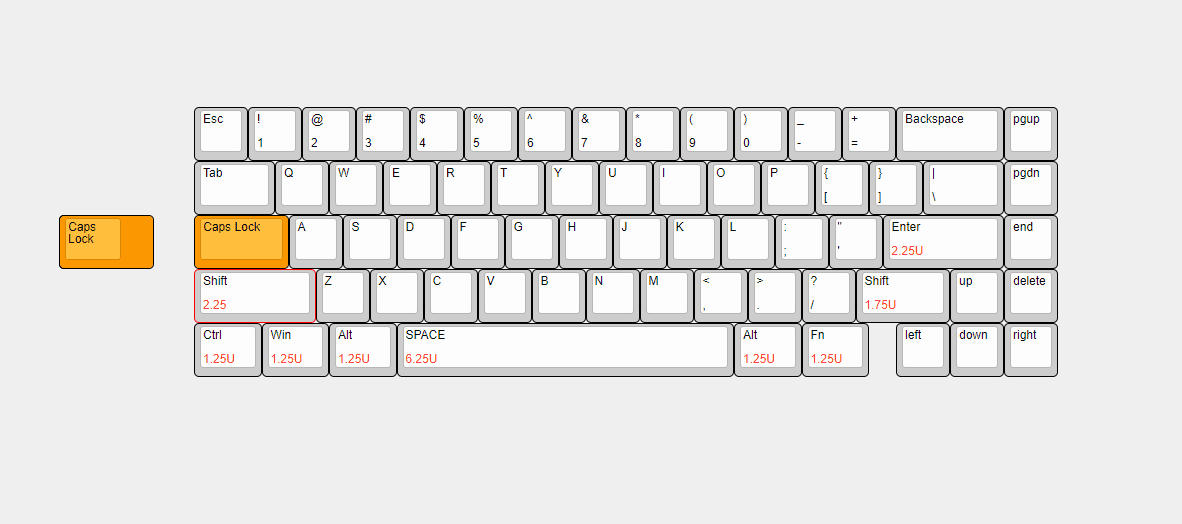

Solder PCB support layout
5.2 Bluetooth hotswap PCB(battery included) support layout.
BT PCB is cooperating with Li Dana. LDN’s PCB is famous in China because his PCBs are stable and qualified and user friendly. It has its drive and software, which can edit the key mapping. Please check the software driver interface here.
-8 devices can pair with it at the same time, and it is easy to switch the devices you want -The power switch is on the PCB, easy to turn BT function on/off
-The fastest response time is only 1.25ms
-The polling rate for the BT PCB is 1ms/1000hz
-The battery is 1000mA. The working time is from around 15 to 30 days, determined by work intensity.
Note: We highly recommend using a PC/ POM/FR4 plate for BT PCB because the Brass and ALU plate will have a little affection for connectivity.
What's Included? 1x Full CNC Aluminum Case
1x Weight( Anodized Alu/ PVD Mirror)
1x PCB (Hotswap/ Soldered/ Bluetooth)
1x Plate (PC/ FR4/ Alu/POM)
1x Type-C Daughterboard
1x IXPE Foam
1x Poron Plate Foam
2x Poron Case Foam
1x Masking paper for PCB
1x JST Cable
10x gasket jackets
20x gasket socks
1 Set of PCB stabilizers O-ring
1 Set of Footpad
1x Silicone pad of battery compartment (We include this as default, so you don't need to consider choosing which PCB to be the default.)
1x Battery（Only for the Bluetooth version）
Gift(will not send make-up or replacements)
1x USB-Type C keyboard cable
1x Carrying Case
Gift(will not send make-up or replacements) Carrying Case USB-Type C keyboard cable
Maybe our voice is weak, but we are working to bring you a good value kit. So, the price is competitive enough to let everyone able to leapfrog to experience a higher-end kit and enjoy the customized experience. Let's stay tuned for future posts.
Mykeyclub is a platform that integrates creativity and innovative design, helping more studios join this hobby community and bringing more fun and cool products to you guys. For more discussions and future updates, please join Mykeyclub discord
