JRIS65 R2 Information
What are the differences between Jris65 R2 and R1?
We have received much feedback about the JRIS65 after they built it. Most of the customer love and enjoy the build and love our Jris65. And we also received some improved feedback or issues they were having. So we have improved the R2 according to the R1, please check the details below:

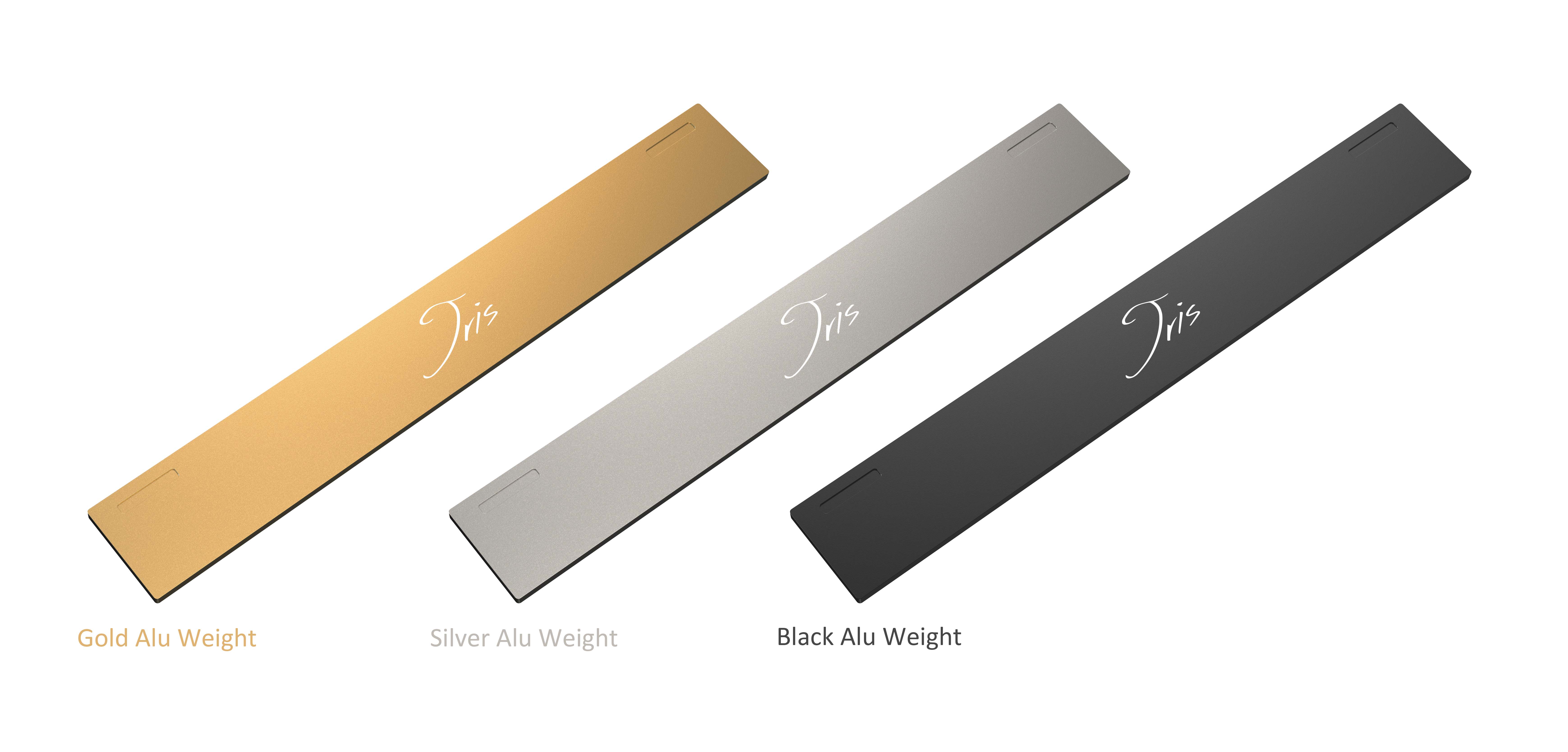

- The JST cable has been extended for a better build experience - Upgraded the material and finish of the screws - Added a 1.6mm Non-Flex Cut Black core Hotswap PCB. - Upgrade a piece of Poron Case Foam to Non-Flex Cut. - The plates has been upgraded to better support ISO compatibility. - Added the case colors options: Lilac, Orange, Silver, Maroon, Navy Blue, Dark Green, Titanium Grey, Orange&Black, Dark Green&Black. - Added the PVD Mirror Weight colors options: Blue, Purple, Gradient. - New limited edition case added: Red and Black.

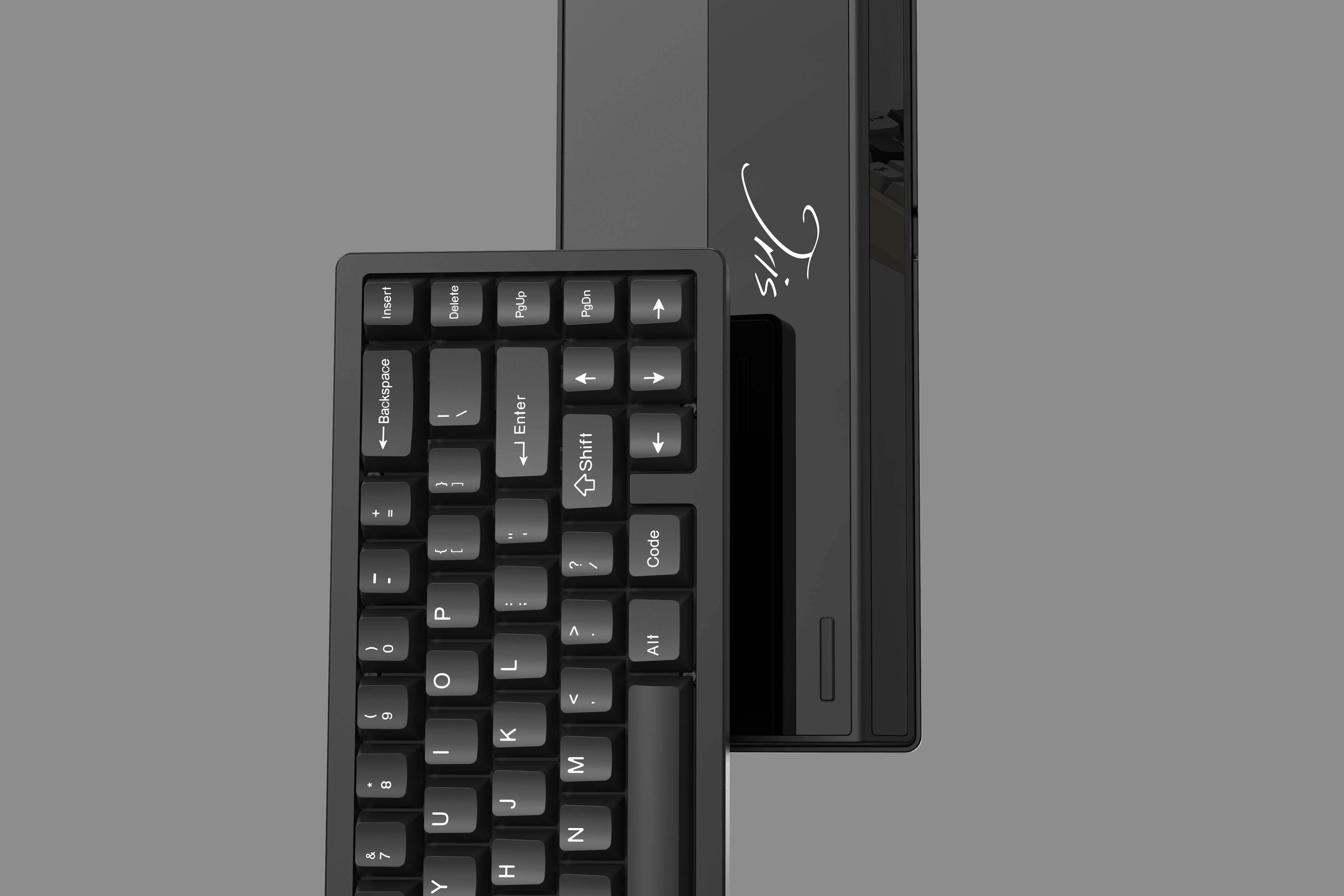

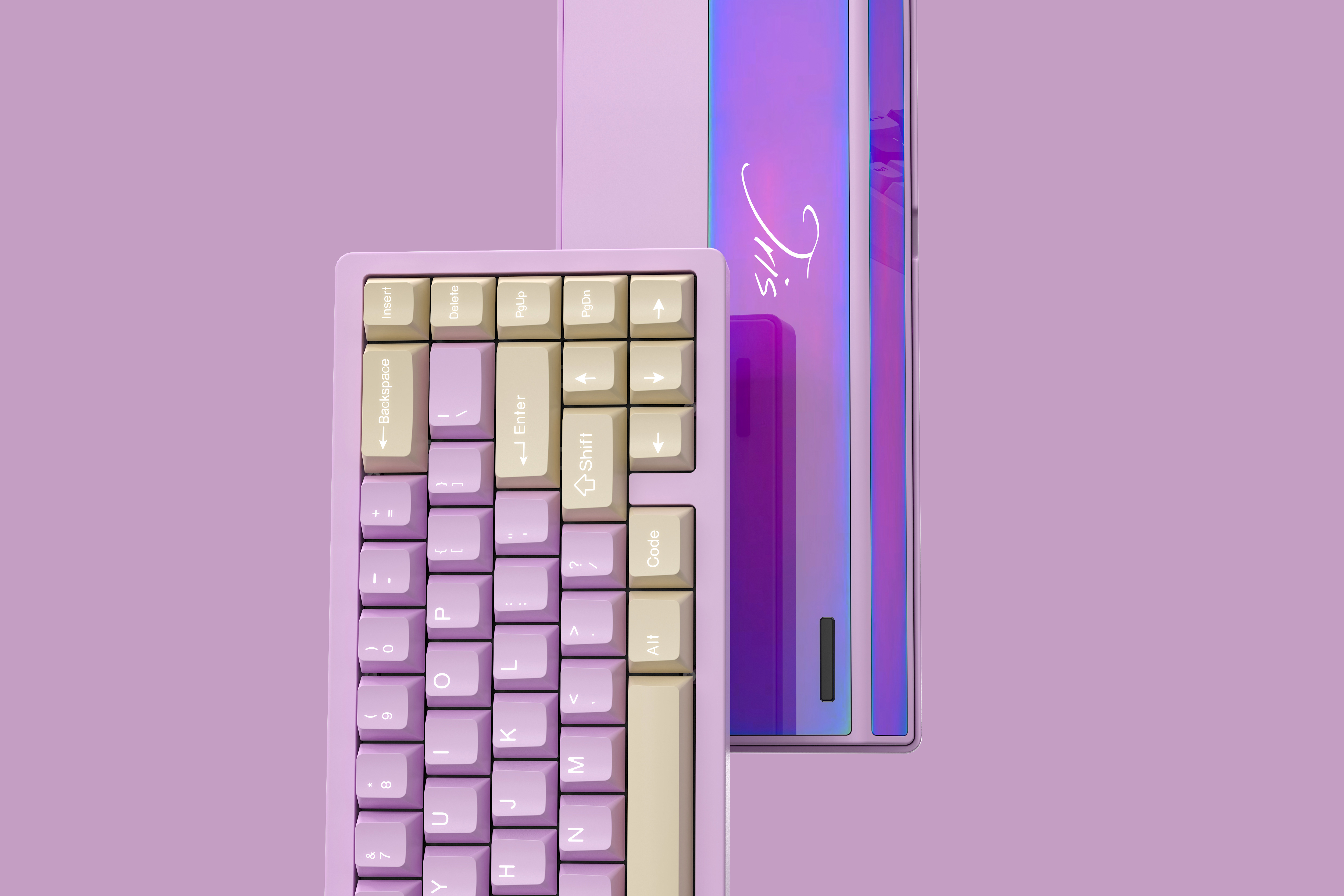

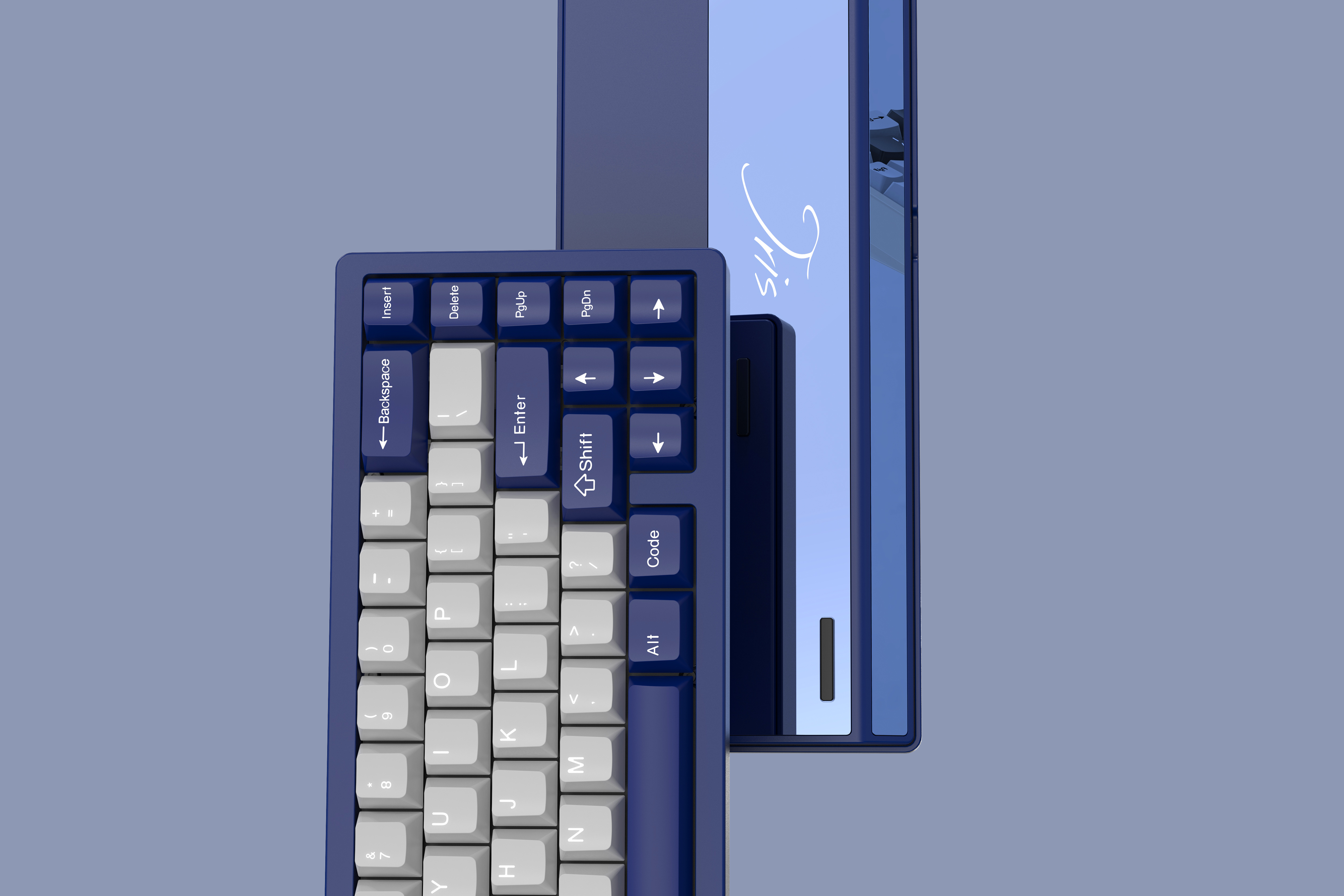

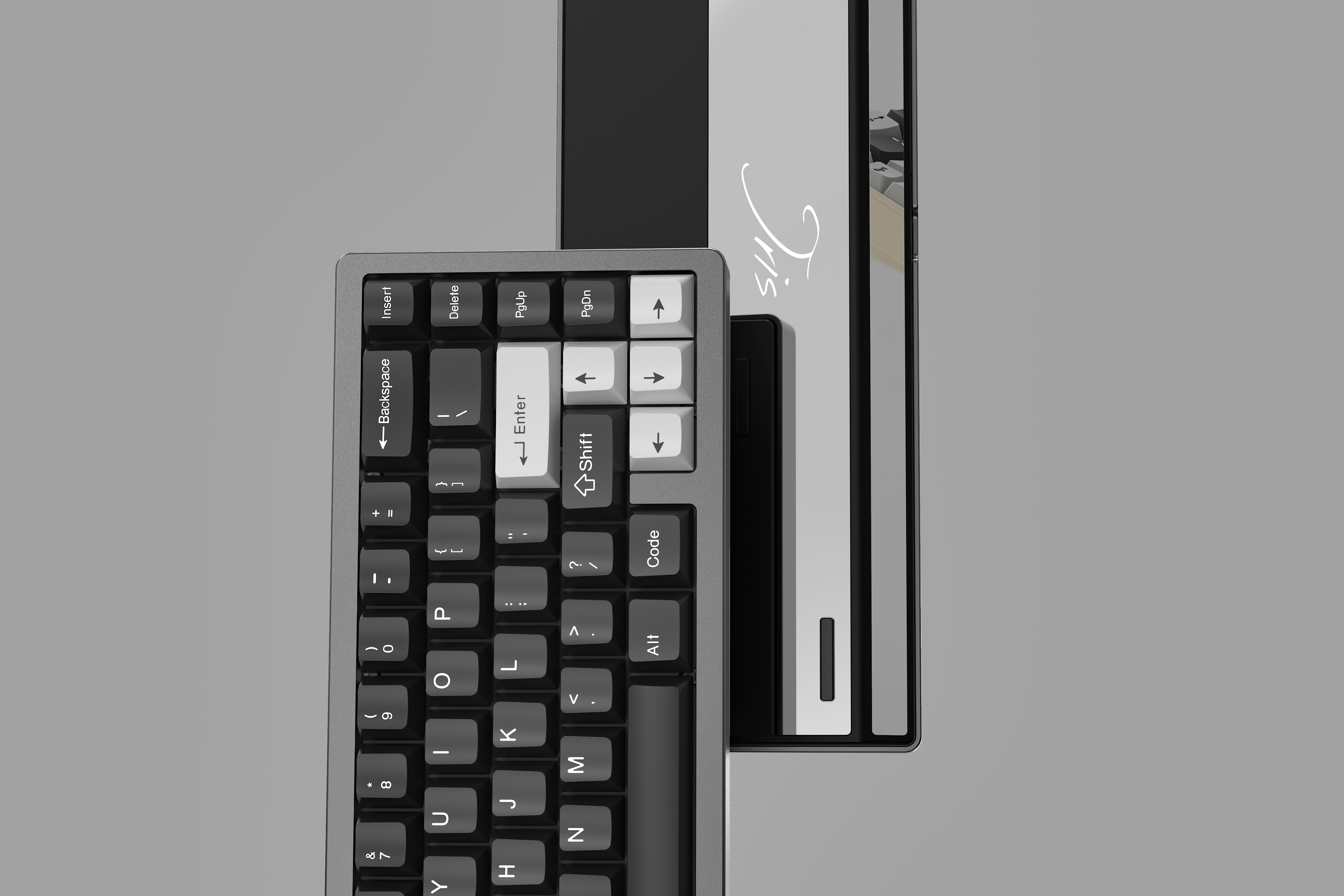

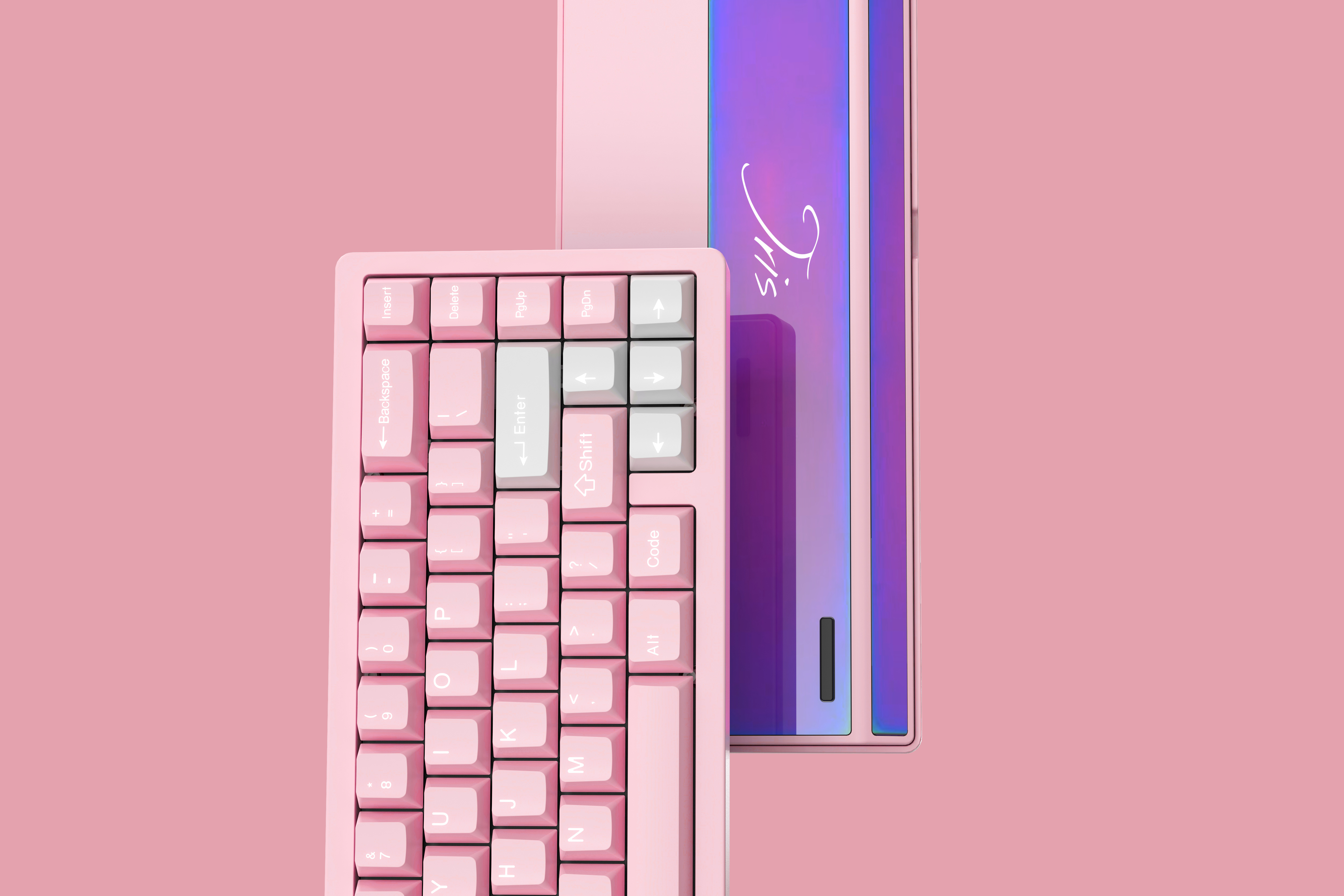

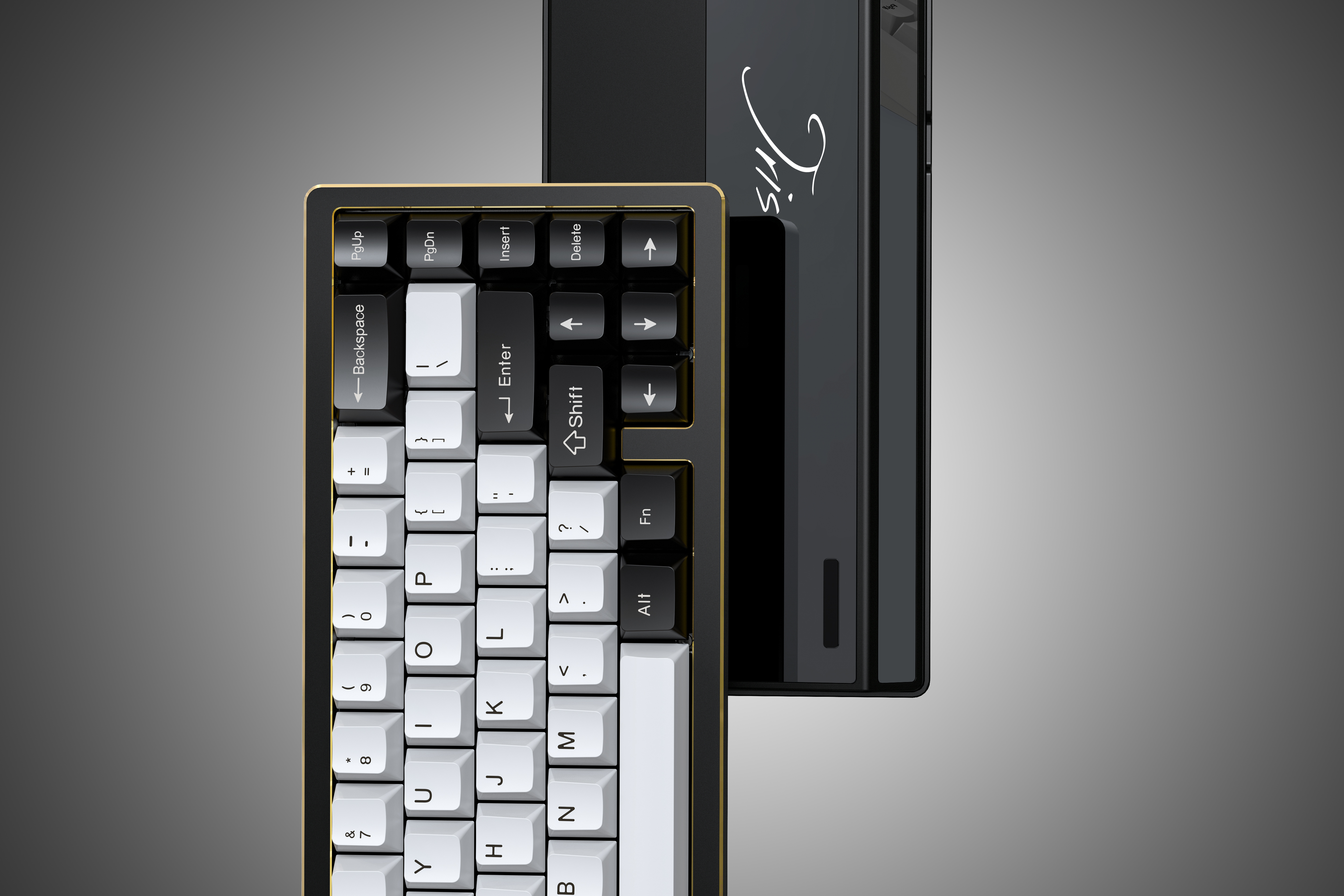

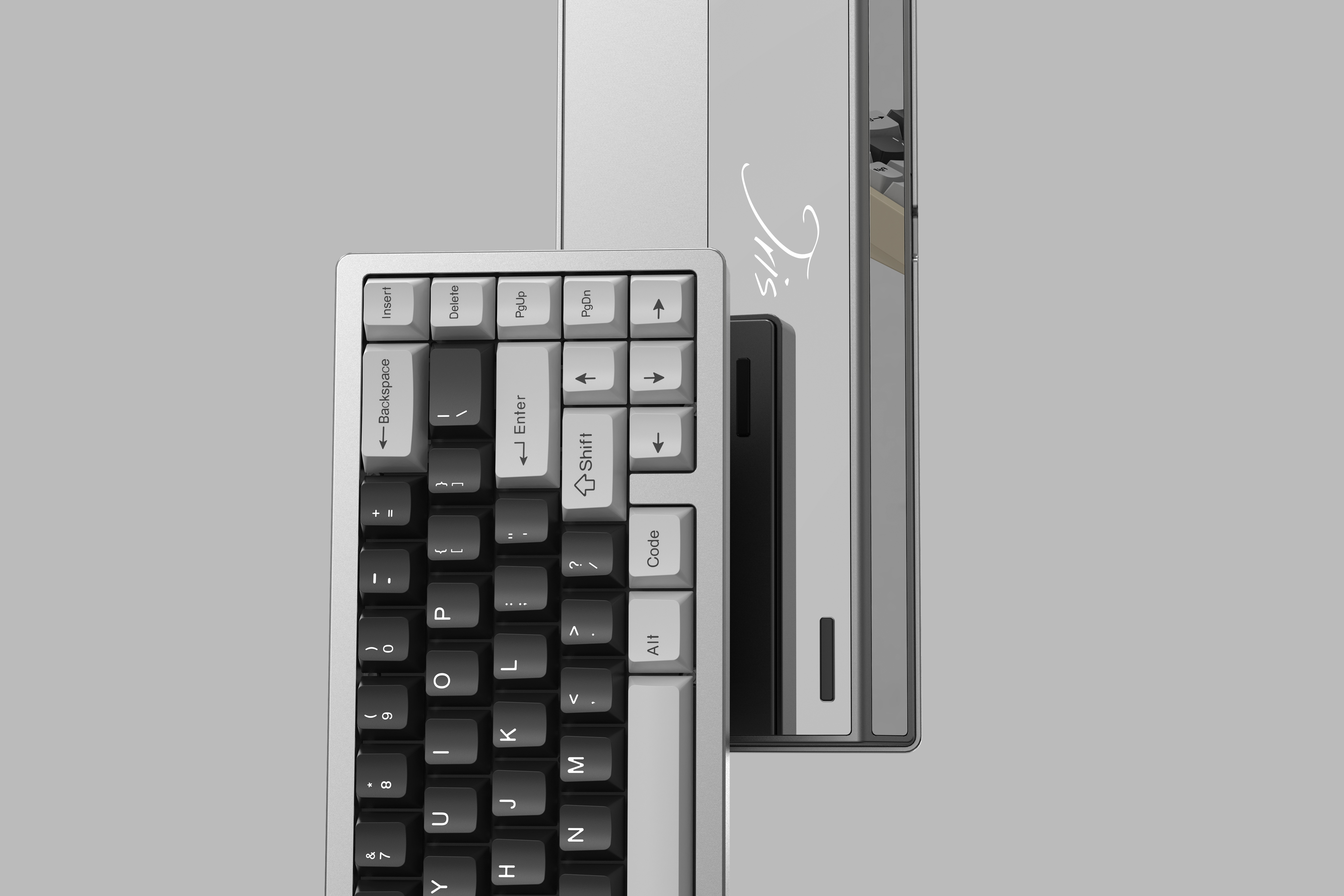

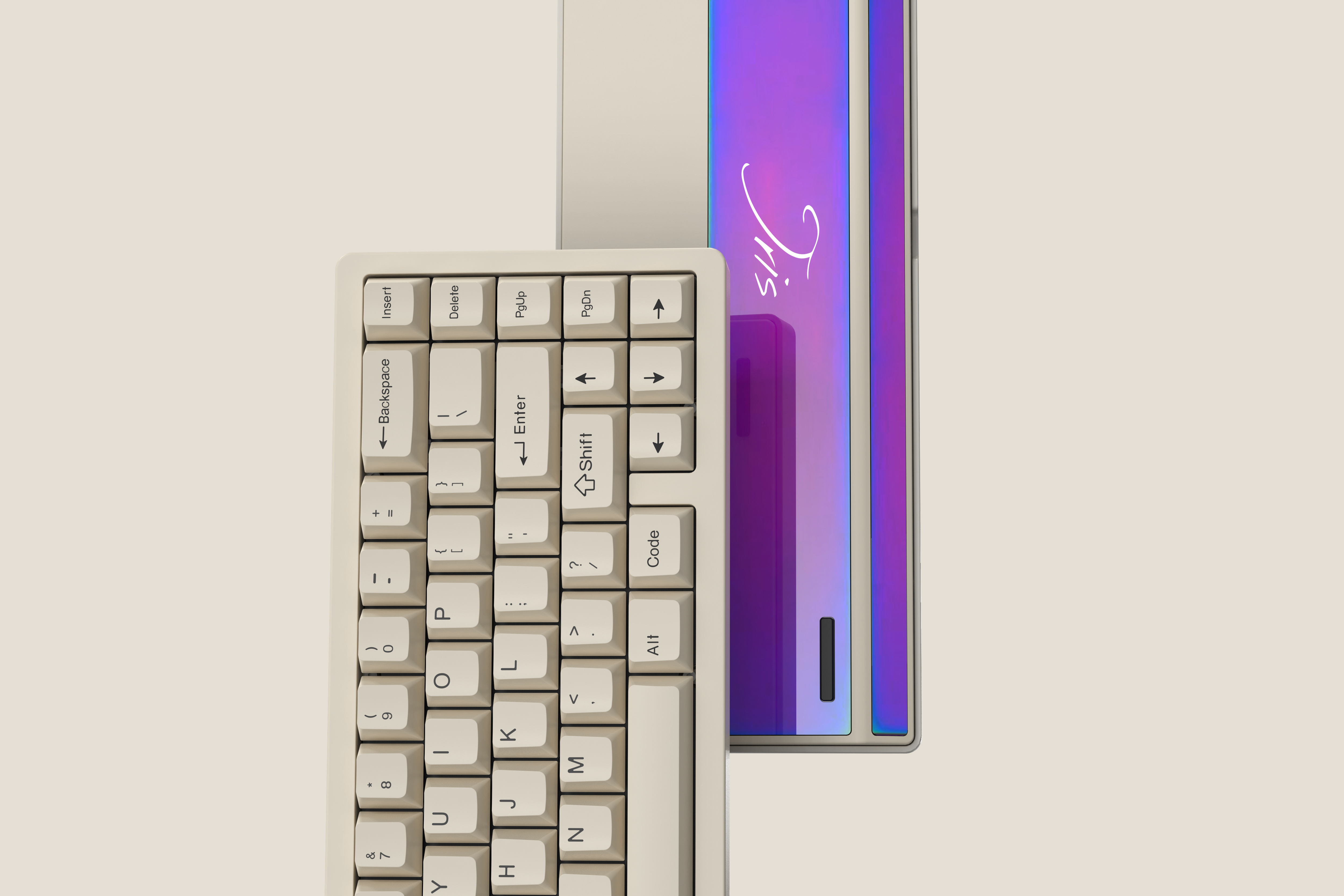

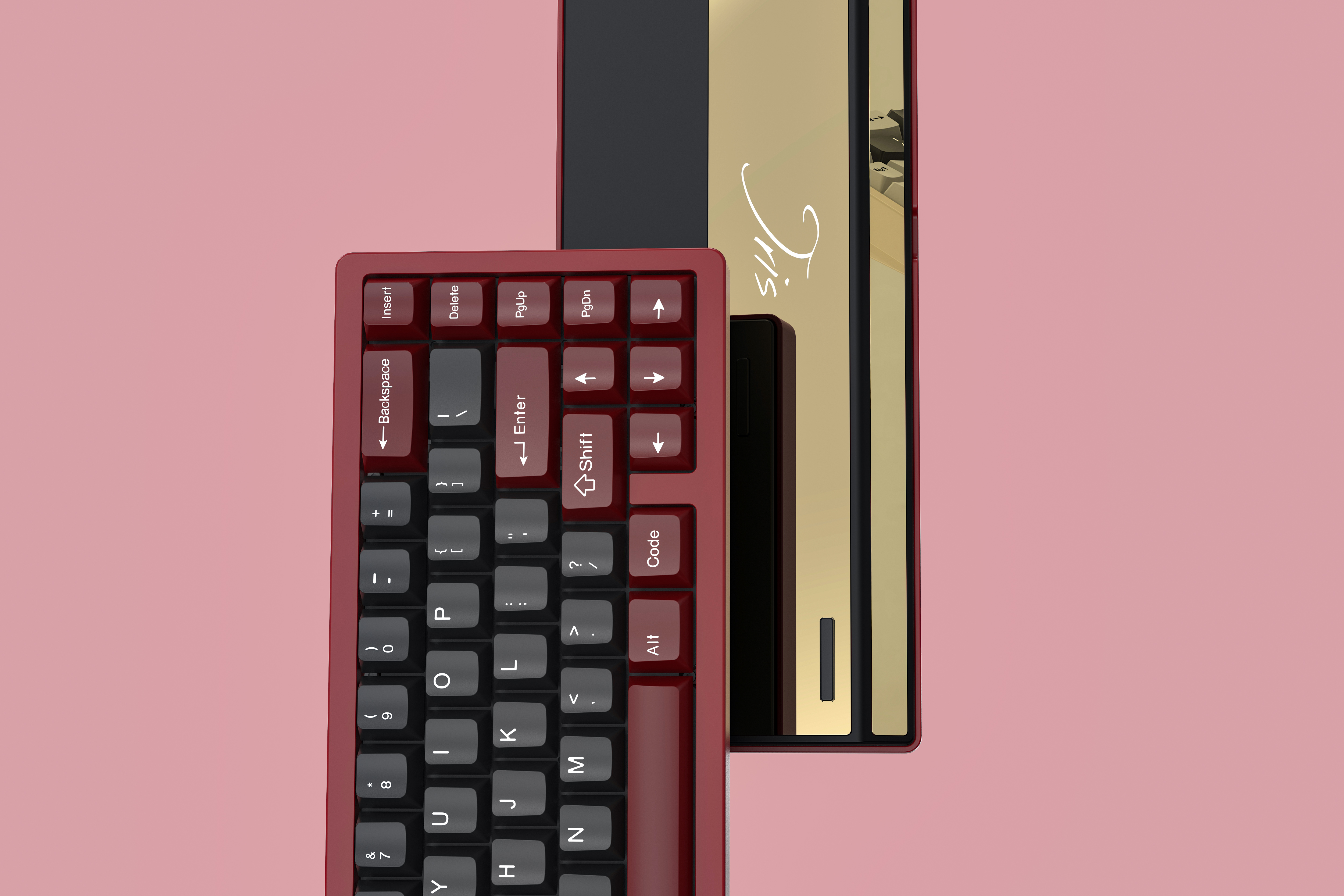

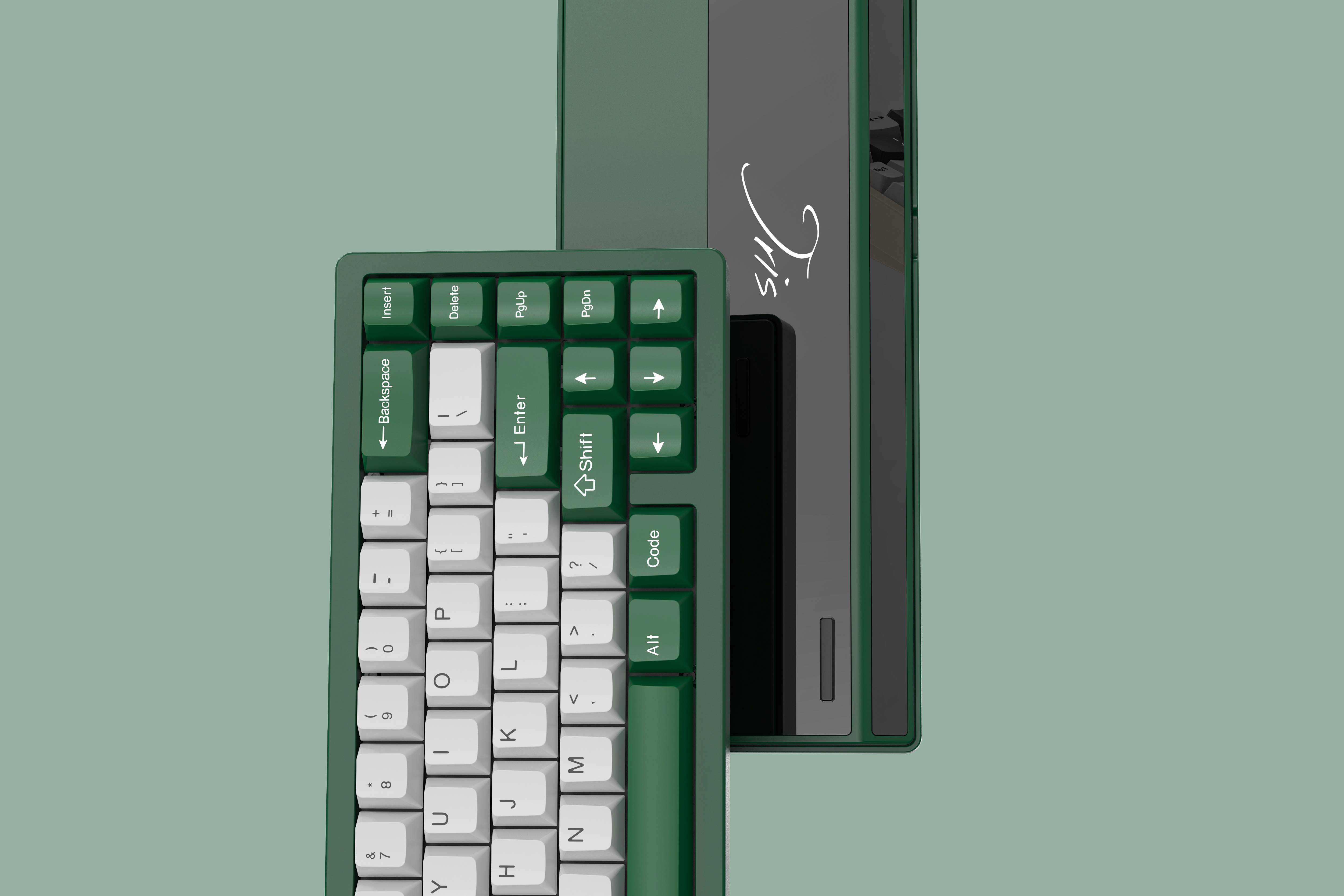

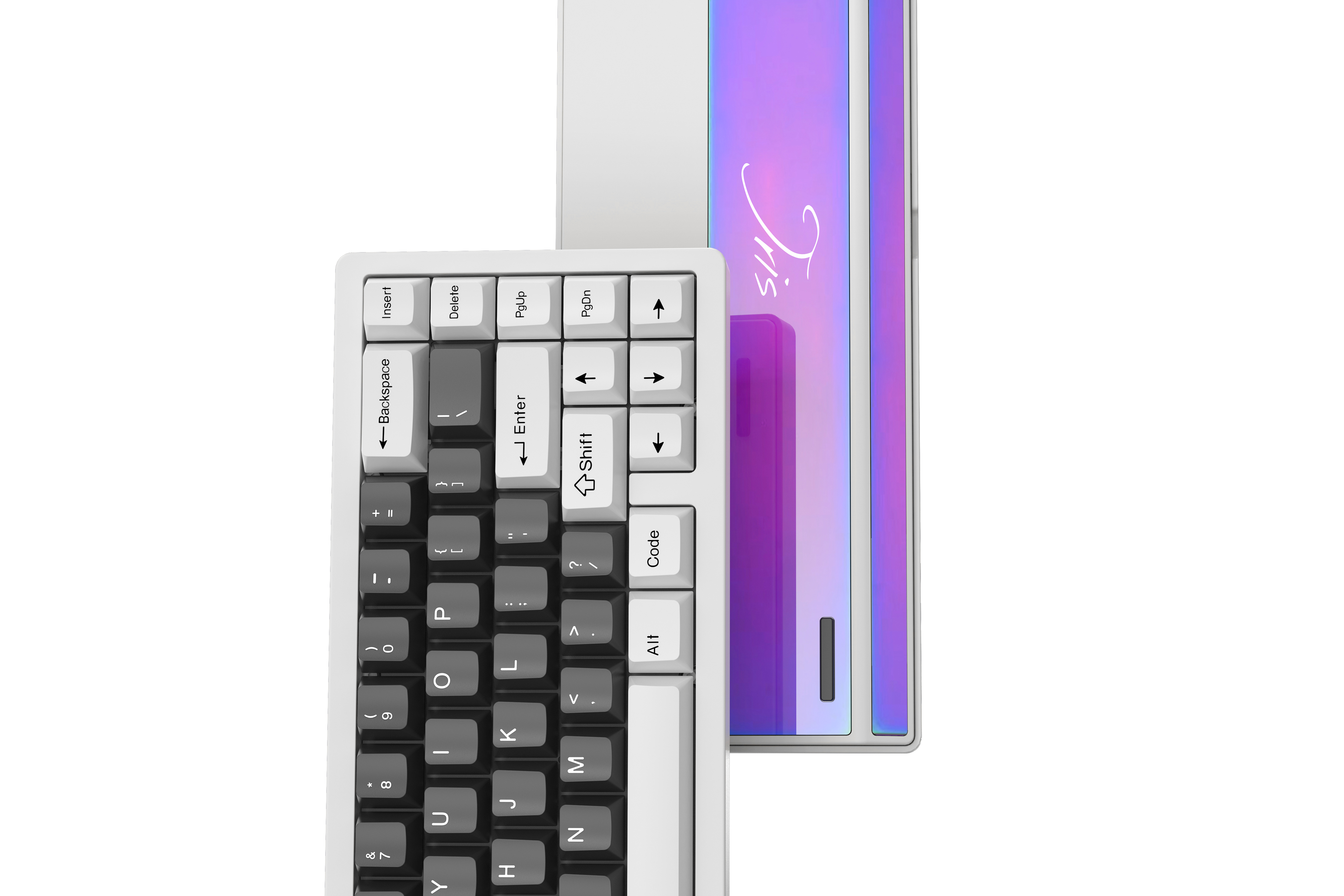

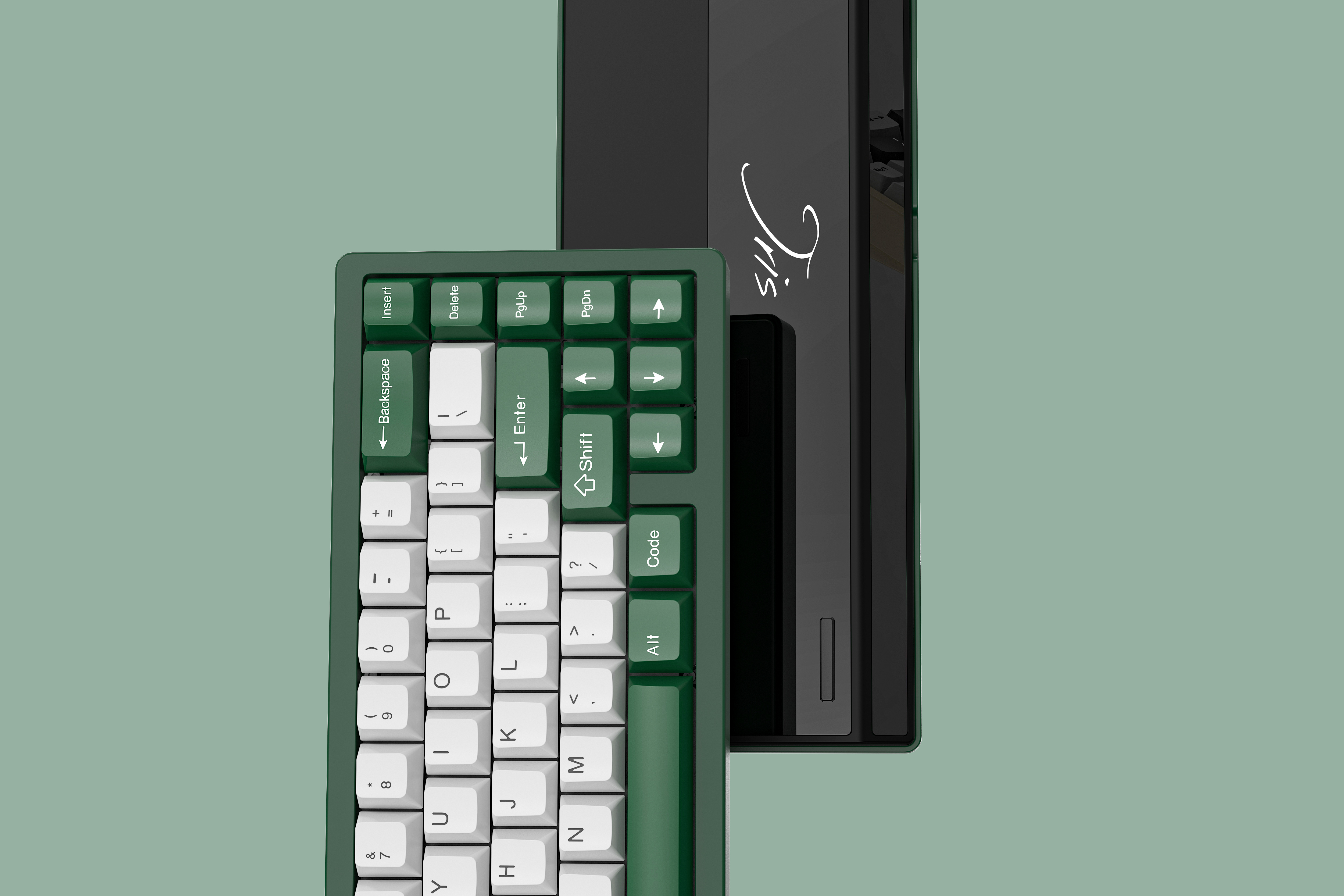

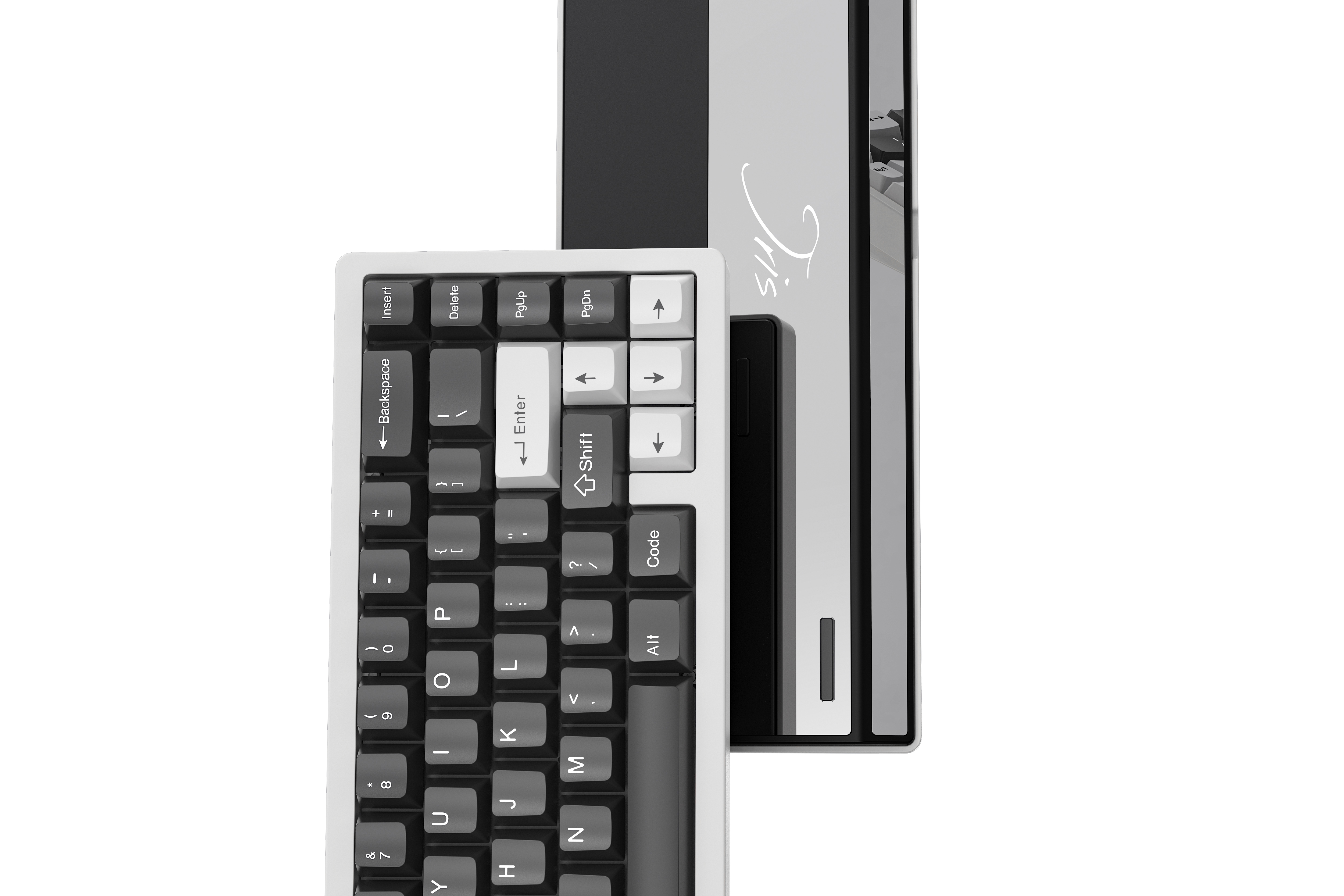

JRIS65 R2 Renders

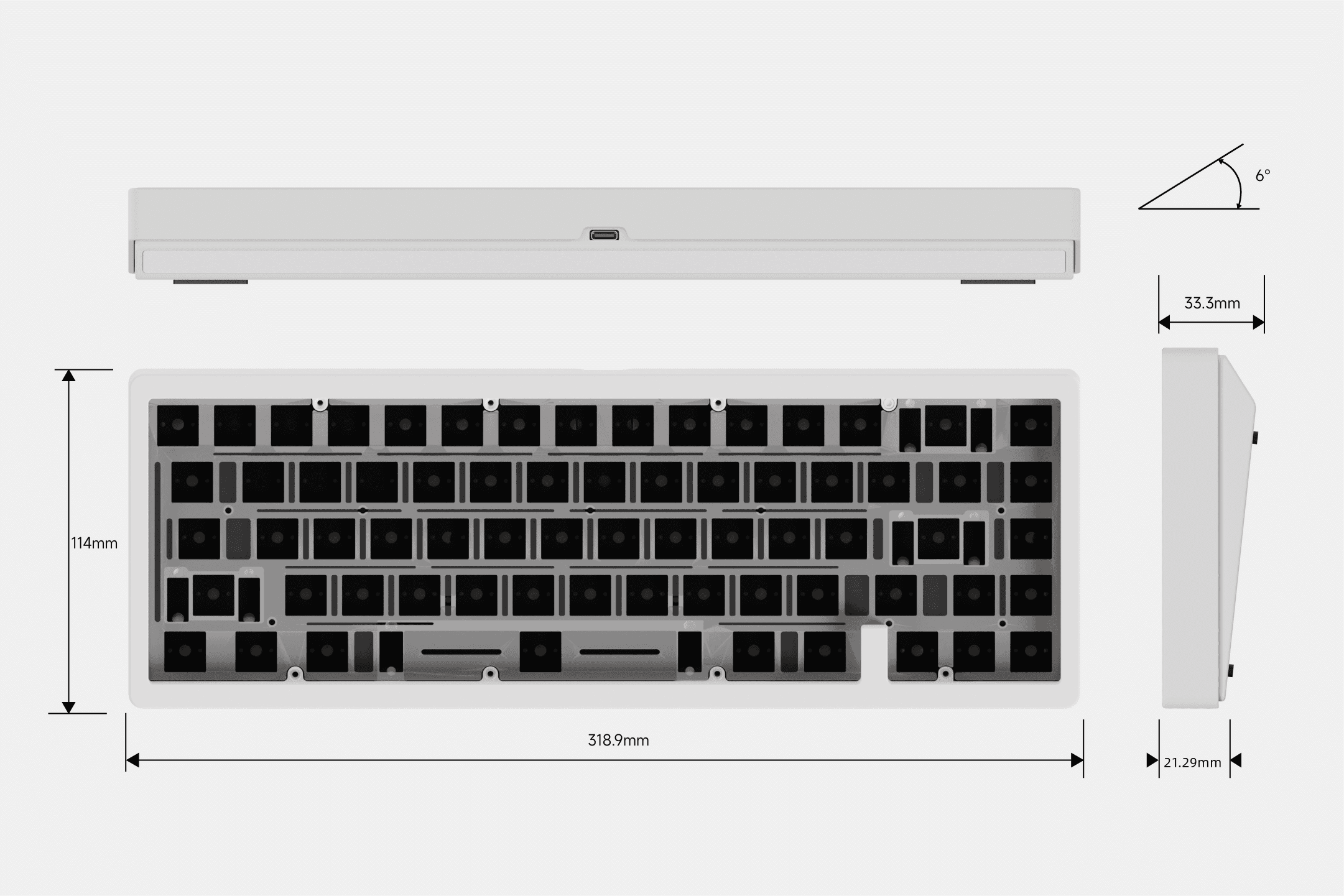

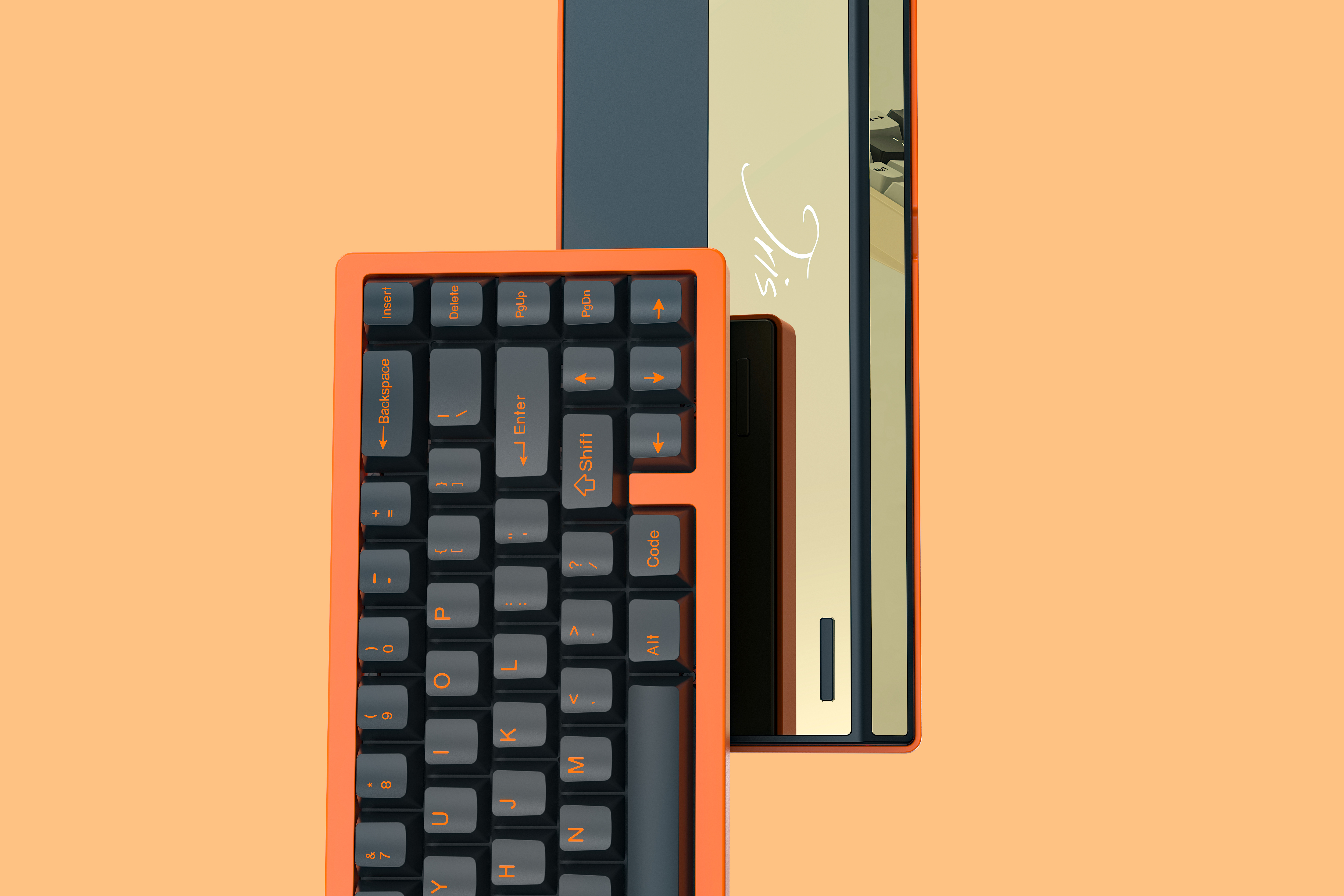

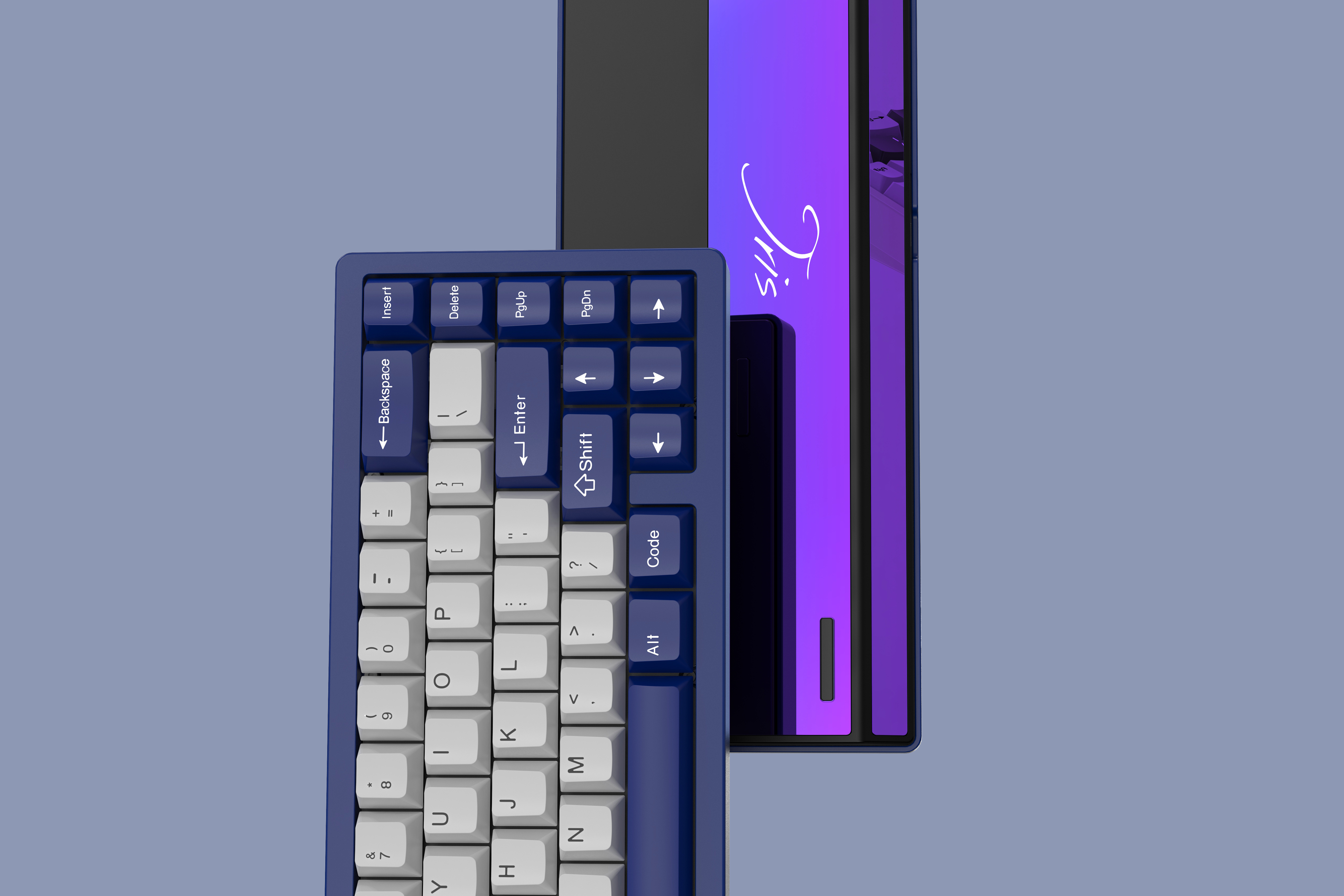

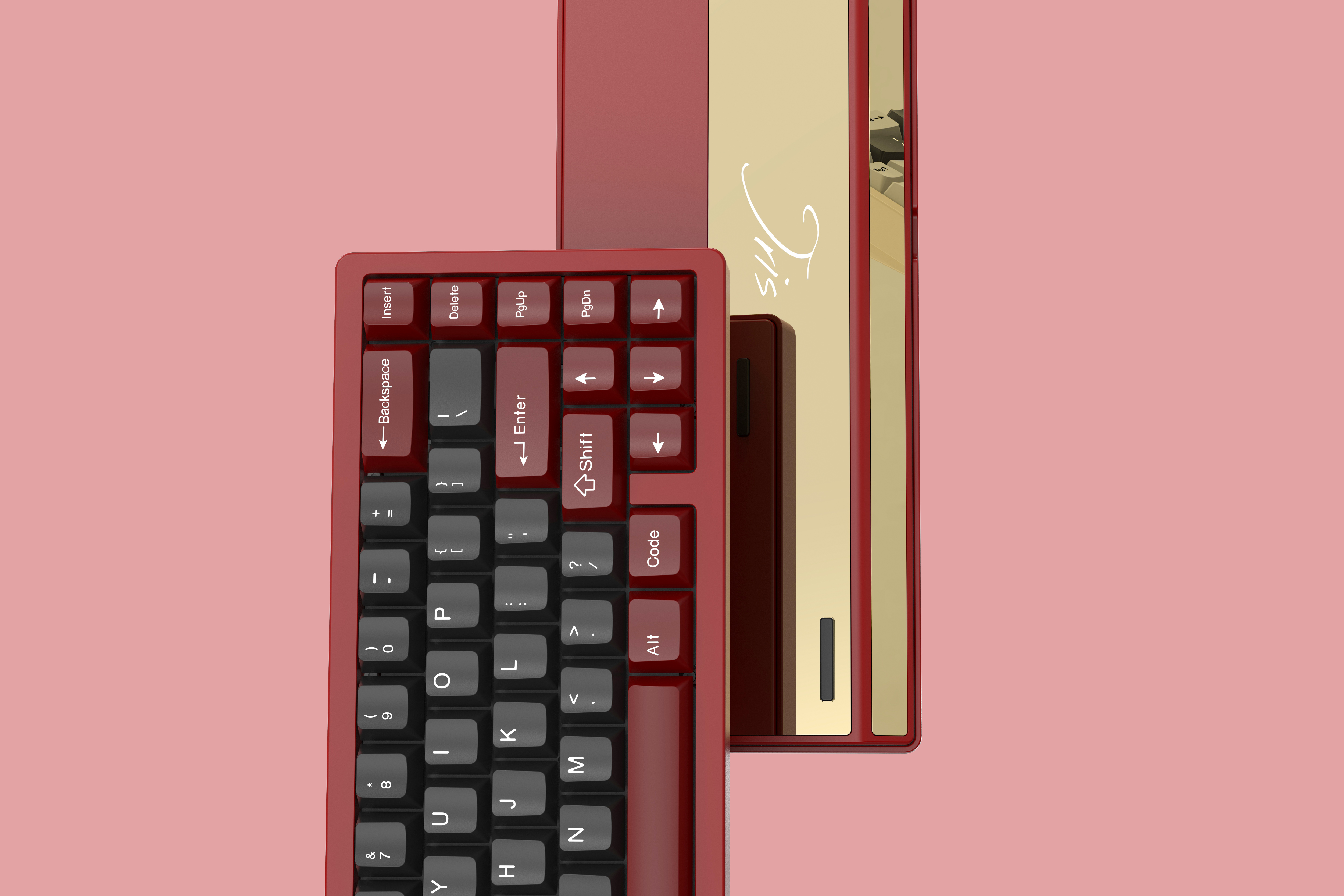

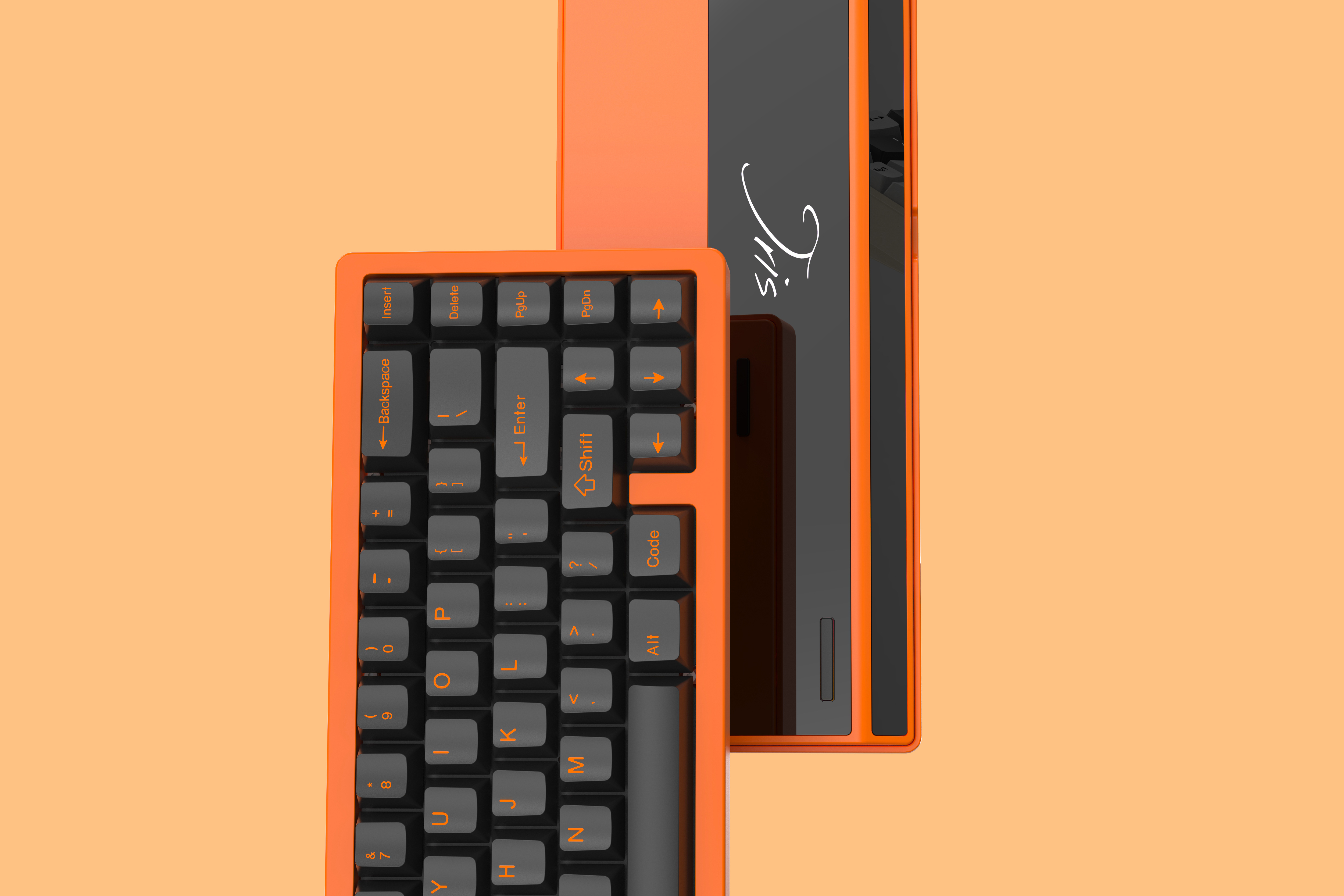

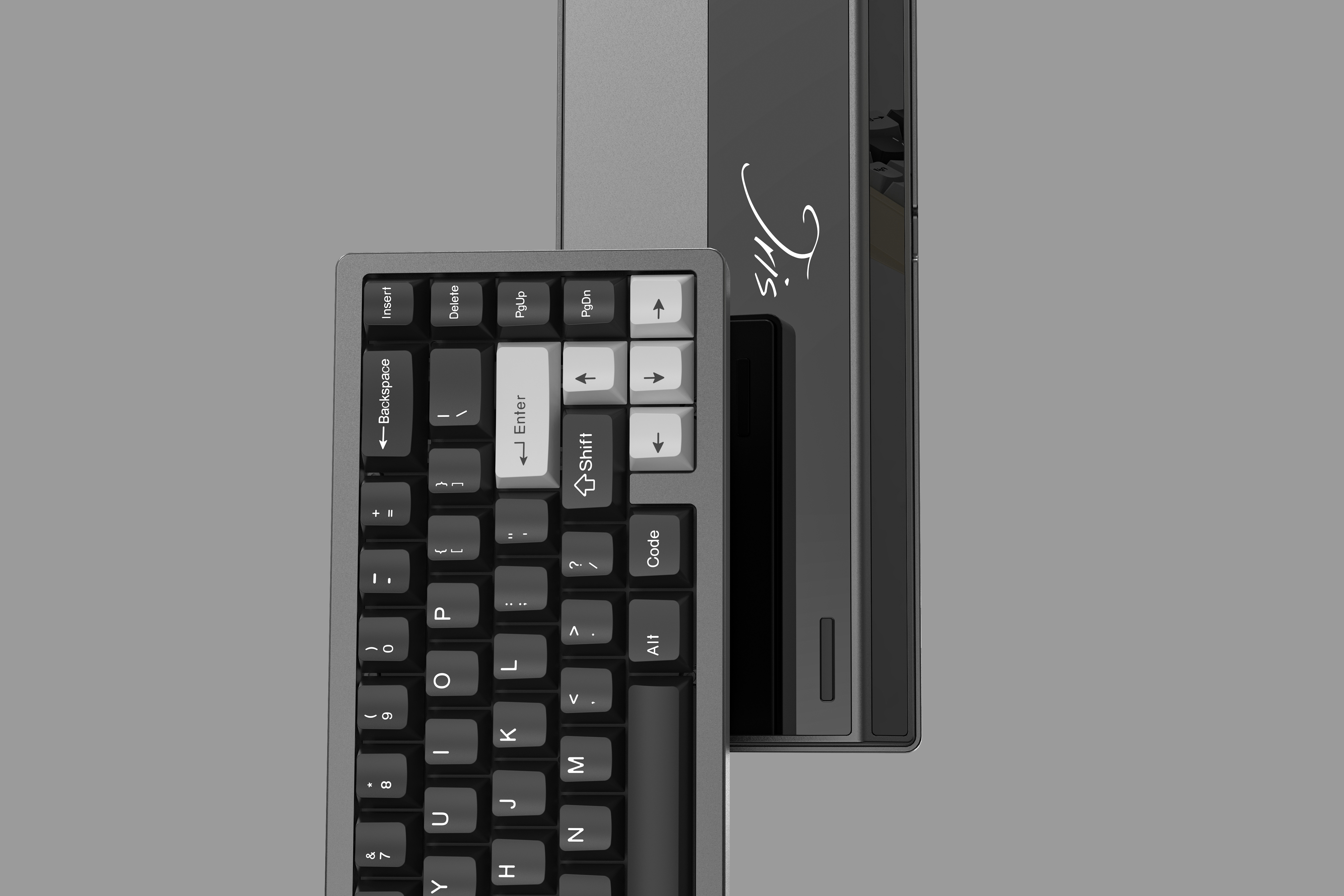

RedBlack PinkLilac OrangeOrange&Black MaroonMaroon&Black Navy BlueNavy Blue&Black Dark GreenDark Green&Black BlackSilver Titanium GreyTitanium Grey&Black Milky WhiteE-White E-White&BlackDimensions
JRIS65 Specifications
- Typing angle: 6° - Front height: 21.3mm - PCB GASKETS structure - PCB with USB-C daughterboard - Both PCB and plate adopt flex cut design - PCB gasket jackets or socks (included as default) - QMK/VIA Supported (Note: The BT PCB has its drive, so it doesn't support VIA/QMK) - Support PCB stabilizers
What can you customize for JRIS65 R2?

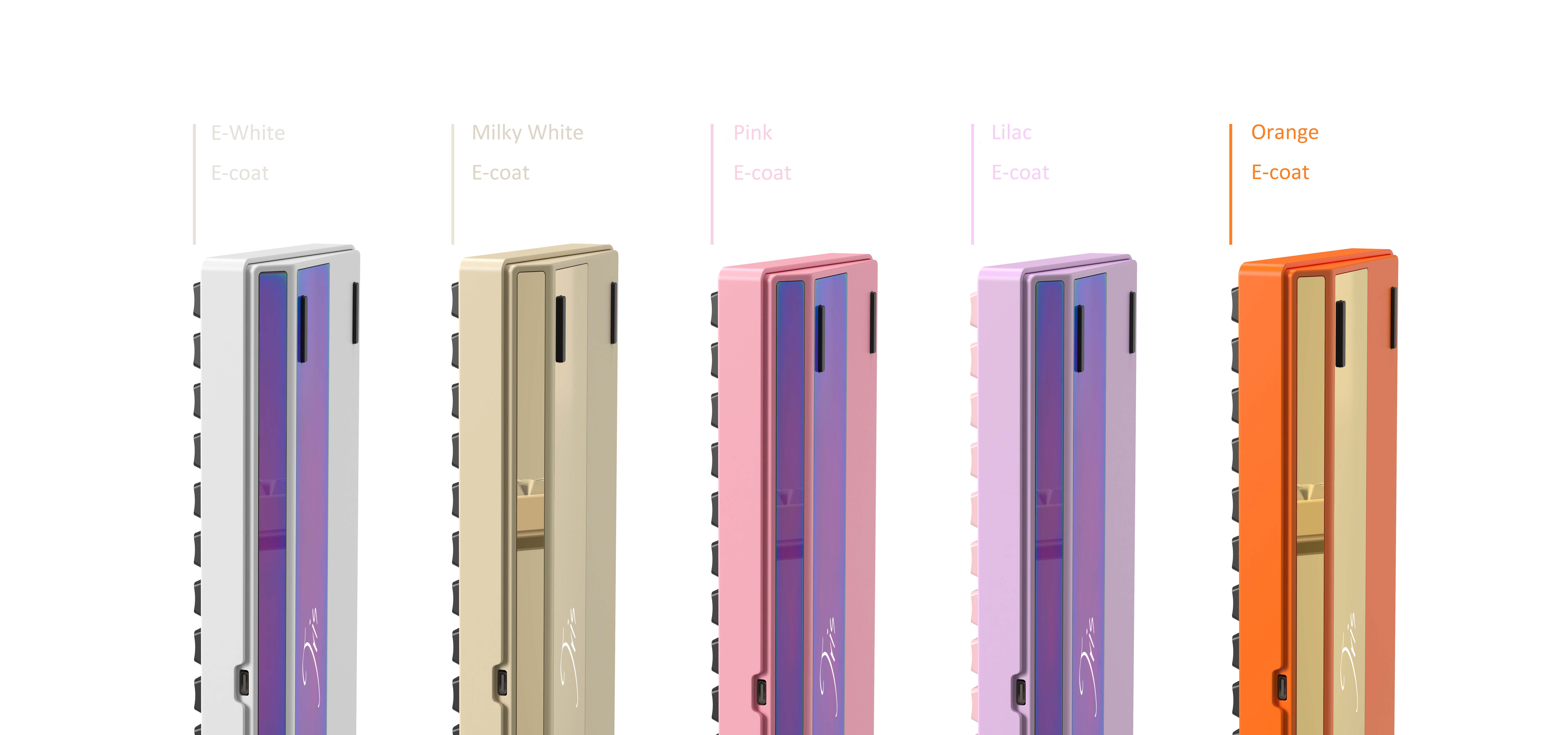

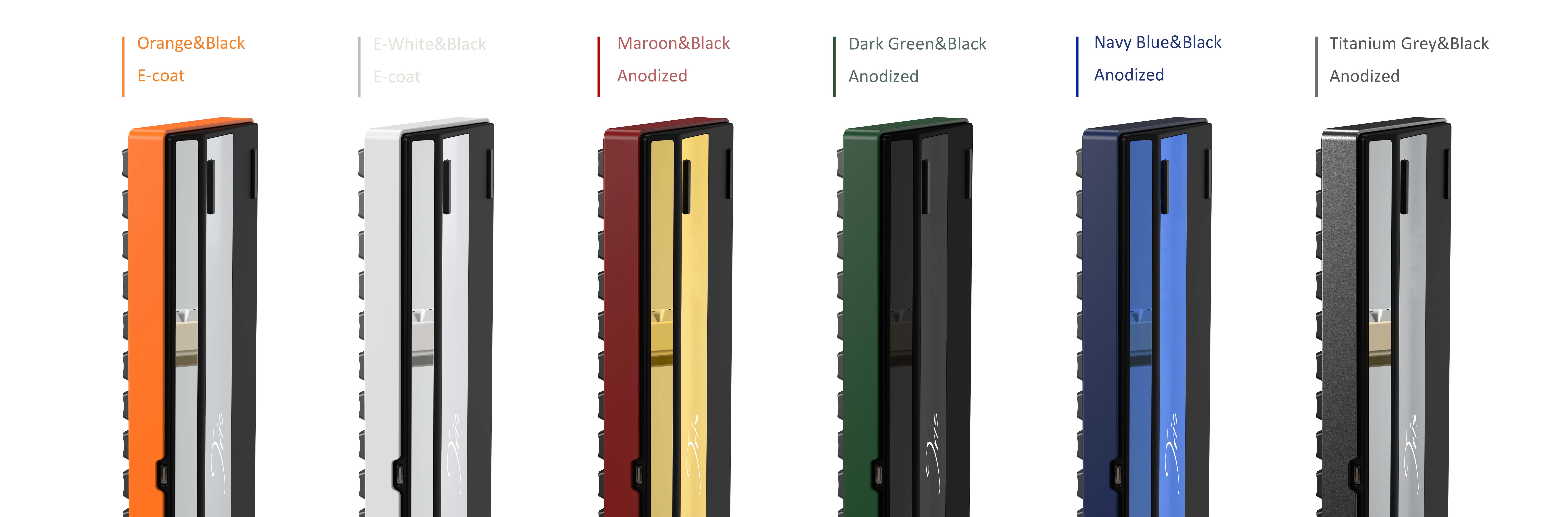

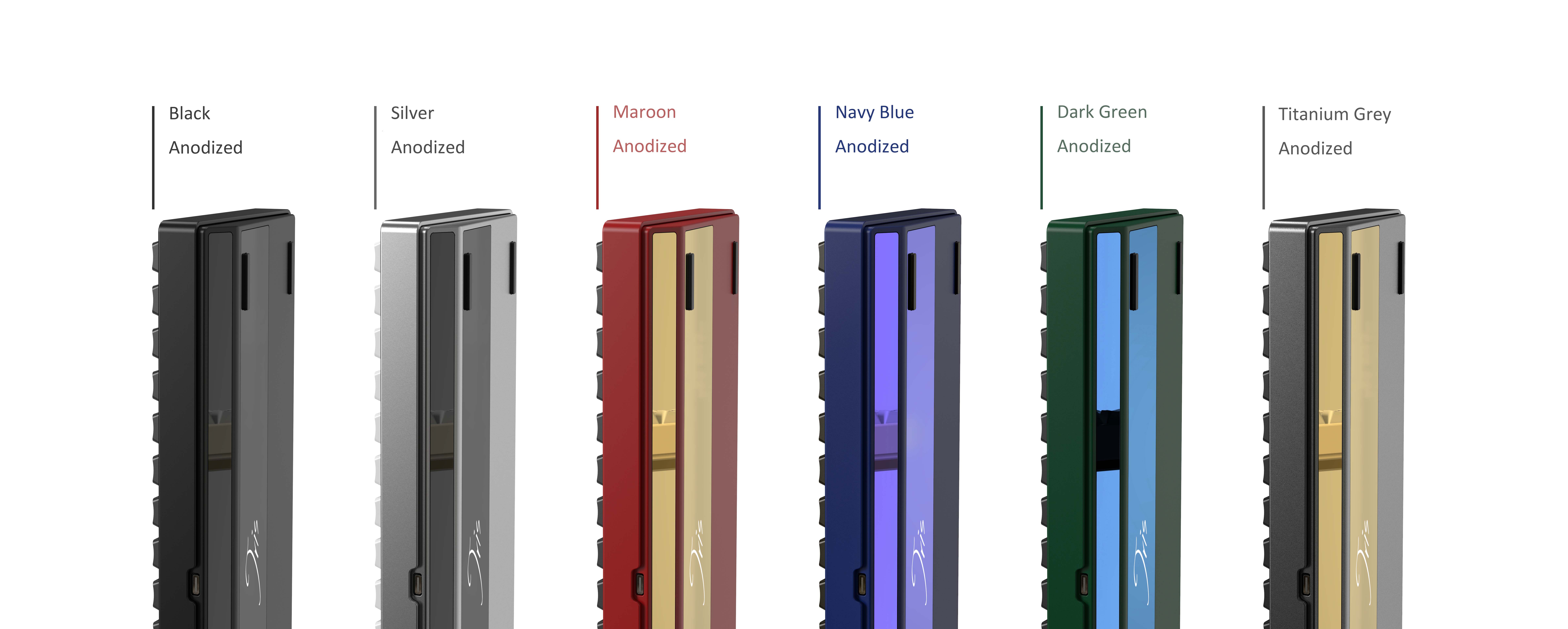

Case Colors Options

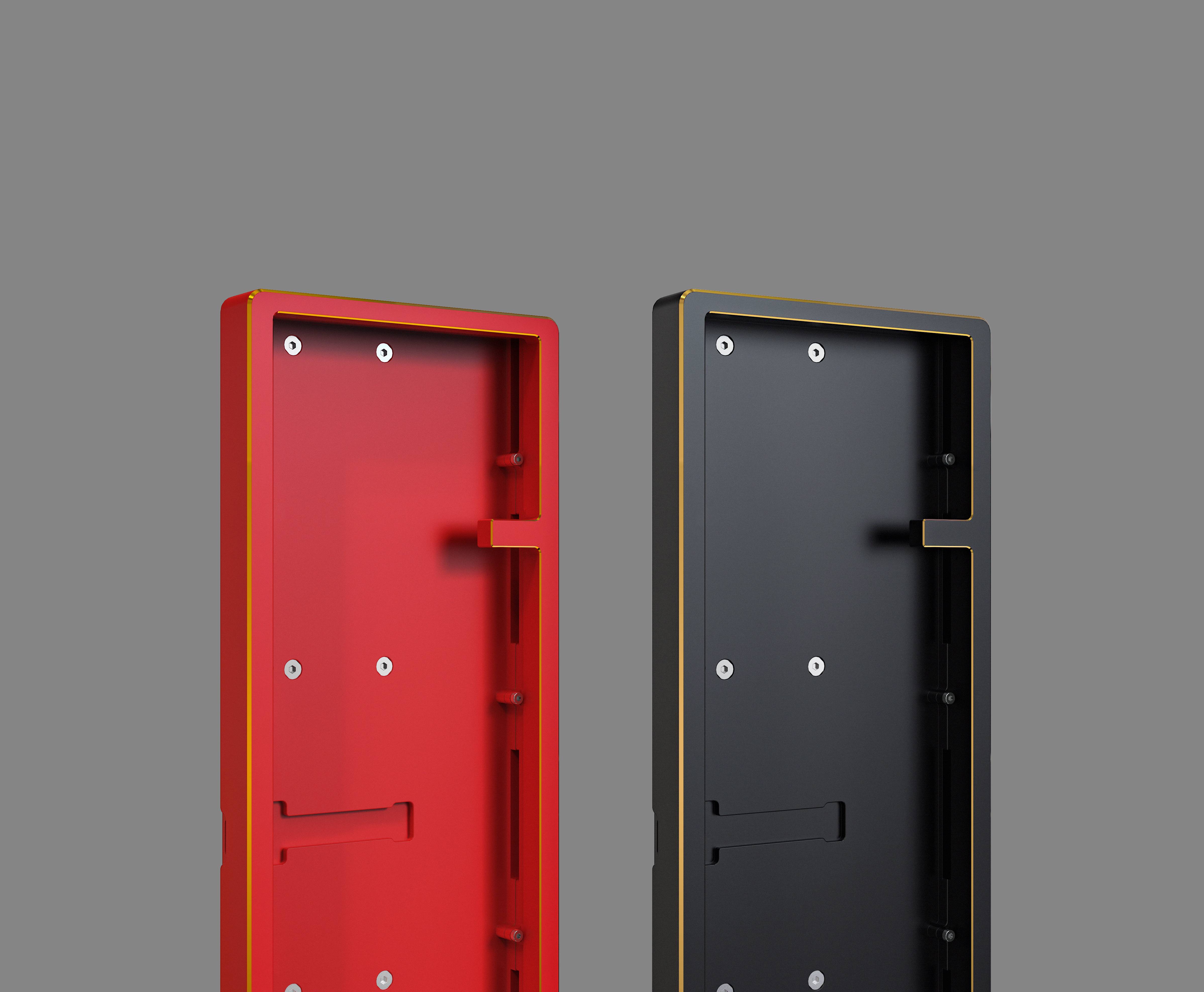

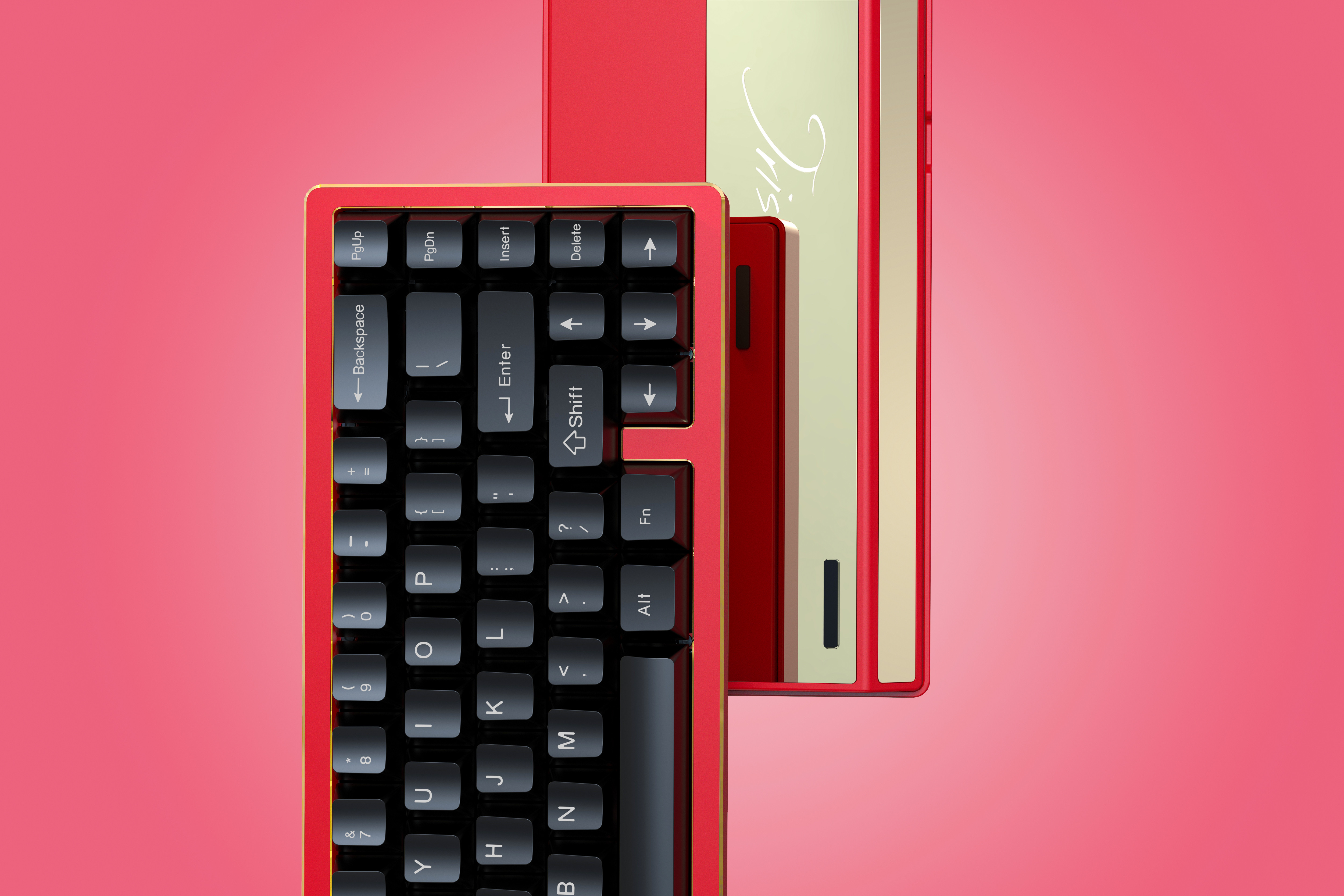

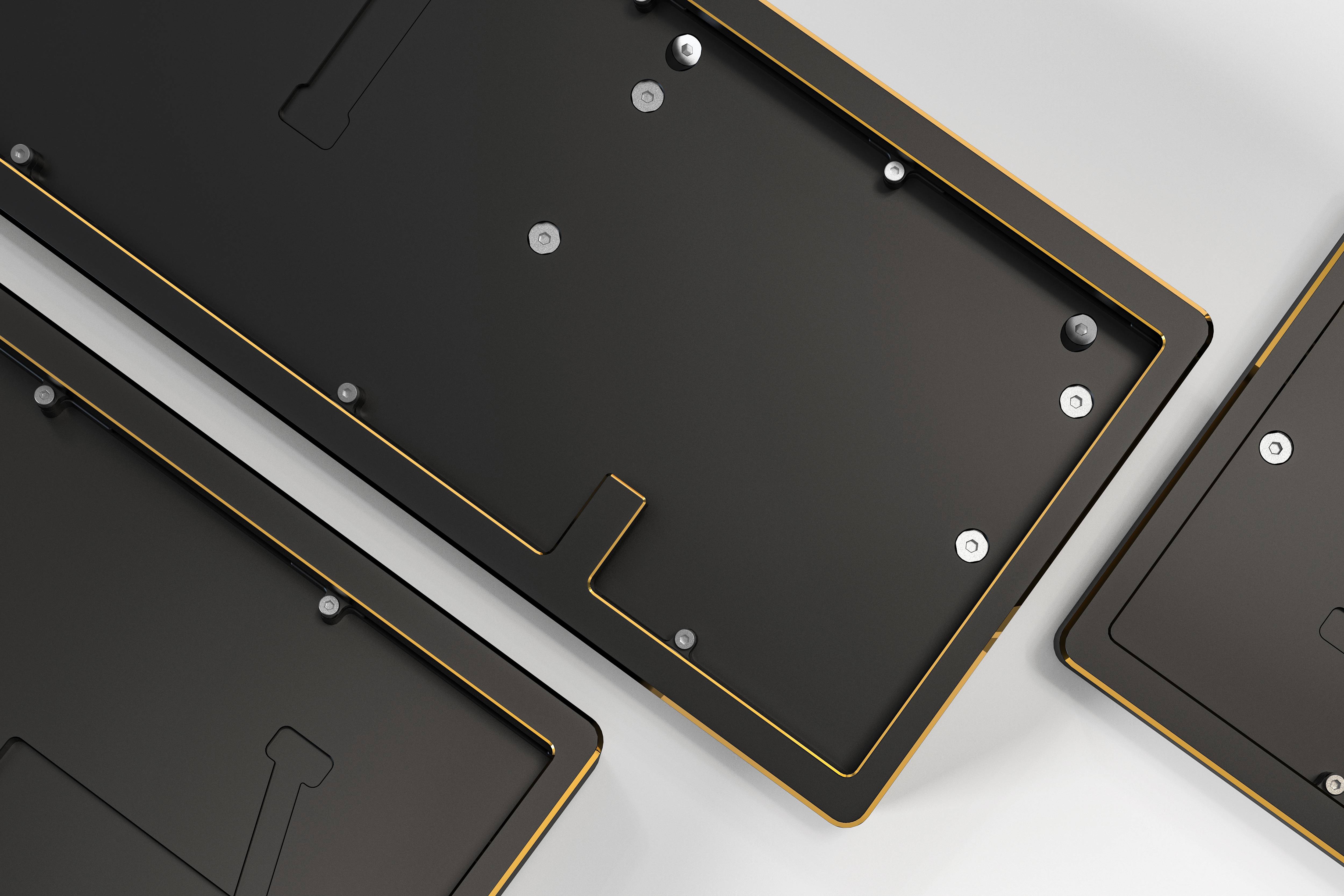

- 2 limited edition case: Red, Black (Only 300 Limited QTY Worldwide) Highlight reoxidation finish for the chamfered in makes the overall front more three-dimensional and exquisite.

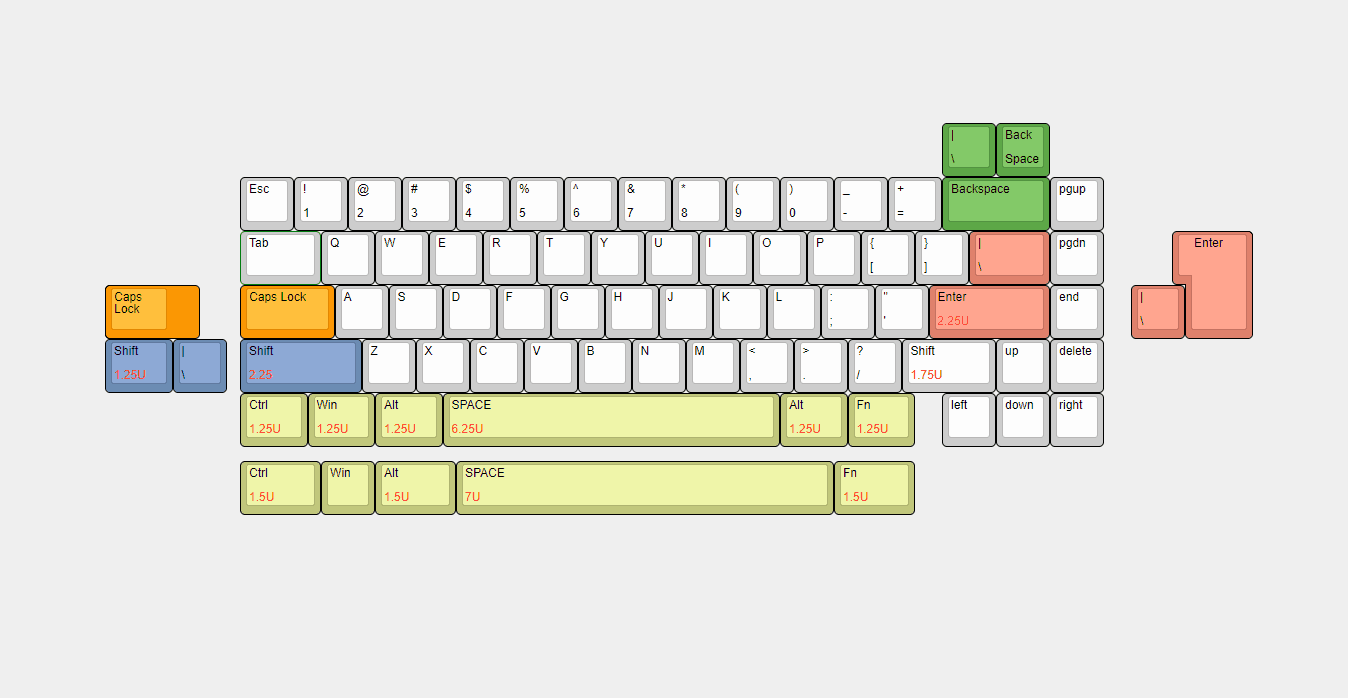

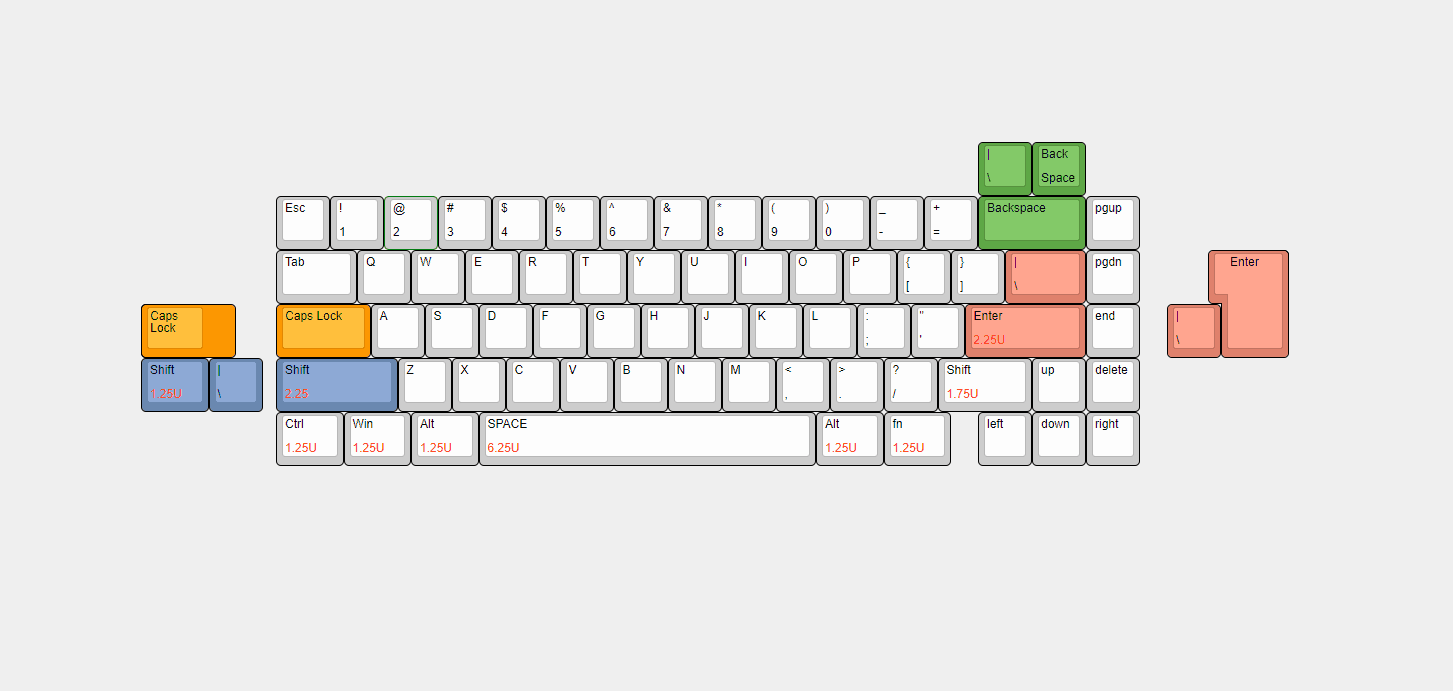

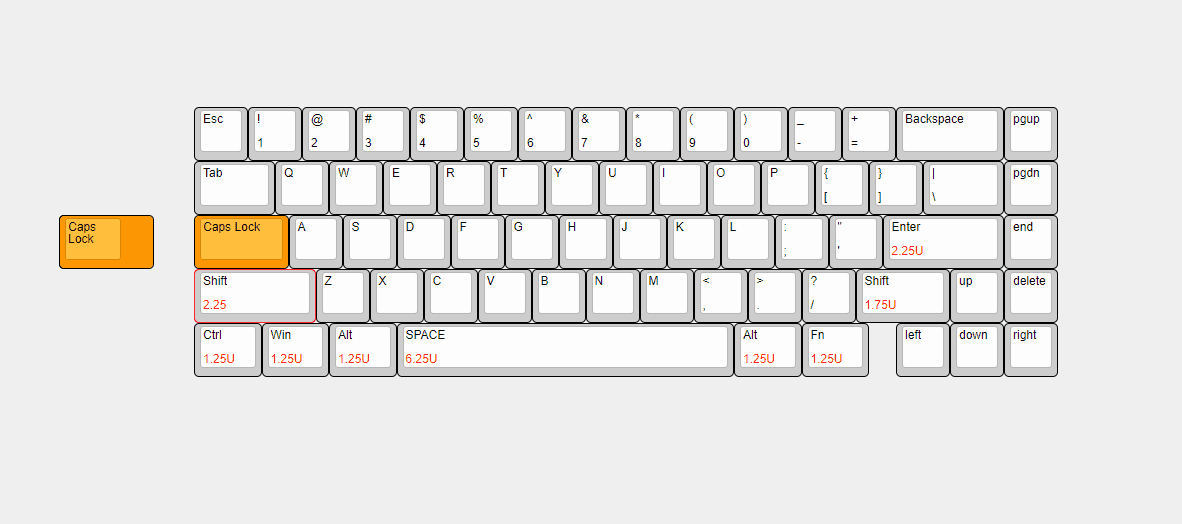

- Wired Flex Cut Black core Hotswap PCB( 1.2mm, Multi Layout, support QMK and VIA ) - Wired Non-Flex Cut Black core Hotswap PCB(1.6mm, Multi Layout, support QMK and VIA )
- Wired Flex Cut Black core Solder PCB( 1.2mm, Multi Layout, support QMK and VIA )
- 5.2 Bluetooth Hotswap PCB,battery included ( 1.2mm, ANSI Layout, support LDN Software)
We highly suggest building plateless with 5mm extra plate foam and solder PCB. The 5mm extra plate foam will bring a more soft typing feel, and the typing sound will be cleaner. But without the 5mm plate foam, it will also work fine, and the typing feel and sound are very different.
What's in package?
- 1x Full CNC Aluminum Case - 1x Weight ( Anodized Alu/ PVD Mirror) - 1x PCB (Flex Cut Hotswap/ Non-Flex Cut Hotswap/ Soldered/ Bluetooth) - 1x Plate (PC/ FR4/ Alu/POM) - 1x Type-C Daughterboard - 1x IXPE Foam - 1x Poron Plate Foam - 1x Flex Cut Poron Case Foam - 1x Non-Flex Cut Poron Case Foam - 1x Masking paper for PCB - 1x JST Cable - 10x gasket jackets - 20x gasket socks - 1 Set of PCB stabilizers O-ring - 1 Set of Footpad - 1x Silicone pad of battery compartment (We include this as default, so you don't need to consider choosing which PCB to be the default.) - 1x Battery（Only for the Bluetooth version）
Gift(will not send make-up or replacements) - 1x USB-Type C keyboard cable - 1x Carrying Case
