Description

GB Now Live!

Katina TKL
by iNN Studio & iNN Annex #1
Post edited by Click Clack

Changes

Based on community feedback and testing, we have implemented several quality-of-life upgrades:

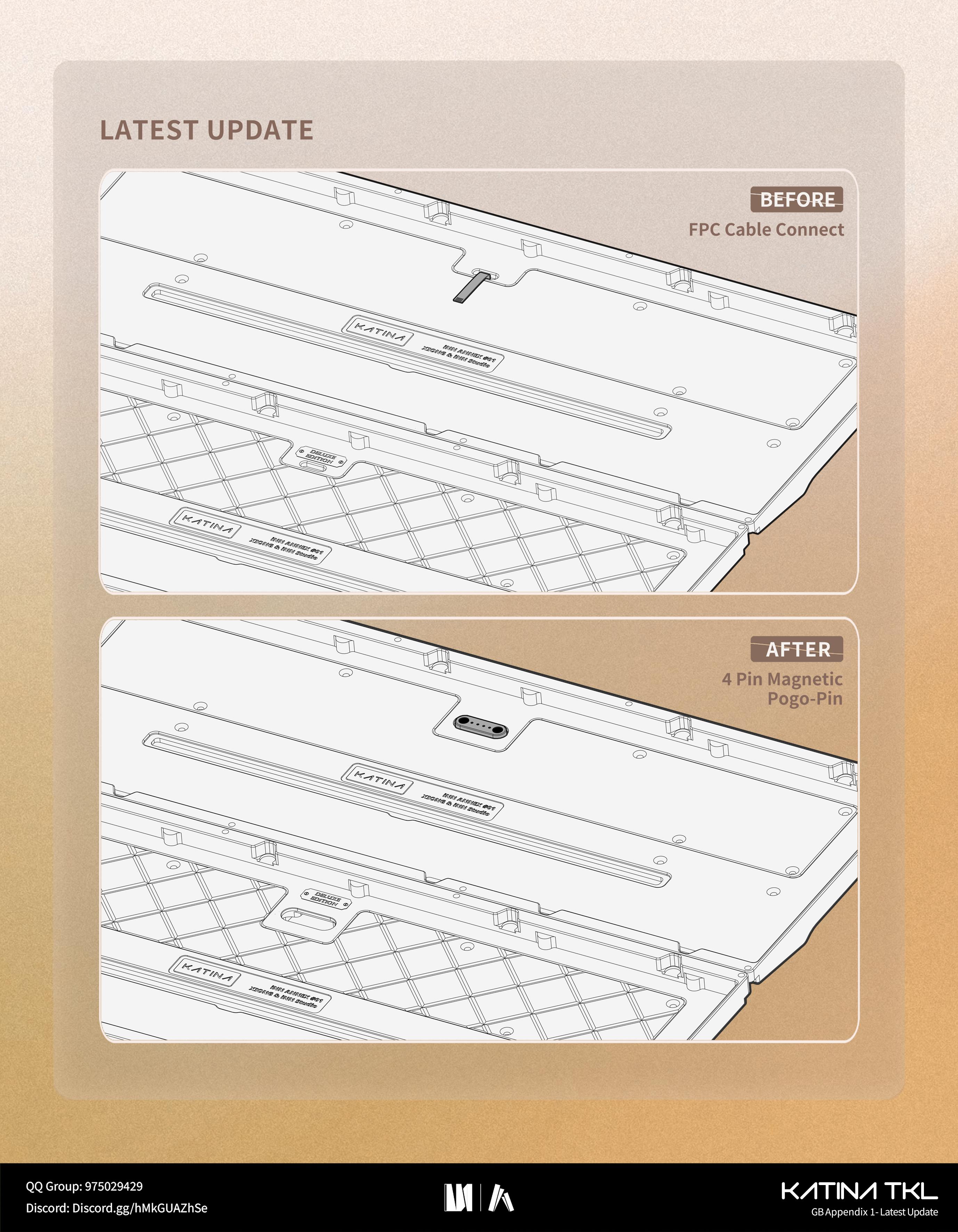

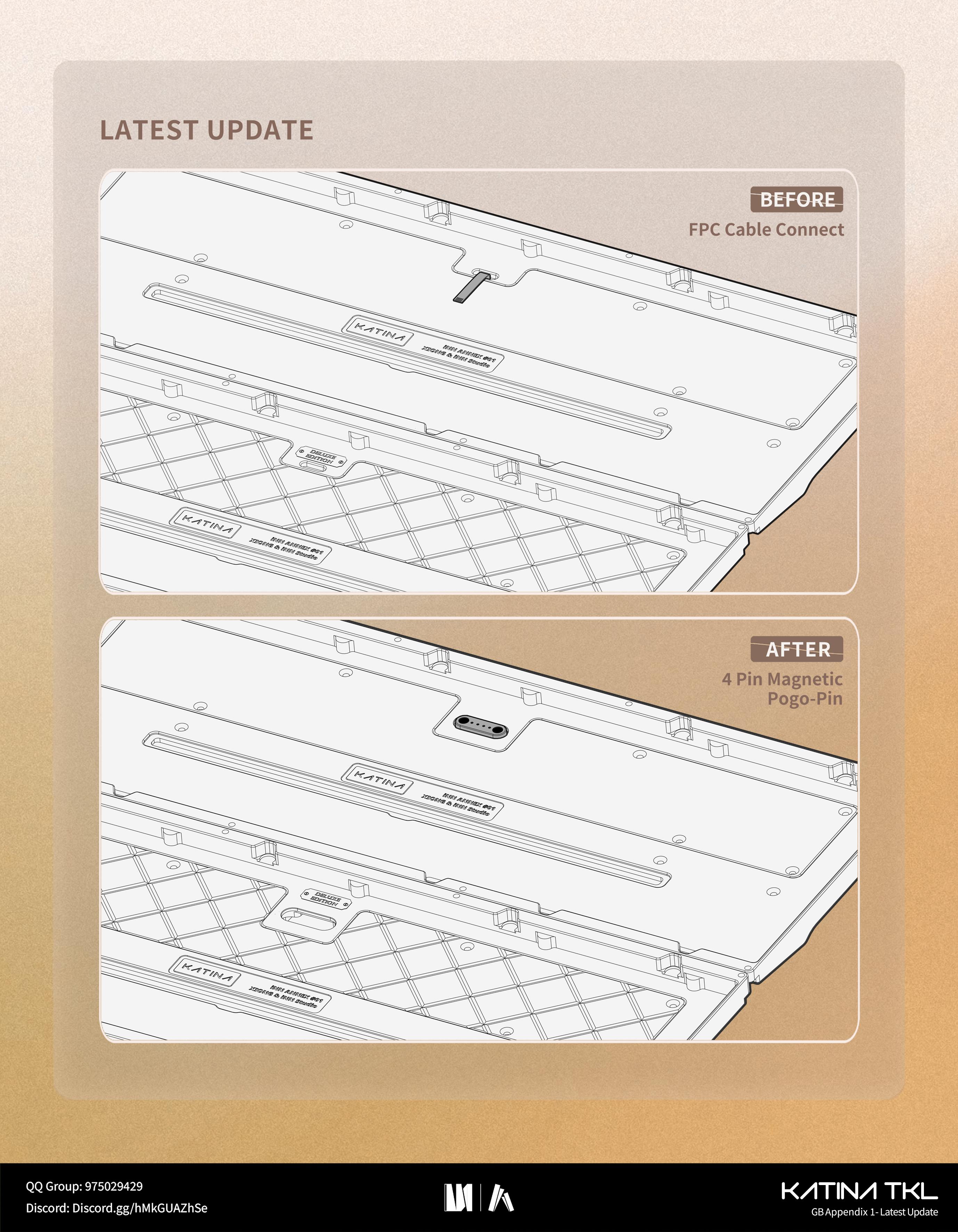

Magnetic Connection: The FPC cable between the mainboard and daughterboard is now a 4 Pin Magnetic Pogo-pin system for seamless assembly.

Enhanced Lighting: Custom molded light diffusers and integrated shielding cotton added to the bottom case.

Refined Engraving: Front nameplate and internal case patterns updated to zero-depth/shallower laser engraving for a cleaner look.

Premium Hardware: All housing screws upgraded to high-strength, non-slip versions (Titanium gold-plated for Floral, Black nickel for Shadow, White nickel for Classic).

Group Buy Details

Time: March 17th 2026 – March 31st 2026

Fulfillment: Q3 2026

Form: Open GB in Limited Time Window (Unlimited Quantity)

Promotions:

Double Deluxe Bonus: Buy 2 Deluxe versions on one account to receive a custom 3-in-1 iNN desk tray (Screw tray + Artisan tray + Stab wire leveler).

Global Milestone: If international orders reach 200 kits, every order receives a free iNN custom theme desk mat.

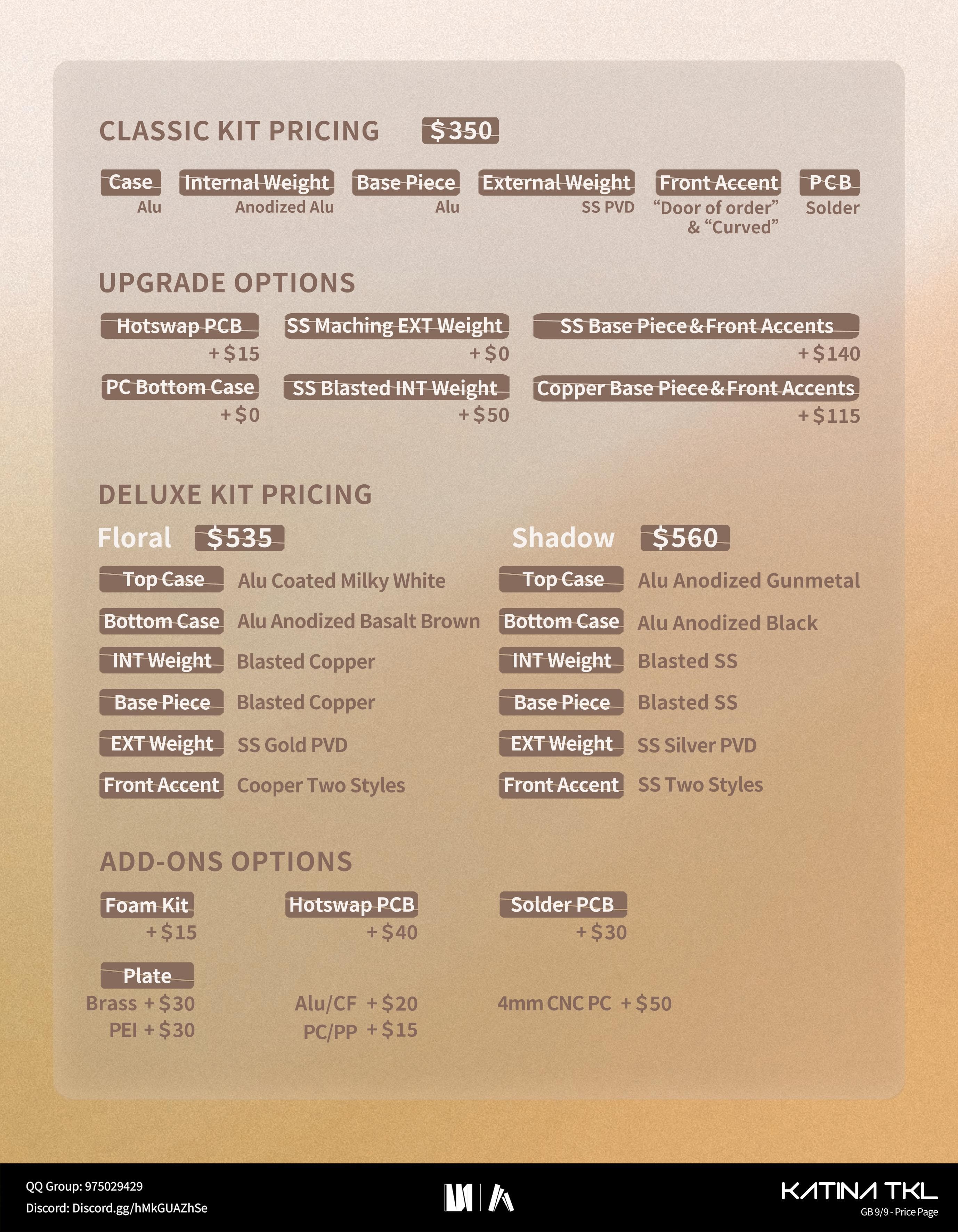

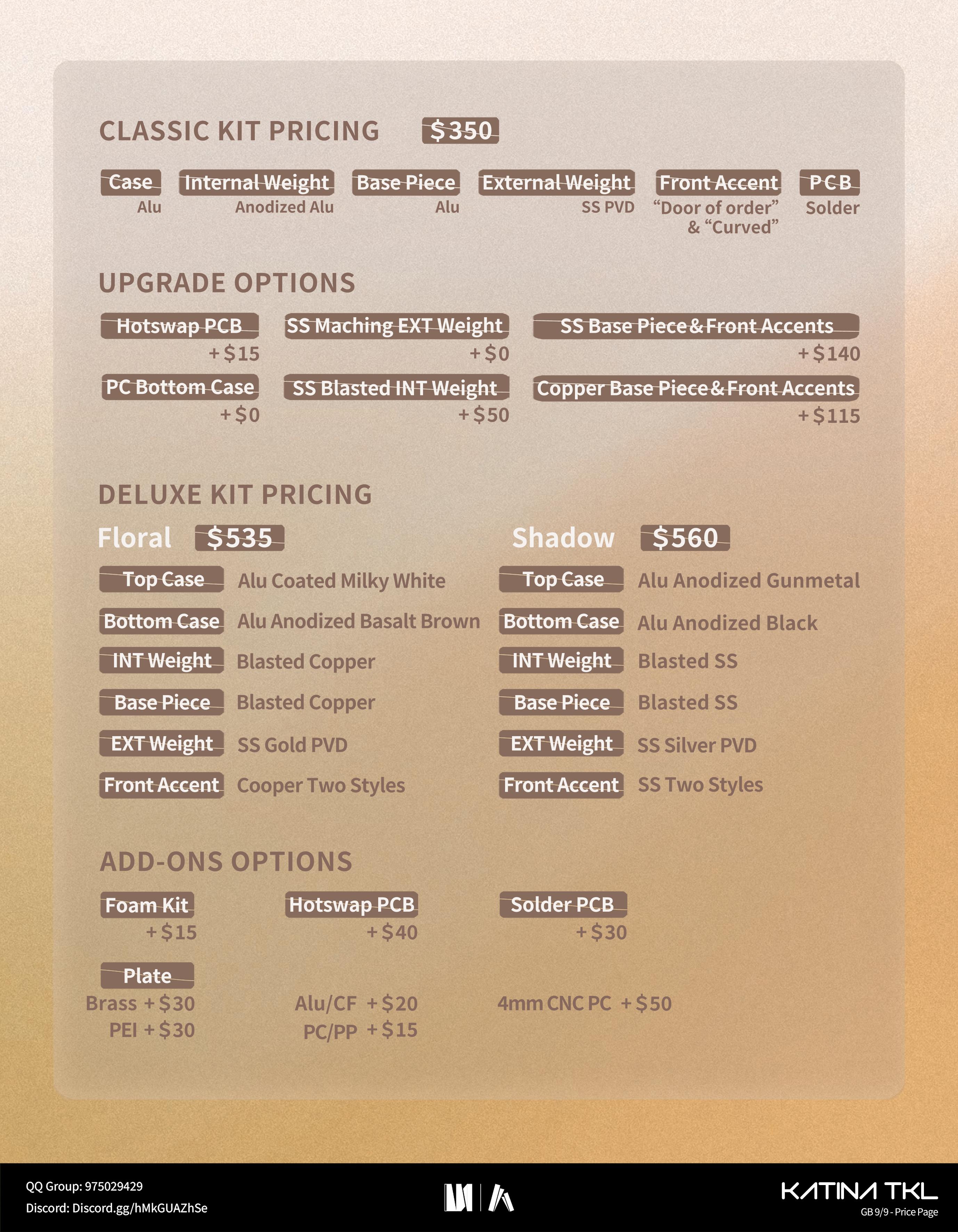

Pricing:

Classic Kit: $350
Deluxe Floral: $535
Deluxe Shadow: $560

Vendors:

USA / Rest of World: Click Clack

UK: ProtoTypist

EU: MonacoKeys

OCE: Toro Studio

Canada: Unikeys

South Korea: Geon Works

SEA: KTechs

Katina TKL: Inspired by Elegance, Softness, and Purity

Introduction

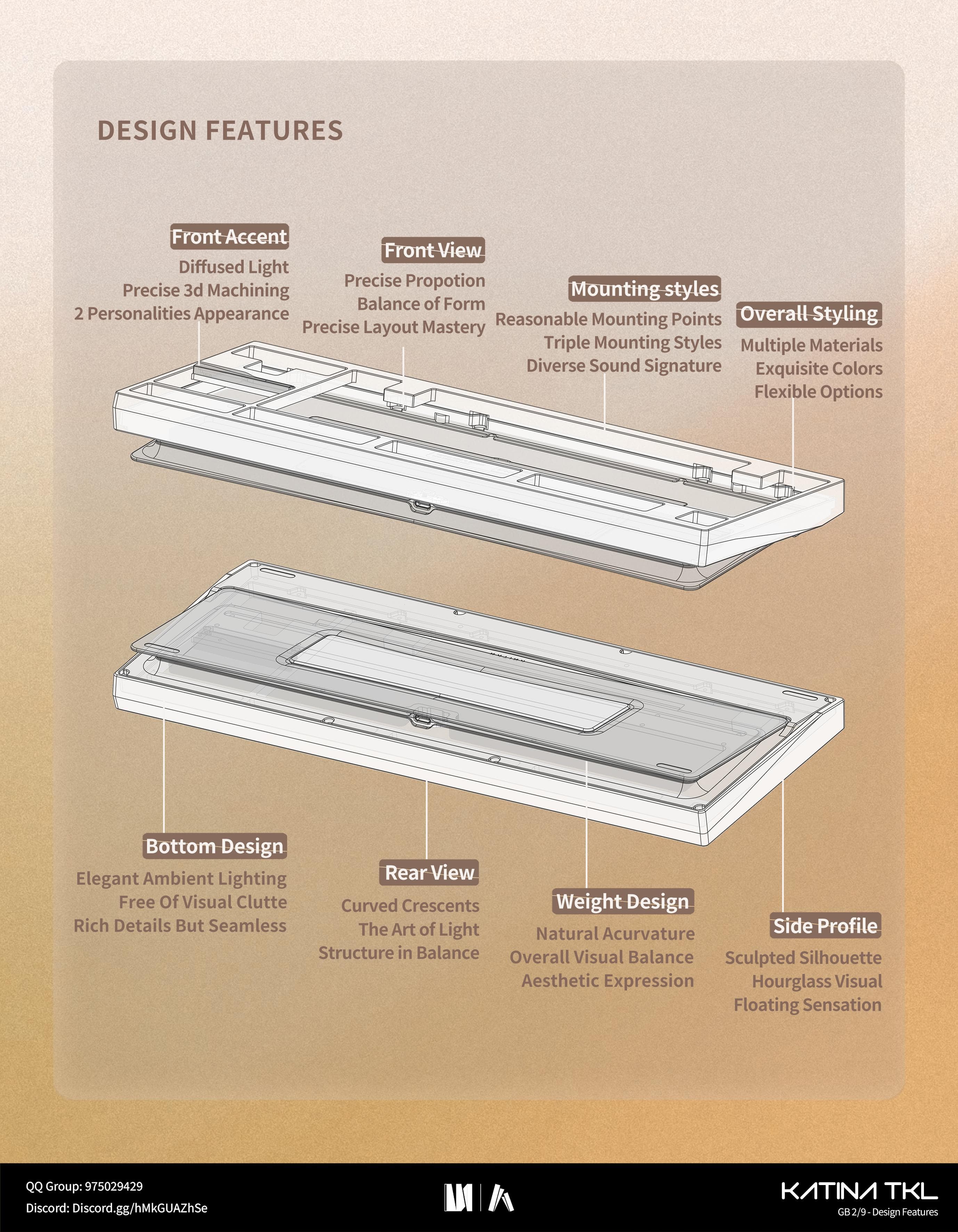

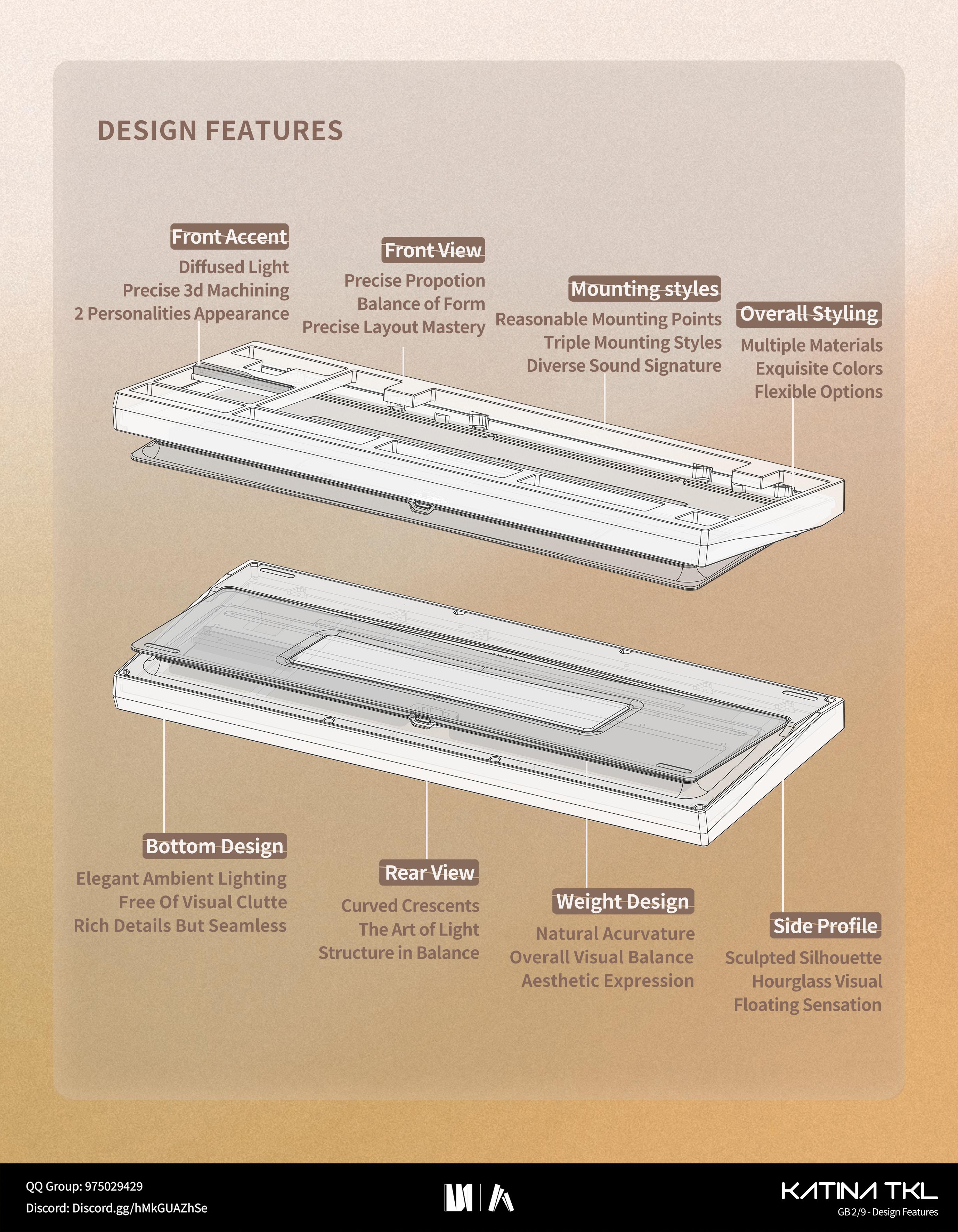

Inspired by the essence of a pure and elegant woman in imagination, the Katina TKL is a project designed to convey emotion through aesthetics. Featuring a sculpted silhouette and a "floating sensation" side profile, it balances complex internal details with a seamless, clutter-free exterior.

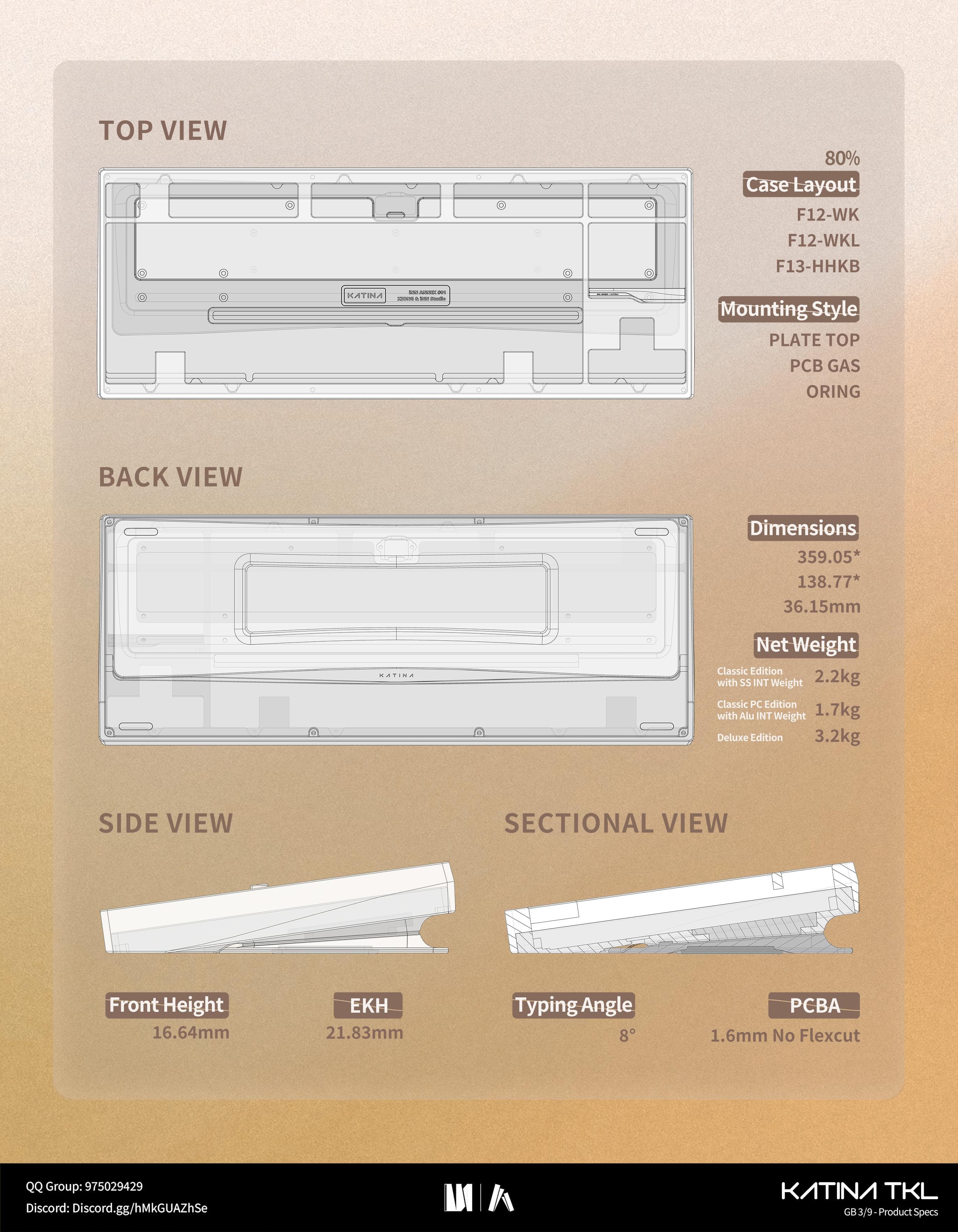

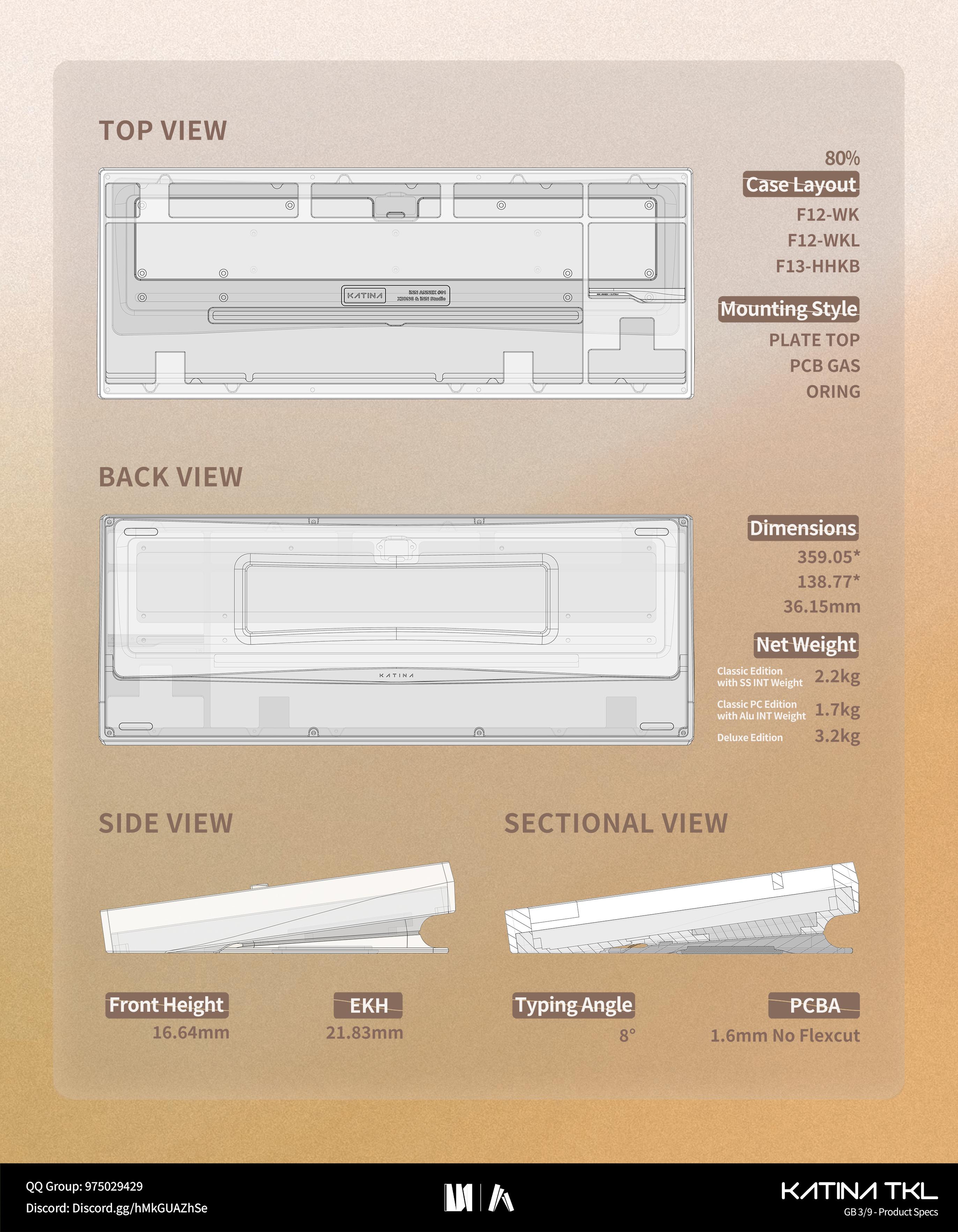

Specifications

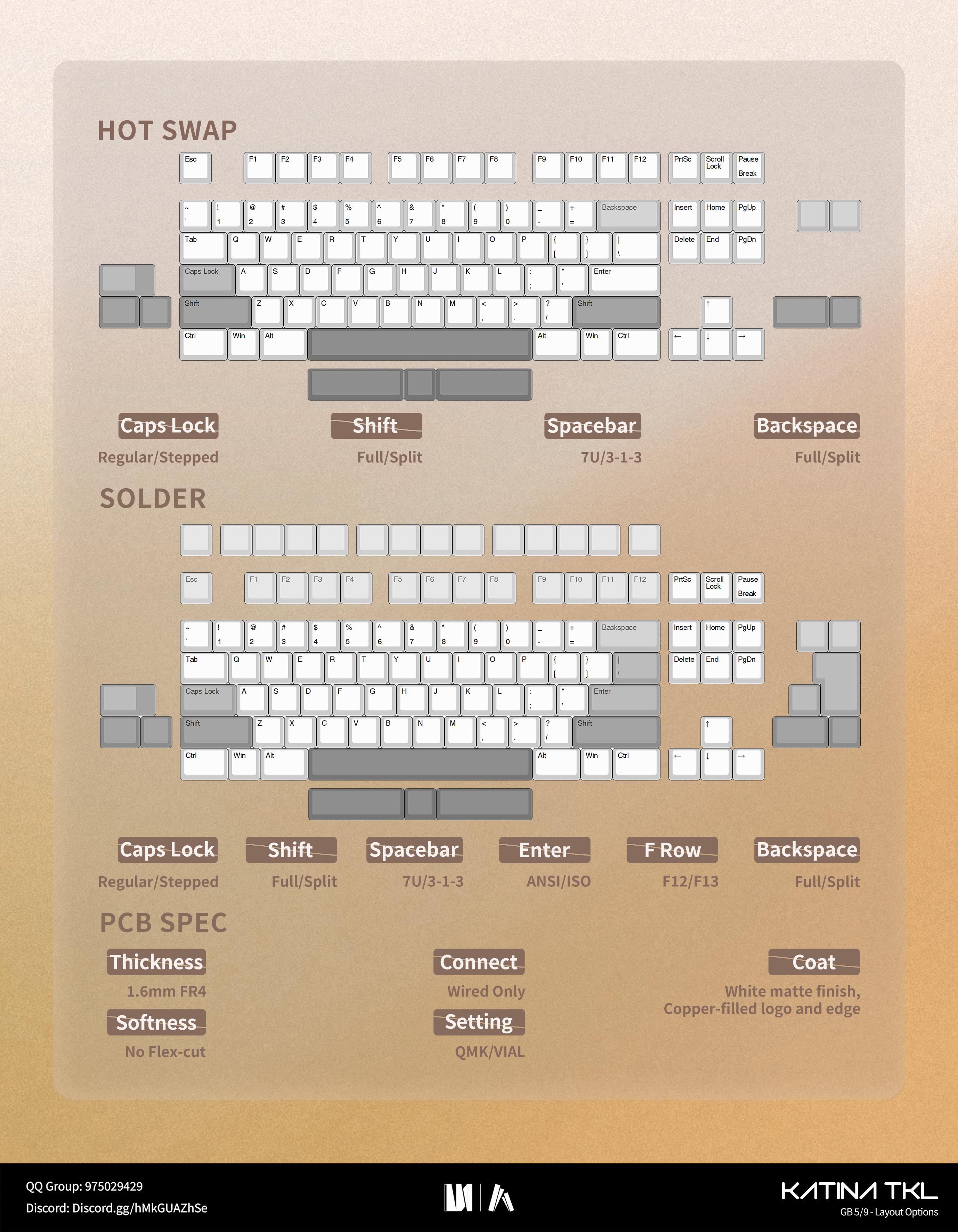

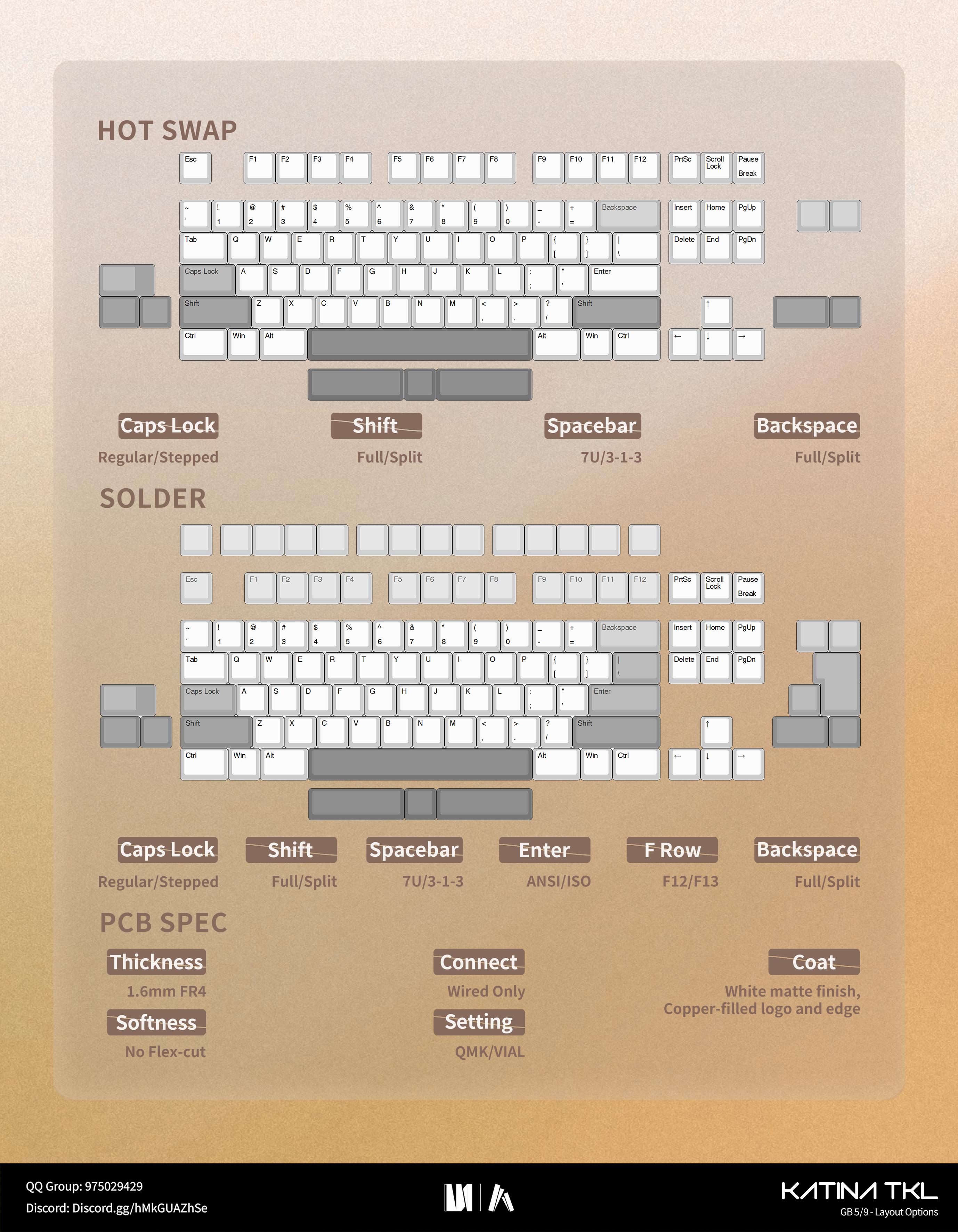

• Layout: 80% TKL (F12-WK, F12-WKL, F13-HHKB)
• Typing angle: 8°
• Front height: 16.64mm (EKH 21.83mm)

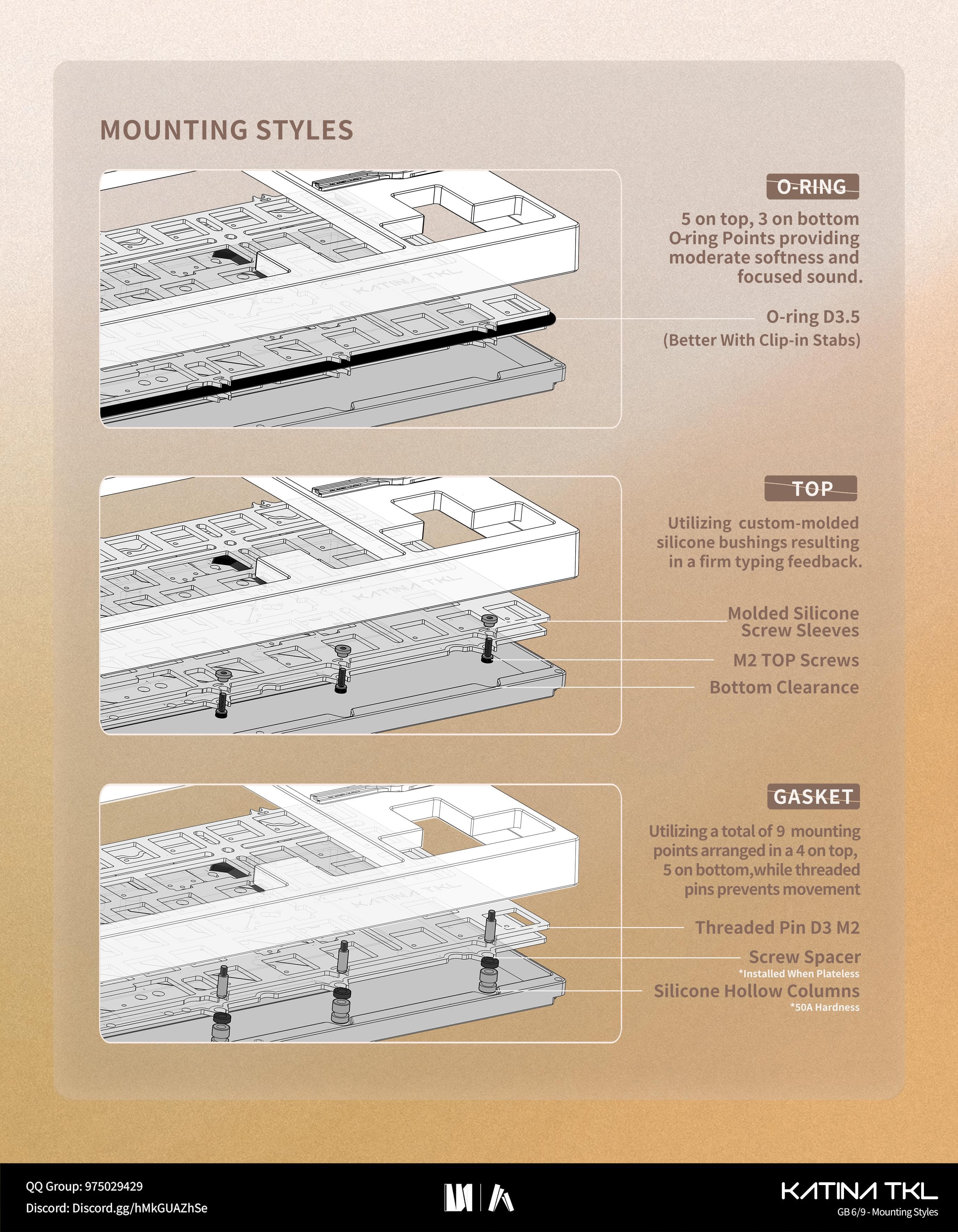

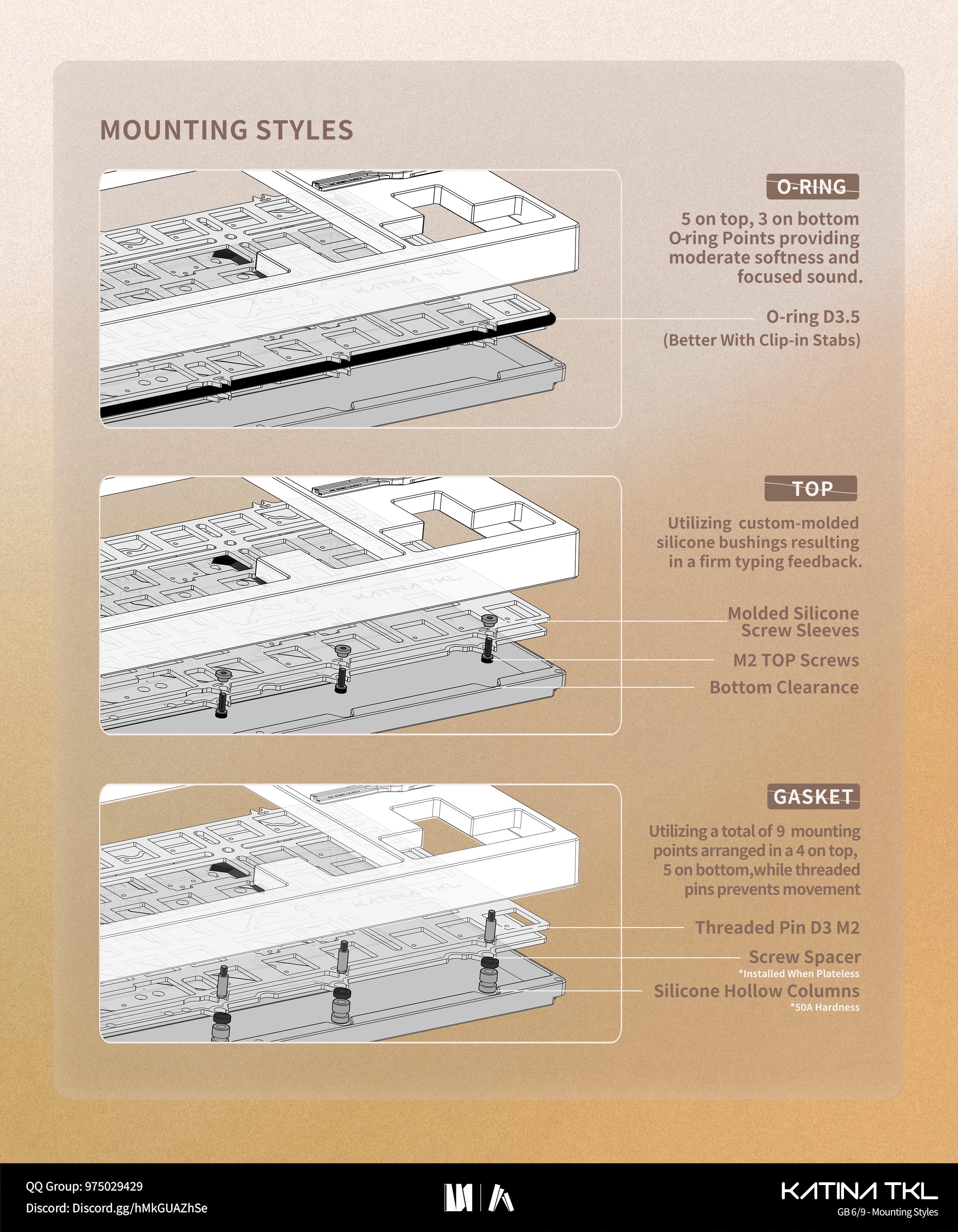

• Mounting: Triple Mounting Style (Plate Top, PCB Gasket, or O-Ring)
• PCB: 1.6mm Non-flex cut FR4 (QMK/VIAL support)
• Weight: 2.2kg (Classic) / 3.2kg (Deluxe)

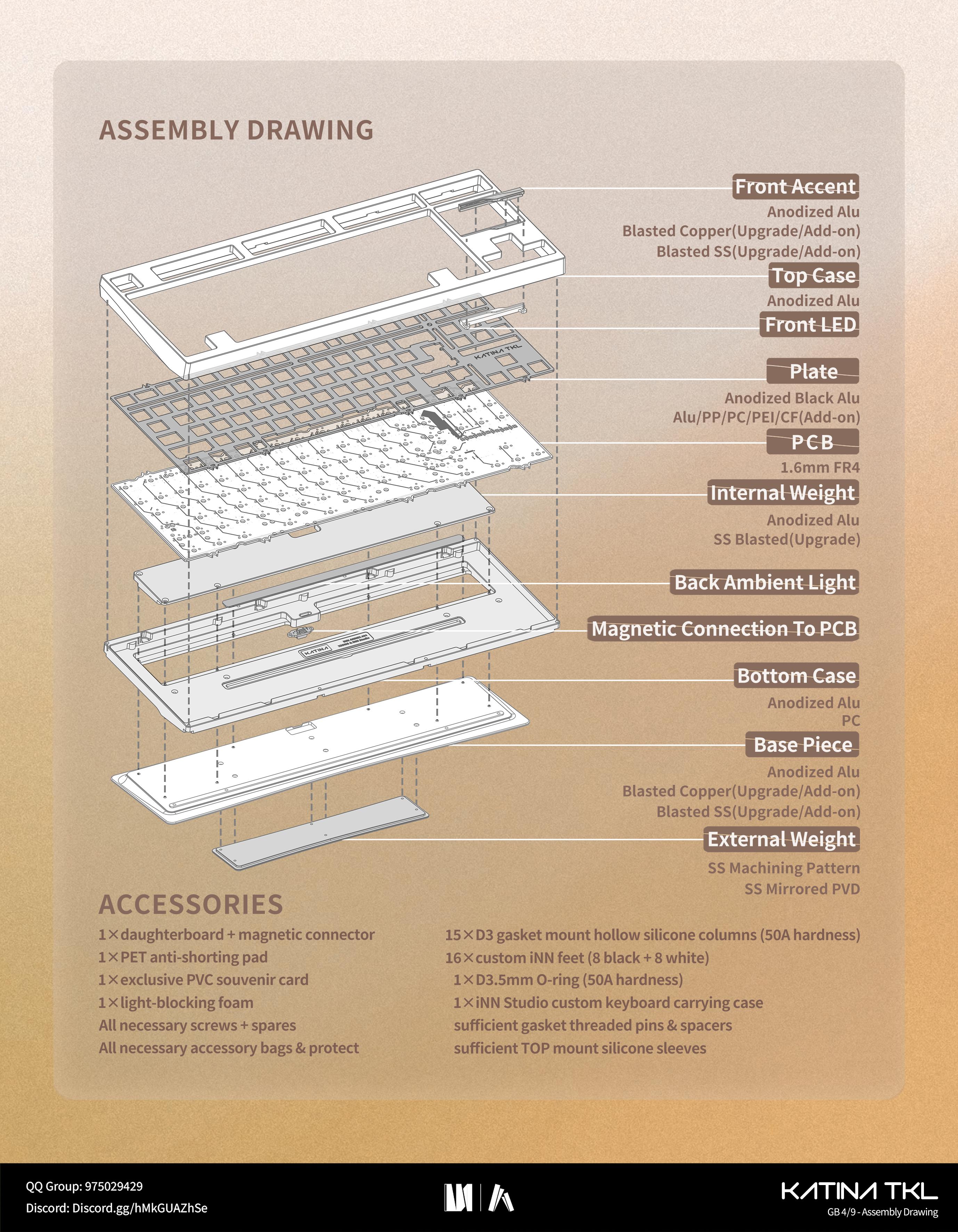

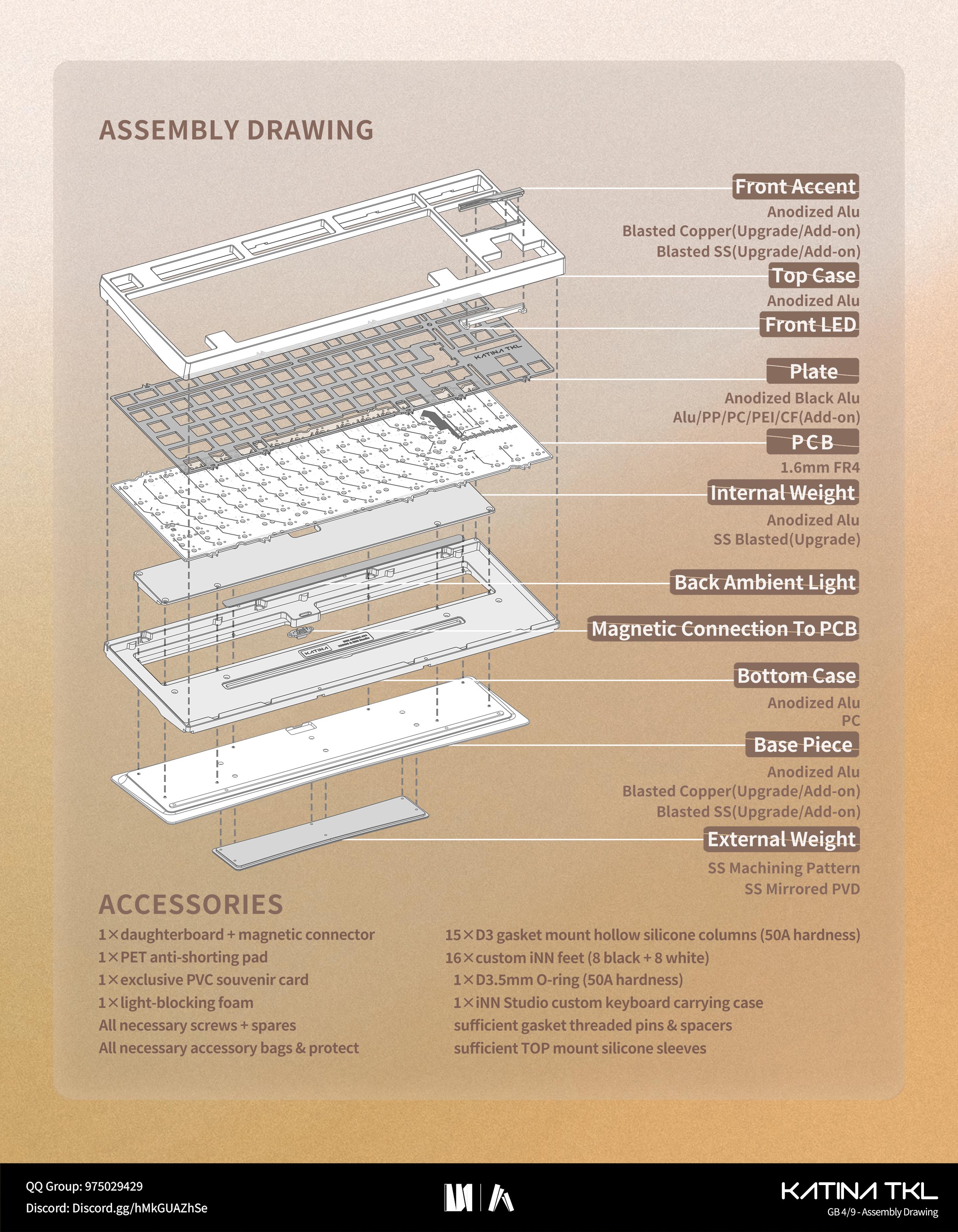

• Package includes:
o Top & Bottom Case
o Internal & External Weights
o Base Piece & Front Accents
o Plate & PCB
o Full Foam Kit & PET anti-shorting pad
o D3.5mm O-ring & Silicone Gasket Columns
o Custom iNN feet & Premium Carrying Case

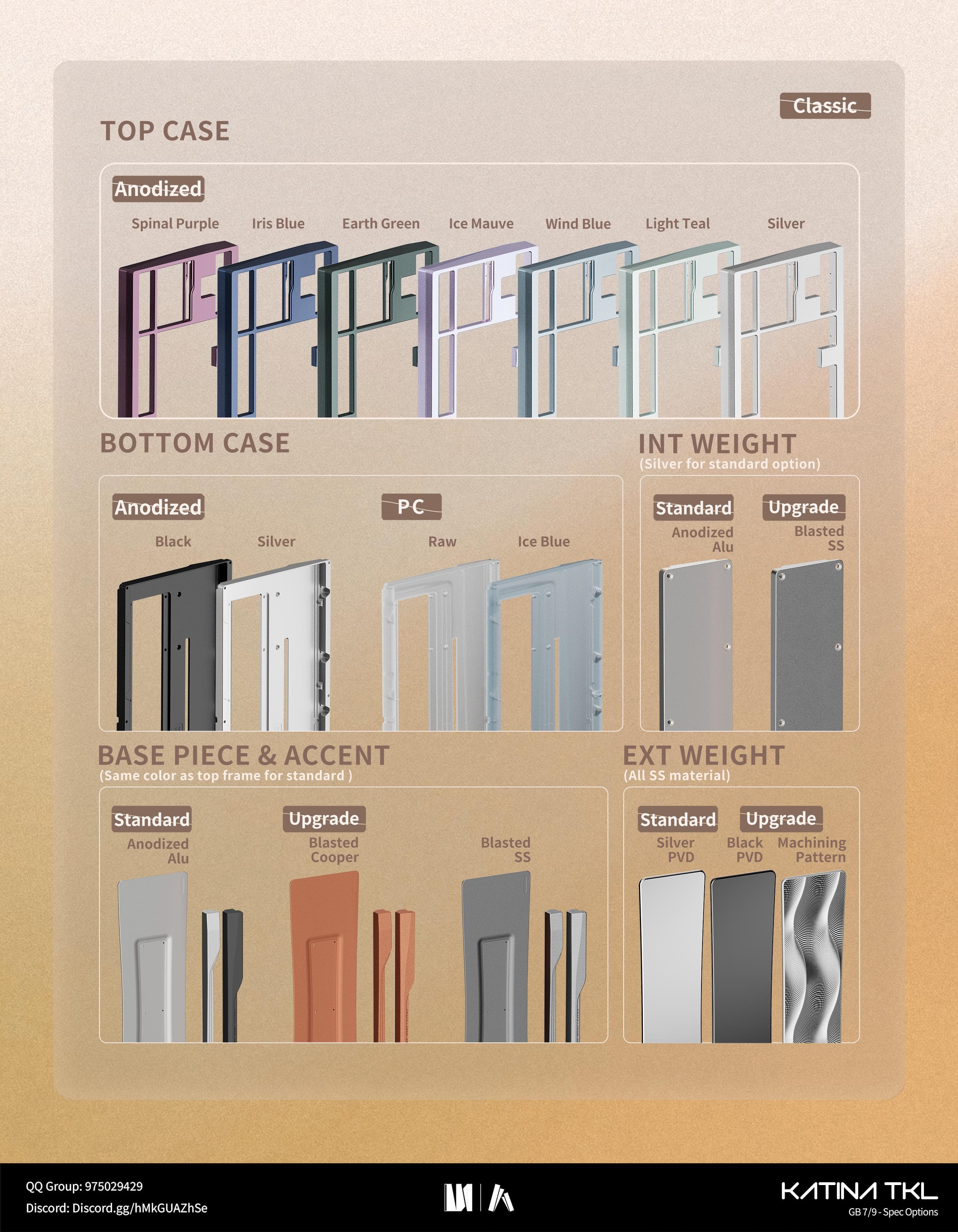

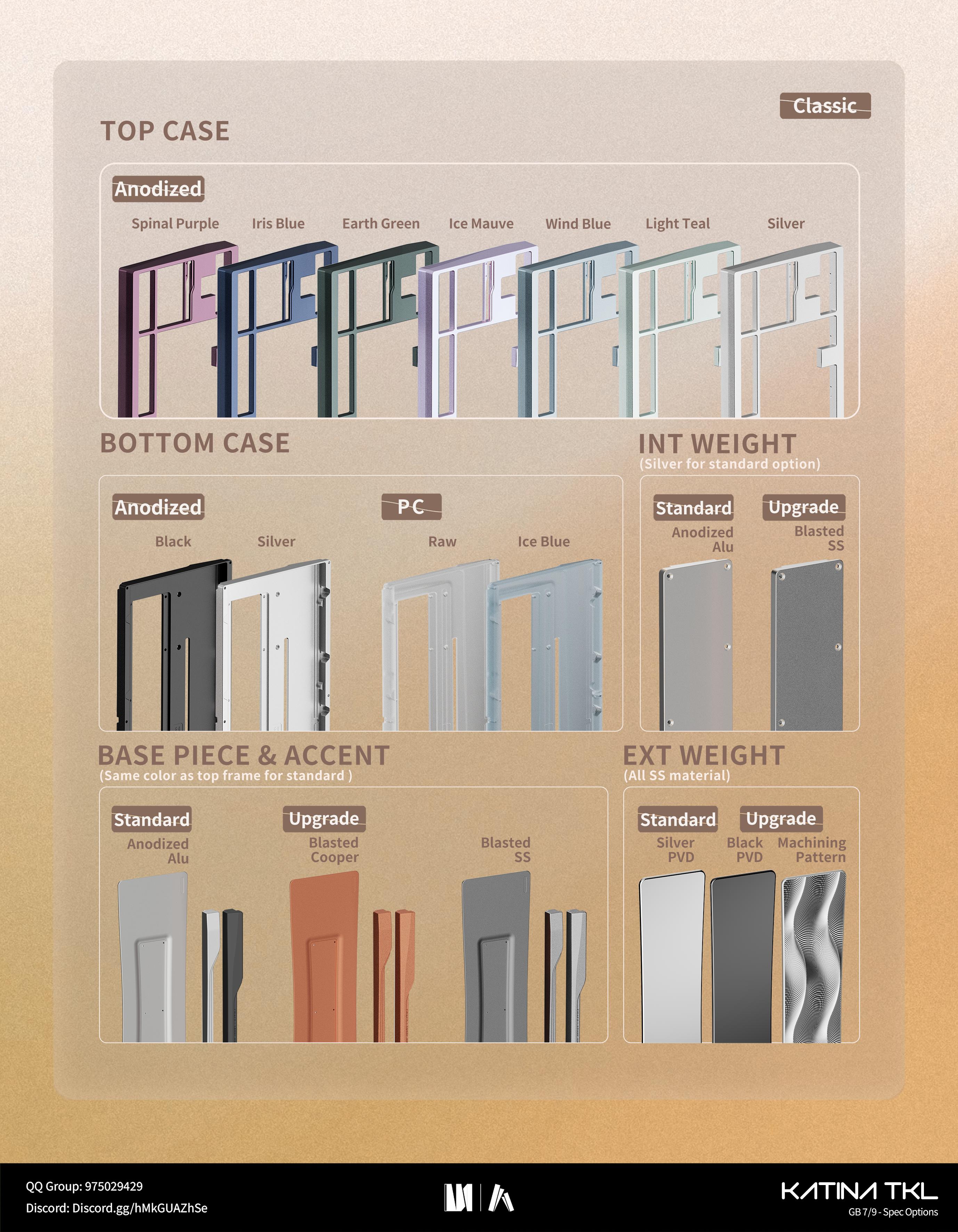

Colorways & Versions

Classic Edition:
Available in Spinal Purple, Iris Blue, Earth Green, Ice Mauve, Wind Blue, Light Teal, and Silver.

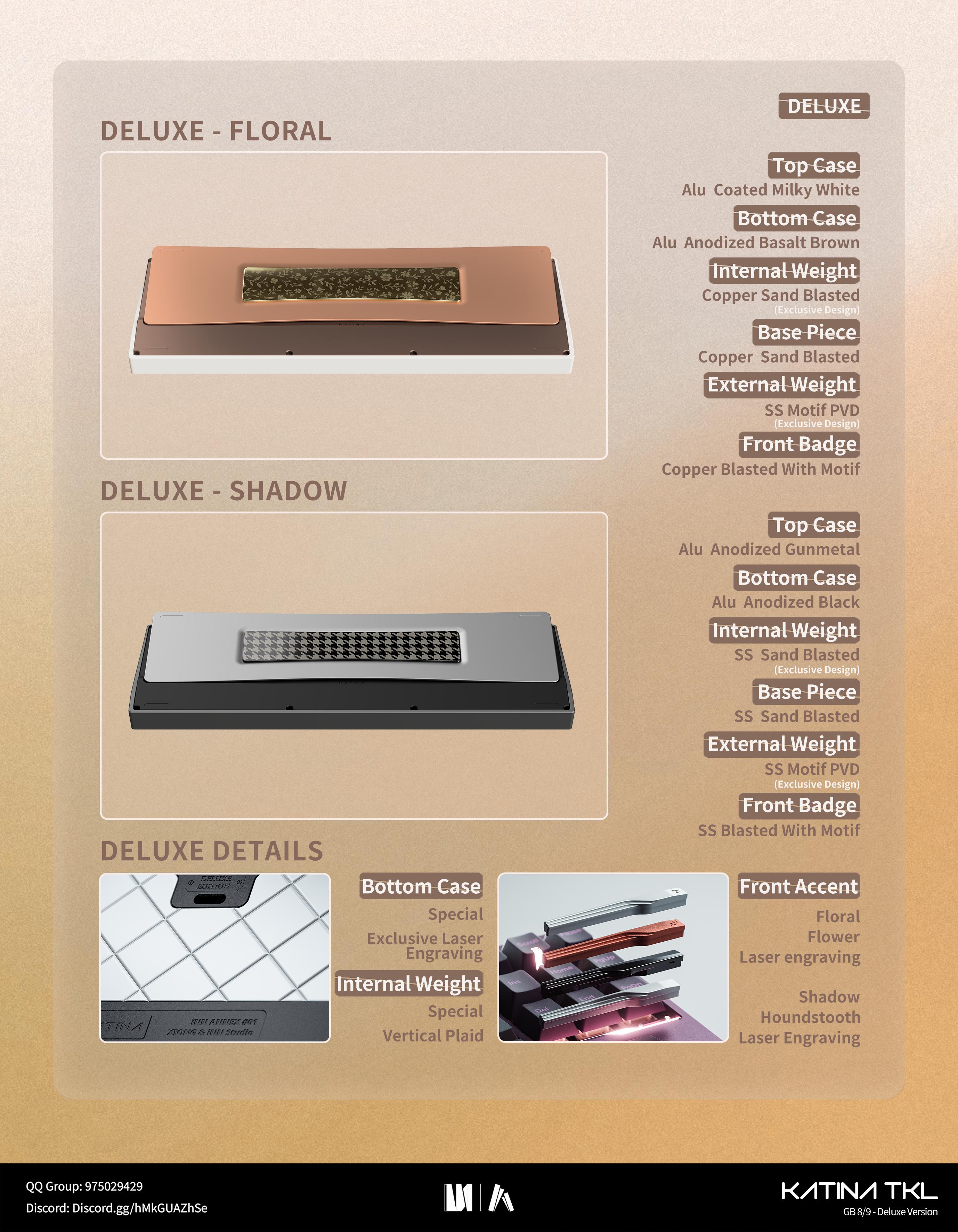

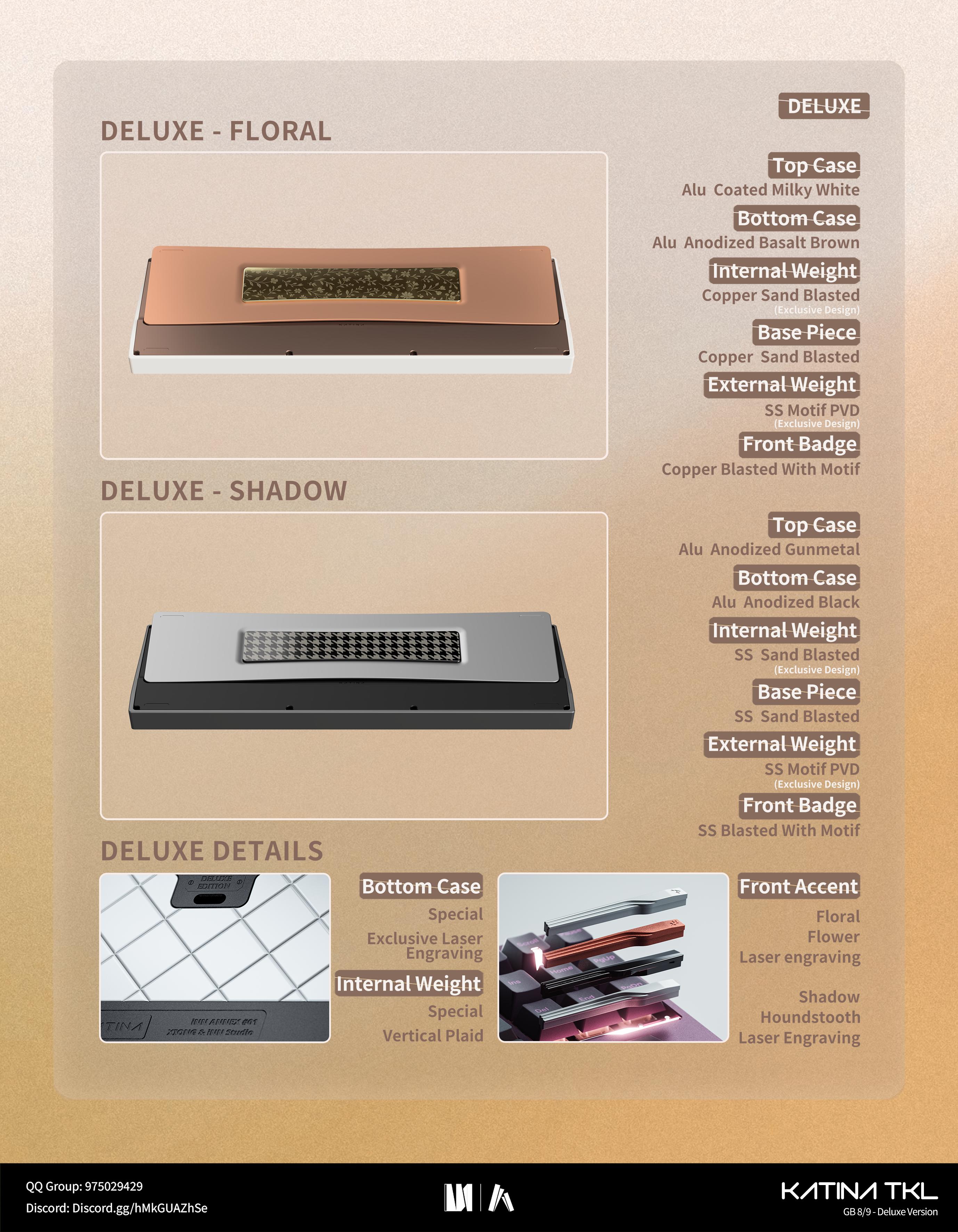

Deluxe Editions:

Floral: Milky White Top / Basalt Brown Bottom / Blasted Copper Weights & Accents.

Shadow: Gunmetal Top / Black Bottom / Blasted Stainless Steel Weights & Accents.
