KBDfans ODIN MECHANICAL KEYBOARD Kit
Group buy date: From Aug 15st to Sep 15th, 2021
ODIN Sound Test
Coming Soon
Introduction
Designed by KBDfans Wei, the inspiration of the design is from the Stora Hammars I image stone which considers being Odin's cult symbol.
Speak of Odin, who associates with wisdom, healing, death, royalty, the gallows, knowledge, war,
battle, victory, sorcery, poetry, frenzy, and the runic alphabet, and projects him as the husband of the goddess Frigg.
From KBDfans's point of view, the Odin means everything we wanted in a set of a keyboard with 100% layout!.
Are you getting sick of the tiny layouts? Let's meet the Odin!
The ODIN
Specification

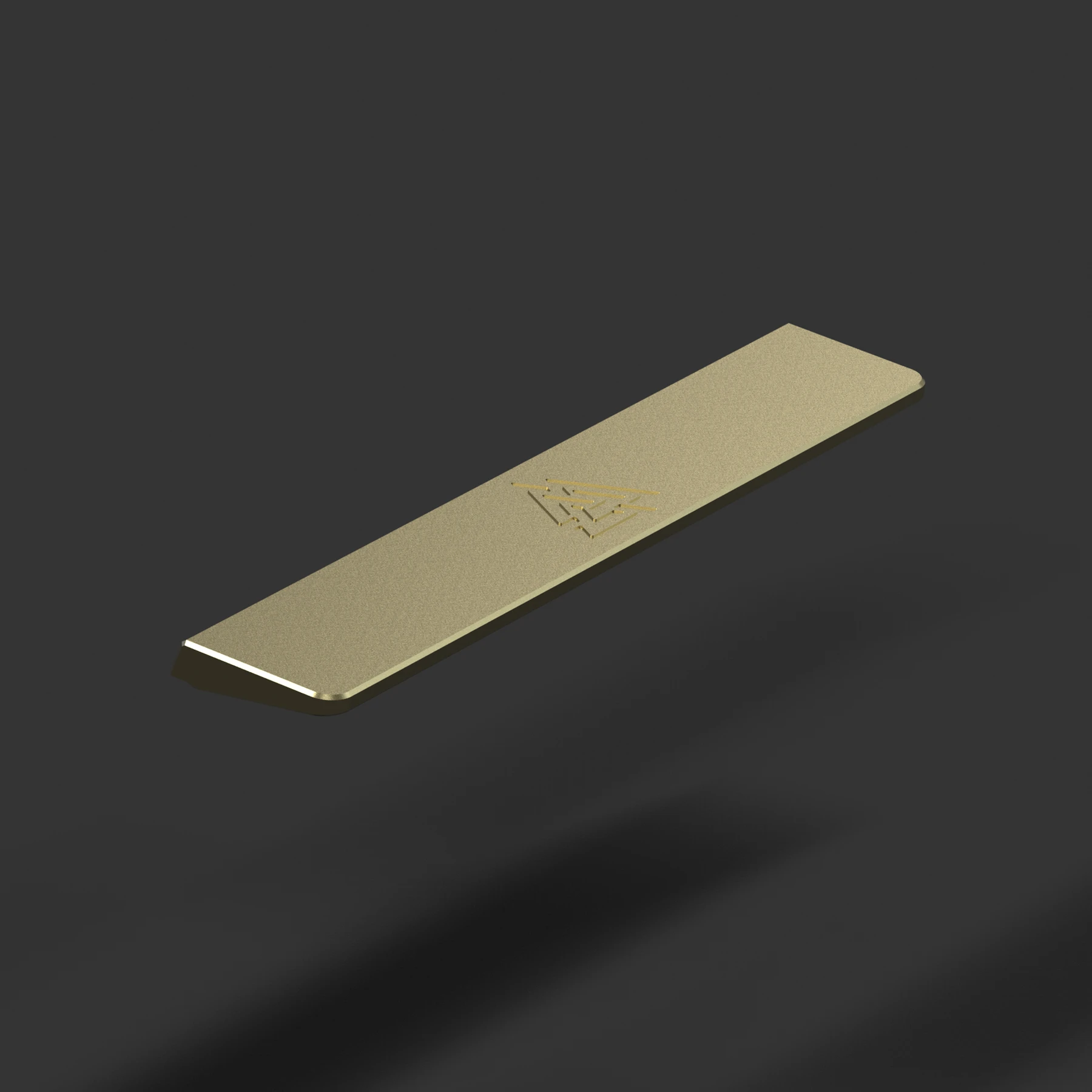

Case: top aluminum bottom aluminum, default aluminum weight bar. （brass weight bar is an additional option）

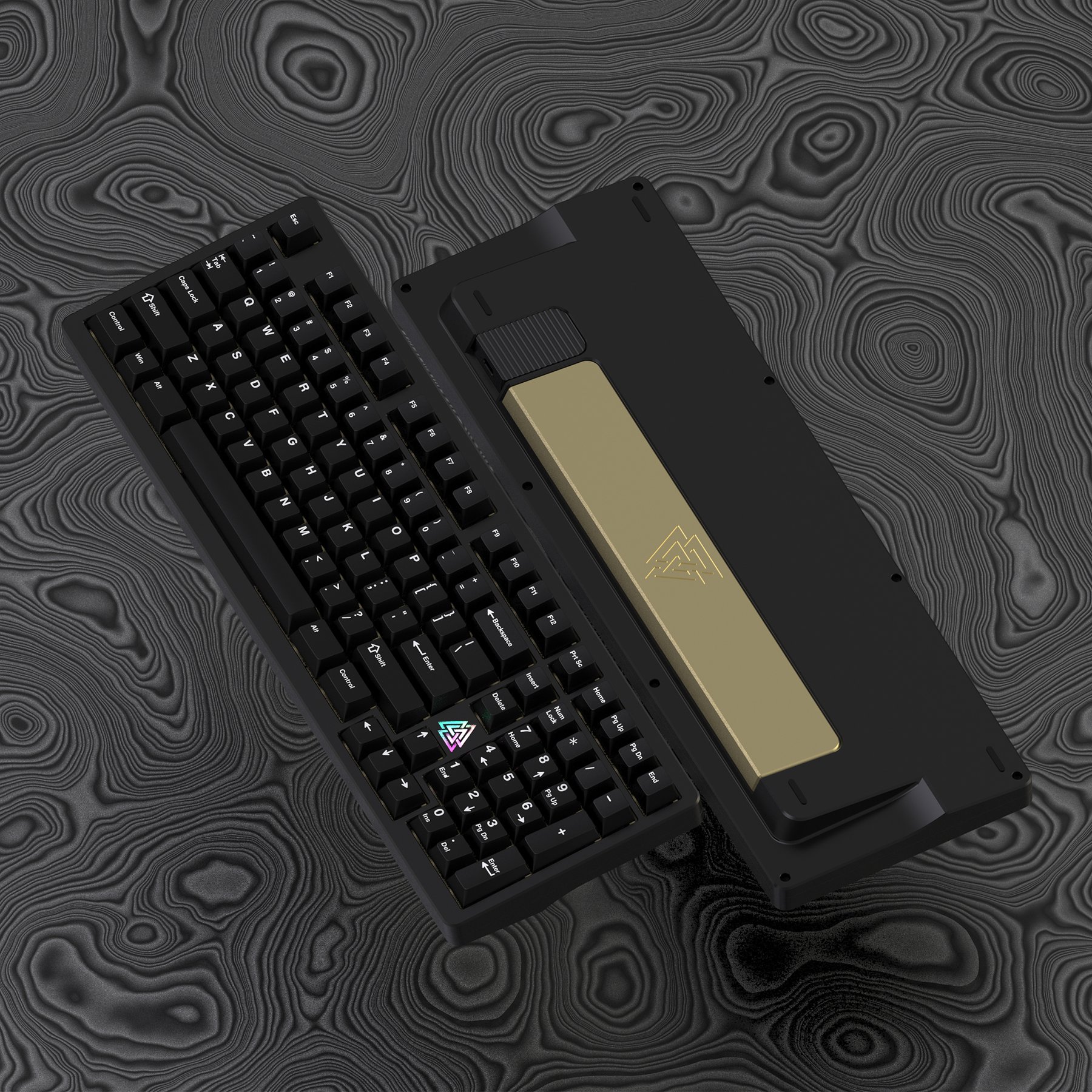

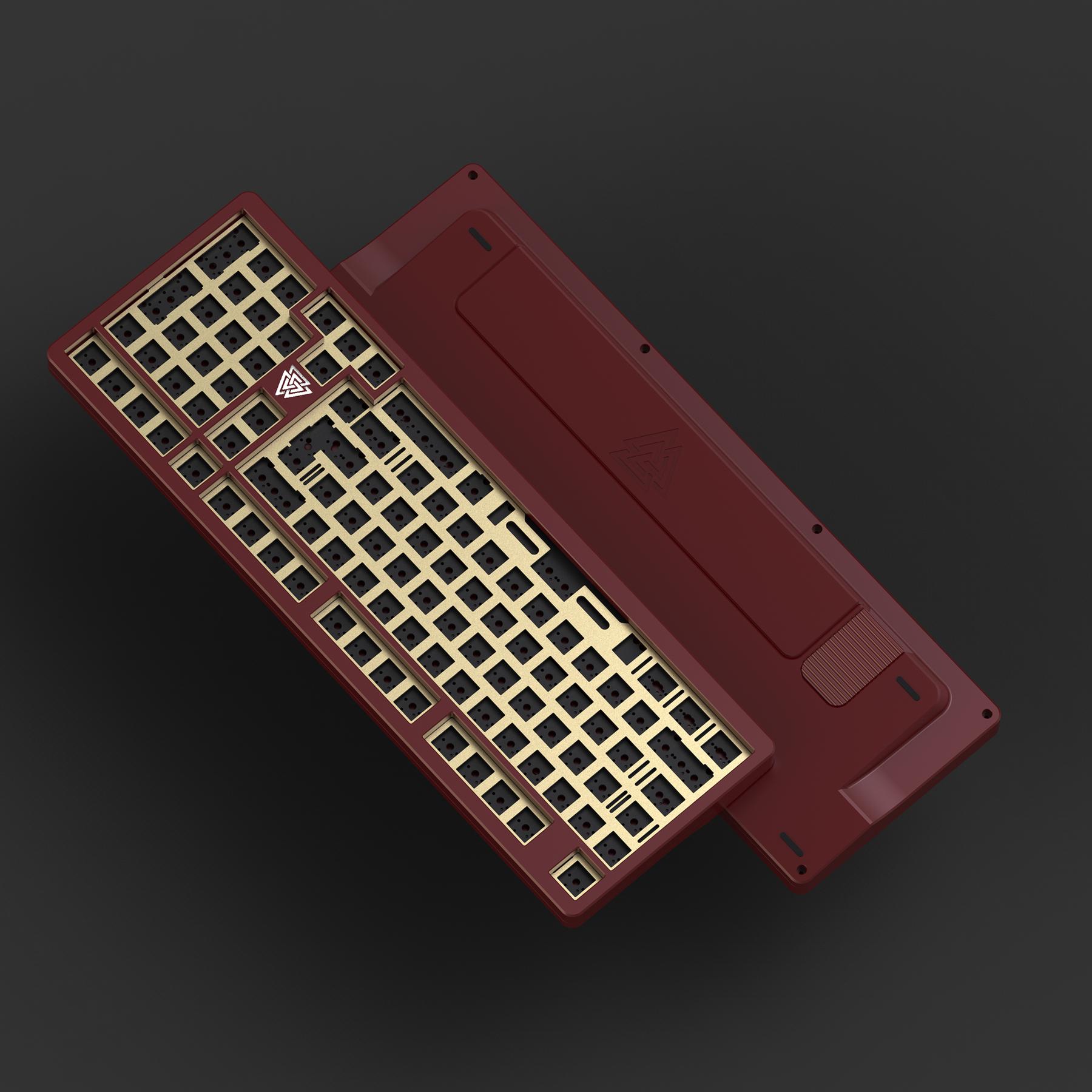

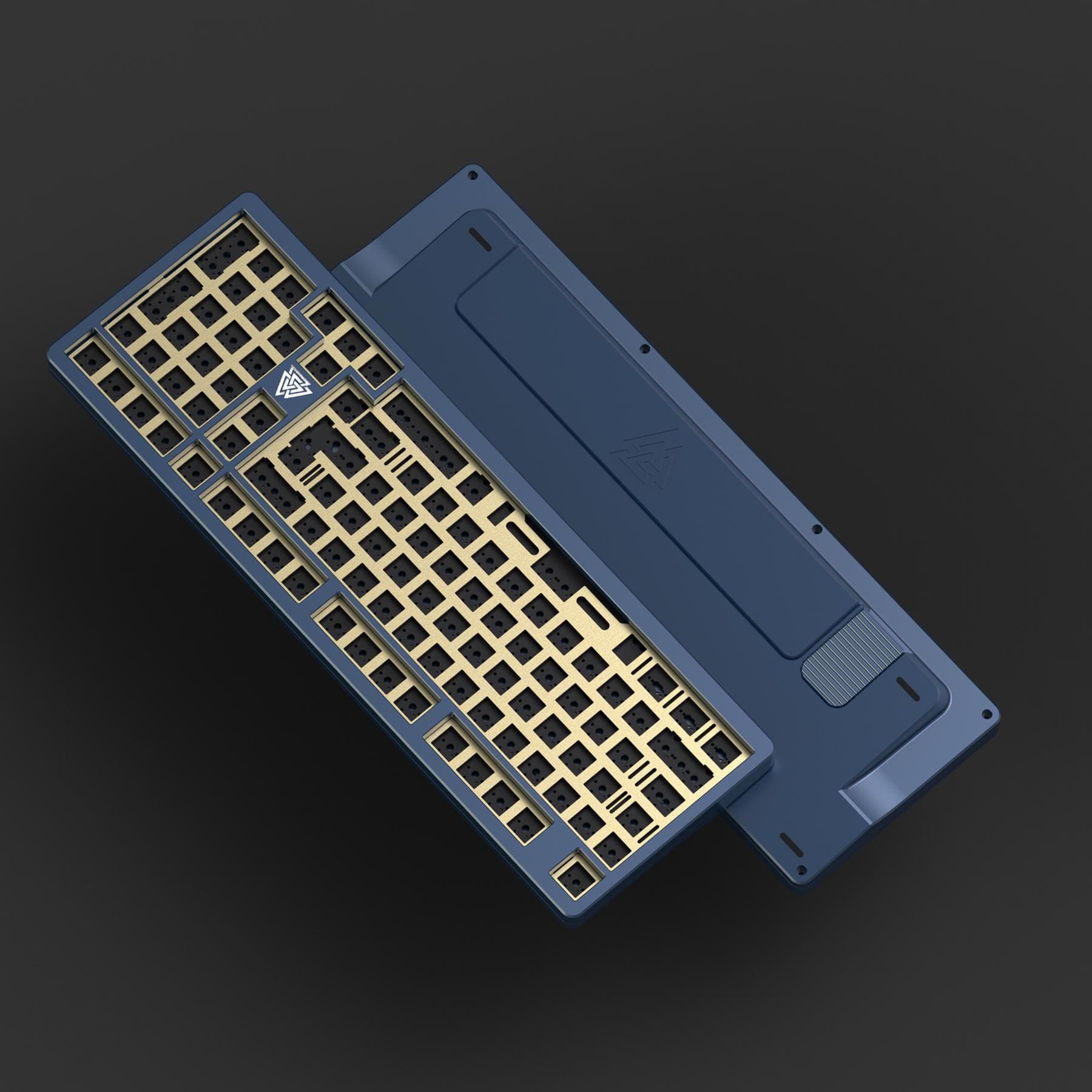

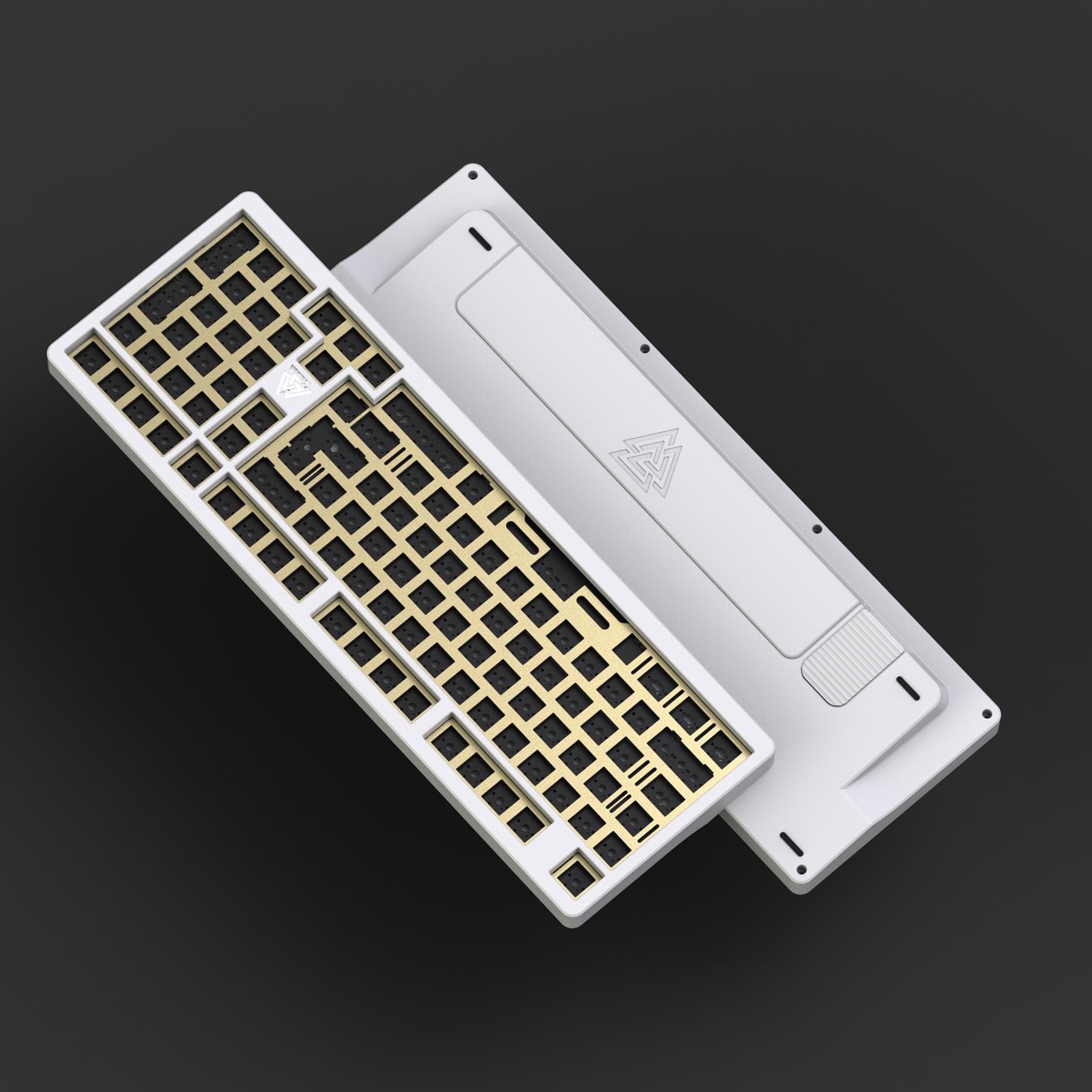

Case color: Black, Grey, Blue, Burgundy red, E-white, Silver, Purple.
Wired version PCB: Solder version and hot-swap version;
The solder version does not have the underground RGB light;
The hot-swap version supports the per-key RGB.
Notes: Support VIA and VIAL, It is recommended to use VIA. VIAL's firmware is not official
Plate: Brass
Structure: gasket mount; 100% layout
USB-Port Protector: aluminum

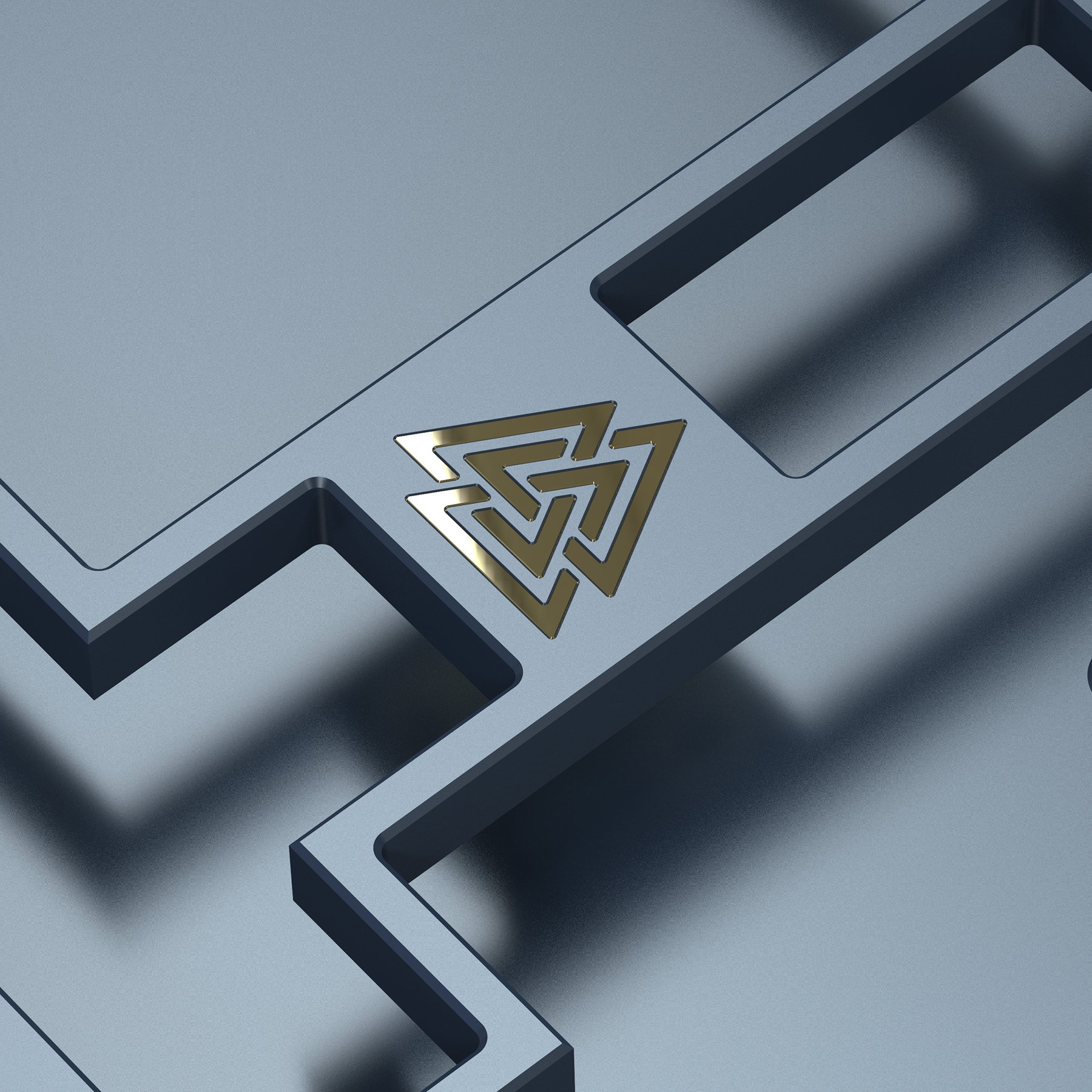

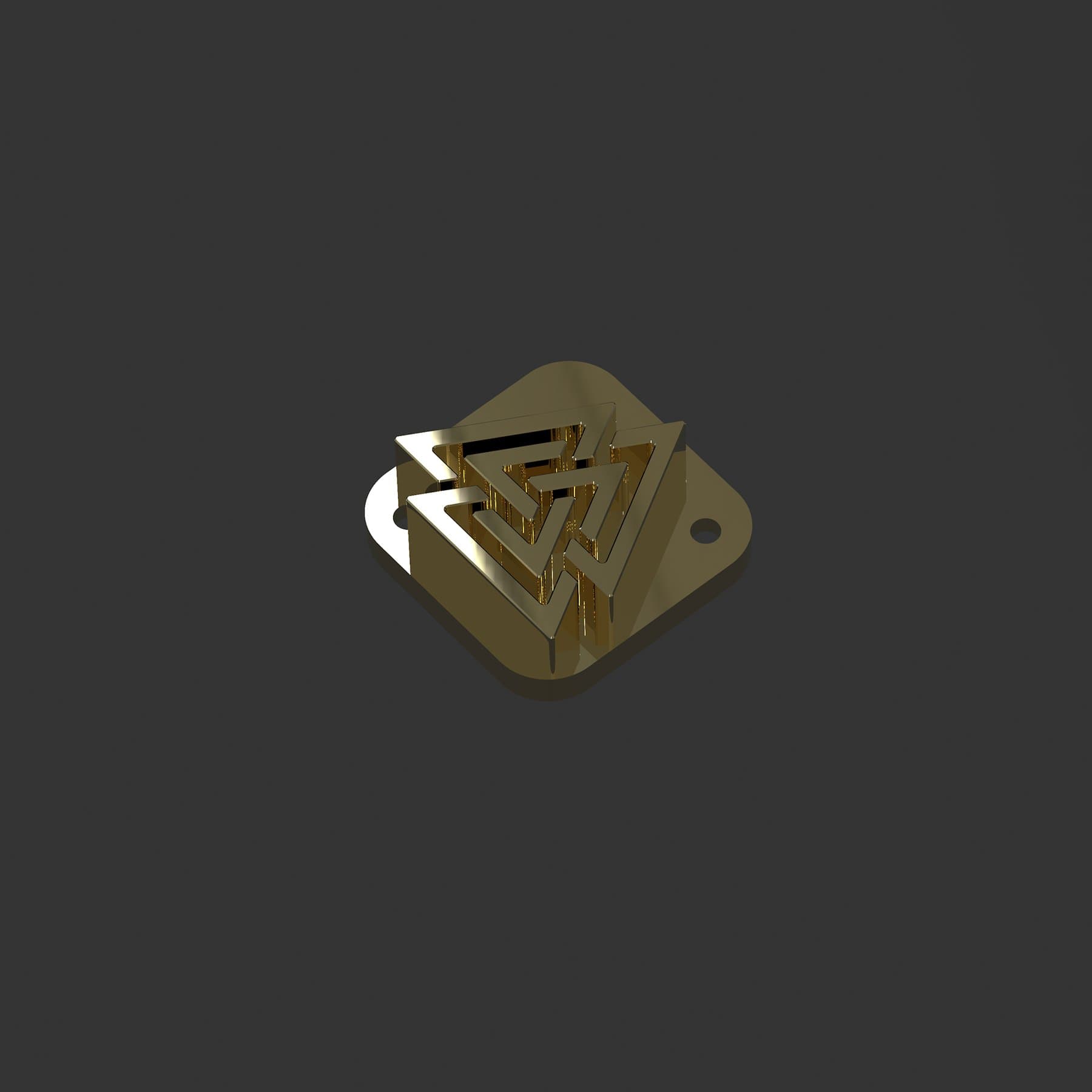

Translucent badge: Acrylic sandblasting ( Brass badge is an additional option)
Foam: case foam and PCB foam (PORON material)

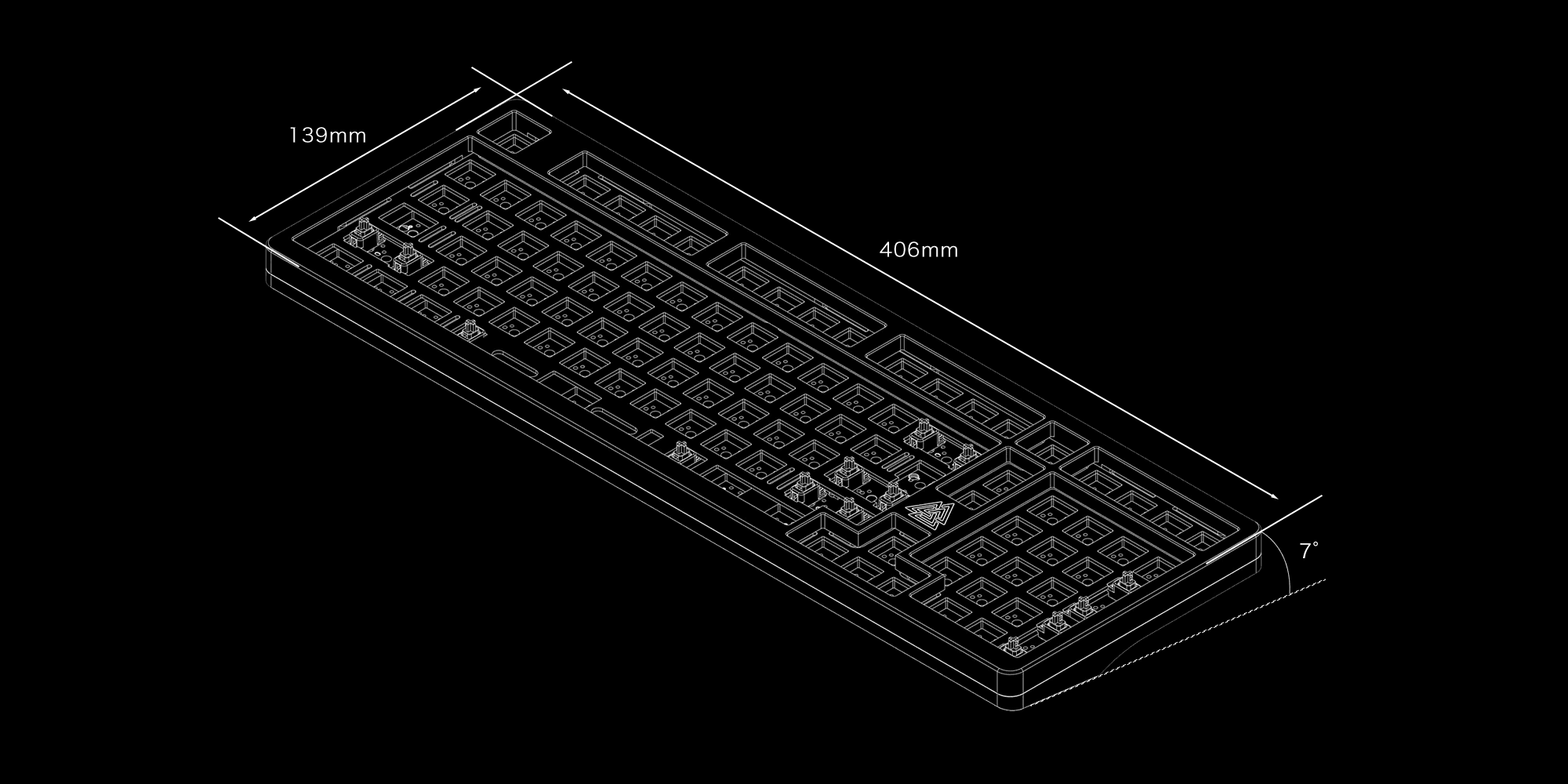

Typing angle: 7°
Weight: around 2kg (aluminum weight bar)
Designer: KBDfans WeiColor OptionsADDONS

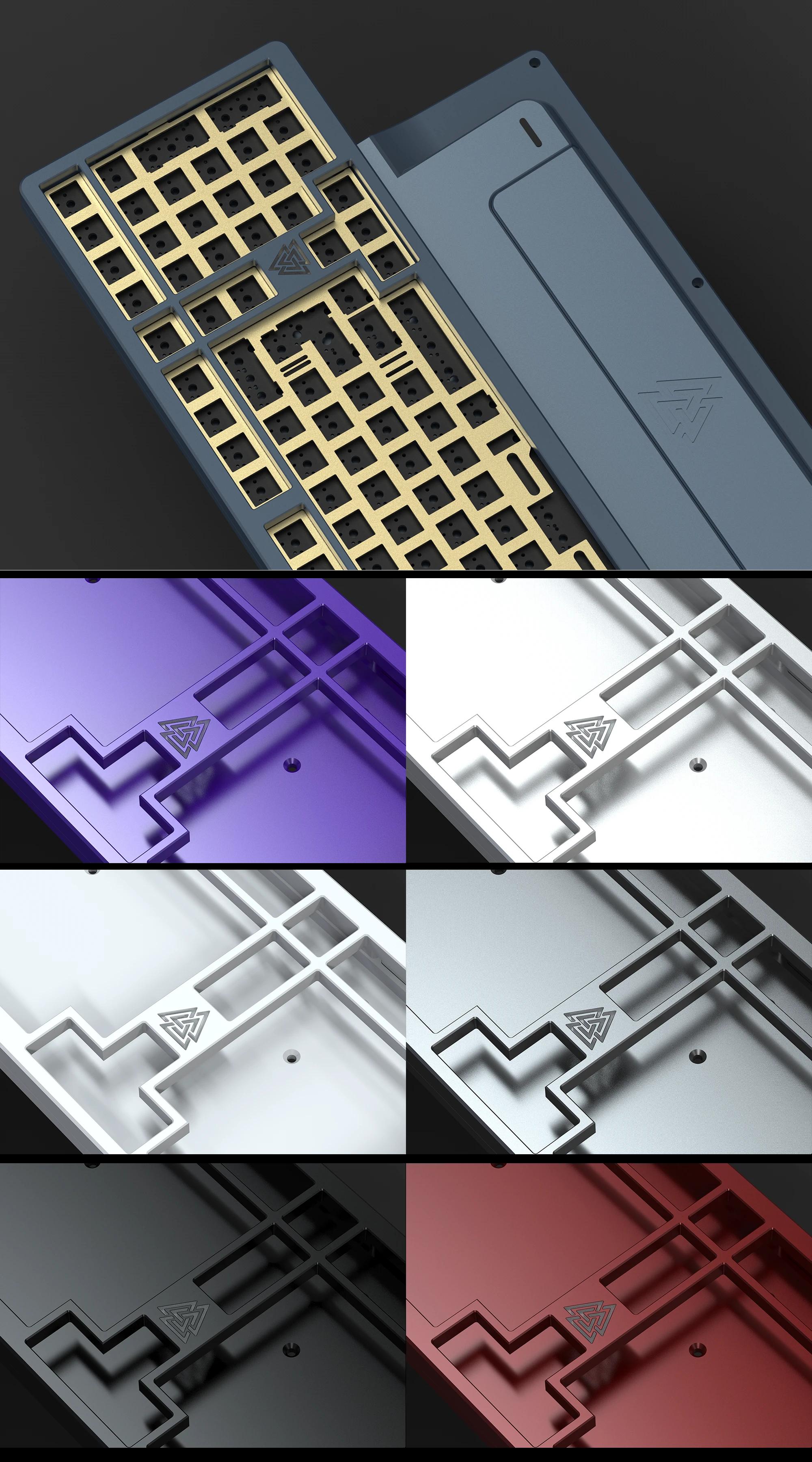

Colorways

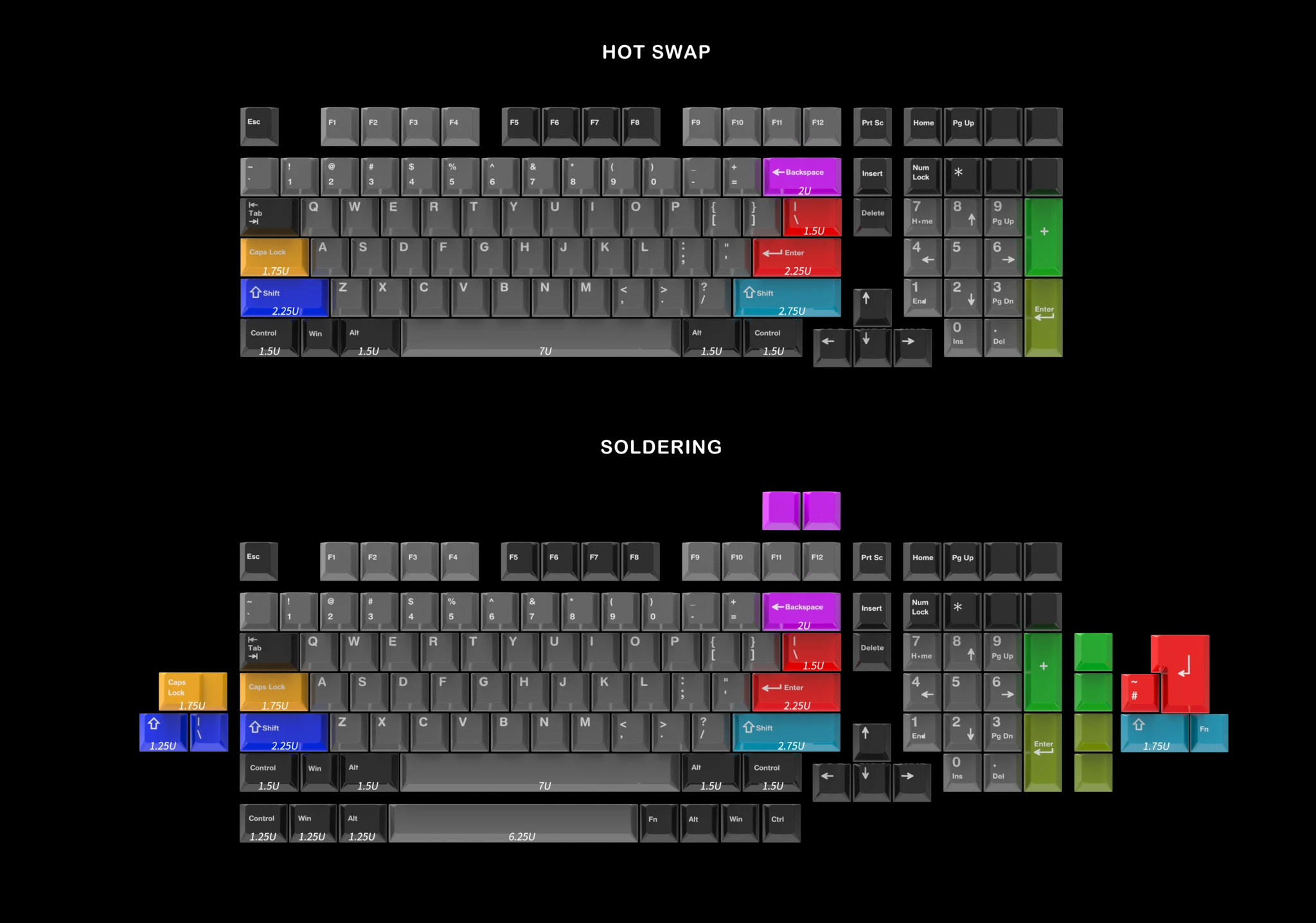

Layout Options
INCLUDE-Aluminum case x1
-Aluminum weight bar x1
-Aluminum USB port protector
-Acrylic sandblasting badge
-PCB x1
-Brass plate x1
-Case foam x1
-PCB foam x1
-KBDfans transparent screw-in stabilizers 104 kit x1(2U*7 6.25U*1, extra 7U wire* 1)
-Gaskets x1 set
-Screws x1 set
-Rubber feet x1 set

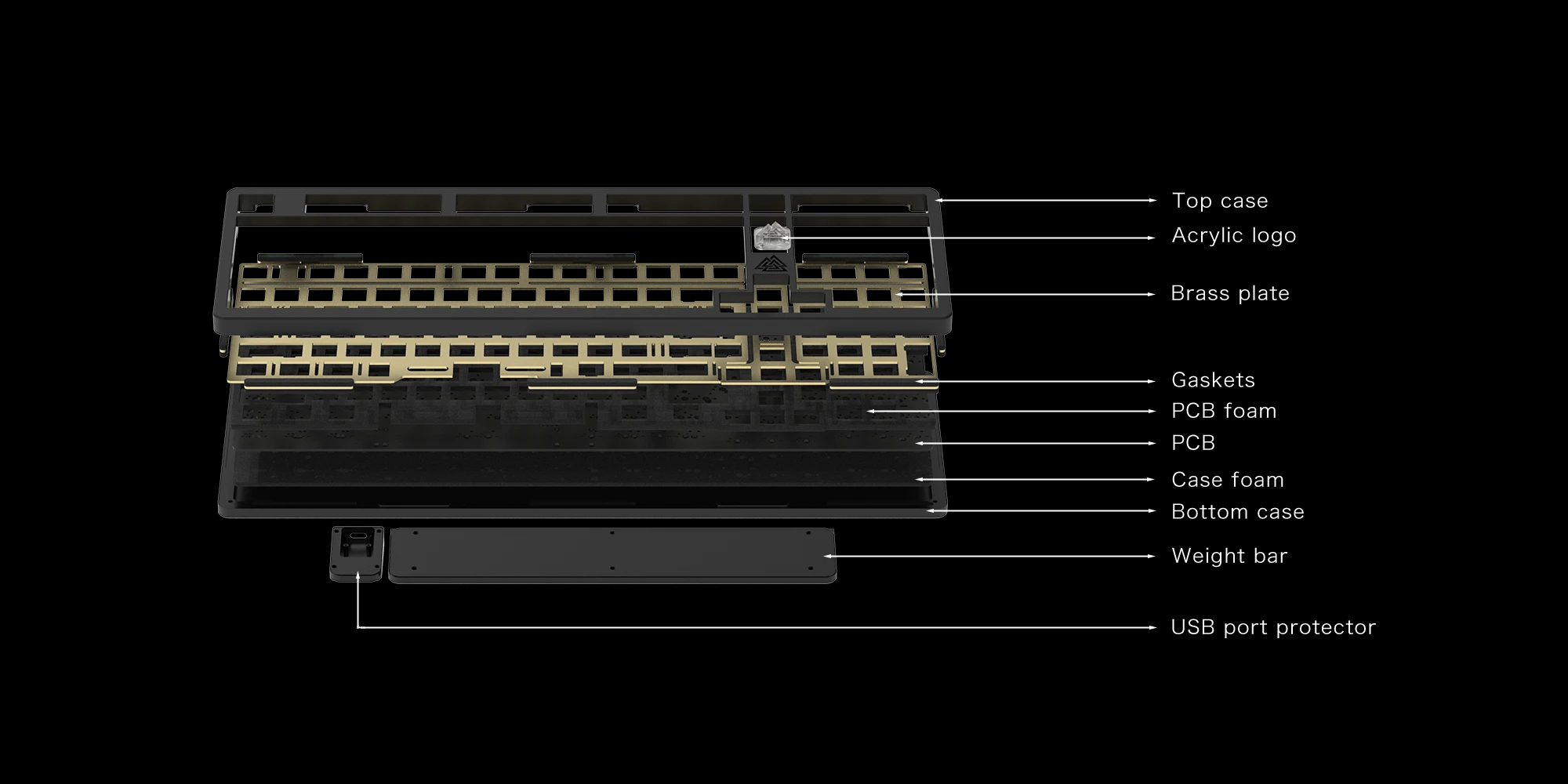

-Reminder: Brass weight bar and Brass badge are additional options Keyboard Structure
