KY-01 // 75% Top-Mount Keyboard By KCK
[GB Status]
:
Finished shipping out every order.
Public Plate File:
Click Here
When Does Group Buy Start?
23:59 BST [20/08/20]
How do I join the Group Buy?
https://groupbuys.mechboards.co.uk/shop/ky-01-75-top-mount-keyboard/
(Sold Out)
Price:
$275
for Aluminium Plate Kit (excluding shipping fees)
$285
for Brass Plate Kit (excluding shipping fees)
$290
for Carbon Fibre Plate Kit (excluding shipping fees)
Shipping Prices:
UK (
$20
)
Europe (
$35
)
USA & Canada (
$35
)
Rest of the world (
$60
)
When is the estimated shipping date?
Mid January 2021
Payment Method:
PayPal
Contact:
Discord
-
https://discord.gg/cvrfHeE
Email
-
[email protected]
(More Pictures of colour samples in the Discord Server)
Standard Colours:
Black
Silver
Custom Colours:
Aquamarine (316C)
Blue Grey (432C)
Dark Grey (446C)
Kits include the following:
1x
Top Aluminium Case
1x
Bottom Aluminium Case
1x
1.5mm Plate (Aluminium or Brass or Carbon Fibre)
1x
Custom Green KY-01 USB Type-C PCB (Supports QMK + ESD-Protection)
7x
M2.5 Phillips pan-head screws (Plate screws)
8x
M3 Torx screw
(Case screws)
2x
Silicone Adhesive Strips +
2x
replacement strips
PCB & Plate files will be public once GB ends.
Optional Extra Parts:
Extra KY-01 PCB - (
$40
)
Specs:
Mounting Type:
Top Mount
Typing Angle:
6 degrees
Material:
6061 aluminium sandblasted & anodized finish
Colours:
Black/Silver/Dark Grey/Blue Grey/Aquamarine
Number of Units:
150 units

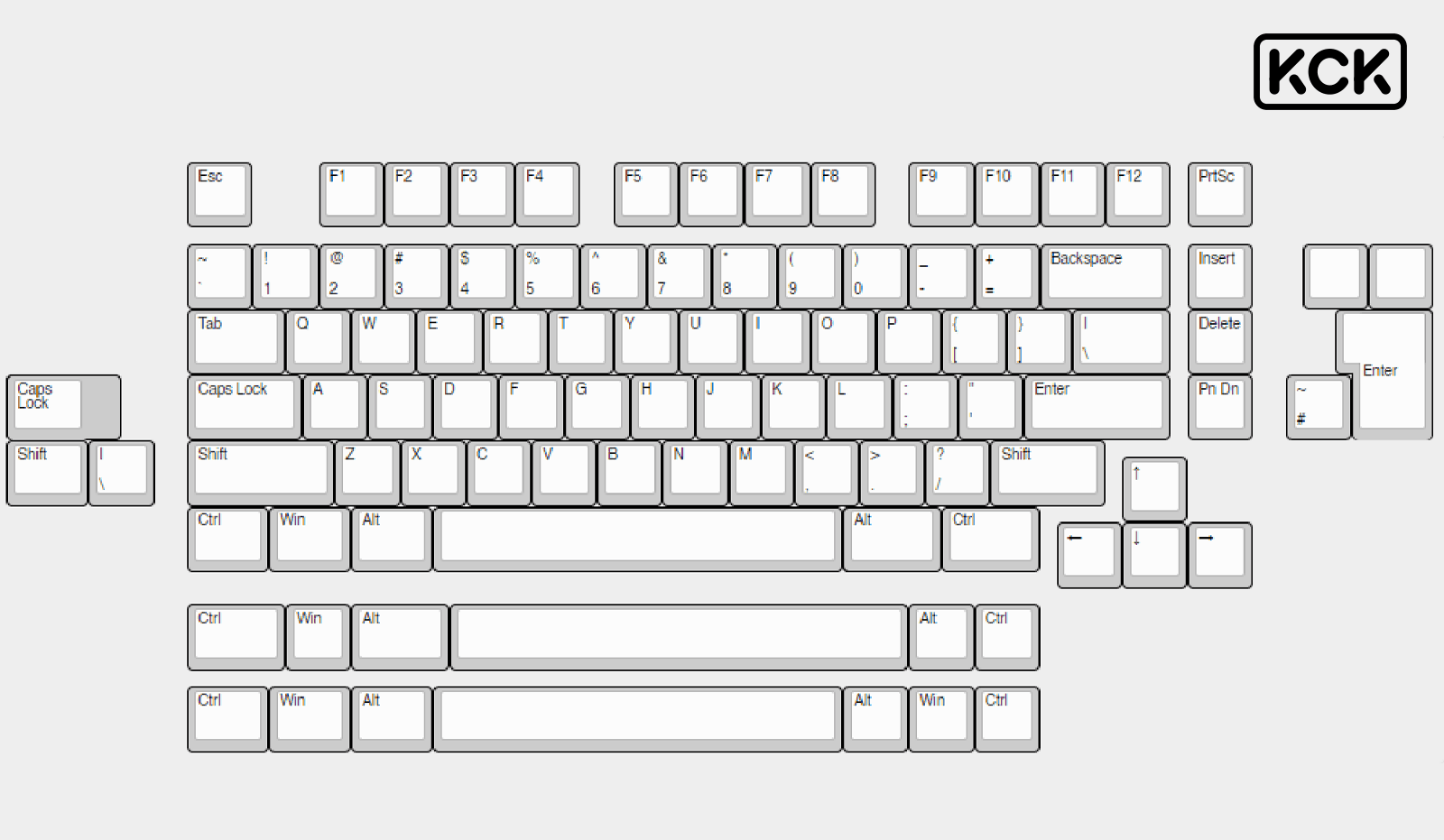

Layout:
Supports both ANSI & ISO Layout (Supports split backspace & stepped caps lock)
Plate Material Options:
Aluminium/Brass/Carbon Fibre
PCB:
Custom KY-01 USB Type-C PCB (Supports QMK + ESD-Protection)
Screws:
7x M2.5 Phillips pan-head screws / 8x M3 Torx Screw (You will need a T10 torx screw driver)
Switch Support:
MX style switches only

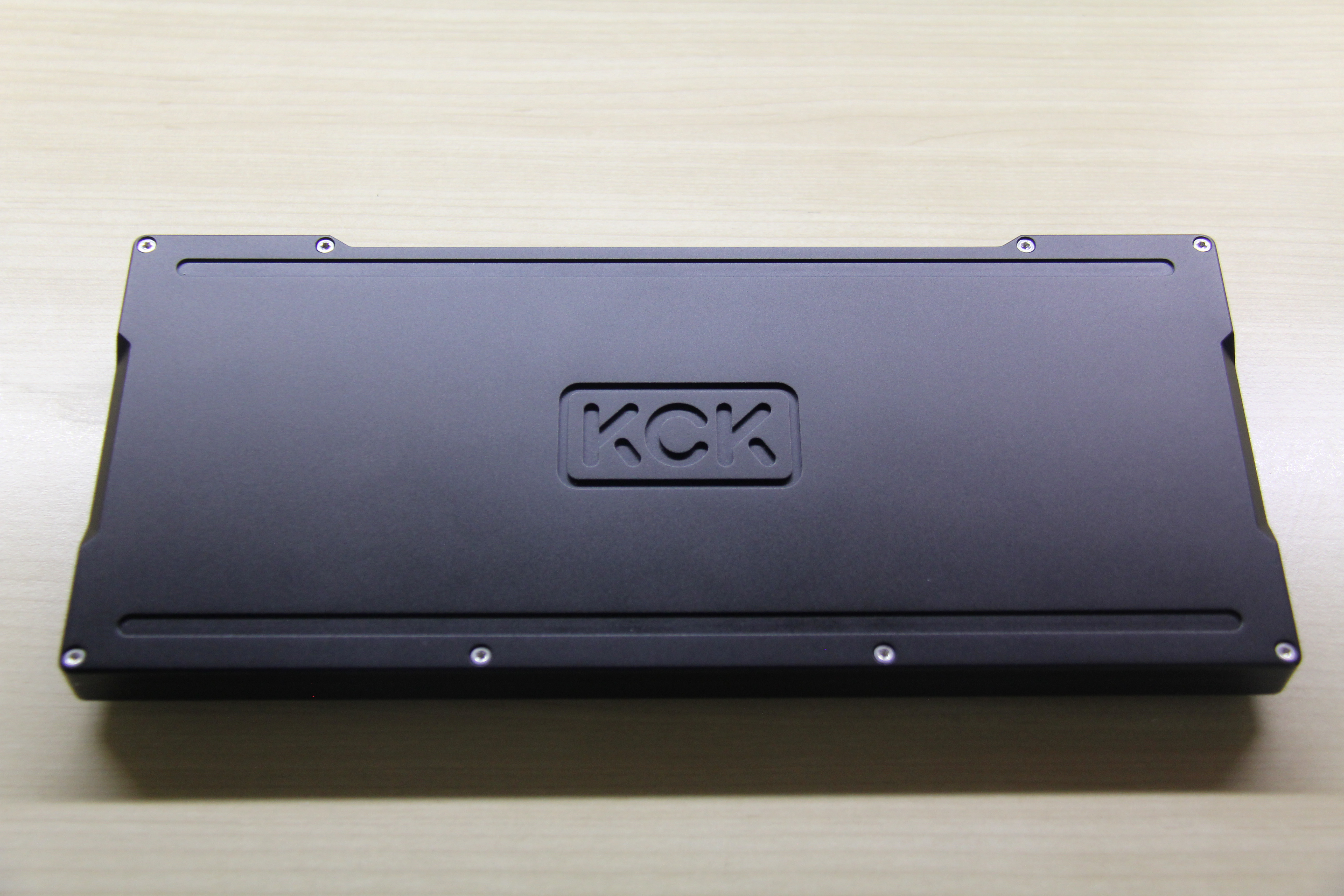

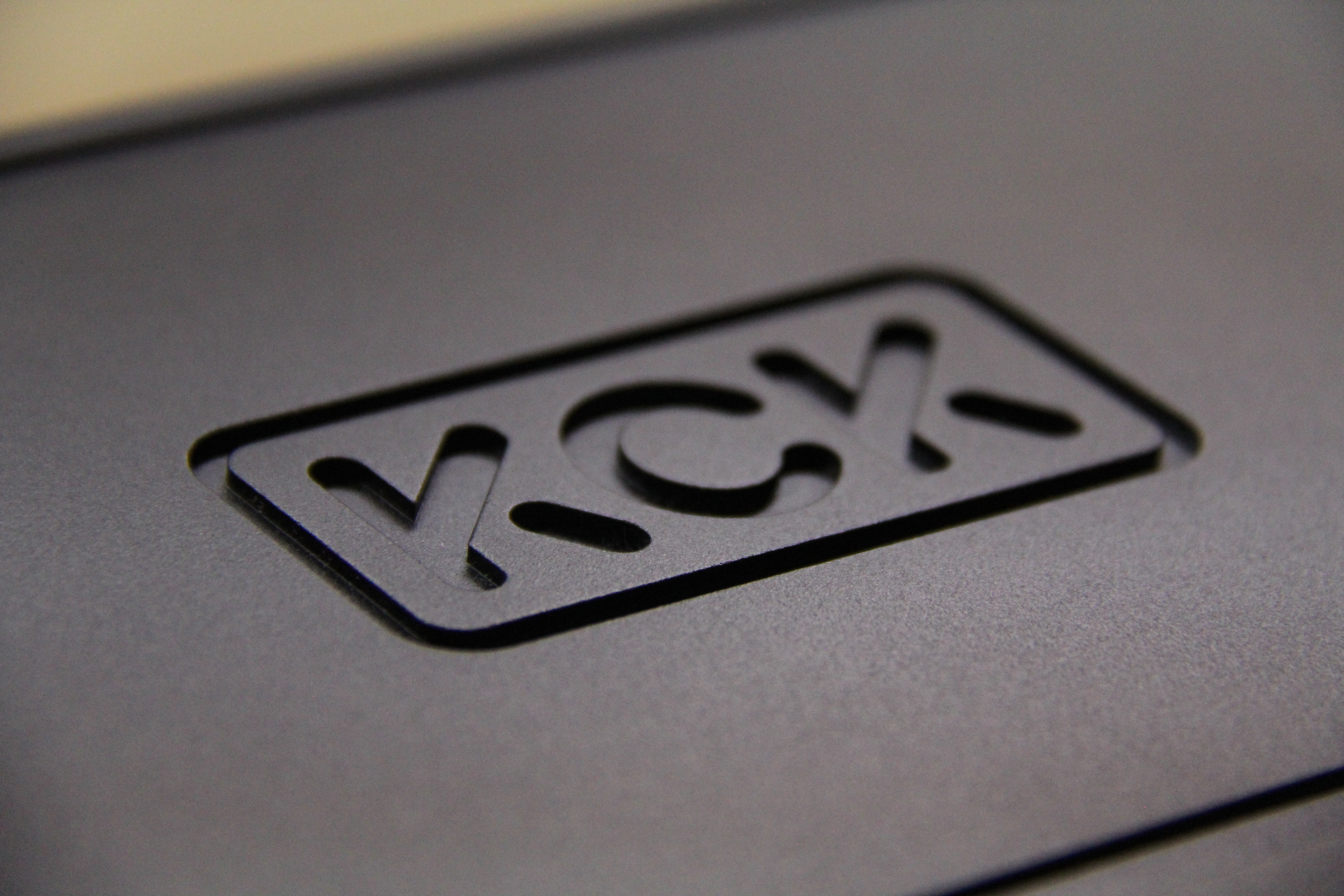

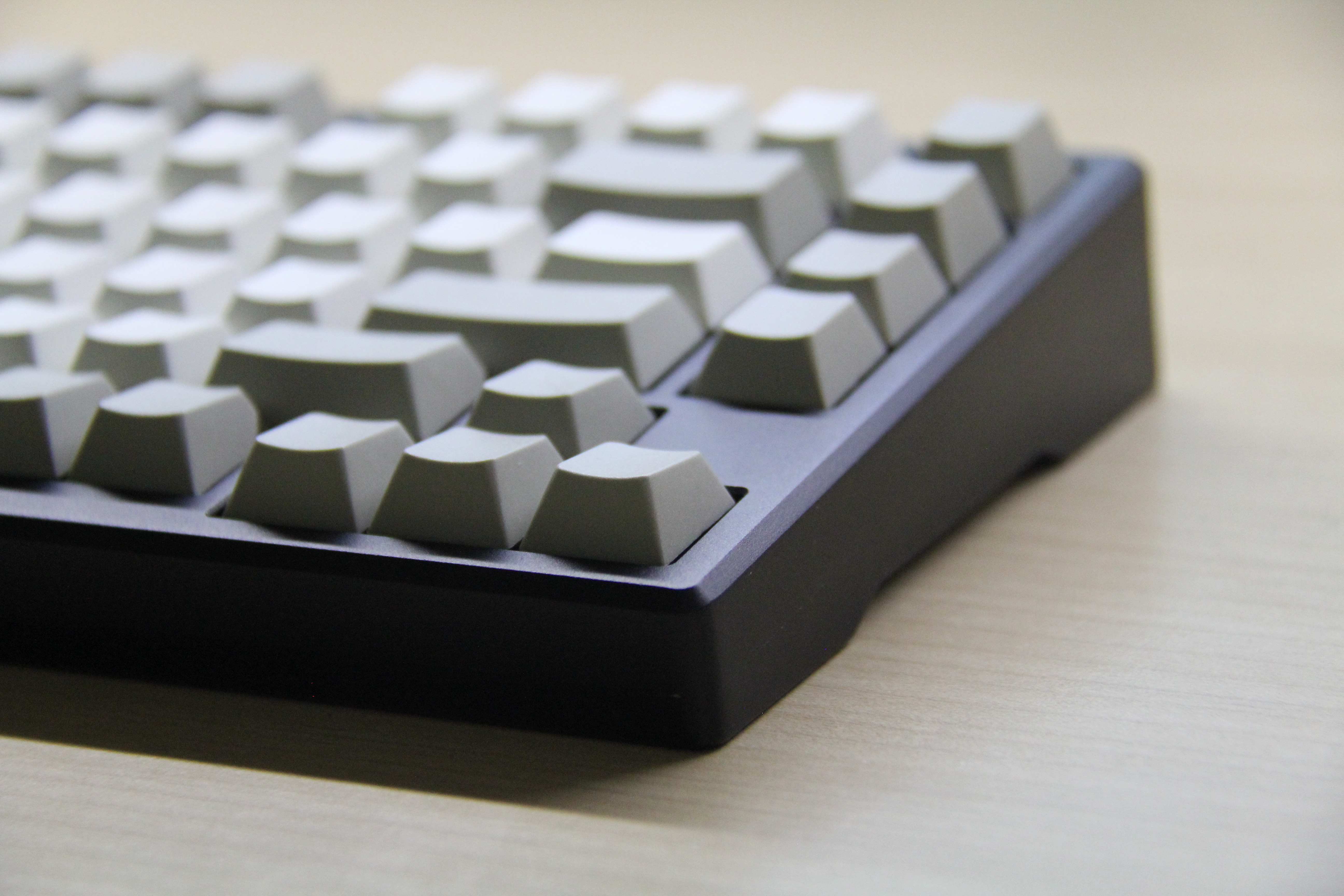

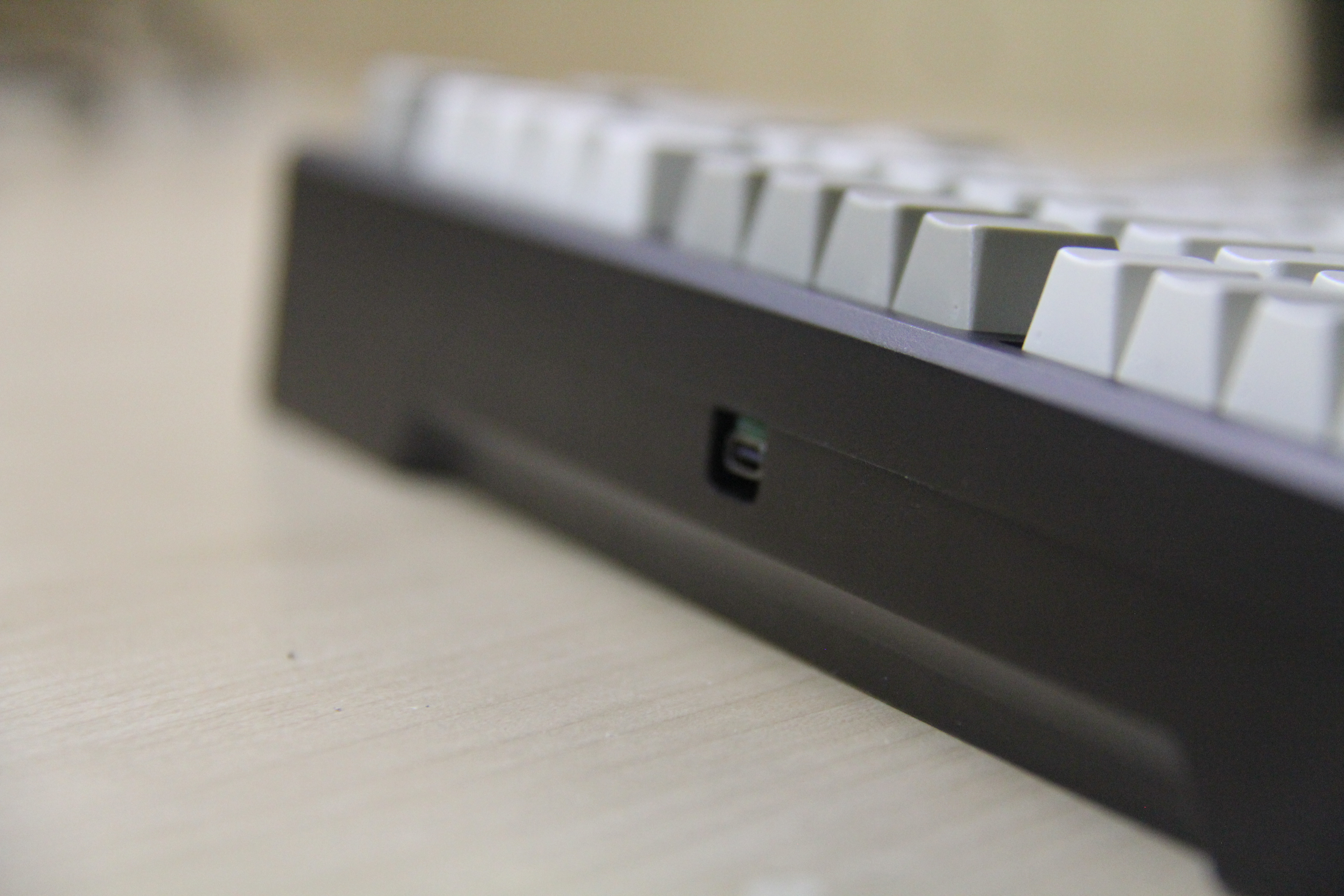

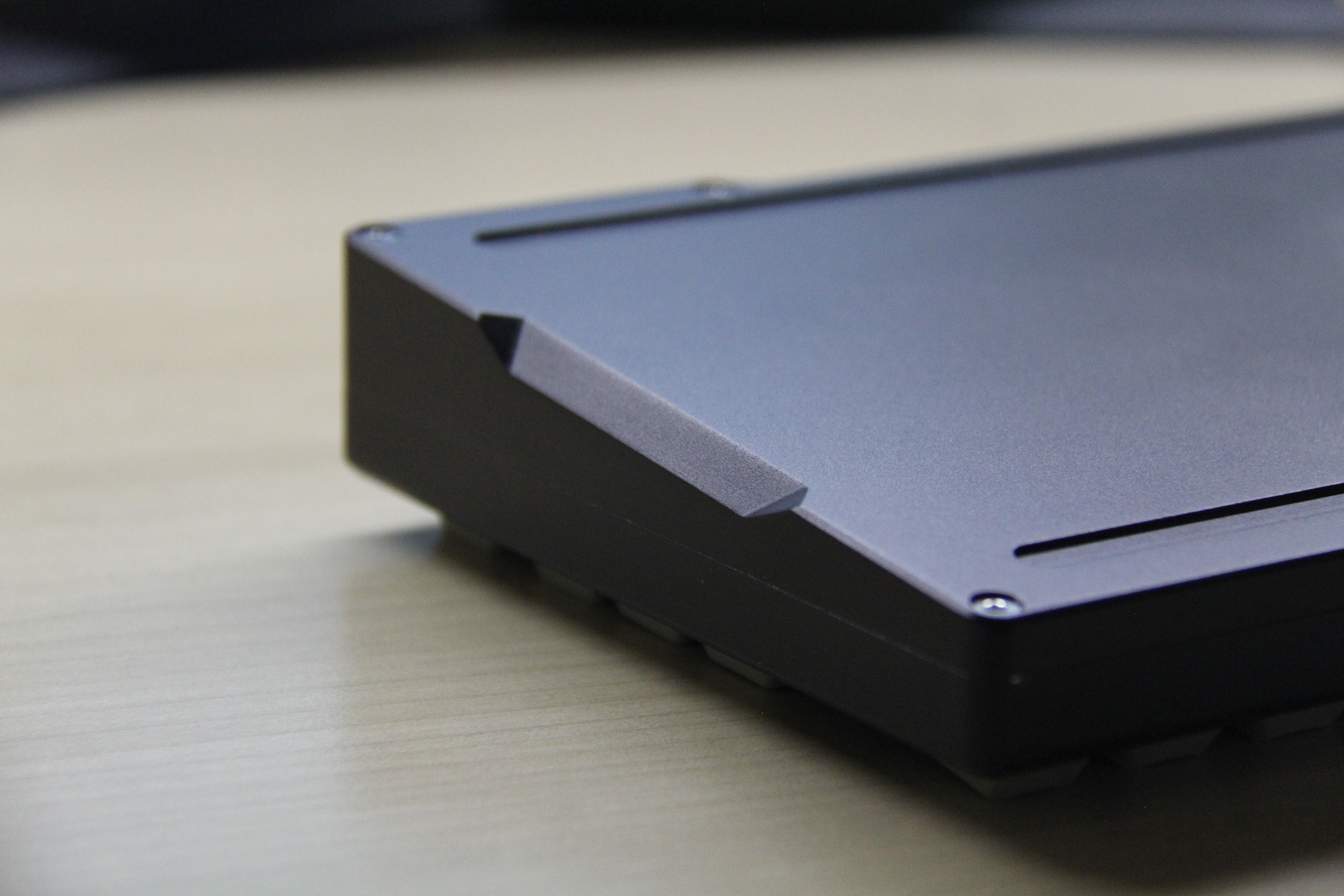

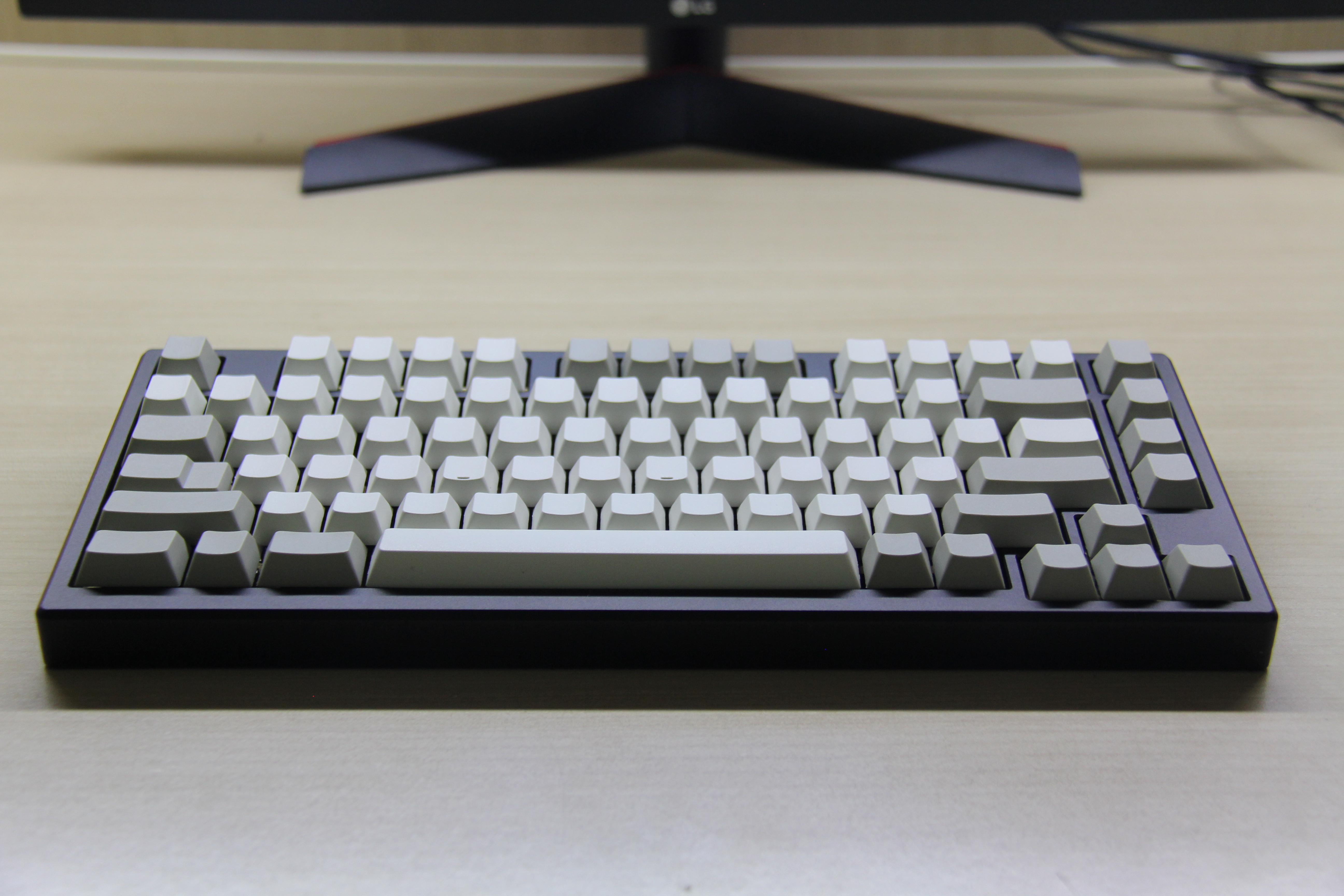

Prototype Pictures:
(The colour of this case looks a lot more black in person)
More

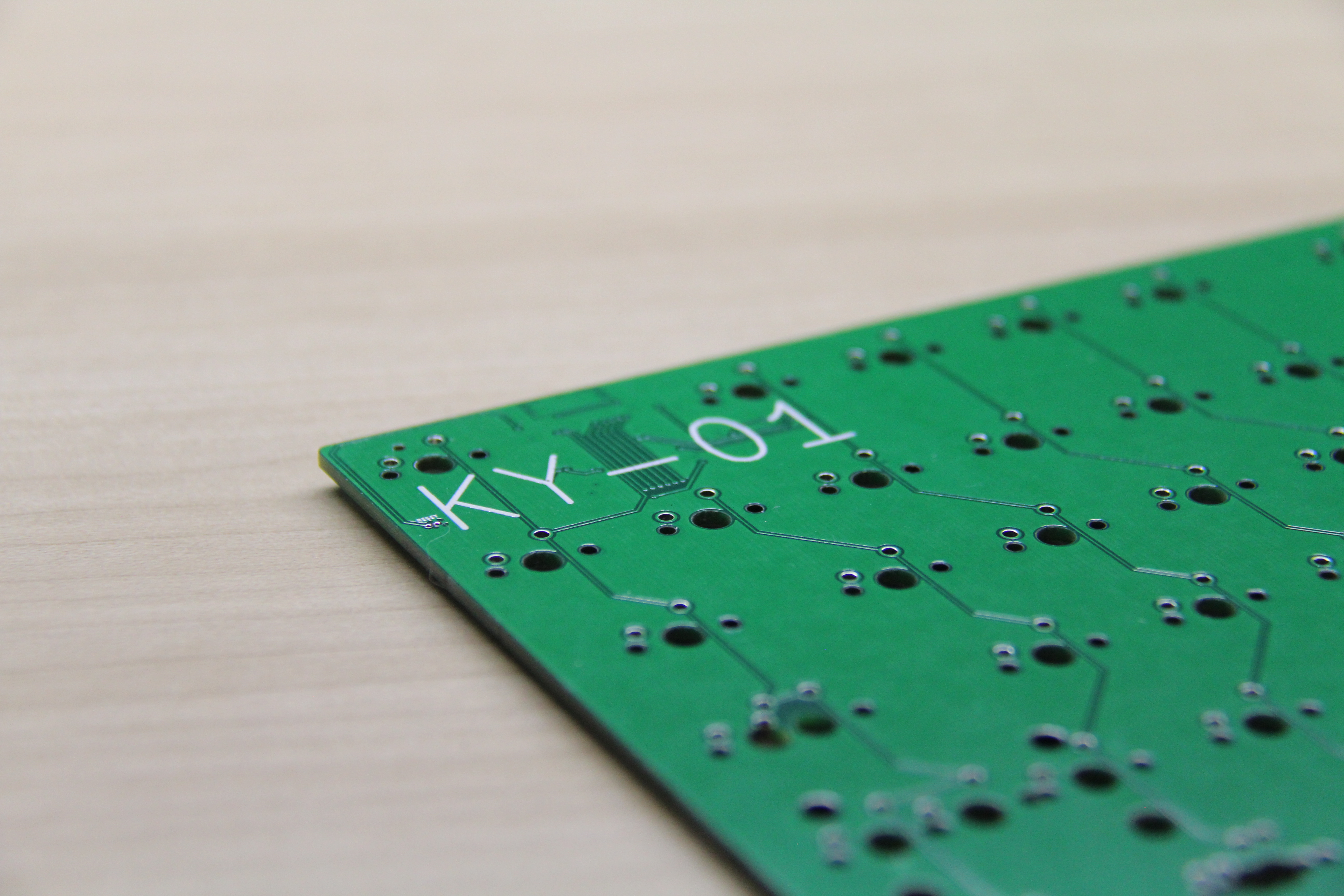

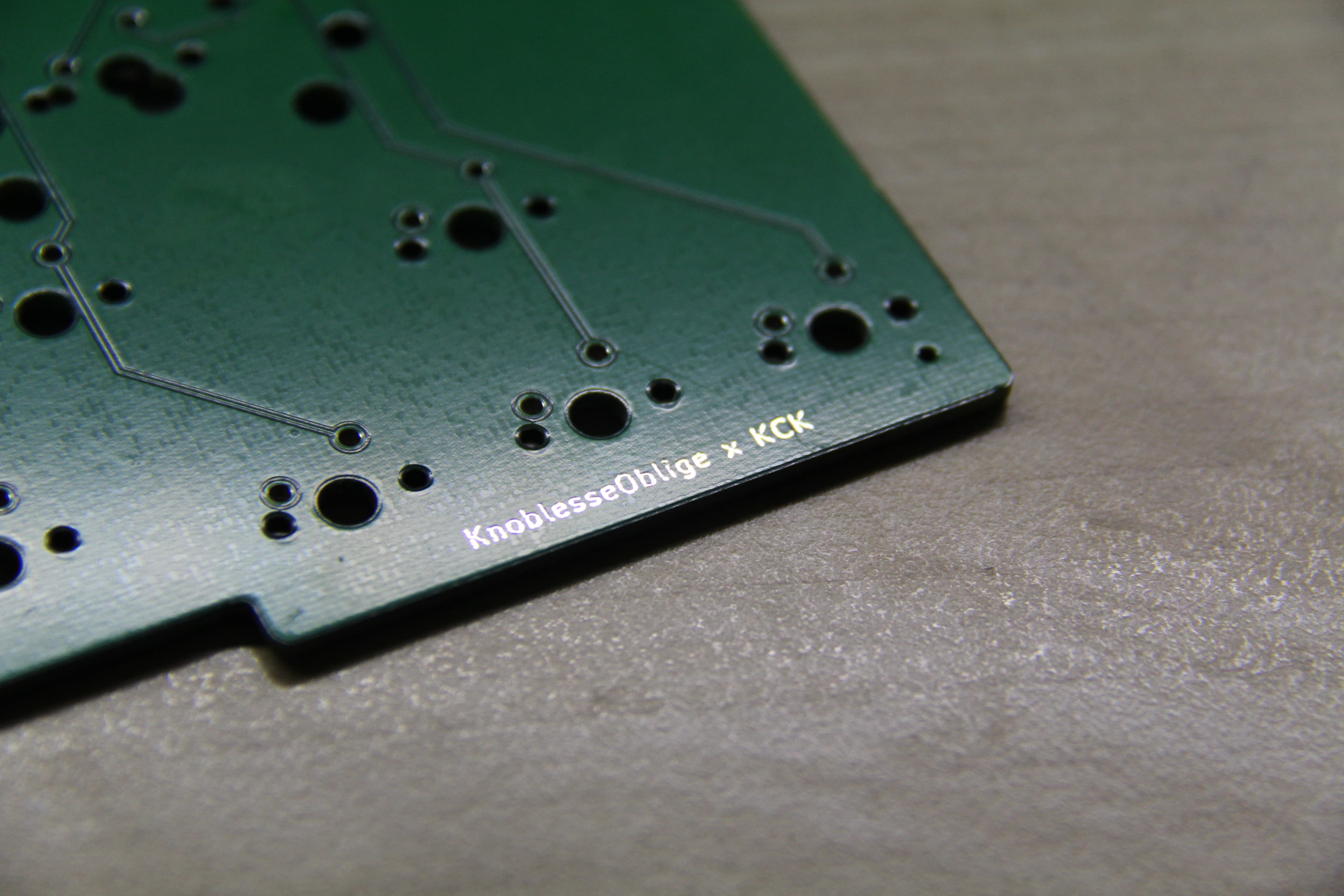

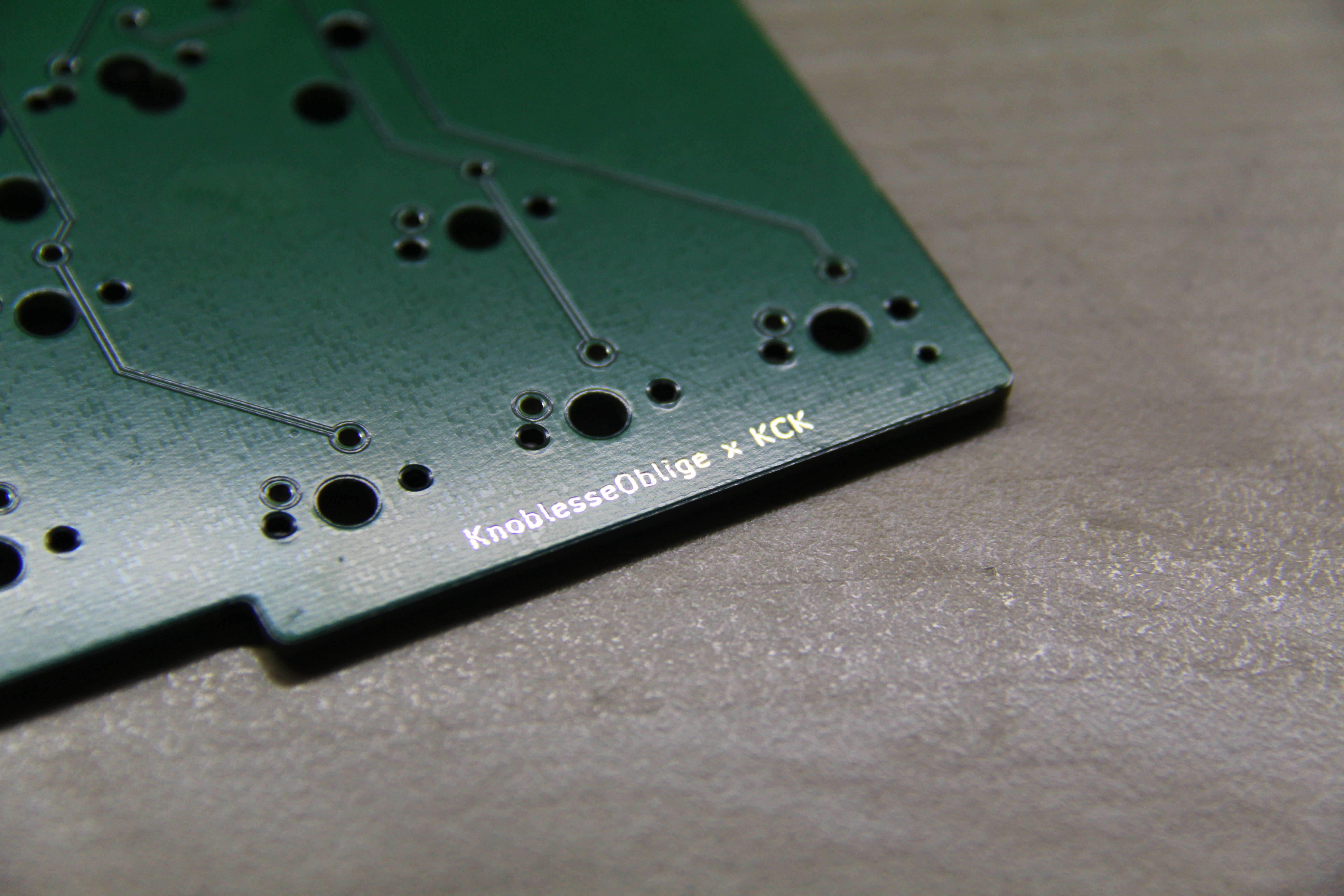

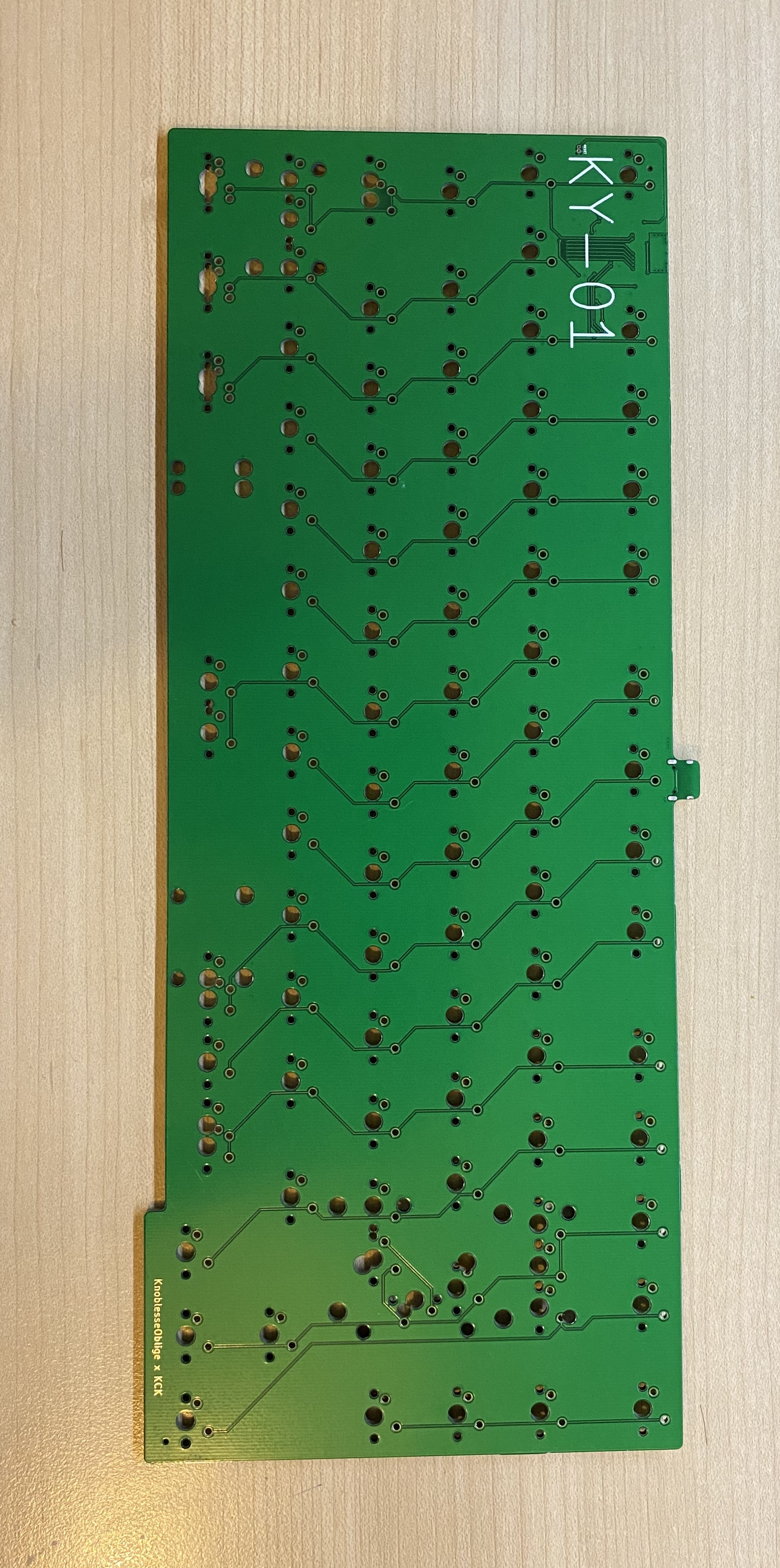

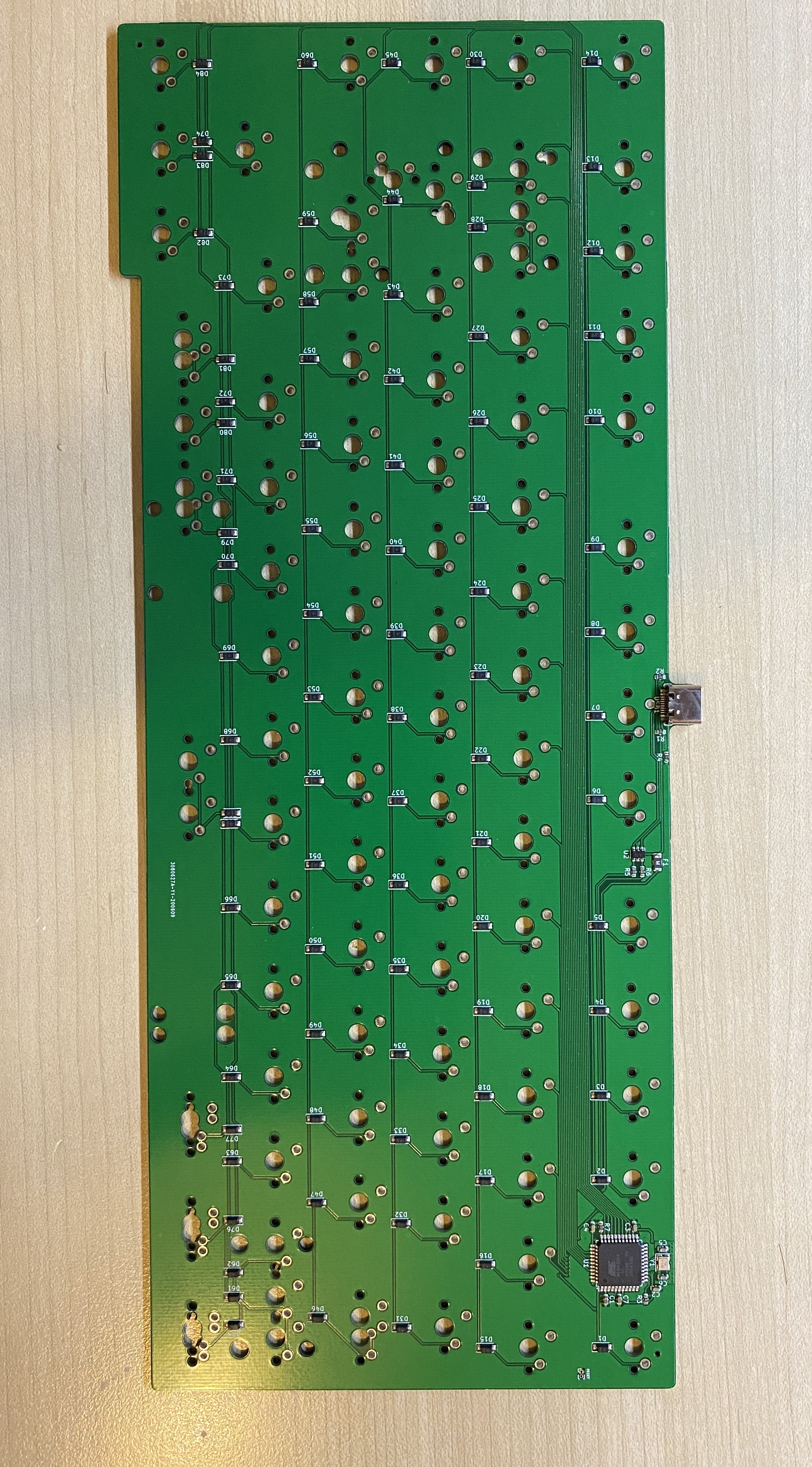

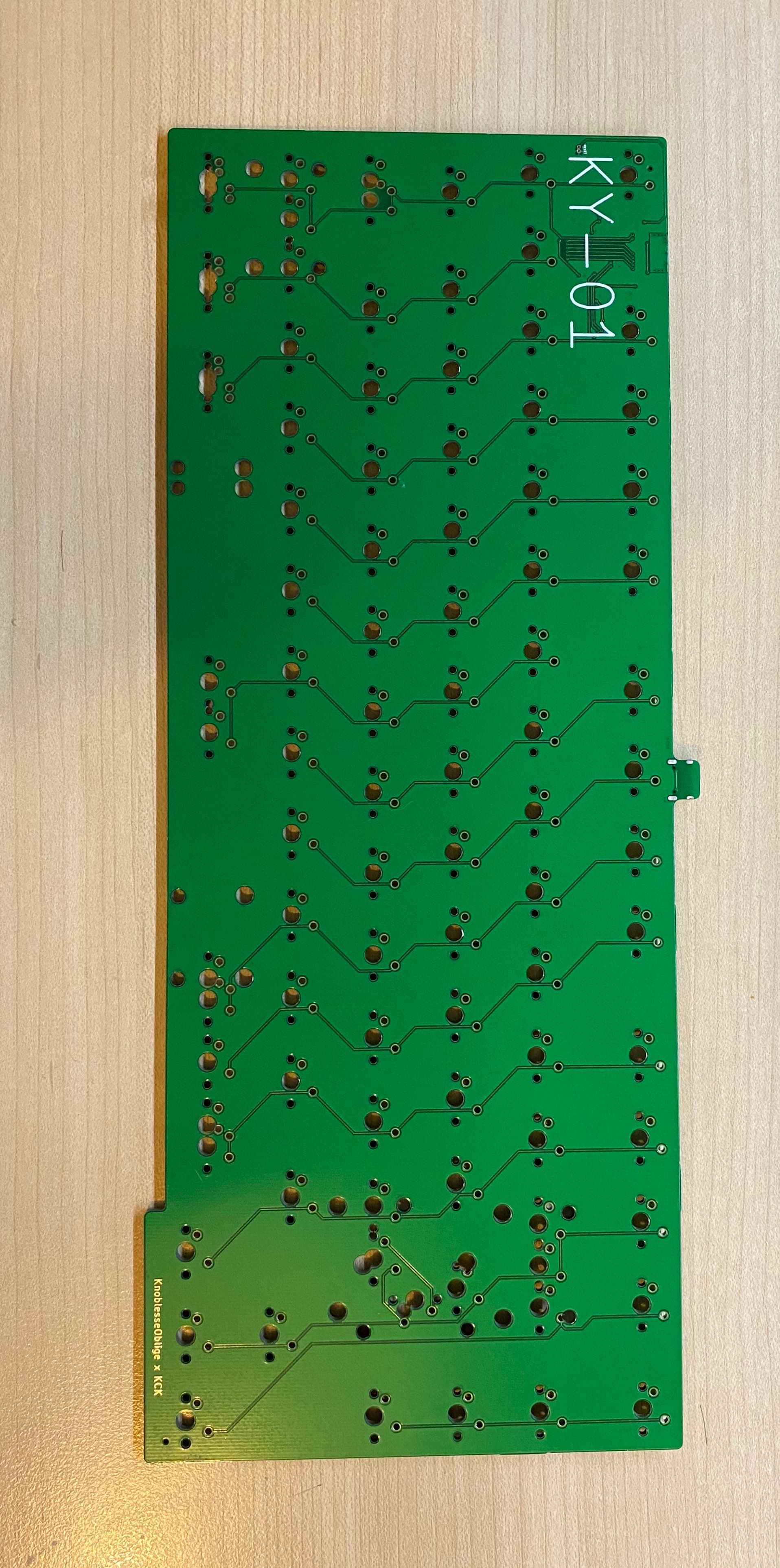

PCB Prototype:
More

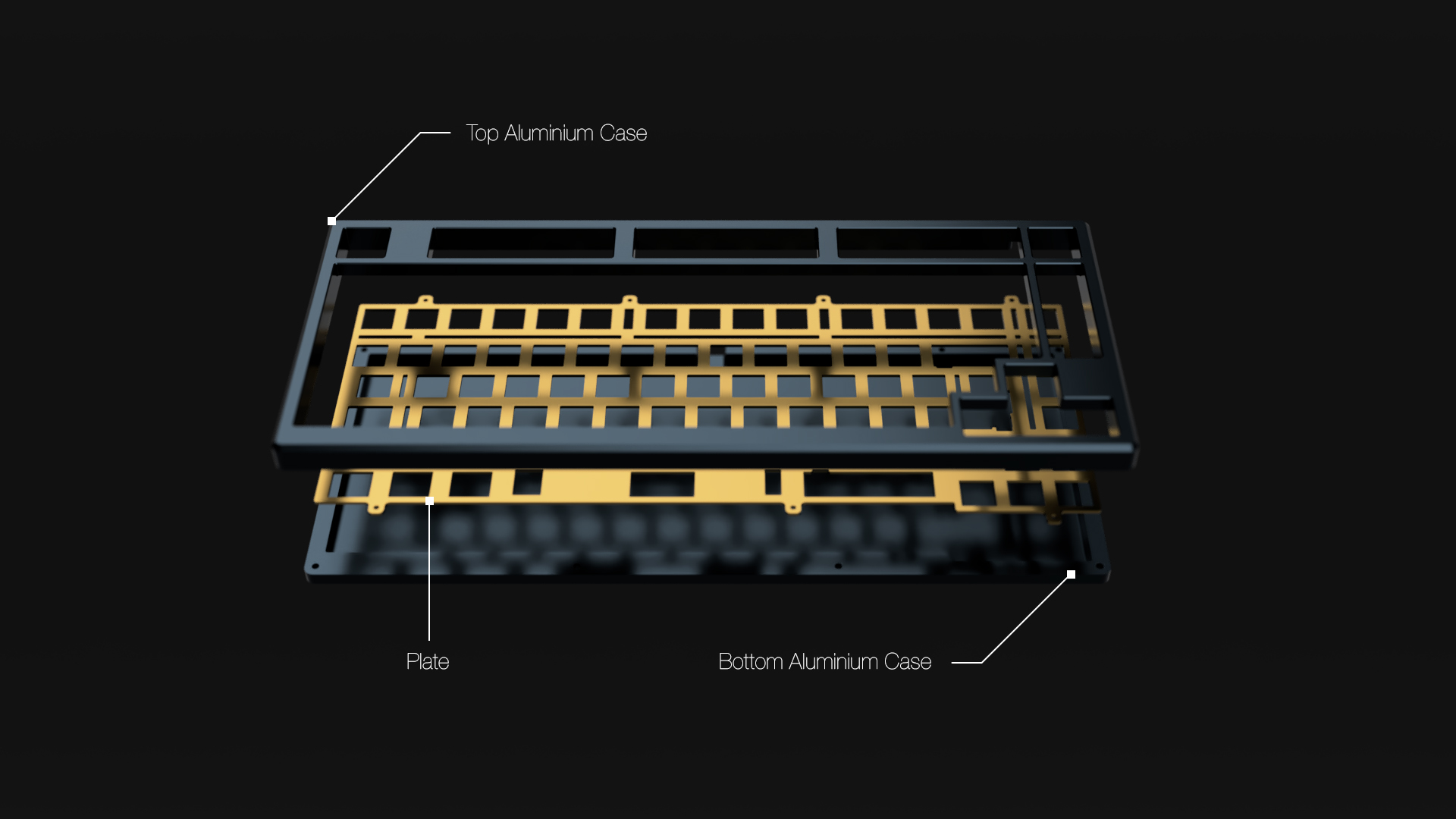

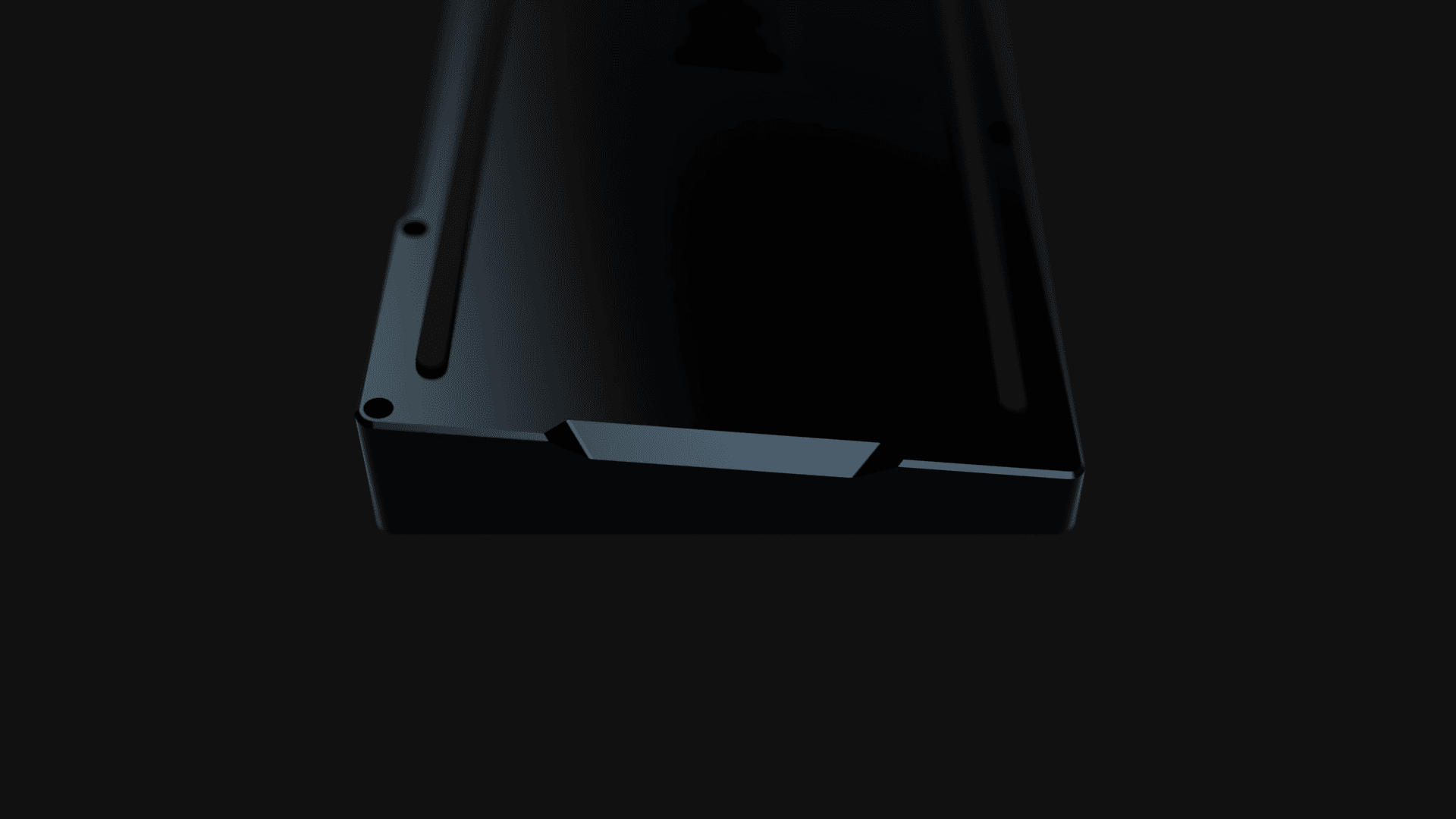

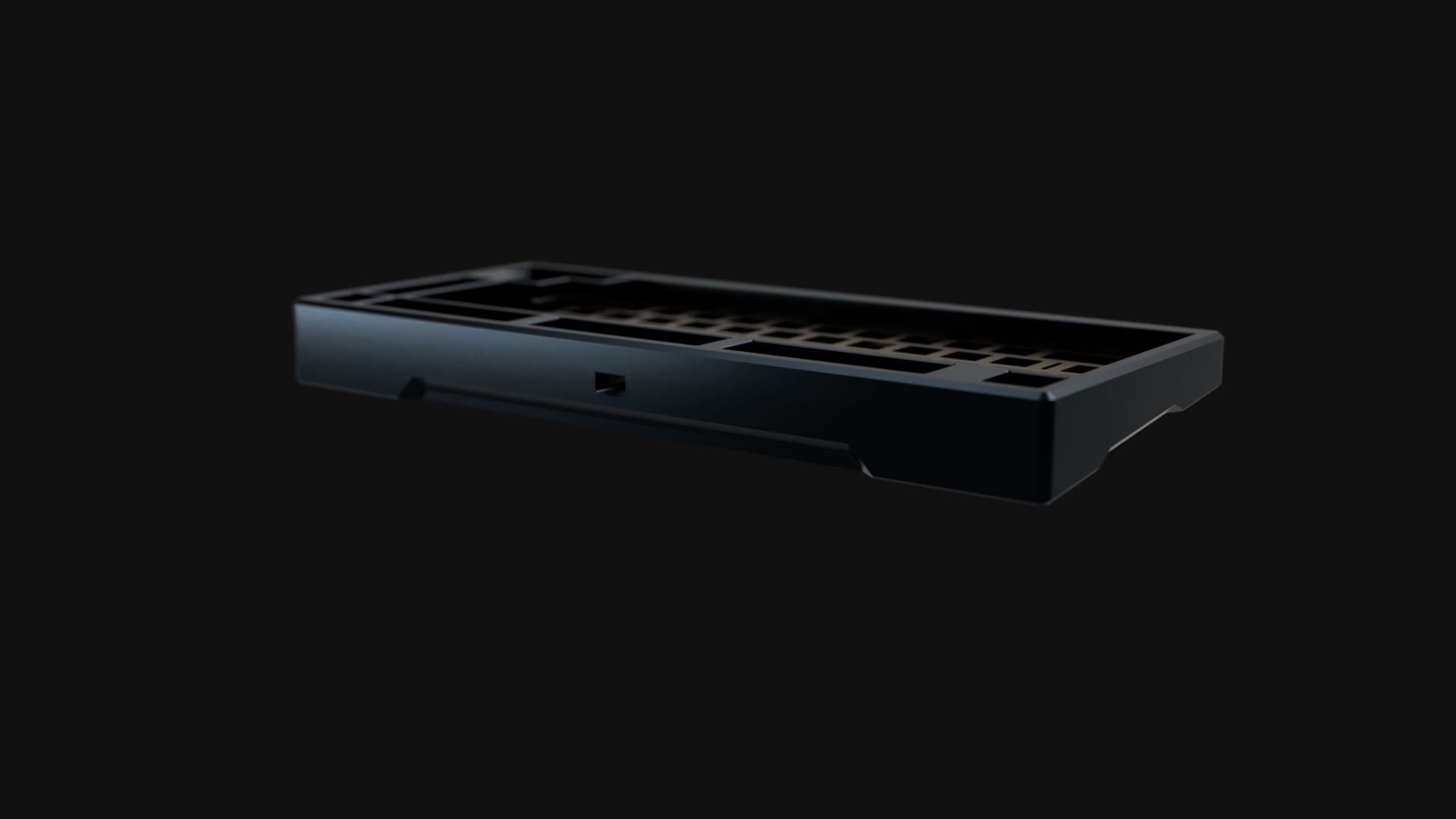

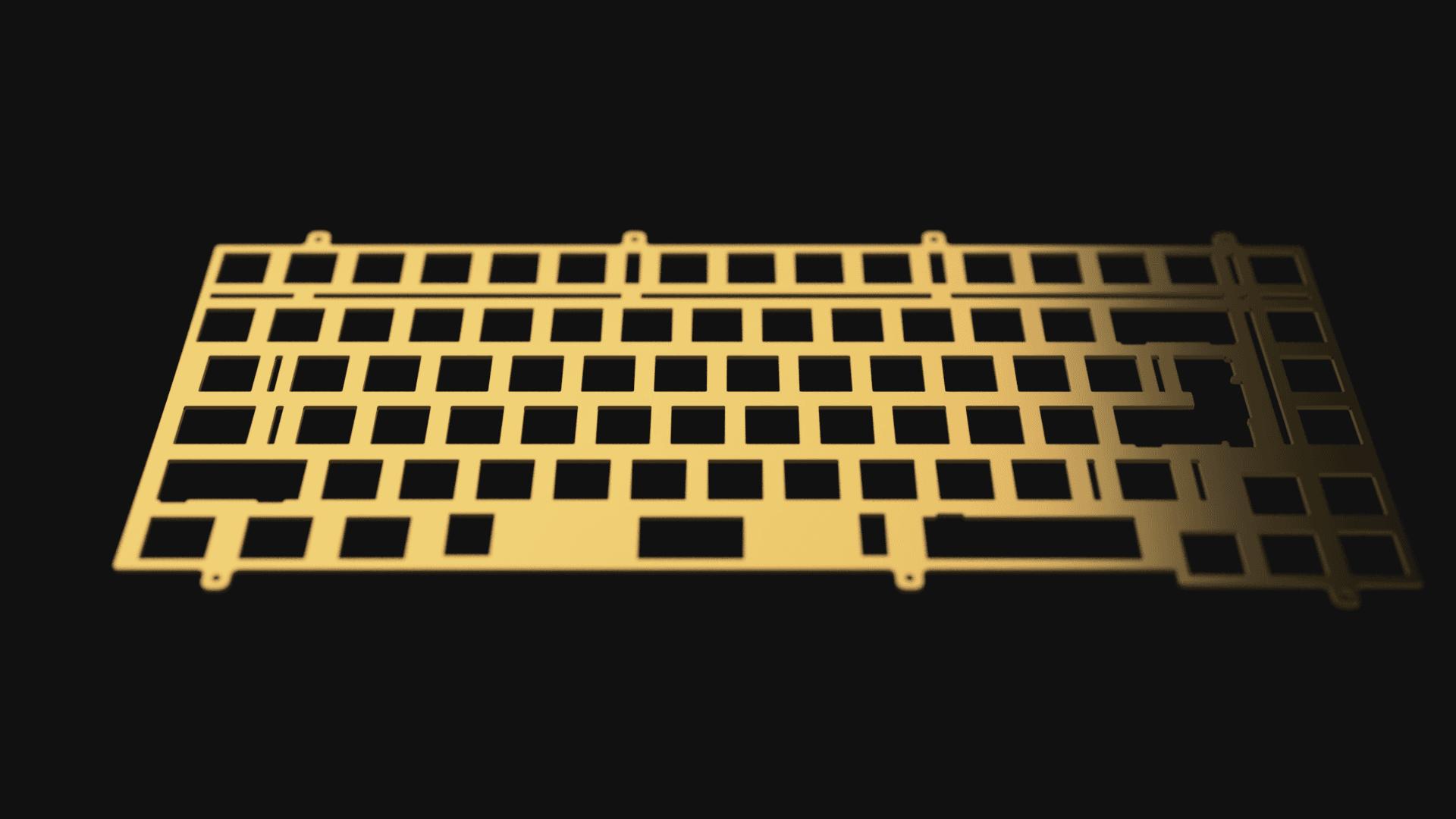

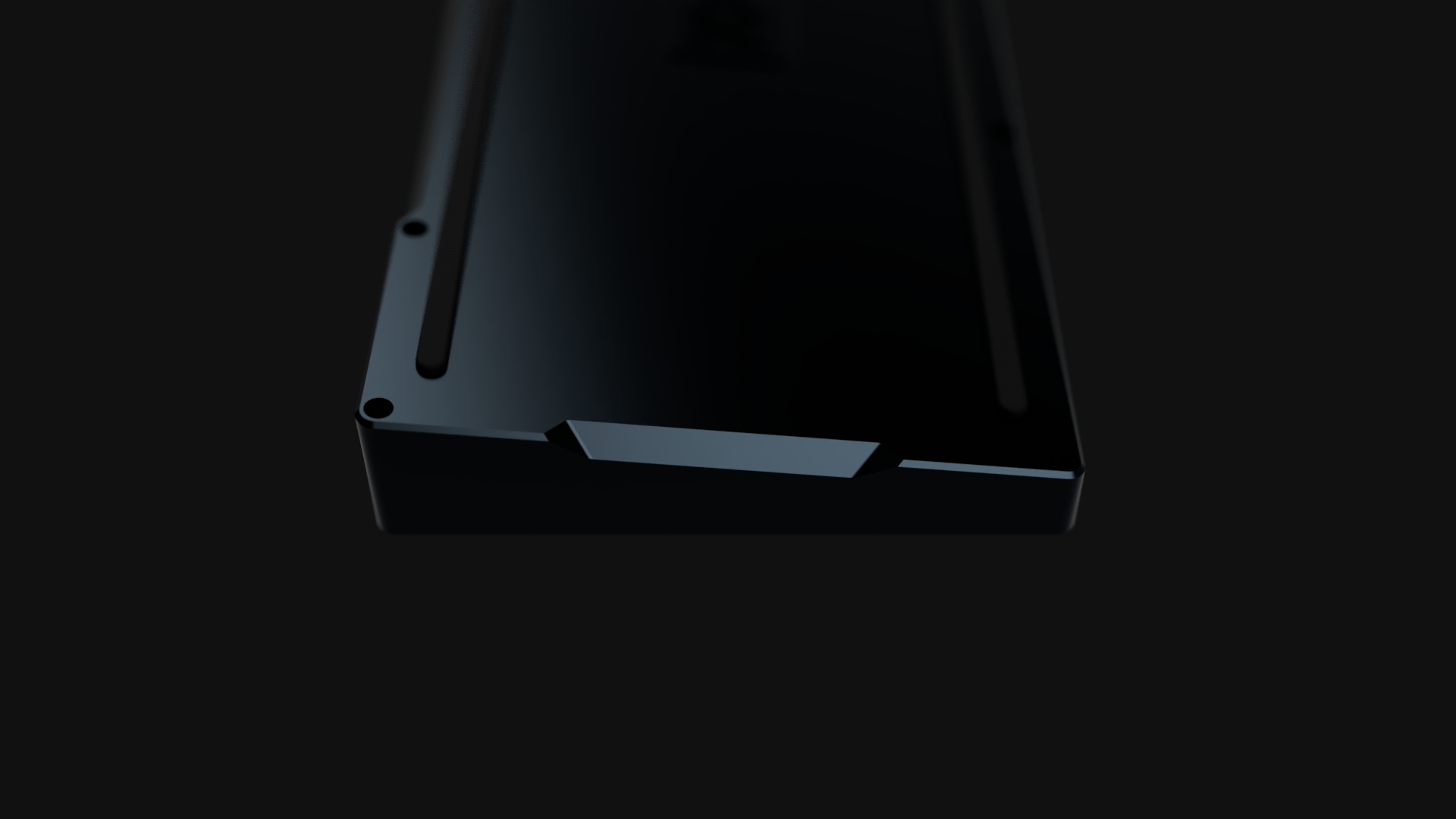

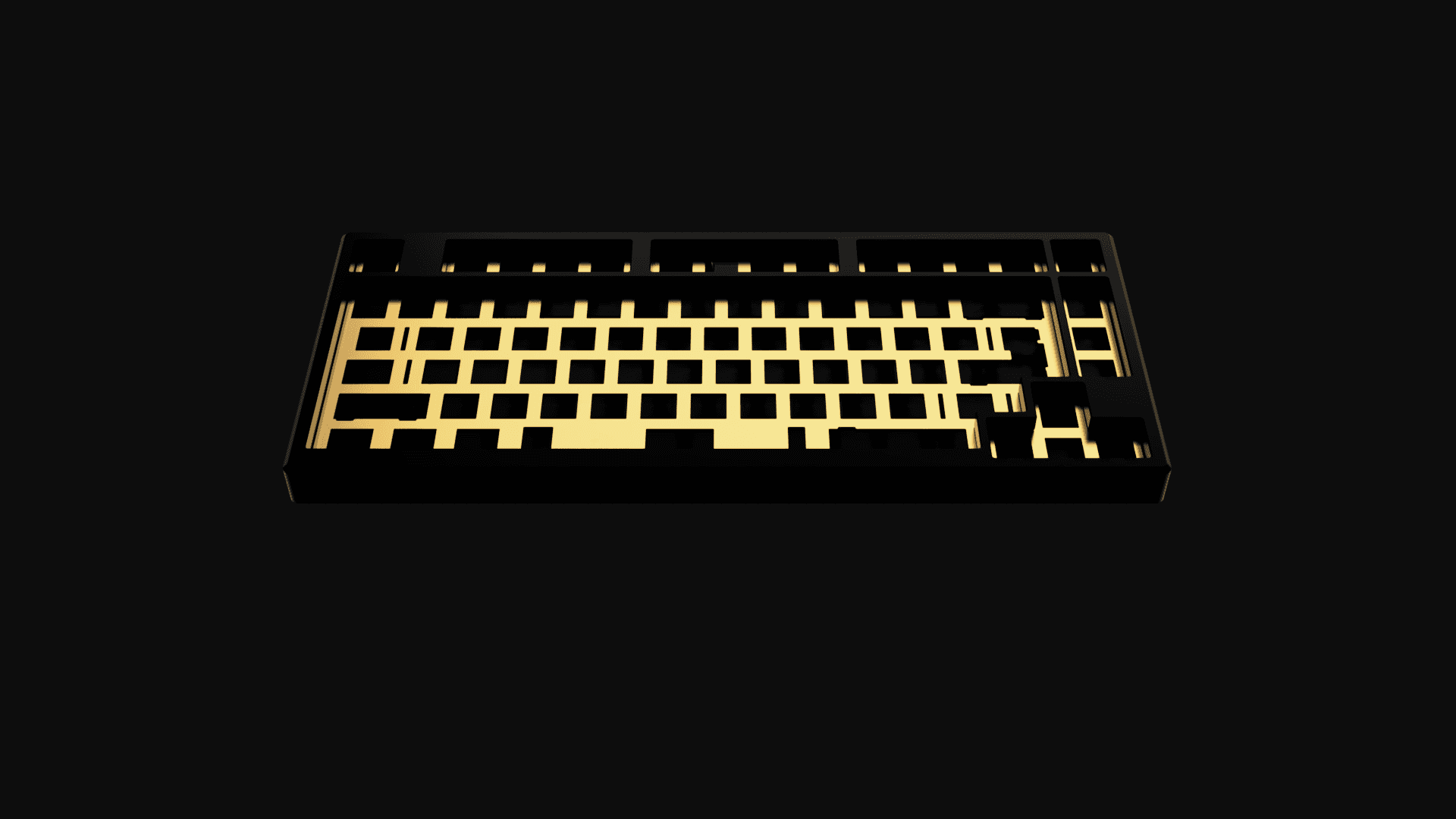

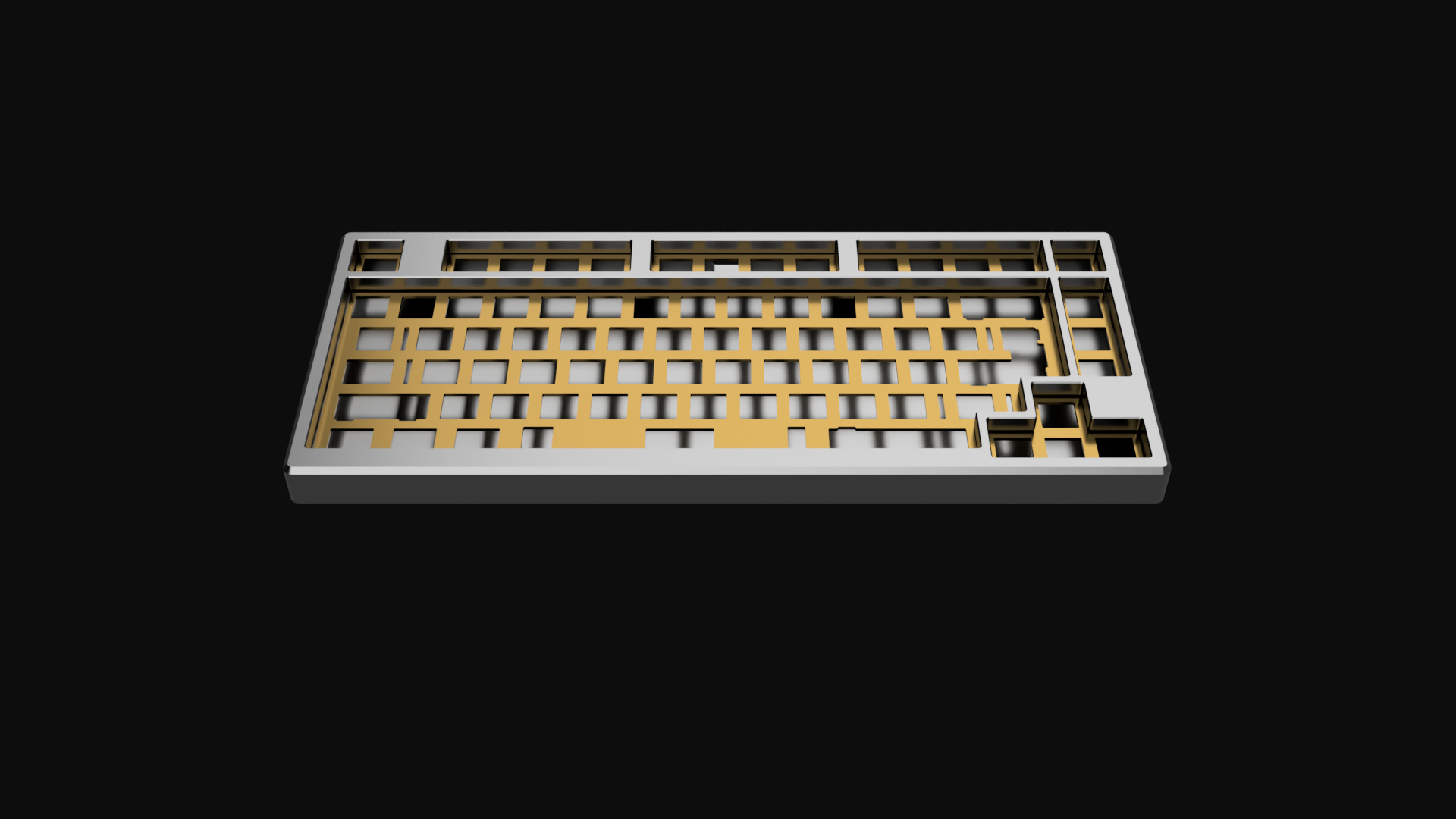

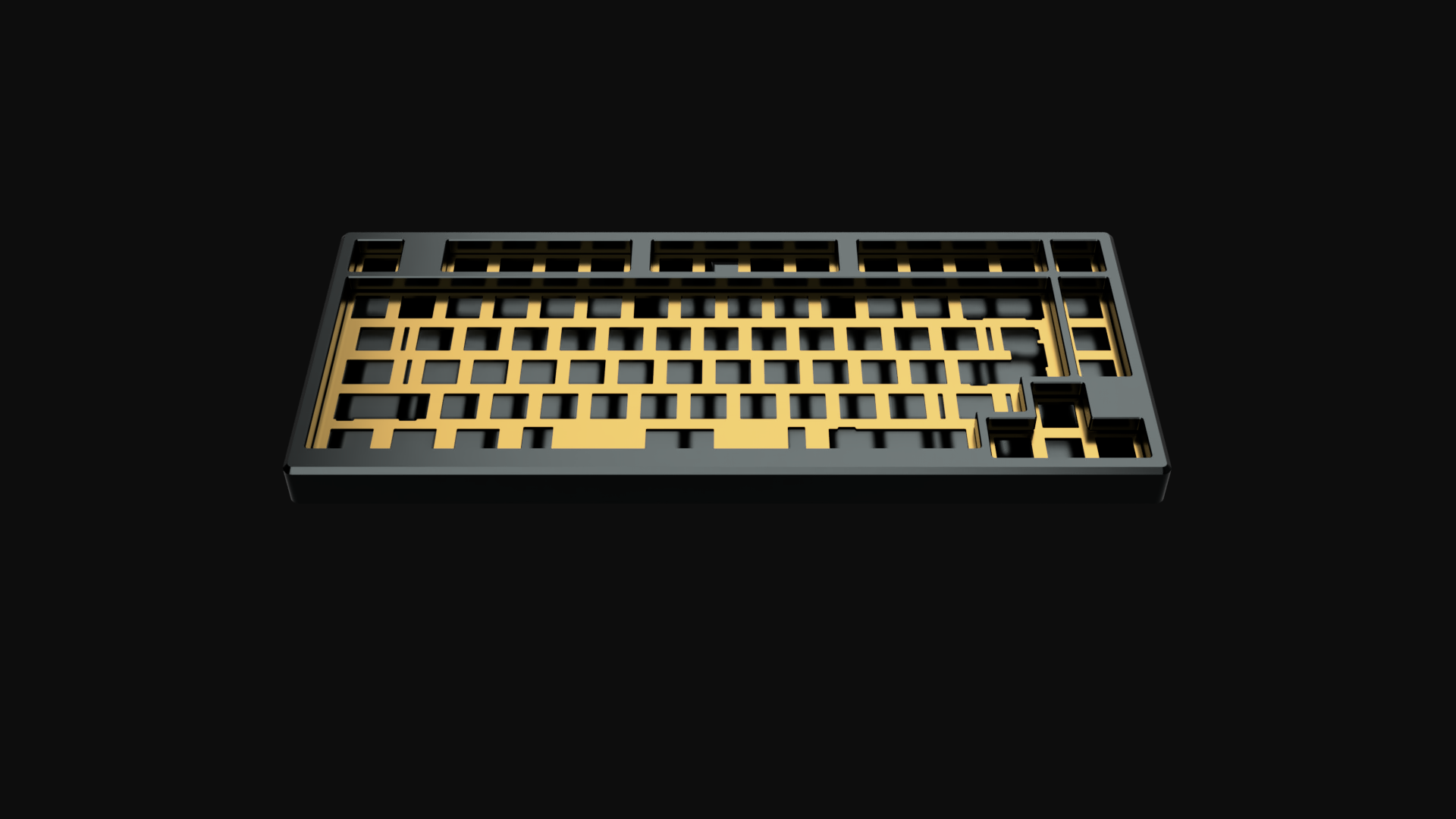

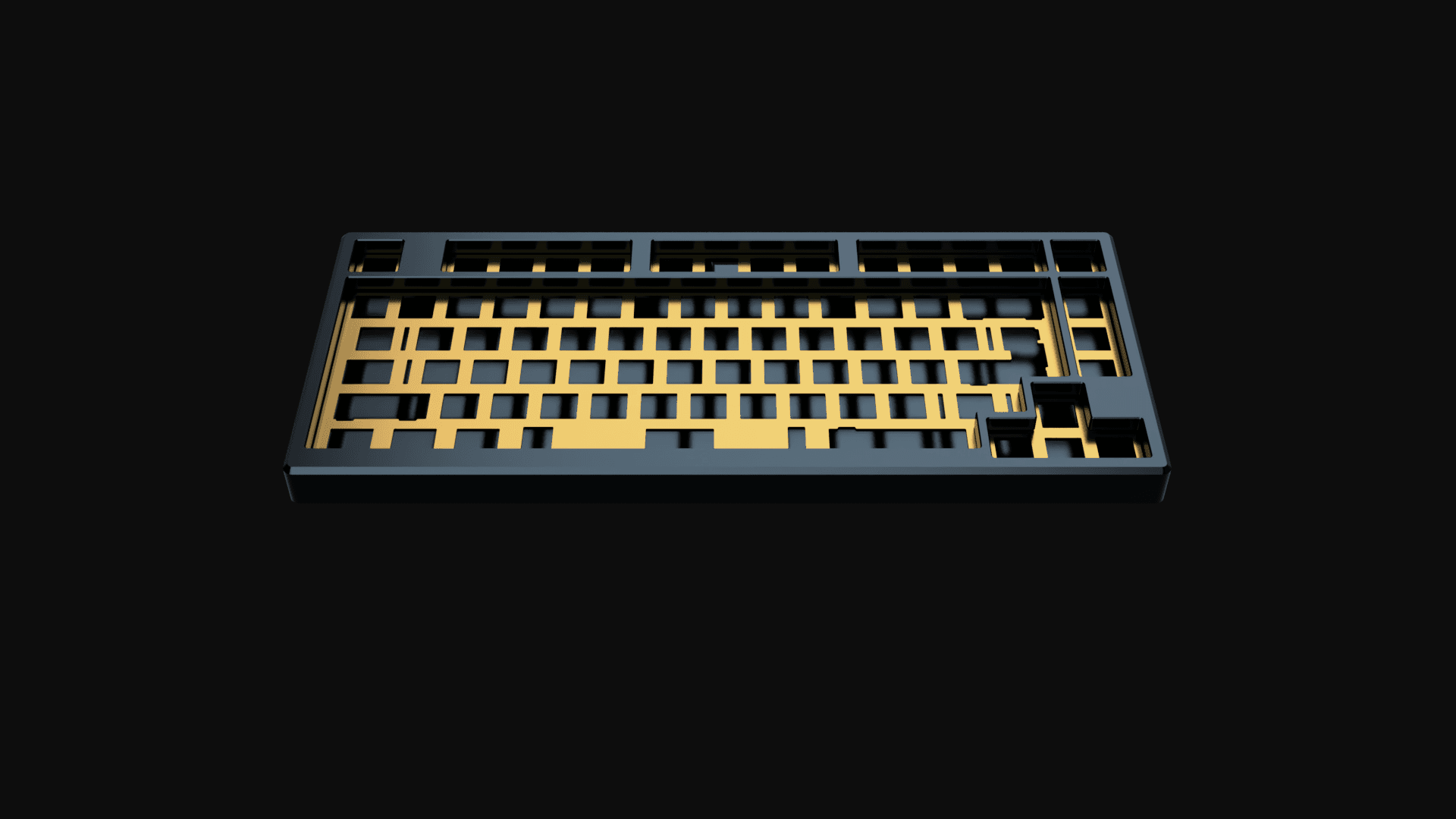

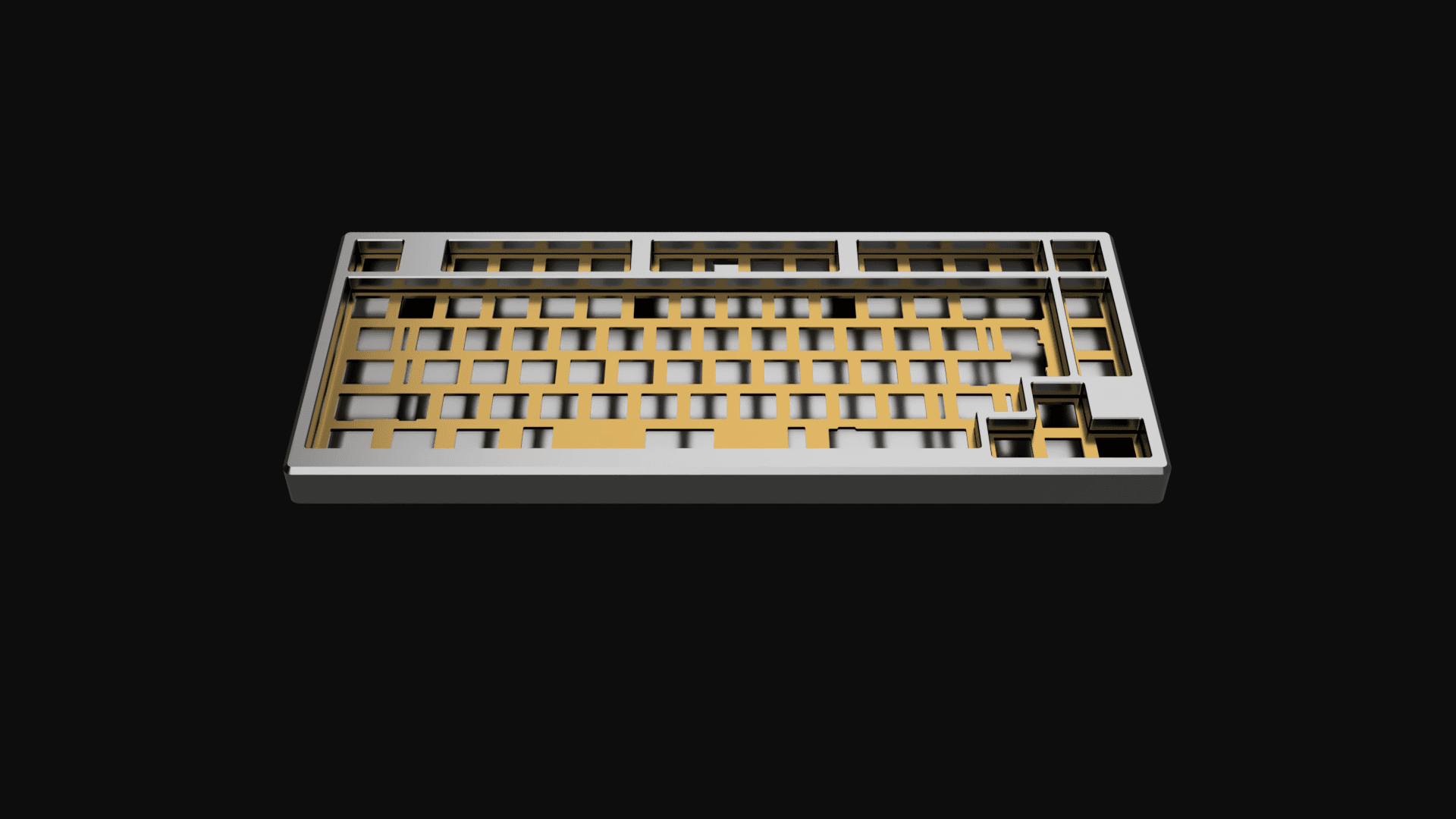

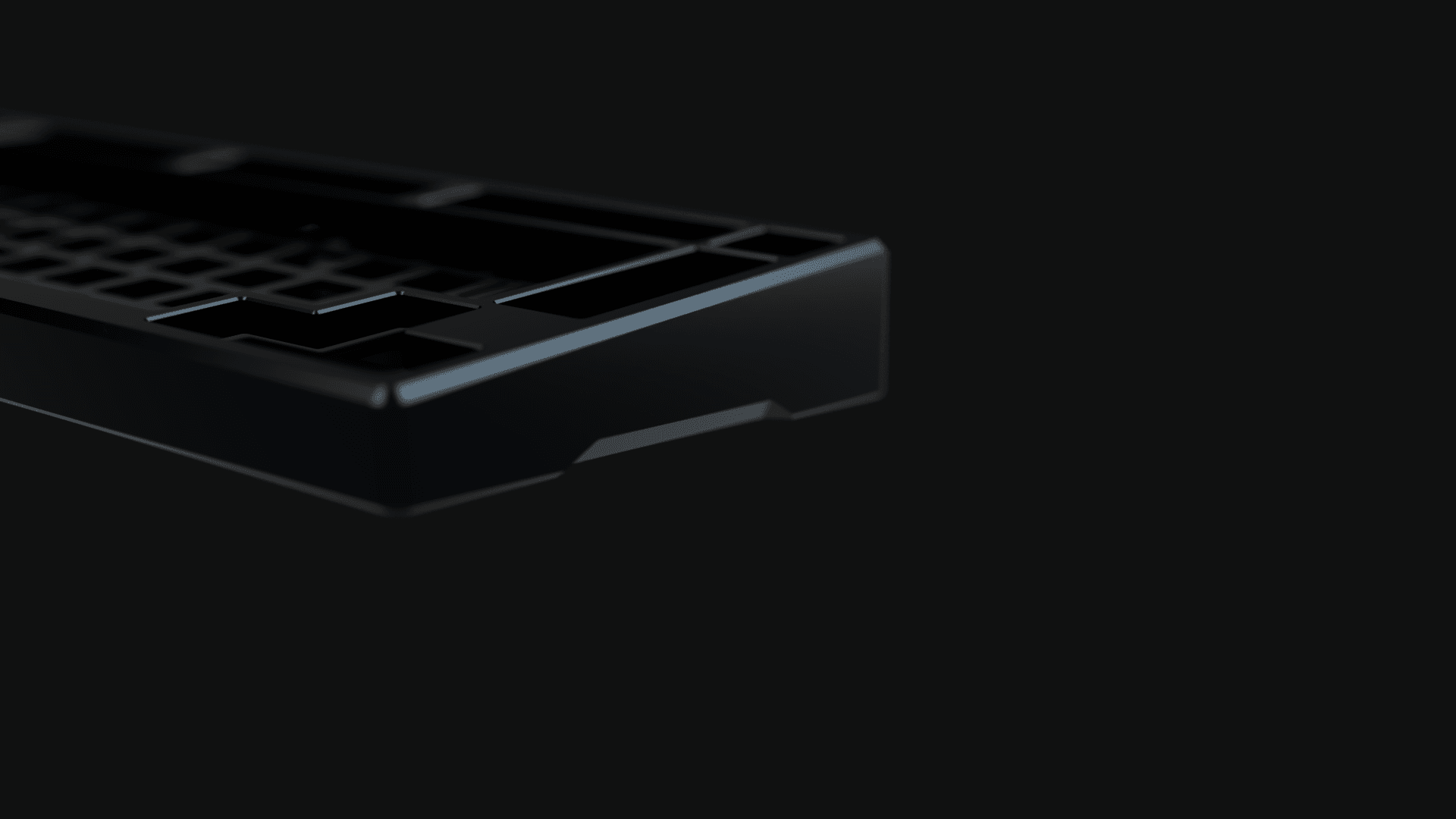

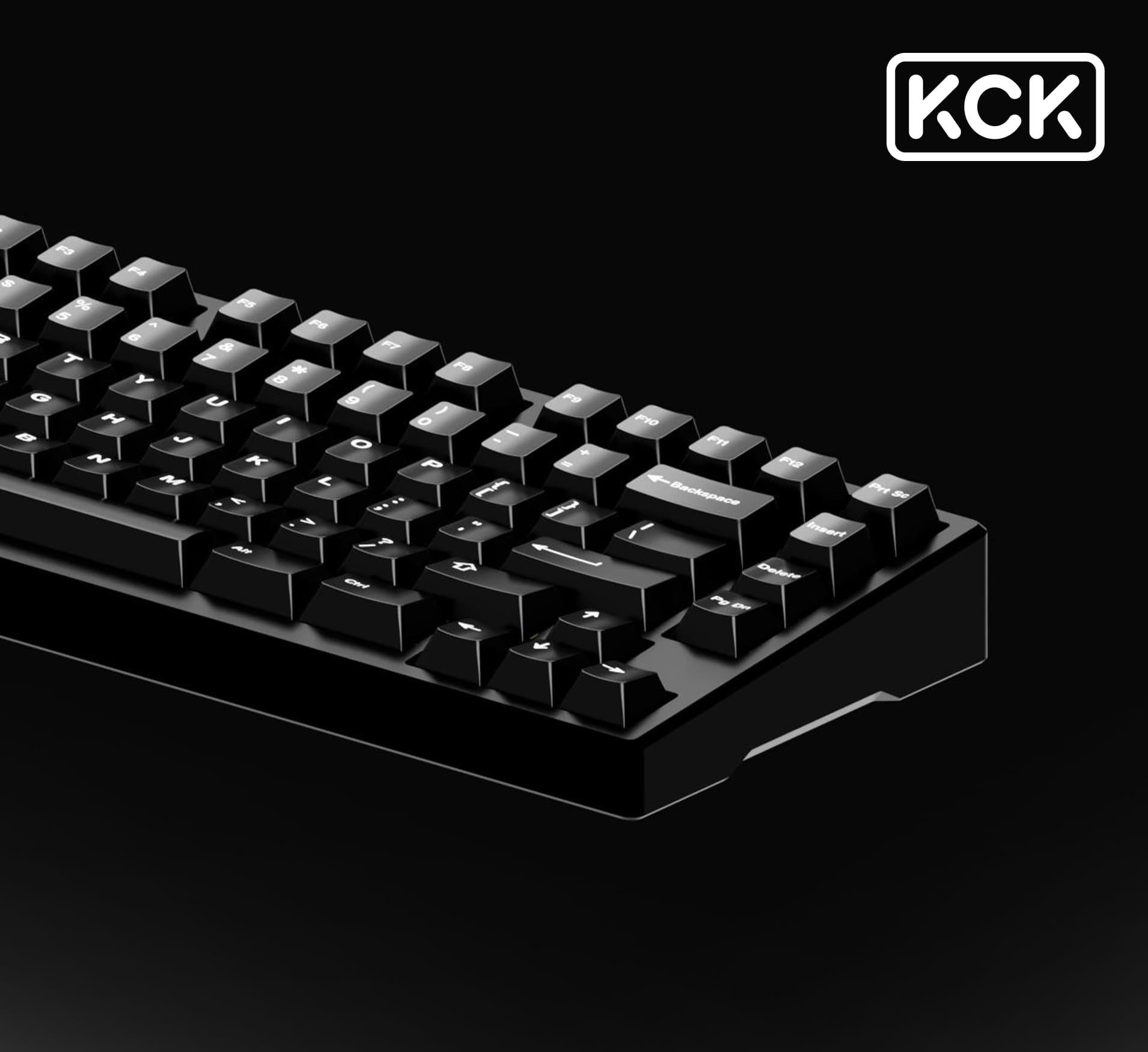

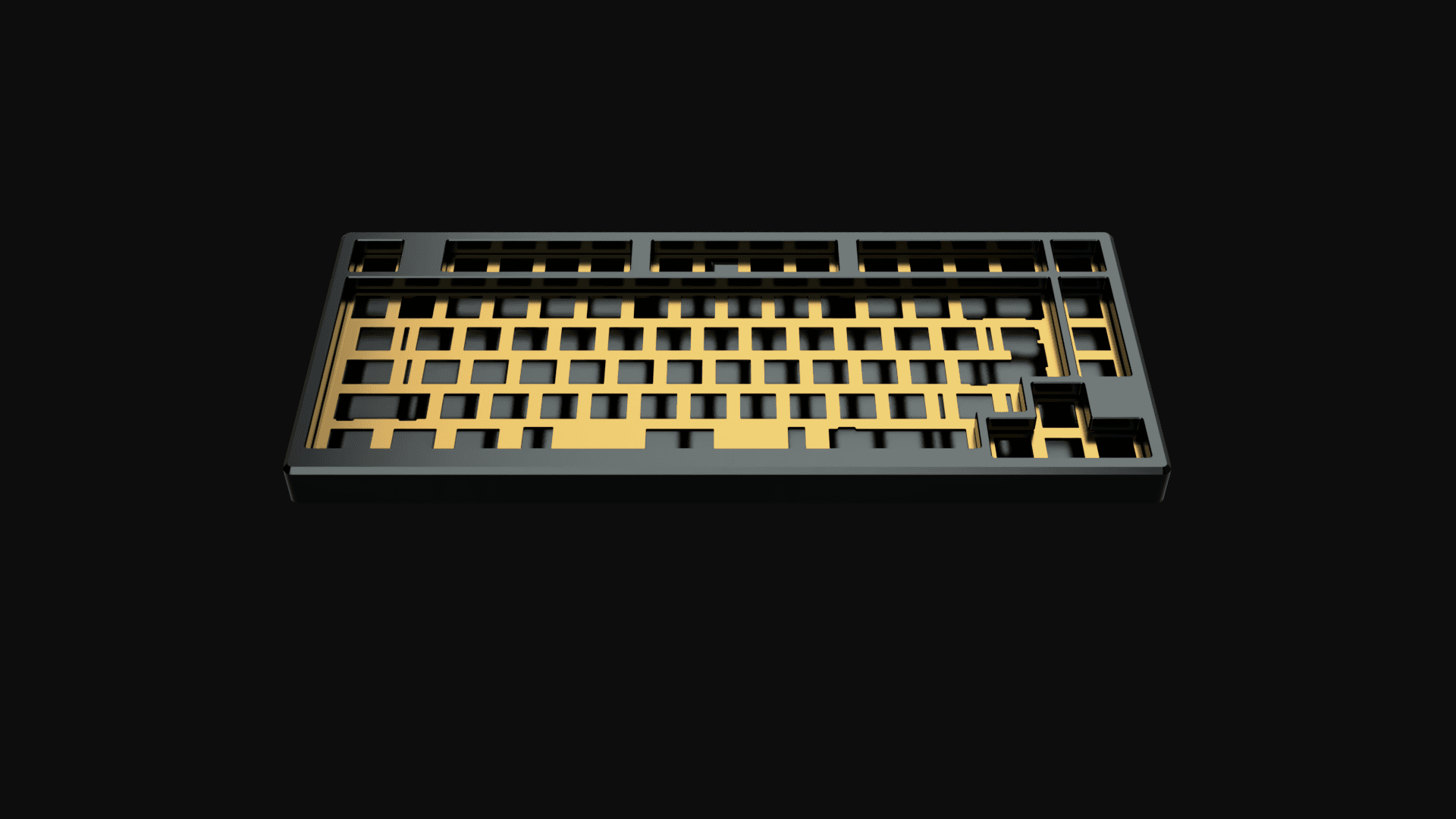

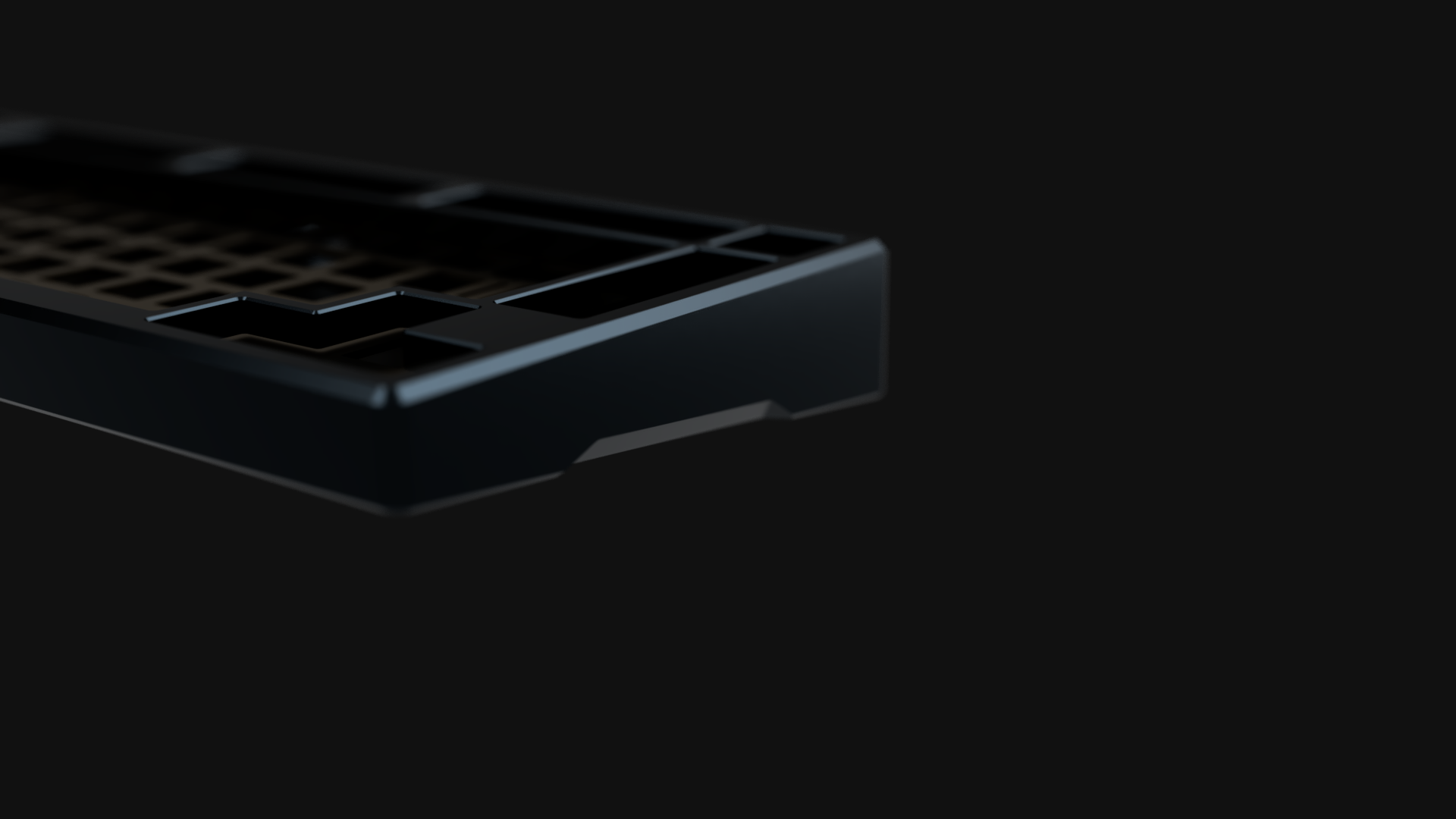

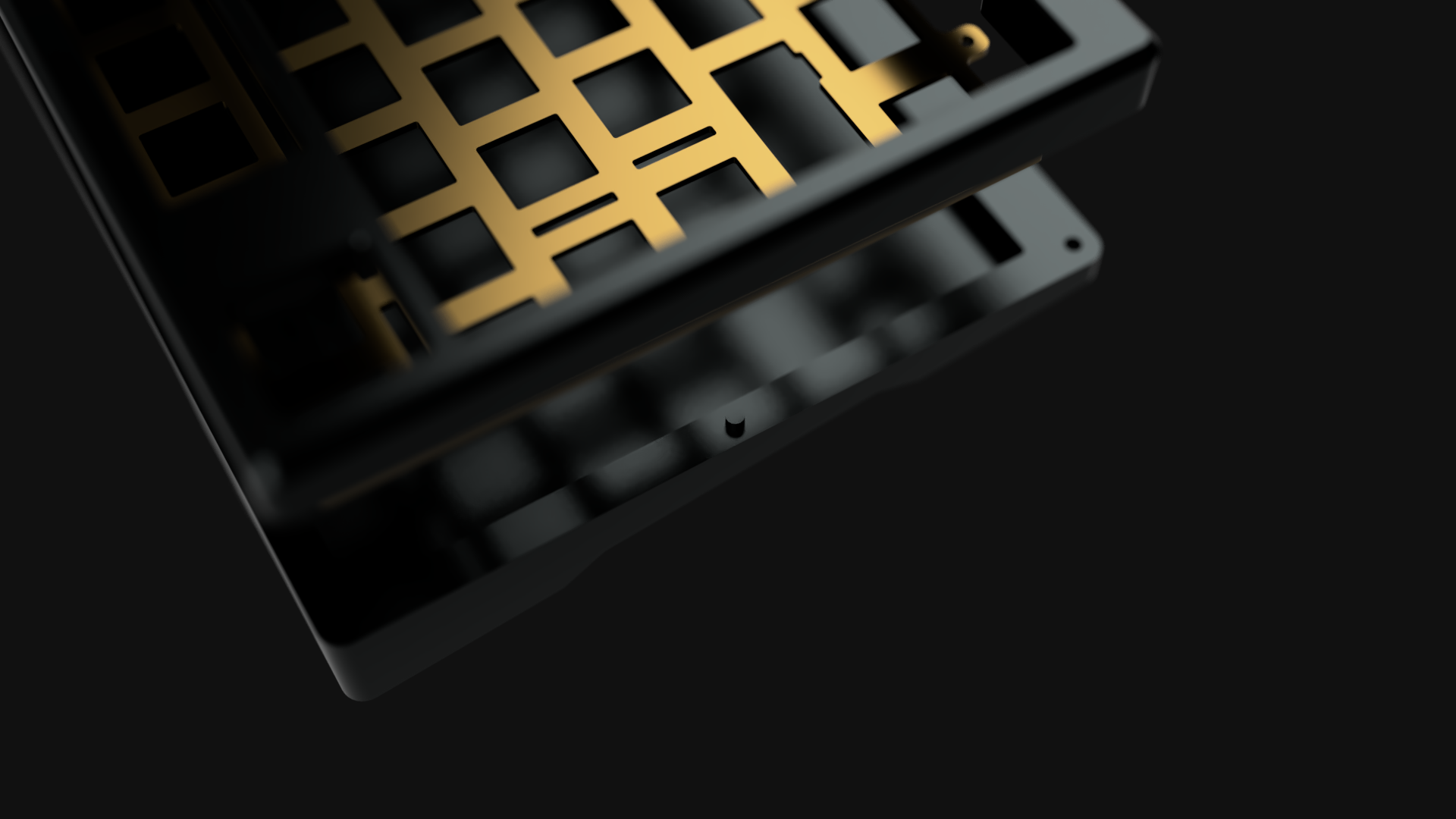

Renders:
Please note that these renders do not represent the colours accurately. Please refer back to the colour sample pictures.
Quick Assembly & Sound Test Video:
Please note that this is the prototype version.

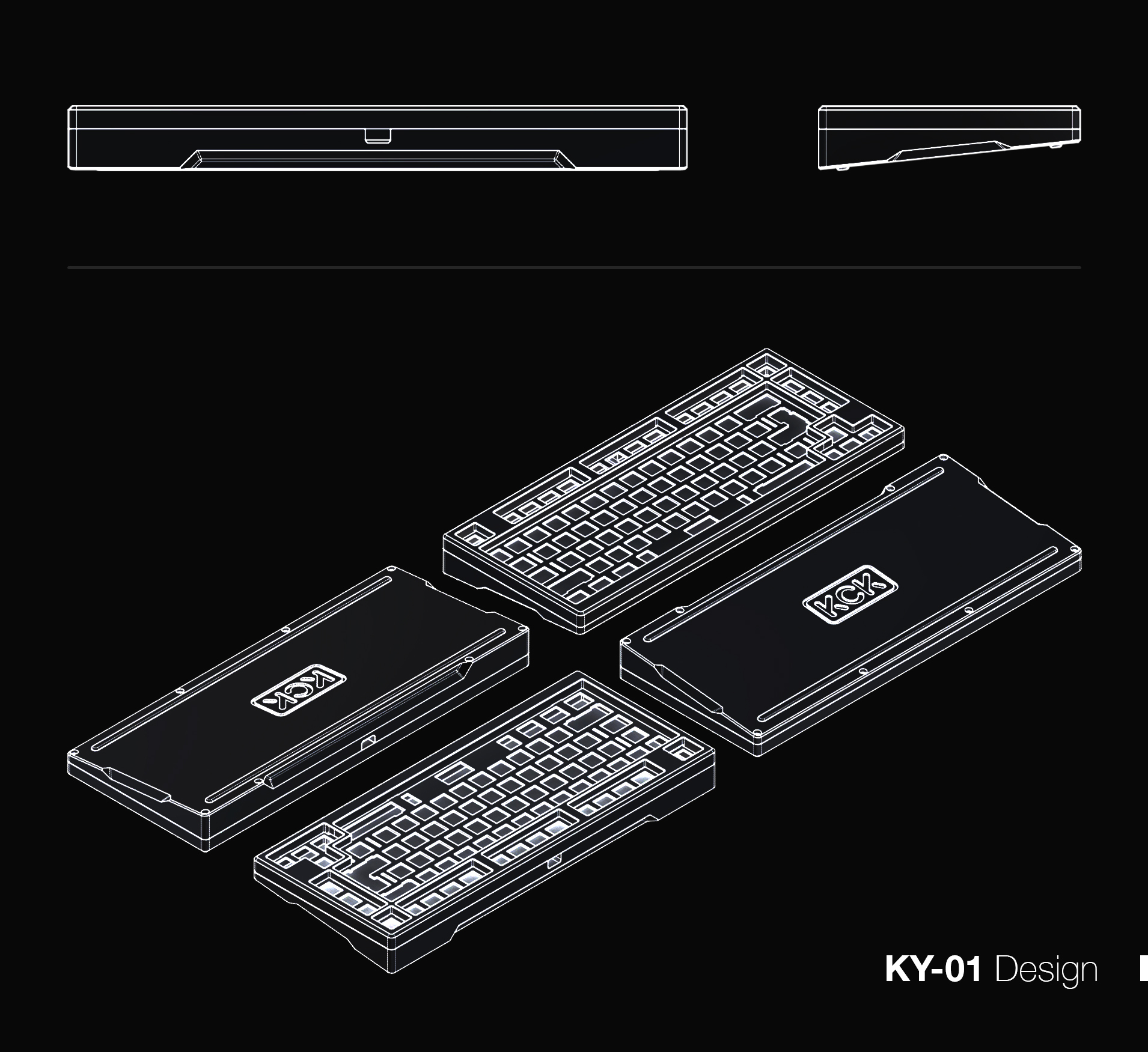

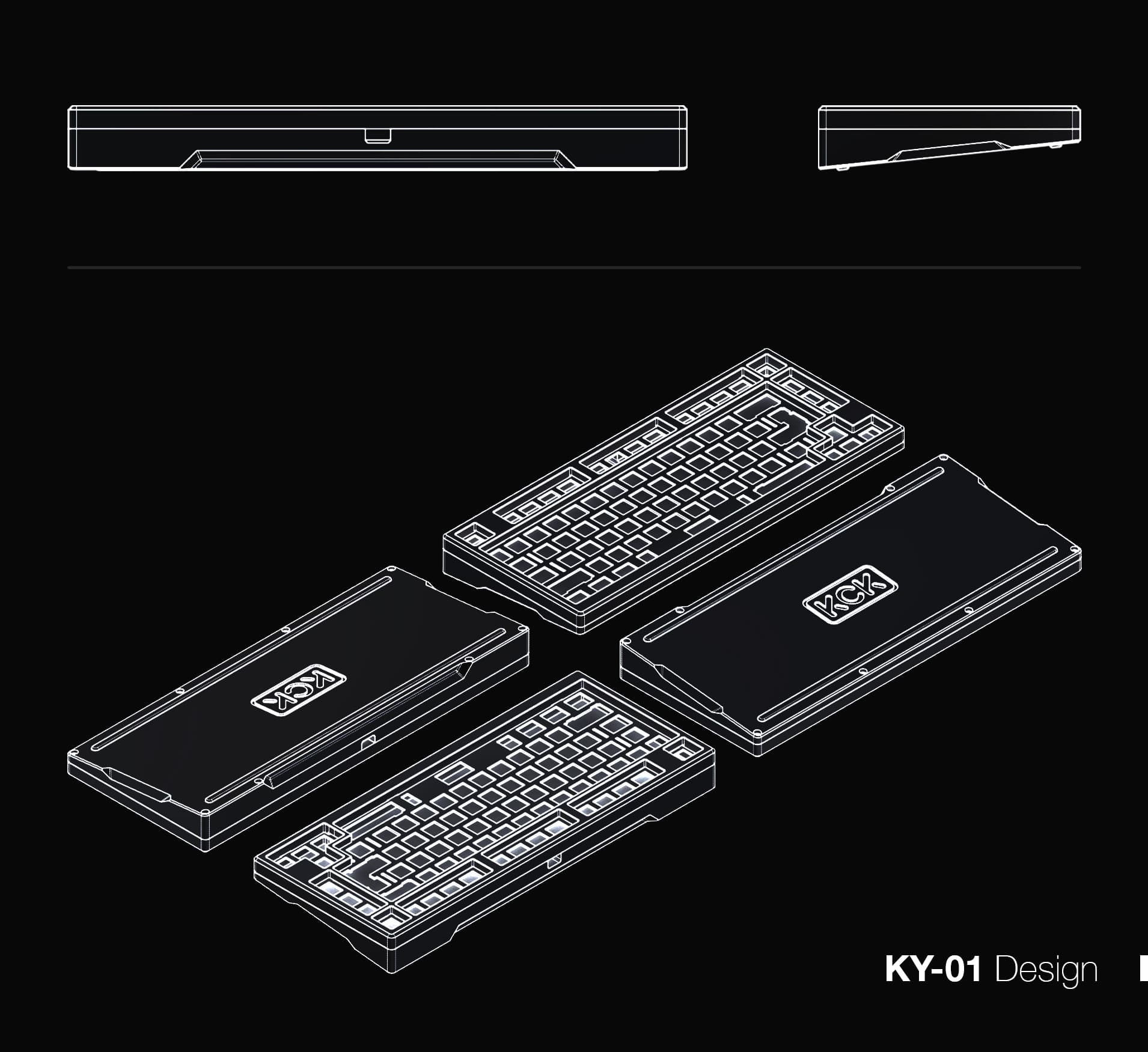

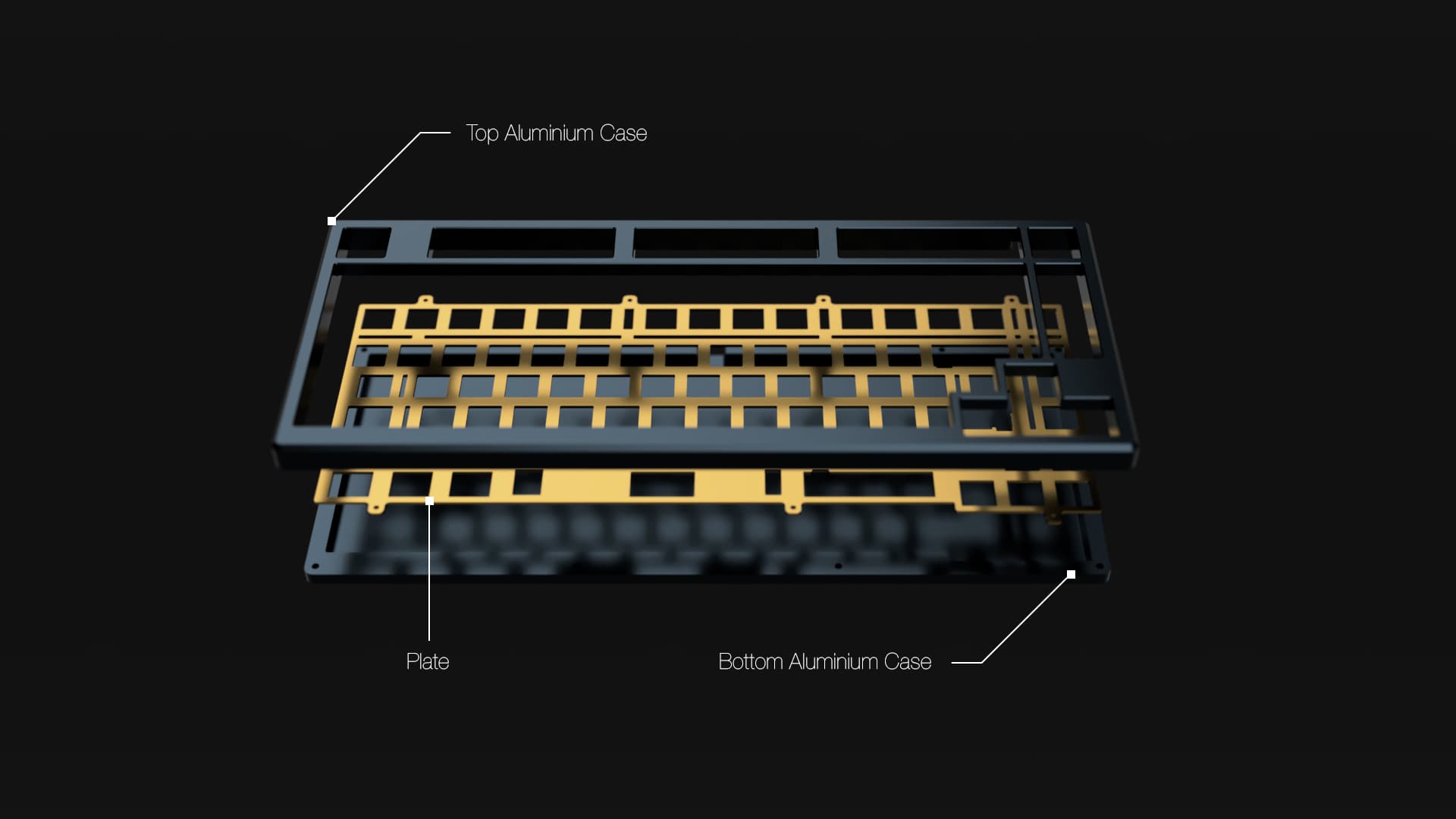

3D Design Gif
[Link To IC Check]
[/list]
