LCK75 Round 3 | CLOSED - TY for another successful GB

by Lysol_

$100.00

geekhackenriched

0 followers0 bookmarks0 comments

byLysol_

Description

3rd Round of the LCK75 is live!

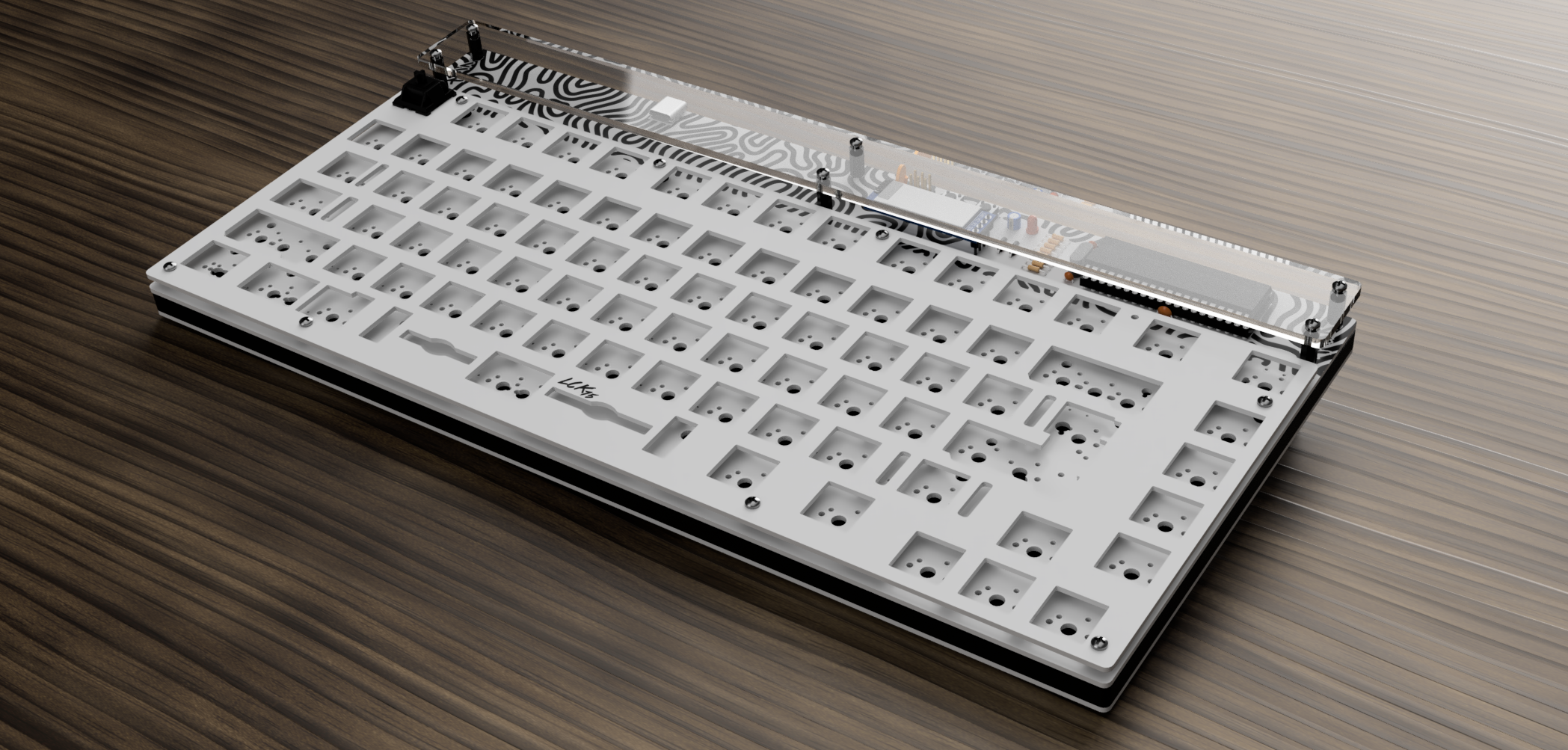

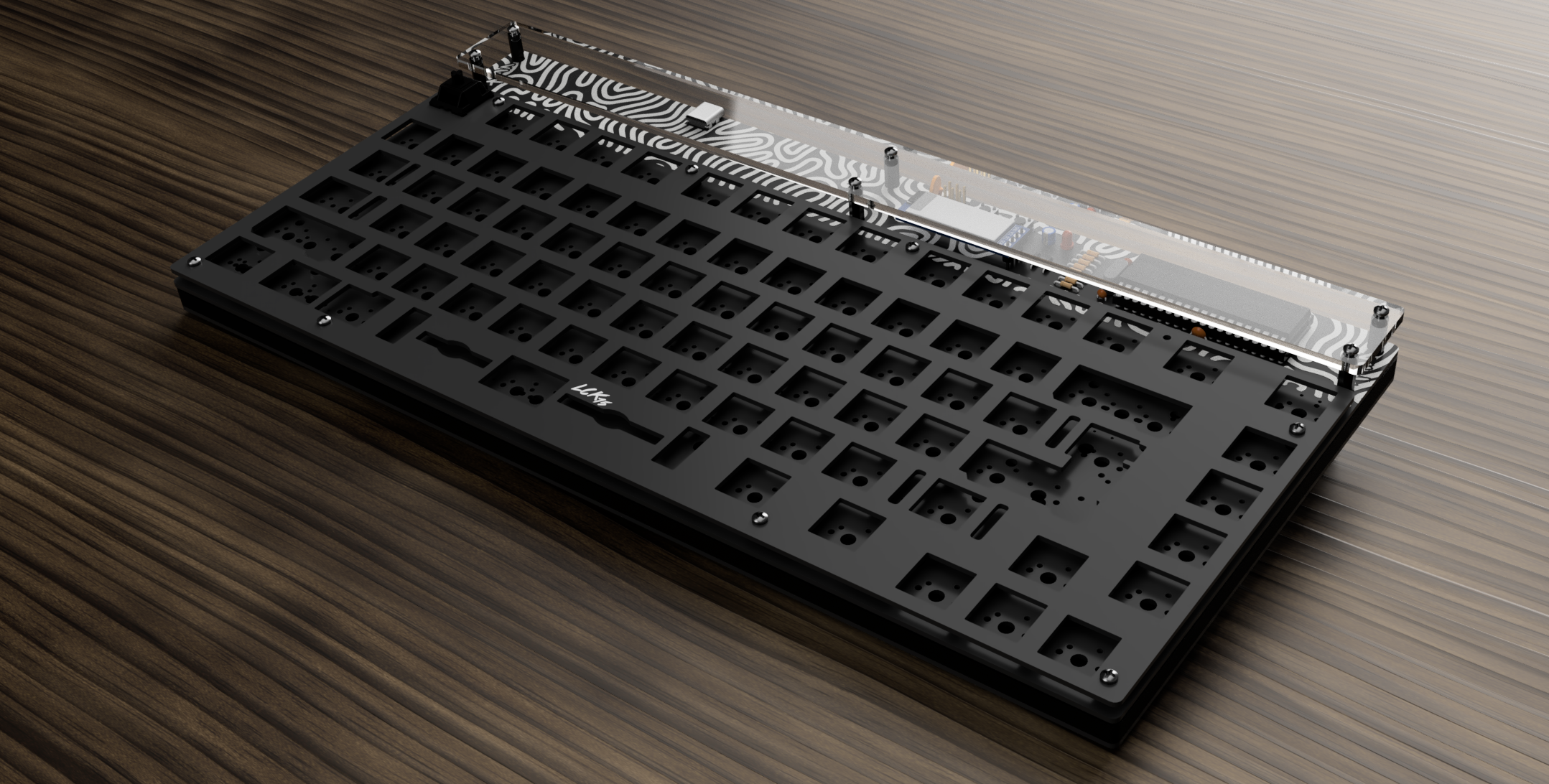

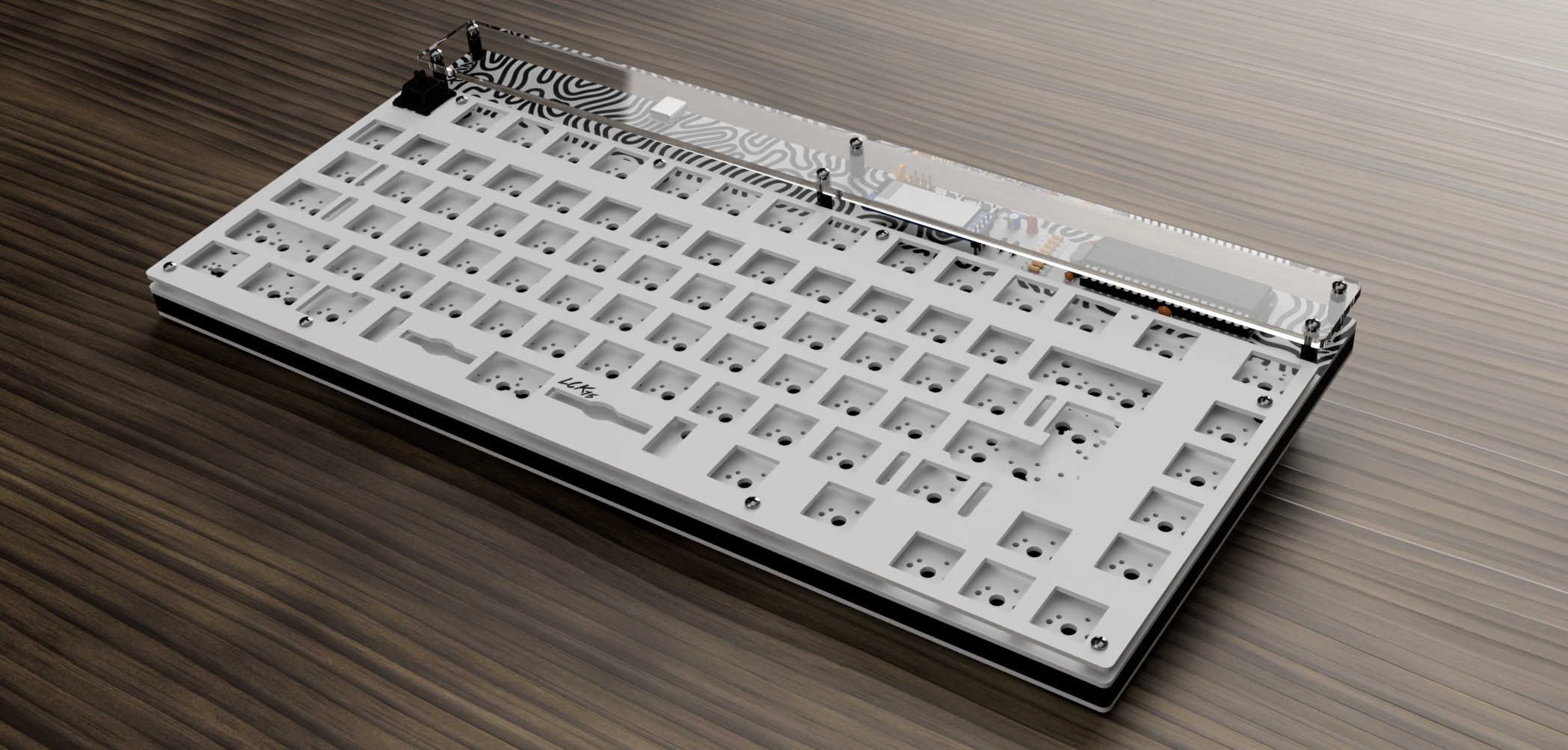

Render credit: Pontus

The LCK75 is a through-hole kit keyboard with an encoder and OLED designed in mind mainly for beginners or the peeps that really like soldering.
This was originally my first design but after 2 successful rounds and changes, I've made within those rounds thanks to friends and feedback, it's back for a 3rd round.

Order Here : LCKeyboards.com

GB info
● Price - $100USD @ 150 units(75 black & 75 white) + 50 units(25 black and 25 white) reserved for extras.
● Shipping - $12USD for CONUS(Priority Mail) & $42USD for majority of countries outside of the USA(UPS 3 day)
● GB Dates - May 7th 2022 - May 28th 2022
● Lead Time - 2 to 3 months after GB ends if there are no delays.

Files for revisions 1 & 2 are available on my Github here.

Board Specs

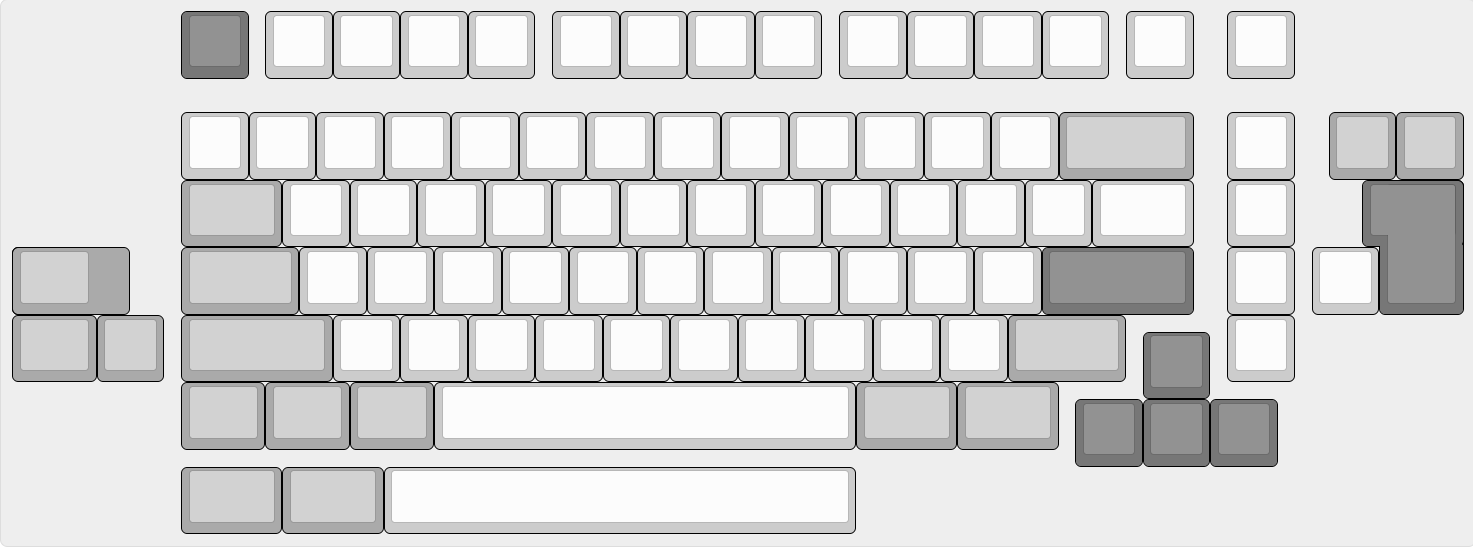

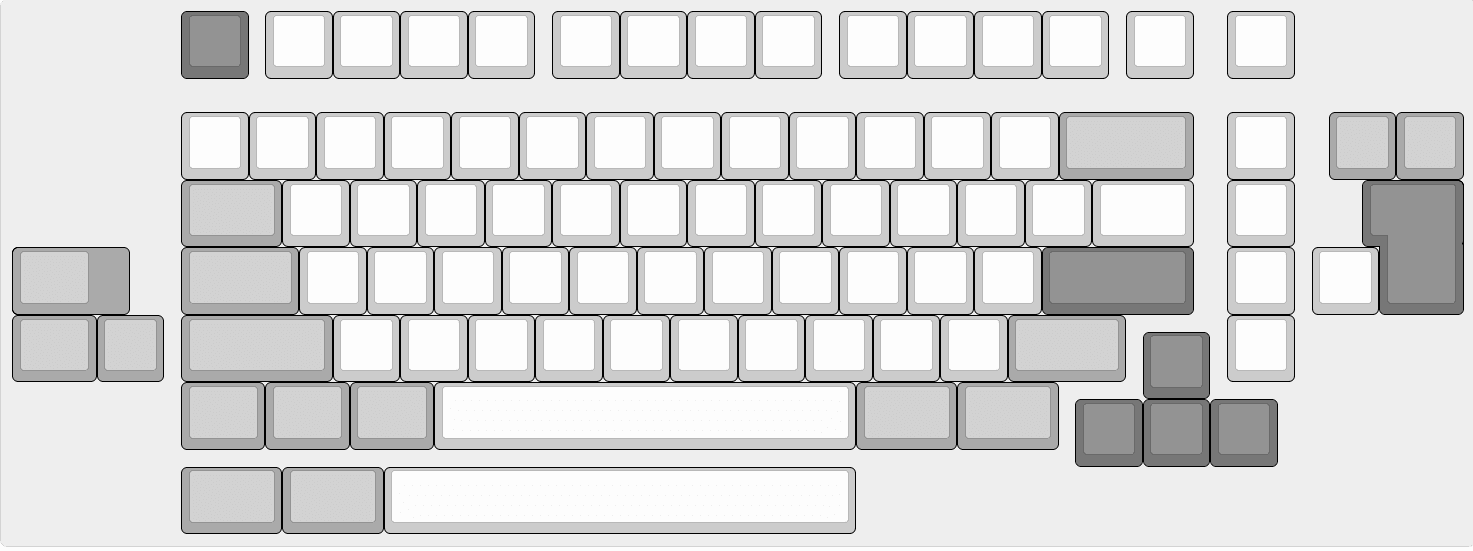

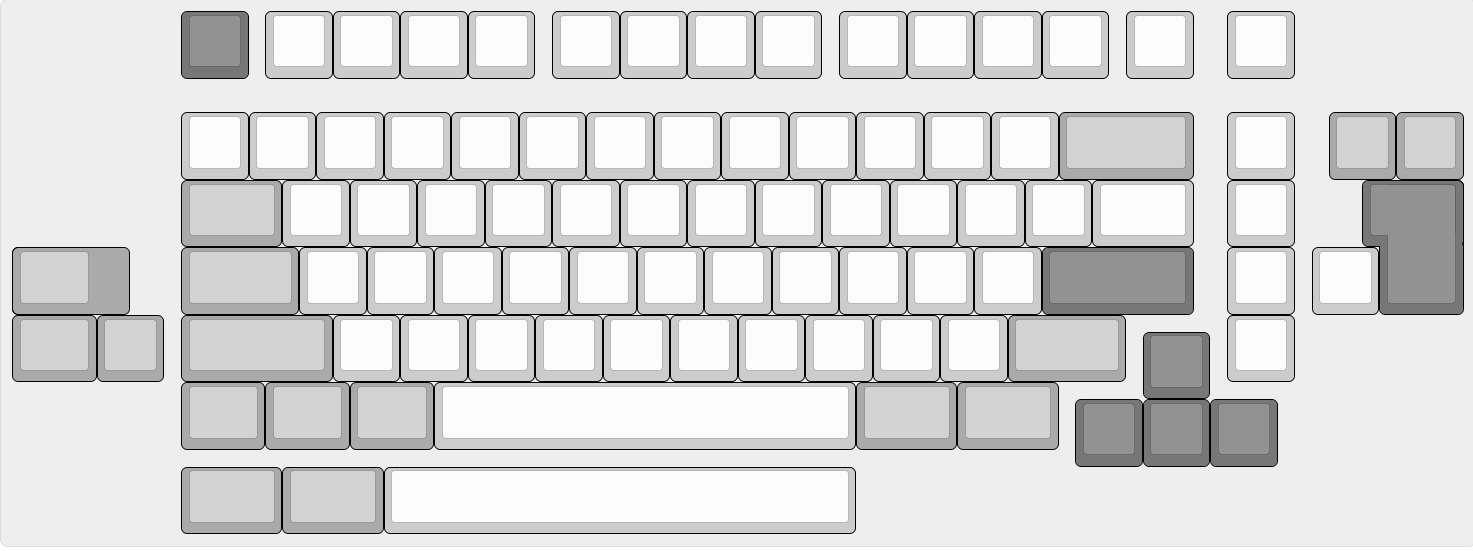

● Layout: Exploded 75% with options for ISO and SBS

● Colors: Black or White themed FR4 kits

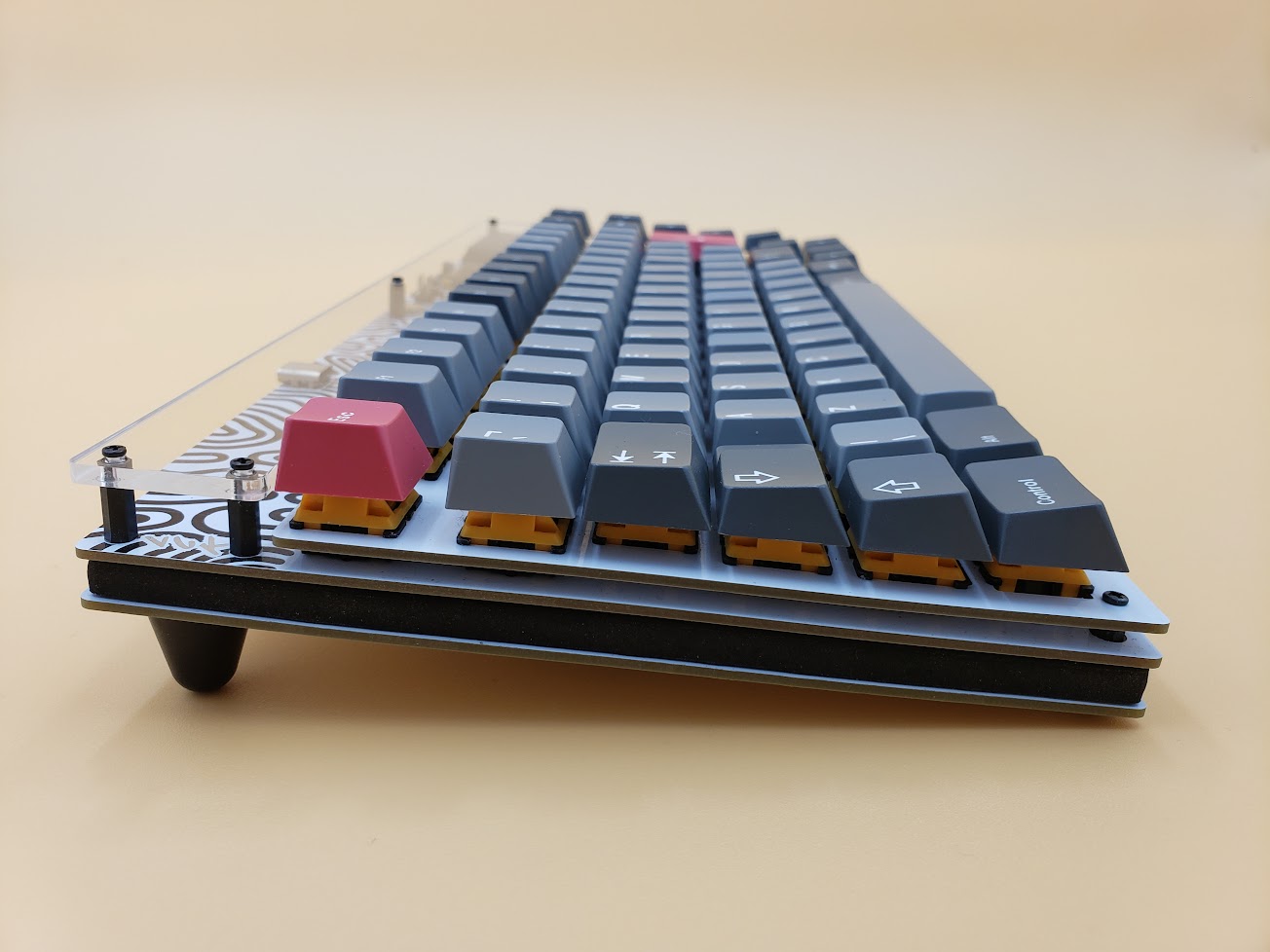

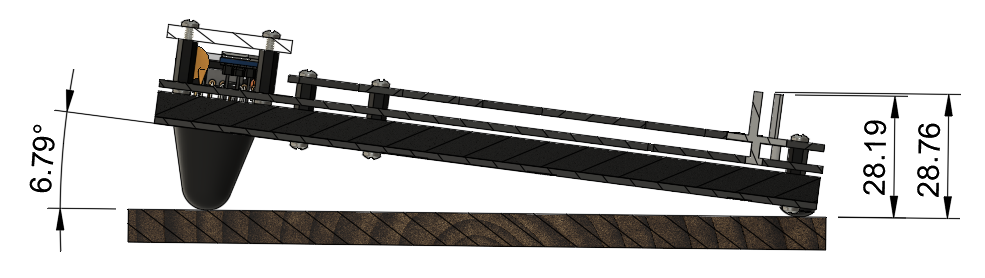

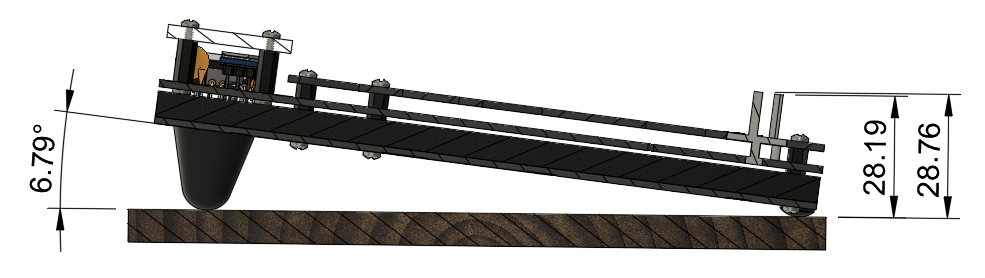

● Effective Keyboard height including bumpons is:
28.19mm from the bottom nav arrows
28.76mm from the spacebar row
This can be lower with shorter standoffs and no foam.

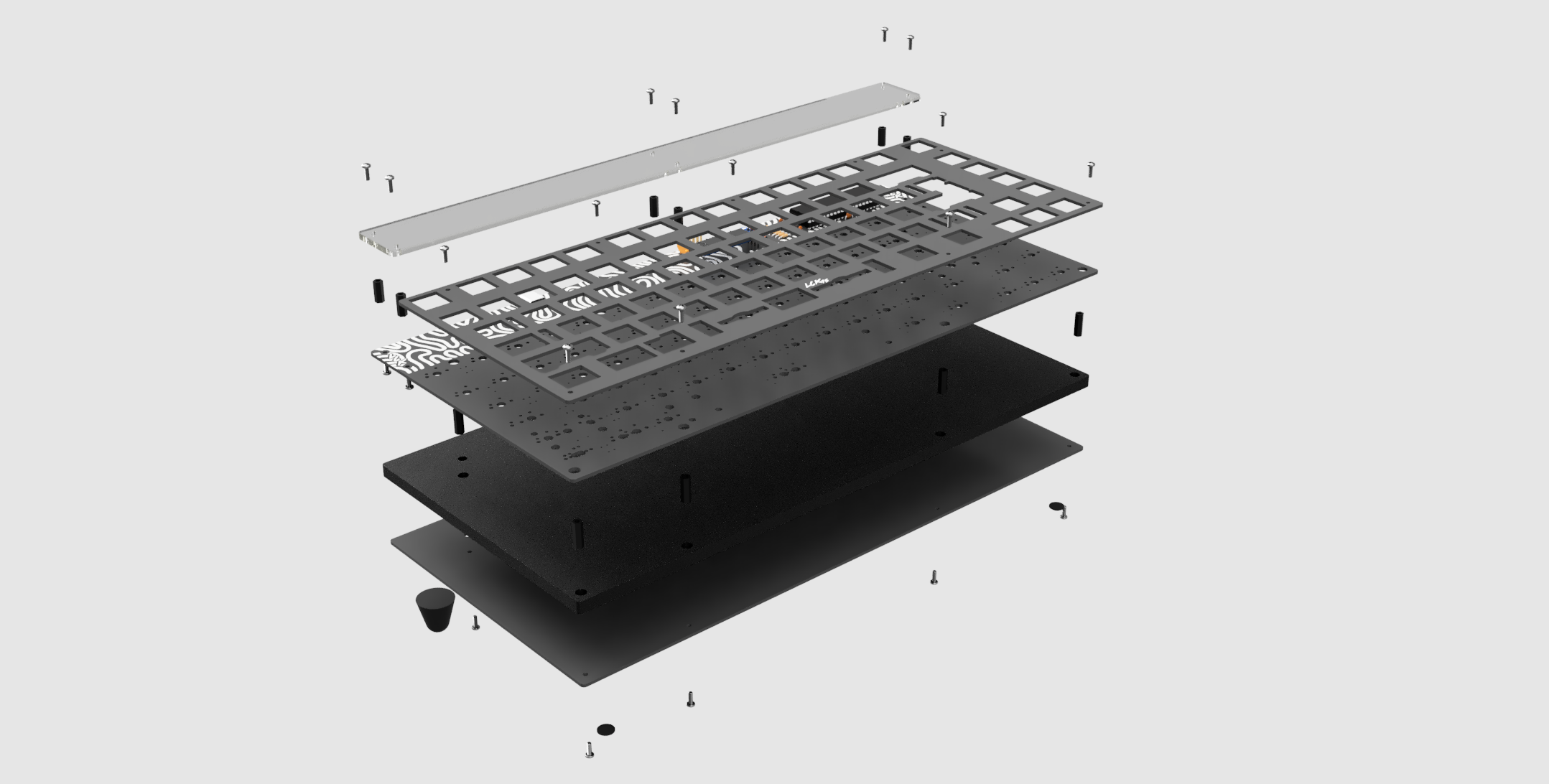

● Kit Materials: Fr4 Construction with foam layer under the pcb
● Typing Angle: ~6.8 degrees with the rubber angle feet
● Mount Style: Skeleton mount with m2 standoffs going through the pcb to mount to the plate
● PCB: QMK & VIA/VIAL compatible PCB
● Board Weight: ~0.8kg built
● Packaging: a box with a similar design as r2 with some size adjustments in the thickness and as well as adding a QR code for a link to a build guide and firmware guide onto the box.
● Kit Contents: 1x Mainboard, 1x Fr4 Plate, 1x Fr4 backplate, 6x 3M bumpons(2 of for angling the board), mainboard parts,
m2 Stack hardware, 1x ssd1306 OLED w/ pre soldered header, Preflashed Atmega32a MCU, 1x 36 detent StupidFish1, and 3mm clear acrylic guard courtesy of P3D.

Proto Pics

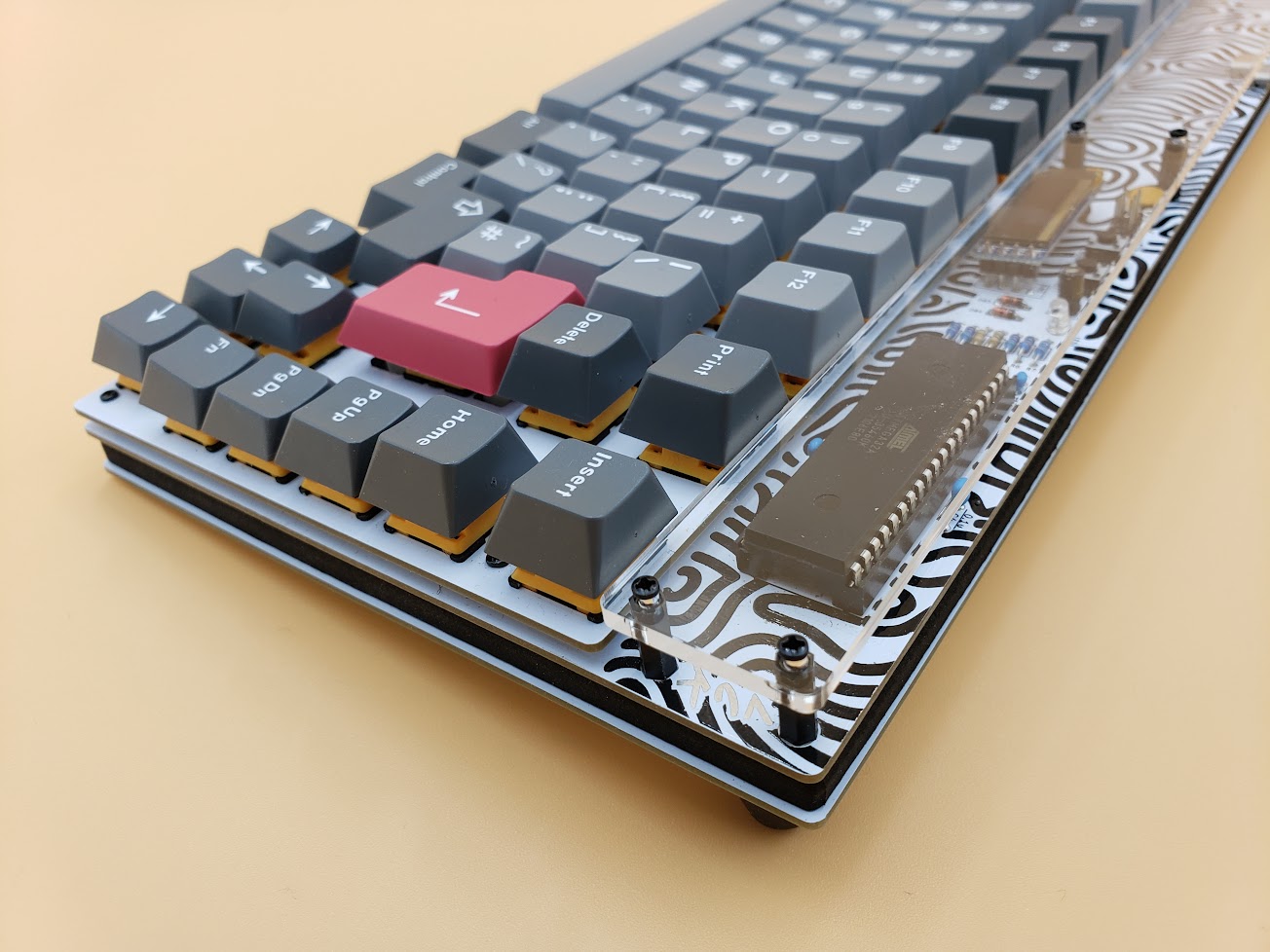

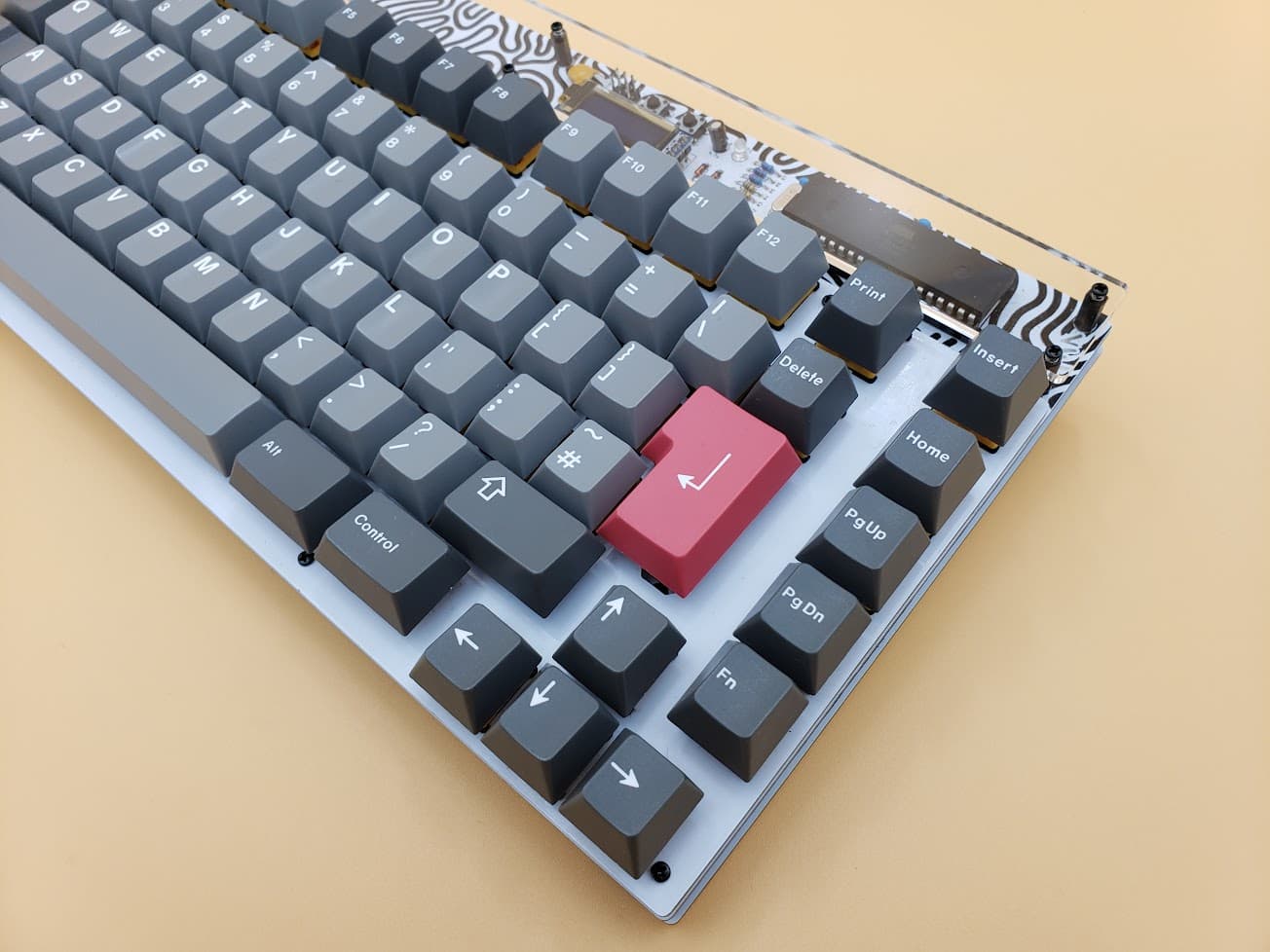

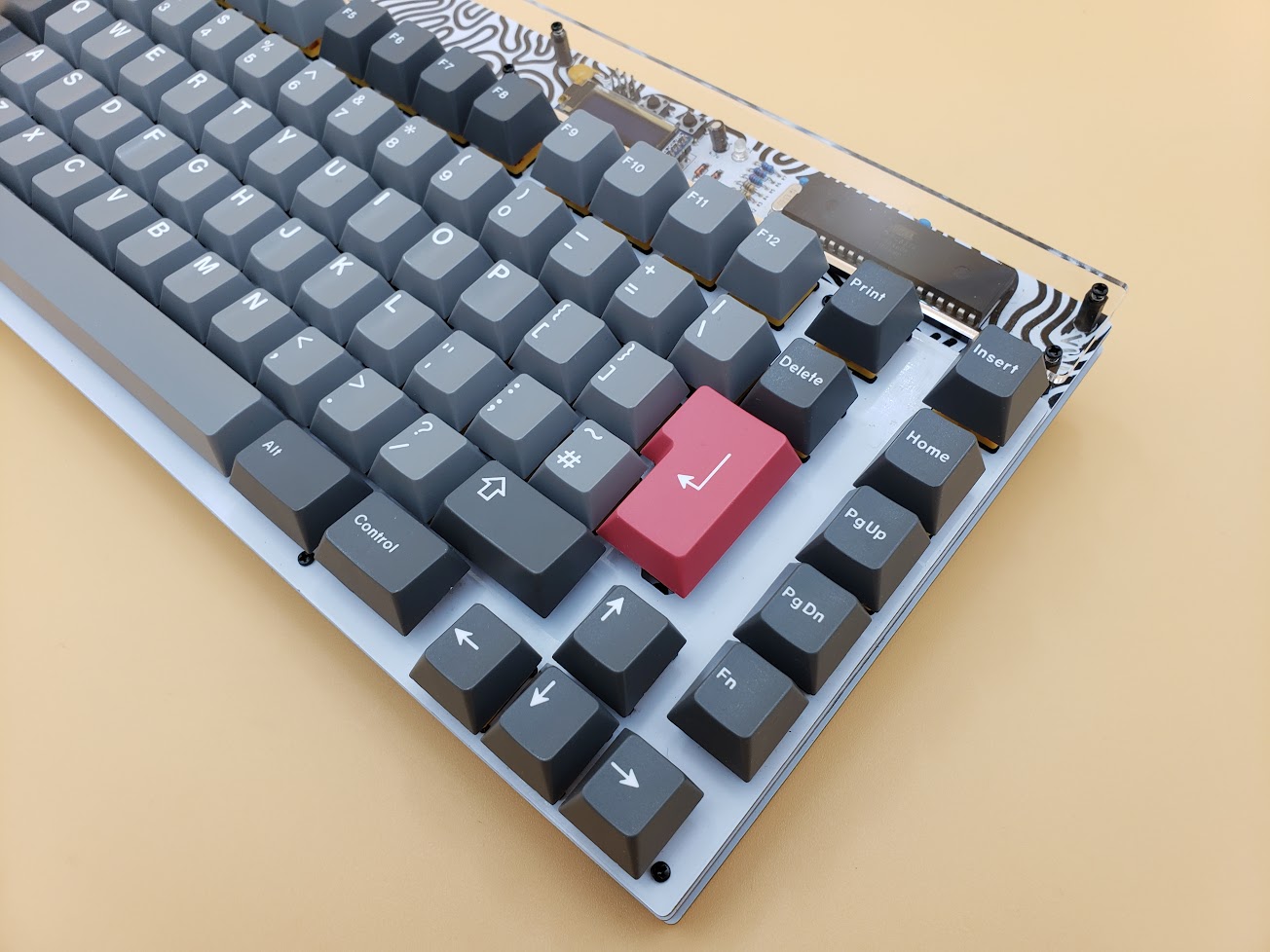

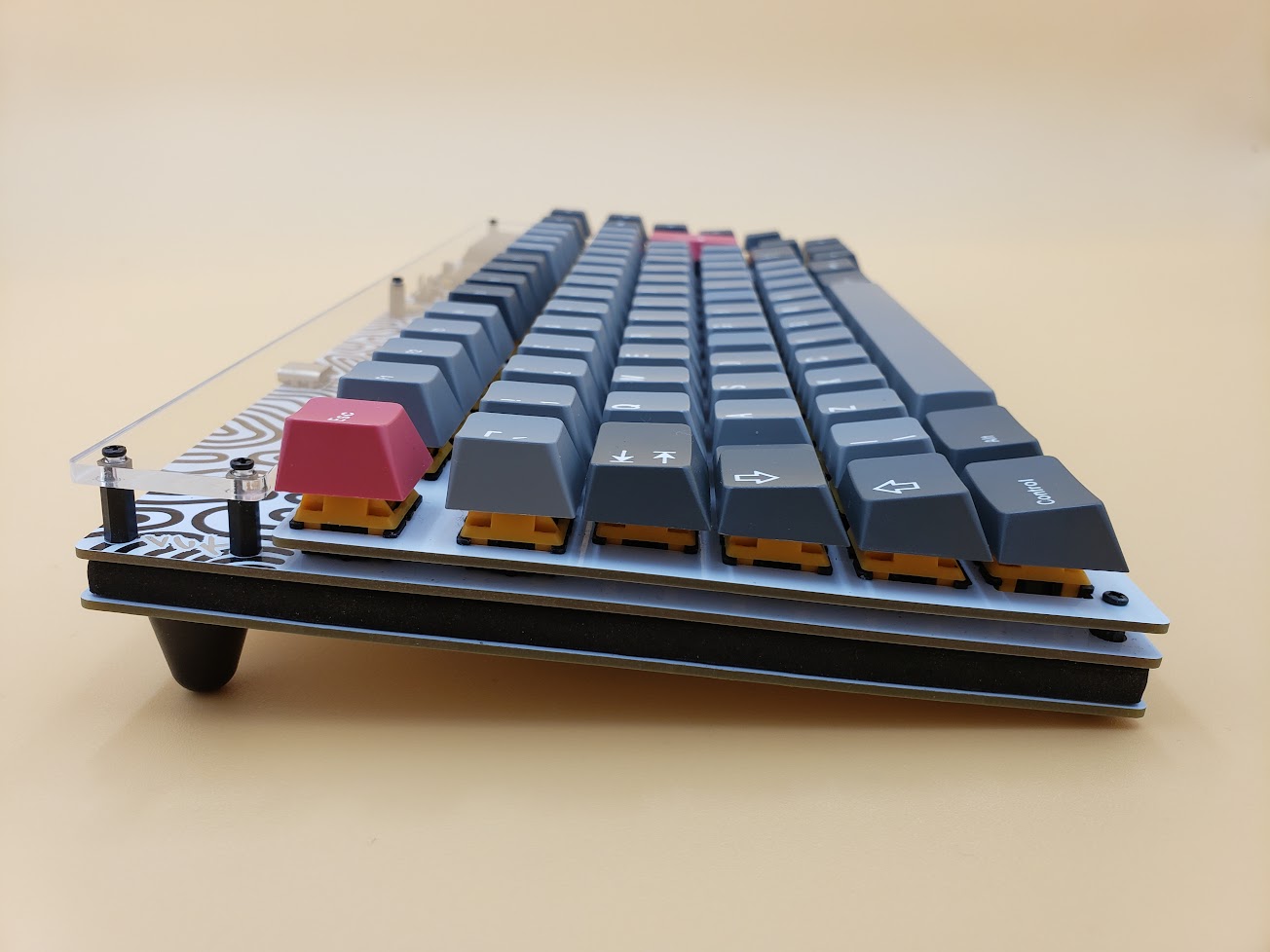

Proto pics(example of what's possible with layouts)

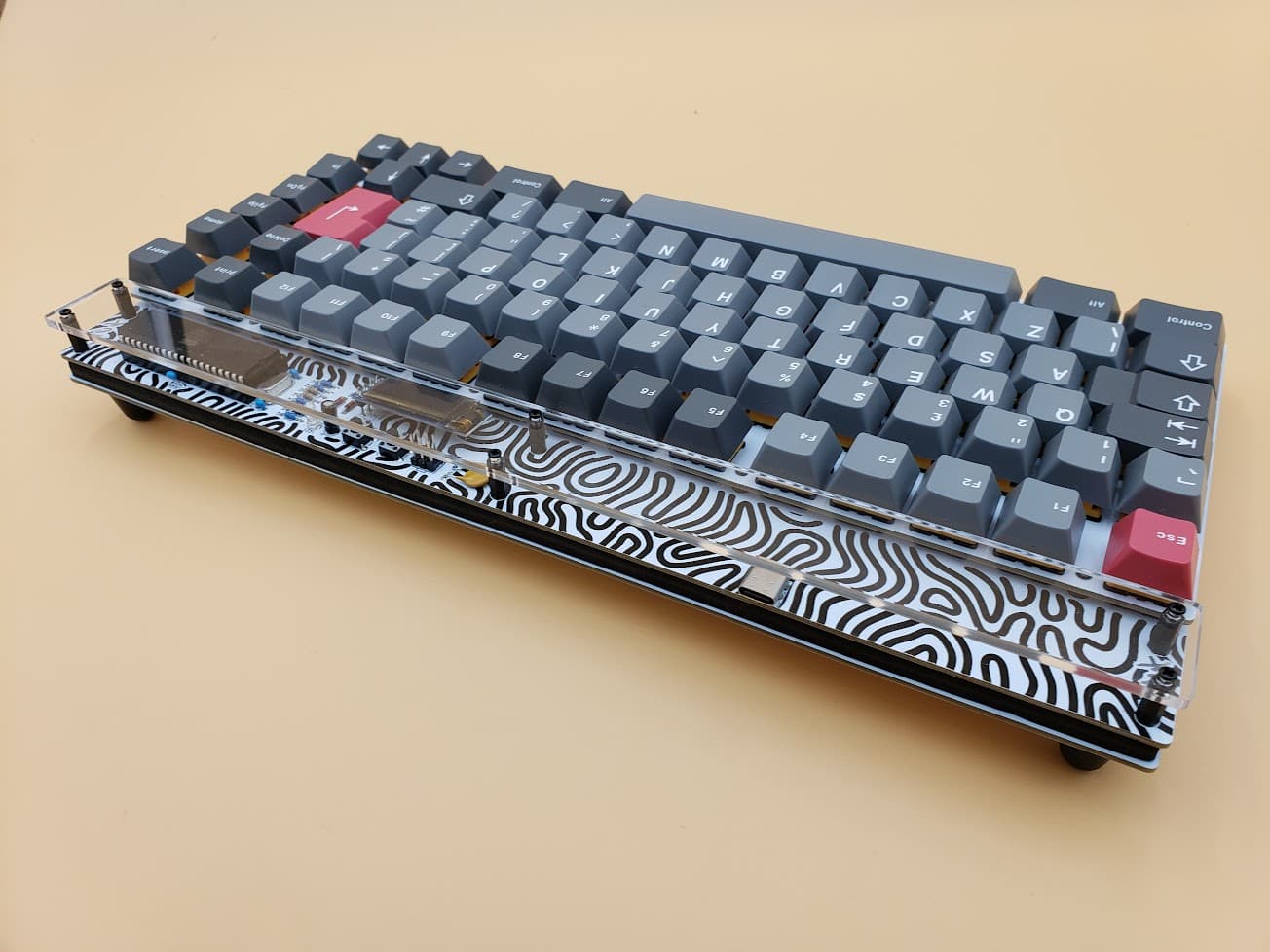

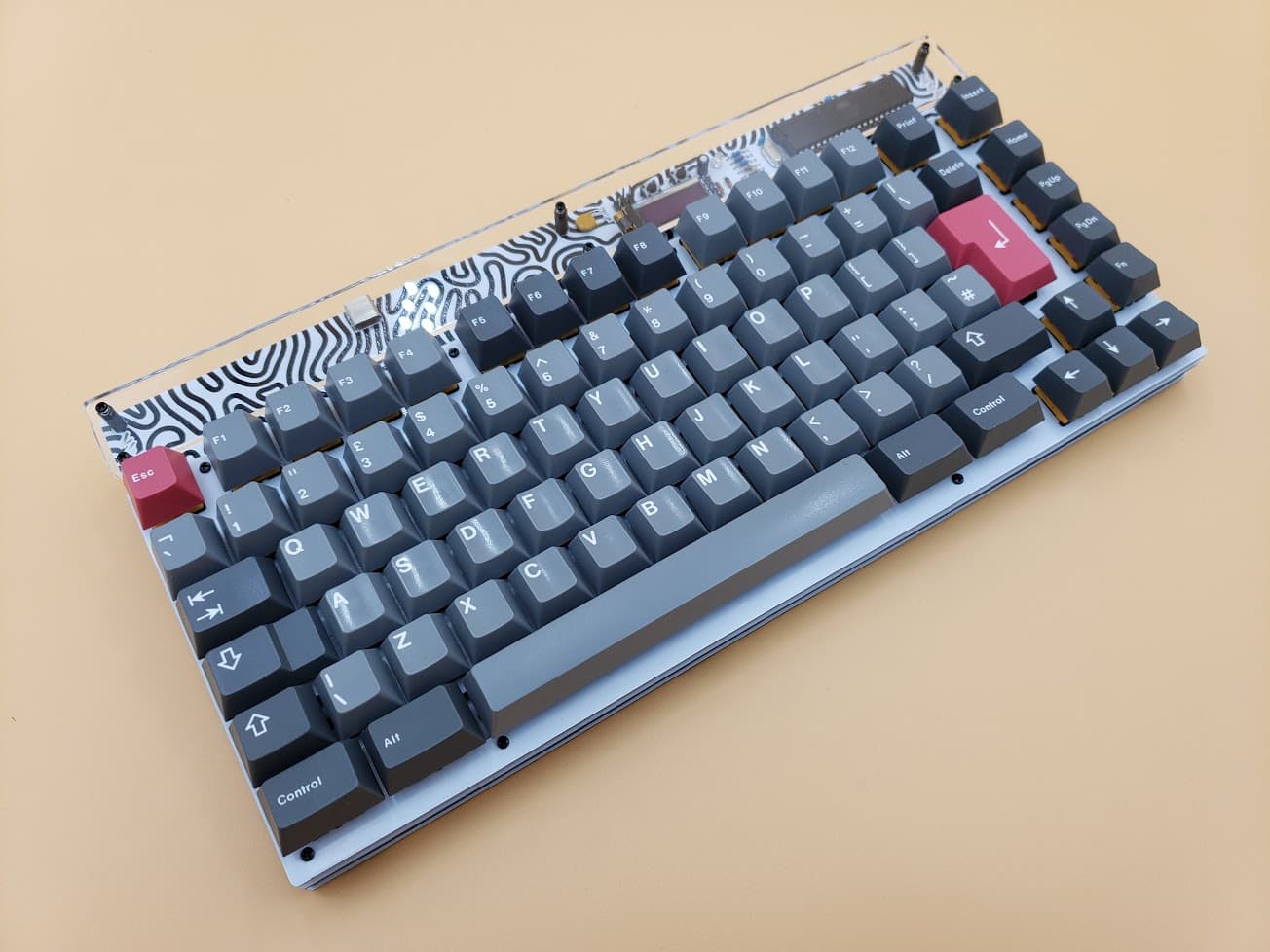

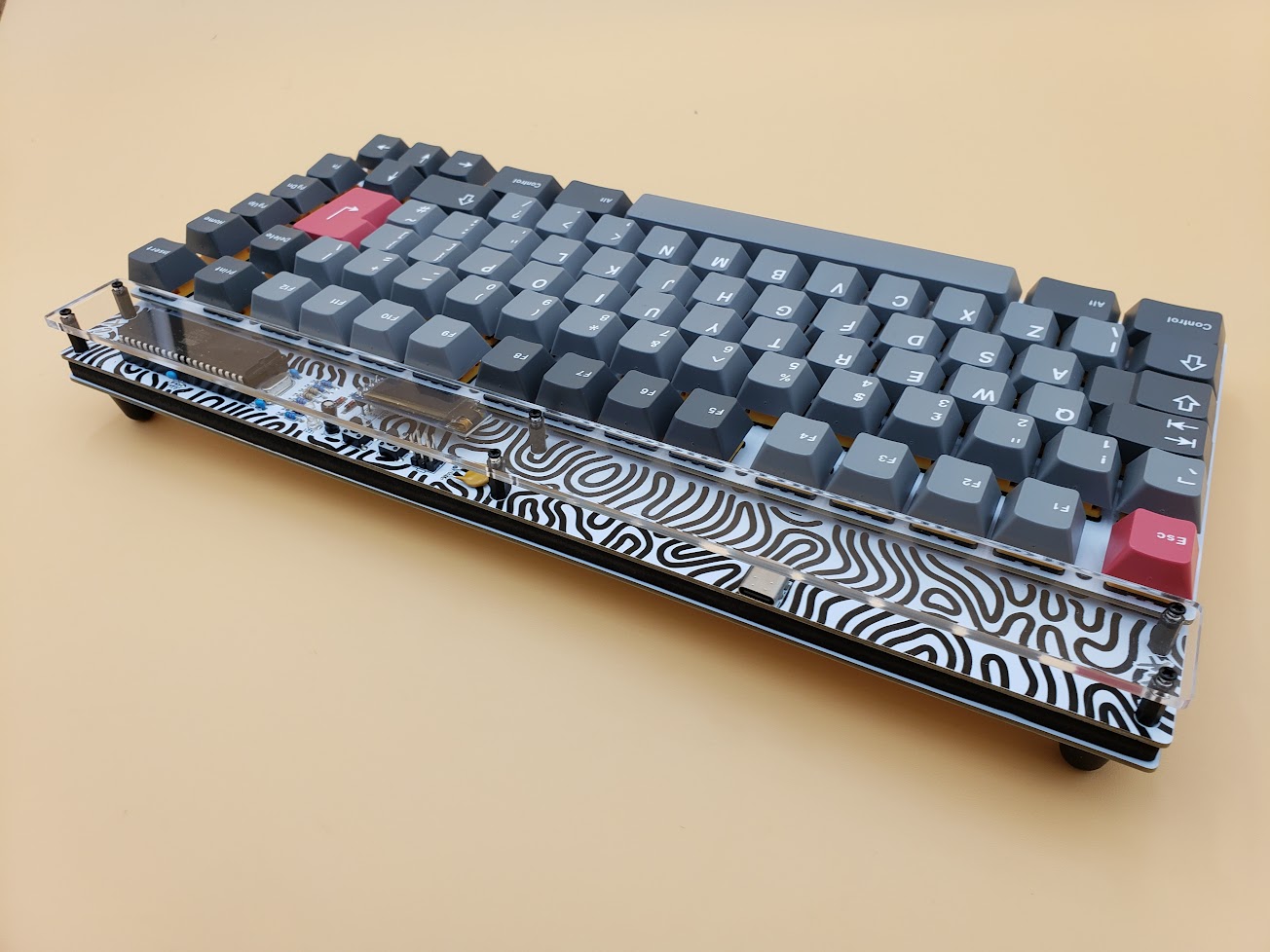

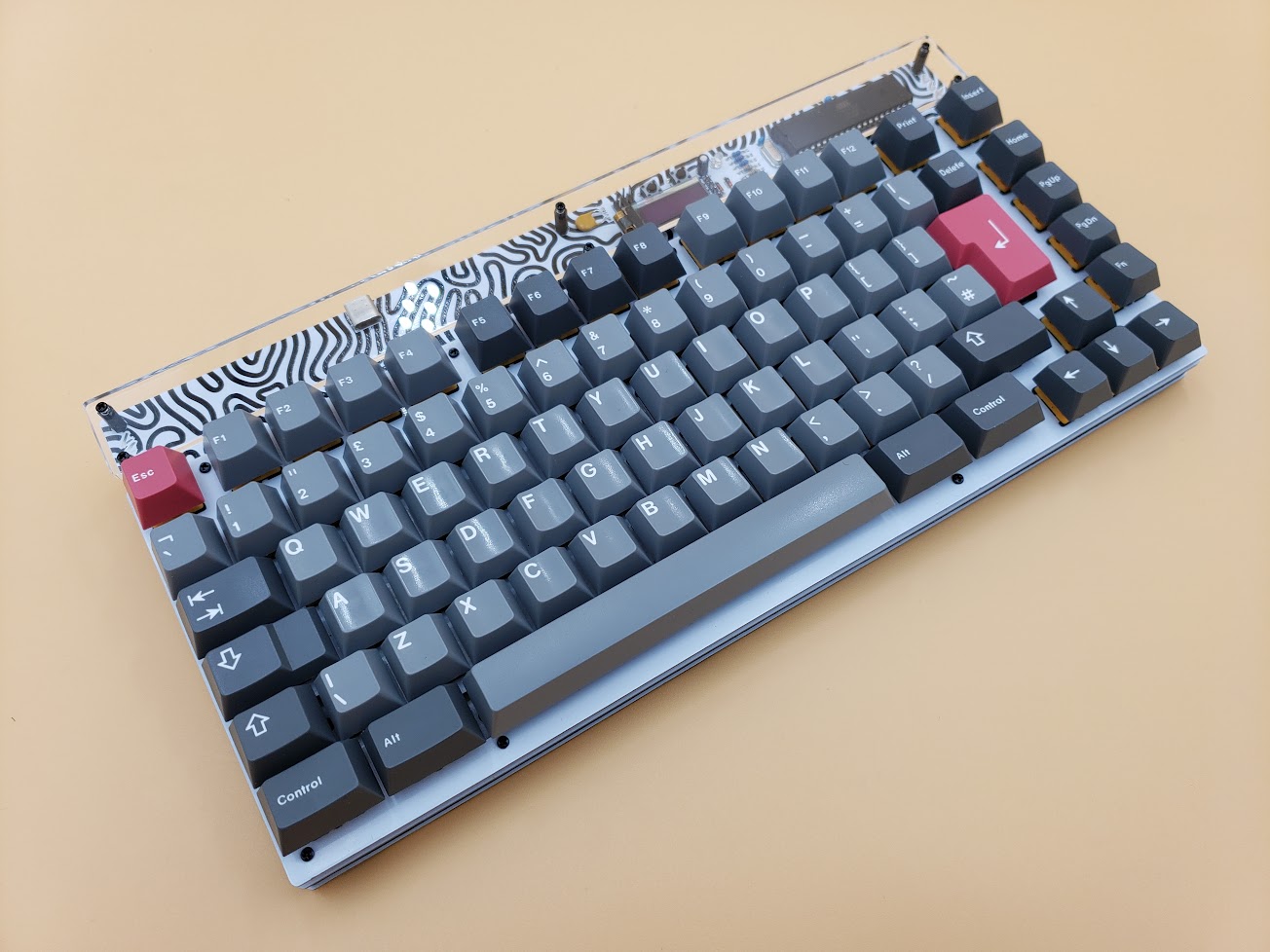

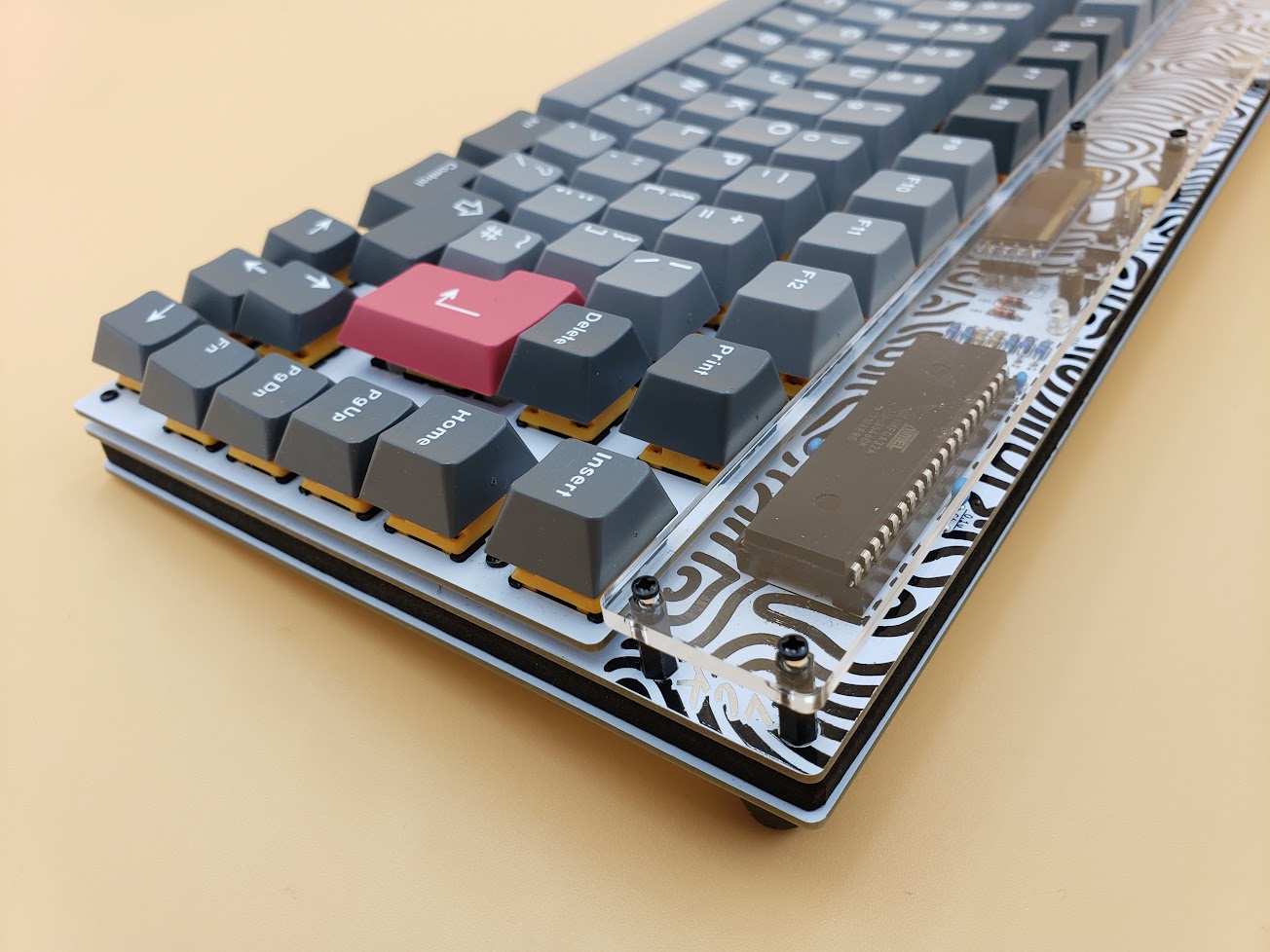

pics of a white proto with gmk Modo r1, USB is THT here, but it shouldn't matter

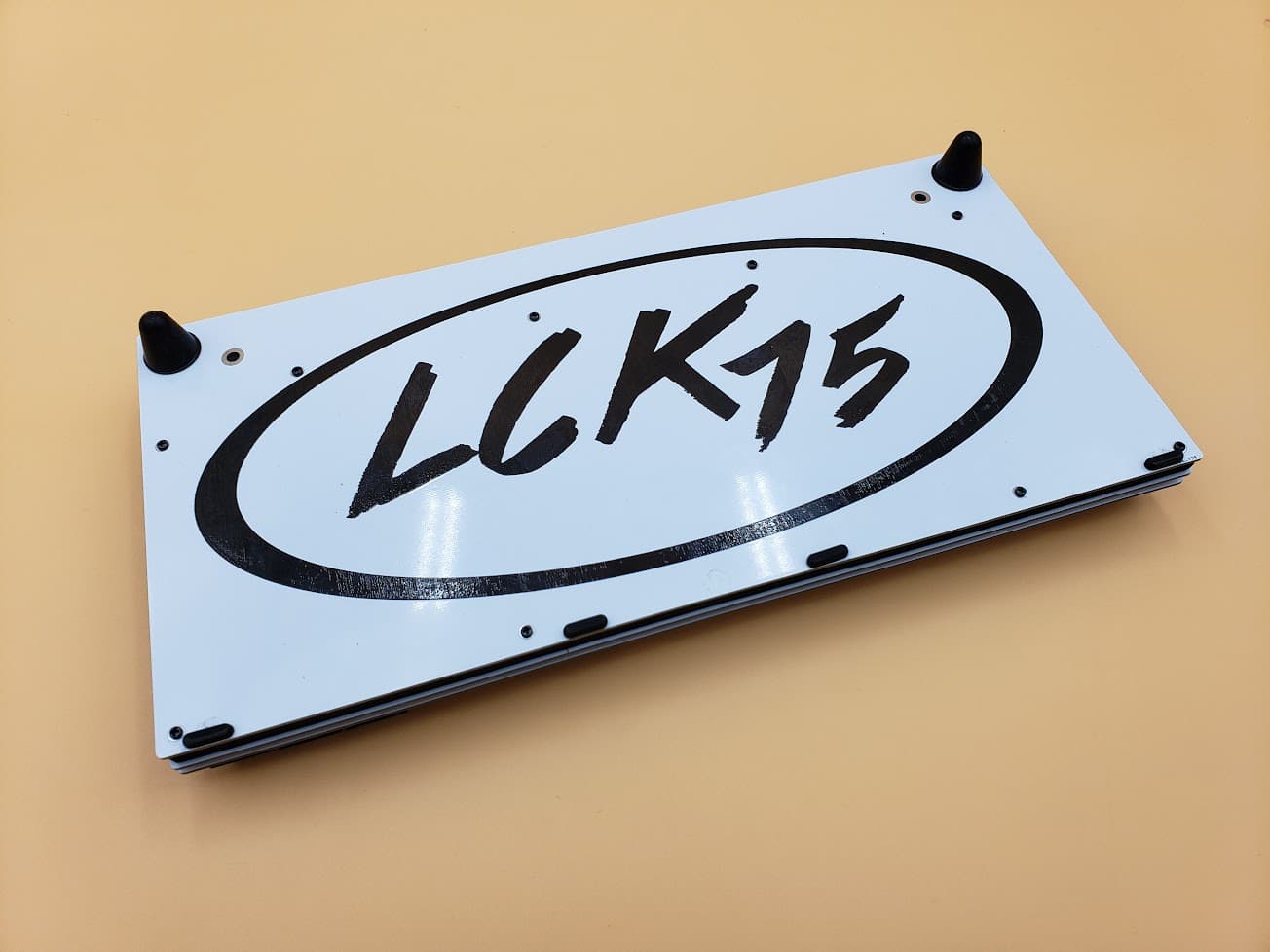

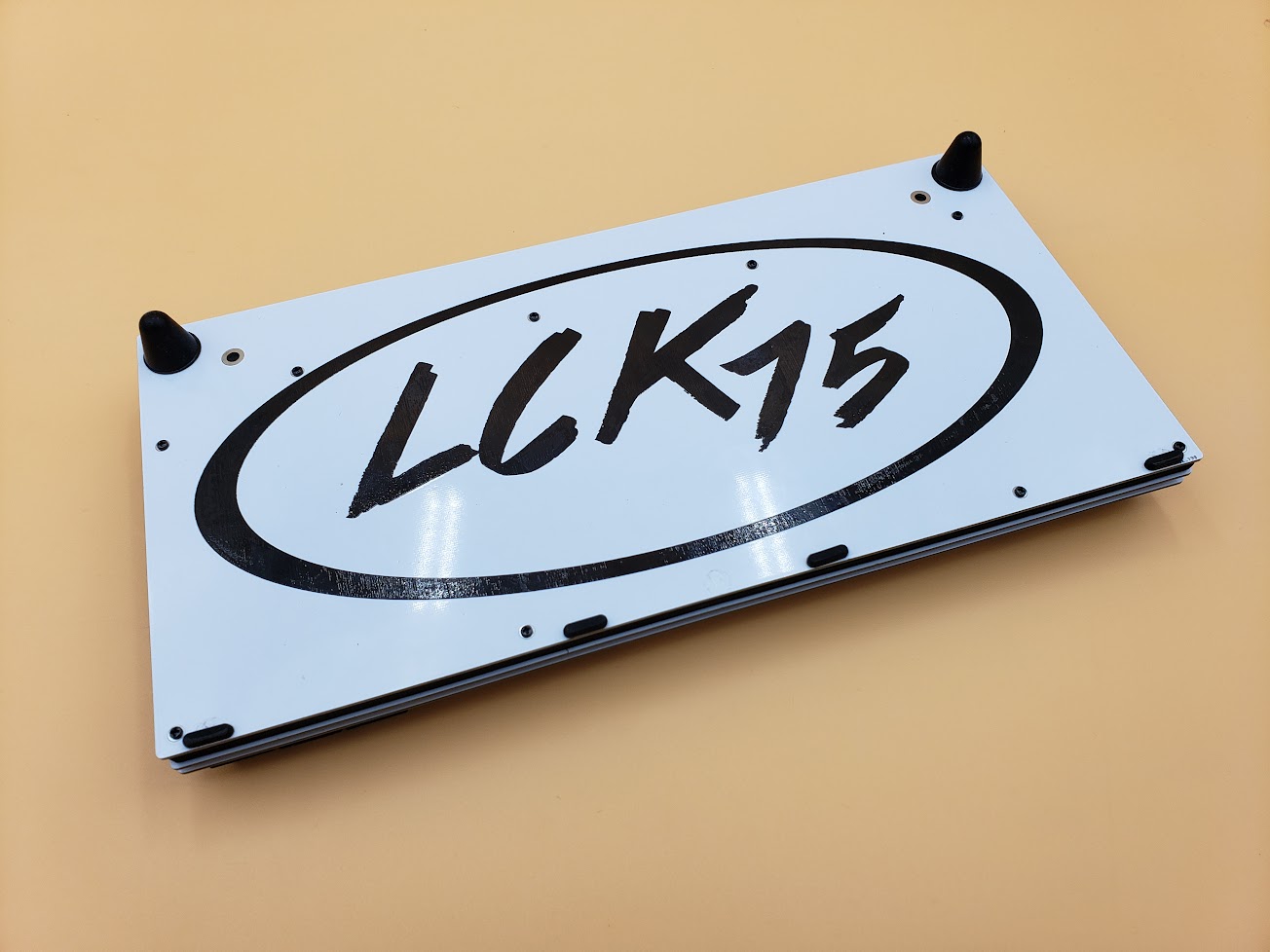

and the backplate logo will not be silkscreen as it doesn't look good when the silkscreen
is that spread out so copper islands will be used instead just like the previous rounds of the LCK75

My Discord server if you'd like to see more frequent updates on this. ill be updating this post as time moves forward but i usually update more frequently over on discord.
