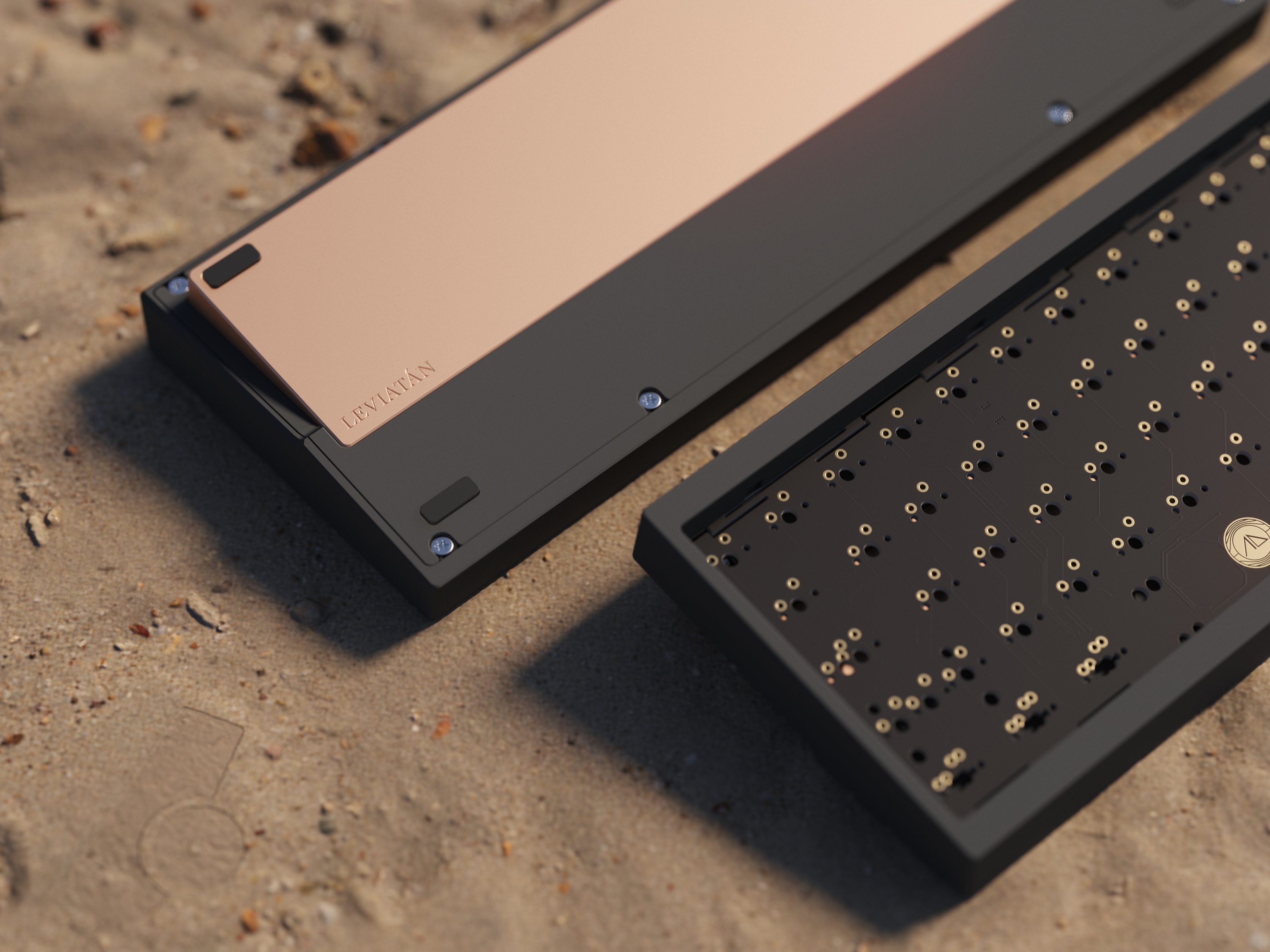

LEVIATÁN
Group Buy July 1st through 31st
TLDR: Estimated fulfilment: Q1 2024 - Unlimited group buy, $375 anodized, $380 coated
CHECK THE IC FORM FOR MORE DETAILED INFORMATION:IC POST DETAILS AND TECHNICAL INFORMATION•Materials: Copper weight, aluminum top/bottom
•Mounting style: Plateless, leaf-spring gasket, Top mount

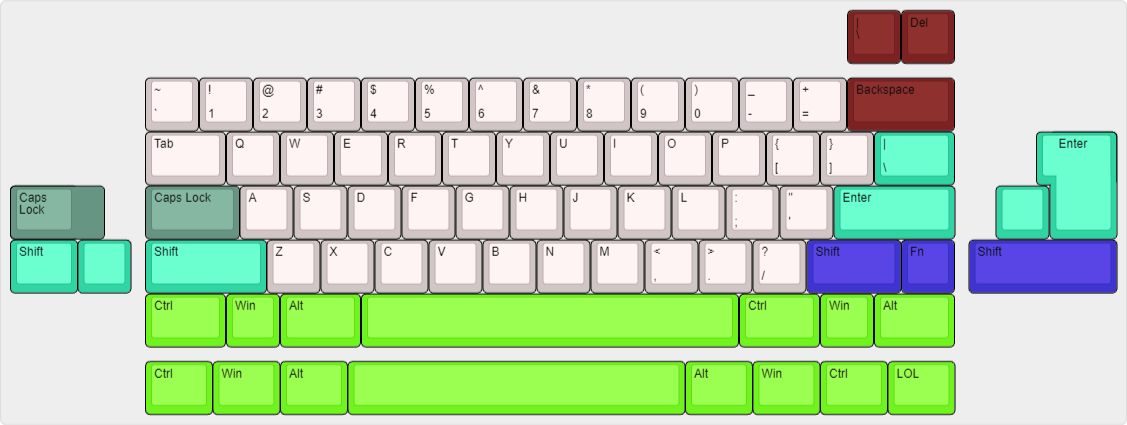

•Case top layout options: WKL, HHKB, and WK
•Typing angle: 9 degrees
•Front height: 17.5 mm, adjusted front height 18.5 mm
•Weight: ~2.4 kg built (plateless) ~2.6 kg built (top mount)
•Dimensions: 295.70 mm x 116.826 mm
•Gaskets: 30A hardness, 1.5 mm Poron gaskets
•Feet: AKB adhesive feet, available at CannonKeys
•Screws: M3x10 front screws, M3x12 back screws
•PCB: Leaf spring PCB (PCB mount) and standard PCB (top mount). VIA SUPPORTED
•Daughterboard: Fly DB, with Molex-to-Molex cable
•Link to PCB compatExploded view:

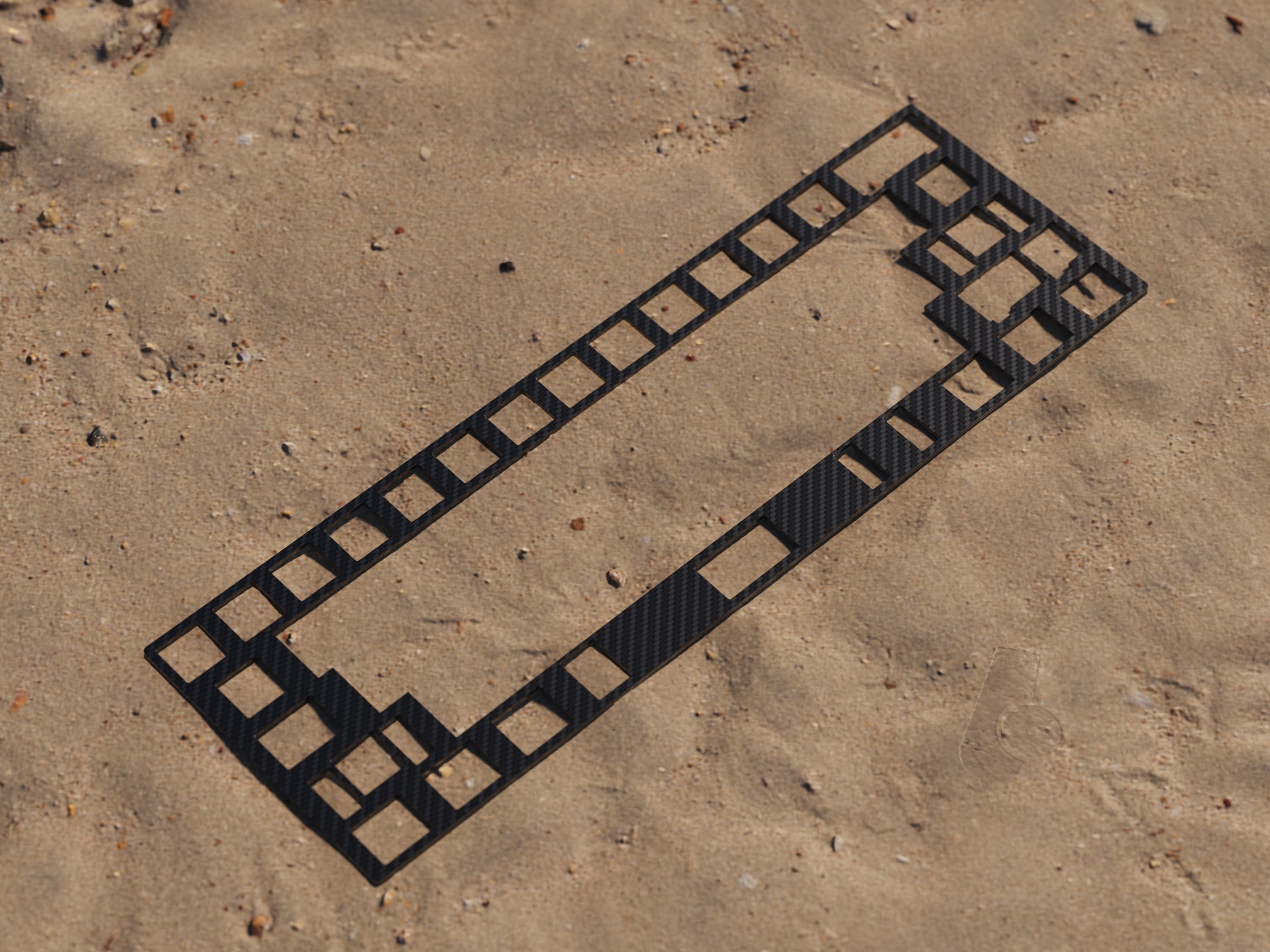

What the hell is a support plate? The support plate is just a straightforward tray-style plate that goes over the PCB mount PCB to tune the feel of the board. Basically there are 4 levels of flex:
Completely plateless
PCB mount with POM half plate
PCB mount with Aluminum half plate
PCB mount with Carbon fiber half plate
The aim of this is to allow people to tune the overall feel of the board, as well as the sound of the mods to their personal preference. Those who want a traditional board, can just build it top mount. I have spent hours testing, building and rebuilding my prototype with different plates and I have not had this much fun in a hot minute. Plate files will also be released so people can go ham customizing their boards.
GALLERY
NOTE: All units are with content creators, when they are returned to us we will take picture of them and add them to this thread. Content creators will also be posting images of the board, so be on the lookout for those if you want to see a particular color.
SOUND TESTS

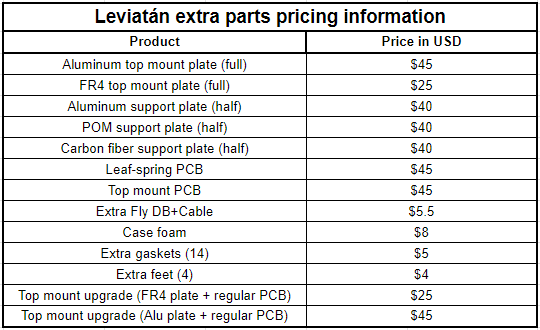

PRICING INFORMATION
NOTE: Pricing below is in USD and each vendor's pricing will differ slightly.
Once vendors have their sites up I will add clickable hyperlinks below.
United States: CannonKeys
Canada: DeskHero
Europe: EloquentClicks
UK: ProtoTypist
China/Asia: ZFrontier
Singapore: Hex Keyboards
Latin America: LatamKeys
IMPORTANT NOTE
EloquentClicks as the European Vendor will be offering ISO plates for top mount and/or support plates for PCB mount. These will be
completely separate from the group-buy and will not be available in other regions, only at EloquentClicks. They will still ship with the Group Buy but they are limited to European sales, since that is where people who use ISO will order from.
CONTACT
Most updates will be posted on my server, as well as distributed by CannonKeys via their newsletter.
