LM65 V3 Group Buy
Launching Group Buy
GB NameLM - The name was inspired by my daughter Liz Maria that help me on every build and already like them (since 2022).
InspirationAfter too many 60%, LM60, LM60 V2 and Lariat, now a 65% that I always desire to have one.
Start and End DateSep-15-2025 to Oct-15-2025
Estimated Fulfillment Date30-40 days, after GB ends. Nov/2025.
We need to sell at least 15-20 sets to make GB happen (5 sets already sold to my friends).
Since 2022 with LM60 we have already made and delivered more than 150 cases/keyboards with full support and warranty.

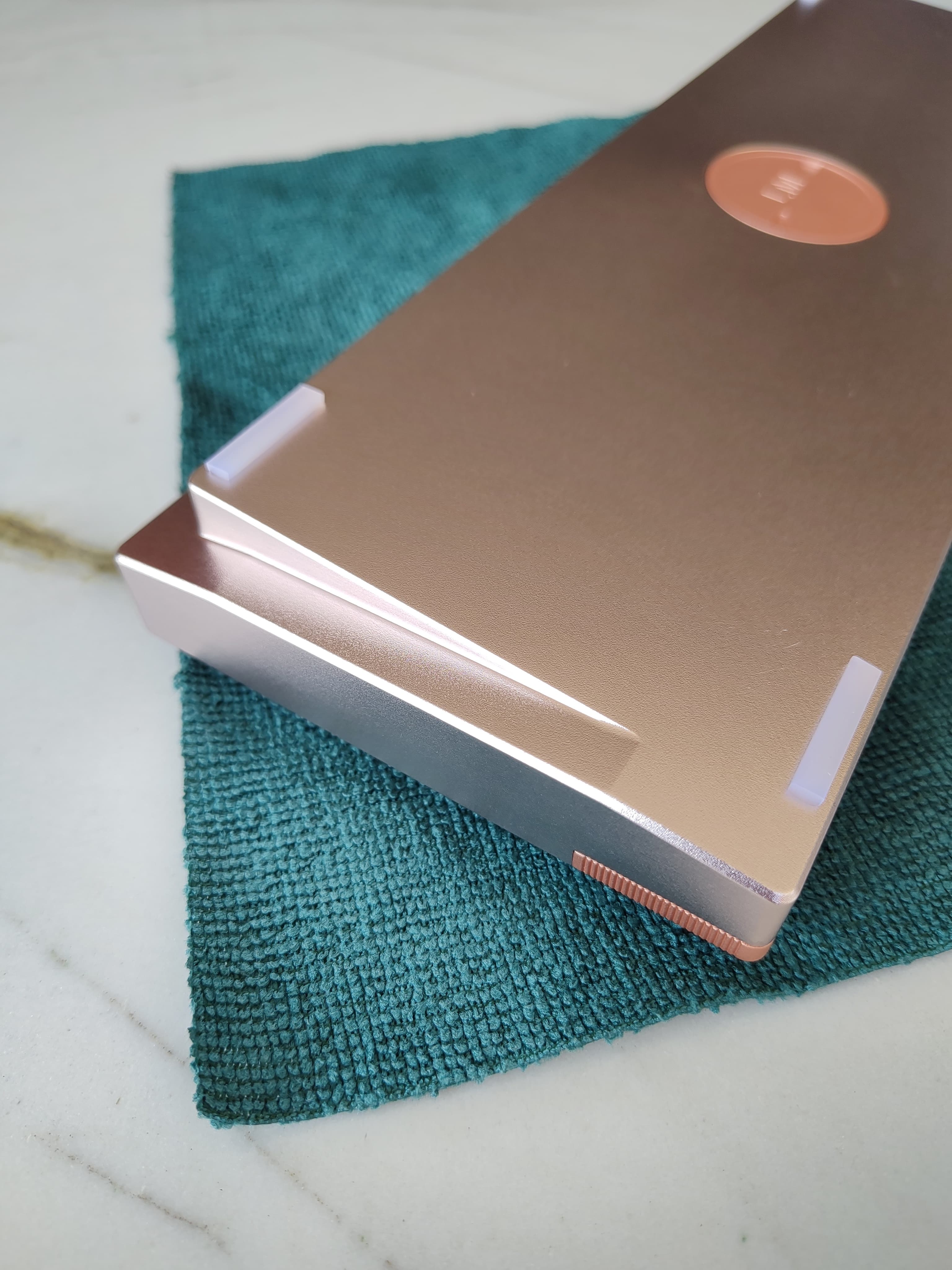

Details- LM65 V3 is a 65% monoblock keyboard, screwless with front accent and back logo made of copper, brass, aluminum or wood (neodymium magnets)
- Case Angle: 7 degrees
- Mounting: Gasket Solid Silicone Mount or Plateless using adapters
- Case Material: 6063 aluminum or polycarbonate
- Making process: CNC - sandblast - anodizing
- Front Height: 18.6 mm
- Back Height: 34 mm
- Weight: 1376g, +300g (mounted with brass plate)
- Plate: Aluminum, Brass, Carbon Fiber, FR4 and POM or Plateless
- Gaskets: Solid Silicone Cord D4.5x6.5 mm
- PCB Compability: GH65 PCB with daughterboard (included)
What is included- Monoblock aluminum case shell
- Front accent and back logo of copper
- Aluminum Plate
- Solid Silicione Cord Gaskets 8 x D4.5x6.5mm
- Silicione feets 4 x 24x4mm

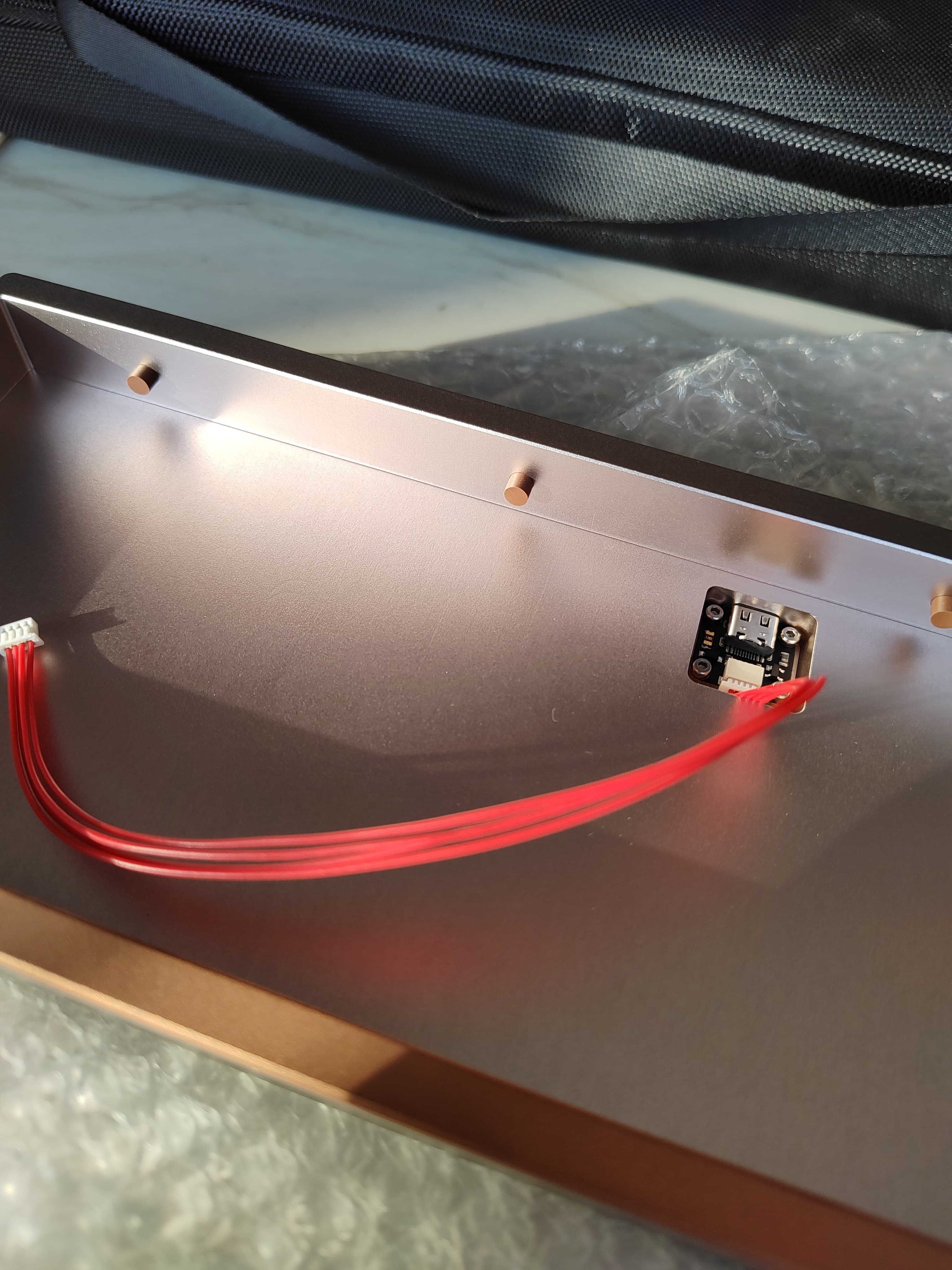

- PCB 65% with USB C daughterboard with screws

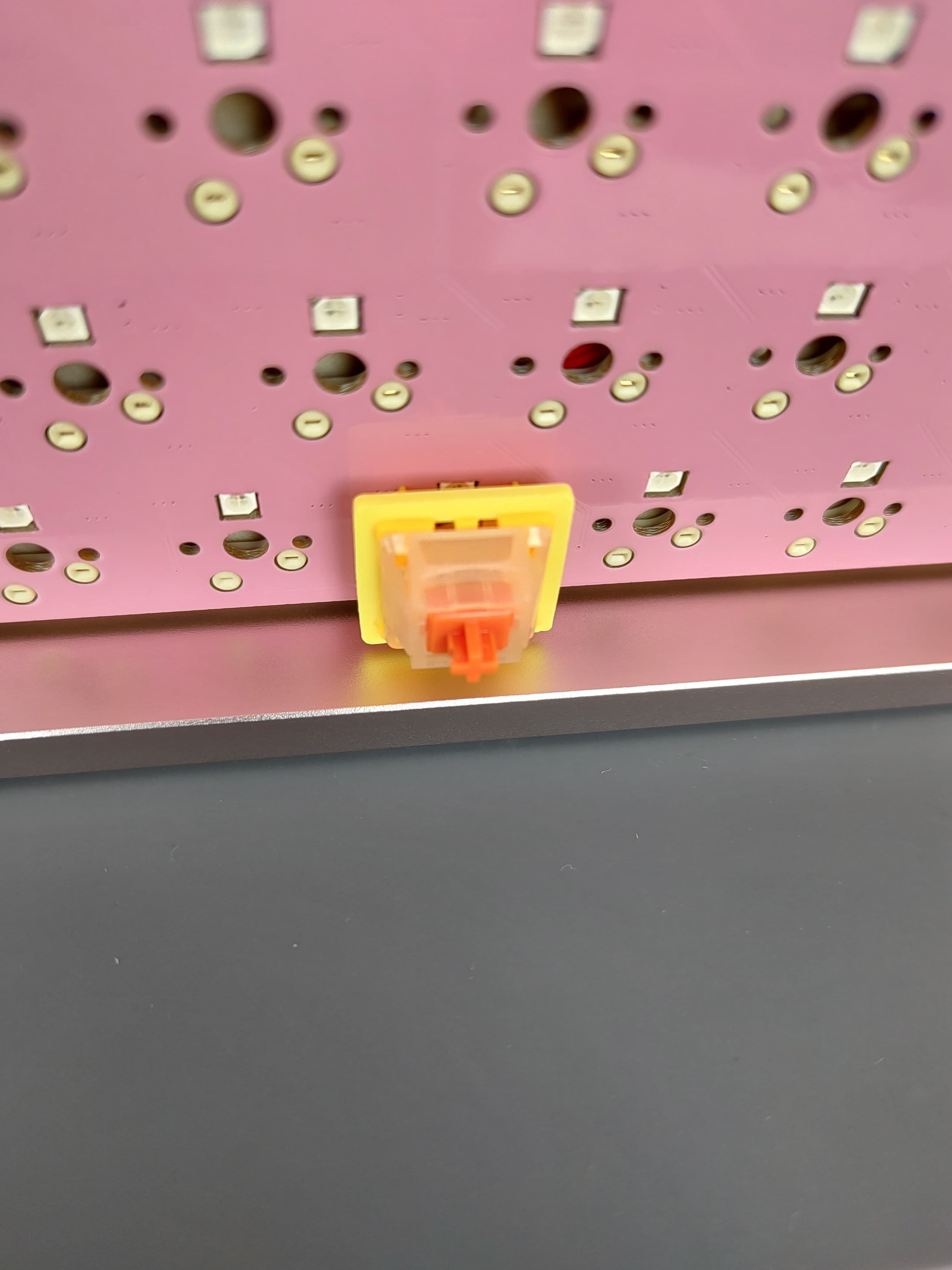

- Plateless Adapters (Optional)
- Bag/Case

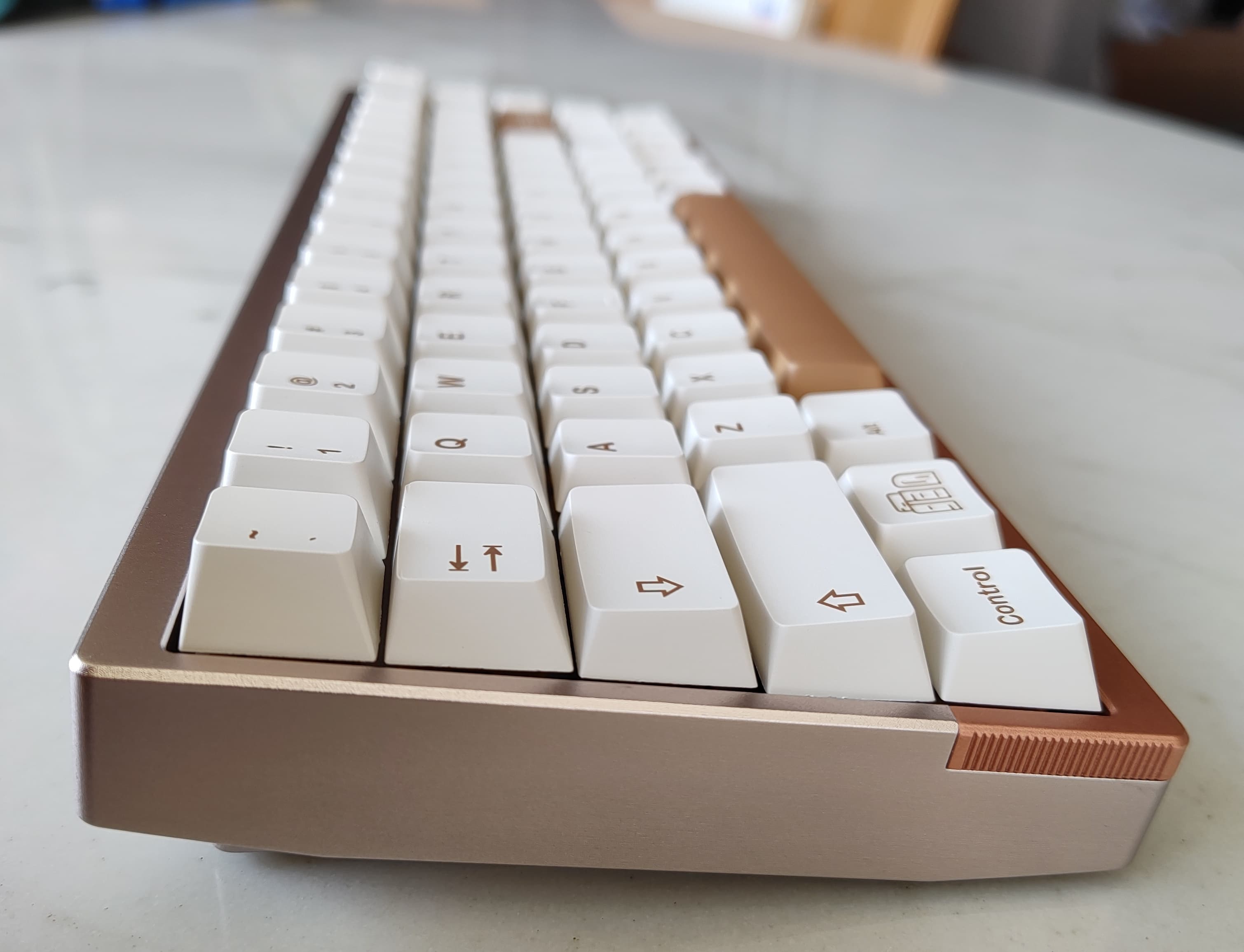

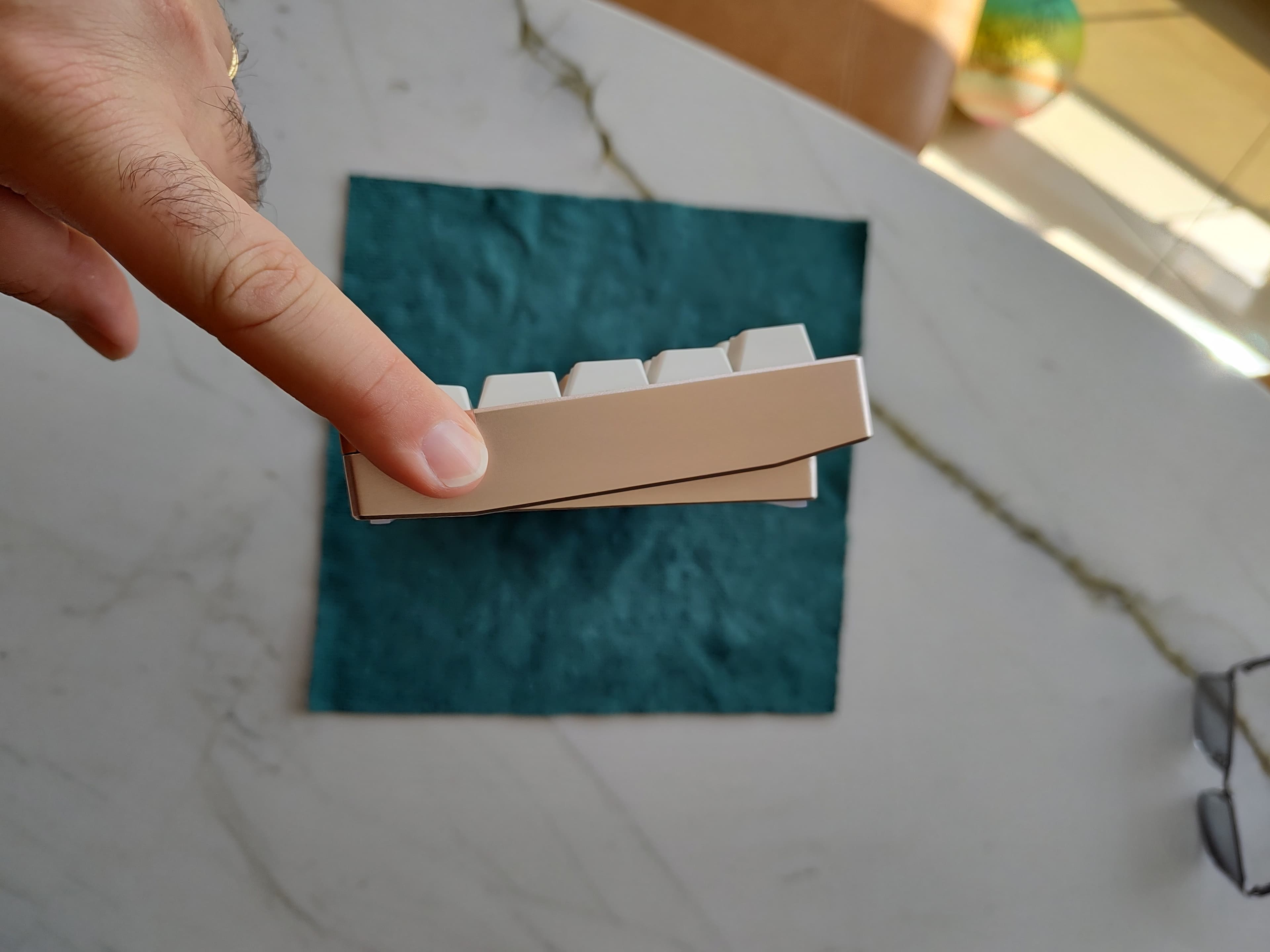

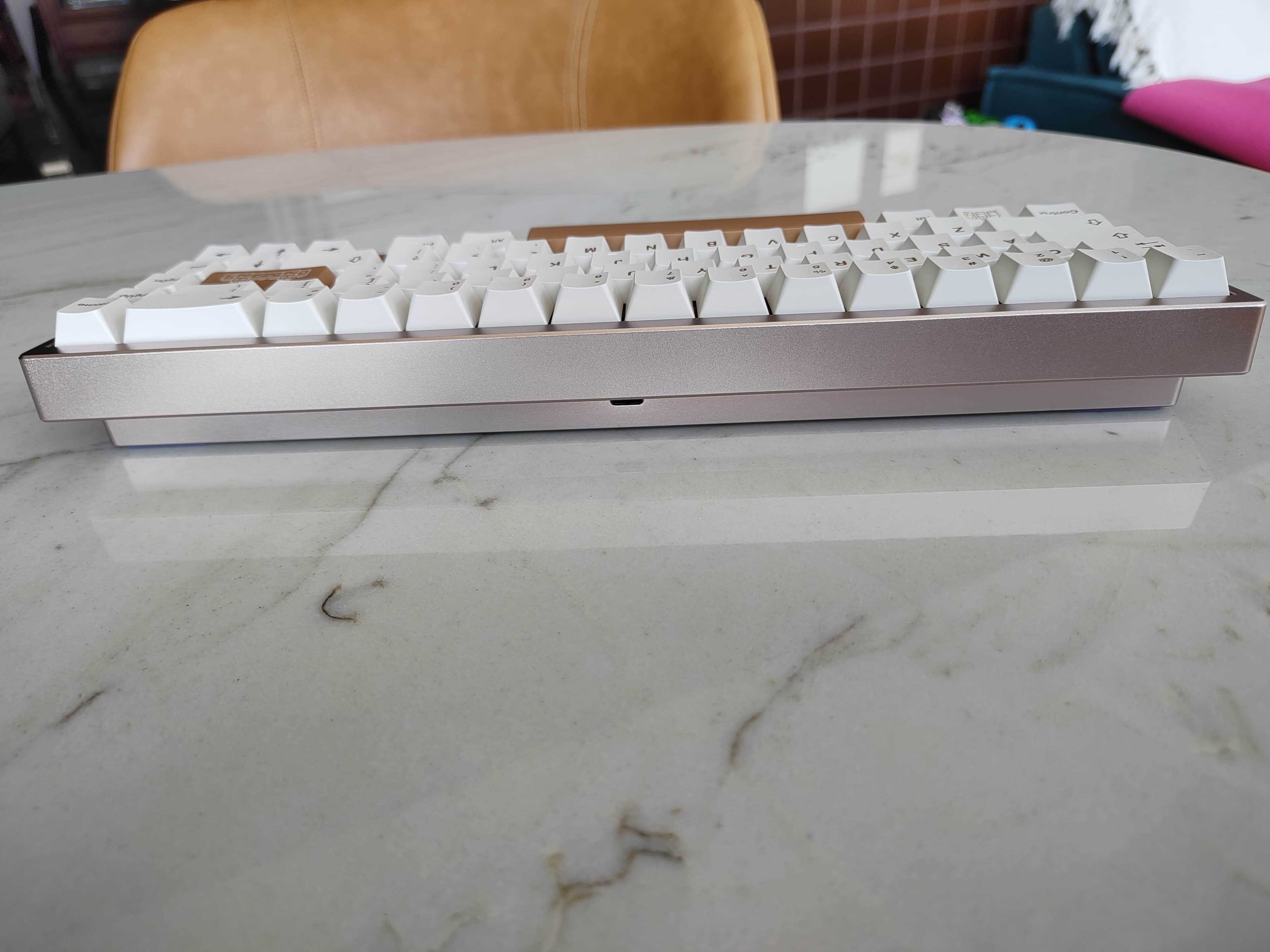

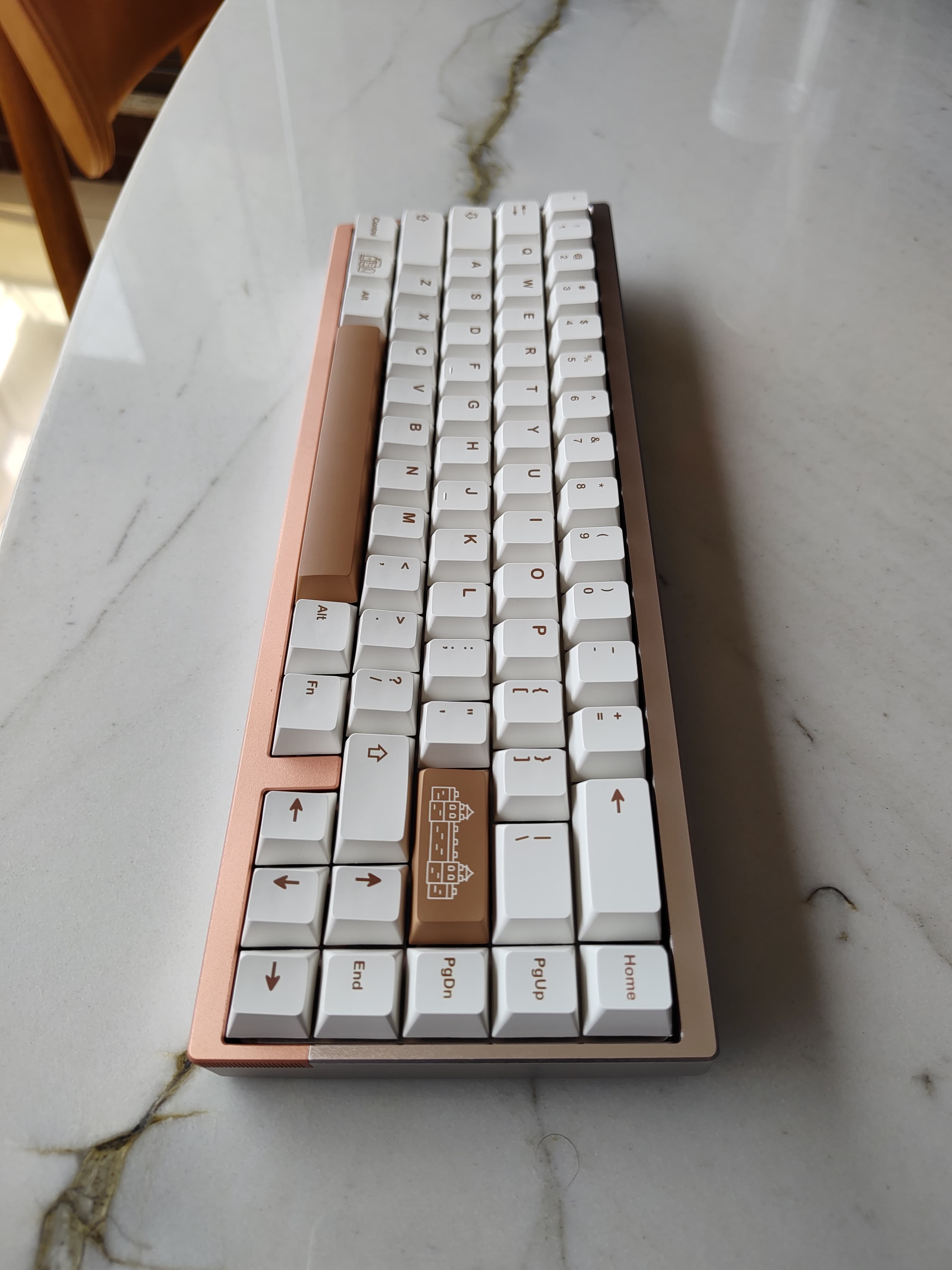

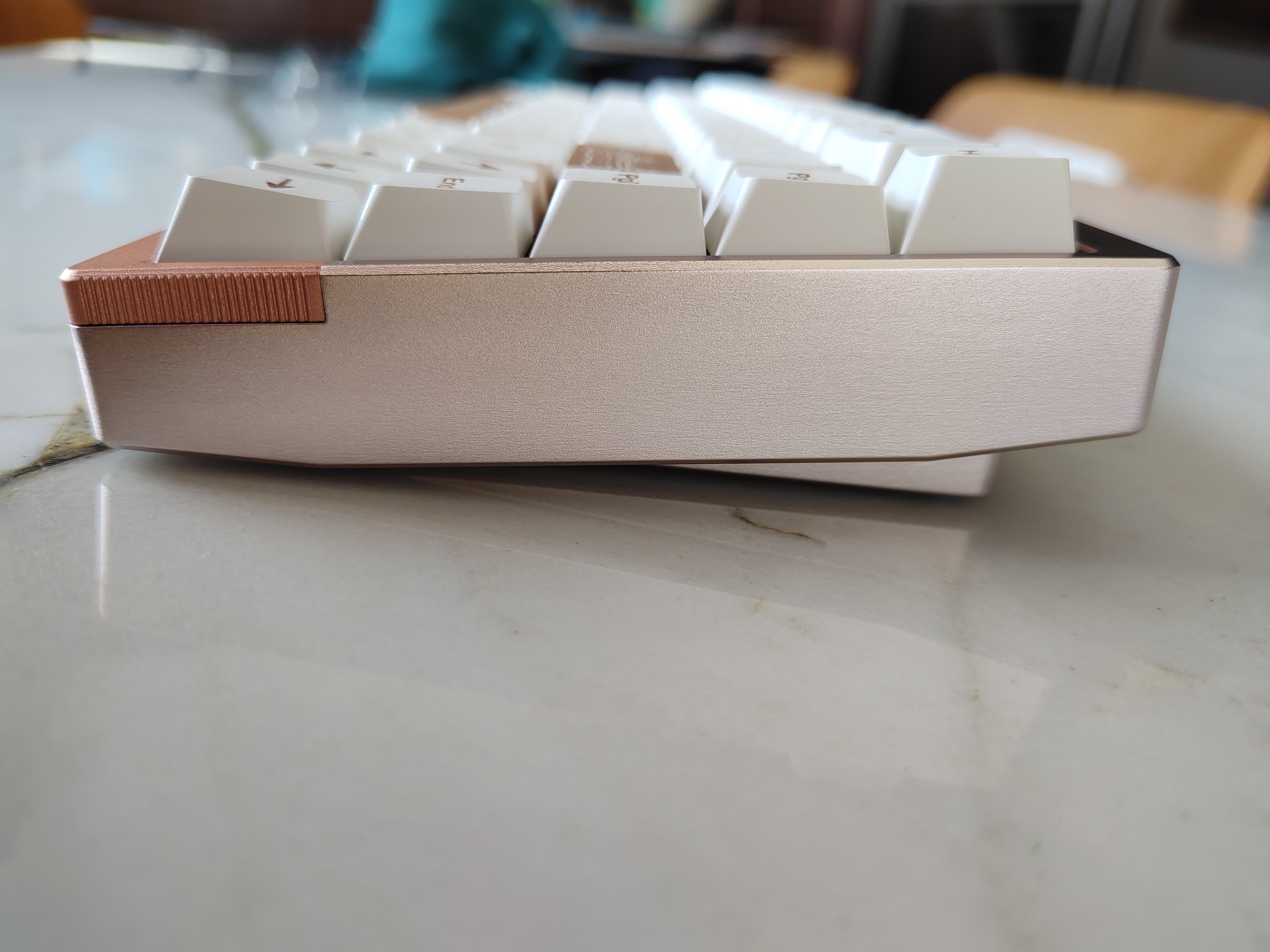

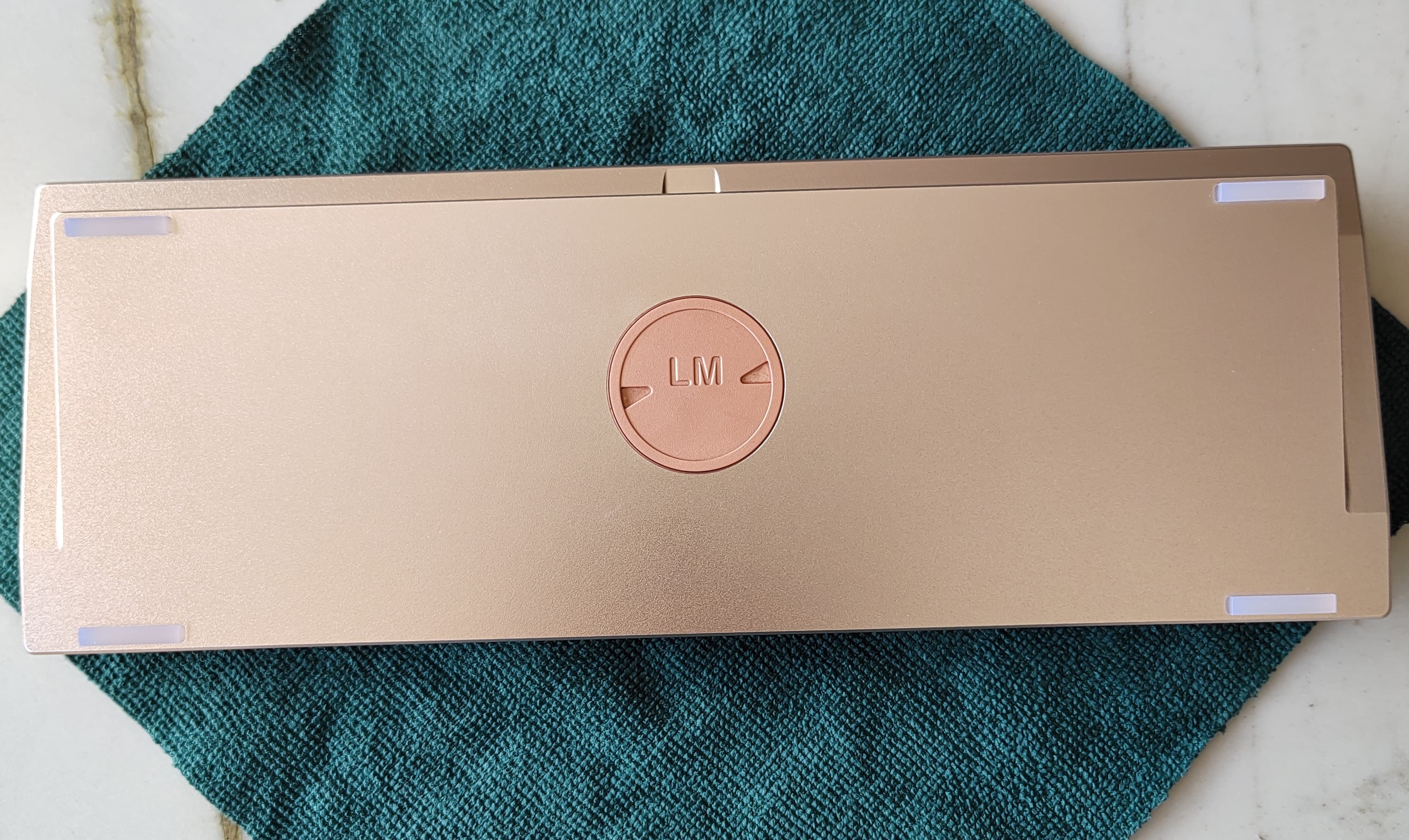

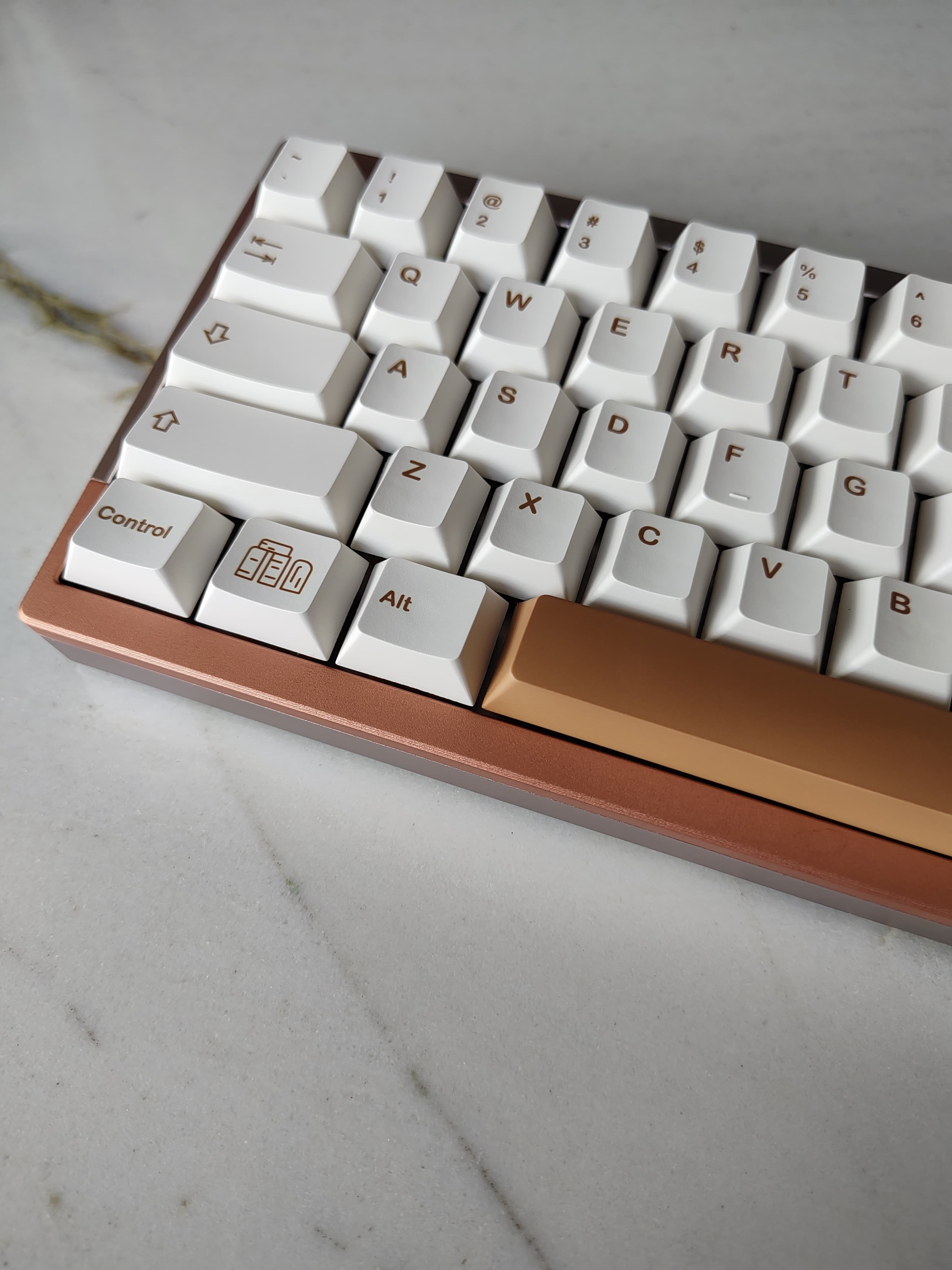

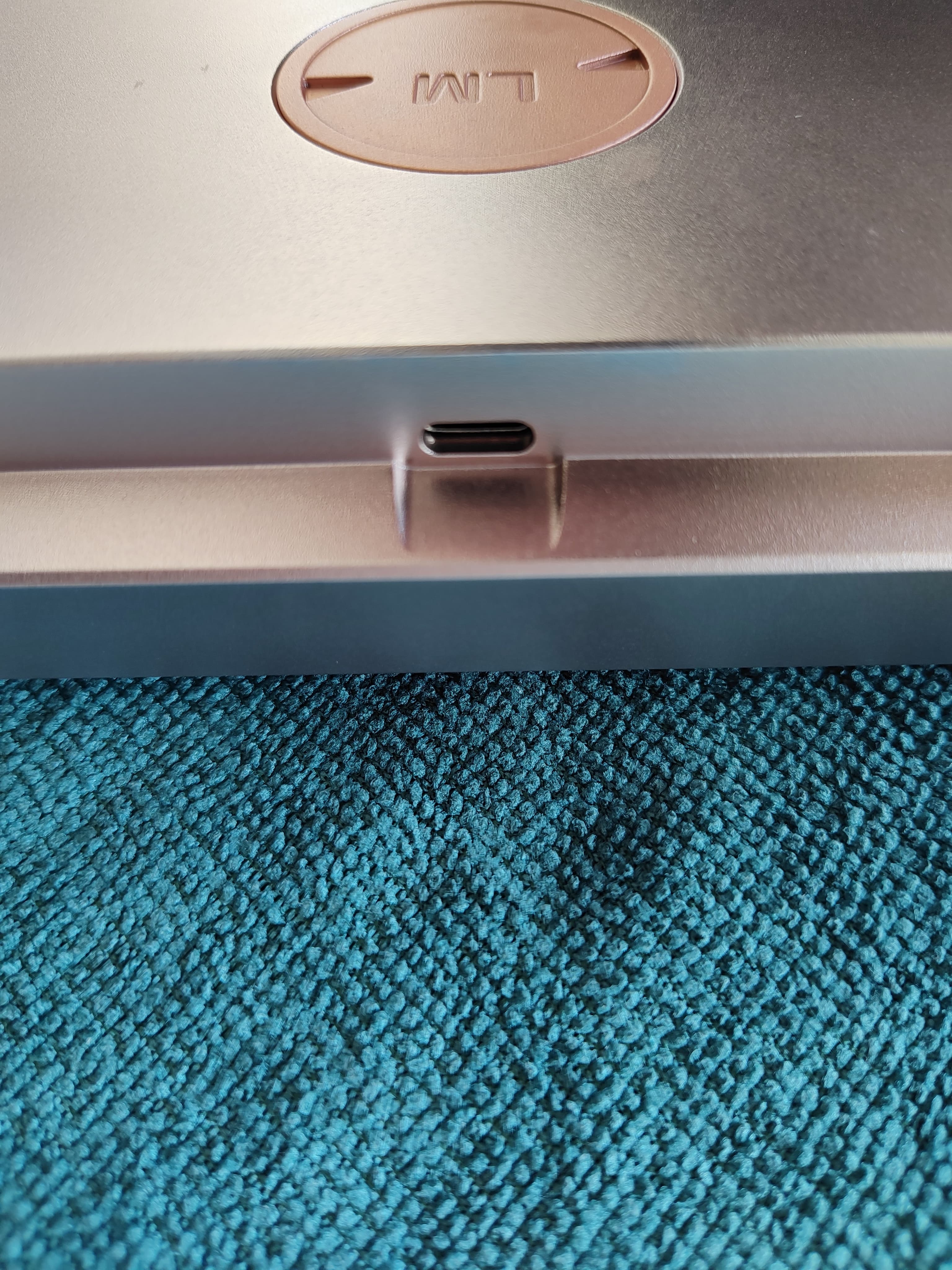

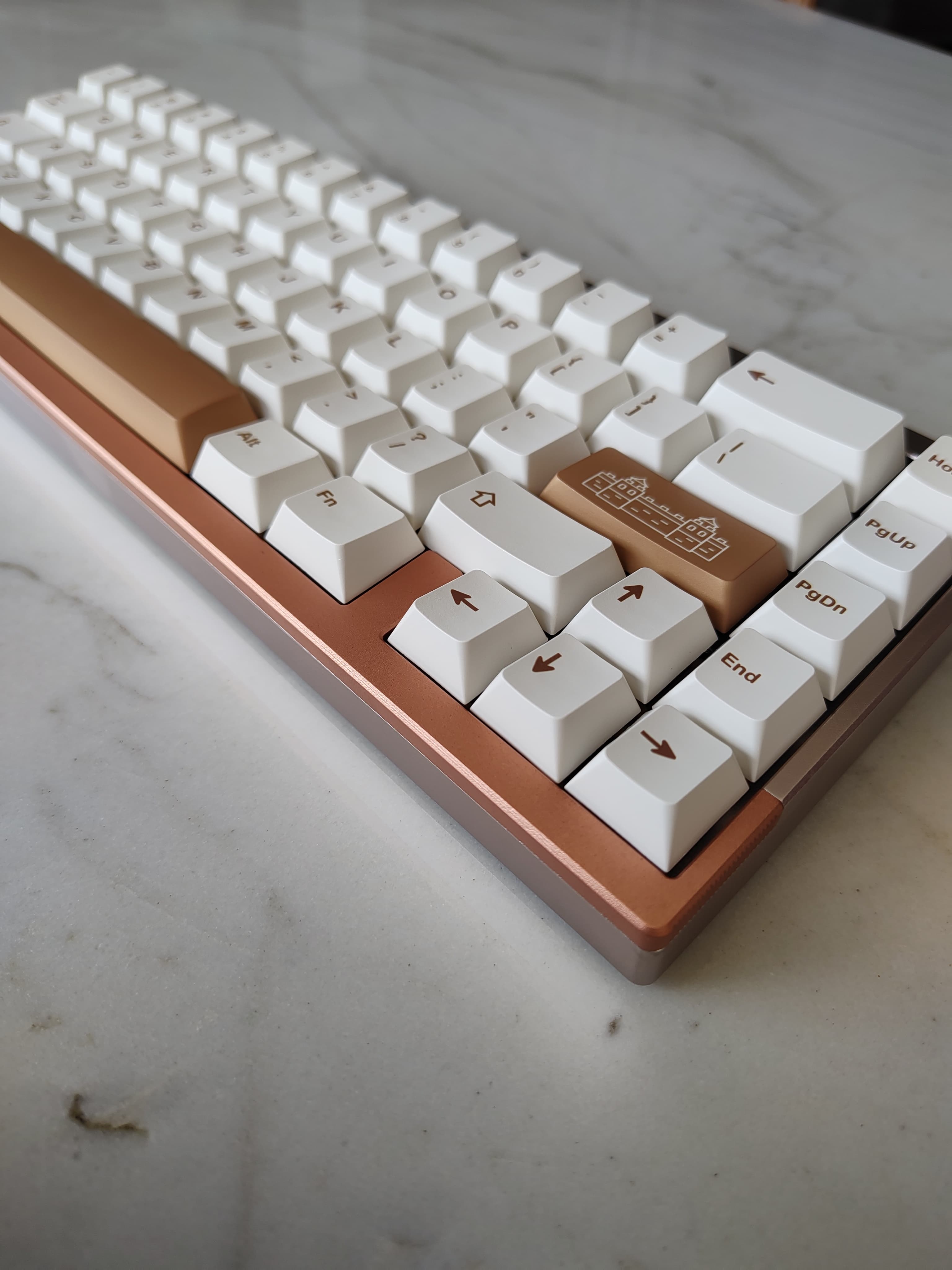

Prototype Photos
Some VideosComing soon
Mount
https://www.instagram.com/reel/DBZzB2byu_IMore InfoOn our
https://instagram.com/lm_kbdGB Order Form and linkhttps://docs.google.com/forms/d/e/1FAIpQLSfREo2DJgTslOuyBXu0YyR7ry2ORjFKgxqsOvaGeSFy3EtQaw/viewform?usp=sharing&ouid=112269434613075184537PriceFrom USD 170 (more extras), shipping fee included.
You can pay with PayPal, Alibaba order, xtransfer and Crypto.
Best Regards,
Eng. David Martinz (and Liz Maria) - LM Keyboards
