Lotus80
by Fox Lab
Post edited by Click Clack

Hello everyone, This is Fox Lab. It’s been a year long since Time65 GB, I'm back to introduce a new themed custom keyboard from our Nature Series—the LOTUS 80%.

Index

- Design
- Structural Design
- Specifications
- Product Showcase
- What is included?
- Pricing and Vendors
- Follow the development

Design

Design Concept

The lotus has long symbolized purity, elegance, and Zen philosophy. Drawing inspiration from this, we fused Eastern aesthetics with modern industrial design. Centered on minimalist contours and symmetrical beauty, we eliminated superfluous decorations to create a keyboard that balances visual appeal and functionality.

Exterior Design

Our Nature Series emphasizes subtractive design, stripping away homogenized industrial elements. The goal was to achieve simplicity while retaining thematic sophistication and distinctiveness.

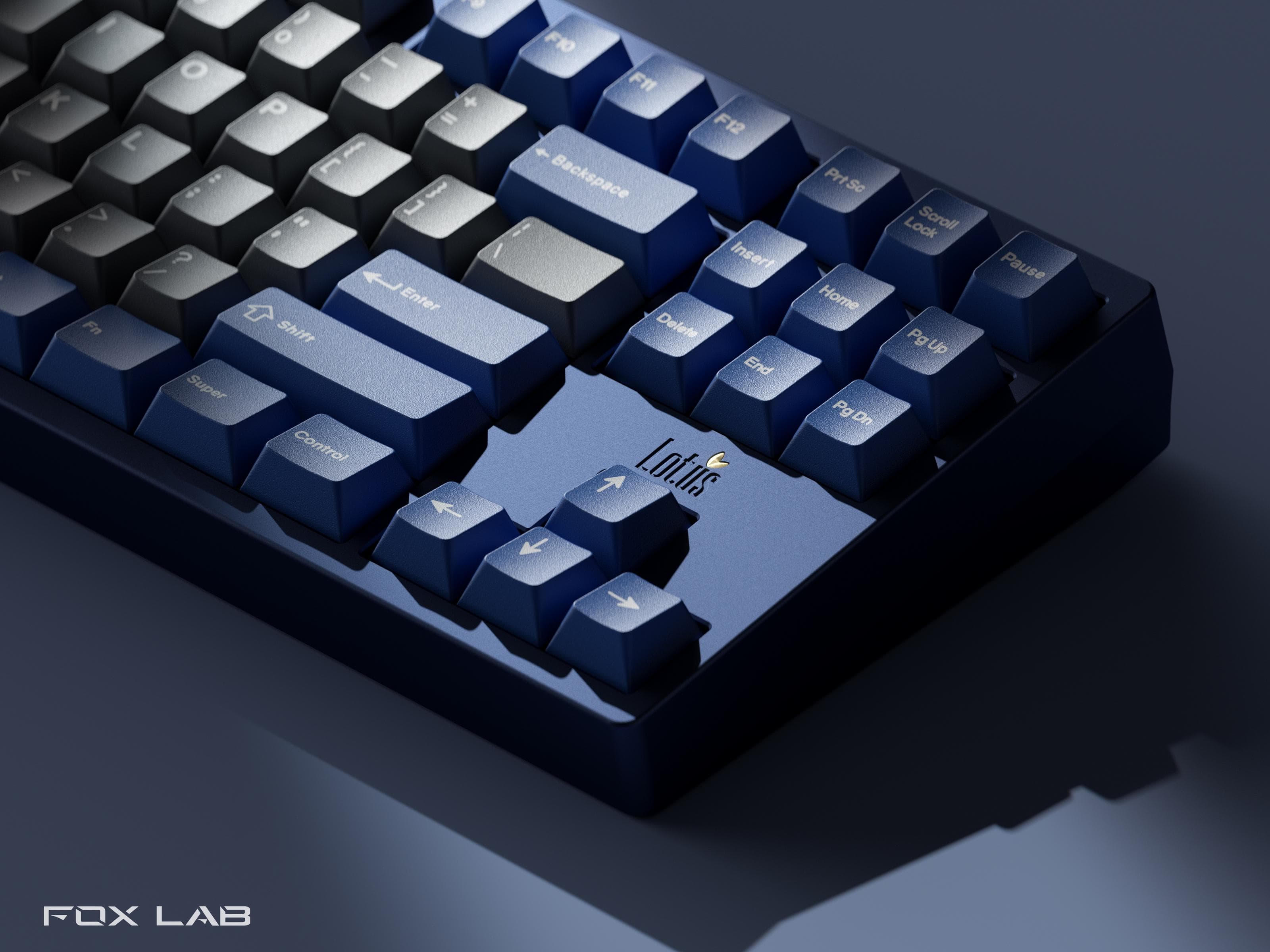

Front Design

Since the lotus theme doesn’t lend itself well to RGB lighting, we opted for an understated approach—a finely engraved logo paired with a lotus-leaf emblem to adorn the front. Unlike our previous Sunset with ultra-thin bezels, the LOTUS features moderately sized borders to complement its elegant and grand aesthetic.

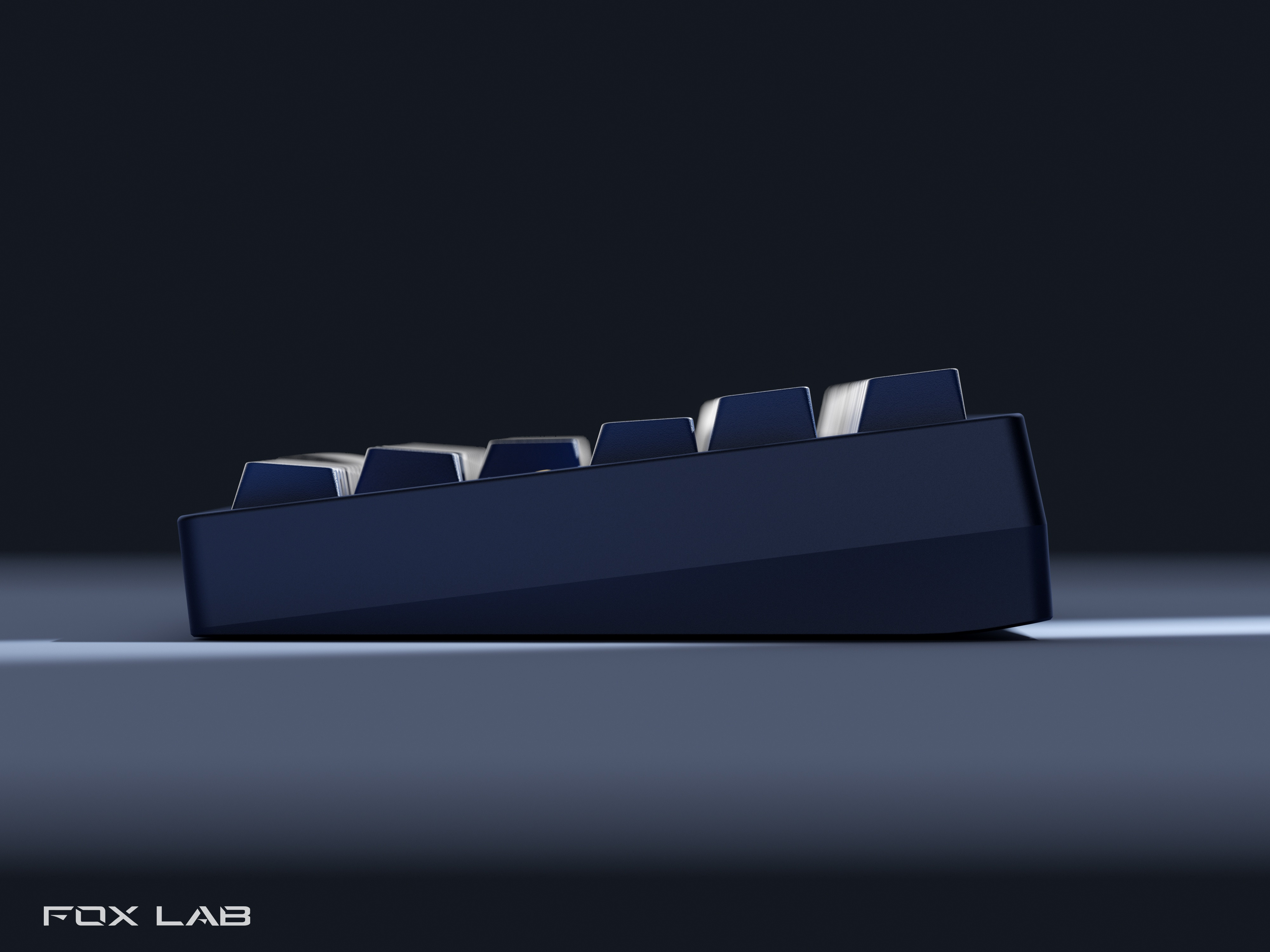

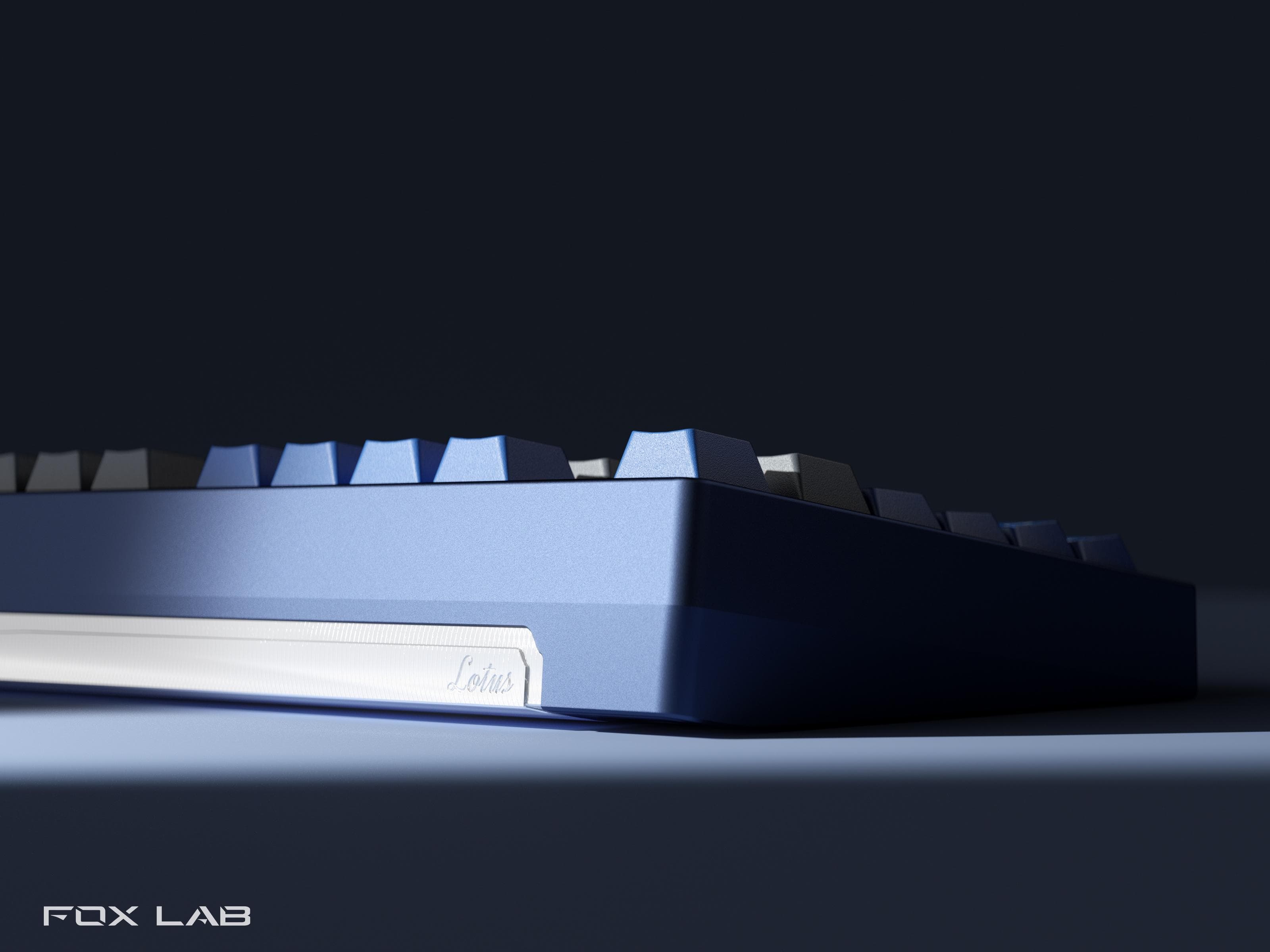

Side Profile

The sides employ a gently concave, curved-edge design, mimicking the natural unfurling of lotus leaves. The smooth transitions offer a refined tactile experience while reducing visual bulk.

Weight Design (Bottom)

-Small Weight (Lotus Motif): Made of brass, the multi-layered petals radiate from a circular base, creating a 3D relief effect that mimics overlapping lotus petals.

Back Design

Large Weight (Backplate): Crafted from stainless steel, the center features a curved lotus-platform design that echoes the petals above. The interplay of two contrasting metals forms a complete lotus, embodying elegance, purity, and Zen-inspired aesthetics. The layered petals and symmetry exude a quiet luxury, further enhanced by the heft of brass and stainless steel.

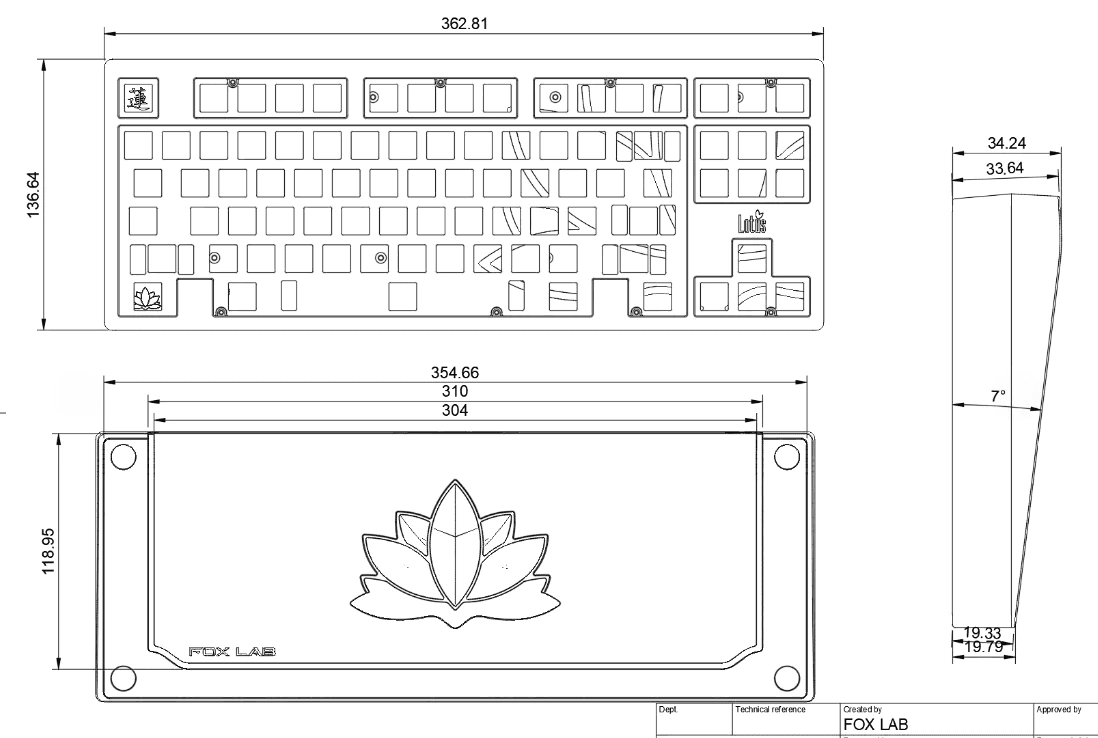

Specifications

• Typing Angle: 7°
• Front Height: 19.22mm
• Unbuilt Weight: 3.4kg
• Mounting: TOP
• PCB Options: Soldered / Hot-swap (1.6mm uncut)
• Layout: WK/WKL
• Plate: Uncut Aluminum Plate
• Back Weight:
o Large Weight: Stainless steel, silver, wave-knurled texture (raw)
o Lotus Petals: Brass, Gold, fingerprint-resistant oil coating
o Lotus Leaves: Stainless steel, Silver, raw (unfinished)

Structural Design

To maintain a clean look, we used internal screw fastening (hidden screws) instead of visible mounts. The keyboard features a two-layer construction (technically three due to the stainless steel backplate).

Mounting Style: TOP Mount

While the custom keyboard scene has explored various soft-mounting styles (e.g., gasket), we returned to the classic TOP mount for this build. Why? Because sometimes, sticking to the original, uncompromising feel aligns better with the spirit of customization—OG and unyielding to trends.

Product Showcase

Color options for Top Case & Bottom Case (Anodized & in the same color:

Color Options (8 Total):
• Anodized (4): Champagne Pink, Silence Silver, Nautical Blue, Silk Red
• Coating (3): Cream Yellow, Gray-Blue, Seafoam Green
• Raw: Features visible machining marks, prone to scratches/fingerprints. Choose carefully!

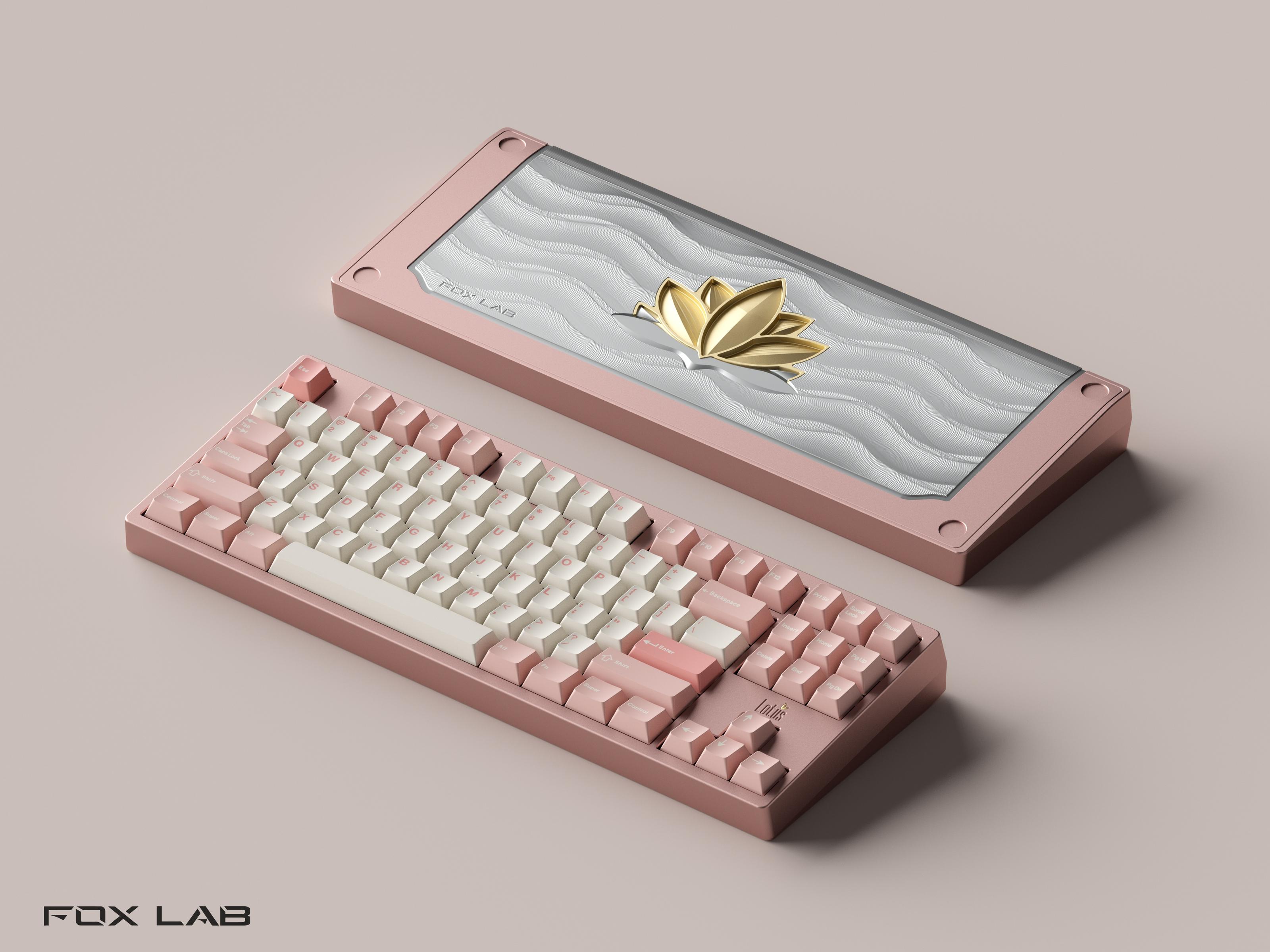

Anodized Champagne Pink:

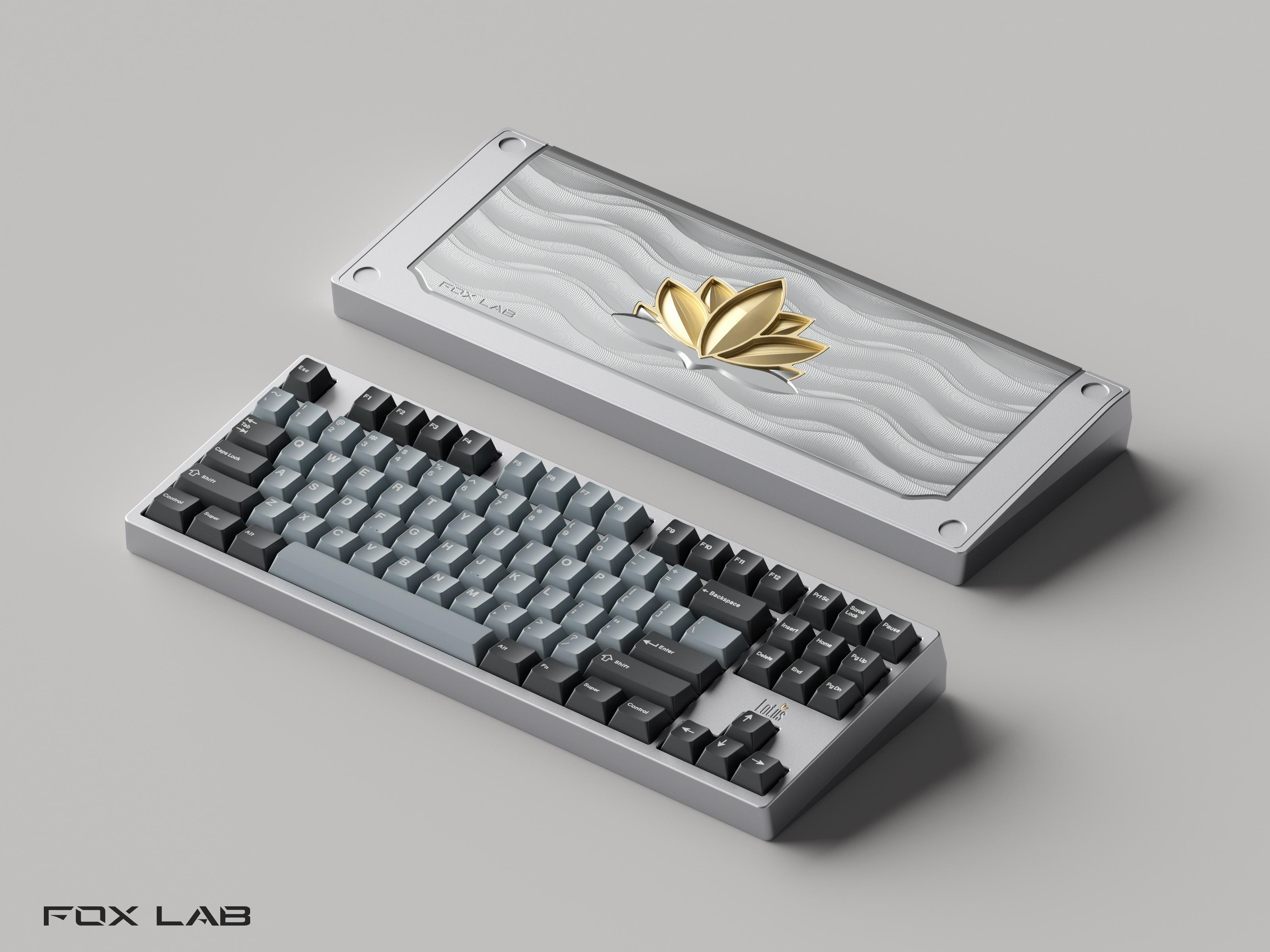

Anodized Silence Silver:

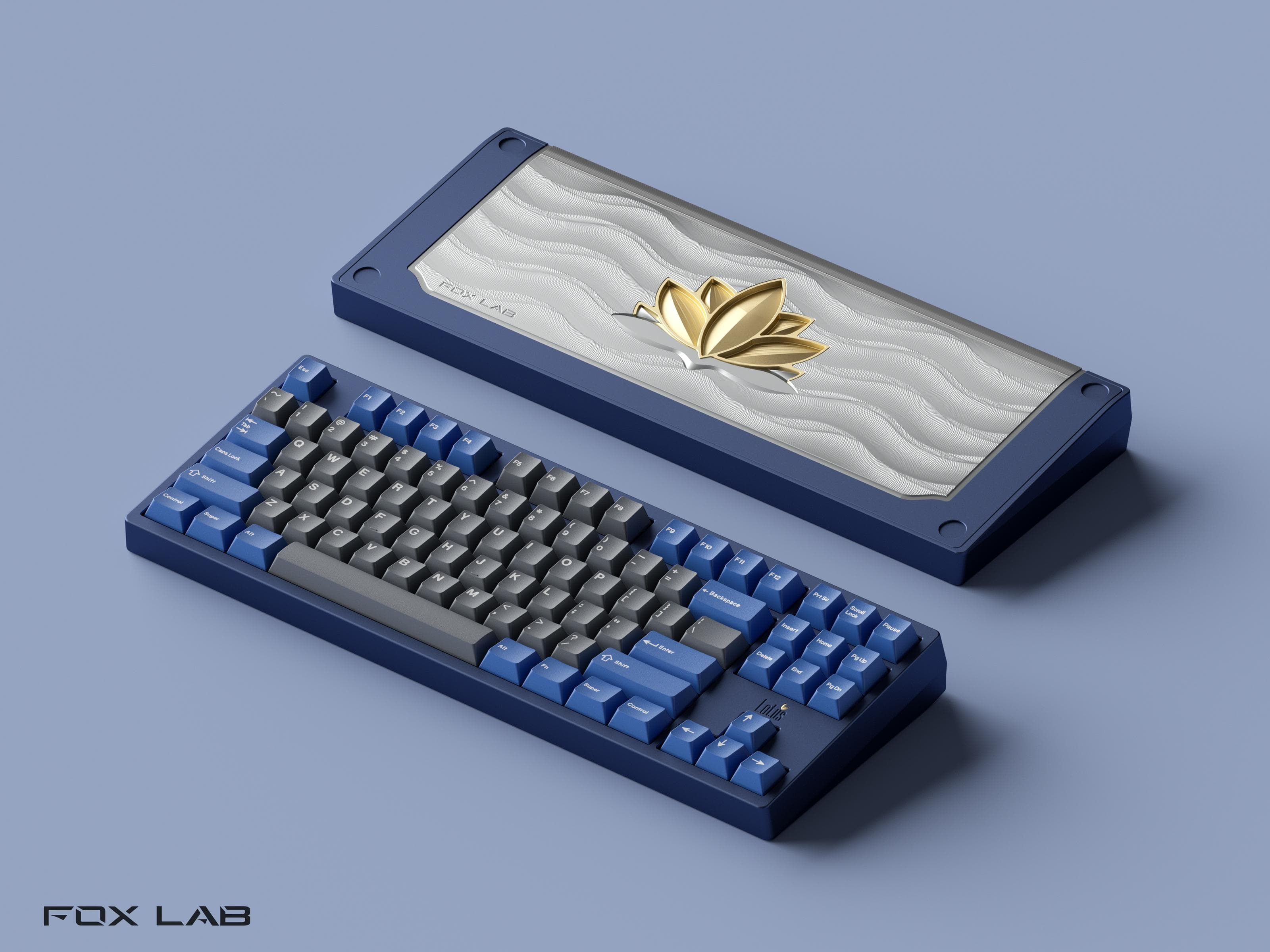

Anodized Nautical Blue:

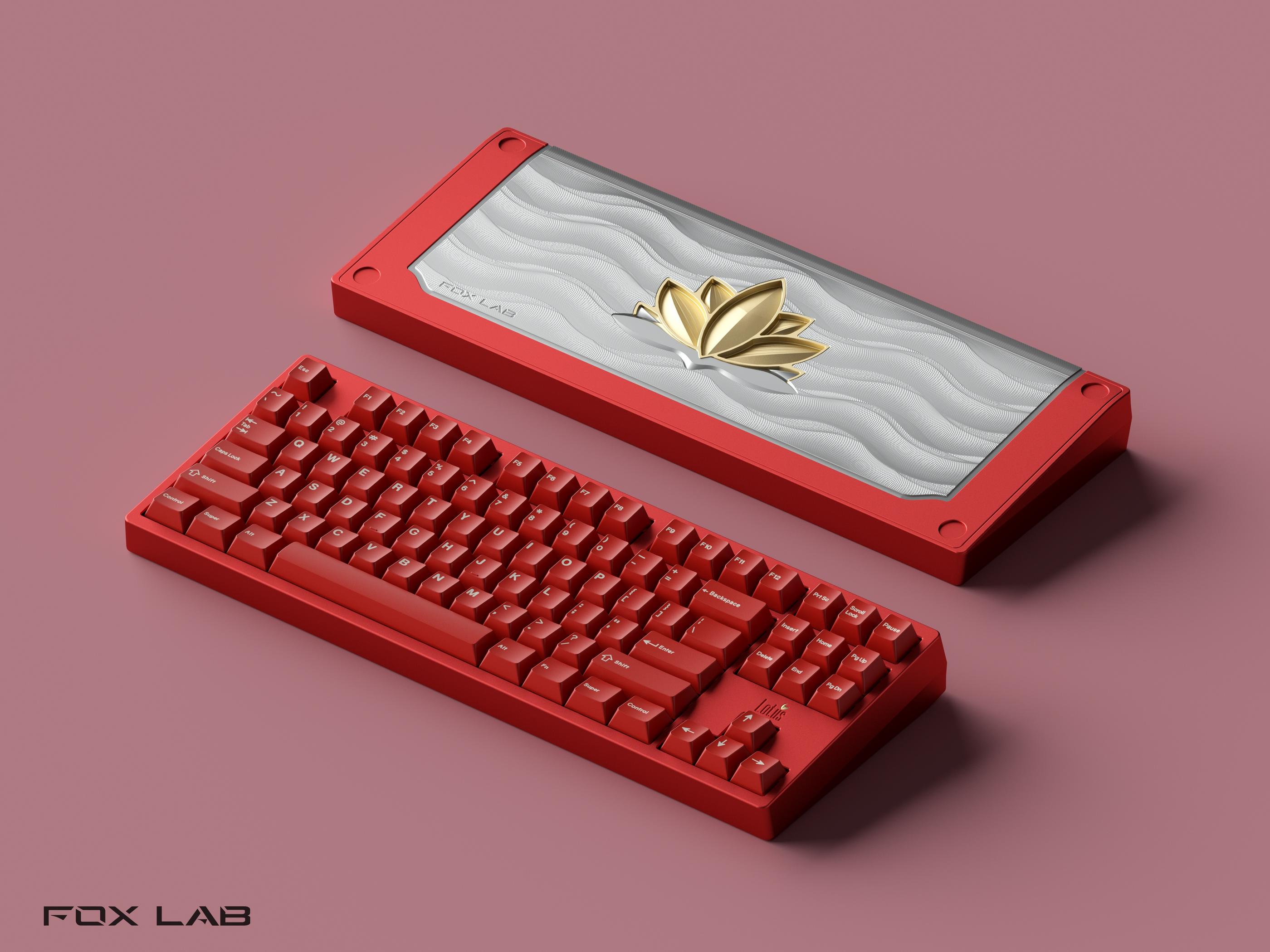

Anodized Silk Red:

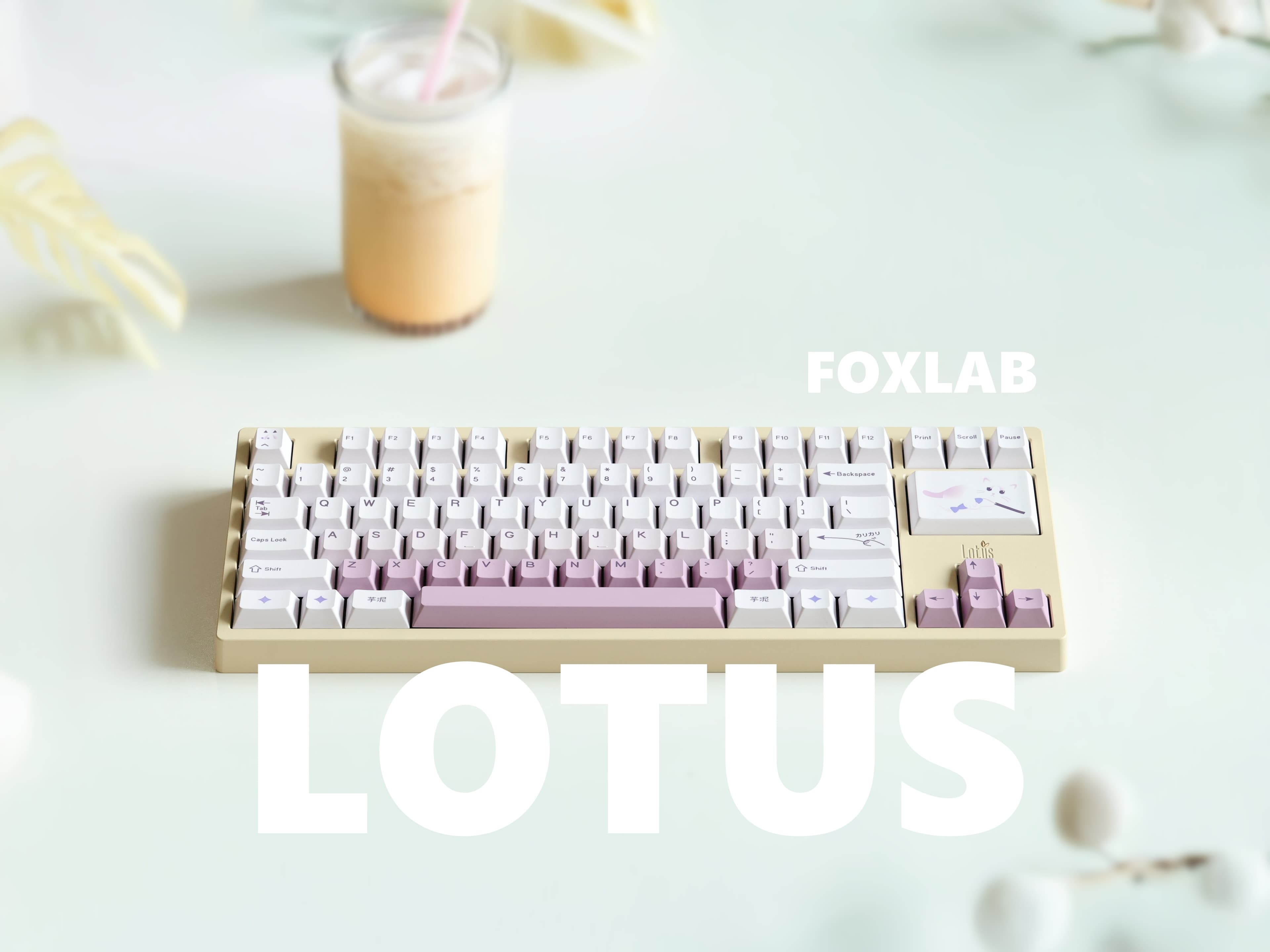

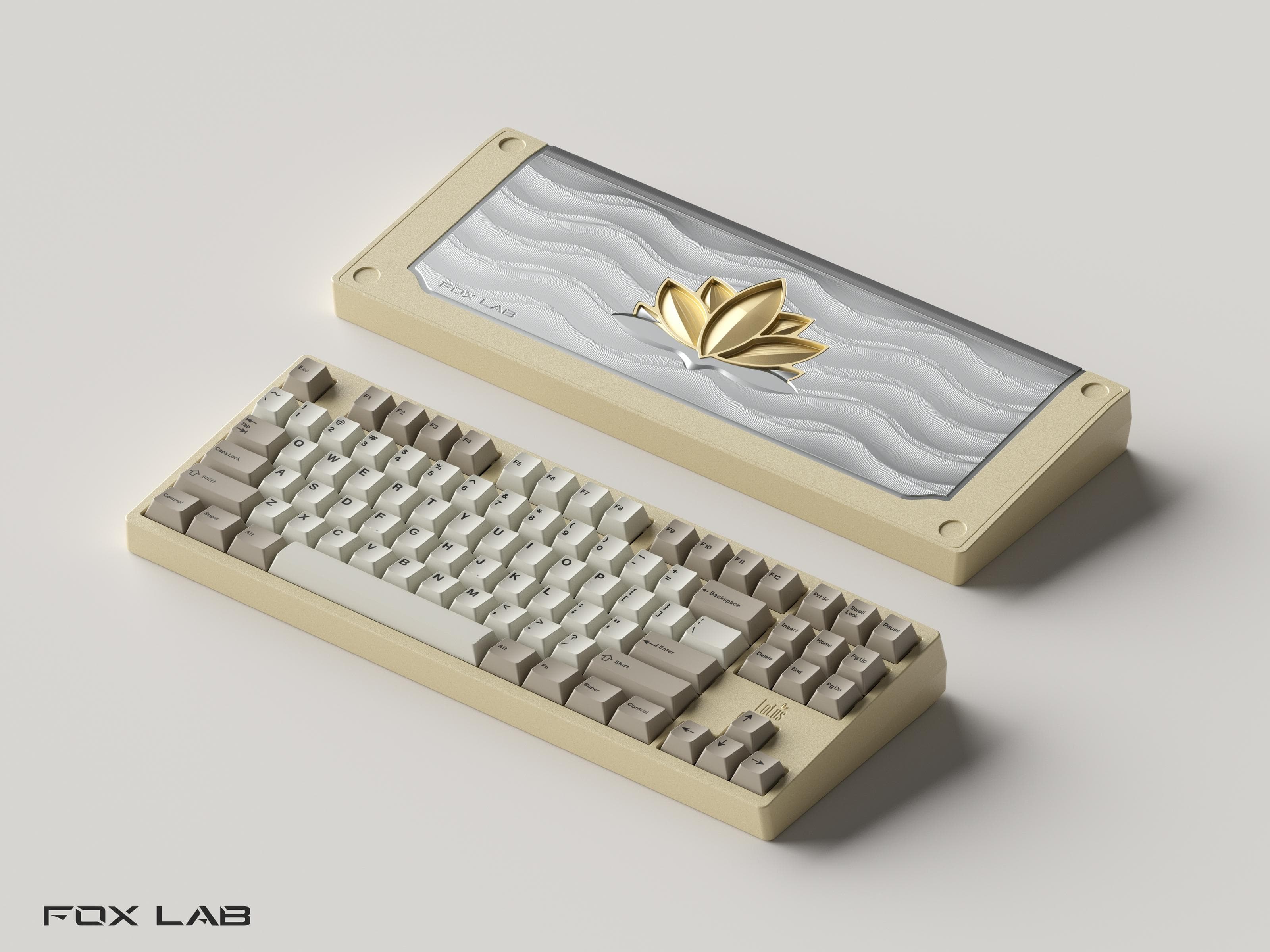

Coating Cream Yellow:

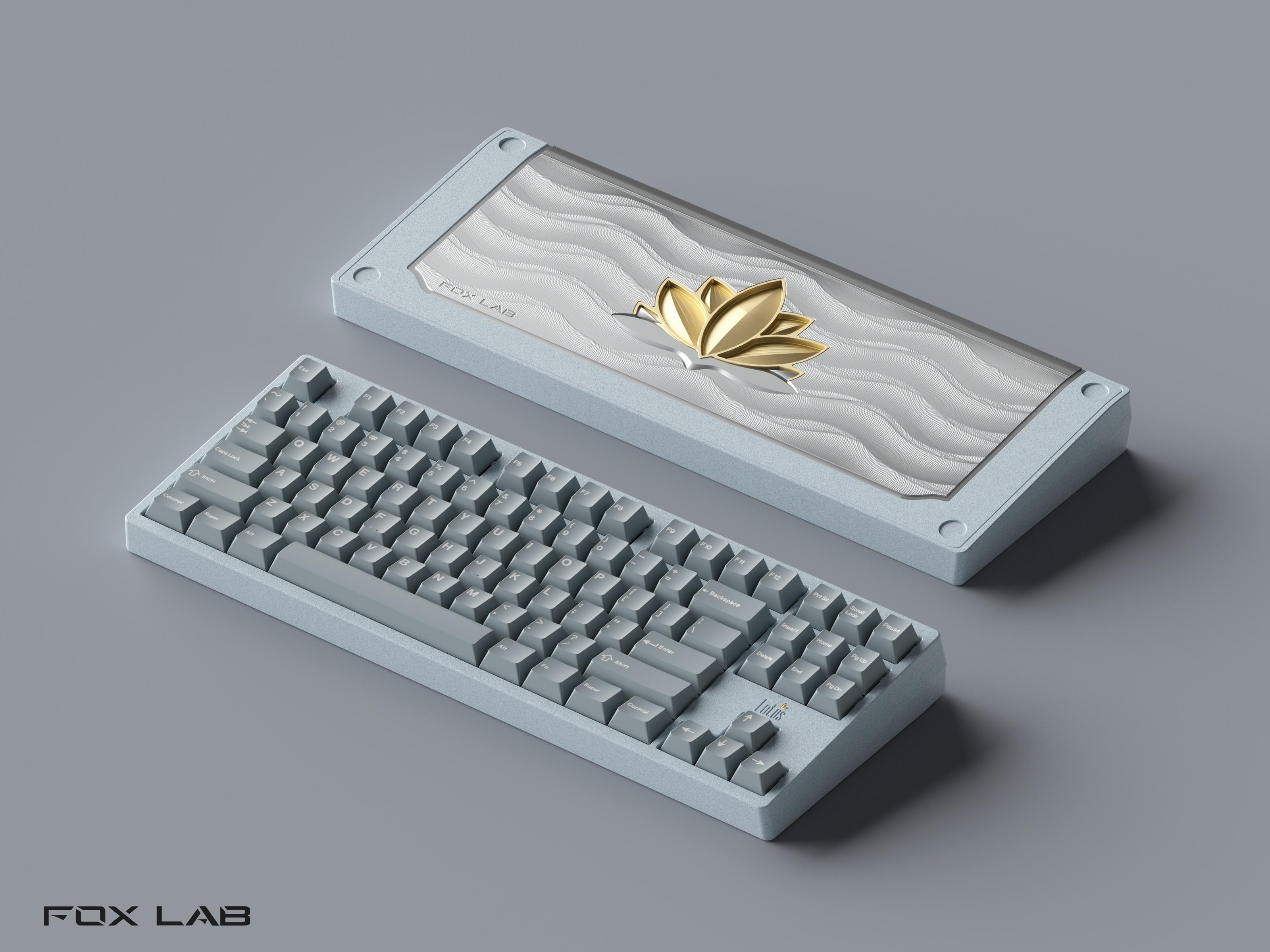

Coating Gray-Blue:

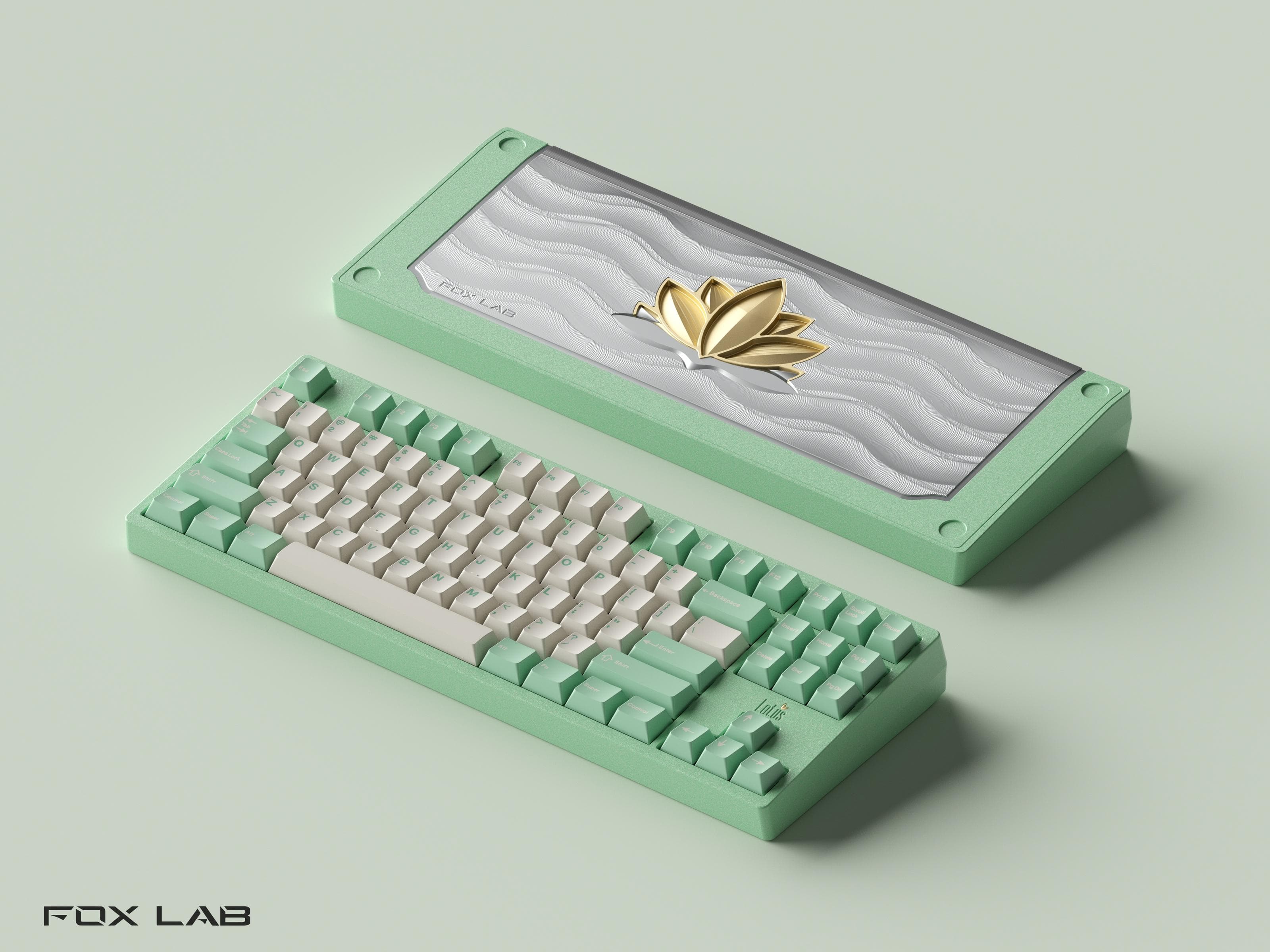

Coating Seafoam Green:

Raw:

More Photos:

What is Included?

Package Includes:
• Keyboard case (top/bottom/weights, aluminum plate) ×1
• PCB ×1, magnetic daughterboard ×1
• 3.5mm Poron mid-layer foam ×1
• 0.5mm anti-static bottom foam ×1
• Plate foam ×2, case foam ×6
• Non-slip feet ×4
• Screws
Note: Raw version requires extra care due to its unfinished nature—ideal for enthusiasts who appreciate industrial authenticity.

Pricing and Vendors

Group Buy Details
Time：August 2nd to August 17th

Form：Open GB in Limited Time Window

Pricing:

Default Price: 385 USD
Extra PCB：40 USD
Extra Aluminum Plate：20 USD

Estimated shipping time: 3–4 months after GB closes.

Vendors:

- US: Click Clack
- Rest: TBD
More will be updated.

Join ClickClack’s Discord for the latest updates, discussions, and questions:
