Hello everyone,
This group buy is for a
LZ CLSfor the Classic TKL
IC threadhttps://geekhack.org/index.php?topic=87184.0Detail
Order deadline 2017-02-13 -> 2017-02-06
Order check 2017-02-13~02-15 -> 2017-02-07 ~ 02-09
Invoice start 2017-02-09
Payment deadline 2017-02-20
Production 12 ~ 16 weeks from 2017-02-20=========================================
Order Check=========================================
-------------------------------------------------
LZ CLS
Order Here=============================
Acrylic Diffuser for LZ CLS
Order Here
Acrylic Diffuser order ~ 2017-02-09
-------------------------------------------------
Specifications: Aluminum case
10 degree angled
Aluminum n Stainless steel Switch plate
Brass or STS Weight
Support 84 and 86/87 layout
ISO + ANSI
PCB:
TX87 TKL PCB
Fully Programmable
Full LED backlighting
Full SMT(pre-soldered Device, Diodes, Resistors)
-------------------------------------------------
Case Colors:
Black
SILVER
GRAY
Switch Plate:
Alu (Silver)
STS (Stainless Steel)
Weight Plate:
Brass
STS (Stainless Steel)
Basic kit 1 set of include 1 pcb
-------------------------------------------------
Additional Parts:PCB Mount Cherry Stabz(1kit)
Extra PCB
Extra Switch plate
Extra Weight plate
-------------------------------------------------
Price:(excluding paypal fees and shipping)
Basic kit : $447 (Case, Switch plate, Weight plate, PCB)
Shipping:
Different depending on Order Option
1 set(Box) of weights : about 4.0kg
EMS shipping Price (1set) with Tracking number
Asia : $40
EU, Canada : $73
Usa : $82
-------------------------------------------------
The PCB is Designed/Developed by Leeku
The PCB is Programmed with JigOn firmware :
http://kbdlab.co.kr/index.php?mid=board_sw&document_srl=2702787-------------------------------------------------

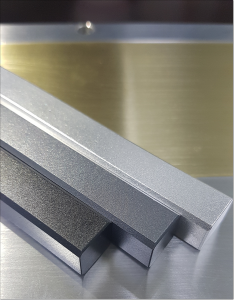

Sample (not yet anodizing)
Not 100 % same
-------------------------------------------------
PCB S/W (JigOn)
English language documentation for Leeku's L3 Boards
https://geekhack.org/index.php?topic=83950.msg2236885#msg2236885==============================
2017-02-06

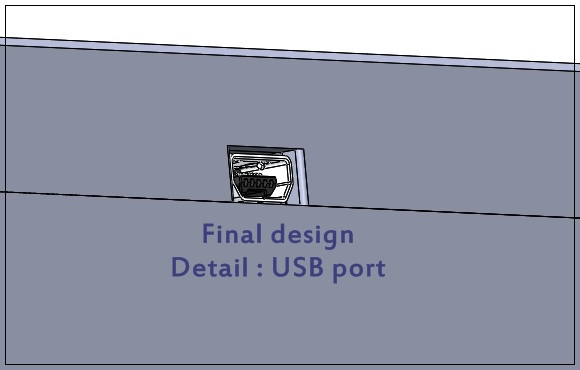

USB port - design modify
==============================
update
2017-05-16
CASE CNC Finish.
==============================
Shipping
2017-08-21
Shipment will start from tomorrow by dividing several times.
tracking numbers were also sent via paypal email address.
Please check your paypal email address.
