LZ CLS s x h (Classic 60) : [Finish]

Hello everyone,


This group buy is for a LZ CLS s x h
for the Classic 60% (with HHKB st)

IC thread
https://geekhack.org/index.php?topic=92303.0

================================================
[Note.]
Base Kit not including PCB
Because there are various PCBs, we want individual to choose according to preference.





[Spec.]

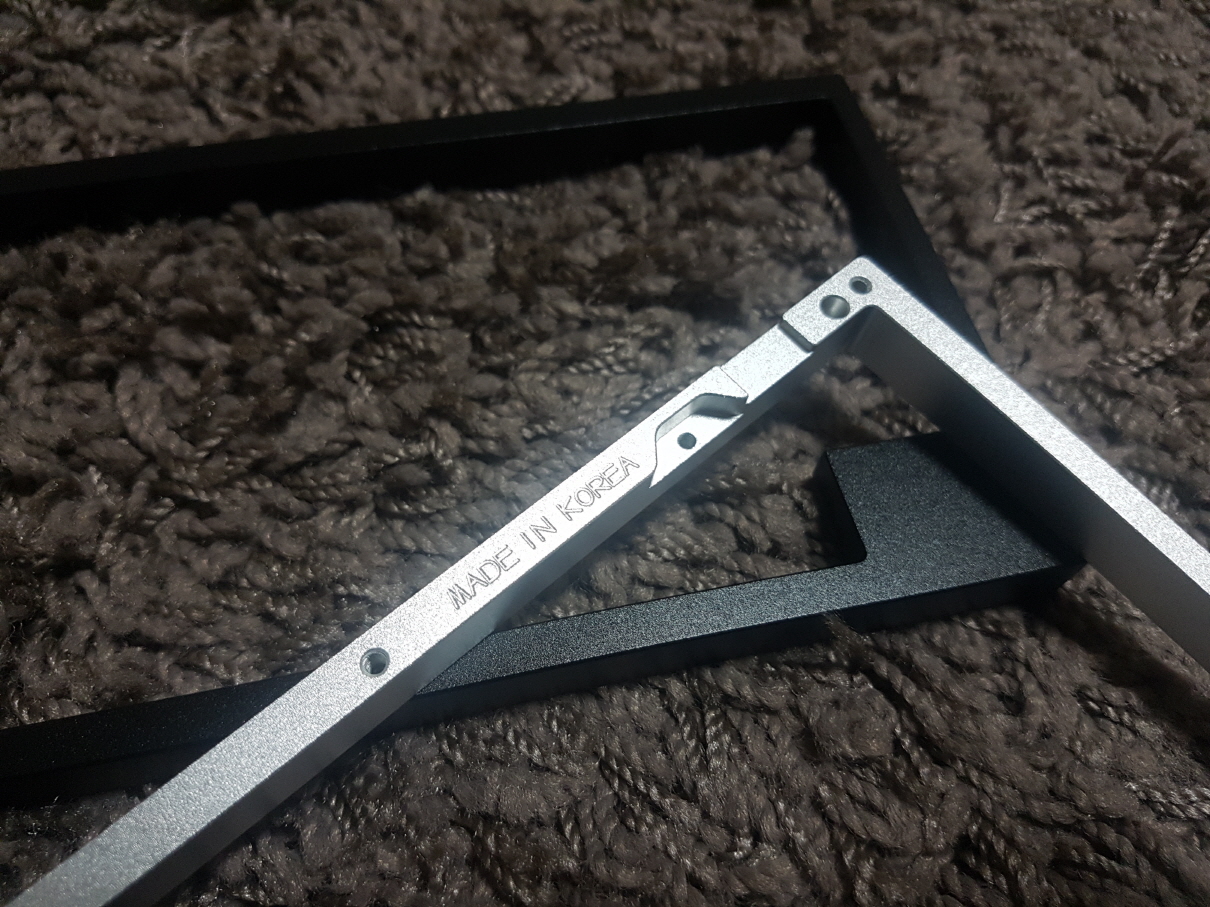

Aluminum case
8 deg angled

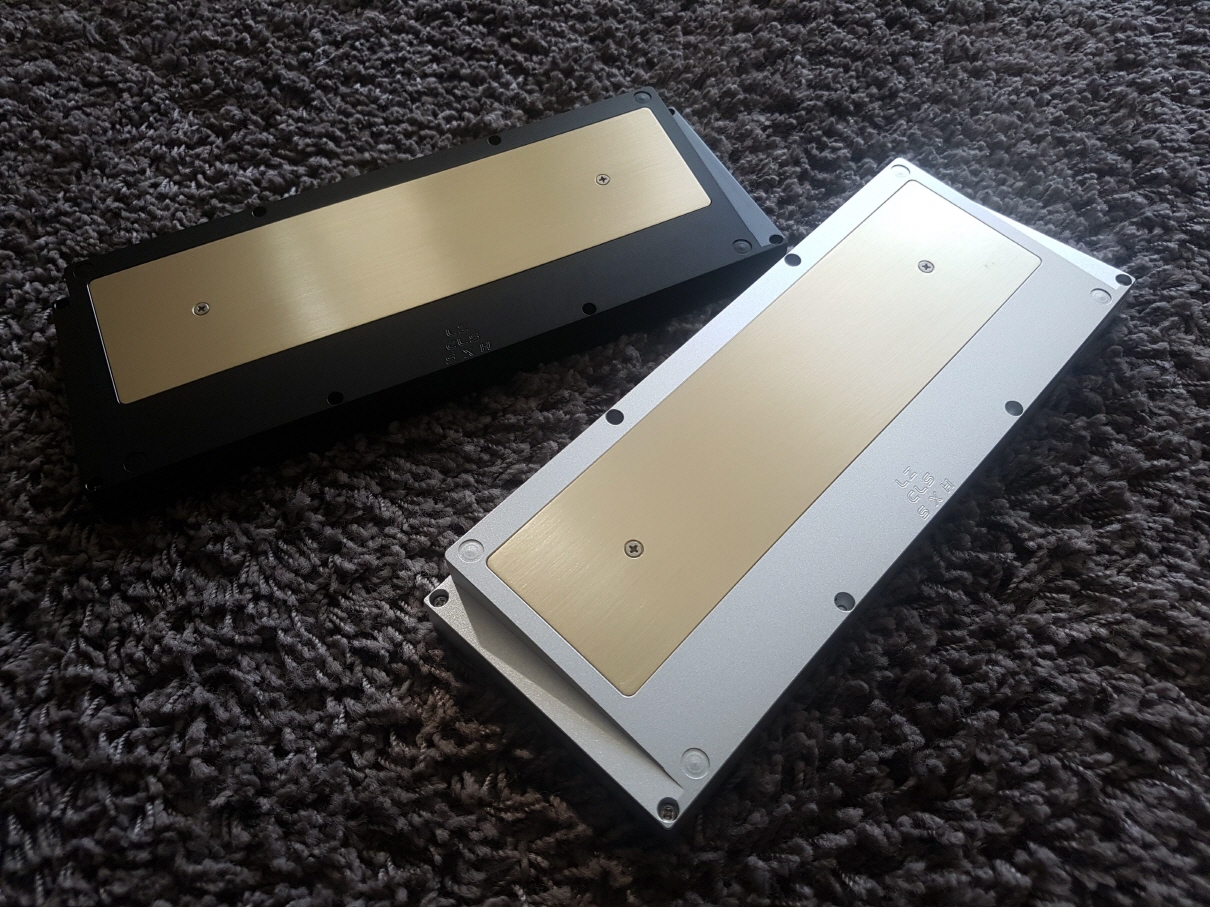

Brass Weight
Aluminum n Stainless steel n Polycarbonate Switch plate

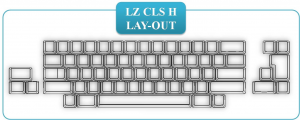

Layouts Supported by the MX Switch plate (ISO + ANSI)

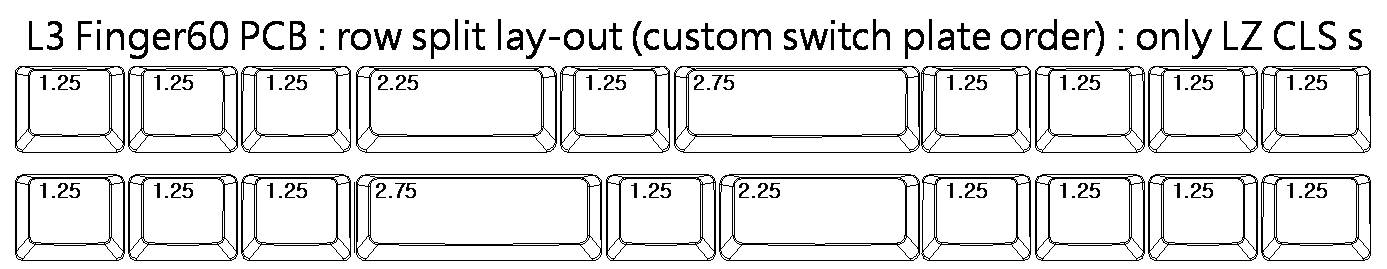

let me know Special order layout mx switch plate +$15(choose color and matrial)
- PCB information and layout image ([email protected])

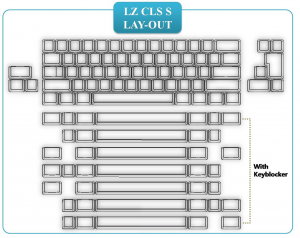

Key Blockers (option) - only LZ CLS s (Normal 60% Style)

PCB (option)

[PCB Spec.]
L3 Finger60 (by Leeku)
Fully Programmable
Full LED backlighting

The PCB is Designed/Developed by Leeku
The PCB is Programmed with JigOn n Firmware
http://kbdlab.co.kr/index.php?mid=board_sw&document_srl=2702787

-------------------------------------------------

[Price]

Not including Paypal fees & Shipping cost
1. Base kit : $385
(Case, Weight plate, Switch plate, Acrylic Diffuser, BAG, Bolts, Bumpons)

Case 4 Colors
Silver
Black
Red (+$13)
Blue (+$13)
and none anodized (-$20)

Switch Plate
Alu
1.Silver
2.Black +$2
3.Red +$2
4.STS (Stainless Steel)
5.Polycarbonate (Transparent)
6.Carbon (Real) + $13 $18

- The switch plate may have small scratches and burrs.



-.Add-on Parts

1. PCB : $45

2. MX Switch plate : $37 $35

3. Key blockers (4 parts) : $32
Silver, Black, Red, Blue, None Anodized

4. PCB Mount Cherry Genuine Stabz(1kit) :$6

-------------------------------------------------


[Shipping]

Different depending on Order Option.
The final price is confirmed on your order.

Defult 1 set(Box) of weights : about 3.3kg
EMS shipping Price (1set) with Tracking number
Asia : $37
EU, Canada : $53
Usa : $68

-------------------------------------------------


[Schedule]

Order Deadline & Order check 2018-01-31
Order deadline 2018-01-31

Order check 2018-02-01 ~ 08

Invoice & Payment deadline 2018-02-10

Invoice & payment deadline 2018-02-10 ~ 28

Production 20 ~ 24 weeks from Payment deadline

-------------------------------------------------

Order Here

Alps plate Order Here order deadline Feb.5(korea time)

Order Check order check deadline Feb.10(korea time)
-------------------------------------------------
