The Minidox Keyboard

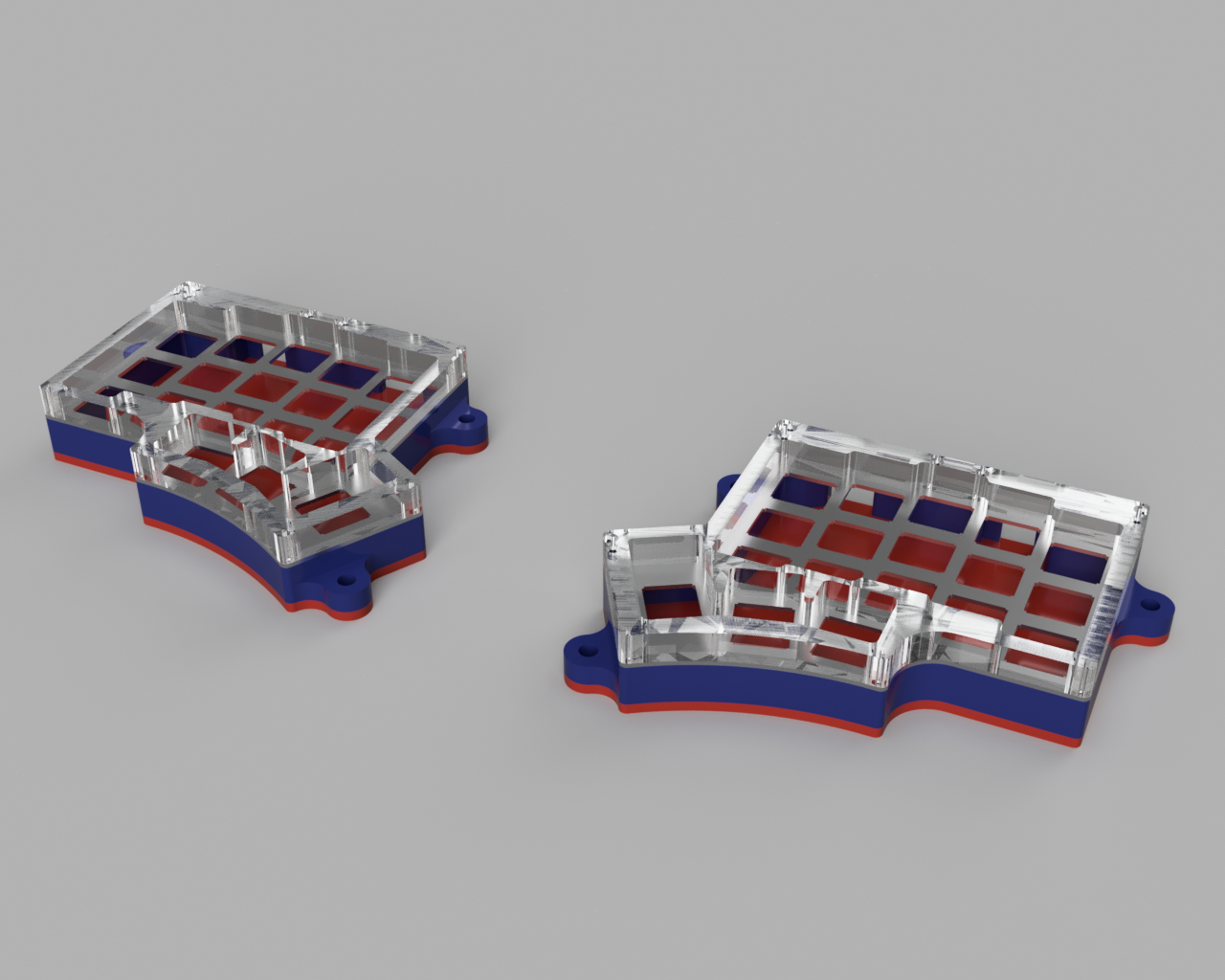

Full Acrylic case

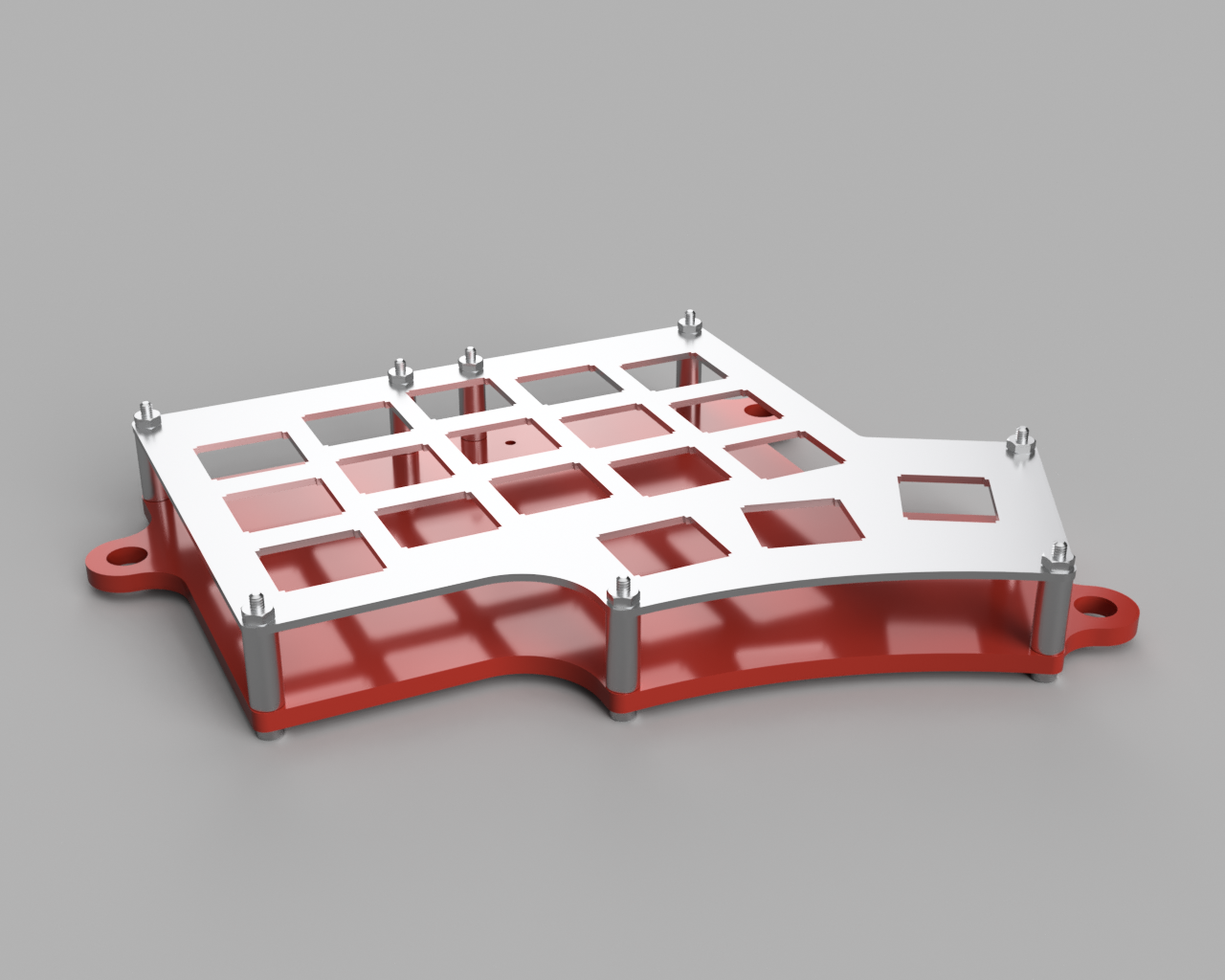

Double Plate case

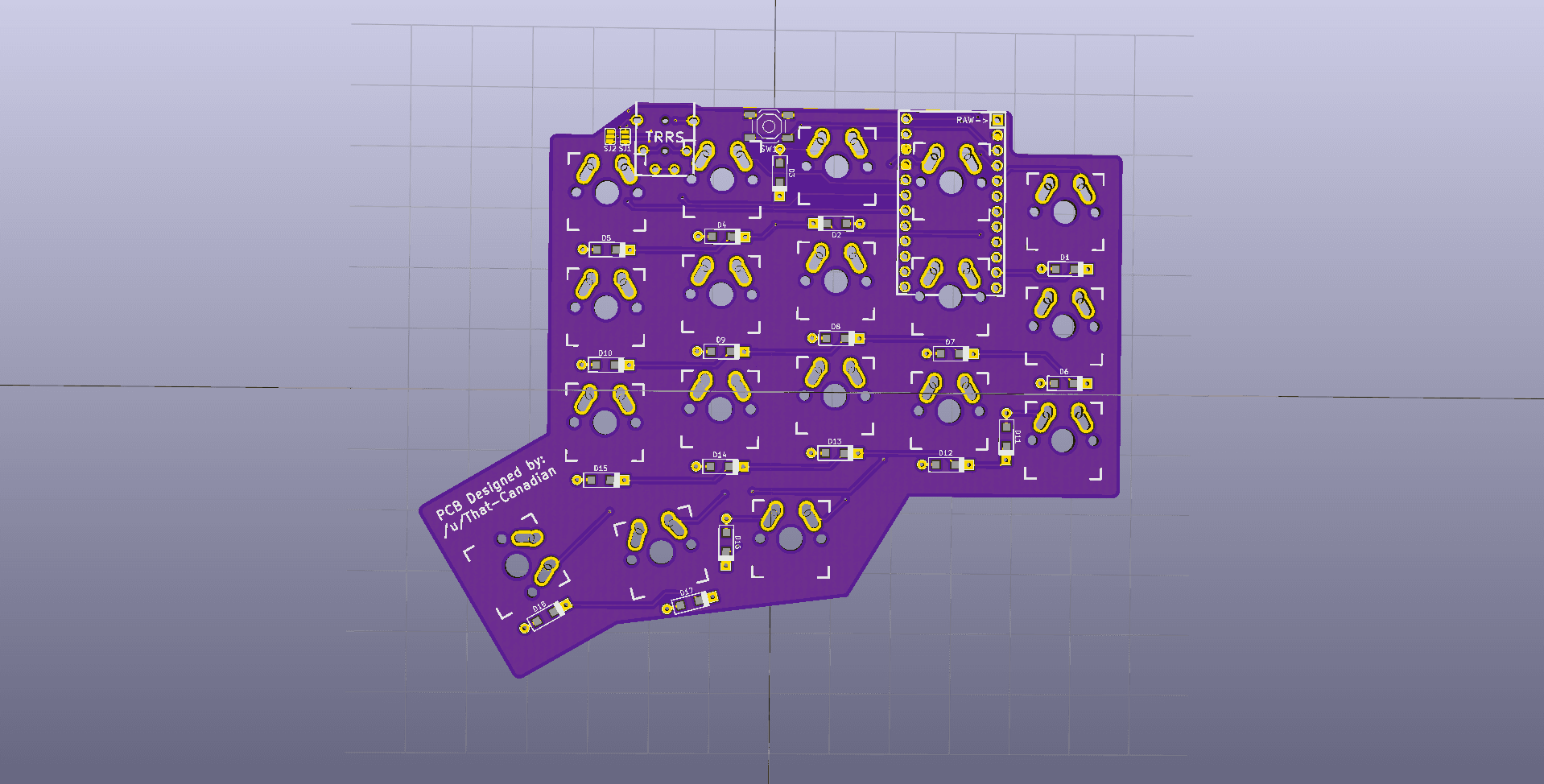

PCB render (production will be green to reduce cost)
A small split tenting keyboard with 36 masterfully placed keys. Designed by Channing173 on Reddit, this keyboard is just like the Ergodox, but trimmed down into a small but powerful package. The thumb cluster has been redesigned to make the three keys very accessible. Just enough alphanumeric keys to keep everything small, but the power of QMK for unlimited customizability. This buy is somewhat odd, in that the PCB and Case have to be ordered separately. I (Dotdash32) will be producing the keyboard cases, while That-Canadian (on Reddit) will be producing the PCBs and electronics. We have started this buy on Reddit, so there is a lot of information there.
https://www.reddit.com/r/MechanicalKeyboards/comments/6e7yya/gb_minidox_pcb_group_buy_now_open/Link to That-Canadian’s PCB GB post on Reddit
https://www.reddit.com/r/MechanicalKeyboards/comments/6e7kw9/gb_tiny_and_tenting_and_split_oh_my_minidox_case/Link to Dotdash32’s Case post on Reddit
https://docs.google.com/forms/d/e/1FAIpQLSfdqFEo87ecL6zANay7gS-xOdez1rvshunhbGHIorXTV_gVbA/viewform?c=0&w=1PCB Order form
https://docs.google.com/forms/d/e/1FAIpQLSc2qiihynoIfgdtDJfh-EzKXlC5p4ZC-hVt-dPQ9gTsIdf2xA/viewformCase Order form
There is a lot of information on those links, and I don’t want to double post too much of it, so here are the highlights:
PCBs:
These are getting cheaper! Current price per PCB:
$3.75 Each.
You will need to order two (2) PCBs per whole keyboard.
Electronics- TRRS Jack (2 needed): $1.50 each
- Reset Switch (2 needed): $0.75 each
- Diodes (36 needed): $0.025 each
- Pro Micros (2 needed): $5.00 each
- Parts Kit (contains all the electronics, except PCBs, you need for a complete keyboard): $15.50
- TRRS Cable, 3 ft (1 needed, not included in Parts Kit): $6.50 each
- Micro USB Cable (1 needed, not included in Parts Kit): $6.00 each
Full Acrylic CasesEverything you need for fully enclosed, high profile, MX/ALPS compatible, tenting split keyboard. This is two halves, all the hardware, and even includes an Allen key!
With this option, you only need to buy the electronics (PCB and Parts), switches, and caps to have a fully functional keyboard
$69.99Double Plate CasesThe case on a budget, this only has a top plate and bottom plate, and is super light and ready to travel! This is two halves, and the hardware you need for a keyboard.
This case does not support tenting, is floating key style, but is still MX/ALPS compatible.
$49.99PlatesBuy just the aluminum plates. MX/ALPS compatible.
$24.99SwitchesYou can purchase Gateron or Matias switches to be shipped along with you keyboard.
$11.99CapsCan be shipped along with the keyboard. Signature Plastics DSA or SA/DSA combo. Subject to availability.
DSA:
$31.99, SA/DSA:
$59.99 AssemblyPurchase assembly to have your keyboard fully operation when it arrives at your doorstep! Please note this on both order forms.
$14.99 I think that covers everything, I will post updates here, probably in addition to reddit.
