Minimi40
The lidded, bento-themed keyboard is finally here!Group Buy InfoLive October 31st to December 3rdDelivery ETA Q2 2026
VendorsUSA & Global:
CannonKeysChina:
zFrontierSouth Korea: GEONWORKS
SEA:
PantheonKeysOCE:
KeebzNCablesUK:
ProtoTypistEU:
CannonKeys (proxy)

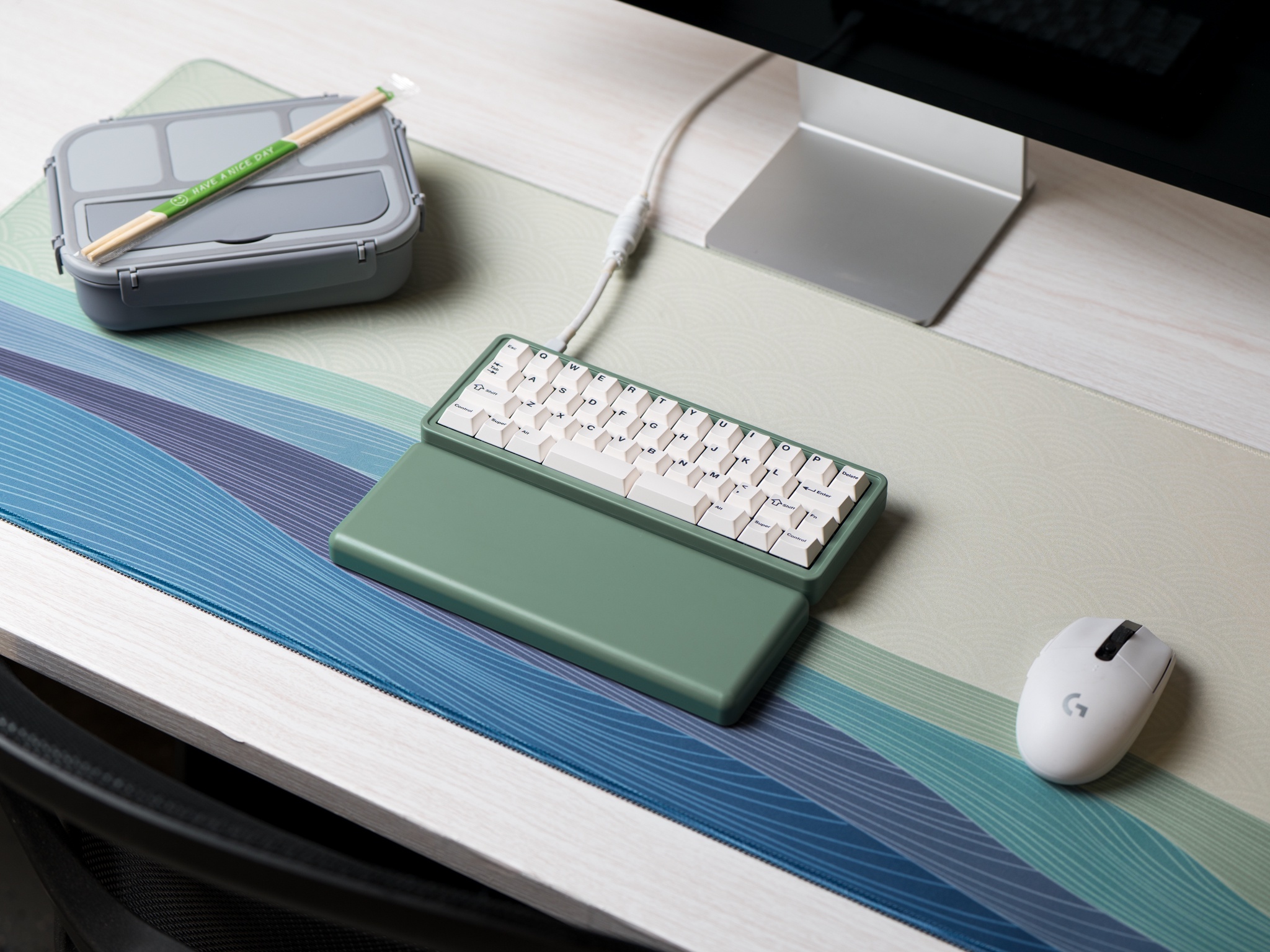

Product InformationThe Minimi40 is a 4x12 injection-molded keyboard, inspired by lunch boxes and designed to be just as portable. The lid doubles as a wristrest, protecting the keys when on the go�and wrists when in use.
The lid can be secured to the board with the included strap, in standard bento fashion. With multiple layout and PCB options, this versatile little keyboard is perfect at the desk or in a bag.
SpecificationsCase Material: ABS+PBT plastic
Manufacturing Method: Injection molding
Mounting Style: Hybrid leaf spring-tray mount
Typing Angle: 0 degrees (with default bump ons)
Dimensions (with Lid): 246.6 mm X 94.2 mm X 43.8 mm
Dimensions (without Lid): 246.6 mm X 94.2 mm X 25 mm
Maximum recommended keycap height: 17 mm

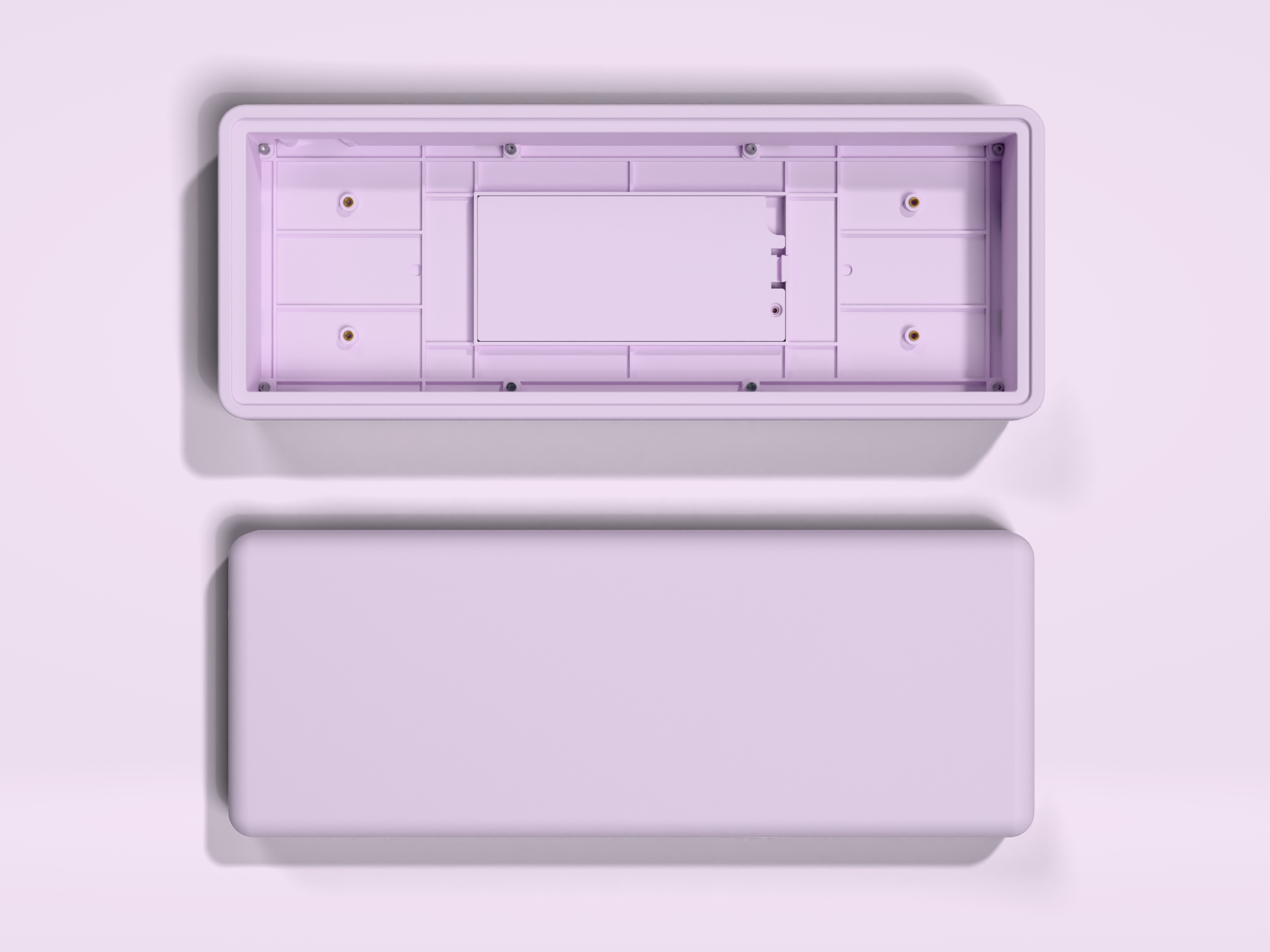

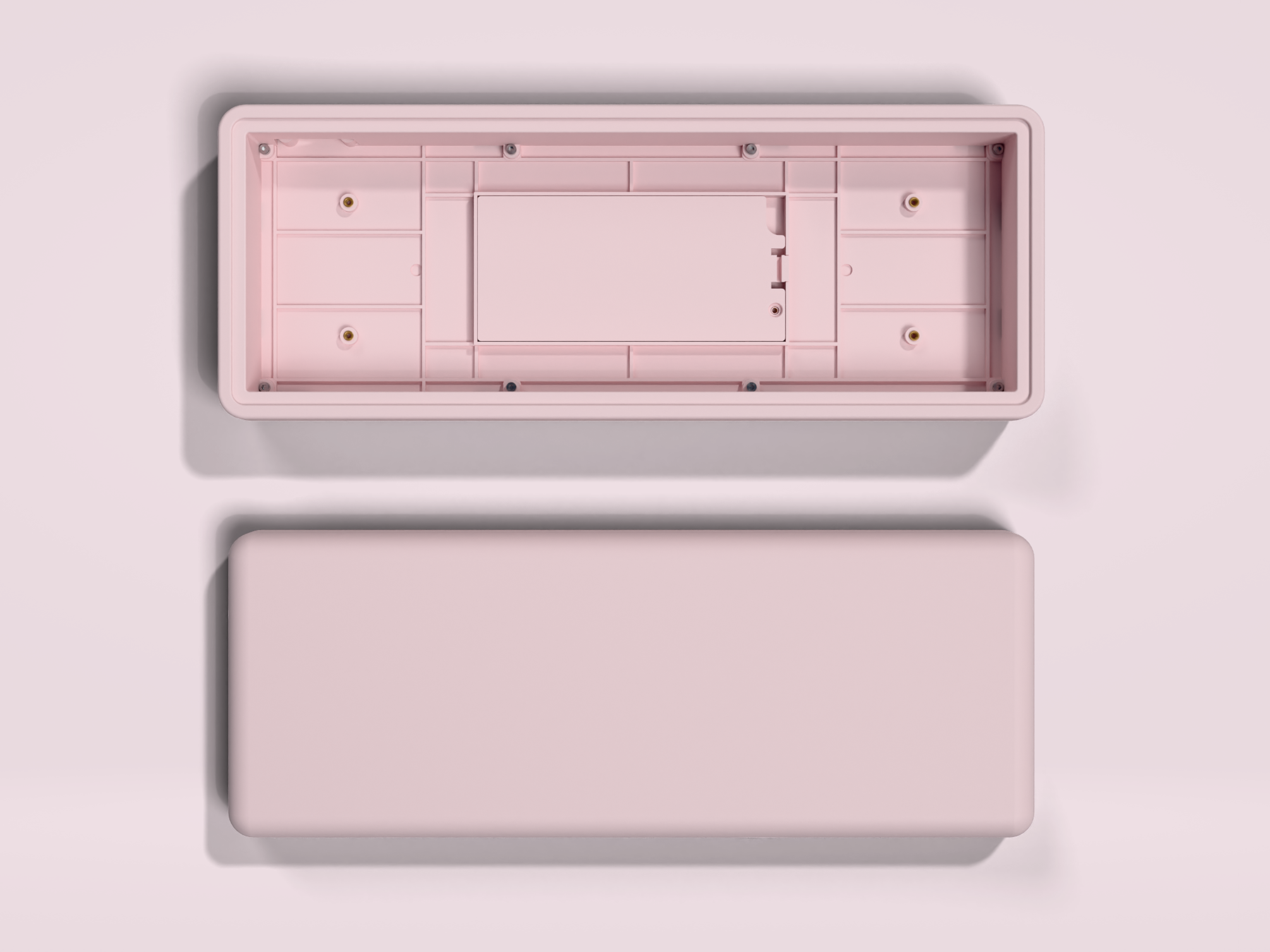

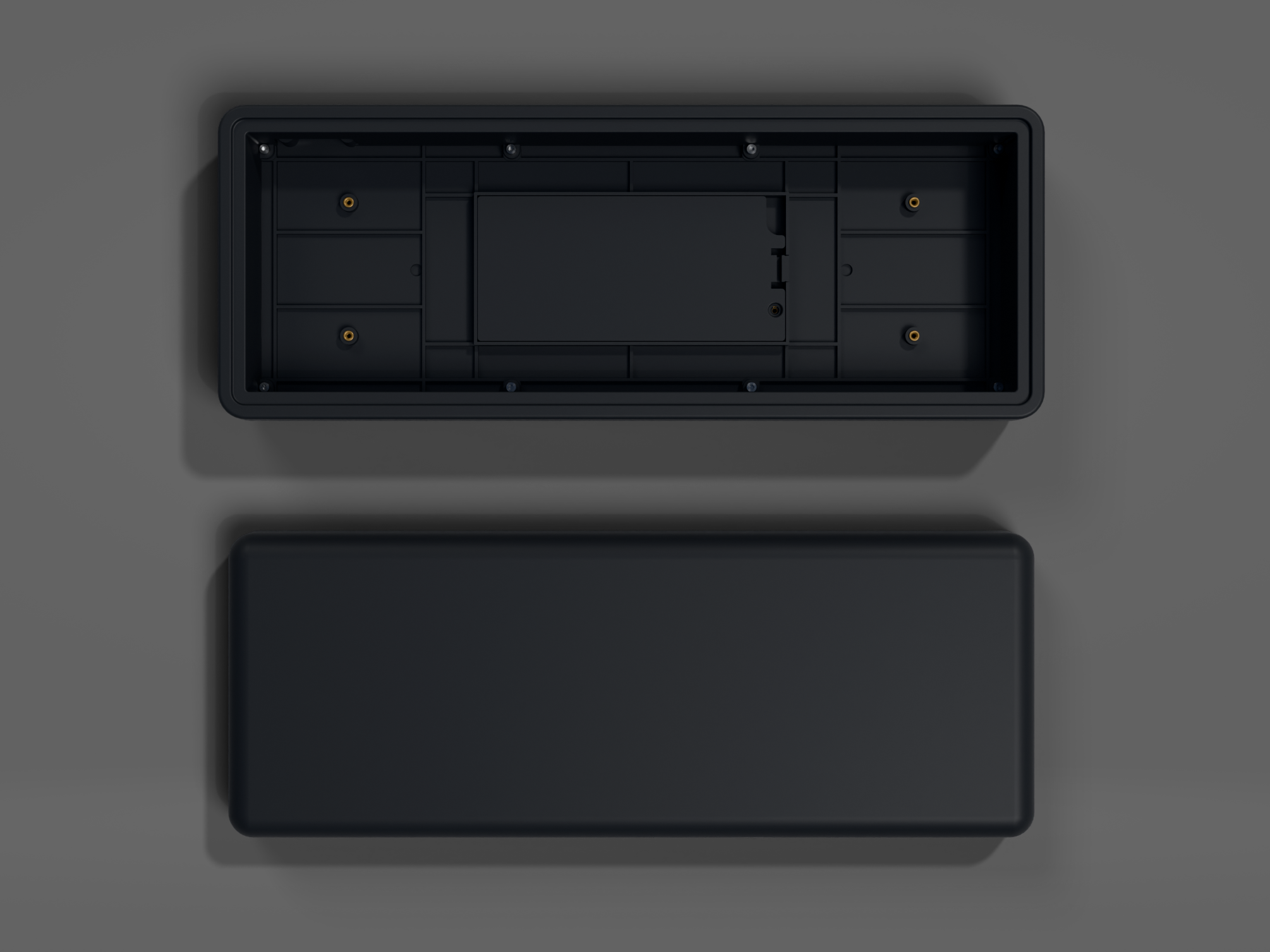

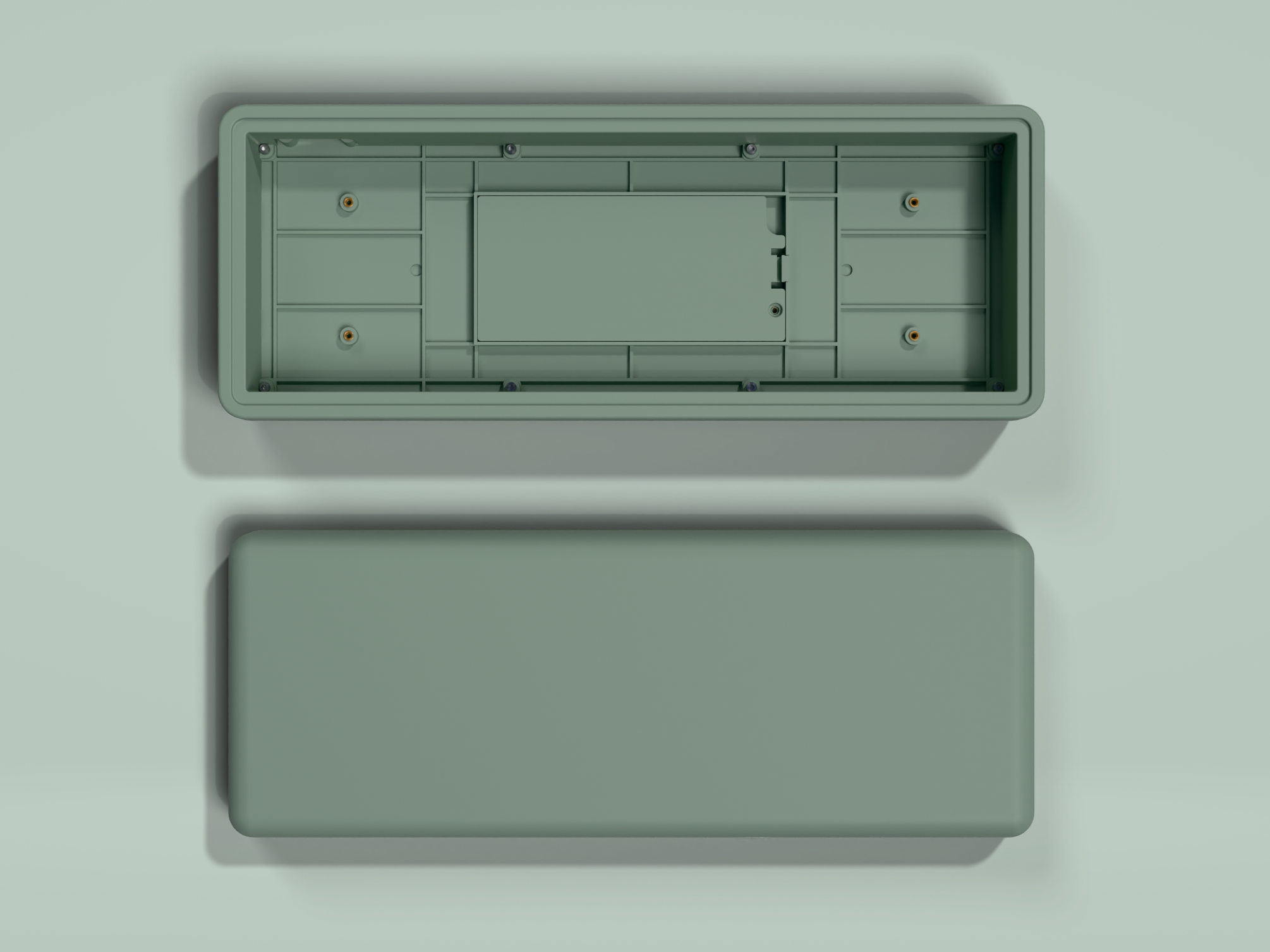

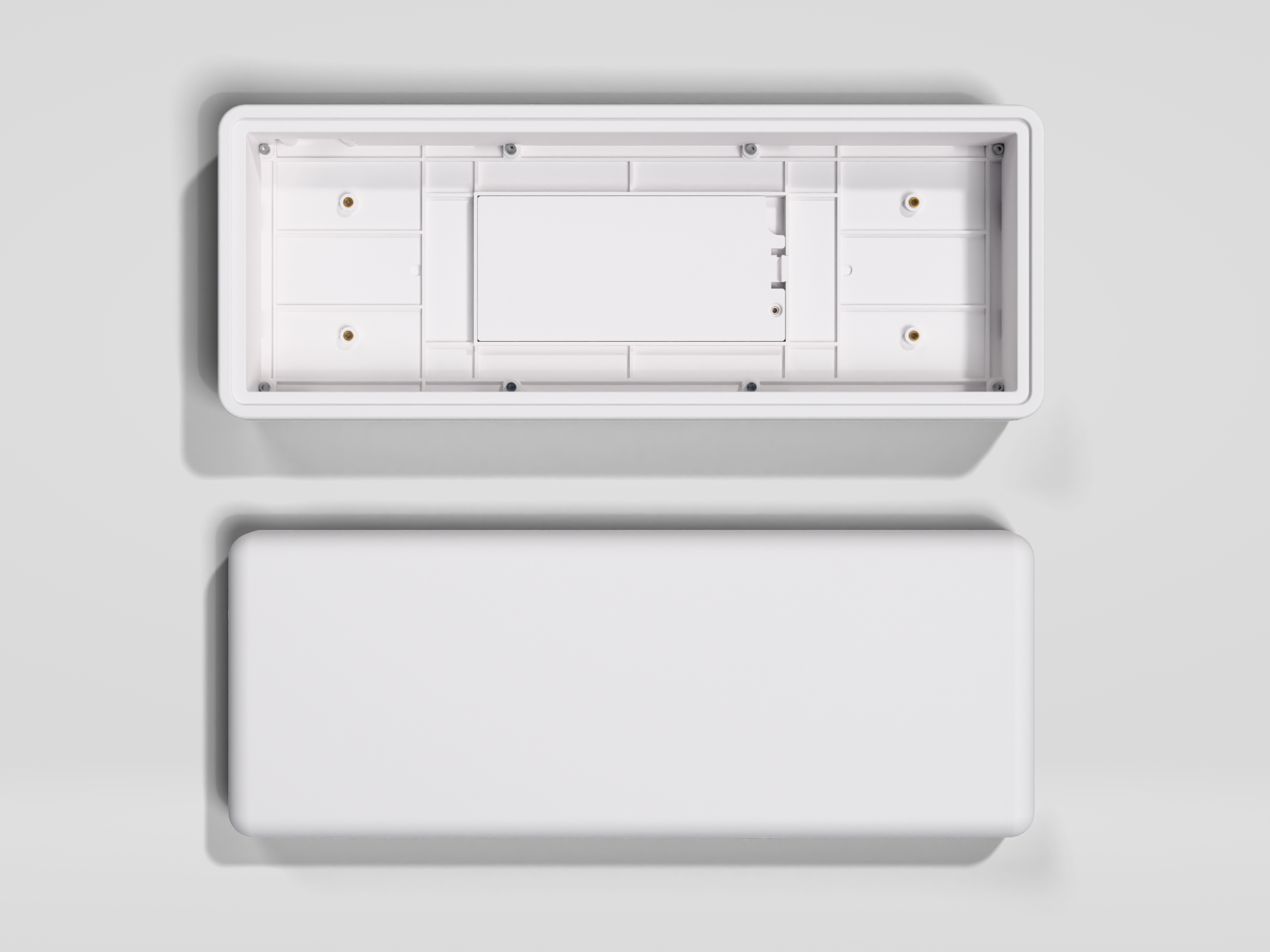

Color OptionsBlack
White
Sage
Pink
Lavender

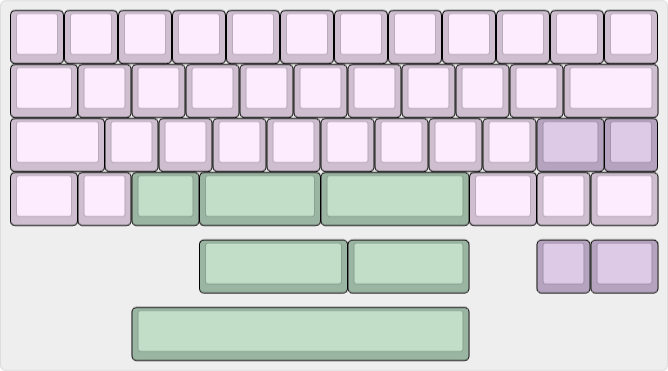

LayoutsStaggered

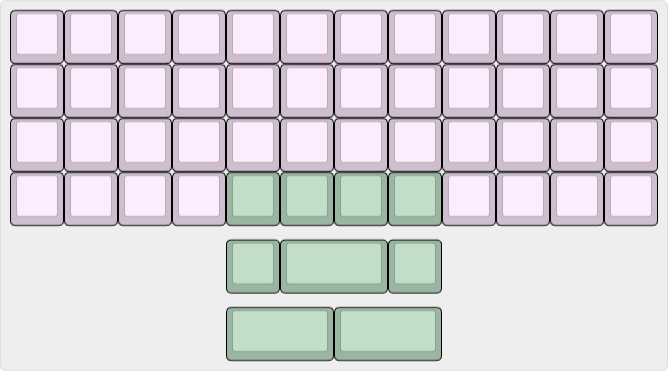

Ortholinear
PCB Options- Wireless (ZMK) hotswap staggered/ortholinear
- Wired (QMK) hotswap staggered/ortholinear
- Wired (QMK) solder staggered/ortholinear
- EC electrocapacitive (QMK) staggered/ortholinear
QMK PCBs are VIA compatible
ZMK PCBs are ZMK Studio compatibleKit Contents- Case (lid, case top, case bottom)
- Polycarbonate plate*
- PCB
- Fly daughterboard
- Molex cable
- Silicon feet for lid
- Bump-on feet for case
- Aluminum CNC leafsprings
- Screws
- Elastic strap (color matched to board)
- Carrying pouch (color matched to board)
- USB A to C cable
- Packaging
- Instruction card
- Battery (wireless kit only)
*Alu, POM, and FR4 plates will be available as add-ons.
Pricing (USD)Wireless keyboard kit - $125
Wired keyboard kit - $110
Wired solder PCBs - $35
Wired hotswap PCBs - $40
Wireless PCBs - $50
EC PCBs - $50
PC plate - $25
POM plate - $25
FR4 plate - $20
Alu plate - $30
Strap - $5
Pouch - $11
Leafsprings - $20
Extra lid - $20
Extra case (without lid) - $30
PBS Crispin kit - $33
Add-on KeysetPBS Crispin�s Minimi40 Kit
Details available hereCannonKeys Product Page | CannonKeys Discord | Keebibi Discord
