Mont Cervin, tented 65% ergo keyboard by KLC x Syryan Industry
Key Features
1. Tented ergo keyboard, that 2 different keyboards from left and right are mounted in the base part, working as tented ergo.
2. You can control the typing angle in 3 different way by relocate bottom weight.
3. Each housing will be attached by magnet, blocked by Poron in between. So each housing will be leviated around 0.5 mm from the base plate.

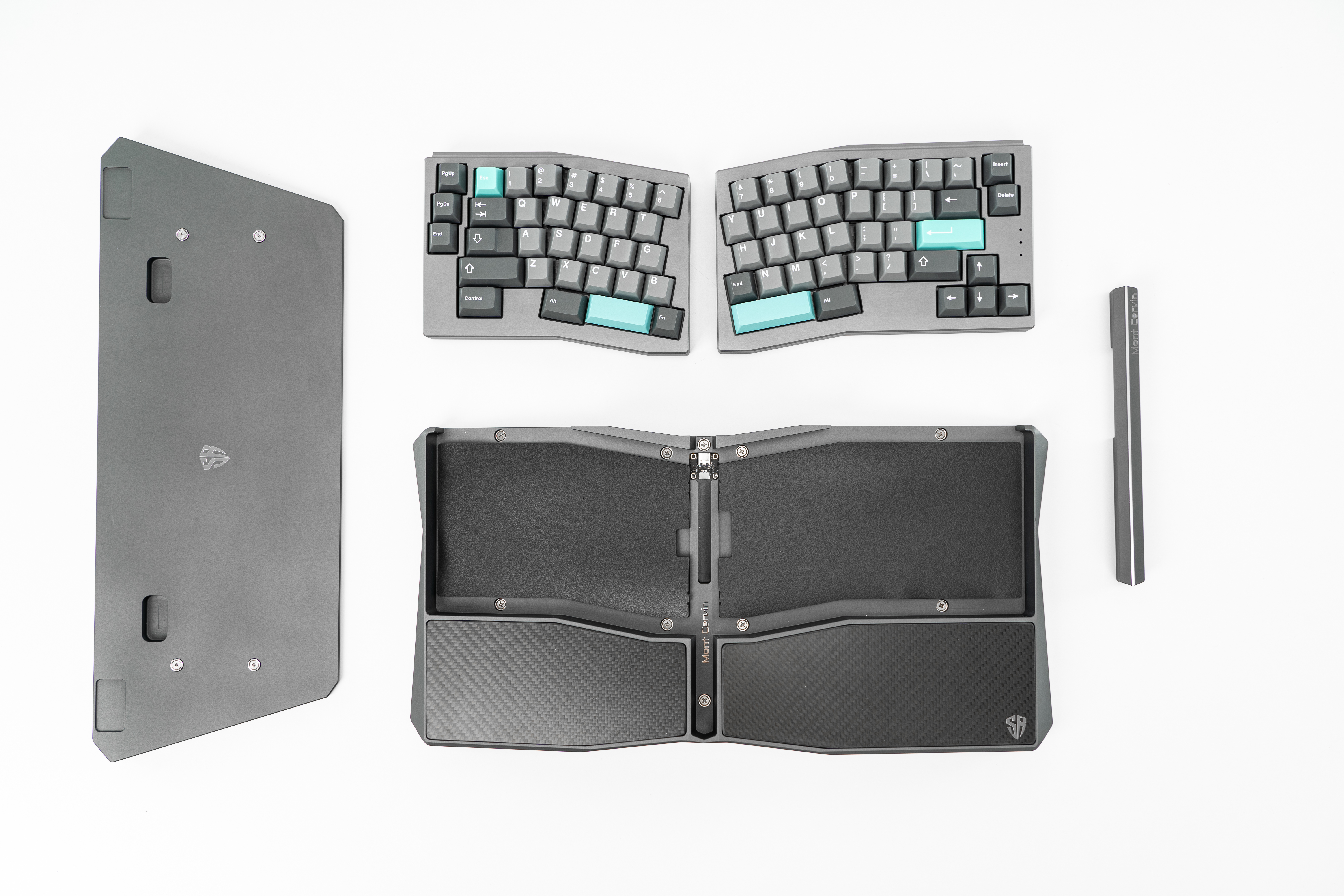

More PicturesKLC DiscordSyryan Industry DiscordTyping Test Video will be updated soon. (Early Aug)

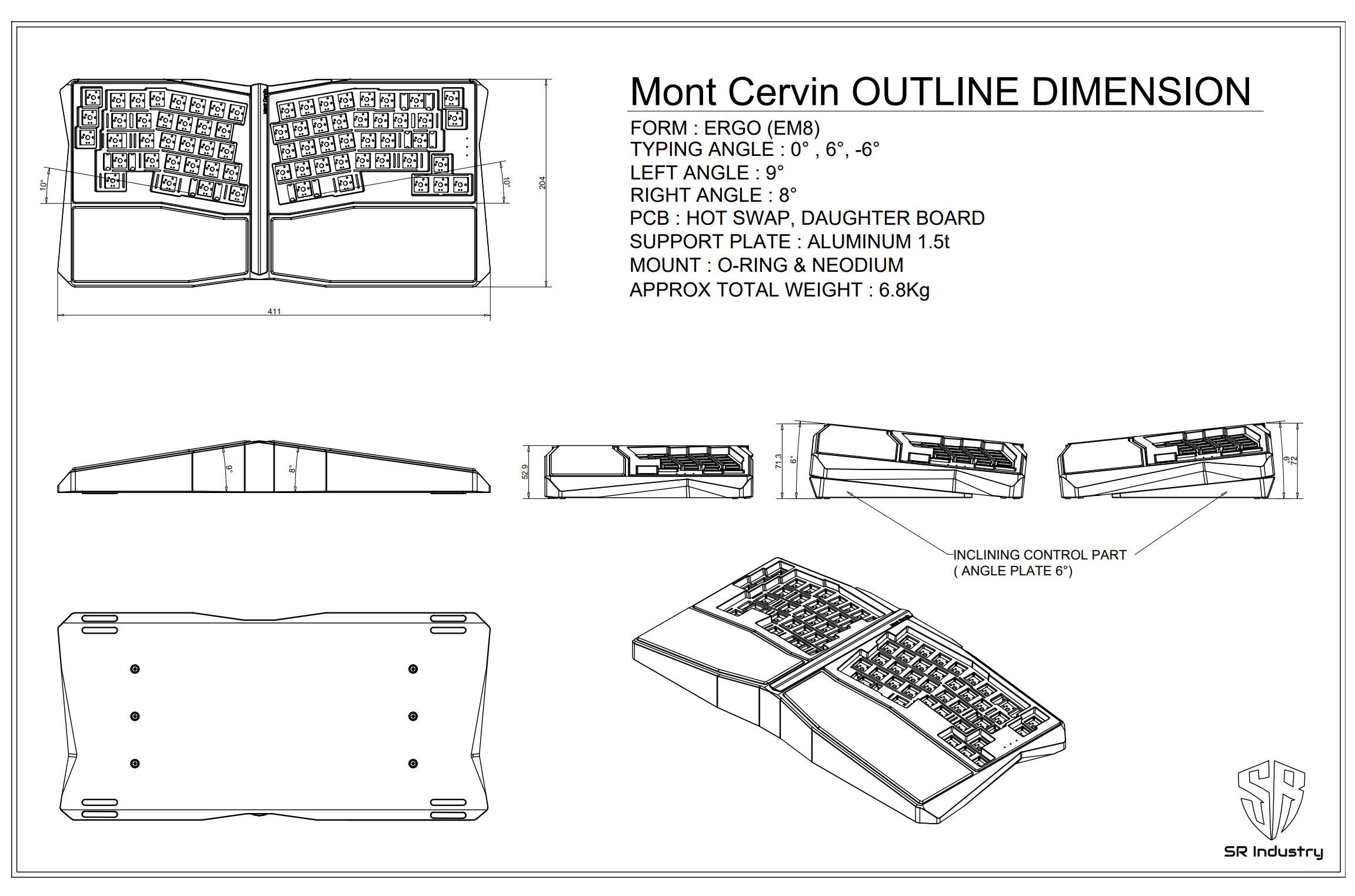

Board Features- Form Factor : Tented Ergo (EM8)
- Typing Angle : Selectable by locating inclining control part in different position (0, 6, -6 degree)
- Left Angle : 9 degree
- Right Angle : 8 degree
- PCB : Hot Swap, Daughter Board (Compatible with EM8)
- Plate : 1.5t Alu, anodized
- Mounting System : O-Ring & Magnetic levitation
- Approx Total Weight : 6.8kg
- GB Color offers : Navy / Gray / Black
- Expected Price : USD 750

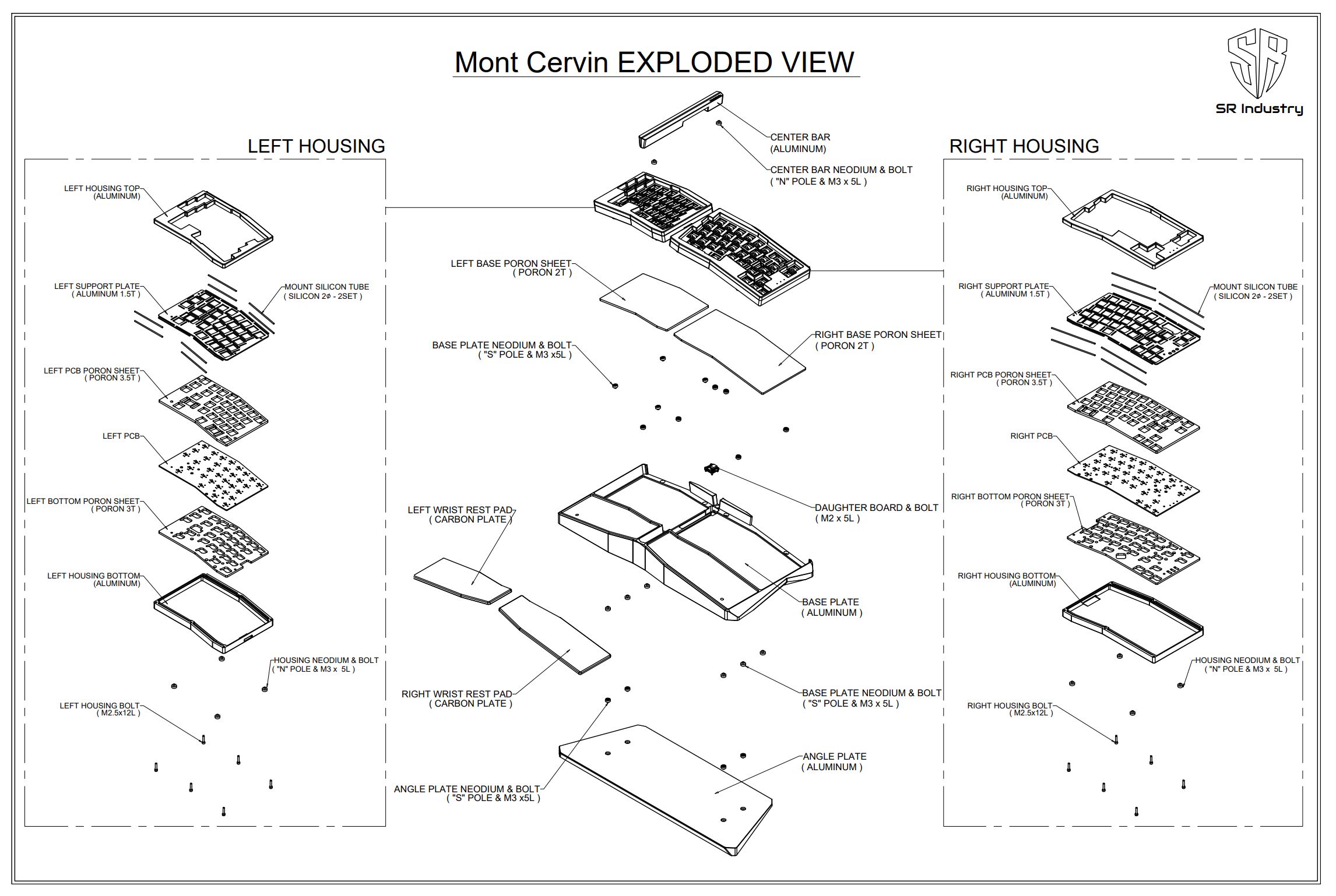

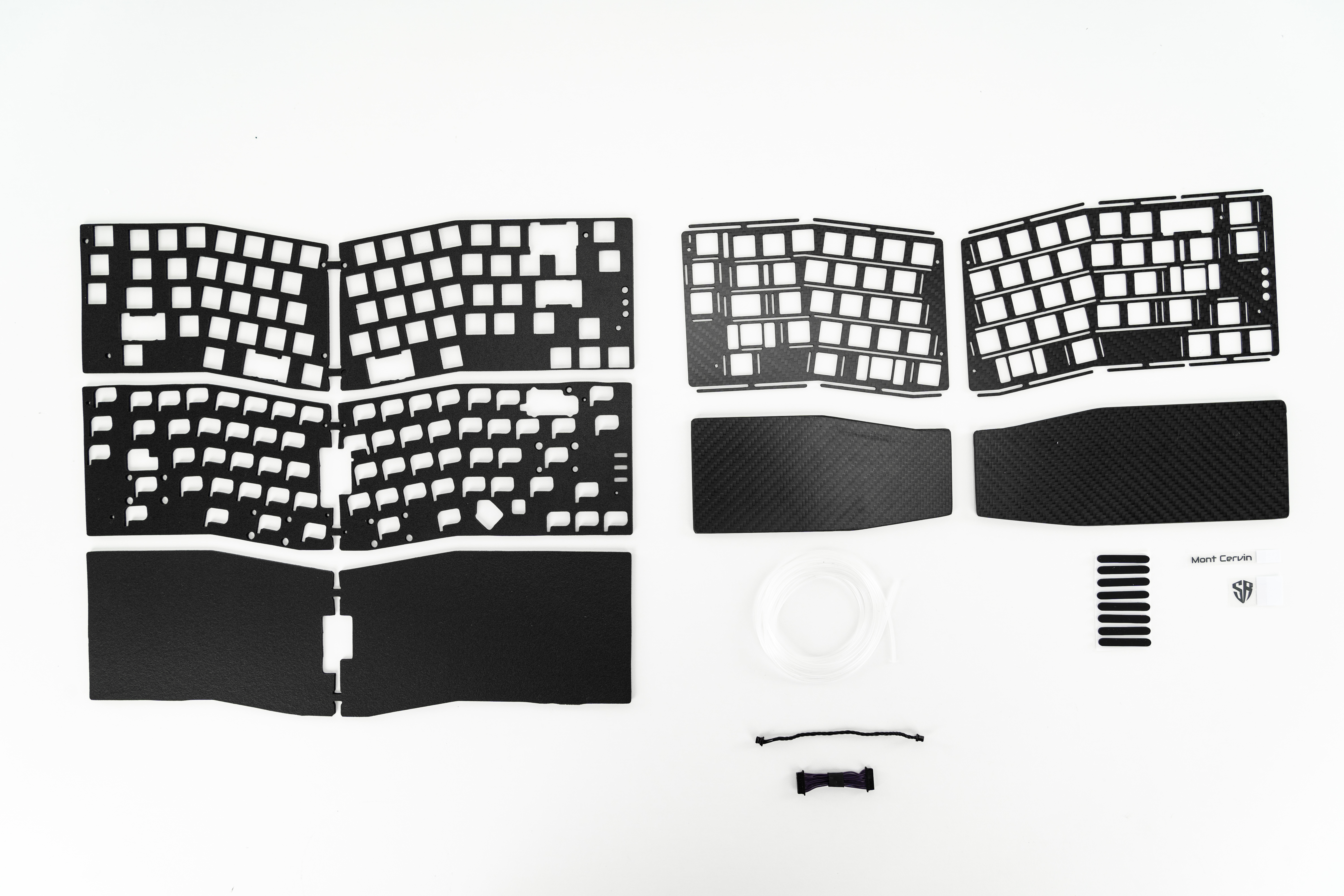

What is included in the base kit.
- HS PCB
- Daughter Board
- Left housing
- Right housing
- Base Plate
- Center Bar
- Angle Plate
- 3 Poron Sheets (PCB, Support Plate, Housing)
- CF Support Plate
- CF Wrist Rest Pad
- O ring
- Neodium 20ea
- Metal Stickers
- JST Cable
- Bolts and bump ons
- Carrying Case
Extra Parts (Price is tbd)
- Hot swap PCB
- Alu Plate
- PC Plate
