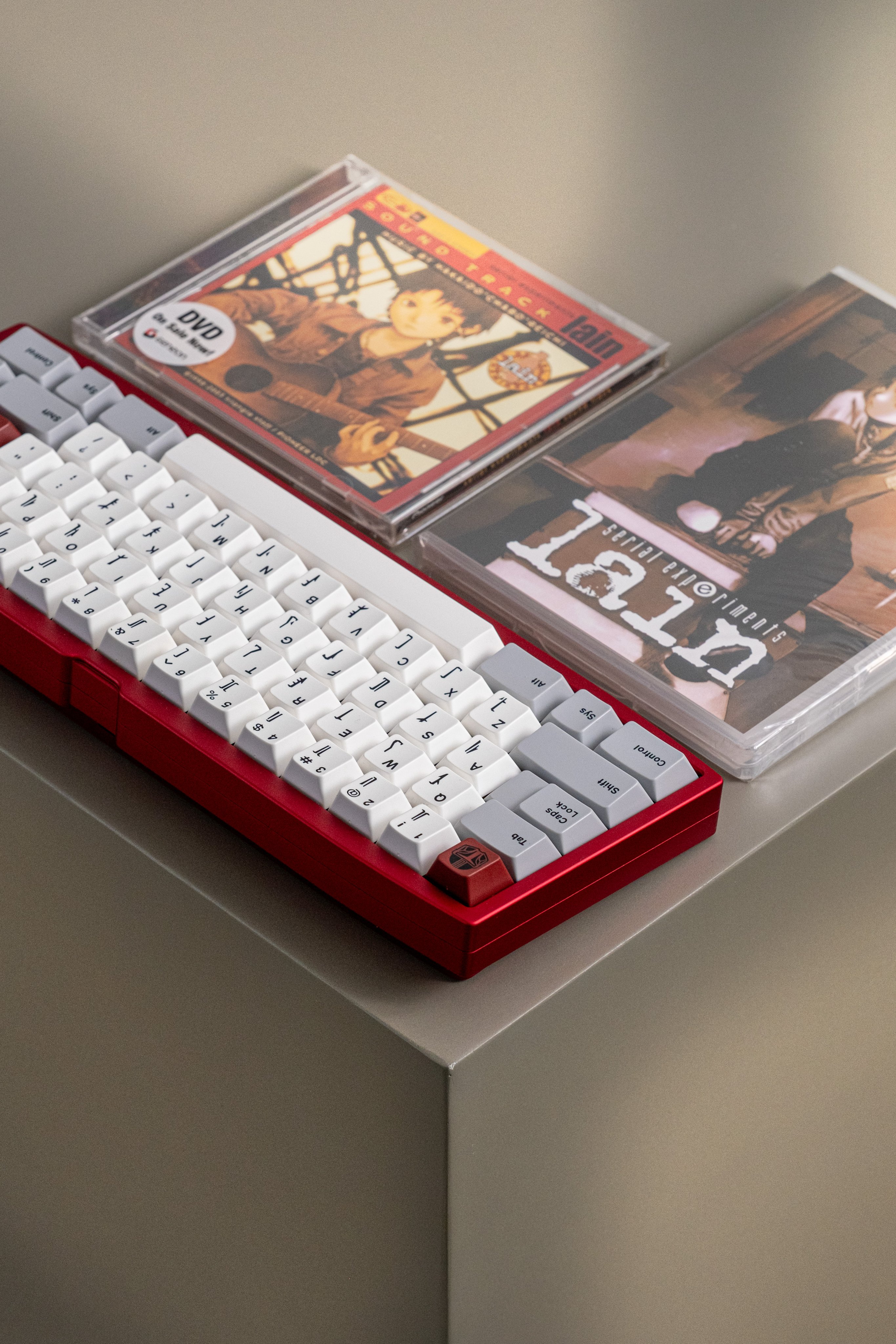

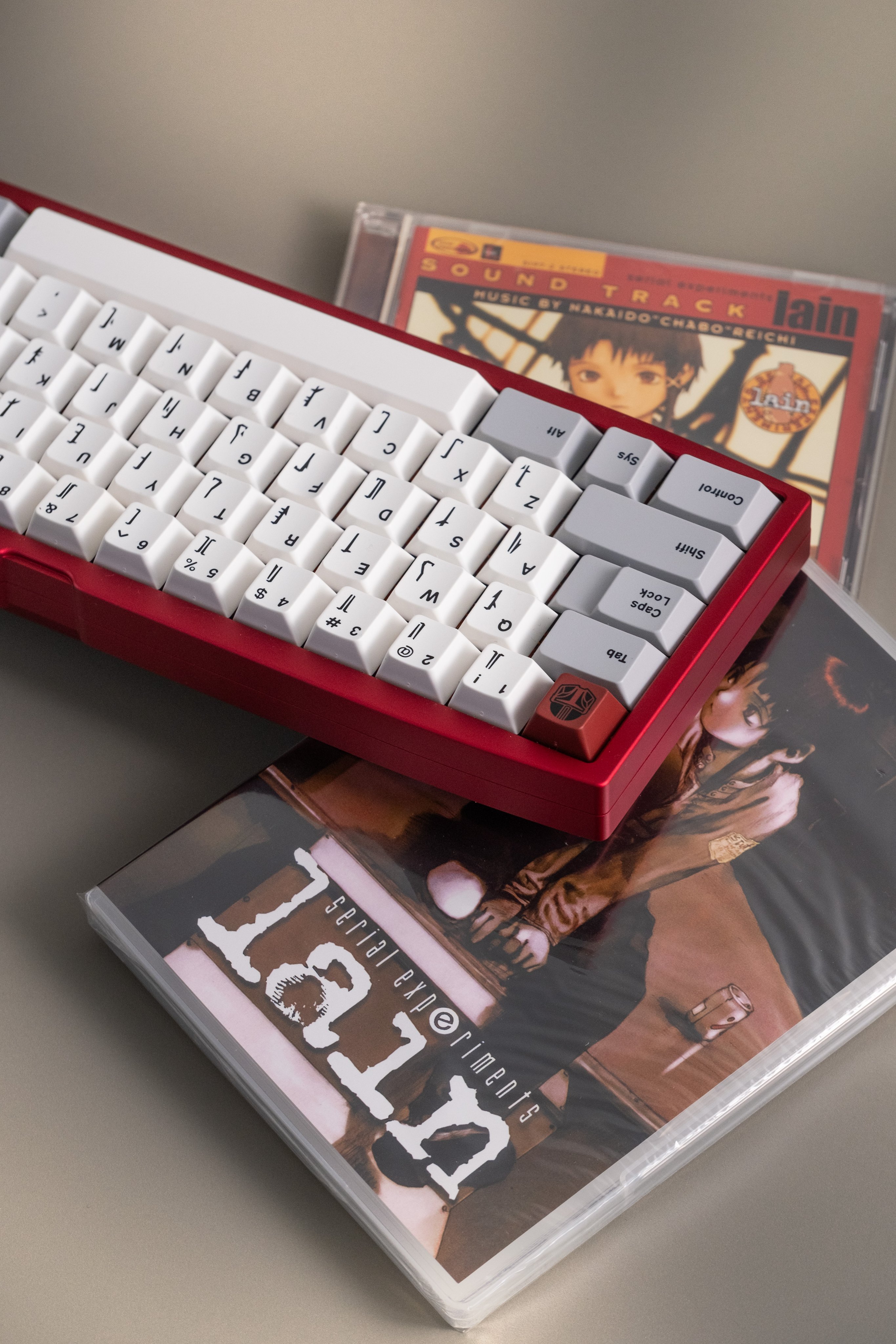

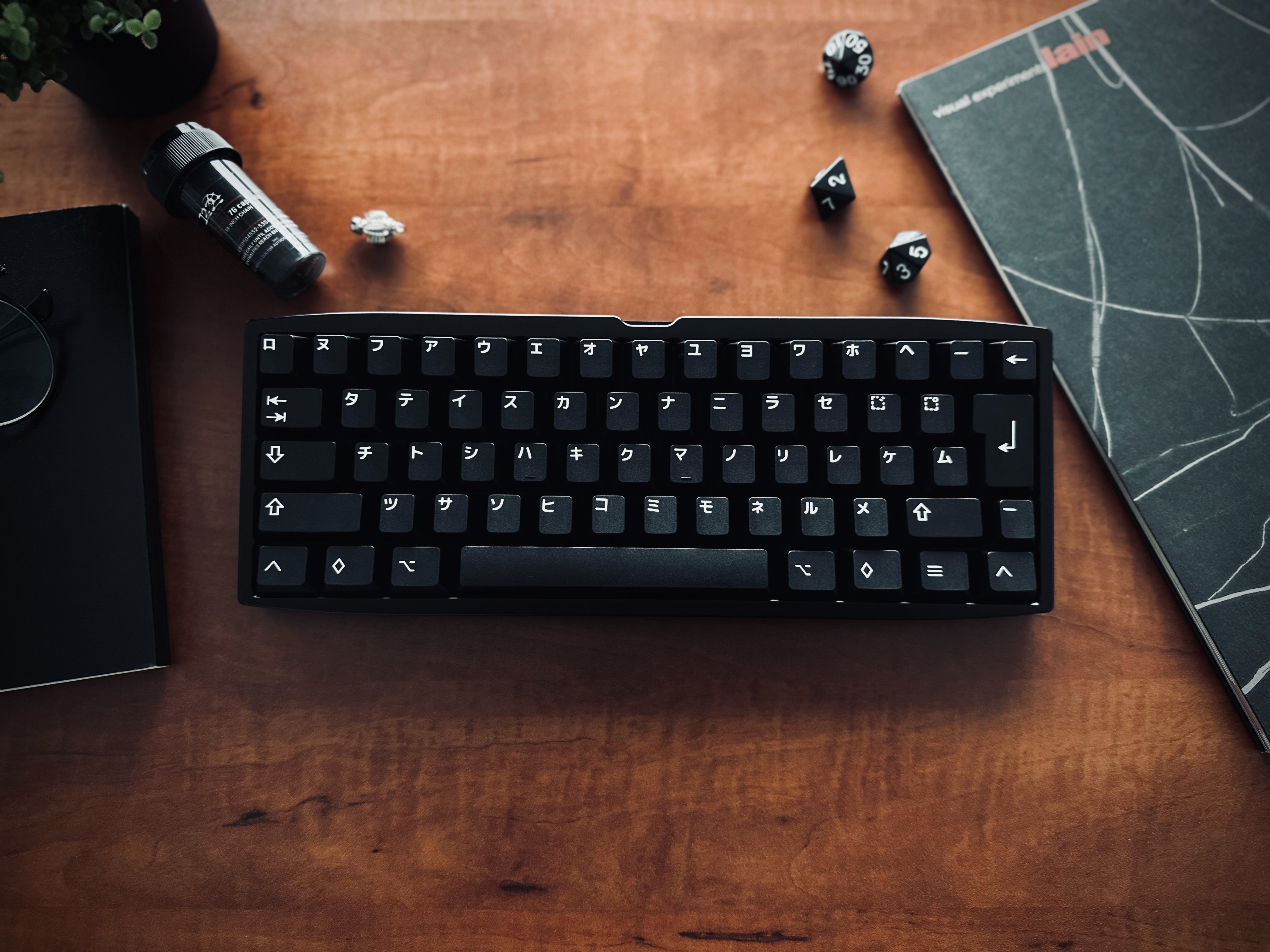

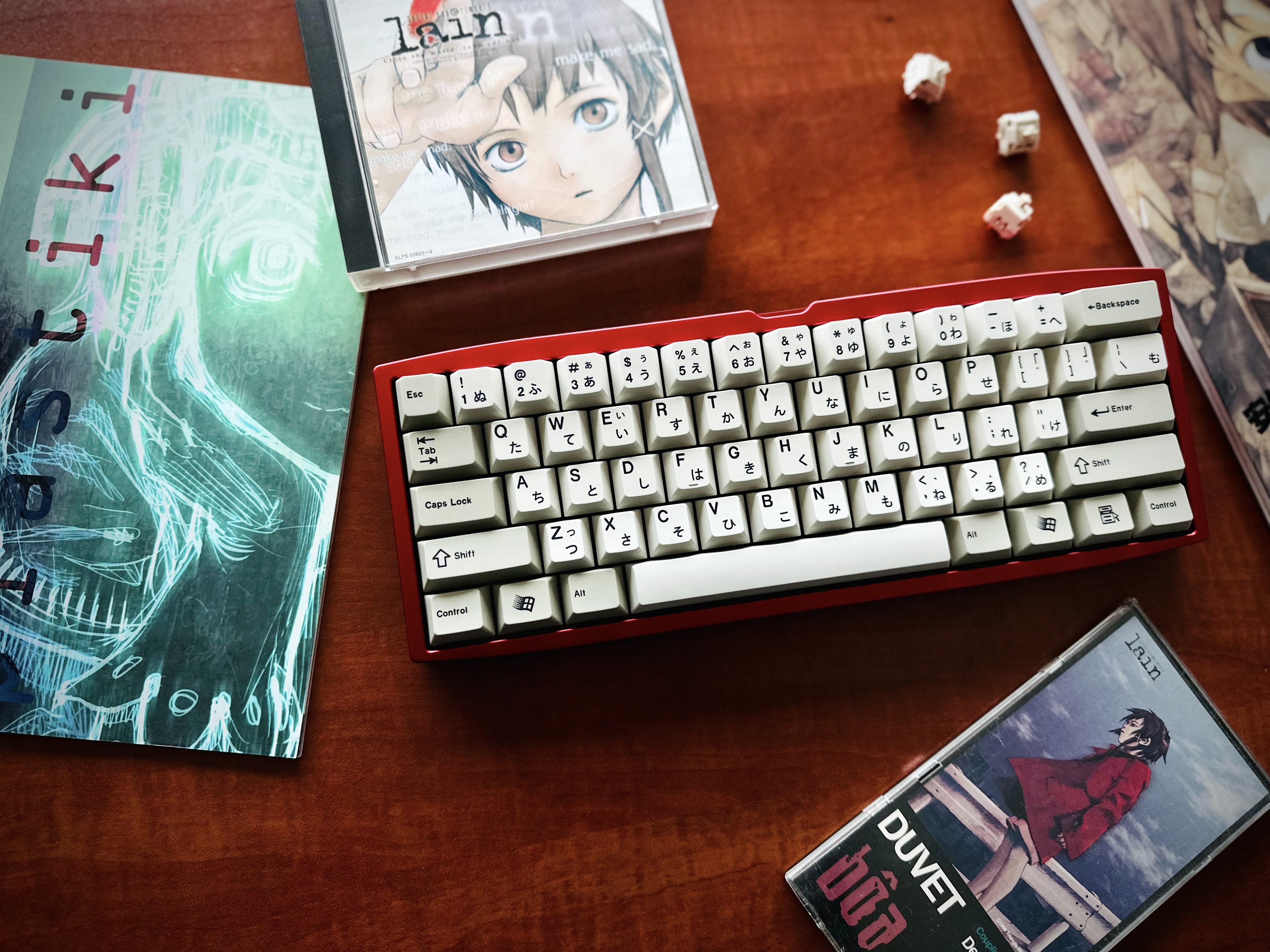

We are psychetype and we would like to introduce our first project, the Navi60.
The Navi60 is a 60% top mount/o-ring mount with a full CNC aluminum case and brass weight.
This project is a part of the #lainttl (time to live) program. We aim to provide a high quality keyboard for both keyboard and Lain enthusiasts.

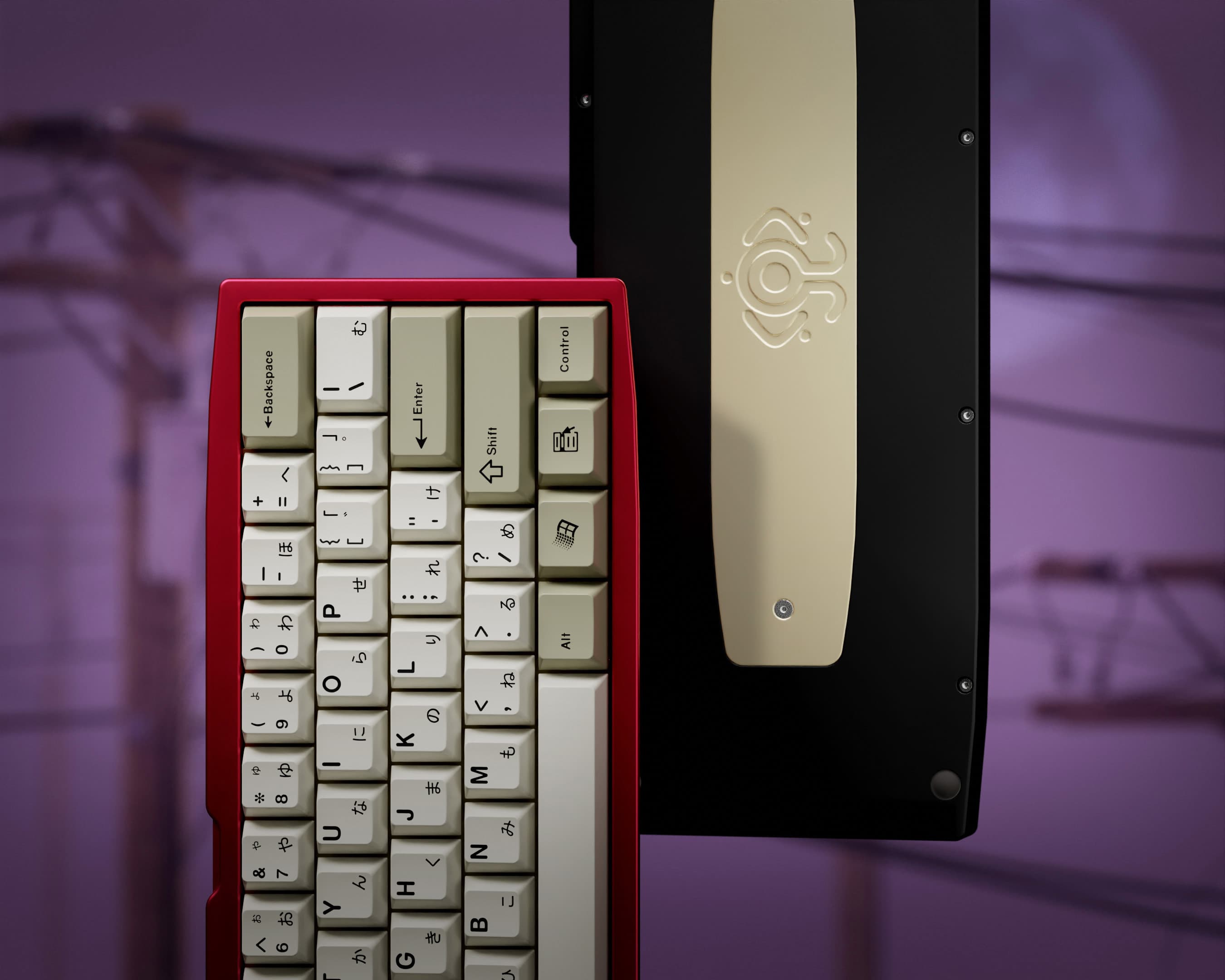

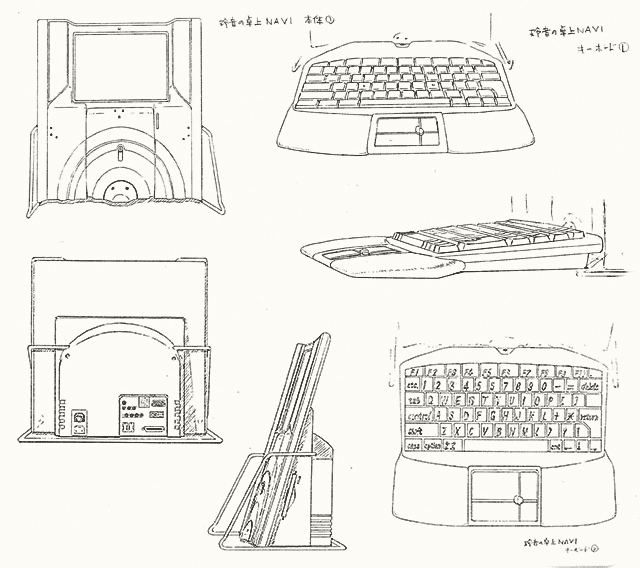

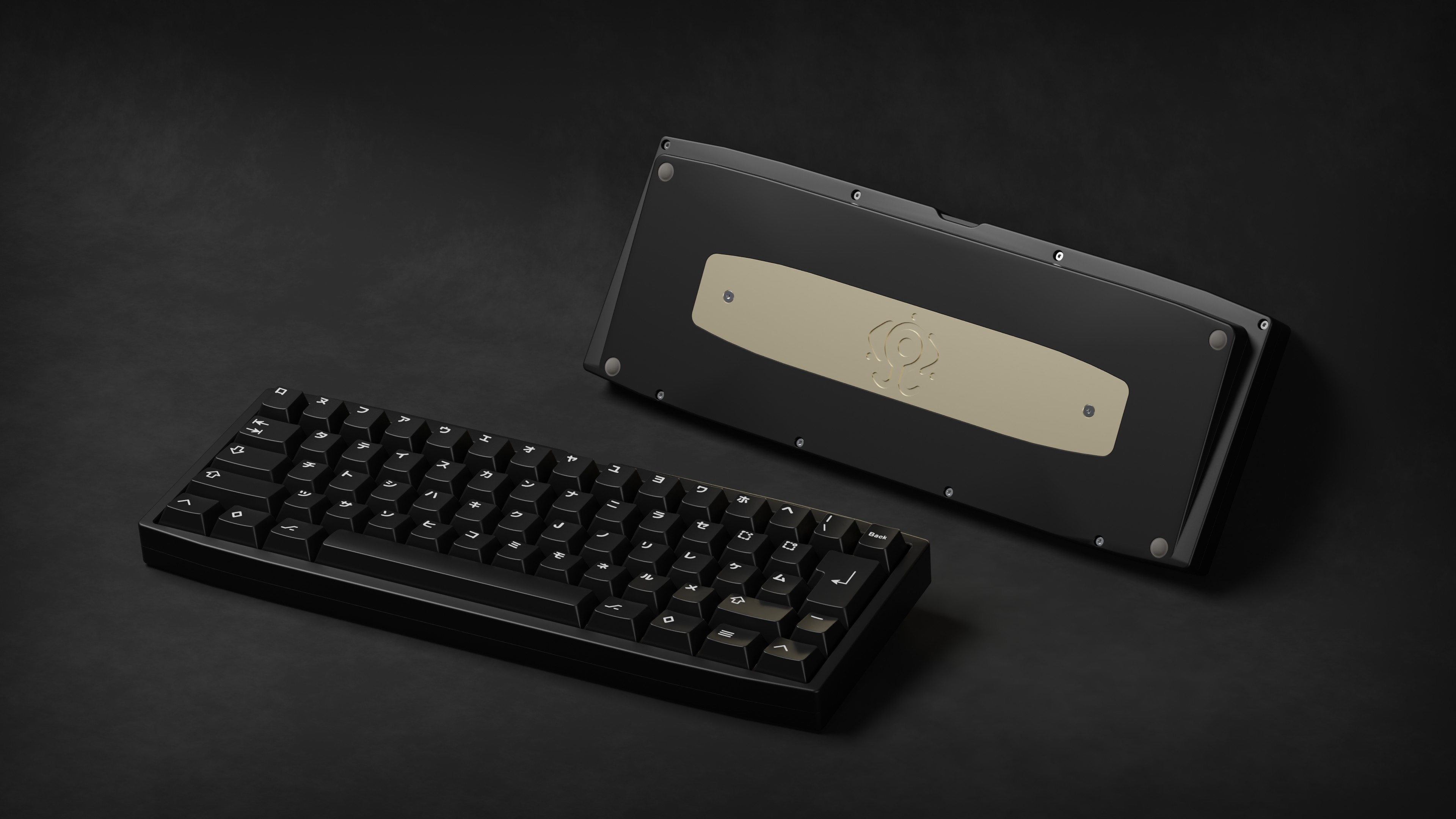

Its design is inspired by Abe’s original design of Lain’s personal Navi computer/keyboard. The kit comes with a two-piece case with a brass weight that is engraved with the Copland OS logo.
•7° typing angle

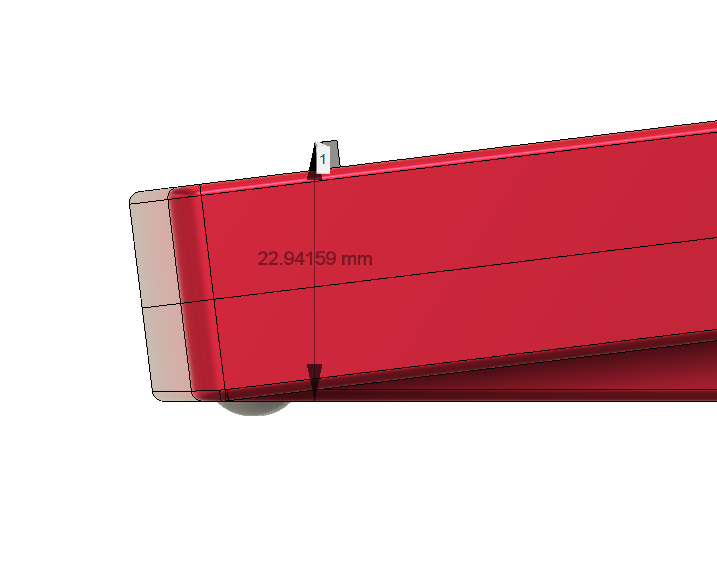

•Effective Keyboard Height (EKH) = 22.94mm
•Case weight (including Brass weight) = 914g
•Case material: 6063 Aluminum w/ Brass Weight
•Brass weight sandblasted + anti-fingerprint/anti-tarnish coating
•Hardware Materials: 18-8 Stainless Steel (case screws/daughterboard screws)
•Mounting support: Top mount/O-ring mount
•Plate Material: FR4, Aluminum, POM

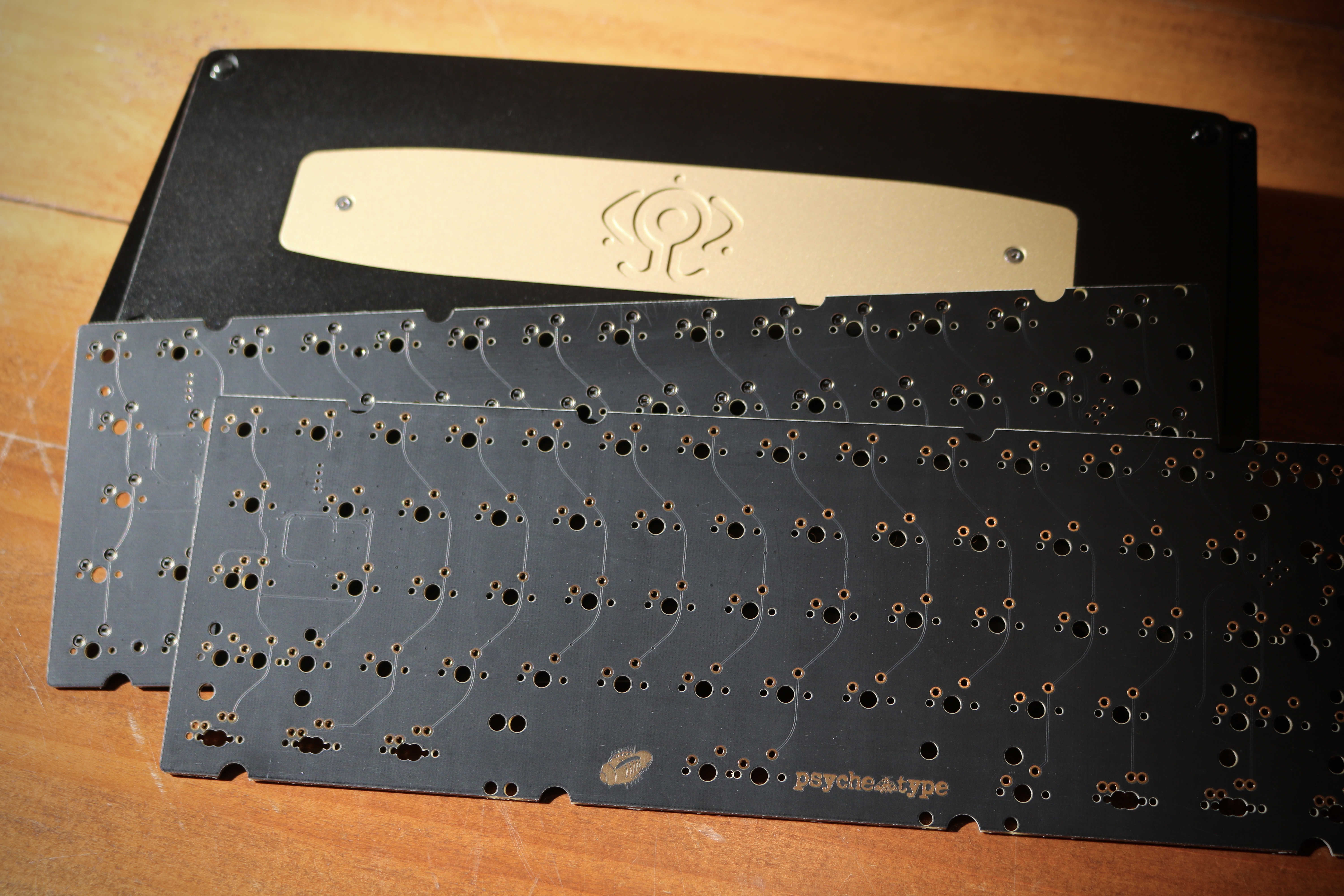

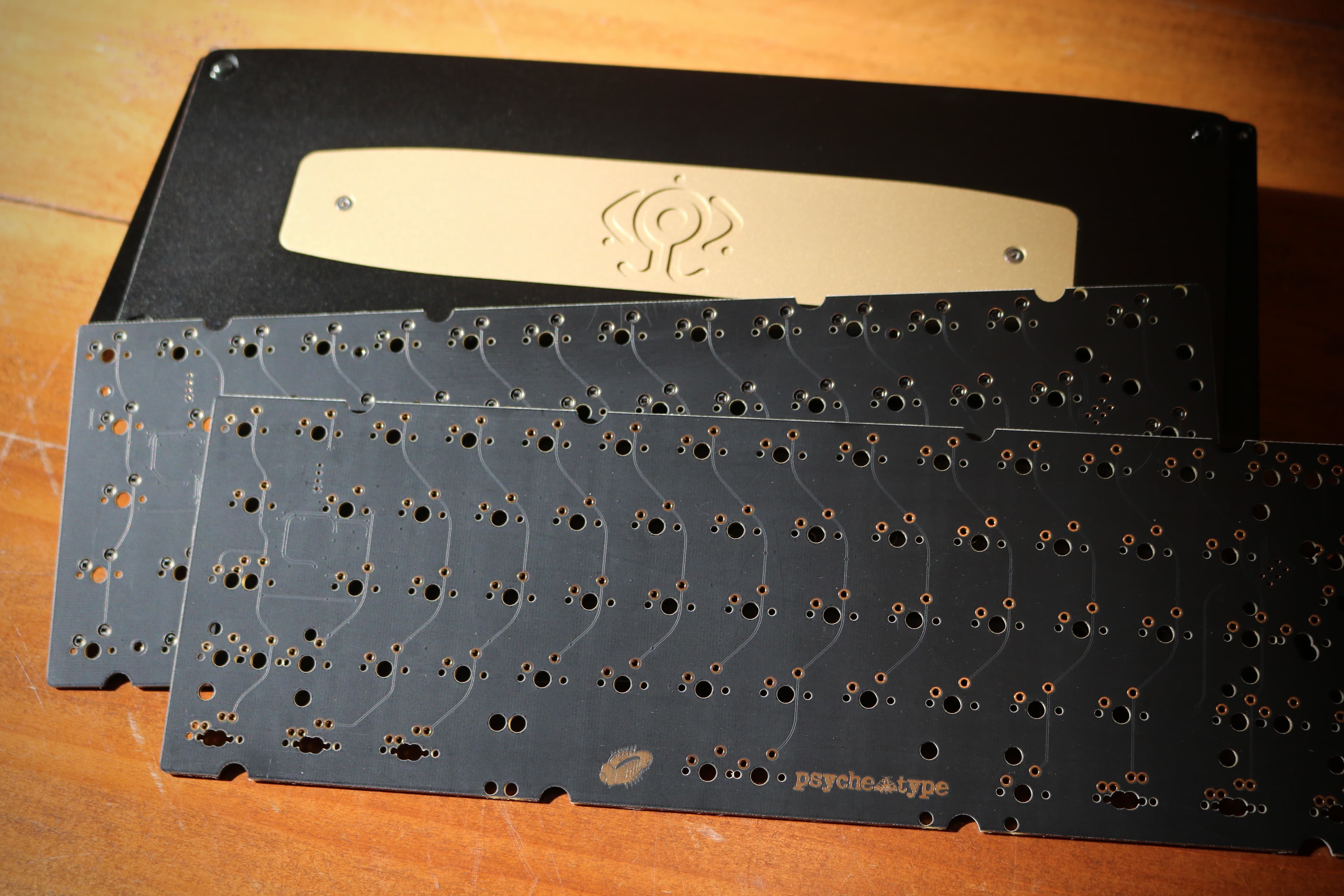

PCB Specifications:•PCB Thickness: 1.6mm
•Unified Daughterboard includes ESD protection + fuse:
https://github.com/Unified-Daughterboard/UDB-C-Legacy•QMK/VIA supported
•PCB-mount stabilizer support

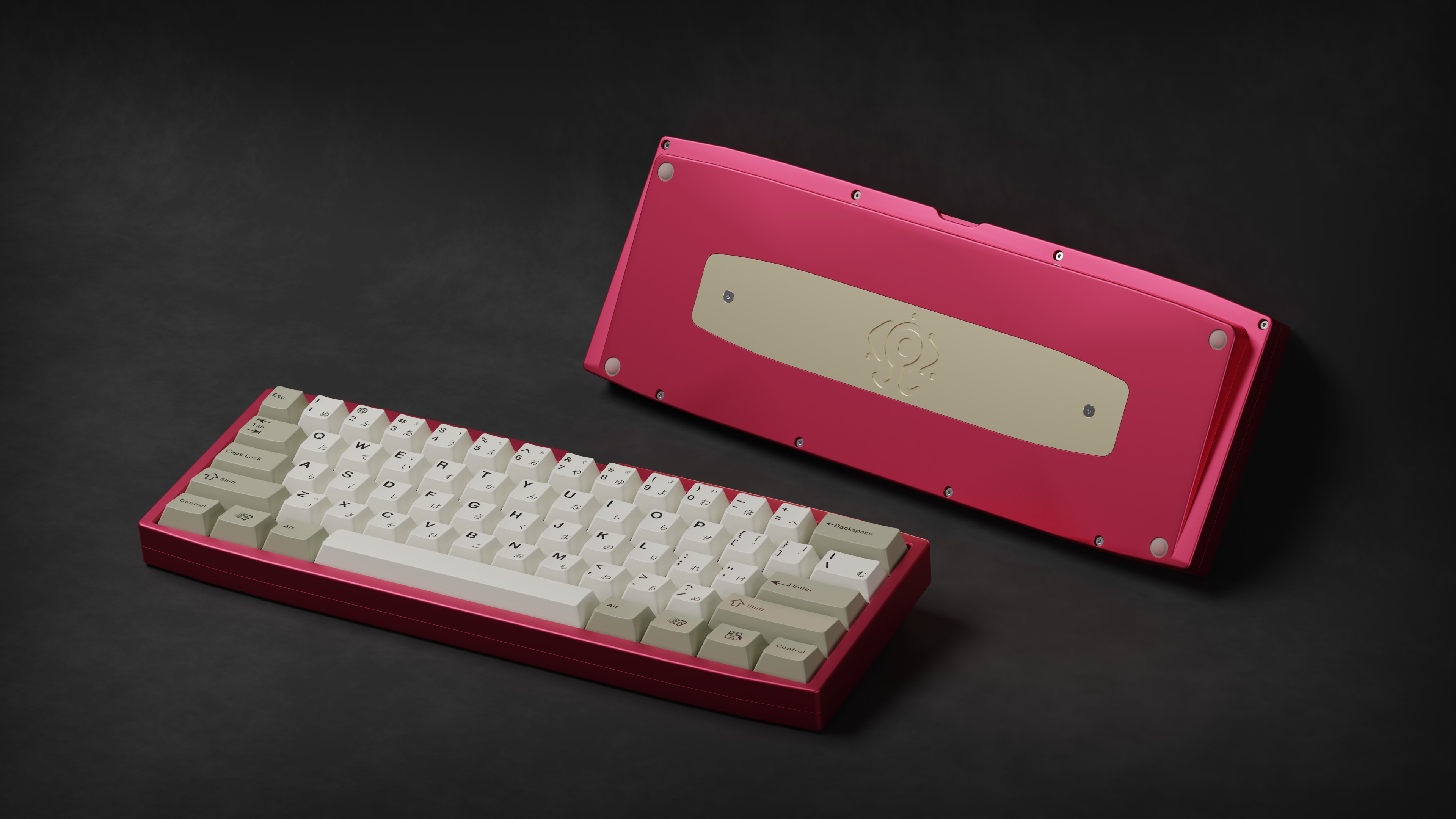

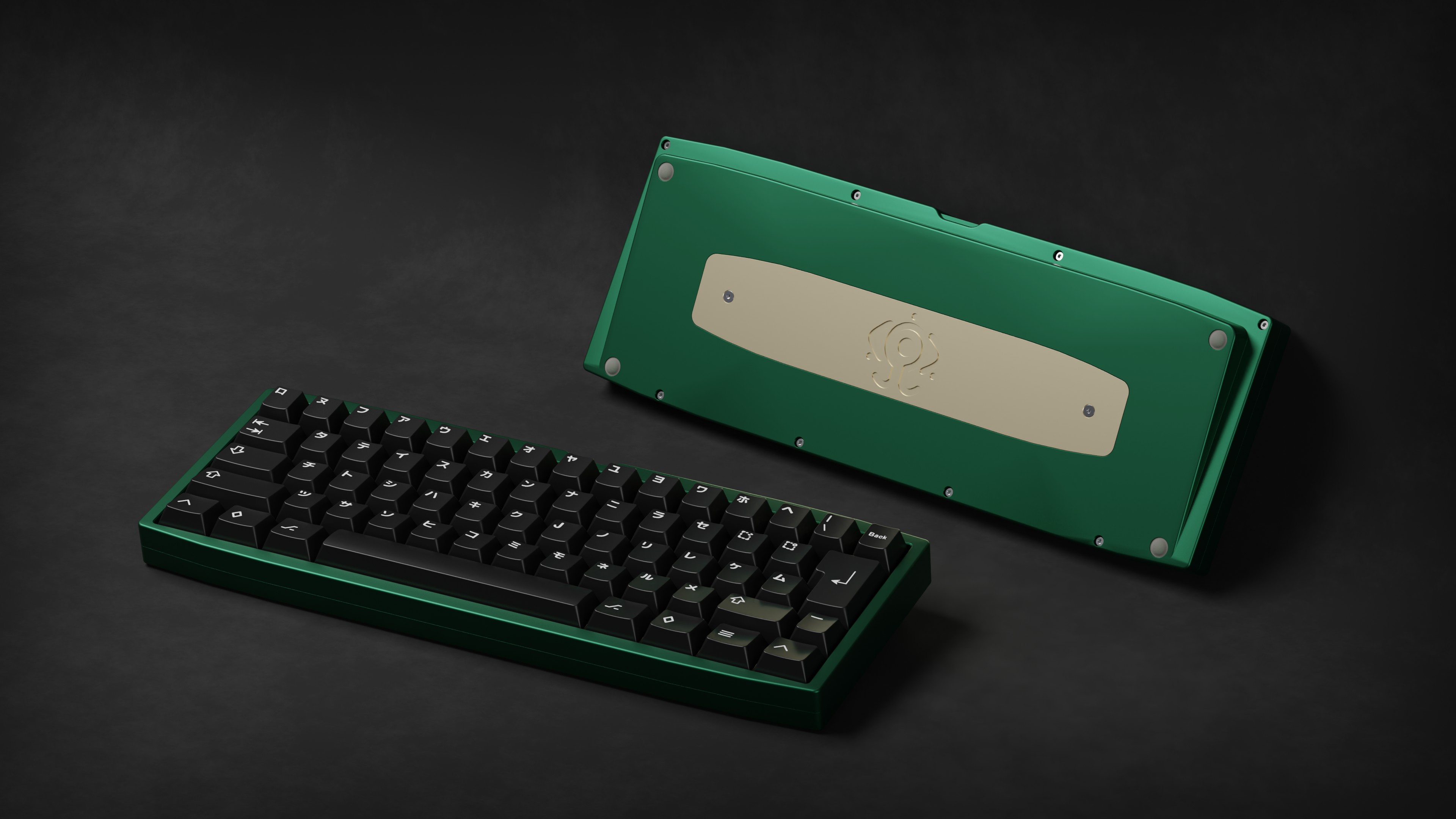

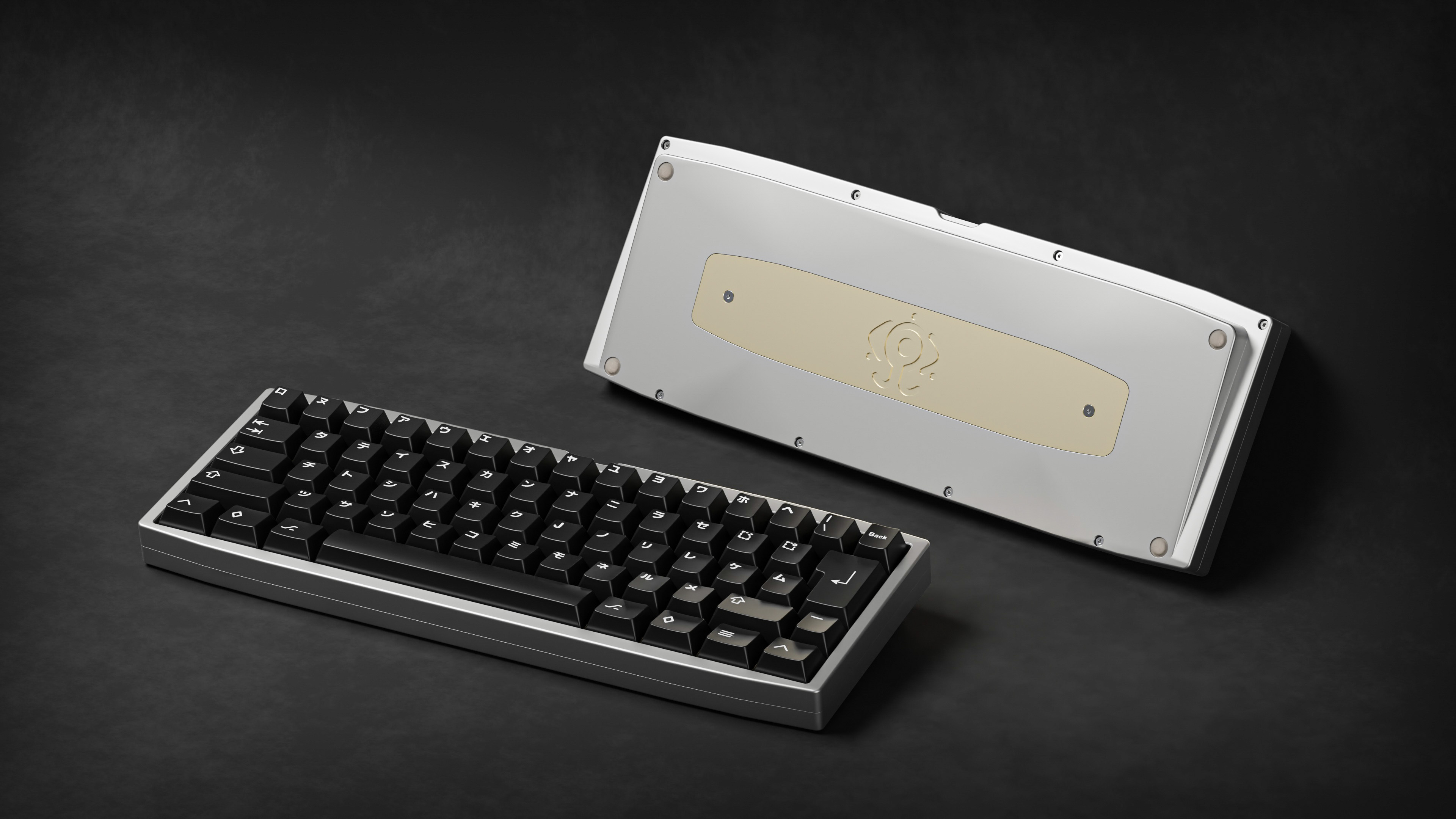

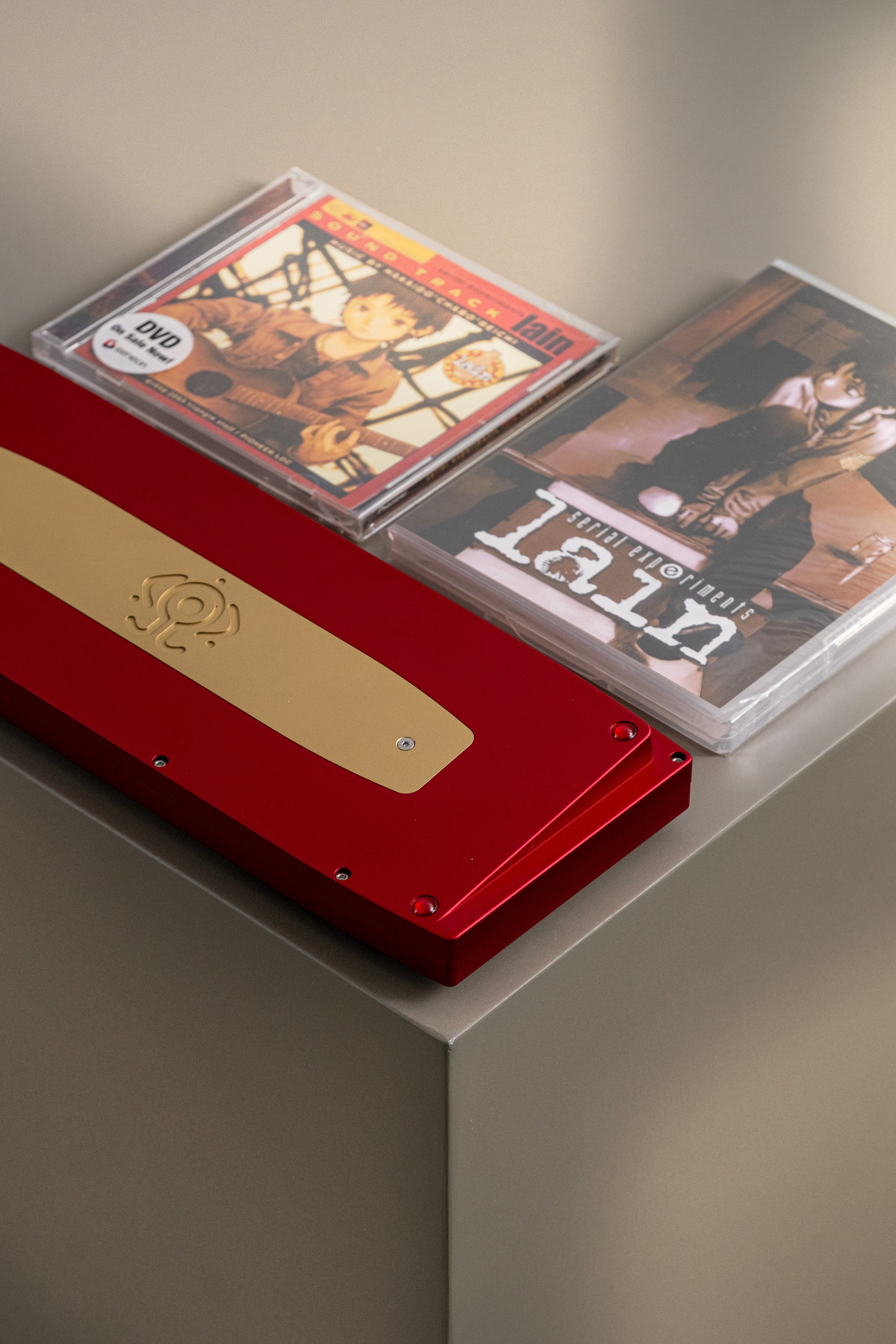

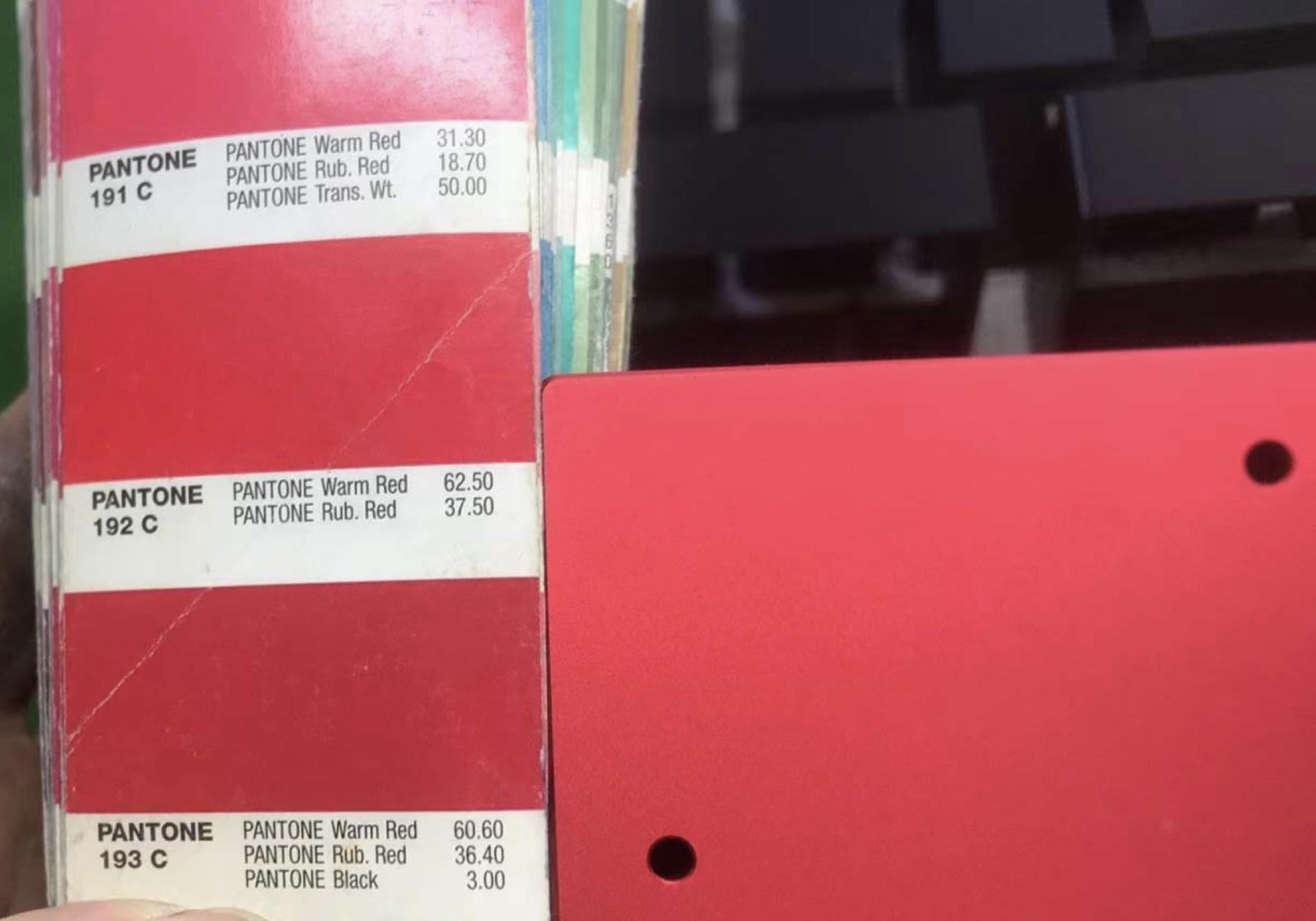

Case color options:Red Anode
Green Anode
Silver Anode

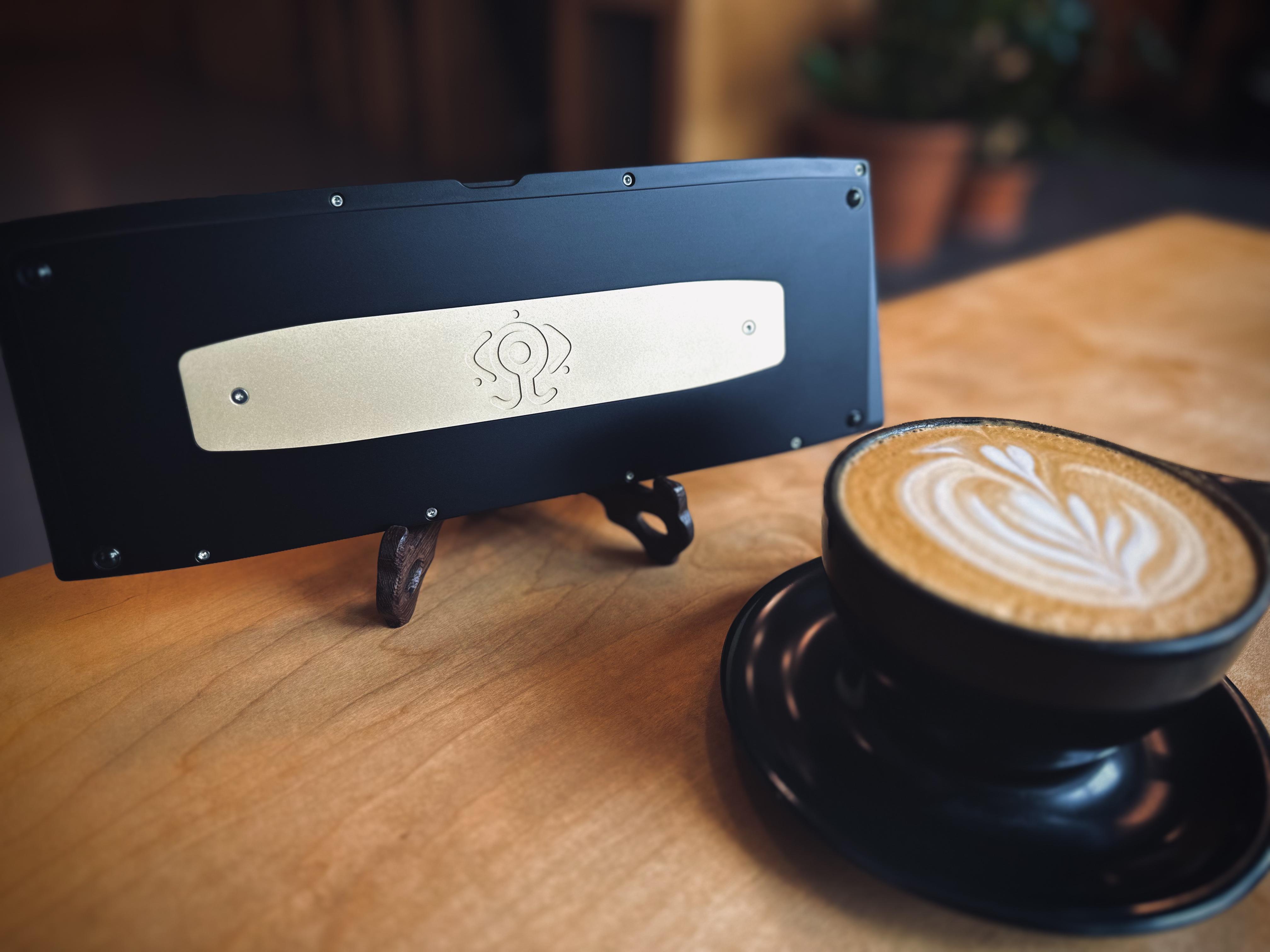

Black Anode

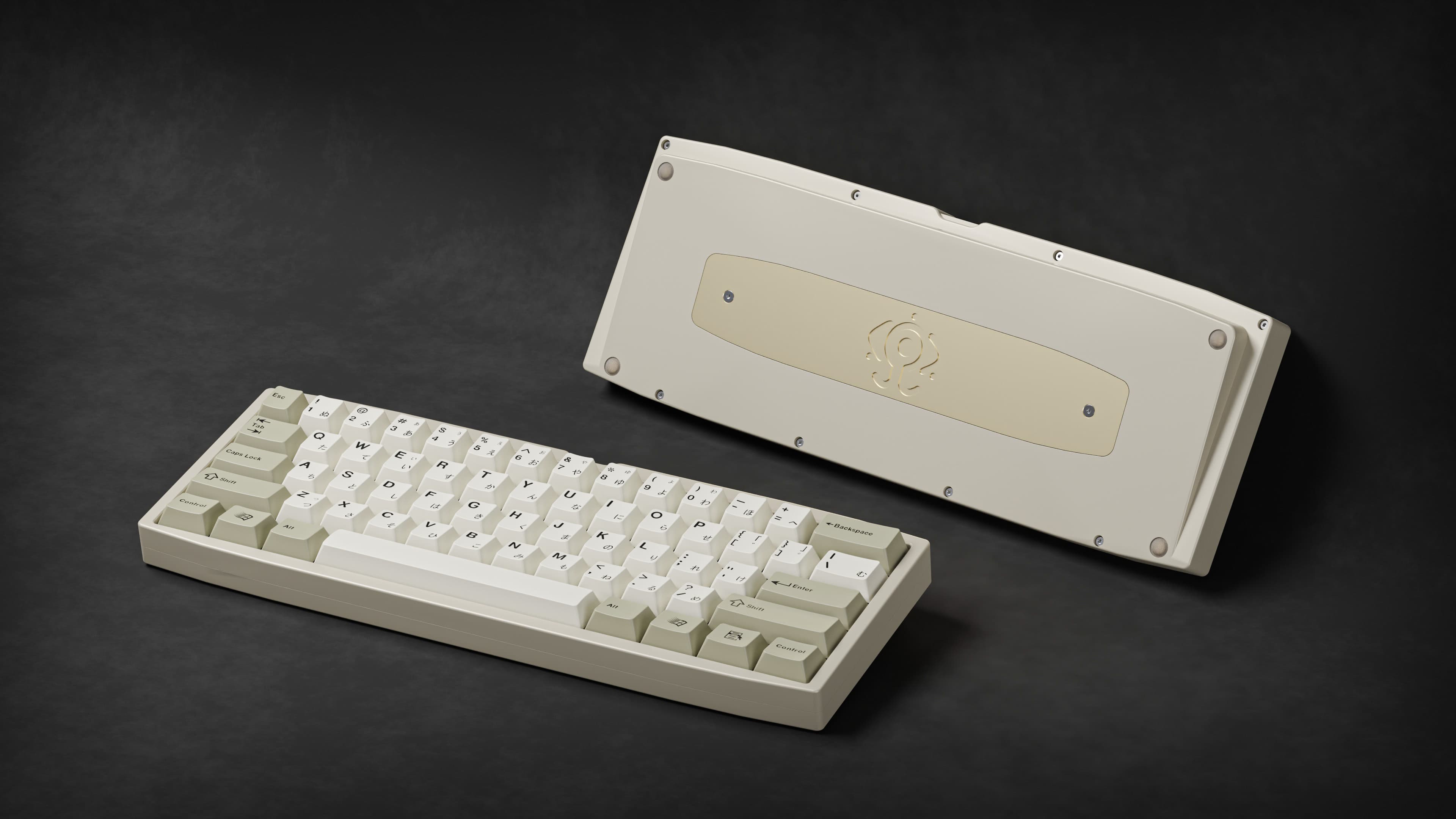

E-Beige
PCB options:•ANSI hotswap
•ISO hotswap
•Solder

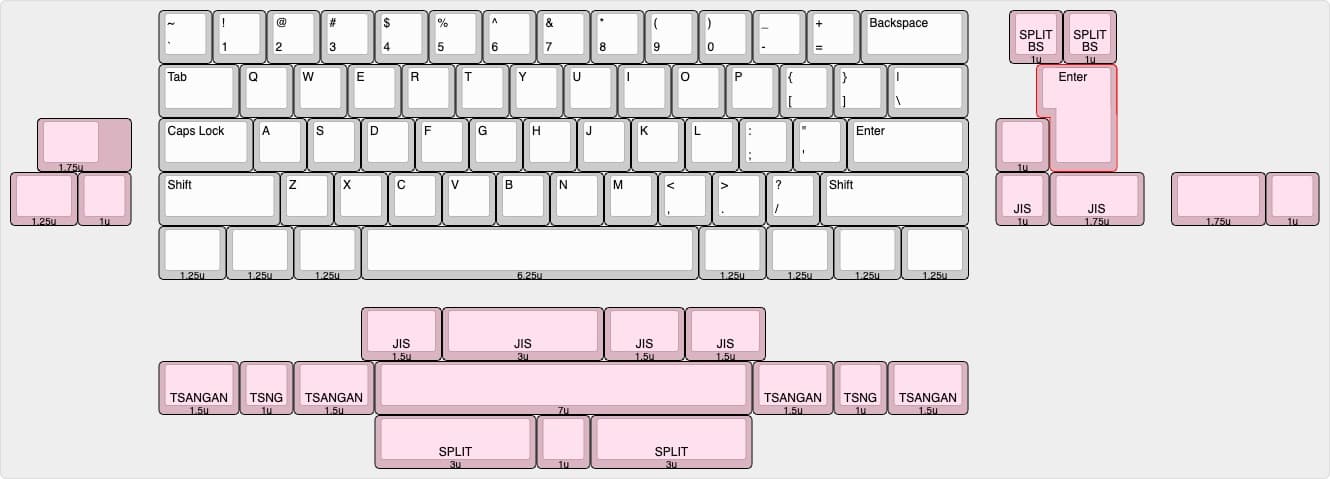

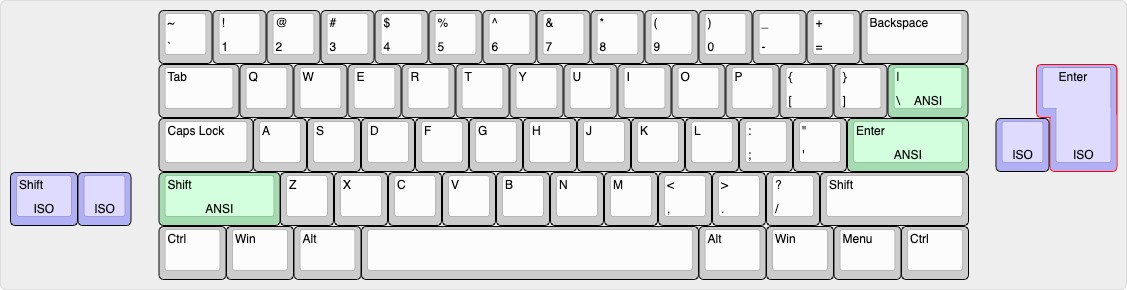

Layout options:Hotswap ANSI/ISO (not inclusive)
Solder (Supports ANSI/ISO/JIS, split backspace, split shifts, Tsangan bottom row, split 3u-1u-3u space, 7u space, stepped caps lock)

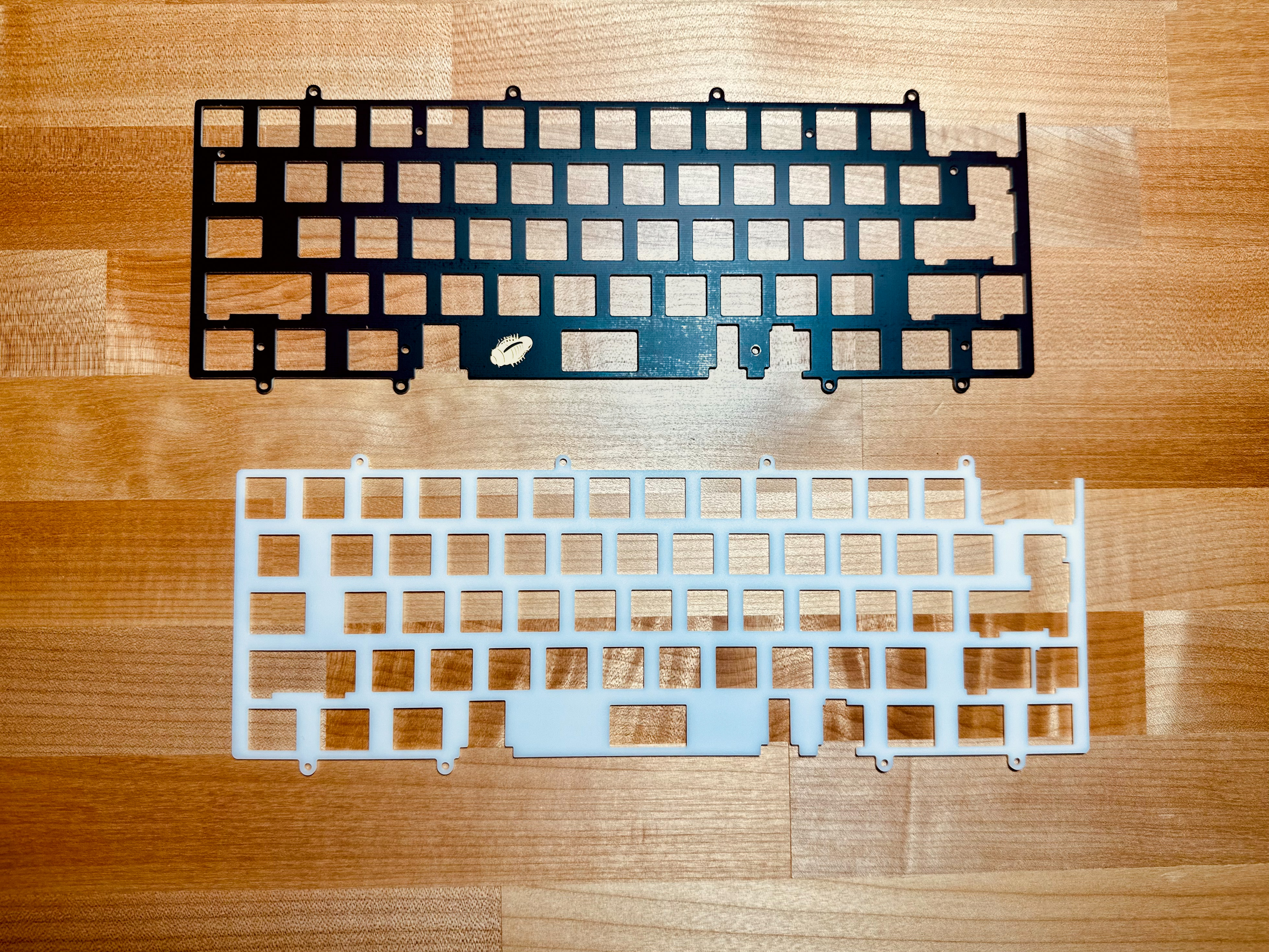

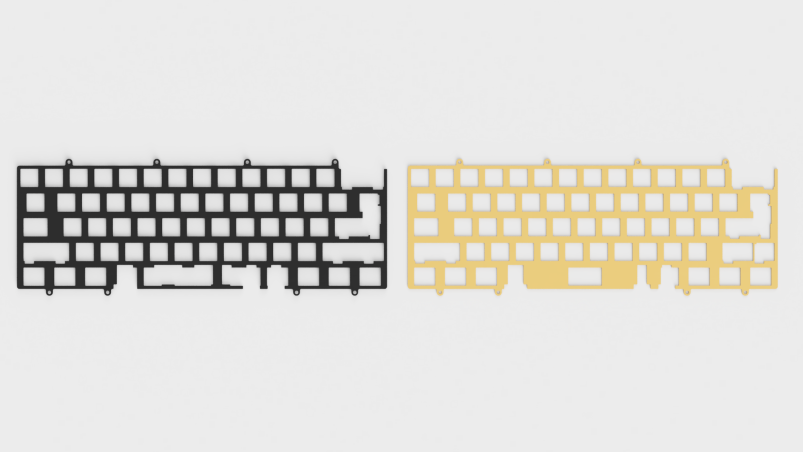

New plate design on the left, old design on the right. Both files will be available in the Discord during GB. Split-spaces and Minila space will require clip-in stabs

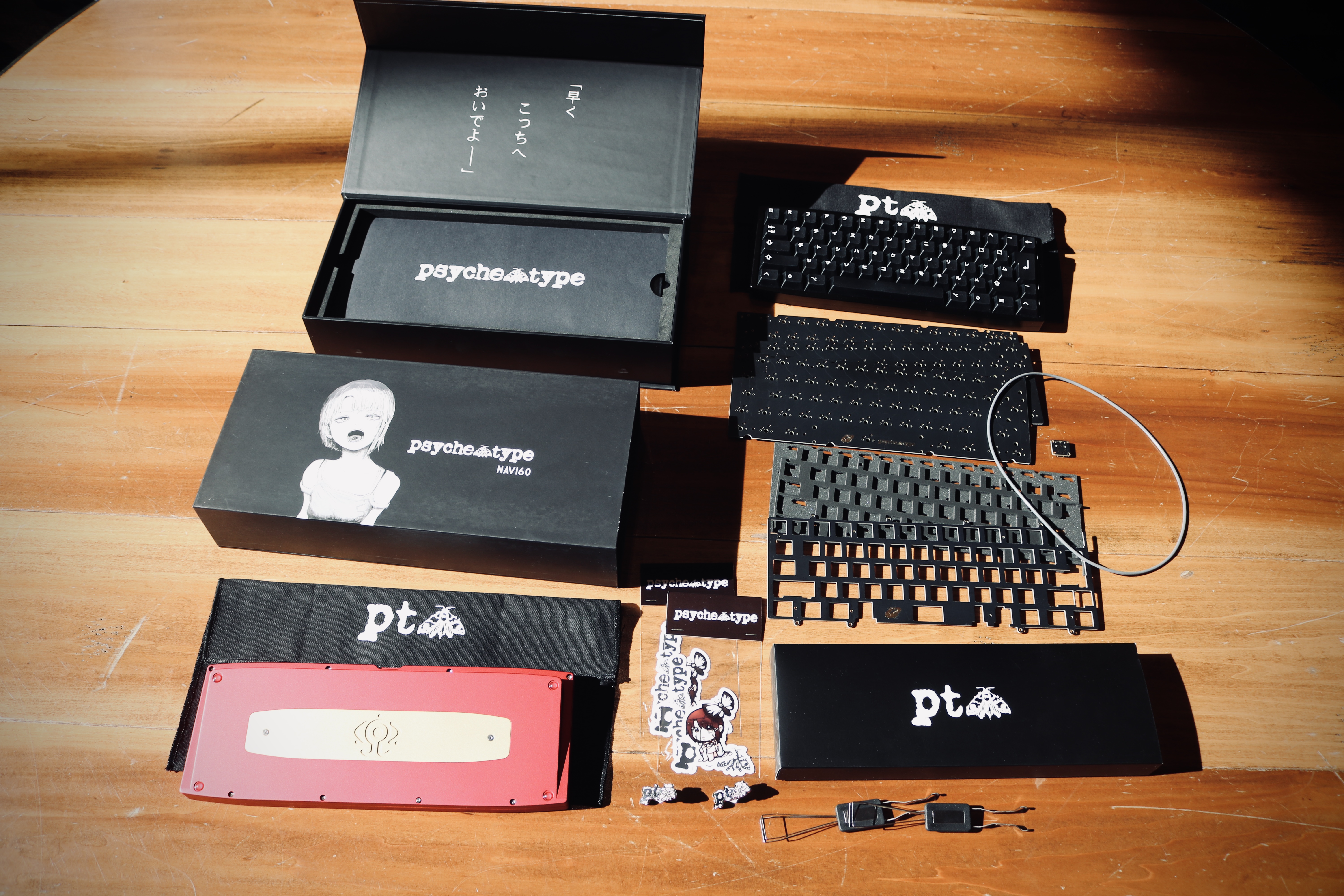

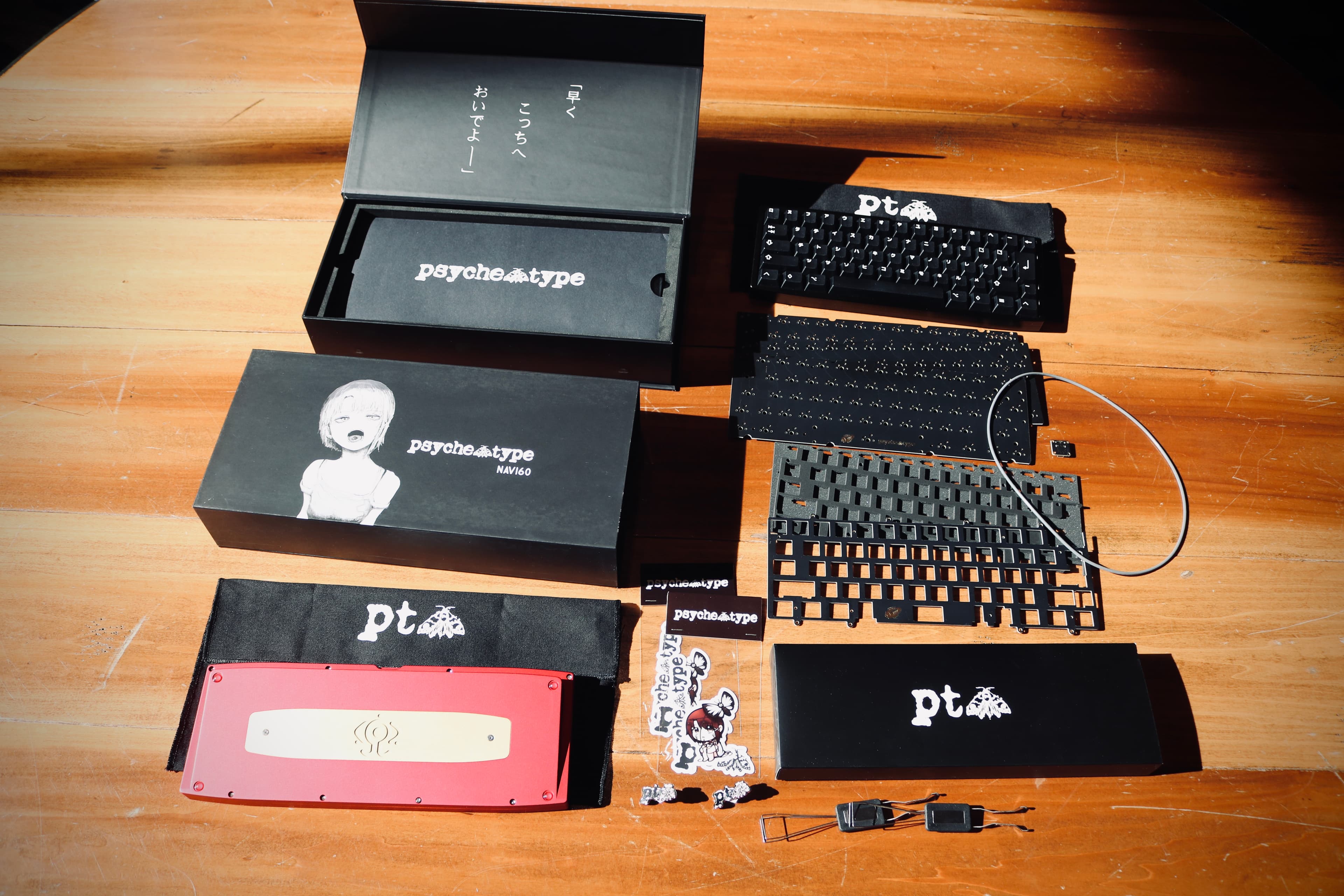

What's Included:•Two-Piece CNC Aluminum case w/ Brass weight•
•PCB
•Plate
•Unified Daughterboard w/ JST Cable
•Plate foam
•USB-C cable
•Medium size O-ring from Graveshift (40A stiffness)
•Keycap/Switch puller
•3M Rubber feet + Screws
•2mm hex key + 1.5mm hex key
•Durock v2 stabilizers (smokey black kit with 2 additional 3u wires)
•psychetype pin
•psychetype sticker pack (art from Orange of OranArt Studio)
Box art by mitiminami777Pricing:
Base price with FR4 plate = 210 USD
+8 USD for FR4 add-on
+8 USD for POM plate (16 USD if add-on)
+20 USD for Alu plate (31 USD if add-on)
+15 USD for E-Beige
+28 USD for extra Solder PCB (Add-on)
+32 USD for extra Hotswap PCB (Add-on)
Vendor List:UK: Proto[Typist]:
https://prototypist.net/collections/live-group-buys/products/group-buy-navi60CA: Ashkeebs:
https://www.ashkeebs.com/product/navi60-keyboard/JP: Basekeys:
https://basekeys.jp/en/products/navi60US: KeebsForAll:
https://keebsforall.com/products/navi-60EU: KEYGEM:
https://keygem.com/products/navi60-keyboard-kit-group-buyOCE: ALL CAPS:
https://allcaps.store/products/gb-navi60Asia: PantheonKeys:
https://pantheonkeys.com/collections/ongoing-group-buys/products/gb-psychetype-navi60VN: The Keebs Store:
https://thekeebs.store/products/groupbuy-navi60-keyboard-kitPH: DeskDaily (Designer):
https://navi60.deskdaily.design/GB Time:Timeline:
• Oct 9th-Nov 8th
• Runs for 30 days
• Expected delivery in Q2 2024 (rough estimate, holidays may affect delivery slightly)
Reviews:Alexotos (Sep 1st) - Watch review
here(PCB movement is now removed by switching to Medium size O-ring)
Photos by alexotos
