NESON DESIGN | The 700E Series 70％ keyboard | Raffle Live until 06/11
geekhackauto-imported
0 followers0 bookmarks0 comments
Description
INDEX
- Introduction - Design - Product Photos - Review - Spec - What’s in the package - Colorways - Groupbuy Info - Customize Options - Socials
INTRODUCTION
Hi all, this is ClickClack!
We are proud to present the 700E, a 70% FRL-TKL layout keyboard, designed by our friends at Neson Design! We will be running this Group Buy as a raffle sale.

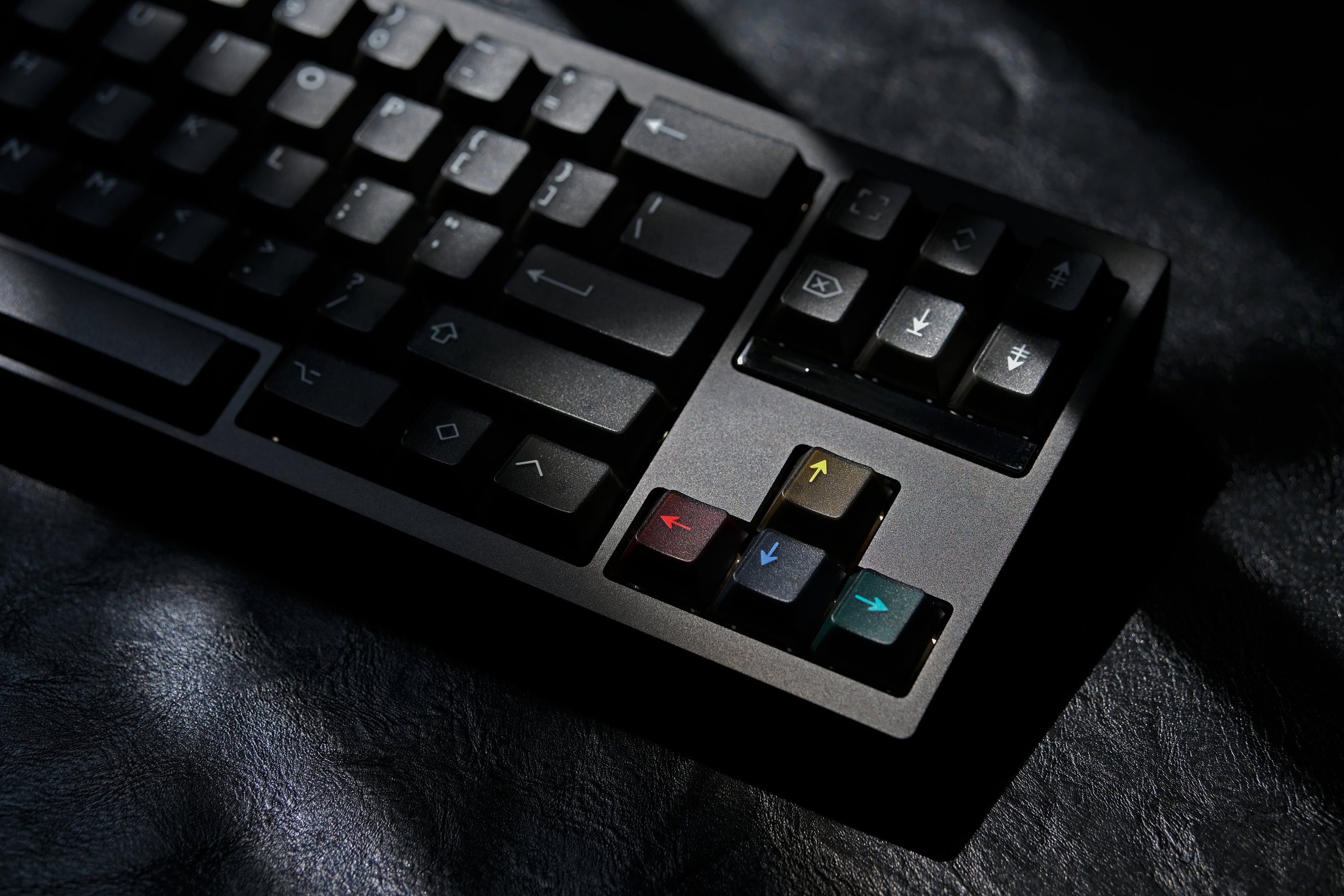

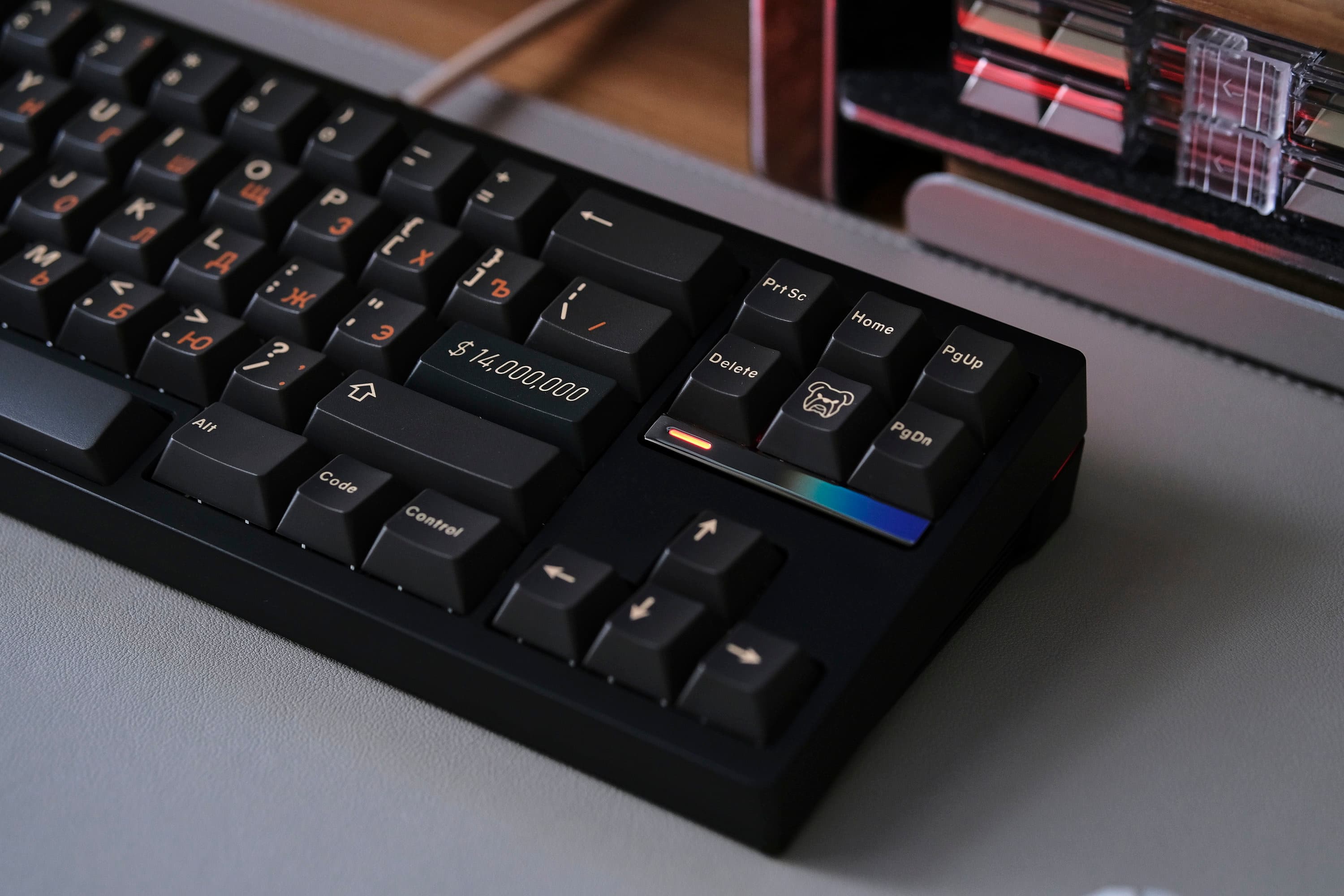

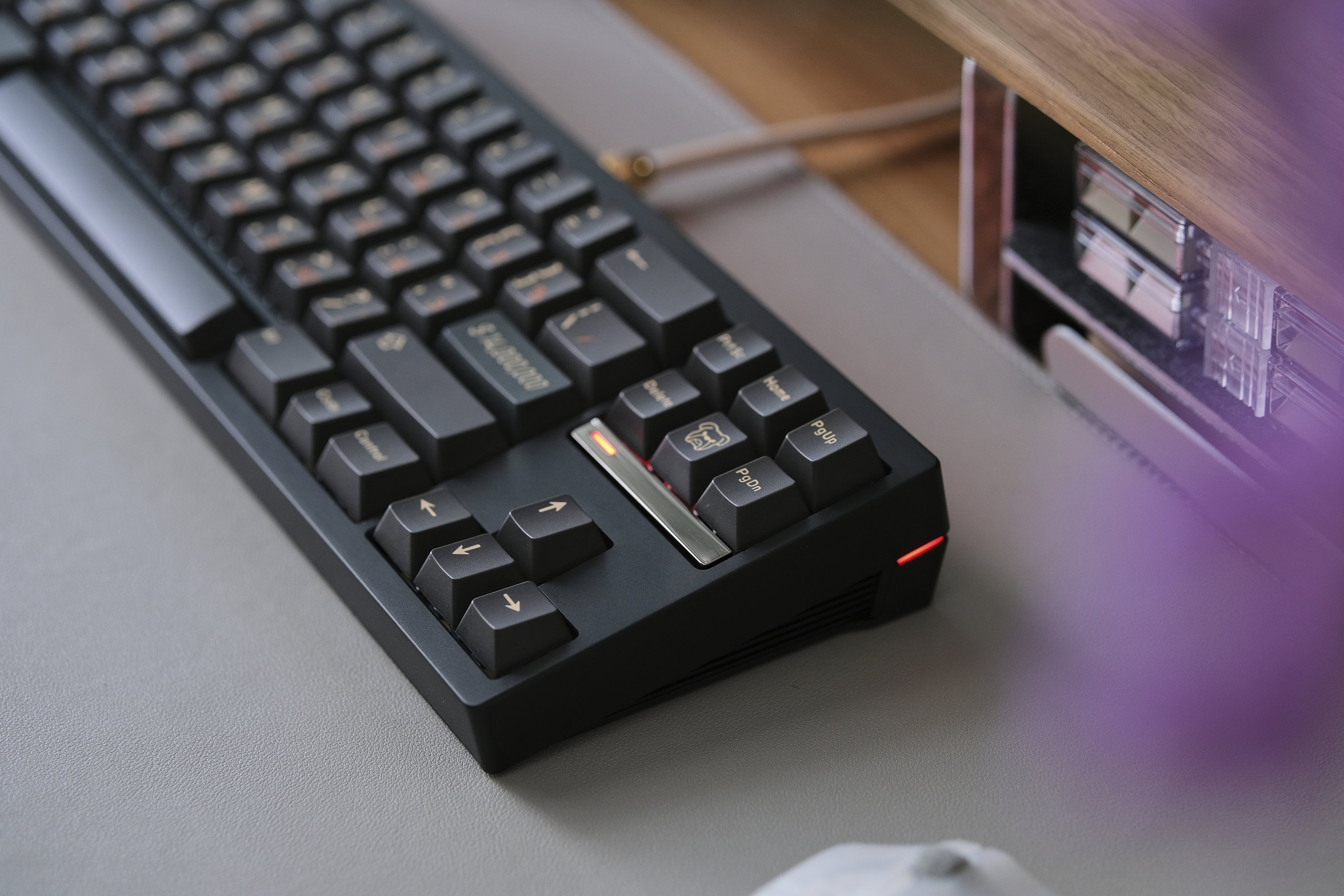

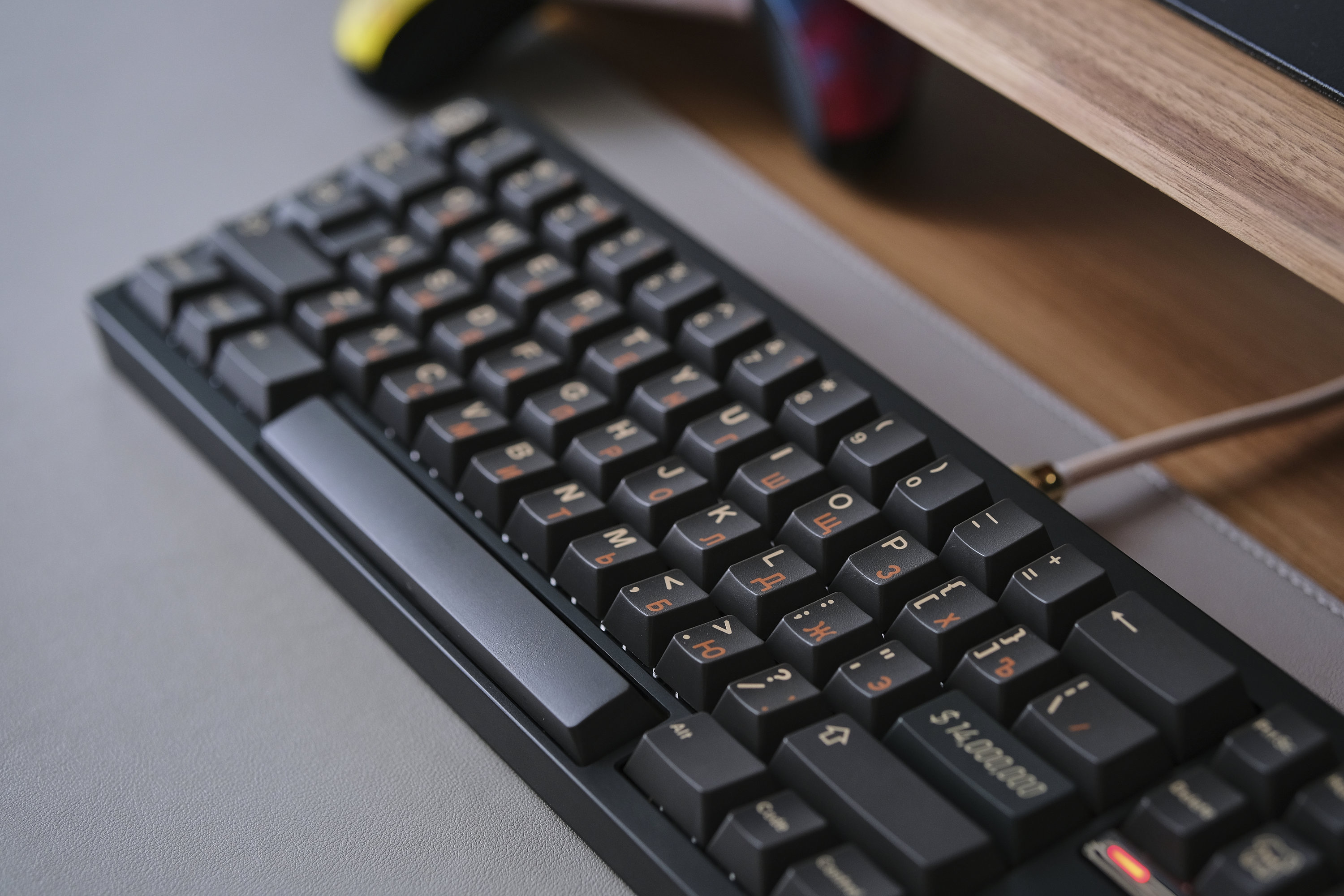

The following photos are all shot with physical prototype units. Due to the lighting and atmosphere setup for photography, final product may differ and for reference only.

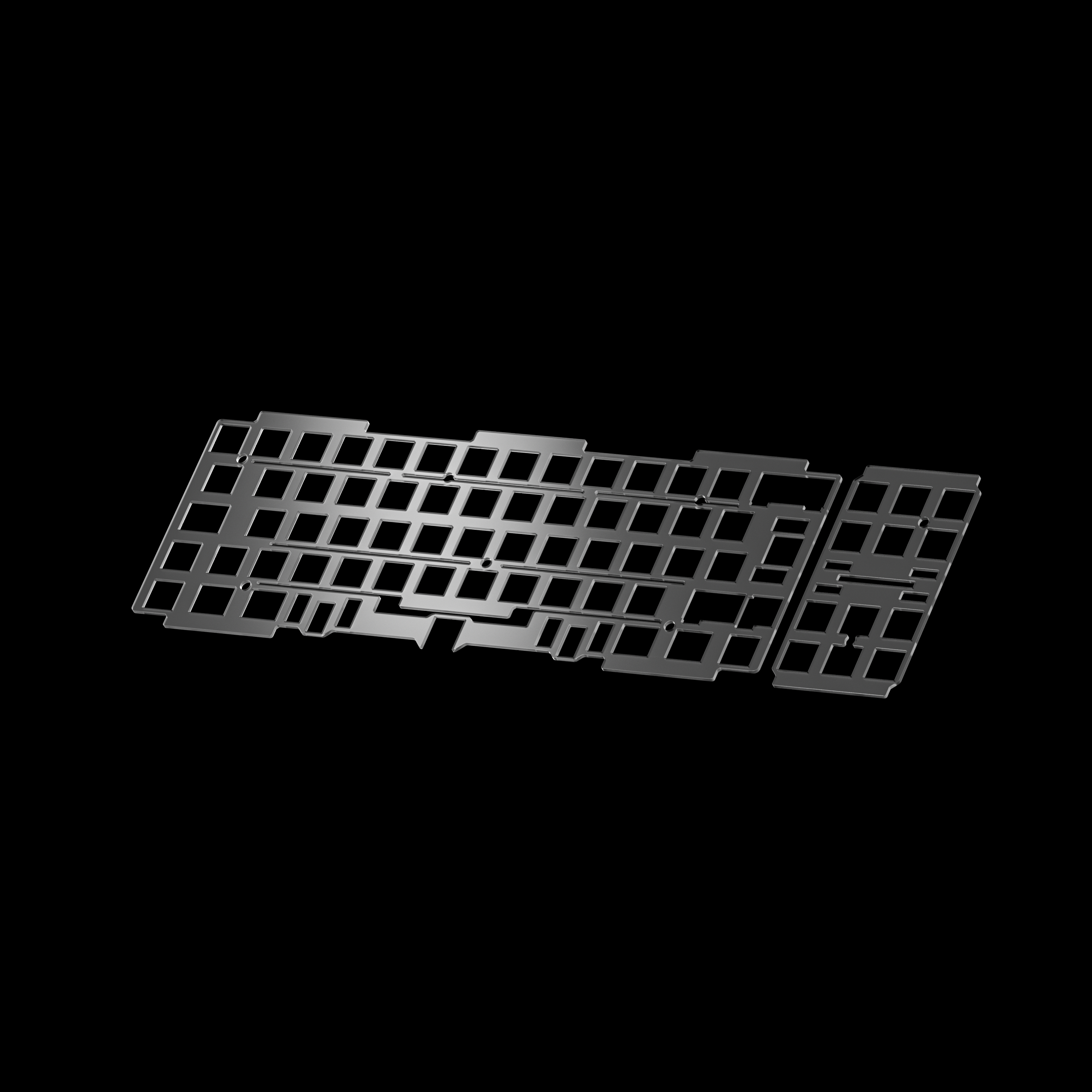

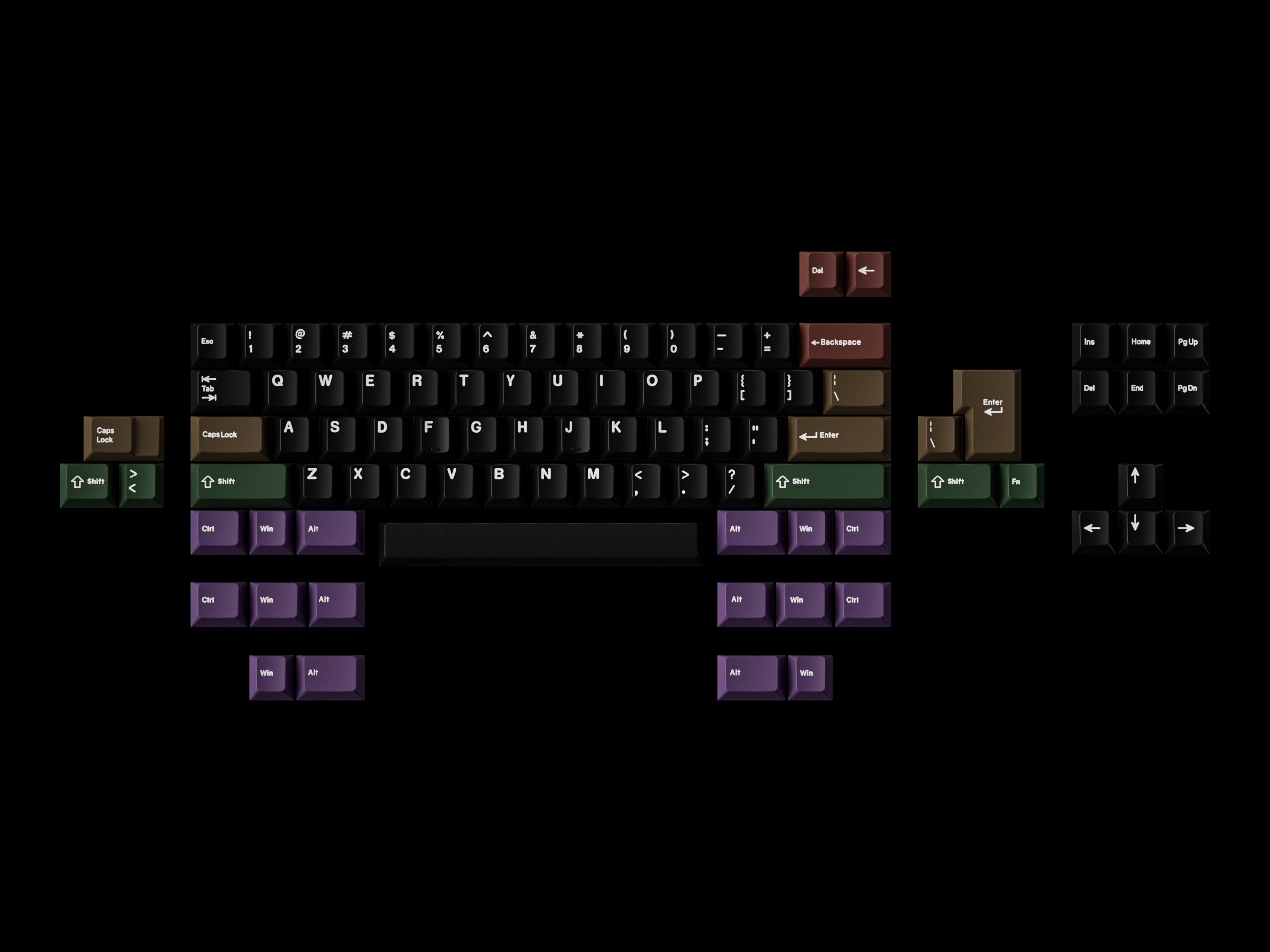

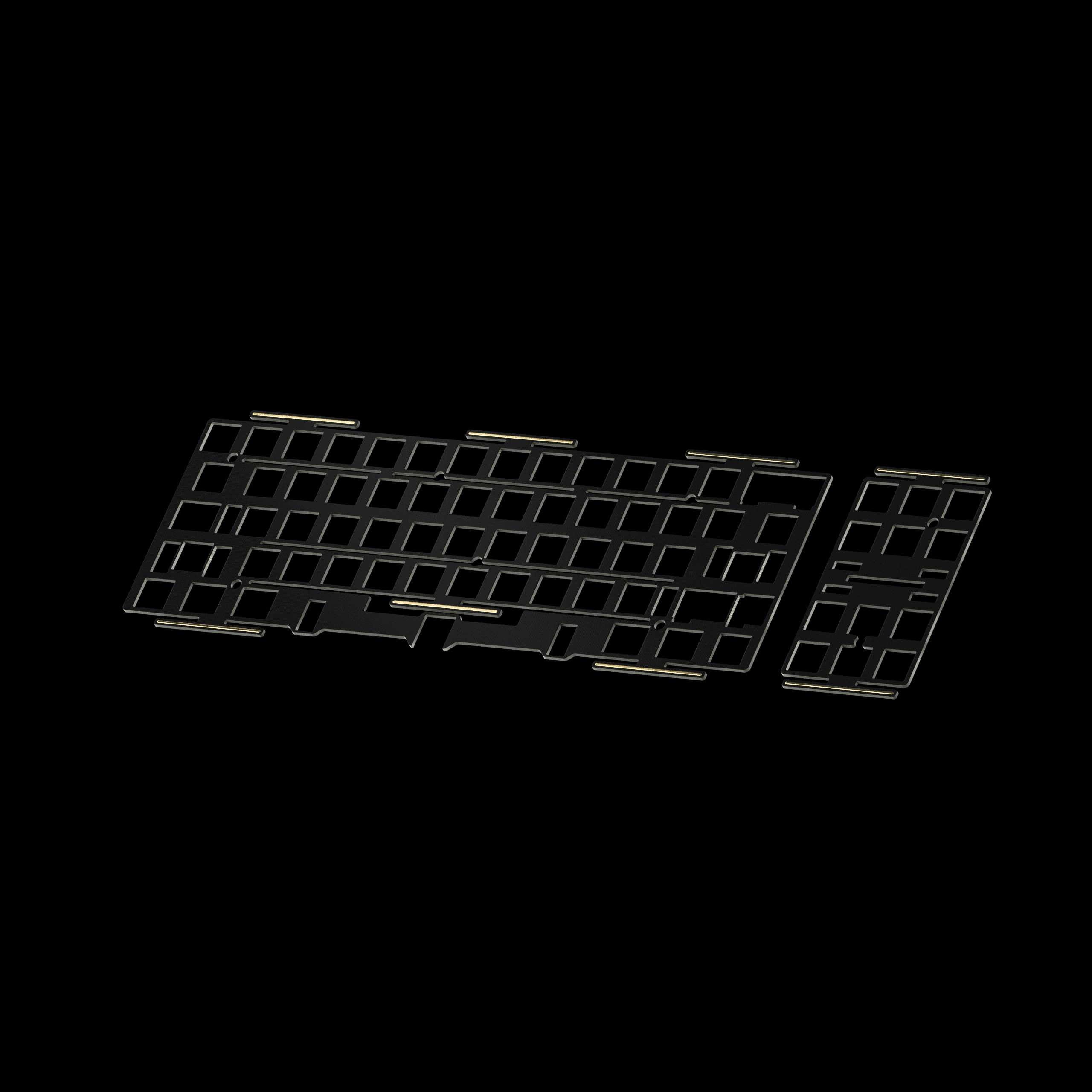

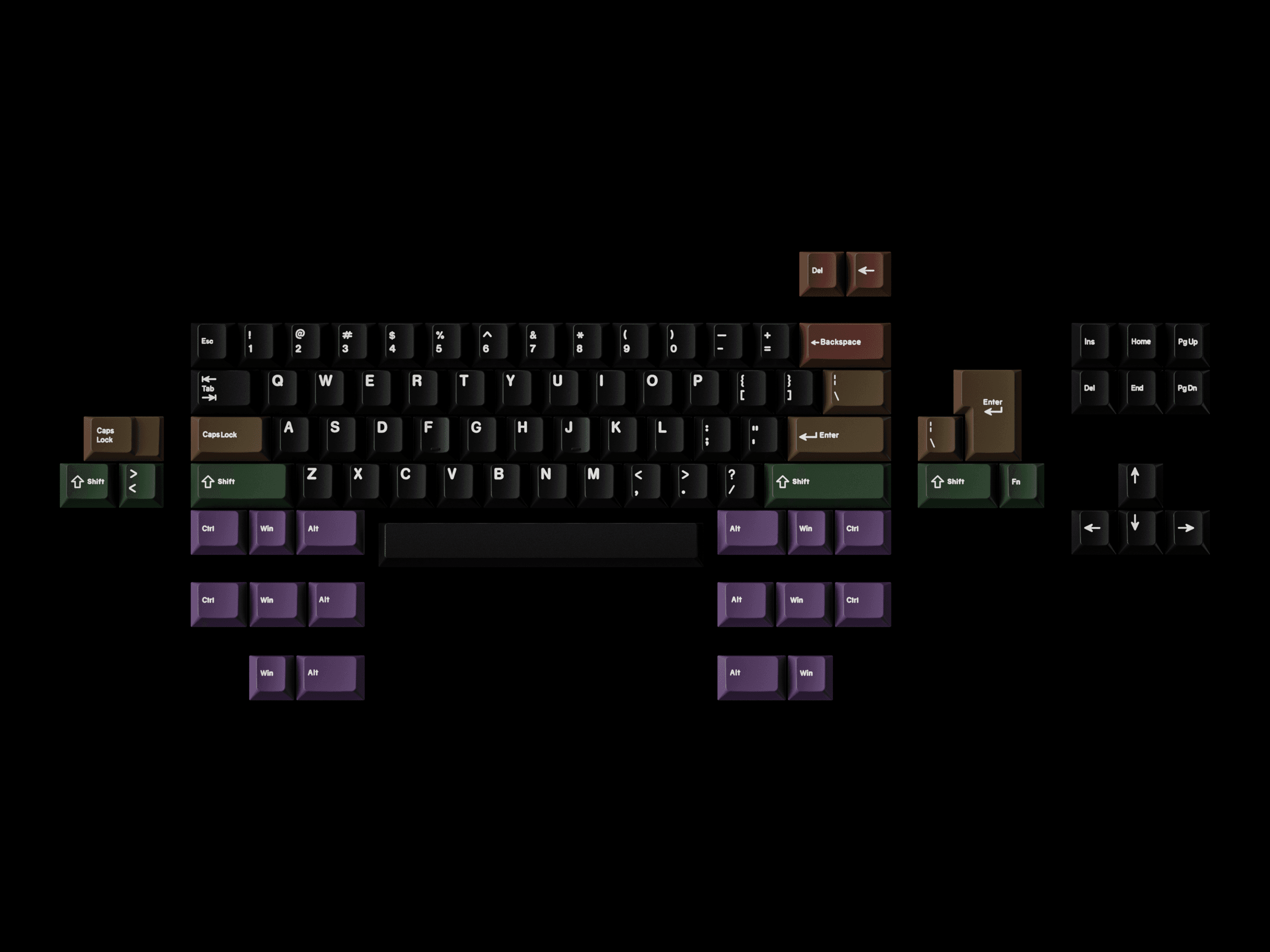

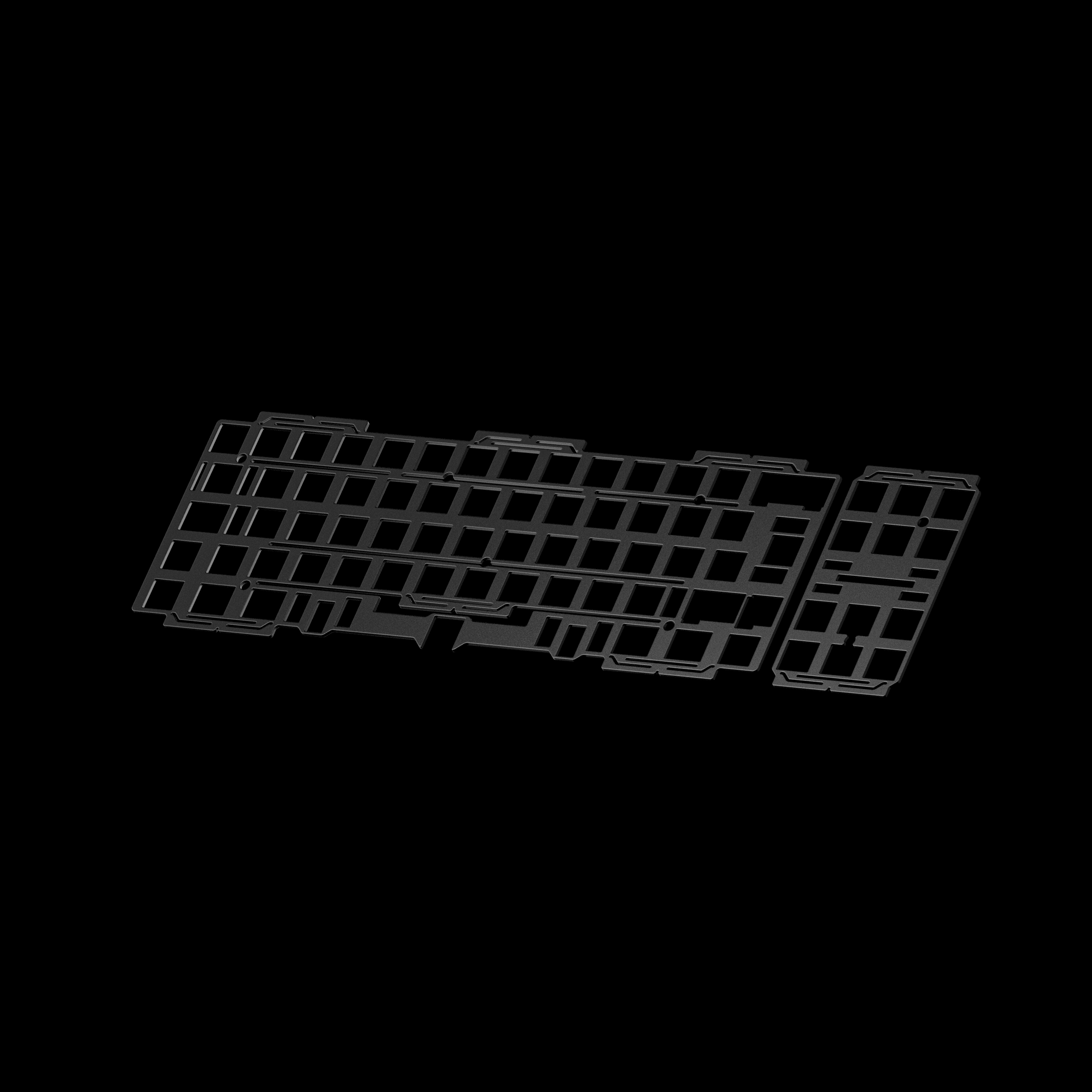

► Price: $470 (Regular) / $535 (collaboration units) ► Form Factor: 70% FRL-TKL with WK/HHKB ► Typing angle: 9° ► Front height: 19.3mm ► PCB: 1.2mm solderable (does not support hot-swap), Type-C with daughter board. PCB supports QMK and VIA, designed and manufactured by Astro ► Mounting: Gasket mount ( Aluminum plate with extra leaf spring design) ► Plate: Default plate option is Aluminum, and optional PC plate ► PCB Layouts: ANSI and ISO (Plate sold separately) with WK/HHKB, split Backspace, split right shift
WHAT‘S IN THE PACKAGE

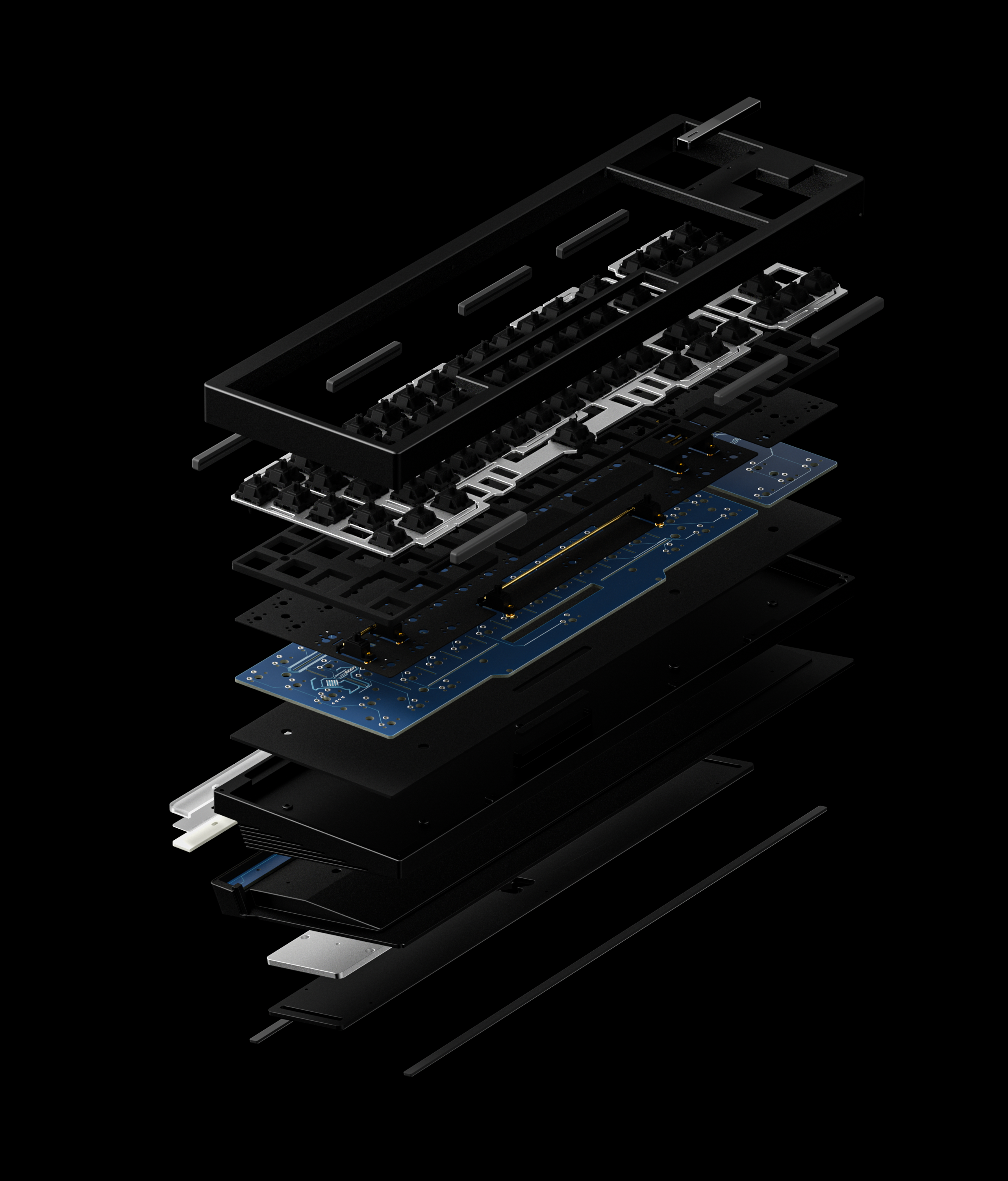

► Keyboard Kit(Top/Middle/Bottom Case, Plate, PVD Badge, Weight) x 1 ► 1.2MM PCB and daughter board x 1 ► 0.5MM PE Foam x 1 ► 3.5MM PORON plate foam x 1 ► C shaped gasket x 10 ► 1.5MM PORON bottom case foam x 1 ► LED Diffuser x 1 ► LED Reflector x 1 ► Stabilizer Shims x 10 ► USB Type C Cable x 1 ► Bumpons x 2 ► Instruction x 1

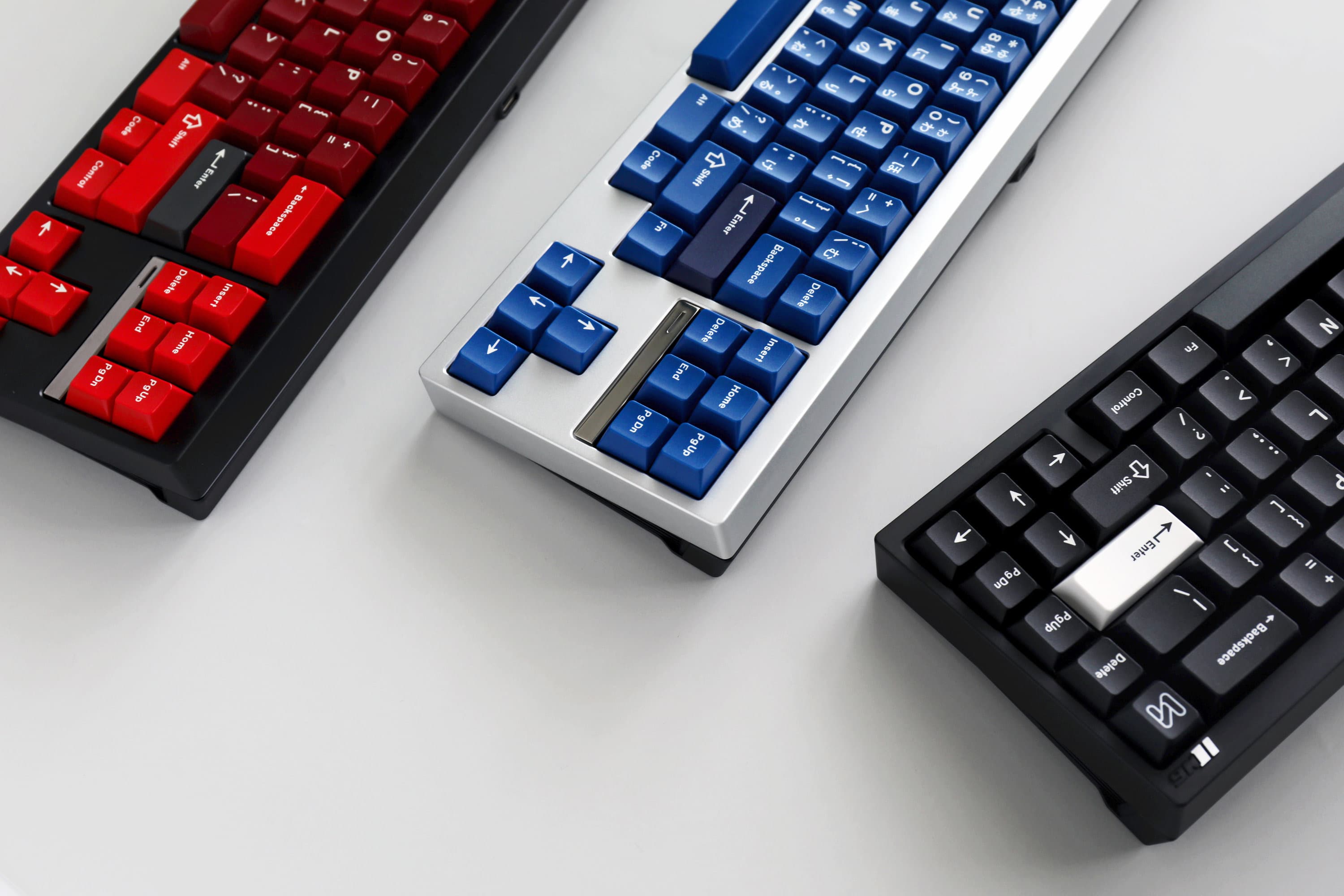

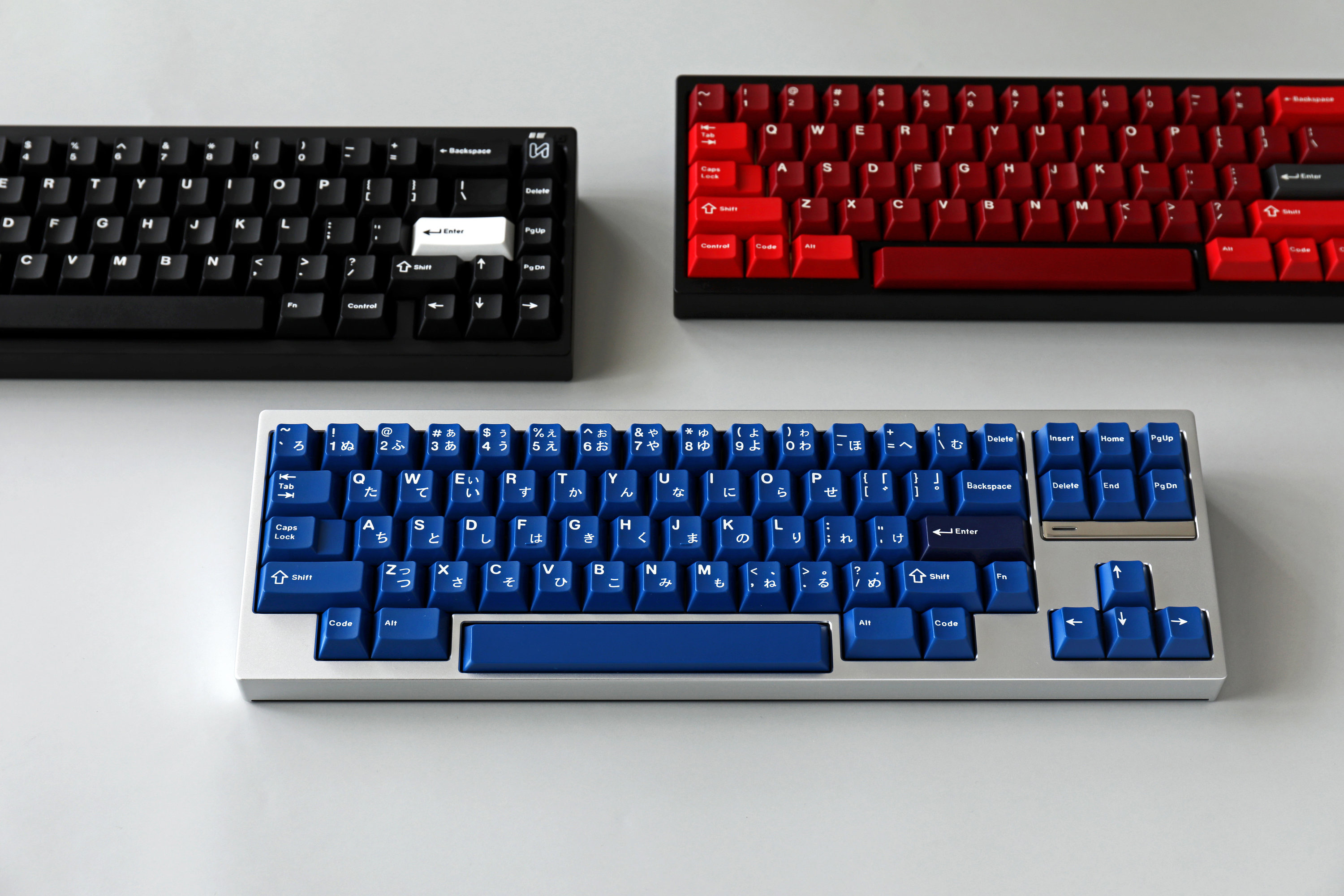

COLORWAYS

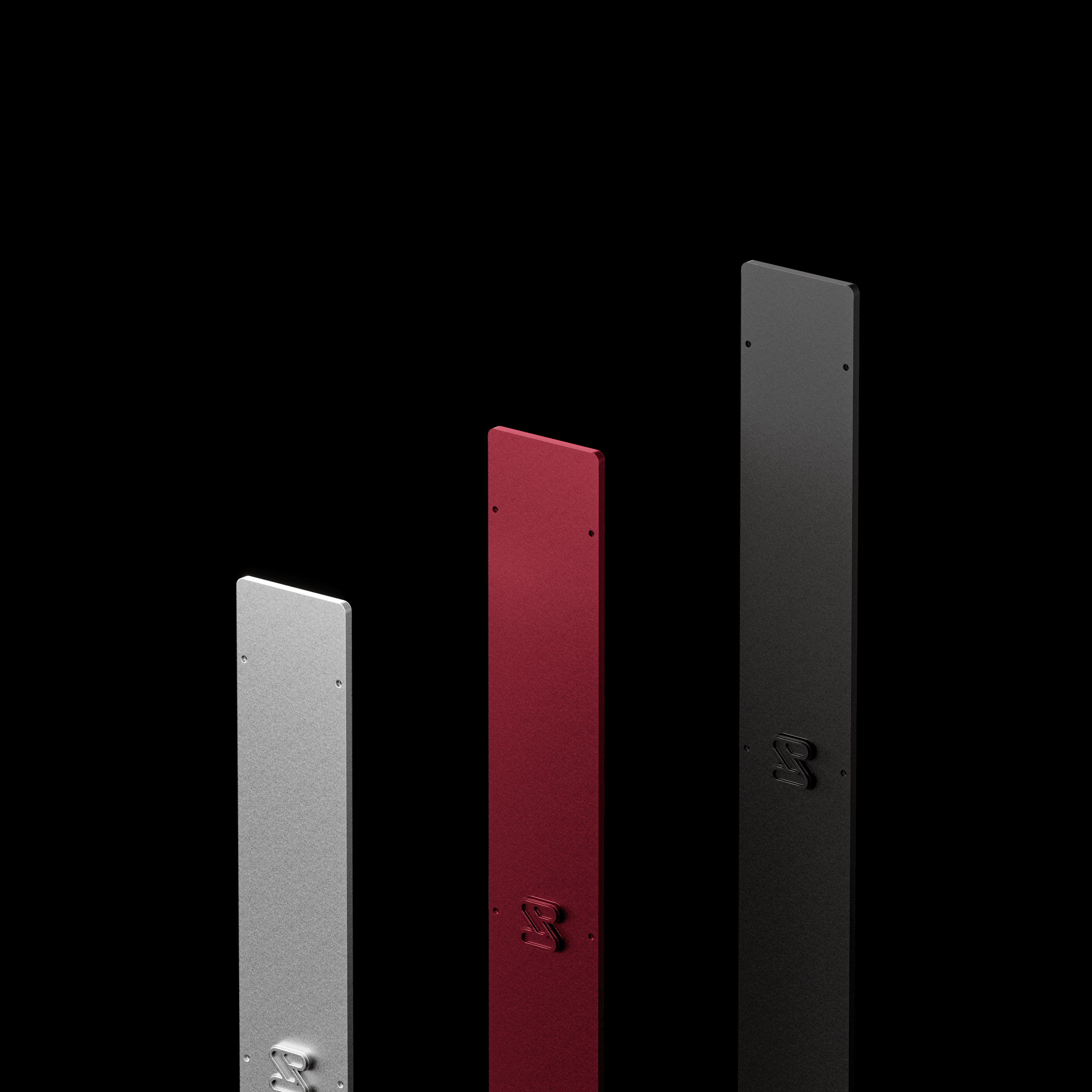

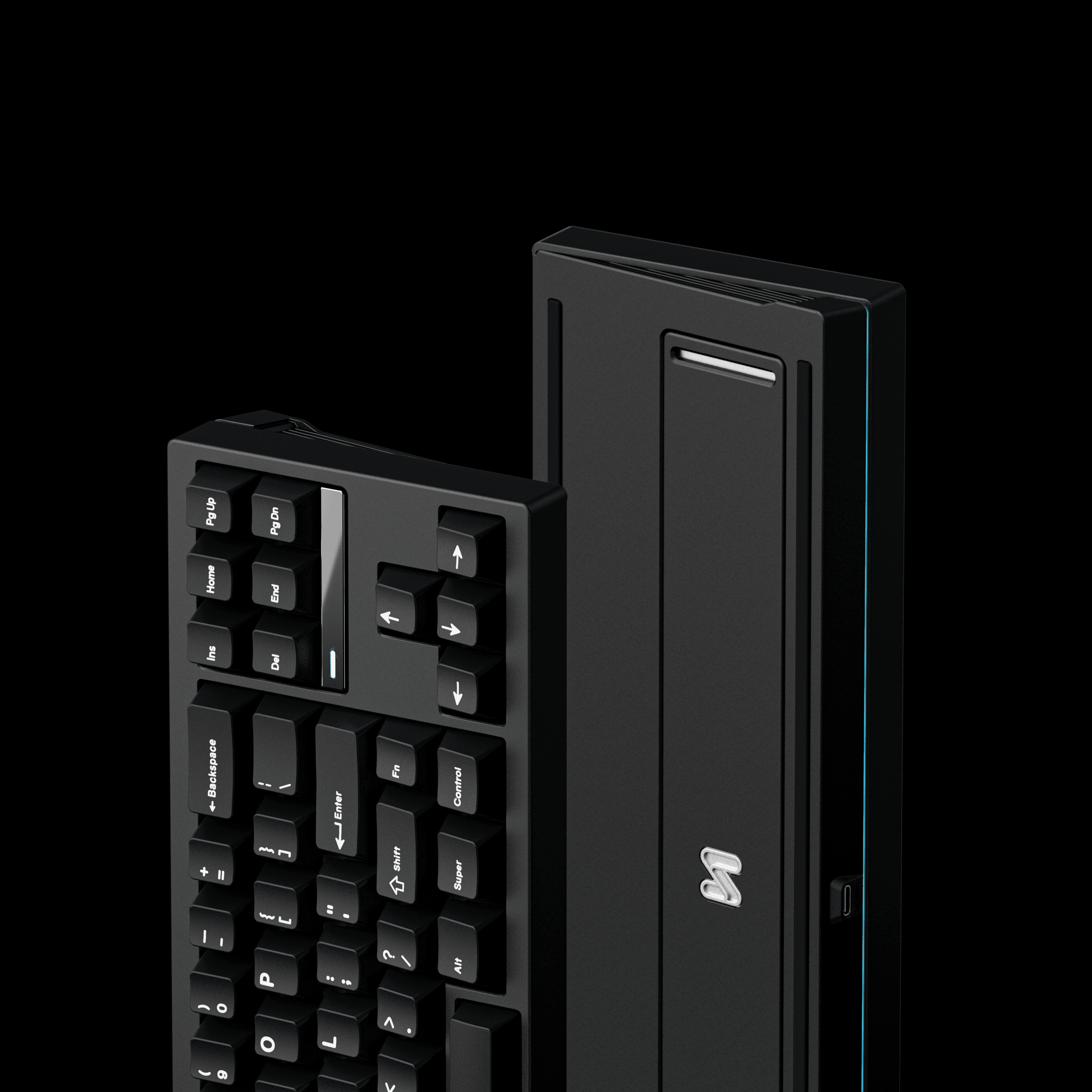

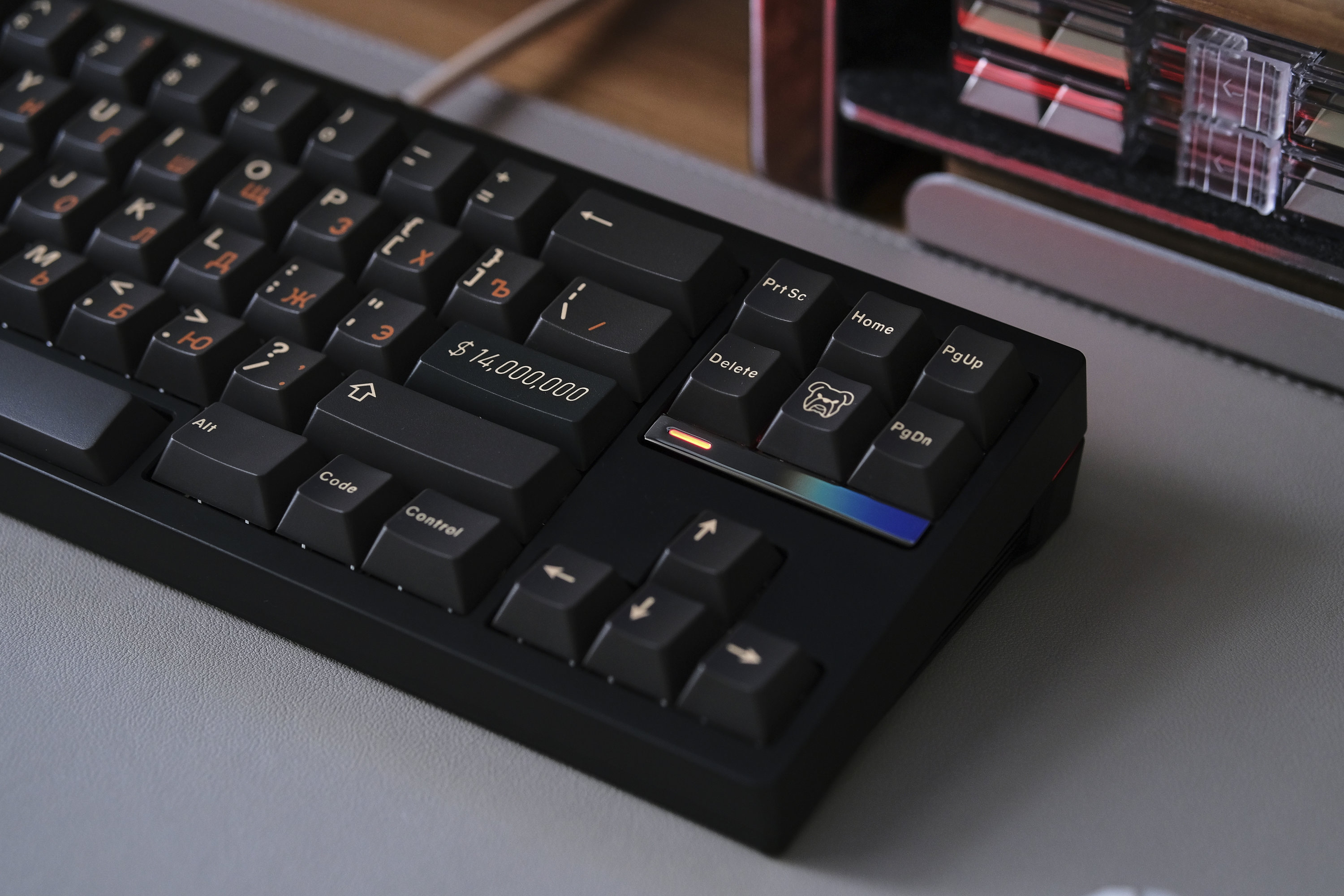

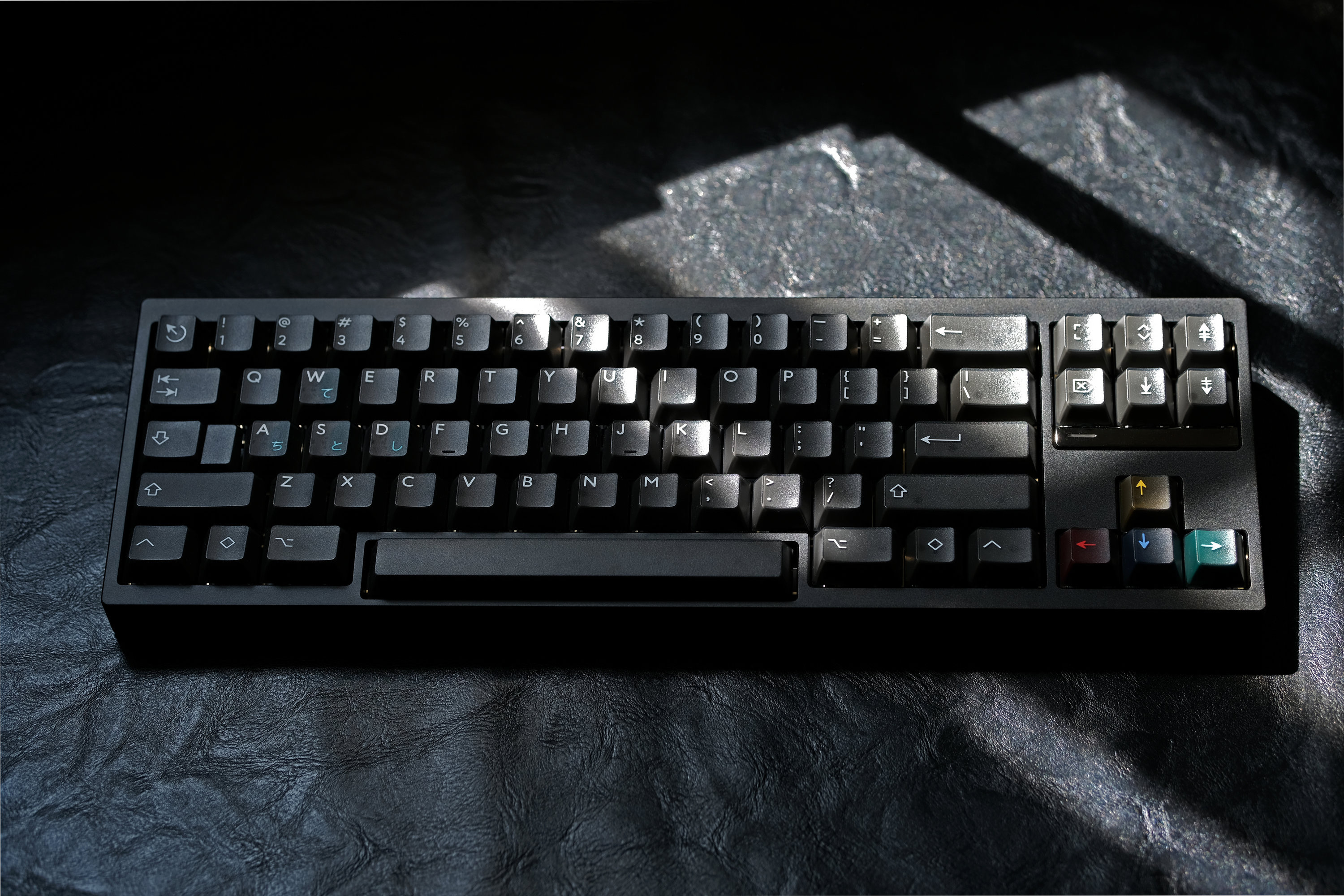

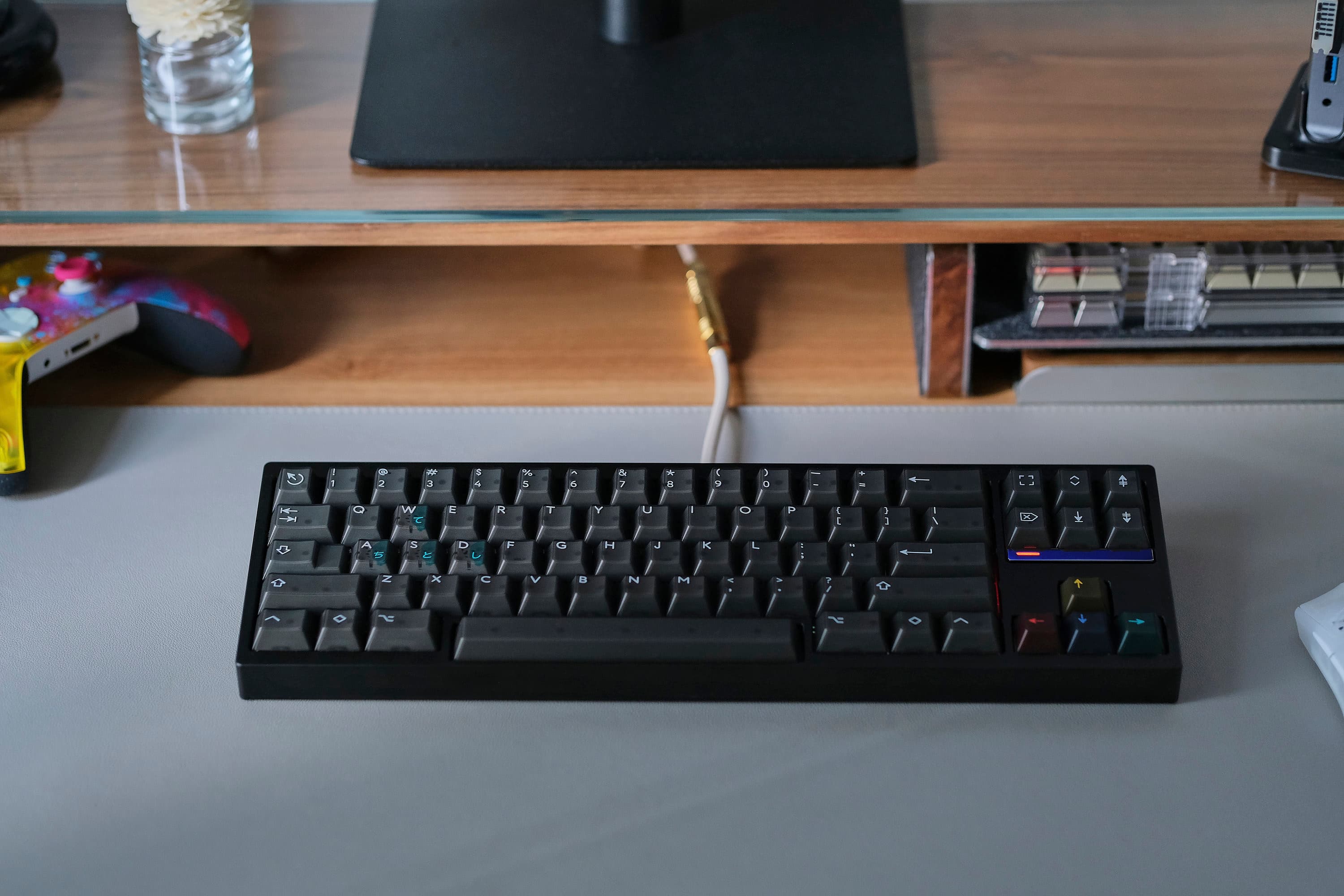

▼ Black: Electroplating black badge Anodized black top case Anodized black middle frame, anodized black bottom case Anodized silver internal weight Anodized black external weight

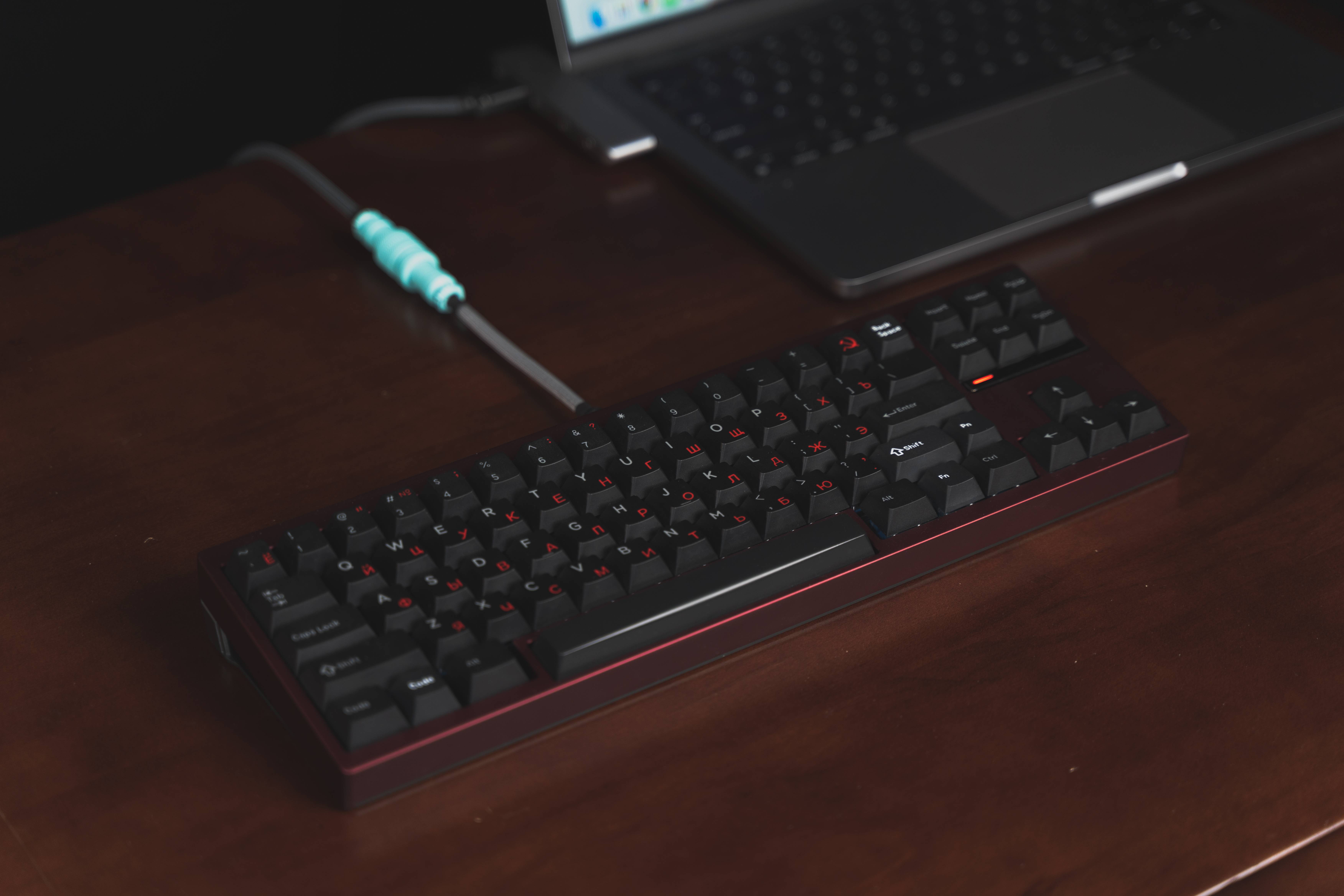

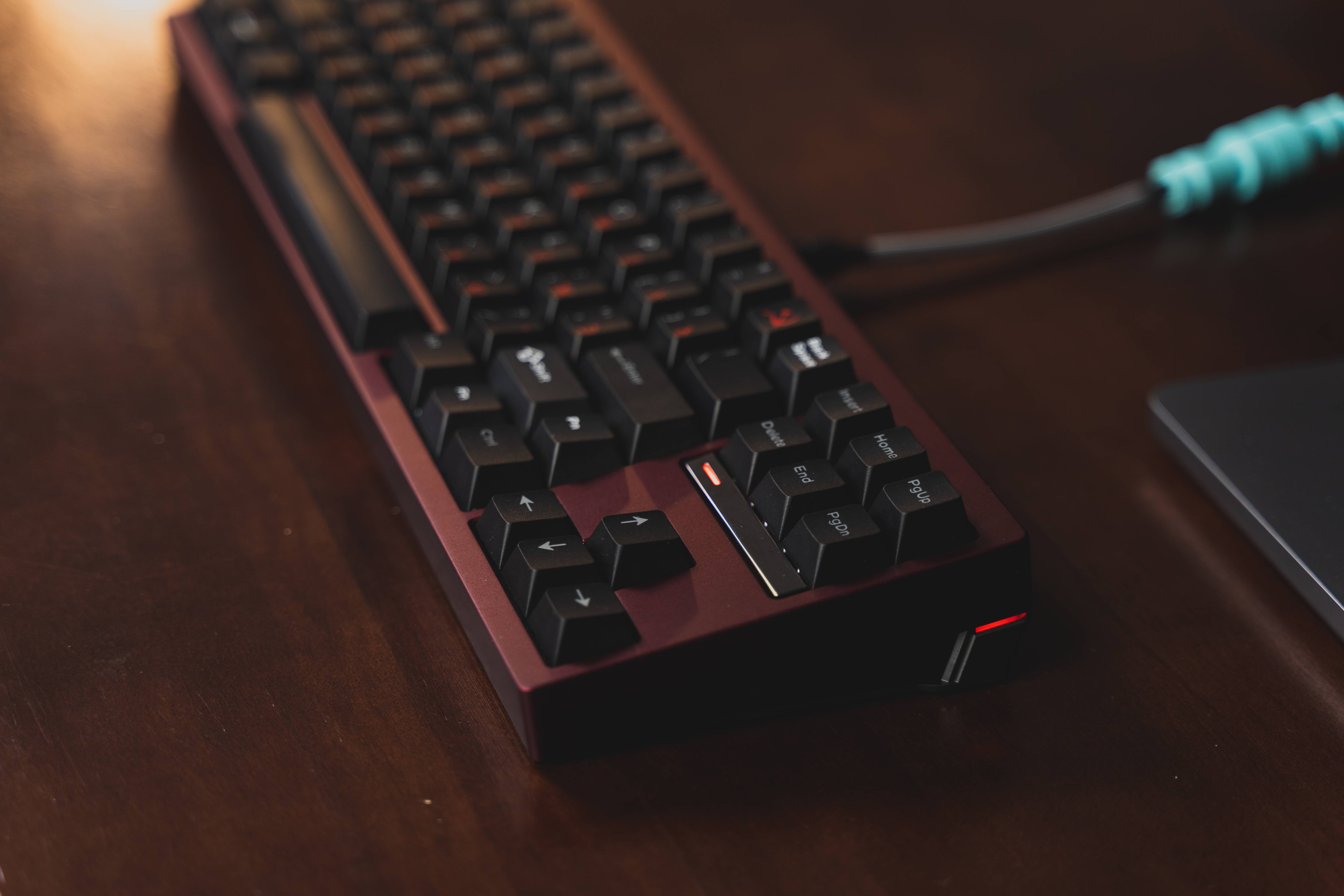

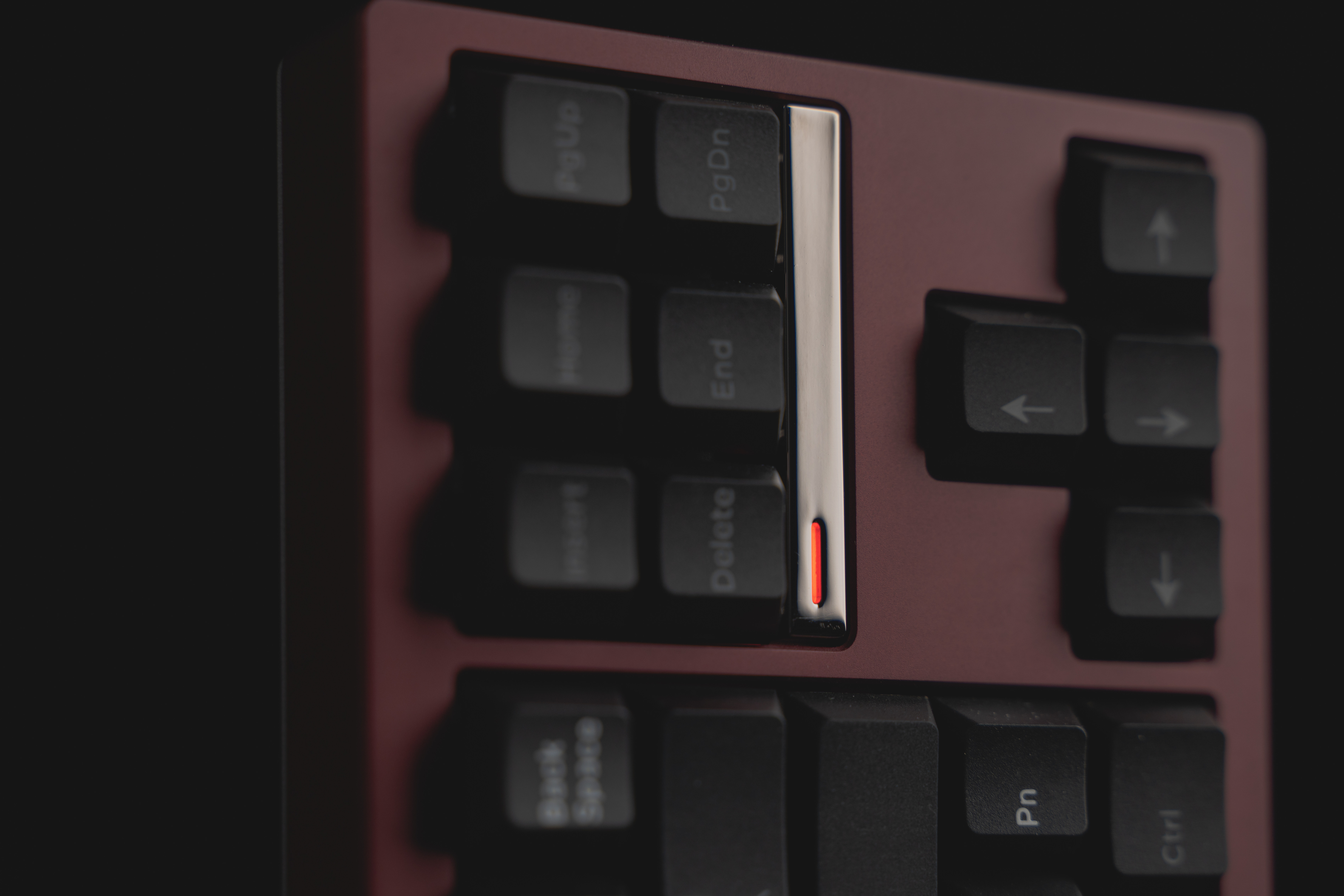

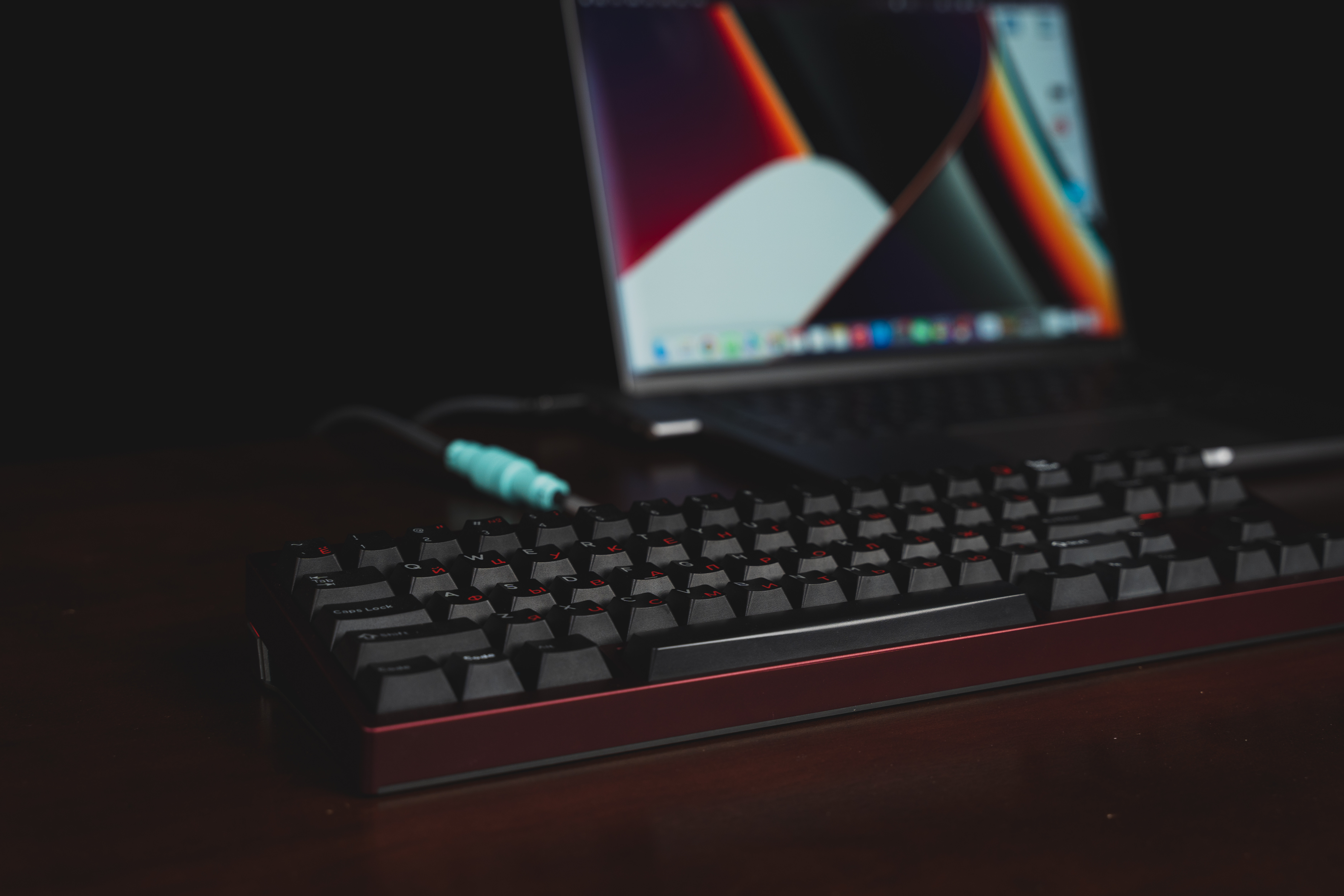

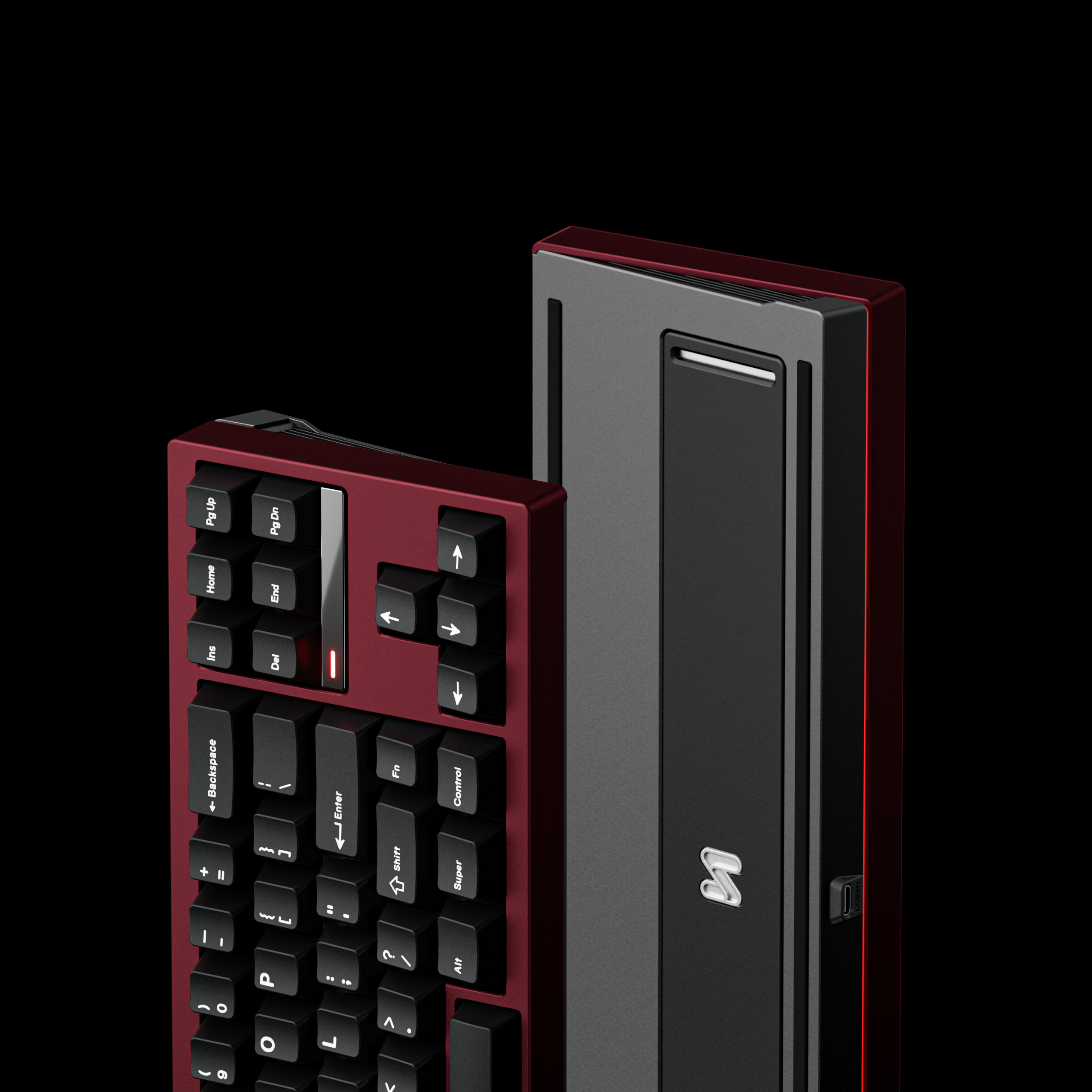

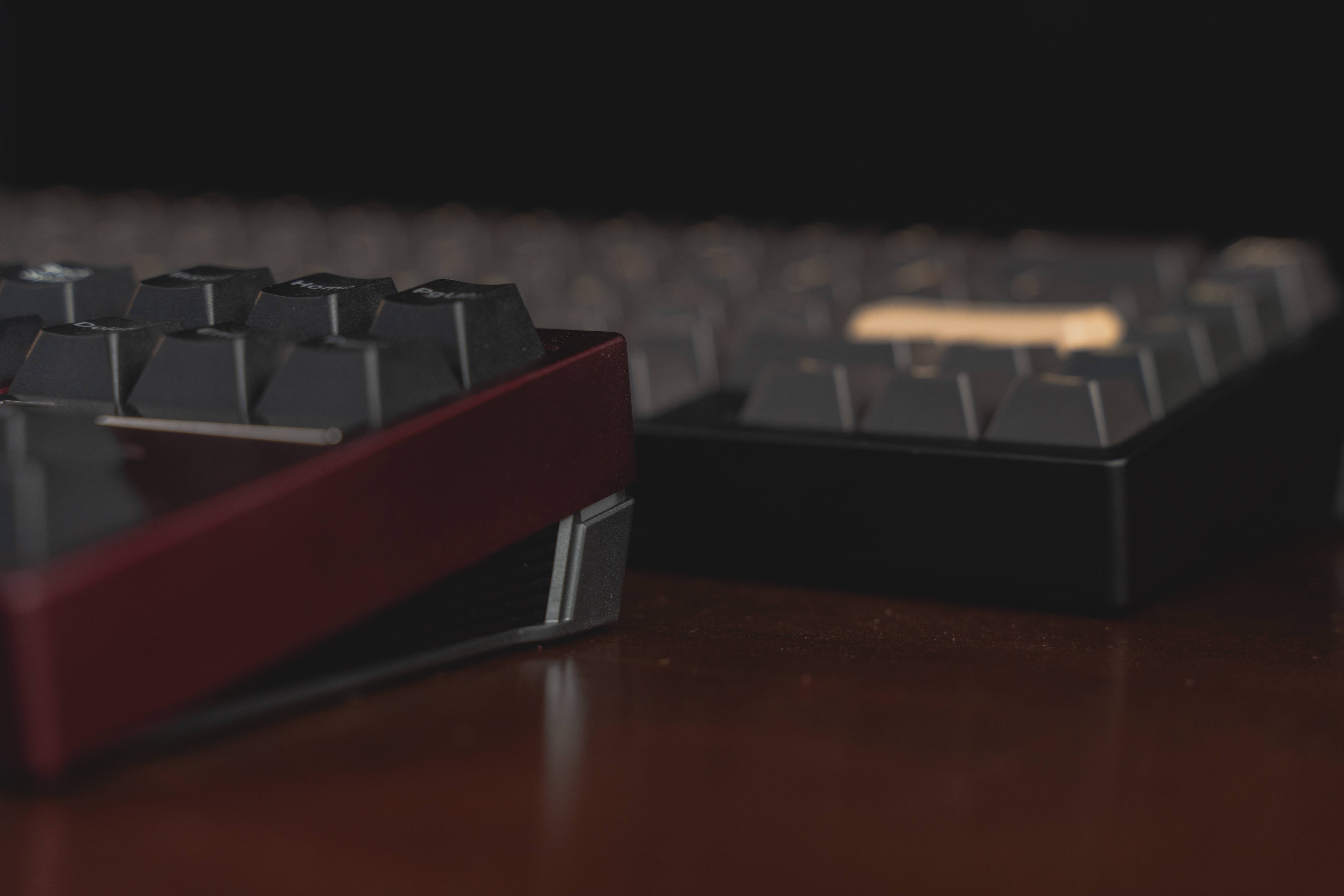

▼ Wine Red: Electroplating black badge Anodized wine red top case Anodized black middle frame Anodized dark gray bottom case Anodized silver internal weight Anodized black external weight

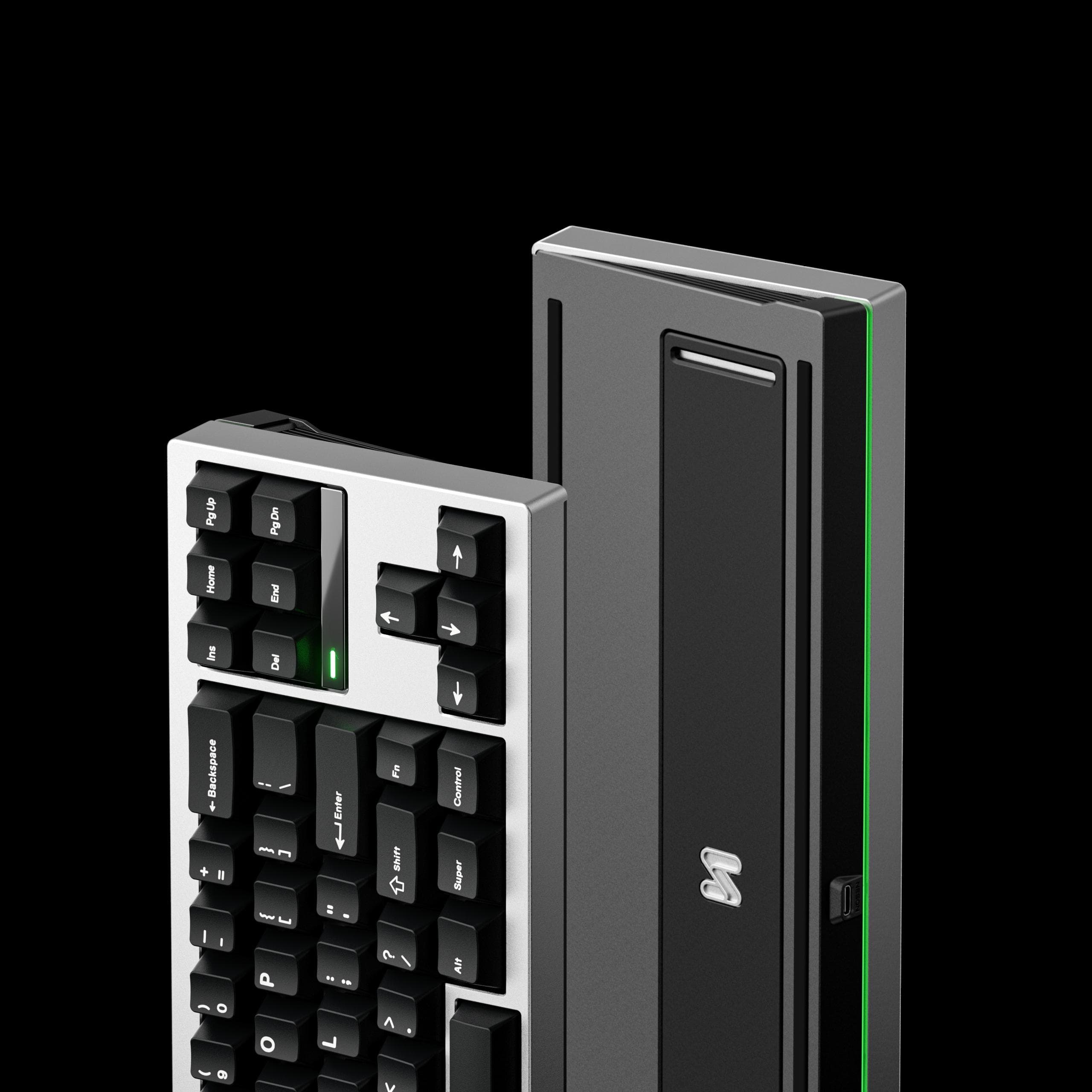

▼ Silver: Electroplating black badge Anodized silver top case Anodized black middle frame Anodized dark gray bottom case Anodized silver internal weight Anodized black external weight
▼ THE 700E SERIES × RELIC

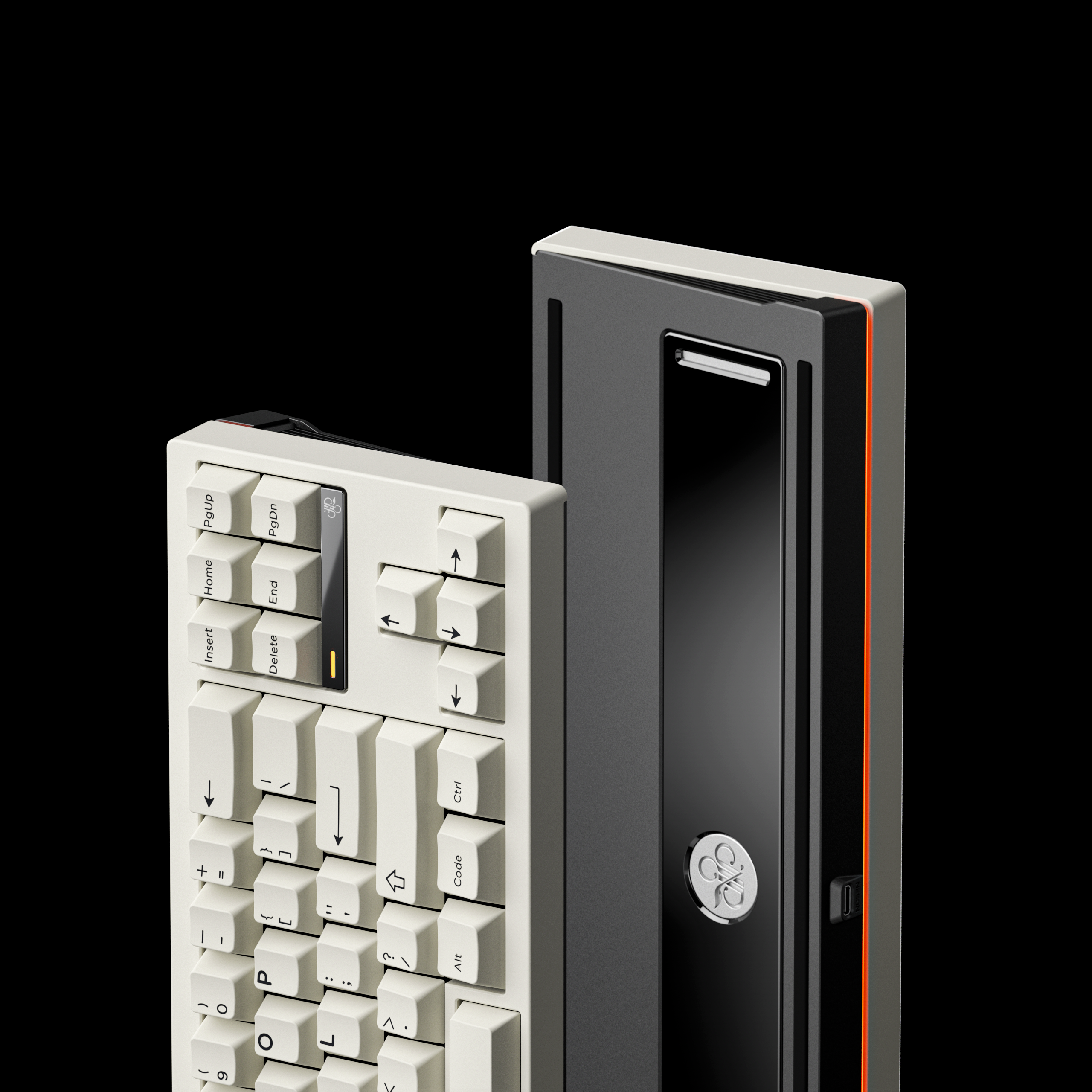

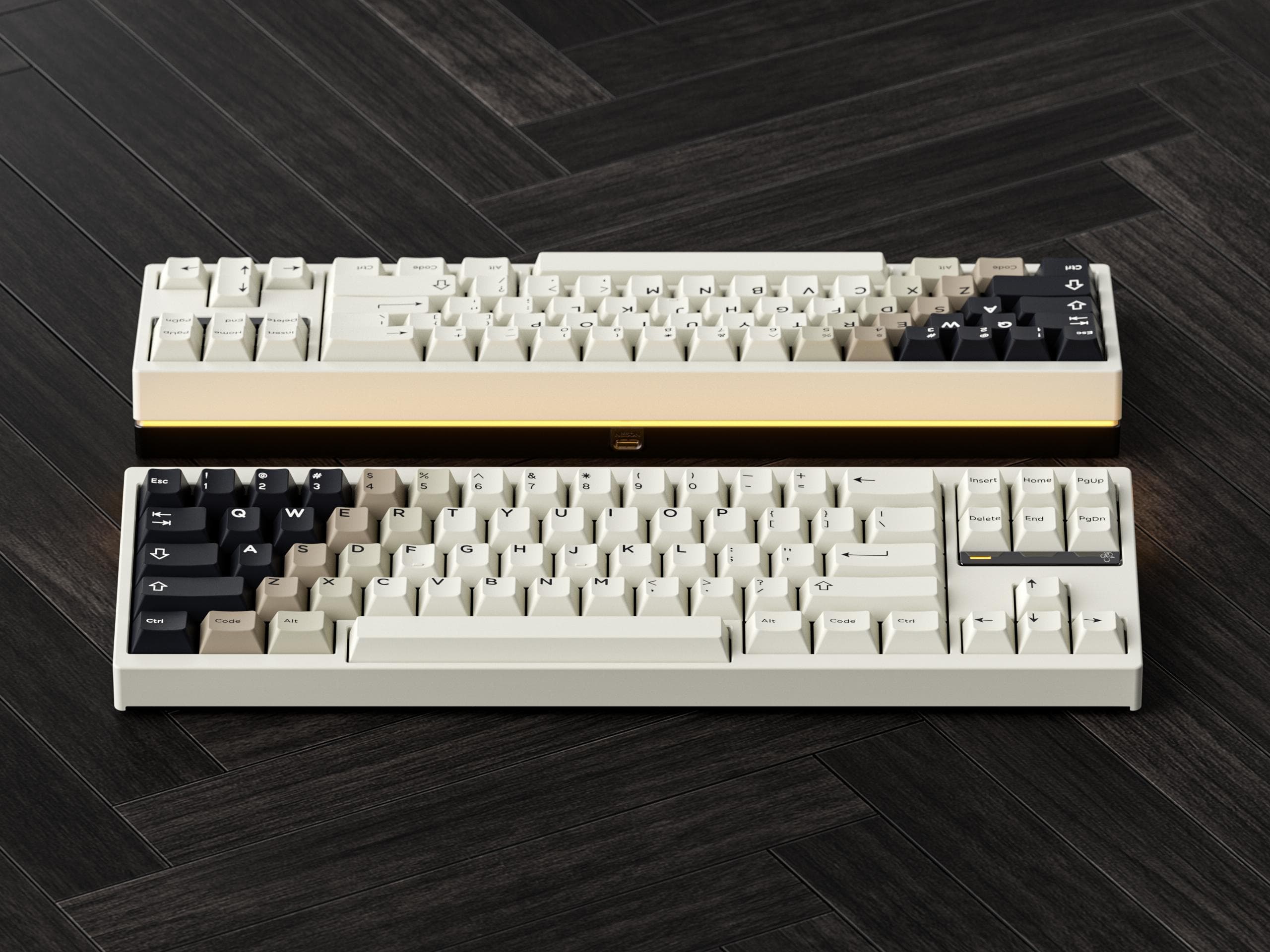

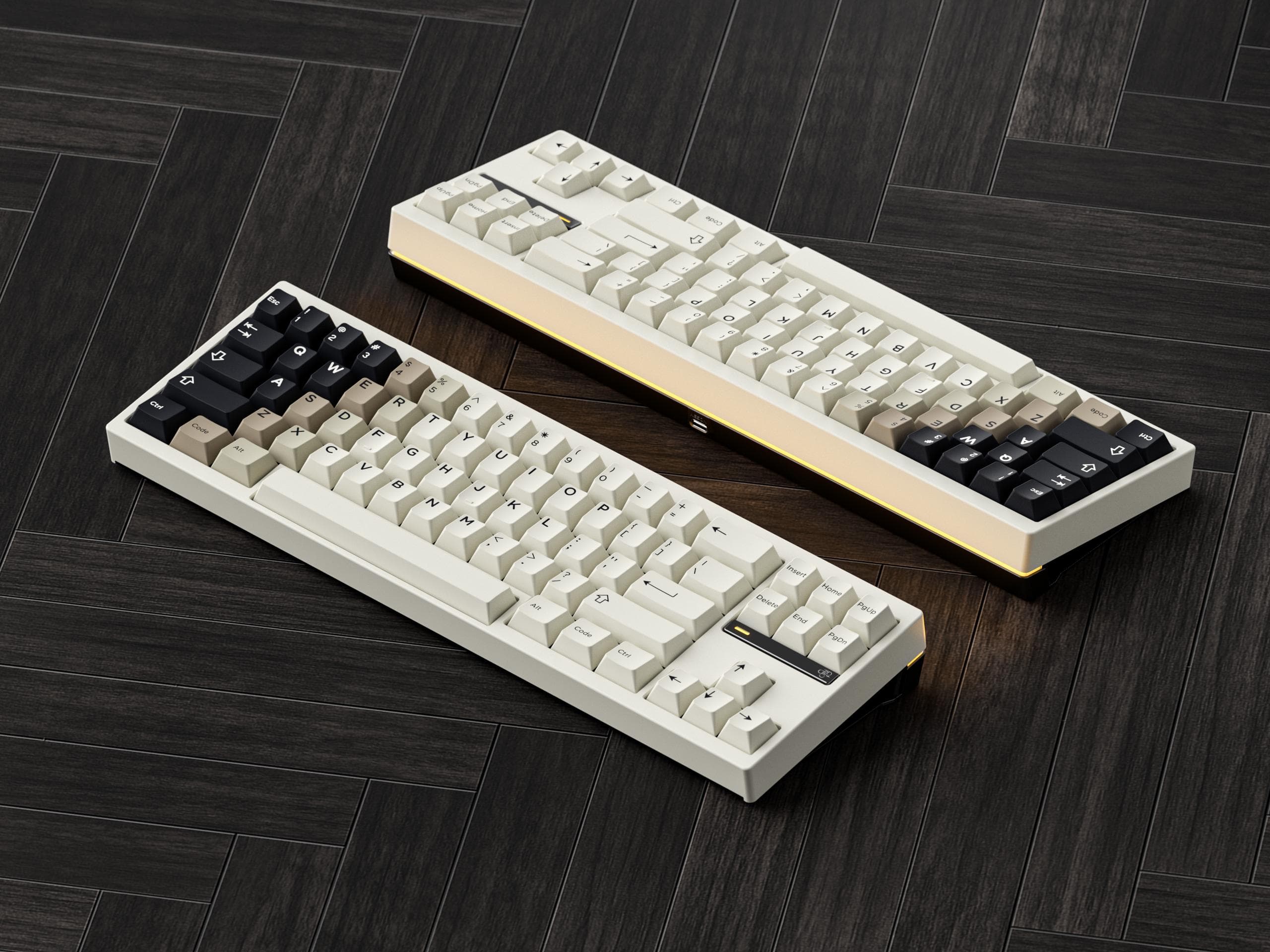

We collaborated with Jae, the designer of Domikey Relic. We will be featuring a Relic themed 700E with Cream colorway:

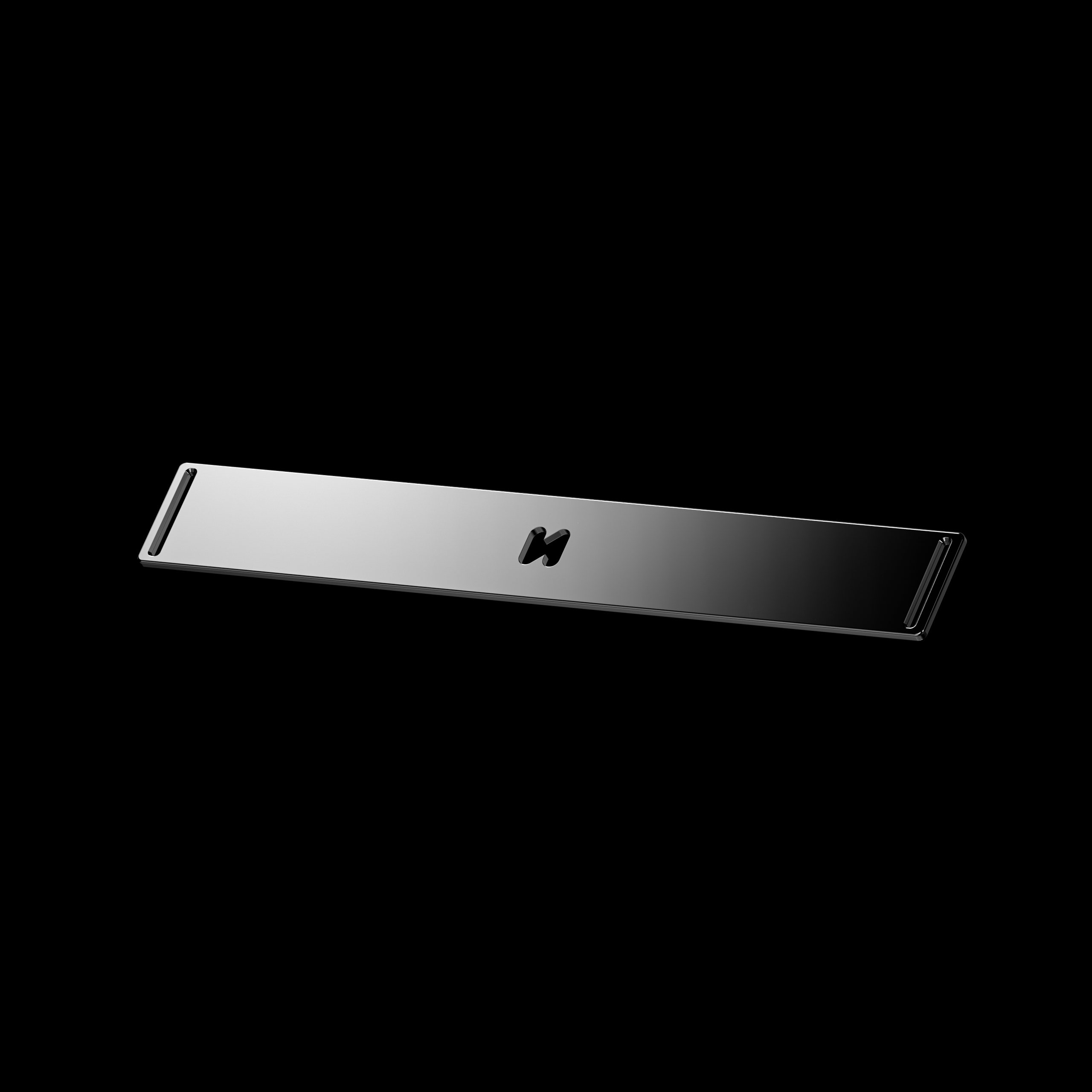

► Logo of the internal weight piece to the Relic logo. ► Upgraded Electroplating black copper external weight. ► Quantities: 20 ► Layout: WK ► Price: $535 USD
GROUPBUY INFO
► Global Vendor:
► Quantities: 150 regular units + 20 special collaboration units ► Price: $470 / $535 (collaboration units) ▼ Shipping: 3KG for Alu Weight and 4KG for Copper Weight, Shipping Estimate (finalizing may slightly adjust) ► Estimate Fulfillment Timeframe: Q4 2022 ► Sale Format: Raffle ► Raffle Signup Time: Wed June, 8th, 2022 00:00 EST - June, 10th, 2022 23:59 EST Sat June, 11th, 2022 12:00 EST
► Raffle Form:
► How Raffle will be executed: 1. Absolutely no duplicated raffle entries (we will review every entry). 2. After remove duplicate entries, we will run random selection programmatically. We standby the fairness and integrity of random selection. You will get an email about raffle result. If you are selected, you will receive your unique discount code. 3. With your discount code, you will be able to make purchase within 48 hours.
► If I am selected, where to make purchase: 1. 700E will be available on our website with $999. 2. Add-ons will be listed at normal price. If you intend to purchase them, make sure to add Add-ons to your cart along with your keyboard kit. 3. When you checkout, make sure to apply your unique discount code to purchase 700E at correct prices ($470 / $535).
