oitsso Bite65 Keyboard & keycaps

The Bite 65 takes inspiration from cake elements, offering users a fresh tasty experience.

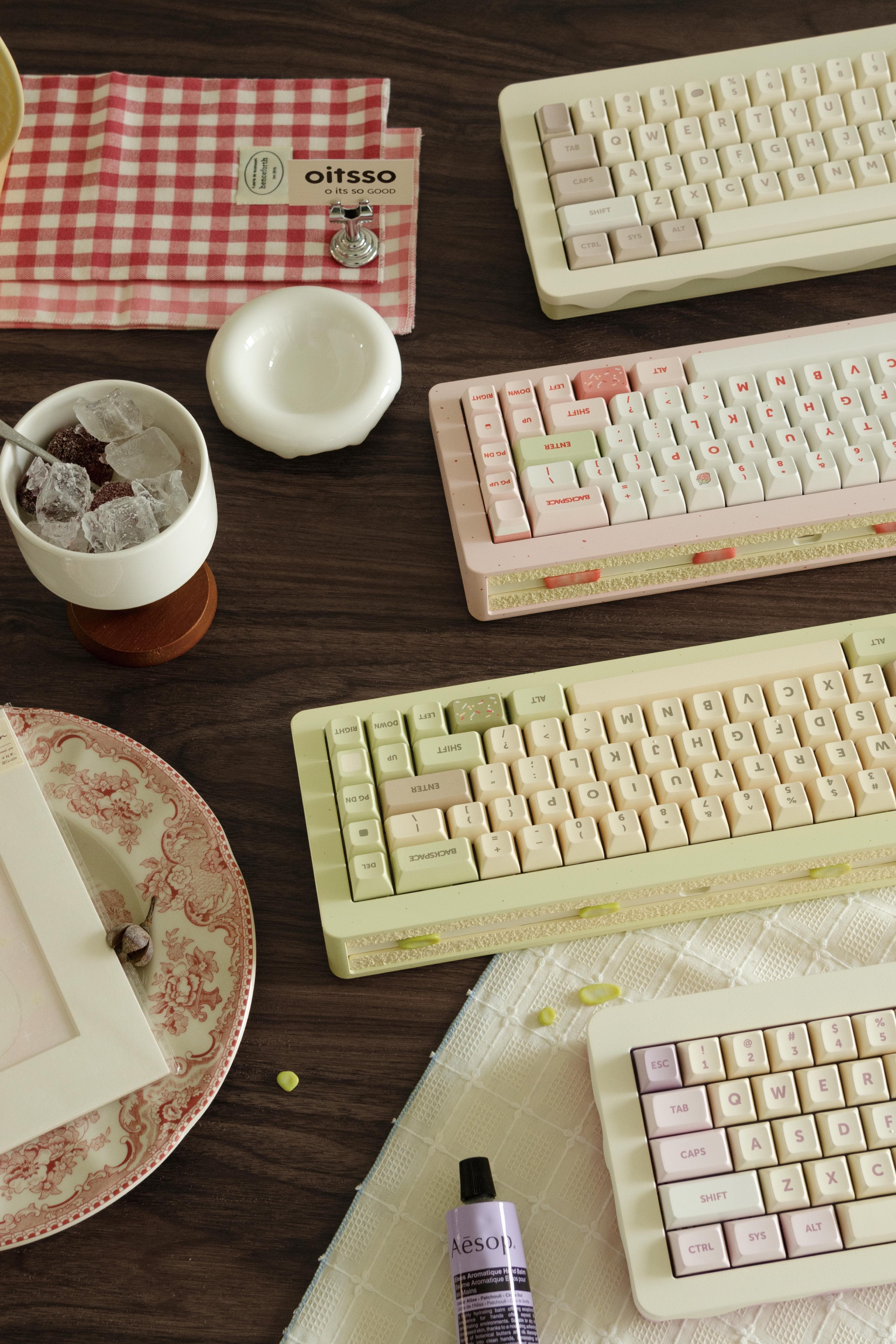

We plan on releasing four colors -
Strawberry Shortcake,
Pistachio Gelato,
Taro Mochi Cake,
Soy Rice Cake
Each captures the unique flavors and textures of different desserts.

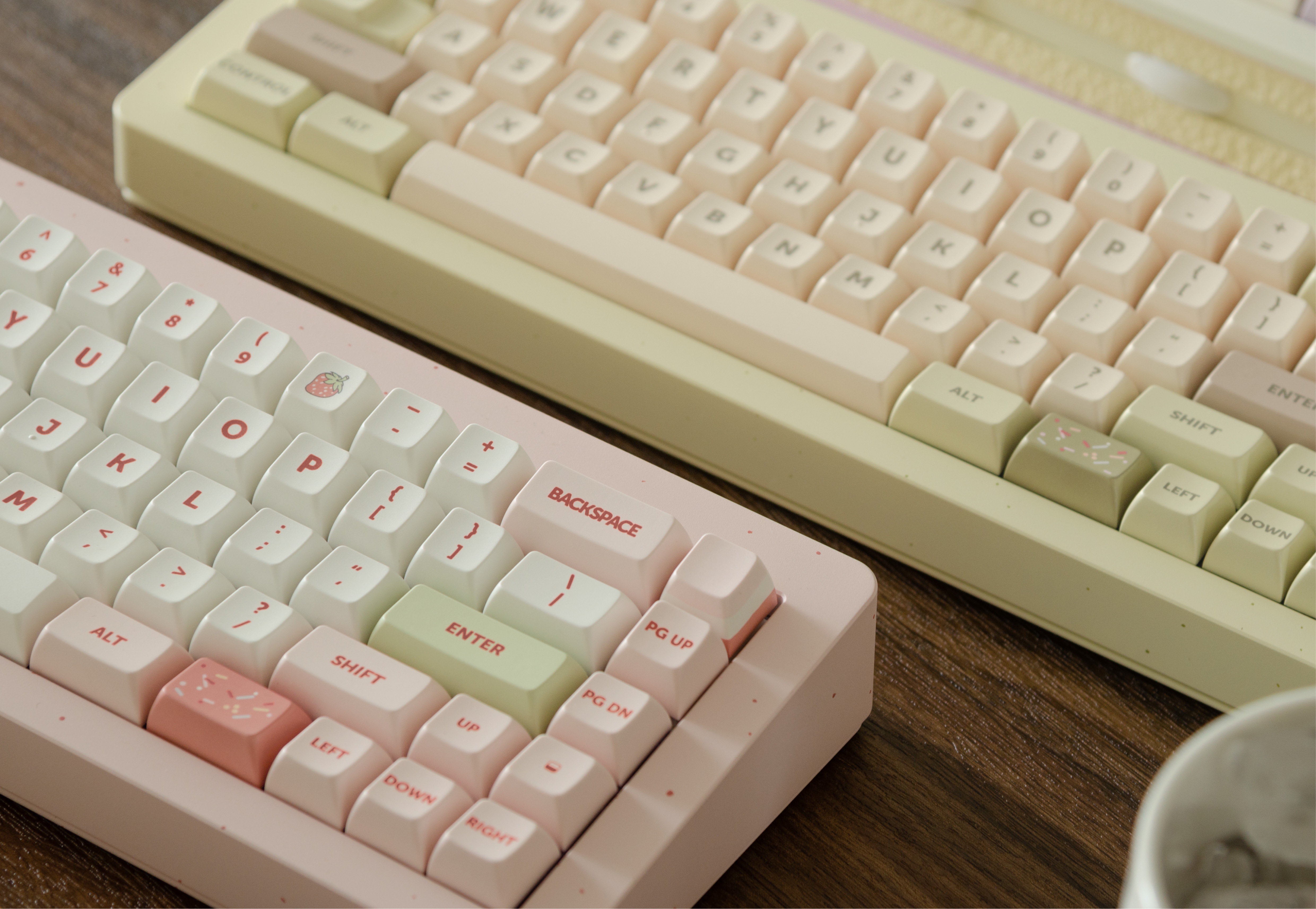

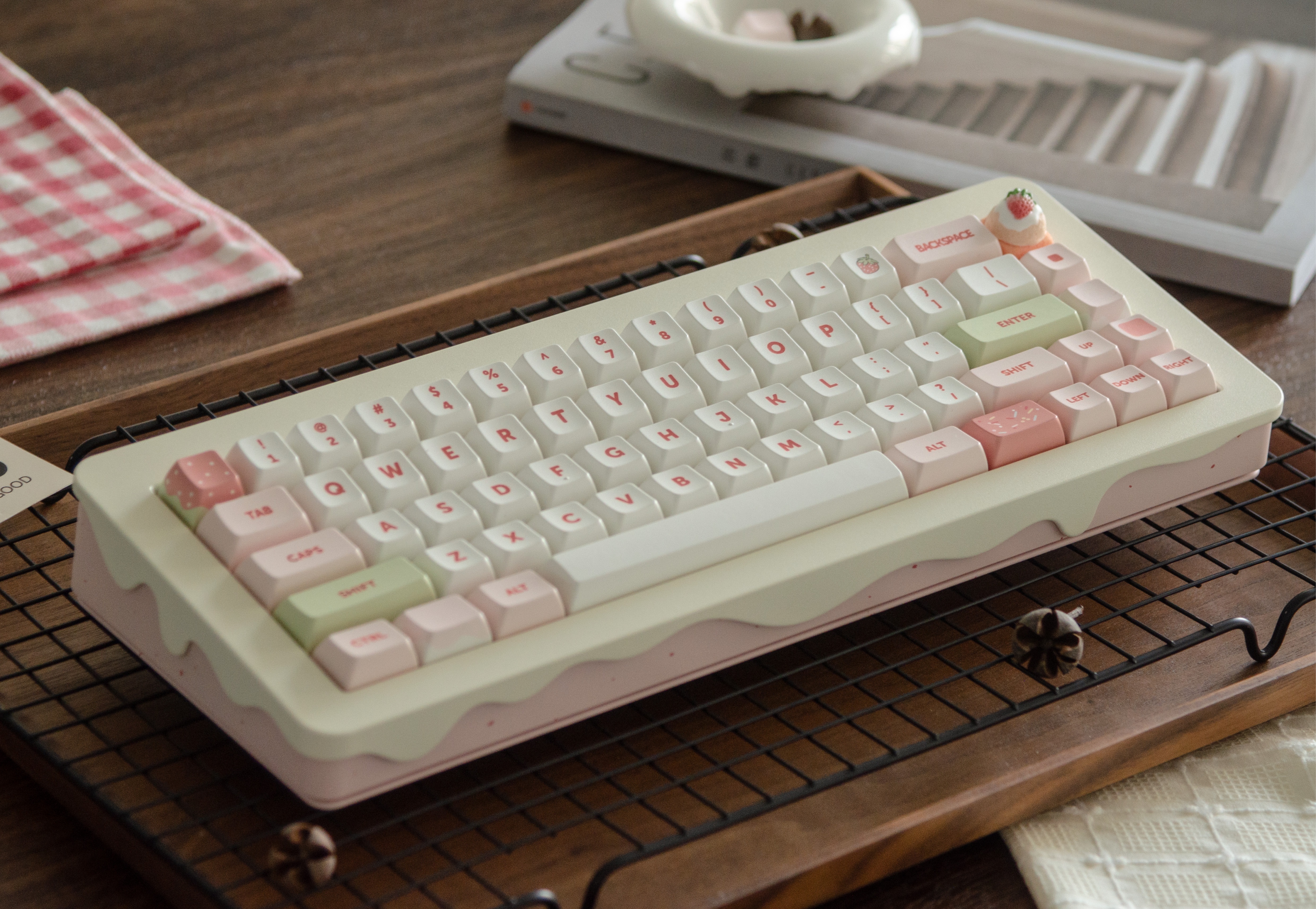

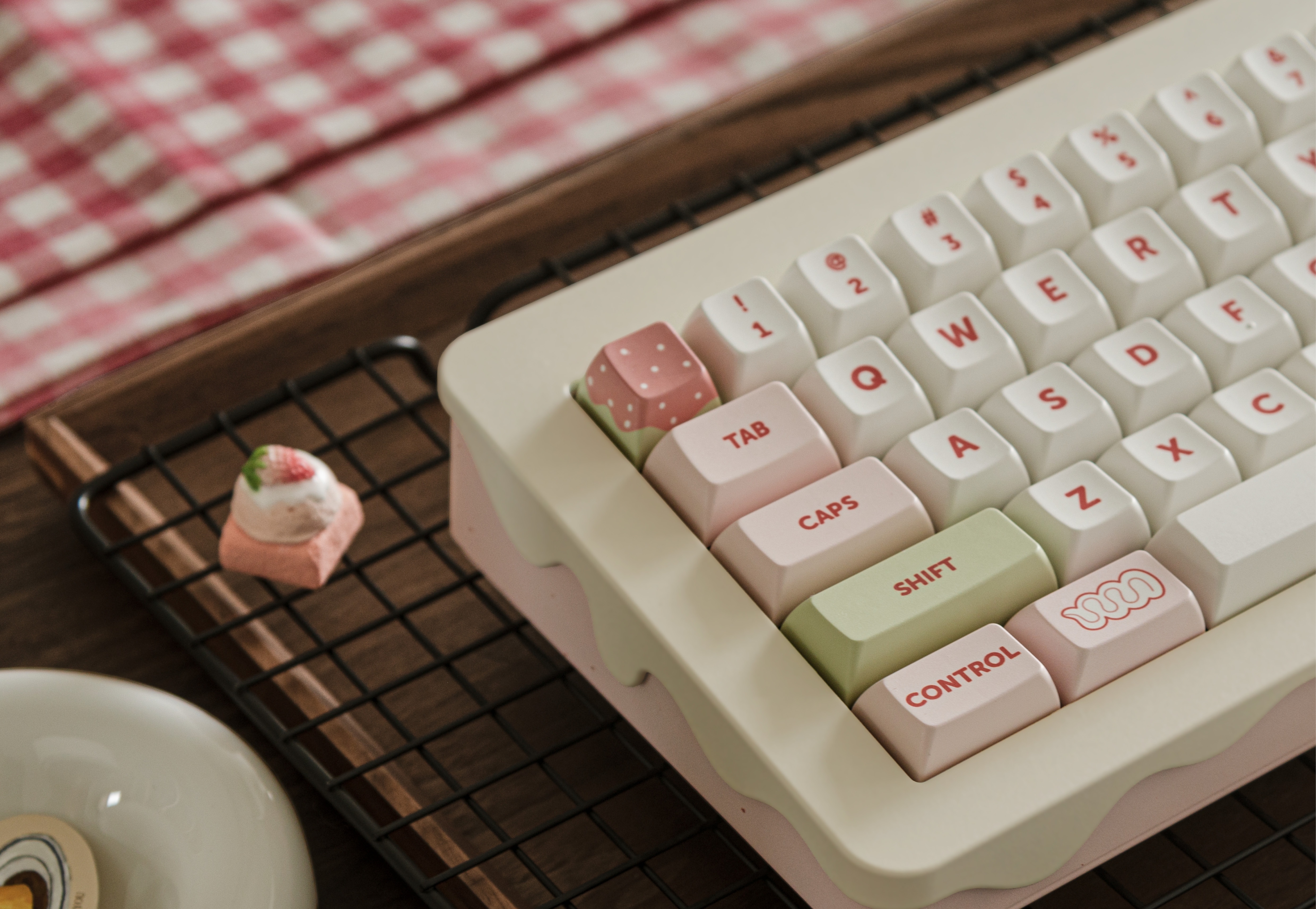

Inspired by Tan Yuki strawberries, with a pop of tender green leaf keycaps for contrast.

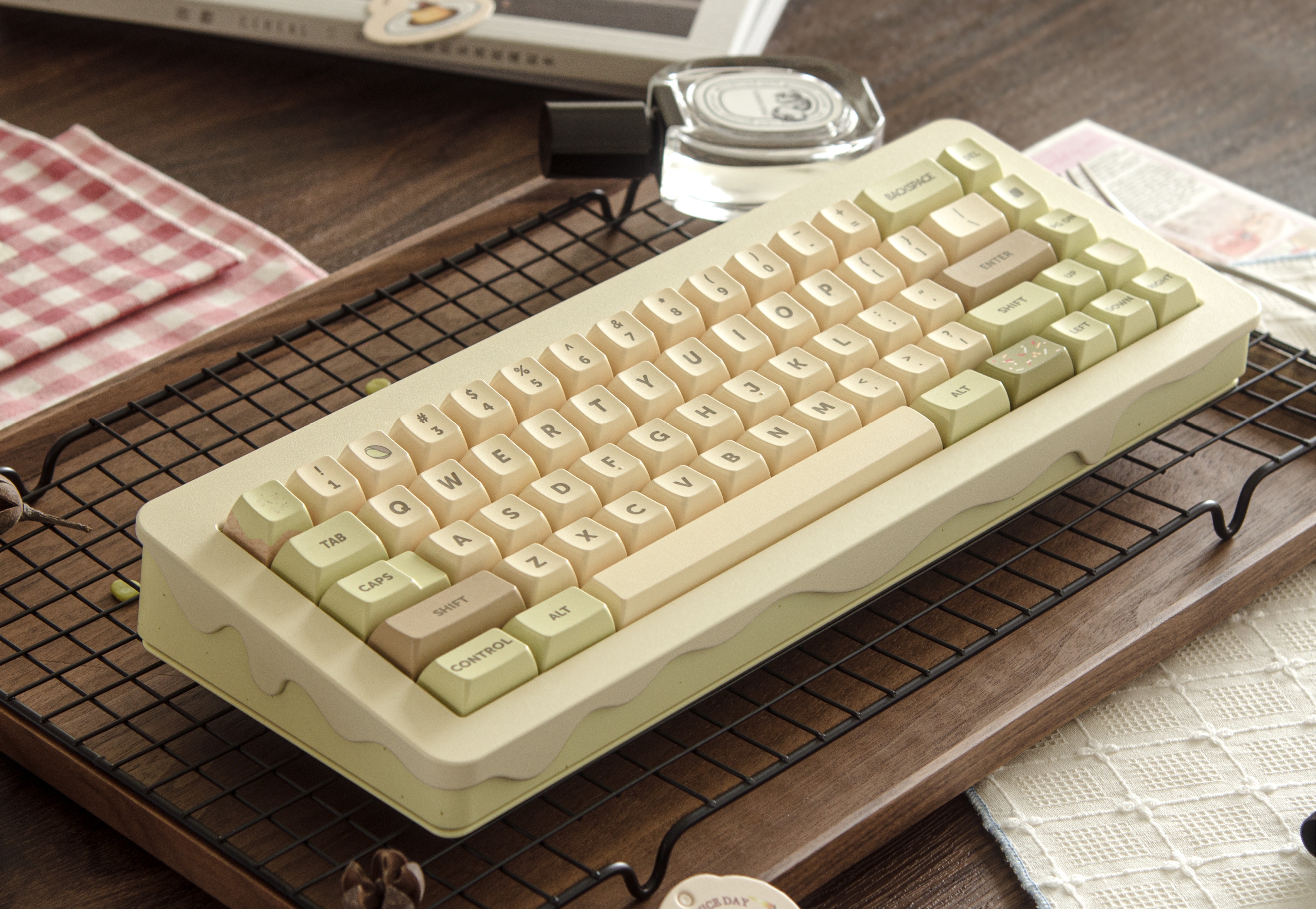

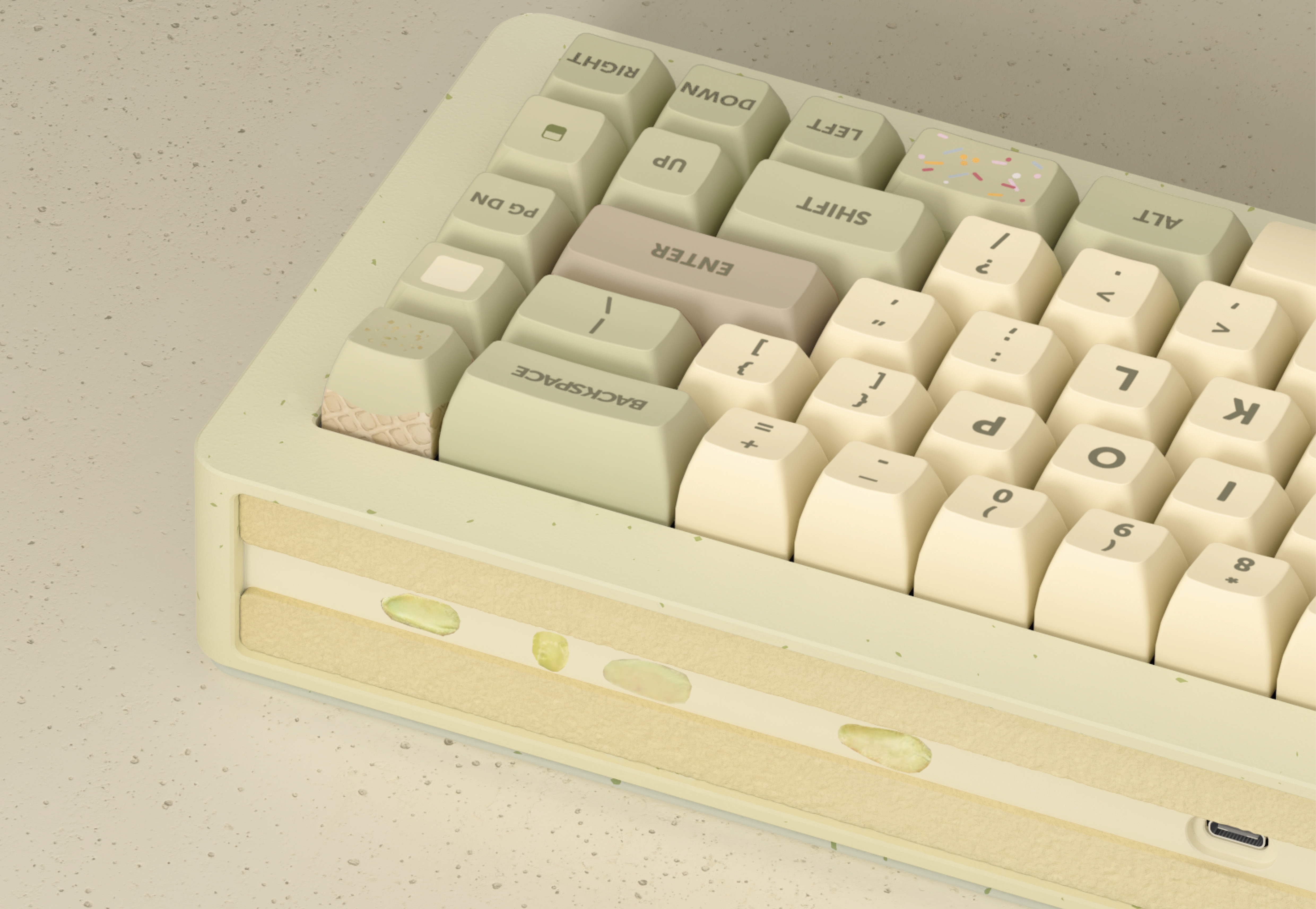

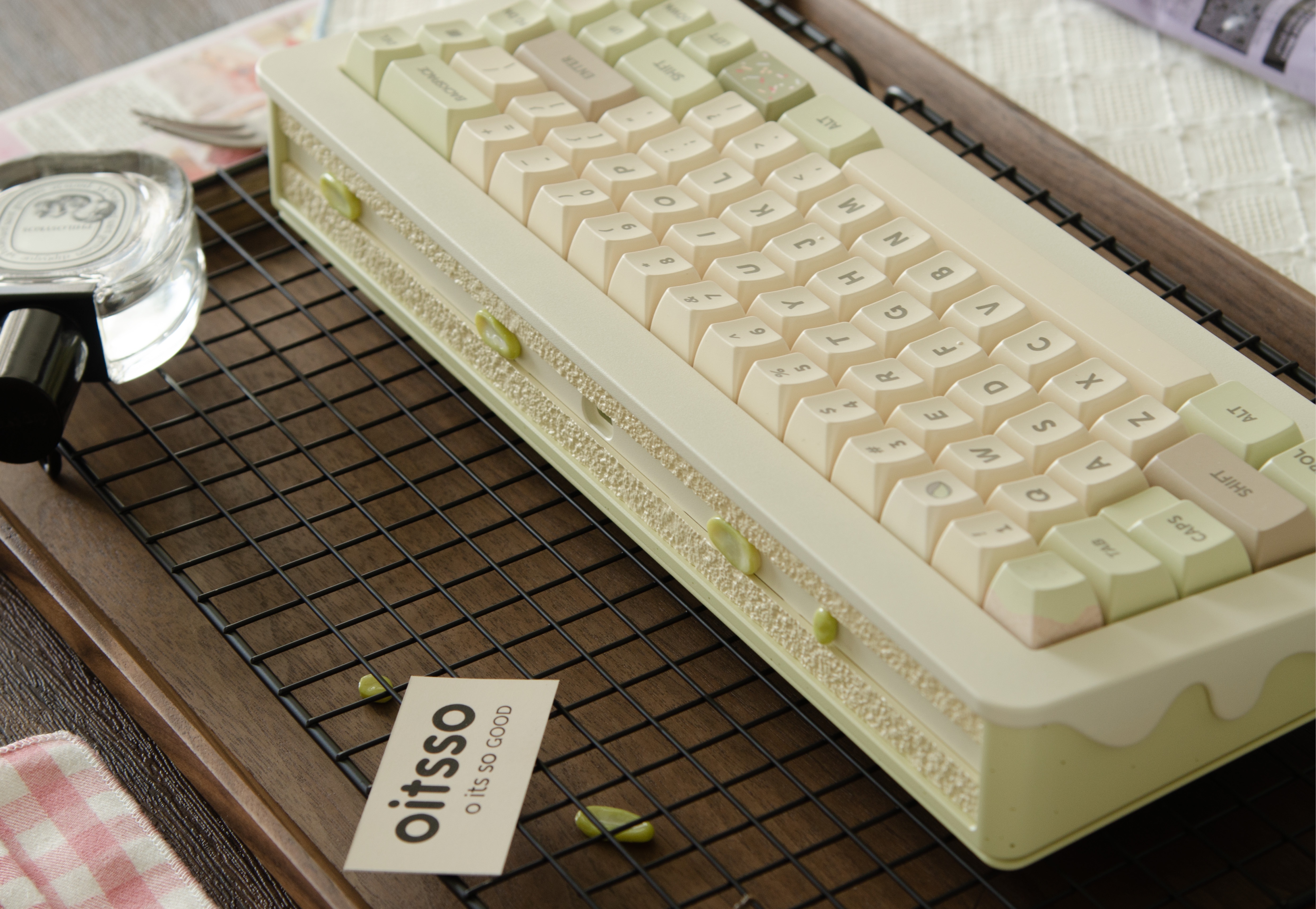

The pistachio colorway uses low-saturation tones to highlight the natural flavor and rich nuttiness of Italian Gelato.

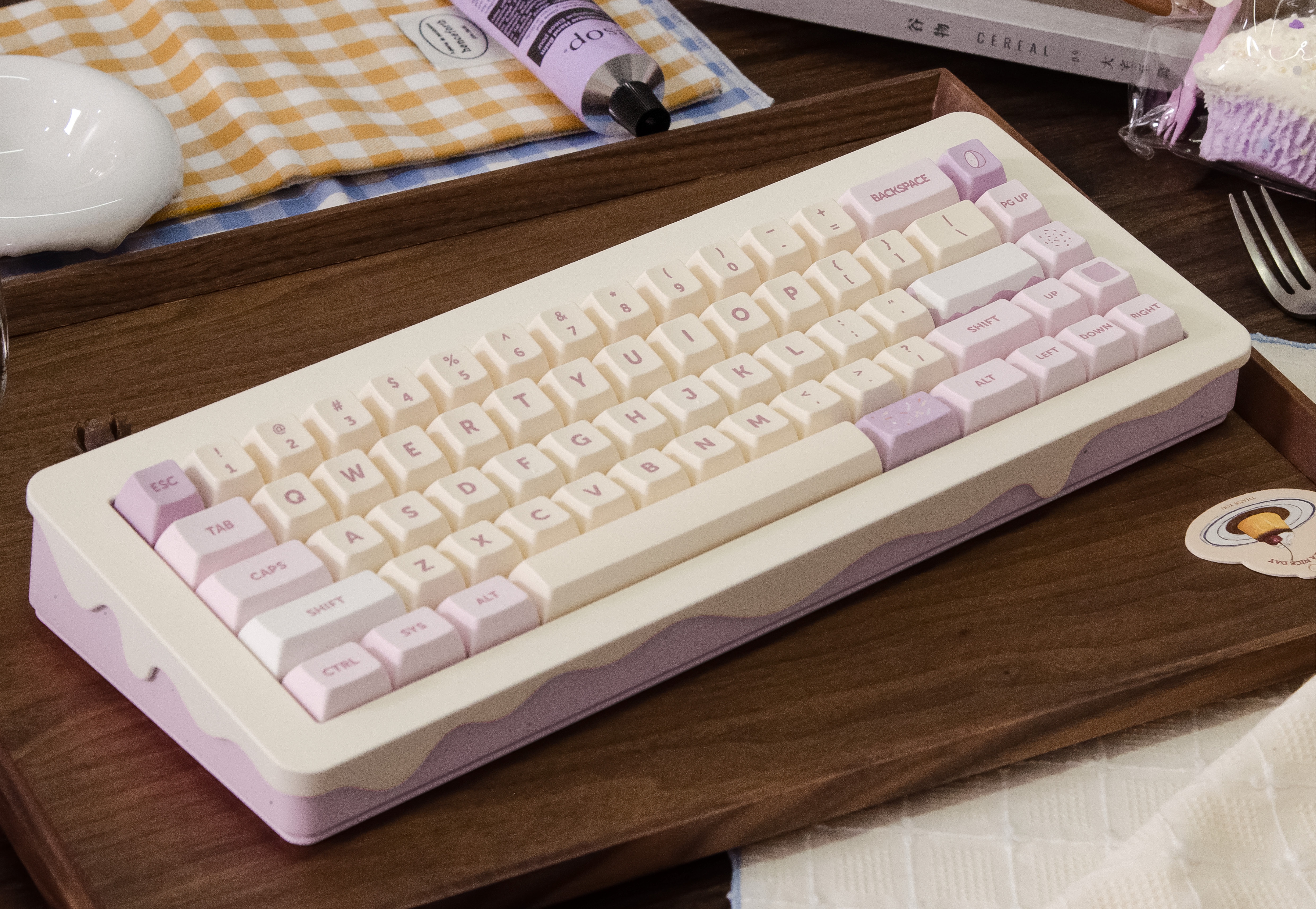

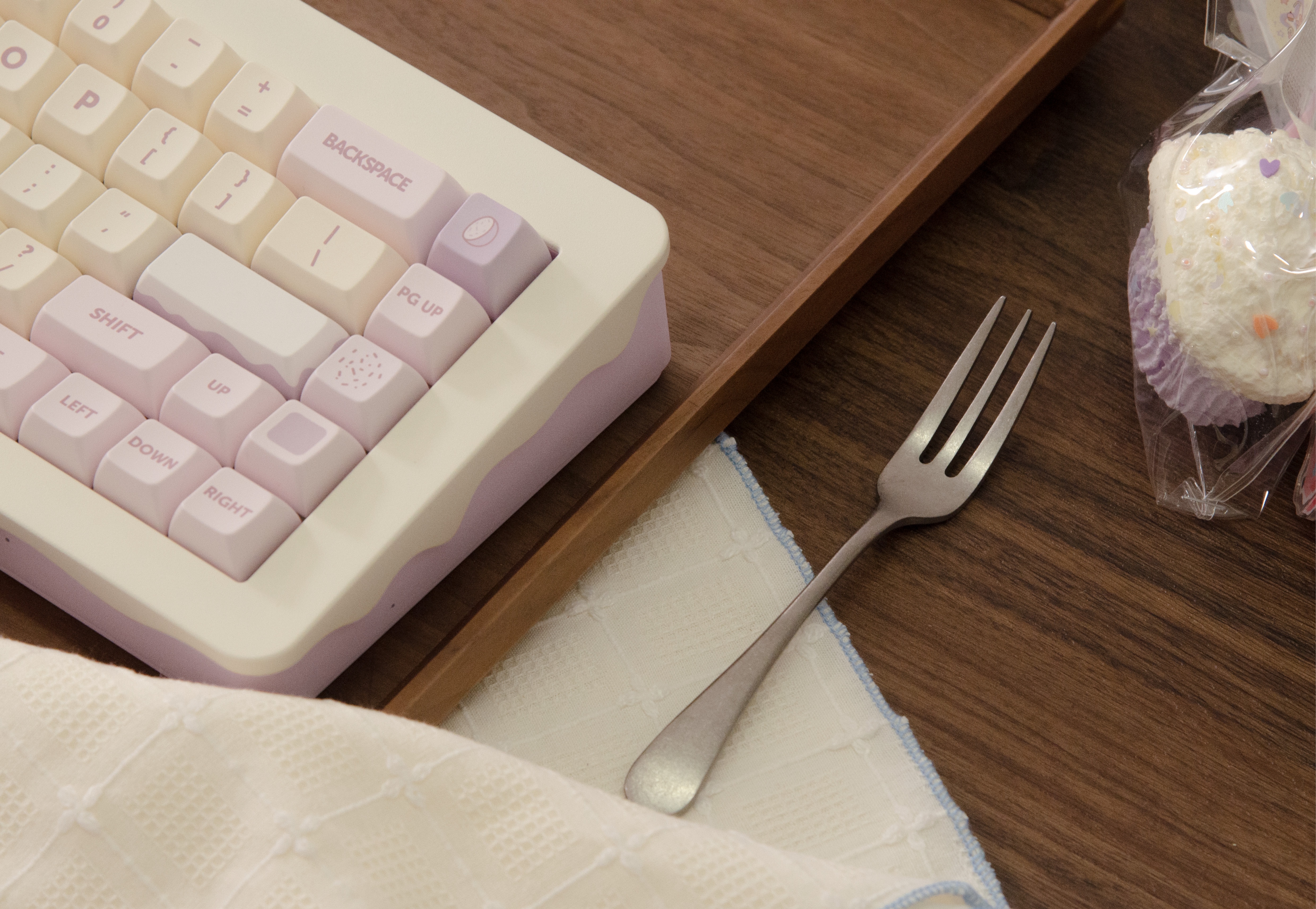

The blend of taro purple and creamy yellow creates a soft and warm color harmony.

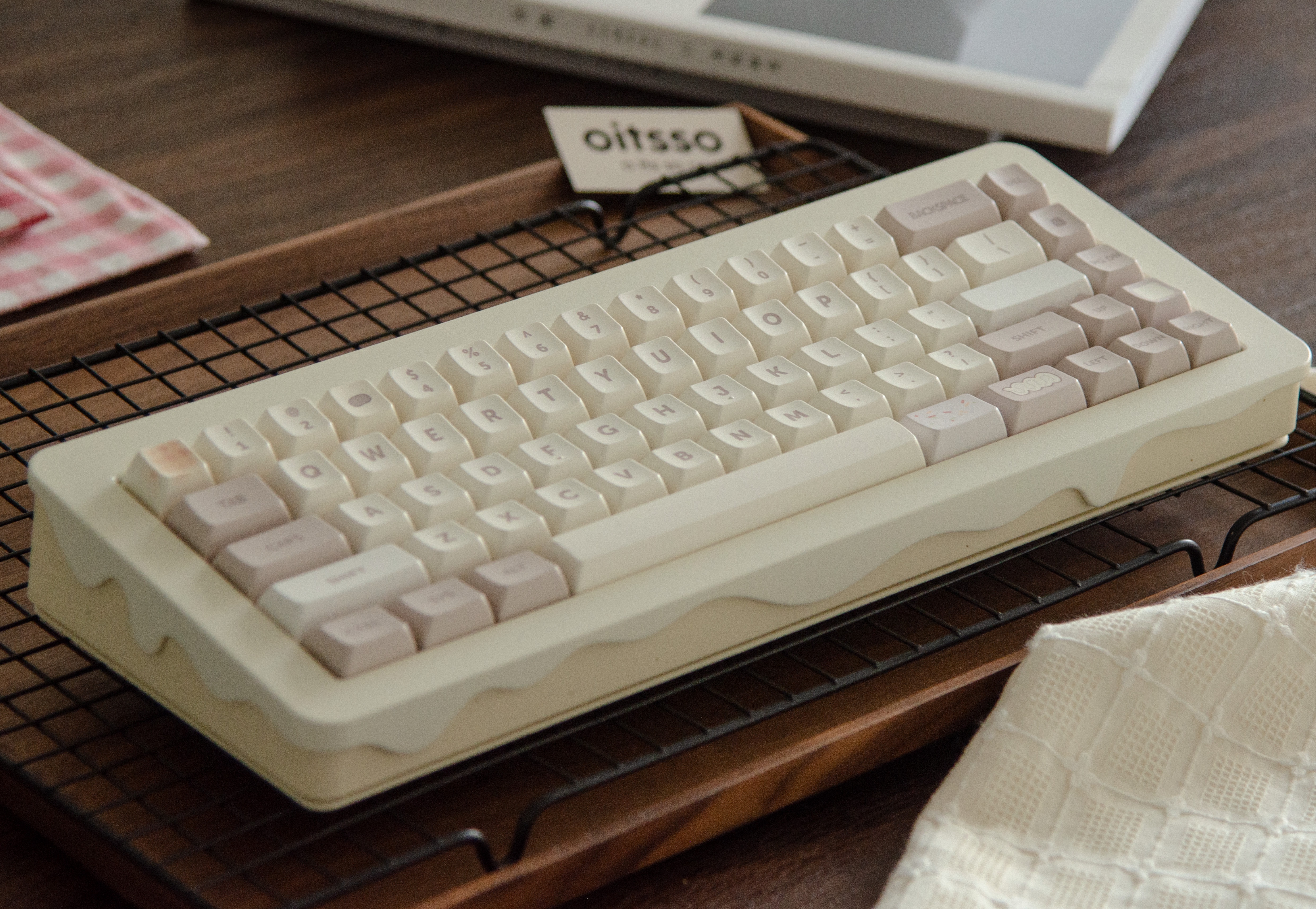

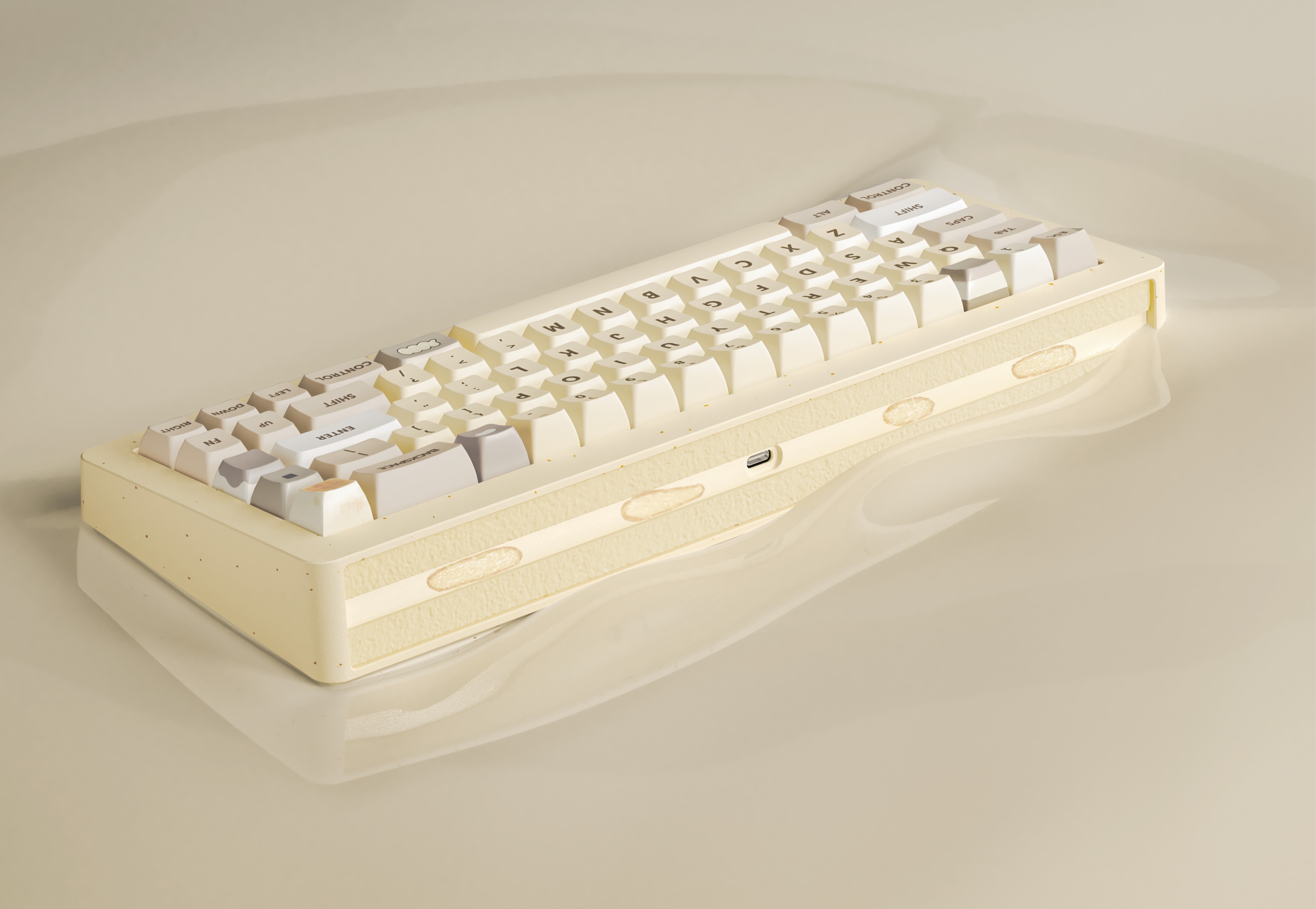

Inspired by Korean soybean powder shaved ice, with milky white and beige creating a fresh, natural visual effect.

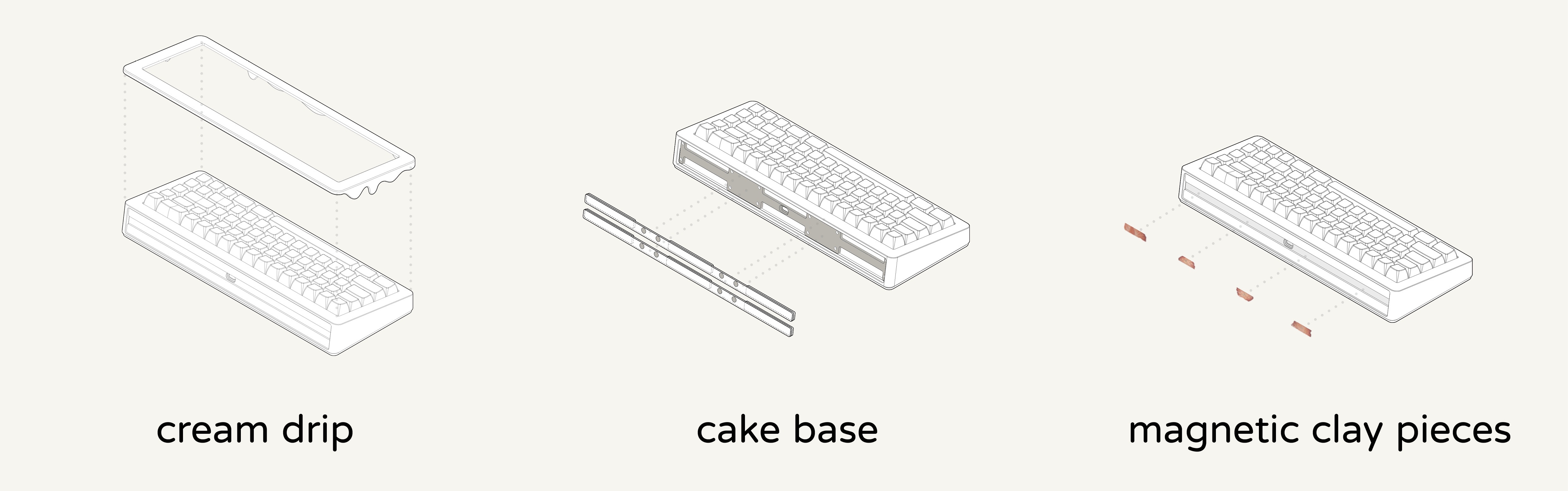

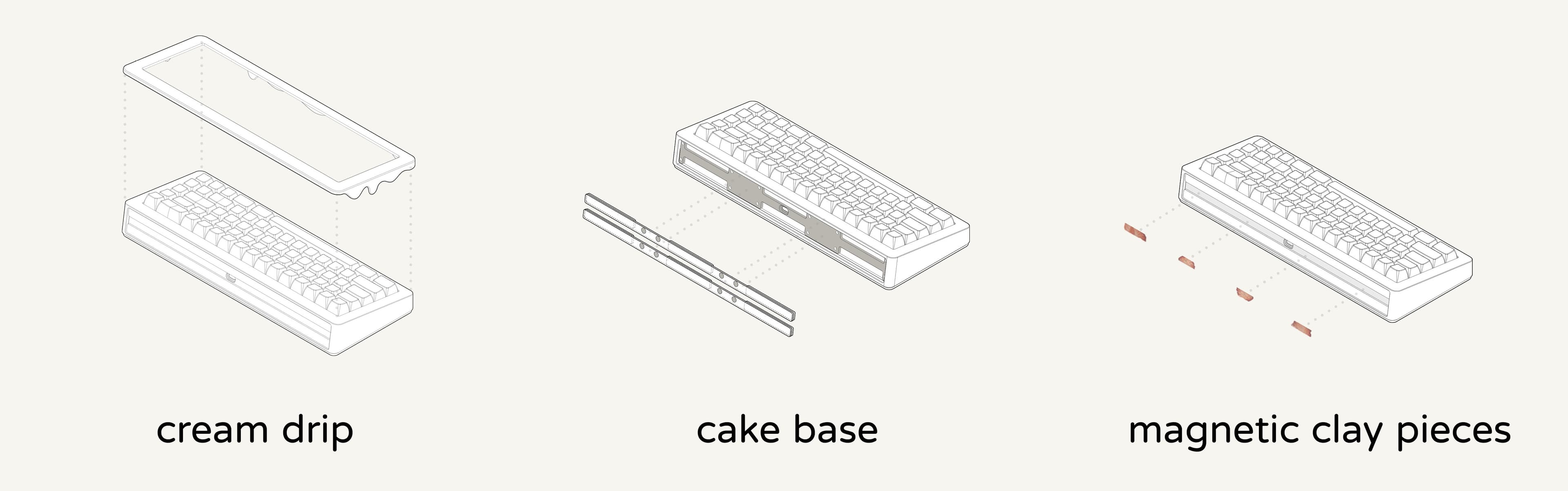

The Cream drip, cake base, and handcrafted soft clay accessories of the Bite65 all use magnetic installation,
with magnetized stainless steel and magnetic components enabling easy assembly and disassembly.

The Cream drip and cake base are both CNC machined from a solid block of aluminum.

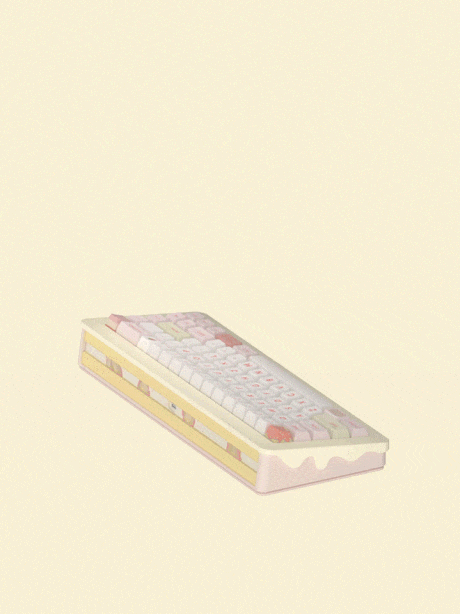

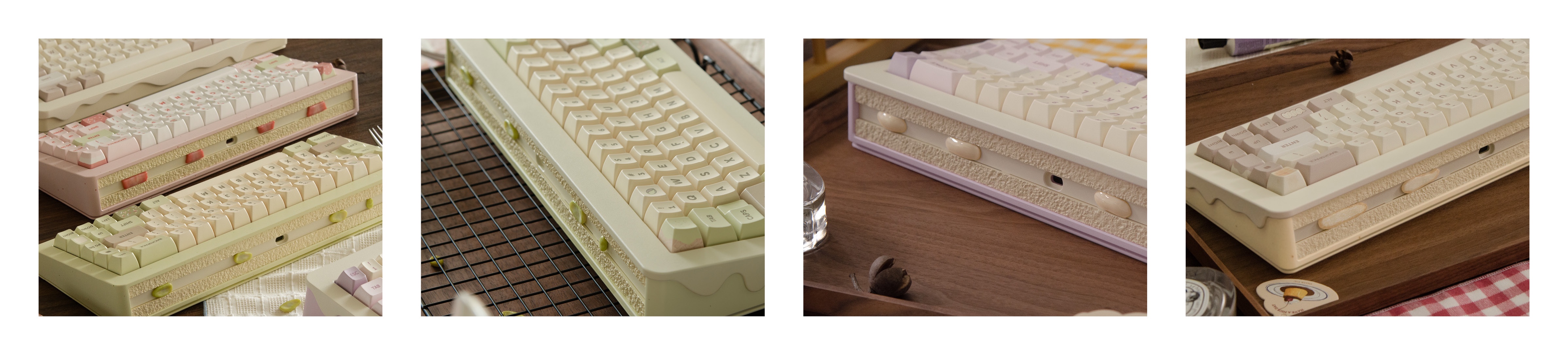

The magnetic Cream drip design offers the Bite 65 two distinctly different looks within the same color scheme.

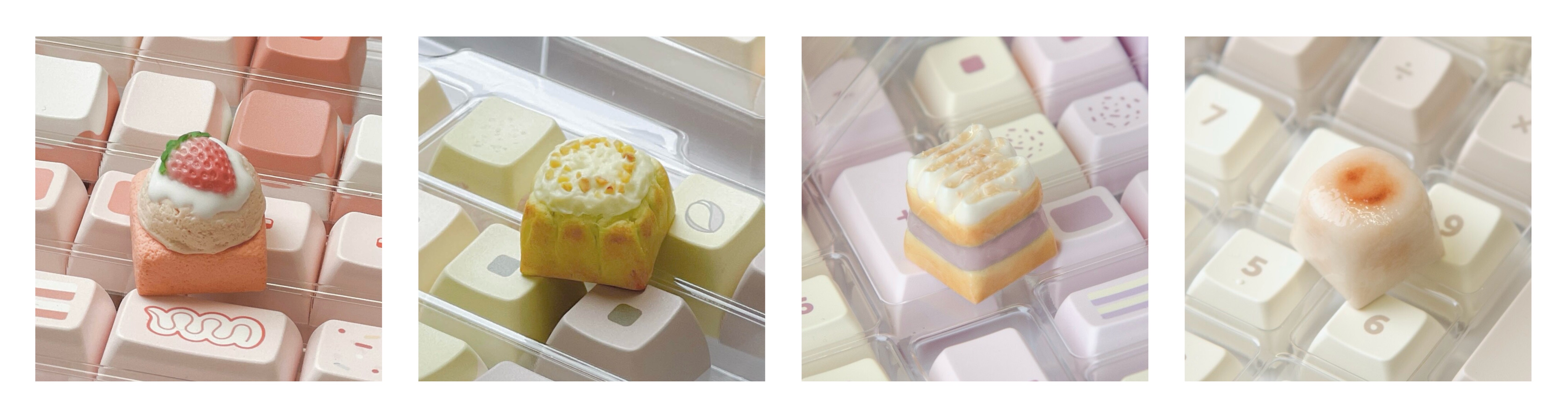

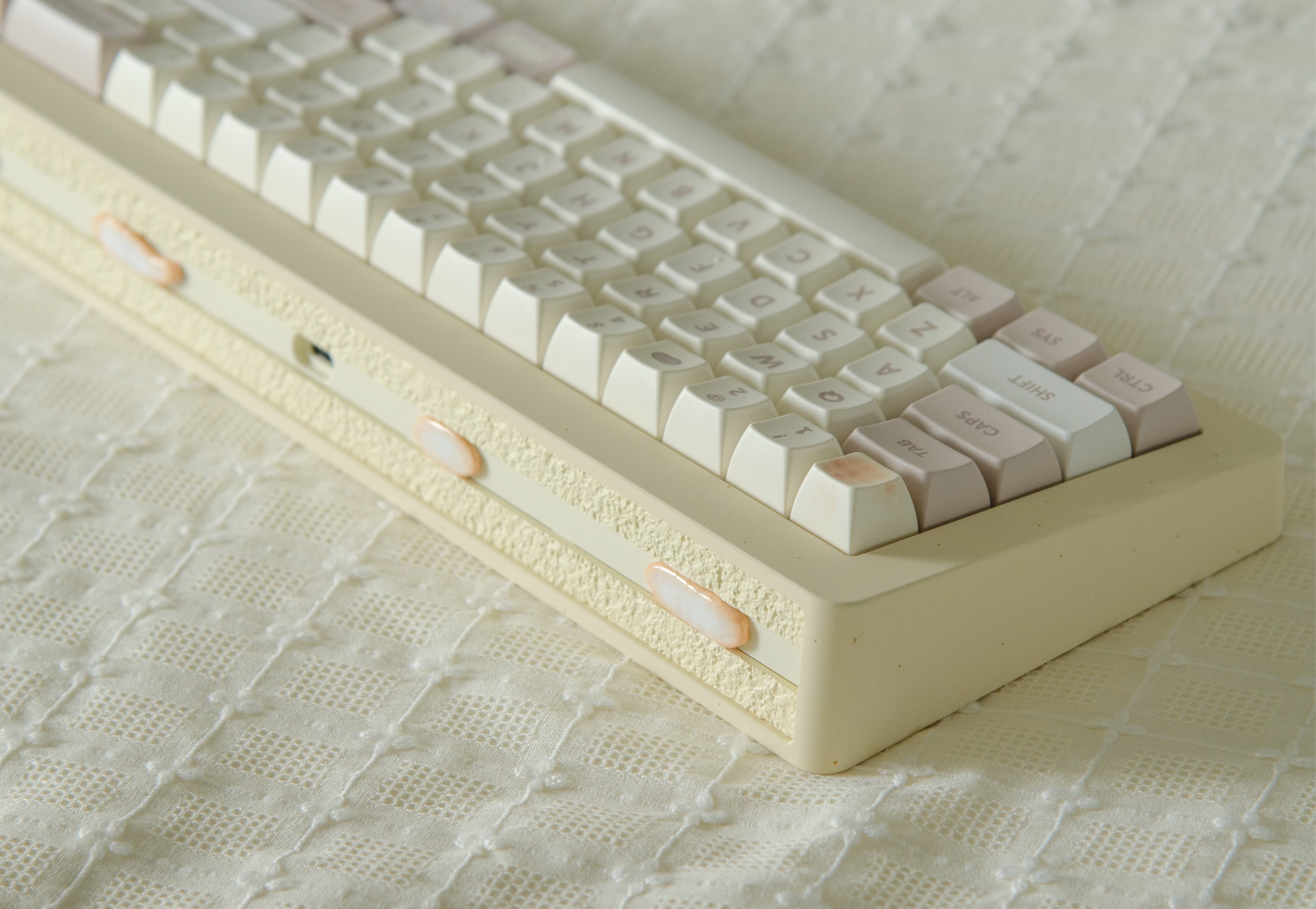

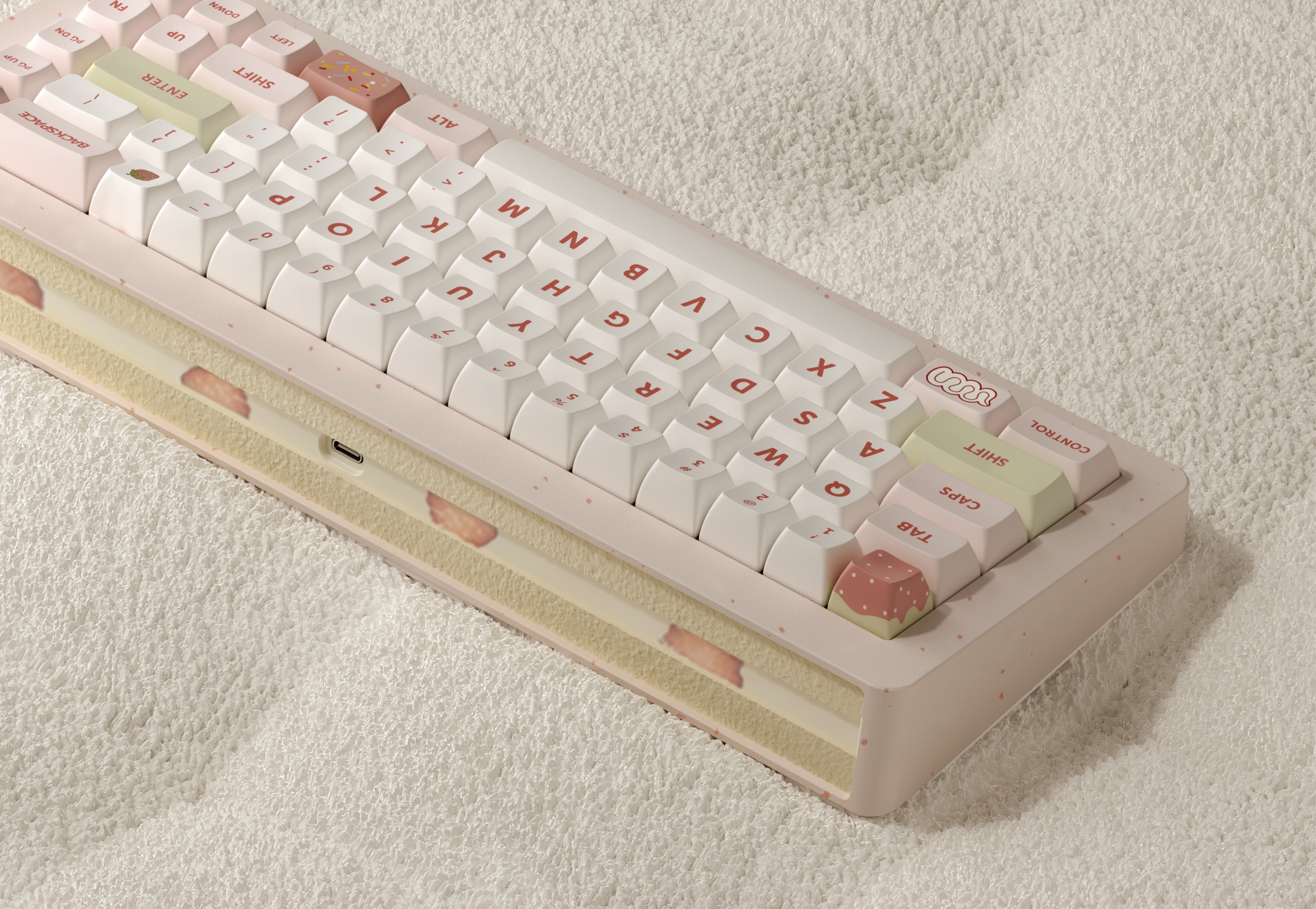

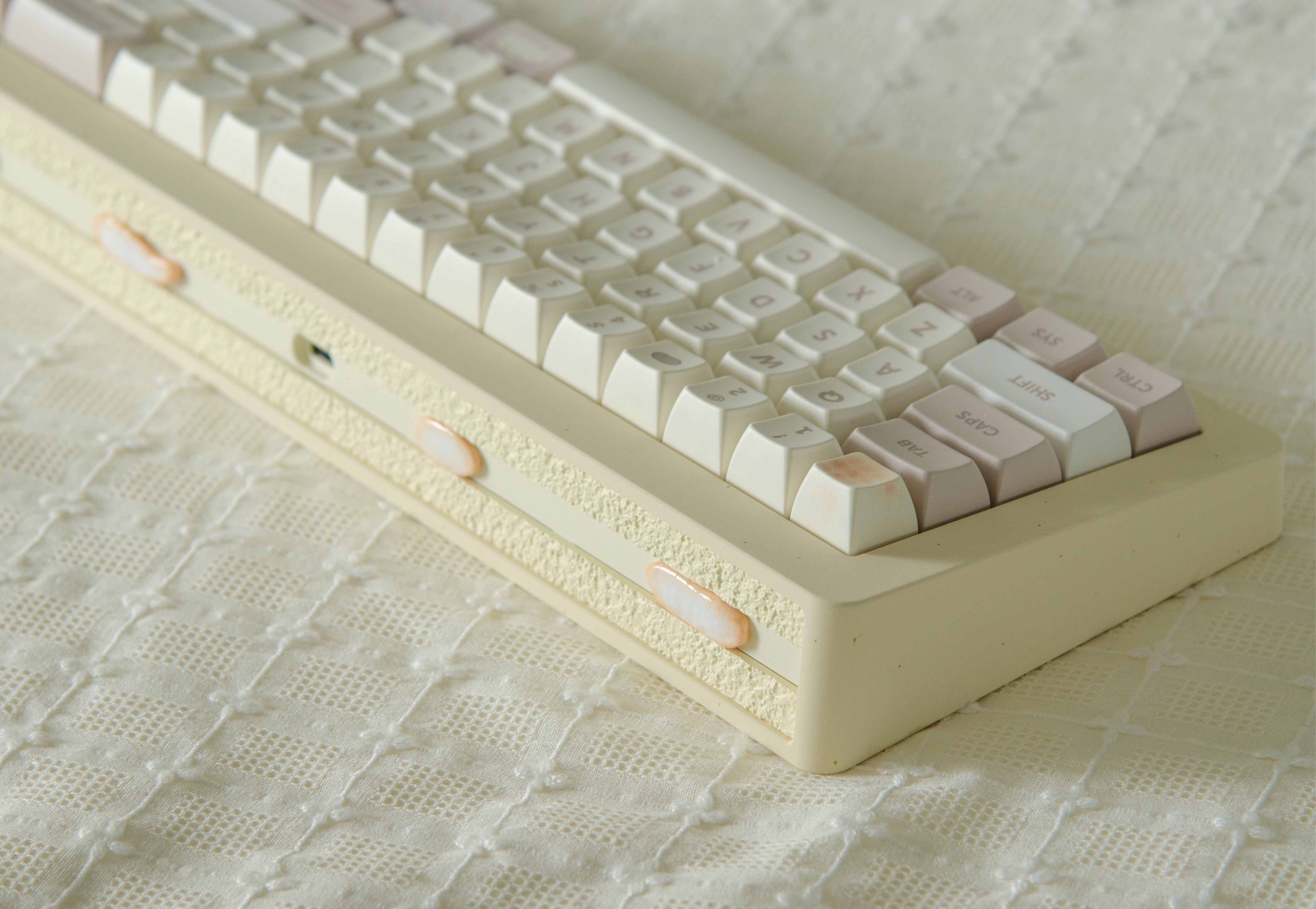

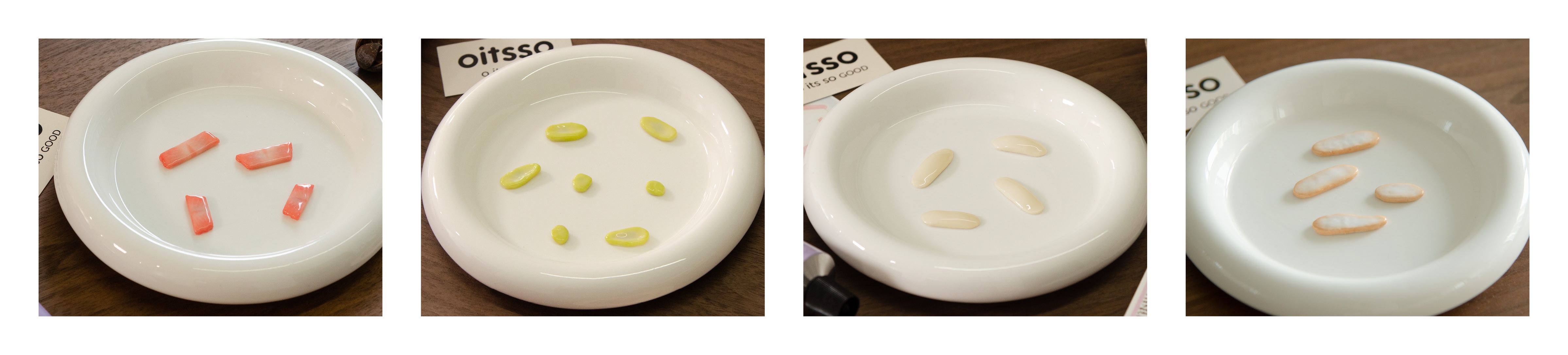

To better capture the dessert theme, magnetically attachable handcrafted clay accessories are custom-made for the cake base layers.
Each piece is meticulously shaped and painted by hand,
with different color schemes paired with corresponding fruits or mochi accents.

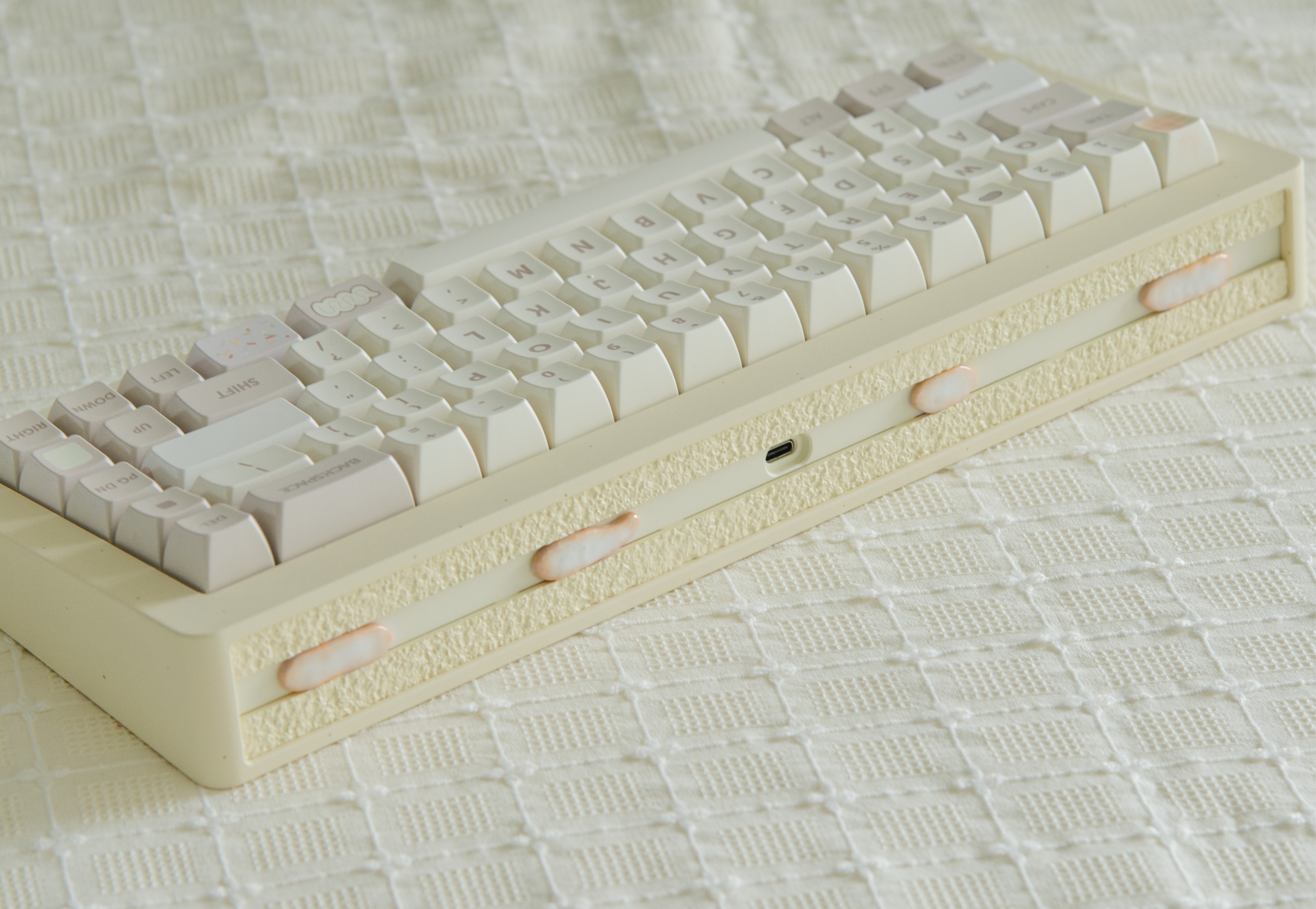

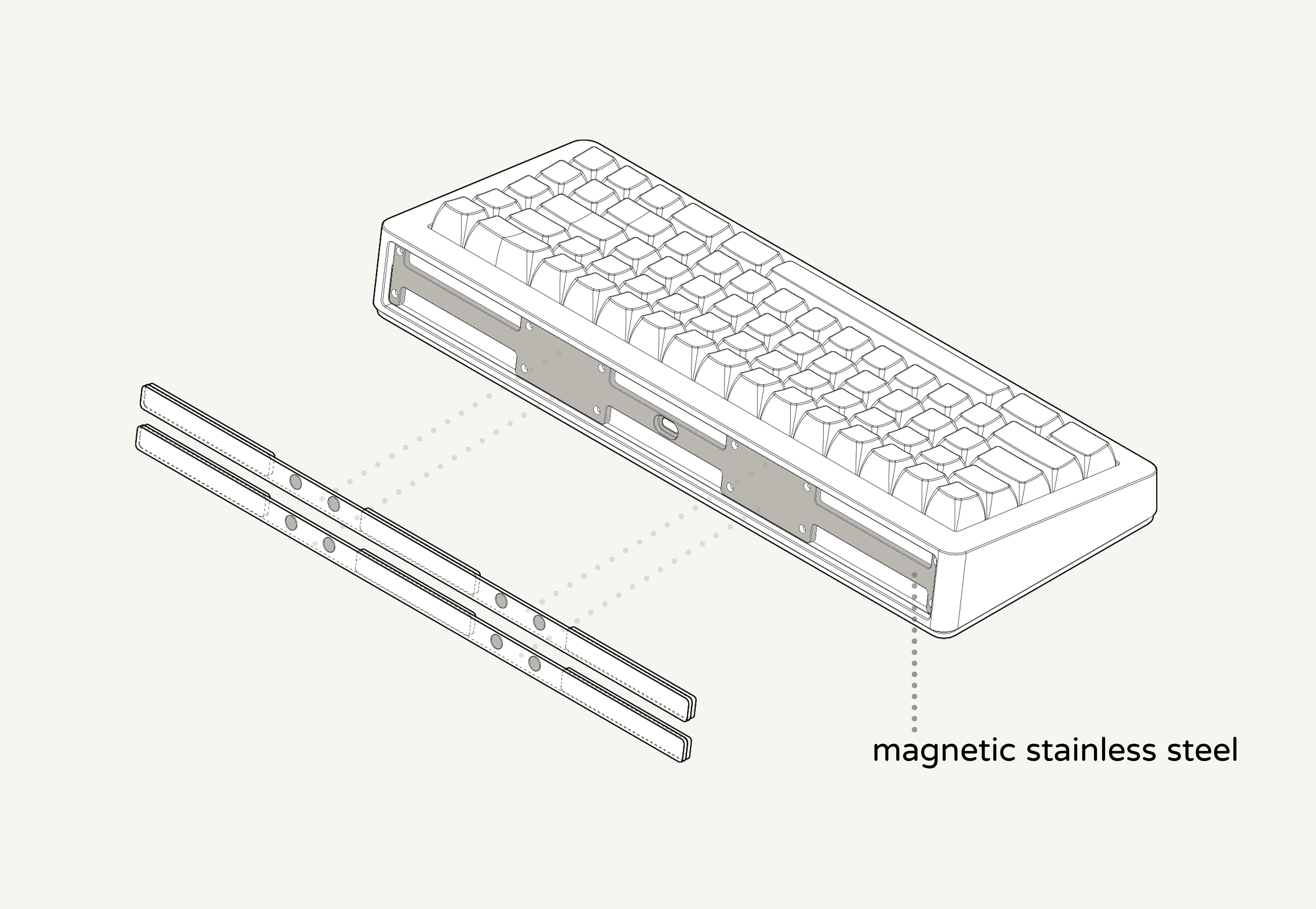

The two front chiffon cake pieces are made from CNC-machined aluminum alloy,
secured to the keyboard body with large magnetized stainless steel components.
In the future, we will introduce more interchangeable parts in different materials and styles.

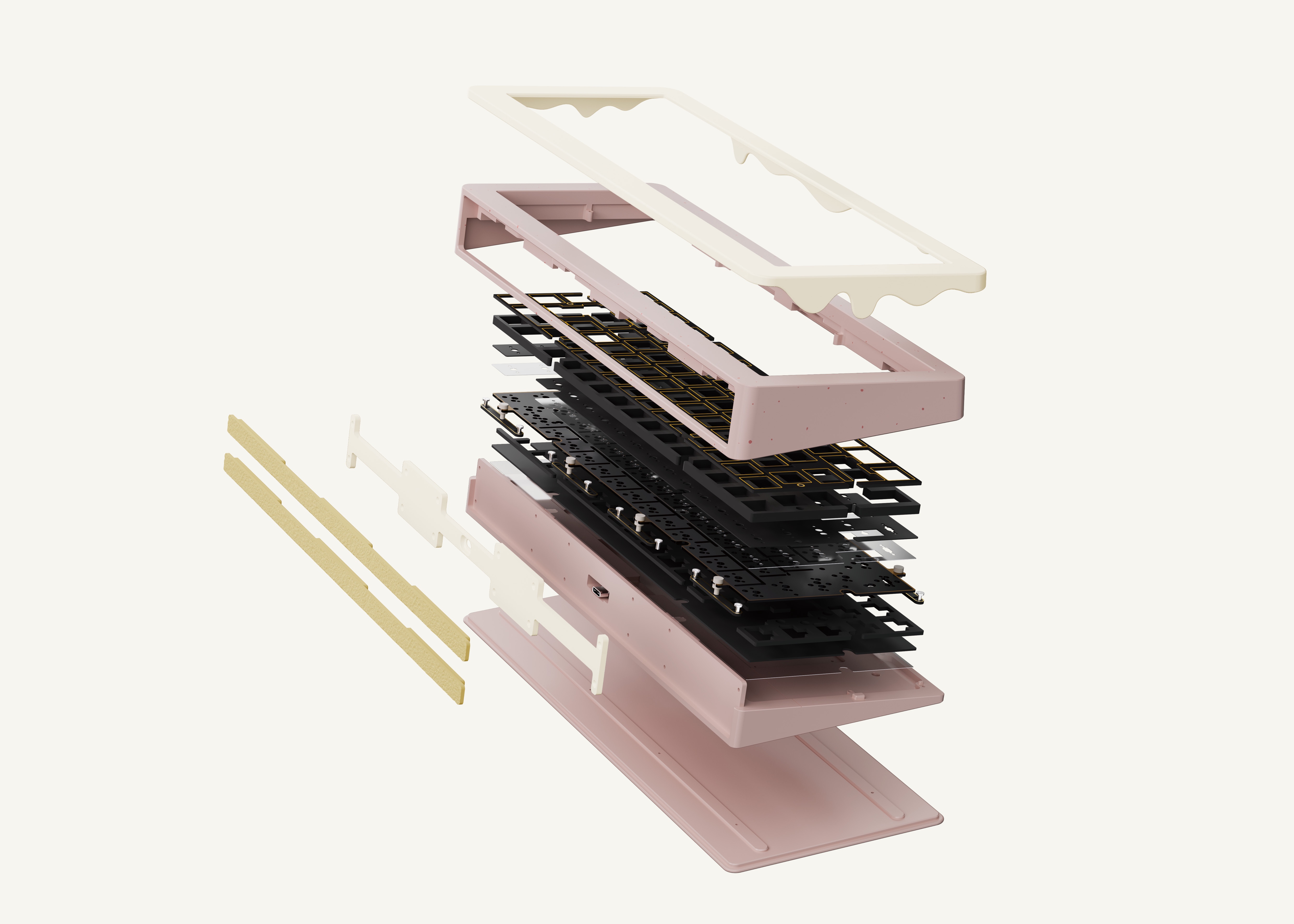

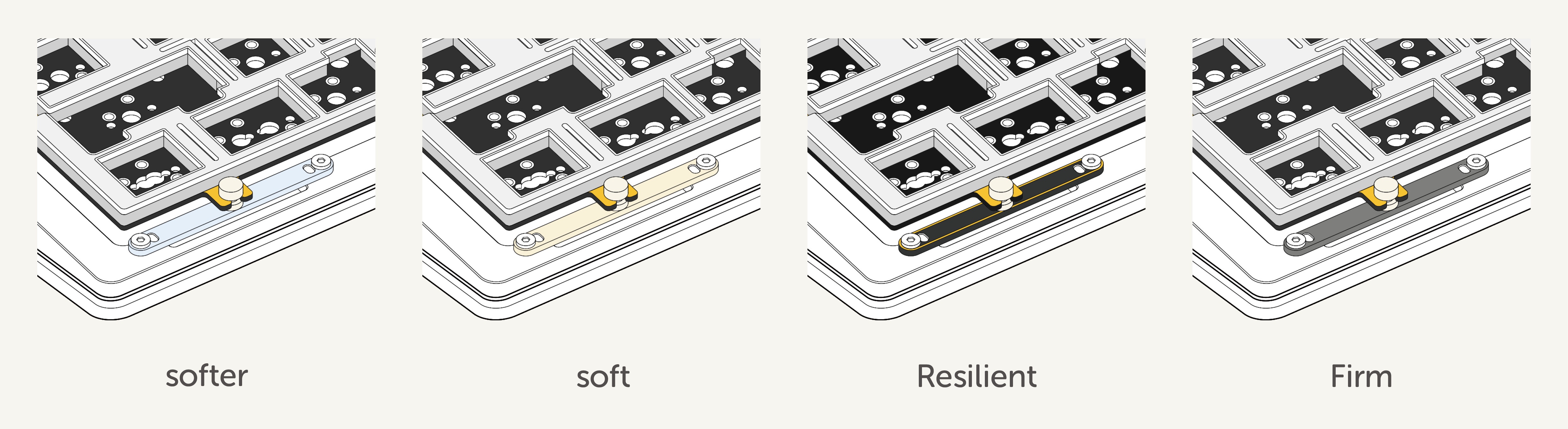

The Bite 65 uses a PCB gasket structure.
By utilizing two silicone pads of different softness and four materials for spacers,
it offers eight distinct tactile experiences.
PC and POM provide a softer feel, FR4 adds more resilience,
and stainless steel leaf springs deliver a firmer, more rigid touch.

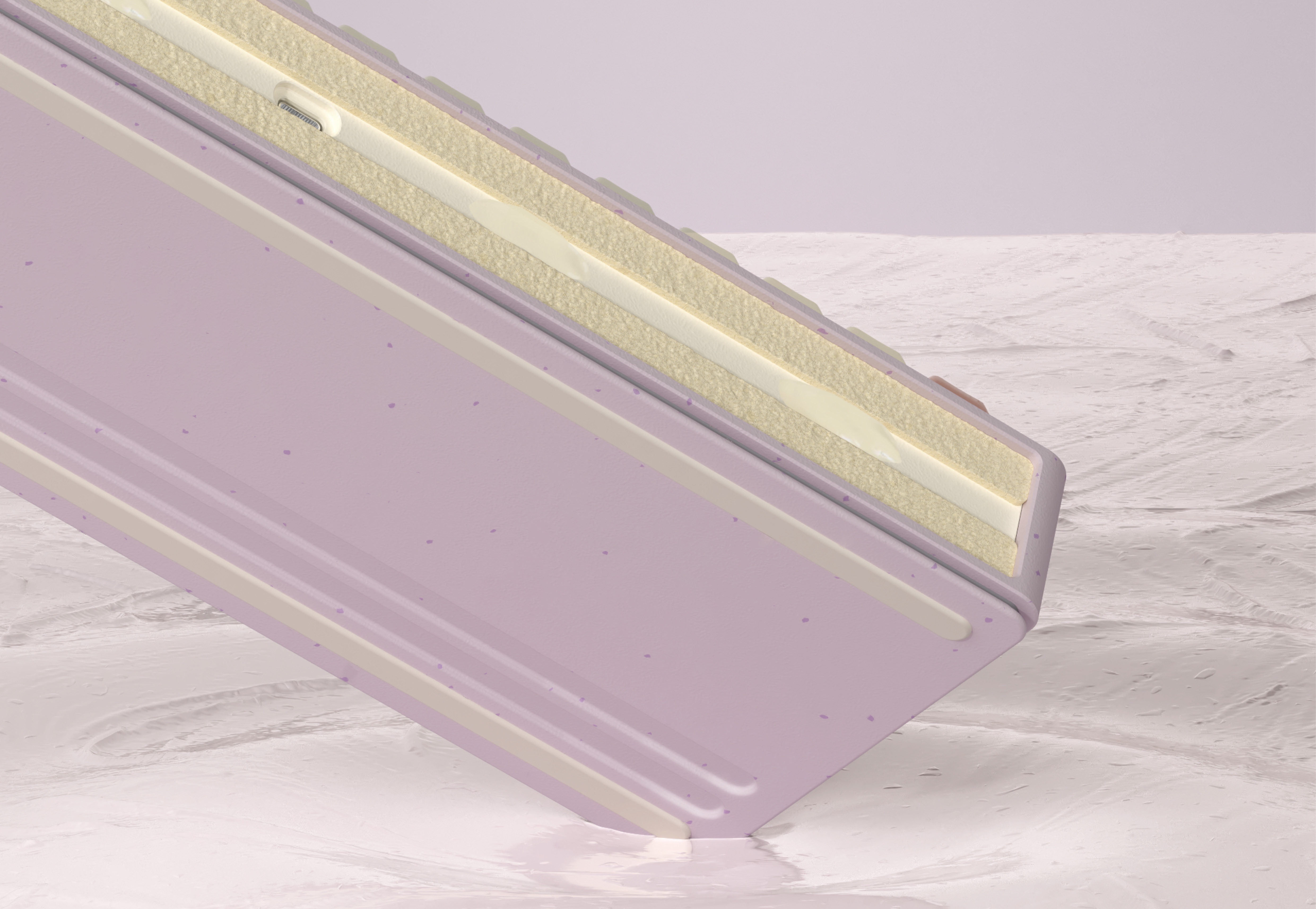

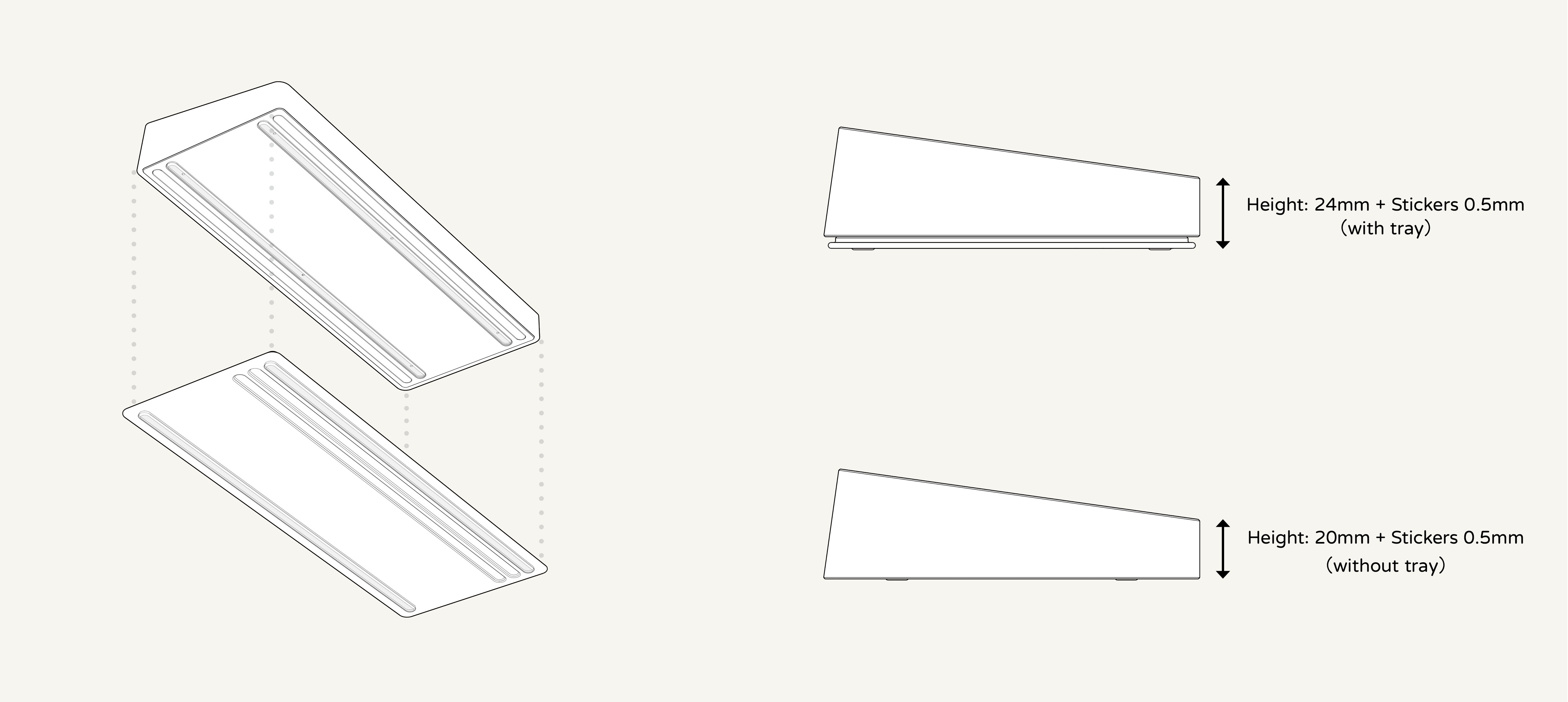

The bottom features a detachable tray design, offering two different front height options.
Bottom feet slots are reserved on the base, allowing for bottom feet installation even after the tray is removed.

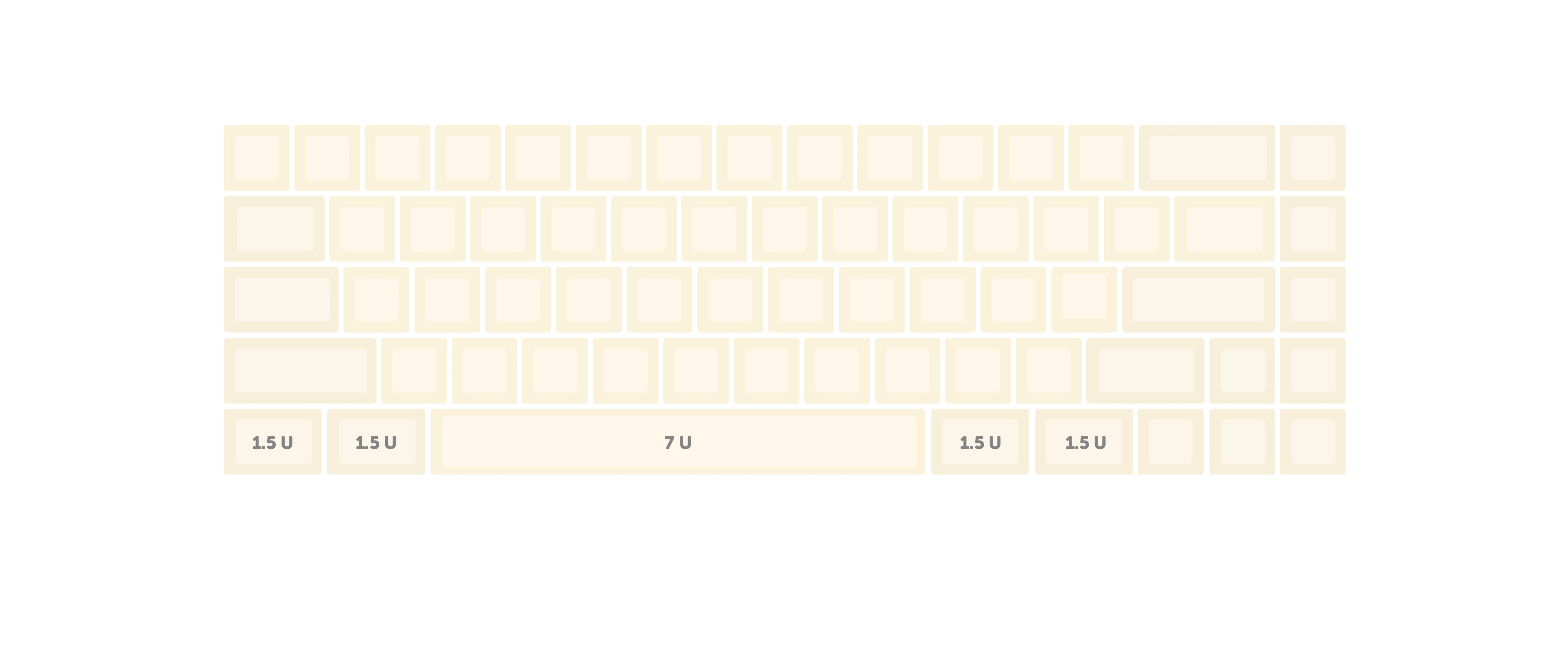

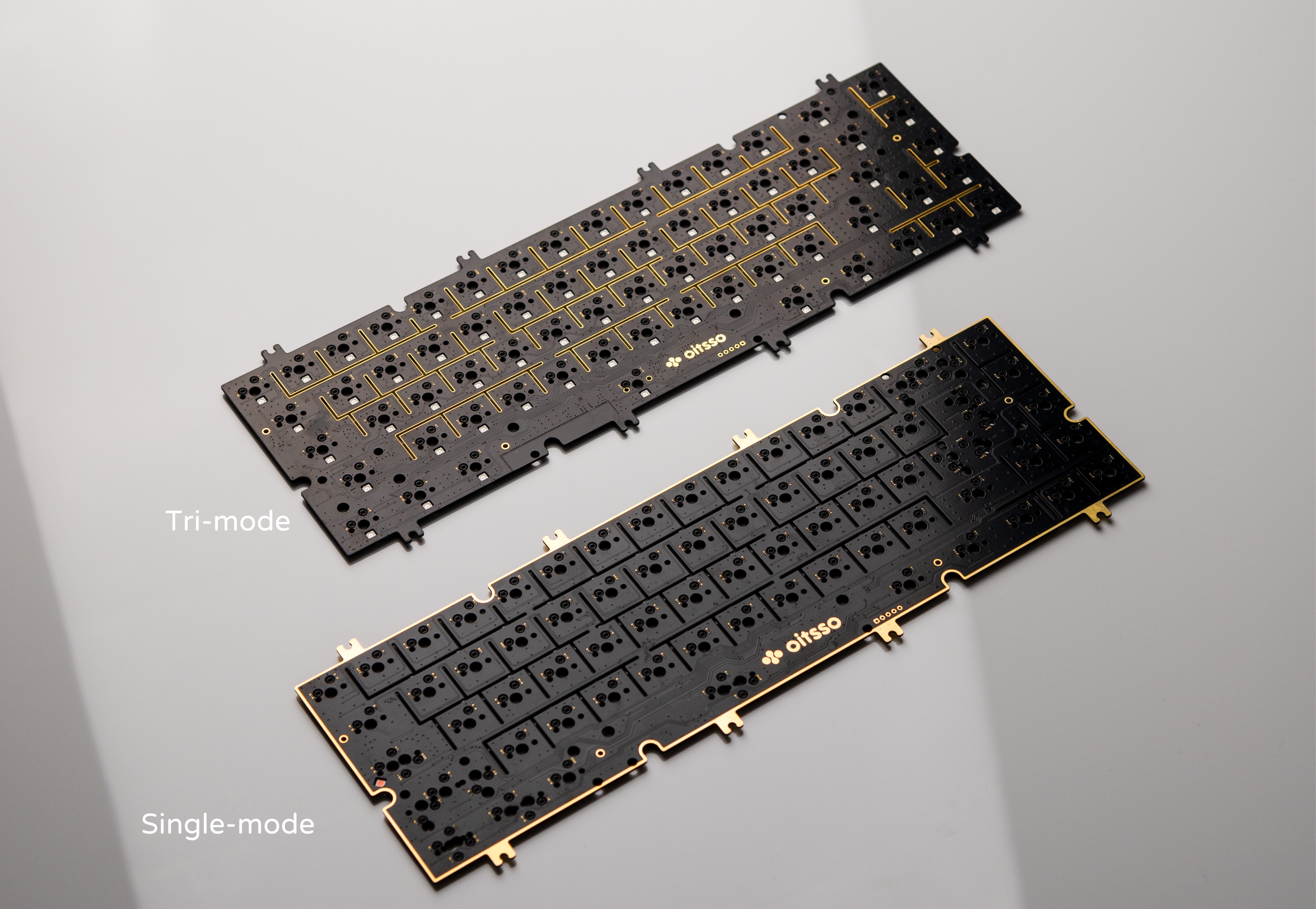

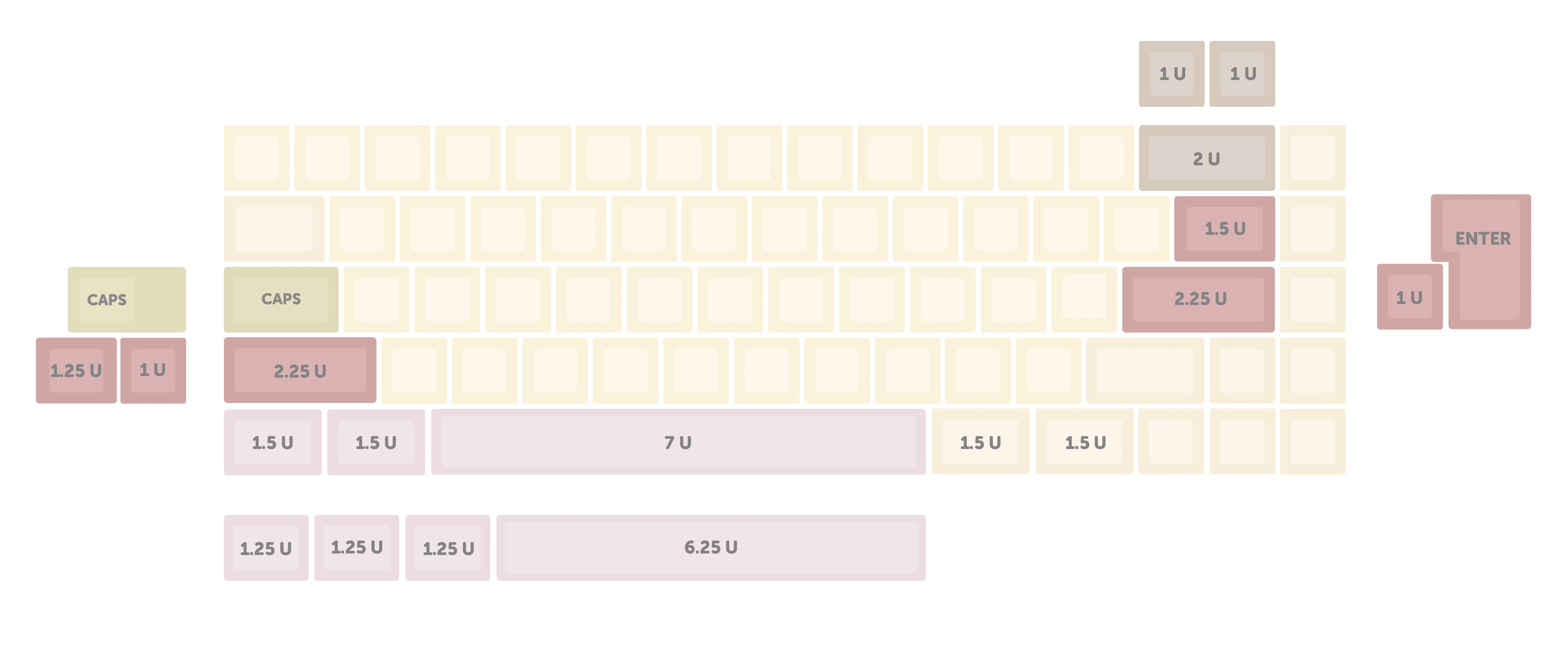

Single-Mode Hot-Swap & Single-Mode Soldered Multiple Layouts

Three-Mode RGB Layout

With a thickness of 1.2mm, both the single-mode and tri-mode versions are available in flex and non-flex options.

Both the single-mode and tri-mode versions support QMK & VIA.
The lighting colors and effects in the tri-mode version can be directly adjusted via VIA.
In testing, the 2.4G mode shows a latency of approximately 8-10ms.

The foam kit includes plate foam, bottom foam, IXPE switch pads, PET switch pads, PCB foam, bottom foam, and PET bottom sheet.

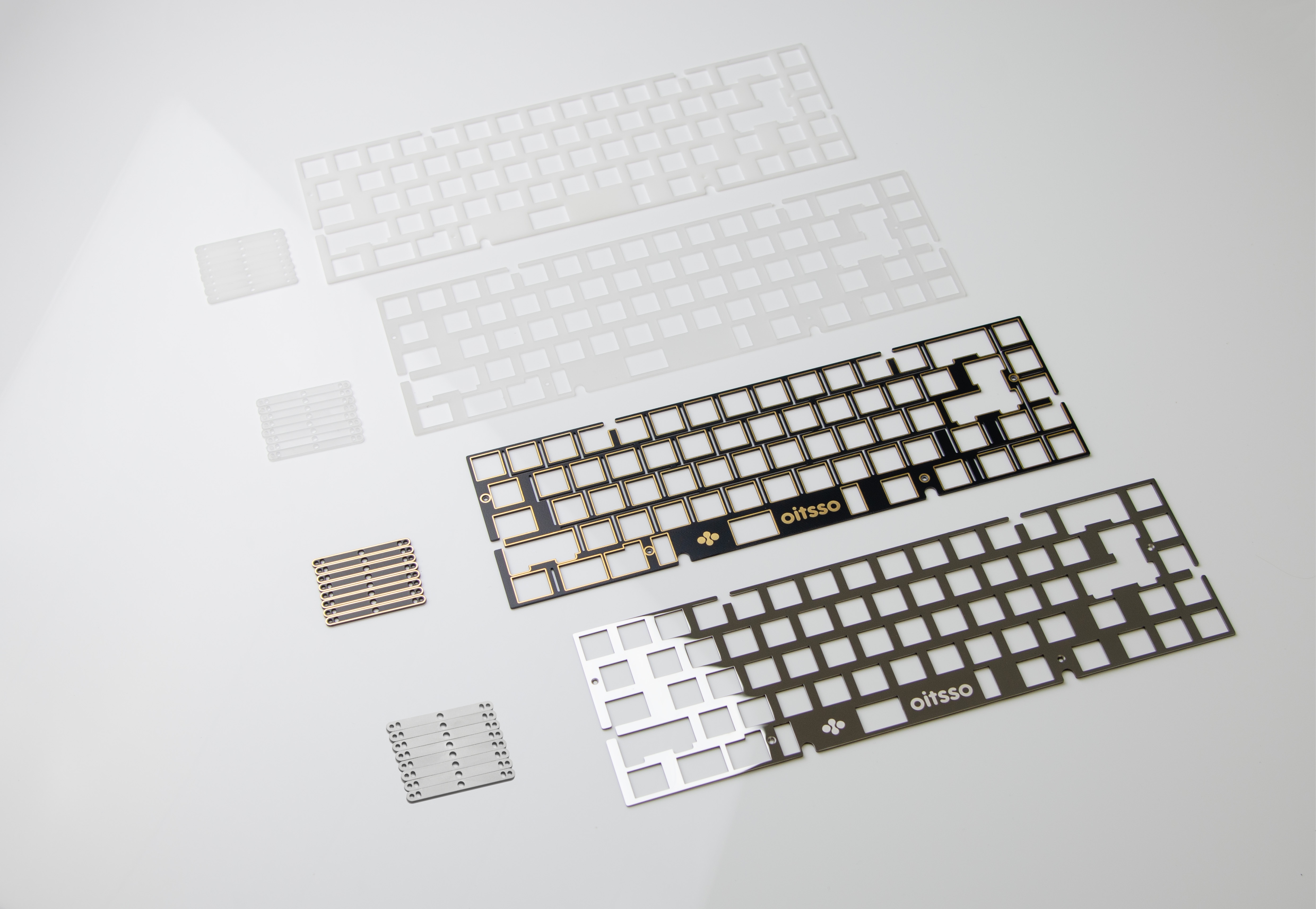

The FR4 plate is only available with flex cut, while POM, PC, and stainless steel are only available in non-flex cut versions.

In addition to the Bite 65 keyboard, we’ve also designed the Bite series "Afternoon Soirée" keycaps and
the oitsso x cici Handmade polymer clay keycaps.

Profile: OSA
Material & Process: Five-sided dye-sublimated PBT
Manufacturer: WINMIX

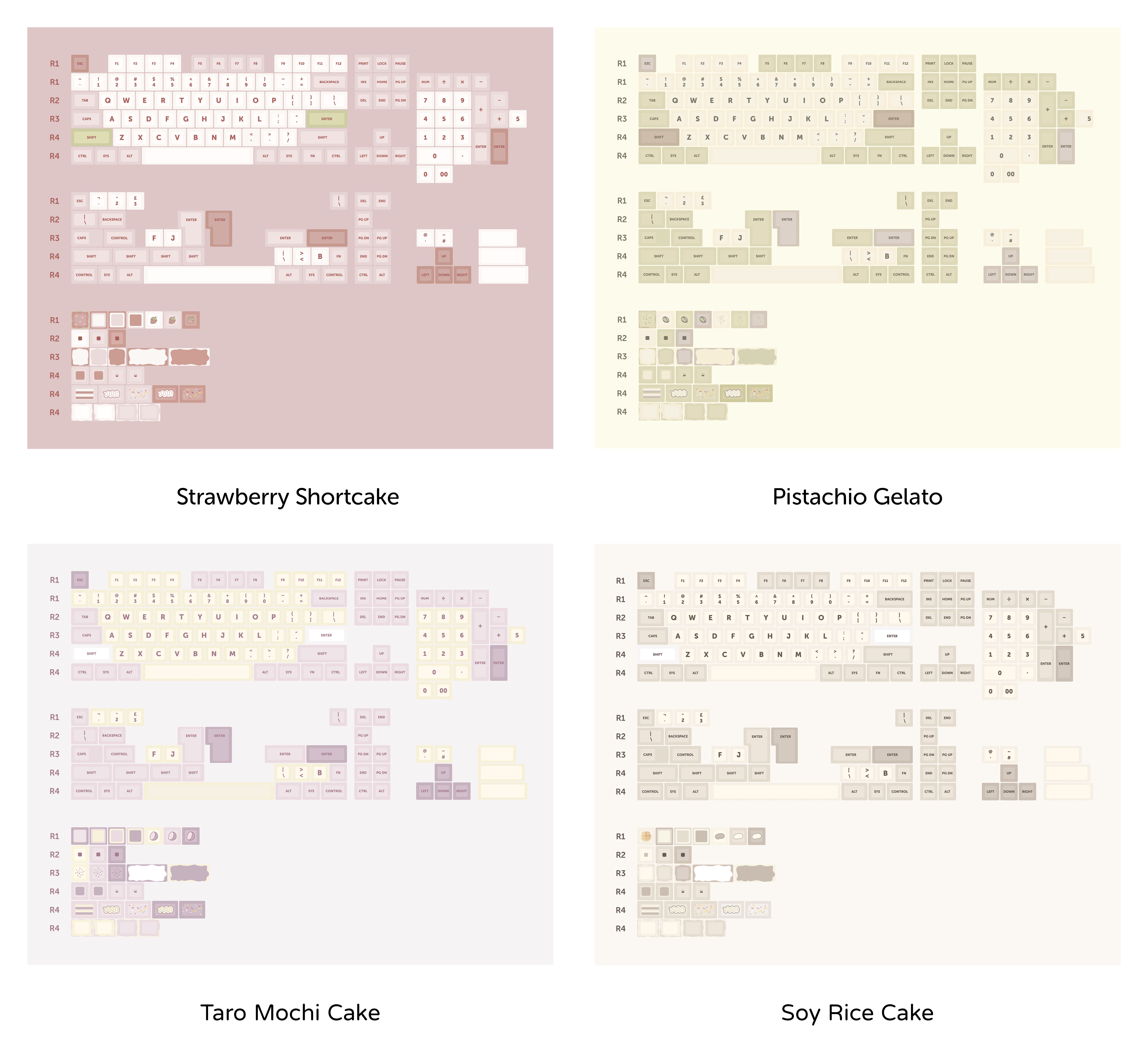

Inspired by the same theme as the Bite 65, these keycaps are available in four refined colorways:
Strawberry Shortcake,
Pistachio Gelato,
Taro Mochi Cake,
Soy Rice Cake
adding a playful and delightful touch to every keystroke.

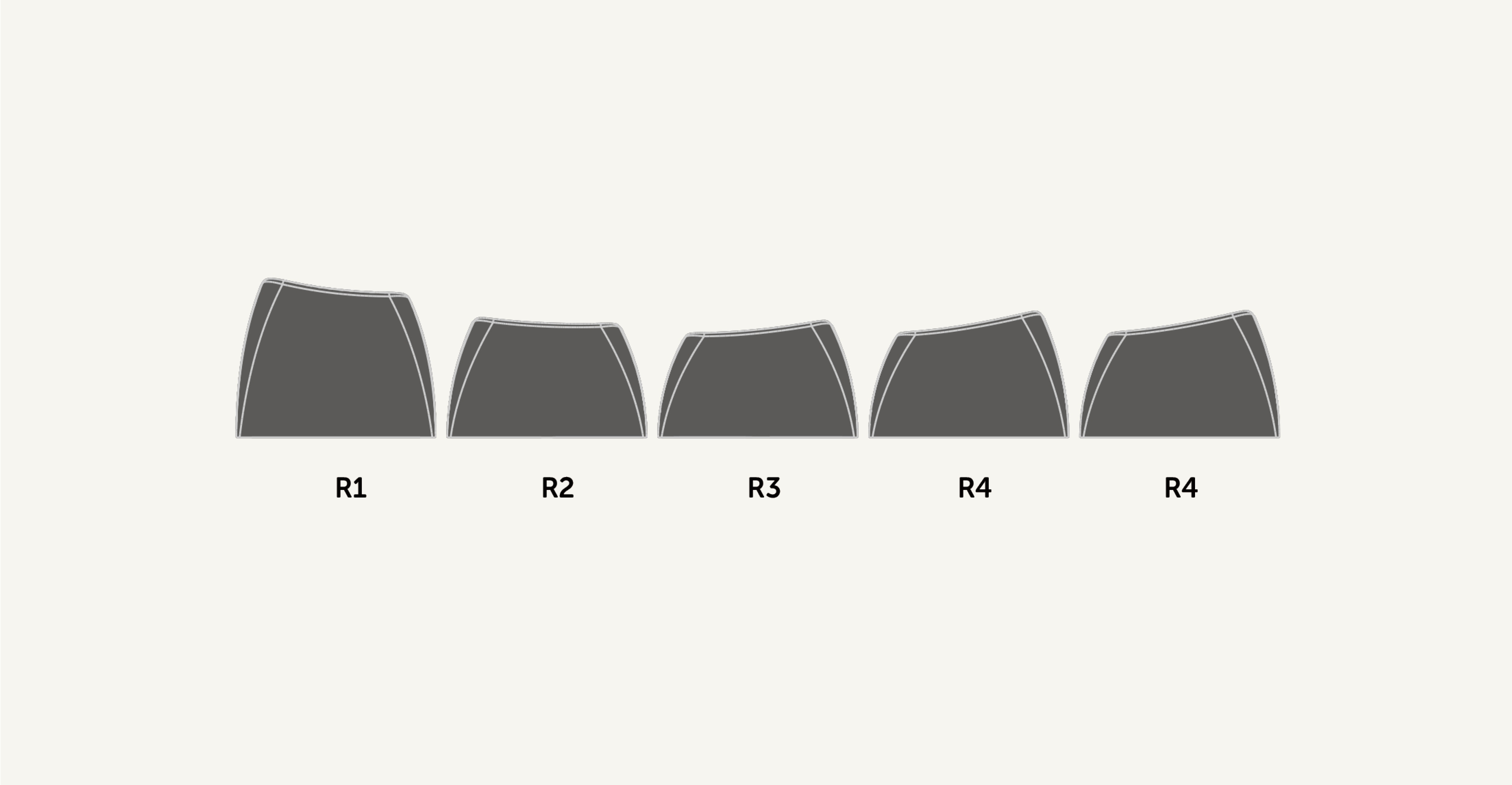

The keycaps use the OSA profile, which is slightly lower than SA.
While maintaining practicality, the OSA profile also captures the delicate and refined essence of a dessert to the fullest extent.
