oitsso Bite65-R Keyboard & keycaps

The Bite series is divided into two distinct lines: the Digital Line and the R Line.
The Digital Line maximizes the restoration of the product concept through rich colors and precise form, while the R Line adopts different processes, utilizing a more suitable design language.
It pursues minimalist aesthetics, creating a refined design with abstract lines and elegant proportions.

R symbolizes Radiance, inspired by the shimmering metal and cosmic light.
Through new textures and color dimensions, it aims to capture fleeting or enduring brilliance.

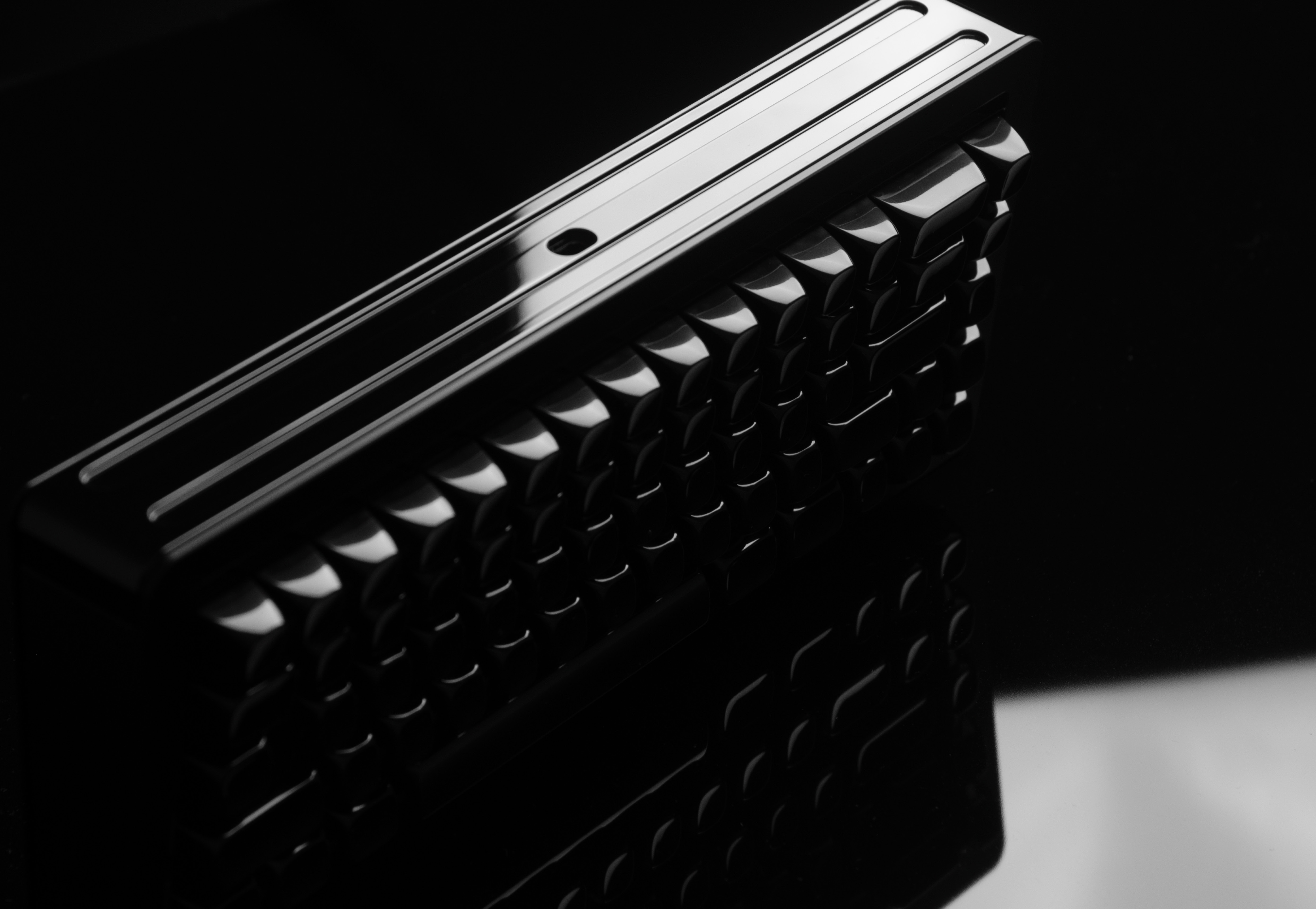

Abyss was inspired by the deep black of a black hole, exploring the distortion and refraction of light within it.

Moondust was inspired by the lunar surface soil, representing a sense of purity and tranquility frozen in time.

Asteroid was inspired by the planetary belts of galaxies, embodying a melody of tranquility and subtlety.

The golden radiance flowing through the Milky Way, they are the twinkling specks of gold between the stars.

The drifting blue dust are crystalline particles from many light years away.

Case Angle: 8.0°
Case Materials: Aluminium, Stainless steel
Weight：2.6kg - Kit Only
Plate: 1.5mm thick. FR4 (Flex-Cut)/PC/POM/ Stainless Steel (Non-Flex-Cut)
PCB:
Single-mode hot-swap (Flex-Cut/Non-Flex-Cut)
Single-mode soldered (Flex-Cut/Non-Flex-Cut)
Tri-mode hot-swap (Flex-Cut/Non-Flex-Cut)
All PCBs are compatible with QMK/VIA

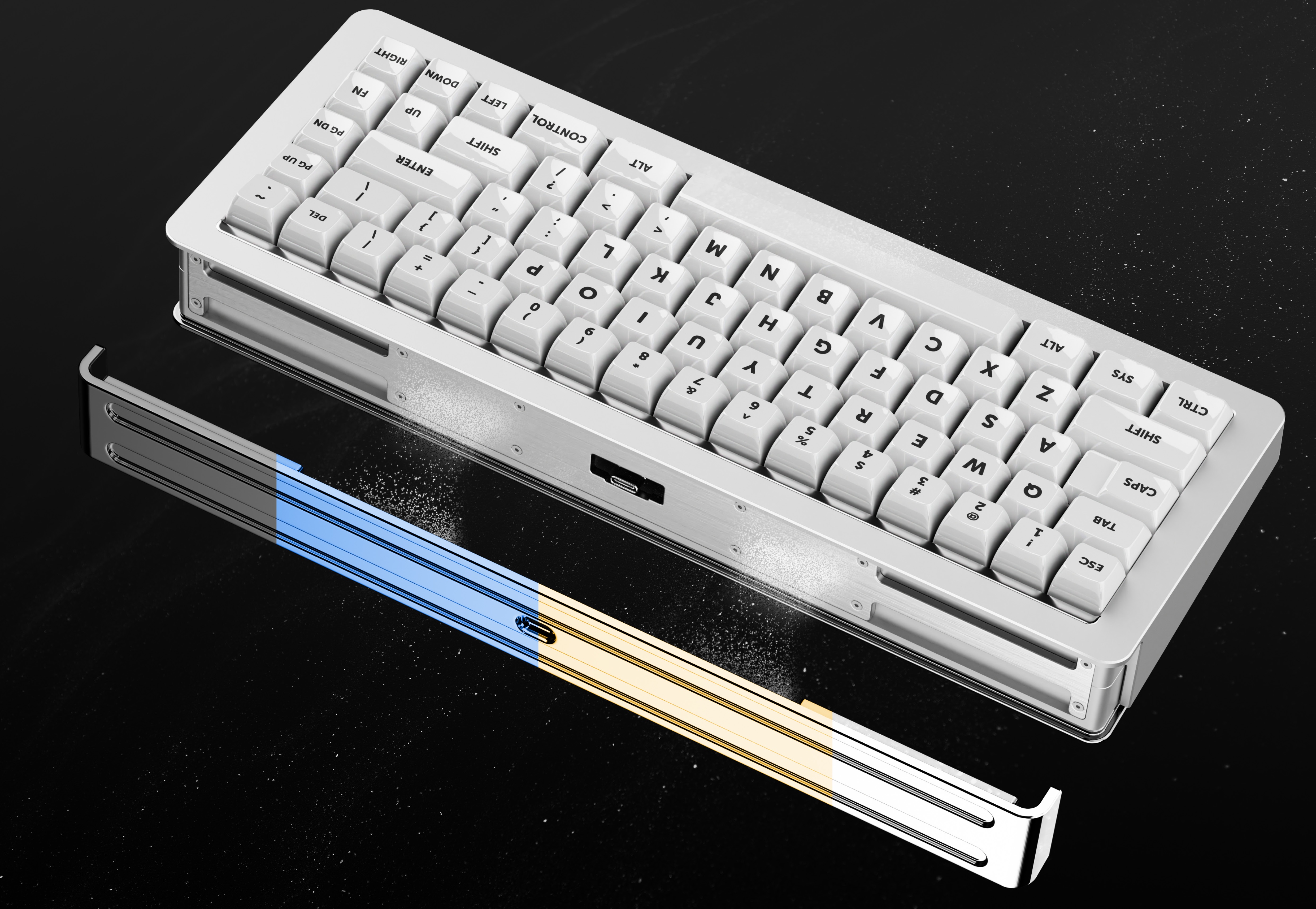

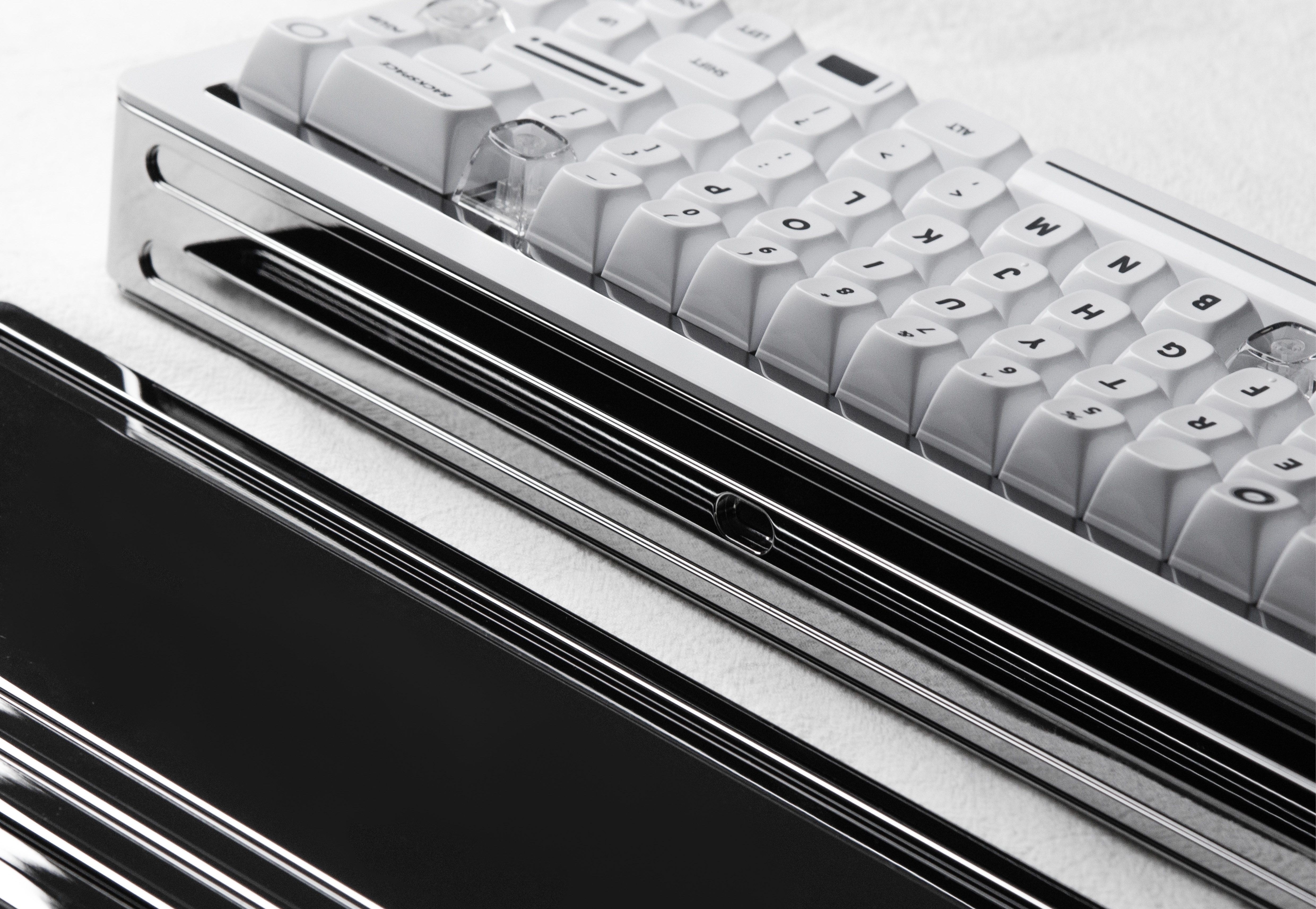

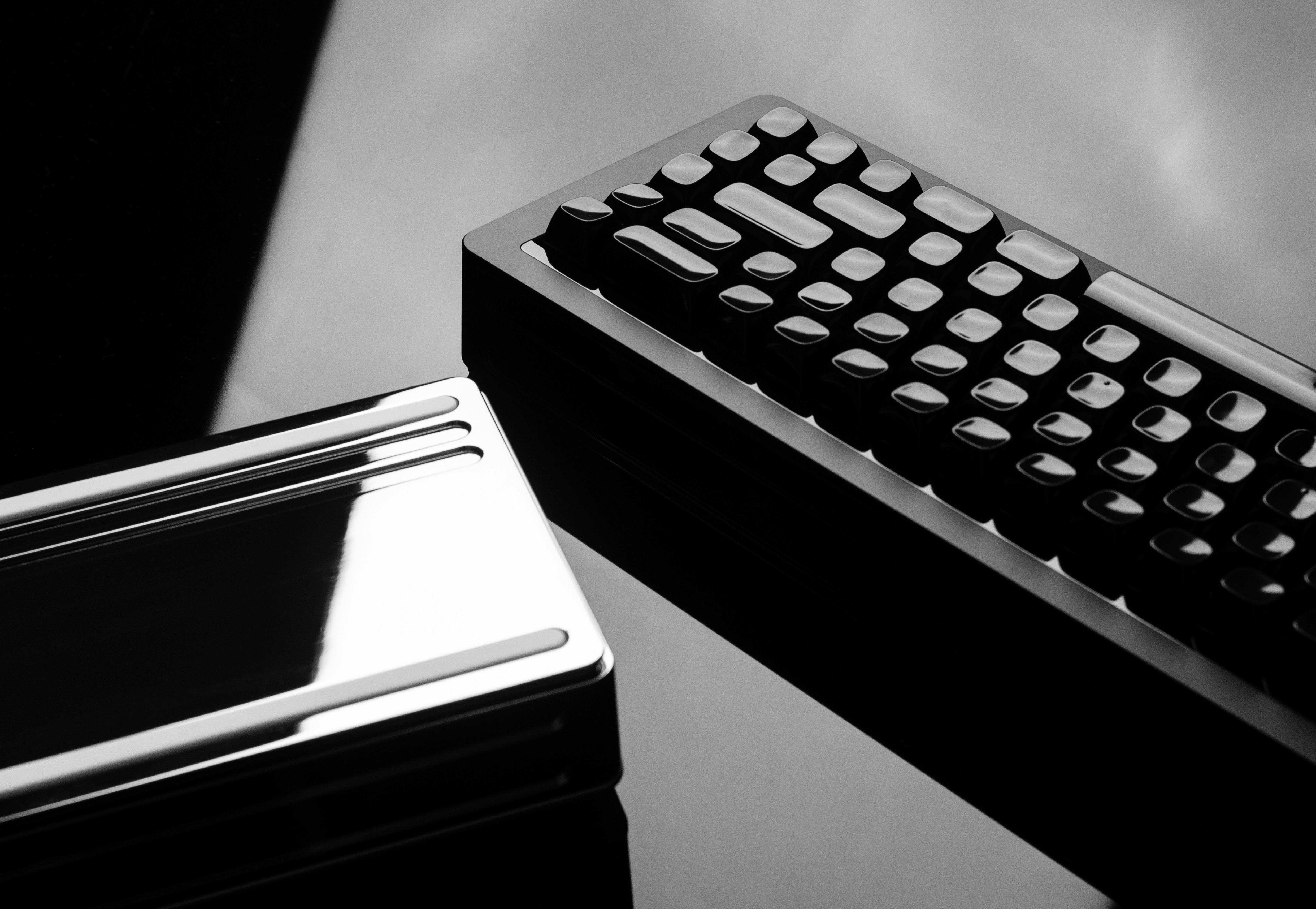

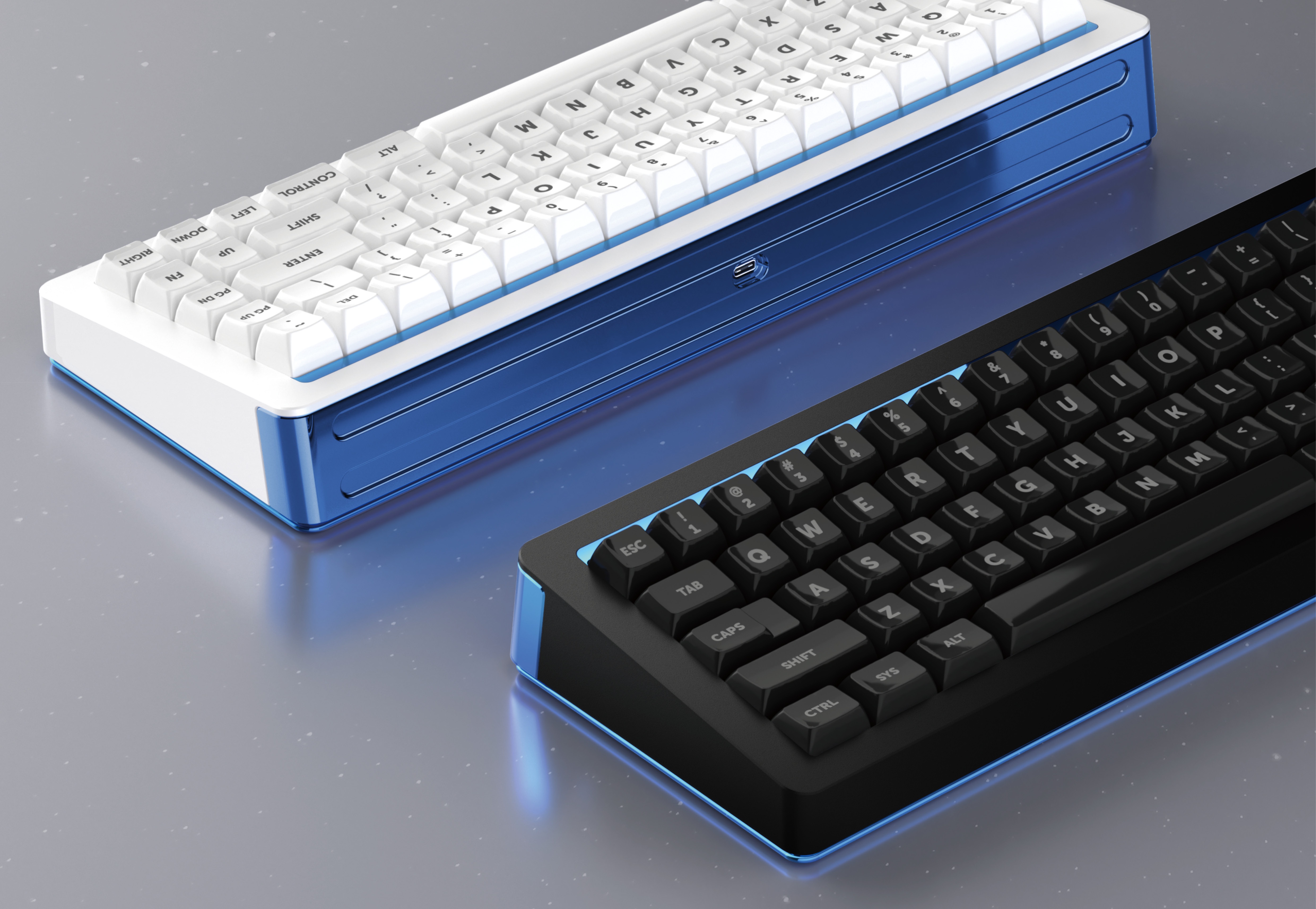

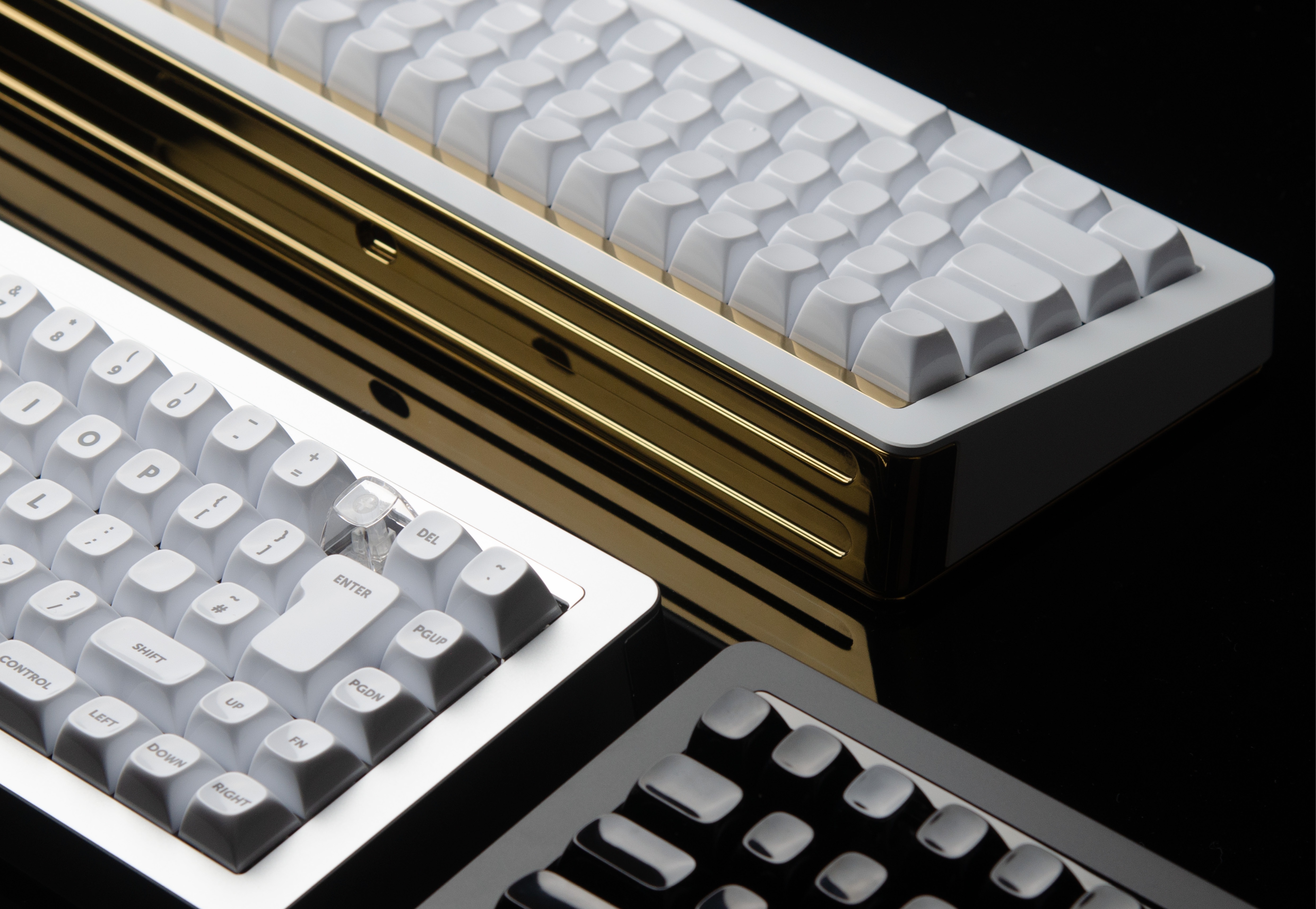

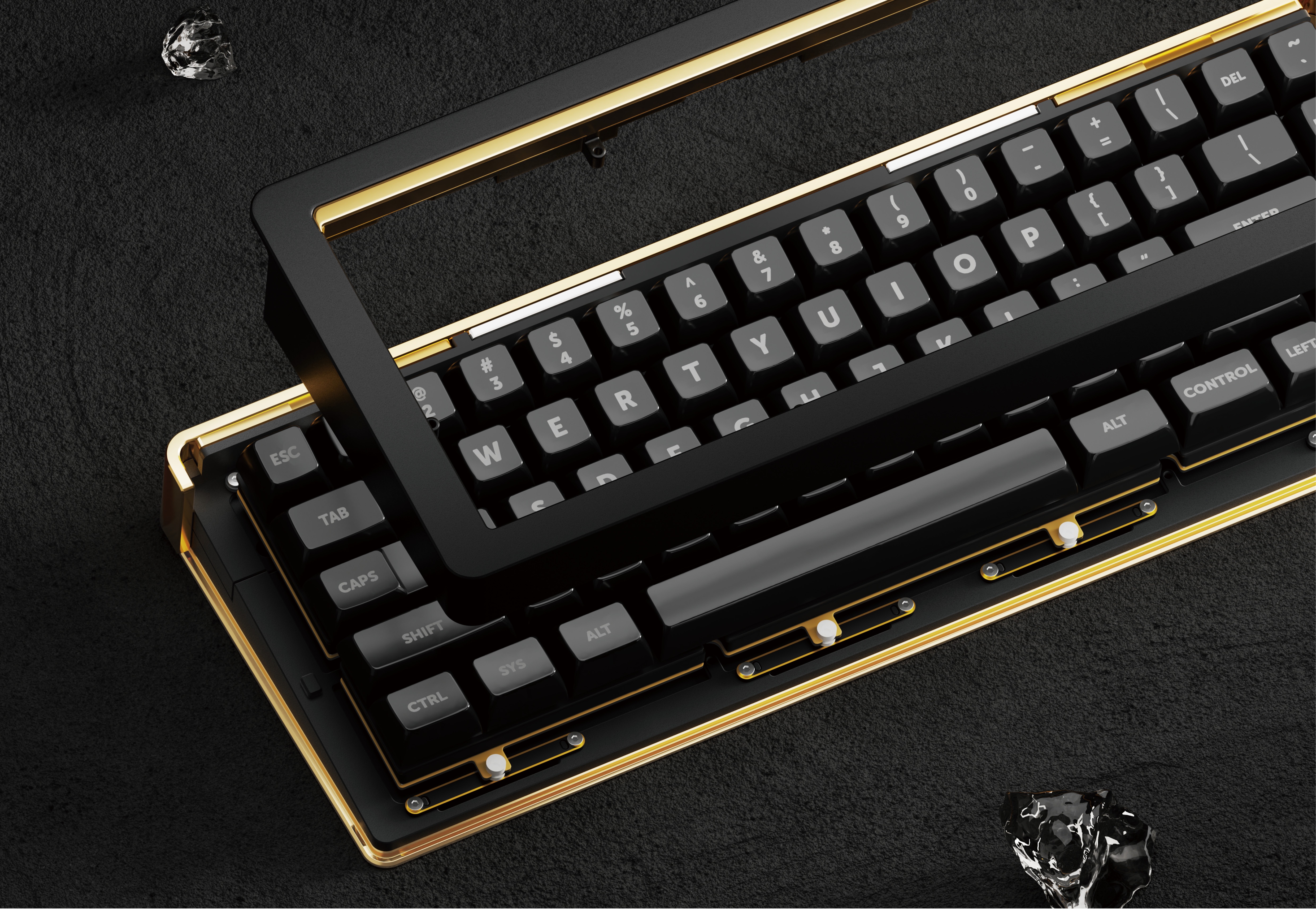

The front accessories are attached to the keyboard body using magnetic connections.
The magnetic structure allows for convenient mixing and matching with different front-weight color options.
Without the hassle of screws.

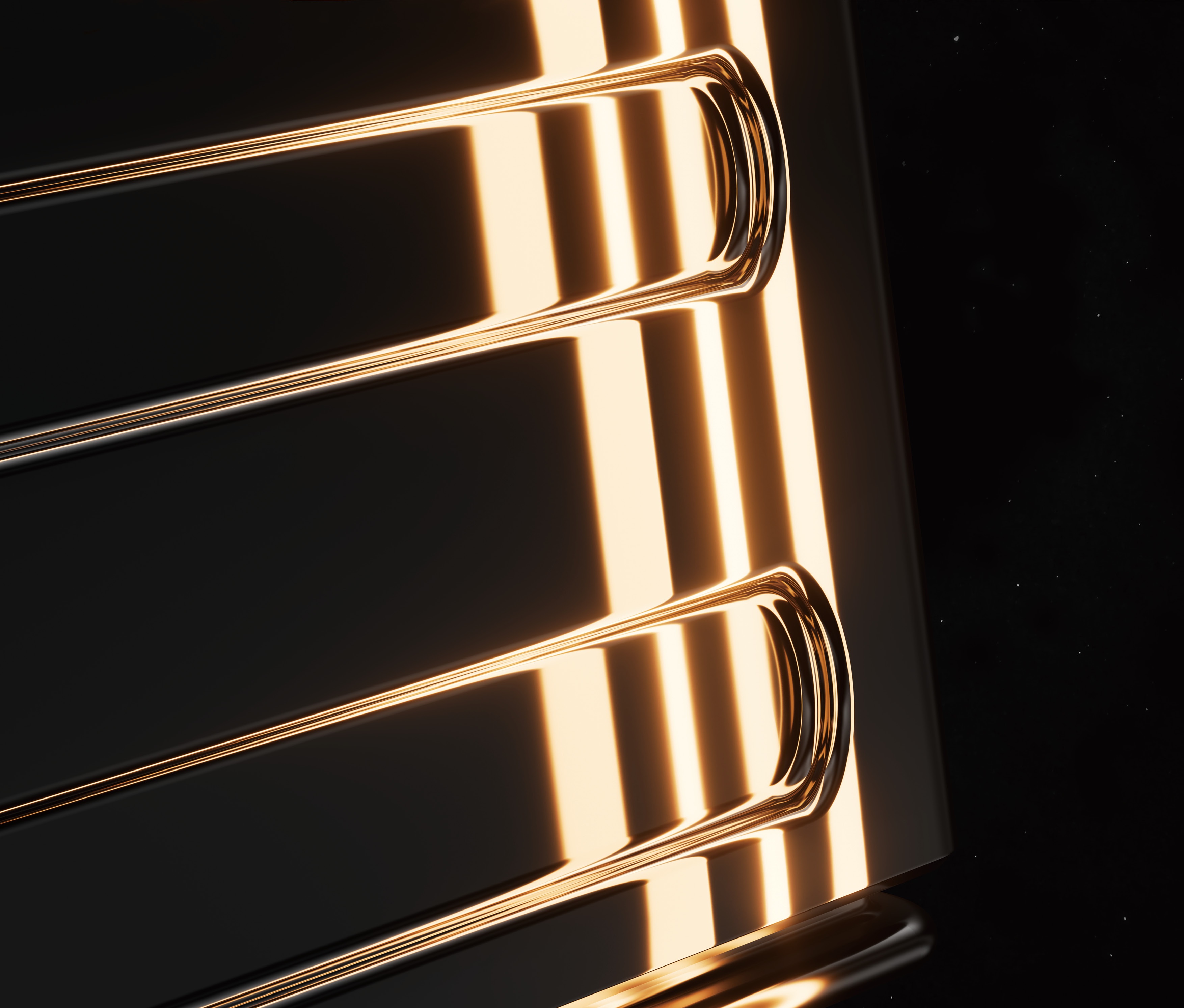

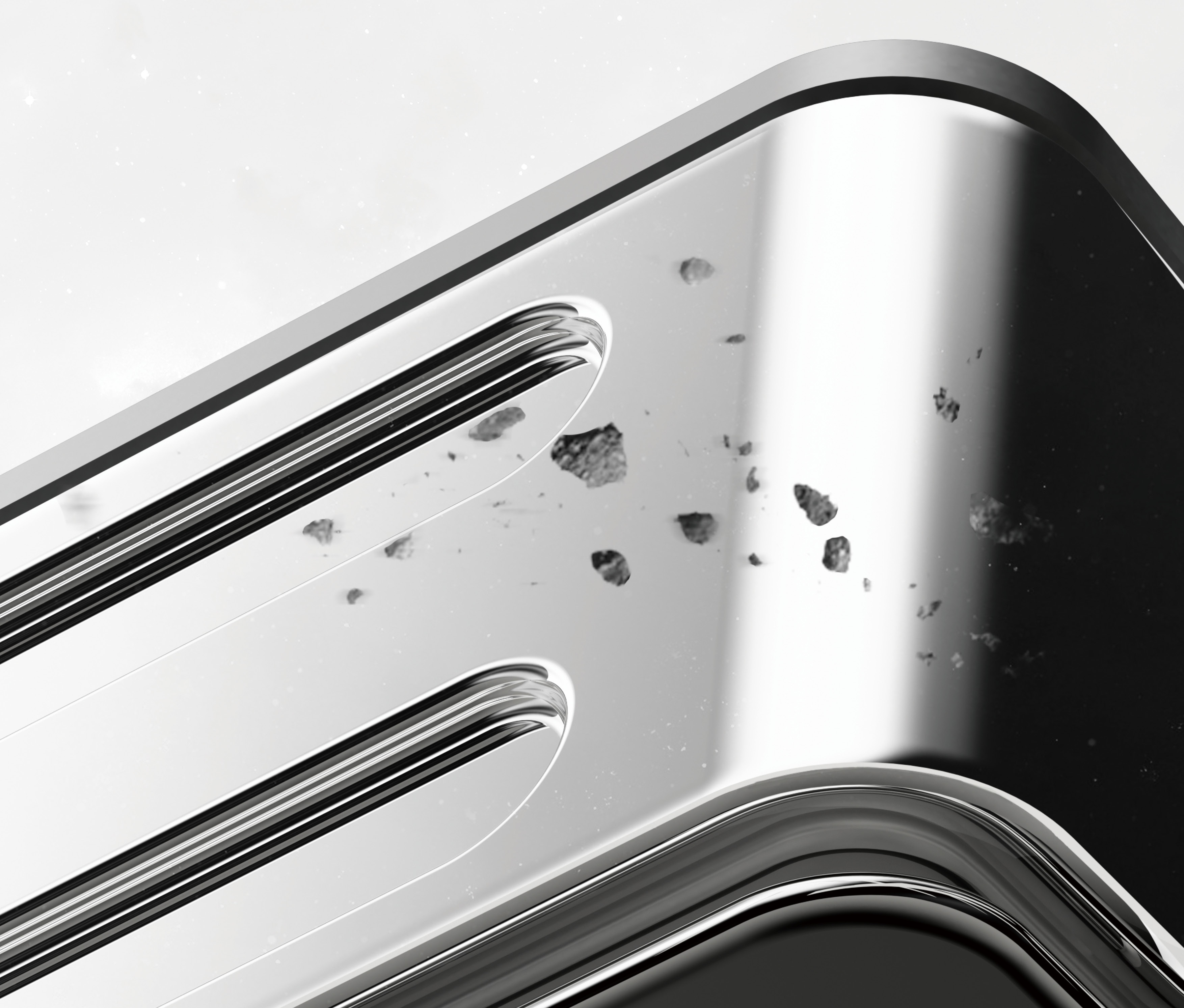

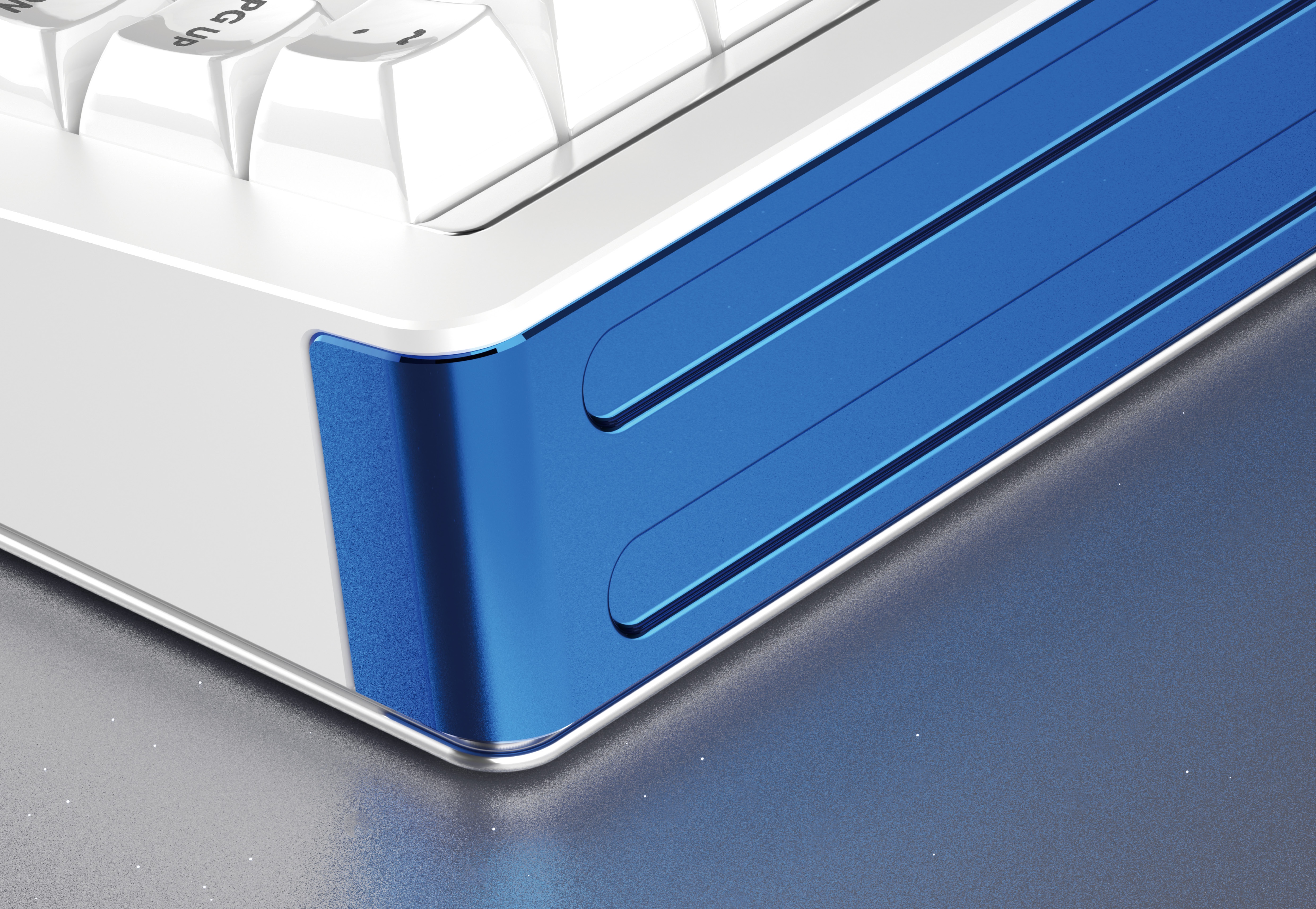

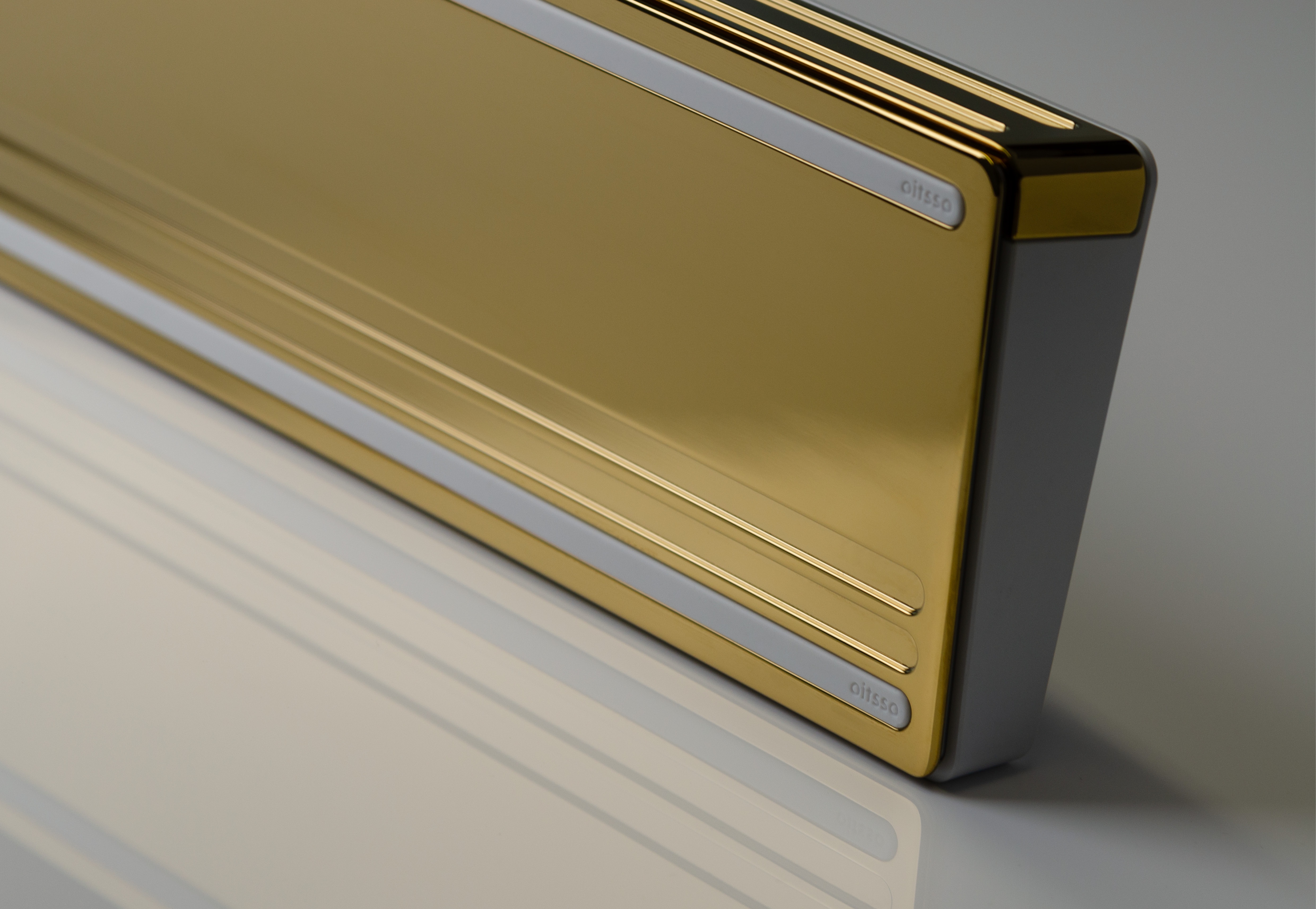

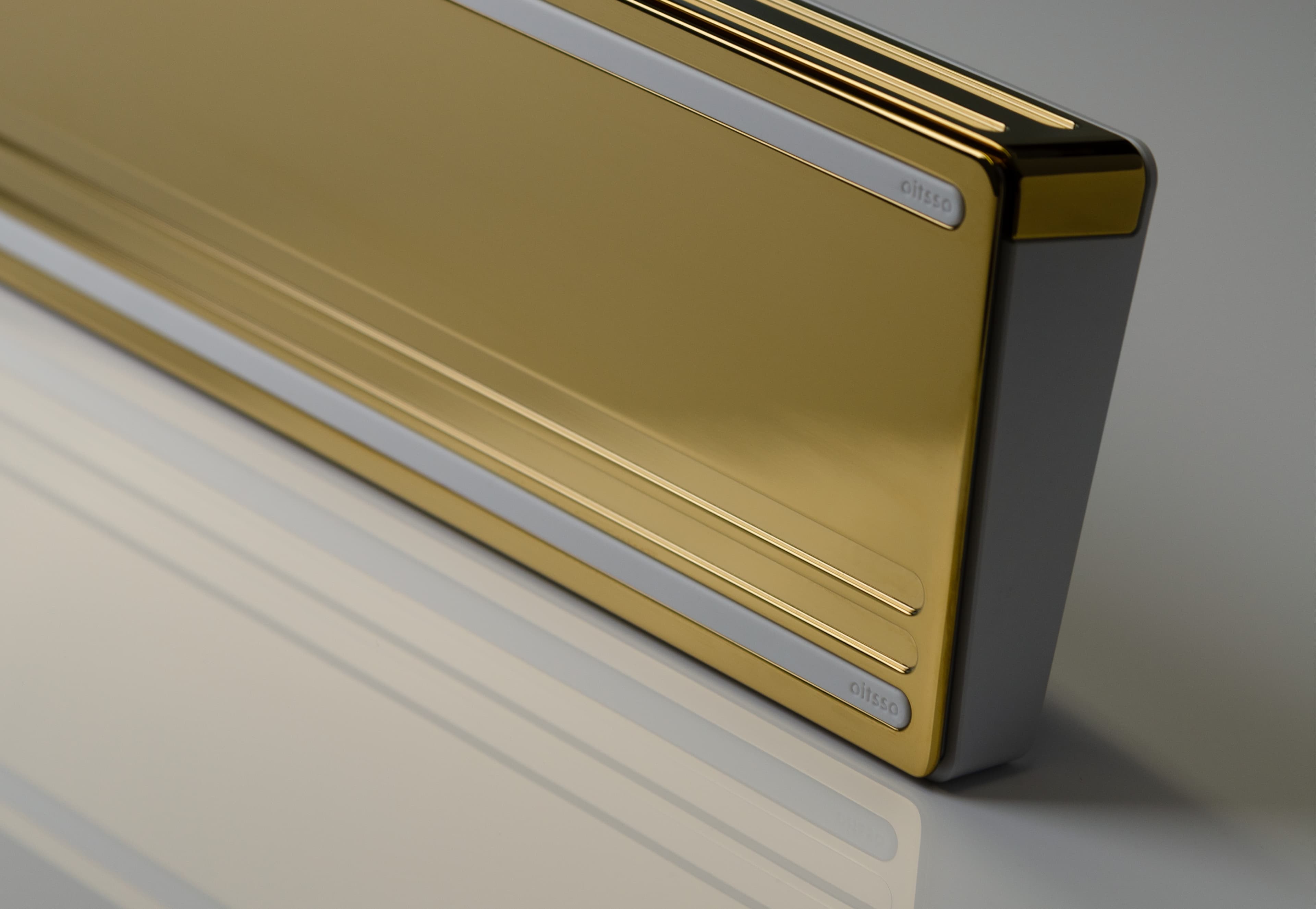

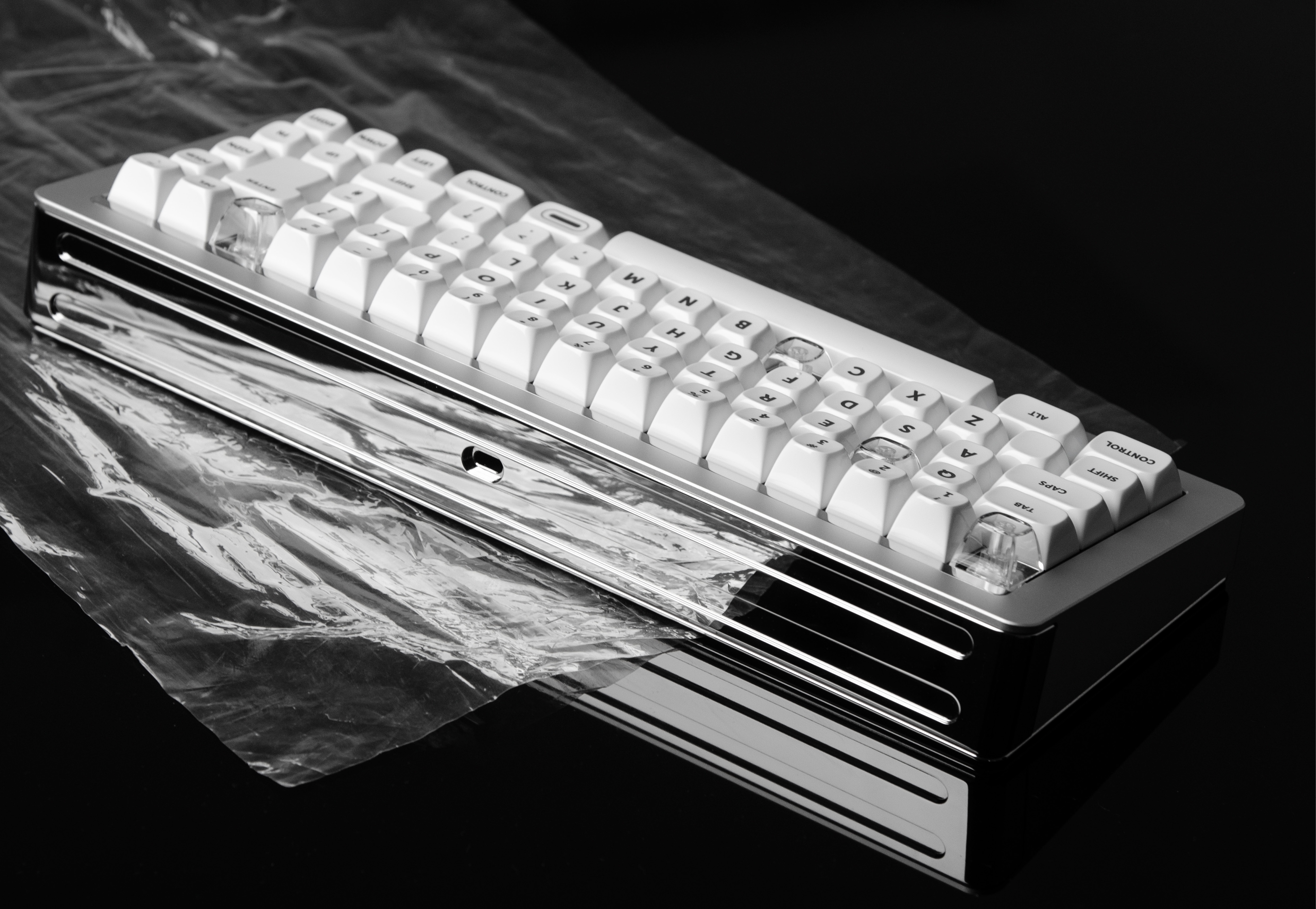

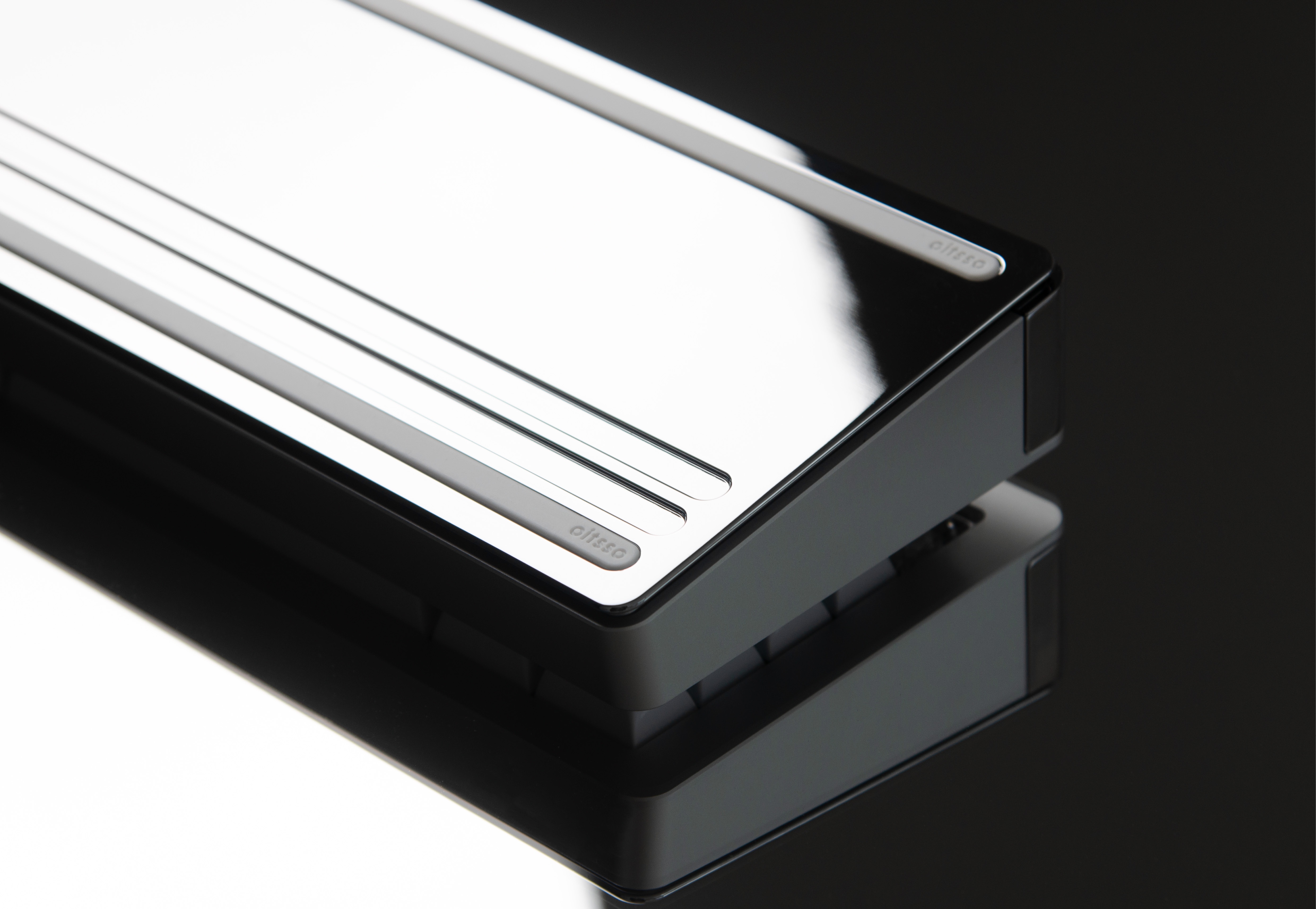

The front of the keyboard features a PVD accent strip that reflects a soft glow,
reminiscent of stars scattered across the universe.

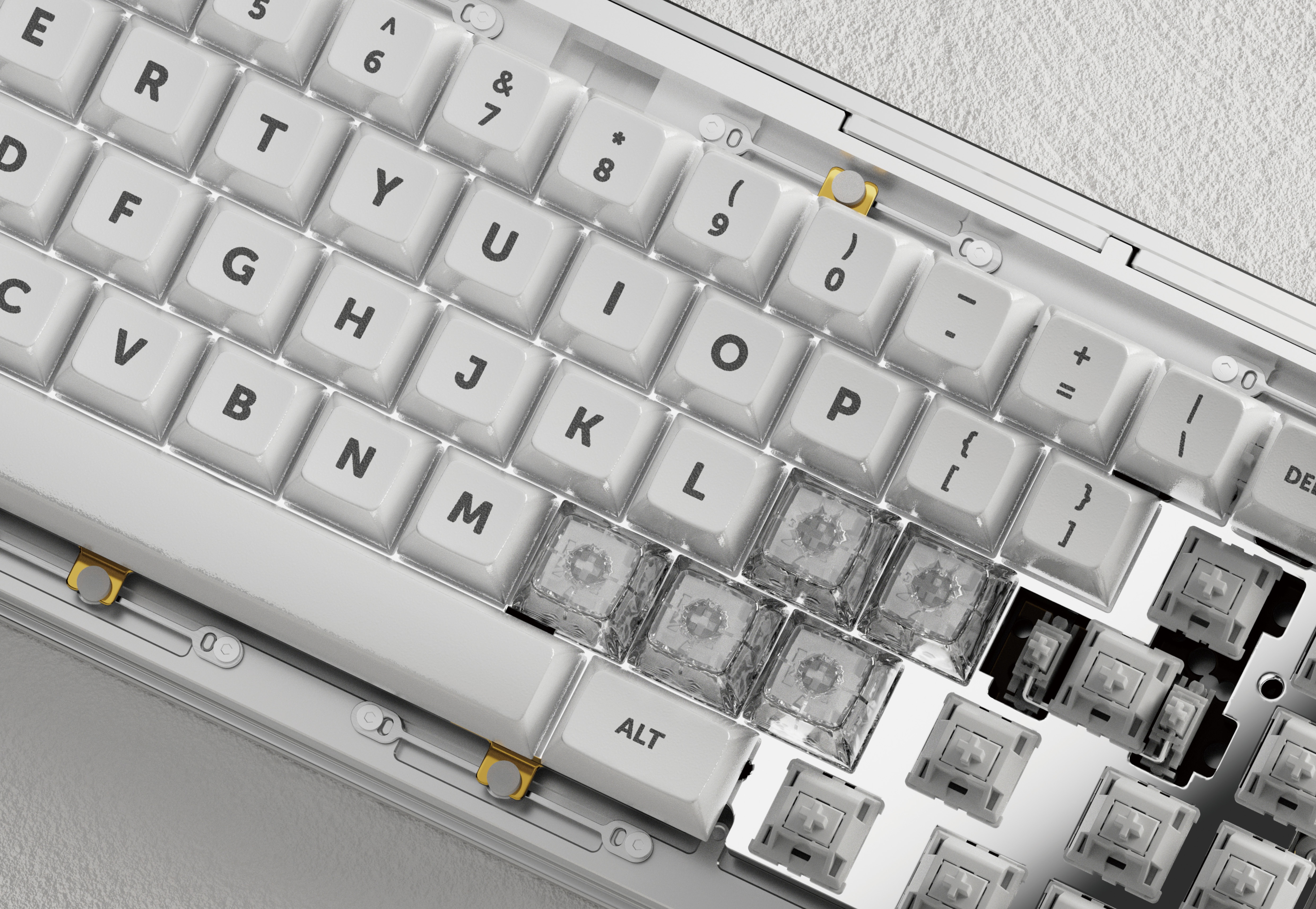

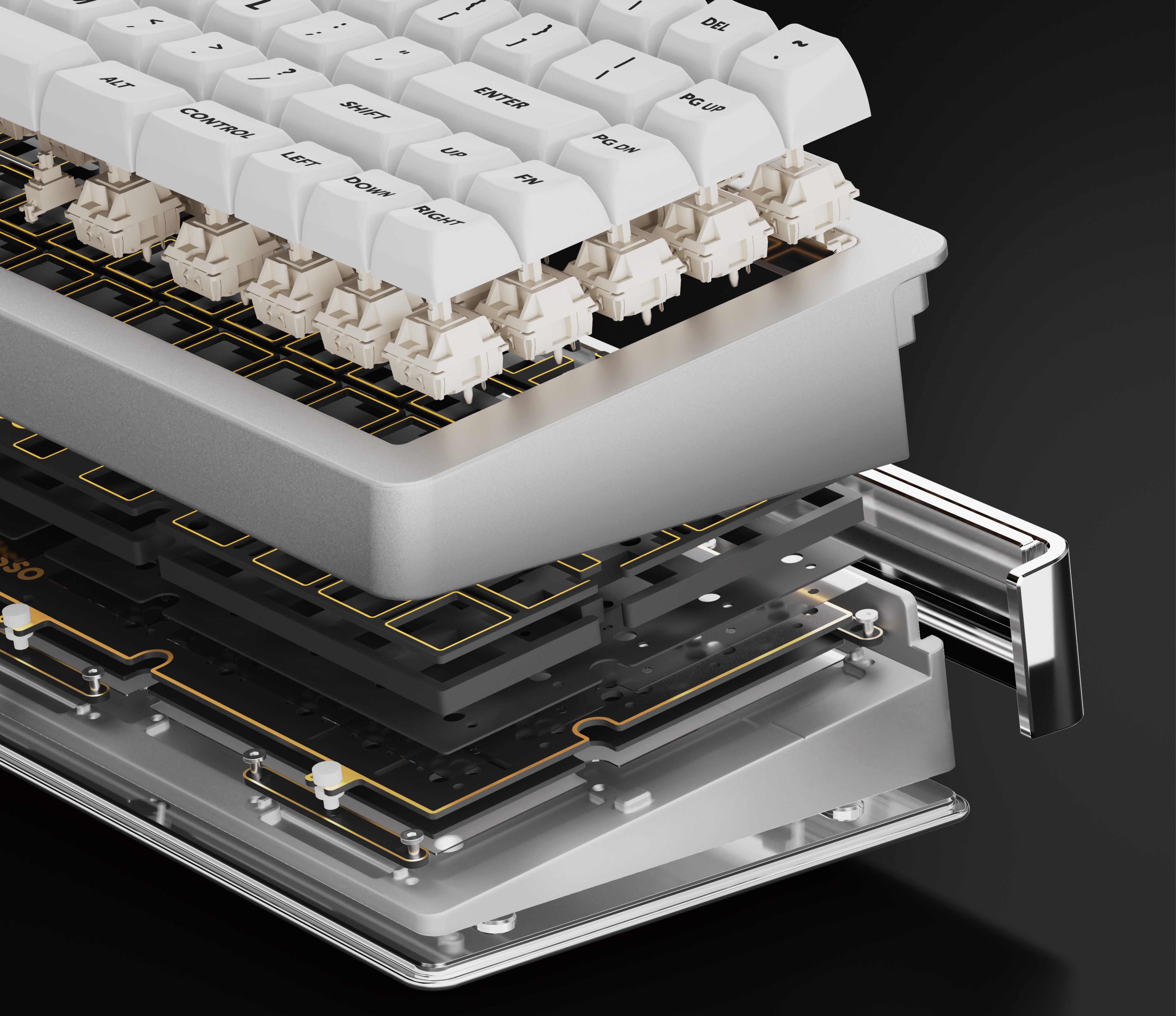

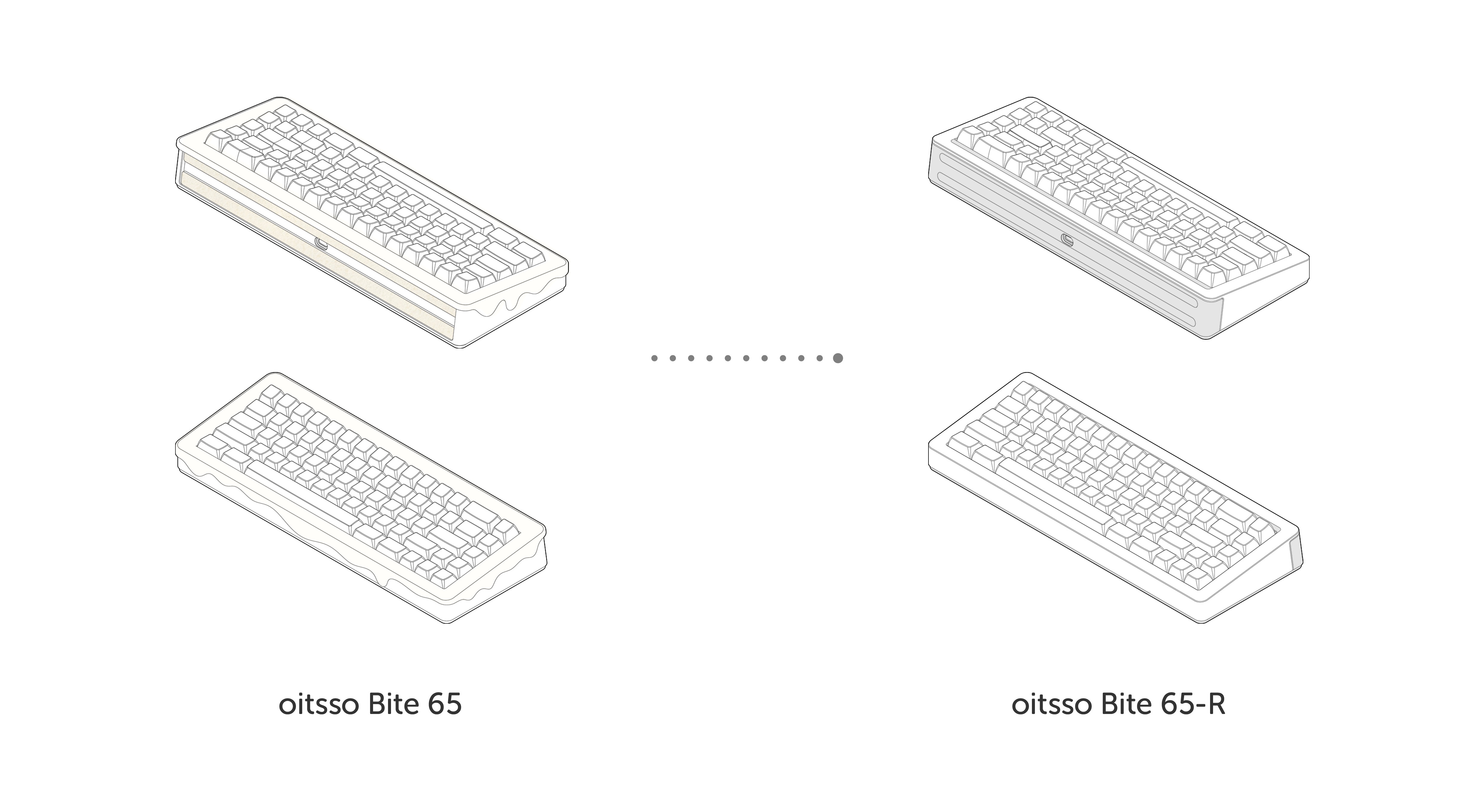

It uses the same PCB gasket structure as the Bite 65.
Offering eight different typing experiences through
2 types of silicone and four types of washers made of different materials.

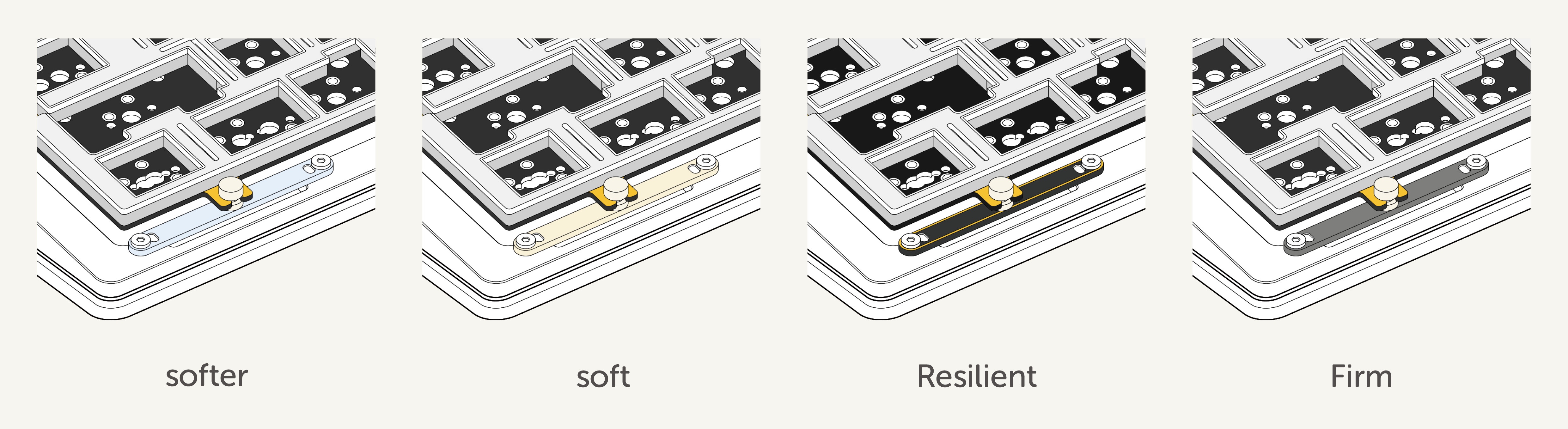

Washers: PC and POM are softer,
FR4 is more flexible, while stainless steel provides a firmer feel.

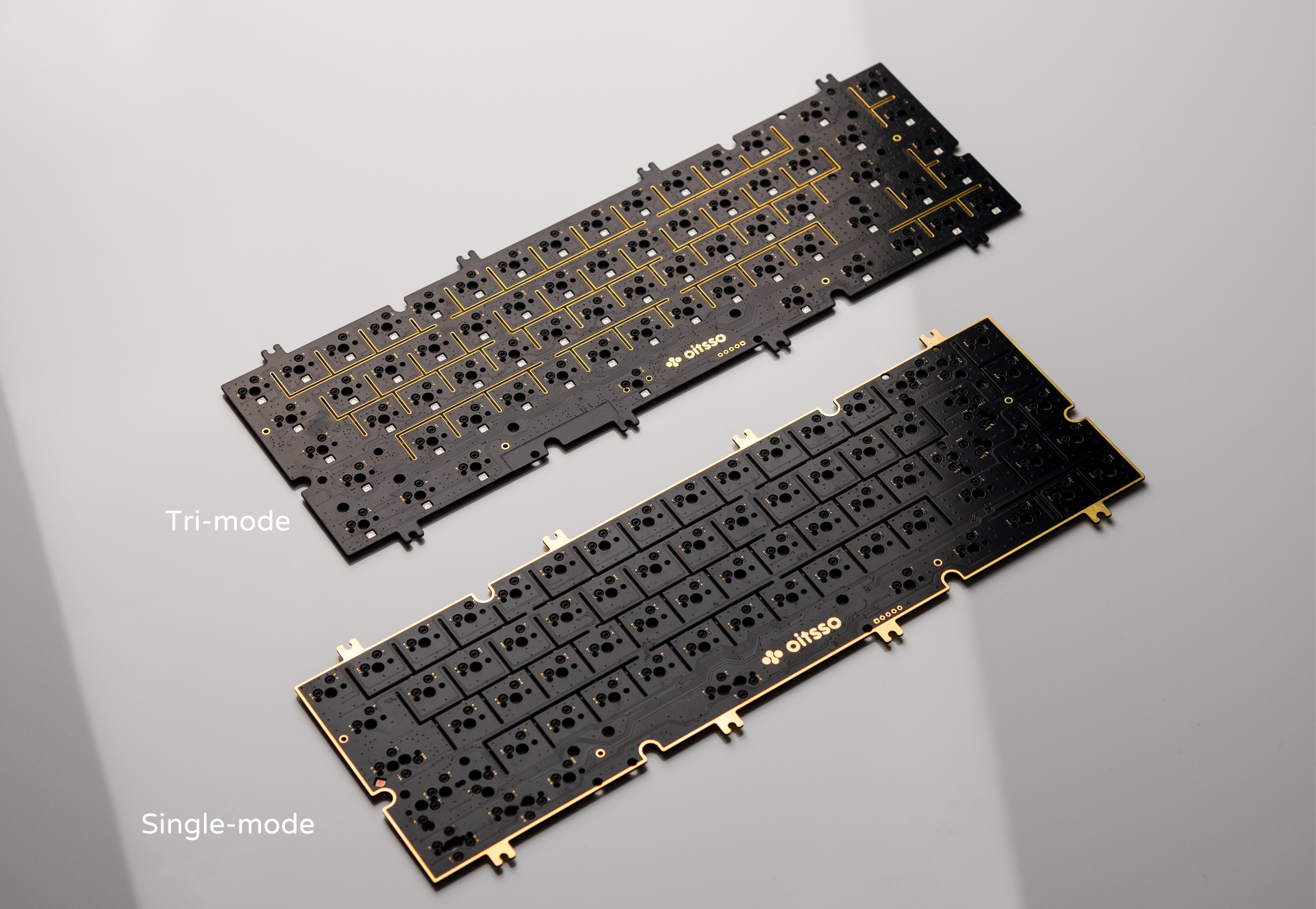

Similar to the Bite 65 PCB, both the single-mode and tri-mode versions support QMK and VIA,
with options for flex-cut and non-flex-cut versions.

The PCB is 1.2mm thick. The tri-mode version allows RGB lighting colors and effects to be directly adjusted through VIA,
and in tests, the latency for the 2.4G mode is approximately 8-10ms.

Foam kit including plate foam, bottom foam, IXPE switch pads,
PET switch pads, PCB foam, bottom foam, and PET sheet.

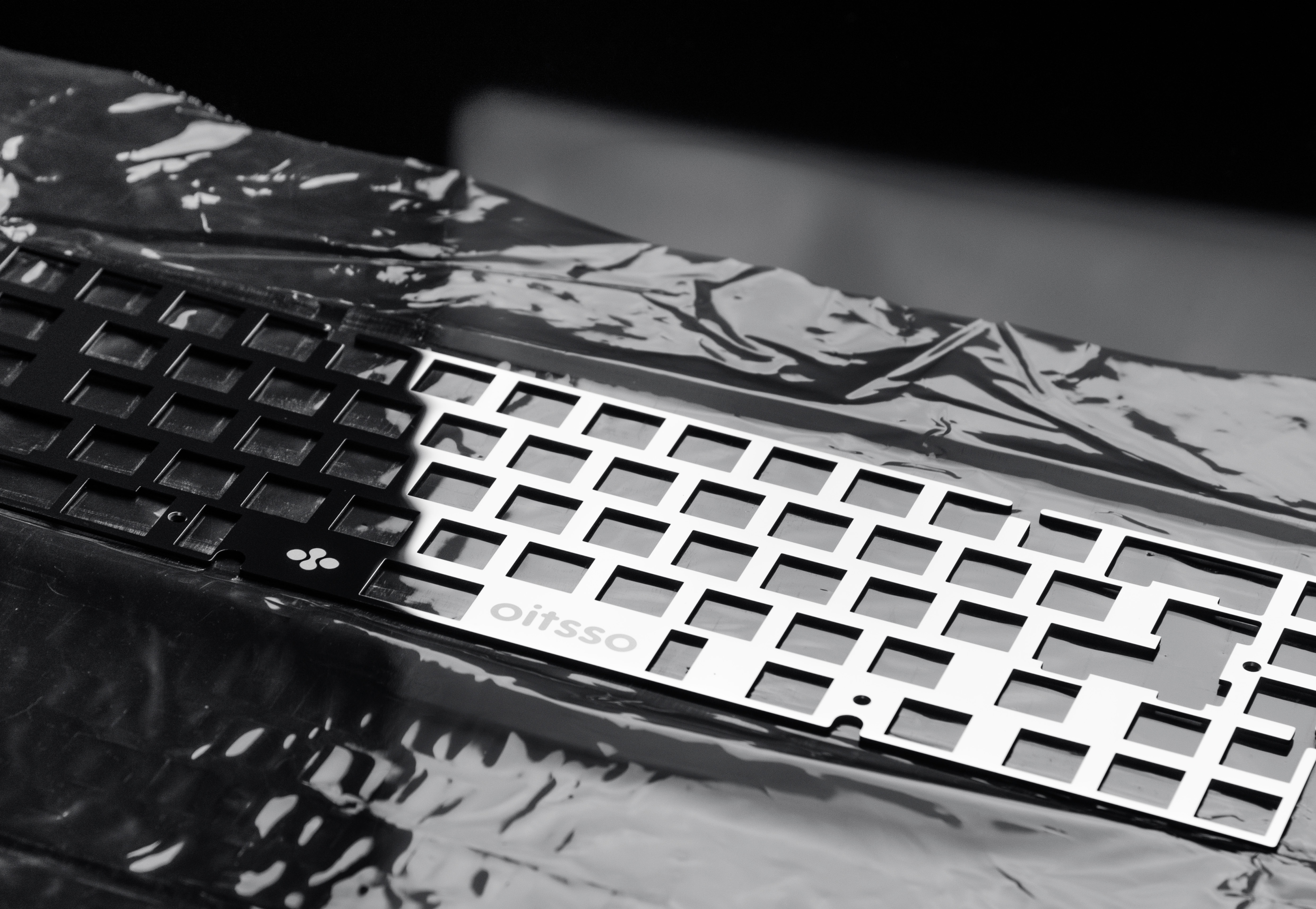

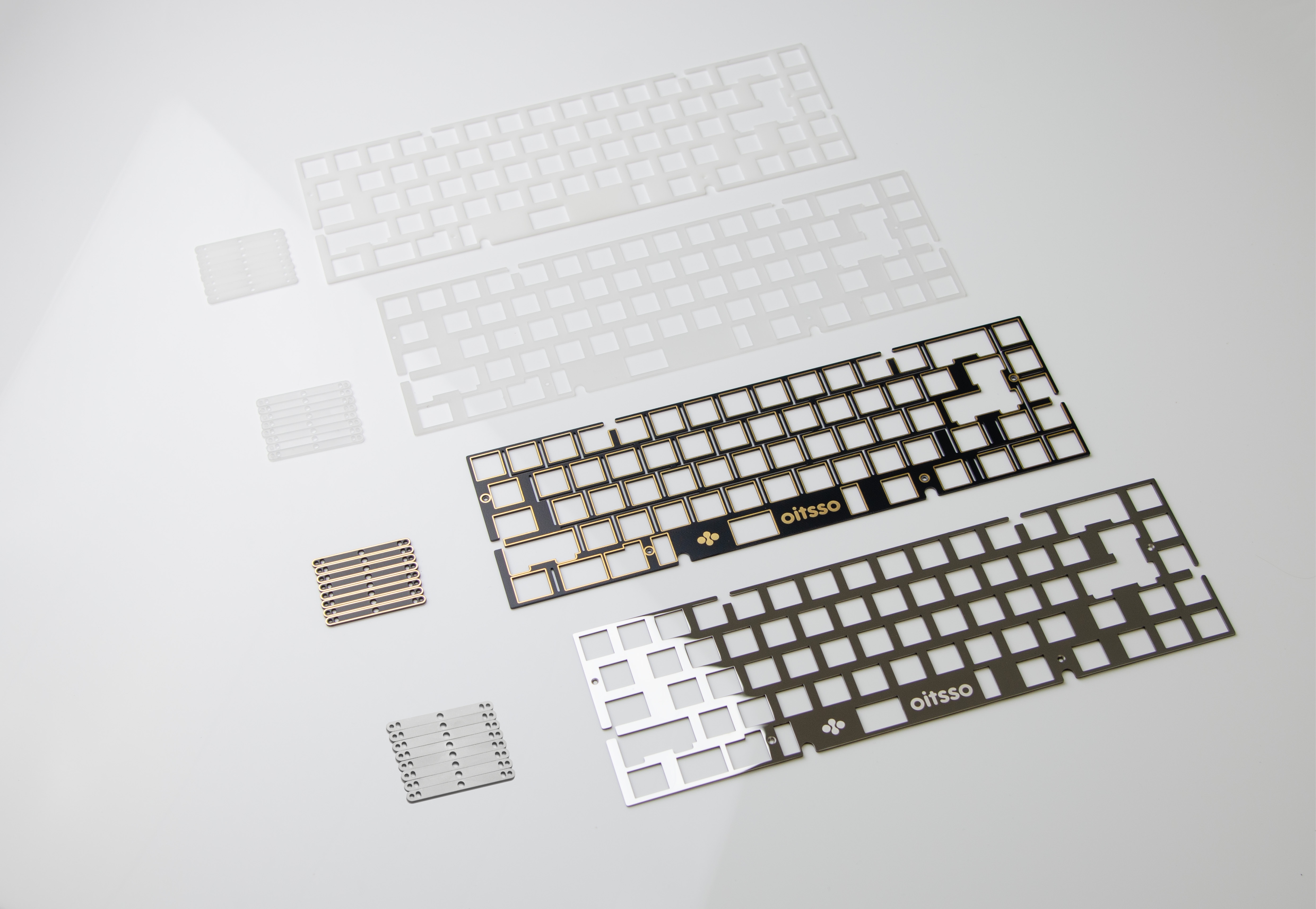

The FR4 plate is flex-cut, while POM, PC, and stainless steel are available in non-flex-cut.

Standard setup includes an FR4 plate×1，FR4 & PC washers×8

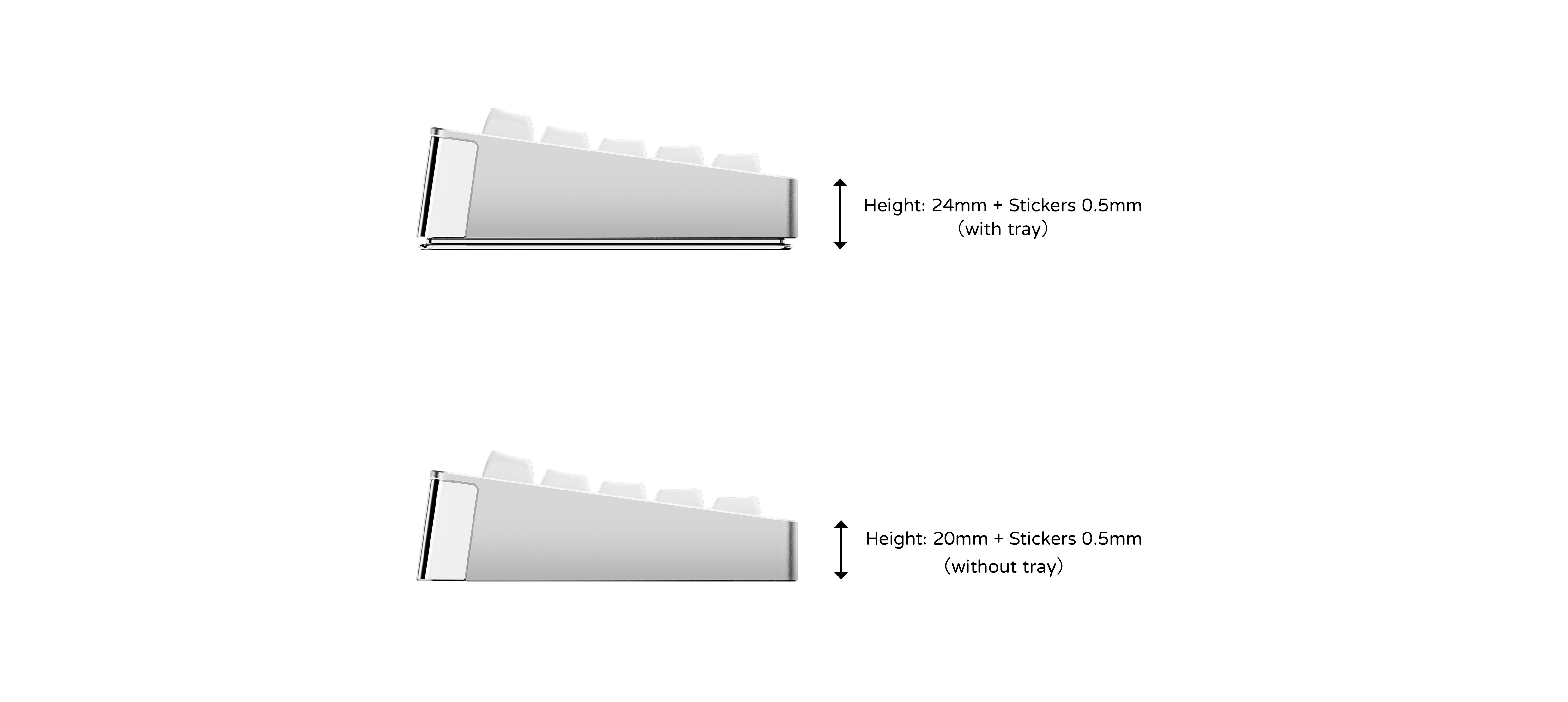

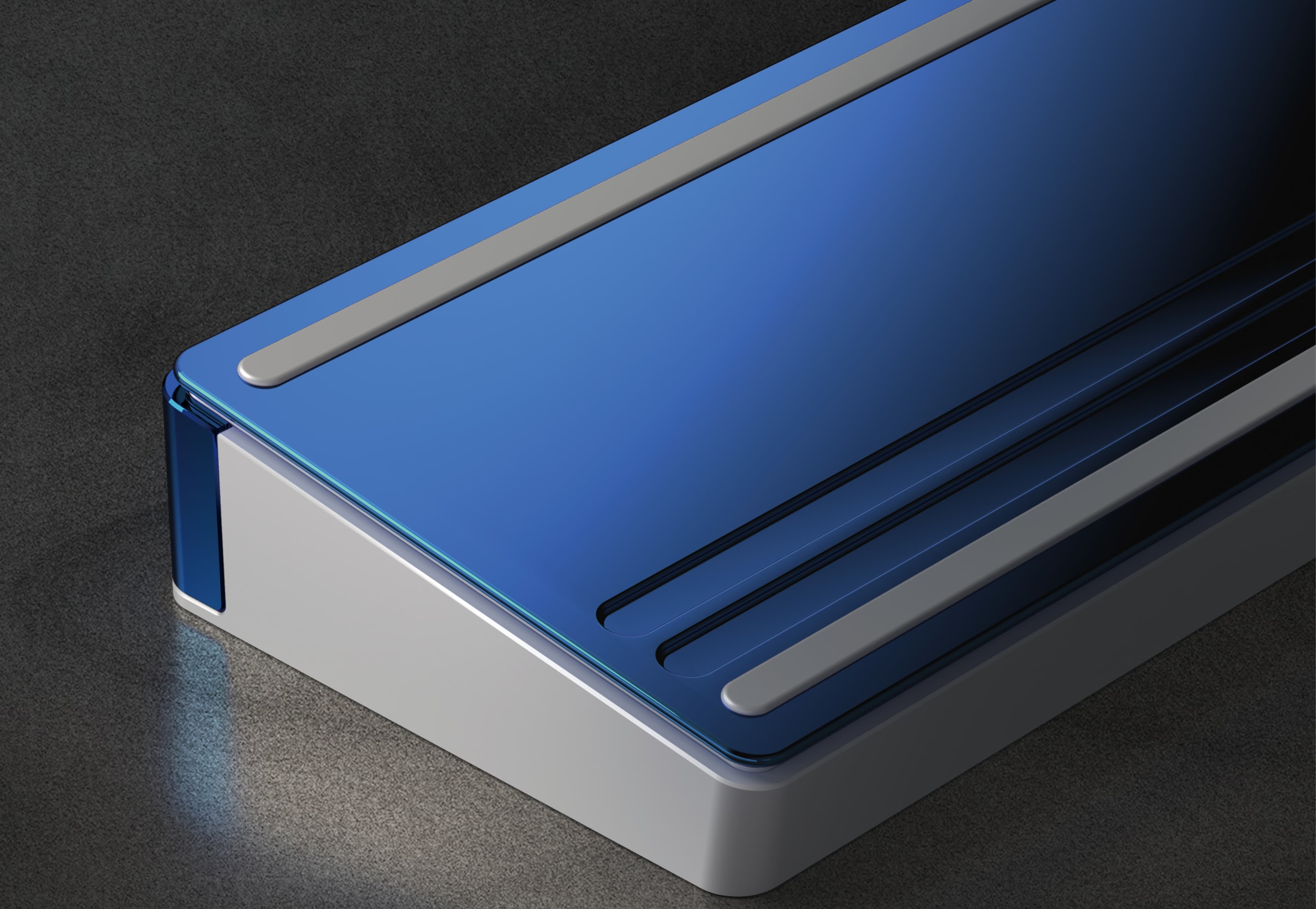

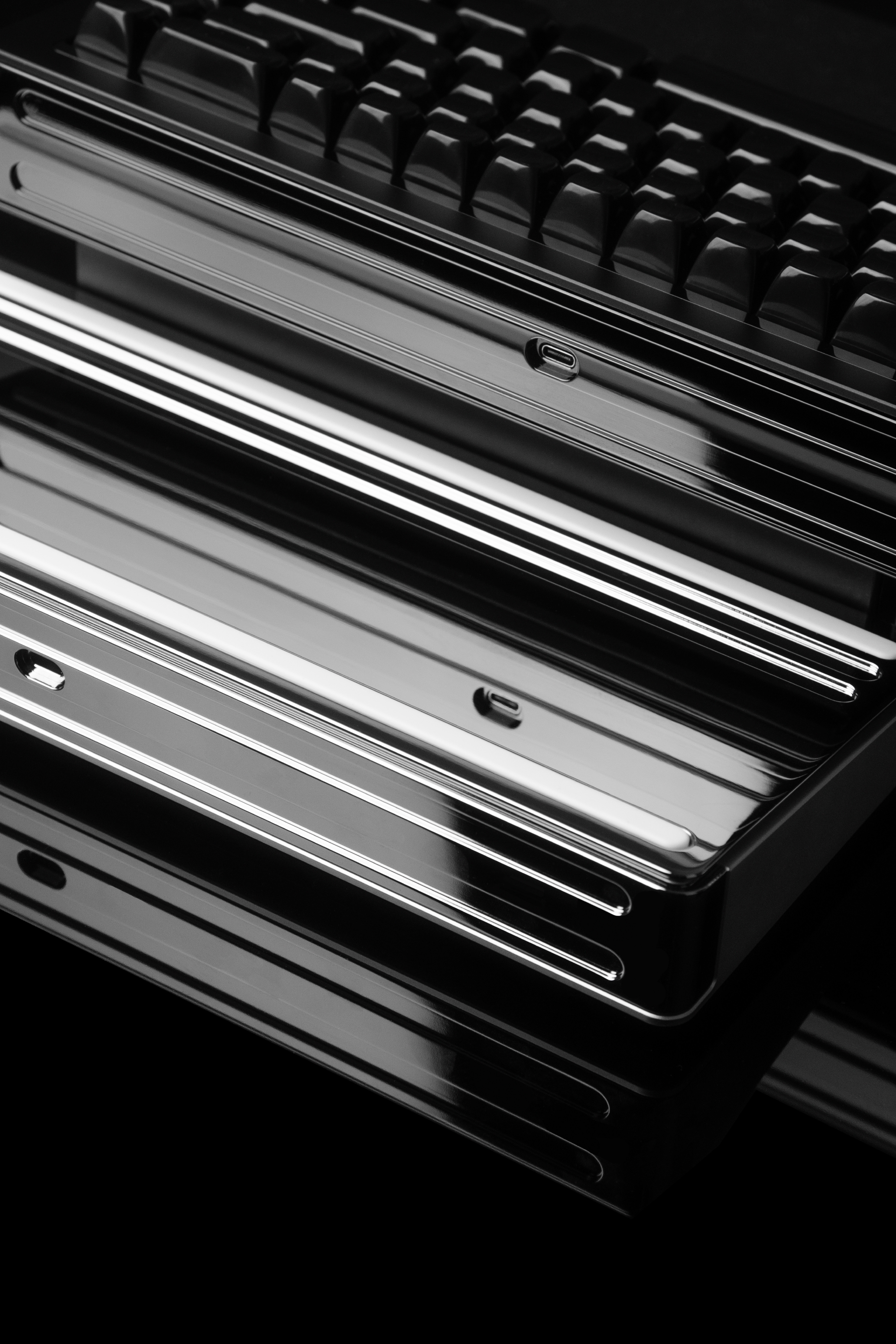

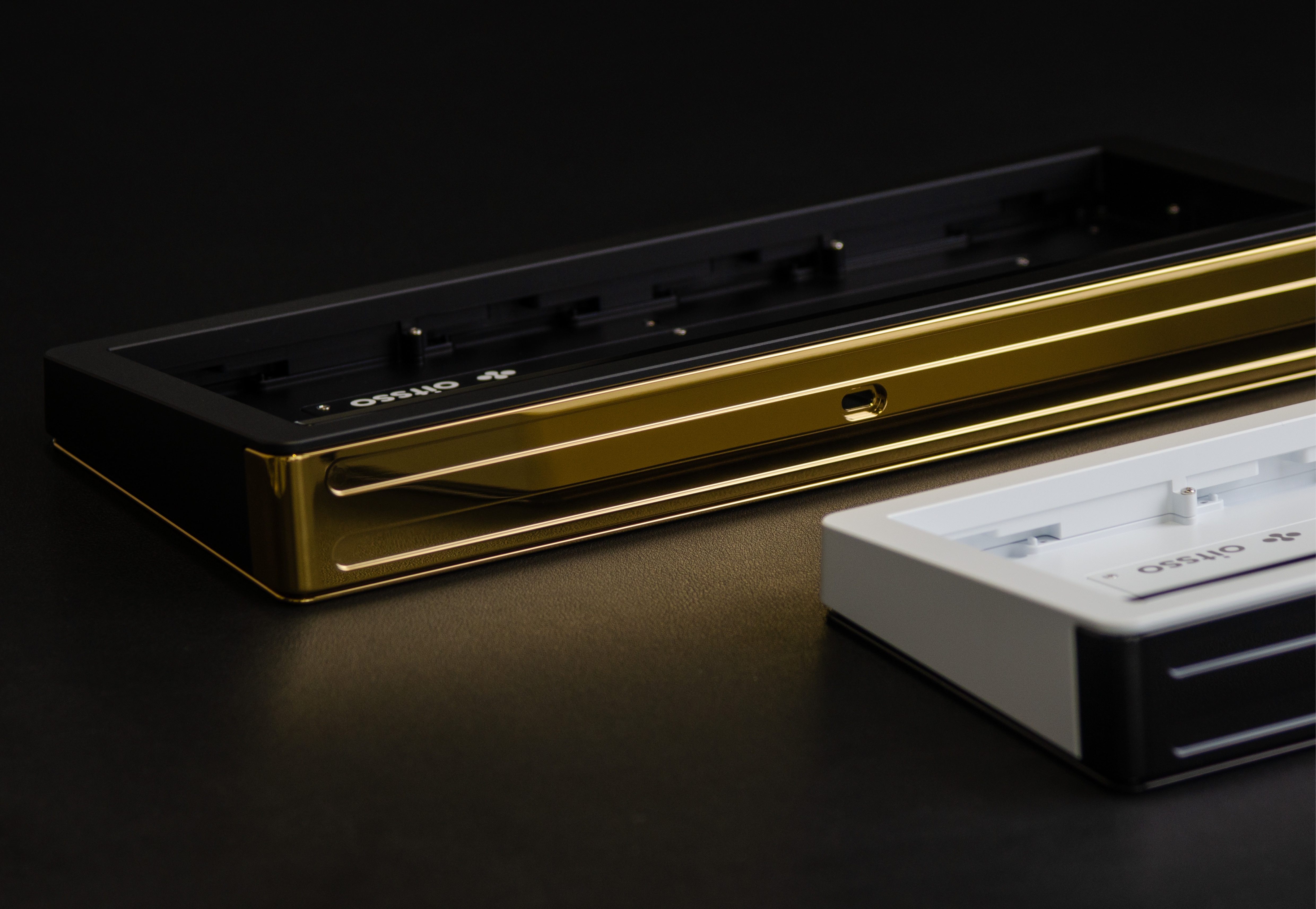

The base includes a removable tray, providing two adjustable front height options.
Slots for foot pads are integrated into the base, ensuring foot pads can be installed even when the tray is detached.

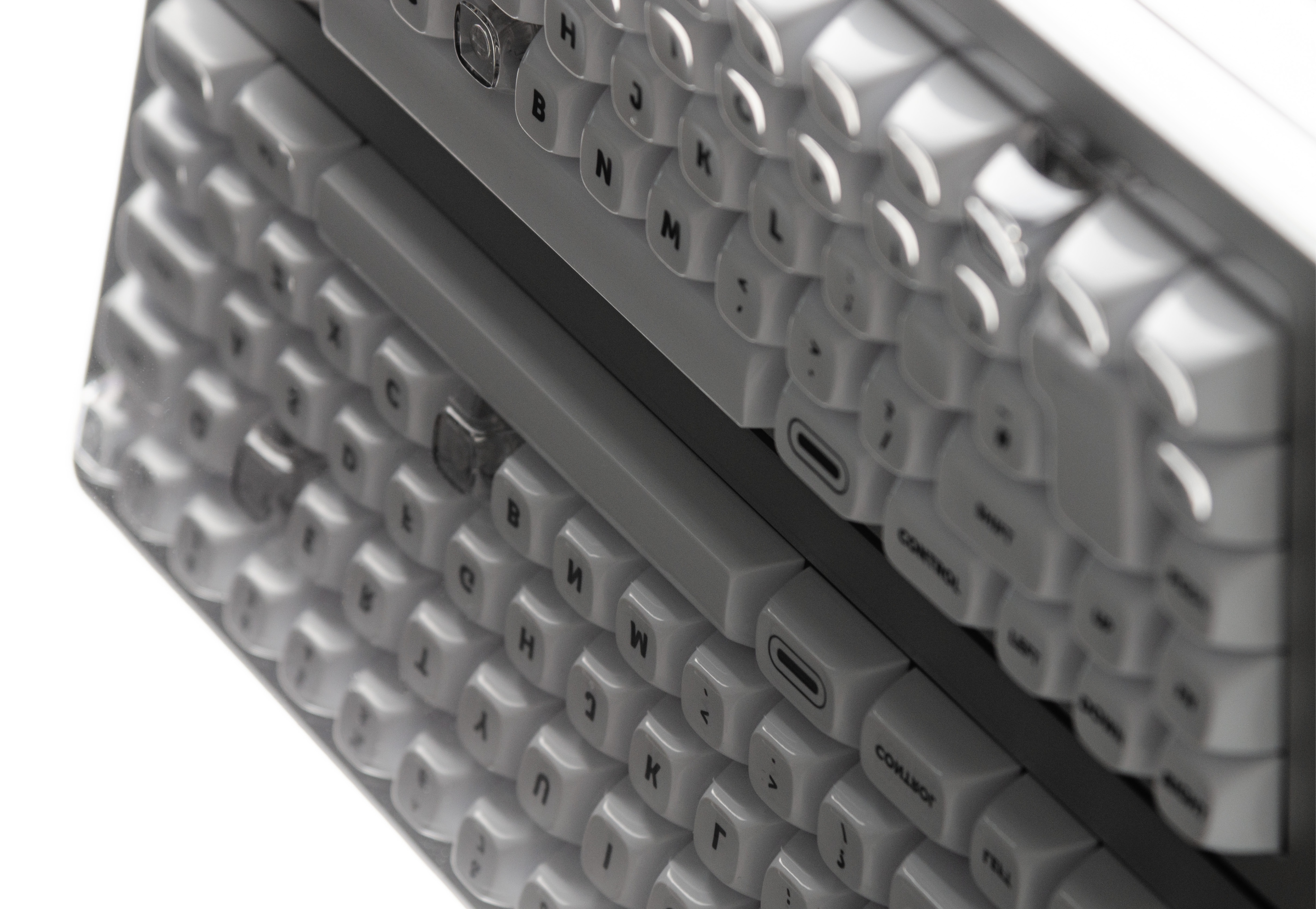

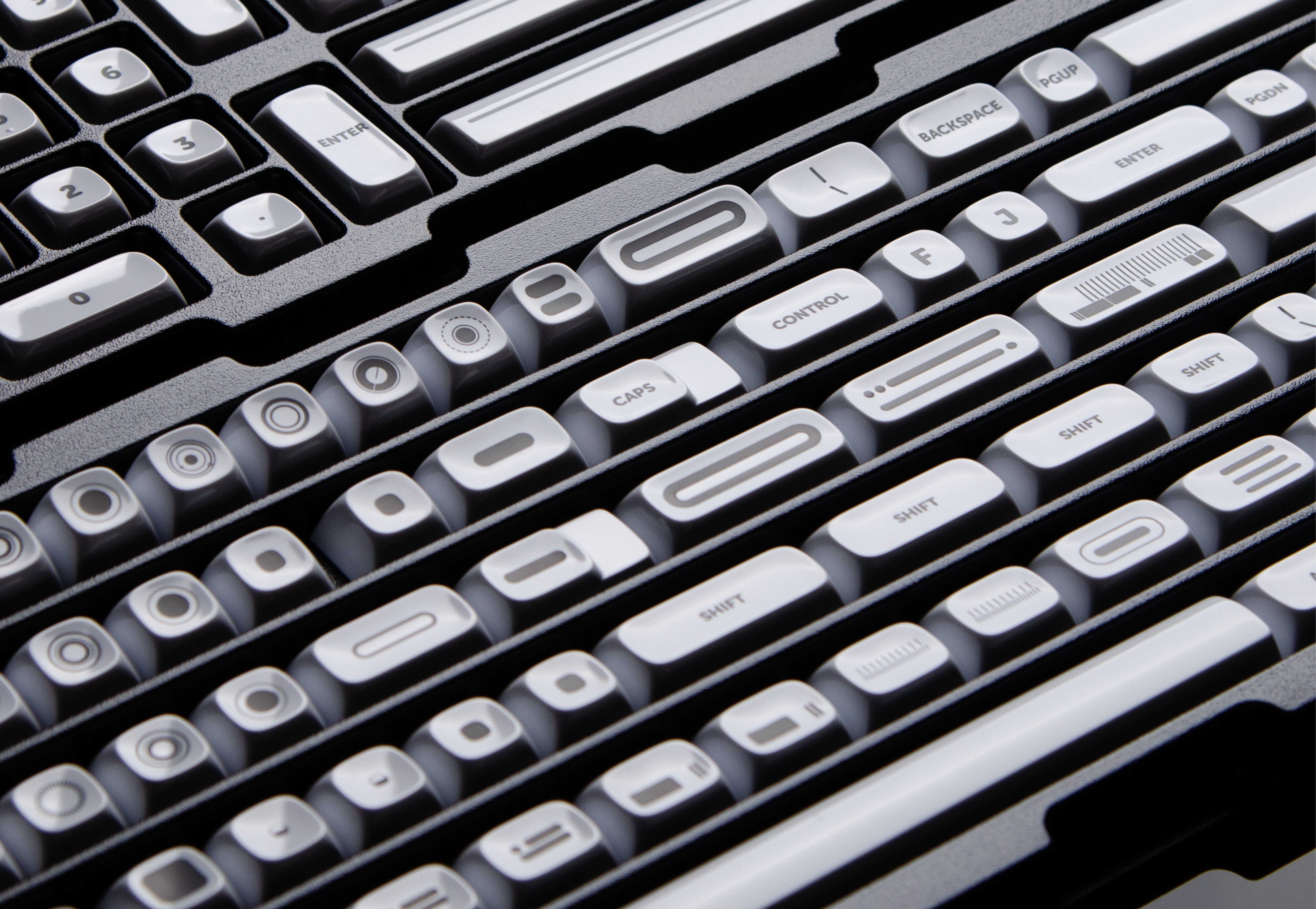

Our Trail Shadow Keycap was inspired by the twinkling stars and mysterious galaxies in the night sky.
They capture the subtle contrast between starlight and shadow, outlining the sparkle of stars and the swirling of galaxies.

l Keycap Profile: GSA

l Keycap Production Technique: Ultra-Durable Thermal Screen Printing

l Manufacturer: WINMIX

The surface patterns and characters use high-temperature cured screen printing,
offering wear and wash resistance, and preventing fading or peeling.
Avoid scratching the keycaps with hard objects and using cleaners with over 75% alcohol.

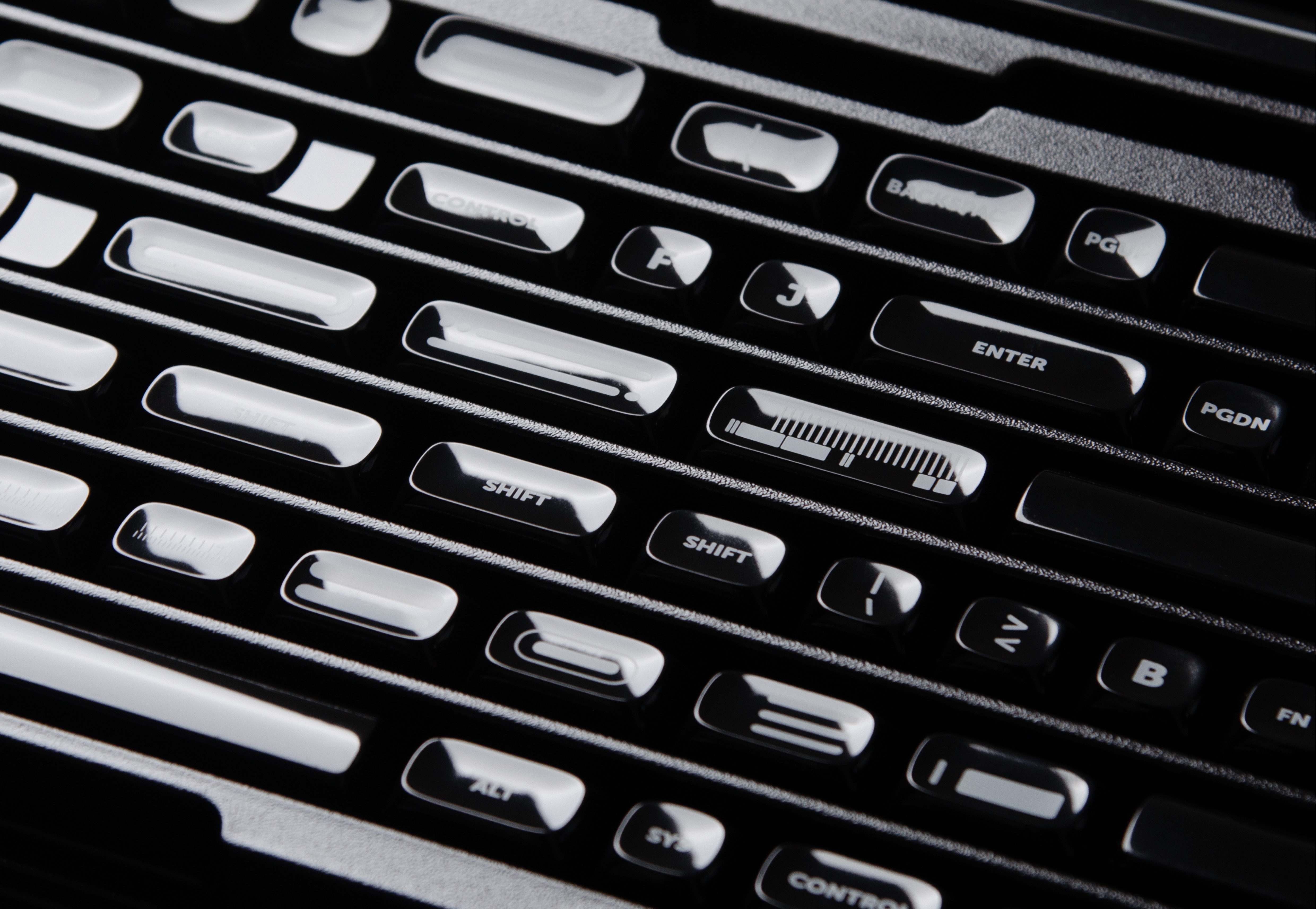

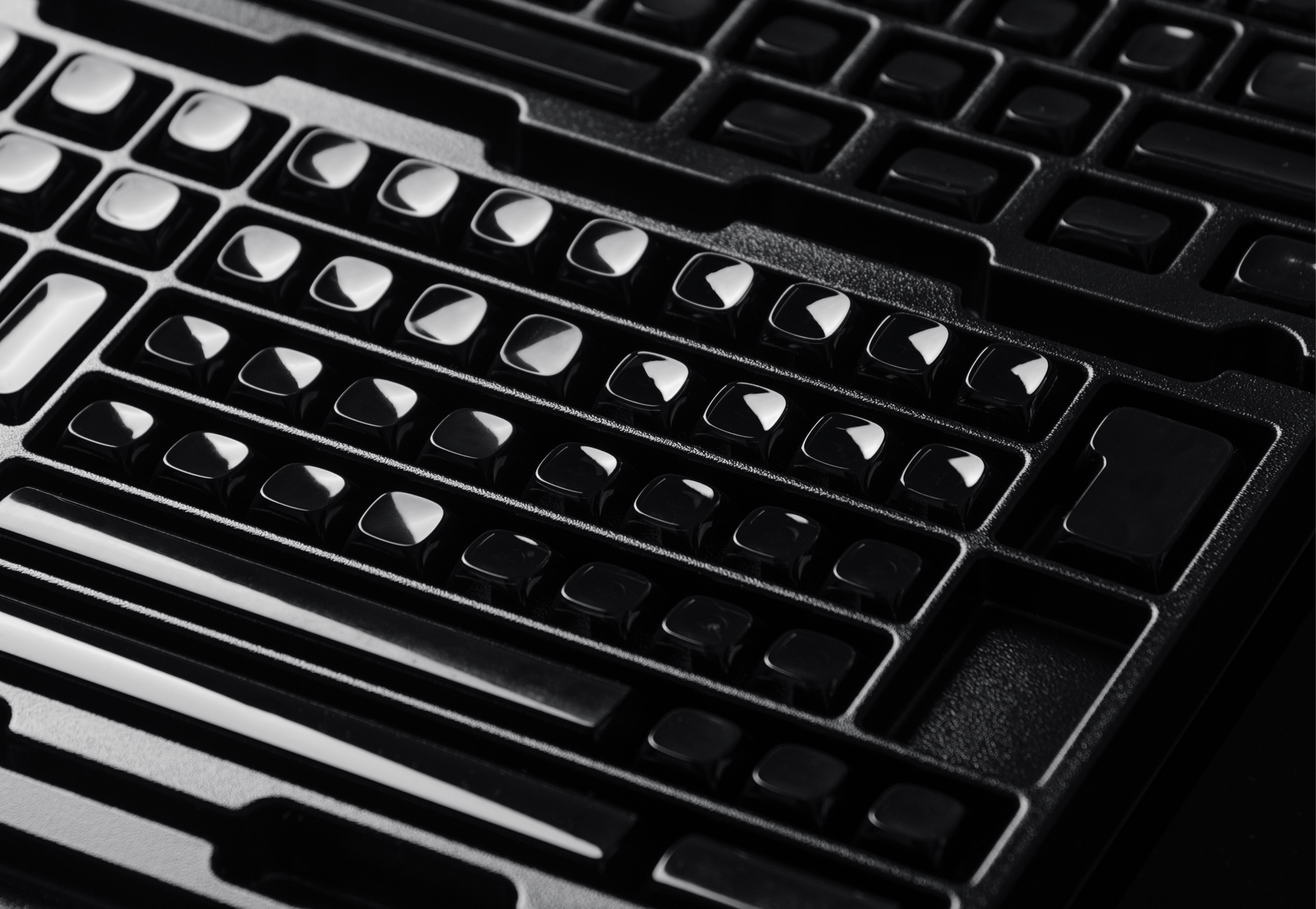

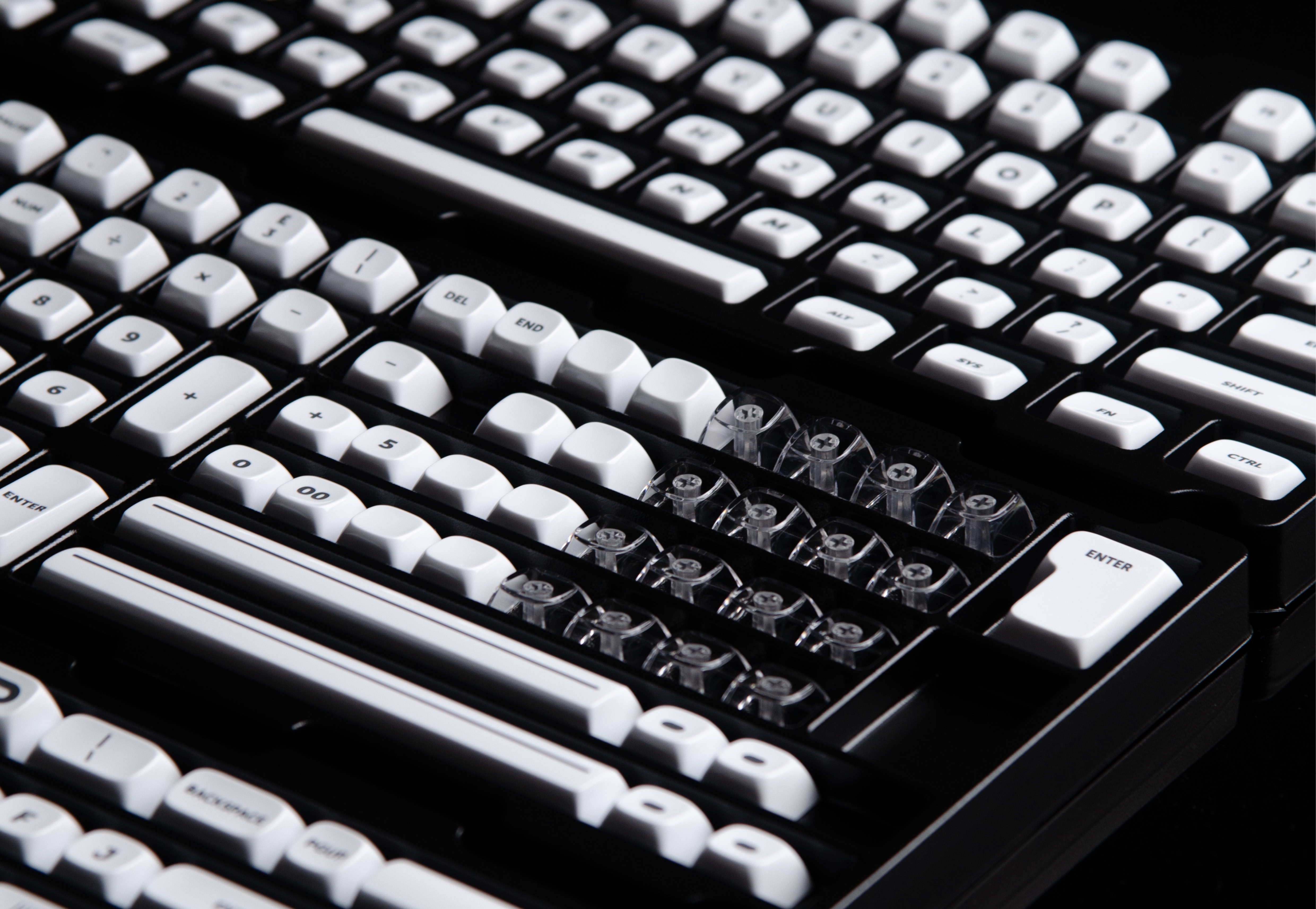

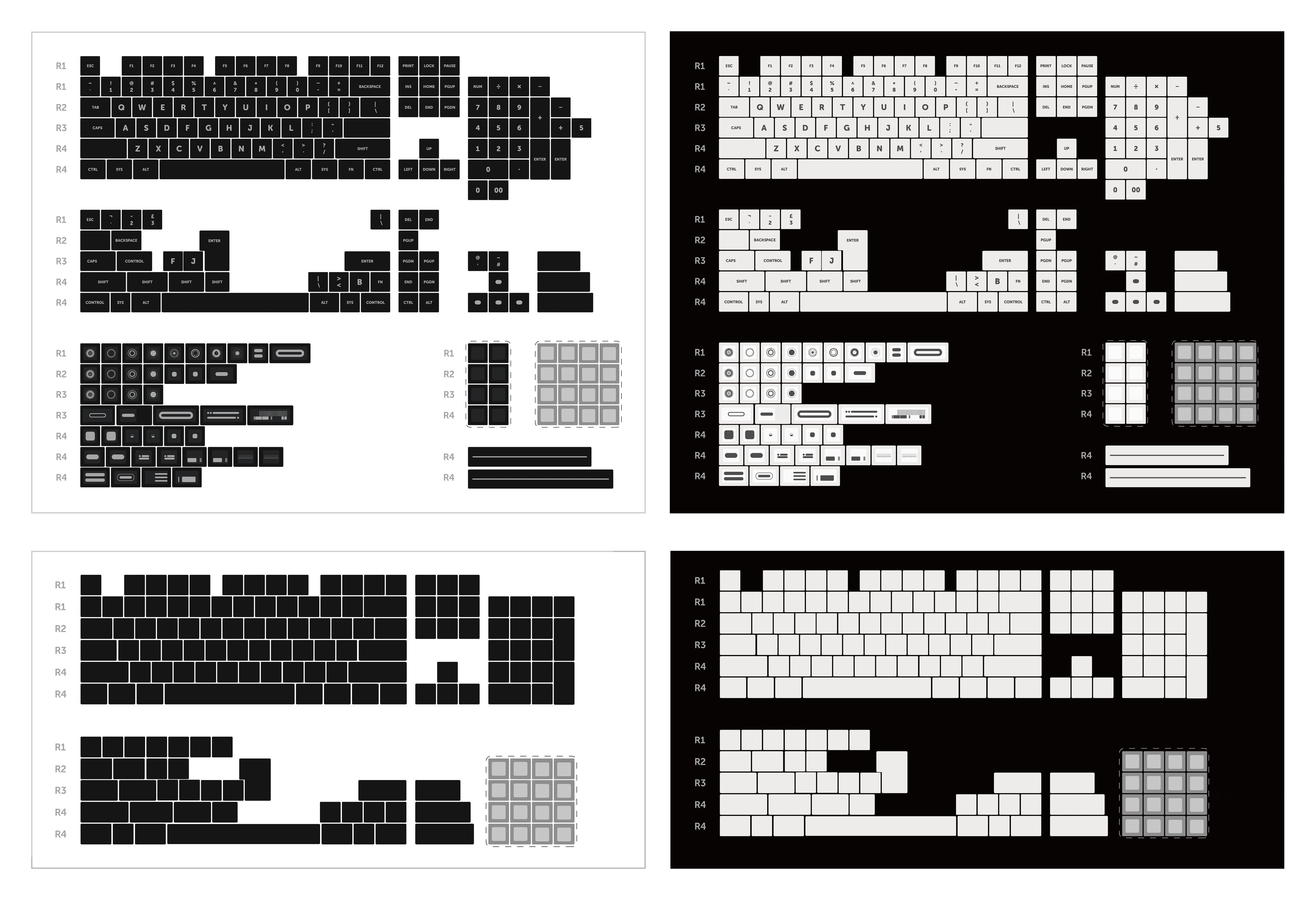

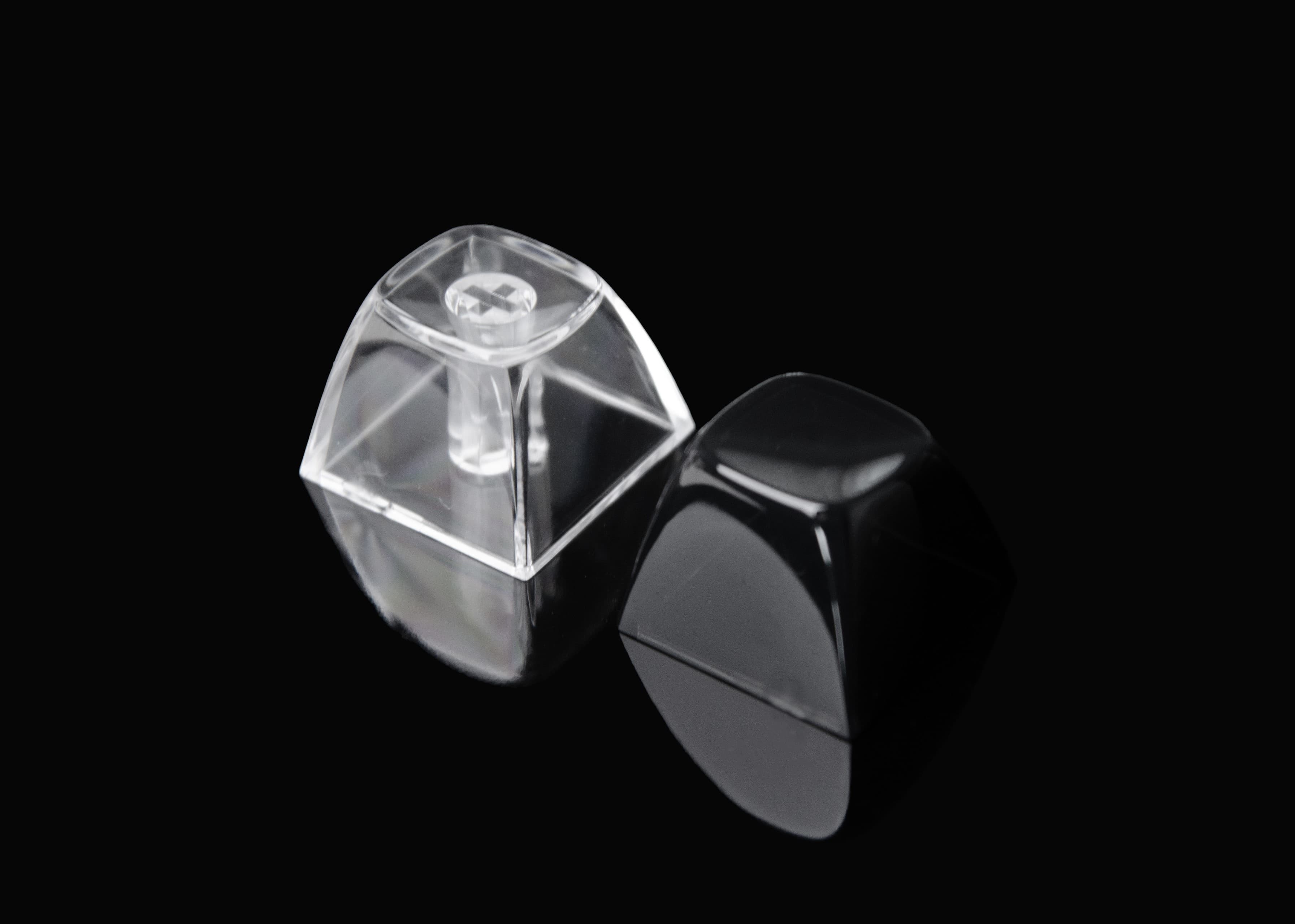

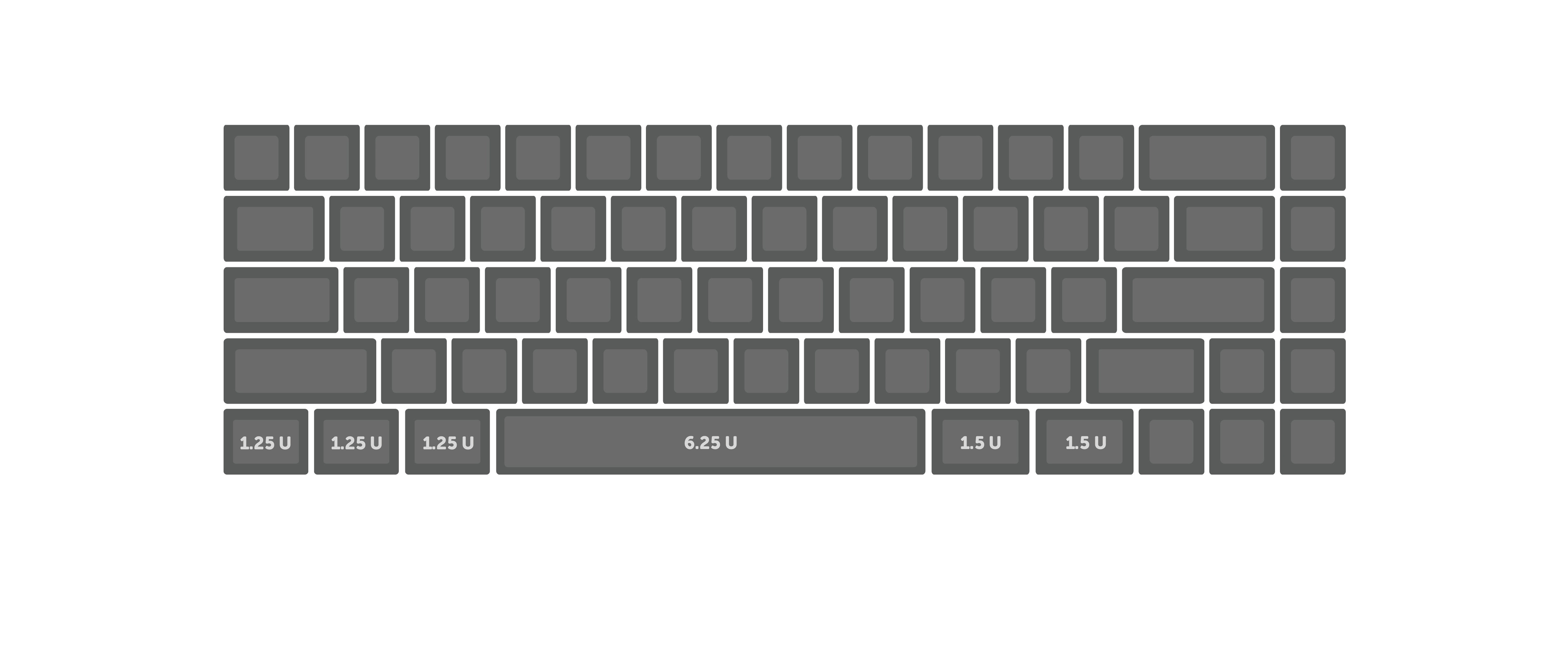

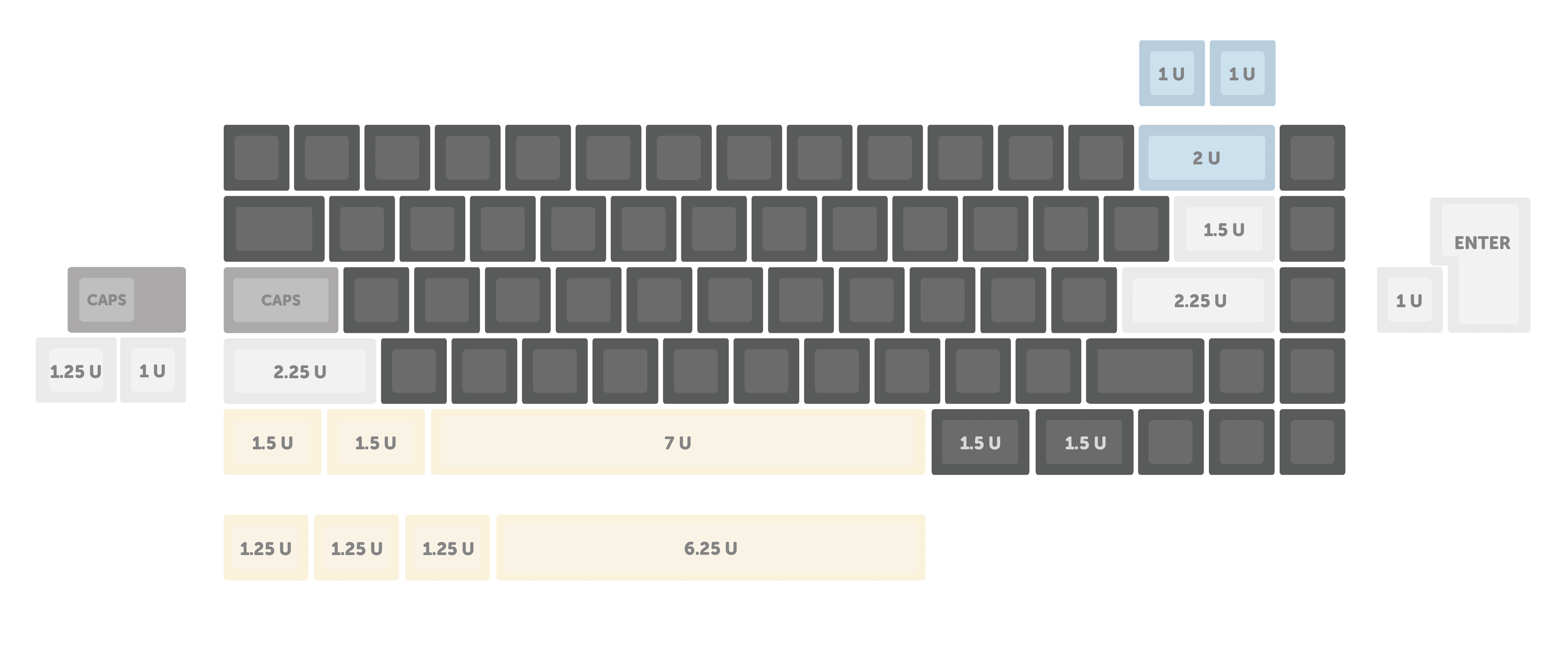

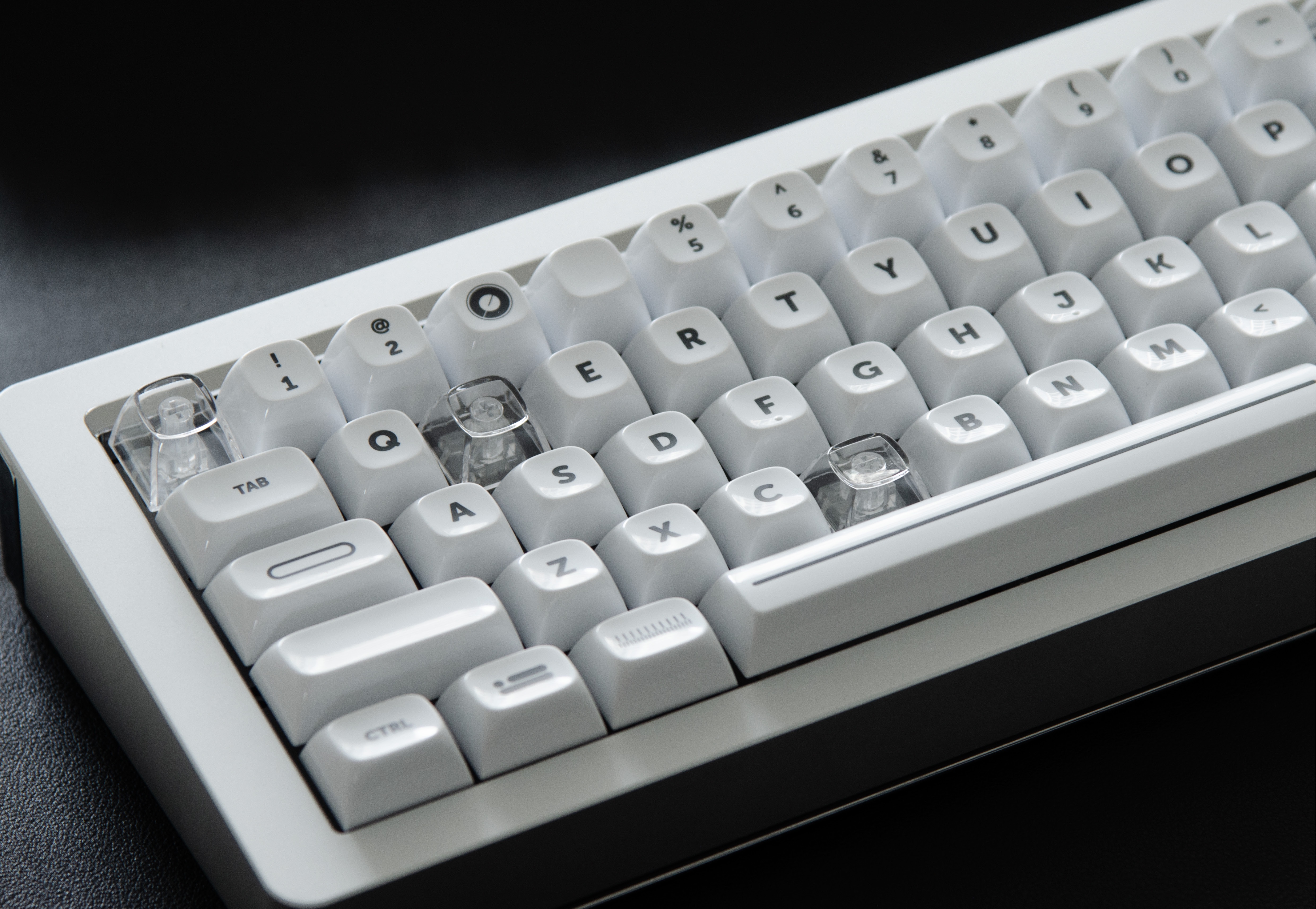

Each set includes 16 transparent PC keycaps and 8 blank keycaps.

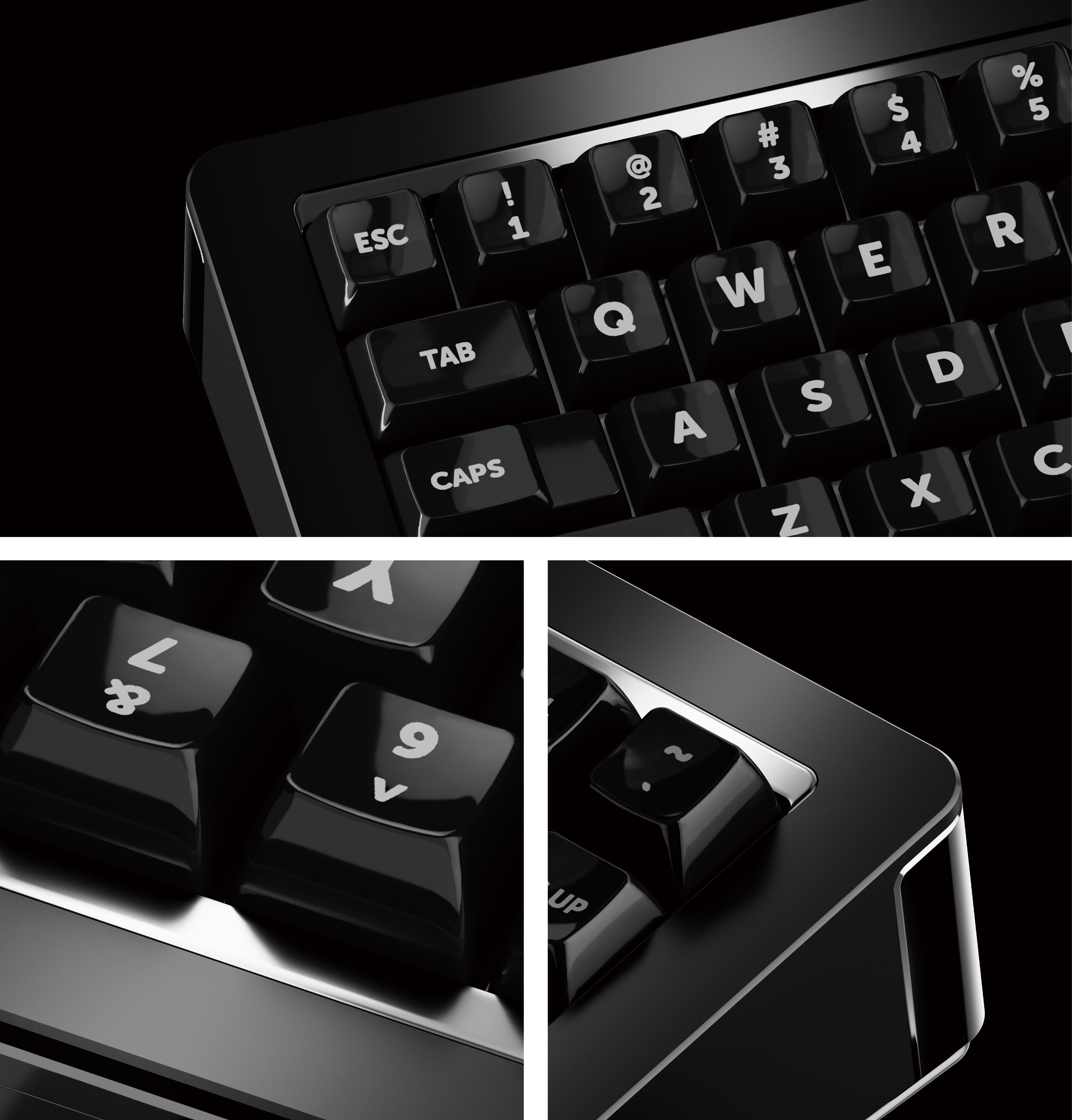

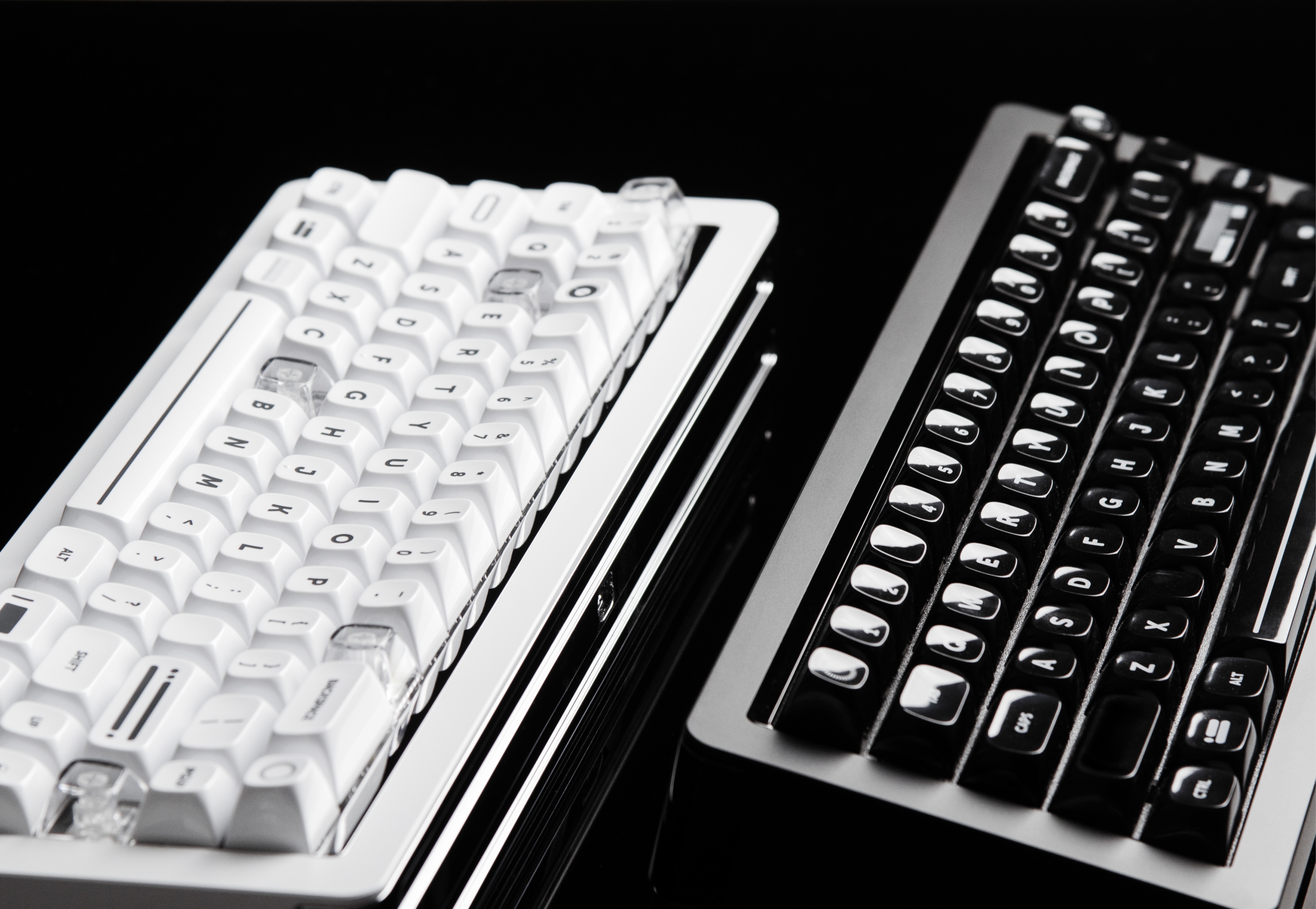

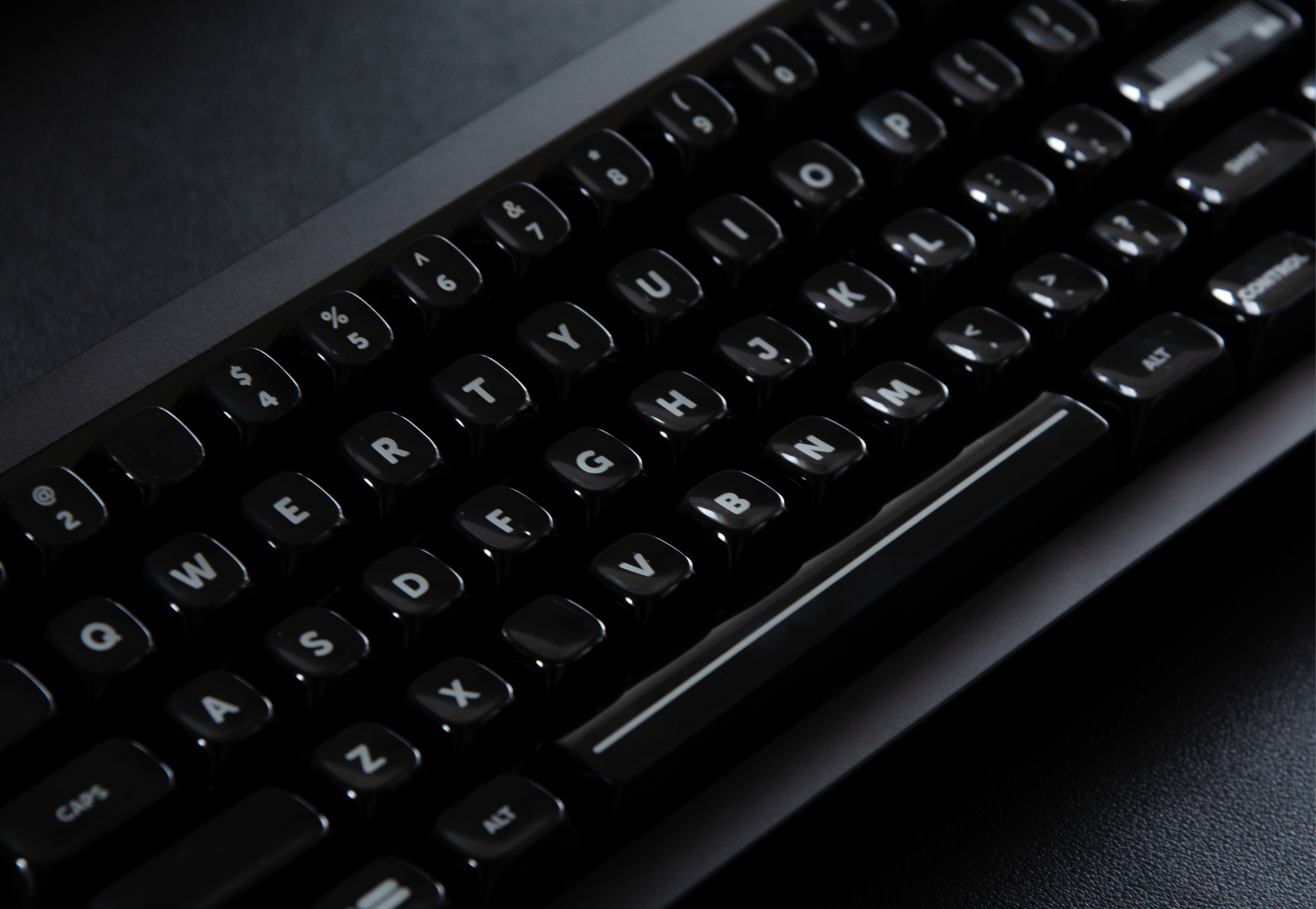

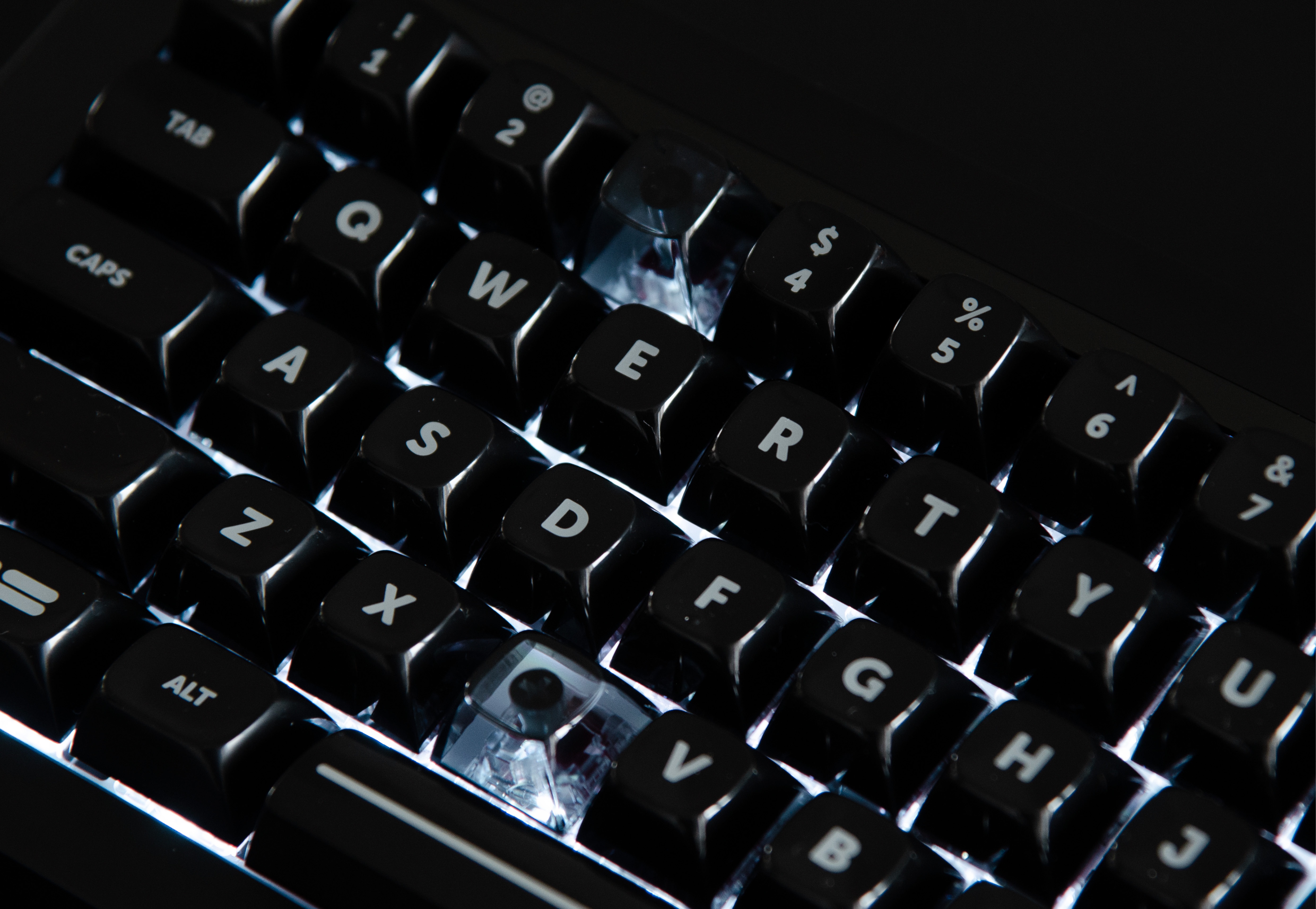

The black keycaps are made from translucent black PC material,

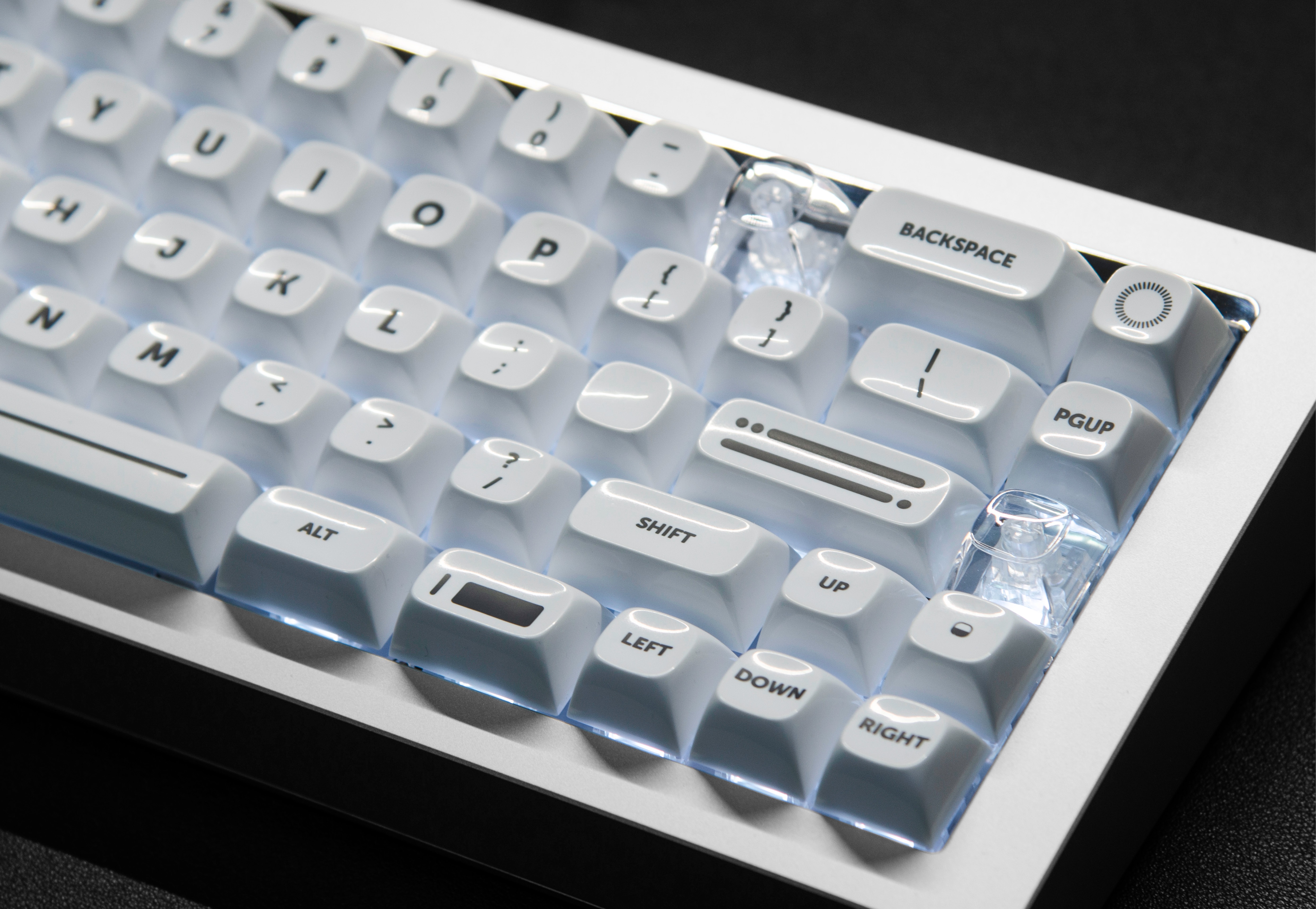

while the white keycaps are made from fully transparent PC material.

Due to the unique mold of the GSA profile, the injection molding marks on the back of the PC keycaps may be slightly visible.
Please refer to the pictures for reference.
