'Orca' 65% keyboard from Linworks

geekhackenriched

0 followers0 bookmarks0 comments

Description

ORCA by Linworks

Dolphin was a beloved keyboard known for its distinctive curved profile, first introduced in the early 2010s.
We cherished not only its appearance but also the exceptional typing experience offered by its sandwich mount.

Linworks embarked on a journey to create a unique and innovative successor to Dolphin, the Orca.
They explored various design approaches, aiming to maintain the essence of Dolphin while introducing something truly new.

After years of deliberation, we proudly present Orca, the latest addition to the Dolphin keyboard lineup.
Inspired by the legacy of Dolphin, Orca incorporates a bottom-mounting design.
This design choice delivers a lower-pitched sound with a more balanced resonance, offering a distinct typing experience.

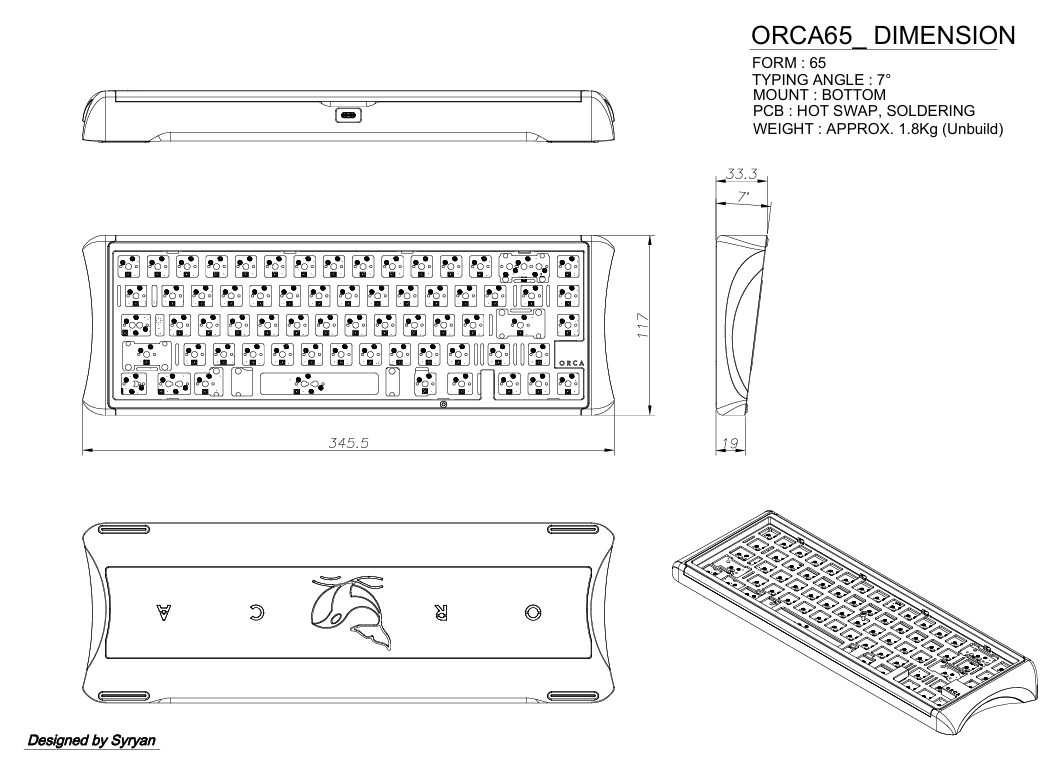

Product Specifications:
Layout: 65%
Mounting: Bottom mount
PCB: FAve65H (hotswap, 1.6T, fixed 6.25u), FAve65S (solder, 1.6T, can use 7u)
Typing angle: 7 degrees
Base Kit: Aluminum top and bottom // PC or Aluminum plate // Brass weight (Black coating option available)
Price: USD 330 (Not including PCB)

Color Options:
Top and bottom color: Choose from silver, black, or gray (total of 9 combinations)
Plate: Aluminum (black anodizing)
Weight: Brass coating / black coating (+10 USD)

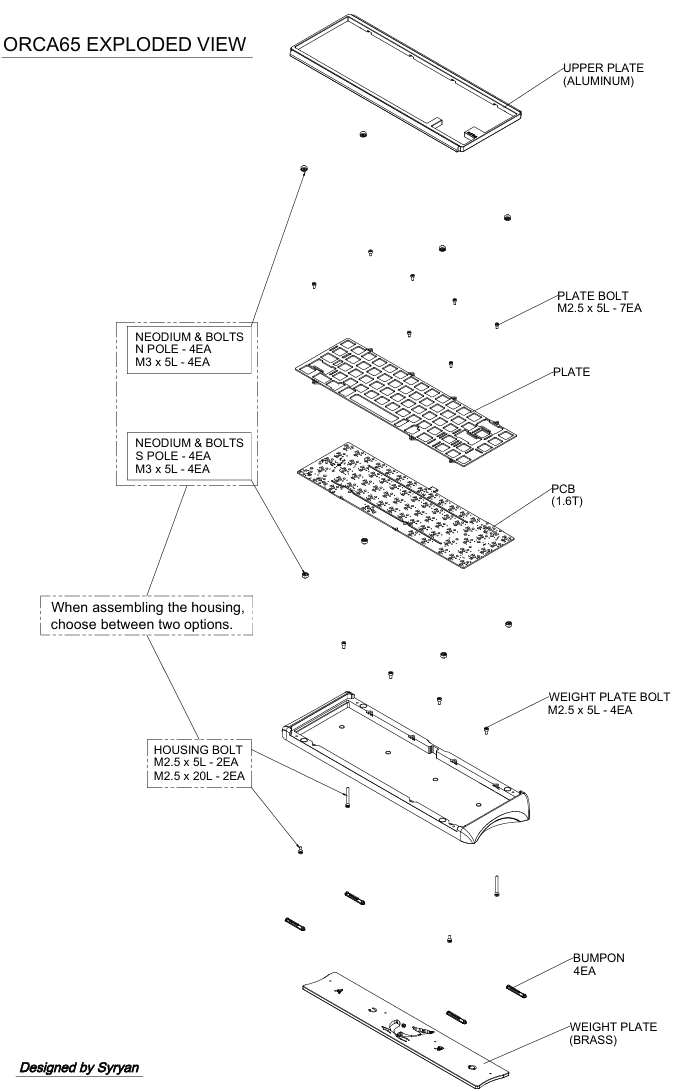

Exploded View:

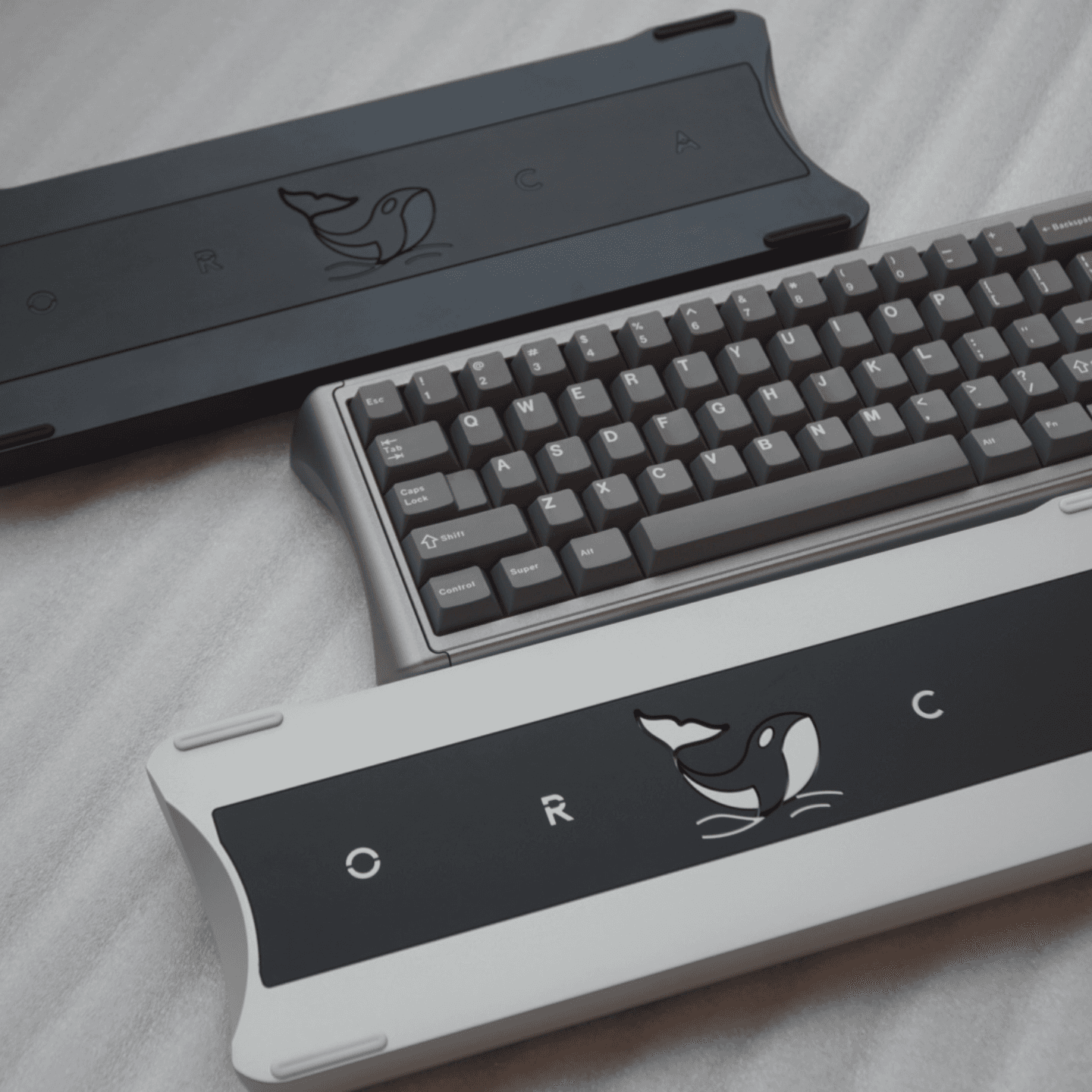

Bottom Weight Design:

What’s Included in the base kit:
Aluminum top and bottom housing
Plate (aluminum or PC)
Brass weight (Brass Clear Coated or Black Coated)
Screws and bumpers x 1

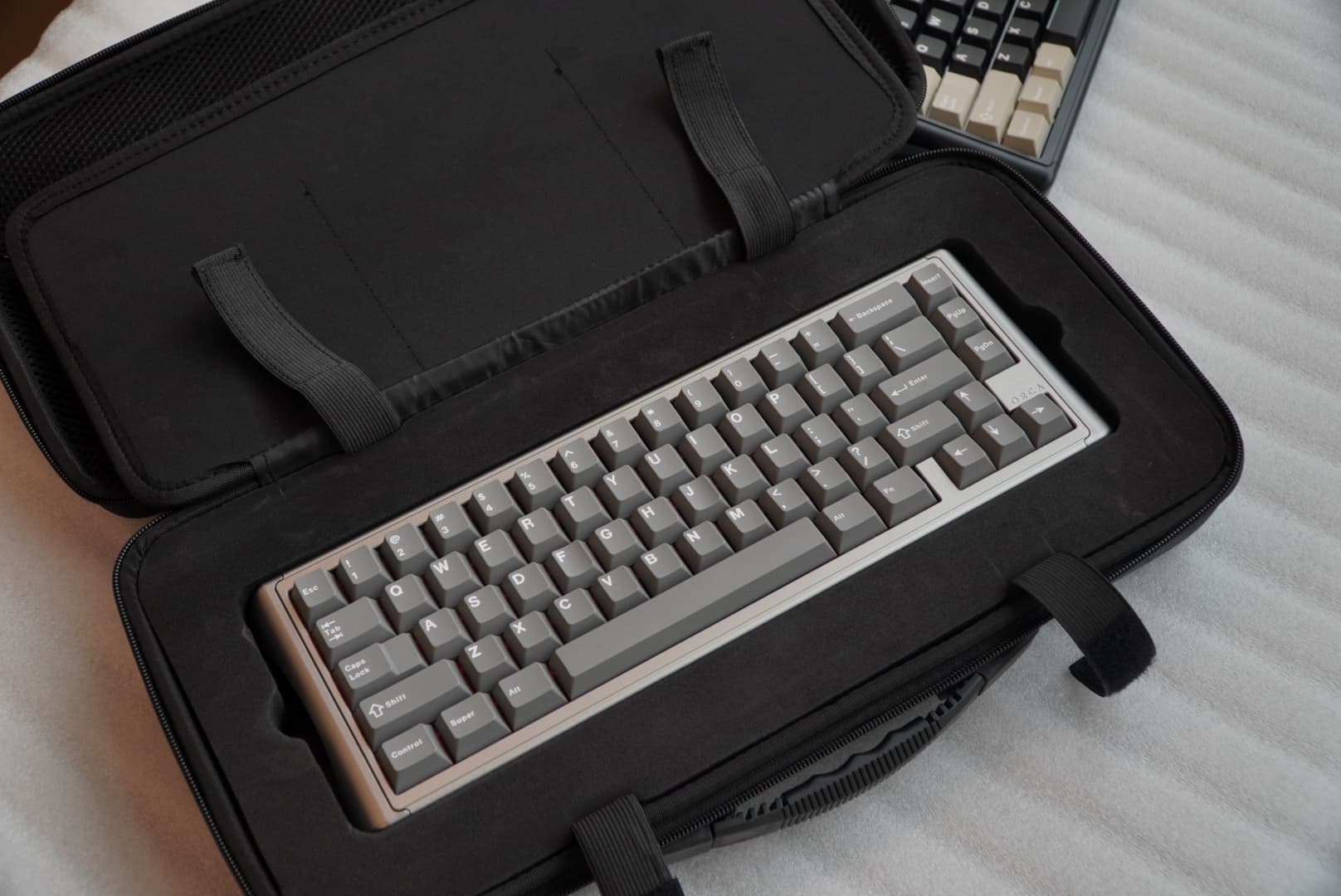

Carrying Case

Add-ons:
Additional top: silver, black, gray, green, red → USD 110
Additional plate: aluminum / CF → USD 35, PC/FR4 → USD 30
PCB: FAve65H → USD 60, FAve65S → USD 50
Foam 3-piece set: USD 15 (under plate, bottom, PE foam)

Estimated Schedule:
Pre-order period: Projected on 2024 Sep.
Expected shipping date: 2025 1Q

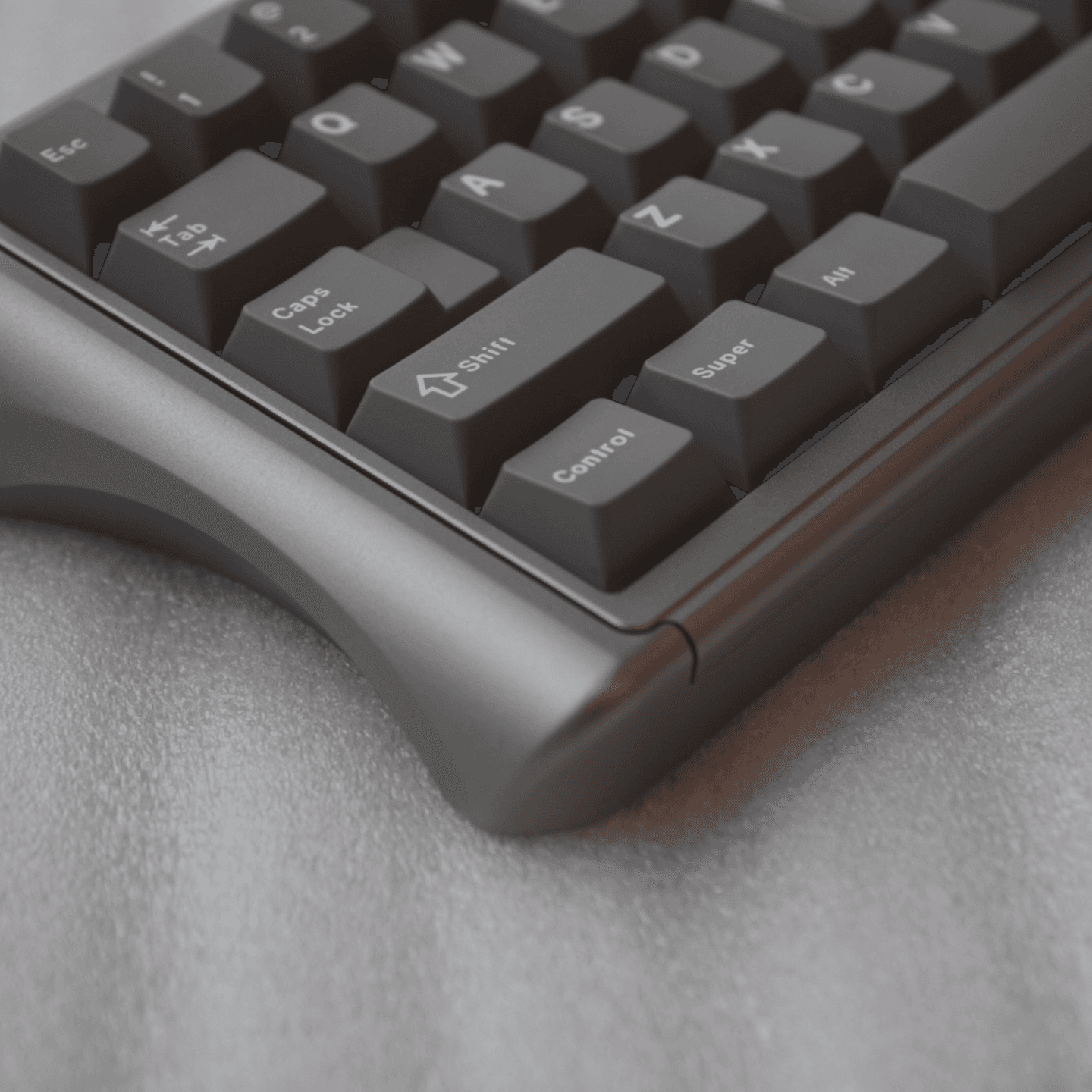

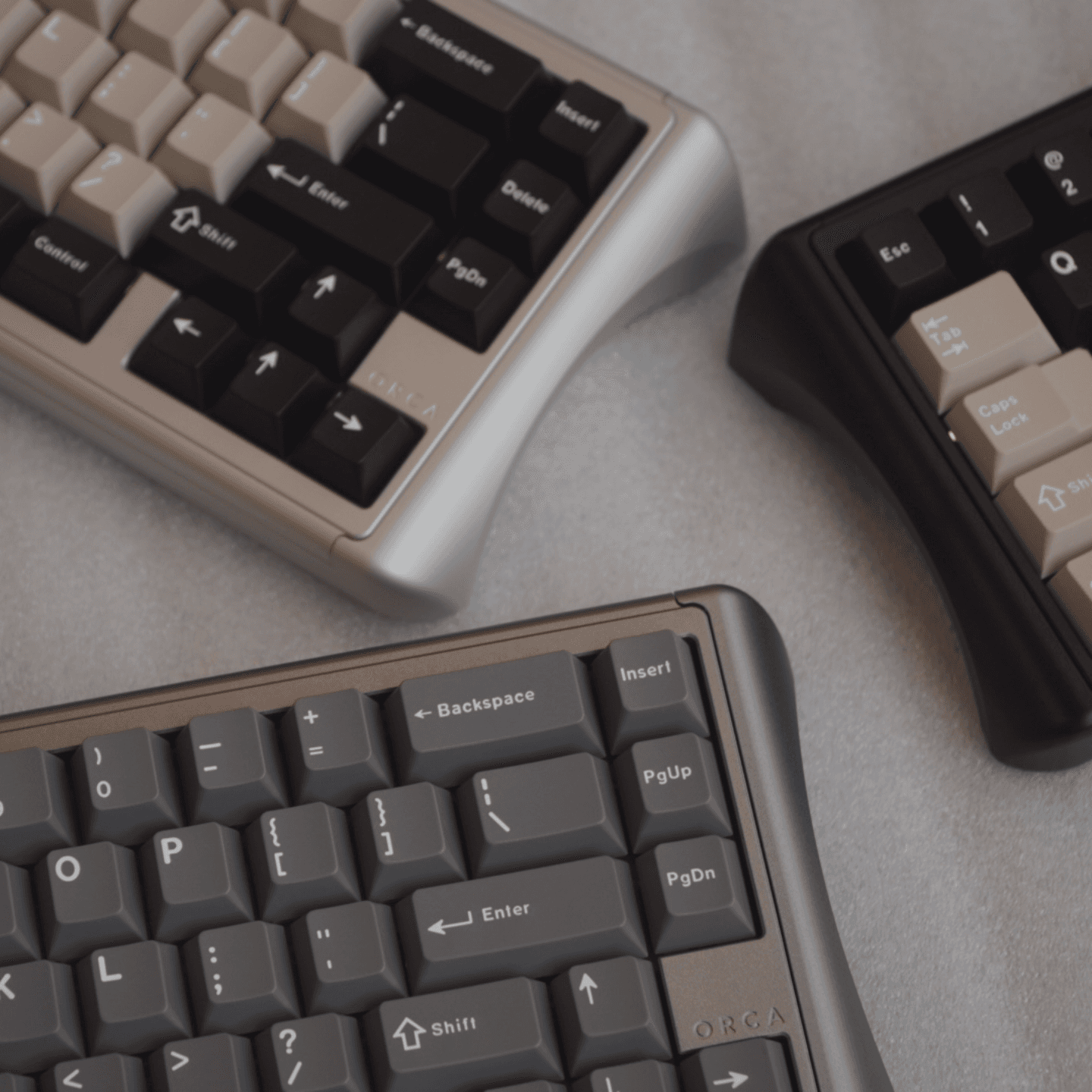

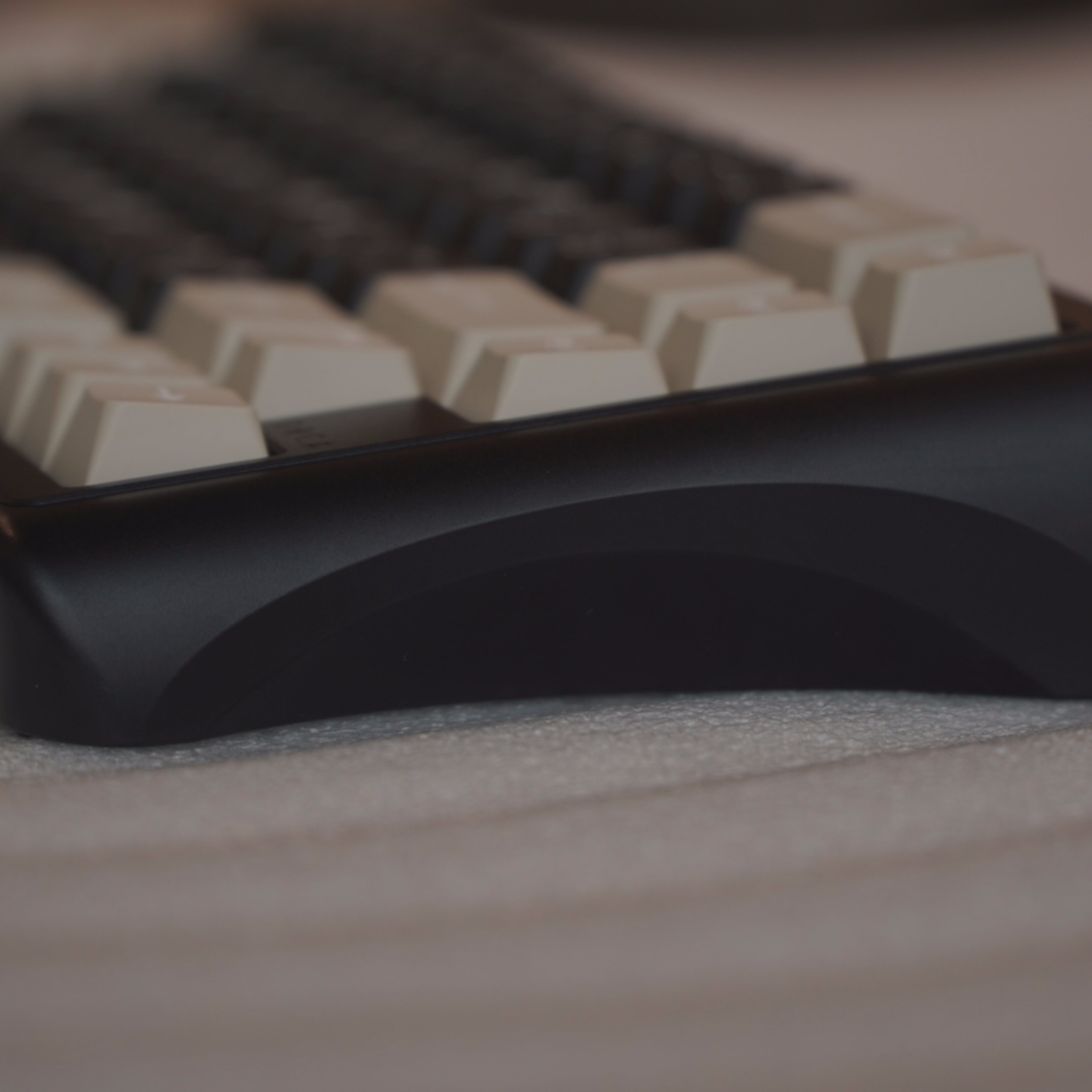

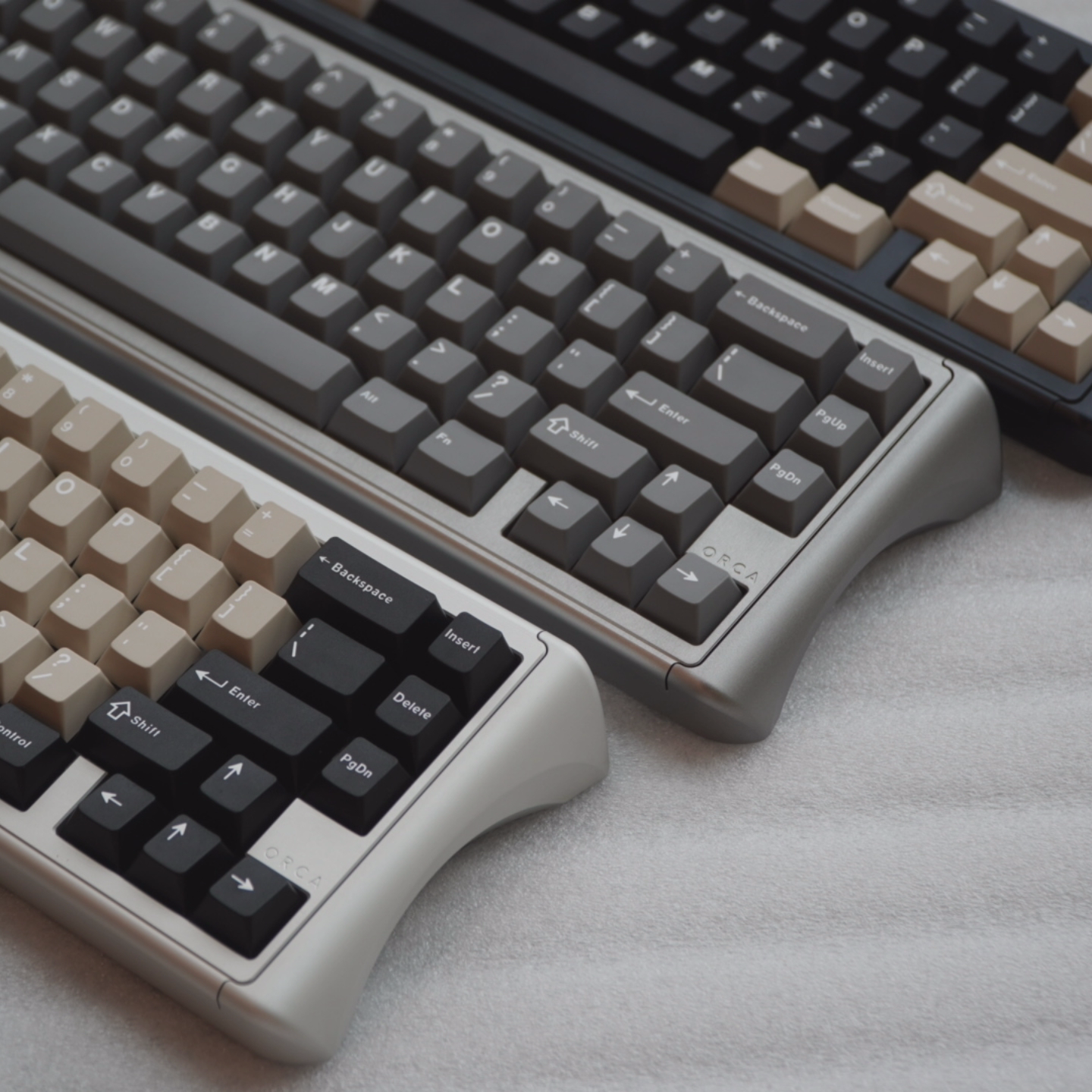

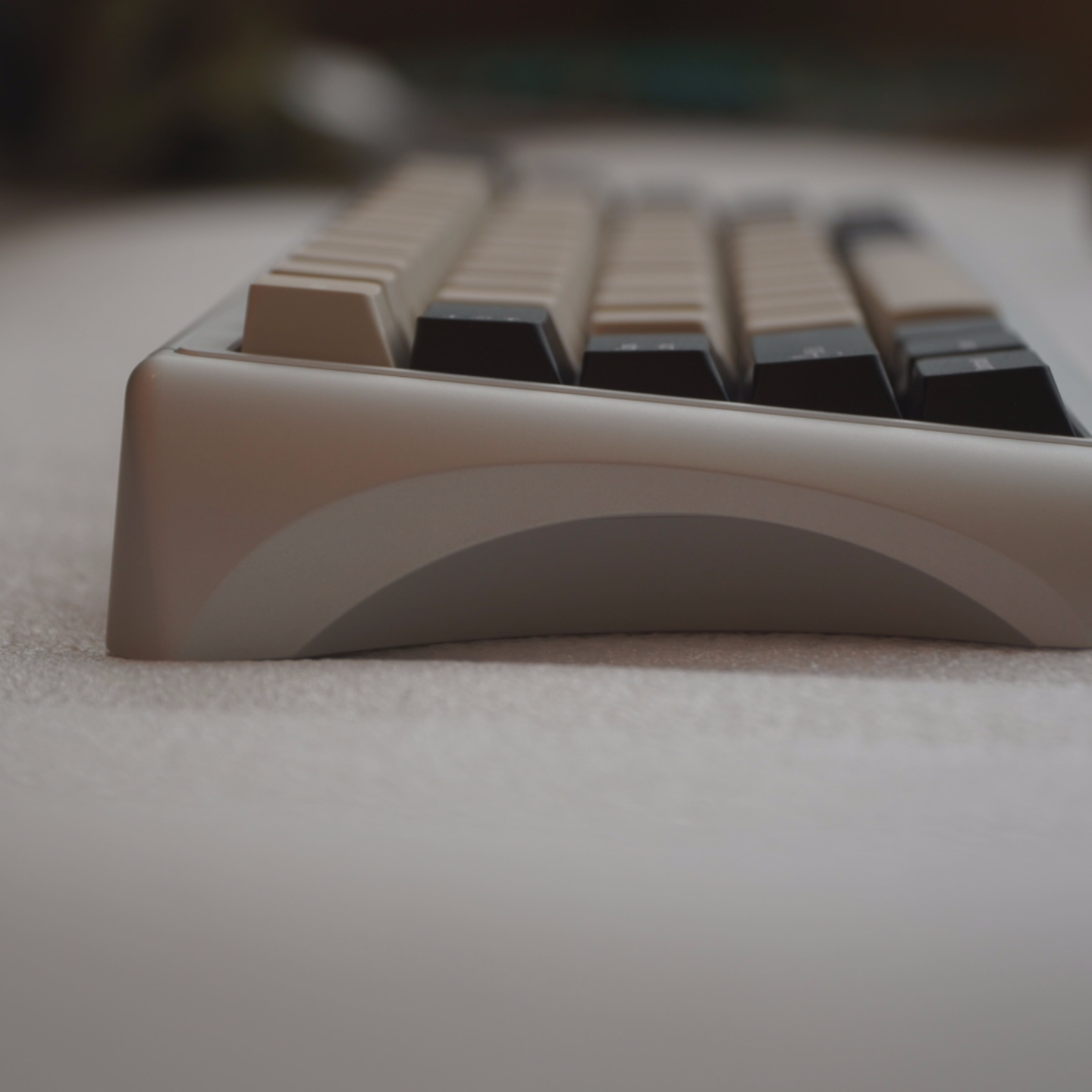

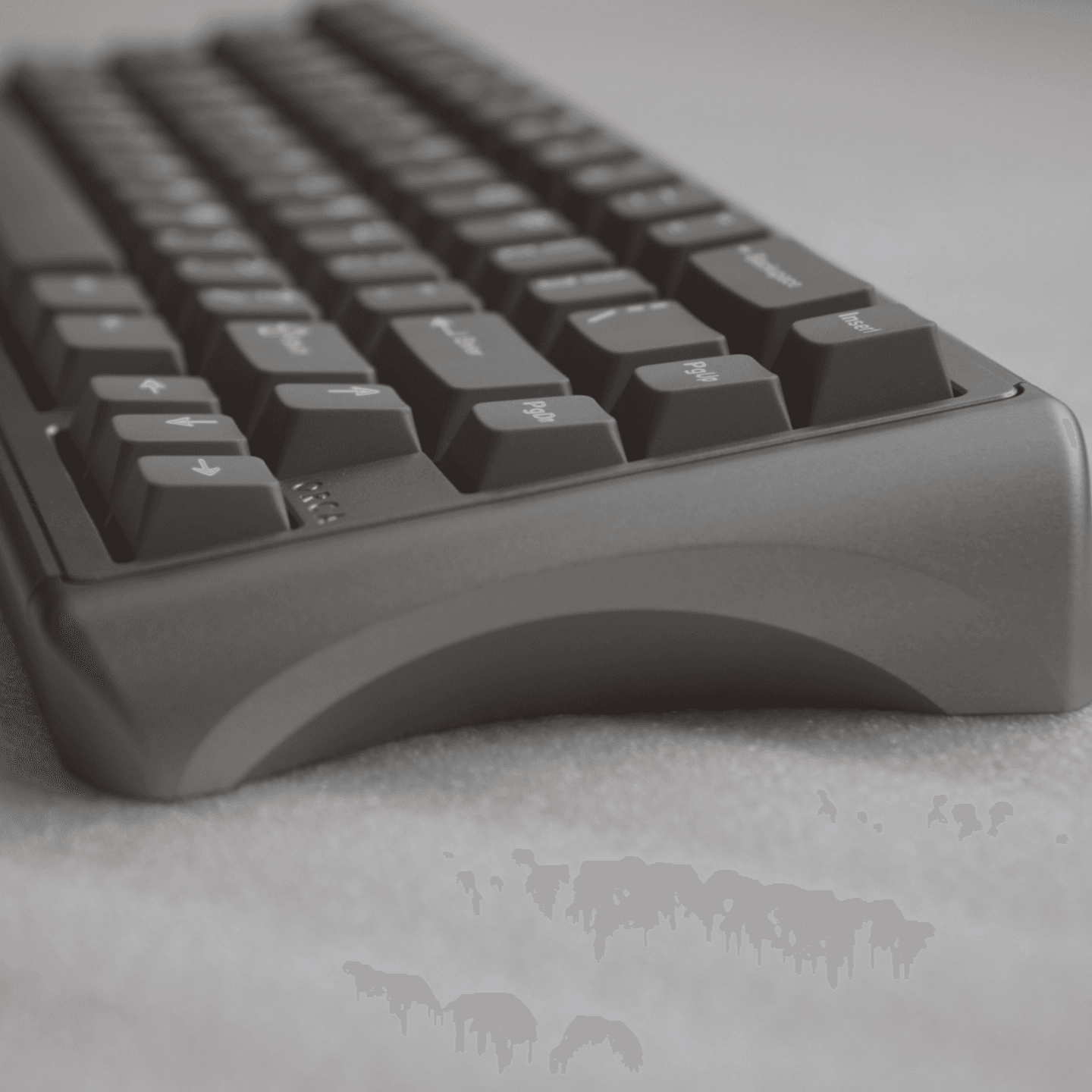

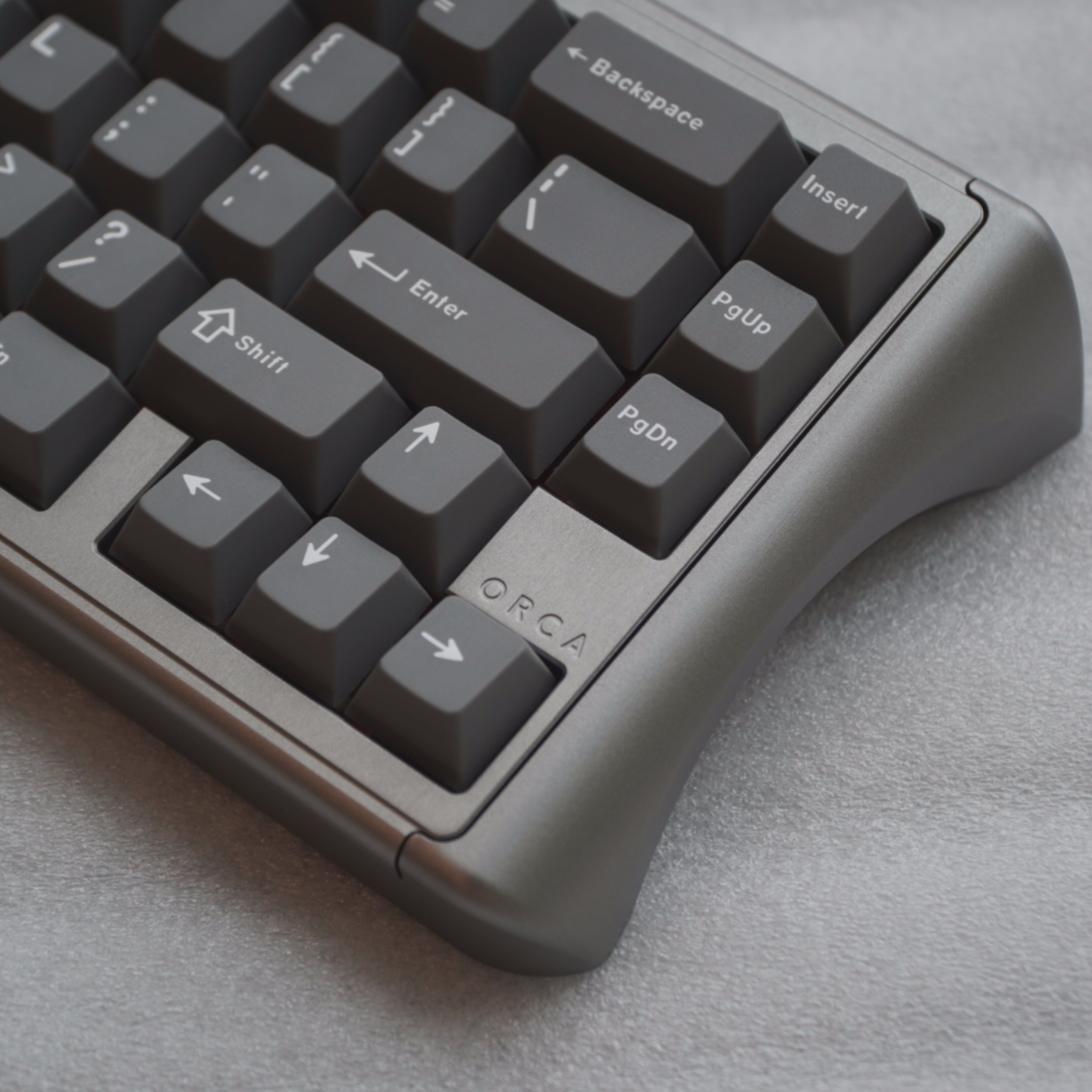

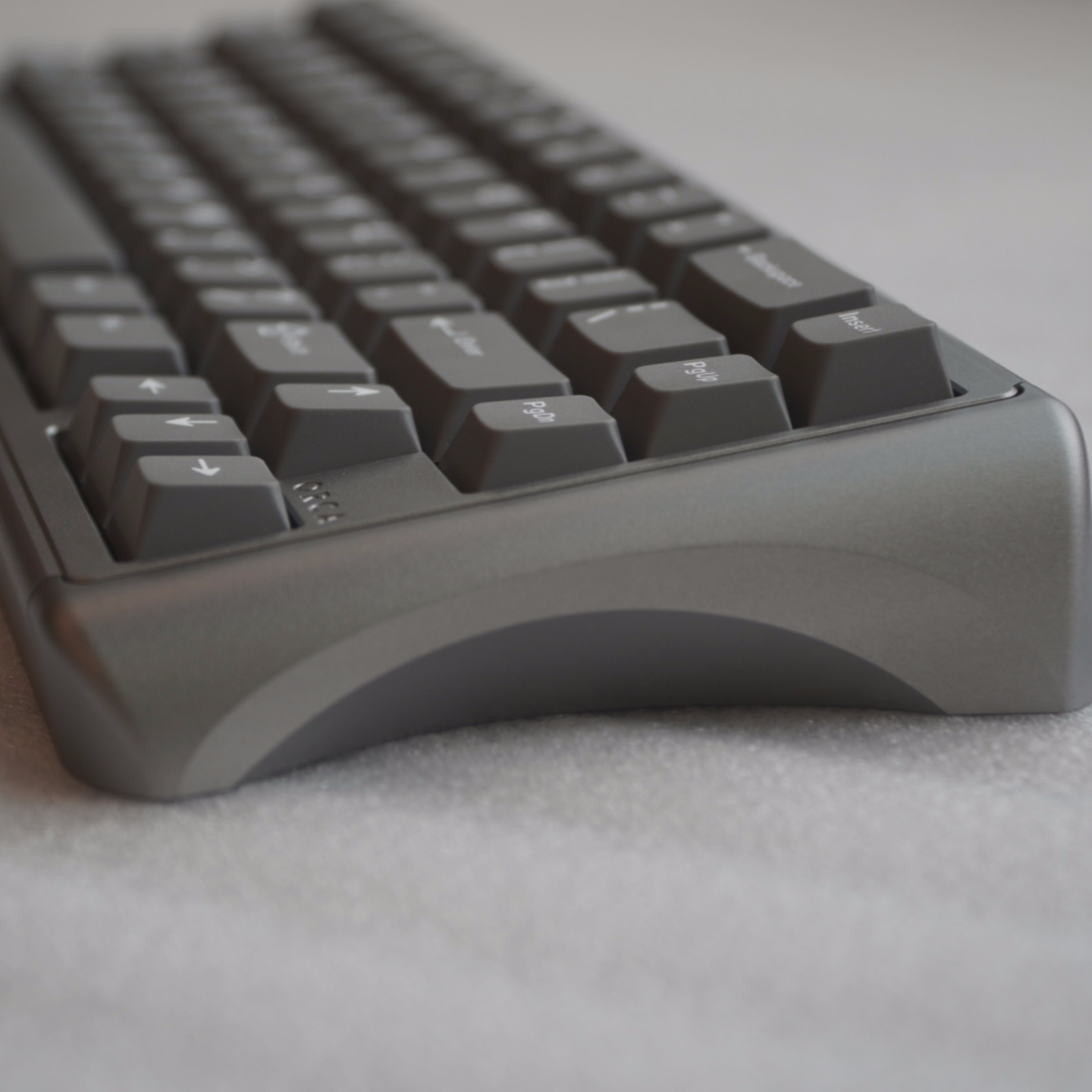

More Photos:
