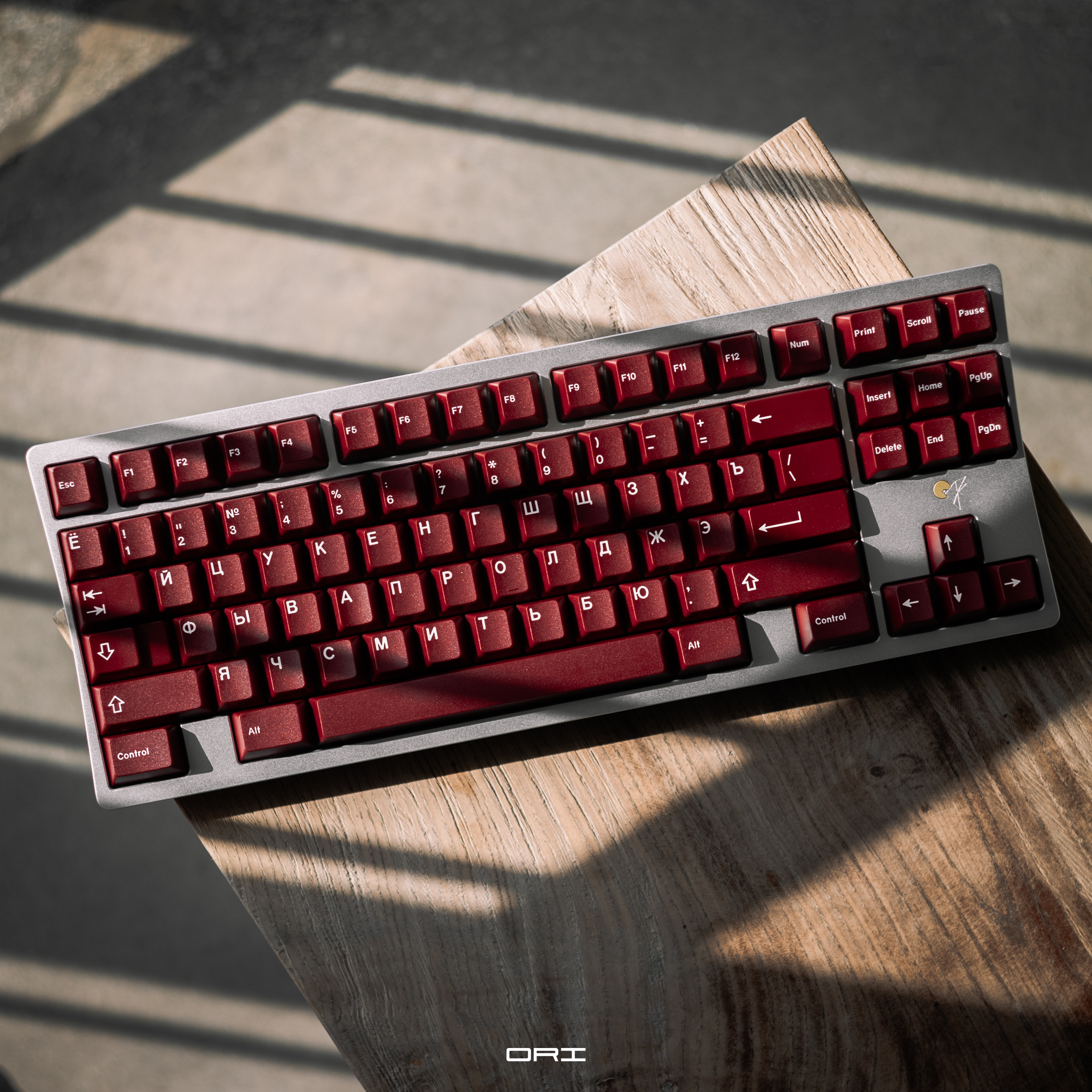

ORI CLS-3//88 prototype V3 - Pyga keyset - capture by @markerchun
We are excited to announce a group buy for the ORI CLS-3 mechanical keyboard, brought to you by Ori Club. The group buy will run from 08/02/2023 to 16/02/2023 or until 350 units are sold, whichever comes first.
IC :
https://geekhack.org/index.php?topic=116742.0OVERVIEW- MODEL: ORI CLS-3
- TYPE: TKL F13
- LAYOUT: WKL/WK

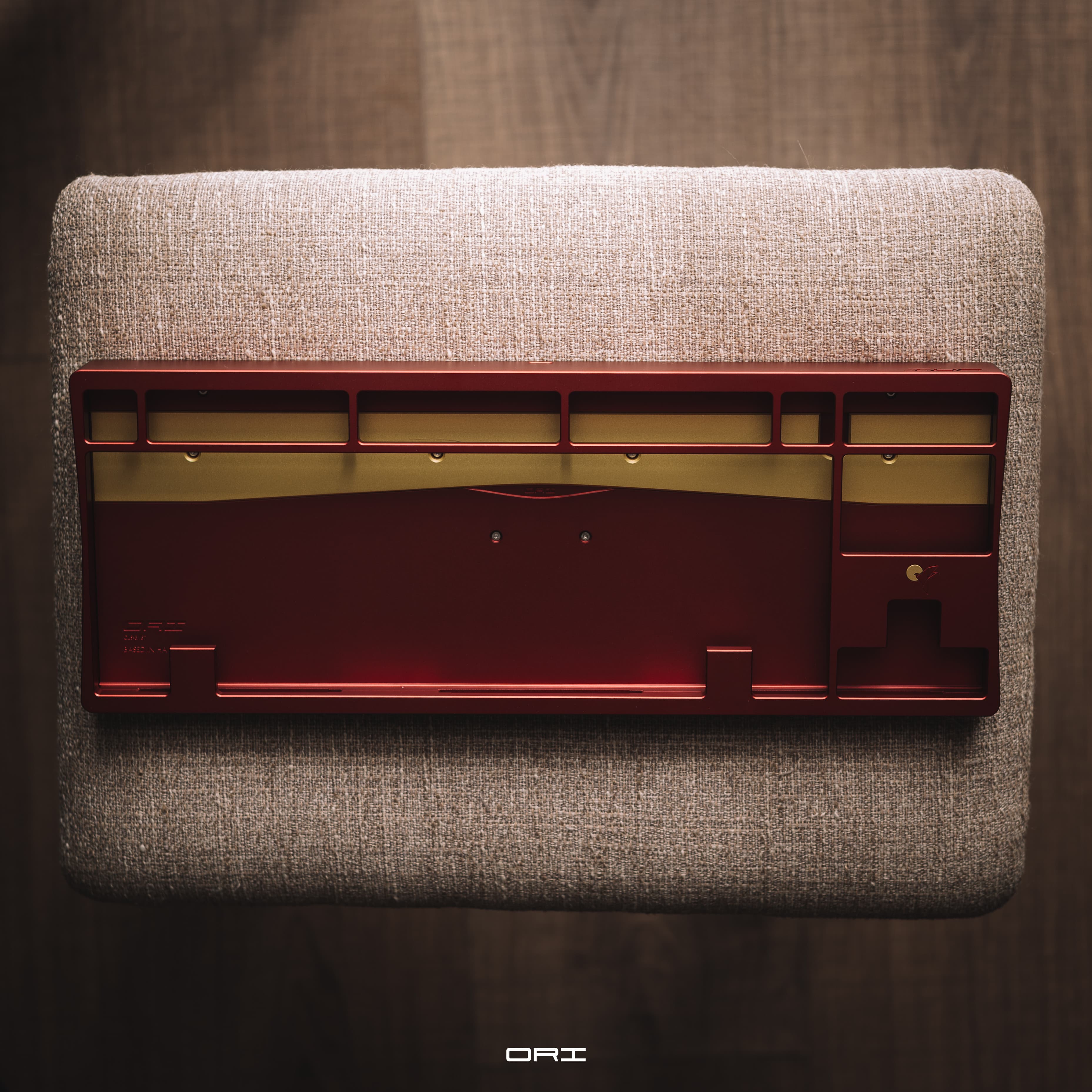

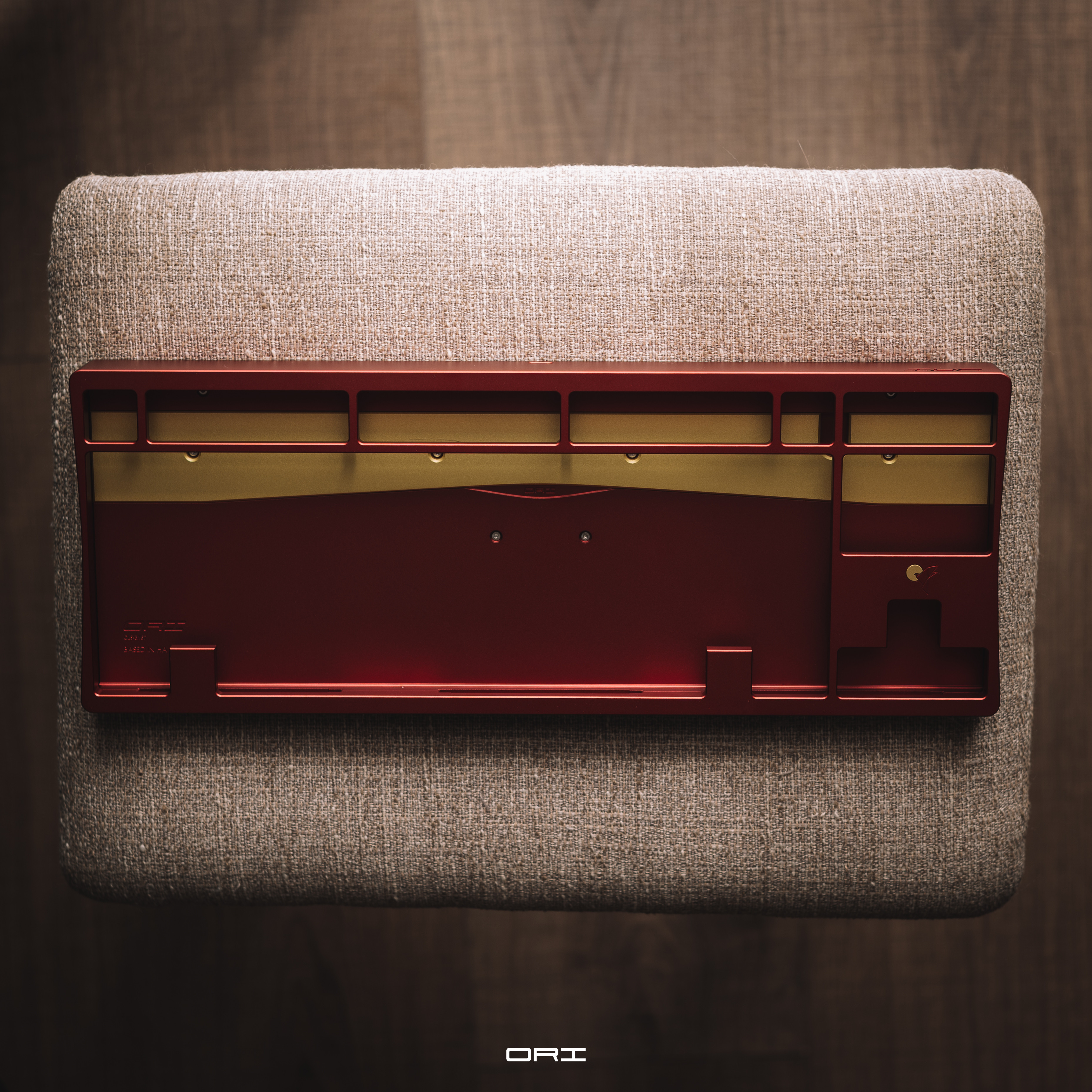

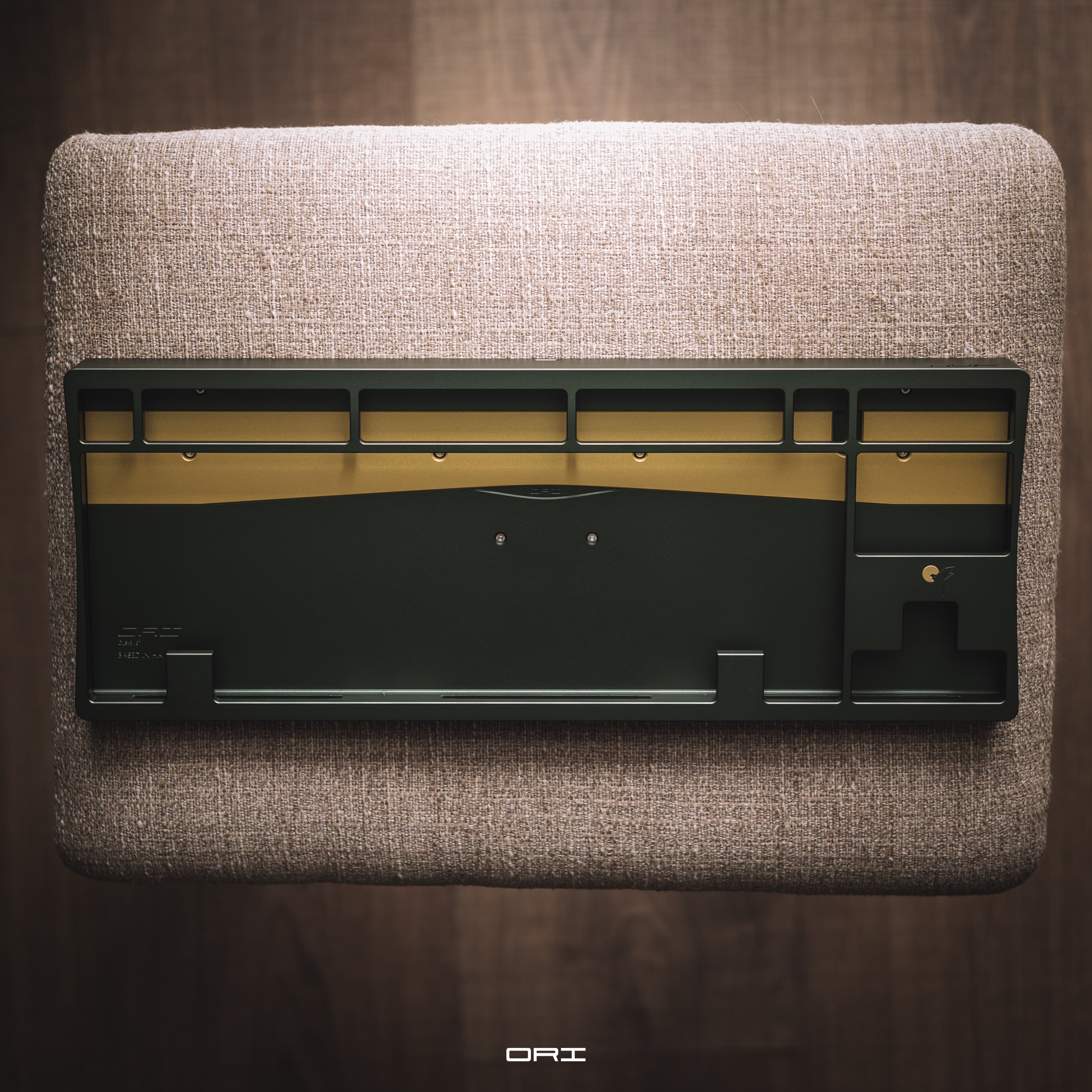

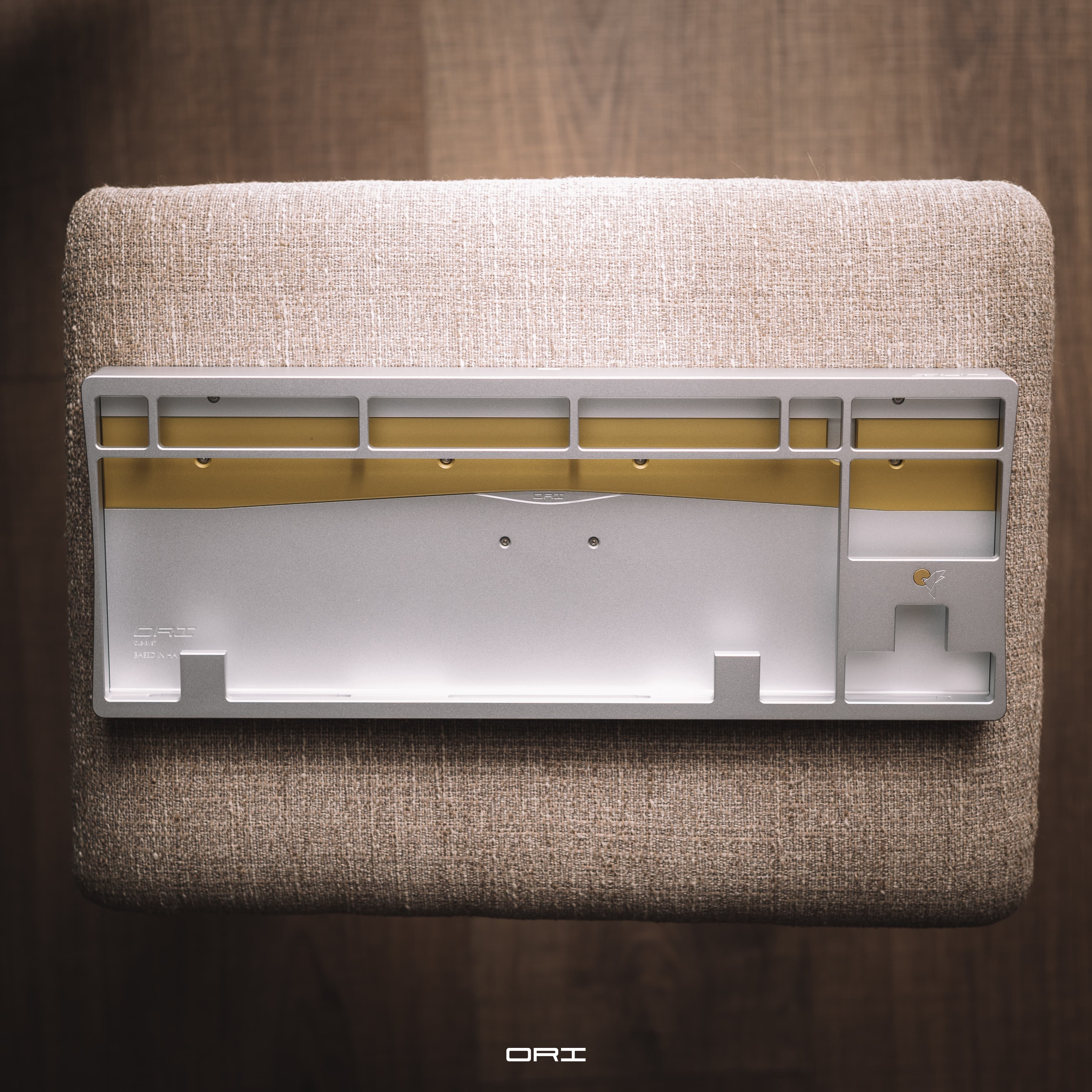

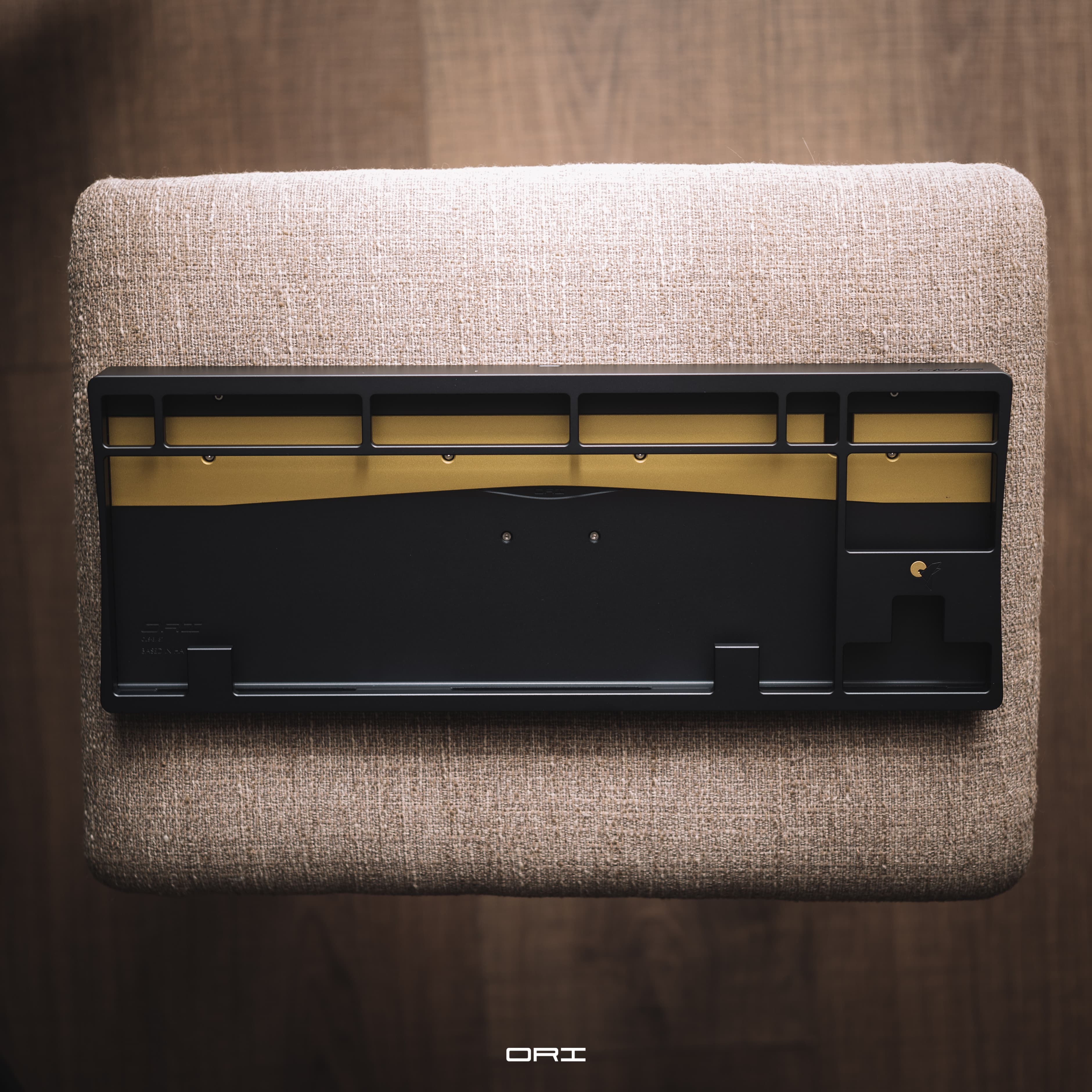

- COLOUR WAYS: Silver/Space Black/Scrimson Red/Forest Green
- PLATE OPTIONS : Aluminium (Silver/Space Black/Scrimson Red/Forest Green) sandblast anodize
Brass sandblast and coating
Polycarbonate
Fr4 - INTERNAL WEIGHT OPTIONS:Brass/Copper
- EXTERNAL WEIGHT OPTIONS:Brass/Copper
- SALE METHOD: Group Buy
- REGION SALE:International (shiping from VN)/US (shiping local via agency)/China (shiping local via agency)
- START DATE: 08.02.2023 (VN)
- END DATE: 16.02.2023 (VN) or 350 unit
- PRICE:Standard kit 616 USD ( Solder)/Founder Edition kit 1250 USD ( Solder)
- Estimated delivery time: Q4 2023

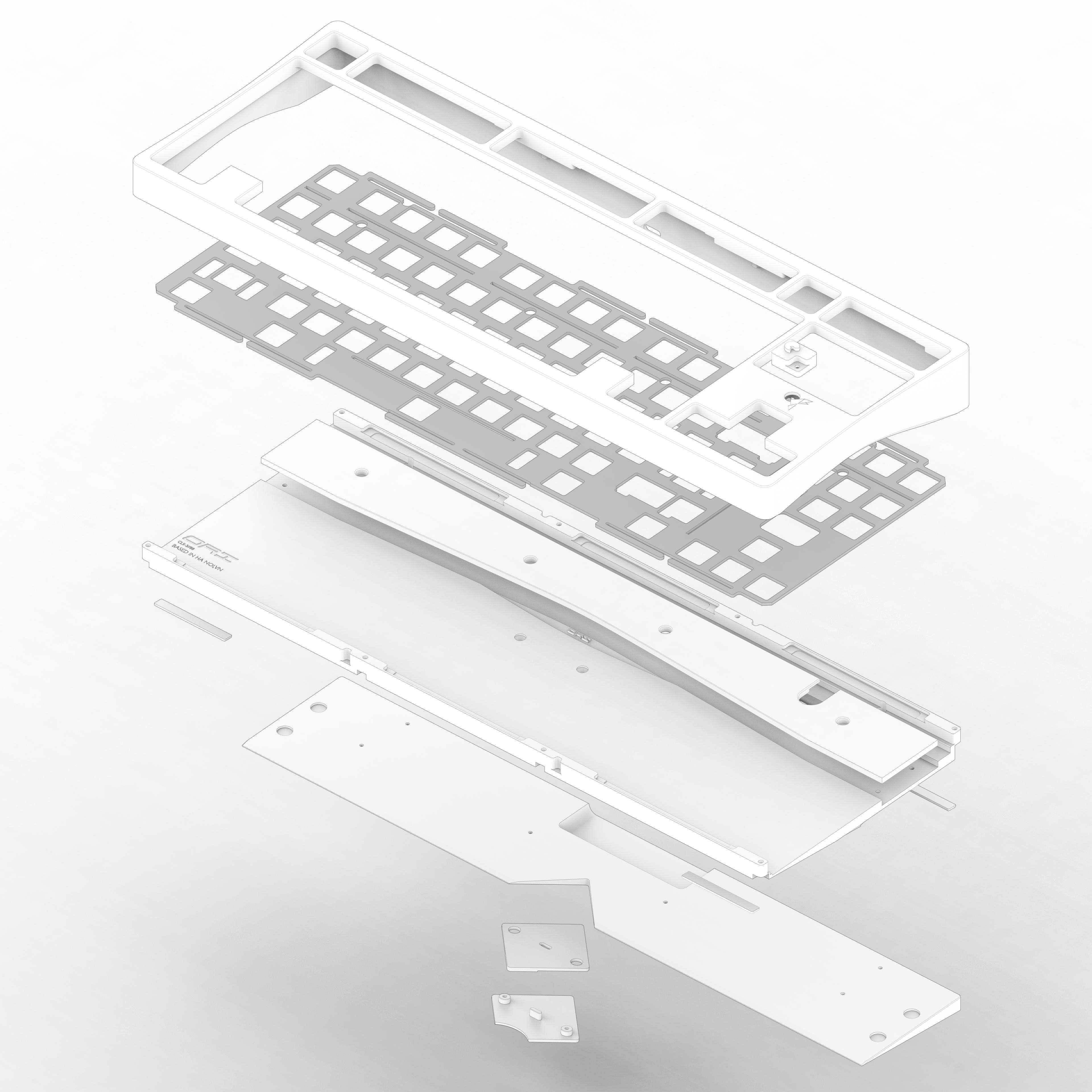

DETAILS- BUILD: 8 assembly parts
- TYPING ANGLE: 6 degree
- MATERIAL: Aluminium 6063/Brass
- MOUNTING METHOD: Isolated gasket mount
- DIMENSIONS: 360mm x 135.5mm x 31mm/17.8mm front height
- WEIGHT:2.3 kg (unbuilt)
- PCB DESIGNER: Mechlovin
- FIRMWARE: QMK + VIA
- SWITCH COMPATIBILITY: Cherry MX
[/list]
COLOURWAYS SE
FOUNDER EDITION

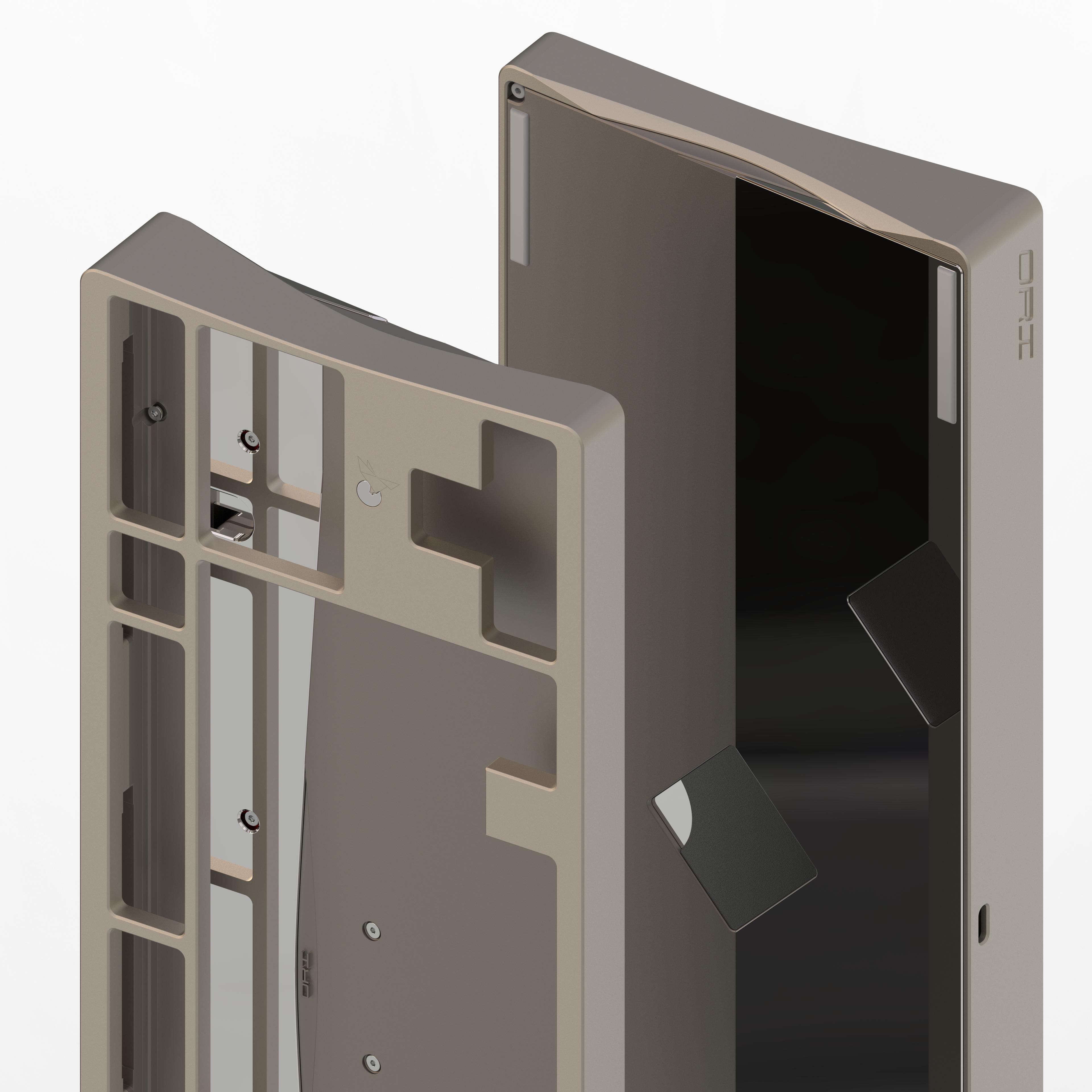

render of Founder Edition - Color may have slight deviation from actual product.- TOP PART : Aluminium - Anodized/ Dark Sandstorm(*)
- BOTTOM PART: Aluminium - Anodized/ Rustic Gray(*)
- INTERNAL WEIGHT: Stainless Steel - Physical mirror polishing
- EXTERNAL WEIGHT: Stainless Steel - Physical mirror polishing
- PLATE: Aluminium - Anodized/ Dark Sandstorm(*)
- ACIENT BACK - CLOUD: Aluminium - Anodized/ Space Black
- ACIENT BACK - SUN: Stainless Steel - Physical mirror polishing
- LOGO FRONT - SUN: Stainless Steel - Physical mirror polishing
- LOGO FRONT - BIRD: Engraving on Aluminium - maki-e with Urushi gold by Artisal
Gold Powder : Shizendo since 1711 - Kyoto
Artisal: Dao Huy Hoang - Founder Edition is limited to 30 kits. Numbered both top part and bottom part.
(*) This is an anodized color tank to be ordered separately and used for ORI CLS-3//88 Founder Edition only. That means Founder Edition this time needs 2 custom color tanks.
The two selected colors are colors that are difficult to show on aluminum surfaces. But it's a great combination of natural color base. A real challenge for manufacturers.
As always, the color of the ORI CLS-3//88 Founder Edition will never be remade.
NFT airdrop
More
I am excited to announce that for every customer who purchases the CLS-3//88 FE, they will be eligible to receive an airdrop of the NFT CLS-3 FE. This NFT will grant access to a private group chat on the builder.app platform, where customers can directly interact with us and provide feedback to improve the product. To receive the NFT, customers will need to provide their ERC-20 wallet address at the time of purchase. We recommend using a new or dedicated wallet for holding NFTs to ensure their security. We look forward to interacting with our customers and improving our product together.
I believe that this NFT airdrop will not only provide our customers with a unique and valuable experience, but also give them the opportunity to have a direct impact on the development and improvement of our product. By granting access to a private group chat, customers will be able to share their thoughts and suggestions, provide feedback, and stay informed on the latest updates and developments. Additionally, the NFT itself will serve as a one-of-a-kind collector's item, adding to the overall value of the purchase. We are committed to creating a strong community and fostering an open line of communication with our customers, and we believe this NFT airdrop is a step in the right direction towards achieving that goal.
Get NFT and use is optional, not required. Make sure you understand before use.
Special thanks to the Builder team
[email protected] | buidler.app for supporting Ori-club. (
https://buidler.app/)
International shiping- ORI CLUB - 50 SE - 5 FE
CHINA - Shuangmu#0381 - 100 SE - 5 FE
US - MEKIBO - 200 SE - 20 FE
QUALITY DISCLOSUREGrade A
There will be hook marks inside the parts after going through the anodize process, I accept no more than 3 dot in 1 area. Each dot should not exceed 2.5mm. Hook marks are only allowed to appear in invisible areas after the build (plate and switch installation)
There may be minor machining/tooling marks on internal faces.
The anodizing process will cause the color variation of the top part and bottom part to not 100% match under special lighting conditions. However, I would still accept a very slight difference, especially as the design of the CLS-3 is that the top part will snap over the rest.
The part is made of brass and sandblasted surface treatment, will have a uniform yellow color, the gain of the surface is relatively consistent. No scratches, dents, and stains.
Disclaimer: The stainless steel components of our product may have slight imperfections due to the manufacturing process. These imperfections may include small scratches or marks on the surface of the steel. However, any scratches or marks longer than 3mm or 3 spots that can be easily seen will be considered as defects, and will affect the functionality of the product. Additionally, variations in the finish of the steel may be visible under certain lighting conditions. We strive to provide high-quality products, but please note that due to the nature of stainless steel and the manufacturing process, these slight imperfections may occur. Please consider this before making a purchase.
CHANGES AND UPGRADES FOR THE FINAL VERSIONTHESE ARE THE CHANGES THAT WILL BE MADE TO THE FINAL VERSION COMPARED TO THE ALREADY REVIEWED PROTOTYPE V3 VERSION.
ALIGNMENT

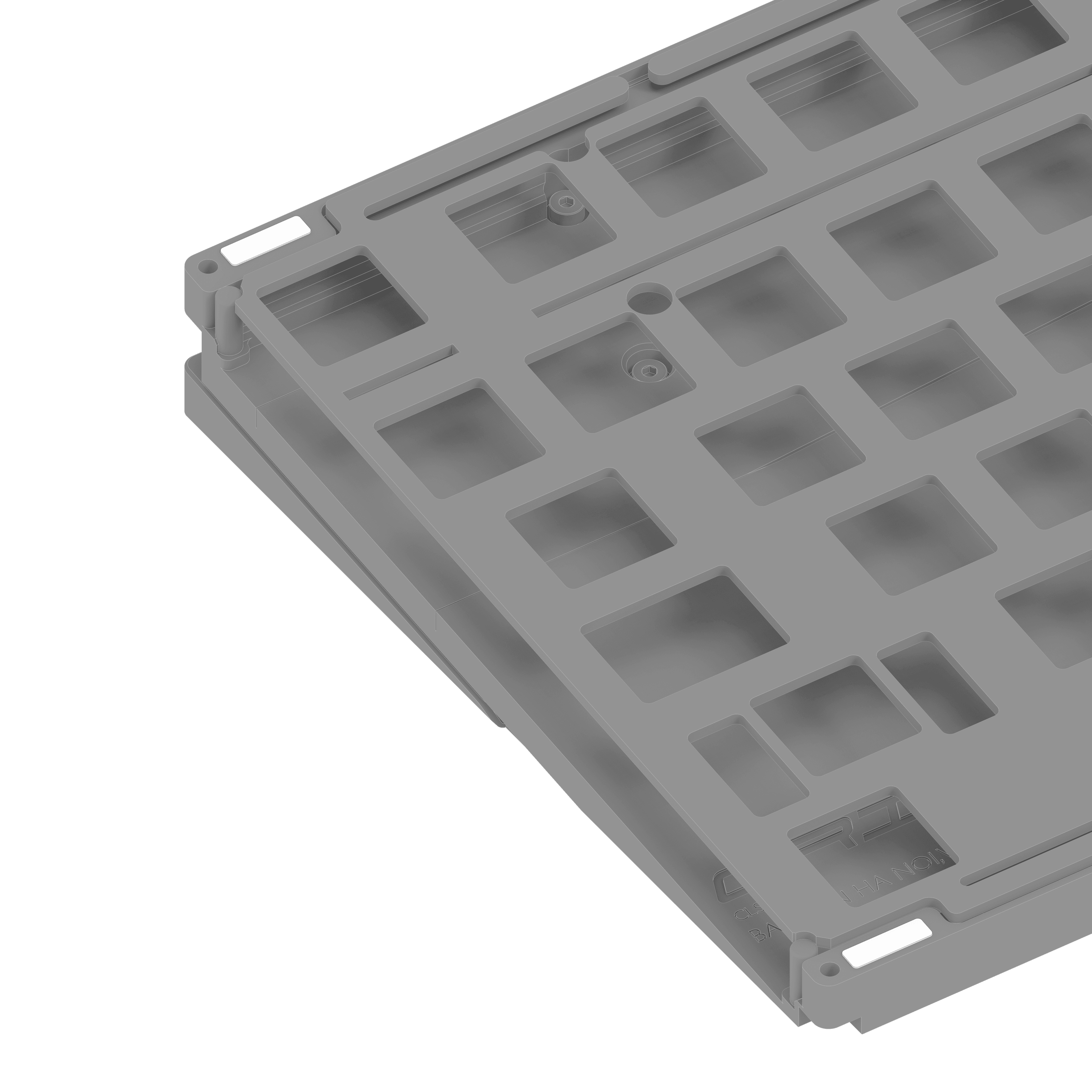

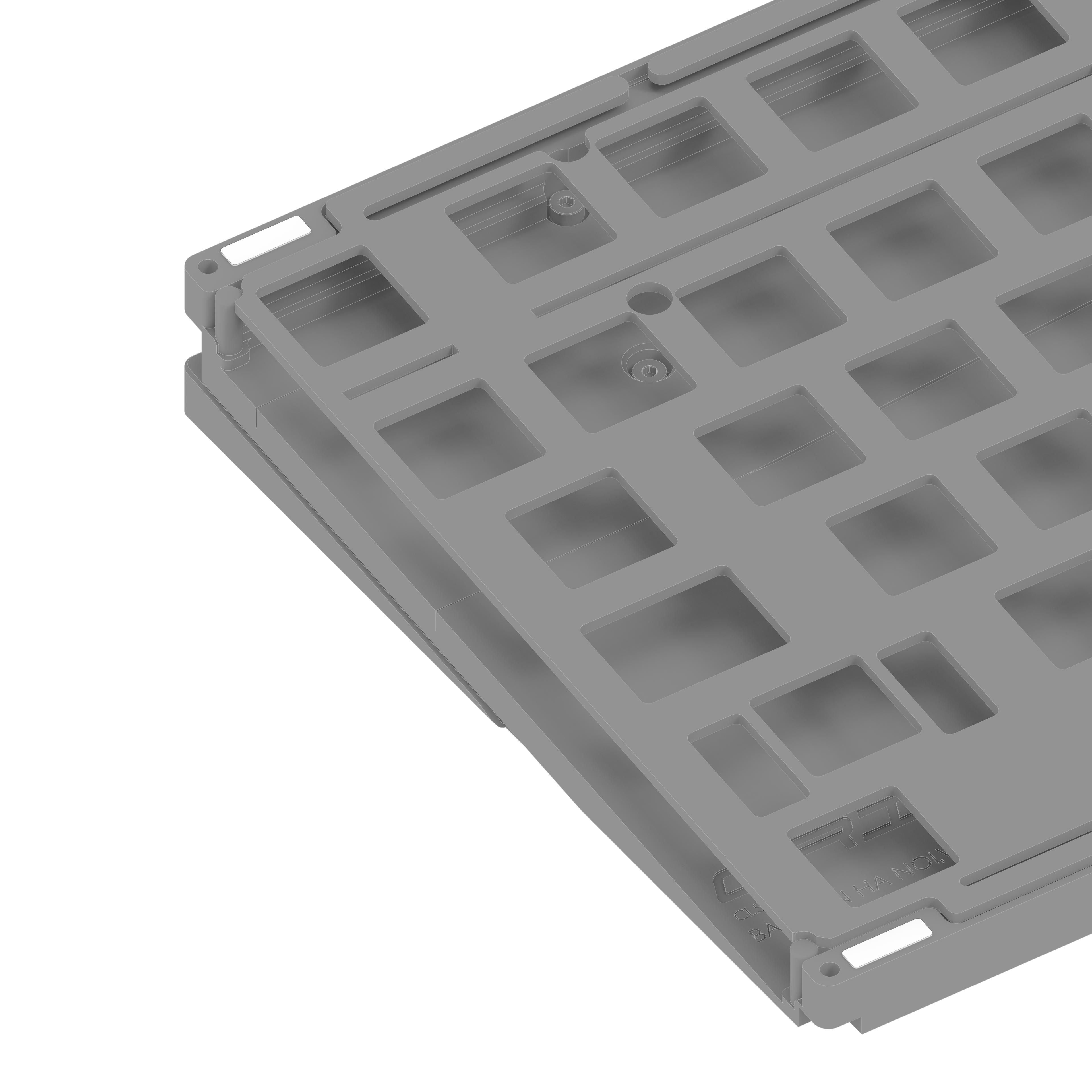

Add 4 x Alignment Pin for support Plate
Alignment Pin is machined from POM plastic to reduce friction
FORCE BREAK MOD

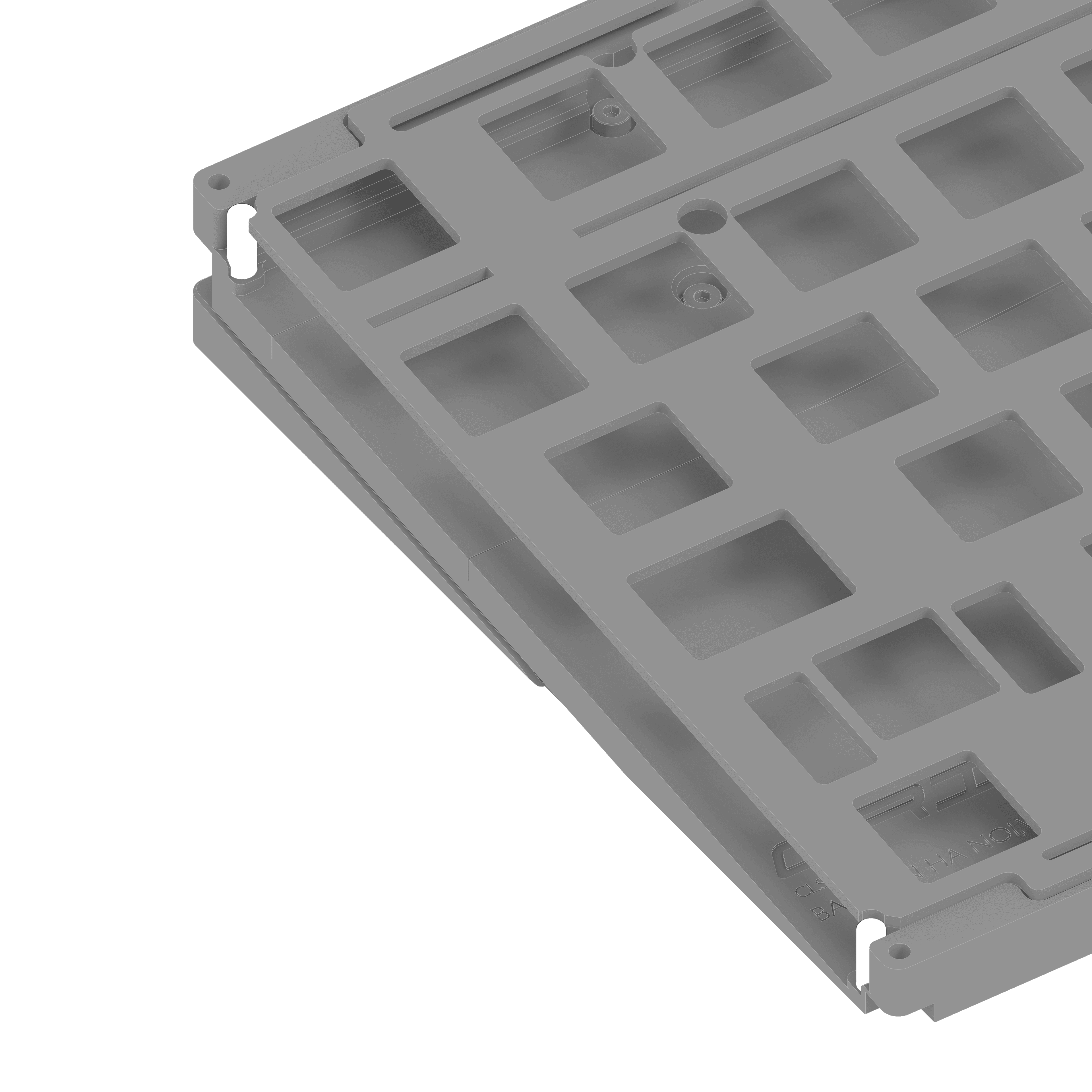

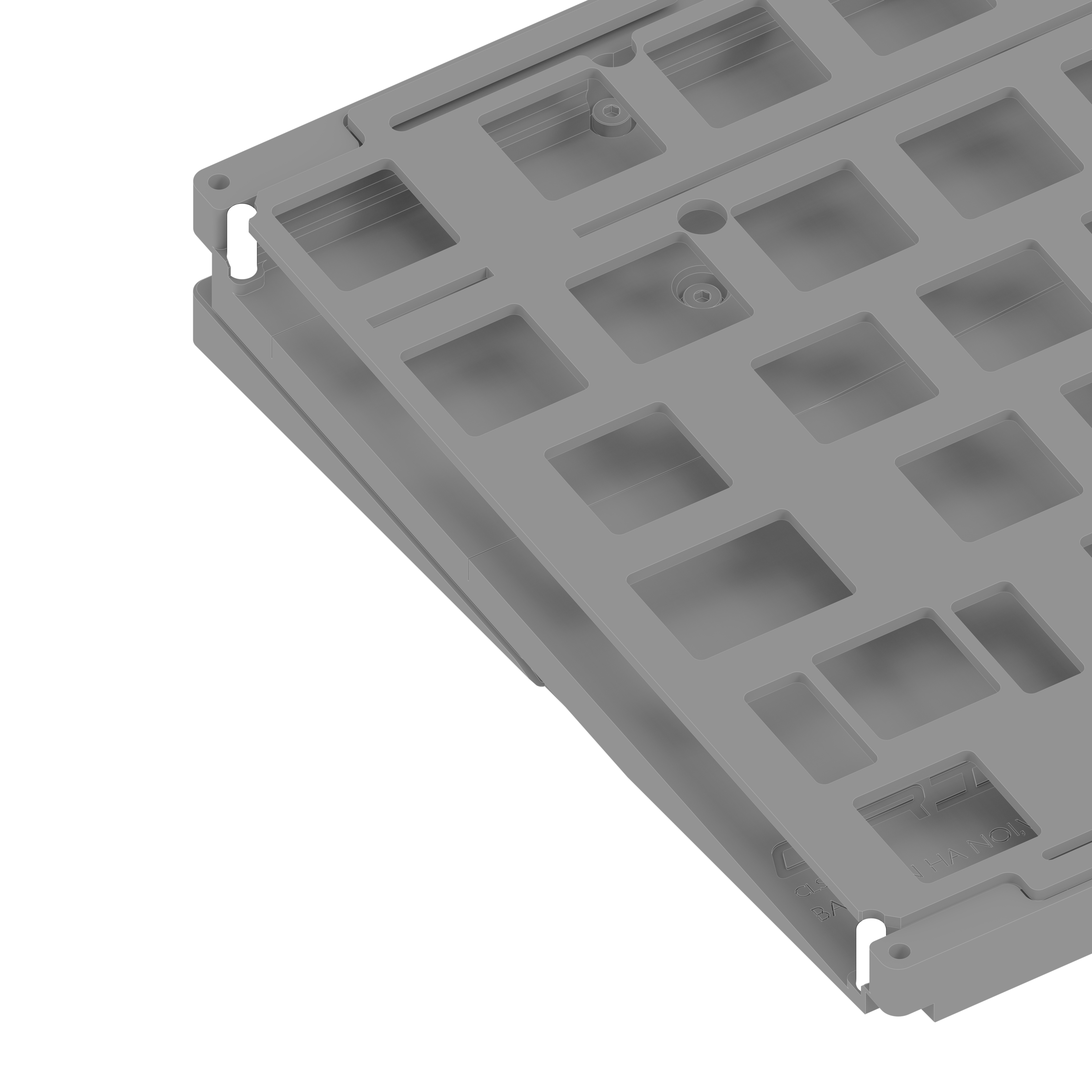

Support “Force Break Mod”
According to multiple tests, ORI CLS-3 does not suffer from ping-case status. However, I still want to support Force Break to make sure it can be eliminated.
PROTOTYPE V3 BUILD STREAMLulzthax :
https://www.twitch.tv/videos/1711688661Alexotos:
https://www.twitch.tv/videos/1709620651 Youtube -
More details you can find here:
https://www.ori-club.com/oricls3Gallery:
https://imgur.com/a/ntLnrwu
Contact Information:
If you have any questions about the group buy or the keyboard, please feel free to reach out to me via
Discord sever:https://discord.gg/Rpr4S4eFGB .
Instagram:
https://www.instagram.com/ori.club/Website:
https://www.ori-club.com/oricls3
