[IC] Origami Keys: Kitsune Designed by: Origami Keys━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━Interest Check Form━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━Join our Discord━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━INTRODUCTION
We designed the Kitsune as a playful yet sophisticated 70% FRL-TKL keyboard, aiming to reinterpret the bold geometry of classic mechanical keyboards through modern innovation. Inspired by fox origami, its polygonal form is shaped with sharp folds and intersecting planes to express a sculptural presence and bring a sense of artistry to its case design.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━DESIGN PHILOSOPHY
We set out to embrace a seamed design aesthetic, treating visual breaks as a defining part of the board’s character rather than concealing them. With this in mind, we carried a polygonal theme through every element, from the angular case to the faceted copper weight, so that each surface and edge contributes to a unified, origami-inspired vision.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━SPECIFICATIONS
Layout: 70% FRL-TKL

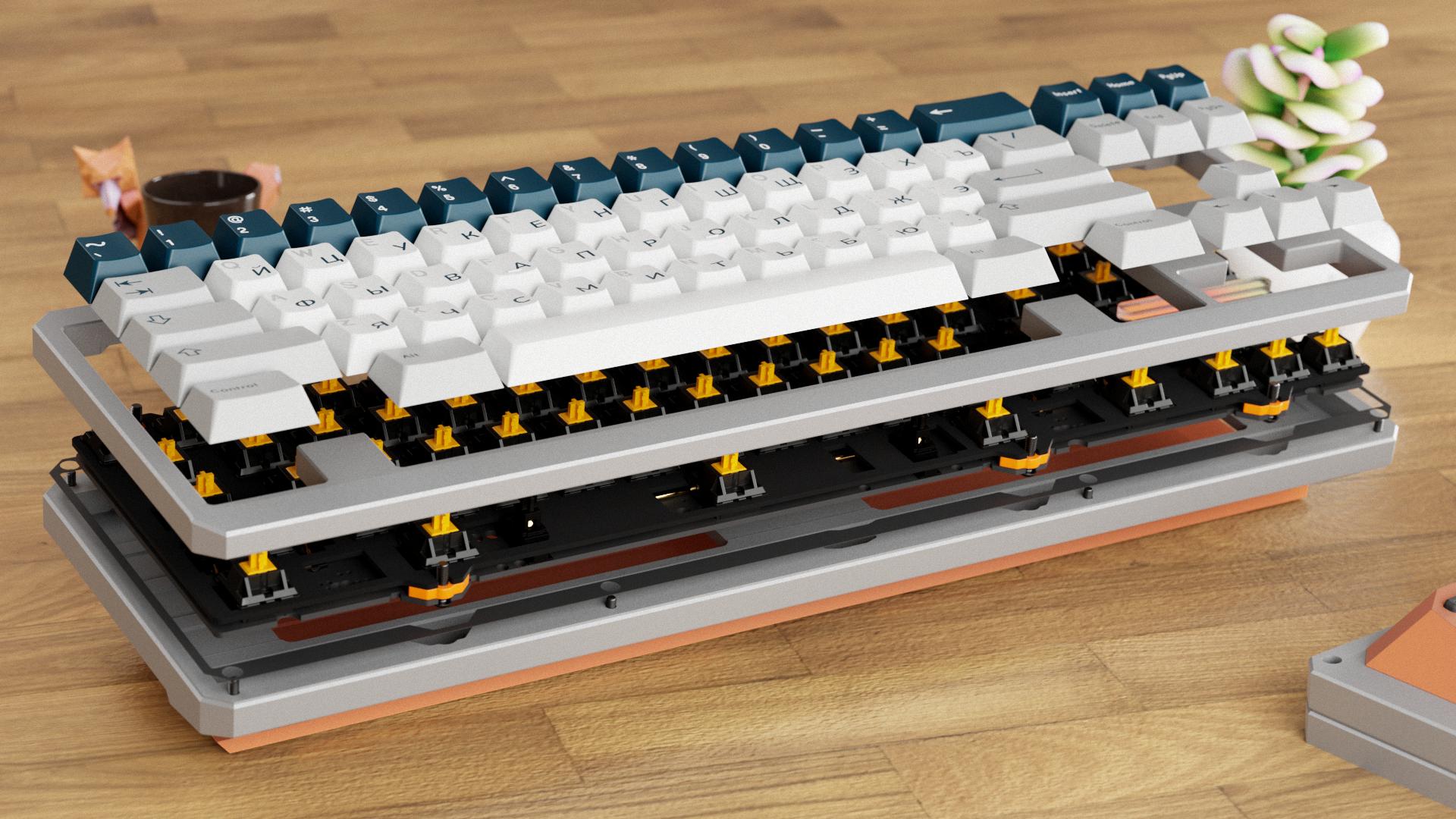

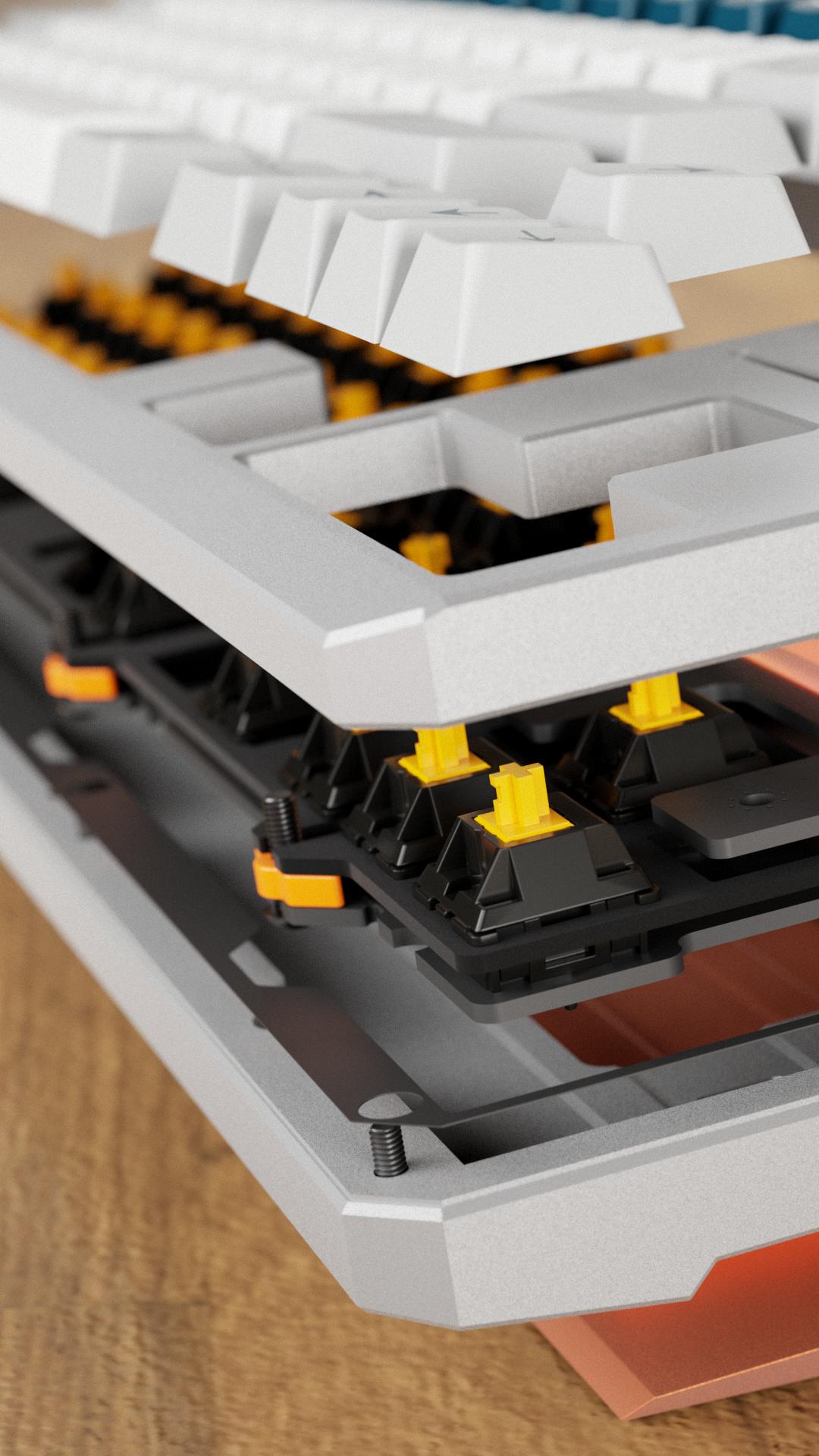

Mounting: Top Mount + PCB Mount
Typing Angle: 9°
Front Height: 16.99mm
Case Material: Aluminum 6063
Weight Material: Copper
Features: LED Accent System
PCB: 1.6mm Hotswap or Solder (with daughterboard)
Plates: Aluminum, PC, FR4, Carbon Fiber
Finish: Anodized
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━KIT CONTENTS
• CNC aluminum top & bottom case
• Copper weight
• LED diffuser & modules
• Multi-layout PCB (Hotswap or Solder)
• USB-C daughterboard + JST cable
• Hard carrying case
• Dampening foams
• Rubber feet
• Hardware kit
• Quick start guide

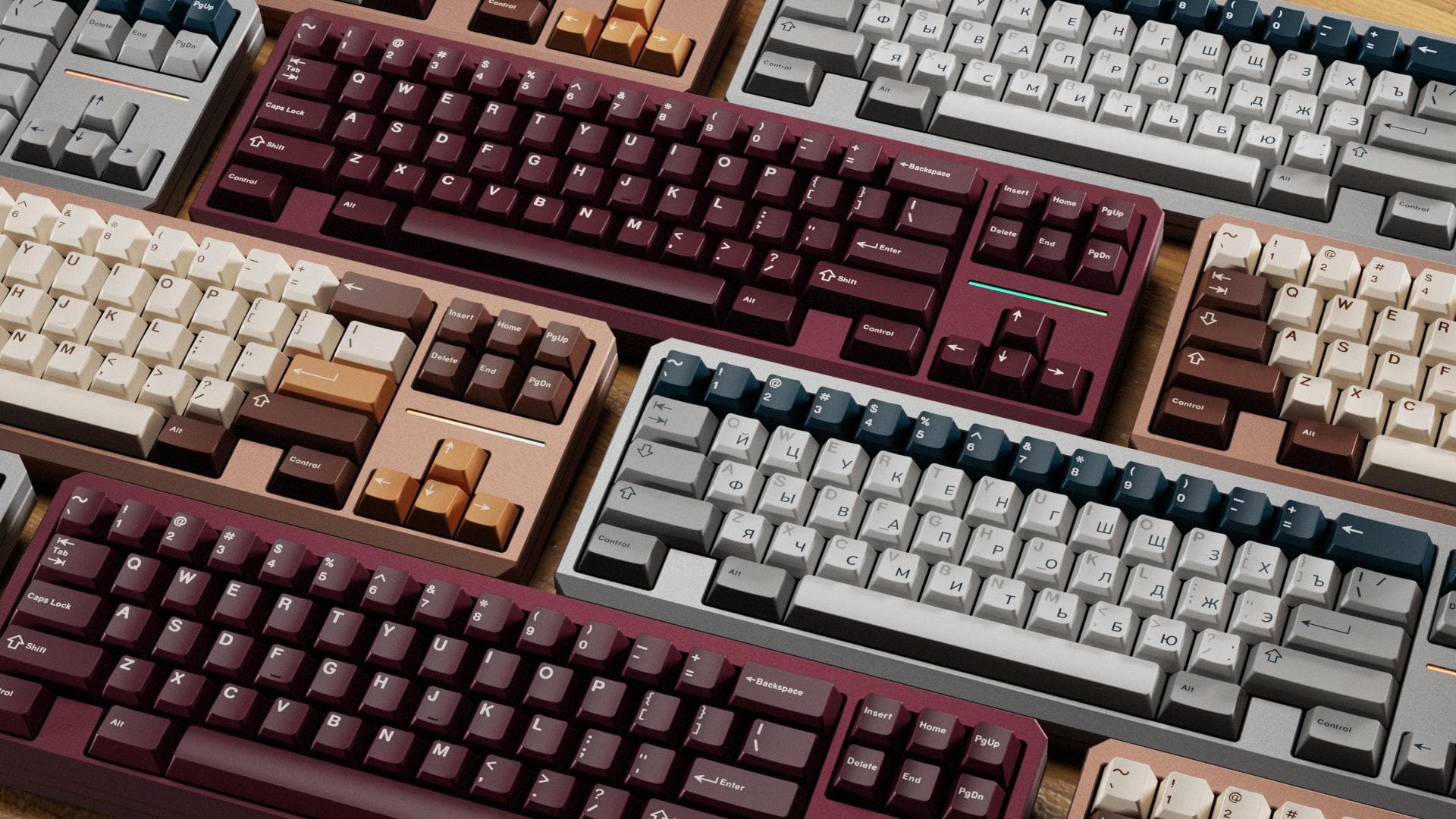

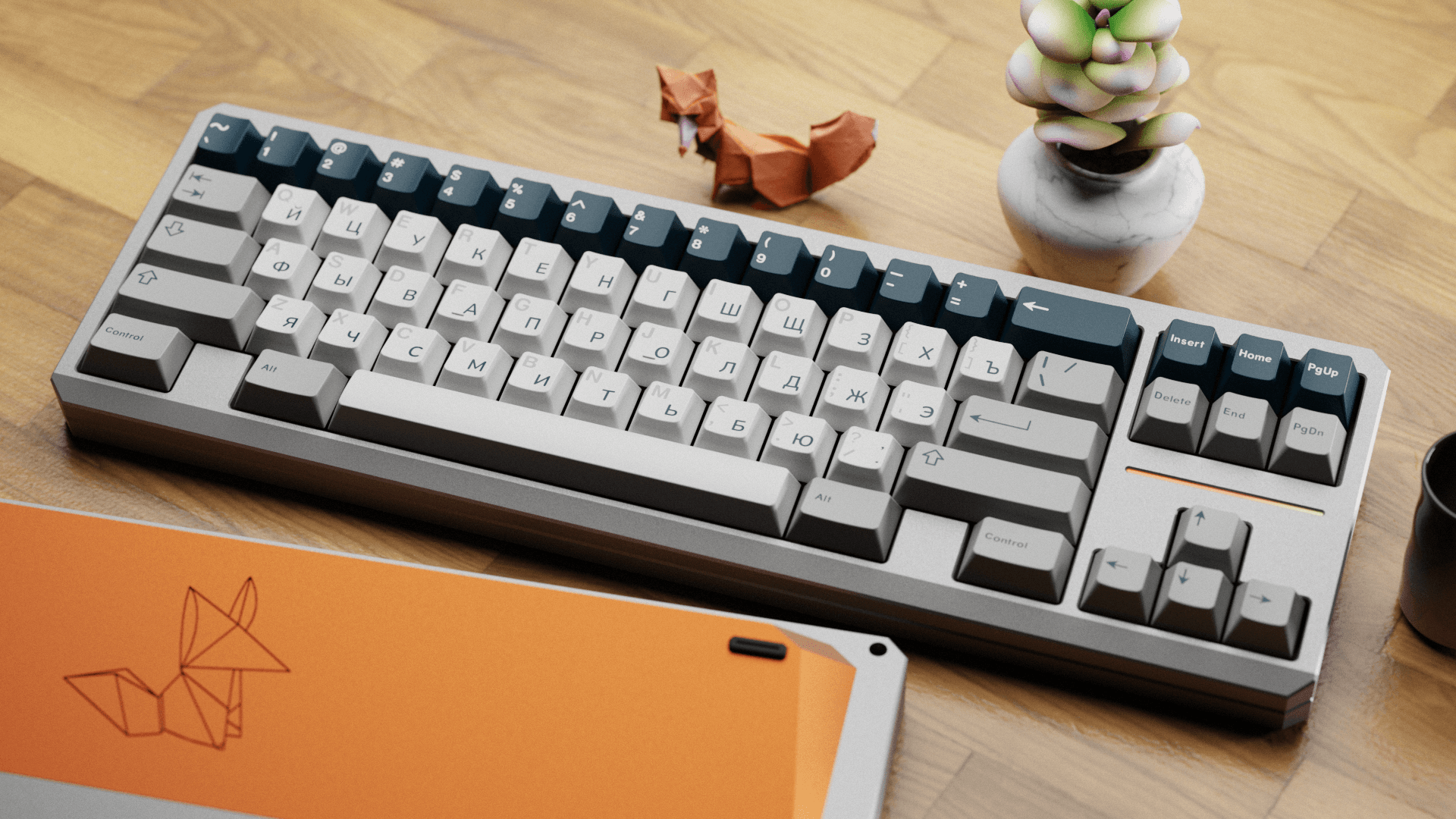

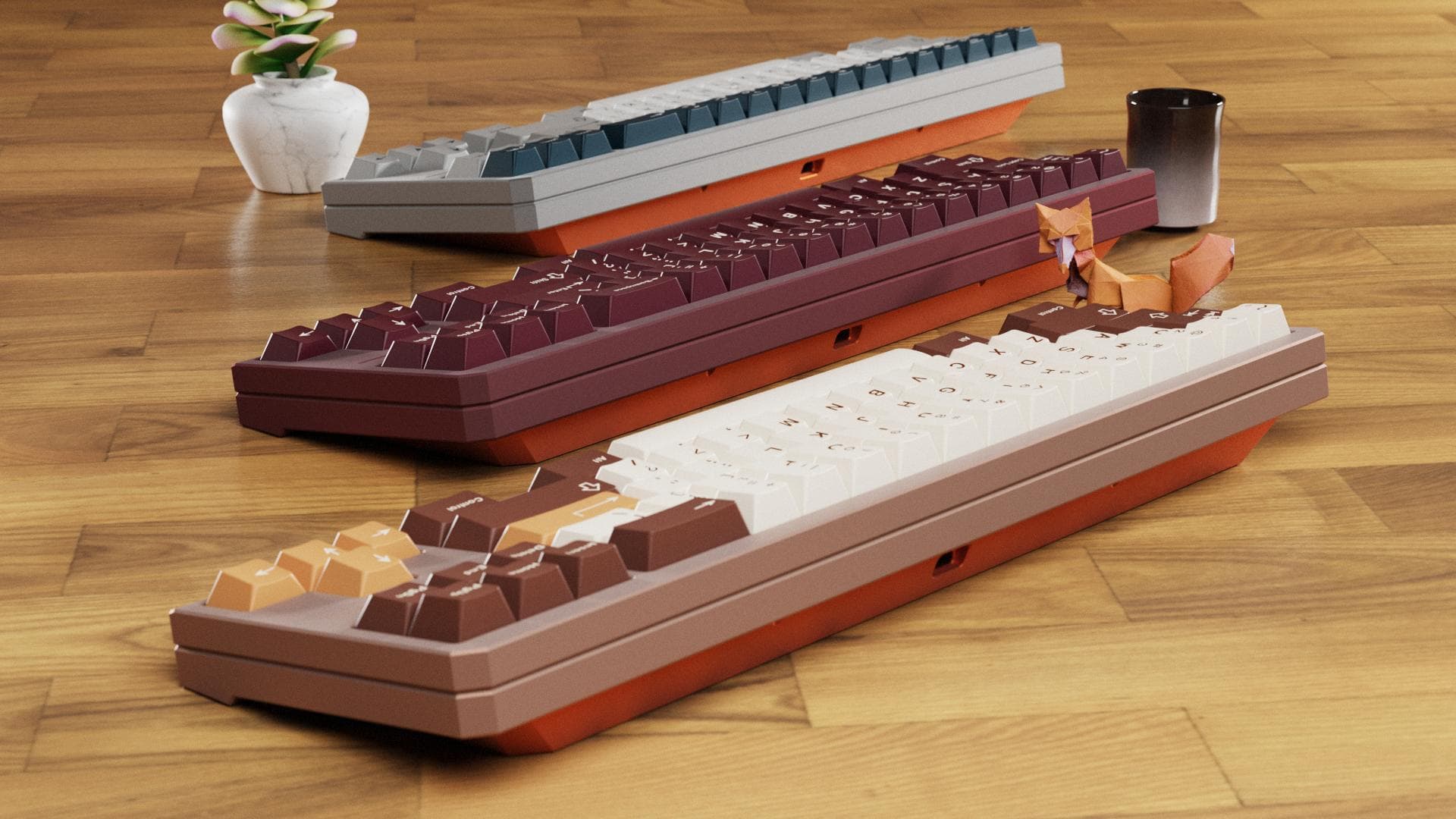

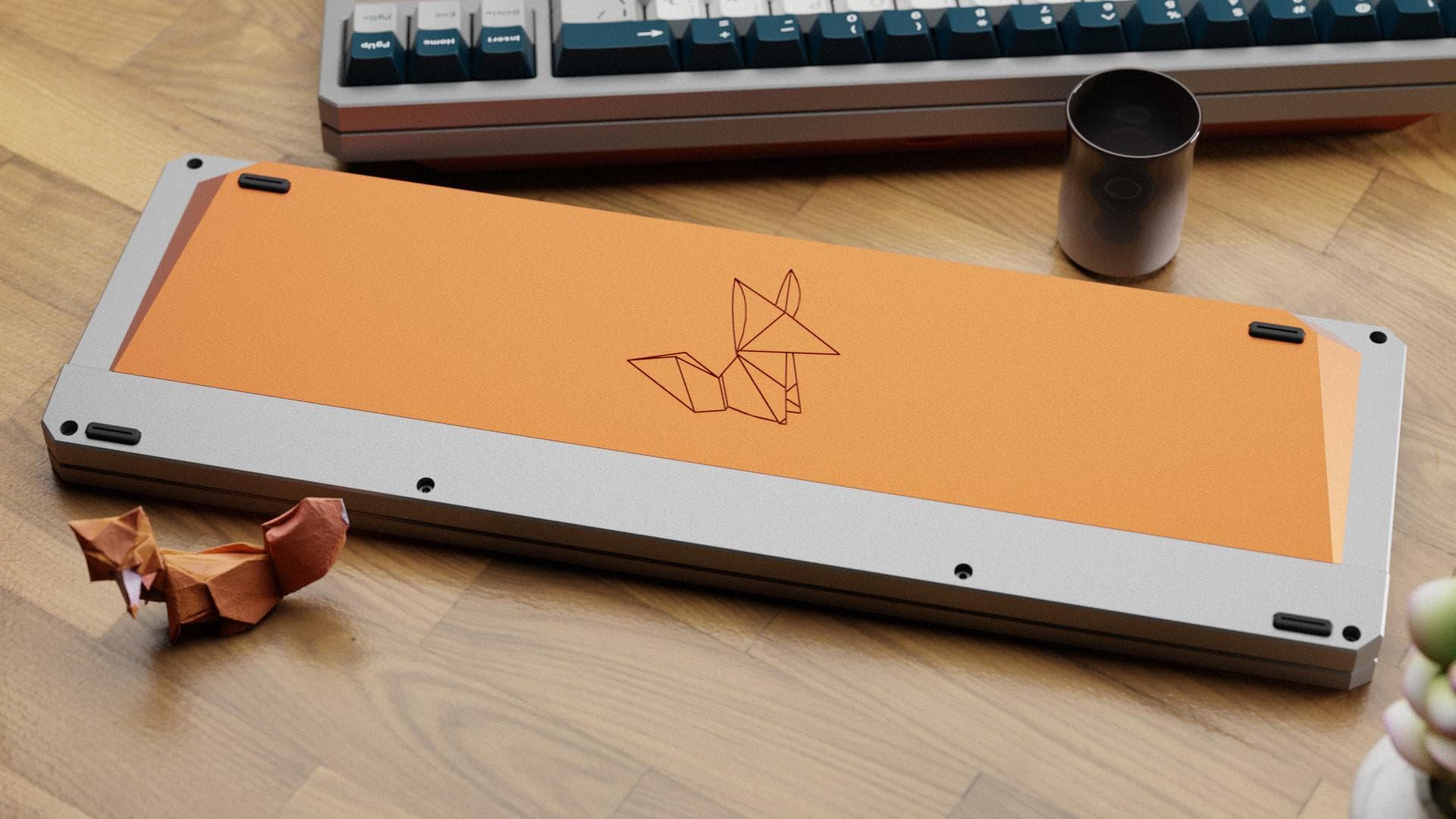

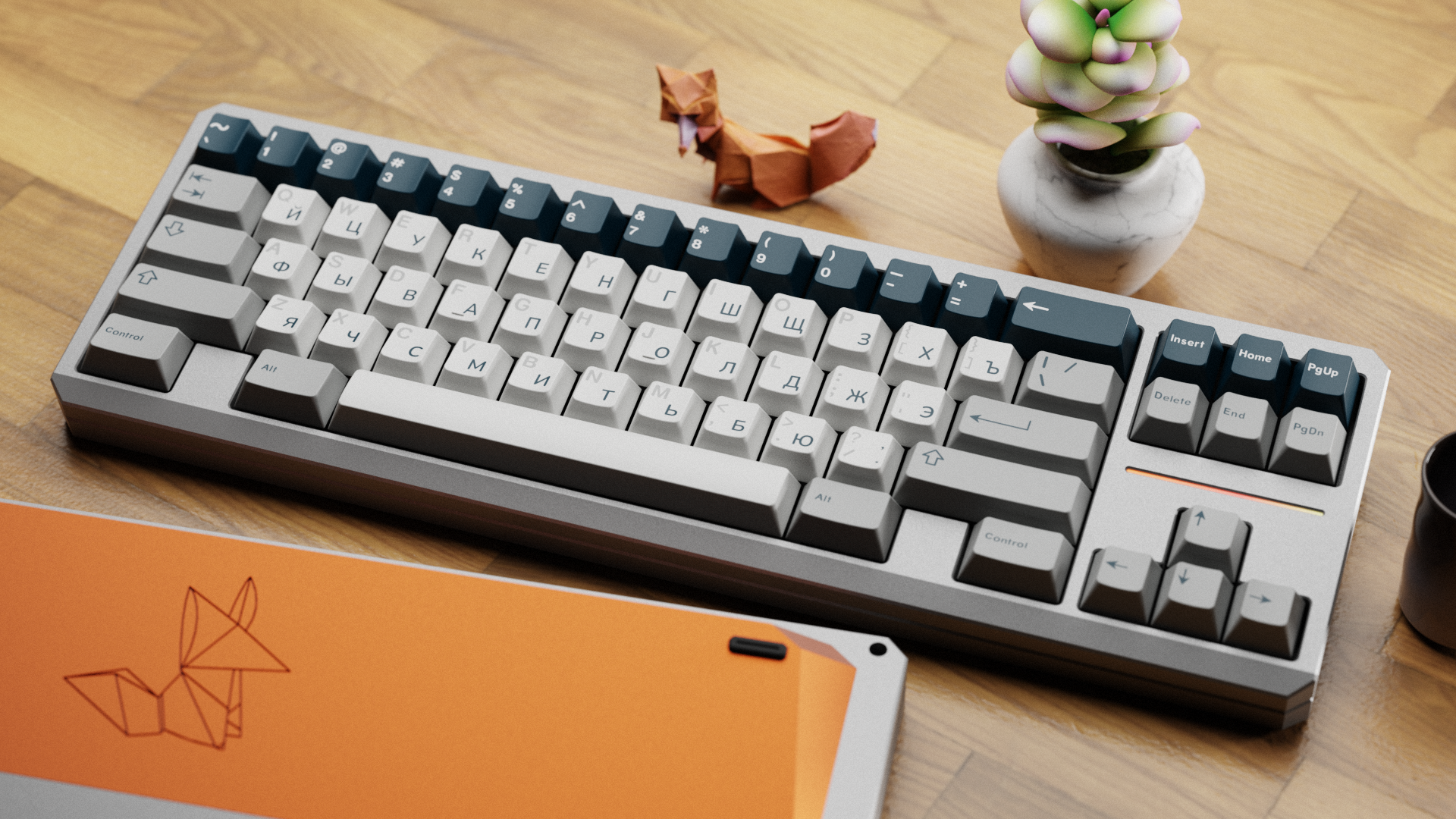

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━RENDER GALLERY Renders by: Junocchi

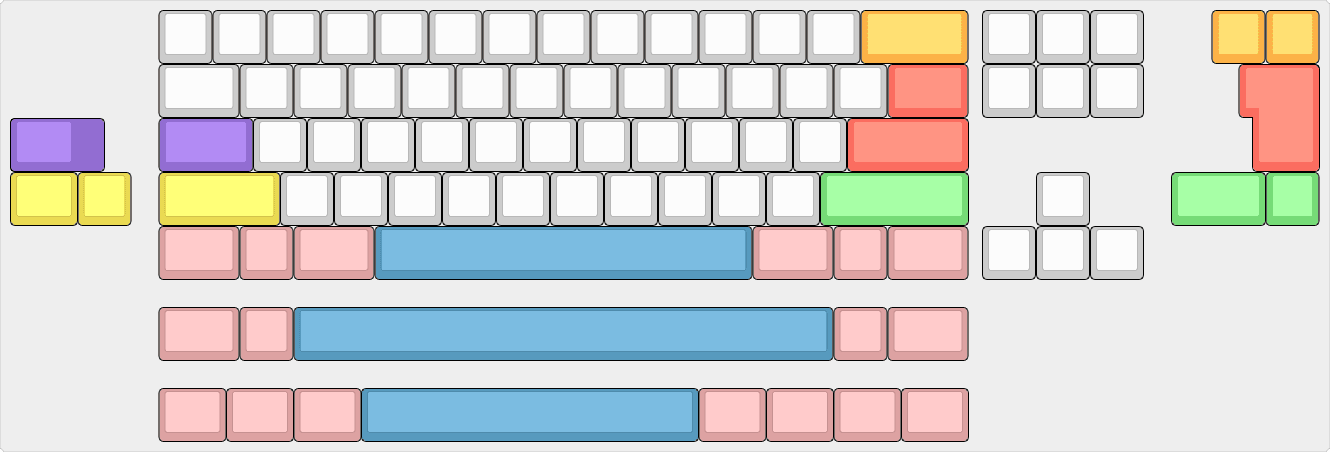

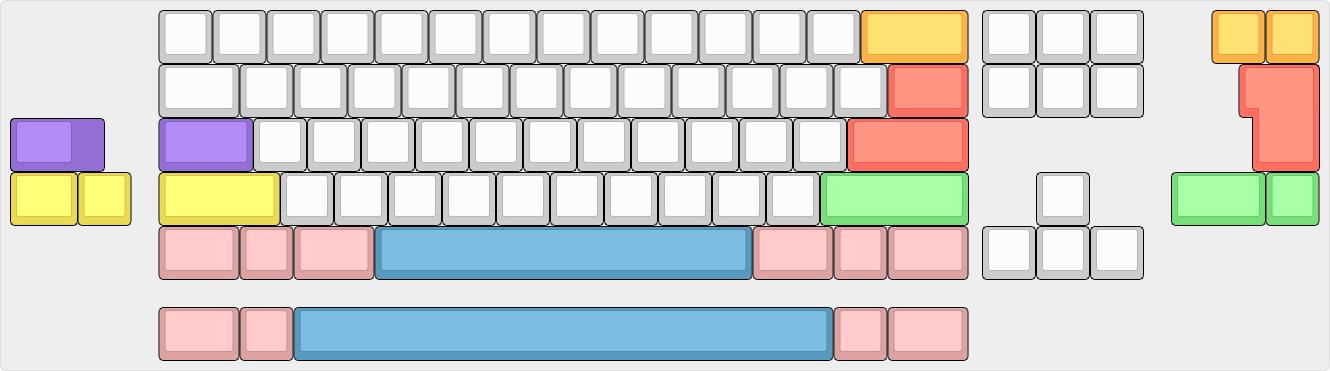

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━LAYOUT SUPPORT
Primary: 70% FRL-TKL
Options: WK / WKL
Switch Support: 3-pin & 5-pin
PCB: Hotswap or Solder
PCB DETAILS
Thickness: 1.6mm
Lighting: Dedicated LED system
Connectivity: USB-C daughterboard (JST)
Firmware: QMK/VIA supported
Hotswap
Solder━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━DISCLAIMER Origami Keys is an independent studio and not affiliated with Atelier by Pluskb or its other Origami projects. While we share an appreciation for the Origami theme, our boards are distinct in design and direction, and we aim to present them clearly to avoid confusion.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━THE ORIGAMI SERIES
Kitsune is the first entry in the Origami Series, a lineup translating the art of paper folding into functional keyboards.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
