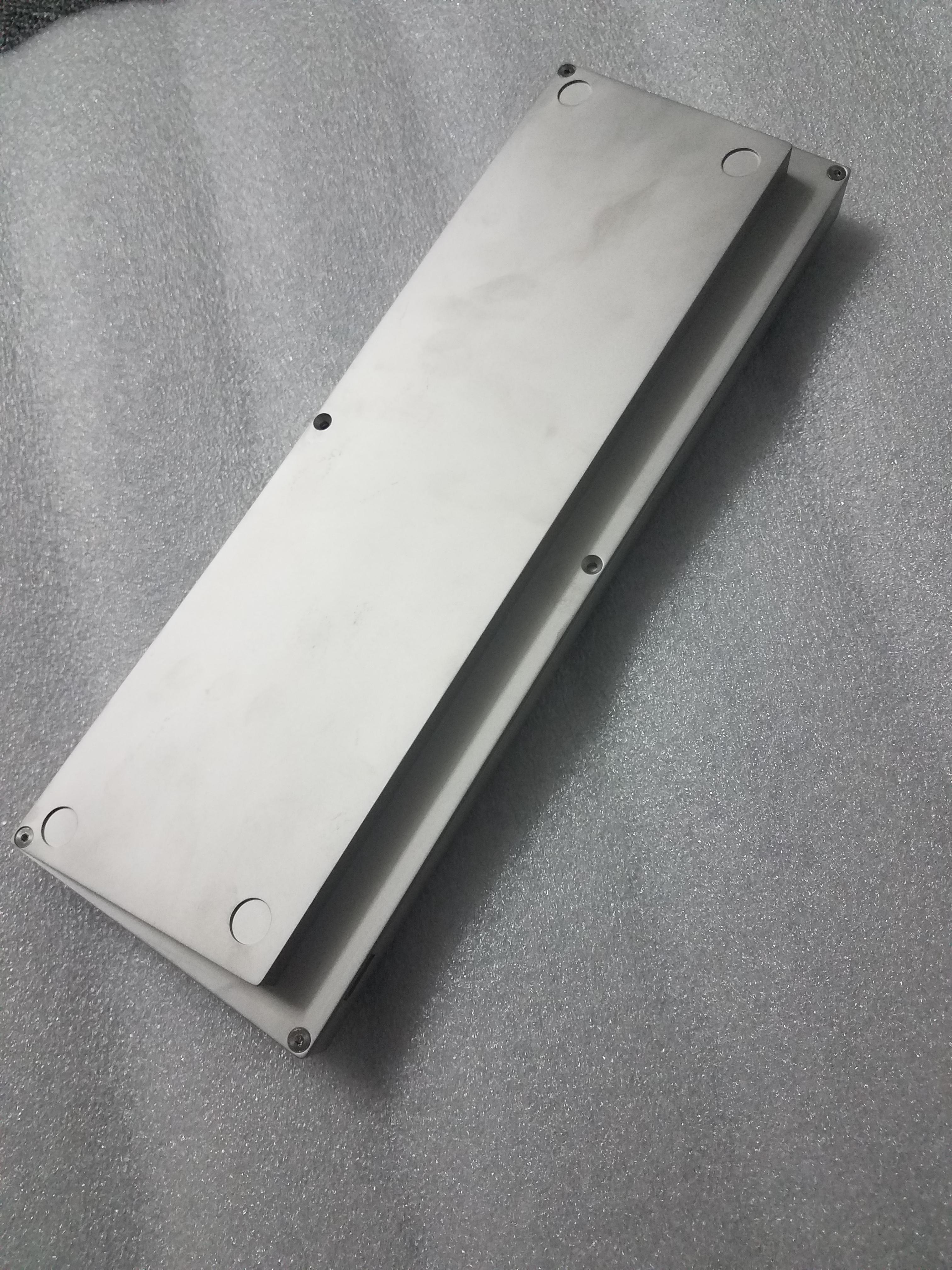

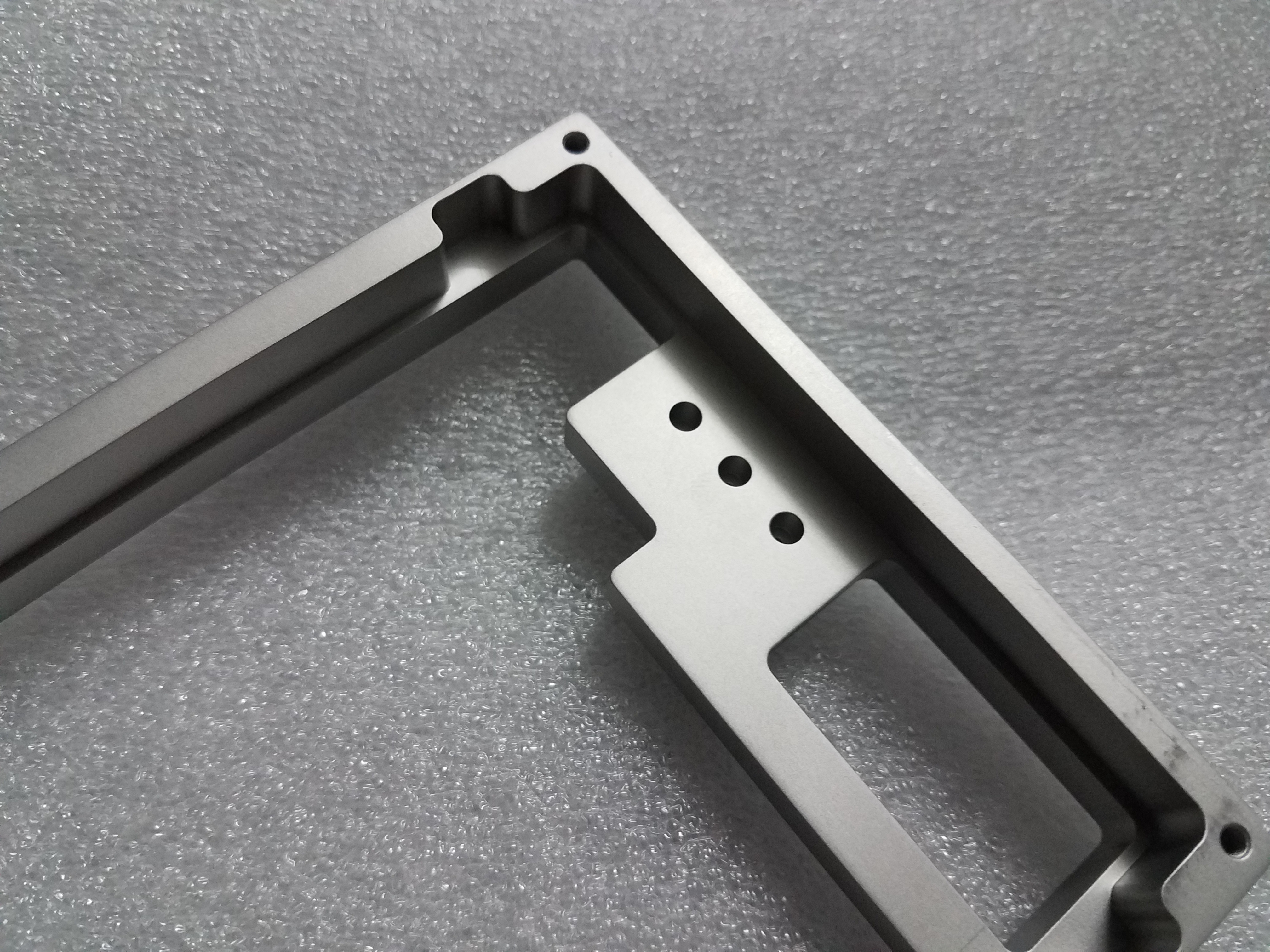

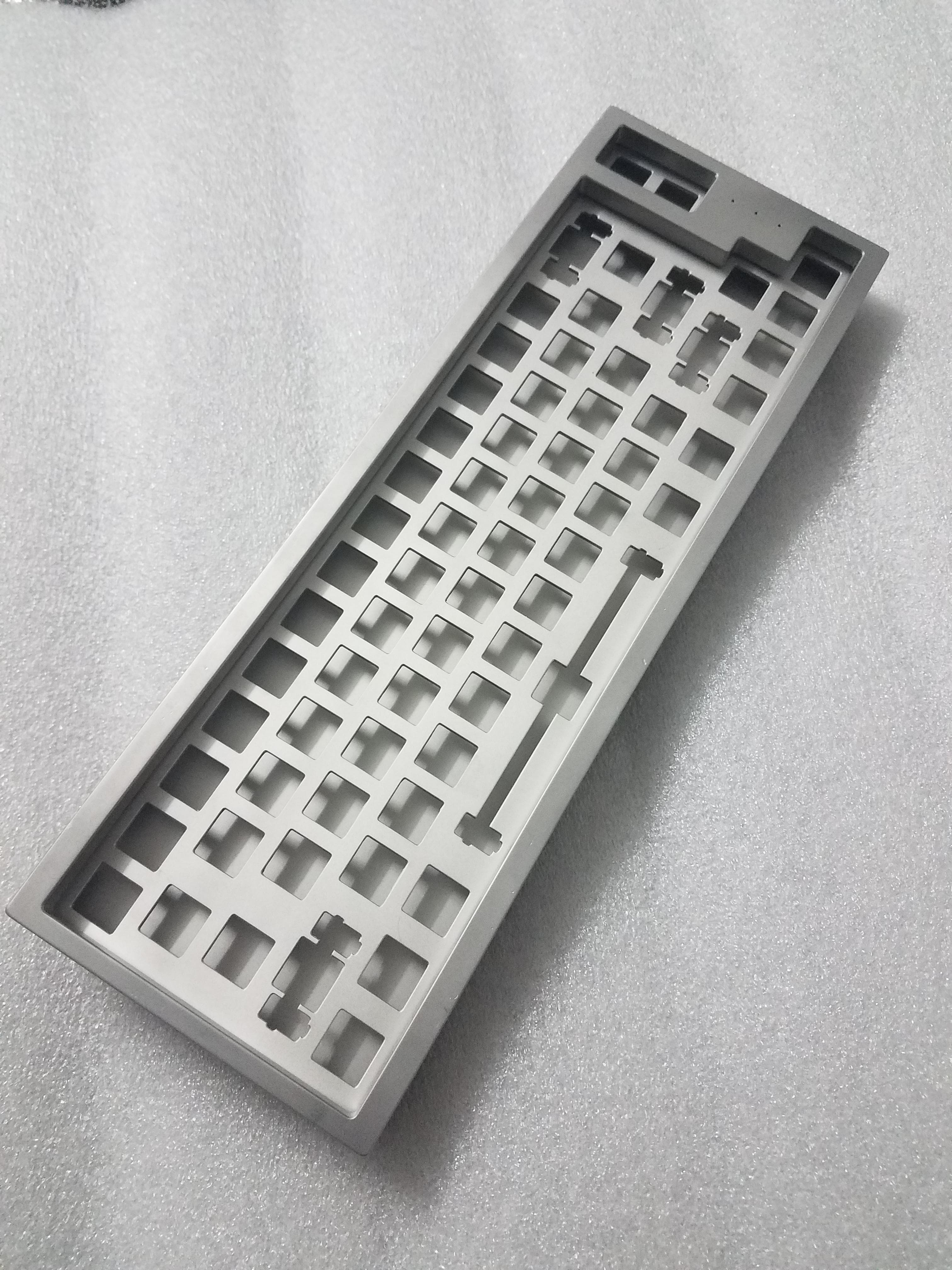

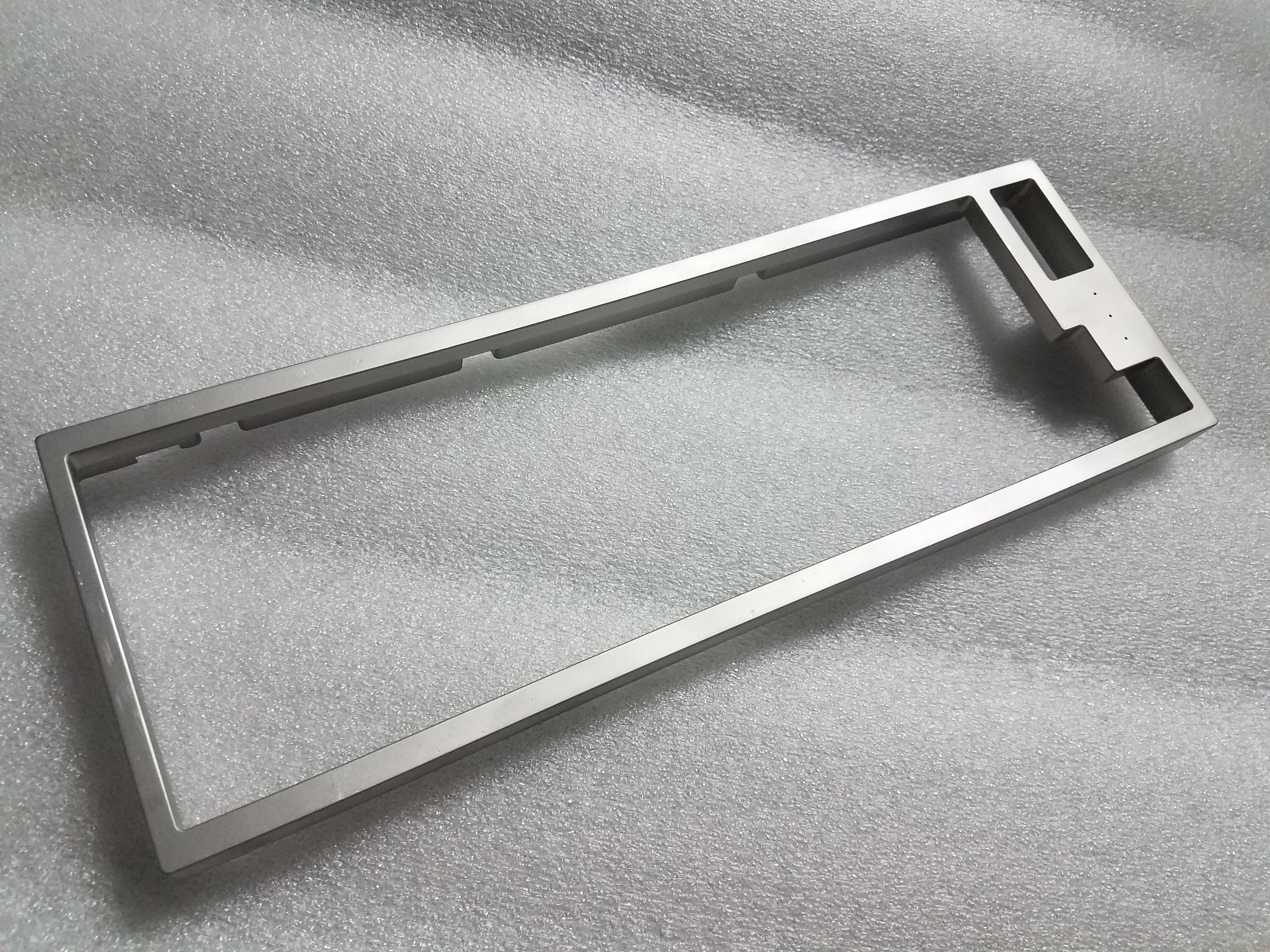

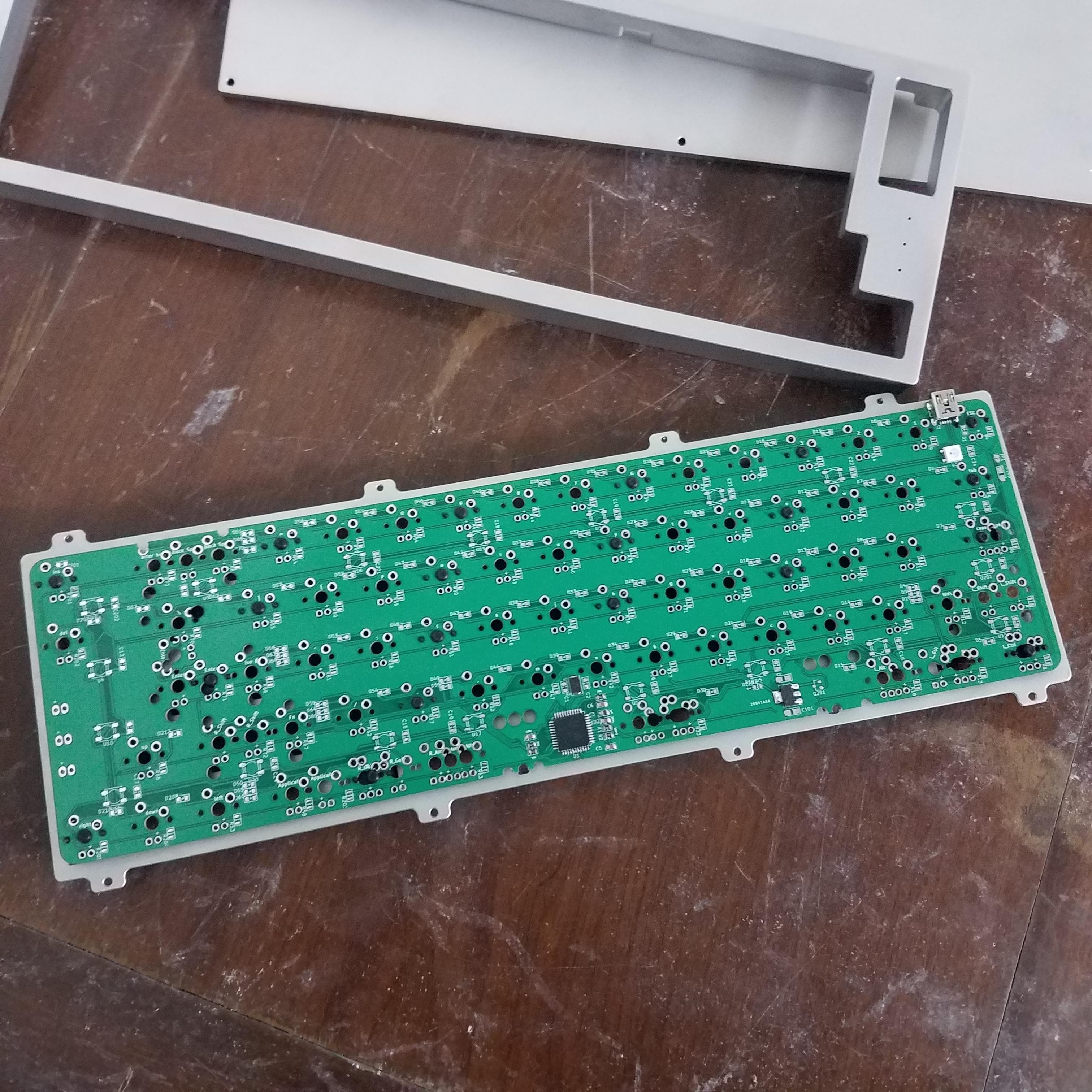

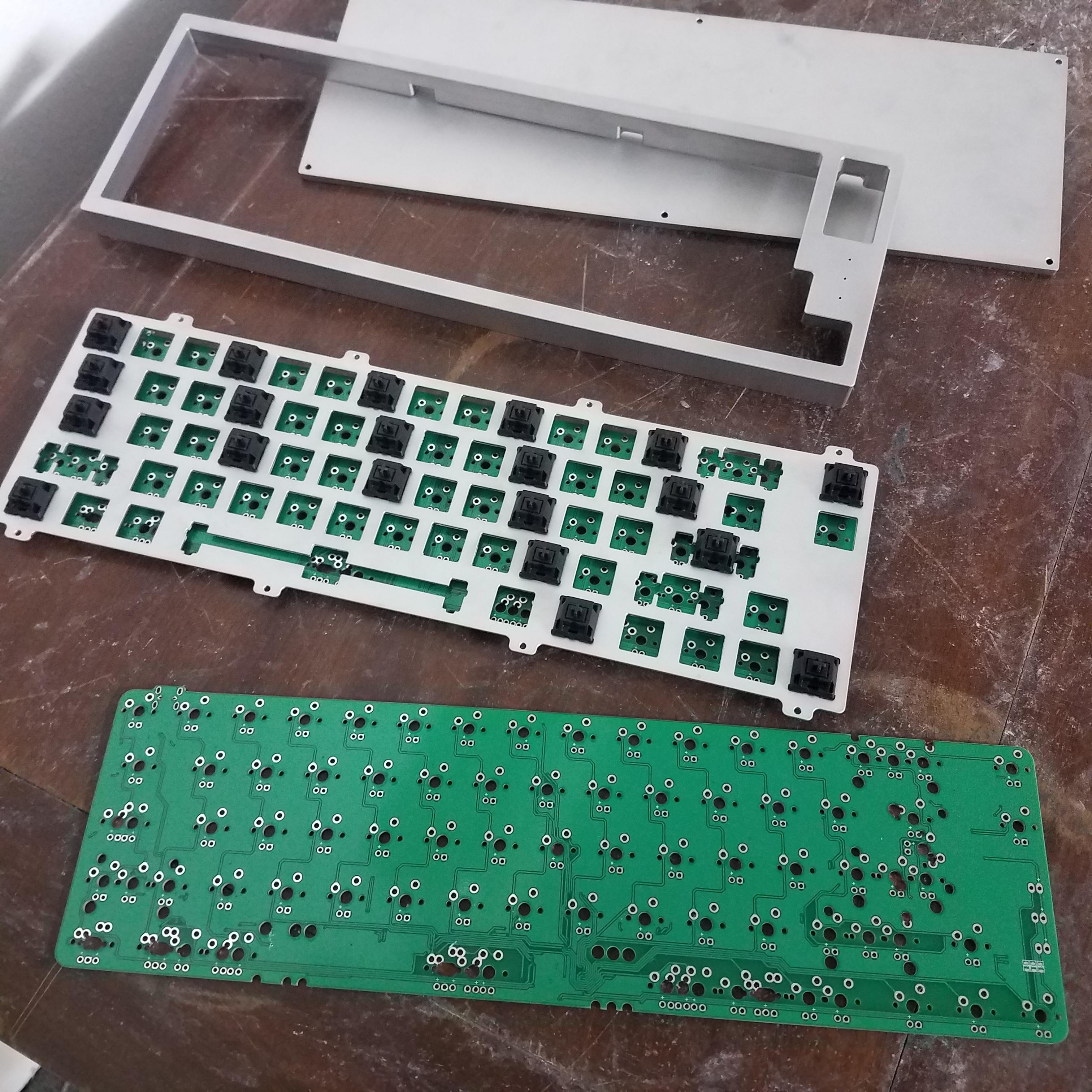

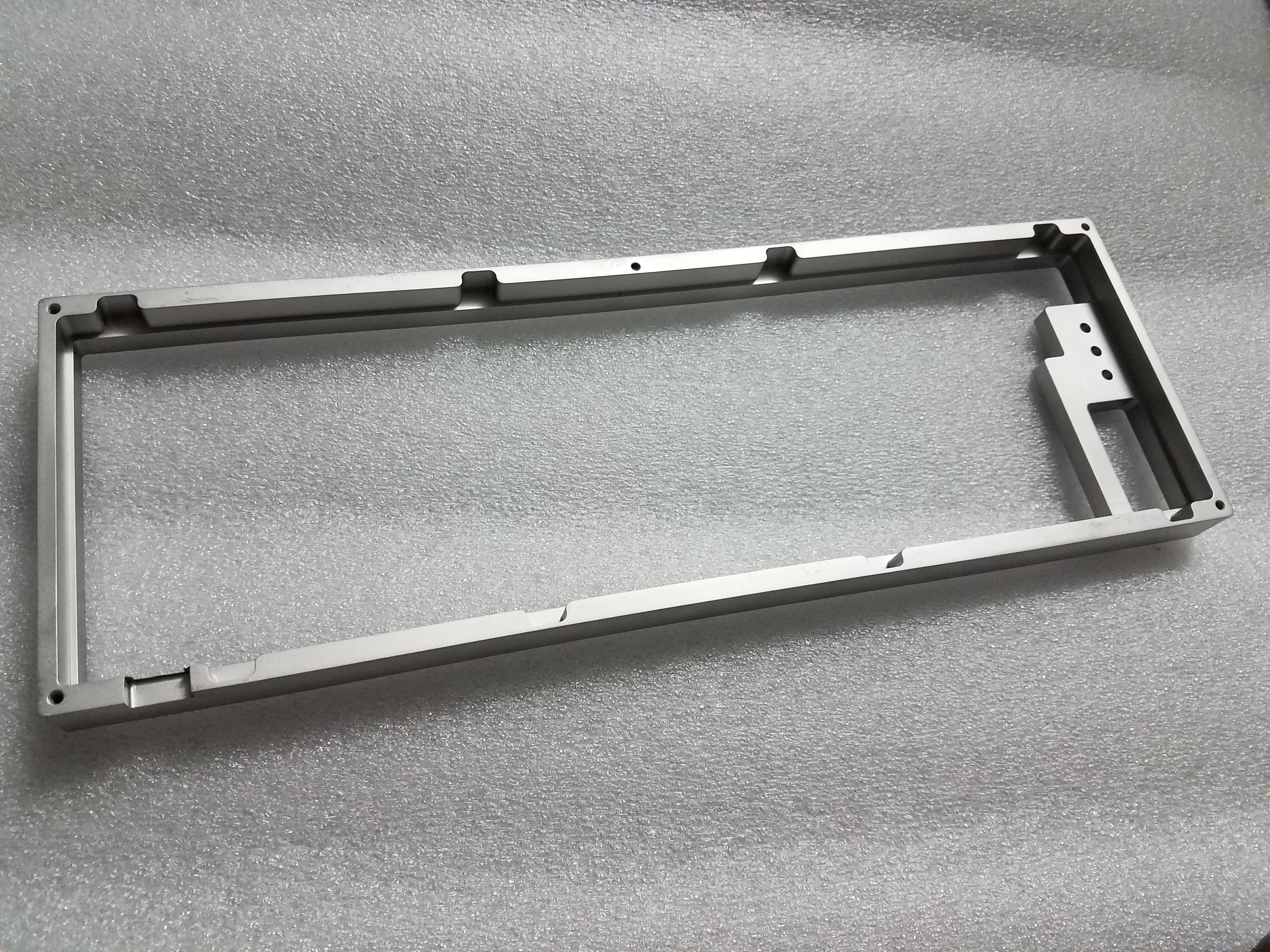

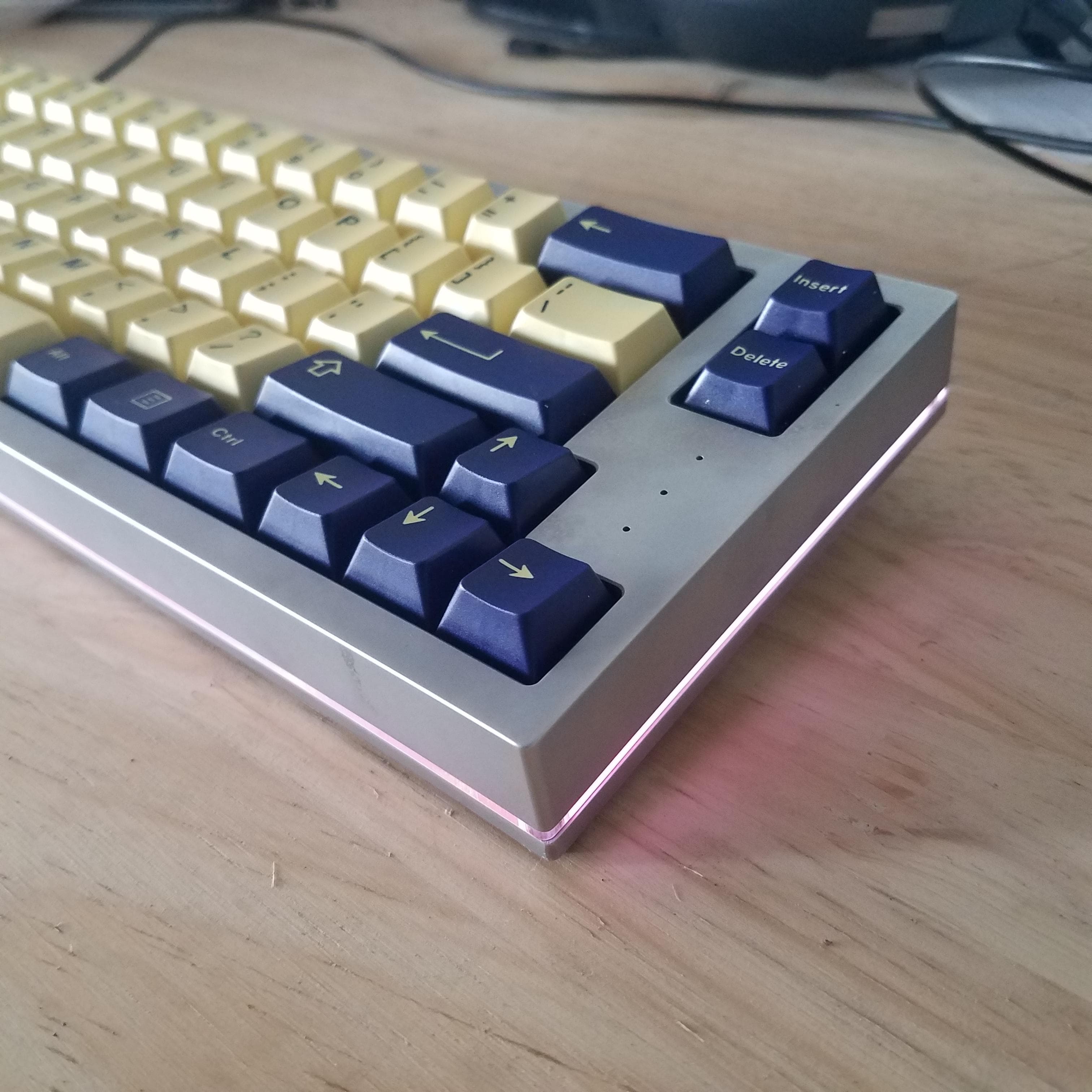

More picture prototype: ( Plate in prototype will not the final plate in GB, please check the design below)
More
Information about the prototype was implemented/ IC threads:
https://geekhack.org/index.php?topic=95465.0Join GB:
https://goo.gl/forms/UjISvPrUXFG5UX793CHECK ORDER HERE: :

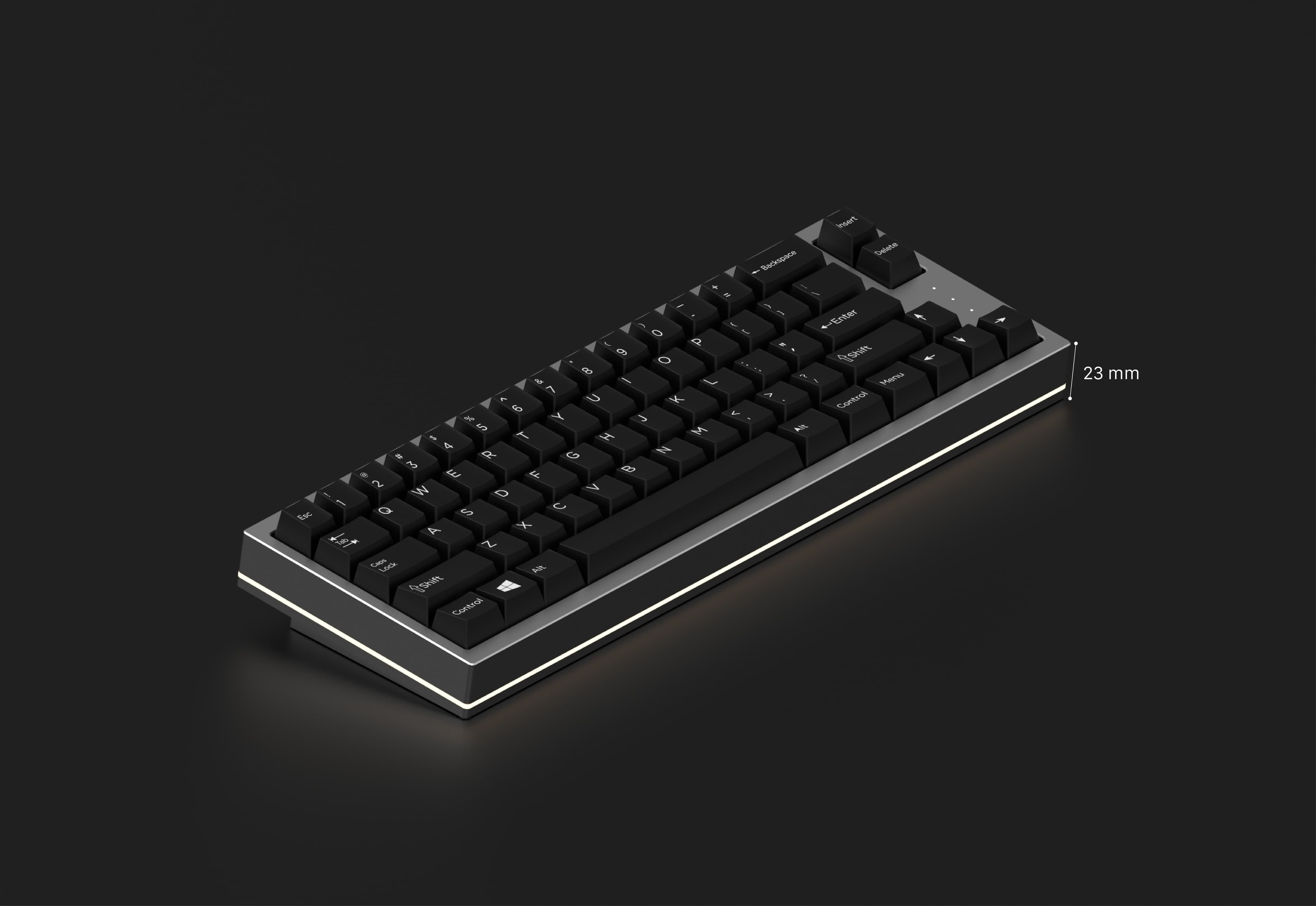

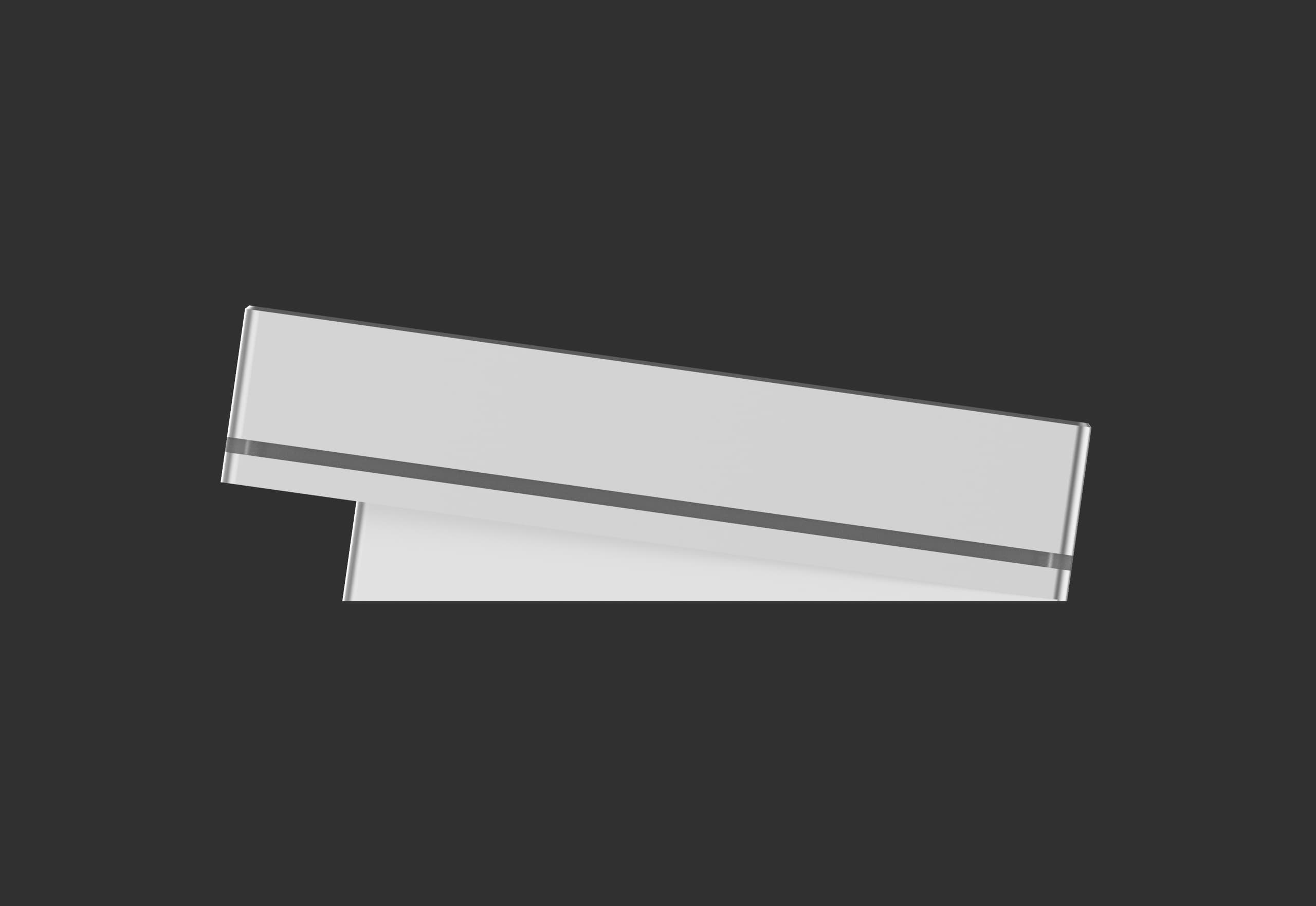

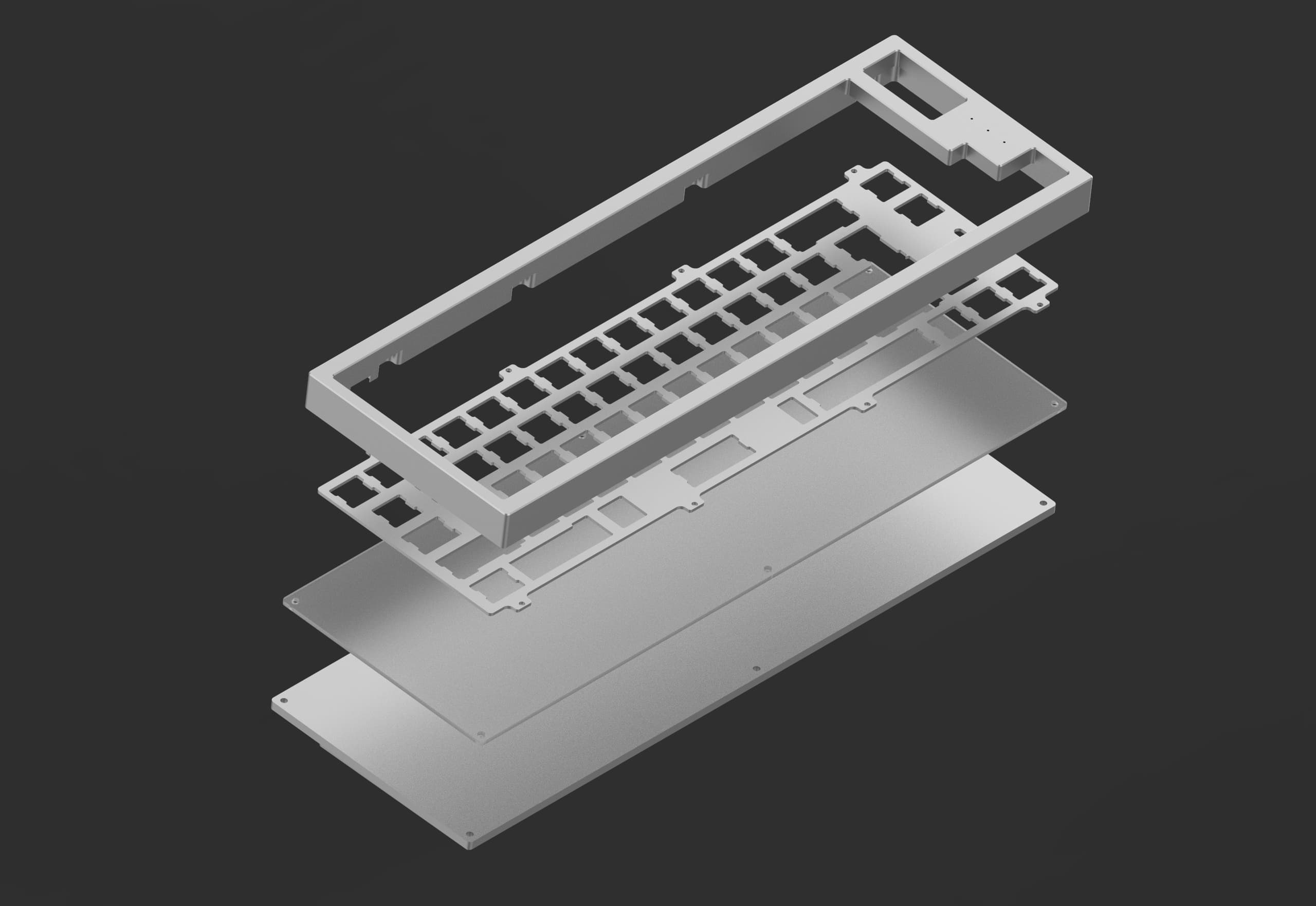

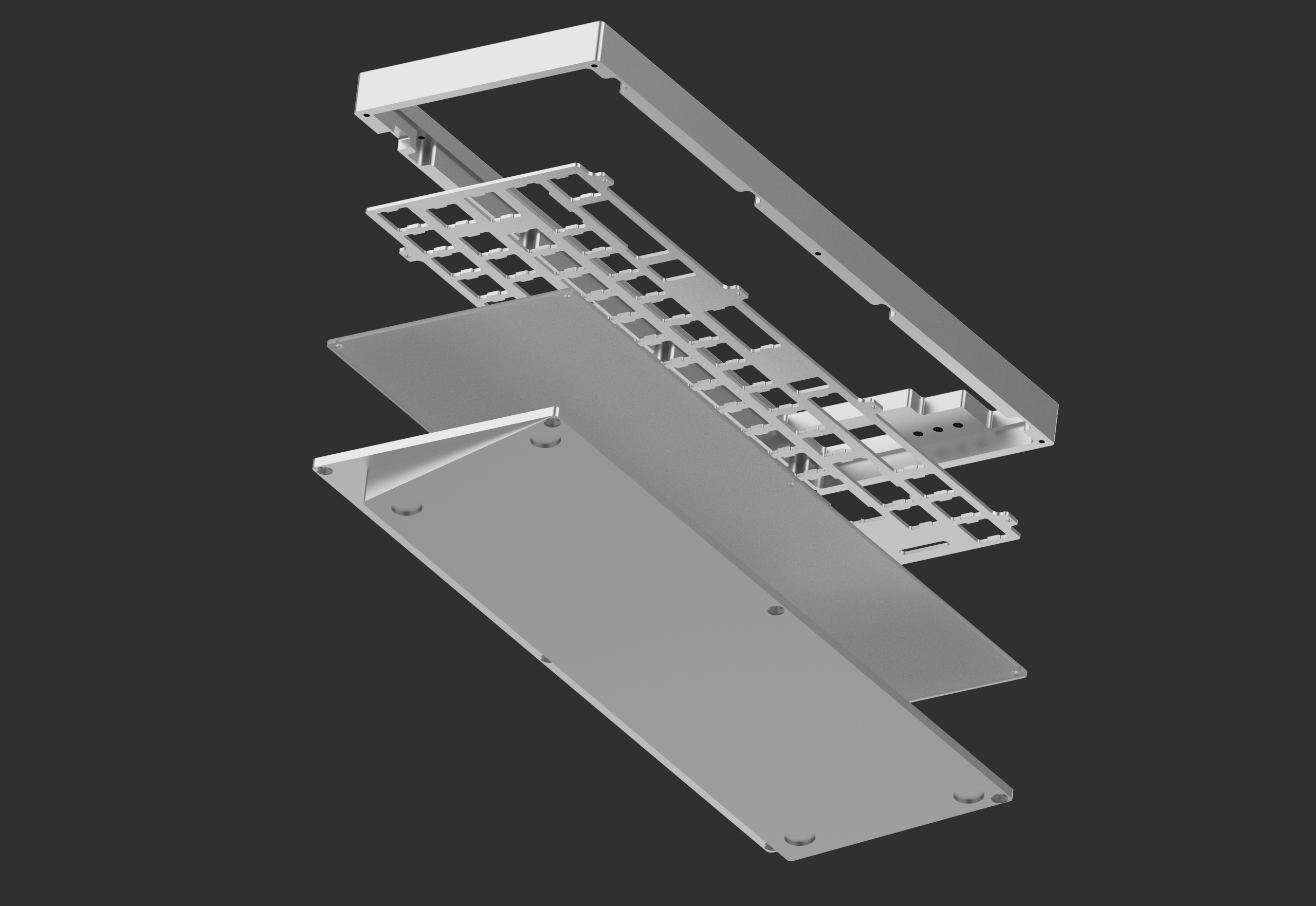

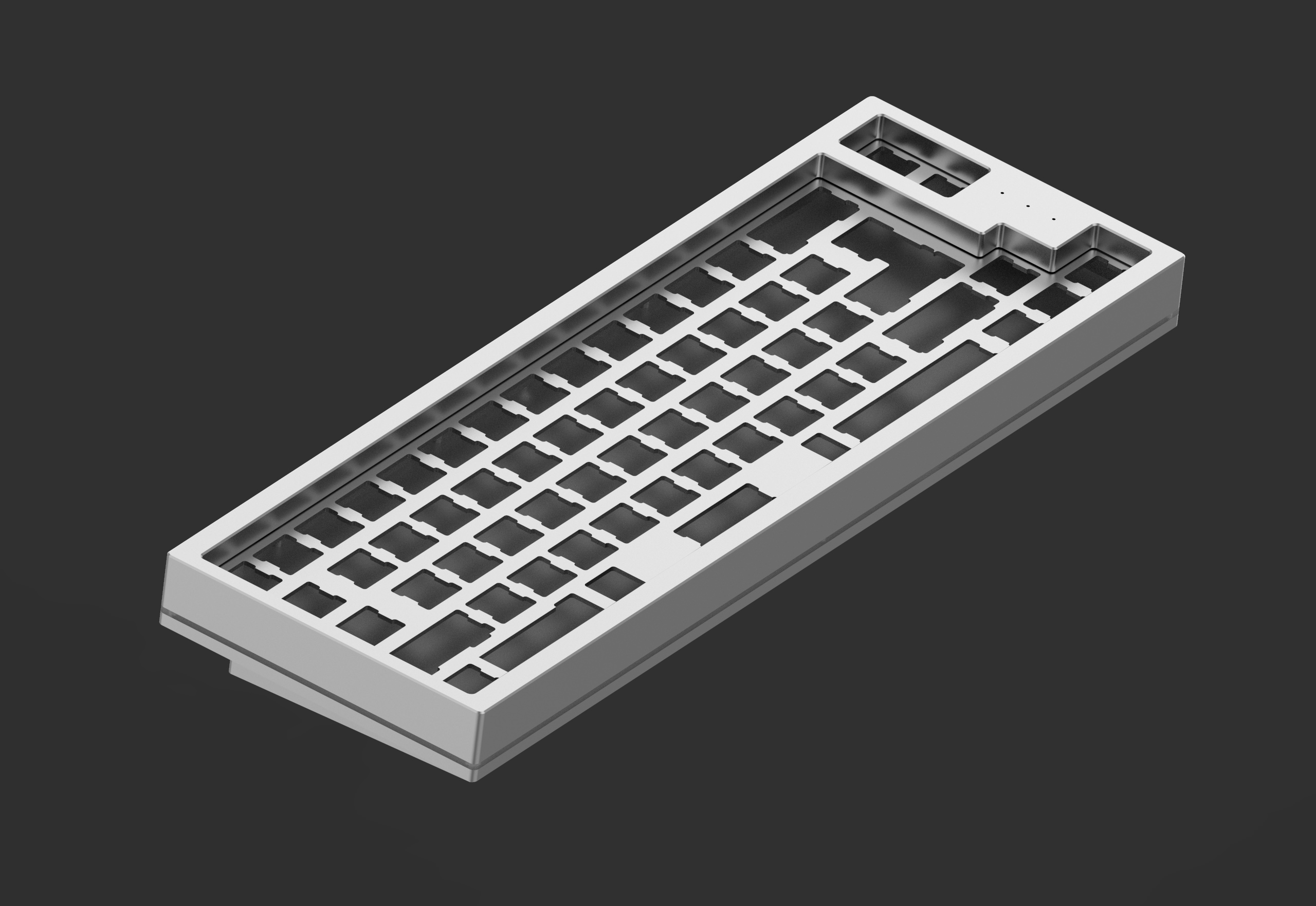

https://goo.gl/wFtV3PRender:
More

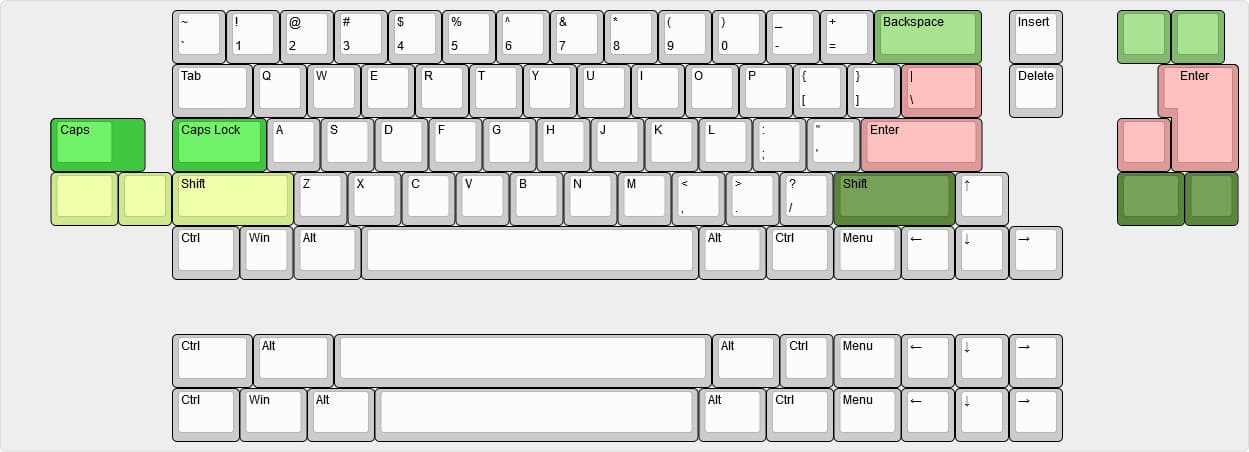

Supported layouts:

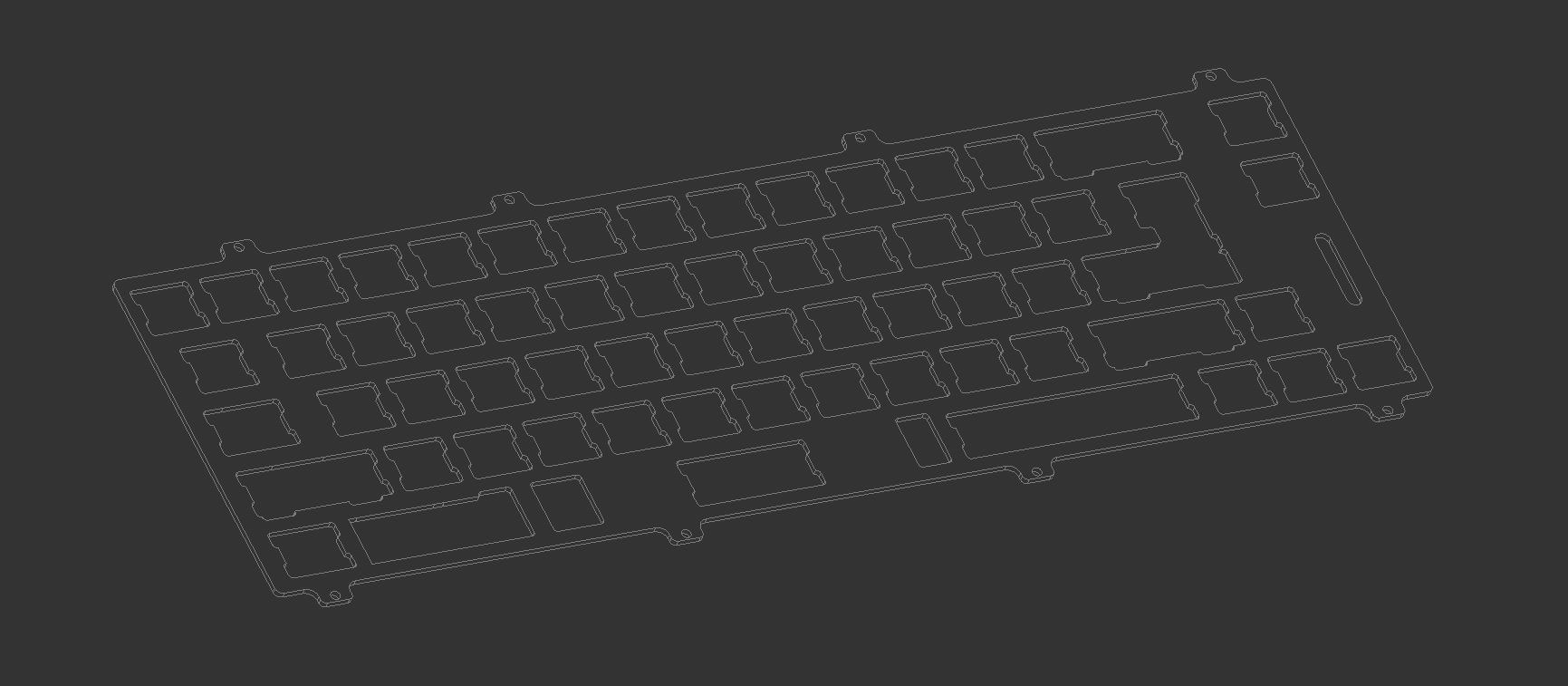

Final design plate:
Specifications: - Full Kobelco 6063 aluminum case
- 8 degrees
- Brass plate is optional
- ISO and ANSI
- PCB QMK
- Fully Programmable
- Full LED backlighting
- Controller parts, diodes and resistors are presoldered
Color options: Black and Silver
Prices: 220$ - include case + pcb + diffuser + plate
Plate brass optional :
50$Shipping fee:
DHL with Tracking Number (4-6 working days)
Free ship in China
Asia ~$40
USA ~$48
Worldwide~$55
4.4% PayPal fees.
Package includes:Case
Plate
PCB
Diffuser
screws m3
screwdrivers for m3
Deadline for order: 7/2/2018 --> 7/9/2018
Deadline for payment:7/10/2018--> 7/15/2018
Road map: (expected time 10 weeks) - ( You can check my prototype, take about 1 month for everything)
- Invoice sent : 7/10/2018
- Payment received :
- Materials ordered :
- PCB ordered:
- CNC phase:
- Anodizing phase:
- QC :
- Shipping:
This is my first GB host, please comment if I have any mistakes. Thank you!
