Hi yall!
This is an update to an IC that is over 2 years old.
I’ll try to keep it brief here; saving the older IC contents for posterity - you can check them out in the first reply below.
K, here we go:

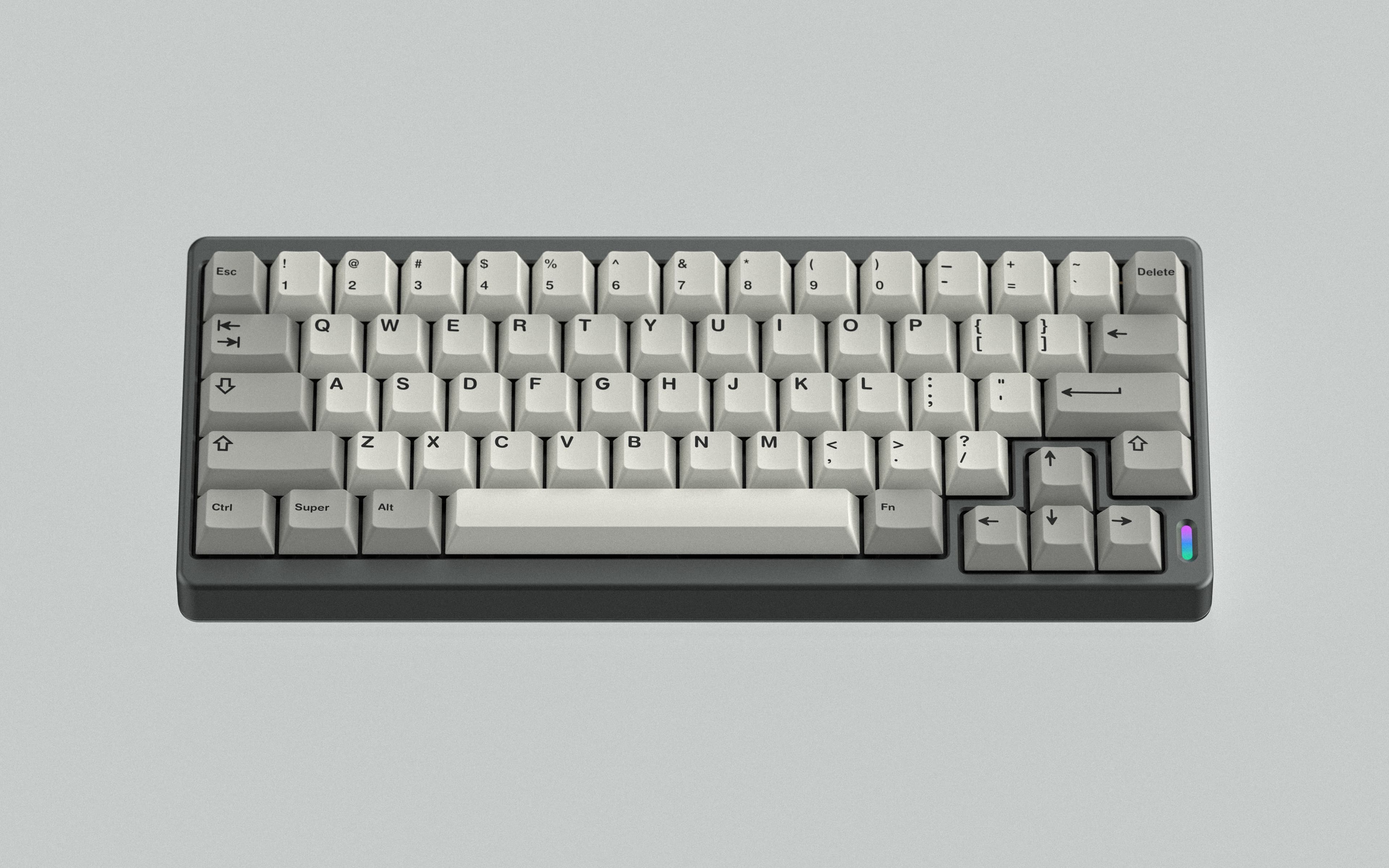

PALYour friendly neighborhood 60%
ft. an exploded arrow key cluster
PAL is a layout I have been personally using for over 3 years now - It suits my needs perfectly and I am pretty much contented with daily driving it for the rest of my life.
It may have taken a while, but I'm very excited to finally be able to make available to anyone else who might be interested.
Not going to make a pretense of presenting something groundbreaking here - PAL is a
very simple keyboard; hardly competitive against a lot of the stuff you can buy for less money nowadays - but it is still my favorite one nonetheless.
I just hope some of you will like it, too.

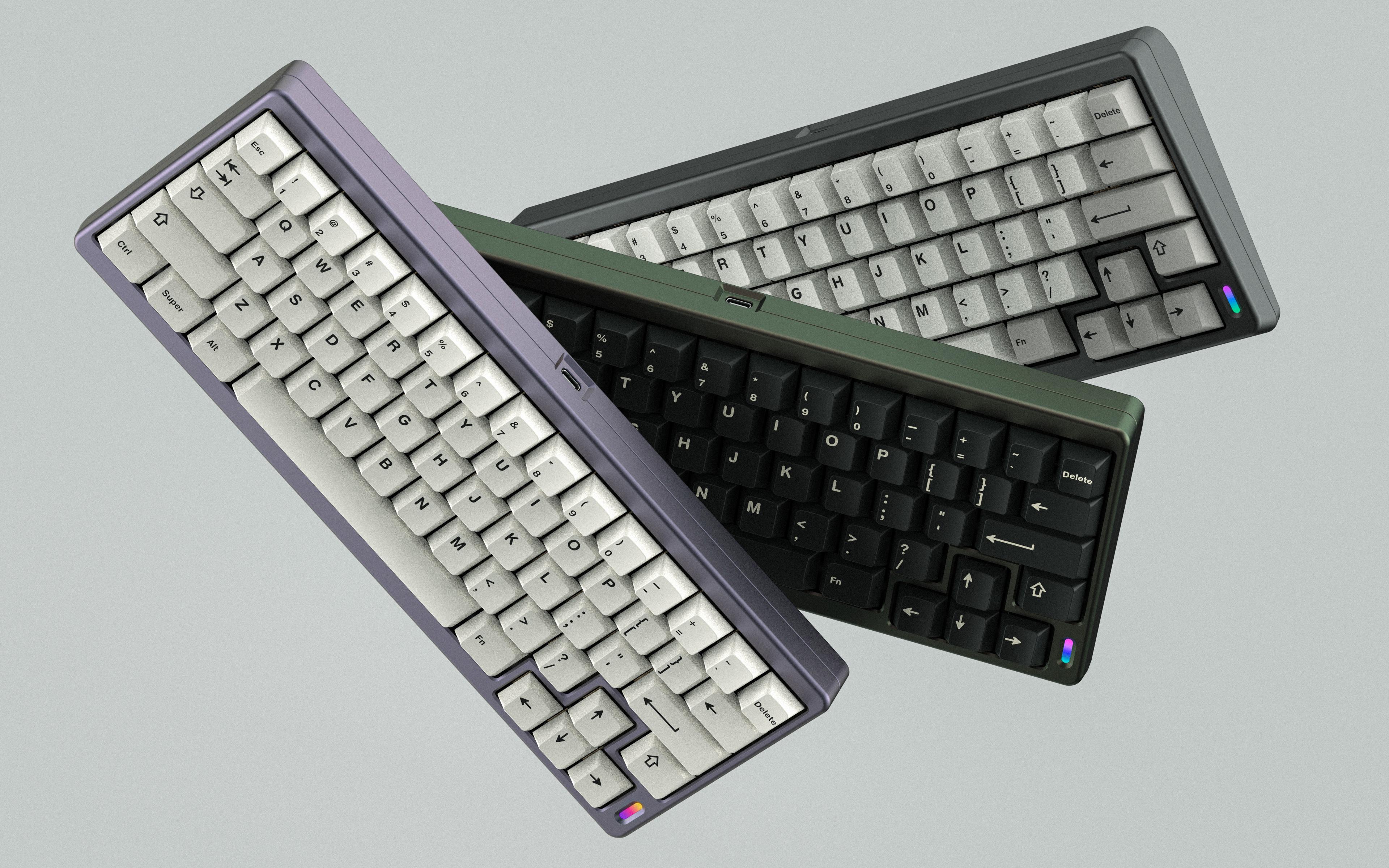

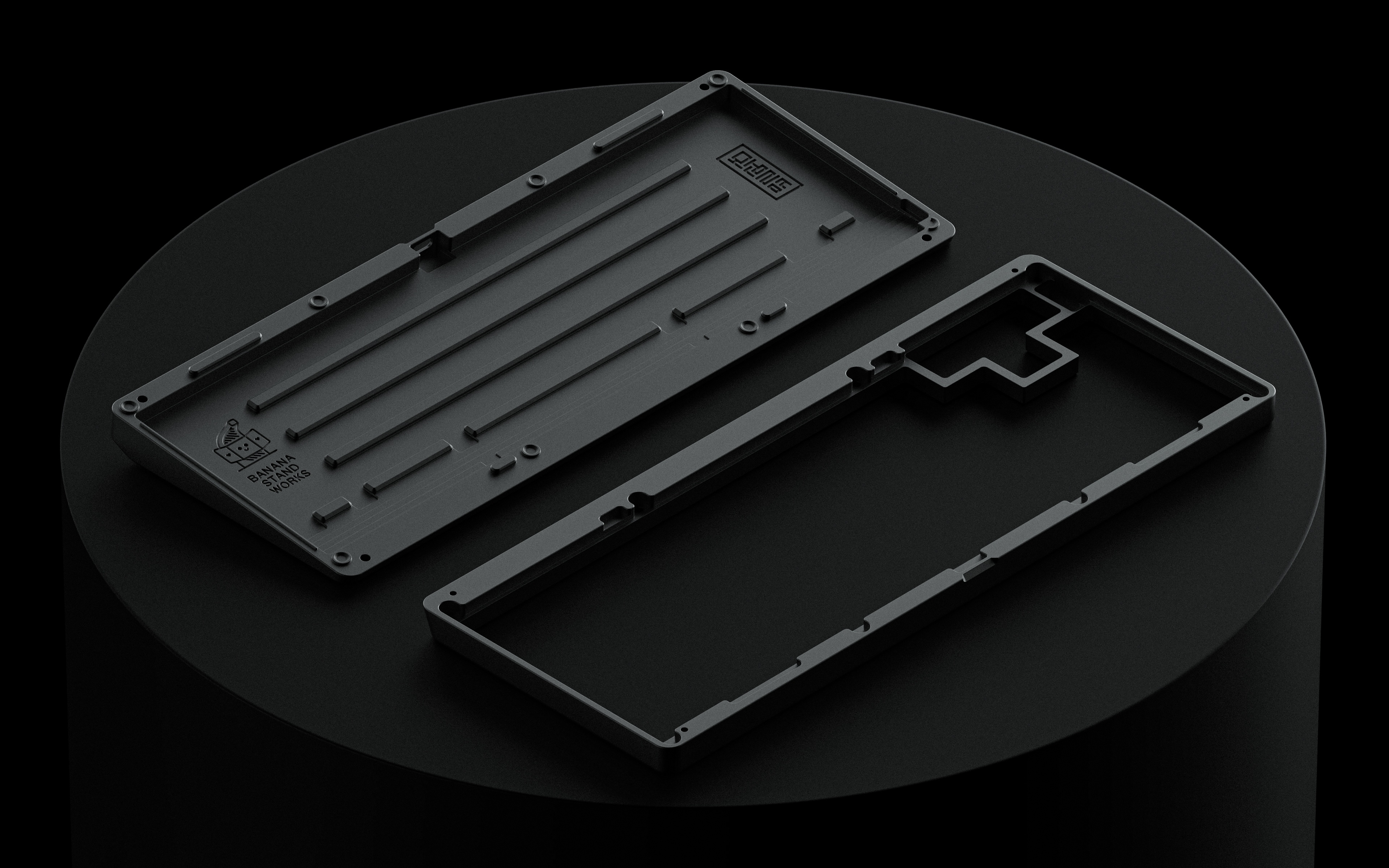

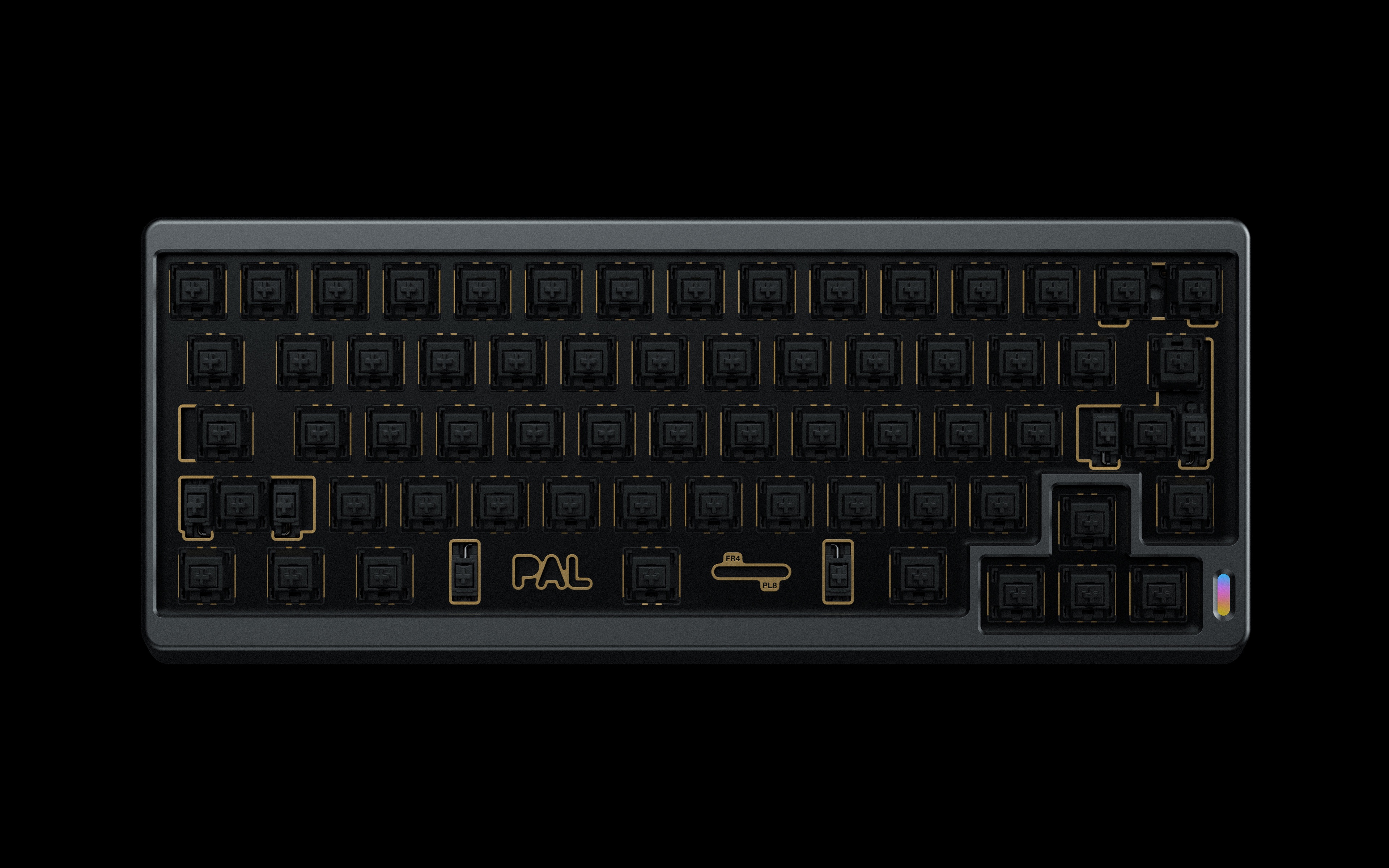

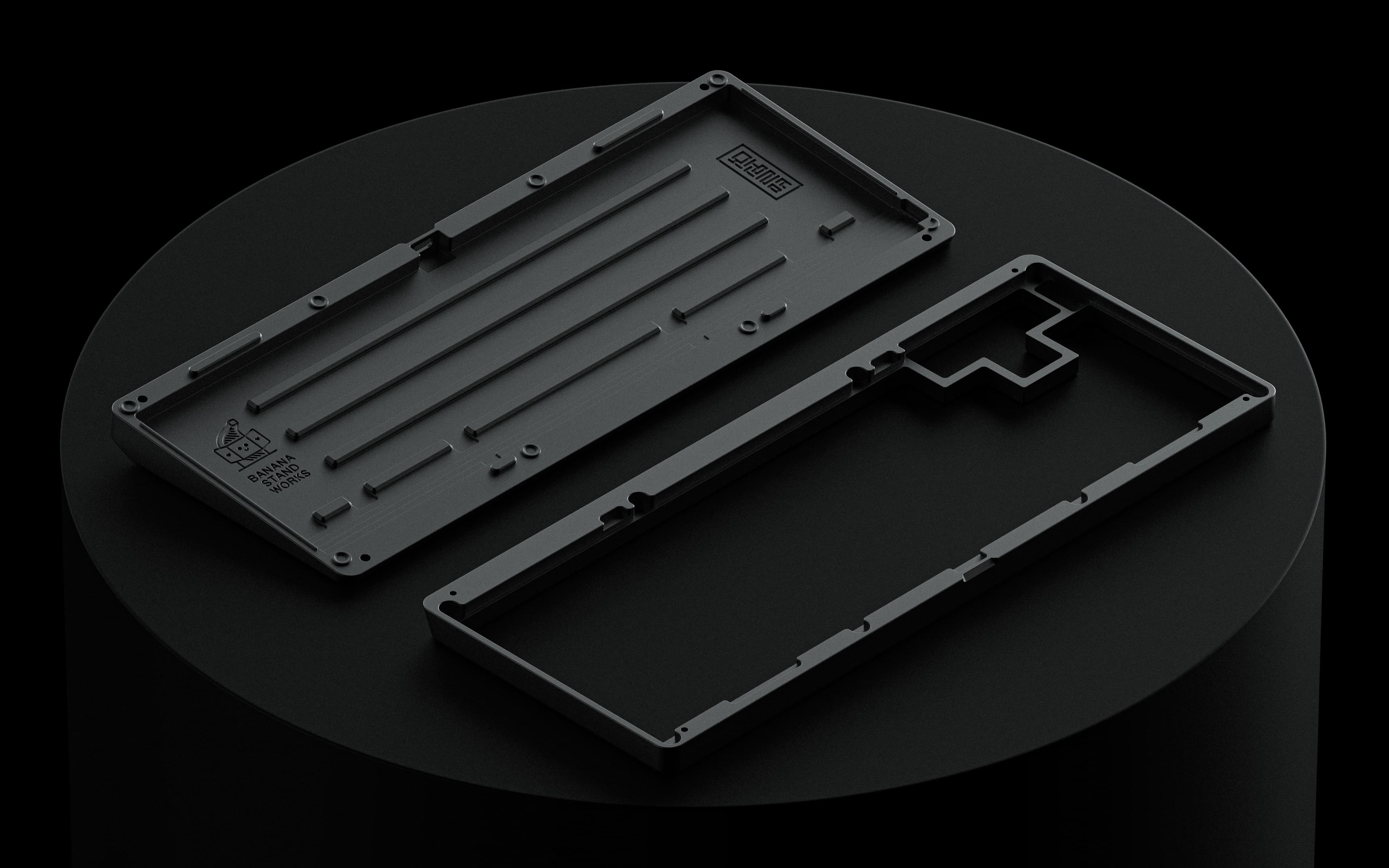

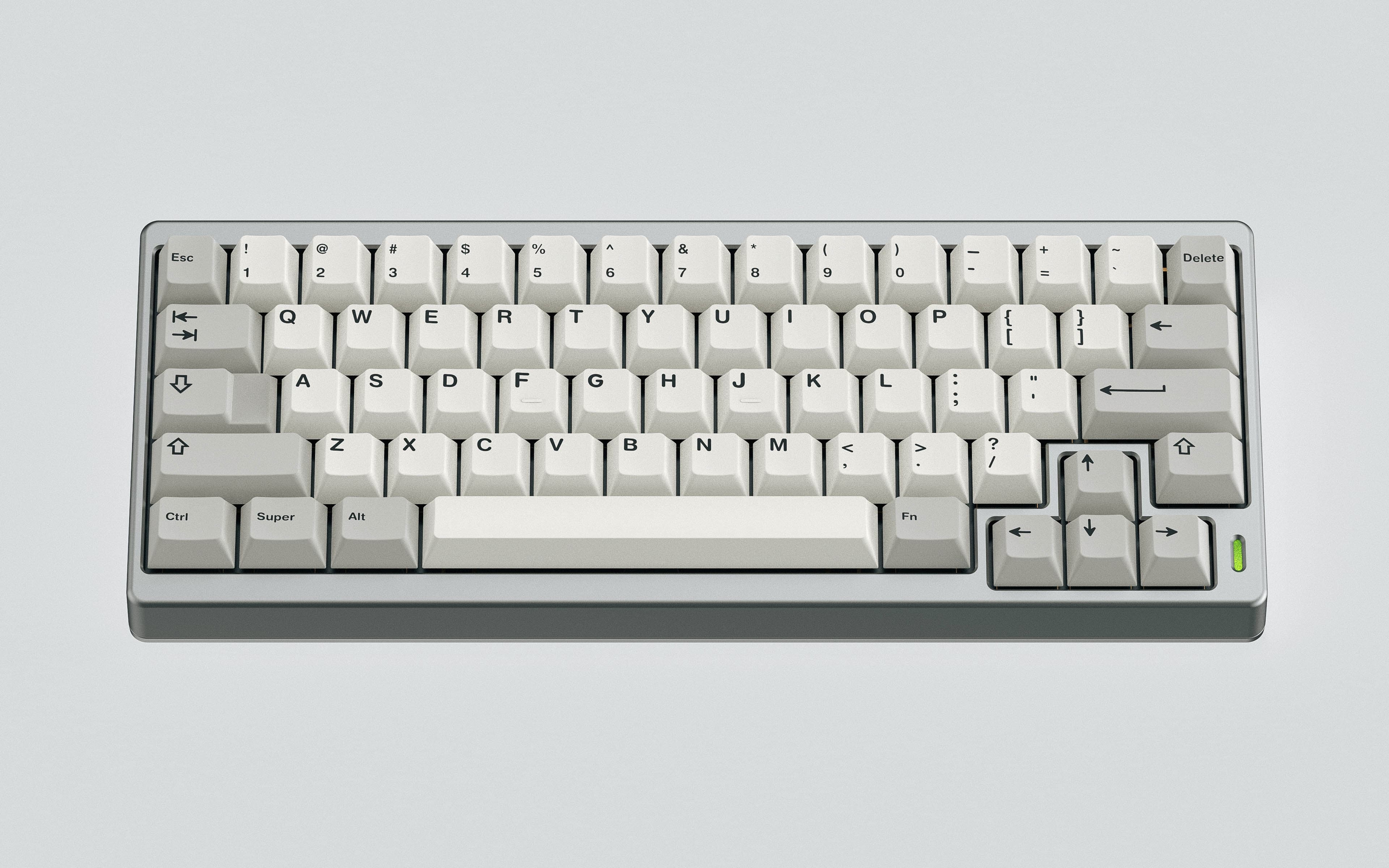

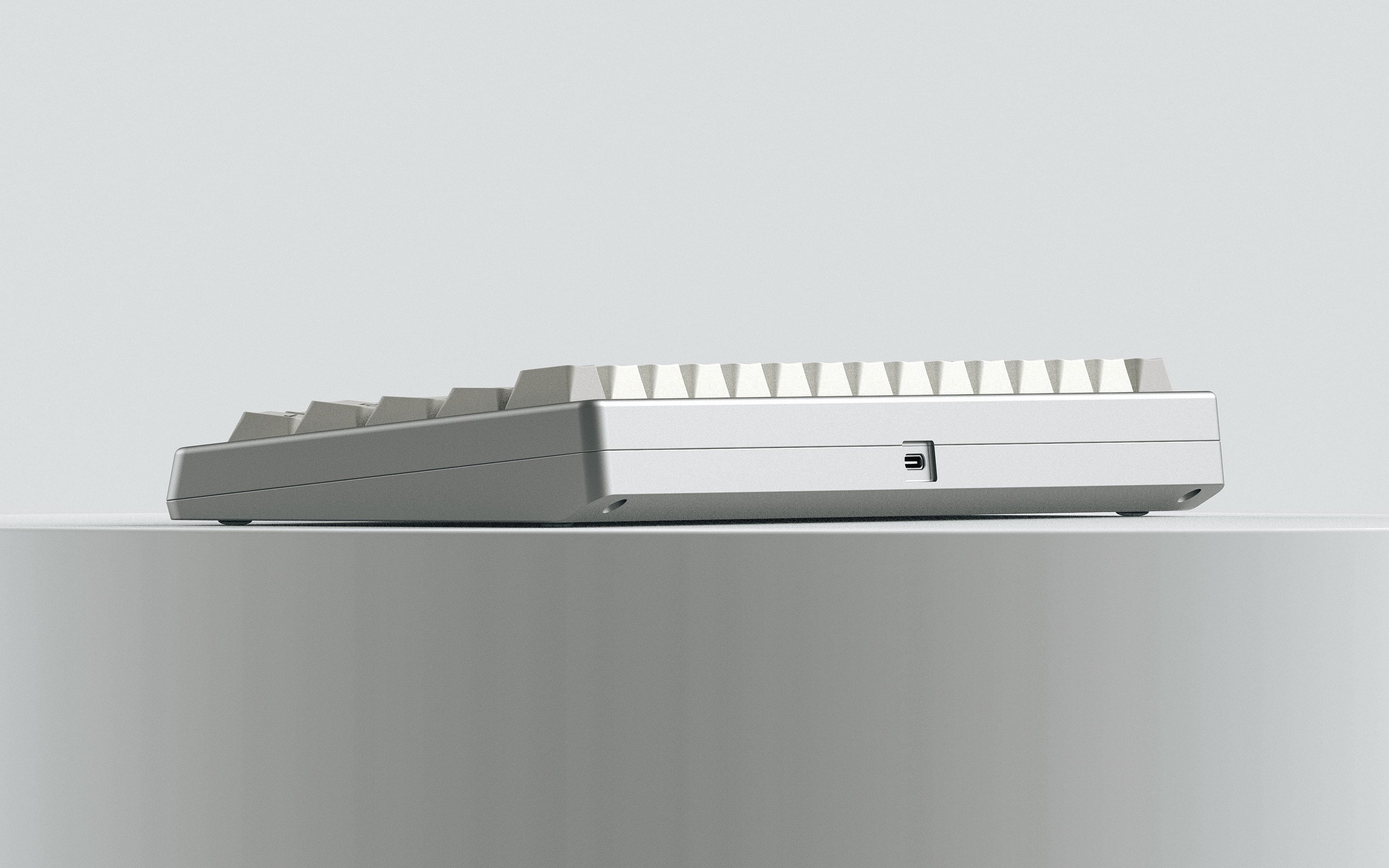

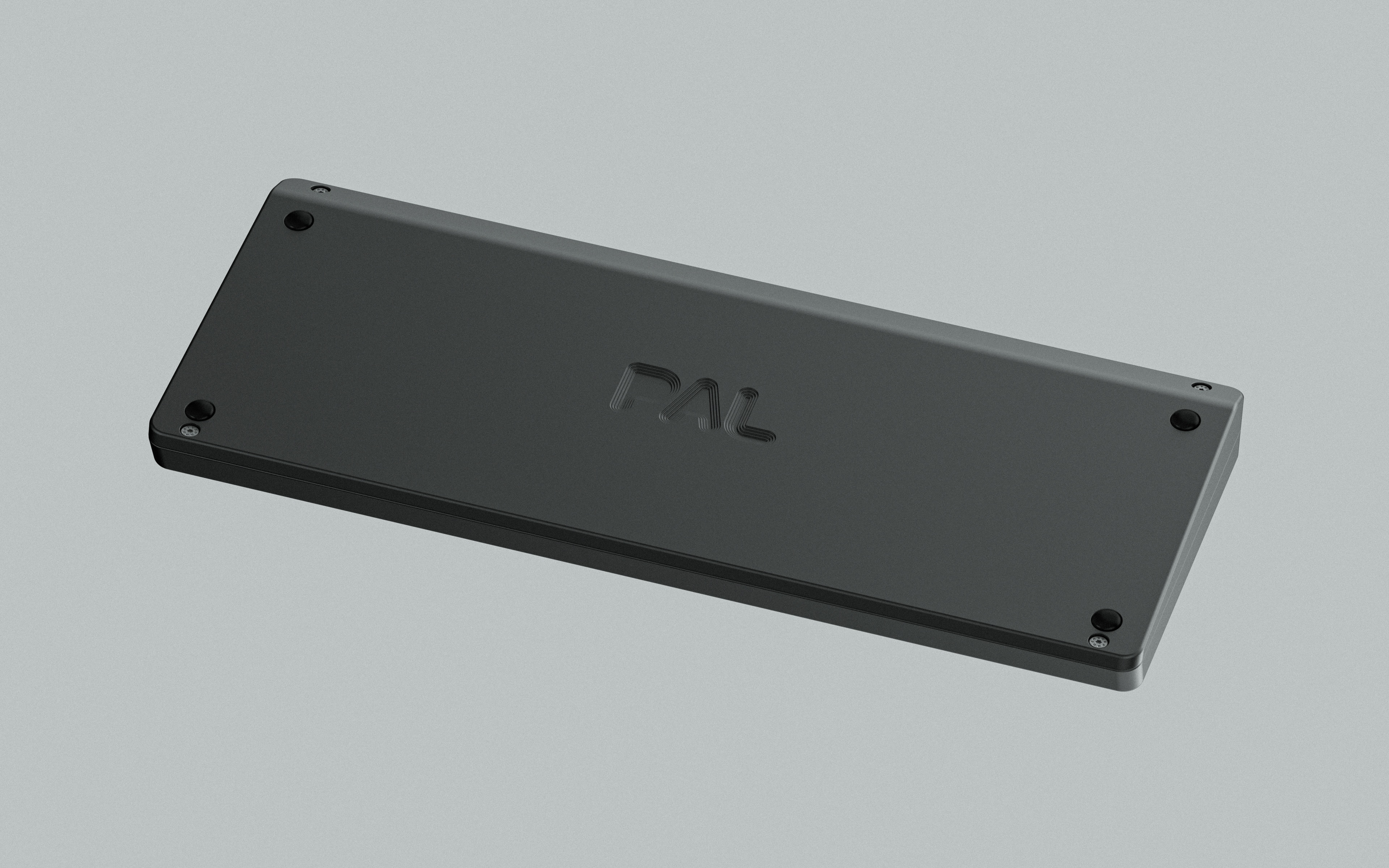

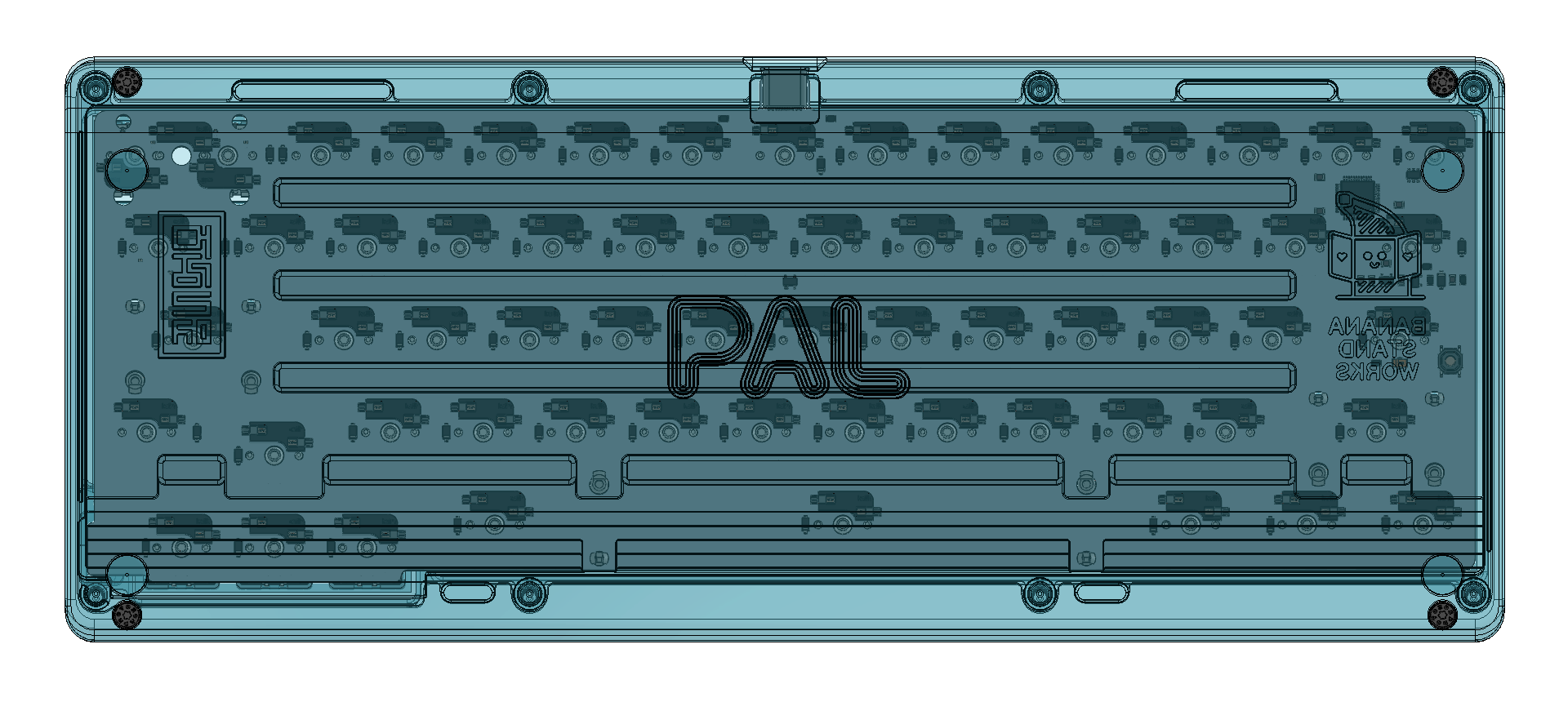

Render Gallery

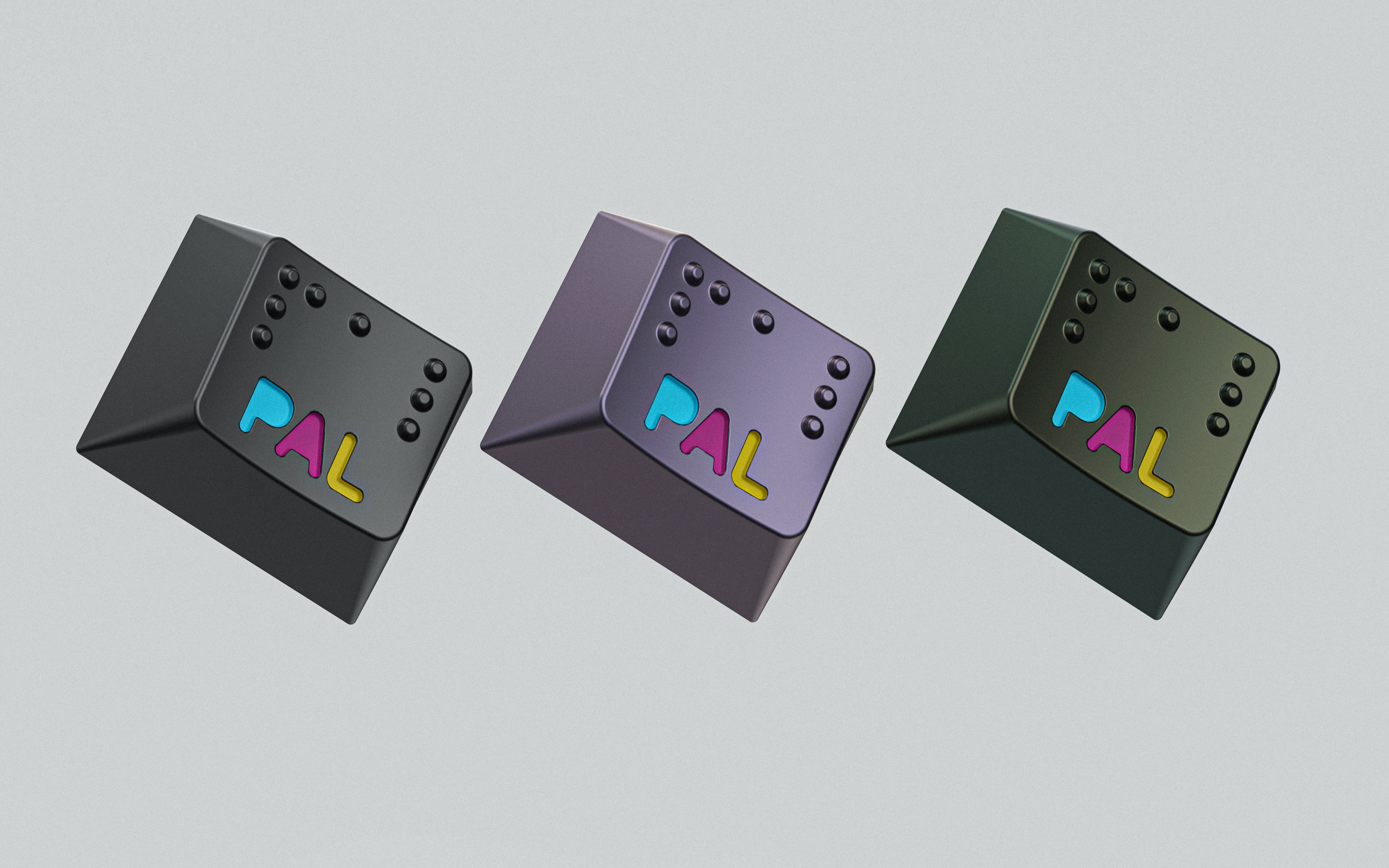

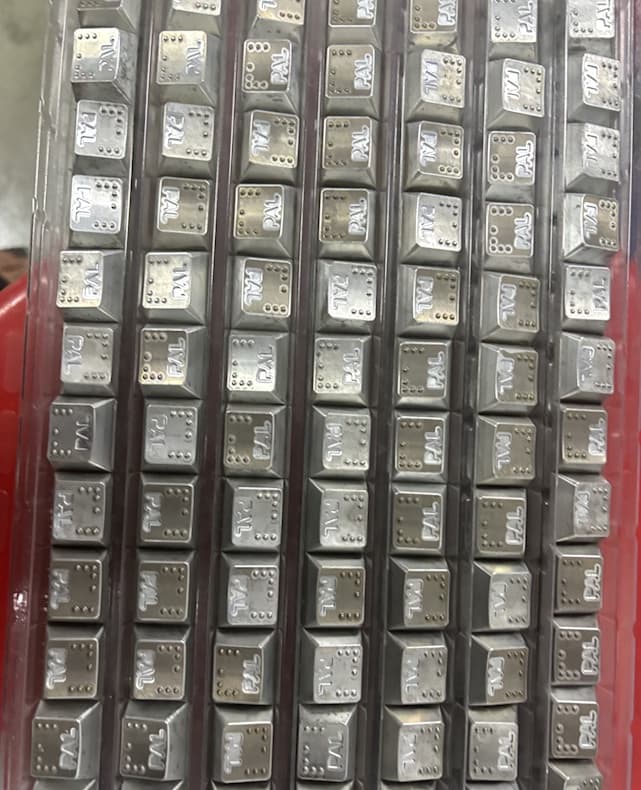

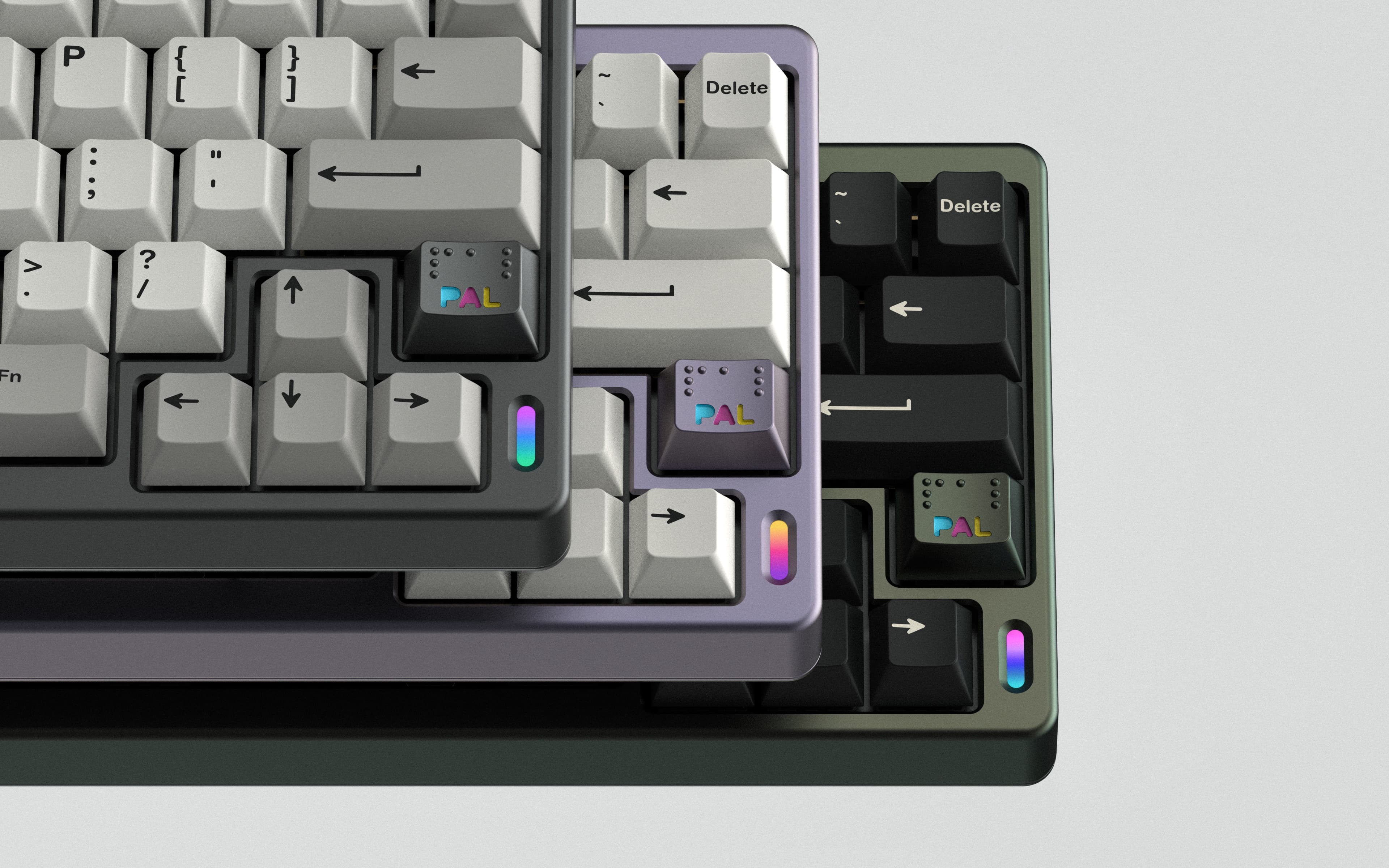

NTSC ArtisanAn R4 1.25U artisan will come included with every PAL kit and is going to be color-matched to the keyboard case.

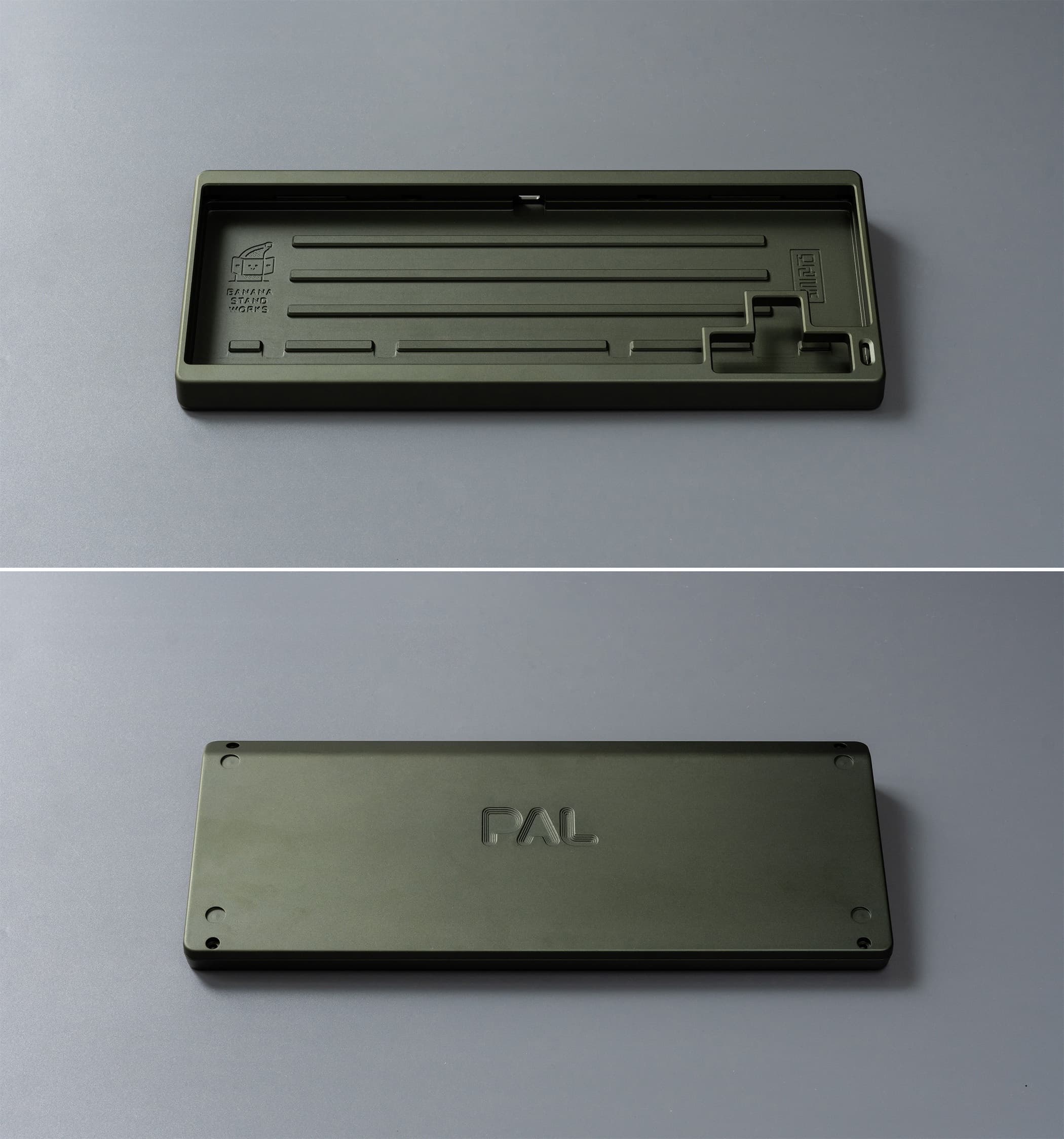

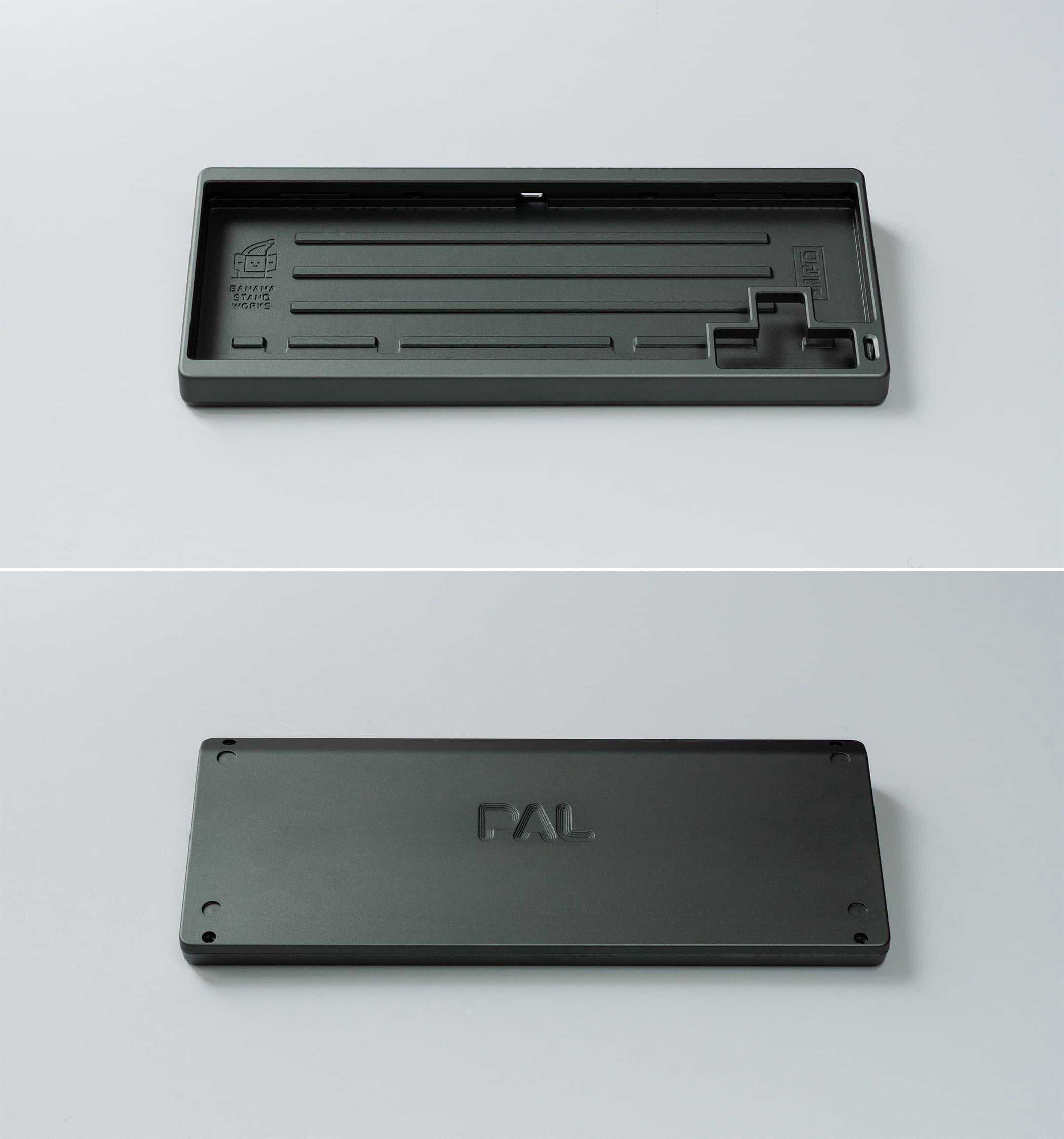

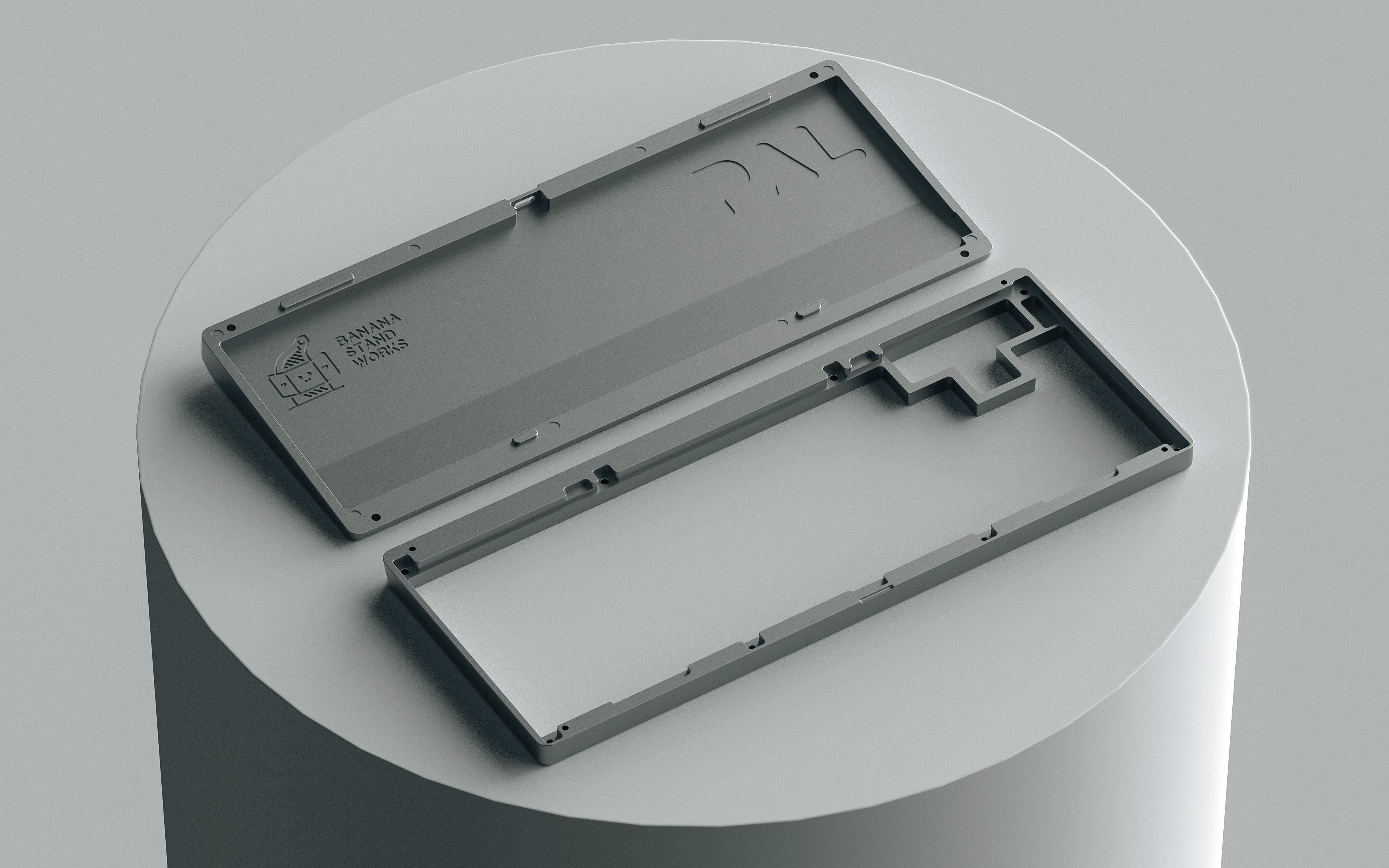

Product InformationSpecs:6063 alu top & bottom

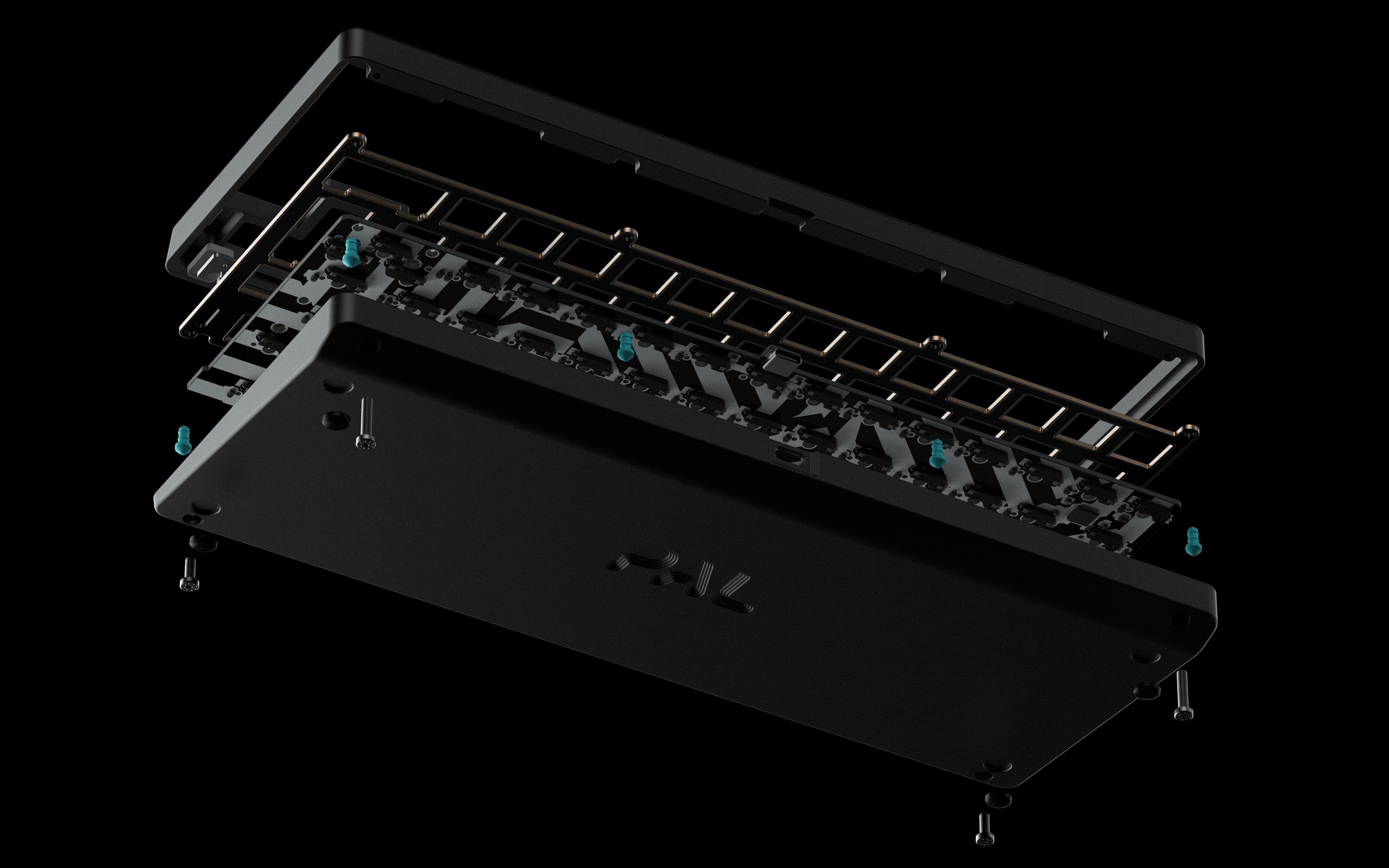

Tadpole mount
6° typing angle

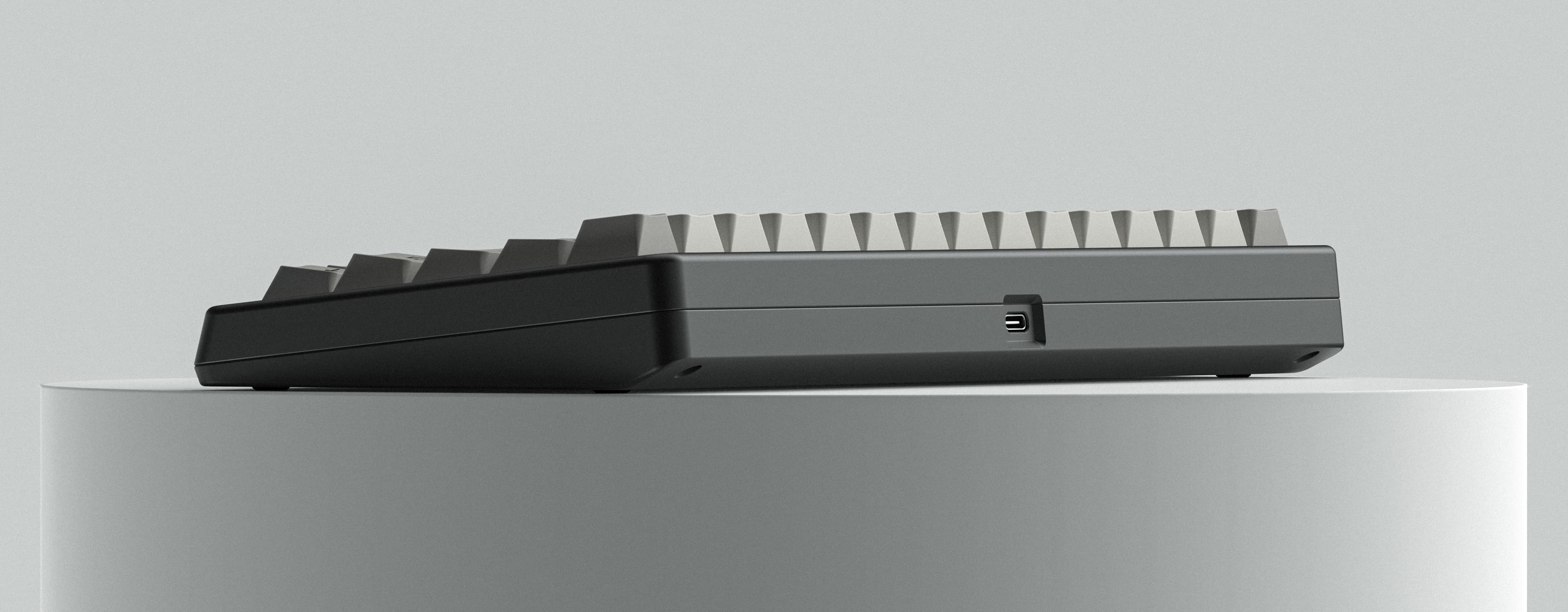

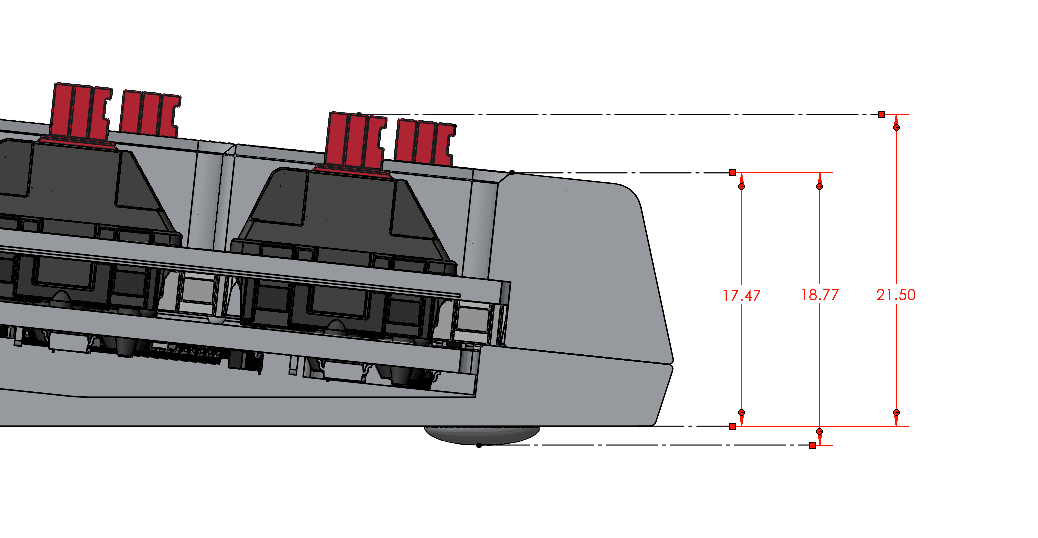

17.5mm front height, 21.50mm adjusted:

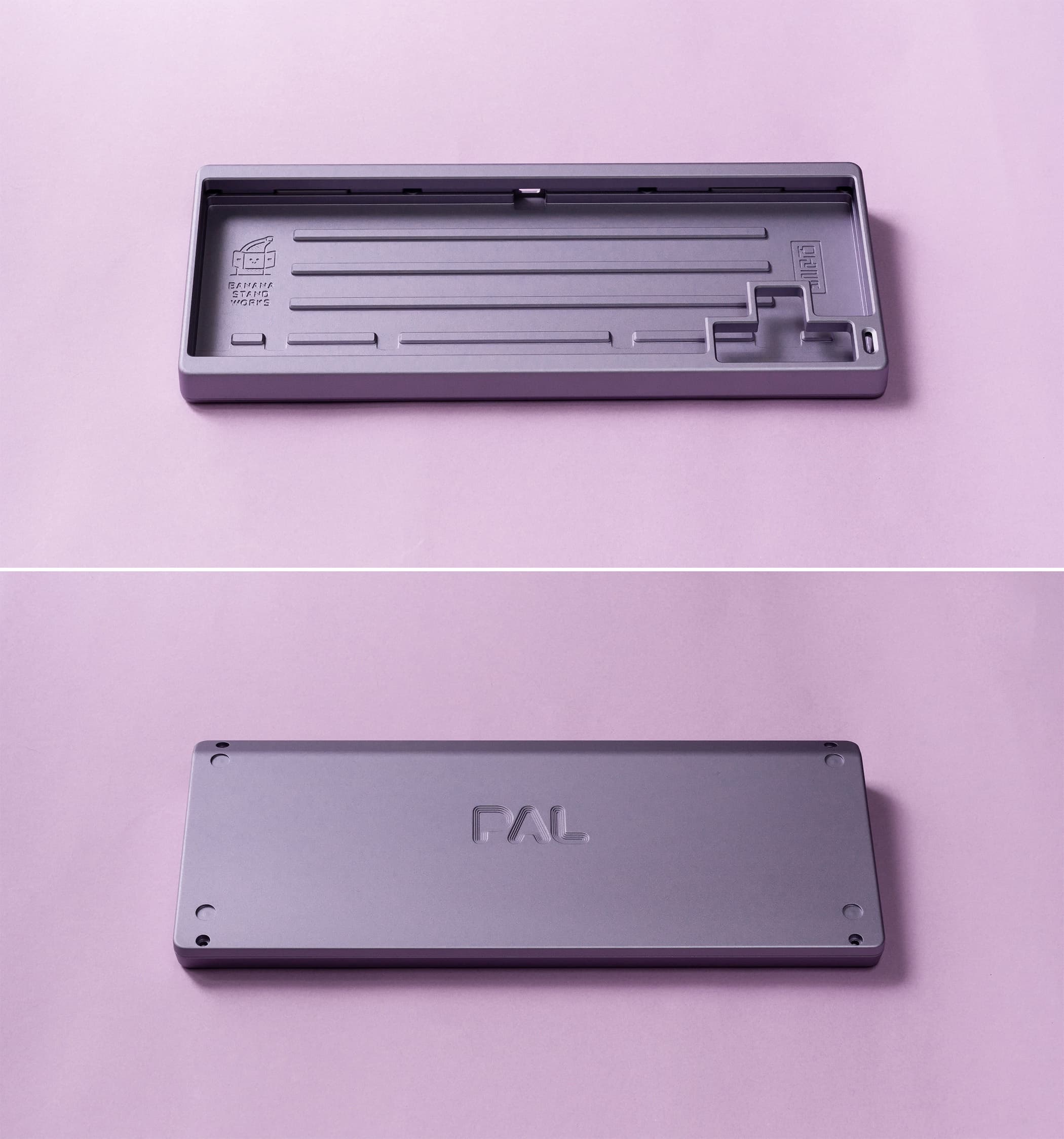

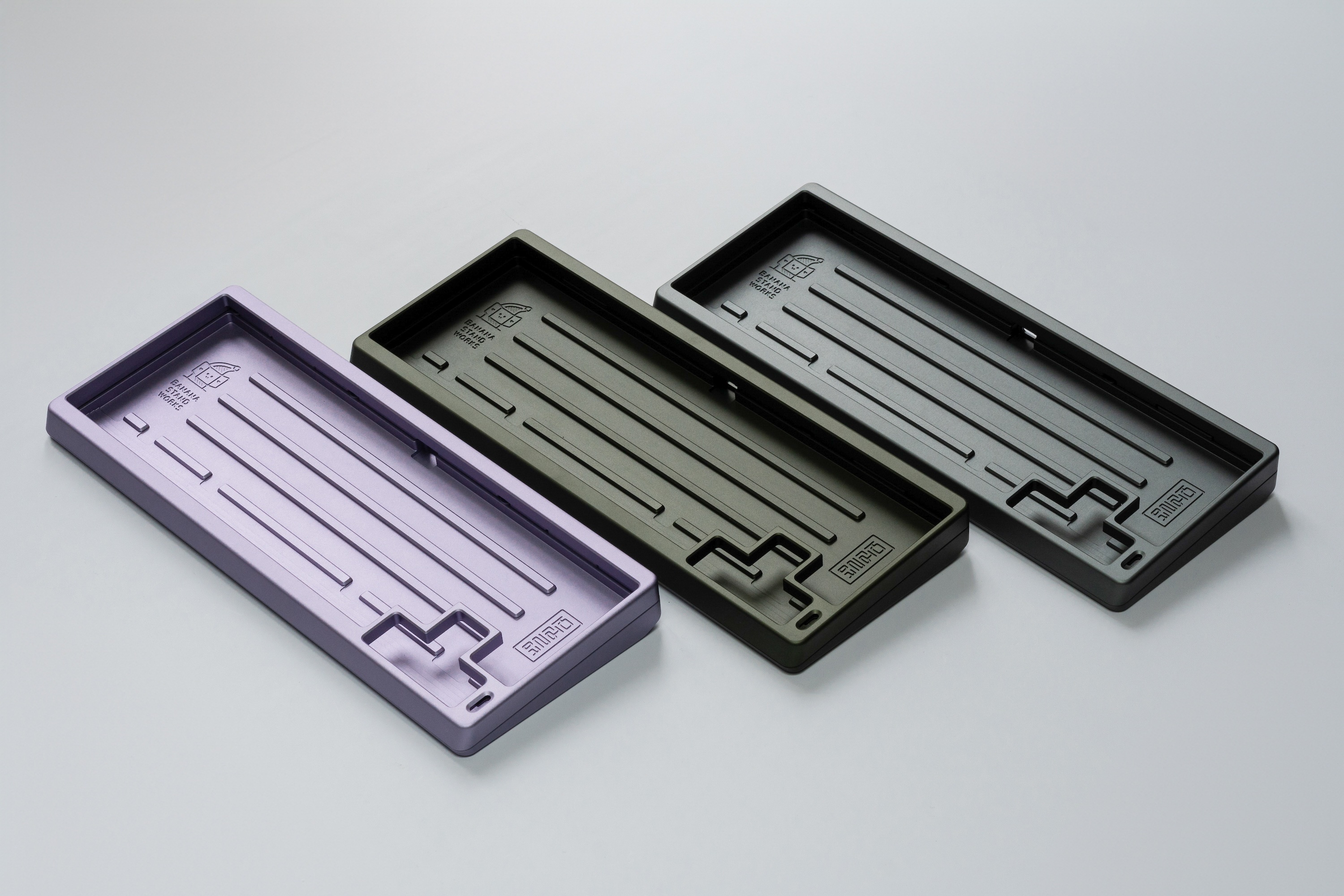

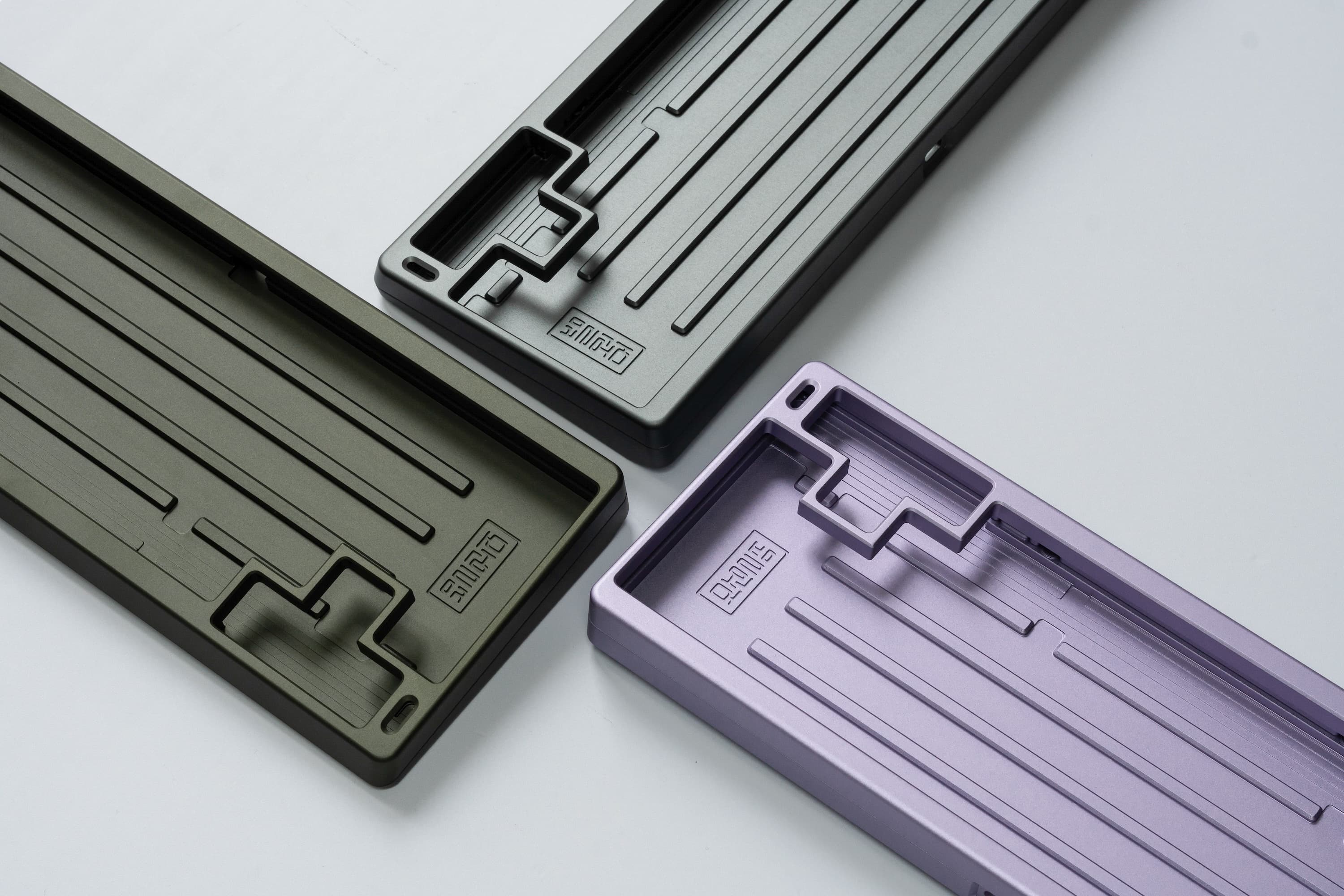

OptionsColors: Grey, Green, Lilac
Plates: FR4, PC, Alu

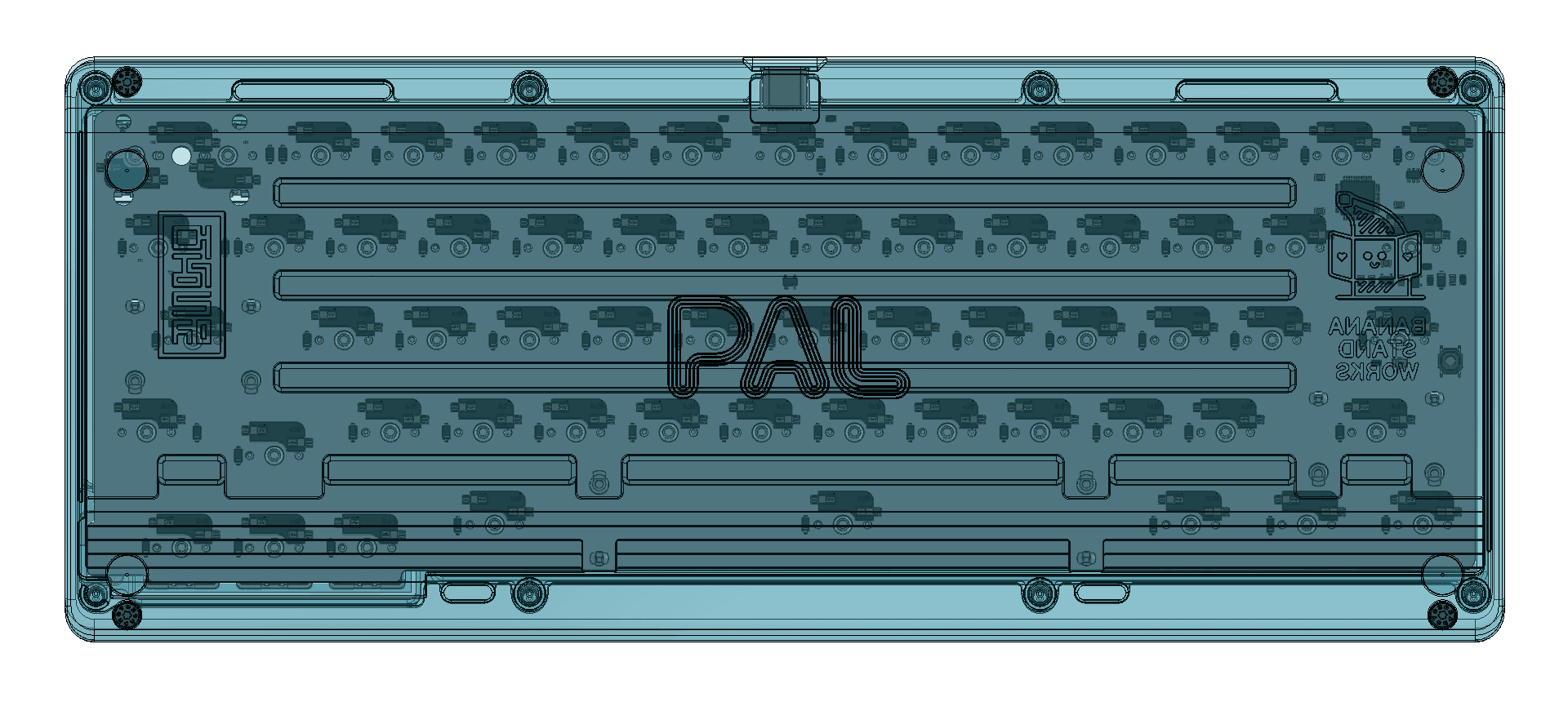

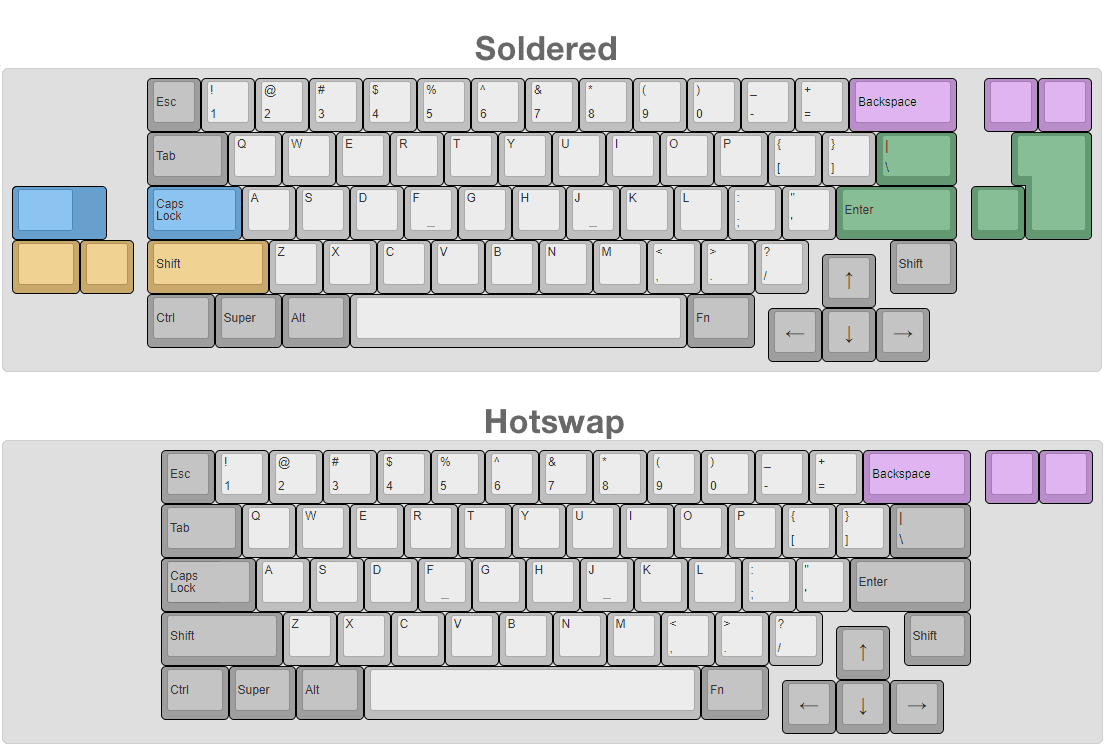

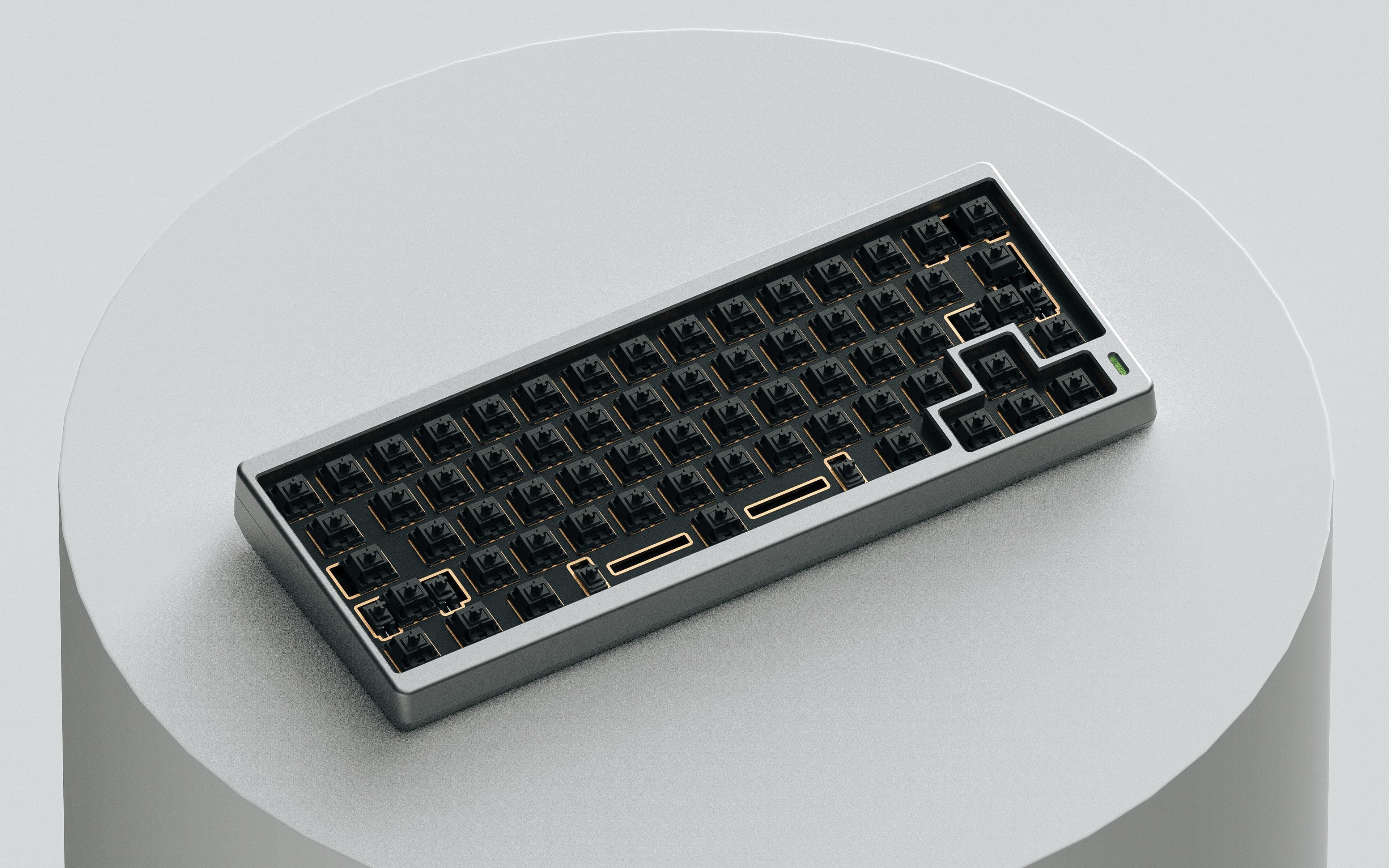

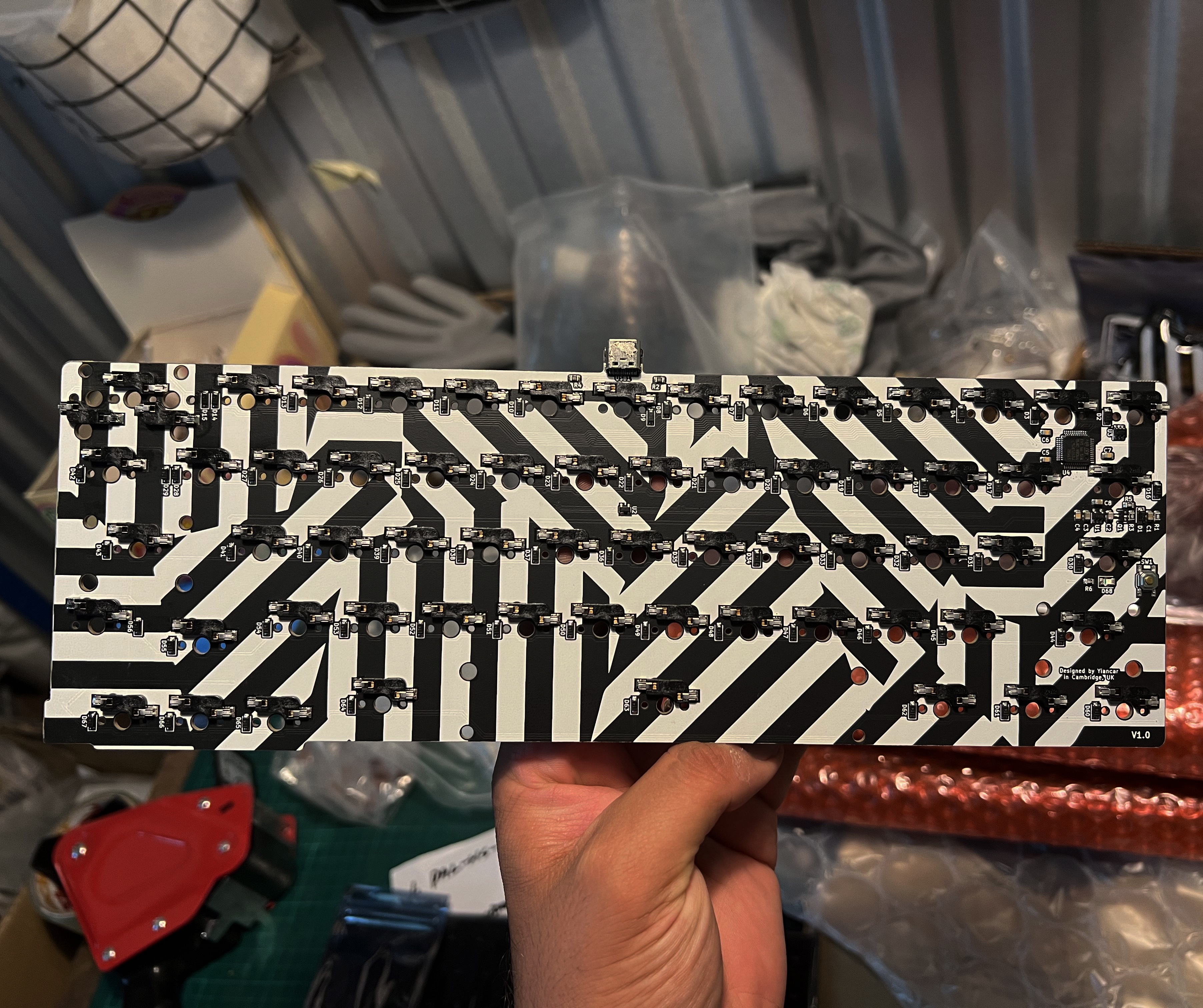

Solderable & hotswap PCBs by Yiancar:
GB Info:Price: starting at US$230 for a kit
GB dates: Jul 23 - Aug 16Aug 23 of the current year of our lord 2022 2023 2024 ¯\_(ツ)_/¯
Vendors: Protozoa Studio (worldwide)
zFrontier (CN & worldwide)

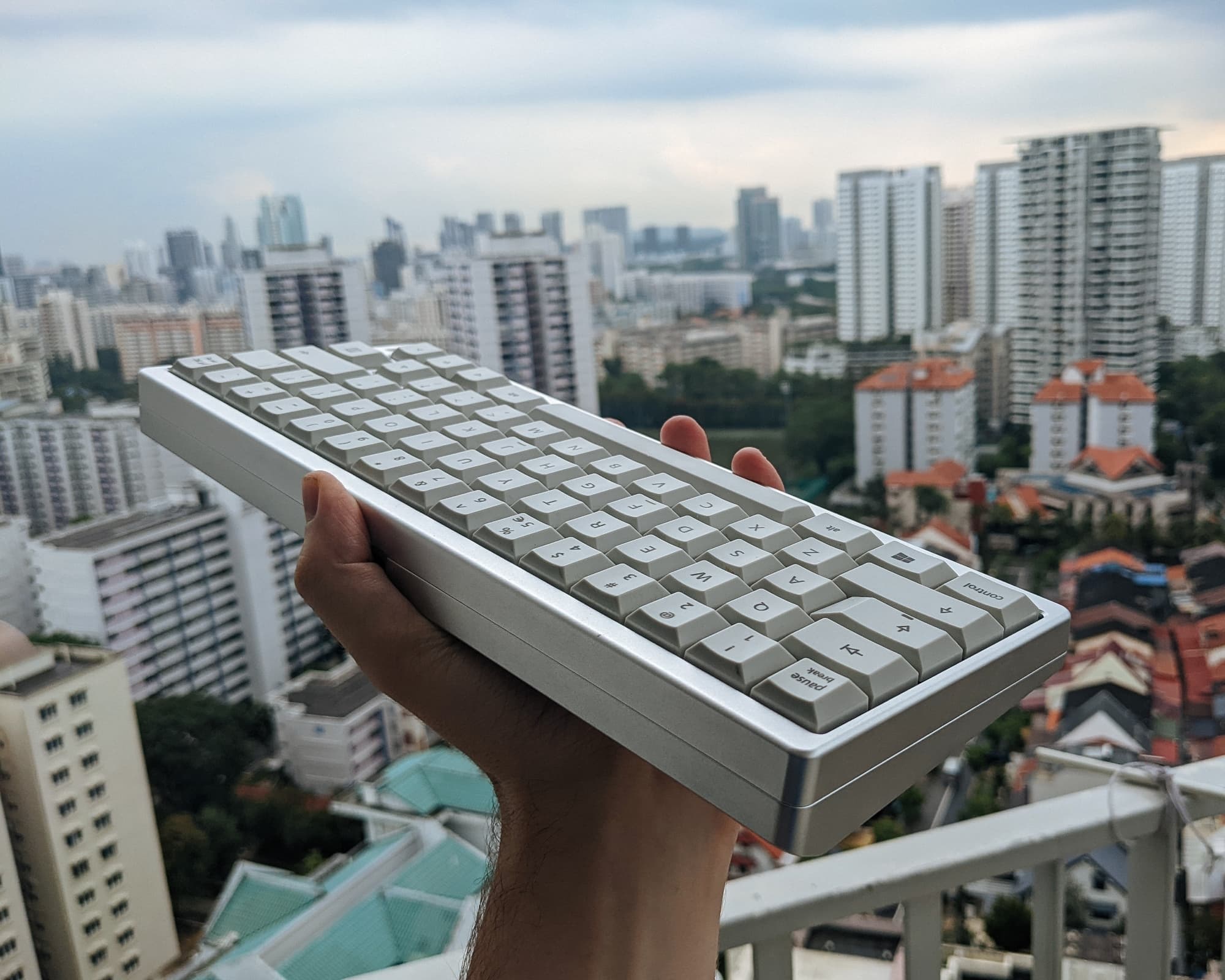

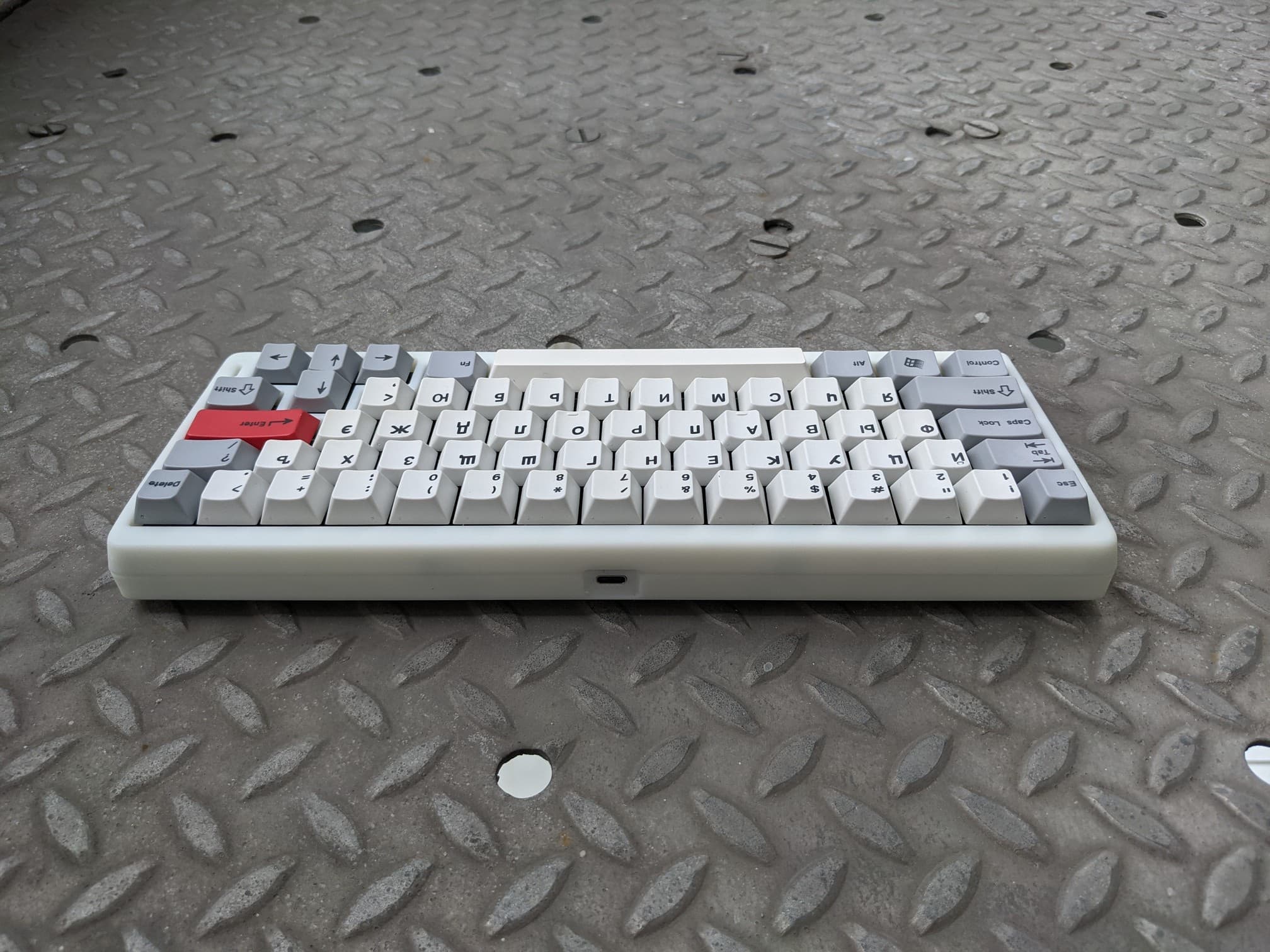

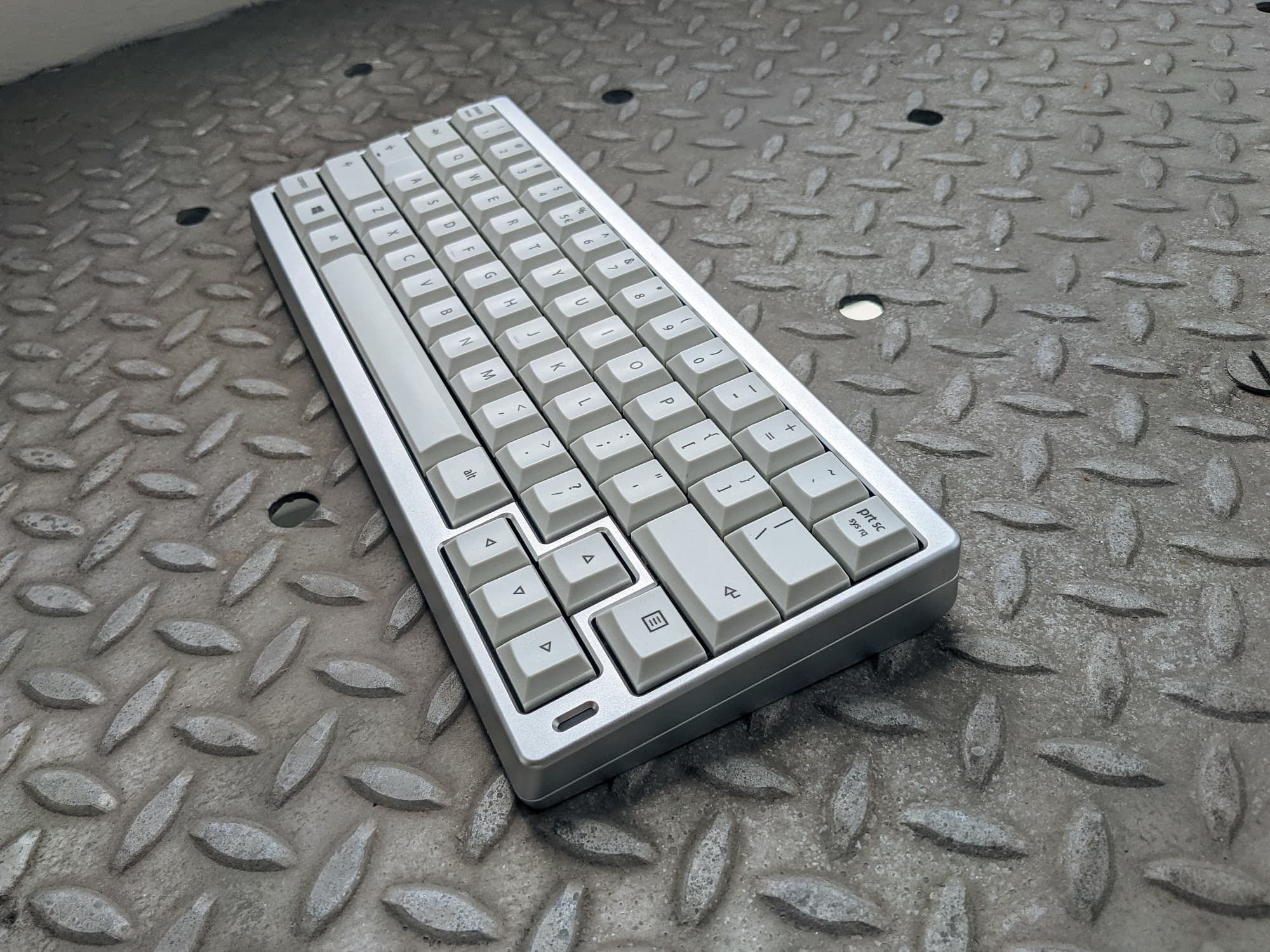

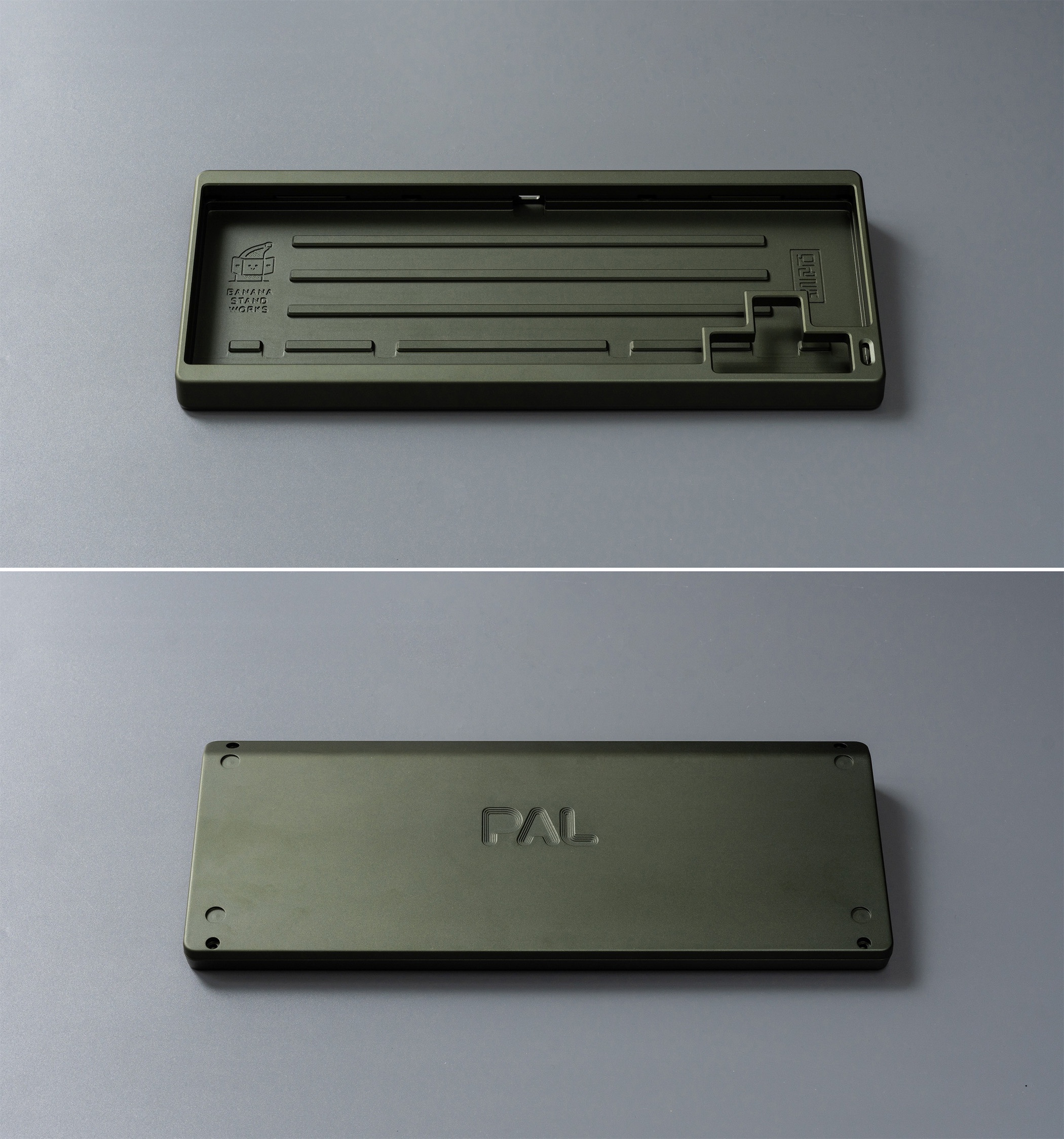

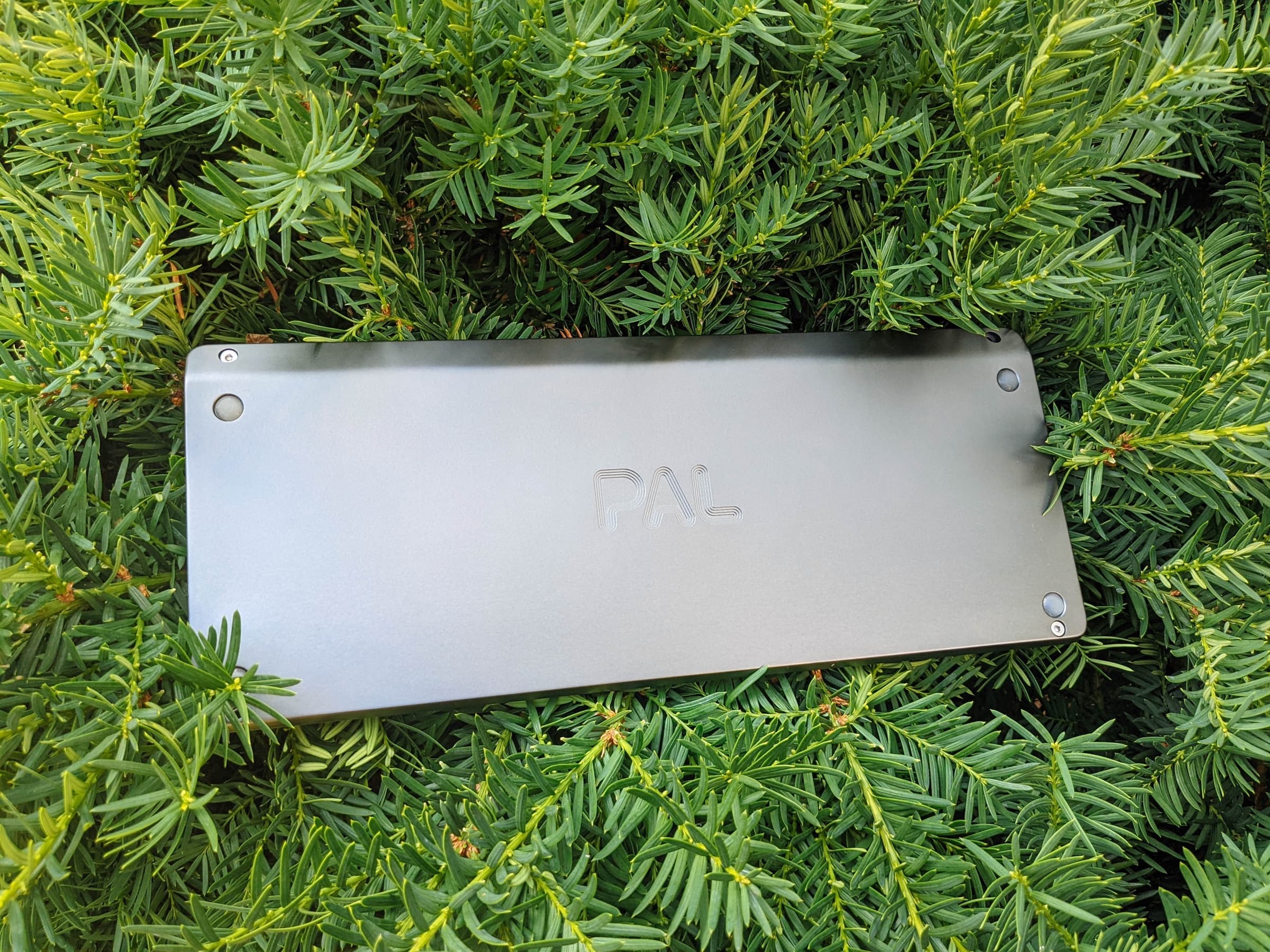

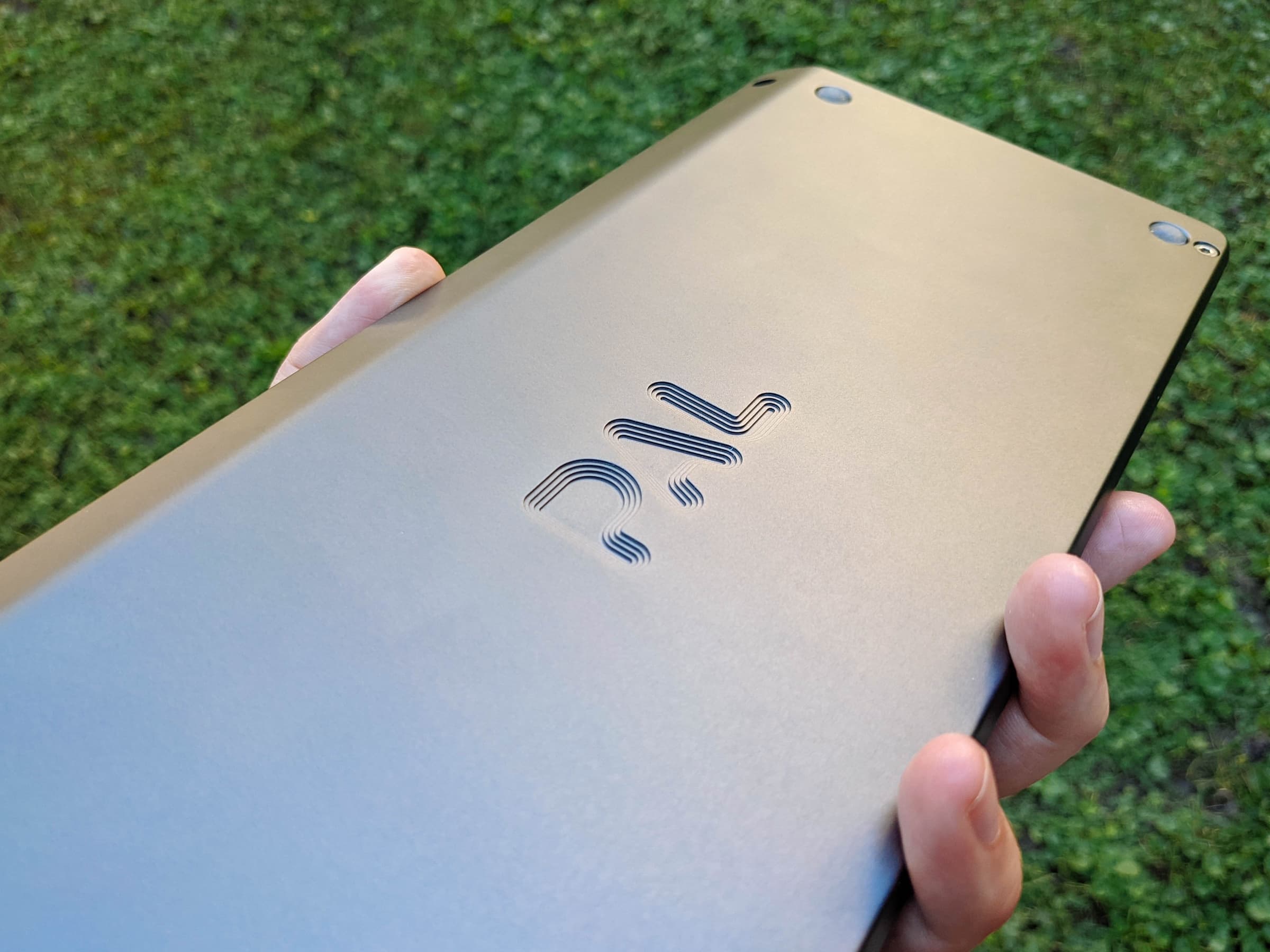

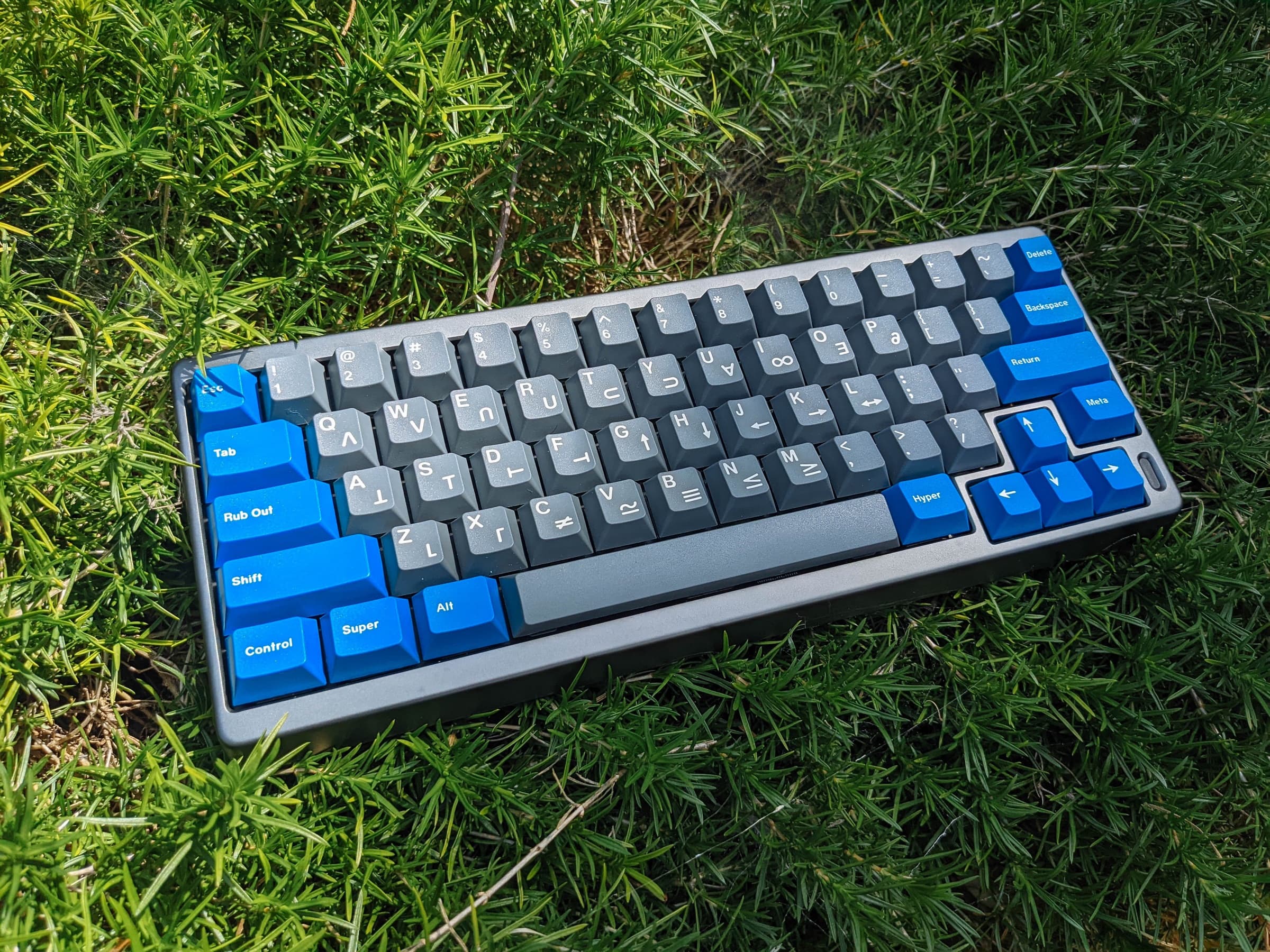

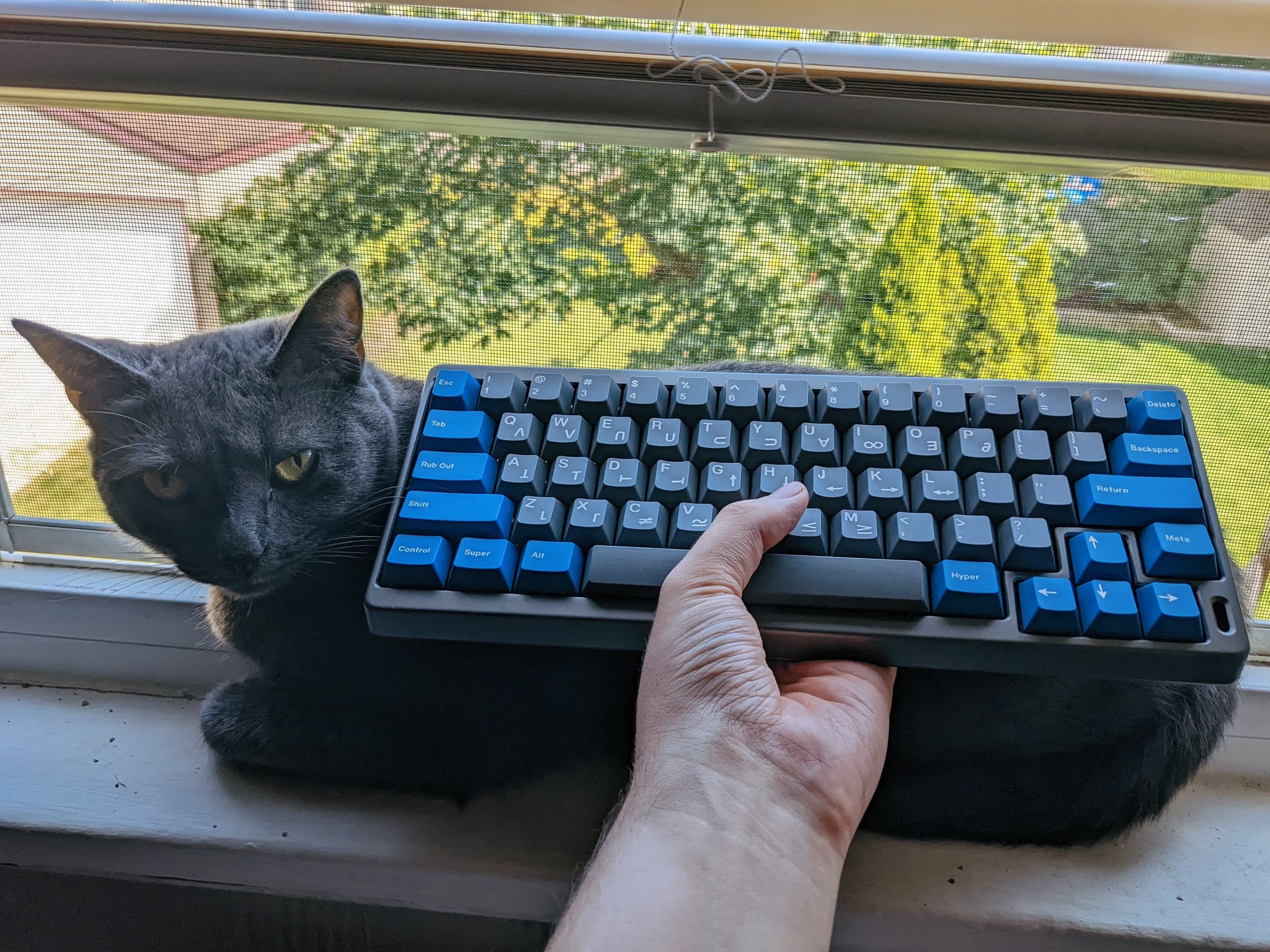

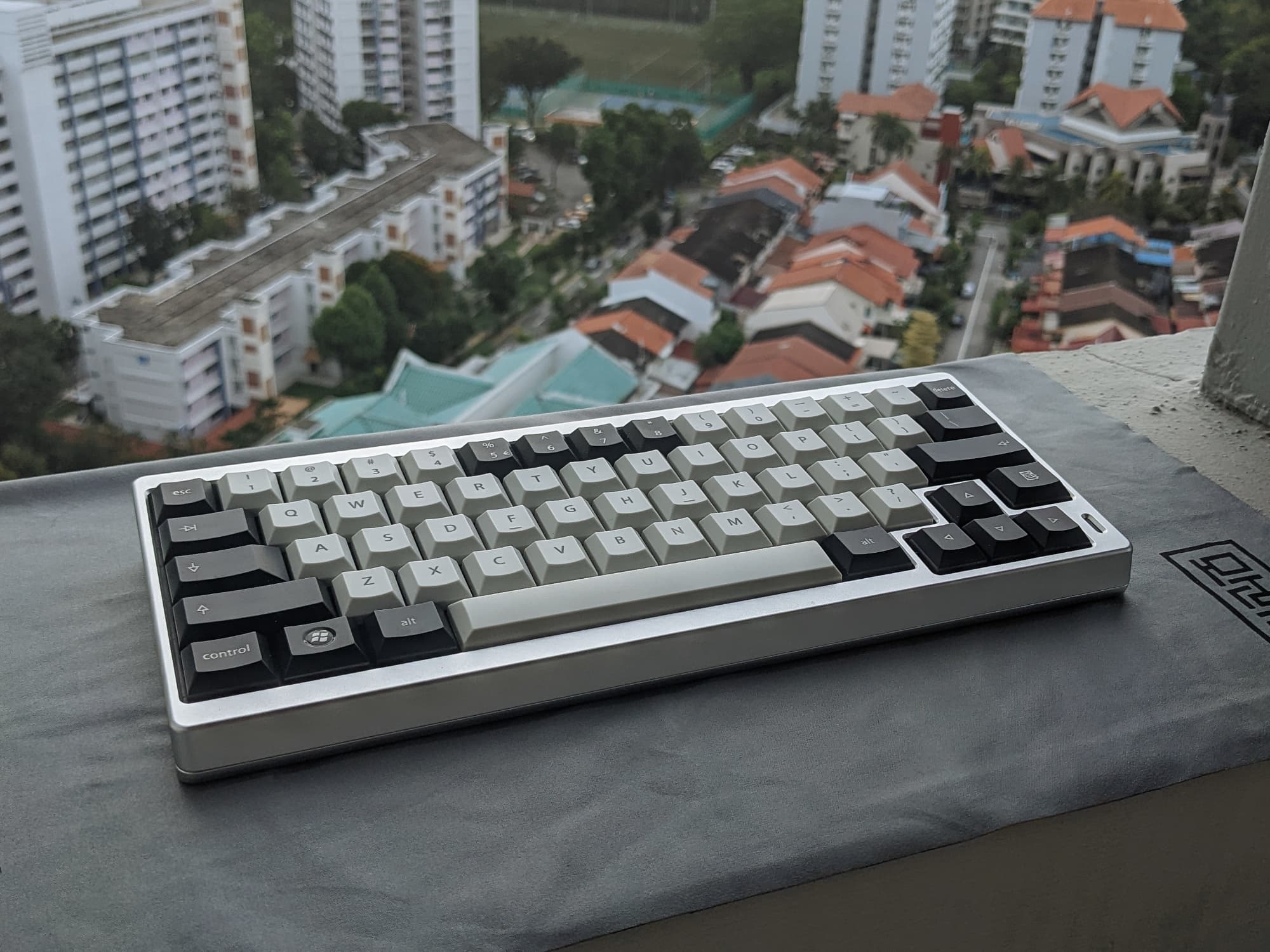

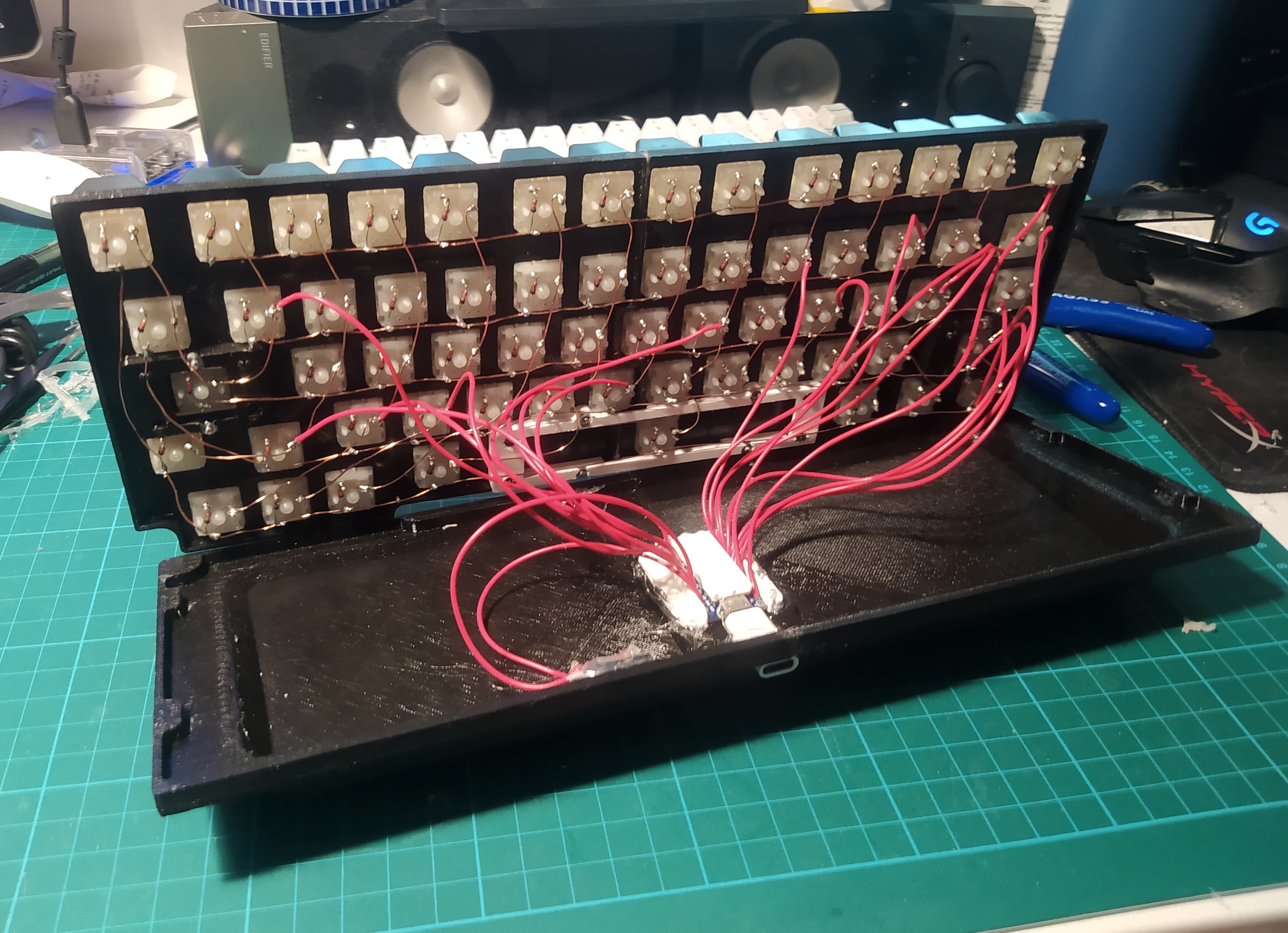

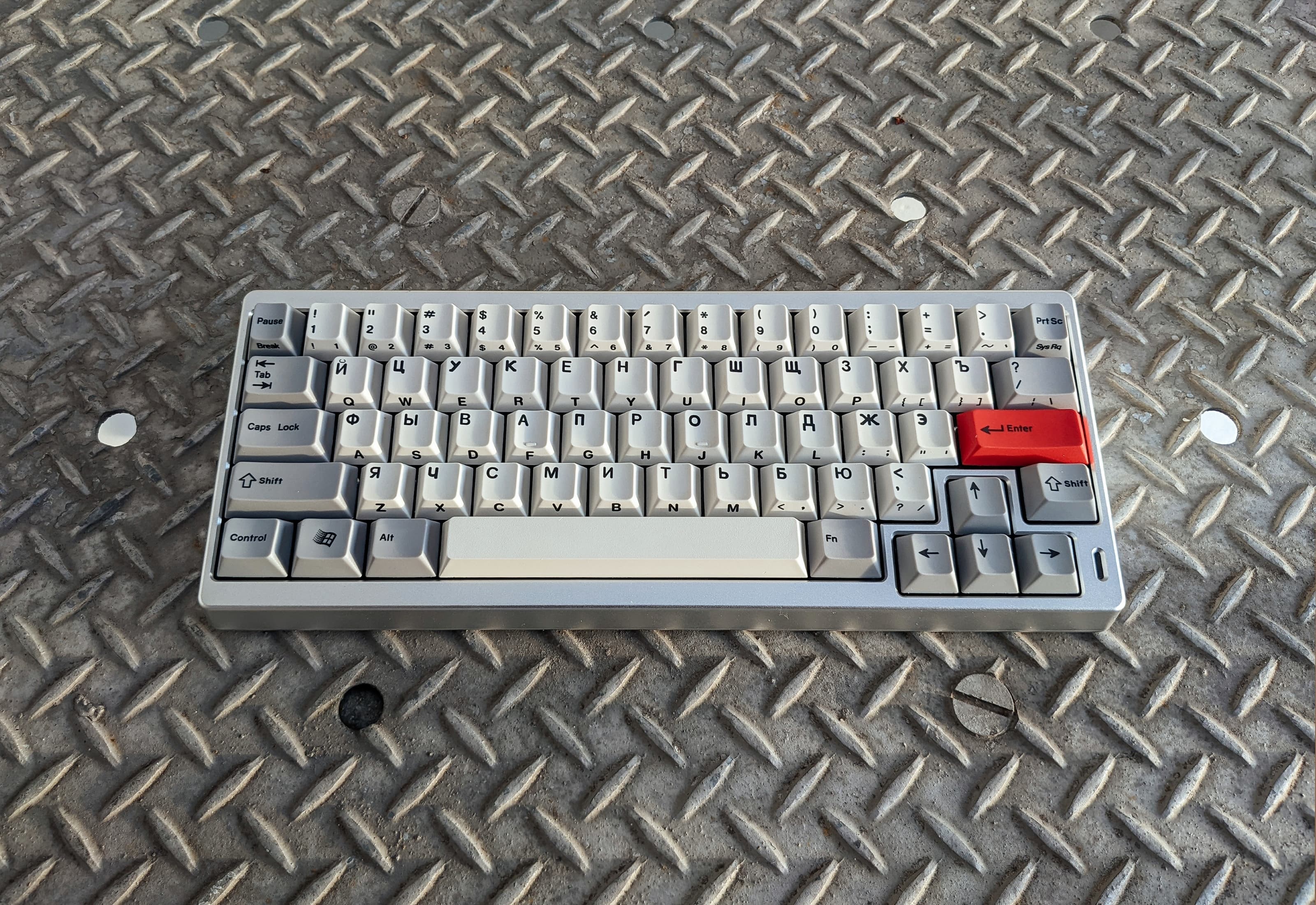

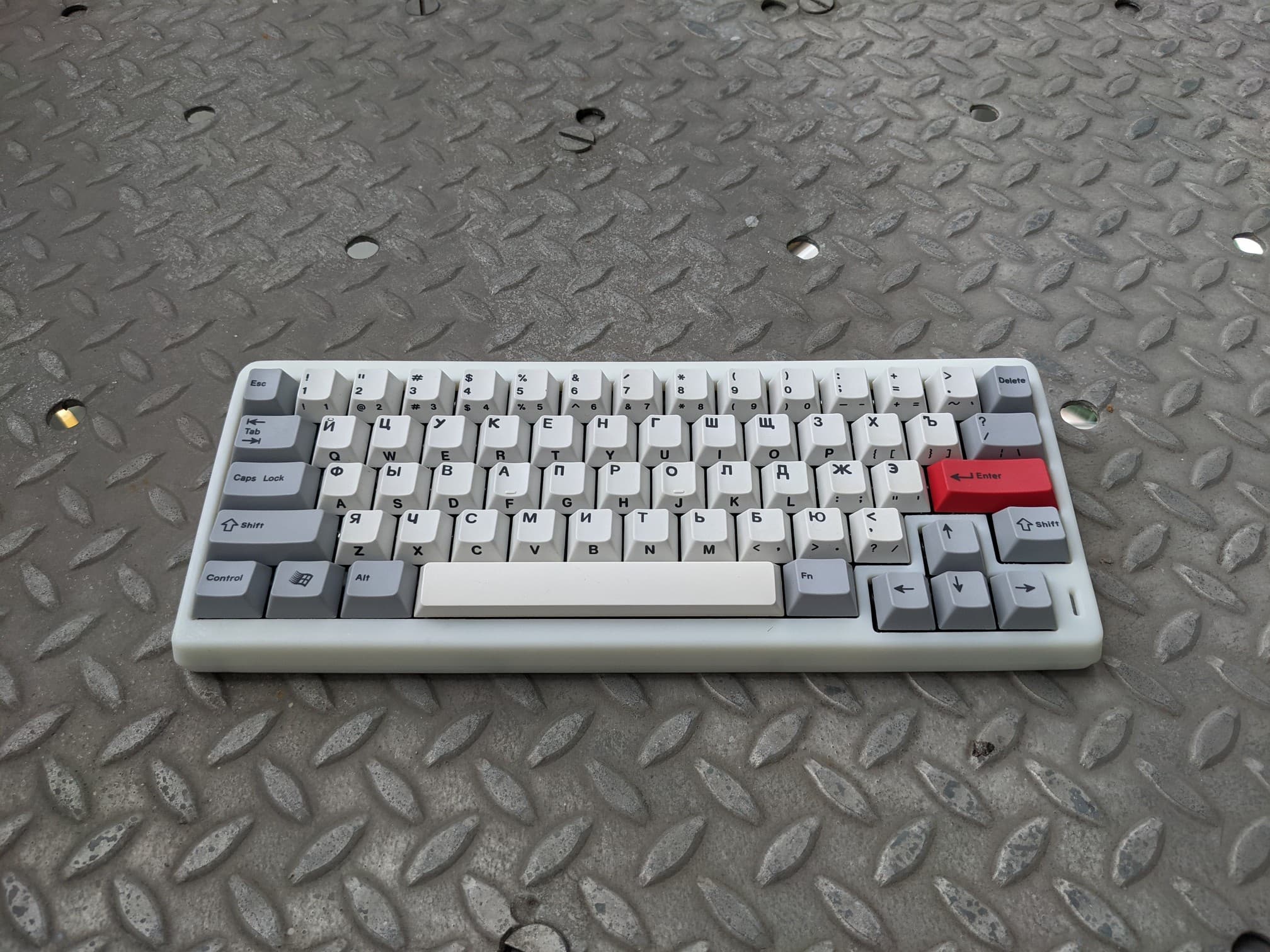

Prototype Photo Gallery

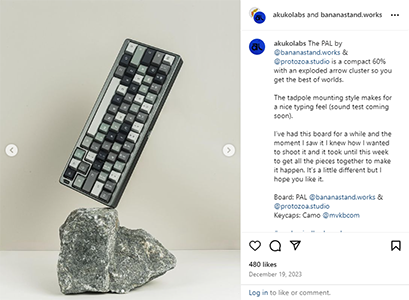

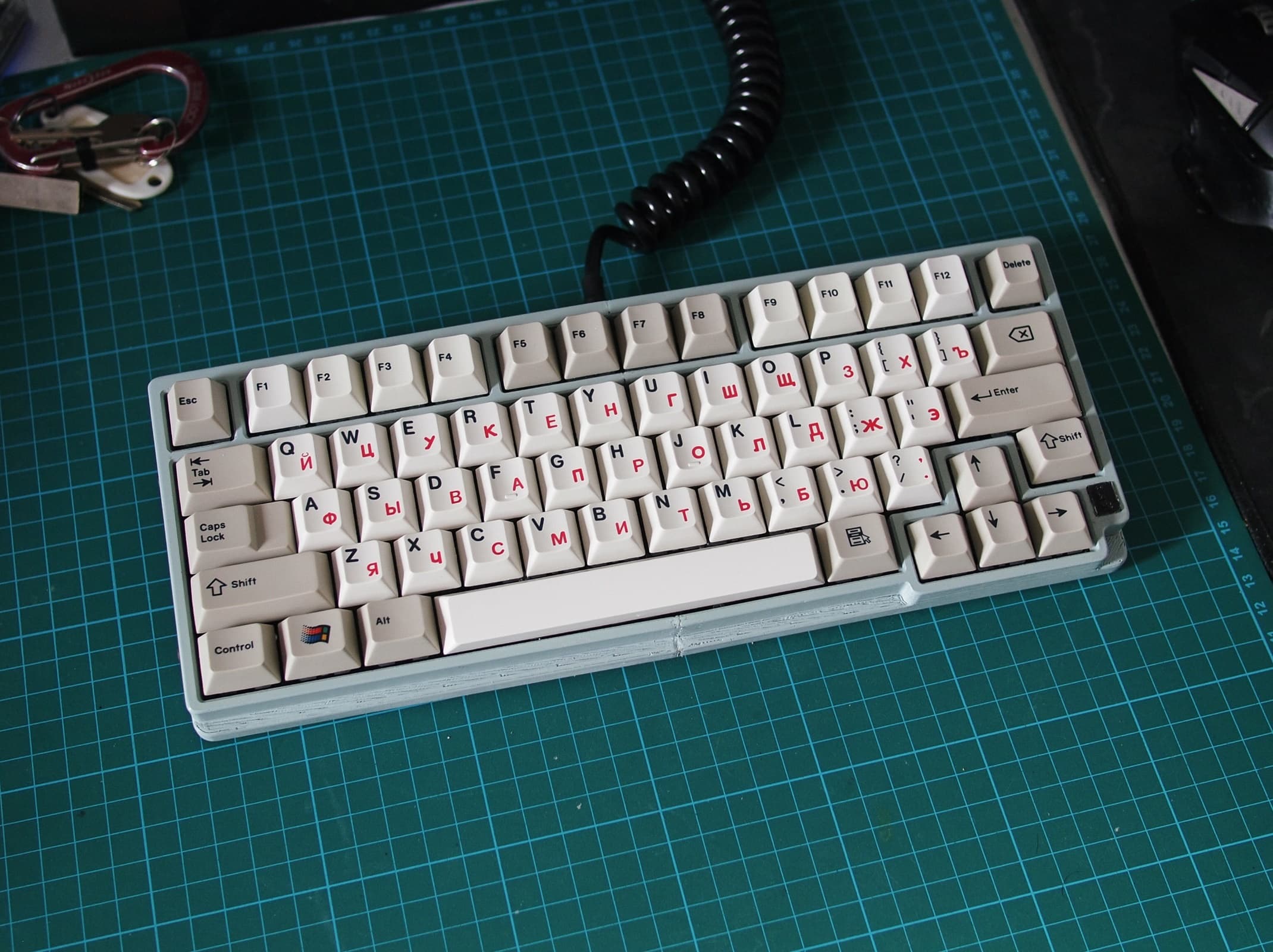

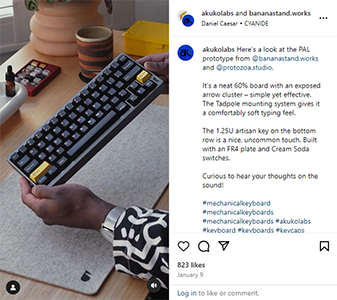

MiscTimothy (Akuko Labs) built a PAL proto and took some cool shots of it a while back;
you can check them out at his IG:
And last but not least:
Alexotos build stream (VOD)Cheers everyone,
Dimsum
