Description

Special Community Color Voting!

Parabolica60
by S!mple & iNN Studio
Post edited by Click Clack

Hello everyone, this project is brought to you by S!mple from iNN Studio.

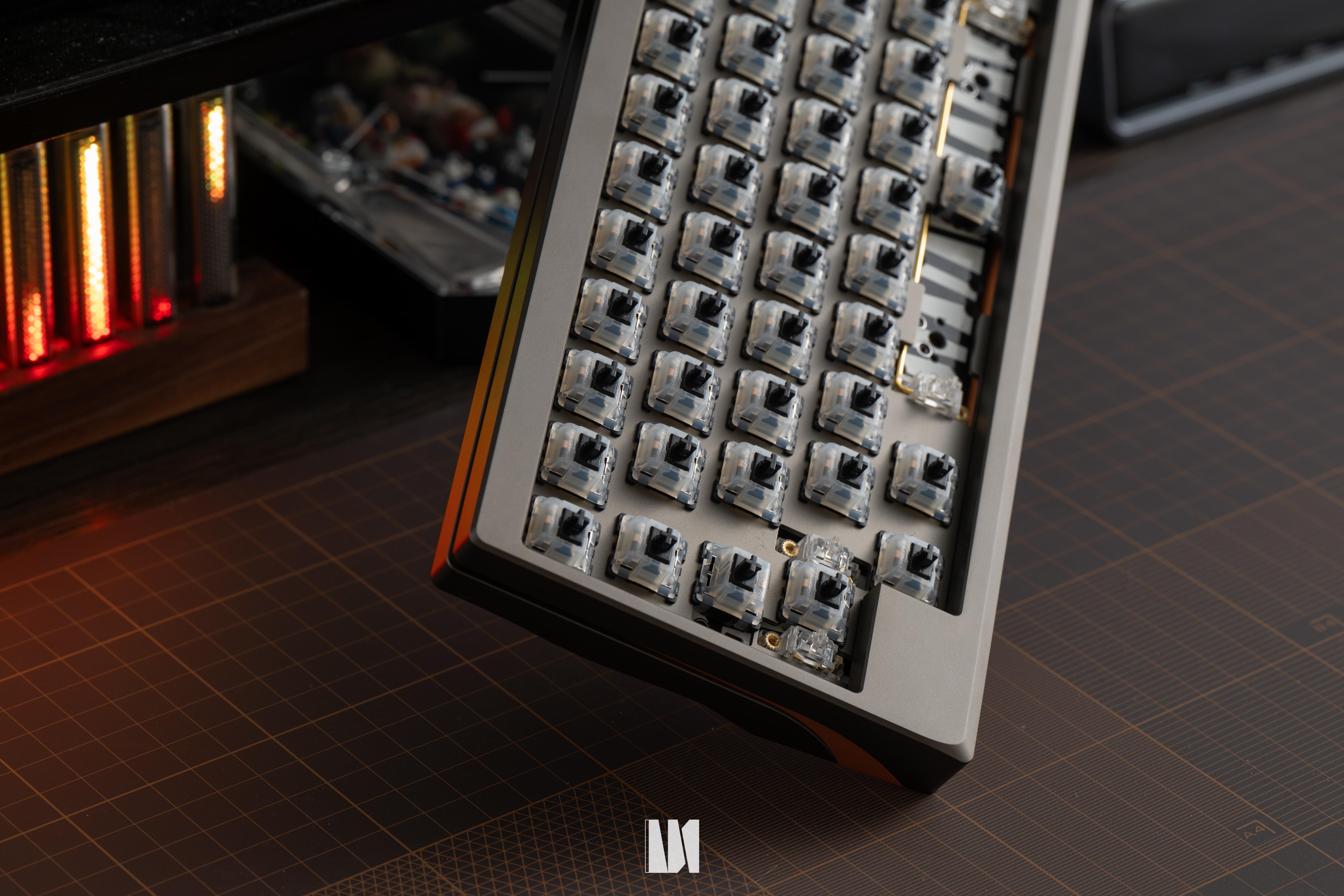

Introducing the Parabolica 60, a 60% foamless three-piece keyboard with a large copper mid-frame, available in 6+ anode colors and 4 mid-frame and badge options.
The TOP and Silicon Tadpole-pin mounting styles with large copper/brass pieces provide a firm feel and solid sound, while the 16.5mm true front height and 7.5° typing angle make for a comfortable typing experience.
We have successfully hosted CN GB and received amazing feedback, and now we are ready to take it global.

Index

- Design
- Specifications and Layout
- Product Showcase
- What is included?
- Pricing and Vendors
- Follow the development

Specifications

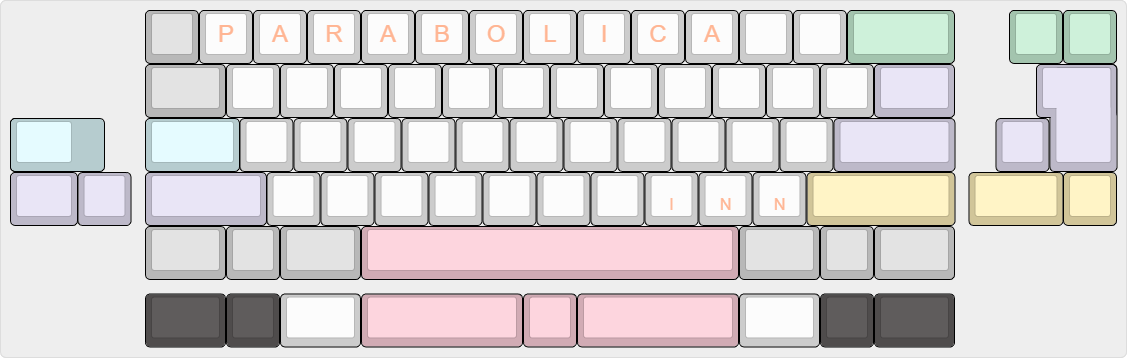

Layout

-60% Layout
-ANSI/ISO
-WK/WKL/HHKB
-7U Spacebar ONLY
-Split 3-1-3 spacebar Compatible
-Split backspace and right Shift Compatible
Compatability for Solder & Hot-swap PCB

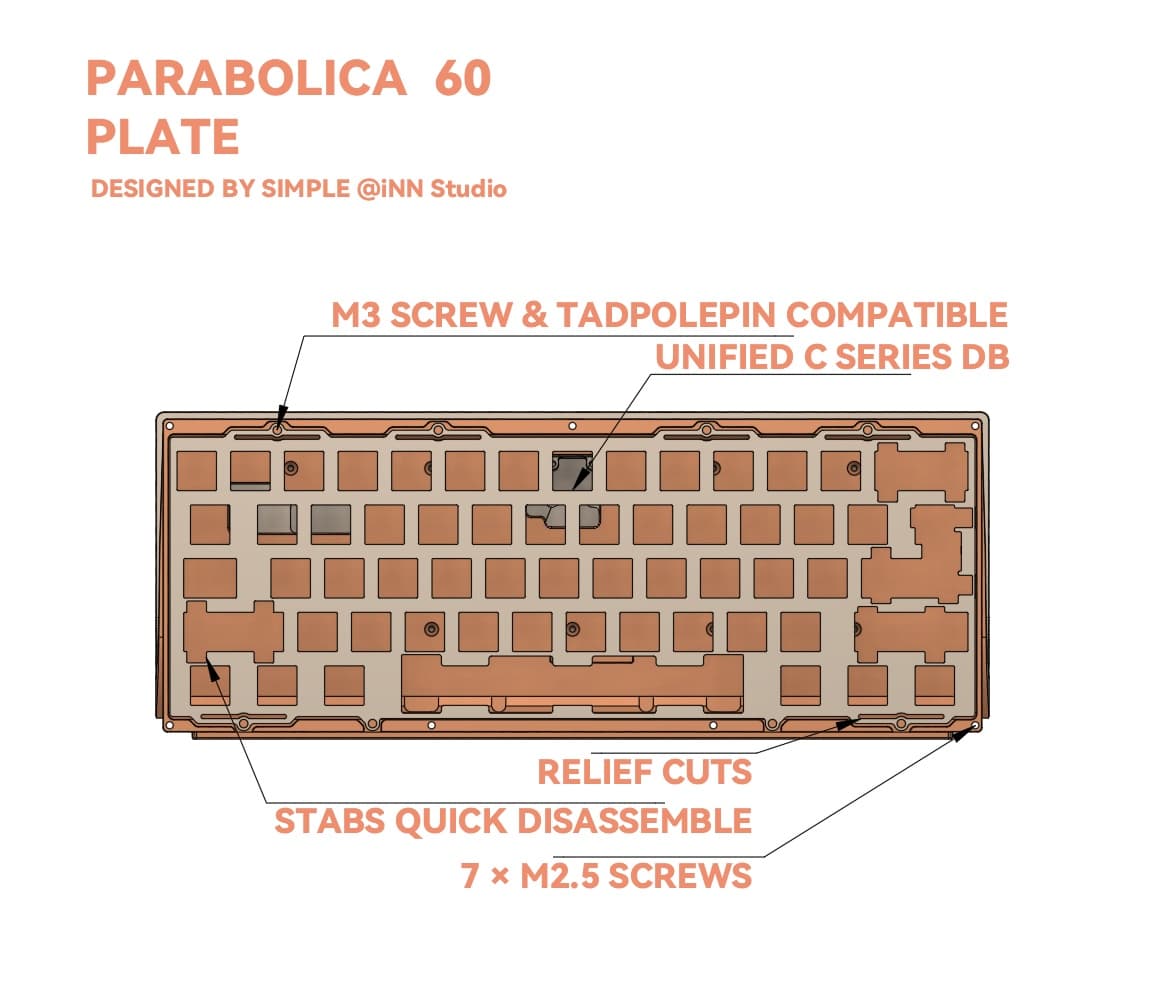

Mounting and Plate

- TOP/Tadpole Gasket
（Sharing with same screw-in hole & Relief arms)
- Aluminum or Carbon Plate

- Non-Flex Cut ONLY

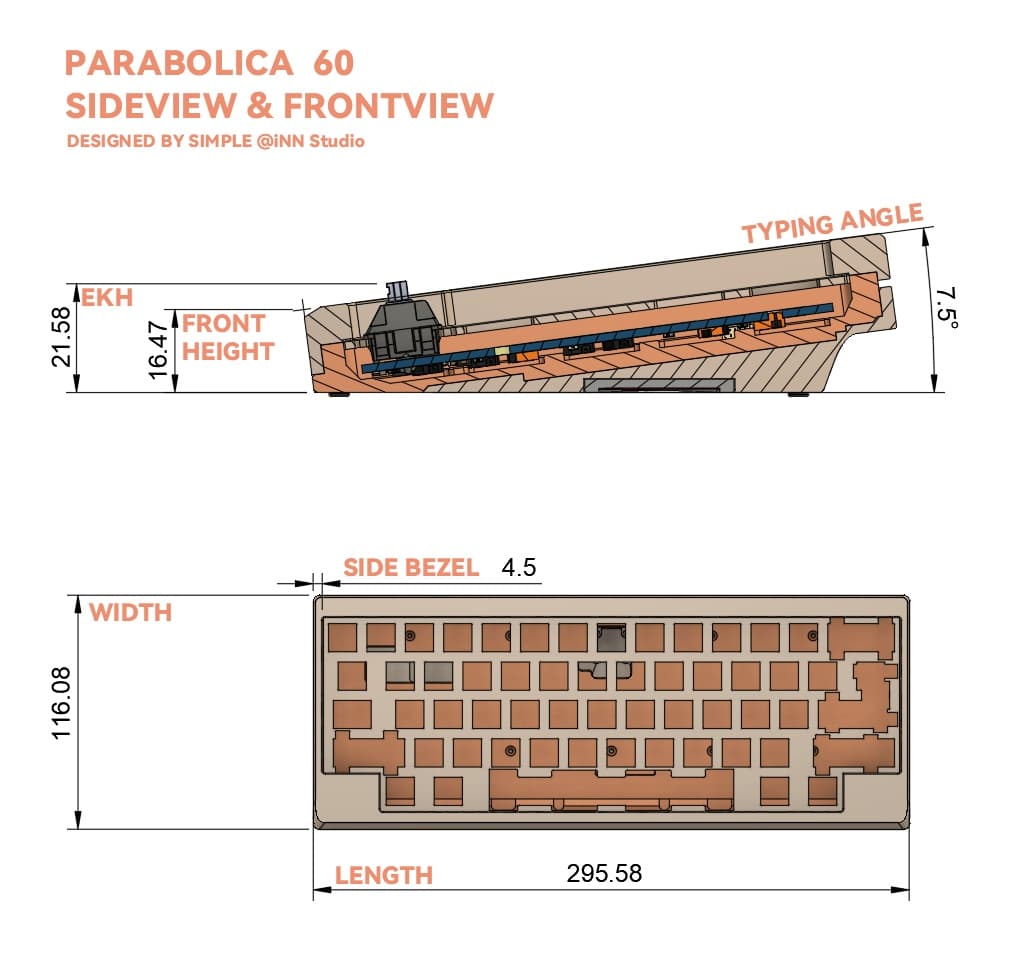

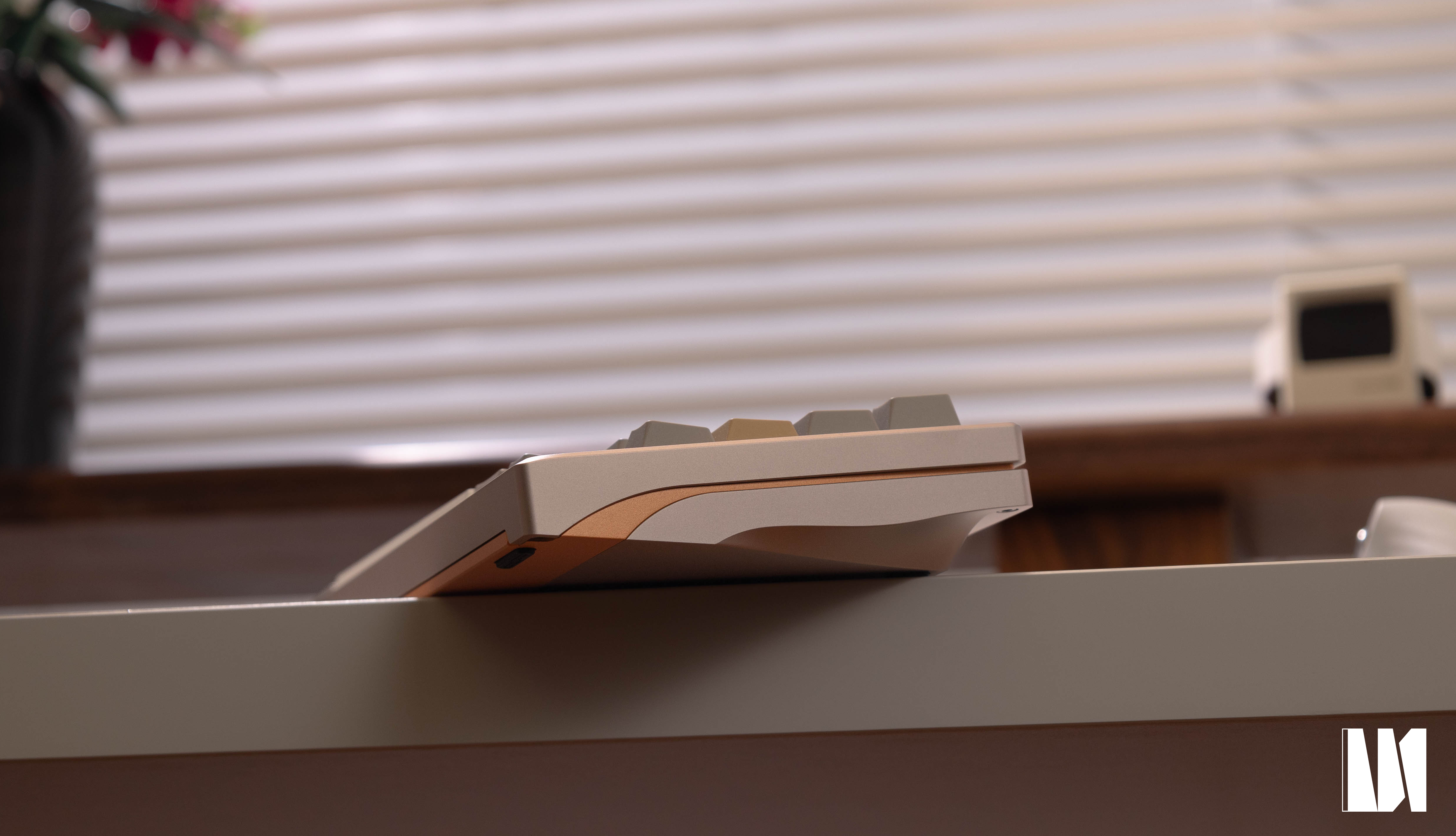

Typing Angle

• 7.5°
（*See Sideview）

Front Height

-Lowest point of lip：14 mm
-Without lip：16.5 mm
-EKH：21.5 mm
（*See Sideview）

Dimensions

Net Weight

- 1750g+ (Assembled)

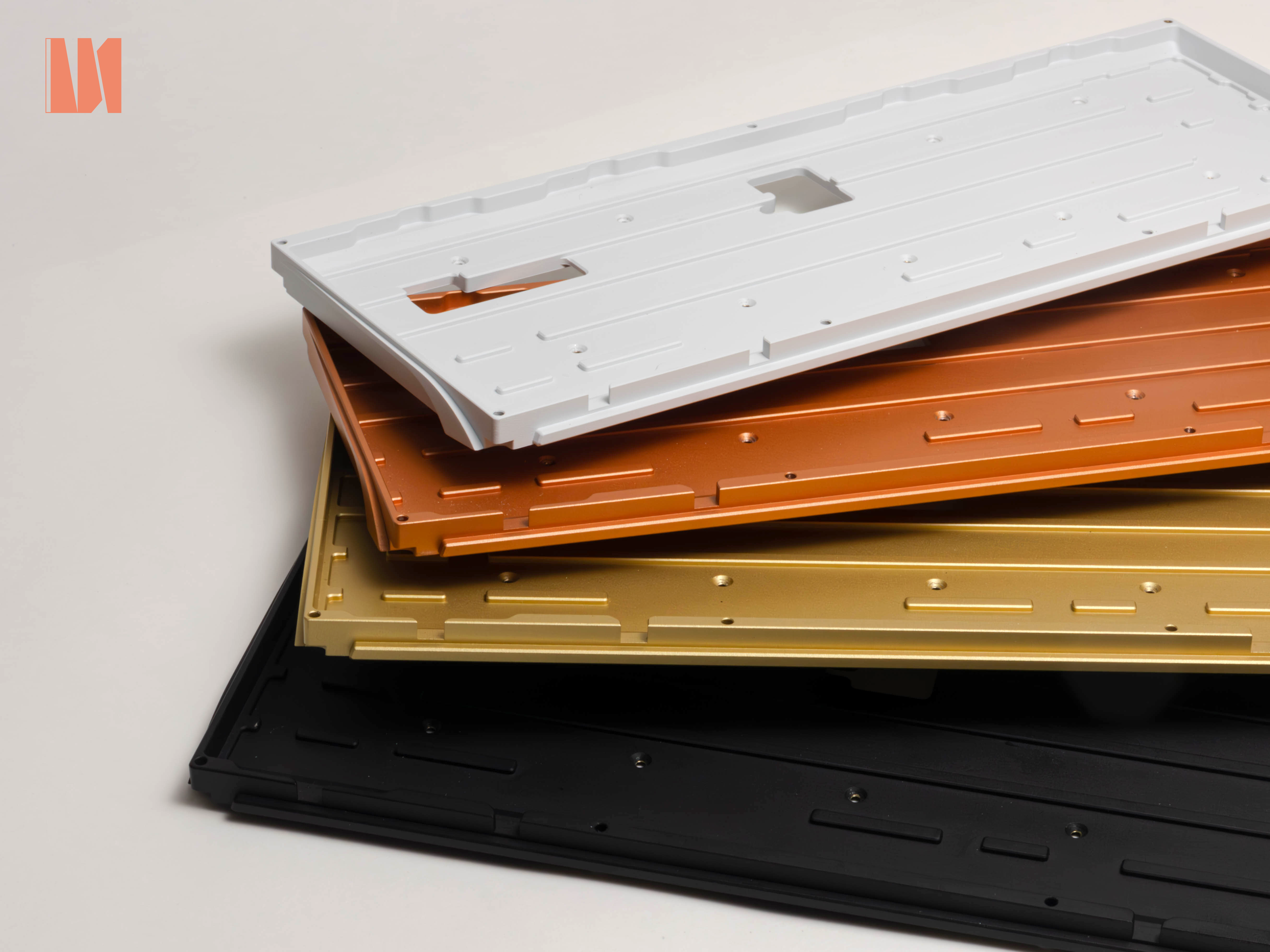

Material and Process

- Top Case:
o 6063 Aluminum Alloy – Anodized
- Middle Case:
o Brass – With Nano anti-oxidation Coating or Color Spray Coating
o Copper—With Nano anti-oxidation Coating
- Bottom Case:
o 6063 Aluminum Alloy – Anodized
- Badge:
o Brass – With Nano anti-oxidation Coating or Color Spray Coating
o Copper – With Nano anti-oxidation Coating
o Stainless Steel – Blasted PVD (*Not Mirror)

PCB

- 1.6mm Non-Flex Cut ONLY
- Hot-Swap/Soldered Compatible
- Black varnish surface with iNN Orange UVed logos
- With unified C series DB & JST connect cables

Connect Mode and Firmware

- Wired ONLY
- QMK/VIAL

Product Showcase

Color options for Top Case & Bottom Case (Anodized & in the same color:

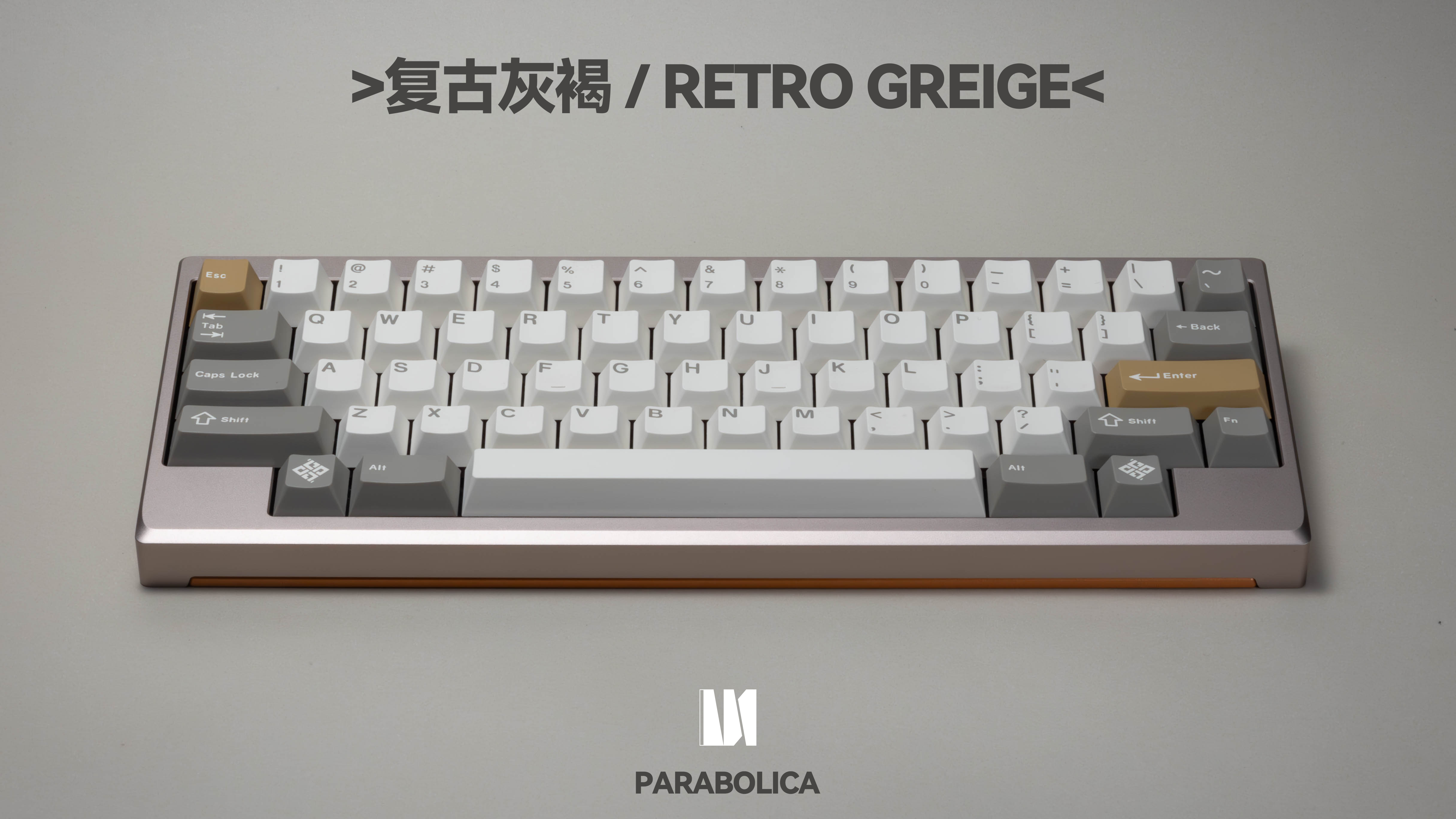

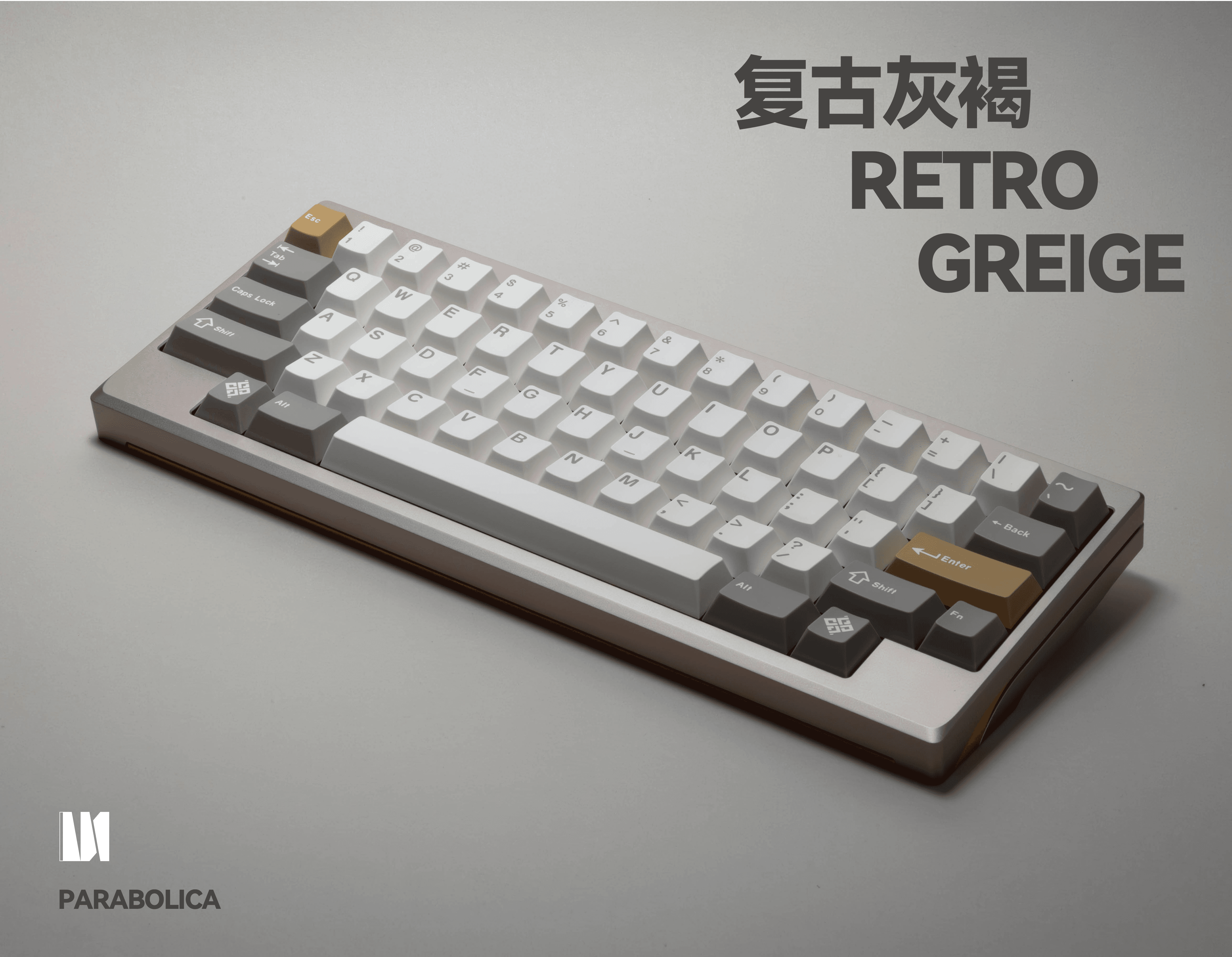

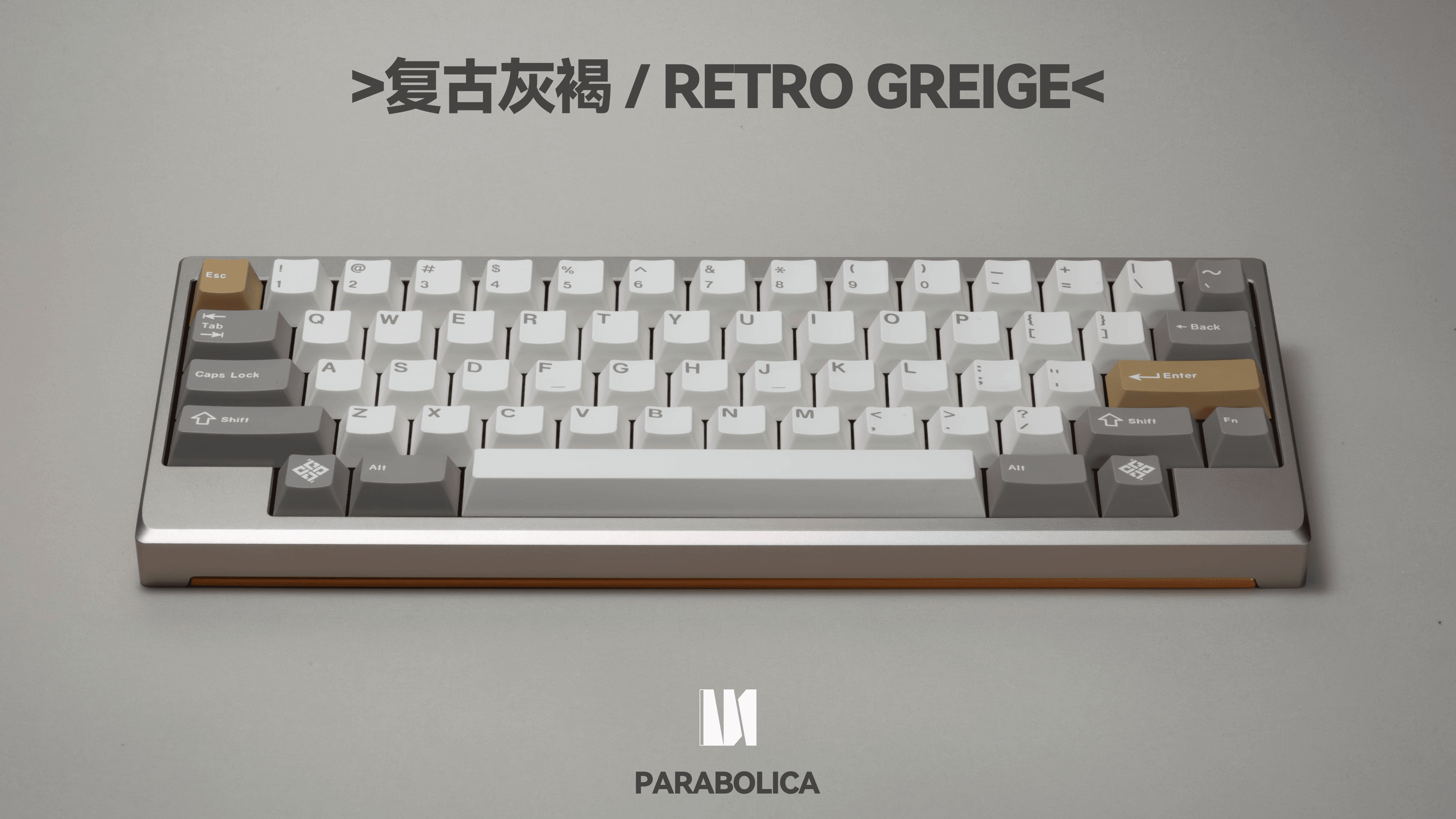

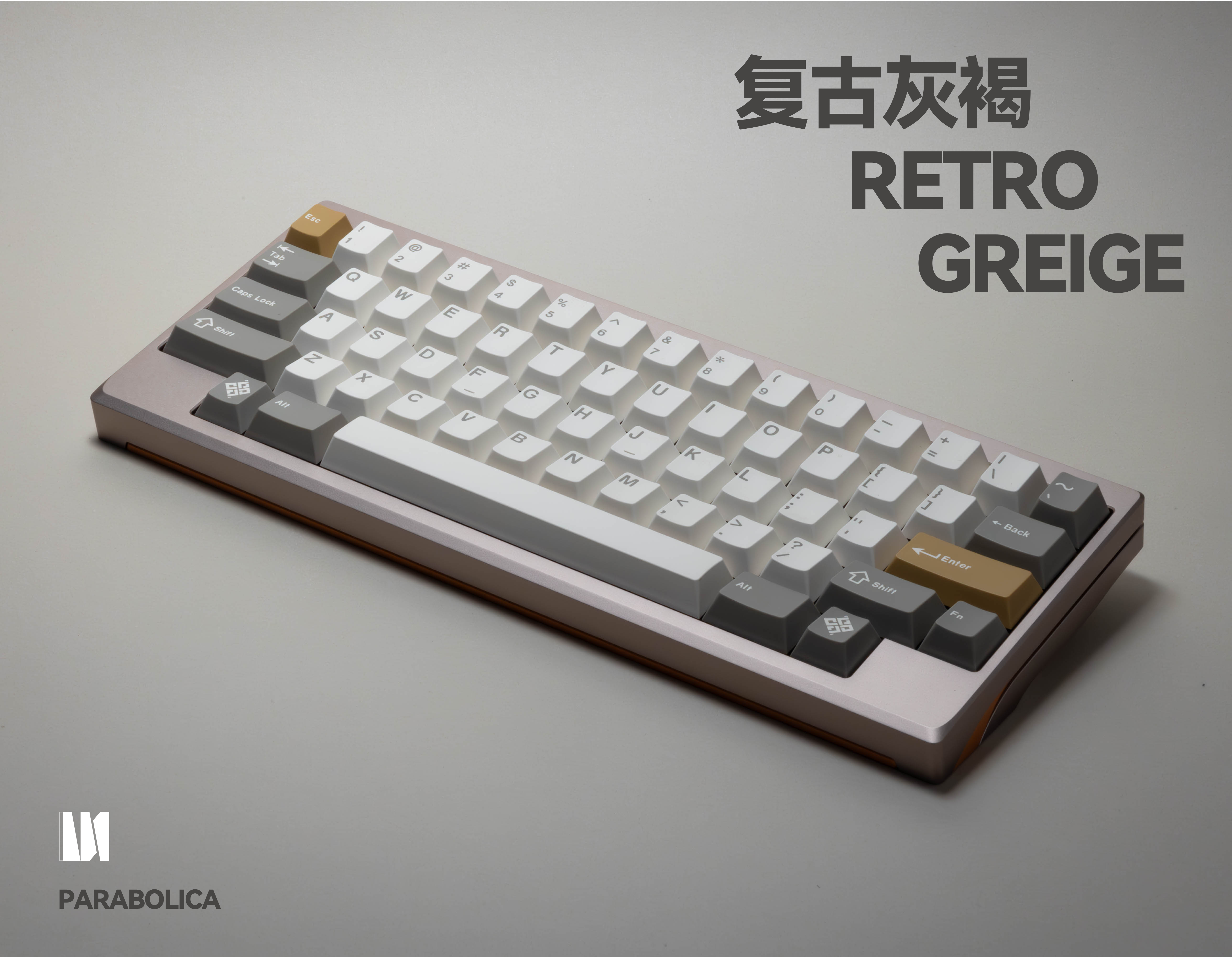

Anodized Retro Greige:

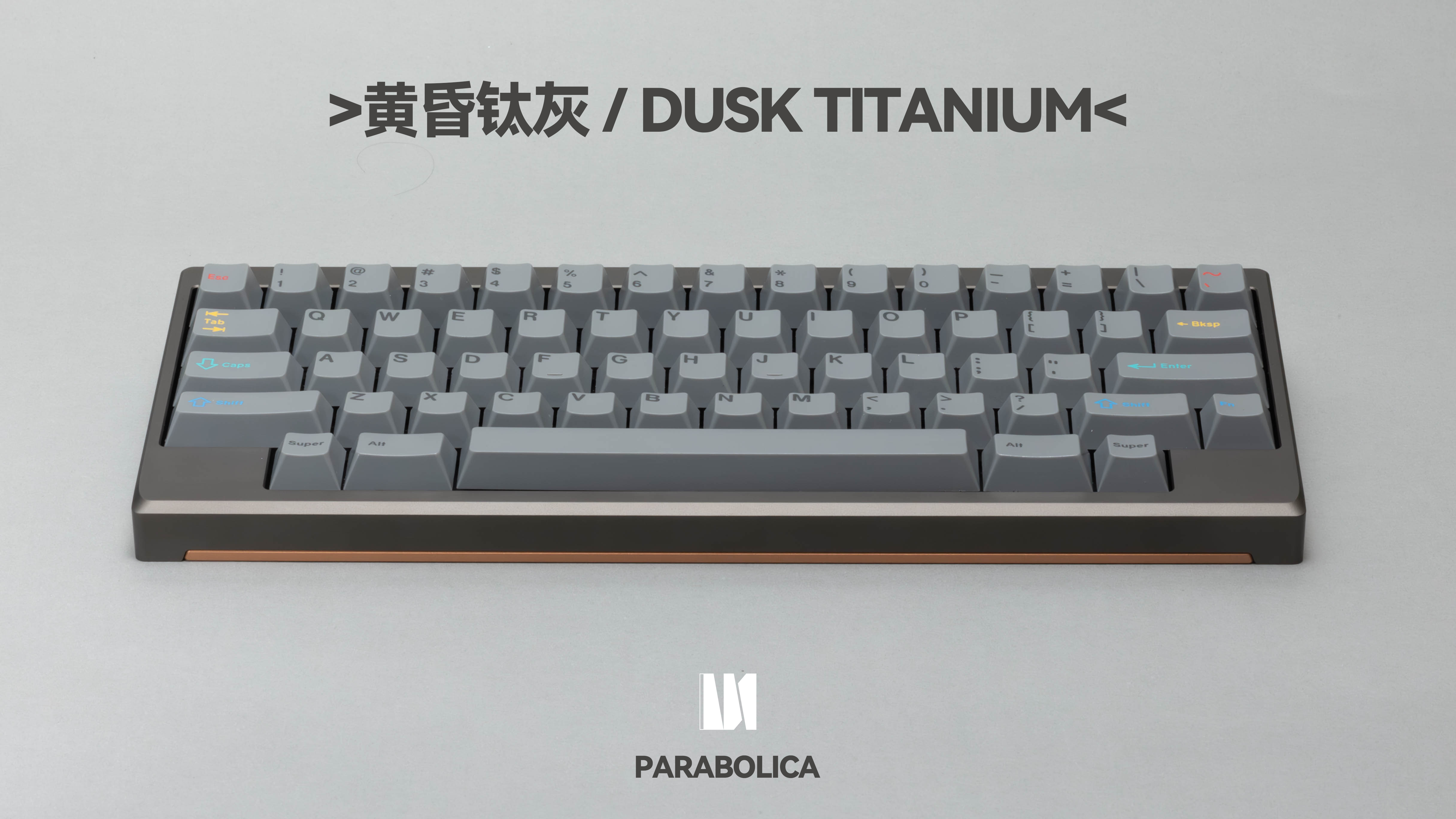

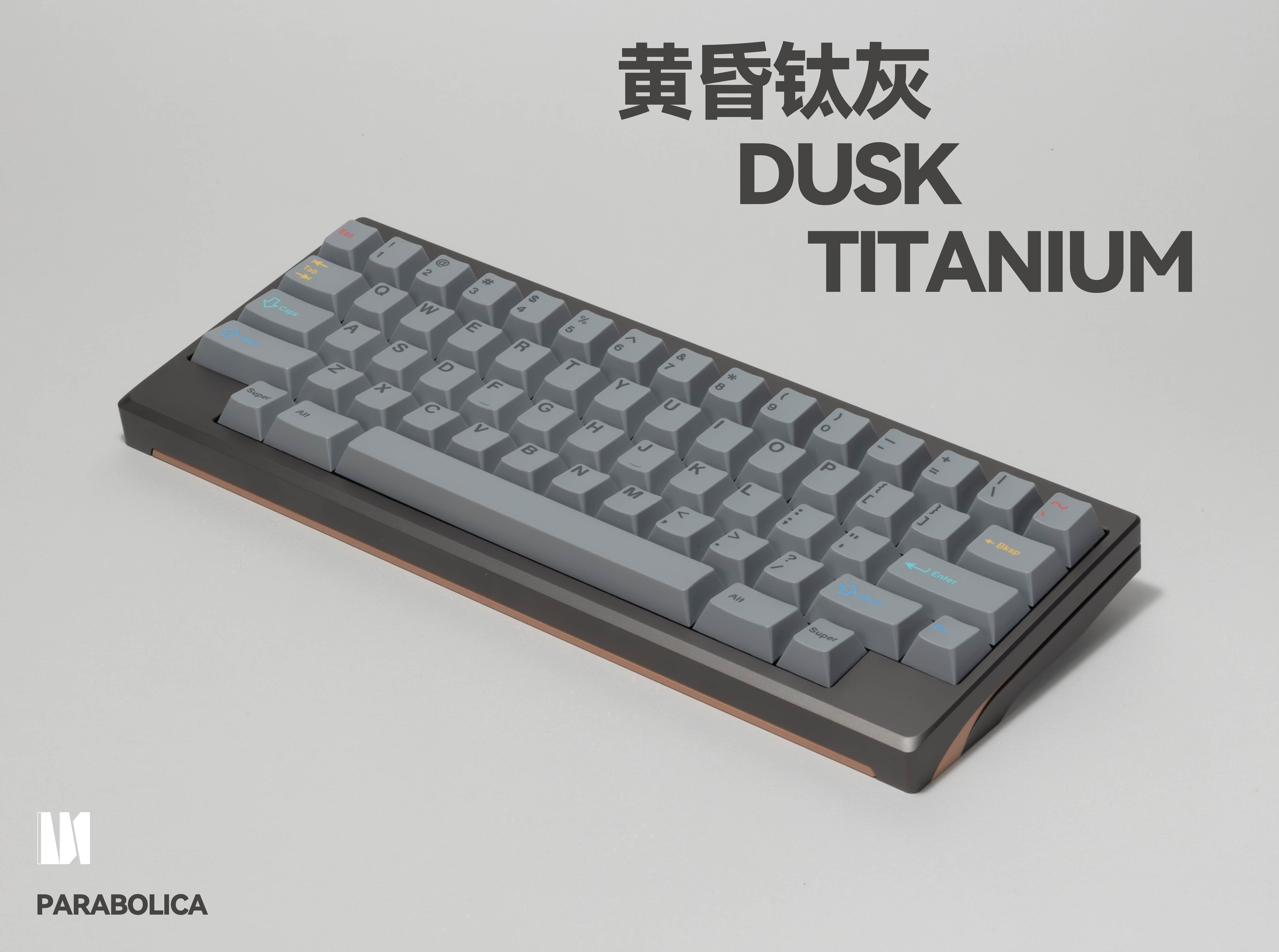

Anodized Dusk Titanium:

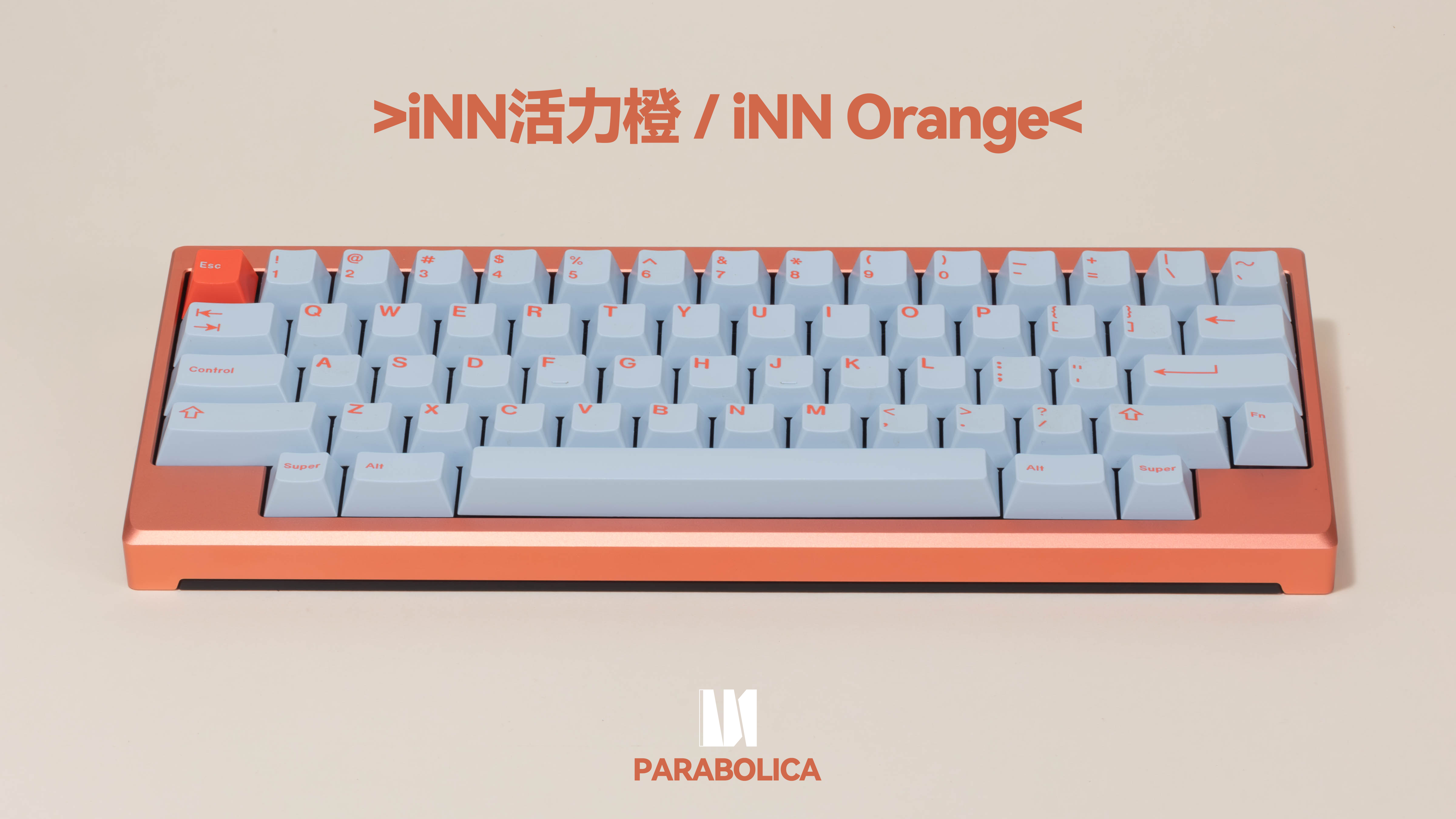

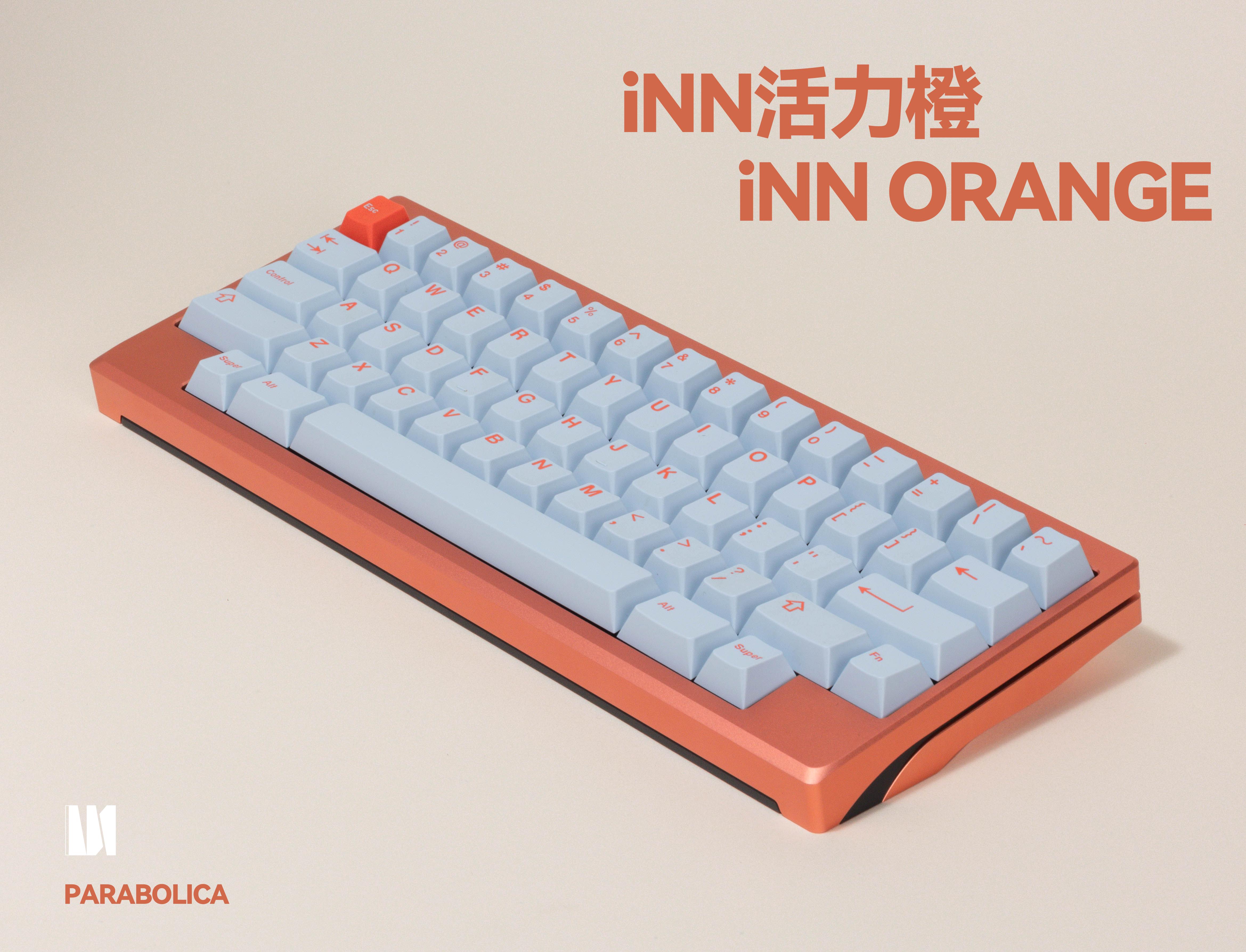

Anodized iNN Orange:

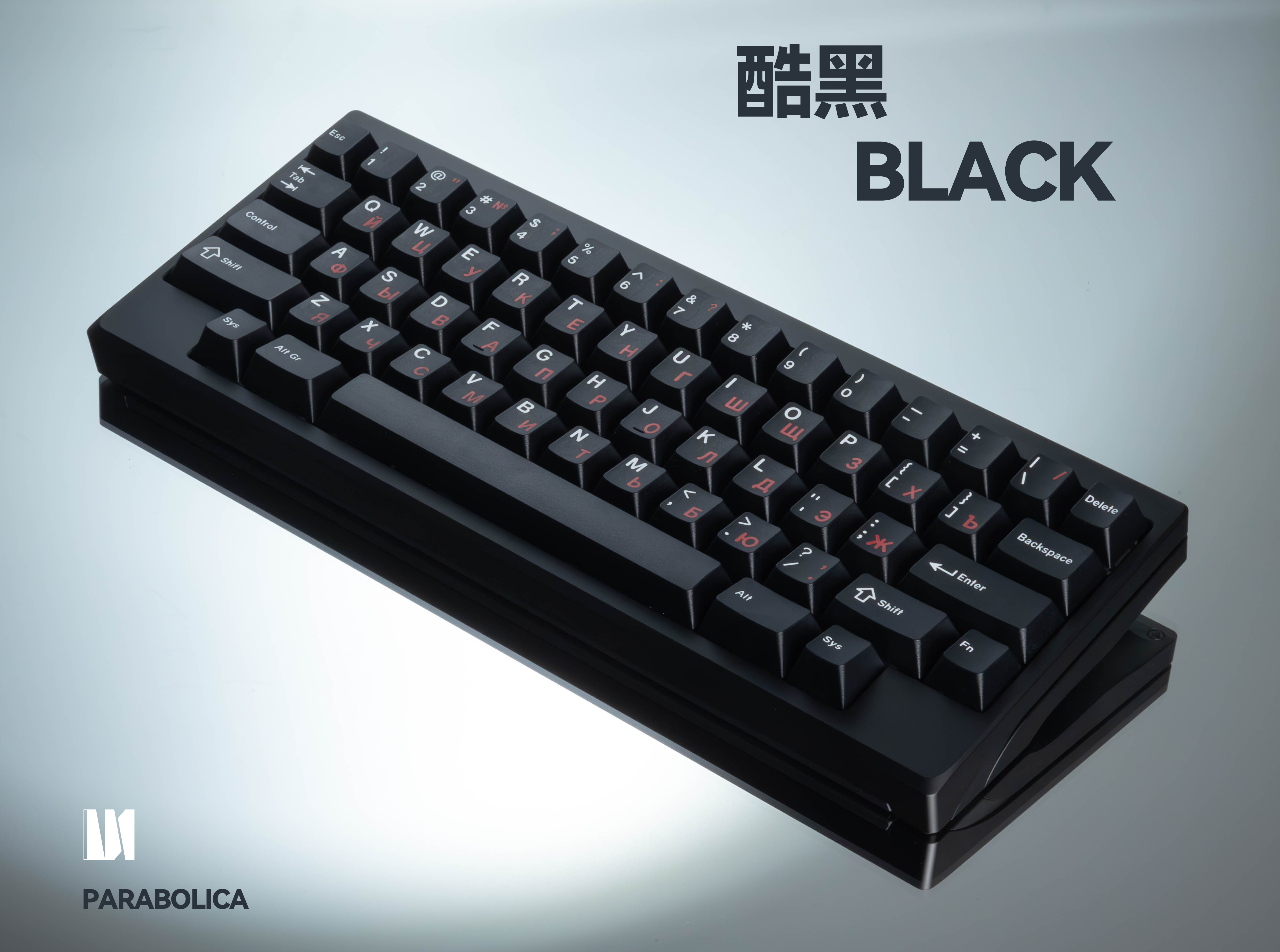

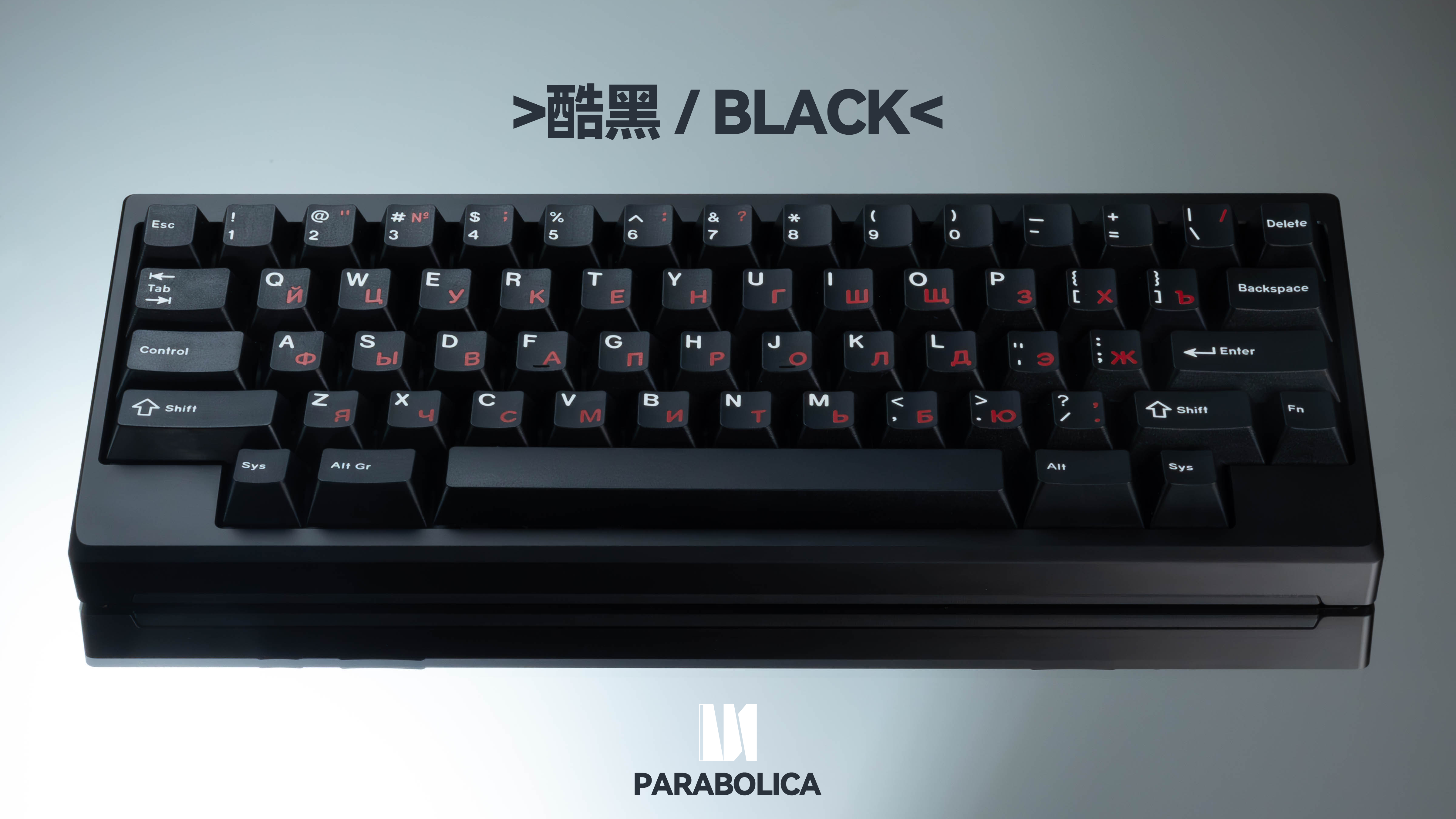

Anodized Black:

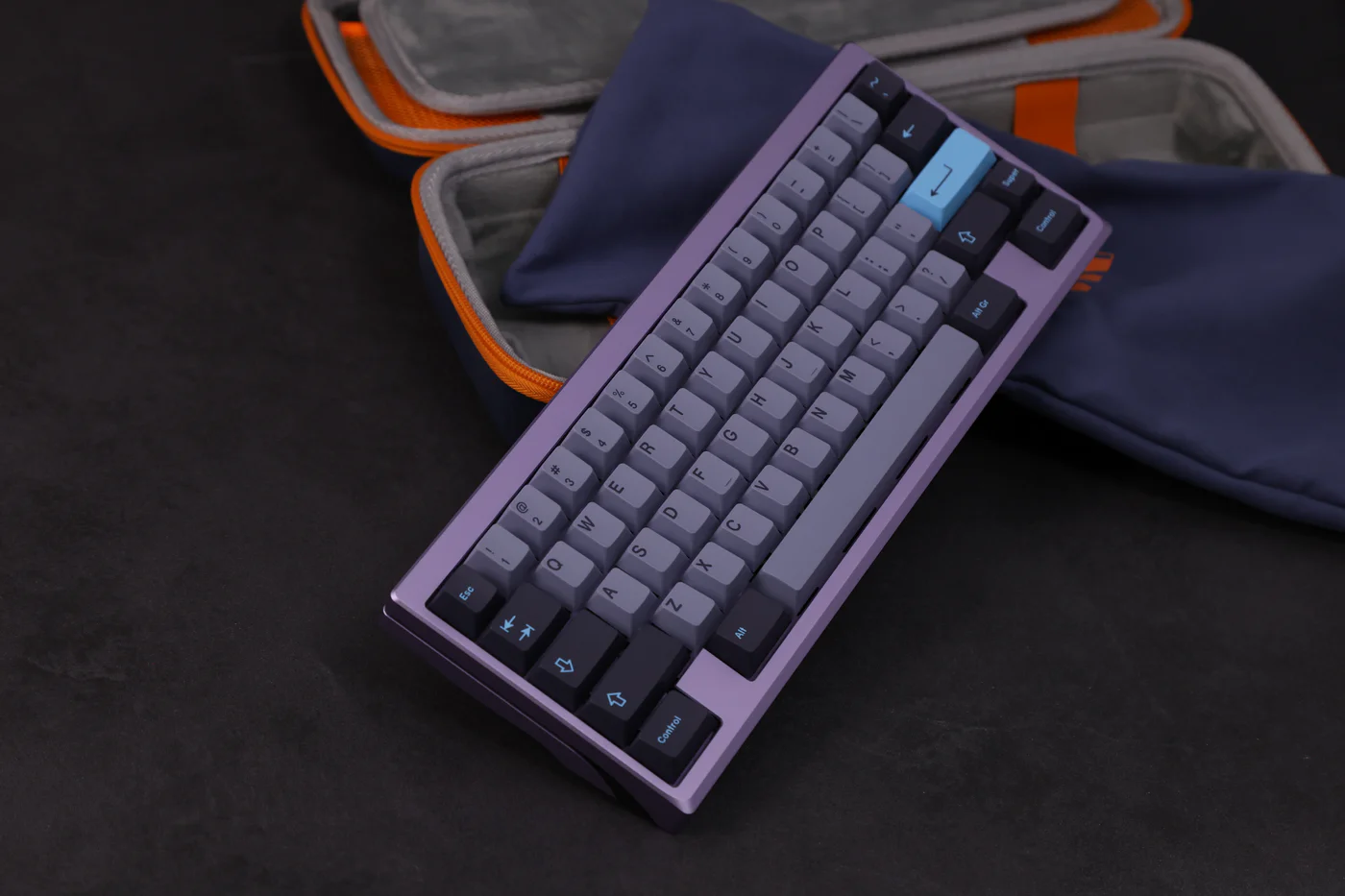

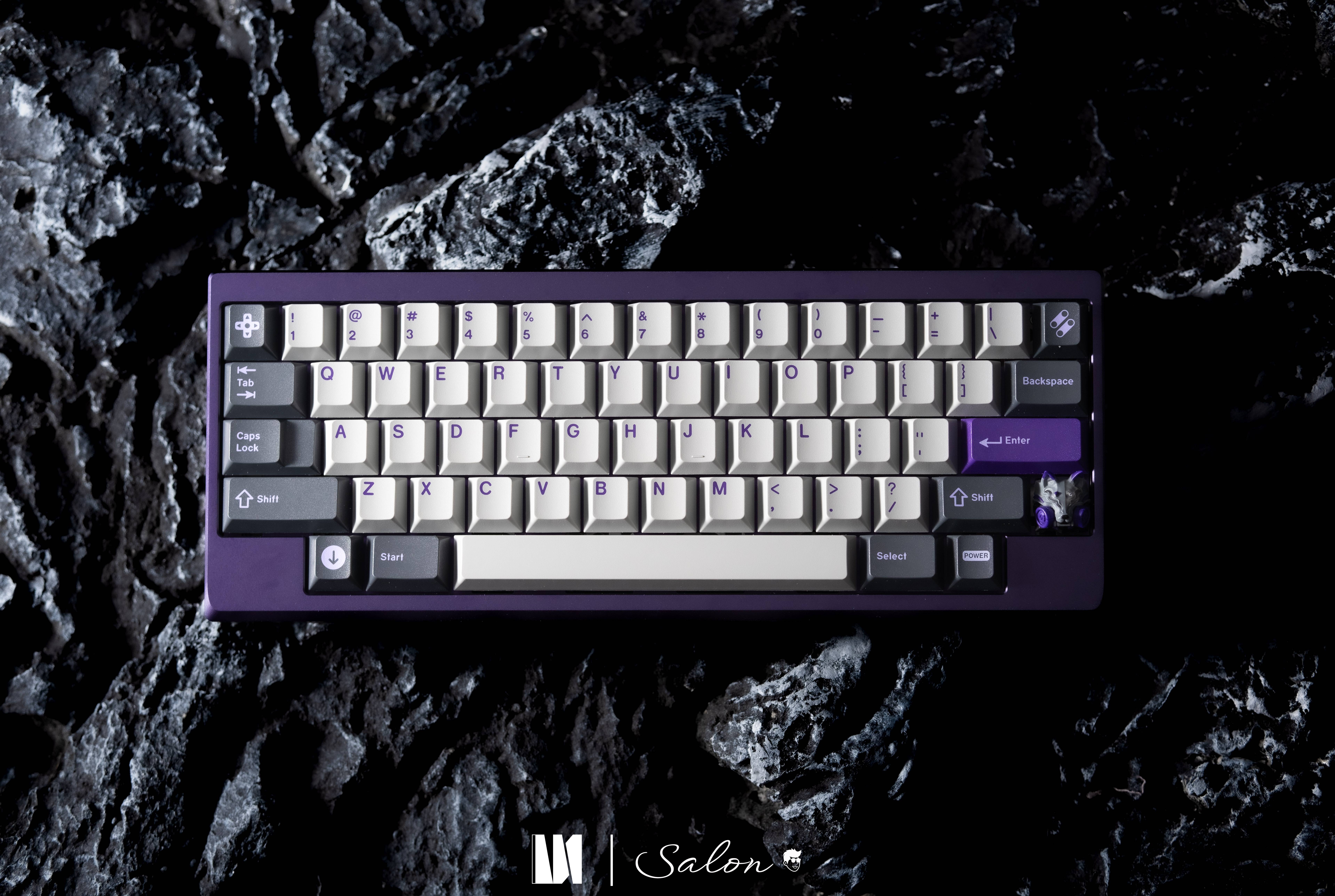

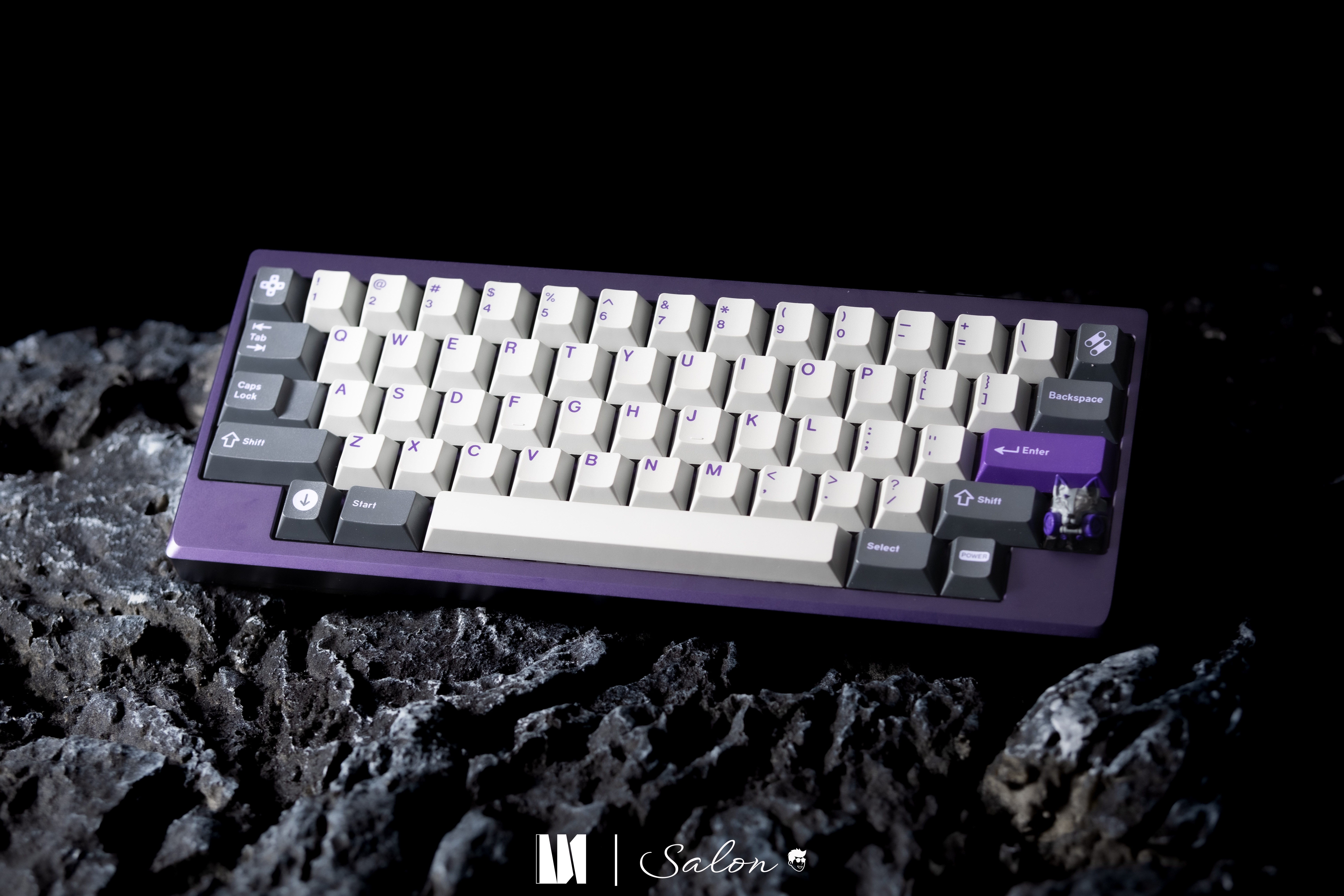

Anodized Dark Violet:

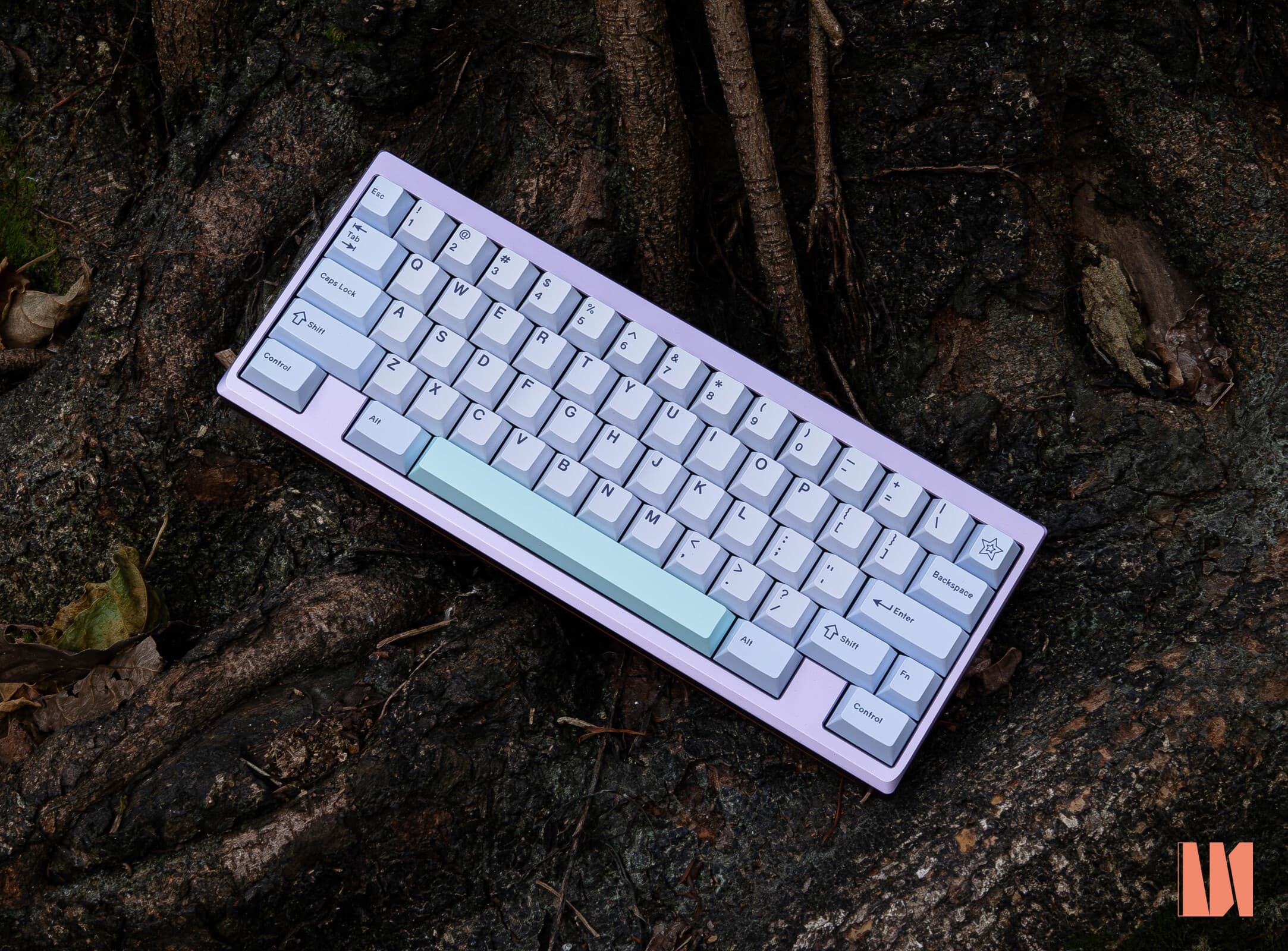

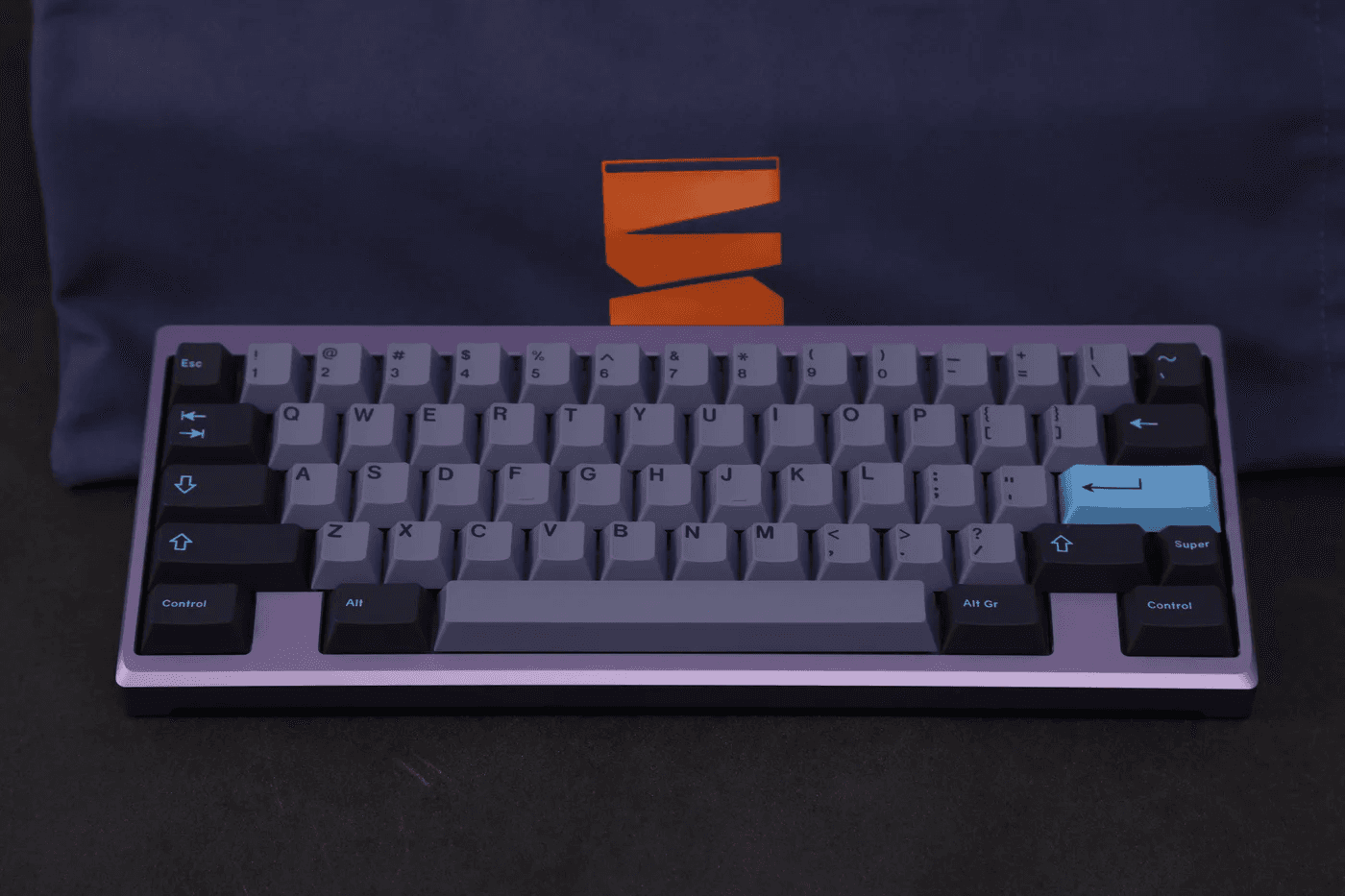

Anodized Lavendar:

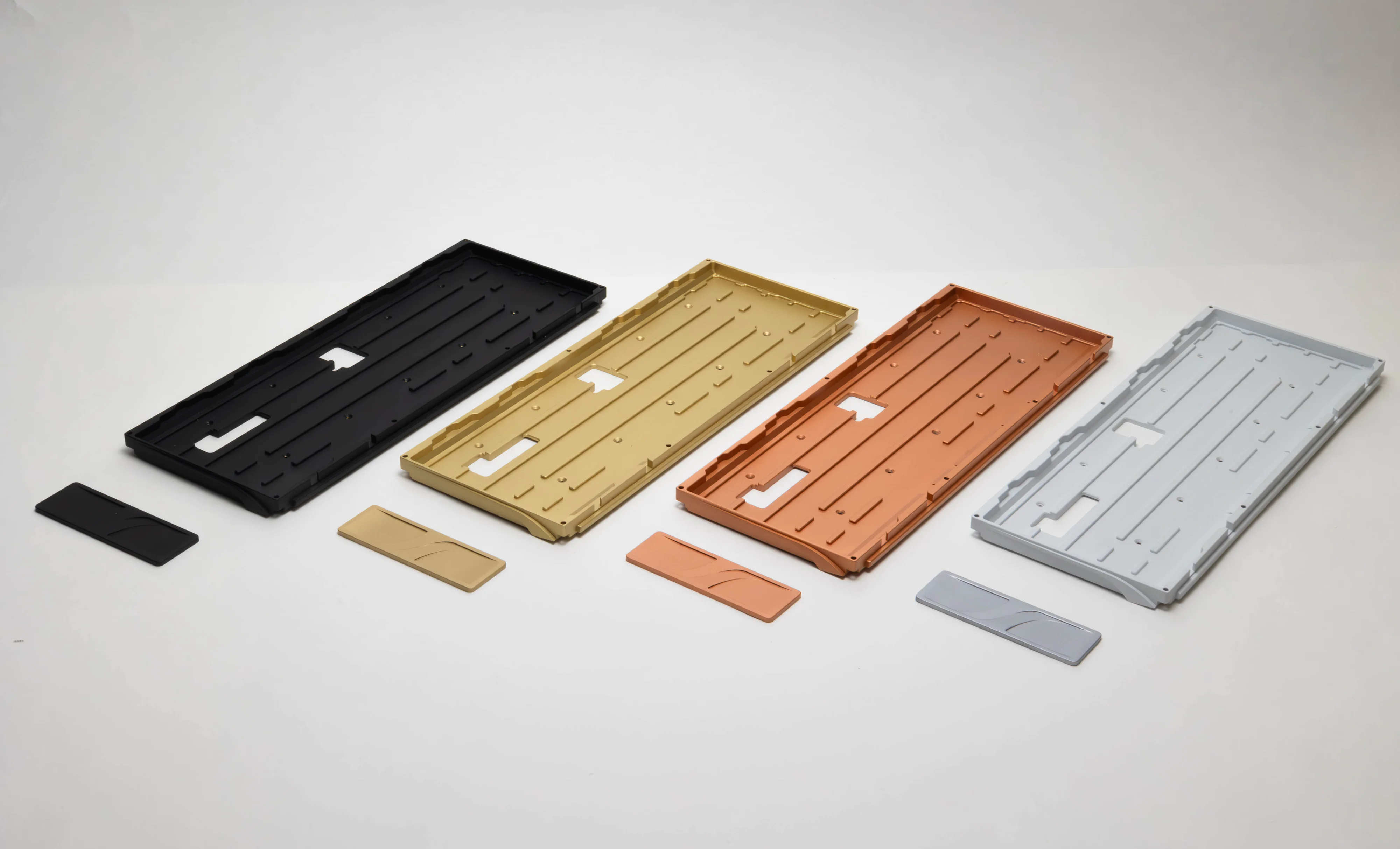

Color options for Middle Case:

Brass – With Nano Anti-oxidation Coating
Copper -- With Nano Anti-oxidation Coating
Brass – Spray Coated in Black
Brass – Spray Coated in Color of Community Vote
(*Shiny White Coating in the picture is exclusive for CN GB’s Community Color)

Color options for Badge:

- Brass - With Nano anti-oxidation Coating
- Copper - With Nano anti-oxidation Coating
- Brass - Spray Coated in Black
- Brass – Spray Coated in Color of Community vote
- Stainless Steel – Silver Blasted PVD

The Fix Color Kit:

The Color from the community:

You can submit your own color palette and a winner will be voted and adopted as a fixed color option:
- Top Case & Bottom Case in the same anodized color of your choice
- Mid frame & Badge in the same spray coated color of your choice
- All colors should be selected from Pantone C card

The event will be host in iNN Studio Discord channel soon
Join the iNN Studio Discord: https://discord.gg/hMkGUAZhSe

Special Community Colorway Voting can be done here: https://forms.gle/oLz9YMbbbcQzfN5F7

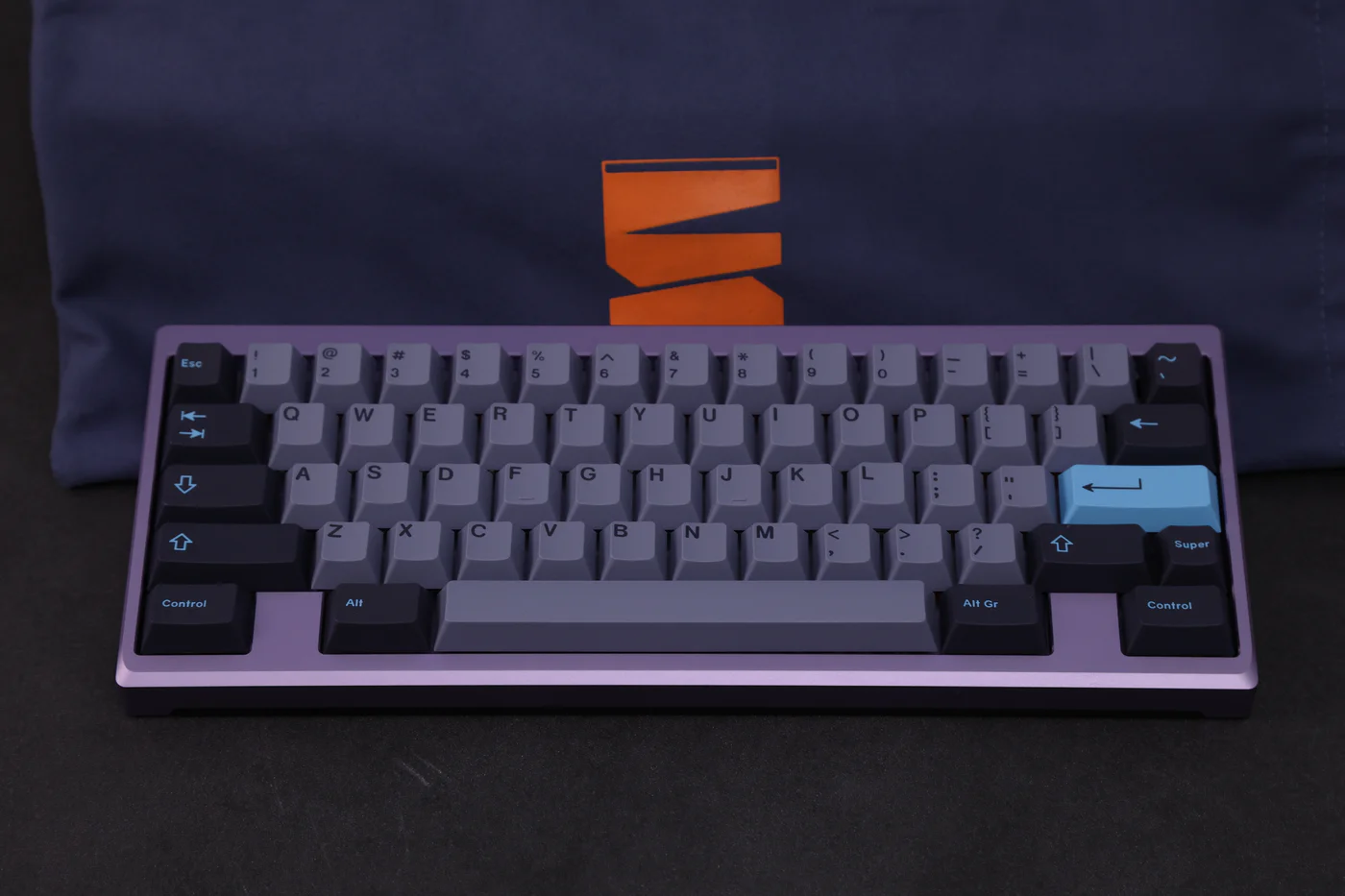

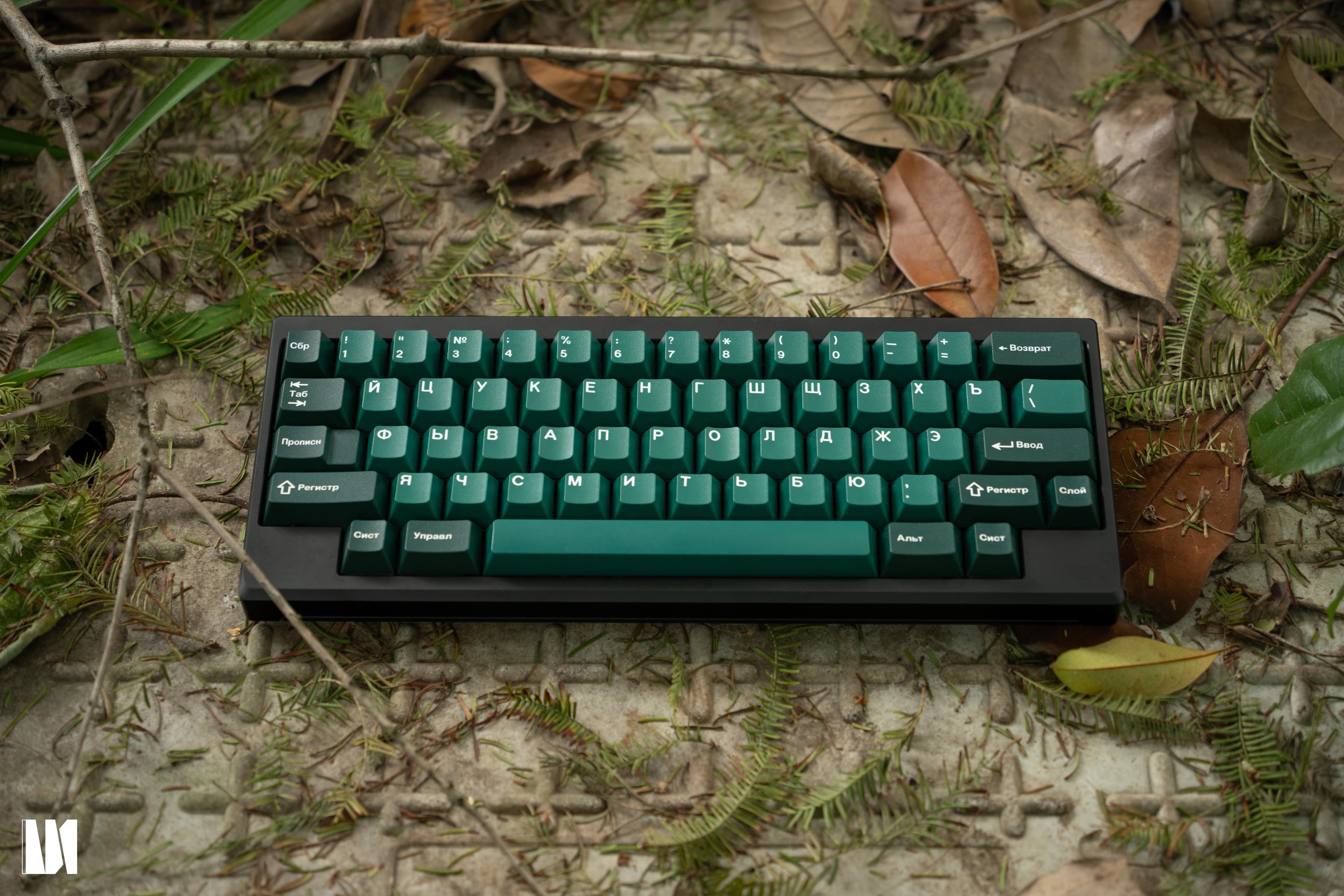

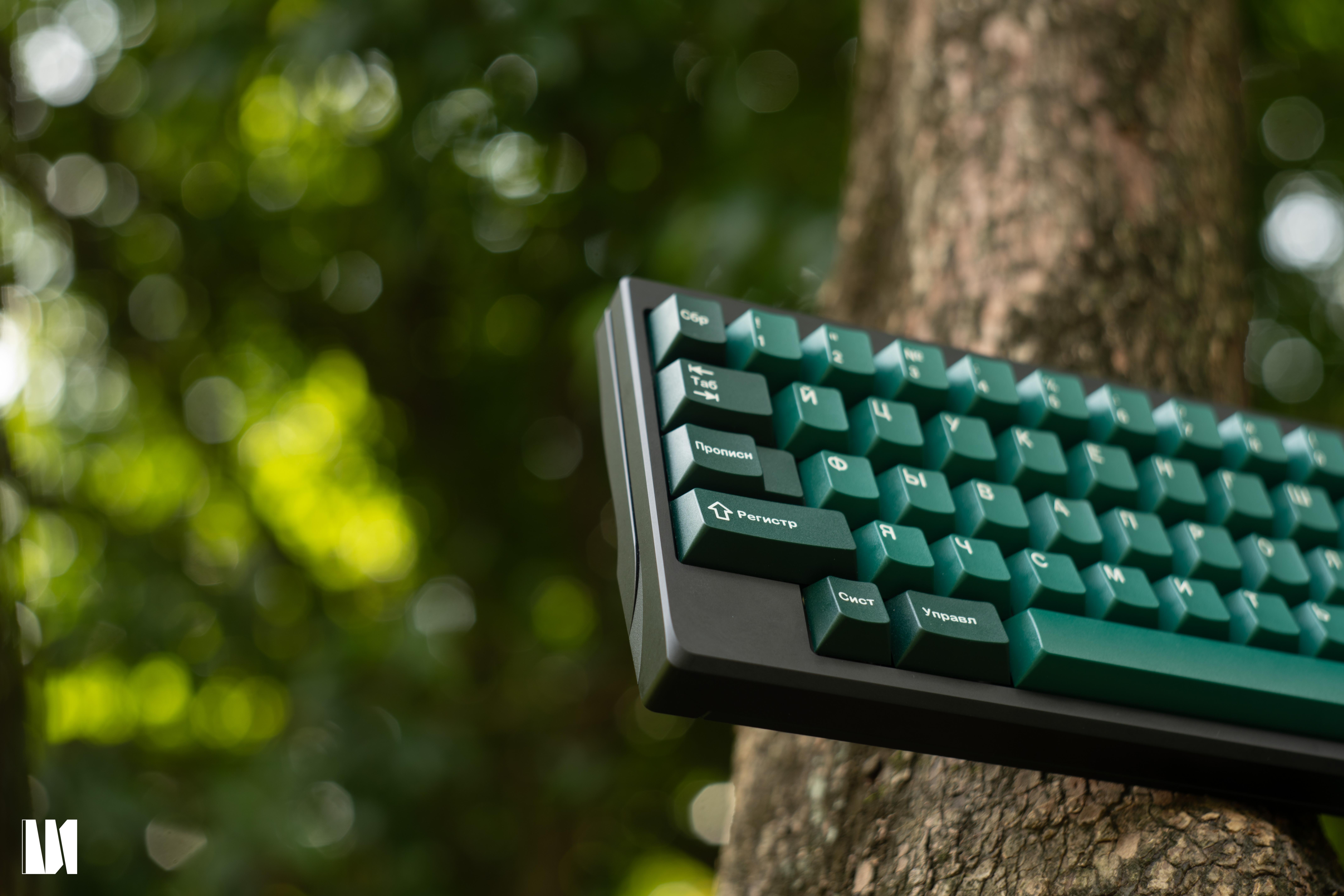

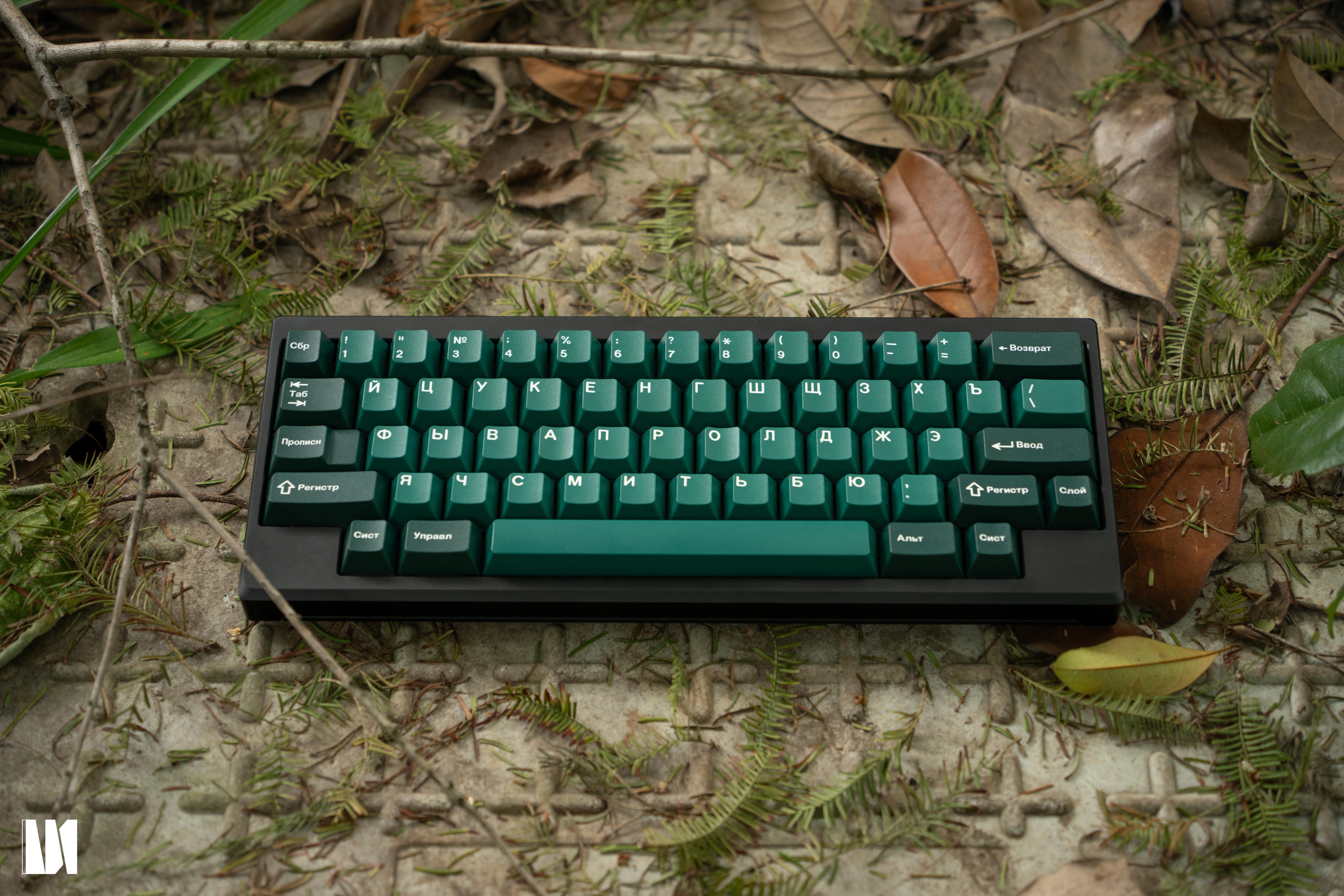

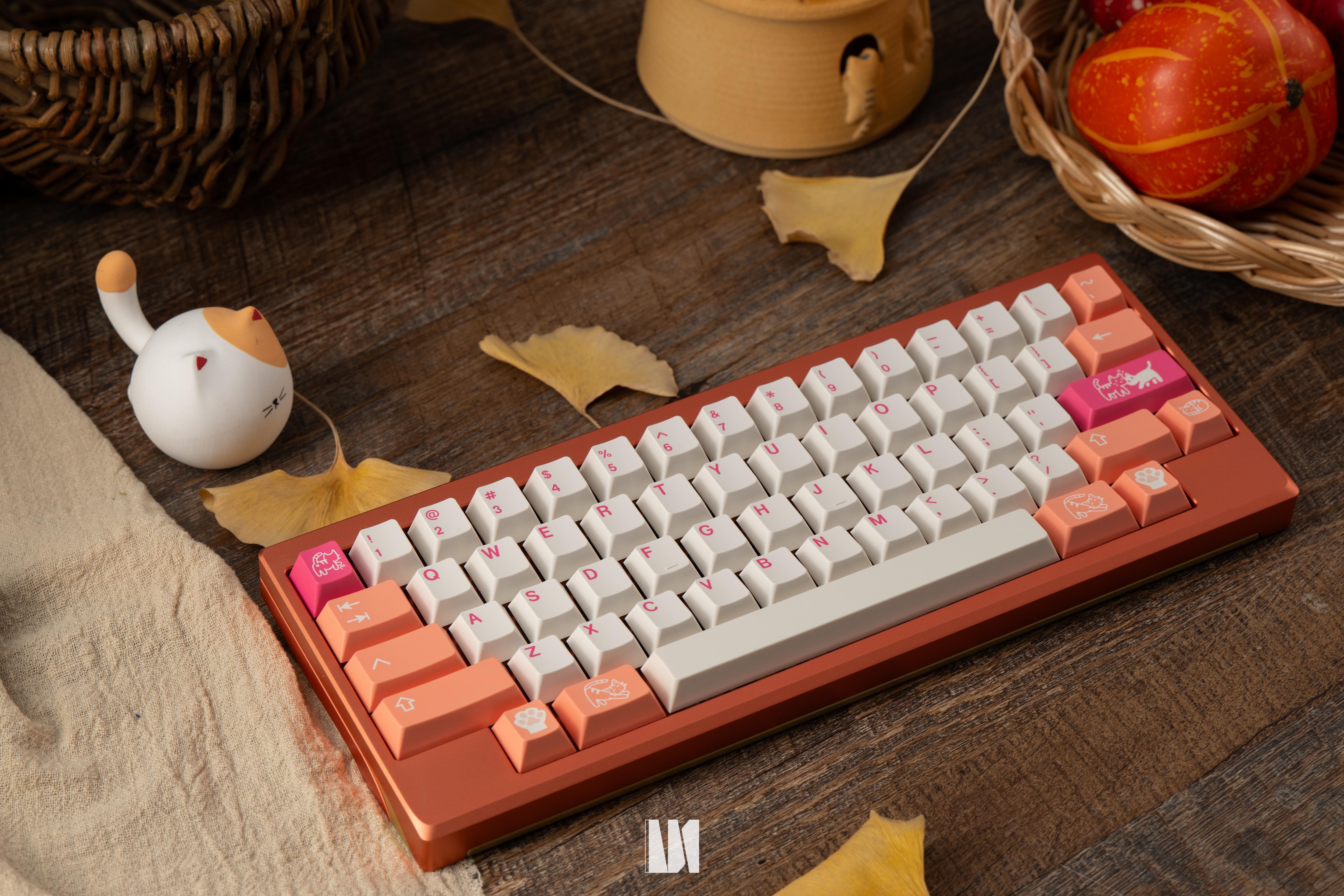

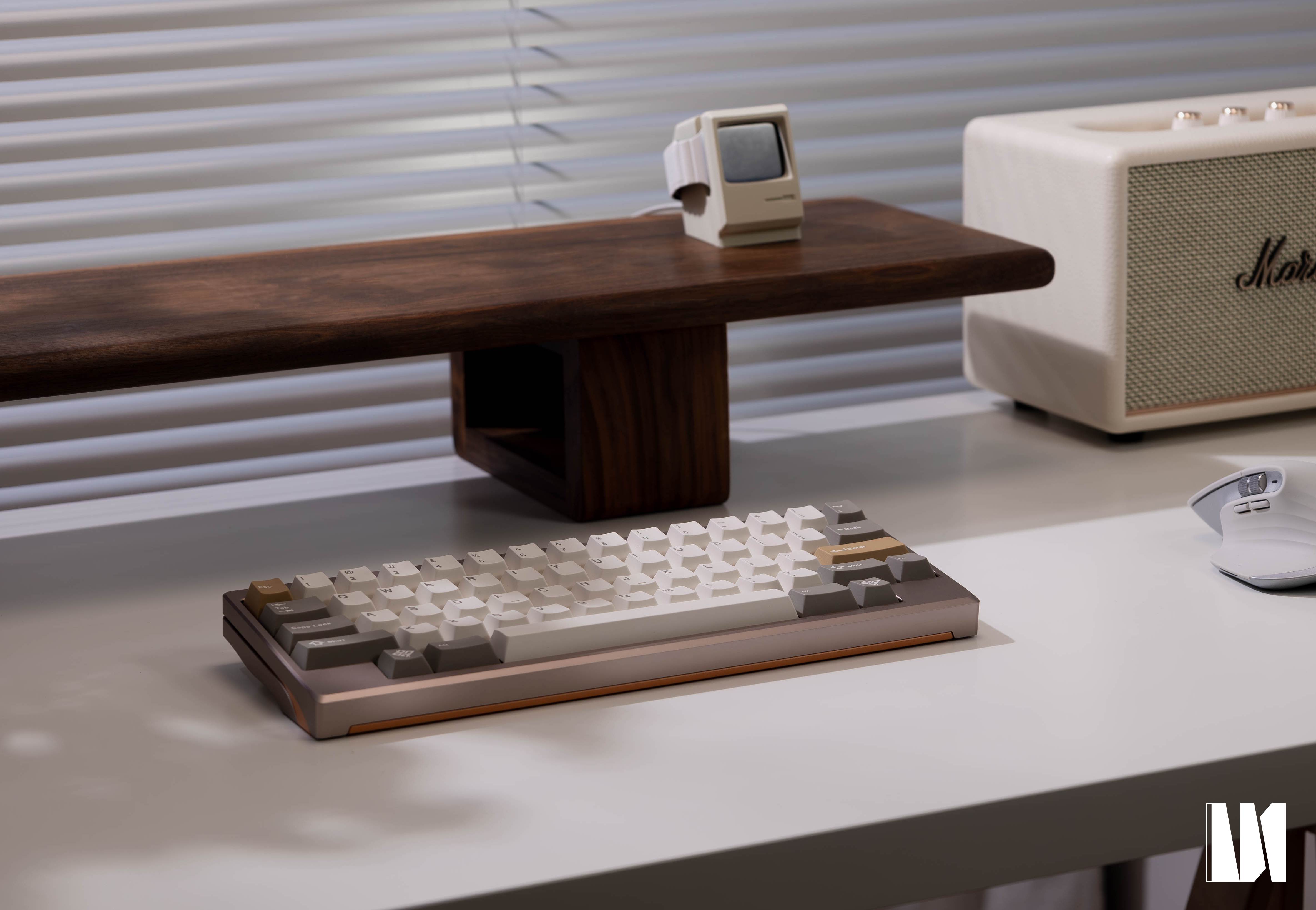

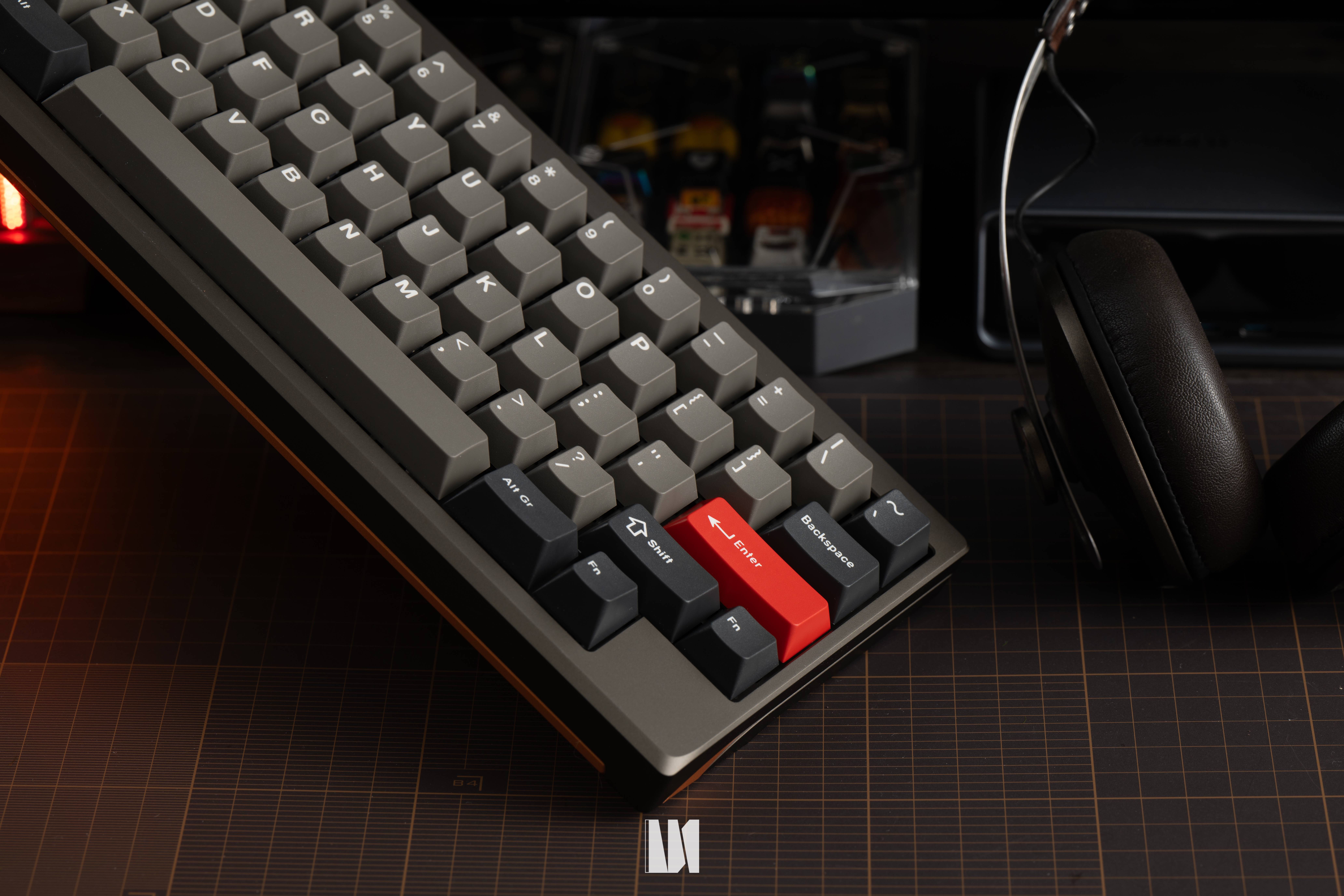

More Photos:

What is included?

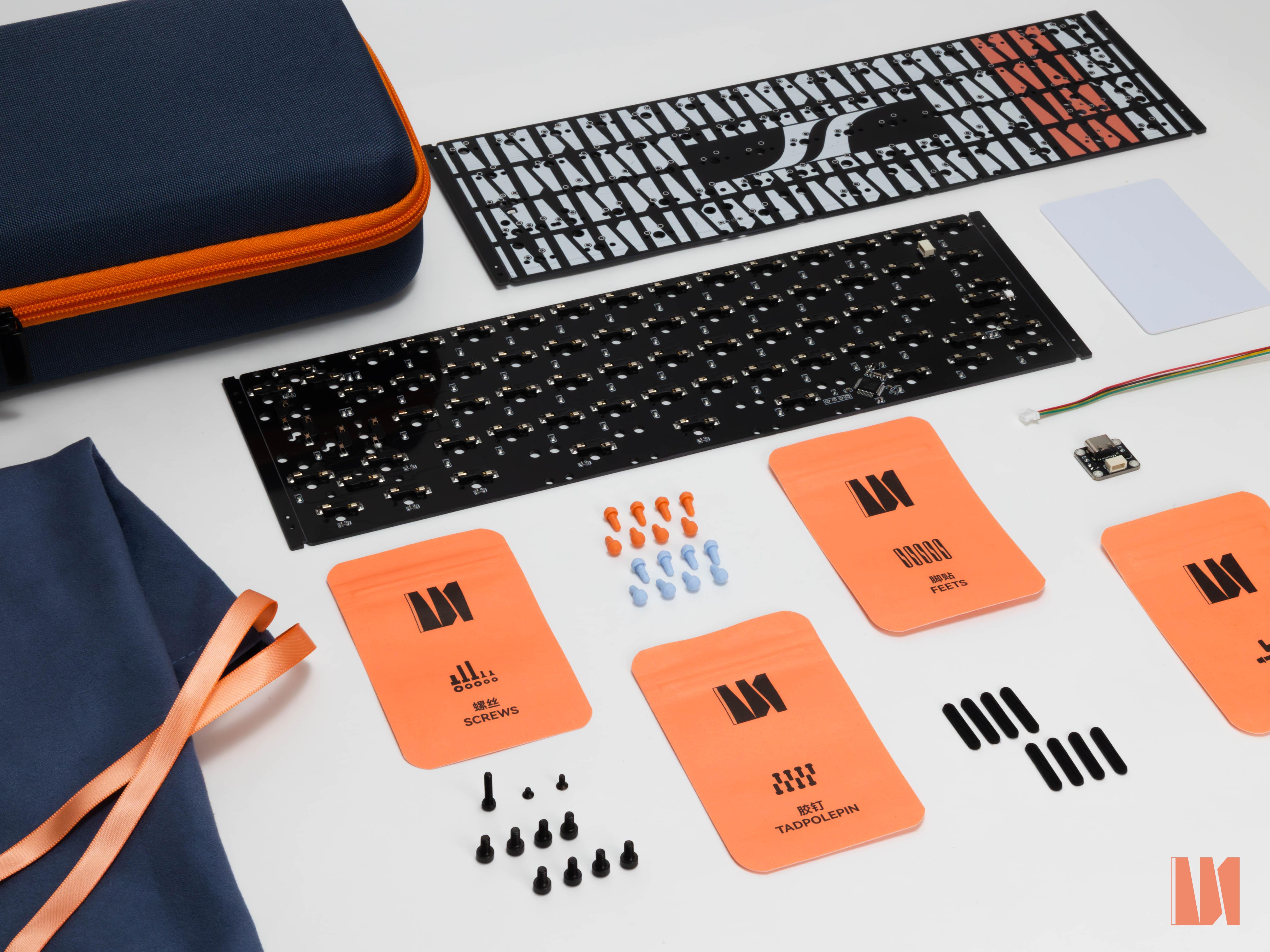

Parts included in the Default kit：
Can be upgraded:
1× Anodized Aluminum Top Case of your color choice
1× Anodized Aluminum Bottom Case of your color choice
1× Brass With Nano anti-oxidation Coating Badge
Default:
1× Aluminum/ Carbon Fiber Full Plate
1× 1.6mm PCB with black varnish surface with iNN Orange UVed logos
1× Unified C Series DB & JST connect cables
20× Silicone Tadpolepins 50A & 70A (10 Each)
8× Silicone feets
1× PET bottom pads

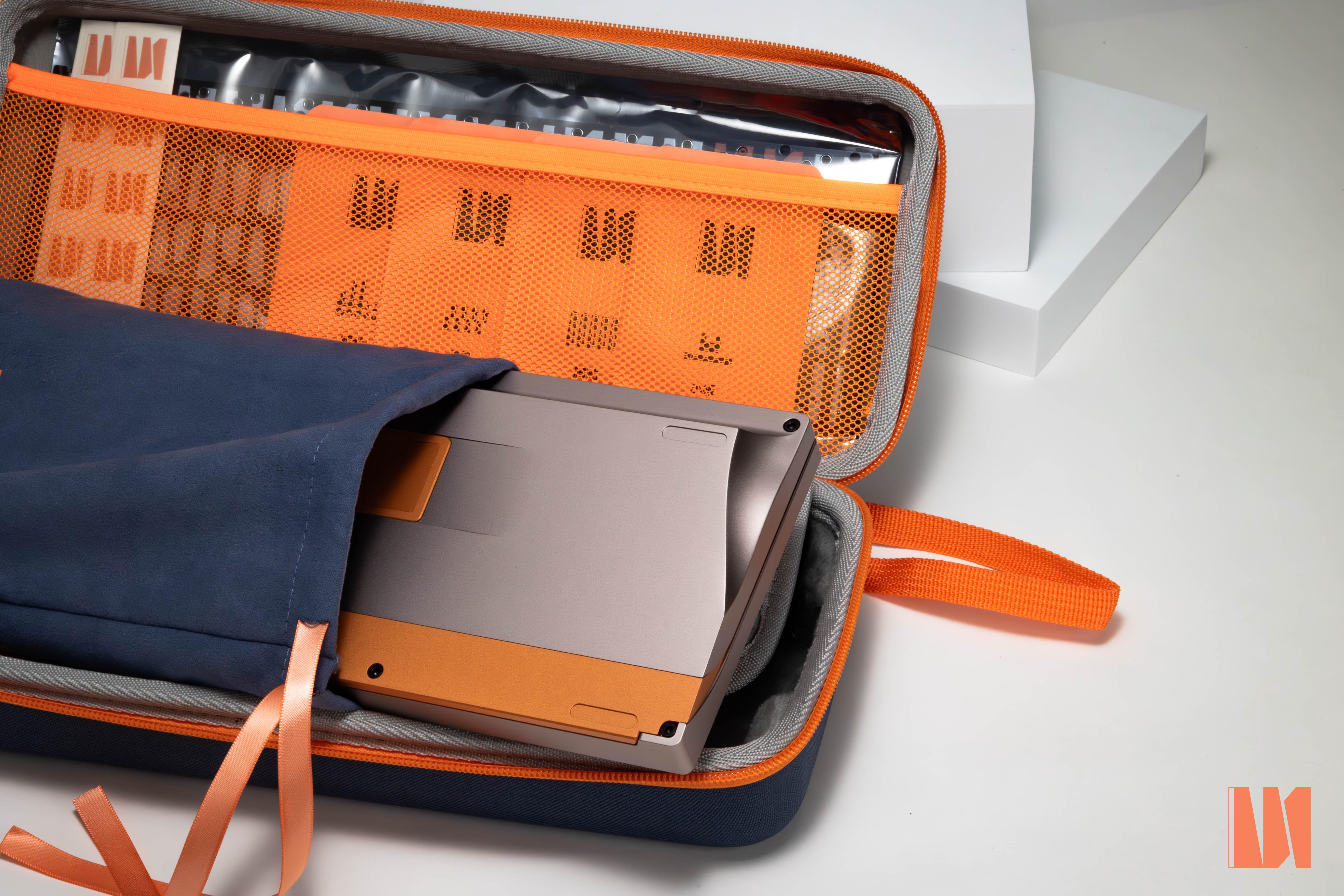

1× iNN Studio exclusive keeb case
1× iNN Studio exclusive velvet keeb bag
1× Parabolica PVC souvenir card & Post
1 x Brass With Nano anti-oxidation Coating Mid-frame
All Screws and Packging

Pricing and Vendors

Group Buy Details
Time：15,05,2025 - 15,06,2025

Form：Open GB in Limited Time Window

Pricing:

-Default Kitting 320$

-Middle Case
UPGRADE TO Copper +35$
UPGRADE TO COLOR SPRAY COATED +7$

-Badge
UPGRADE TO Copper FOR FREE
UPGRADE TO Stainless Steel +10$
UPGRADE TO COLOR SPRAY COATED +3$

-PCB
UPGRADE TO Hot-Swap +5$

Vendors:

- The USA and Rest of the world: Click Clack
- United Kingdom: ProtoTypist
- Europe: EloquentKeys
- Oceania: Toro Studio
- Canada: Unikeys
- South Korea: Geon Works
- SEA: iLumKB
- Vietnam: NuxrosKB

More will be updated.

Join ClickClack’s Discord for the latest updates, discussions, and questions:
