Welcome to the Peek TKL GB Post!LINK TO IC POSTPlease Join our discord for updates:

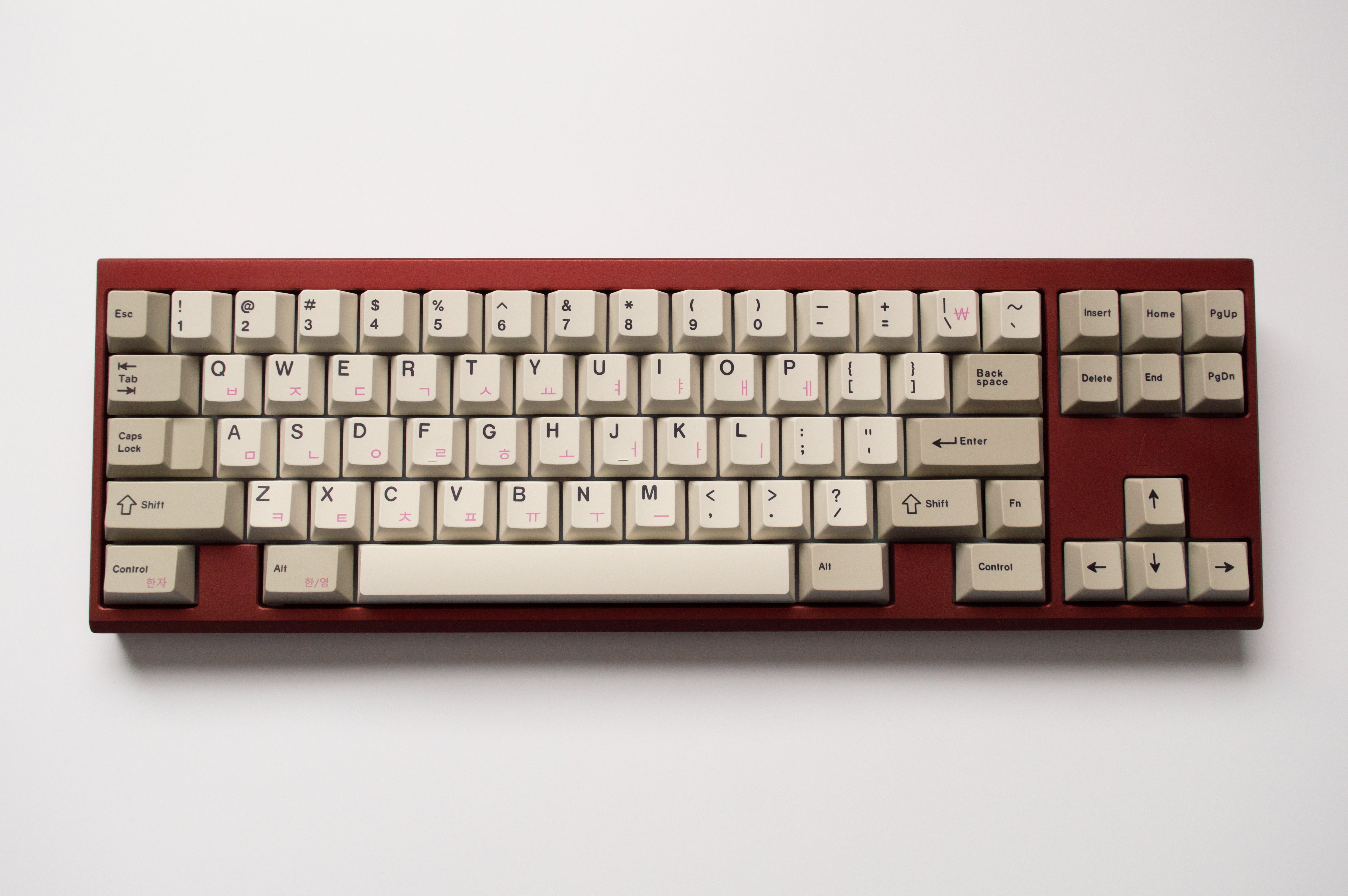

Discord LinkThe peek is an F-Rowless Winkeyless TKL developed by brie that features a top mount design, a simplistic profile, and a brass accent piece. The brass accent is inspired by anime related vinyl stickers commonly found on cars. With simplicity in mind, the board was designed for usability and a clean look that fits into any desk setup.

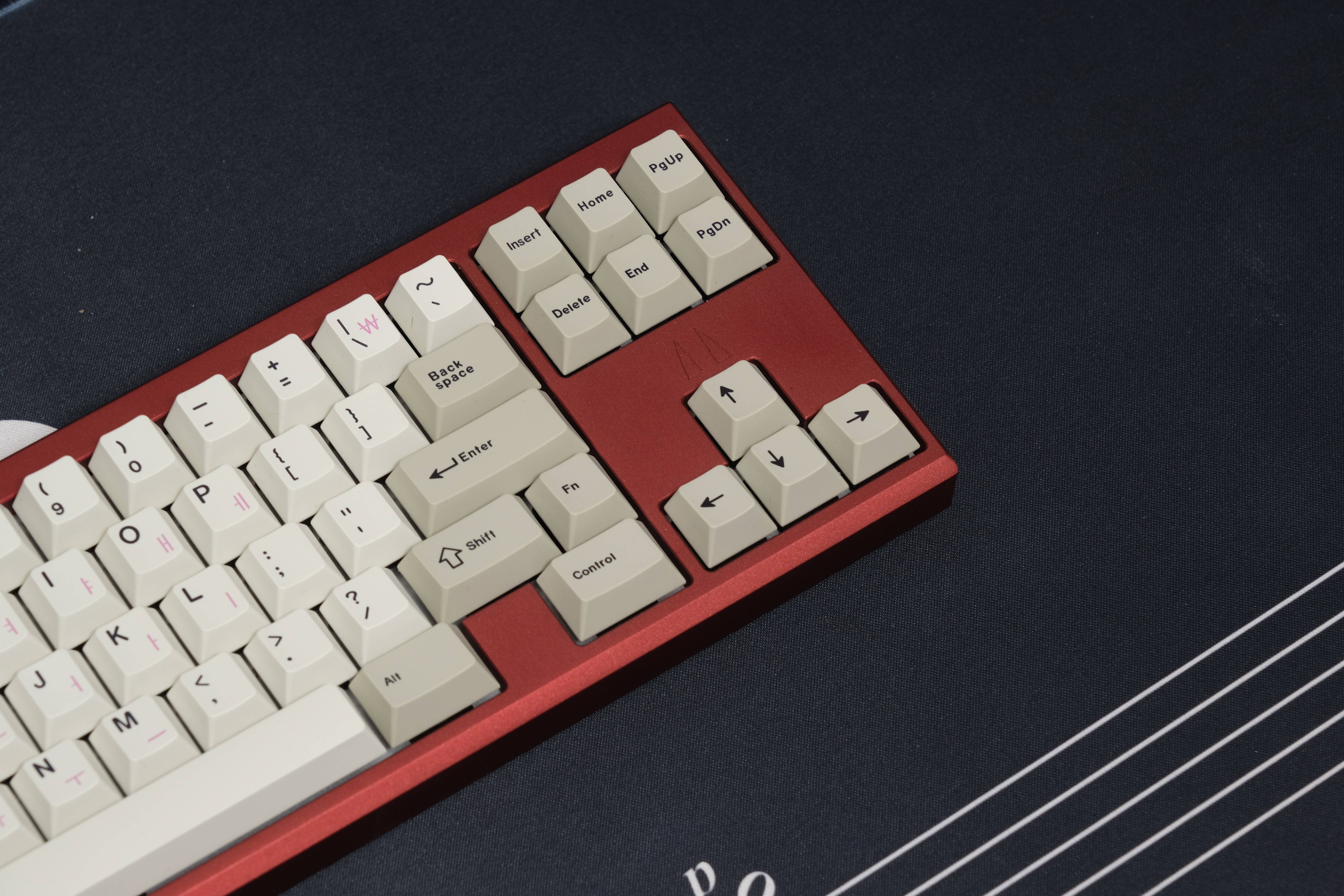

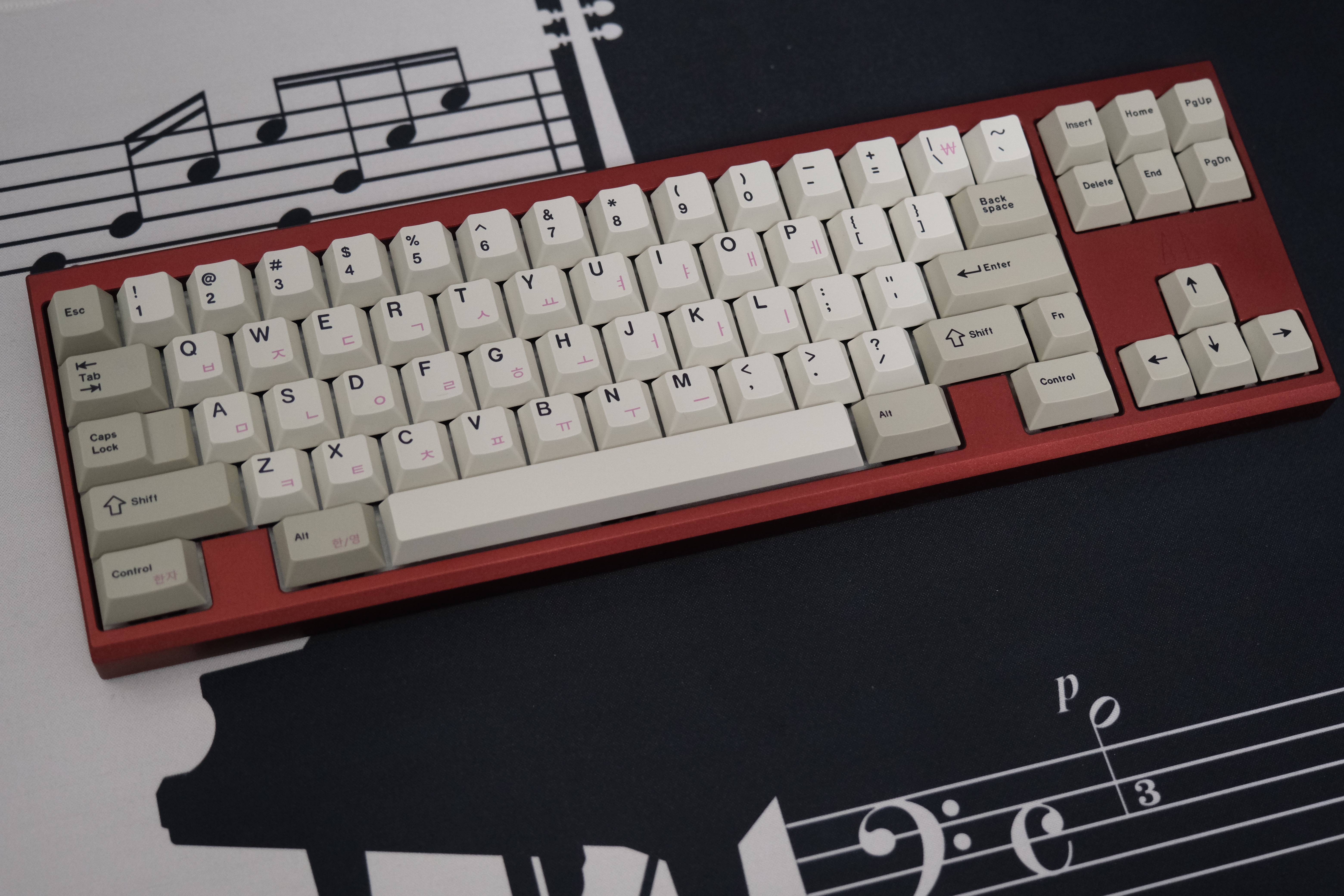

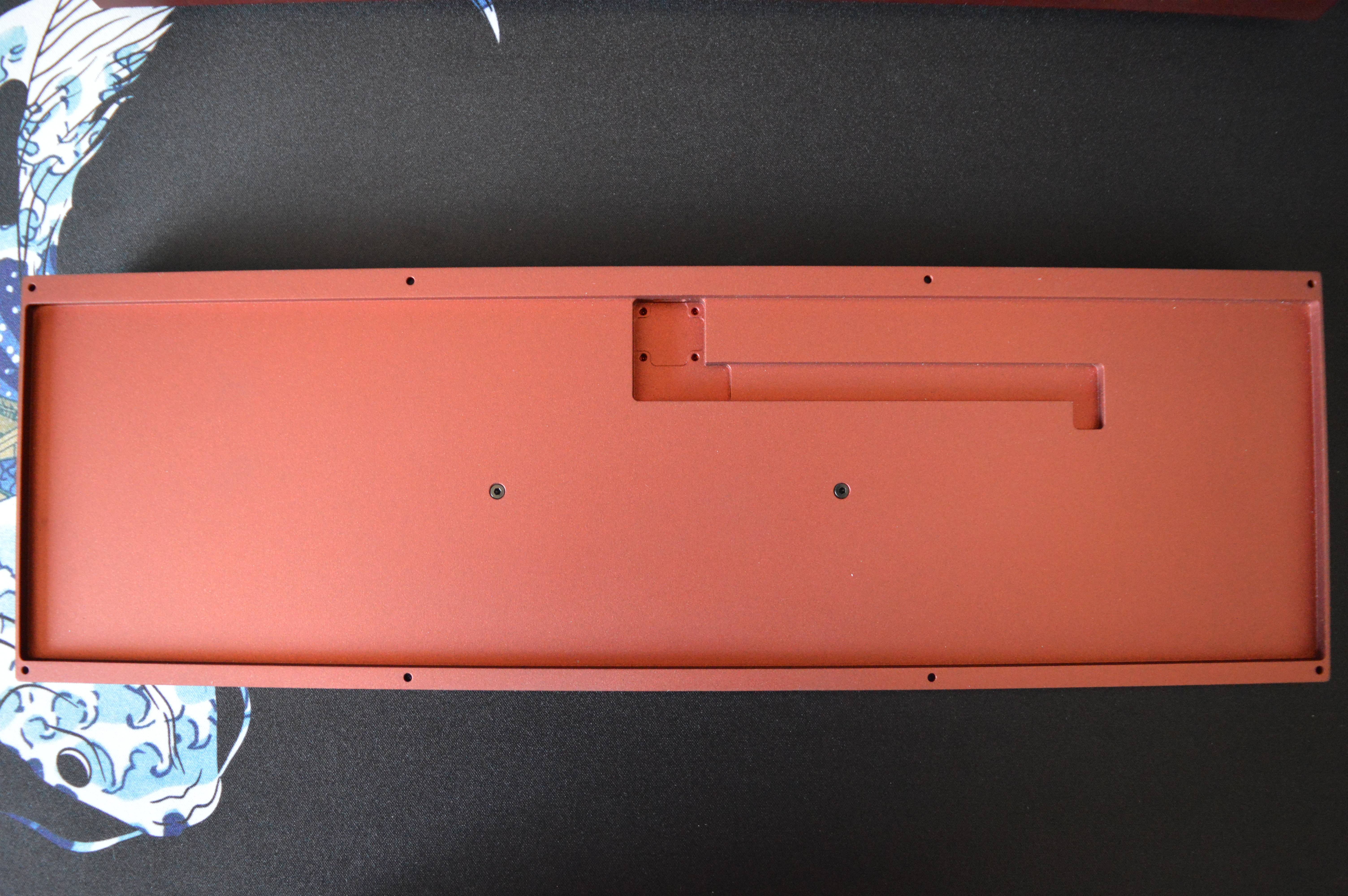

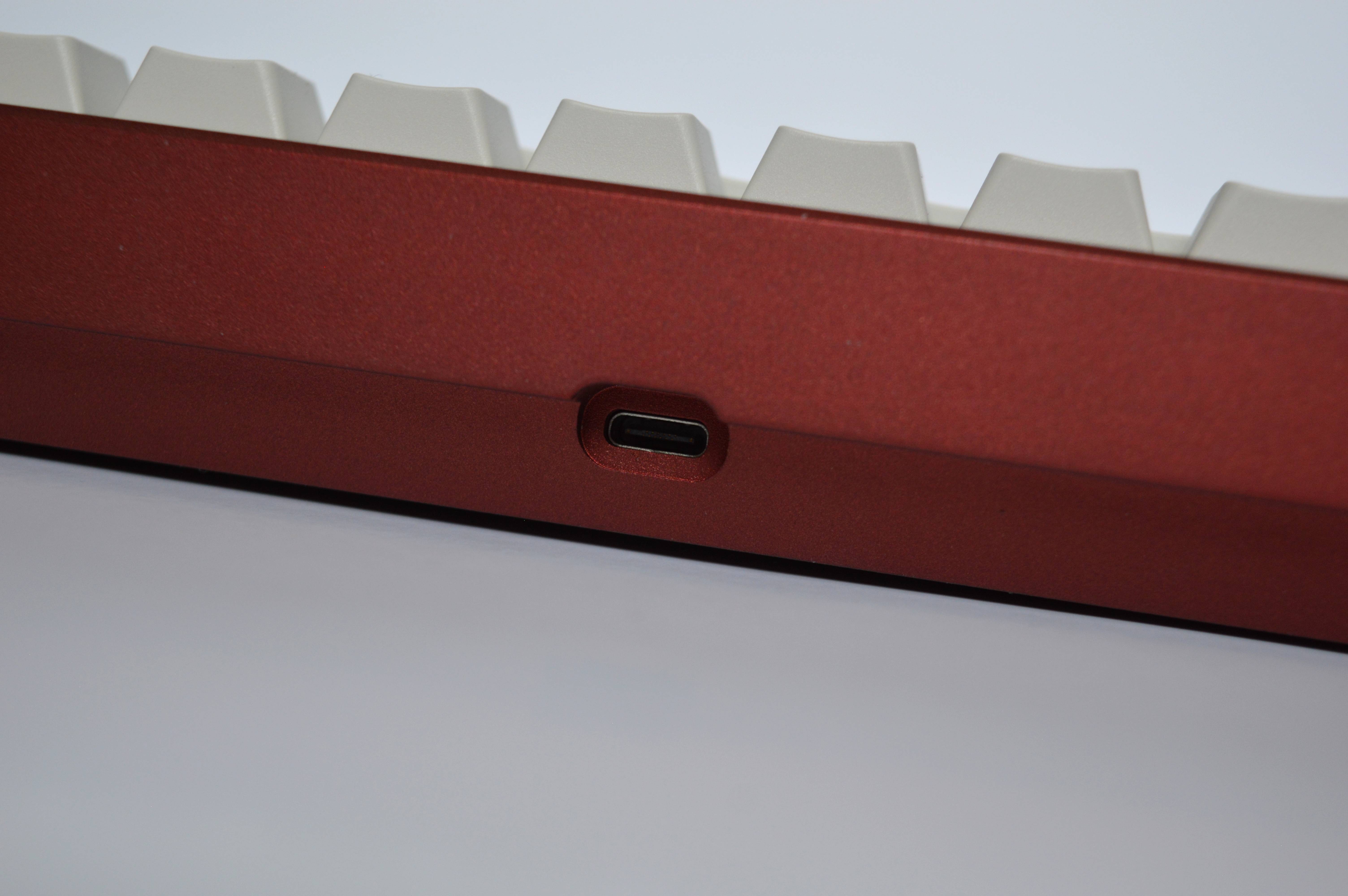

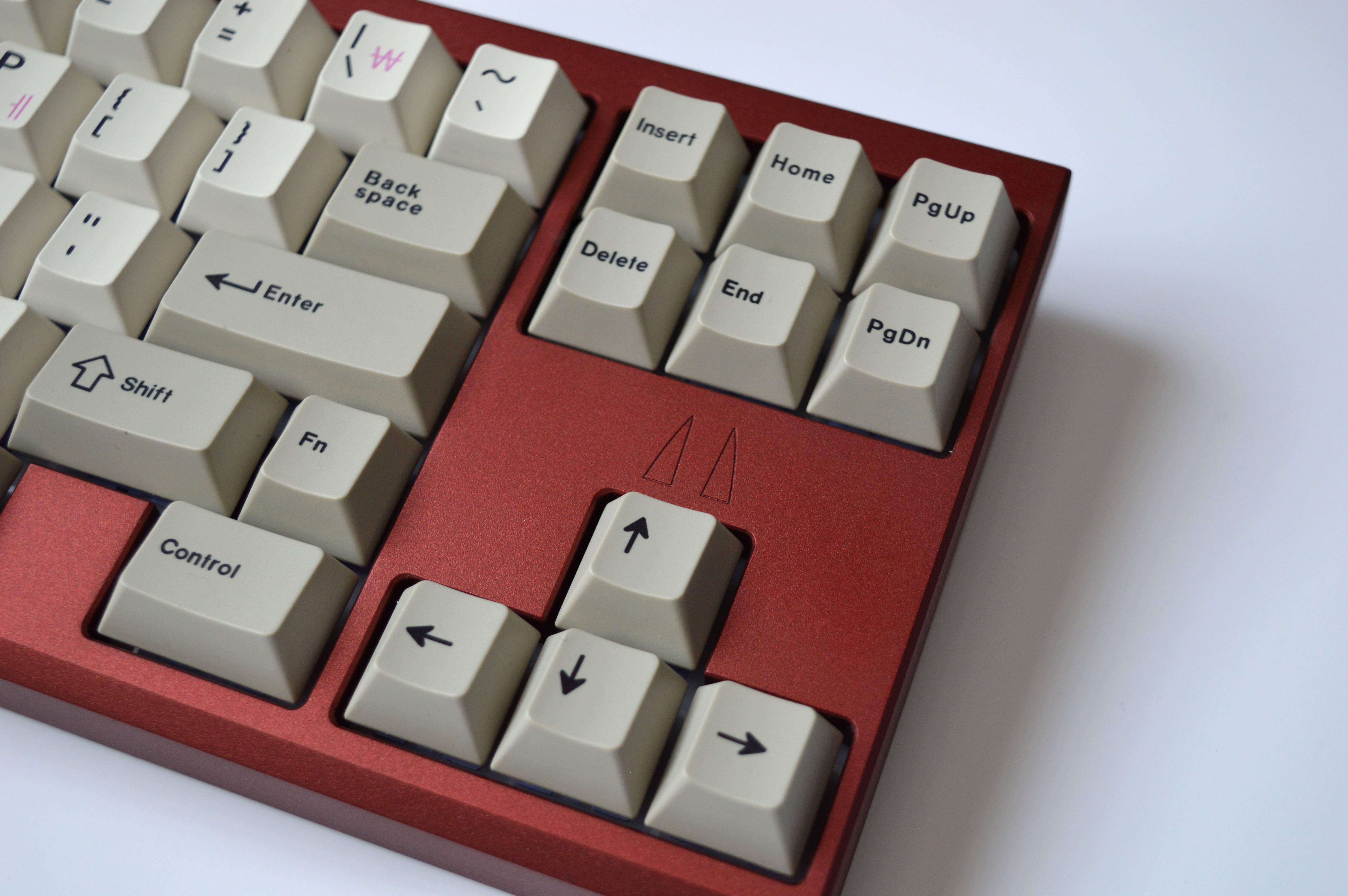

Additional prototype photos:More
Group Buy Information:Pricing: $350
Units: 80 units maximum FCFS
GB start date: 07/15/2022 23:00 ET
GB end date: 08/15/2022 22:59 ET
Lead time: 6 - 8 months (Estimated time of delivery: Q1 2023)
Vendor:
https://briescheesery.com/There will be four different variants:Anodized in black with the top engraving
Anodized in black without the top engraving
Anodized in red with the top engraving
Anodized in red without the top engraving
Kit Contents:- Top case
- Bottom case
- Aluminum plate
- Unified Daughterboard + JST cable
- Hotswap PCB
- Feet
- Screws
- Hex allen key
- Hard carrying case
- Cloth
Technical Specifications:- Case materials: 6063 aluminum, anodized in black and red (Pantone 484-C)

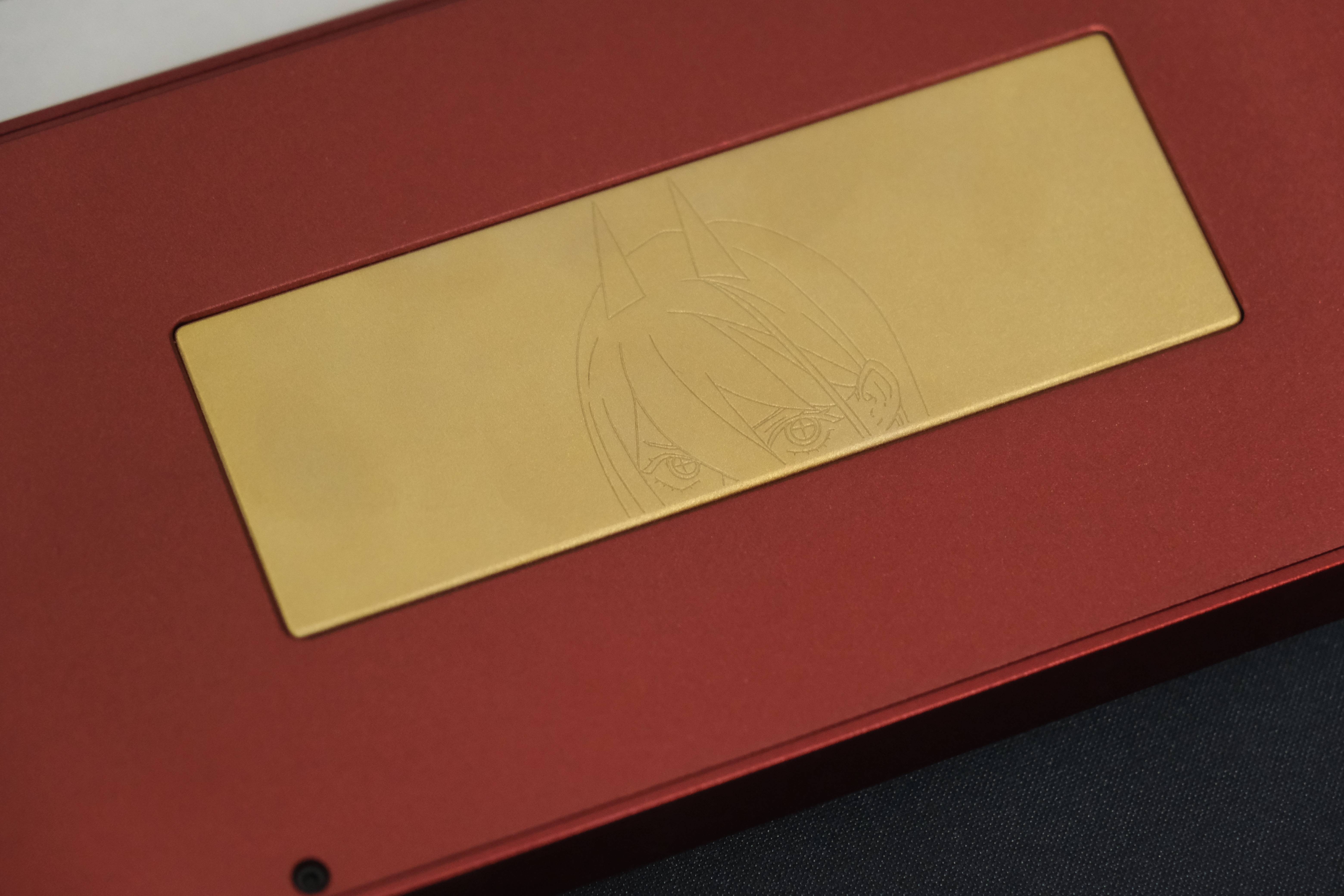

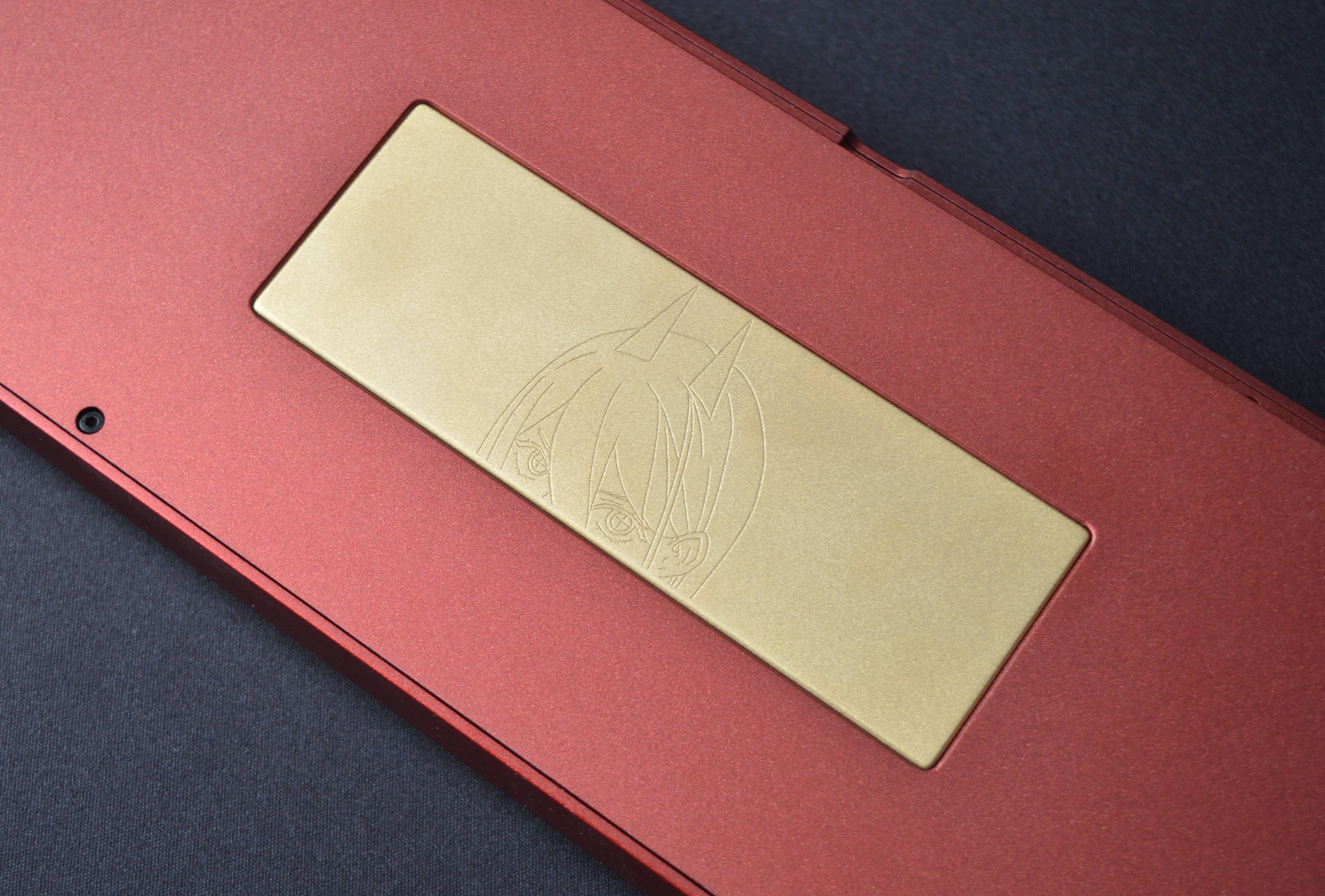

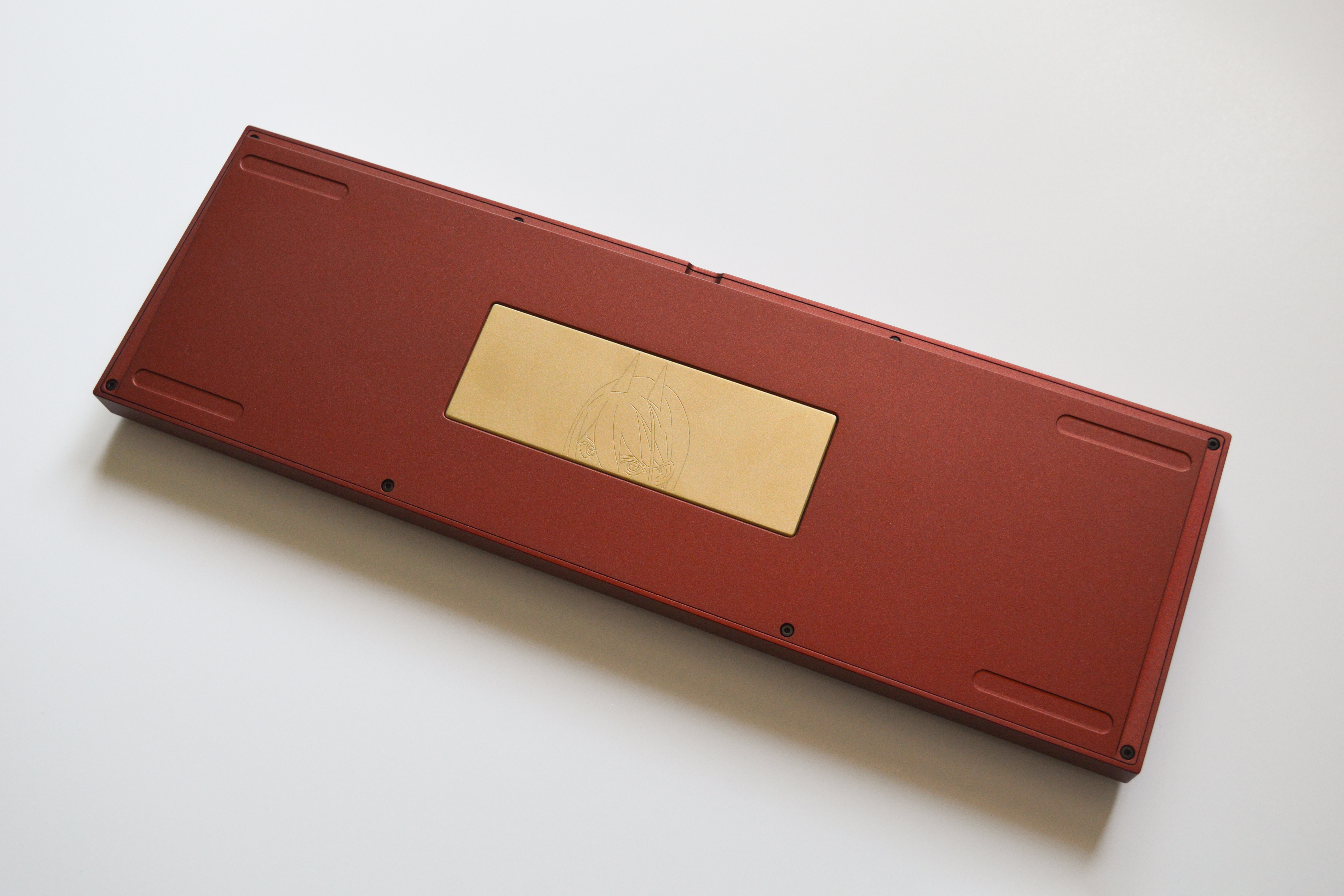

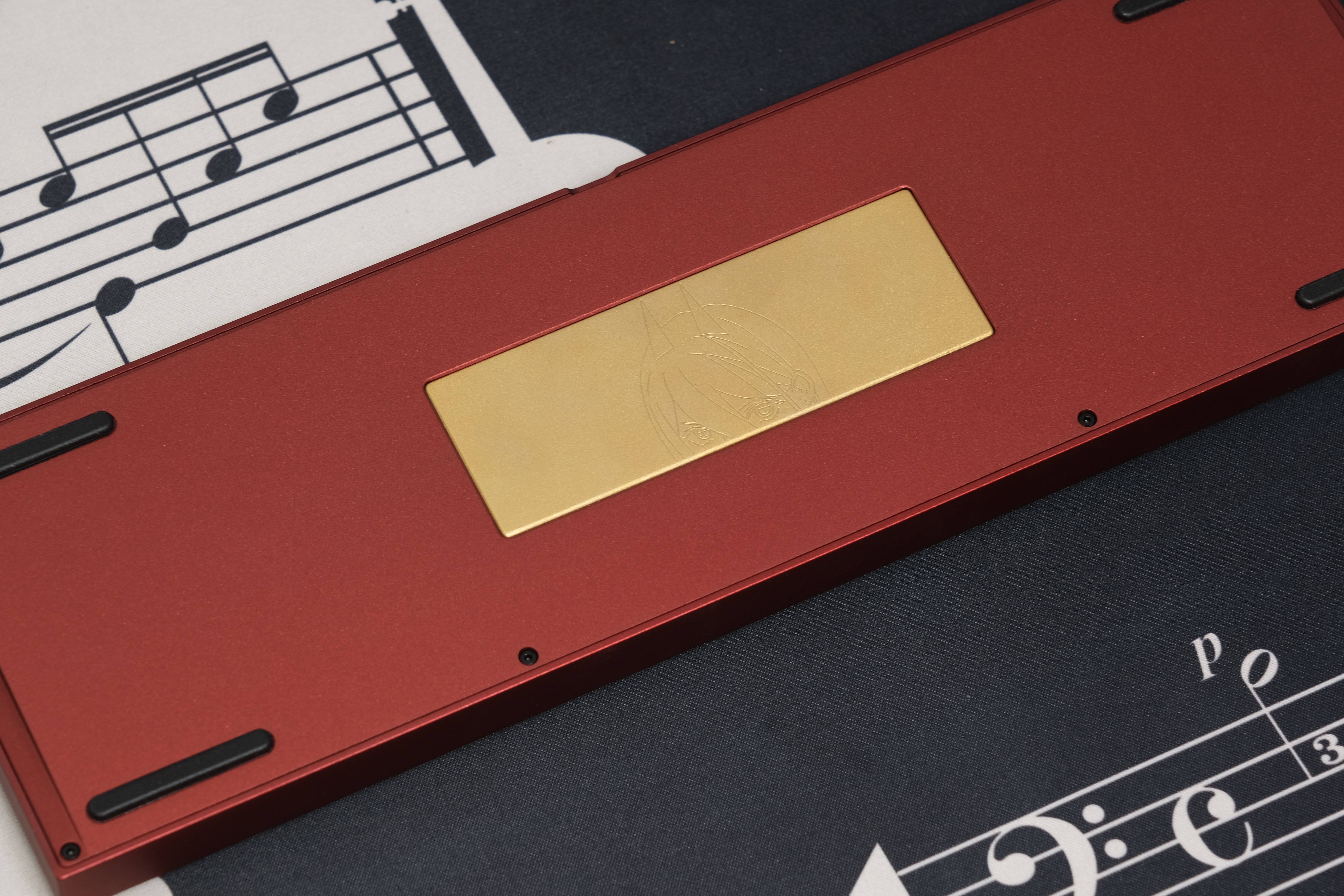

- Weight/Accent piece: sandblasted brass
- Plate material: 5052 black anodized aluminum
- Optional plates: black PC / aluminum / FR4
- PCB: 1.6mm hotswap PCB designed by FJ Laboratories
- Built board weight: ~1583g (~3.49lb)
- Typing angle: 6 degrees
- Adjusted Front Height: 19.232 mm
- Mounting style: Top Mount
- Dimensions: 355.6 x 114 x 15.25 mm
PCB Specifications:- 1.6 mm thickness
- AT90USB646-MU microchip
- FR4 Tg 170–180
- ENIG surface finish
- ESD protection
- Utilizes Kailh v1 hotswap sockets
- QMK, VIA, and Remap compatibility
Additional information can be found
hereOptional Add-ons:
- Extra plates (FR4/Alu/Black PC): $20
- Extra Hotswap PCB: $75
- Extra feet: $4
- Extra DB + JST: $10
- Plate & Case Foam (LE-20 Poron): $15

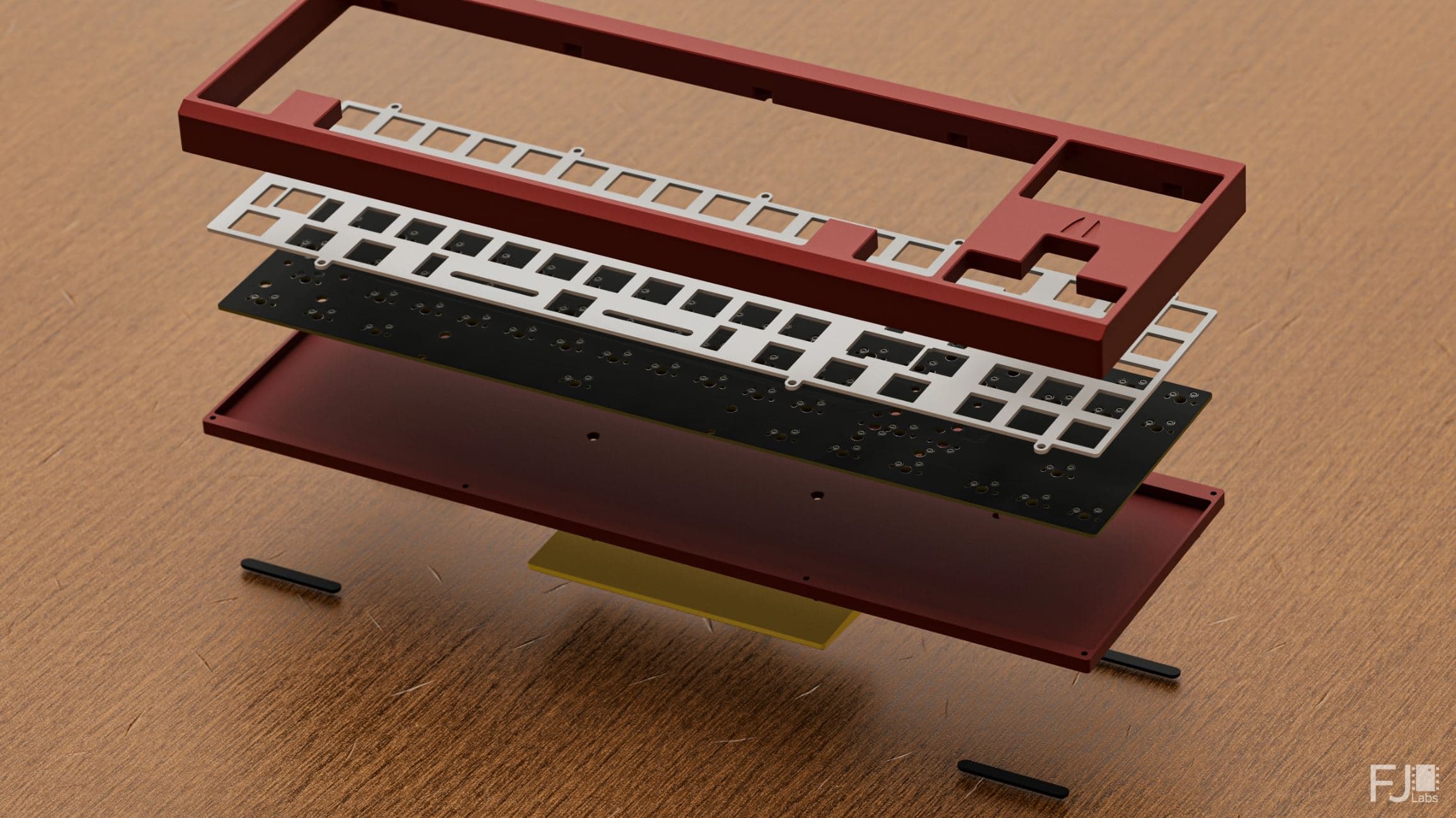

Exploded Layout:

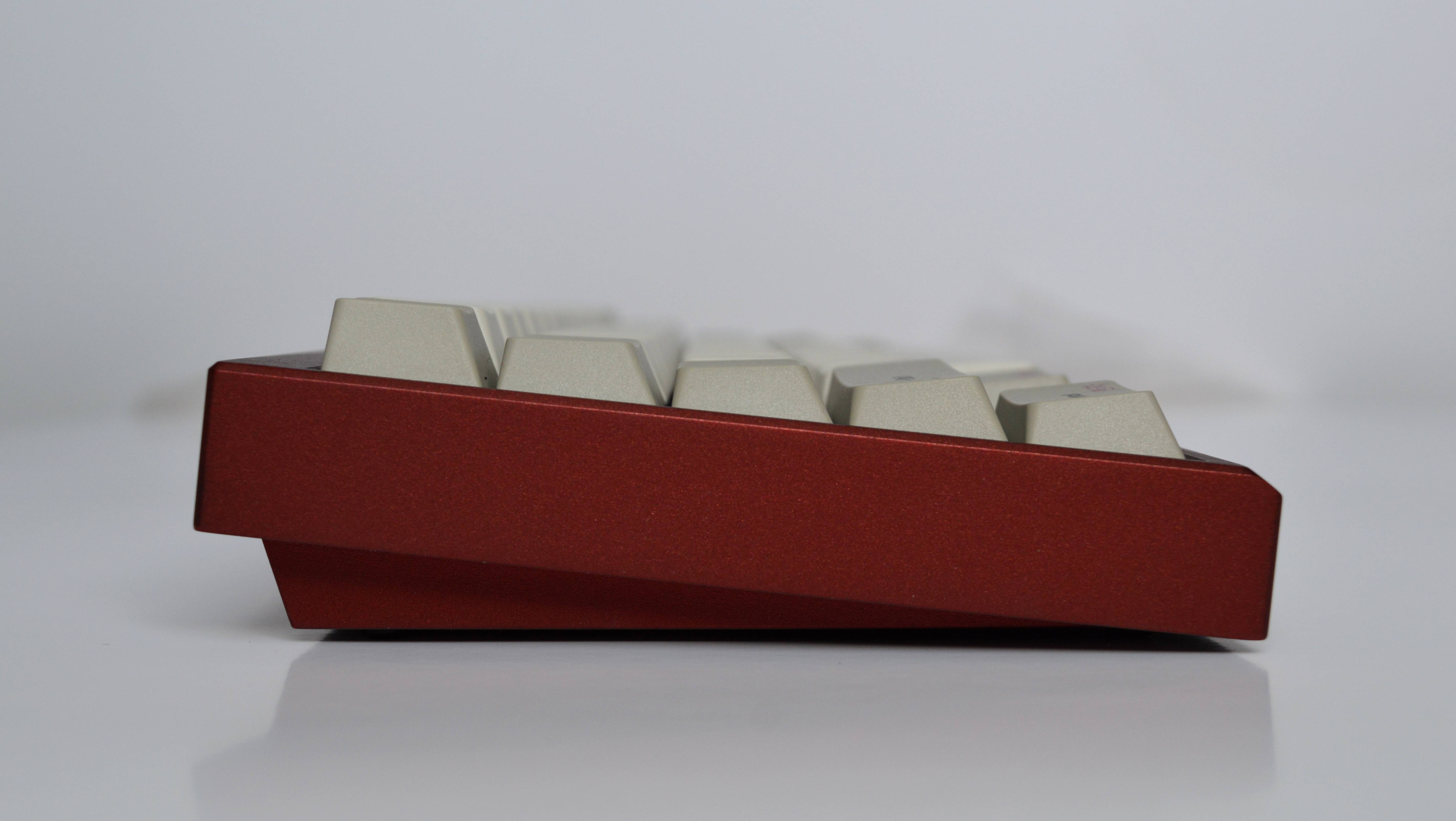

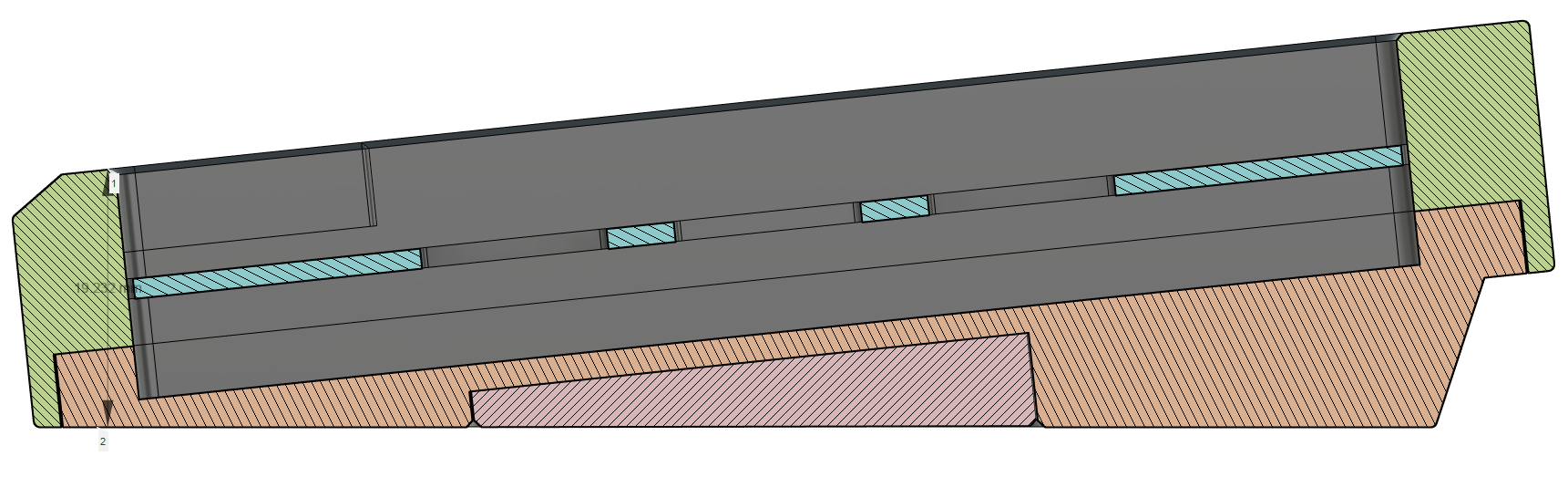

Adjusted Front Height: (19.232 mm)

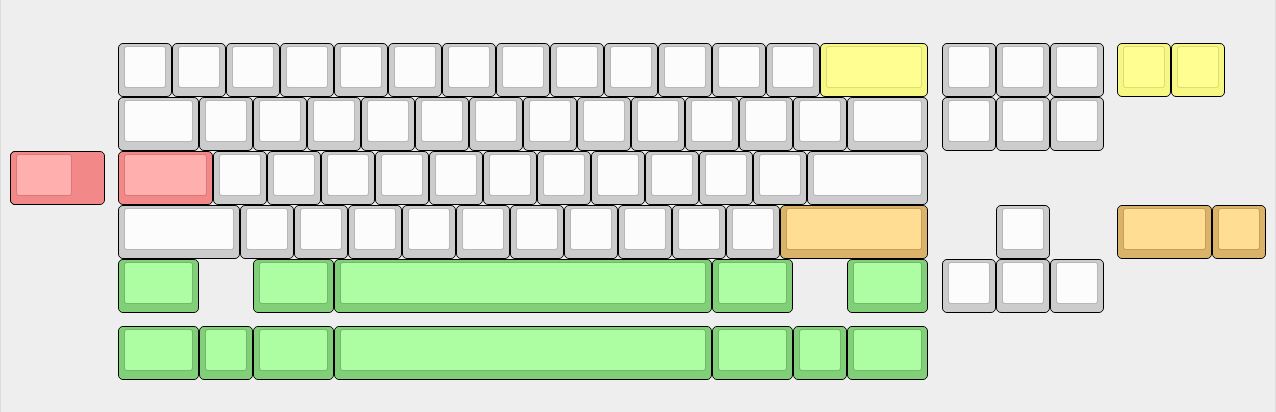

PCB Layout:

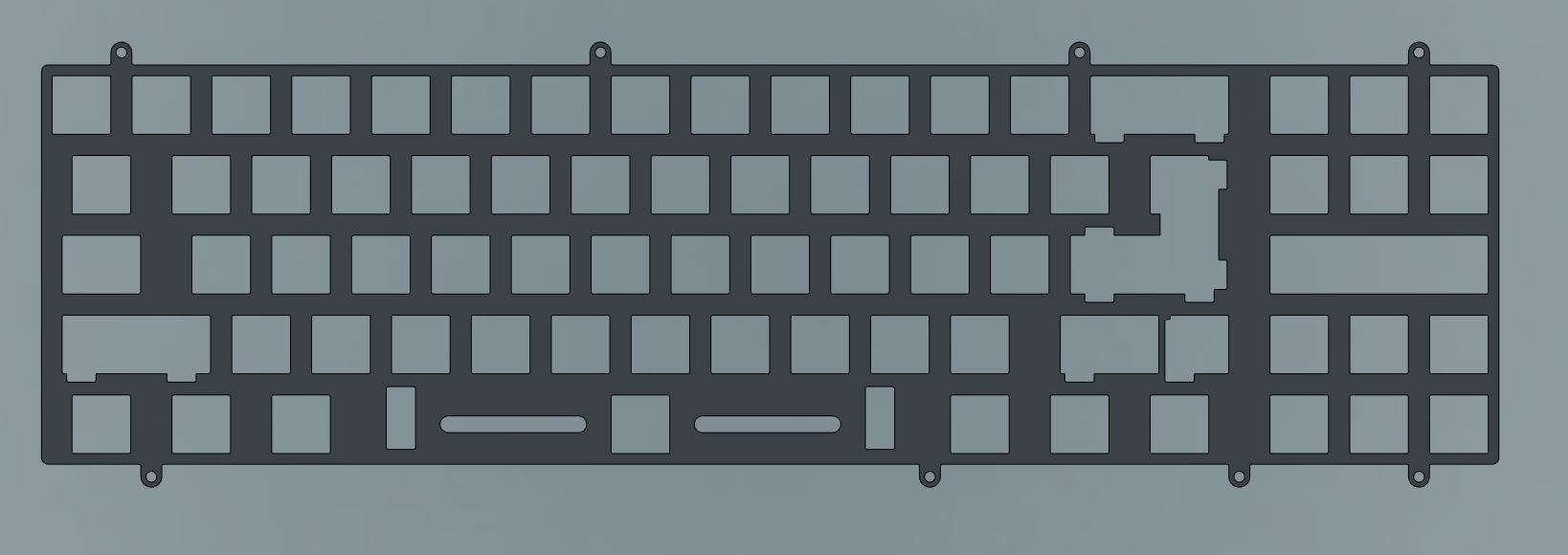

Plate Layout:
Soundtest:
