Phantom-based "Skeleton" Keyboard Kits - GB COMPLETE

Hello everybody, welcome to my contribution to the community. This is my first time running a group buy, so please be patient with me. I still have much to learn, and I need all the help I can get.
Big thank you to bpiphany, LeandreN, 00zeRO, axtran, and jdcarpe for helping me along the way!

These kits are based on the Phantom PCB, as designed by bpiphany, provided by MechanicalKeyboards.com. More info on the Wiki: https://deskthority.net/wiki/Phantom

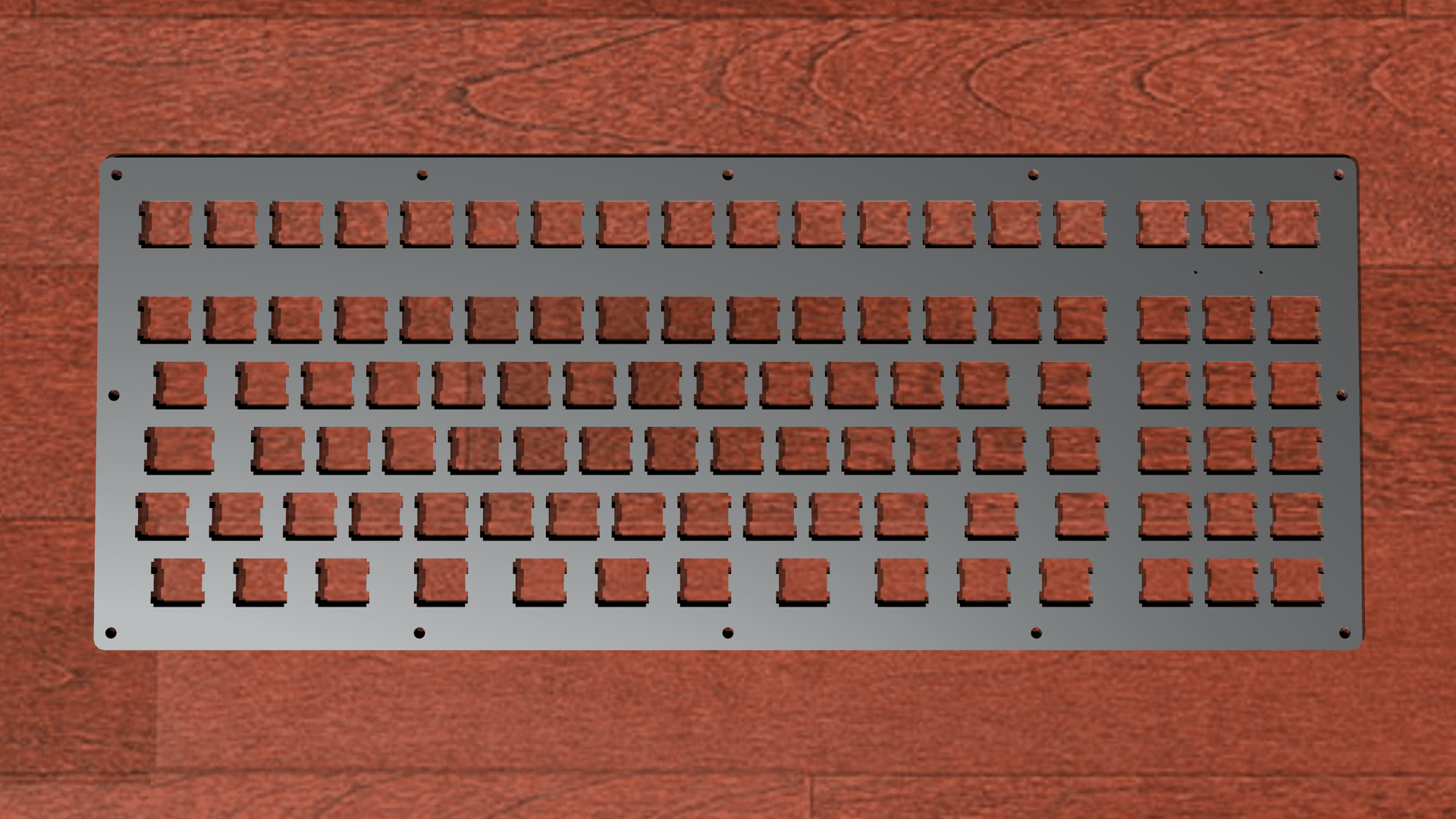

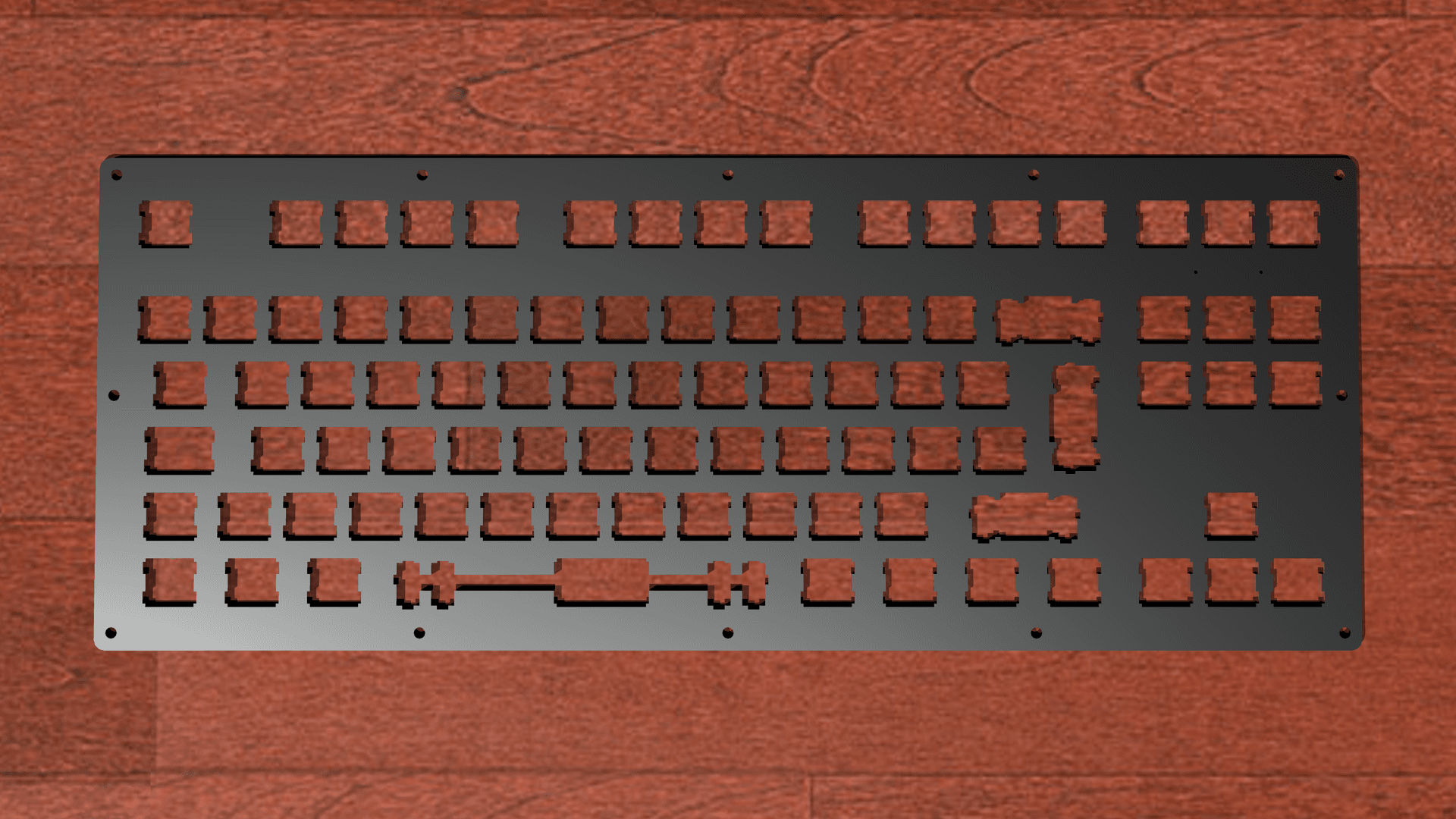

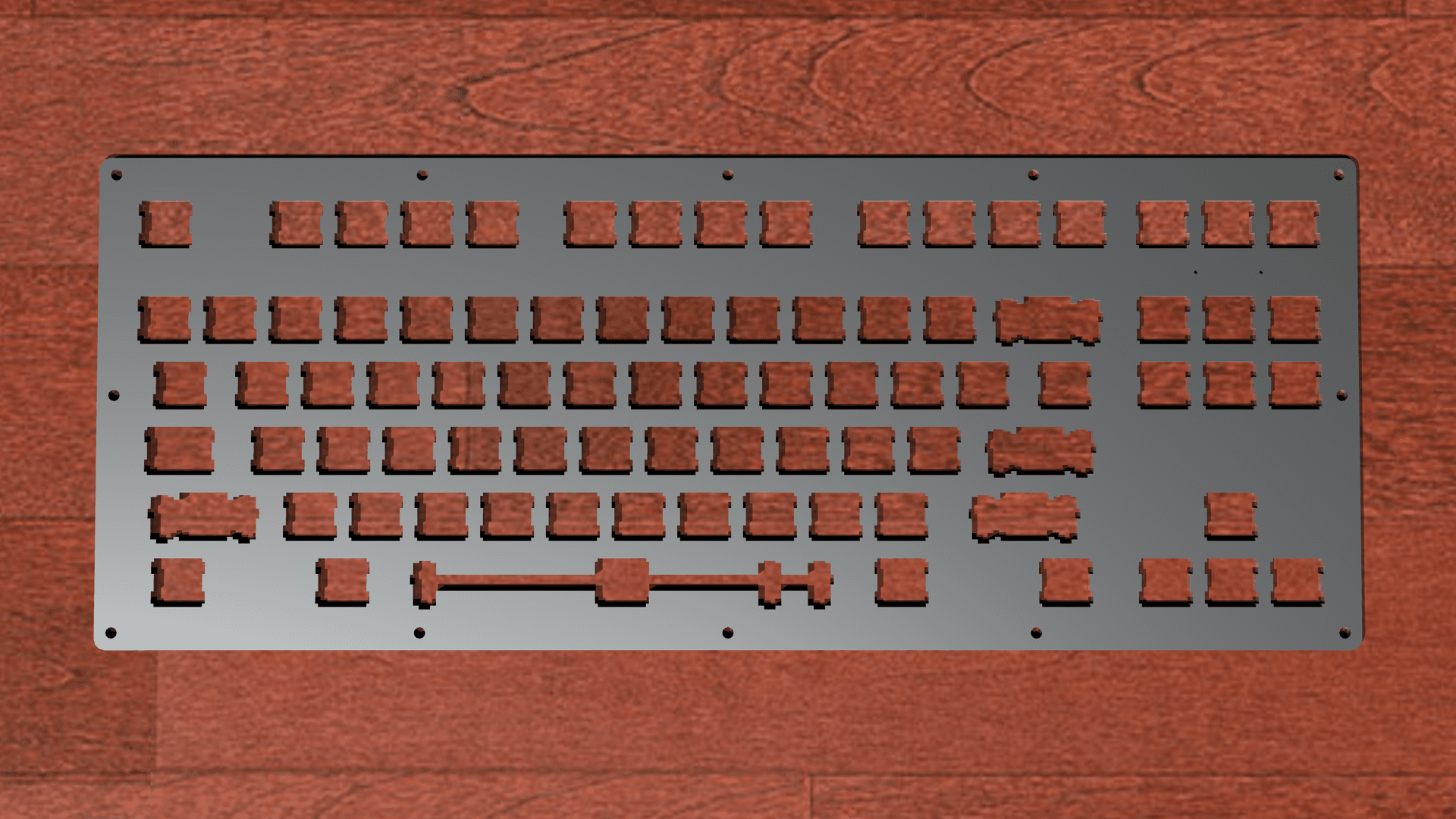

The Phantom supports 5 basic layouts:

ANSI 1.25 Winkey:


ANSI 1.5 Winkeyless:


ISO 1.25 Winkey:


ISO 1.5 Winkeyless:


7BIT:

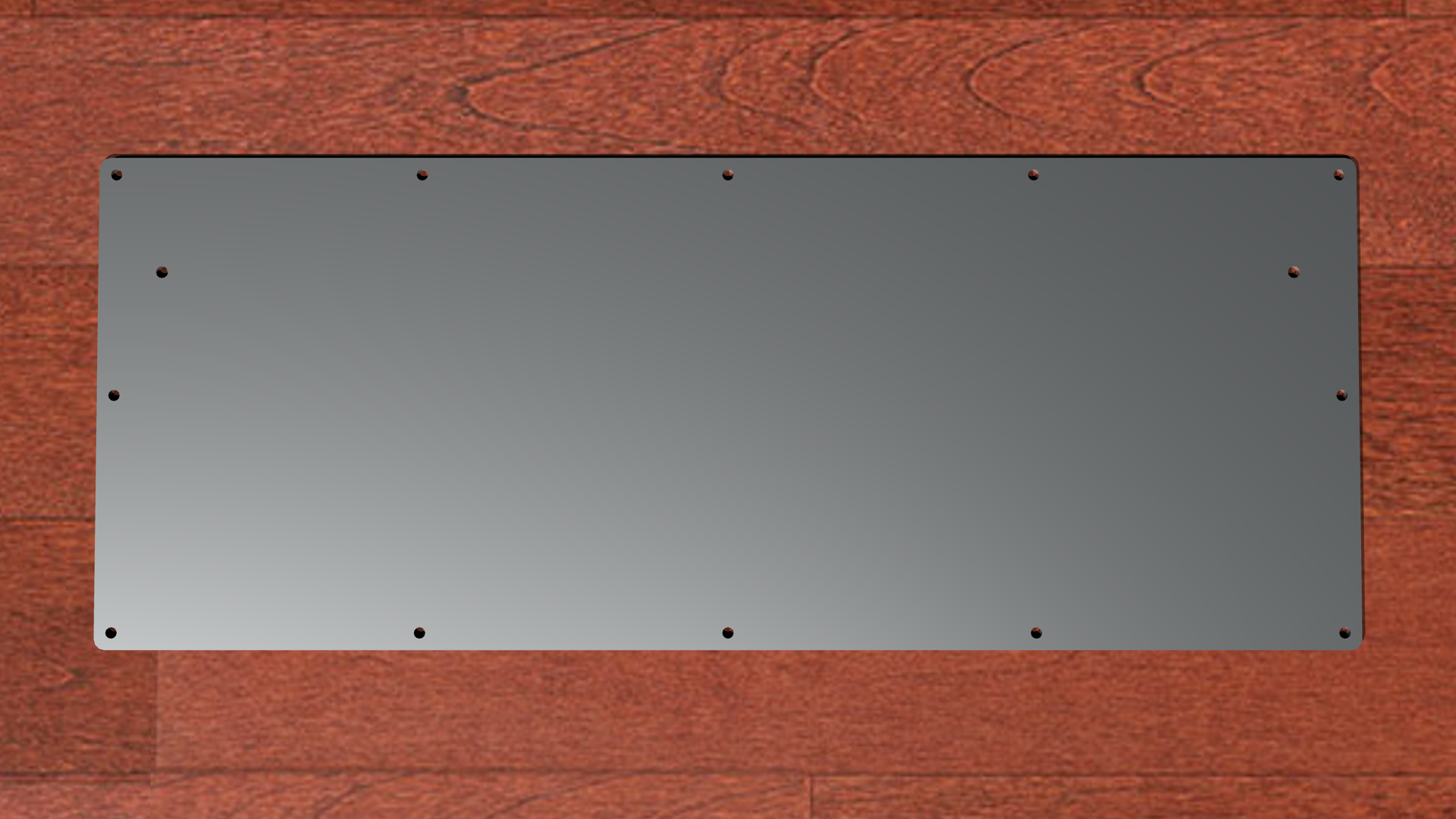

Also, here is a render for the Backplate:


The keyboard is controlled by the ATMEGA32U4-based Teensy 2.0 board.



>>> Prices do not include shipping <<<

The Kit:

[1] Phantom PCB
[1] Teensy 2.0 Controller
[87] Diodes NOTE: If you are purchasing the 7BIT kit, [101] Diodes will be included
[5] LEDs
[1] Set of Plates (top and bottom)
[12] Stainless Steel Standoffs
[24] Stainless Steel Screws

Kit Price: $110

>>> ORDERS CLOSED <<<

Notes on Plates:
When purchasing a kit, you will need to select one of the 5 layouts listed above. Plates are available in Stainless Steel or Aluminum.
Finishes available in DAS (dual-action sander) and Grain. I will post sample photos when i get them from the fab shop.


Items you will need that are not included:
Stablizers (unless you choose the 7BIT layout)
The plate and pcb support plate-mounted stabilizers only
I was unable to find a source for these, but it looks like LeandreN has some available in his group buy: https://geekhack.org/index.php?topic=79315.0
or Zeal has some on his website: https://zealpc.net/collections/accessories/products/pcb-plate-mount-cherry-stabilizers
also looks like WASD has the parts: http://www.wasdkeyboards.com/index.php/products/keyboard-parts.html
if you know of other sources, please post them!


You may also want feet for your build. The plates will have 3.5mm holes in the back plate, which should fit GONs feet, or the chinese knock-offs found on TAO BAO: http://world.taobao.com/item/43228379649.htm?spm=a312a.7700714.0.0.tOoqcY

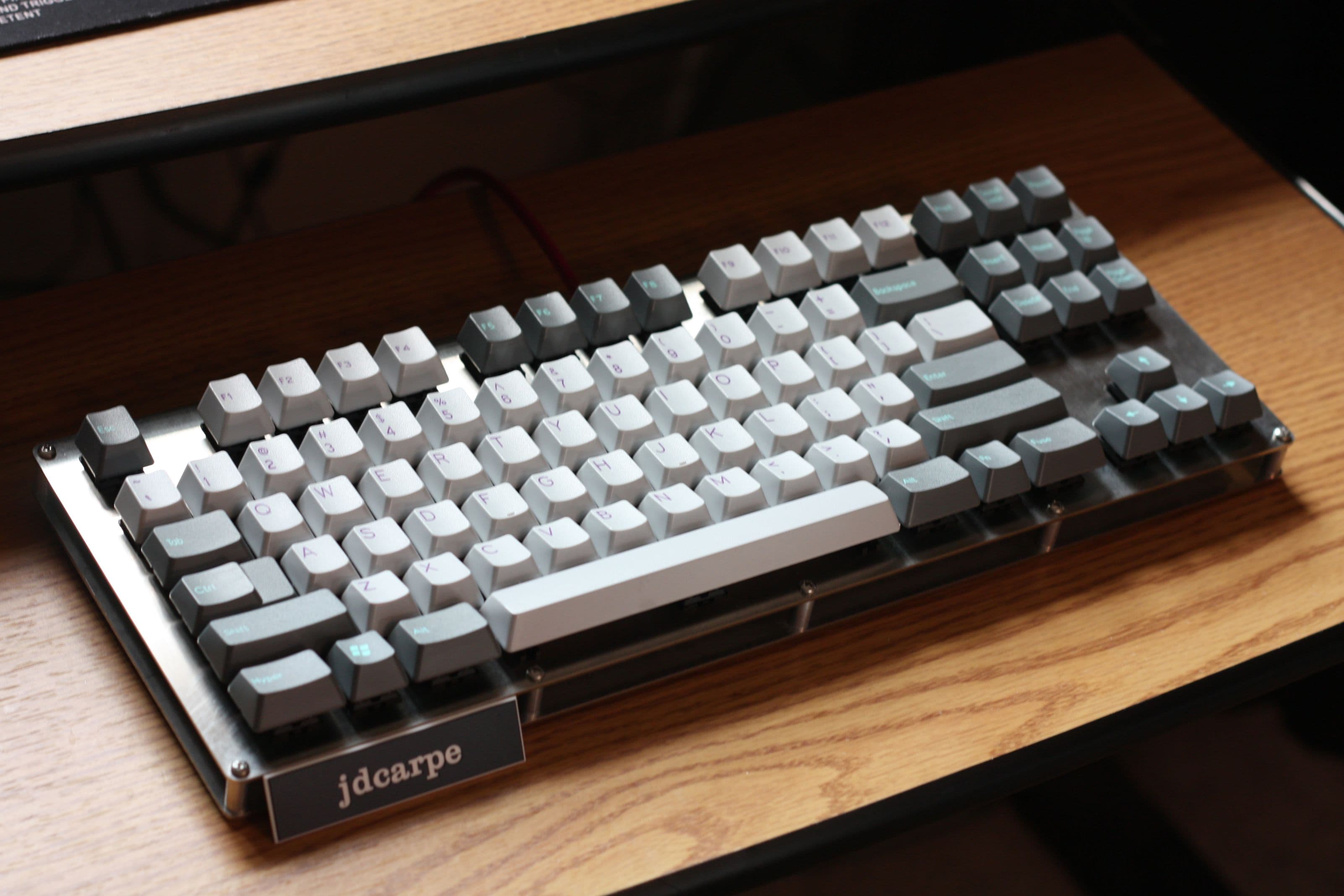

Here is an example photo of what an assembled ANSI 1.50 Winkey kit looks like: (credit to jdcarpe)



Optional Add-ons:

Switches - prices are for a full set to complete the kit, no matter the layout
Kailh - Red, Black, Brown, Blue $20
Greetech - Red, Black, Brown, Blue $26
Gateron - Red, Black, White, Yellow, Brown, Blue $26 $28
Cherry - Red, Black, Clear, White, Brown, Blue, Grey, Green $39


MechanicalKeyboards.com has come through as a source for switches, and they are offering their switch top removal tools for $3 for anyone who purchases switches with their kit. (Not sold separately)



Individual Parts:
Plates (choose your layout, material, and finish) $50
Hardware (standoffs and screws) $25
Phantom PCB $27.50
Teensy 2.0 $20
LEDs (packs of 100) $1 $2
Diodes (packs of 100) $1.50

Shipping:
Due to the physical dimensions of the kit, it seems that overseas shipping is just not feasible, even for proxy. Shipping to Canada may still be an option, but I need advice on how to proceed.
For now, USPS flat rate boxes will be the shipping method for everyone in the states. Sorry to everyone who is interested, but is international.
Again, this is my first real group buy... I just dont know enough to pull that off on my first try.


As this is my first group buy, I want it to go smoothly for everyone who supports it. I may need to close orders if this gets overwhelming, but I am shooting for around 50 kits total.
I will leave the group buy open for the month of March, or at least until we hit 50 orders.

>>> ORDERS CLOSED <<<

Check your order status here:
https://docs.google.com/spreadsheets/d/1GauGX2kf2E8r_pYnFeKHxo32DskmqzpctVk3qJn9DE8/edit?usp=sharing
Let me know if you need to make any edits

Thanks everyone!
