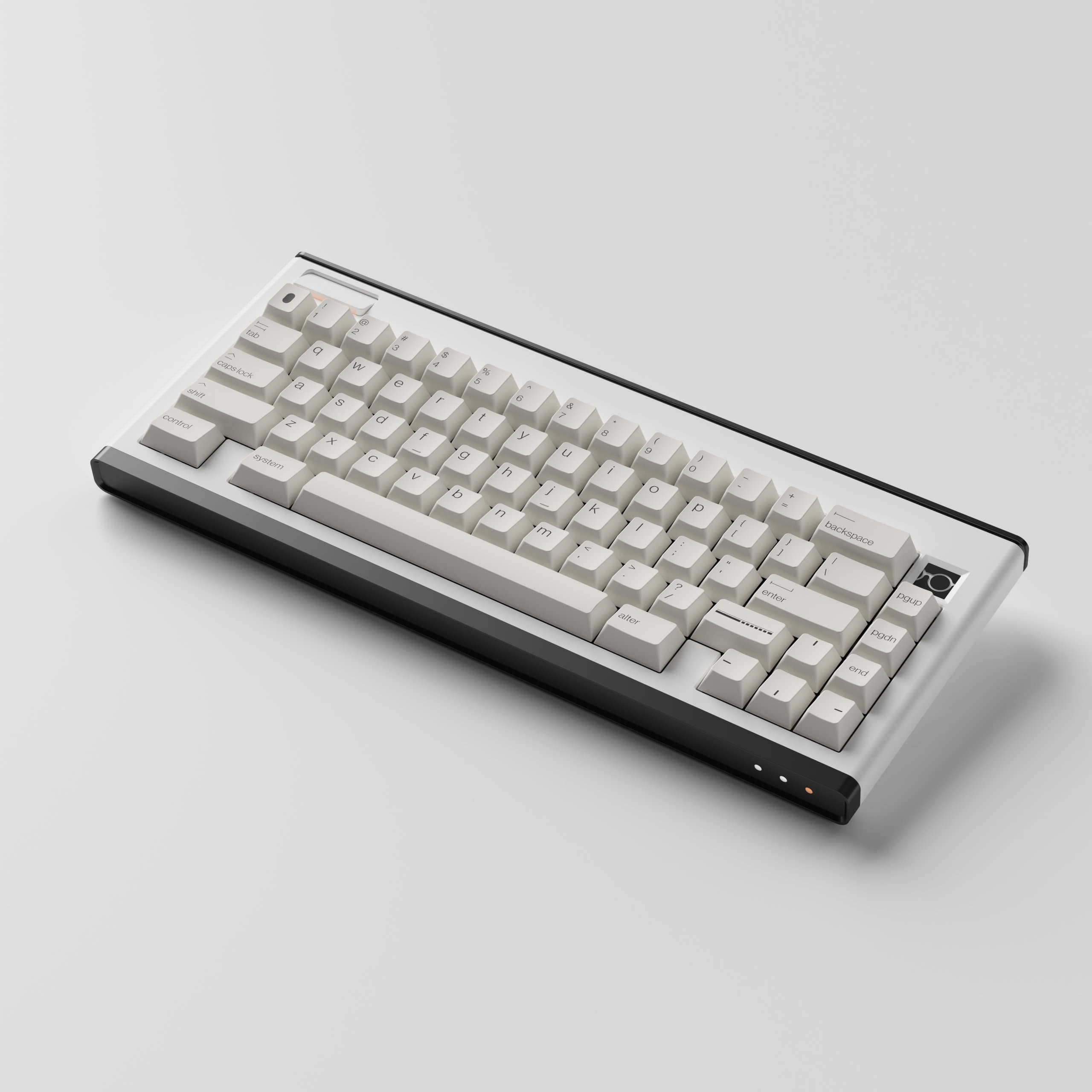

PHASE ONE 65 GASKET MOUNT MECHANICAL KEYBOARD DIY KIT
Group buy date: From Sep 24st to Oct 24th, 2021
Price Range: From USD468 to USD524
Estimated Shipping Date: Q1-Q2, 2022
Phase One 65 Sound Test - By KBDfans
Phase One 65 Build Stream - By Taeha
Phase One: A Designer Custom Keyboard *FOR* Designers - By BadSeed Tech
I Didn't Expect To Like 65% Keyboards Again - Phase One Review - By Andy V Nguyen

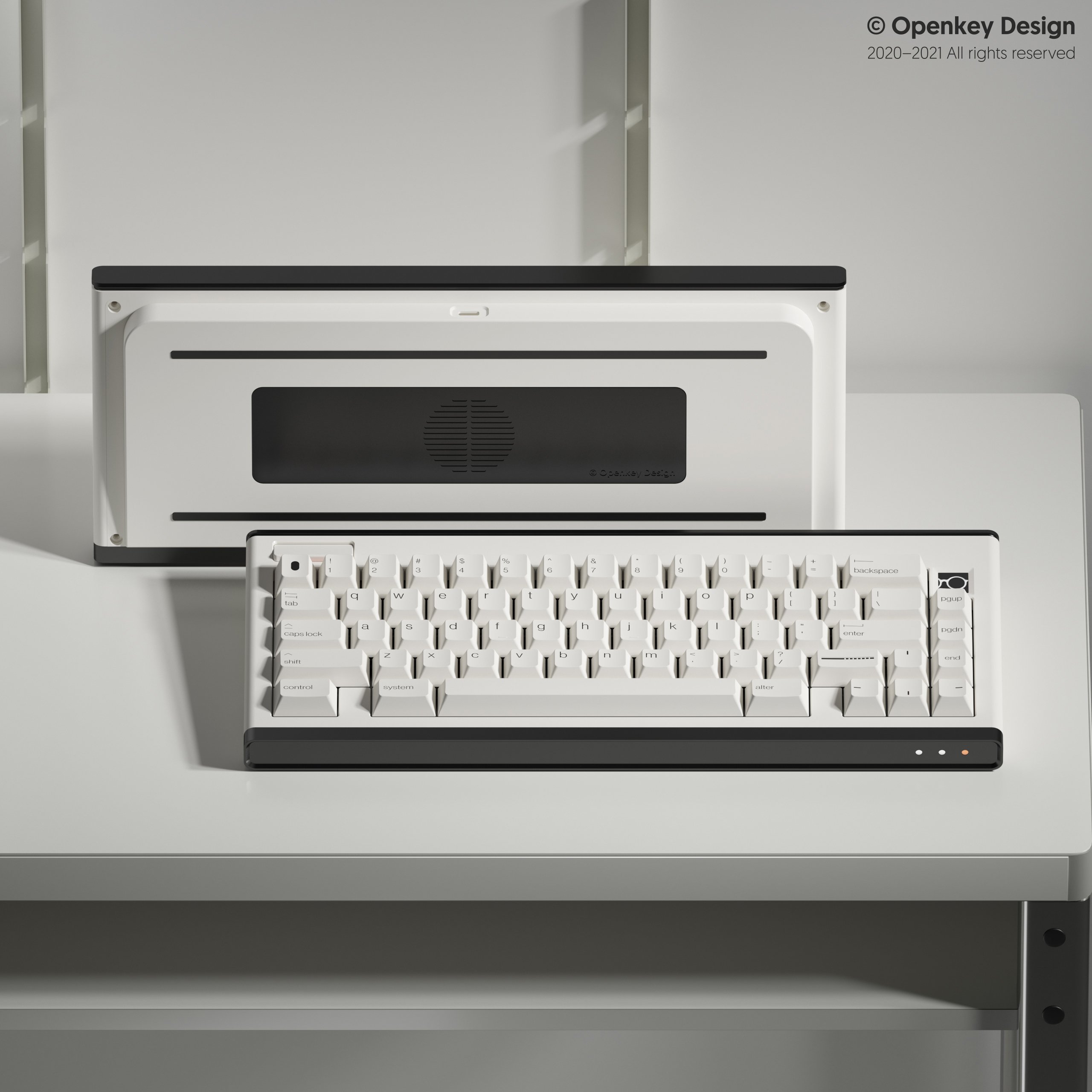

Inspiration of design
"Phase one 65" is the idea born from the keycap set "Less, but better".
The Inspiration for this keyboard is from the well-known "Phase 1" alarm clock, which was designed by German industrial designer Dieter Rams.
The visual element of the exterior on this keyboard continued with the "Phase 1" alarm clock.
We hope it could represent the design language well of humbleness and self-restriction from Dieter Rams.
That is the reason we continue to use the name "Phase One 65".
Specification

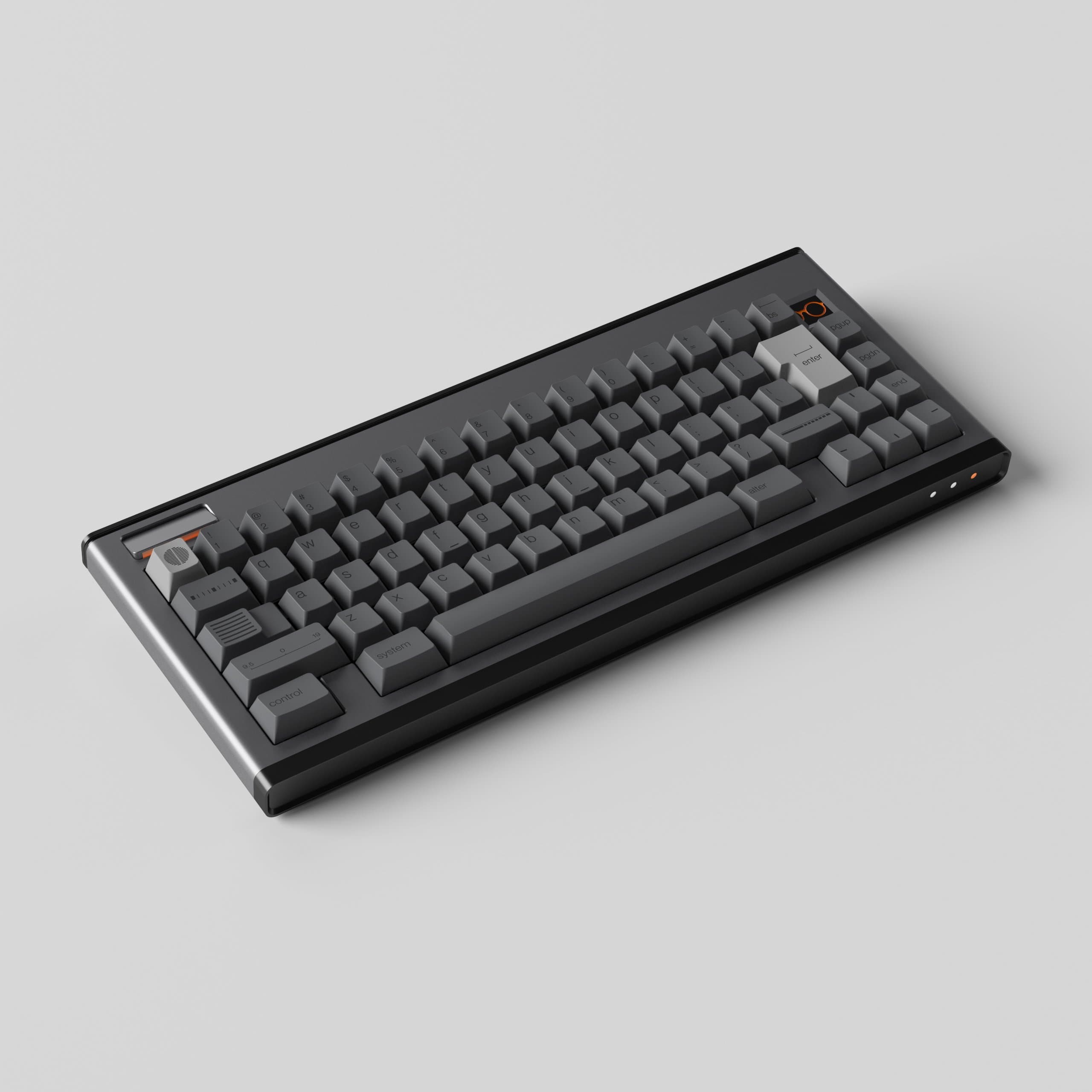

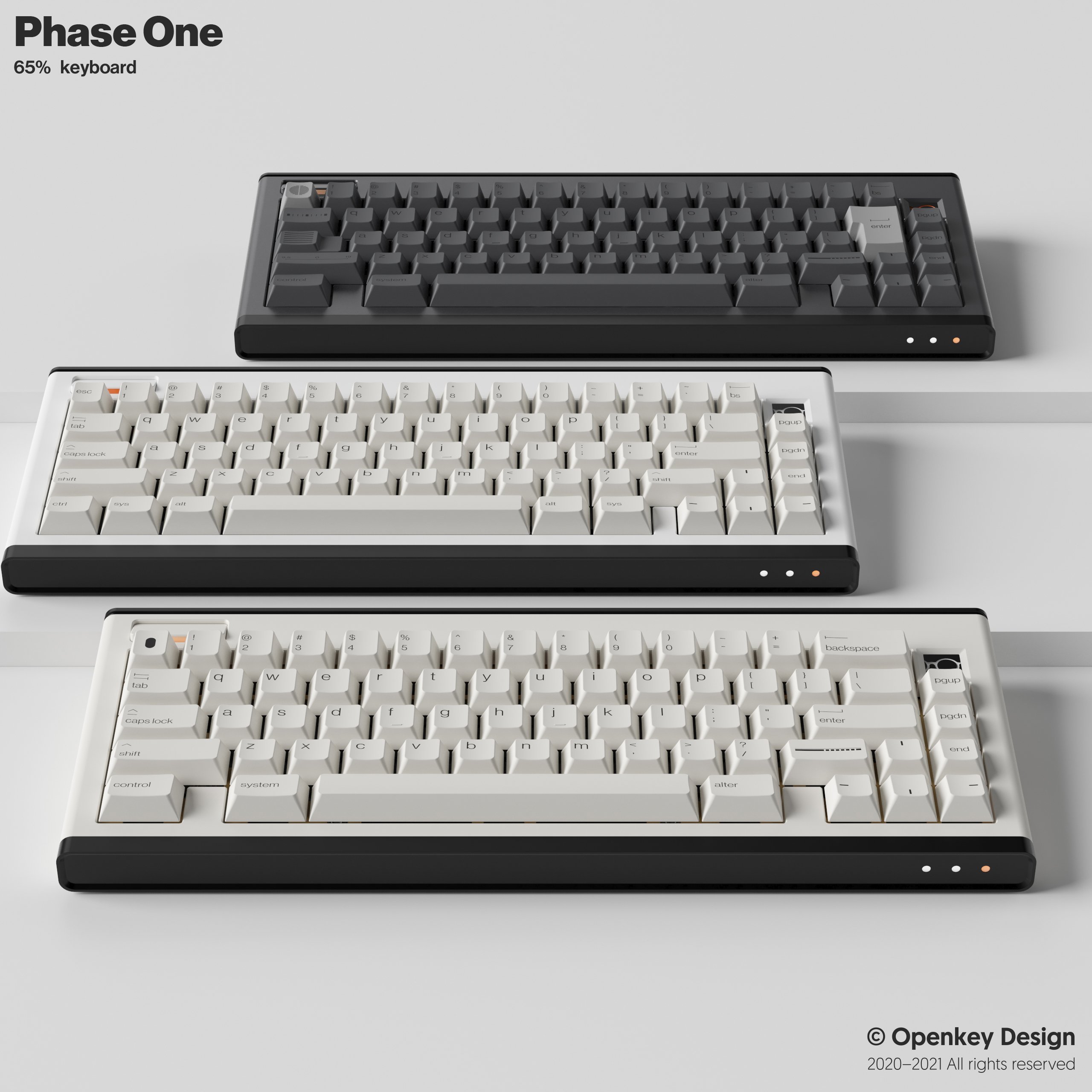

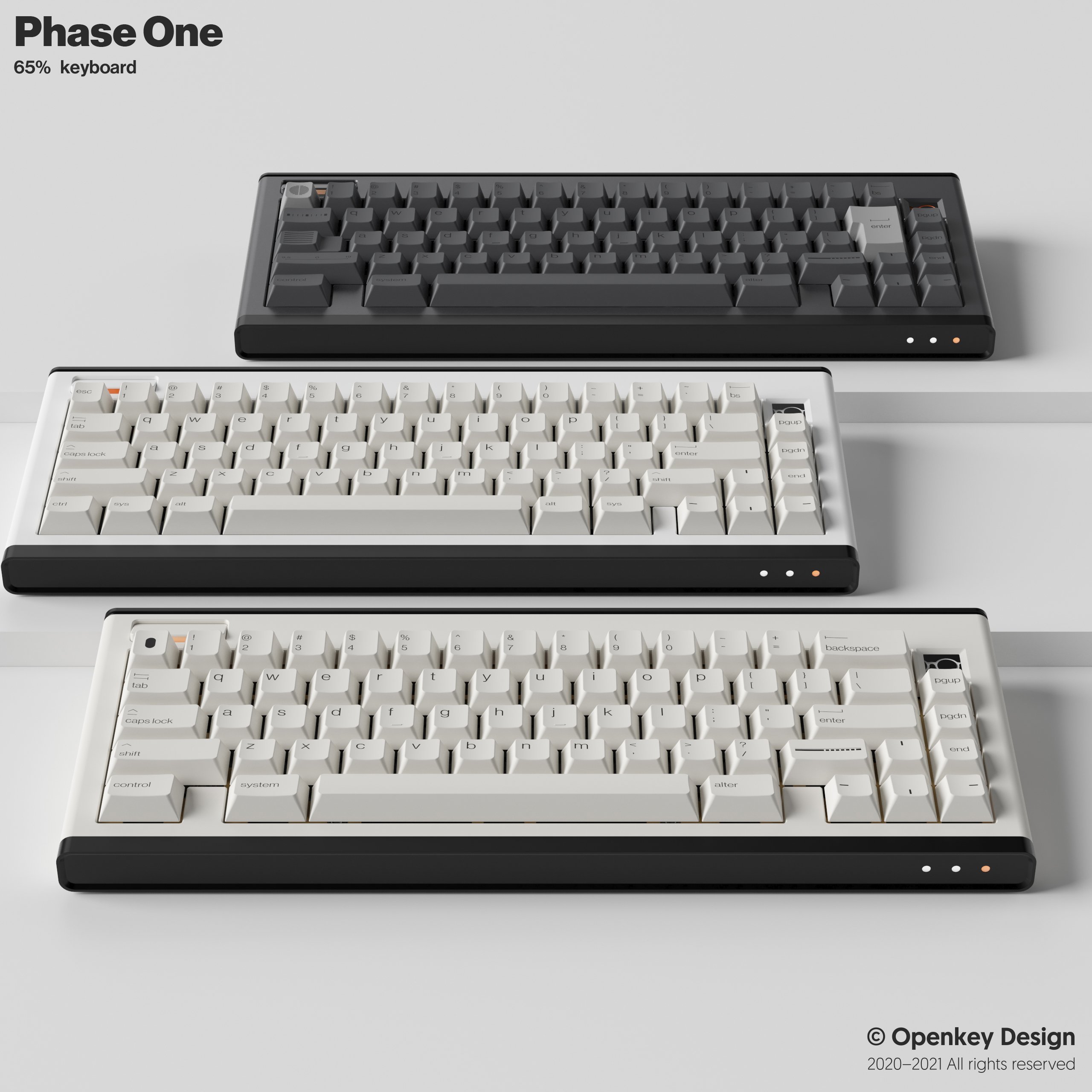

1.) Case color: Grey, E-white, E-Beige(refer to GMK L9)
2.) Case: Top aluminum Bottom aluminum Case ( Including aluminum weight bar)

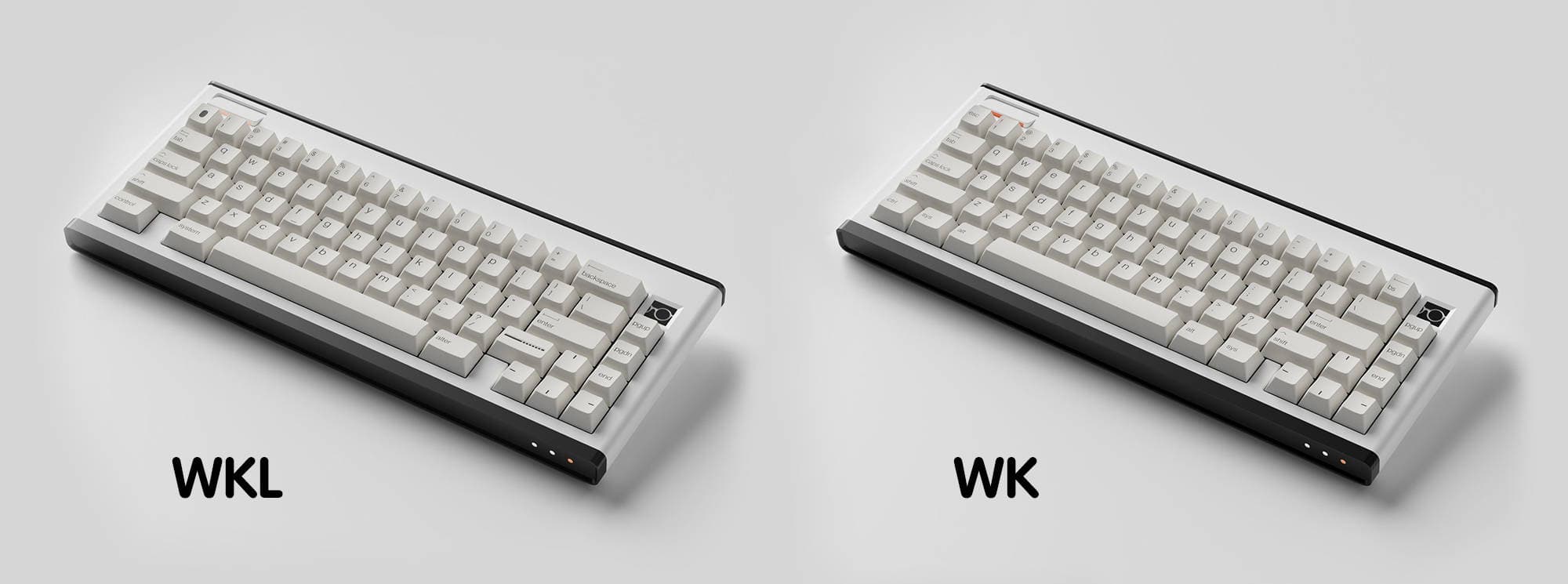

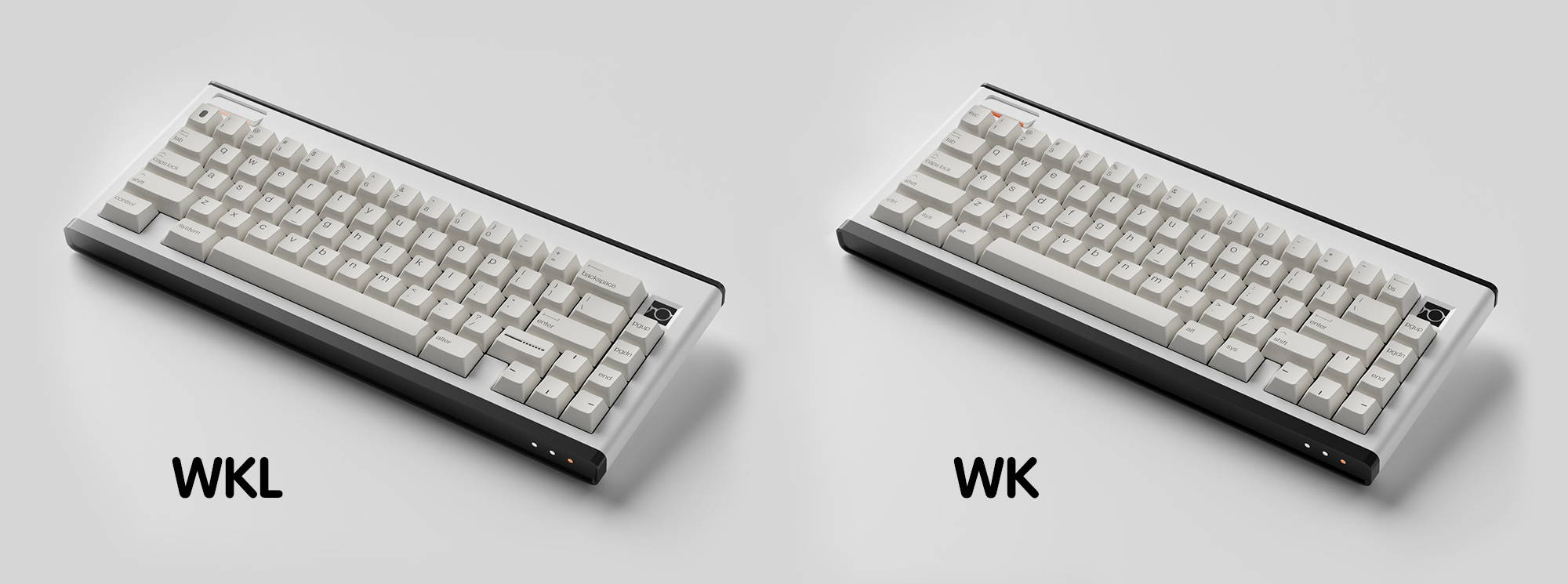

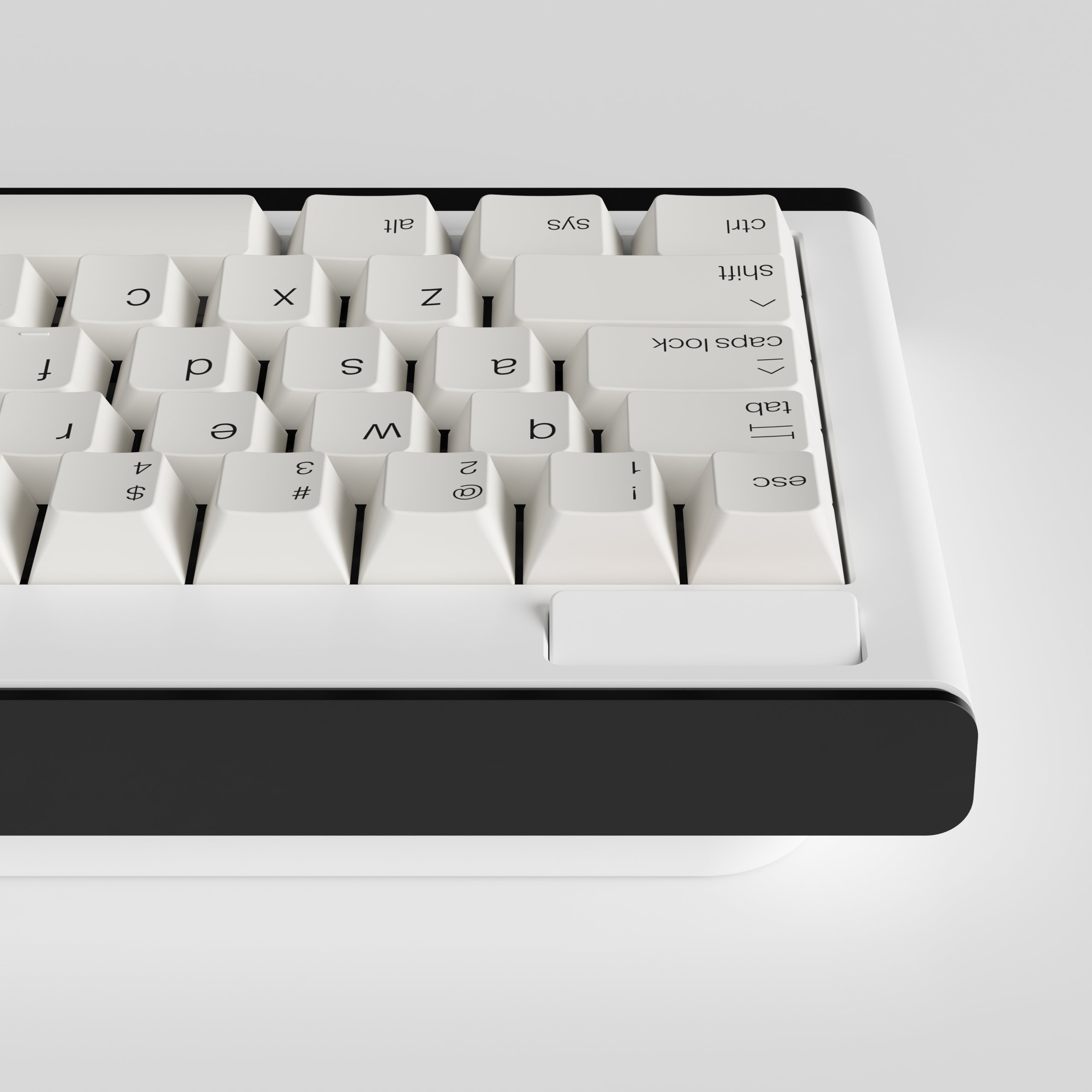

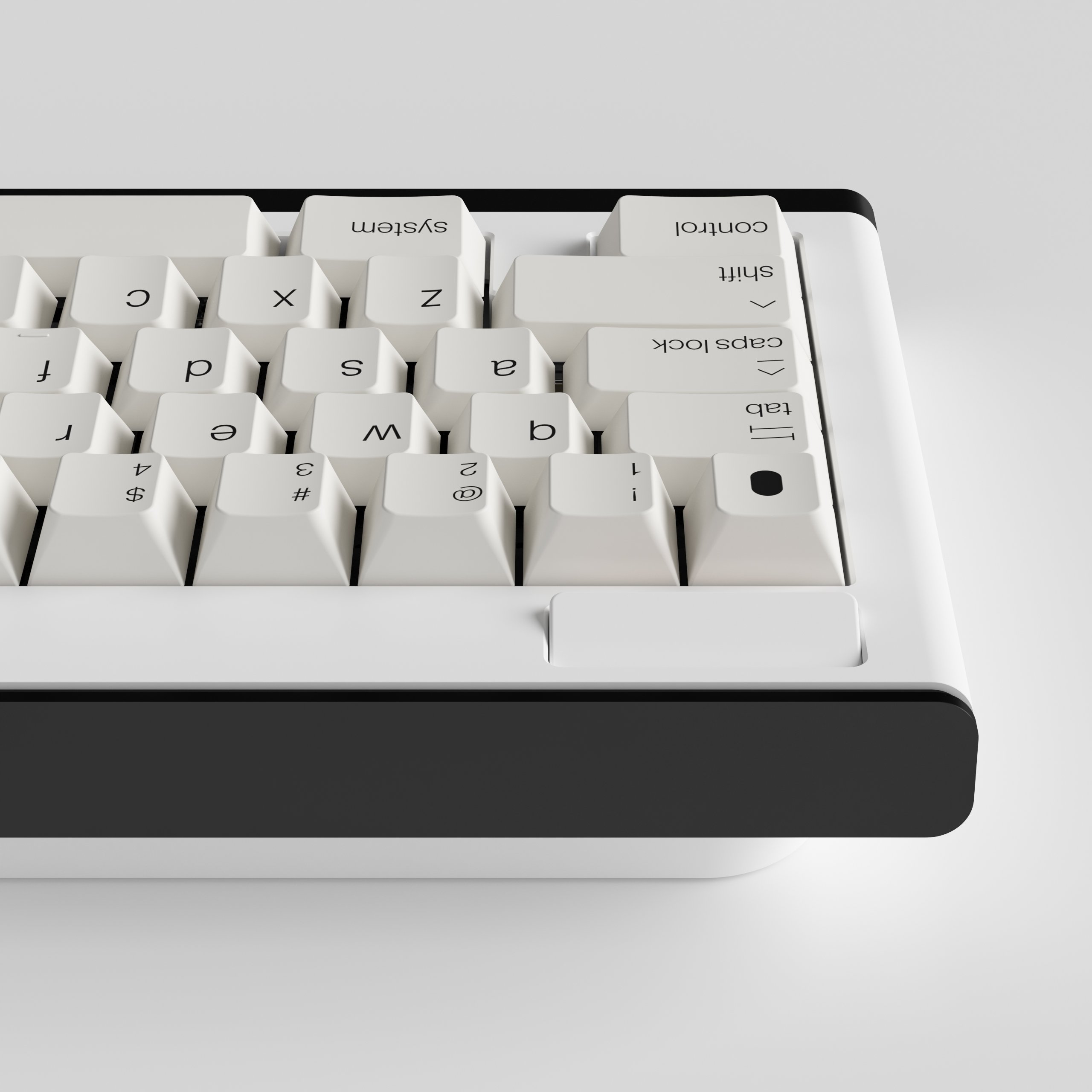

3.) Layout: WK/ WKL
4.) Frontpiece, Backpiece: Black ( Without the text "Less but better")

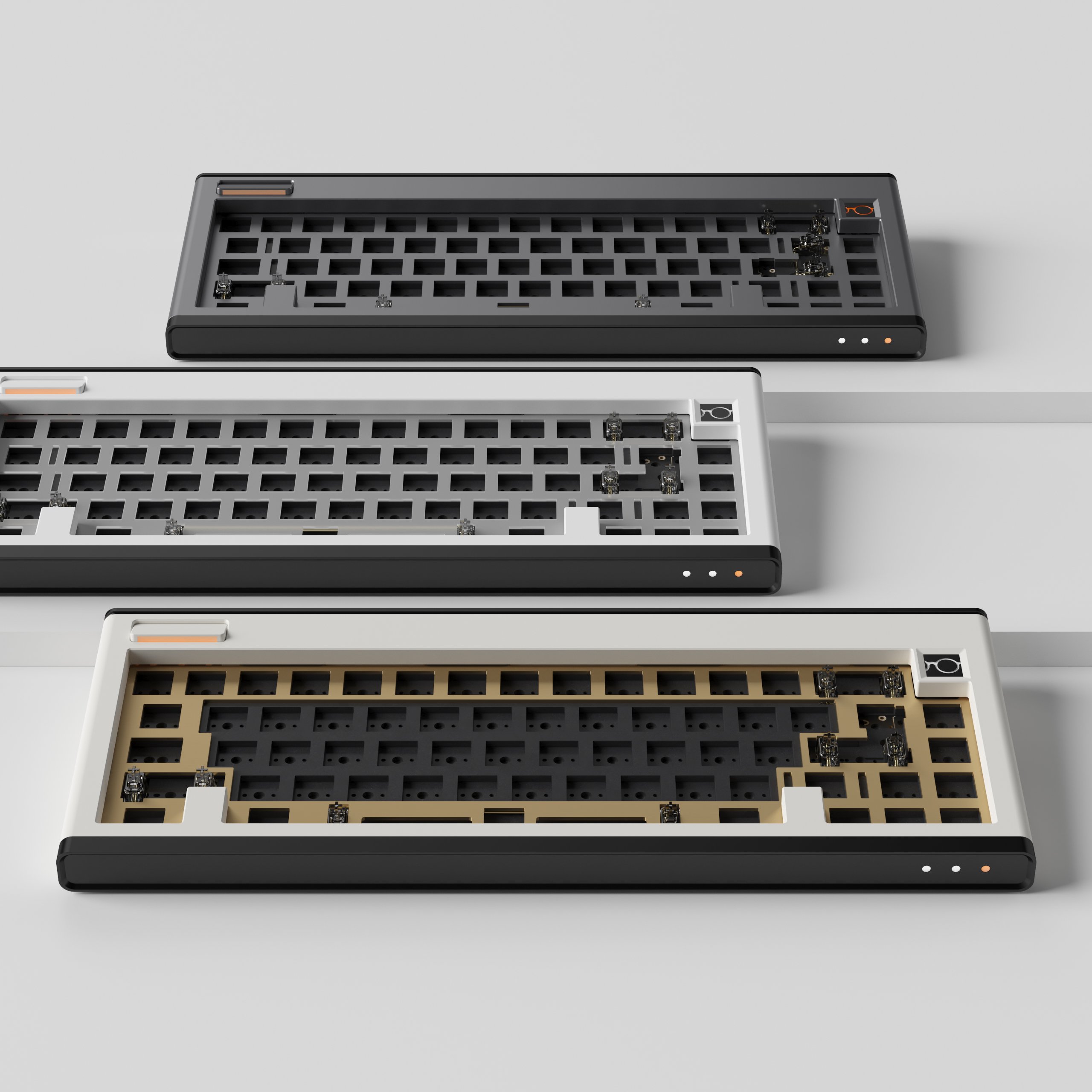

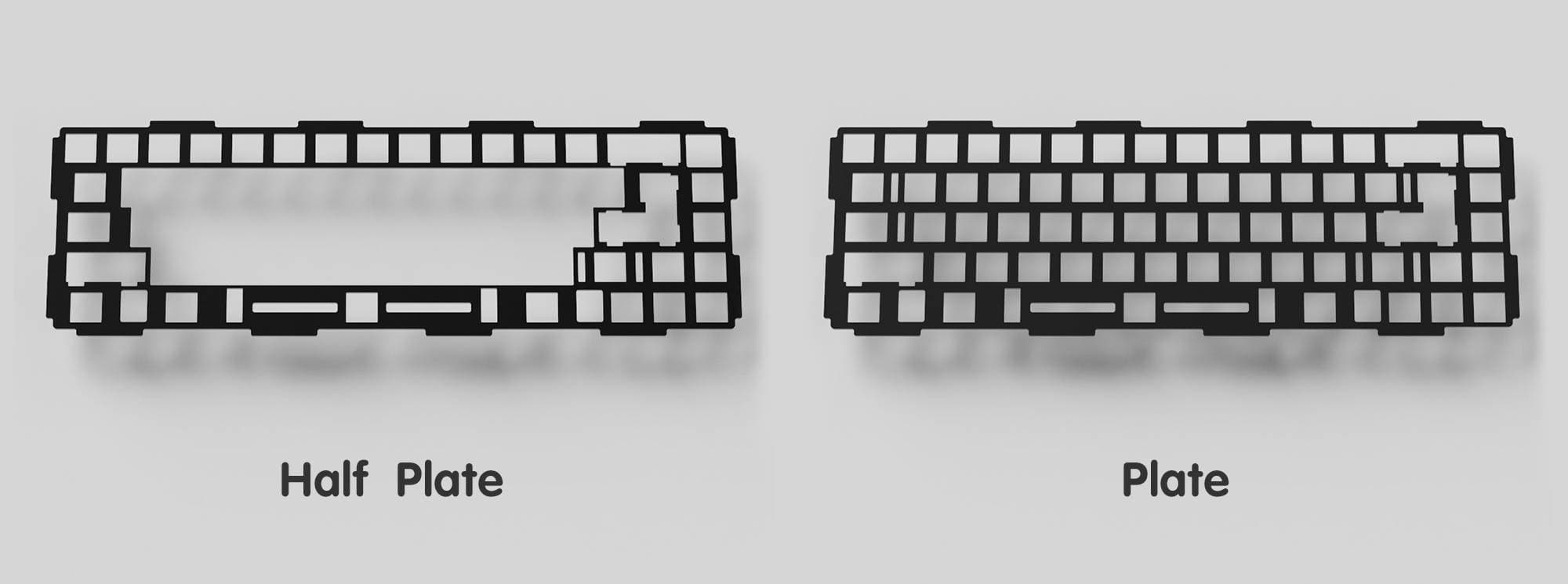

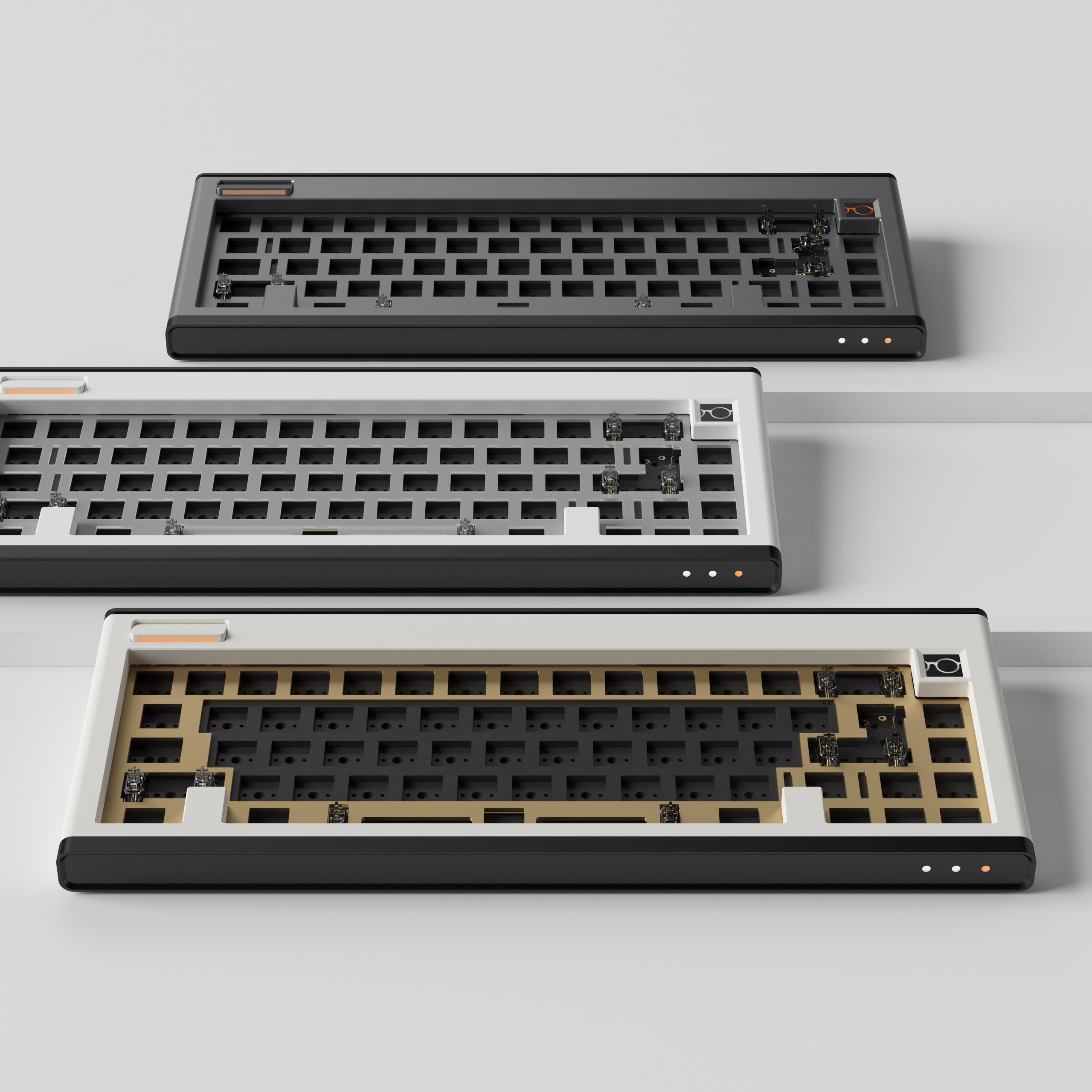

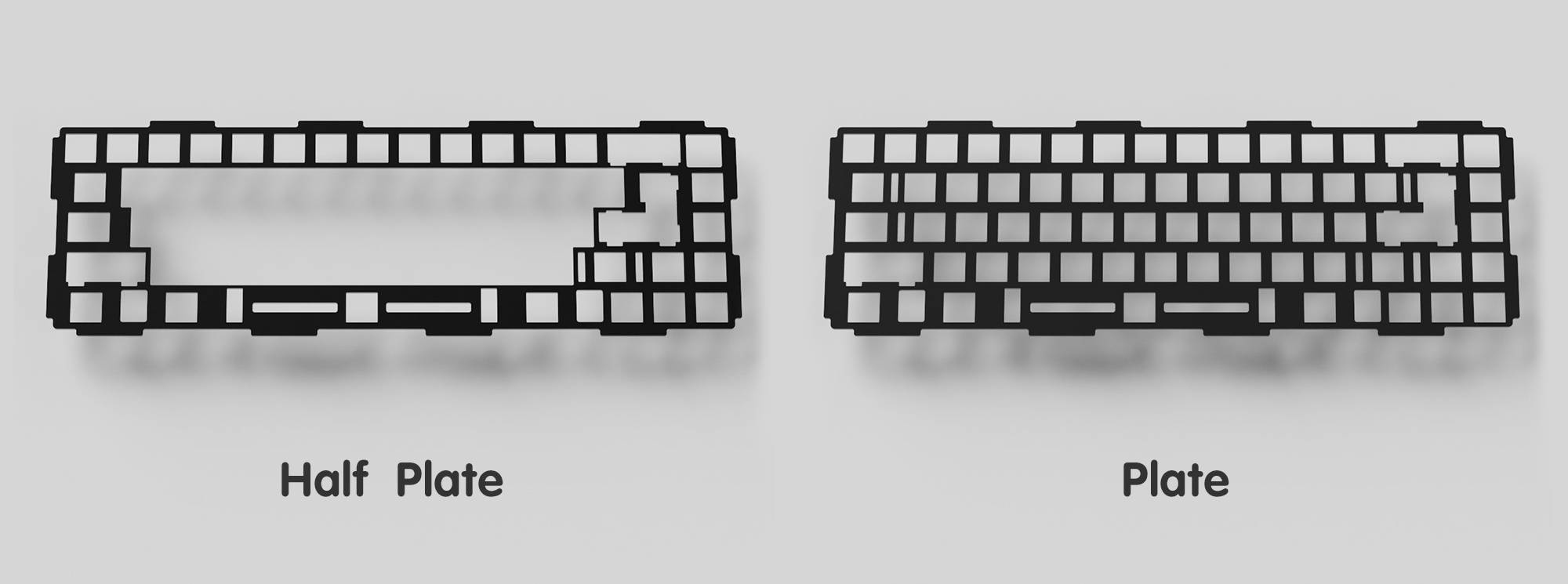

5.) Plate: Brass, Aluminum, PC, FR4, Half Brass, Half aluminum, Half PC, Half FR4
6.) Structure: Gasket mount
7.) Wired version PCB: Solder version and Hot-swap version; The solder version supports multiple layouts, the hot-swap version only supports one.

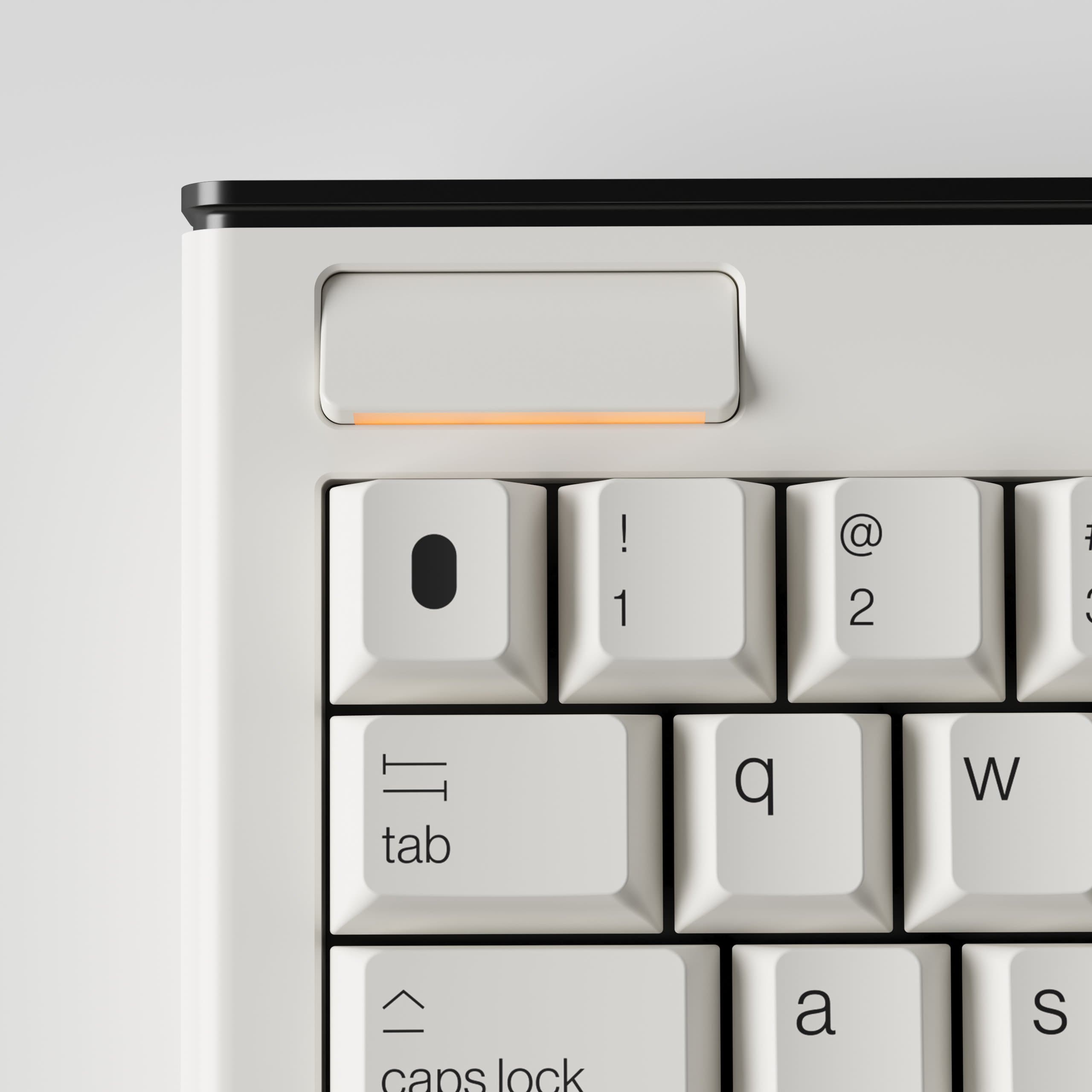

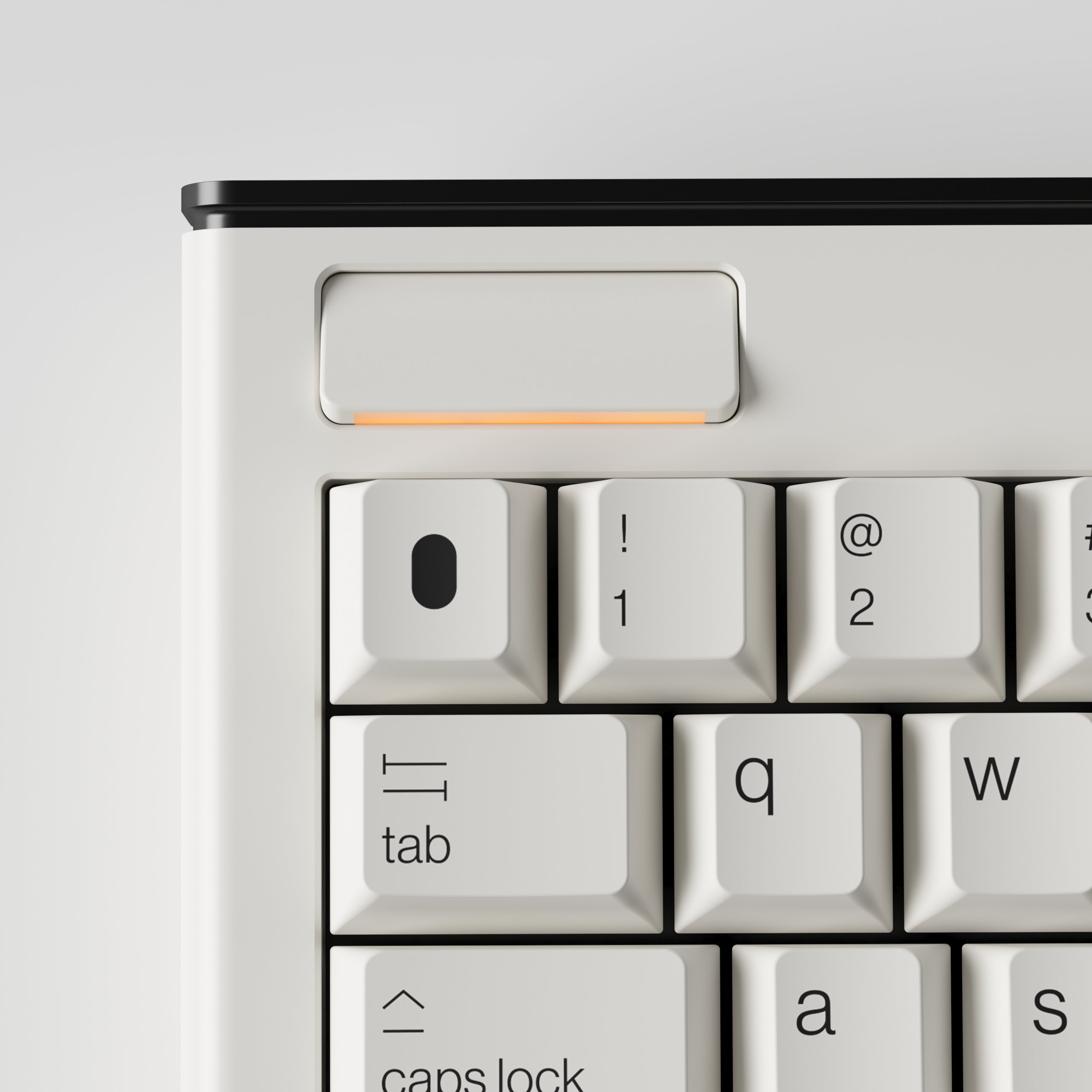

(Note: The RGB in the upper left corner can be controlled by VIA software or shortcut keys.

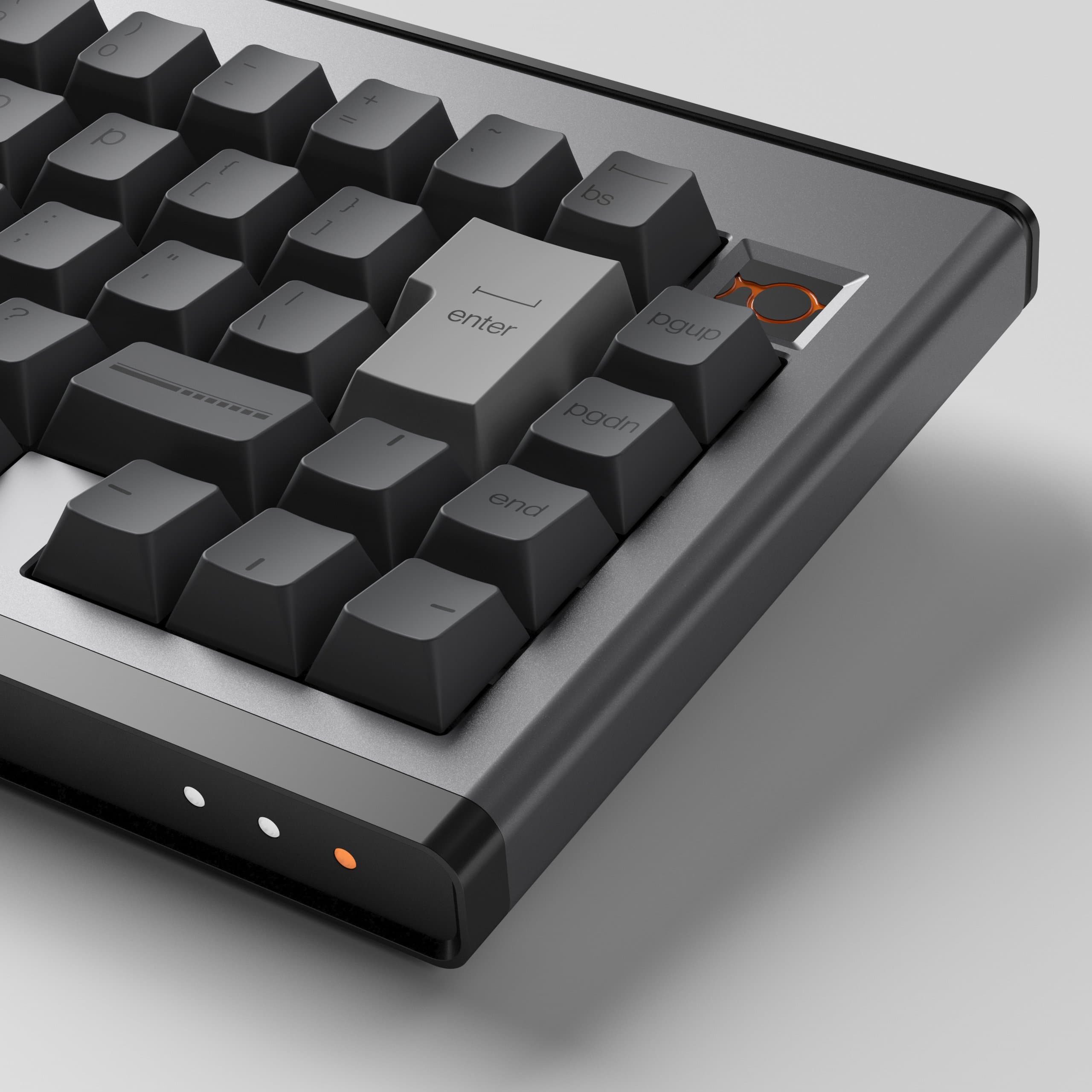

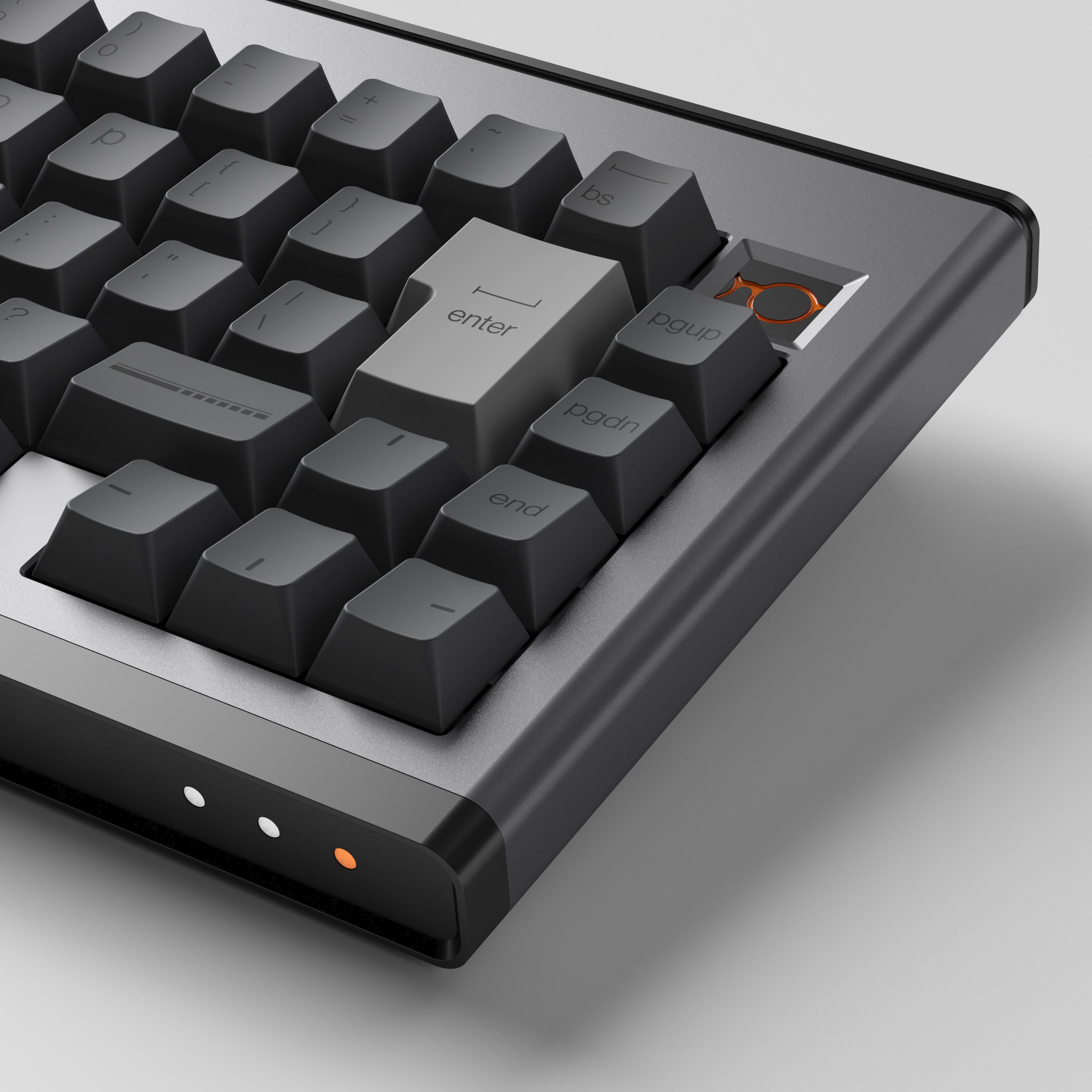

The bottom right corner is the indicator light. From left to right, the first light is capslock, the second is num lock, and the third is always lighting on.)
8.) Blocker Badge: E-white/ E-Beige Case with White Glasses, Grey Case with Orange Glasses
9.) RGB Badge: Same as the case color
10.) Typing angle: 7°
11.) Interface: USB-C
12.) Foam: Case foam and PCB foam (PORON material)
13.) KBDfans DYBOOX PC Screw-in Stabilizers 60 set: 2U x 4，6.25U x1, extra 7U wire x1, Stabilizers foam sticker, screws, and washers
14.) Weight: Around 1.7 kg
15.) Designer: Openkey DesignGalleryPlate Options

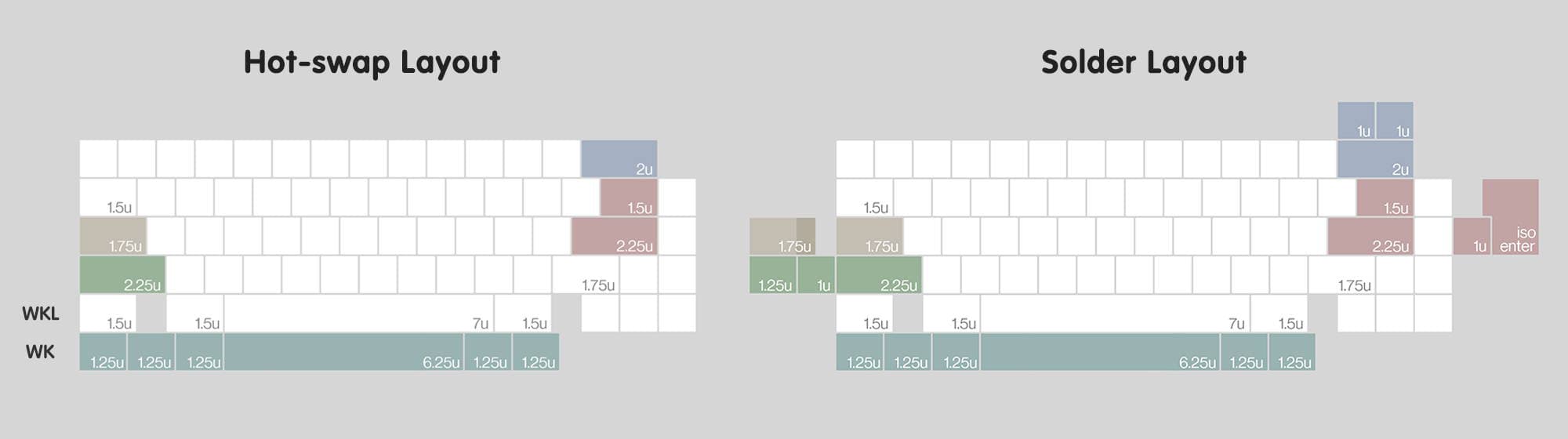

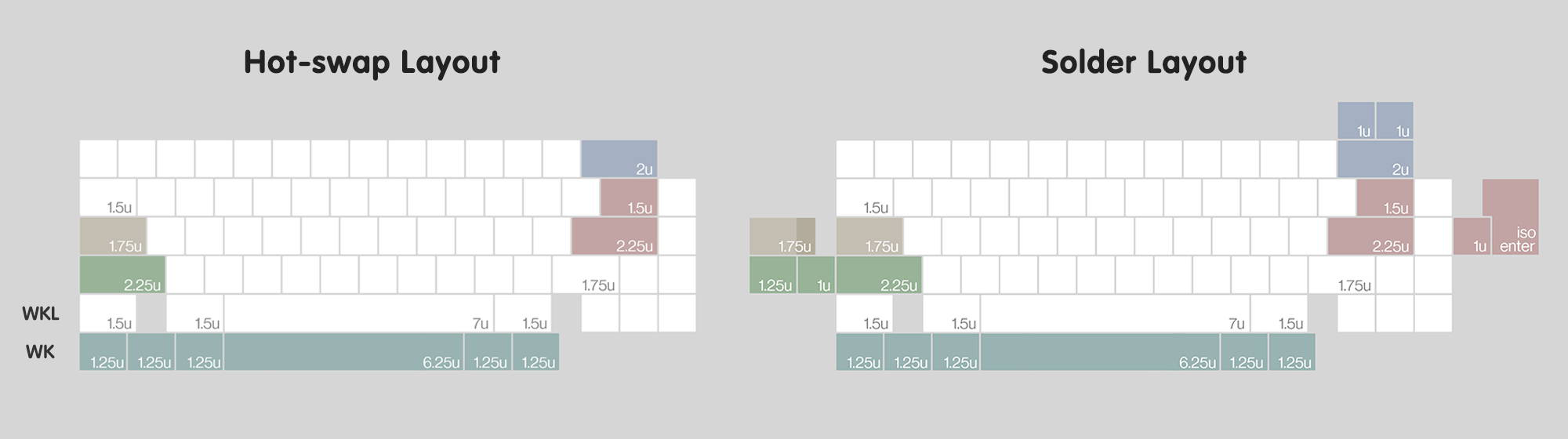

Layout Options

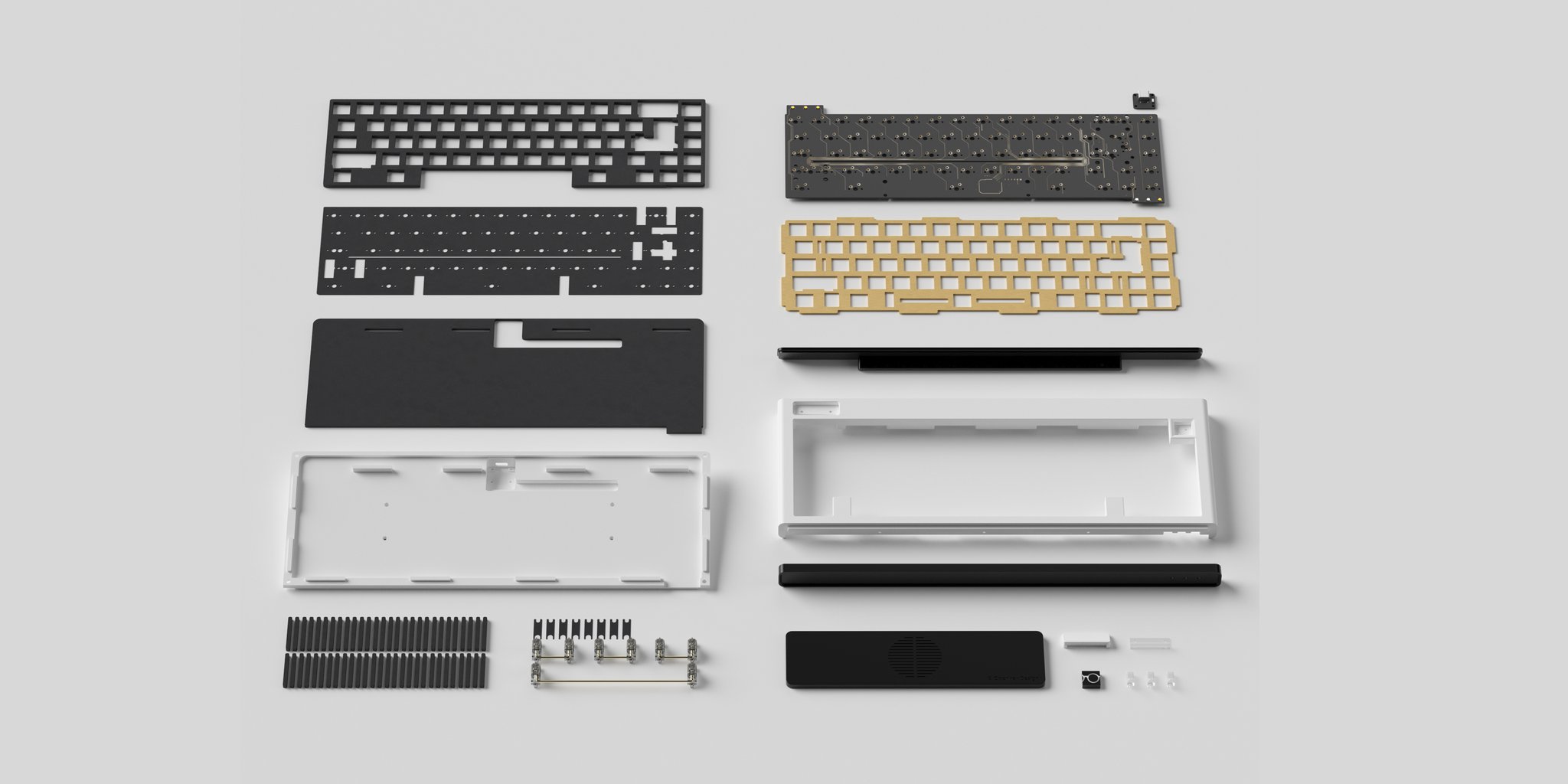

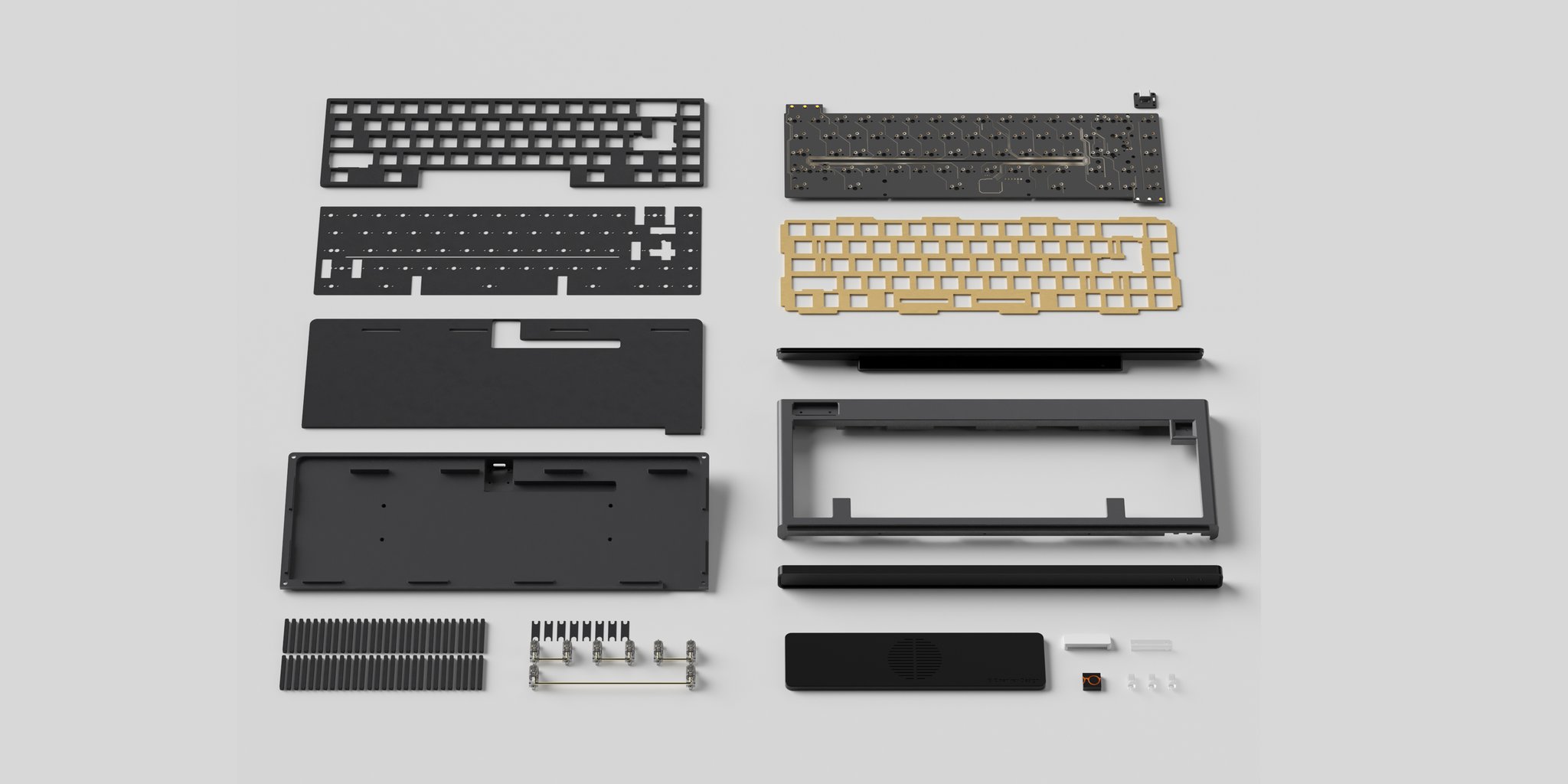

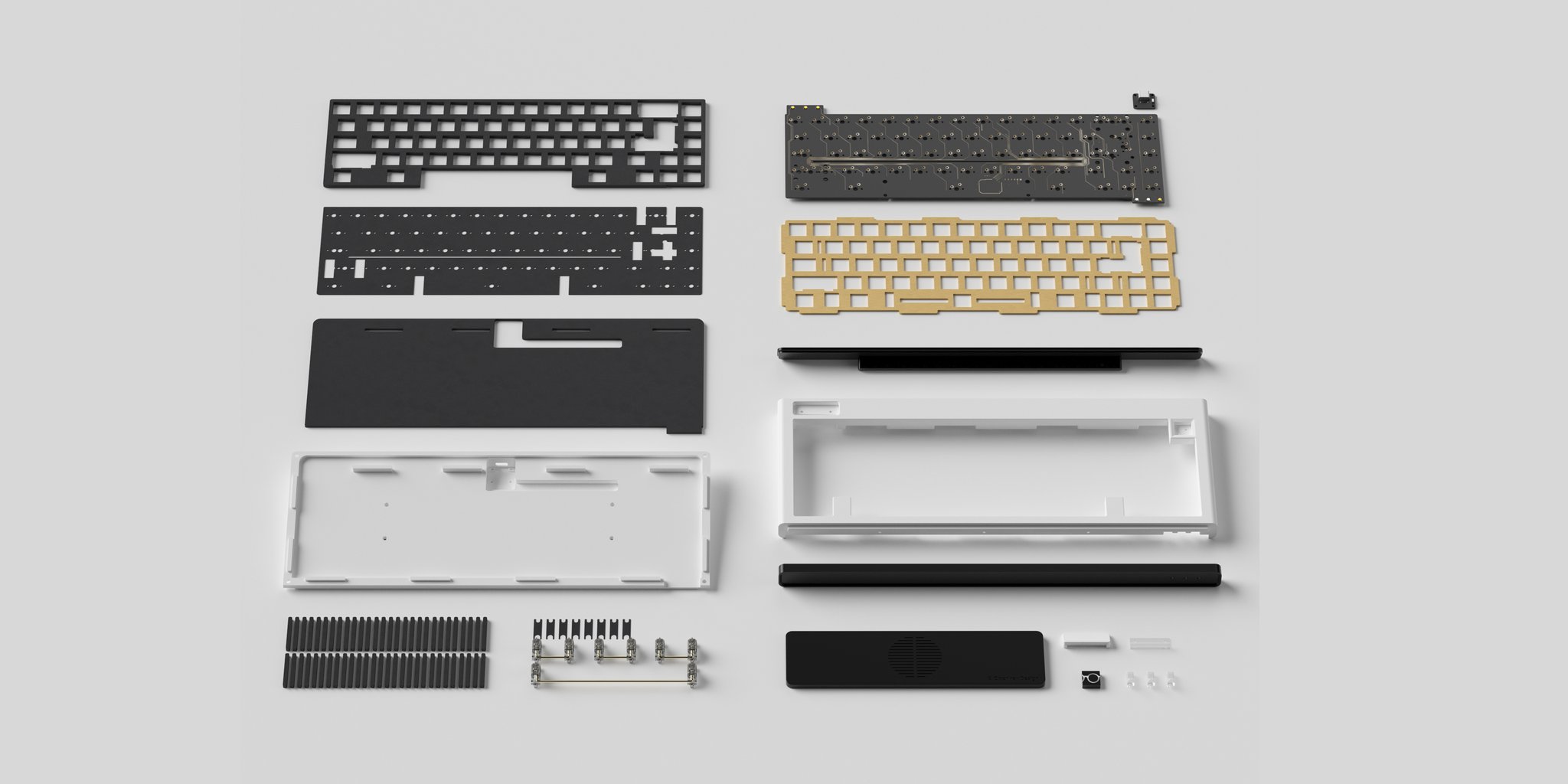

INCLUDE (Only selected Case/ PCB, Plate, Layout options)-Aluminum case x1
-Aluminum weight bar x1
-PCB x1
-RGB Badge x1
-Blocker Badge x1
-Backpiece，Frontpiece x1
-Plate x1
-Case foam x1
-PCB foam x1
-Switch pads x1
-Screw-in stabilizers 60 set x1
-Gaskets x1 set
-Screws x1 set
-Rubber feet x1 set

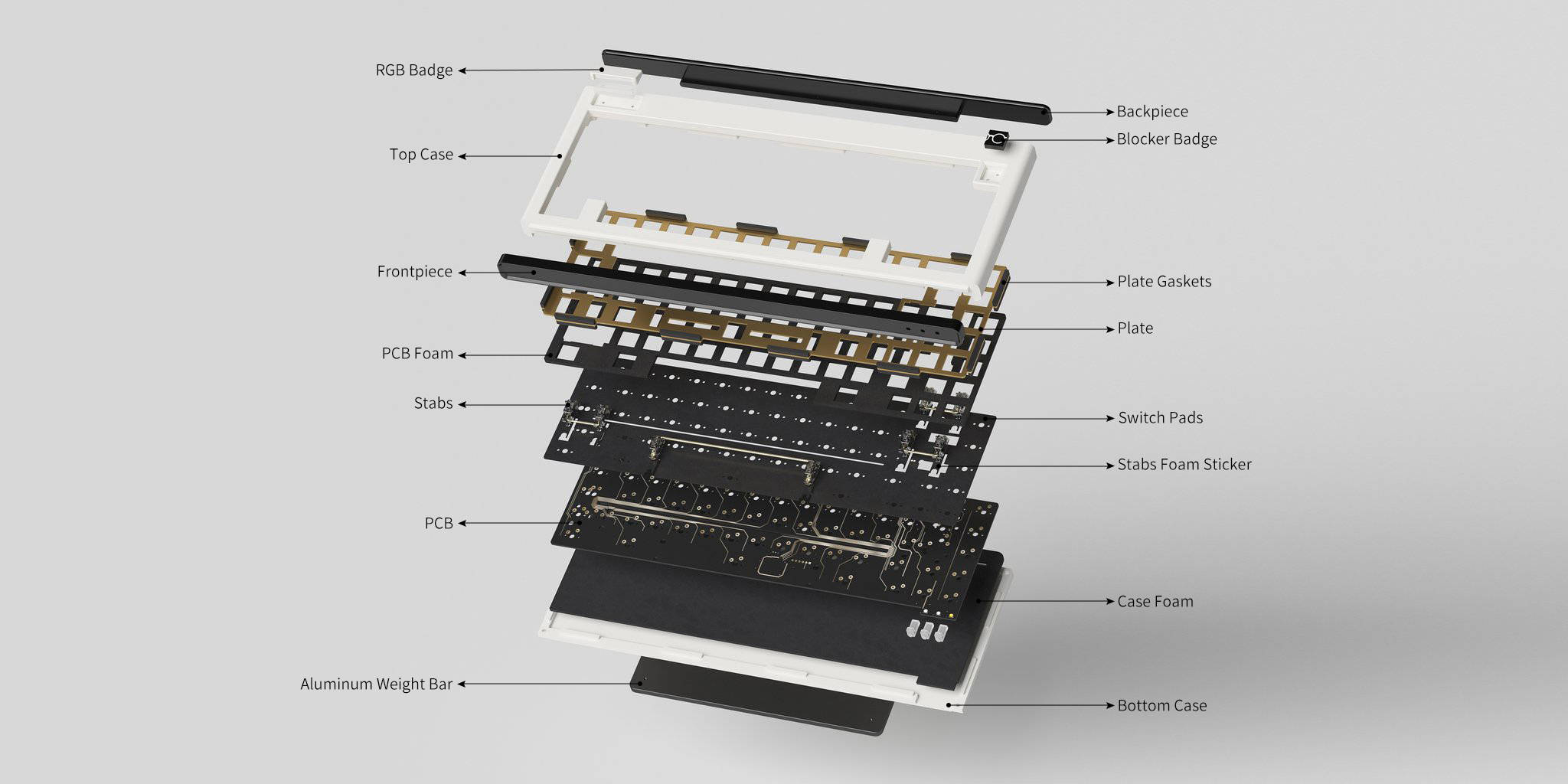

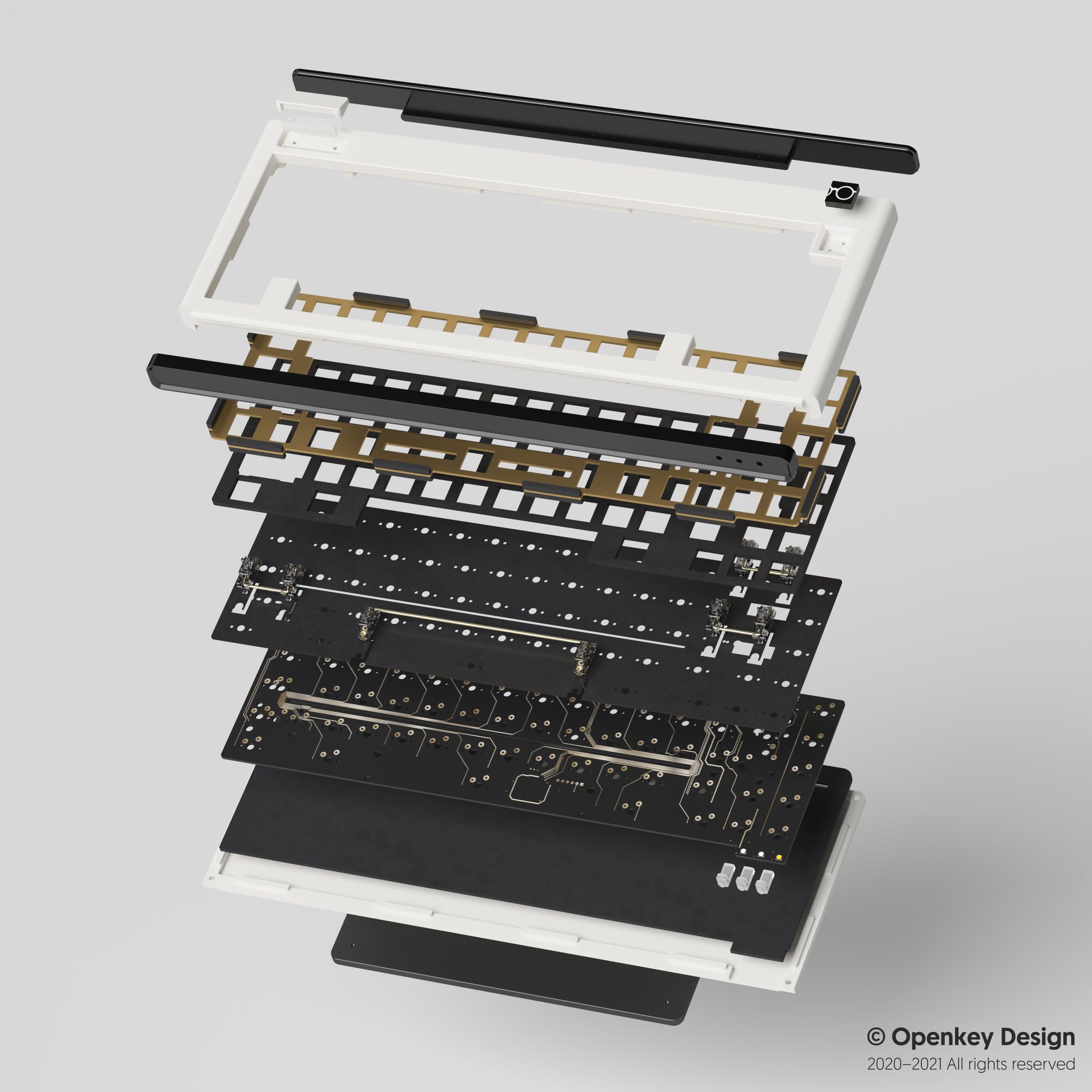

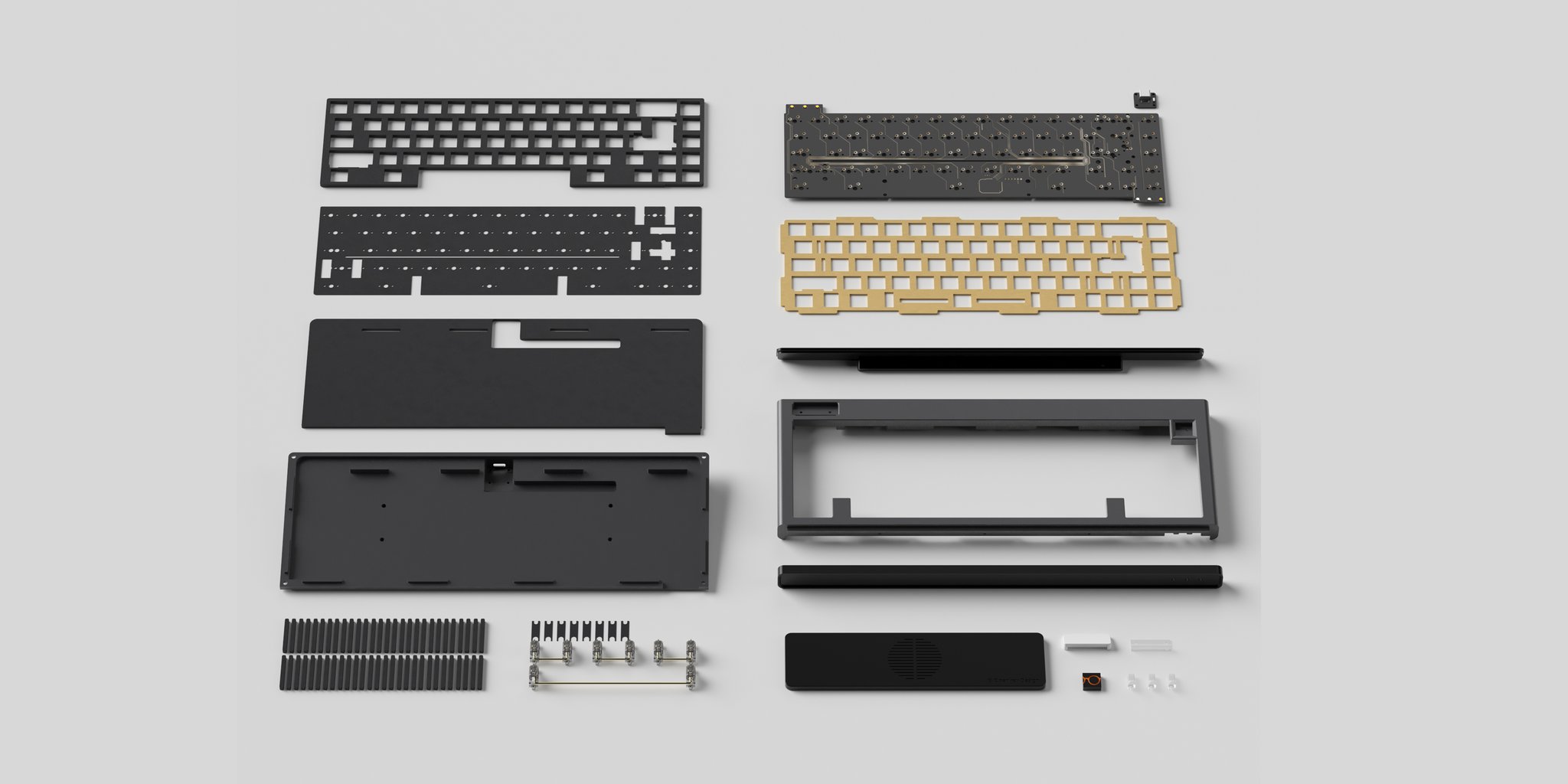

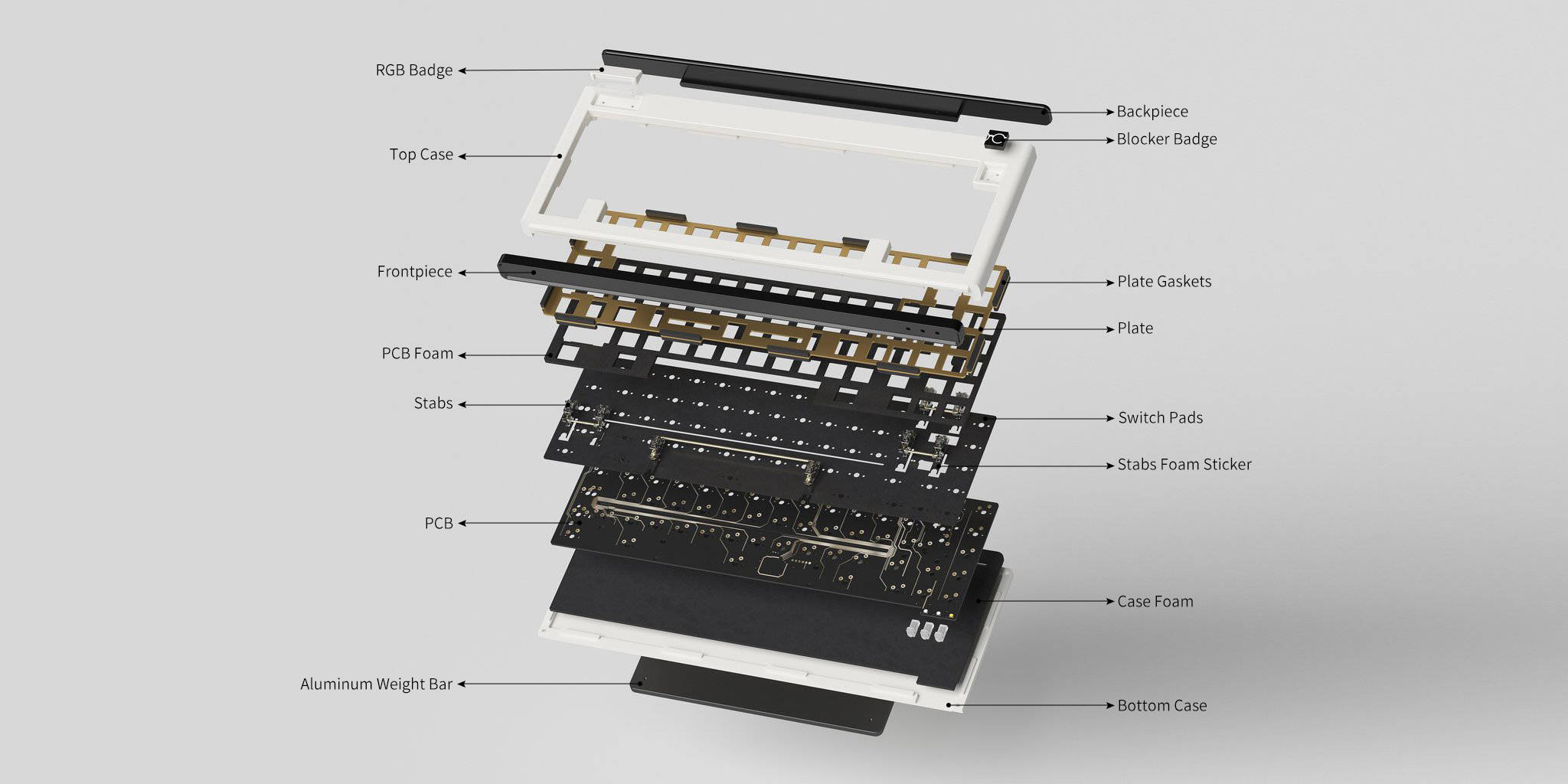

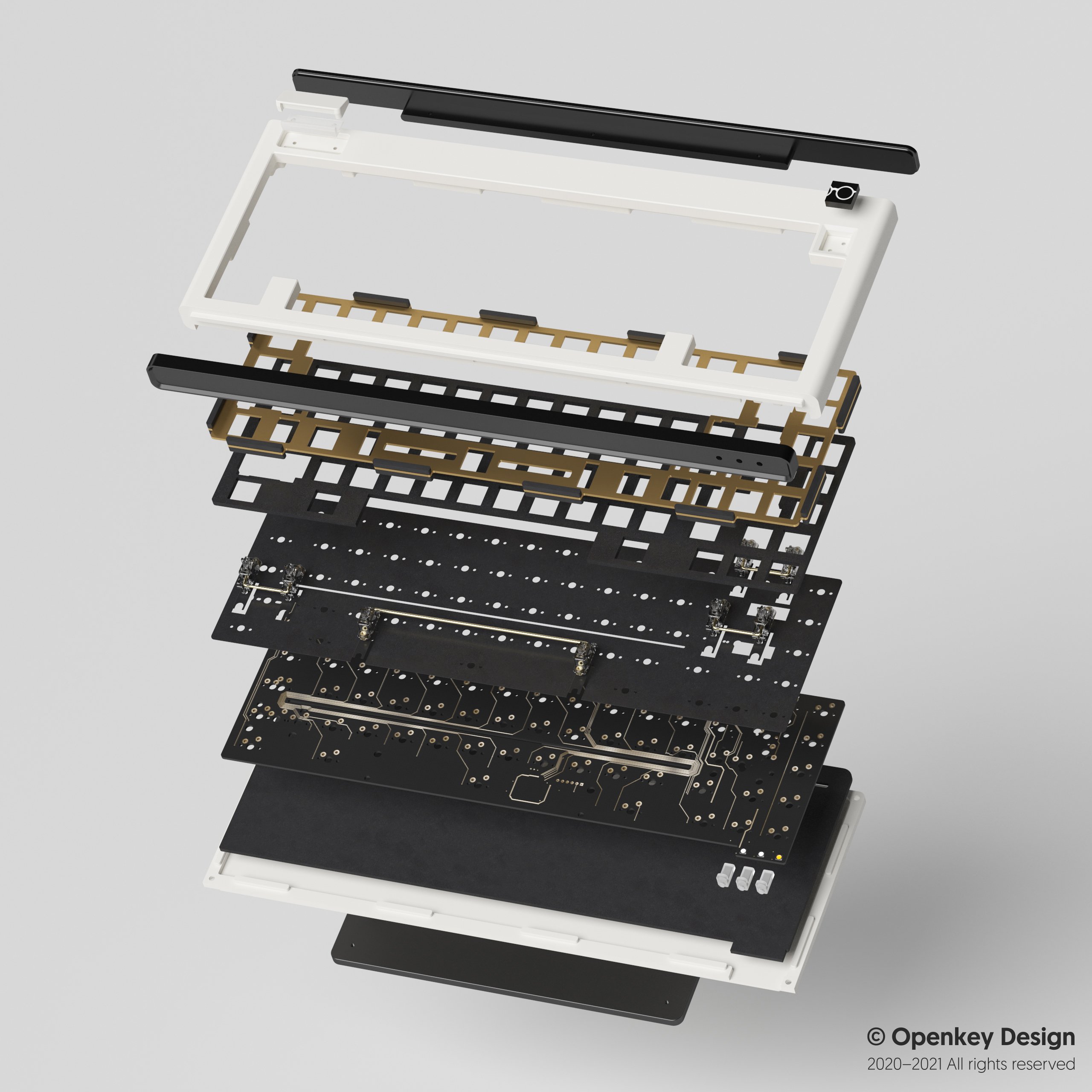

Keyboard Structure
