PLX | 60% Keyboard (PRE-ORDER CLOSED)

TECHNICAL SPECS

Typing Angle: 7o
Front Height: 21mm
Materials: aluminium top & middle case, brass bottom weight
Weight: 2.7kg built
Colours: anodised black | e-white | anodised red
Mounting Method: gasket (poron)
Plates: 1.5mm aluminium | 1.5mm polycarbonate | 1.5mm FR4 | 1.5mm POM
Top Case Options: WK | WKL | HHKB
PCB: variable soldered layout | designed by 2Moons (Basekeys) | USB-C daughterboard | configurable with QMK/VIA | No LED support | Includes ESD Protection or fixed hotswap layout
Solderable PCB Layout Options: locked tsangan bottom row | split BS | split RS | ISO | stepped caps
Hotswap PCB Layout: locked tsangan bottom row | splits BS | split RS

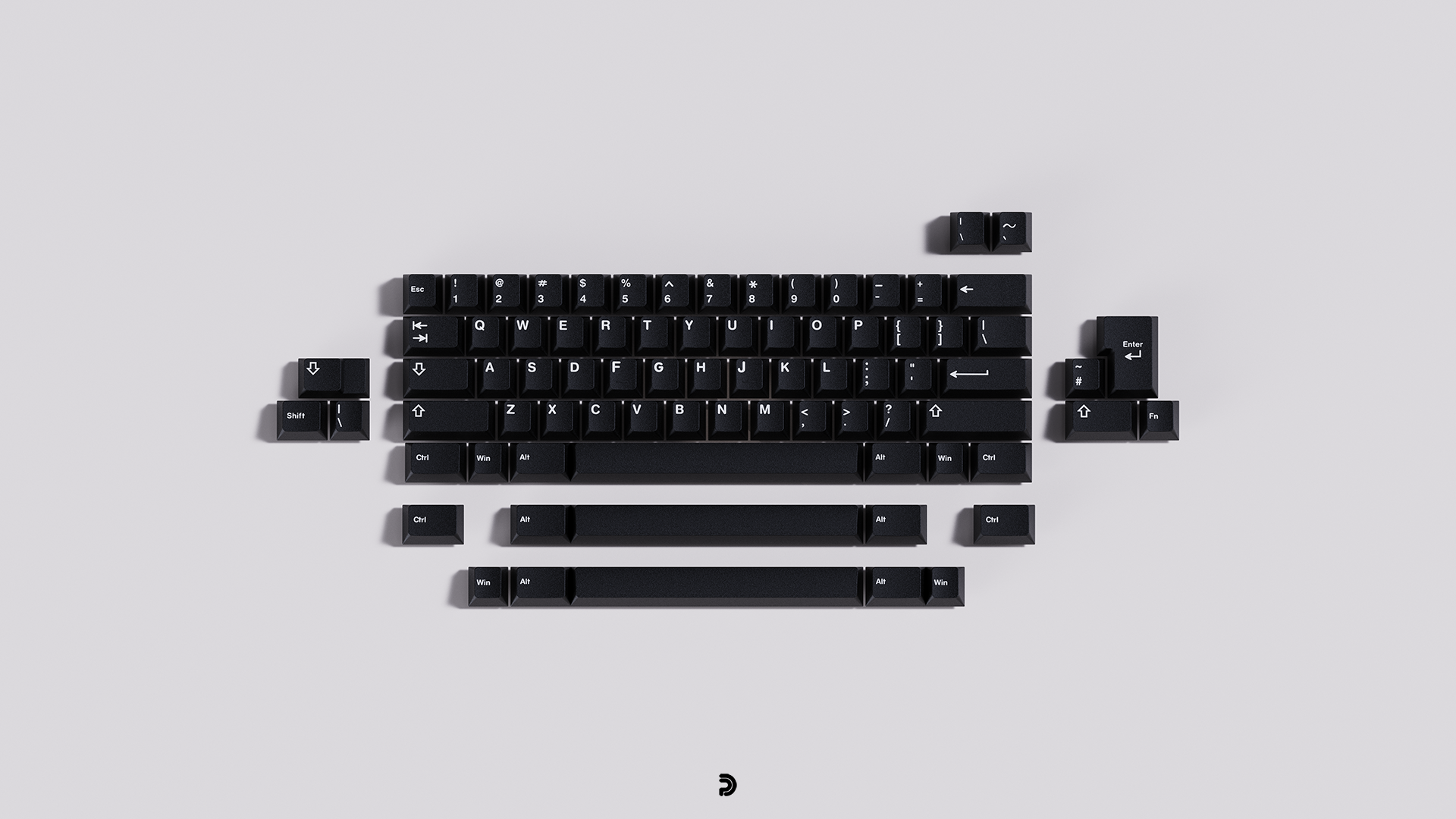

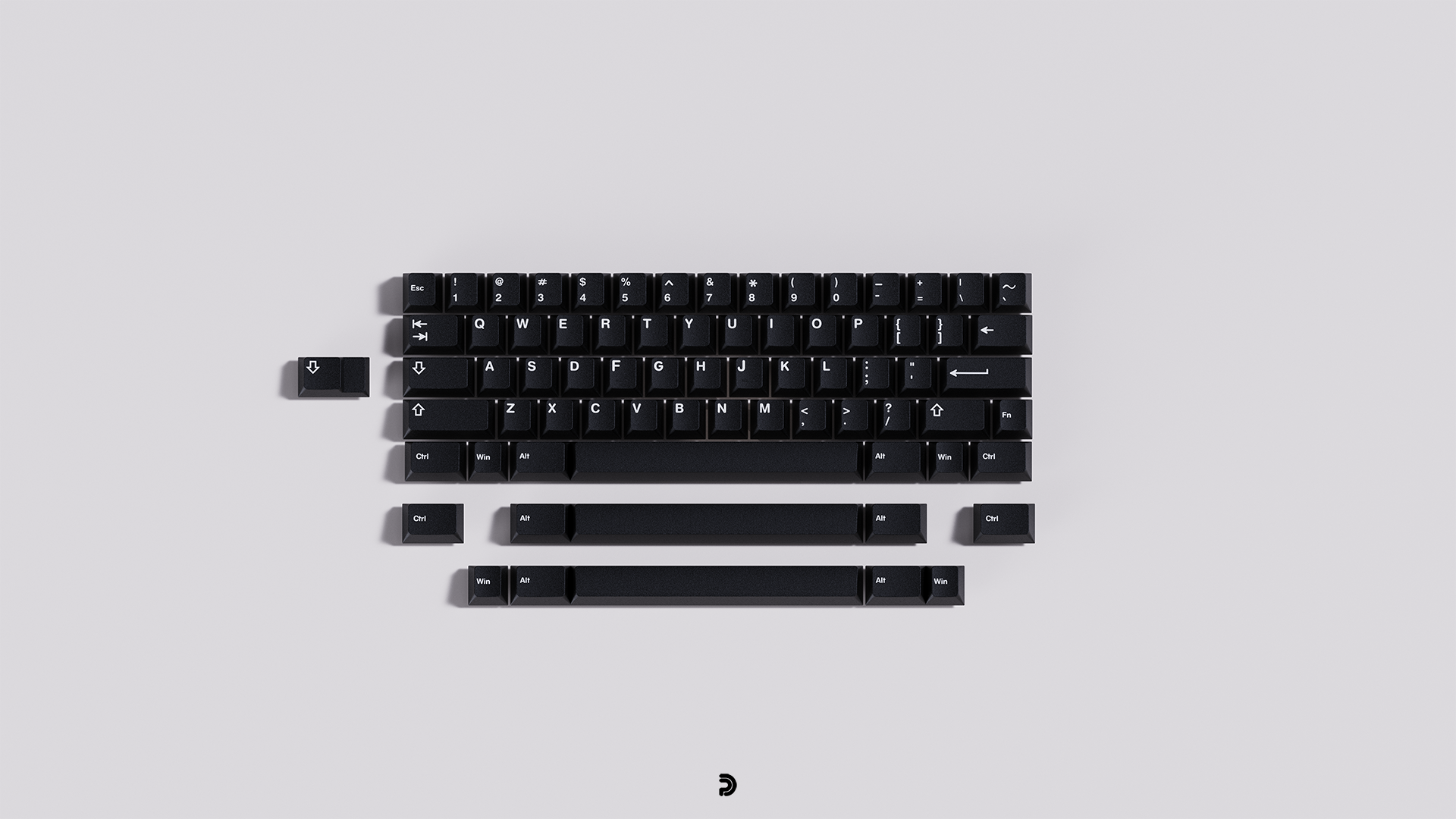

Soldered PCB Layout Hotswap PCB Layout


RELEASE INFORMATION

Vendor = Peac Design
Soft cap= 300 units
Dates = 1 February - 15 March
Expected Delivery = Q4 2022
Colour Options = Rosso (red) | Phantom (black) | Bliss (white)

Phantom
Top Case - Black Anodized Aluminium
Mid Case - Black Anodized Aluminium

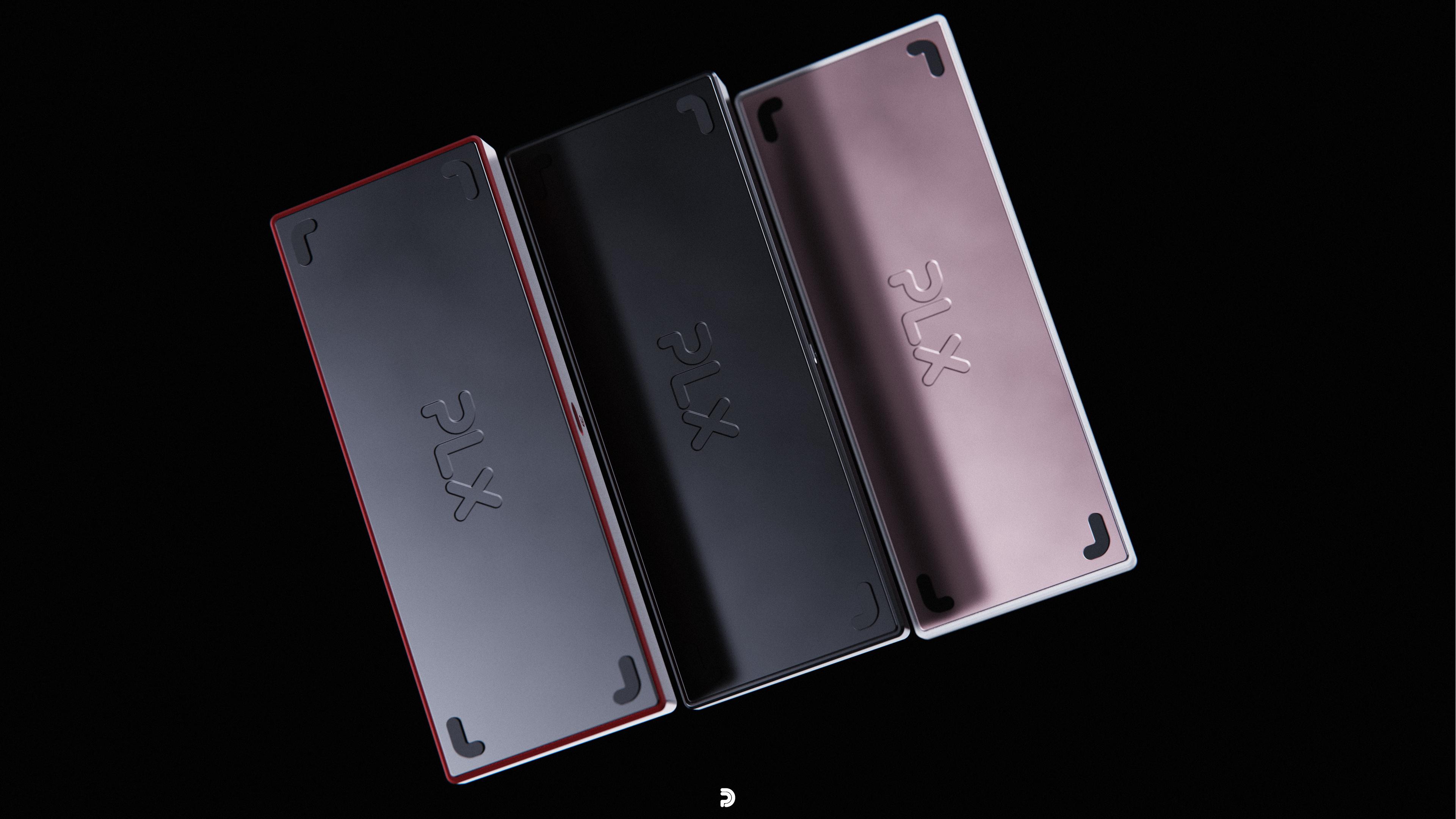

Weight - Black PVD Brass
Plate - Black Anodized Aluminium

Rosso
Top Case - Red Anodized Aluminium
Mid Case - Red Anodized Aluminium
Weight - Black PVD Brass
Plate - Black Anodized Aluminium

Bliss
Top Case - White e-coated Aluminium
Mid Case - White e-coated Aluminium
Weight - Rose Gold PVD Brass
Plate - Rose Gold Anodized Aluminium


What’s in PLX keyboard kit?
1 x custom PLX carry case & cleaning cloth
1 x top case | anodised or e-coated aluminium
1 x mid case | anodised or e-coated aluminium
1 x weight | pvd brass
1 x plate | anodised aluminium
1 x plate foam | poron
1 x PCB (solderable), JST cable, usb-c daughterboard
21 x poron gasket strips
4 x bumpons | silicone
1 x screw and accessory bag

Note: extra plates, PCBs (solderable and hotswap), top cases, weights and accessories will also be available for purchase.

More information and updates available on our Discord and Instagram


PRICING

PLX keyboard kit - $450USD
(+$10 for e-white, +$10 for hotswap PCB)

Extras:
Top Case - $120USD (+$10 for e-white)
PVD Weight - $180USD
Aluminium Plates (Black & Rose Gold) - $35USD
POM Plate - $30USD
PC Plate - $30USD
FR4 Plate - $30USD
PCB (Solderable) - $40USD
PCB (Hotswap) - $50USD
Plate Foam - $10USD
Gaskets - $5USD


PROTOTYPES

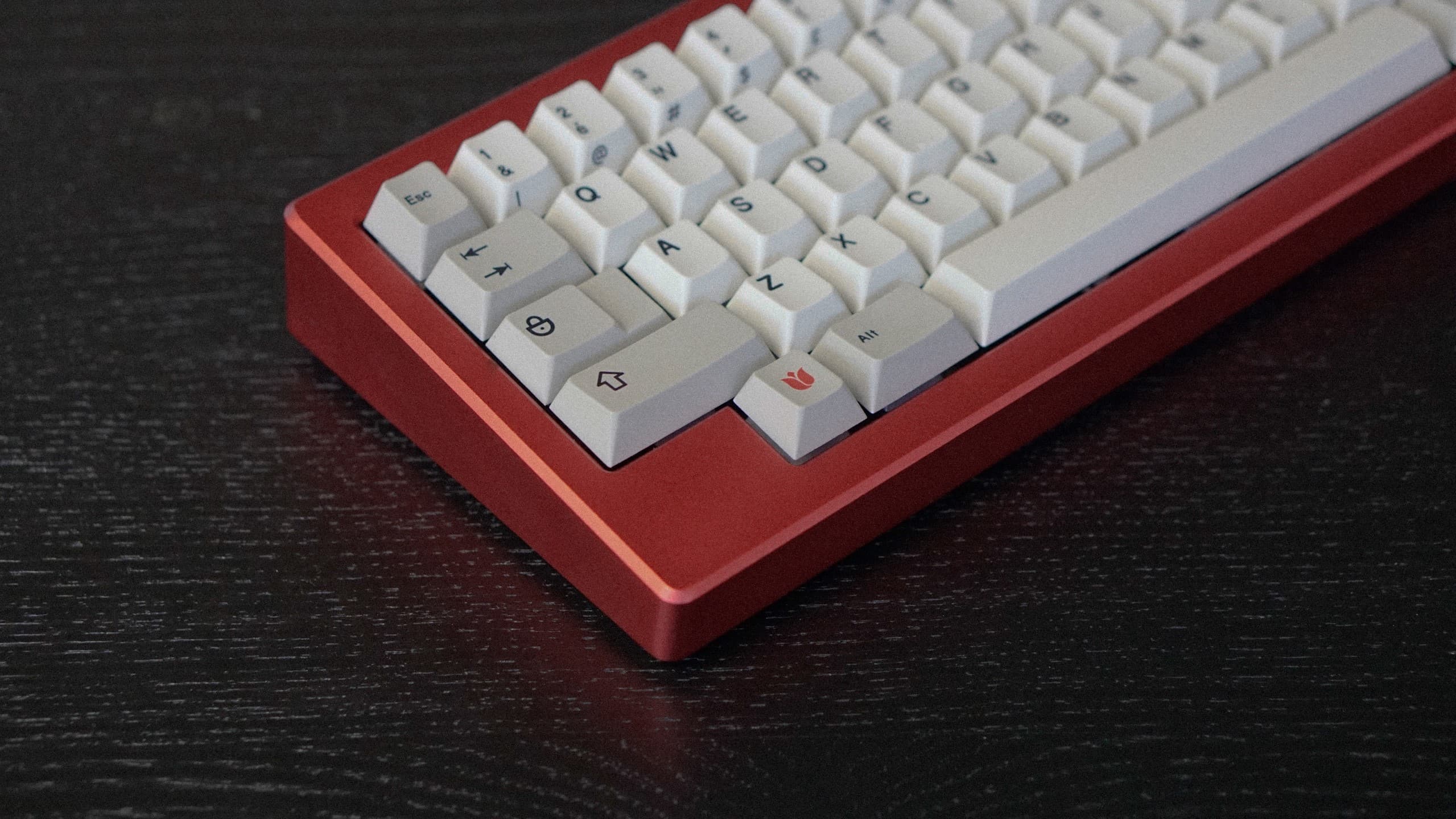

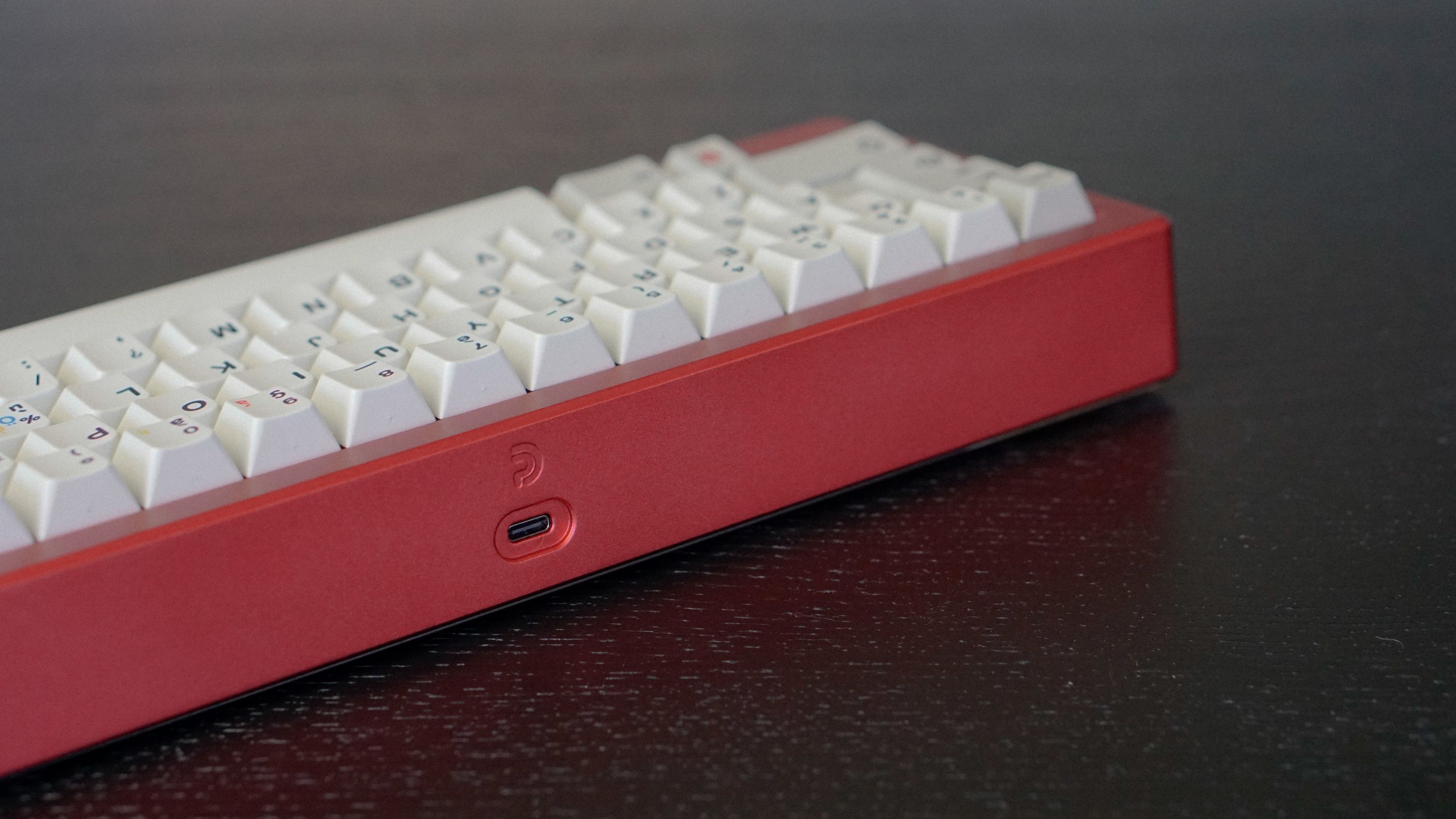

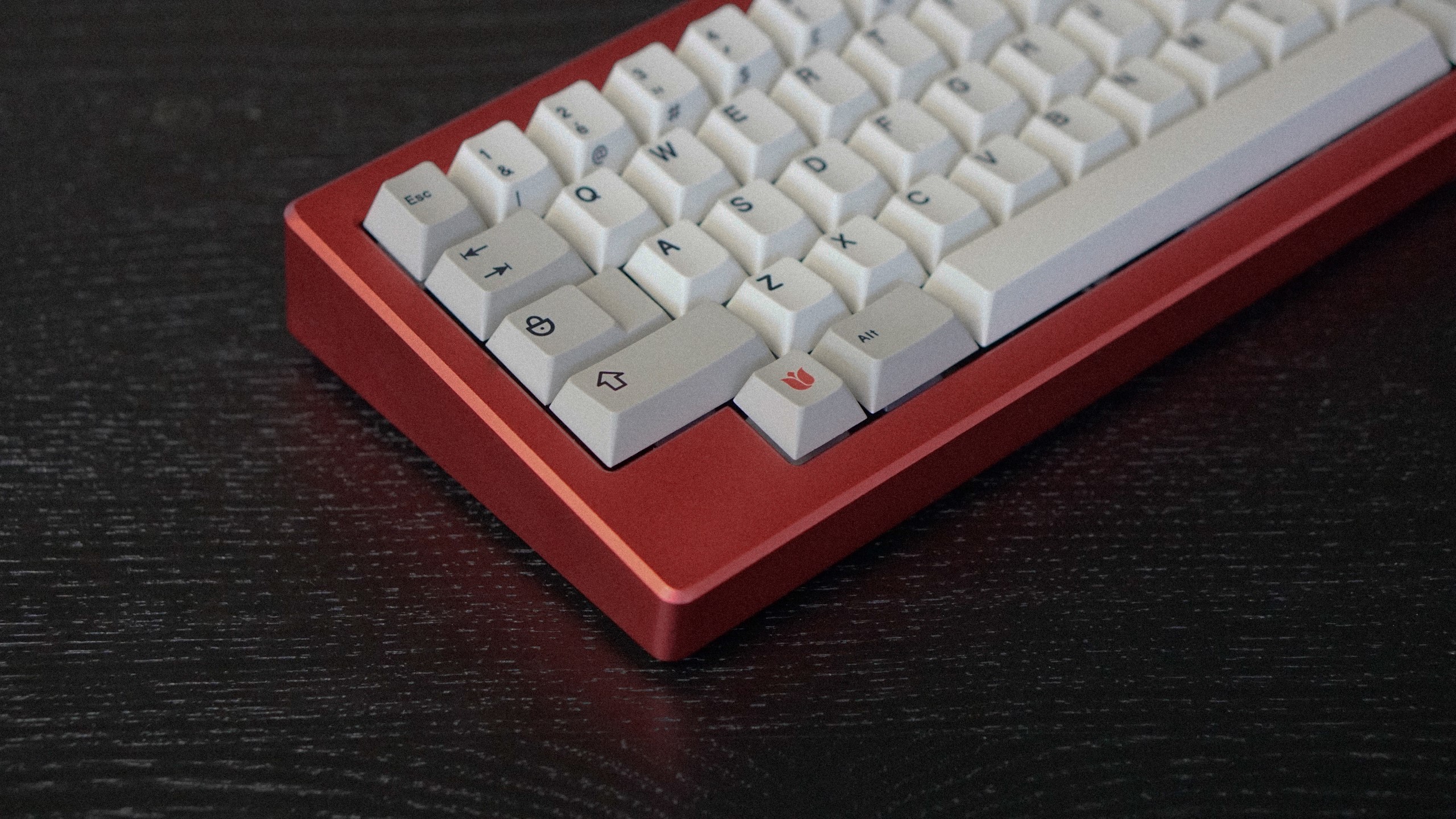

Rosso

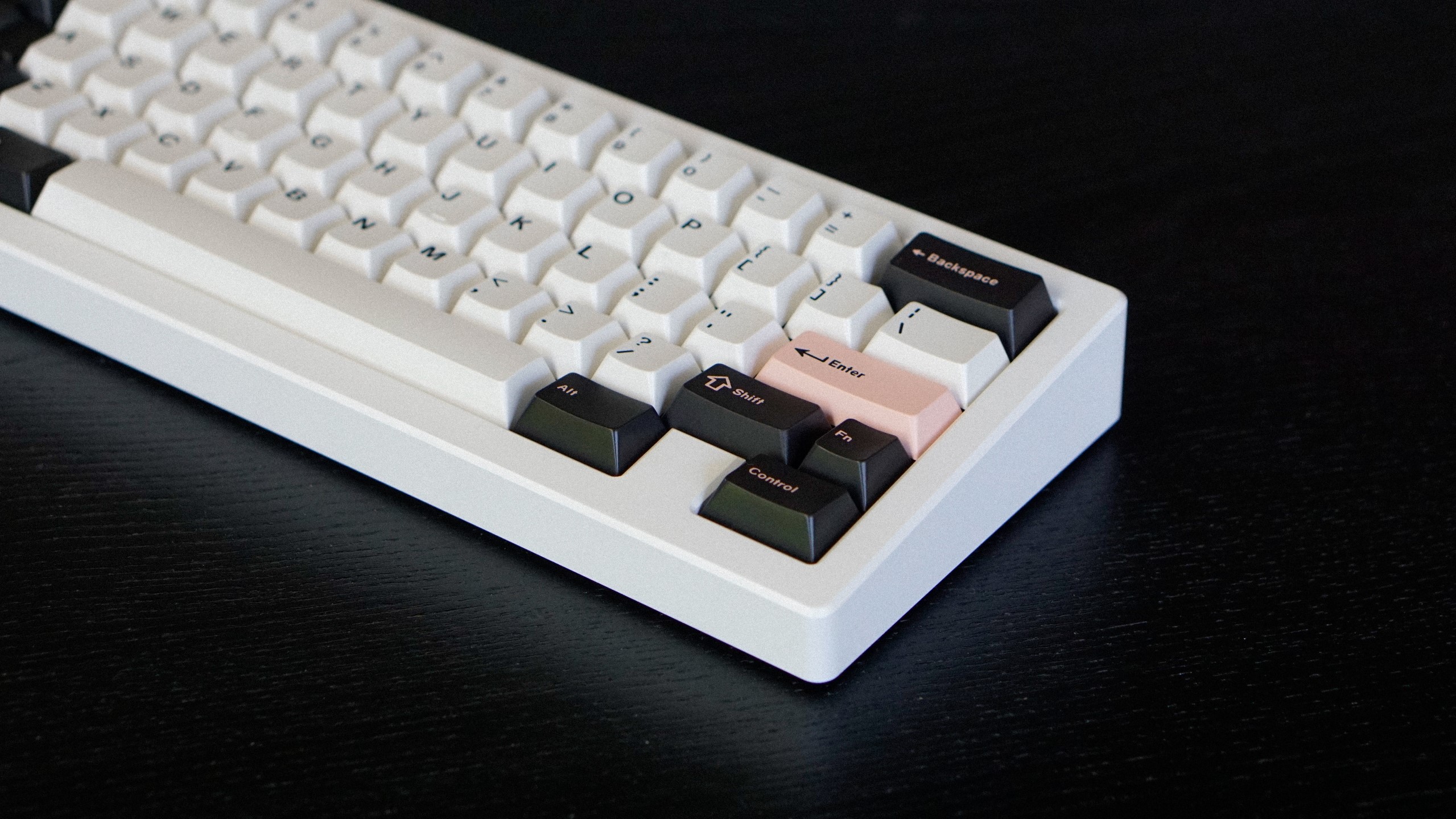

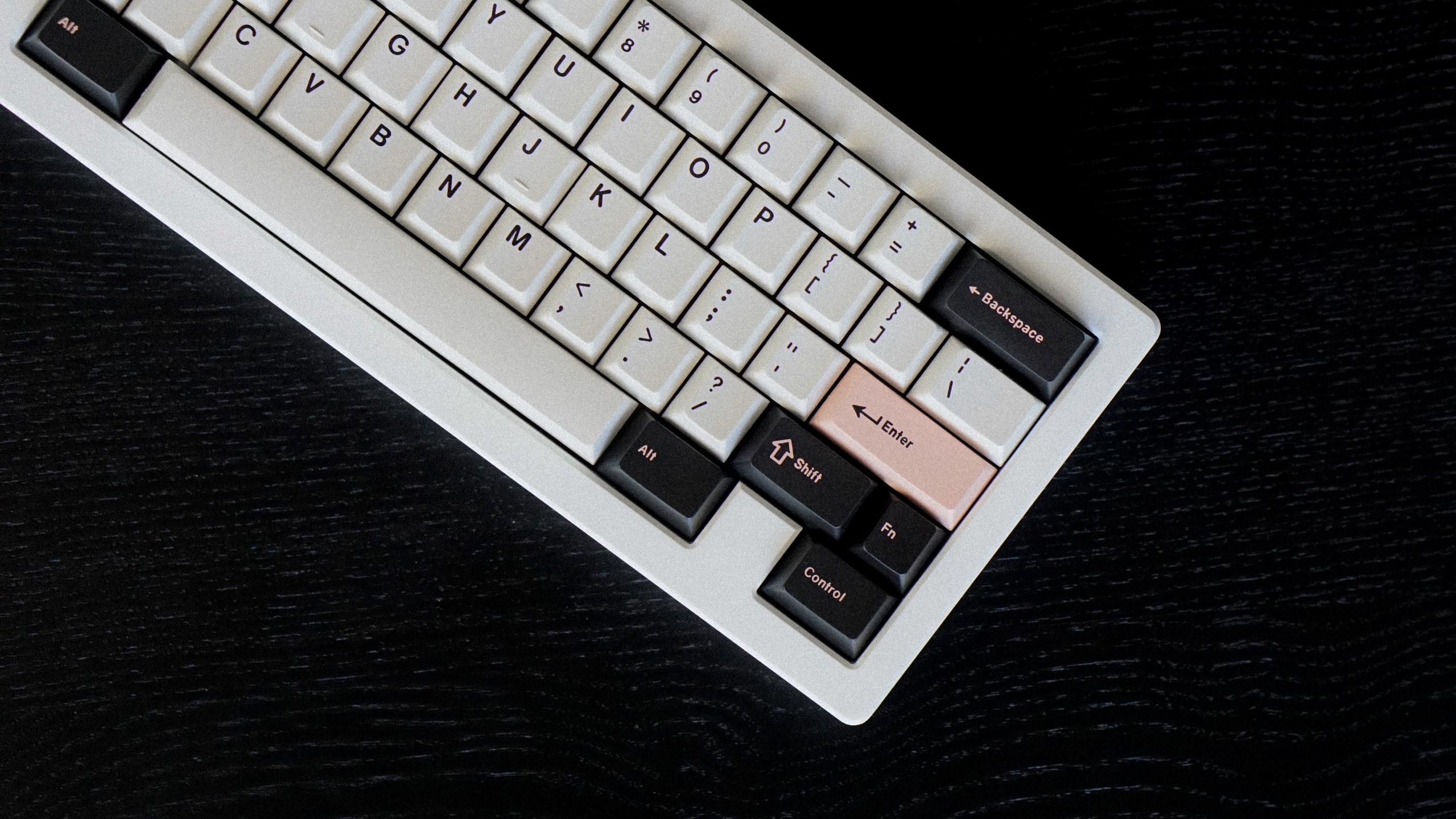

Bliss

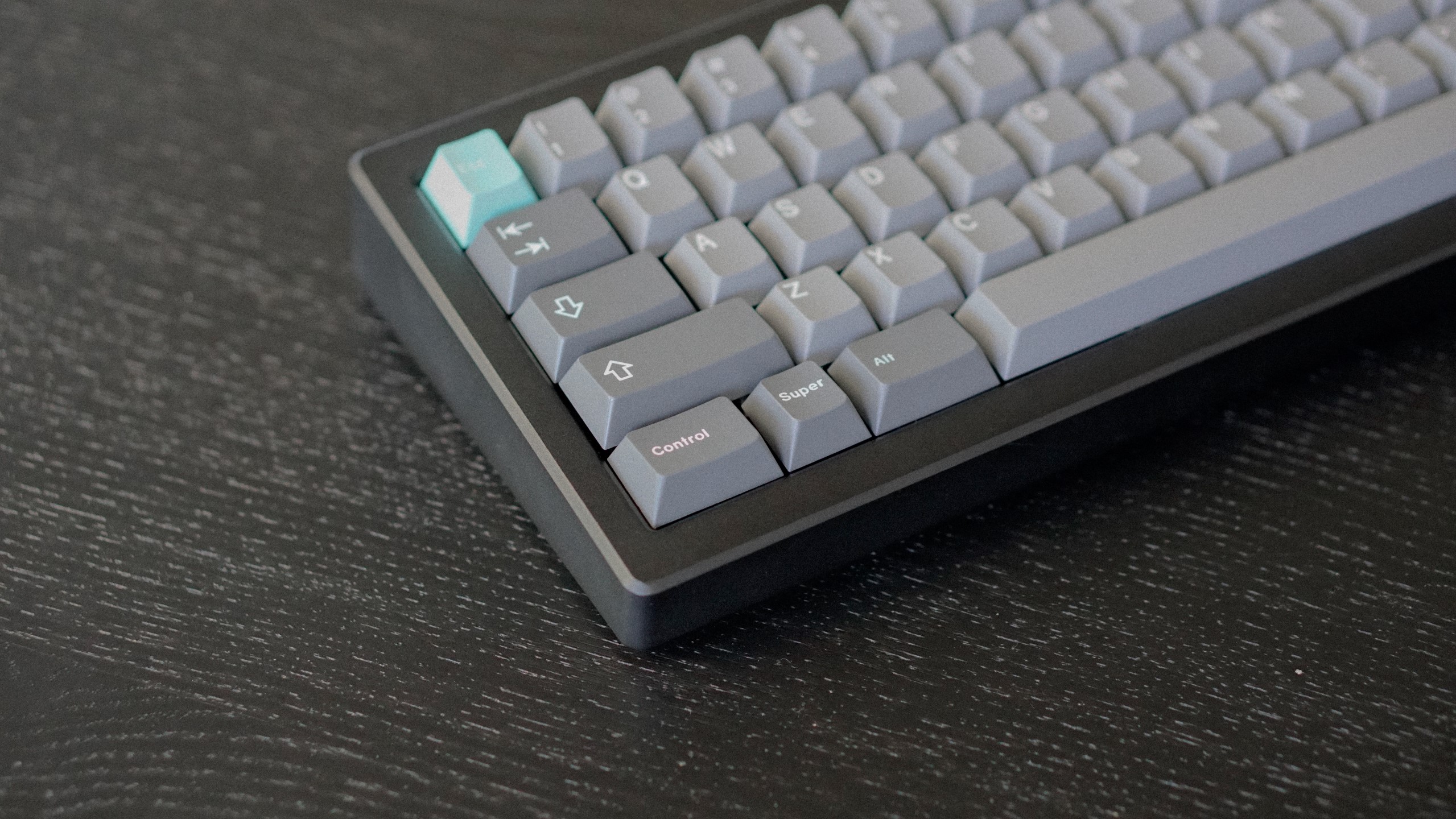

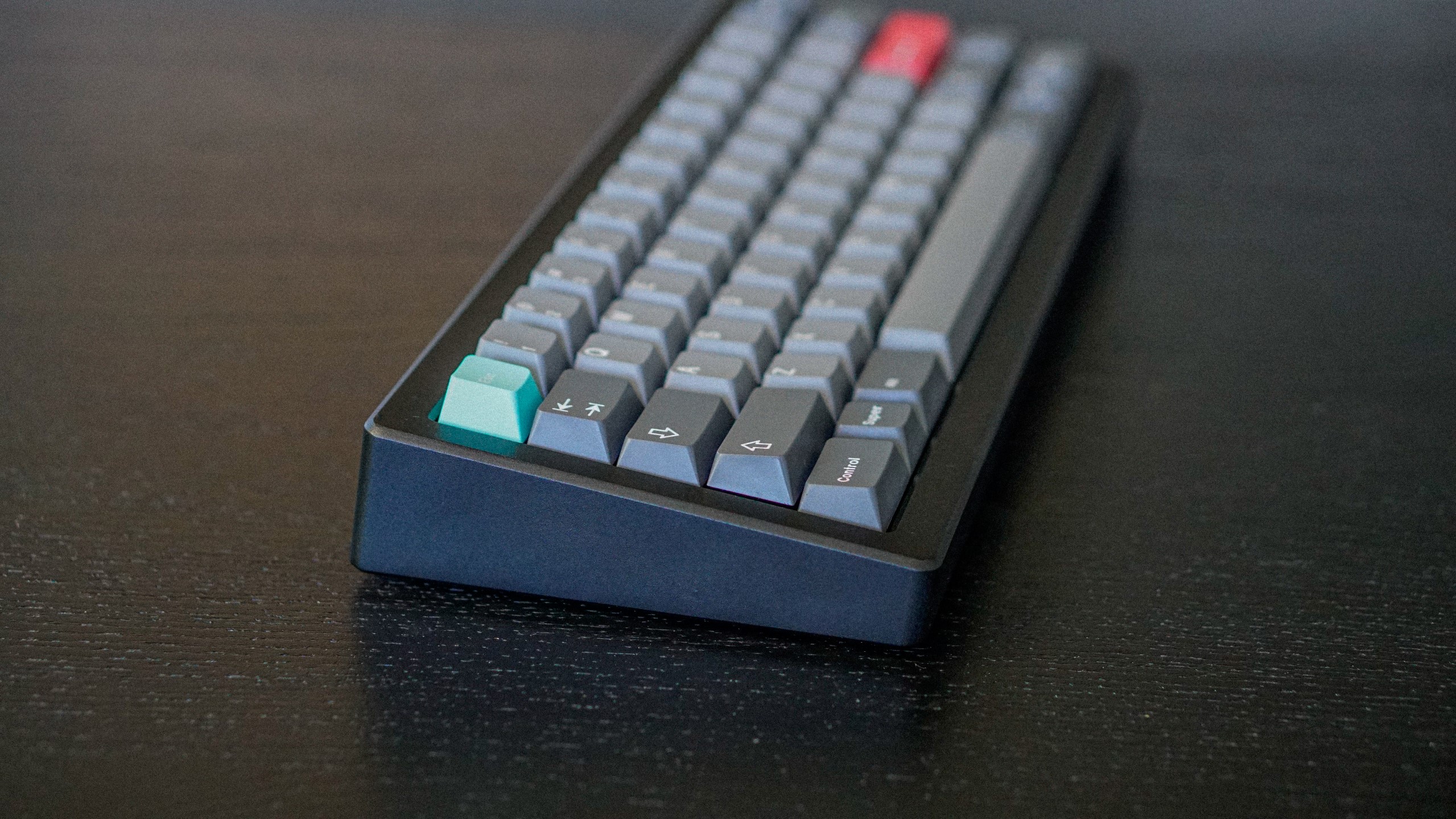

Phantom



CONTENT

The PLX will be built and reviewed by several content creators during the pre-order period, including:

- Taekeyboards (Youtube)
- Alexotos (Twitch)
- DutchmasterW (Twitch)
- Sampakpak (Twitch)
- TimKeyLess (Twitch)
- ManoliVisuals (Twitch)
- Gymleadernathan (Twitch)
- EuraPSD (Twitch)
- Enomooshiki (Twitch)

Streaming / Video Release dates TBC - Join our Discord and follow all the above creators for updates.


FAQ

1. Where will the keyboards be shipped from?
Melbourne, Australia

2. Will there be any other vendors?
No. All sales will occur through our website

3. Do you have a sound-test?
Sound tests will be conducted by each reviewer listed above. Check them all out on their respective platforms!


More information can be found in the PLX Interest Check.
