Pole Star TKL

Hello!
How have you been, friends??

I'm going to do IC again after a long time

I've had a lot of restrictions since I got married three years ago lol

Recently, the long-term connections that led to keyboards gathered to form a team synergy

As a result, I made a TKL keyboard called Pole Star

Although it is produced domestically, we are planning to lower the price based on simple design and various efforts

We are suddenly conducting a product demand survey, but we ask for your interest and participation

We have completed all the sample tests.

I'm going to post on IC and find out what my friends think and what to fix




























Layout: 80% TKL (Top mount)

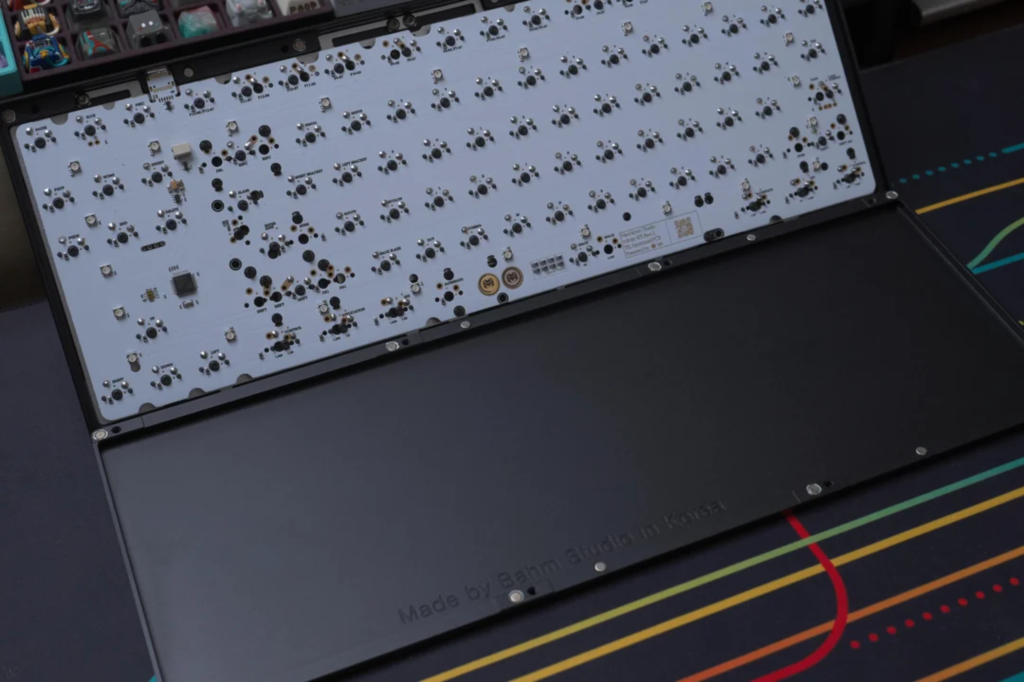

PCB : Infinity TKL PCB ( USB-C / Under RGB / QMK / VIA )

Weight: Black SUS 2T (existing bolt -> Black bolt to be changed)

​Note: Magnetic fixation method of TOP and Bottom

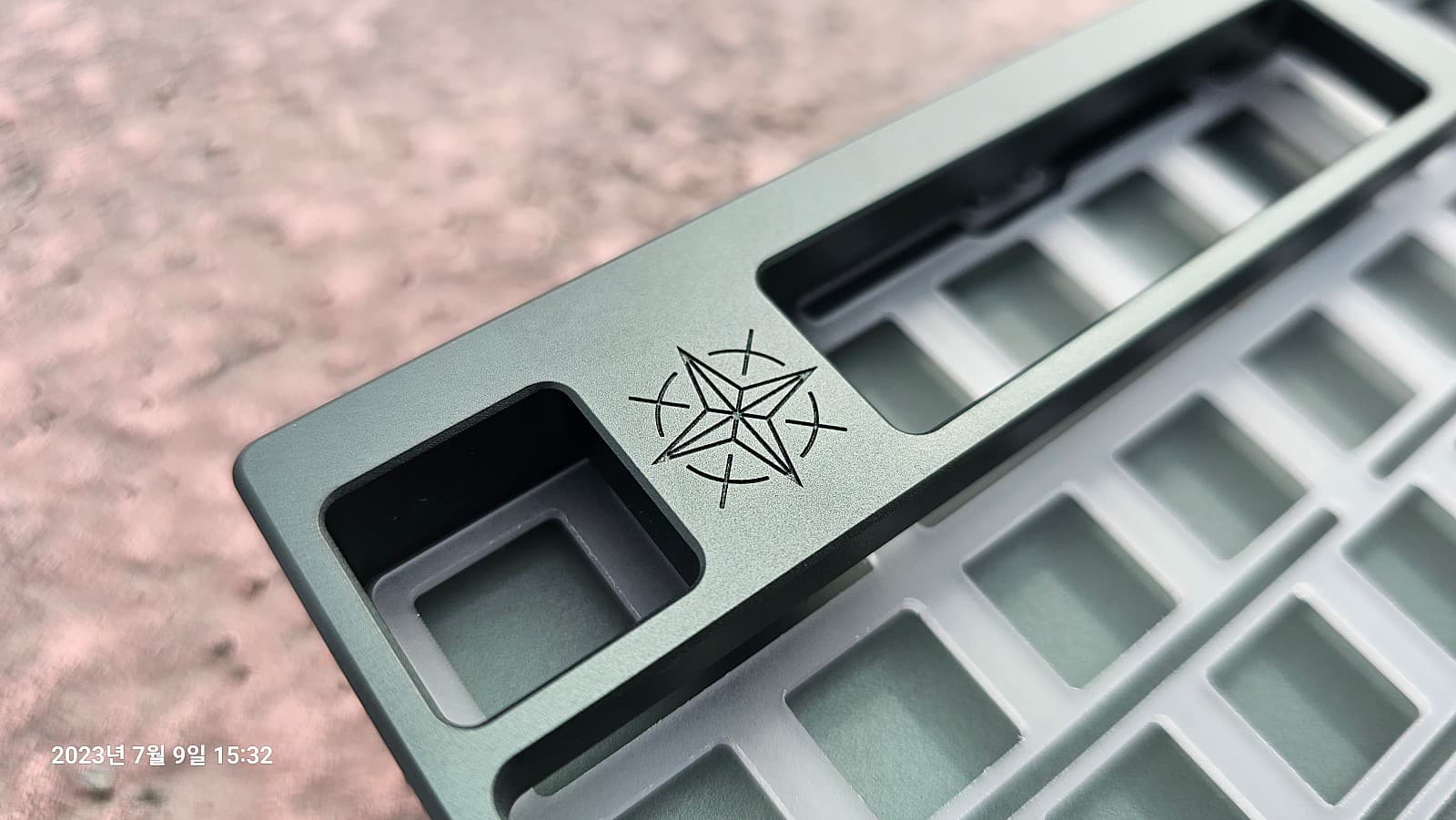

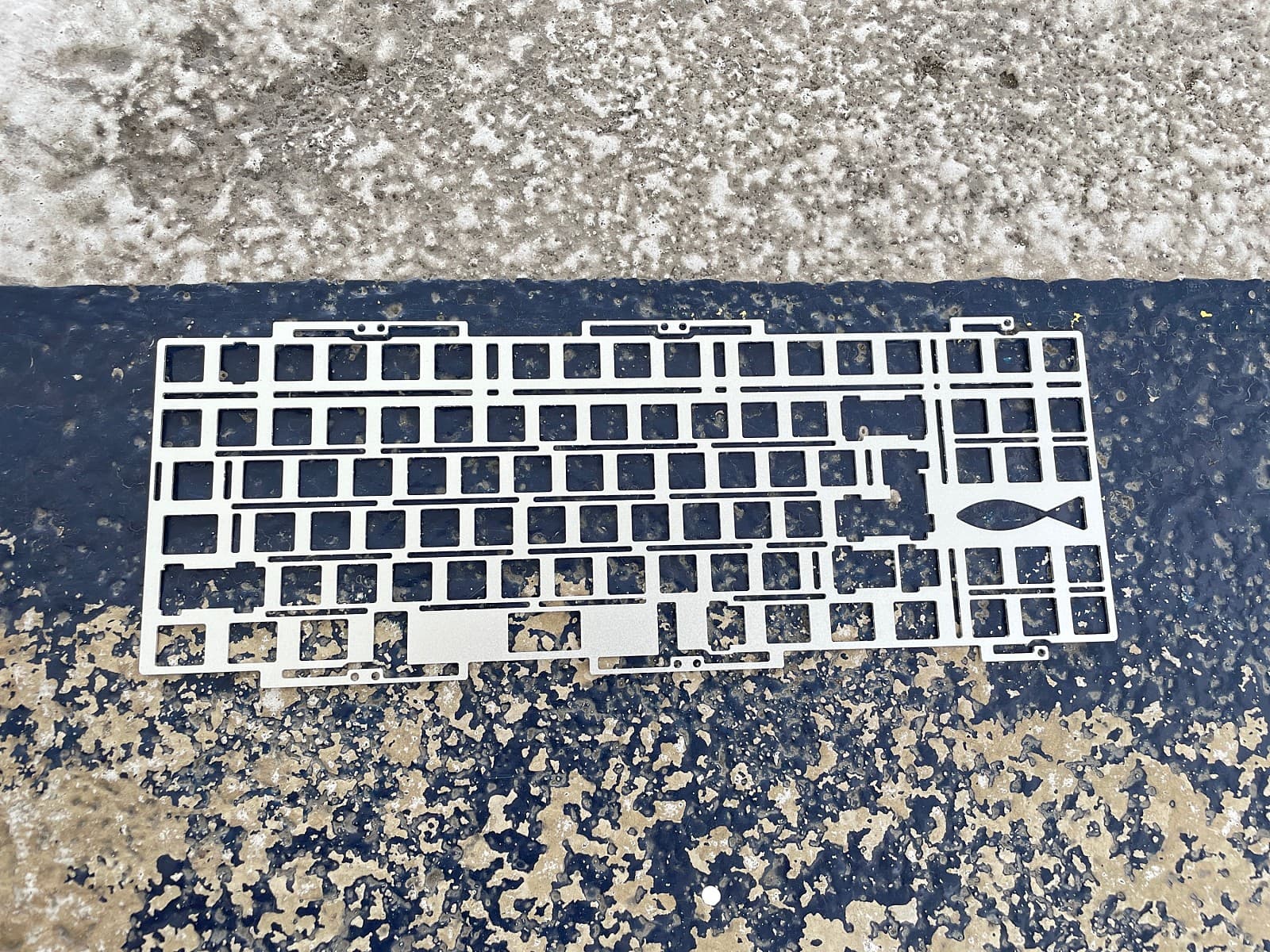

Switch Plate: black, silver aluminium / Plastic

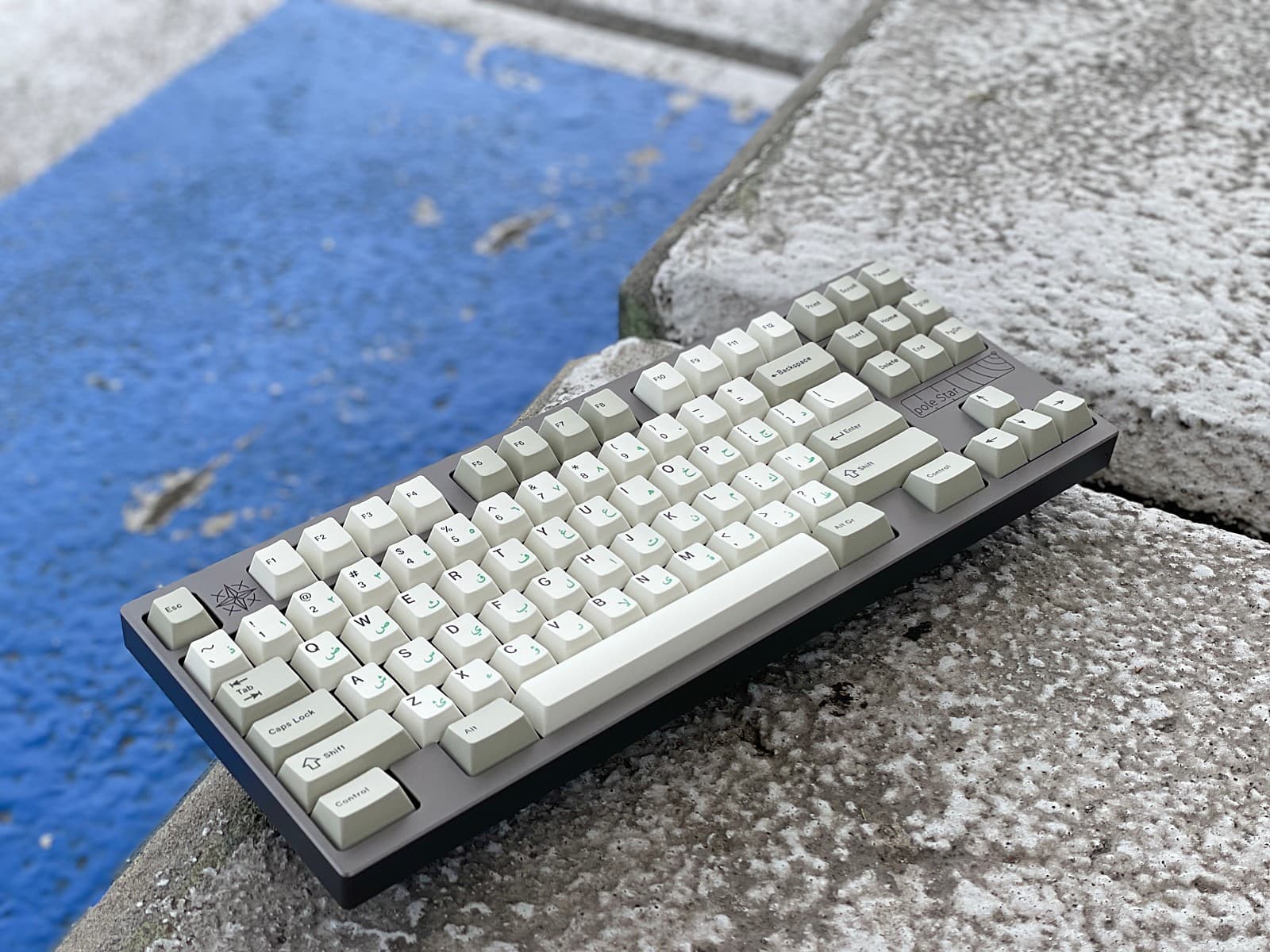

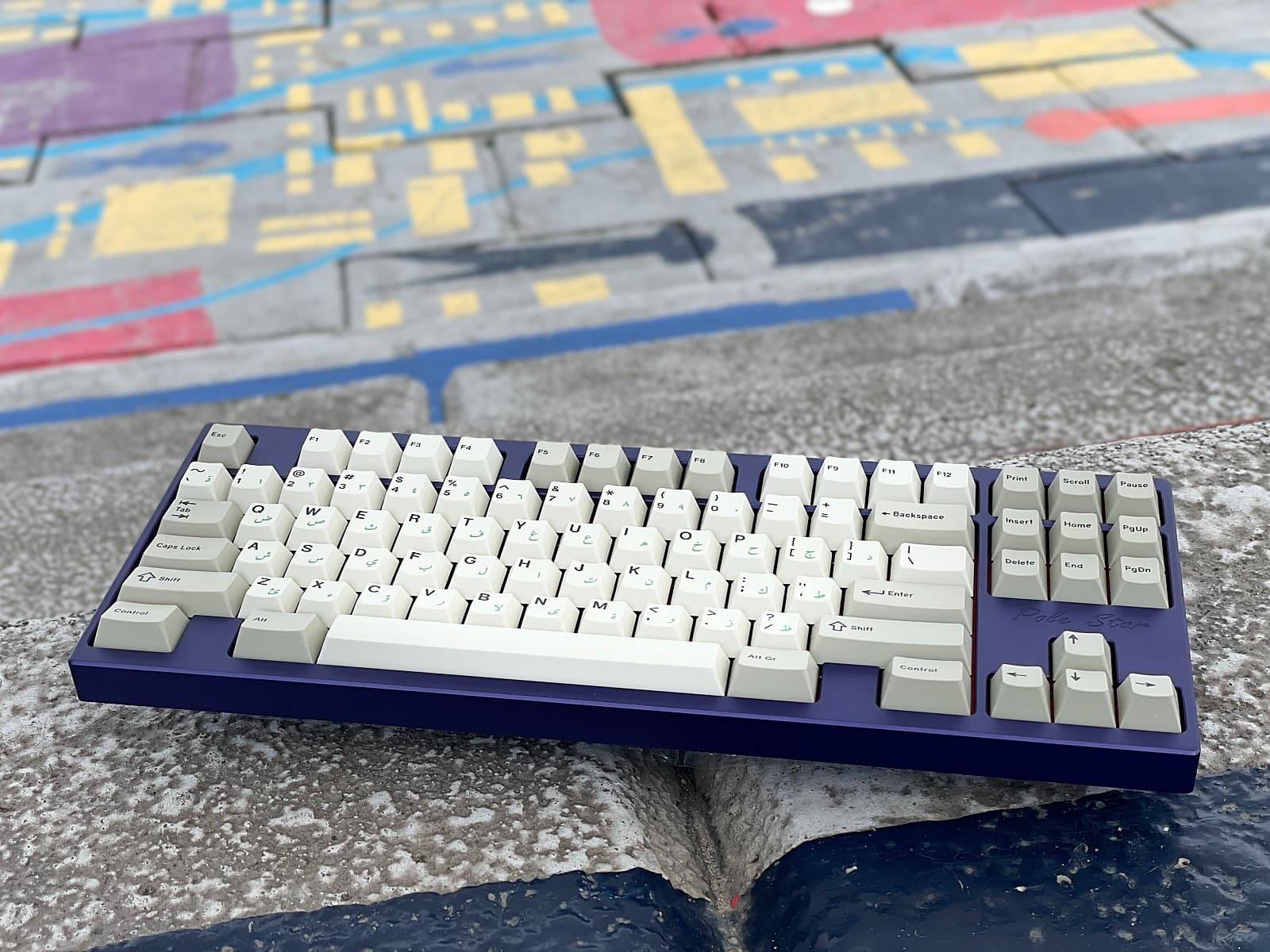

Housing Color: Black, Silver, Dark Green, Purple, Gray

Front and back height / 18.5 / 34.9 mm
Upper and lower bezel: 4 mm
Left and right bezel: 8.5 mm

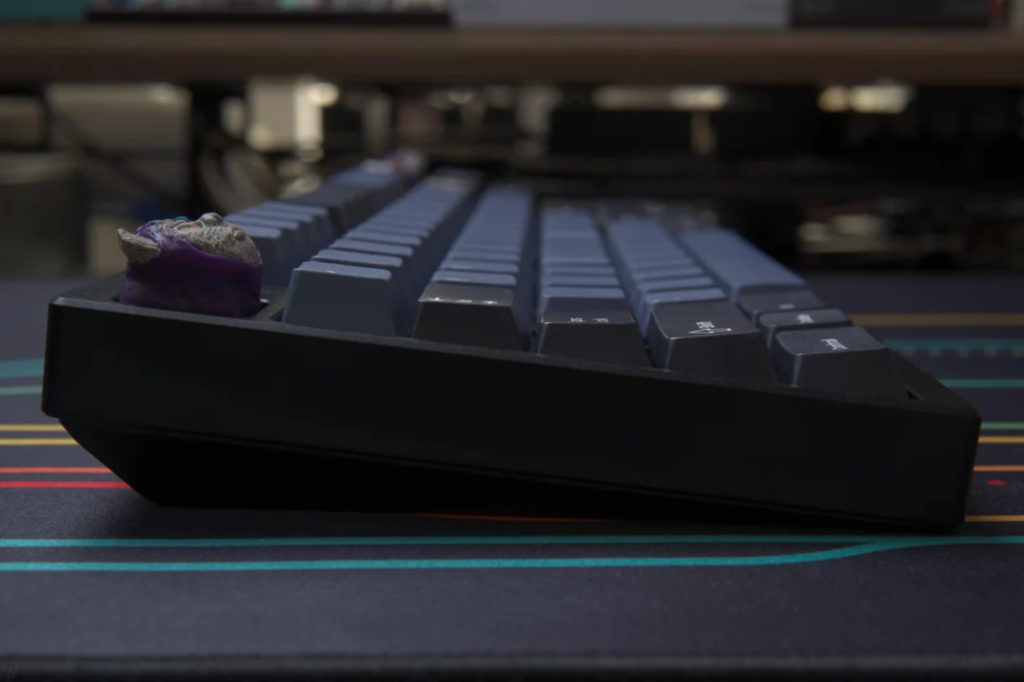

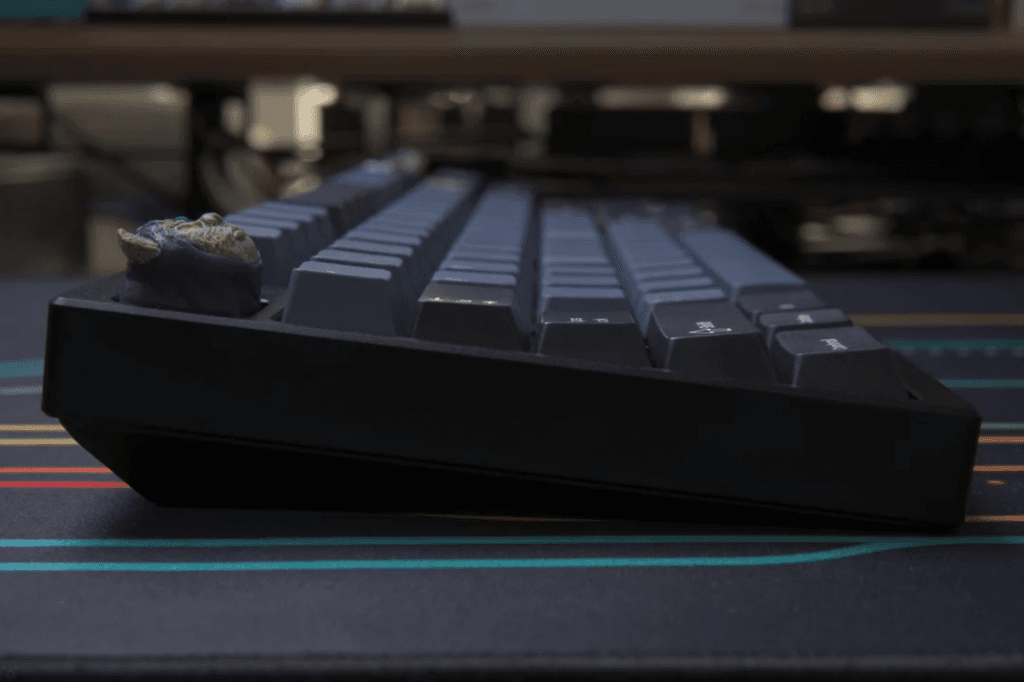

​Slope: 7 degrees

Weight: Approximately 1.8 kg (top and bottom keyboard, weight plate, switch plate)

※ Considering the final build, we considered a light hitting sound

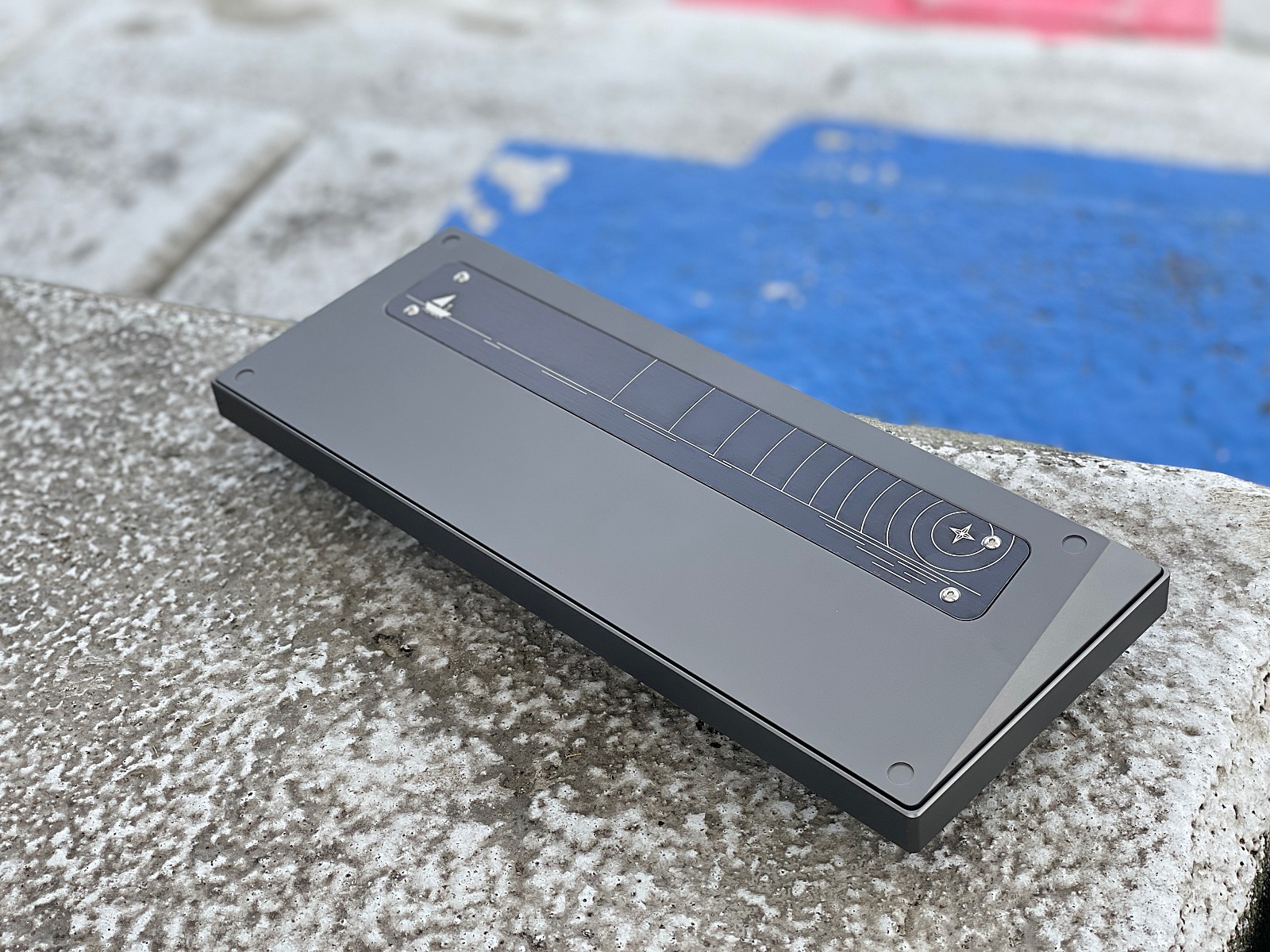

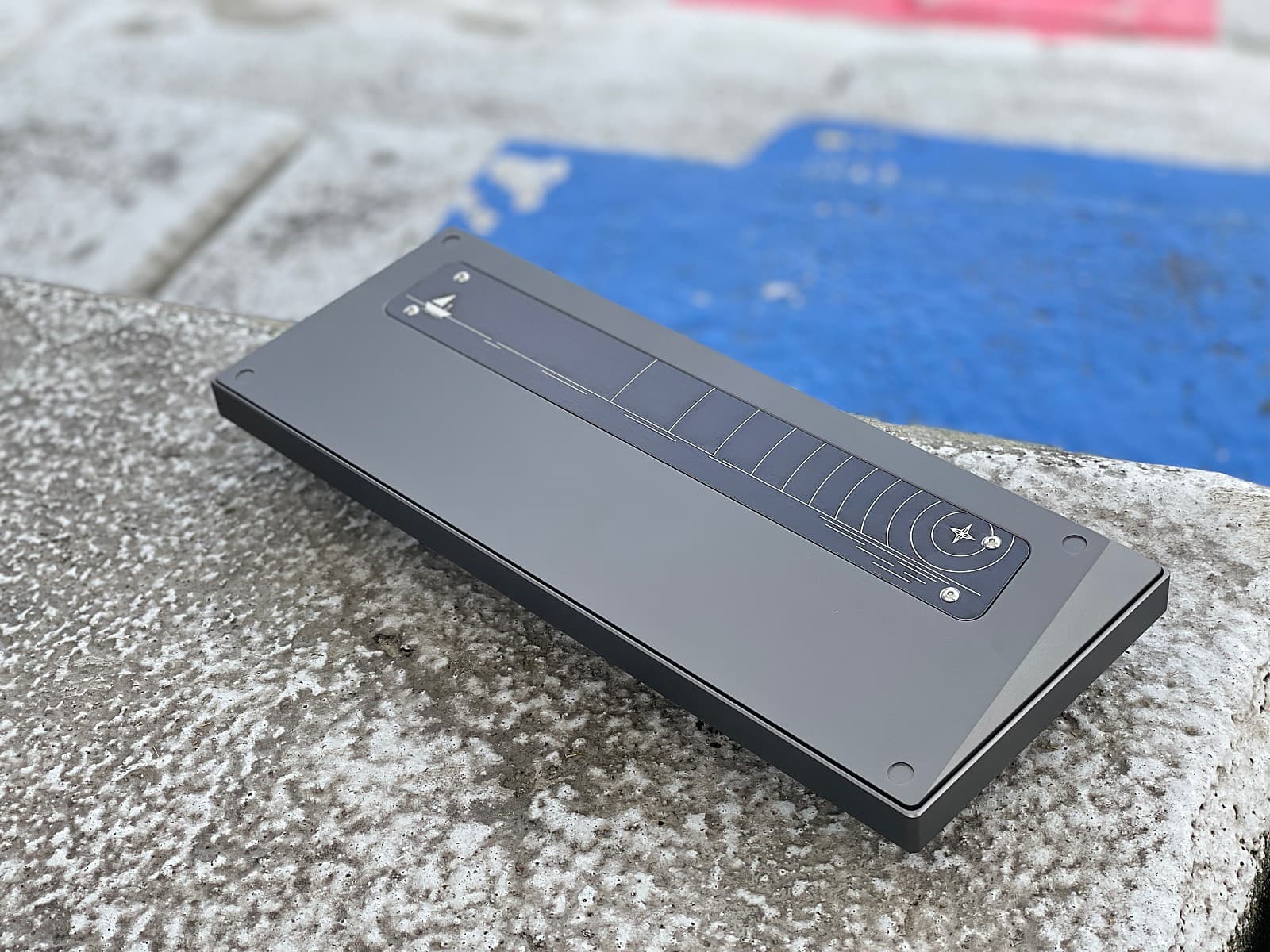

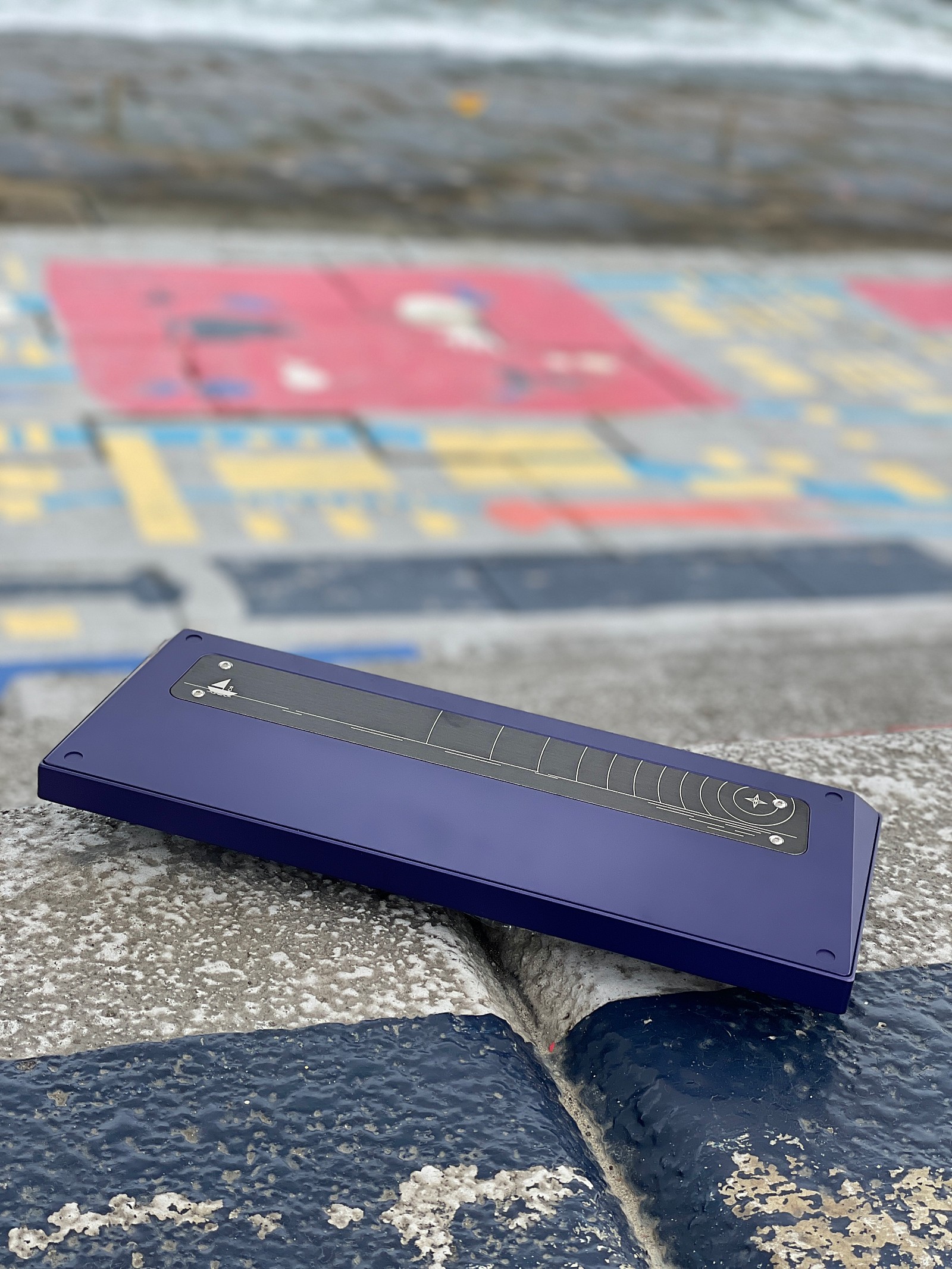

The inner inscription of the bottom plate is a sample, so... If there's a good idea, I'll take it into consideration

​Design and Progress: Team Synergy

Produced by Bahm Studio


Detailed reviews will be conducted through S.Korea / overseas YouTubers

​Overseas ( @LightningXI ) : @LightningXI
S.Korea ( Comming Soon )

==========================================================

​I hope you understand even if my English is not good enough, and if there are any mistakes

I will revise the contents from time to time

==========================================================
