Hi everyone, the Postage Board Mini group buy has launched as of today.
All worldwide orders (except Europe) are being taken on my new online store,
CuriousKeyboards.comAll EU orders are being taken on
Mechboards.co.ukThe previous round GB for the Postage Board was a huge success, and I have decided to upgrade to having a real online store to handle the orders. This should cut down on delays and processing times by quite a lot.
If you're not sure what the Postage Board Mini is, it is a controller board for Hand-wired keyboard builds, similar to the Teensy or Pro Micro. The advantage to the Postage Board, is that it mounts directly to a set of 3 switches on the top row of your keyboard. This makes for a much easier build, and much thinner too. Best of all, it provides a USB Type-C port, which is mounted on the top.
- 25 IO pins available (4 of them pre-assigned as the top row, and 3 columns)
- USB Type-C
- Supports Type-C to Type-C cables
- PCB will be matte black in colour, with silver contacts

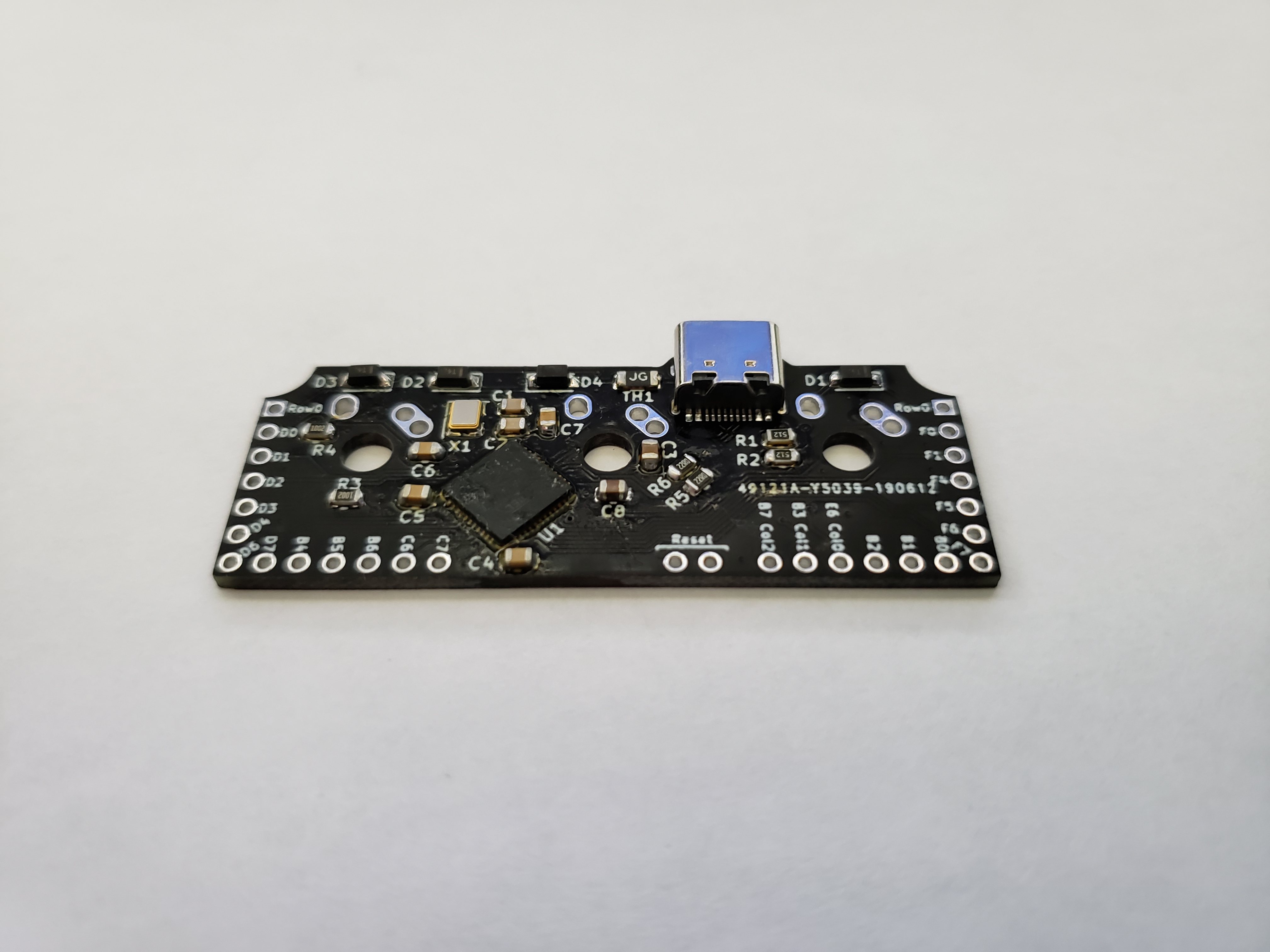

Here is an image of a prototype of the Postage Board Mini

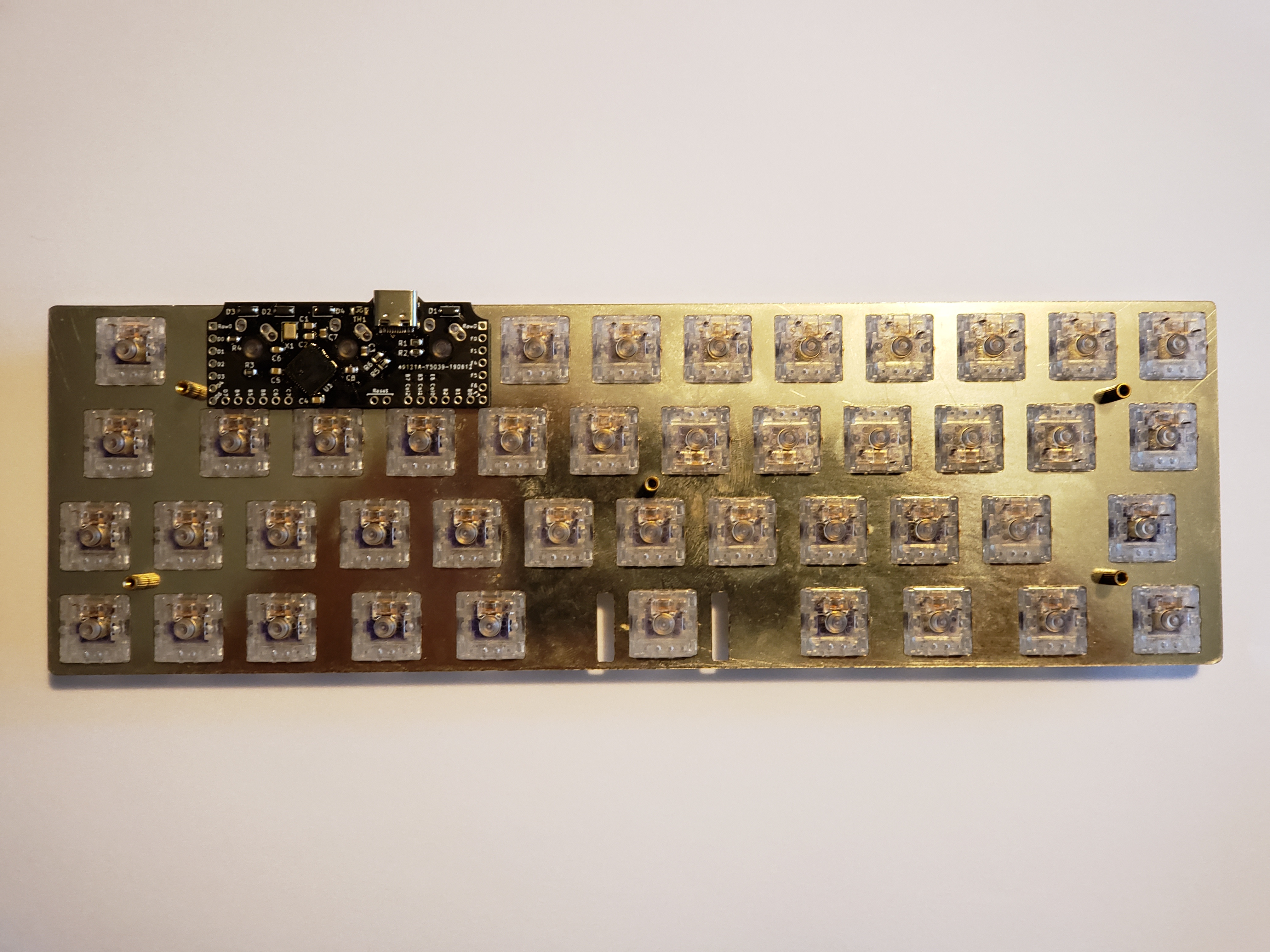

https://i.imgur.com/3FUS2I6.jpg Here is an image of the Postage Board Mini mounted on a keyboard
https://i.imgur.com/dsxsqGU.jpgThe new Mini version improved upon several aspects of the previous model, based all on community feedback.
- Smaller vertically, so it no longer requires any switches to be rotated!
- Pinouts are all arranged along the edges of the board, for easier routing access.
- Better labeling of the IO pins, specifically the pre-assigned Columns and Row pins, to allow you to know which IO pin addresses they correspond with
- The Group buy will run from July 3 until August 3. I anticipate being able to have all the orders shipped out 1 month after the close date of the group buy.
The boards are priced at $20 each. To help with shipping costs, I am offering Free Shipping for all orders of 5 units or more within Canada, US, and Europe. Please contact me with any questions about larger orders.
