Promenade - 60% Ortho pcb (Boardwalk clone) - Solder version w/ RP2040

Promenade

This an independent remake of my favorite keyboard layout: the Boardwalk. I added some features that I wanted in my own boards. I completed the group buy for the hotswap version of the Promenade earlier this year. This version is solder only version and features an RP2040 MCU with 32 M-bits of flash memory instead of an ATMega32u4. In addition to the 3u/6u spacebar support, JST connector, and gummy o-ring cuts added in the hotswap version, this version also features a new layout options and encoder support. For details on the hotswap version (extras of which is still in stock) please see the GB Post.




Join the Group Buy

GB Details
Group Buy Timeframe: Occtober 18 2024 - November 16, 2024
Estimated shipping: January 2025
PCB Price: $55
FR4 Plate: $25

Worldwide Vendor: Krado Industries
USA Shipping: $10
Canada Shipping: $14
International Shipping: $25+

Promenade Solder Versions

• USB-C
• Daughterboard version (no usb port)

Layouts

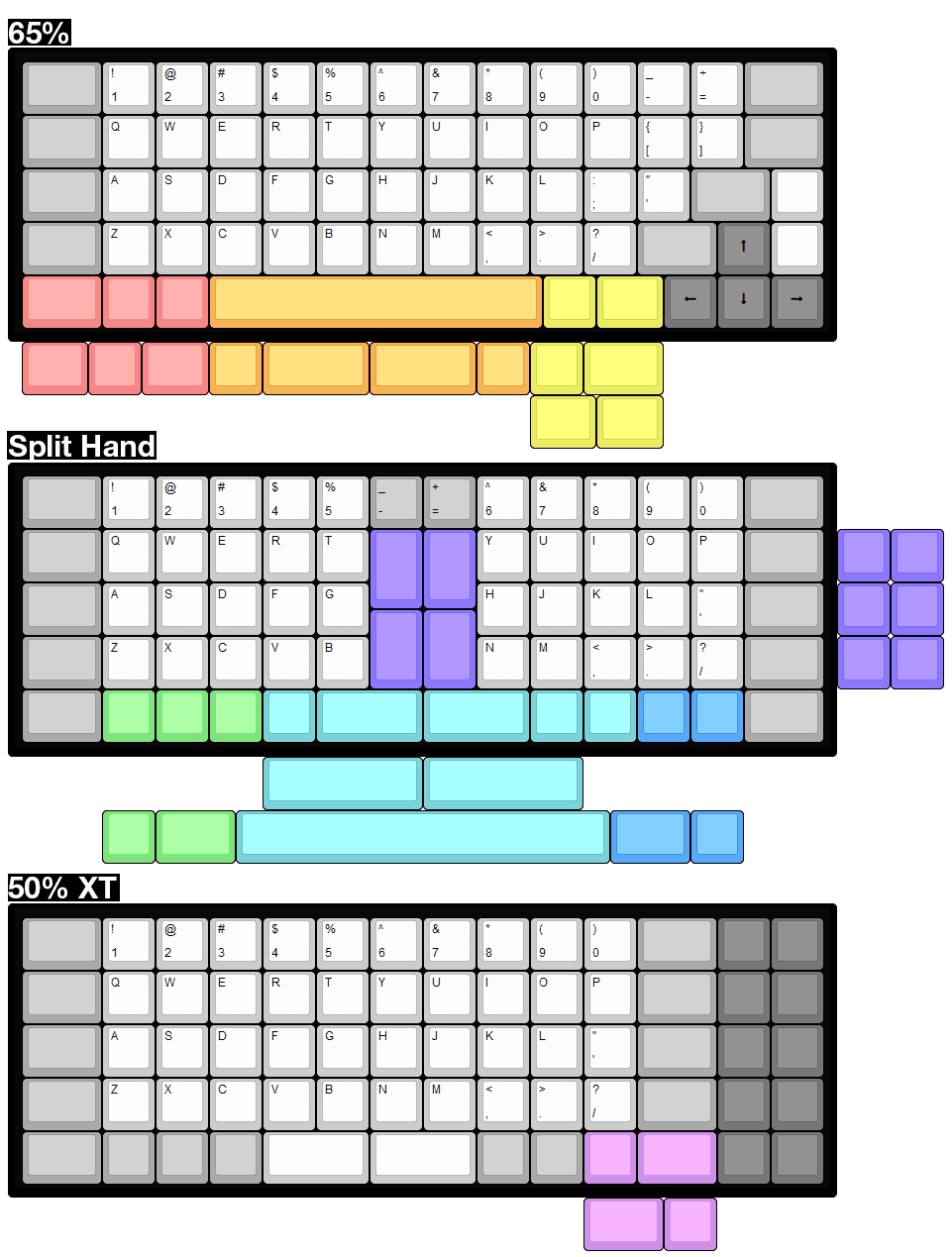

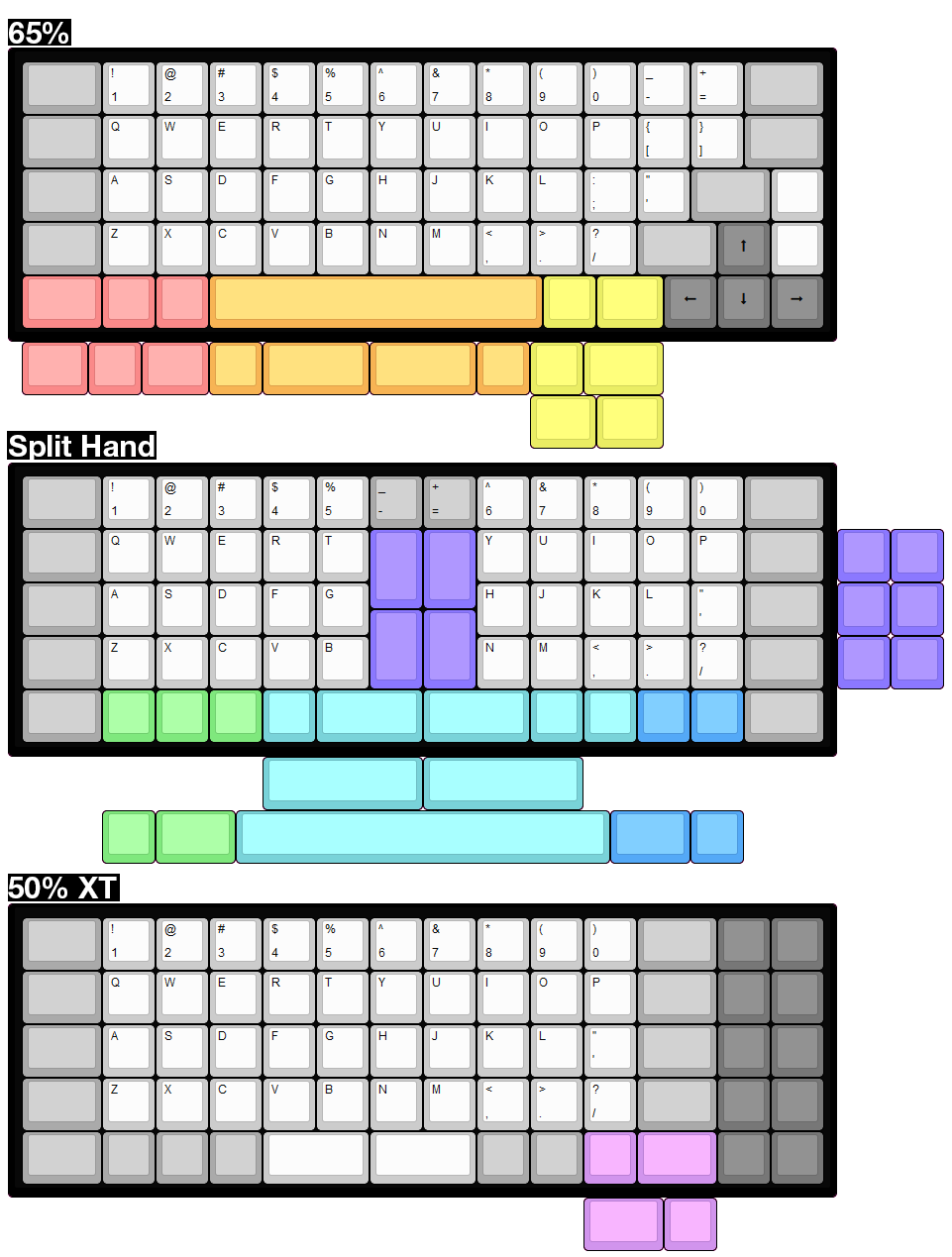

Layout Options (KLE) ⌨
General layout examples:


GB Order Here
Discord

Features:

• Powered by QMK, VIA compatible
• RP2040
• 32M-bit of flash memory (W25Q32JV)
• ESD Over-Current Protection (SRV05 + Fuse)
• Edge cuts for o-ring boards like the Bakeneko*
• Breakout pins
• RGB Underglow
• Mill-Max socket compatible
• PCB (and FR4 plate) thickness/color: 1.6mm/Black
• JST connector for universal daughterboards**
• Rotary Encoder support

Both the USB version and DB version will have a JST socket.
Since the key switches on the Promenade are a bit farther from the edge of a 60% compared to a traditional staggered 60% pcb, gummy o-rings may not provide get an adequate friction fit. To try to alleviate this issue there are matching M2 holes on the PCB and FR4 plates where standoffs can be inserted to stretch the o-ring.
7u spacebars can use clip in stabilizers, but other spacebar keys should use screw in stabilizers due to the stab holes overlapping slightly.


More Photos
