Quantum60 - 60%Xt Plateless Gummy O-Ring Mount 50 Units will be In-stock on www.abunchofnumbers.com on Saturday 19th at 5pm GMT Please make sure to read through everything here and in the discord server for all the information. Production Units:
Board Details:
Mounting - Plateless Gummy O-ring Mount + Top Mount
Layout - 60% XT with WKL and WK
Colours - Sand and Red
Typing Angle - 6.5° typing angle
Materials - Aluminium 6063, Stainless Steel, Polycarbonate
Weight - ≈ 2.2Kg / 4.85 lbs Built
Front Height - ≈19mm adjusted for front lip (≈24mm EKH)
Unit Count - 100 total Units, 50 via Reservation System (Completed), 50 In-Stock Units
Unit Number - Every board is numbered between 001-100, these will be randomly assigned
Pricing - A-Stock $510 USD, B-Stock $485 USD, this does not include a PCB
With PCB - A-Stock - $550 USD, B-Stock $525 USD
Included with the Quantum60:
Aluminium Plate
50a O-ring
Gaskets
Bumpons
Microfibre Cloth
Carrying Case
Extra Hardware + Spares (Screws) Please note: The kit does not include a PCB, please add a PCB from the extra parts for a valid order. Extra Parts:
Plates - Polypropylene, Carbon Fibre, POM
PCBs - Hotswap and Solder (every PCB includes a daughterboard + JST)
O-Rings - 30a (Clear), 50a (White), 70a (Black)
Additional Extras - Carrying Case, microfibre Cloth, gaskets, bumpons
Sale Details:
Vendor - www.abunchofnumbers.com
Availability - 50 Units In-Stock, 50 reservation orders already shipped out
Configurations - Mix of Sand, Red, WKL and WK
Time - Saturday 19th October at 5pm GMT
Shipping - Orders will be shipped out the following week with DHL International Express from the UK Please join the discord and read through the updates channel for more information
Manufacturing Issue:

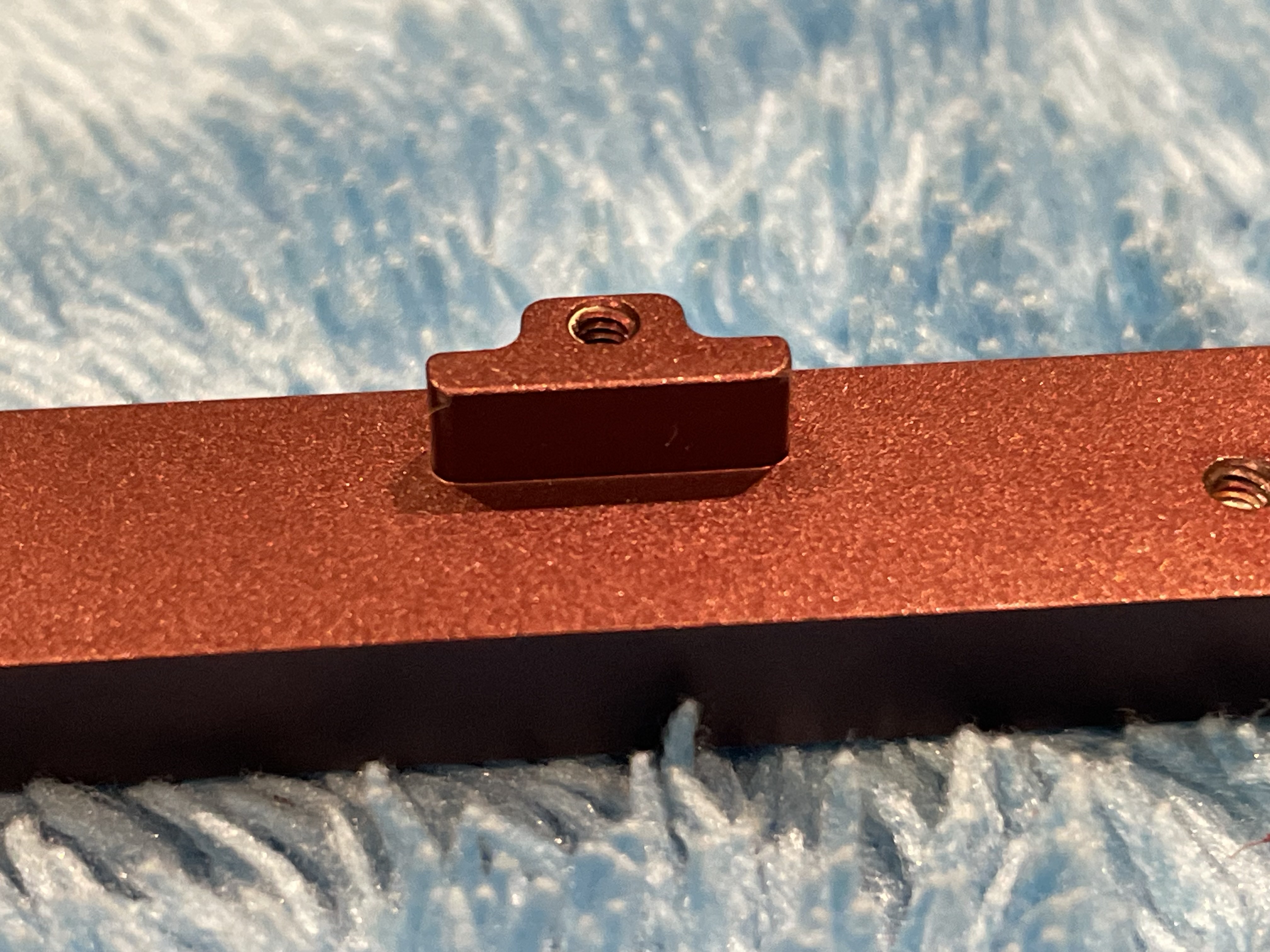

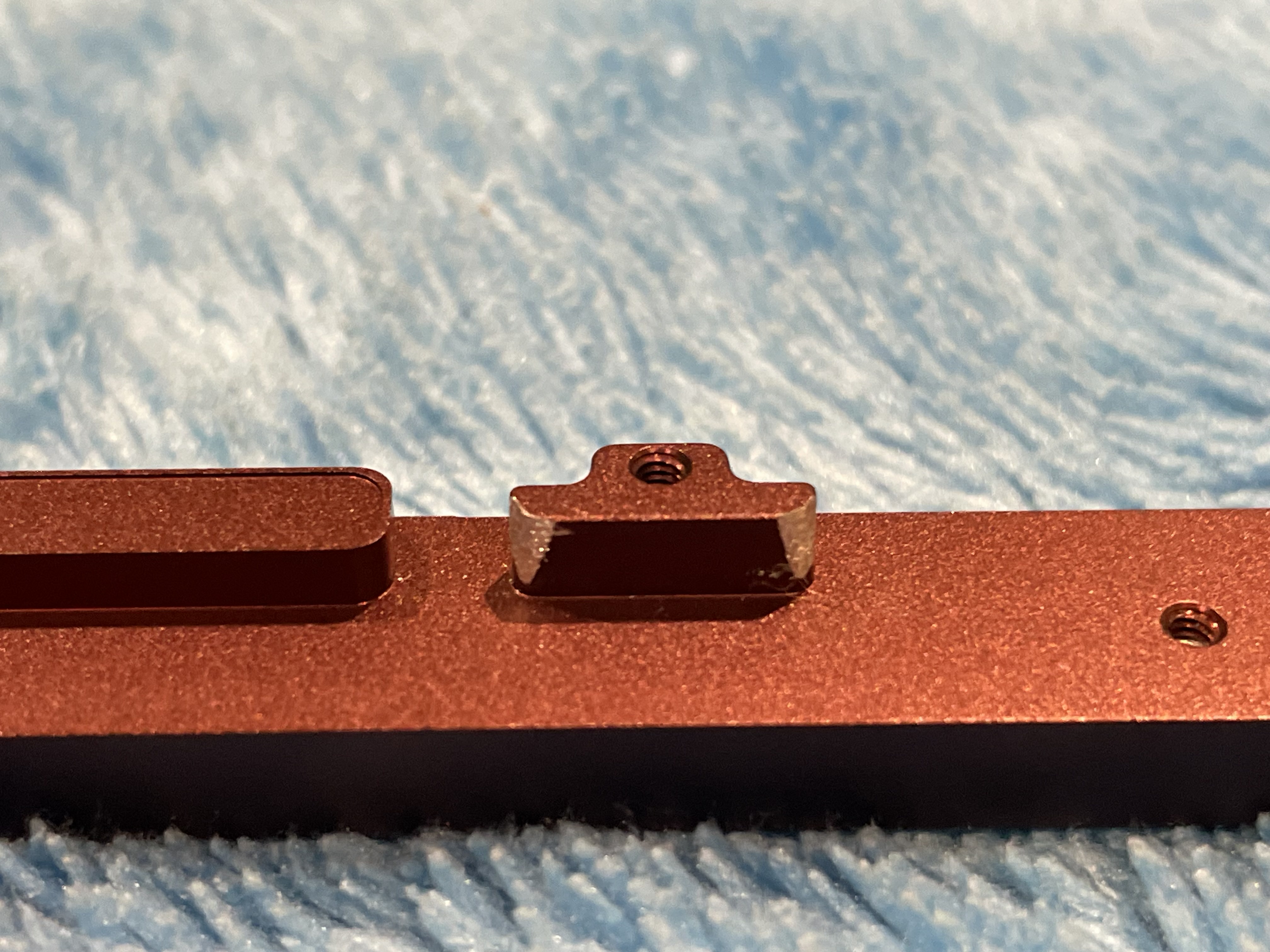

The fit between the top case and the stainless steel middle is slightly too tight due to a manufacturing fault. The two case parts do fit together but makes assembly and disassembly quite difficult. To fix this issue, it was decided that the edges of the screw points on the underside of the top case be filed back slightly to improve the fit. These points are not visible when the keyboard is built or unbuilt and only visible when the top case is completely removed. This issue is detailed in the images below, the build guide, Clackbait's VOD and Alexotos most recent Quantum60 stream.Almost every unit has filing to some extent, with some screw points requiring more filing than others.PCB Layouts:

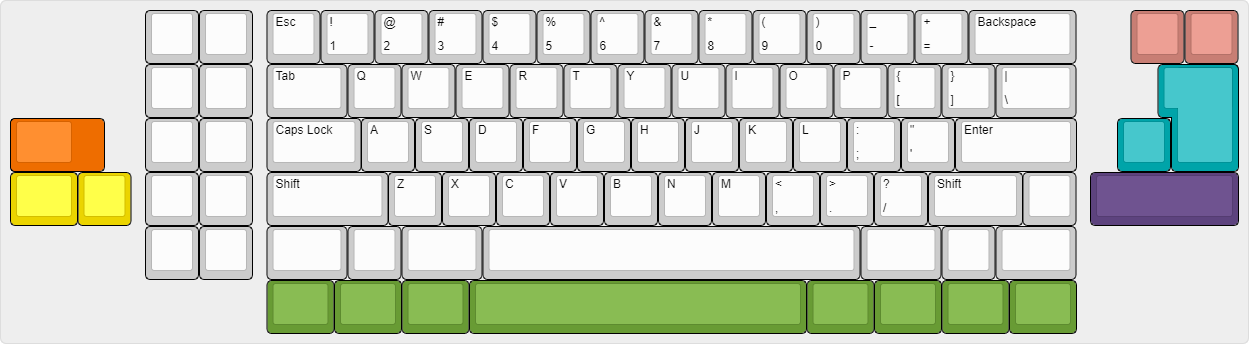

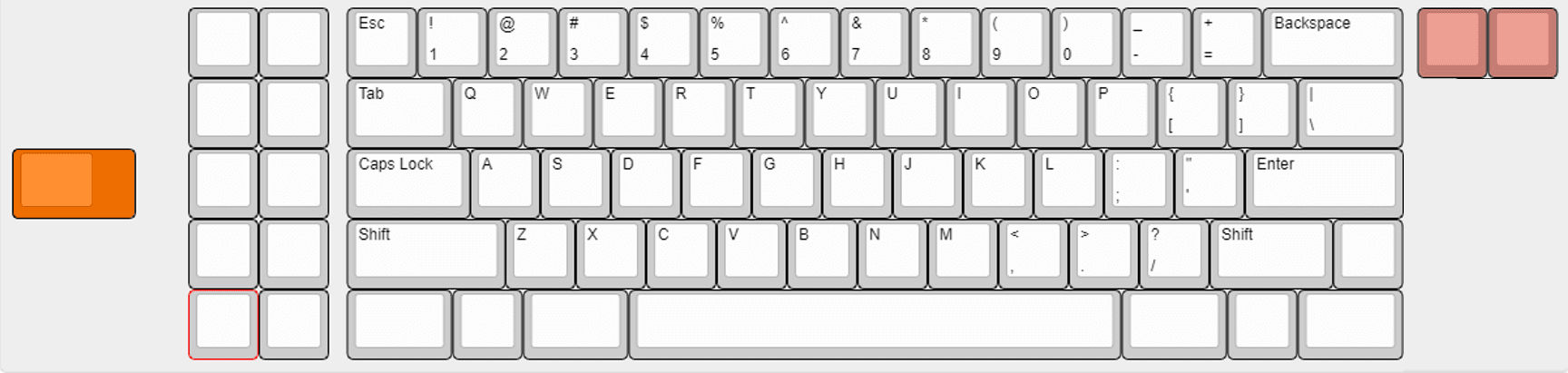

Solder and Hotswap Layouts
Thanks to SmollKeebs for designing the PCB.
Build Guide:
Media:
Alexotos' Production Unit Stream:
https://www.twitch.tv/videos/2258070475Alexotos' Hyperlapse:
Clackbait's Production Unit VOD:
Tofu Types Overview:
Clackbait Sound Test:
Nixies Sound Test:
Sarokeys BCP Sound Test
Quick Sound Test:

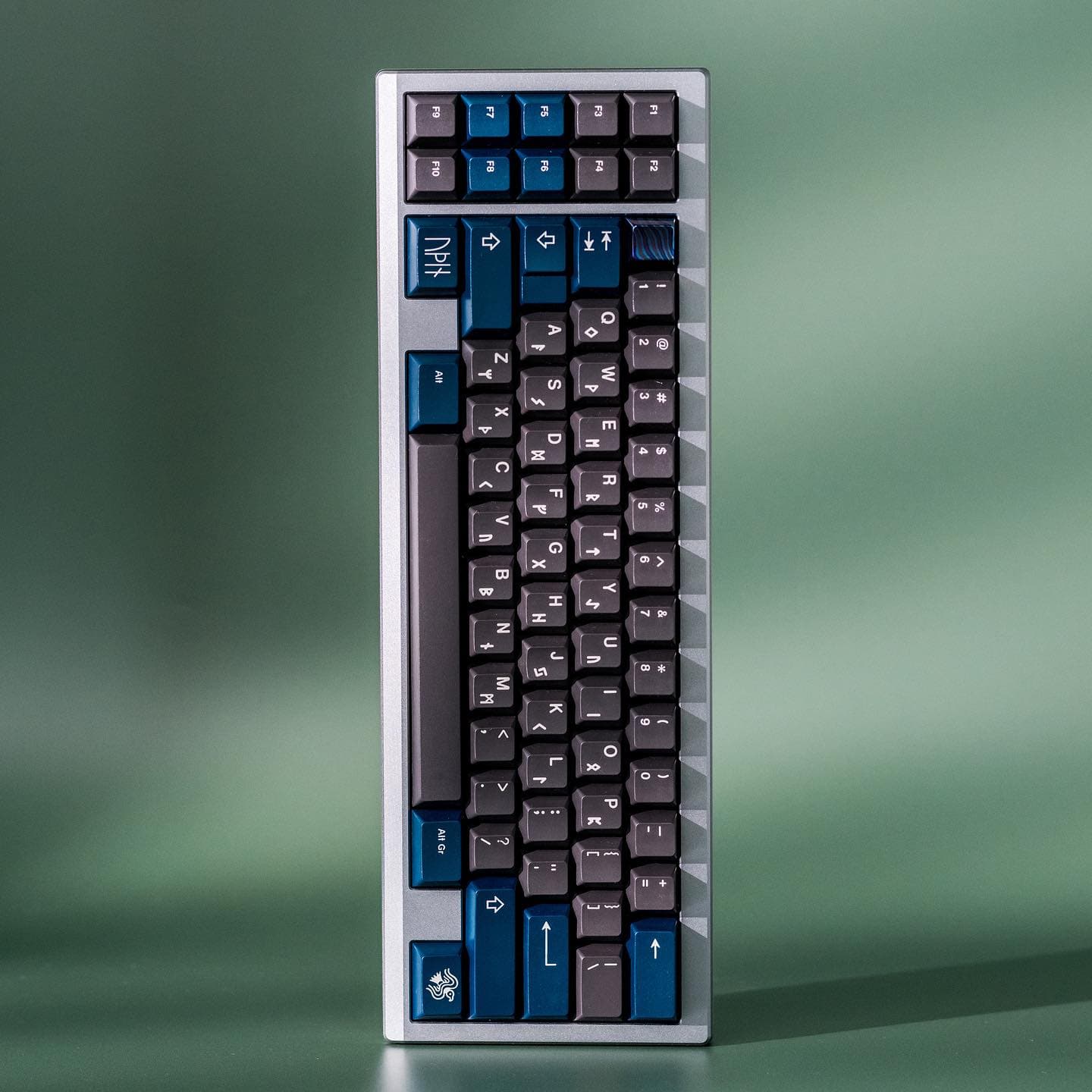

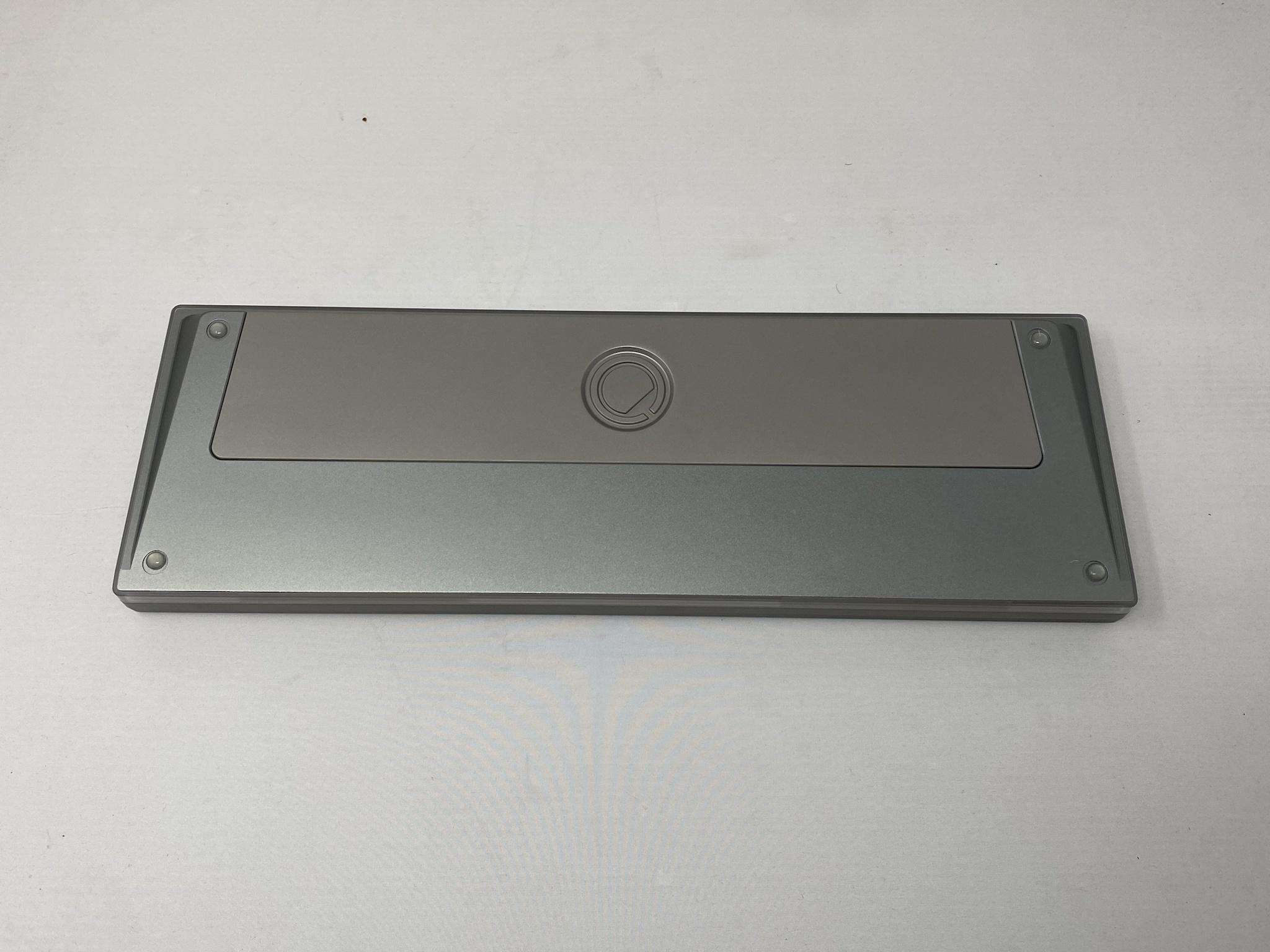

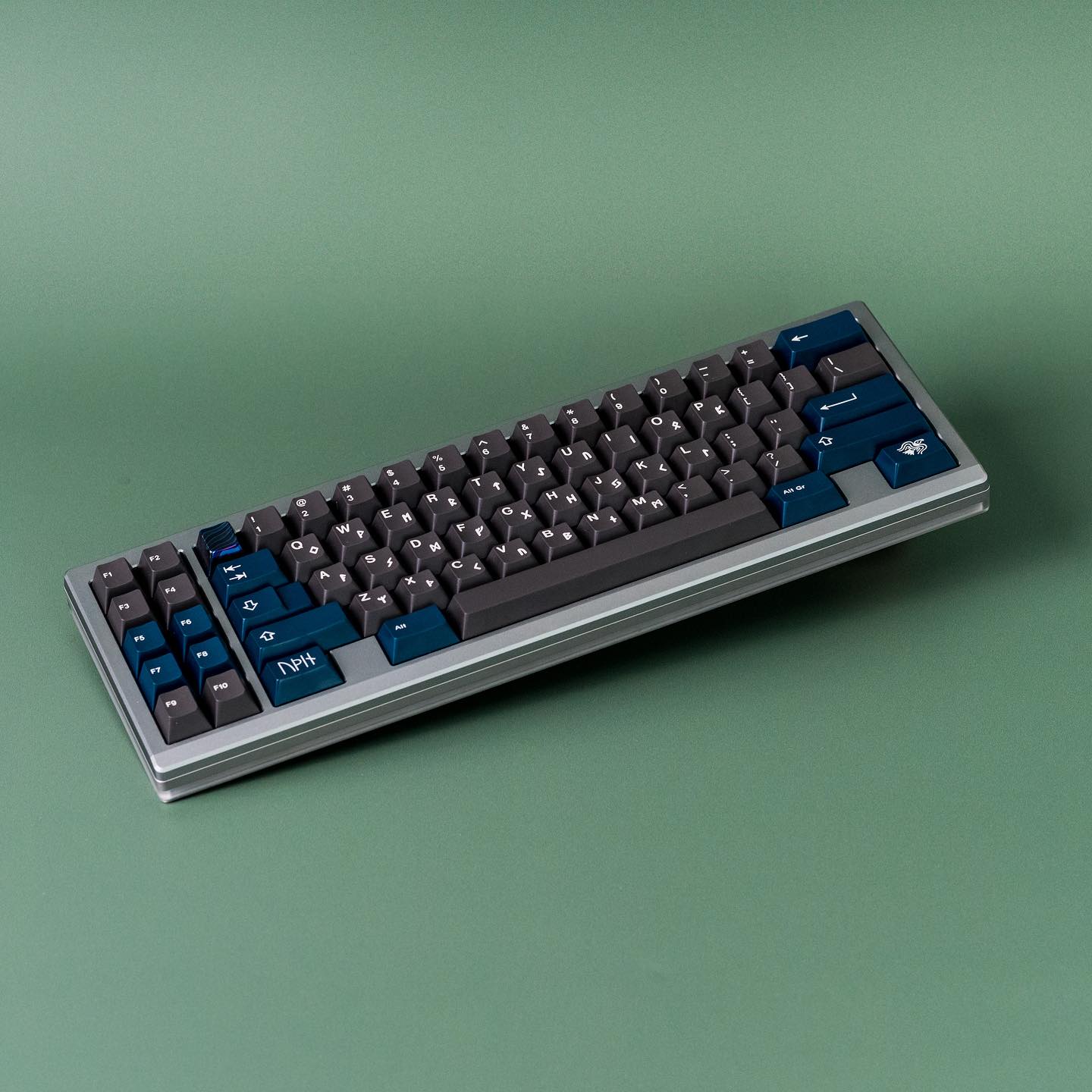

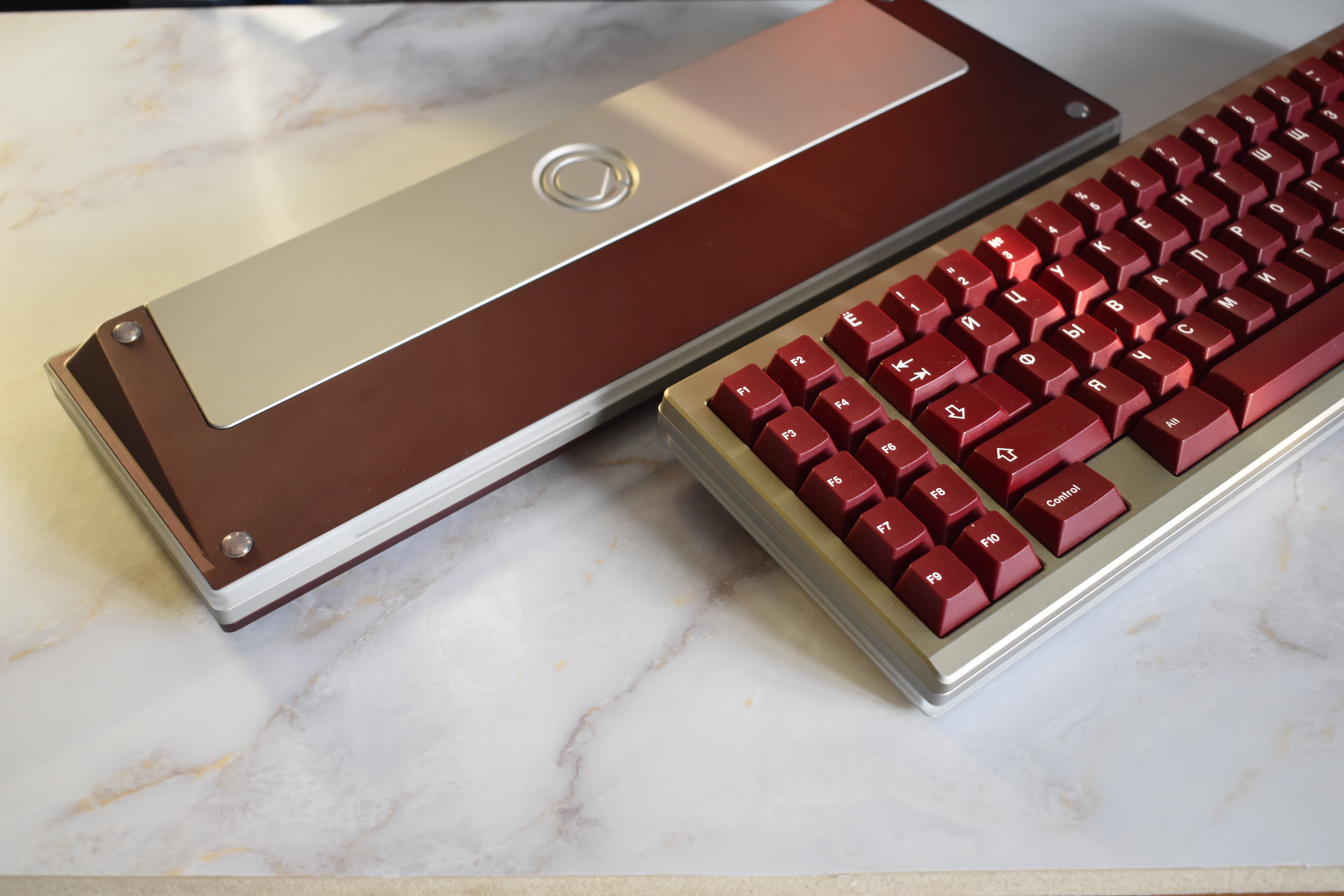

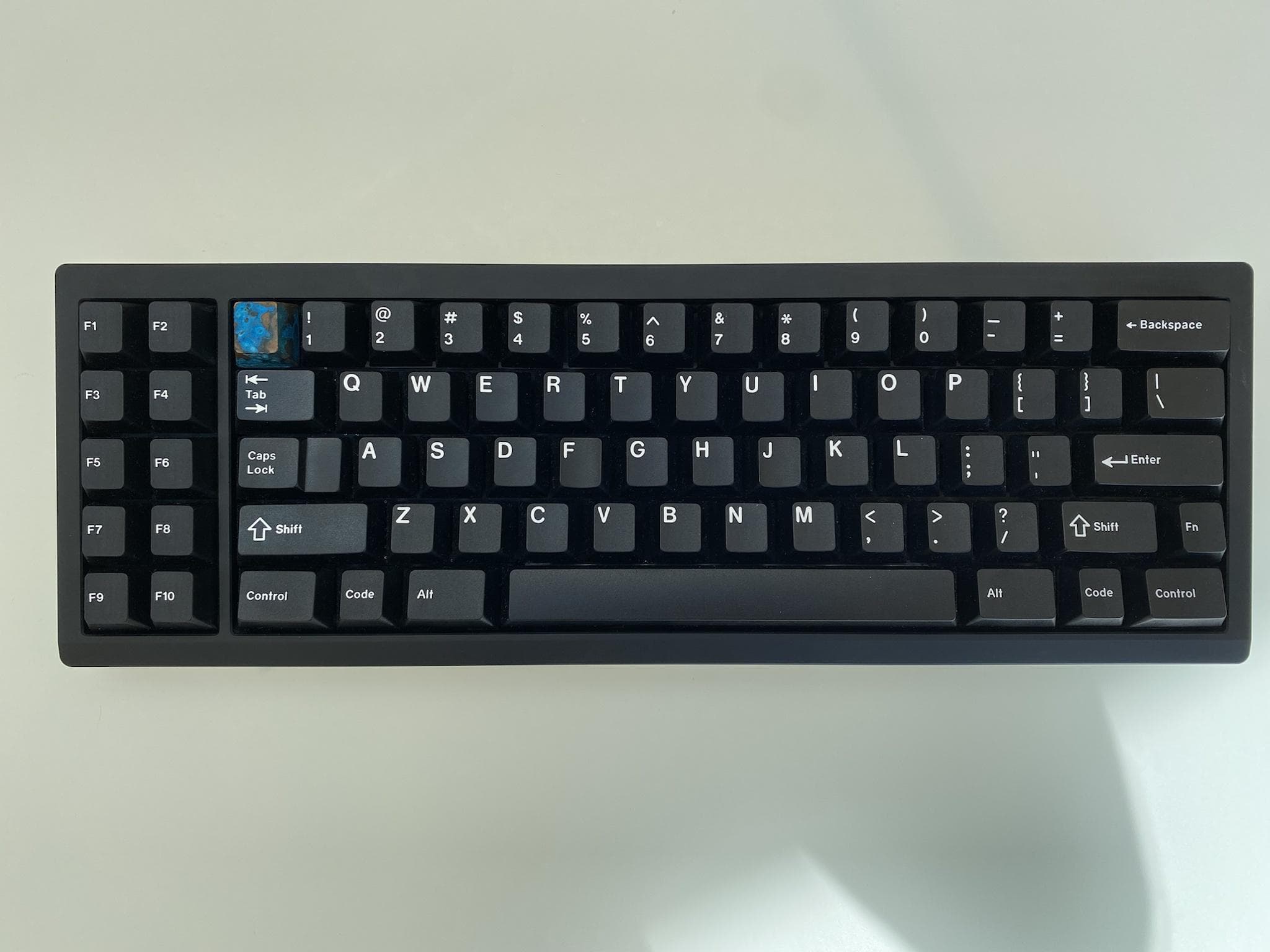

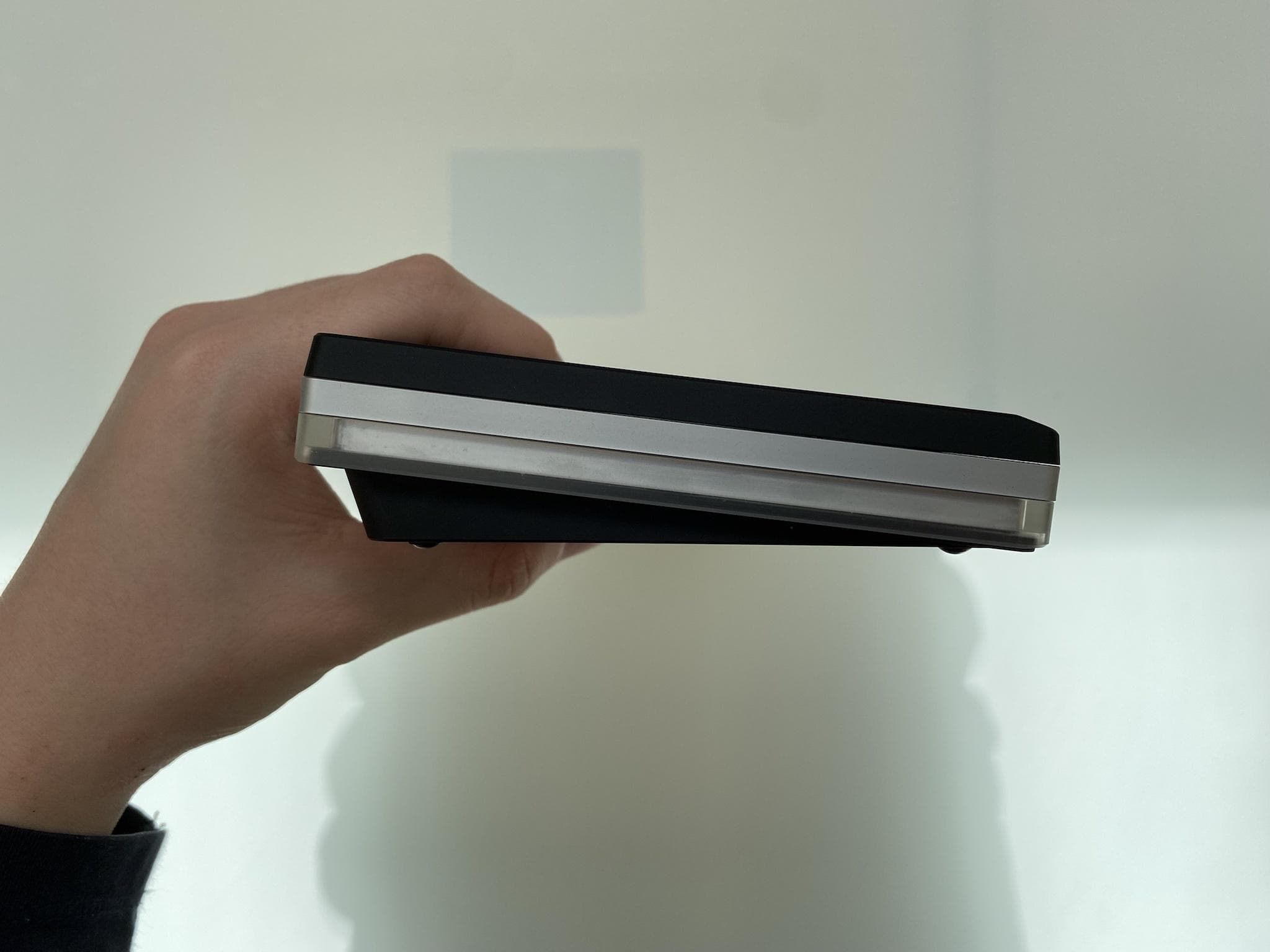

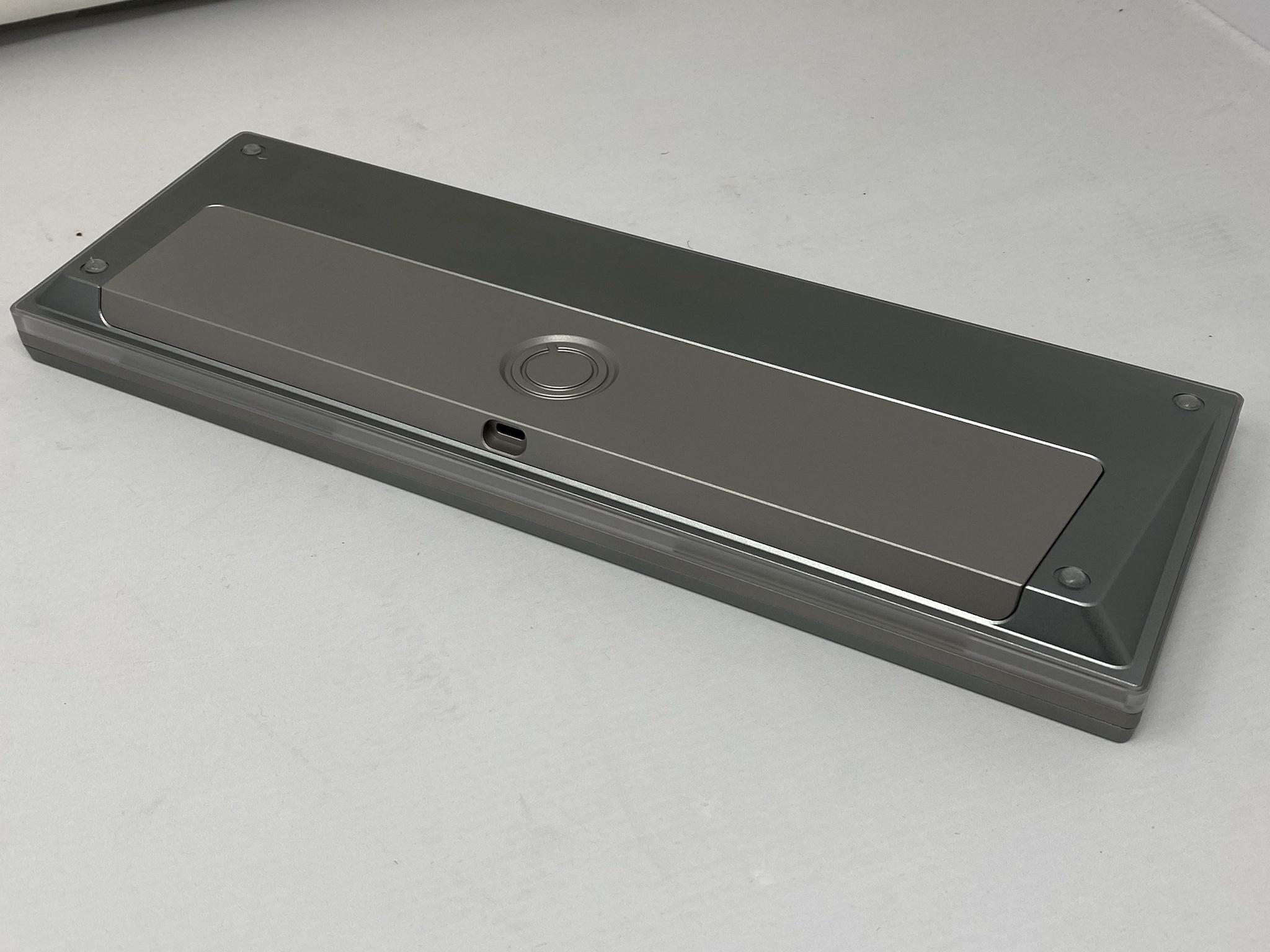

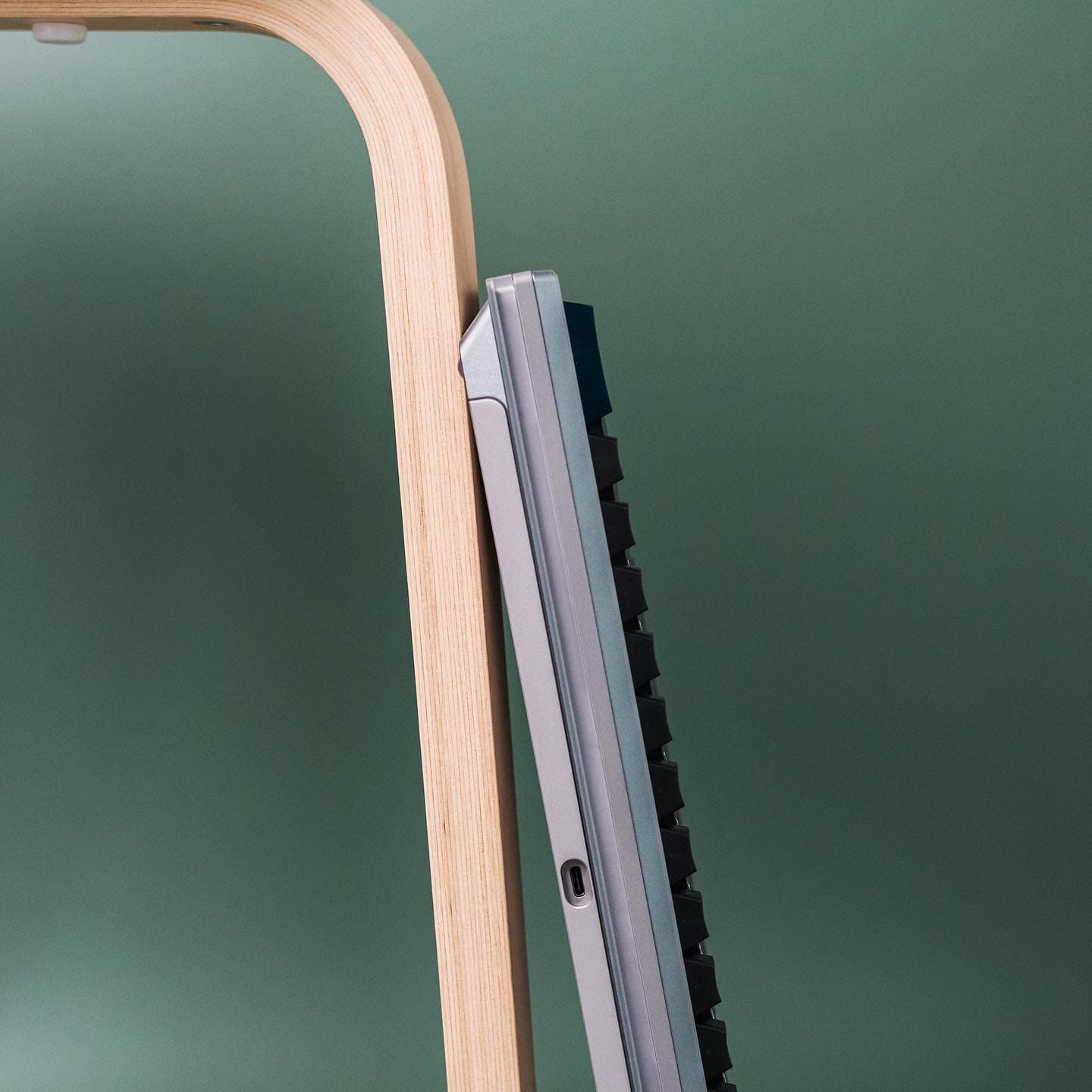

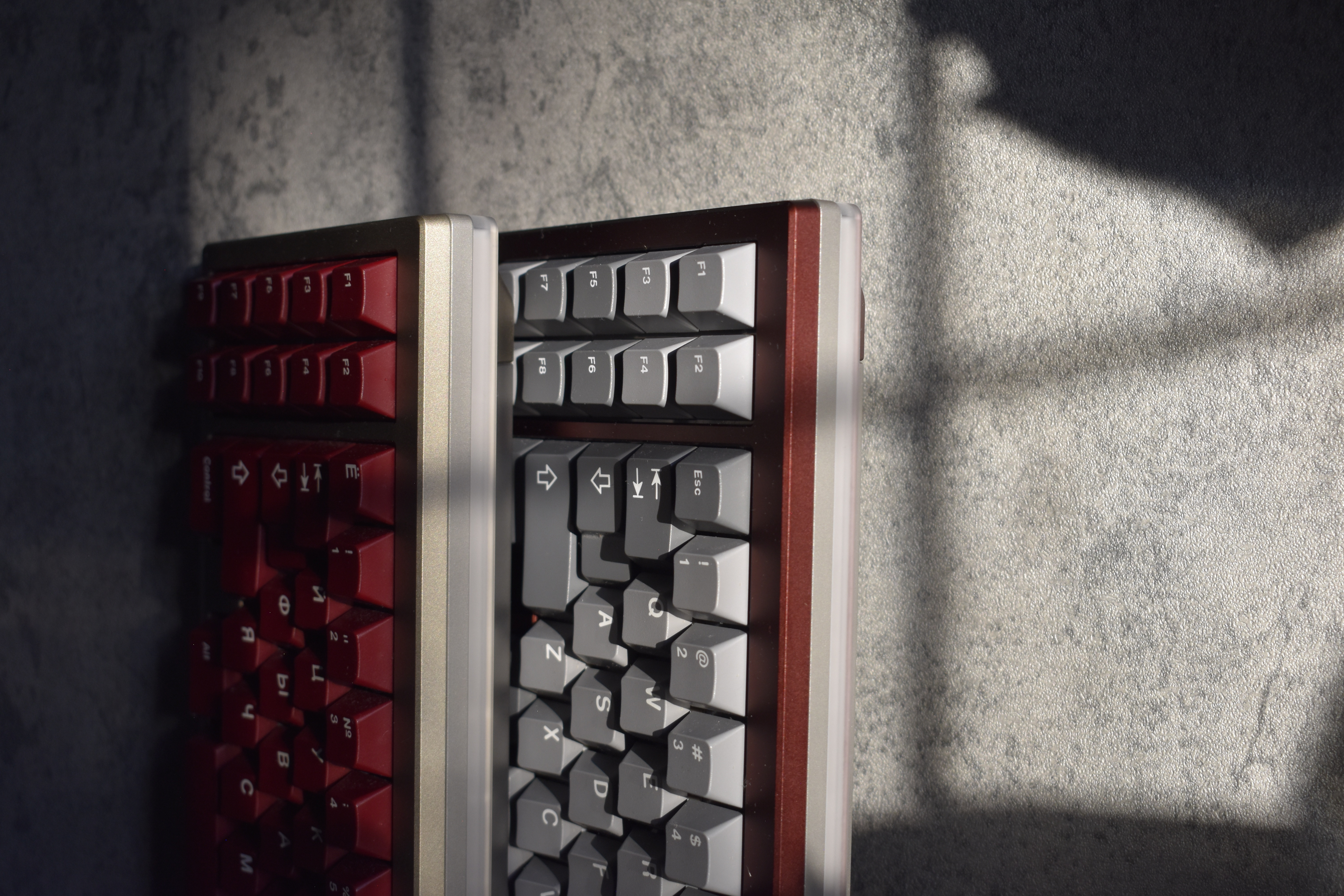

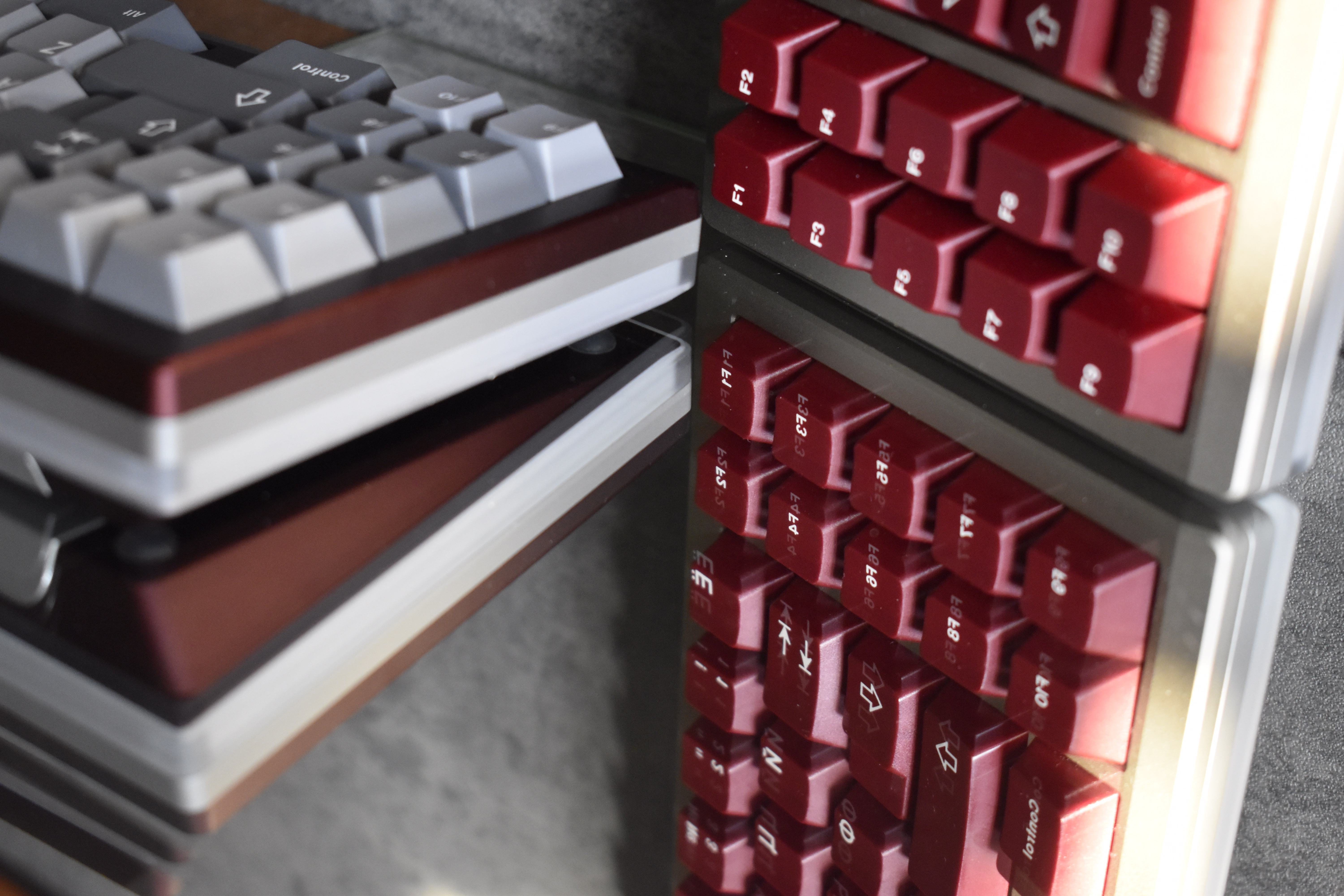

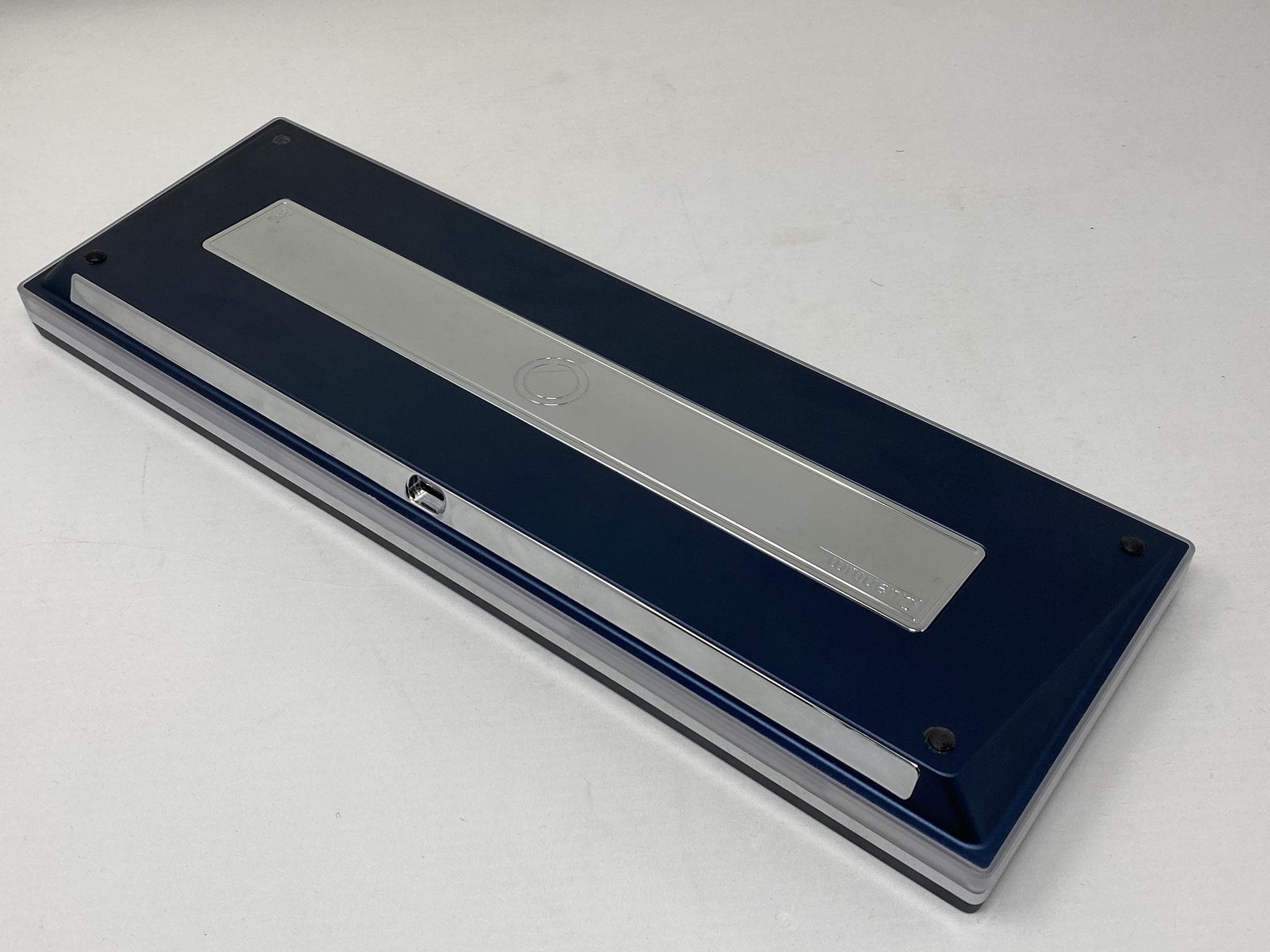

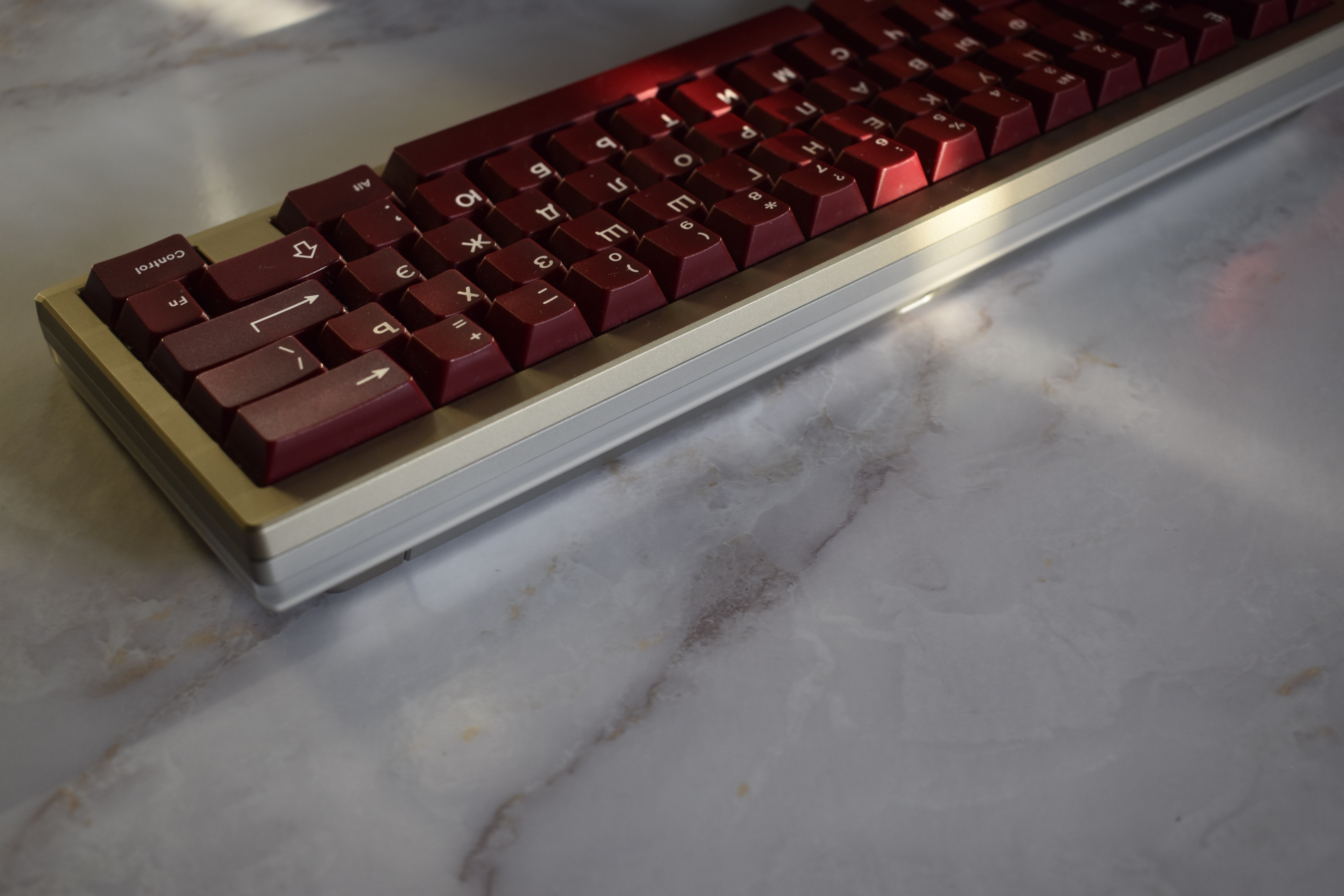

Photos:
Credit: Alexotos

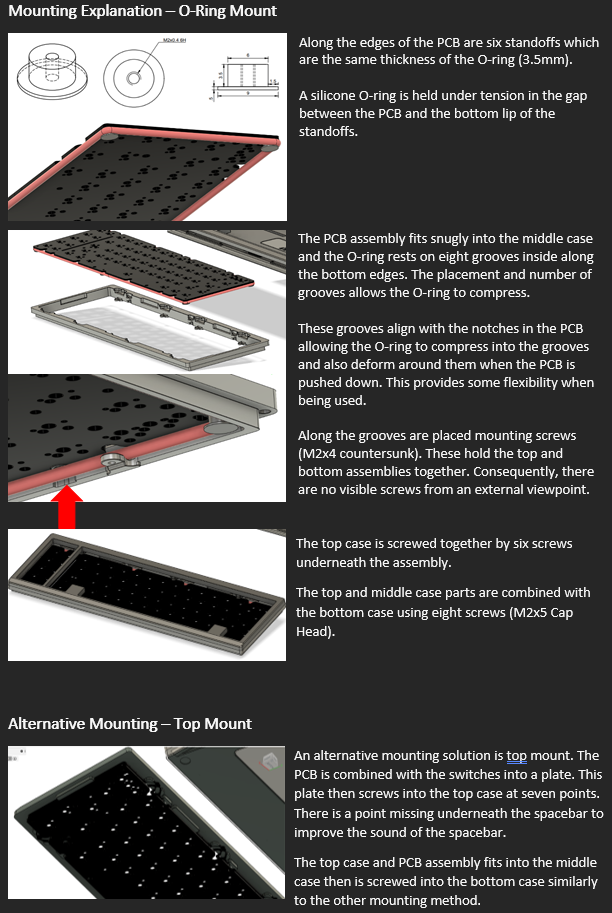

Mounting System:

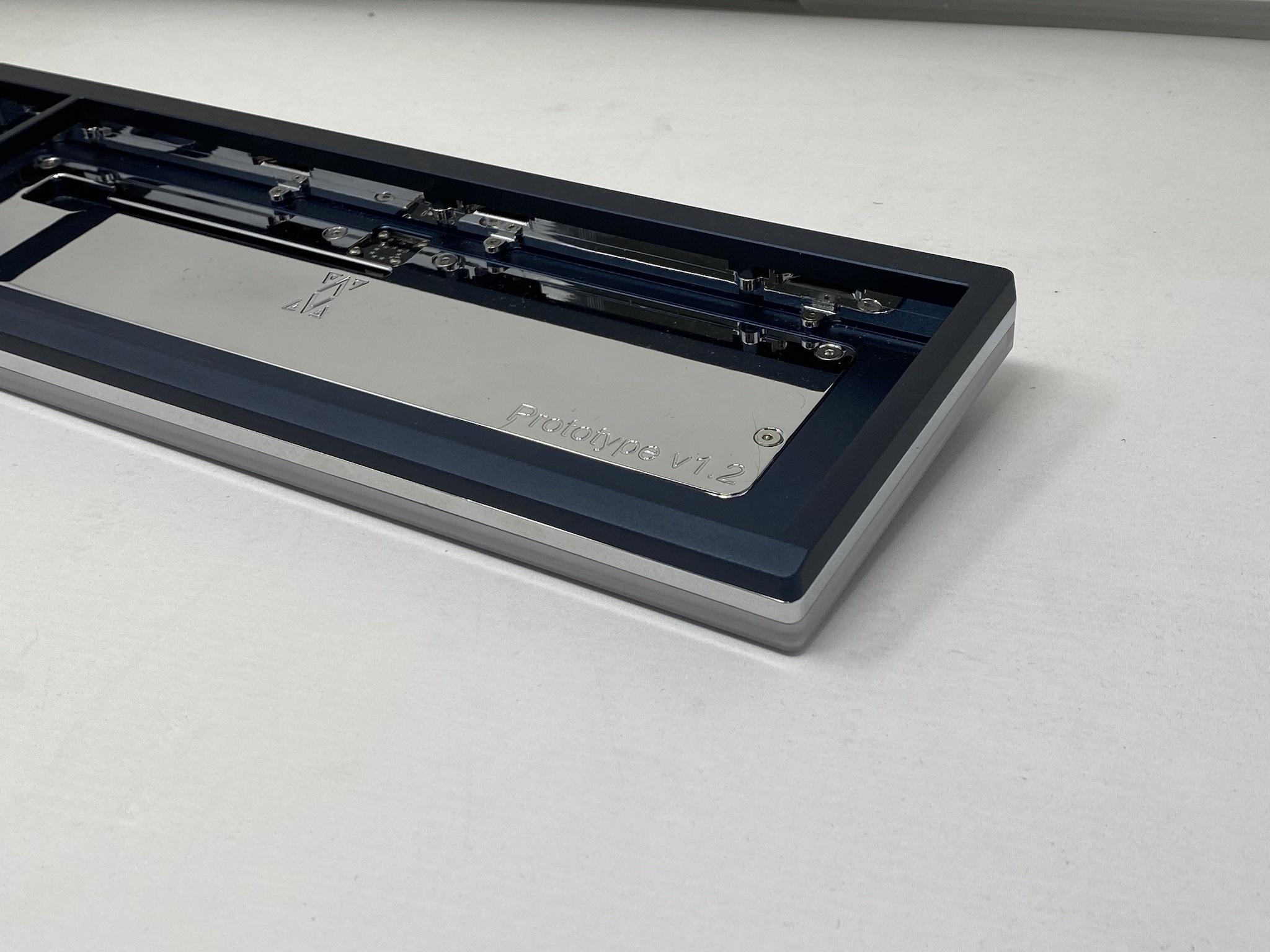

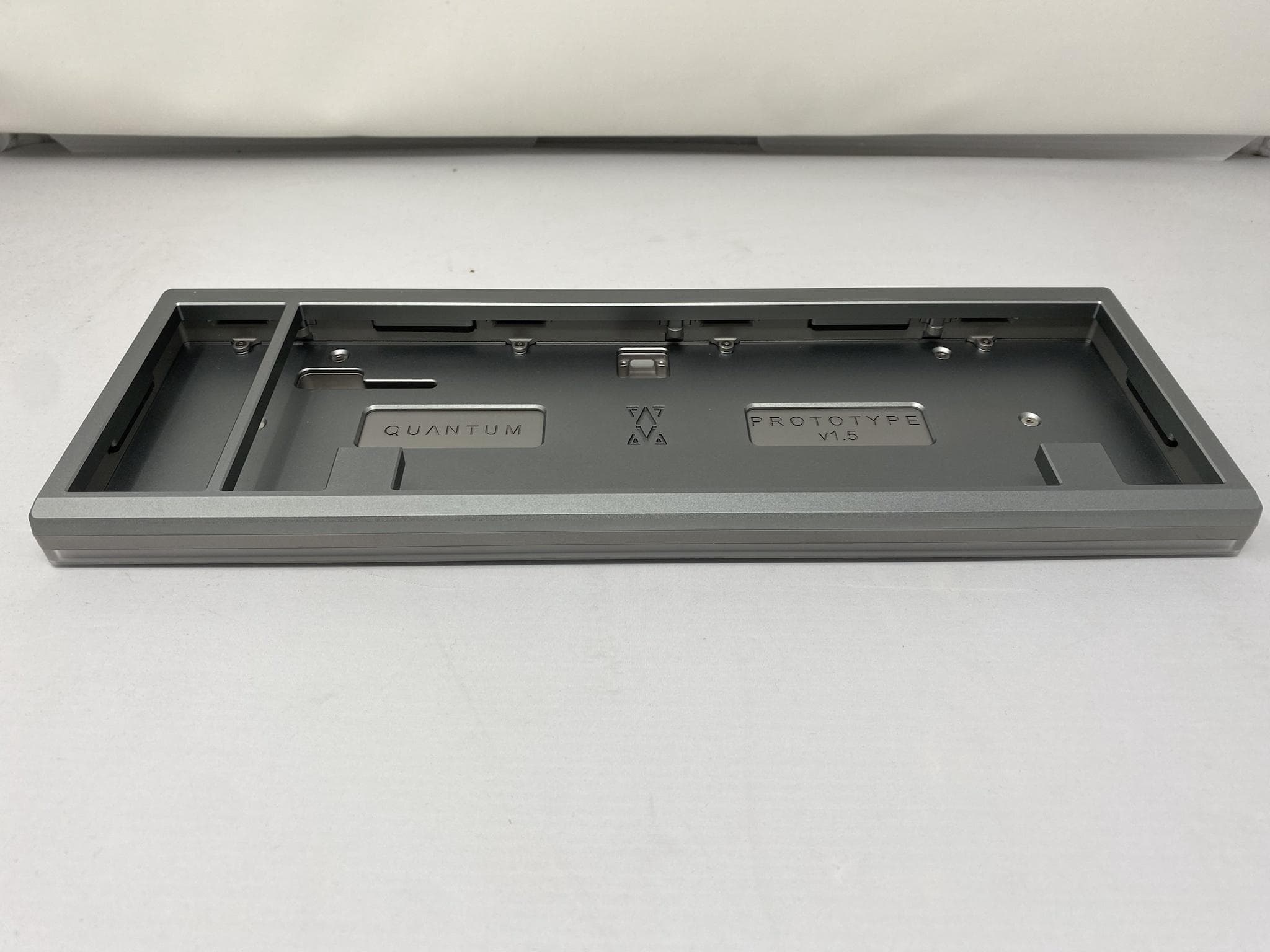

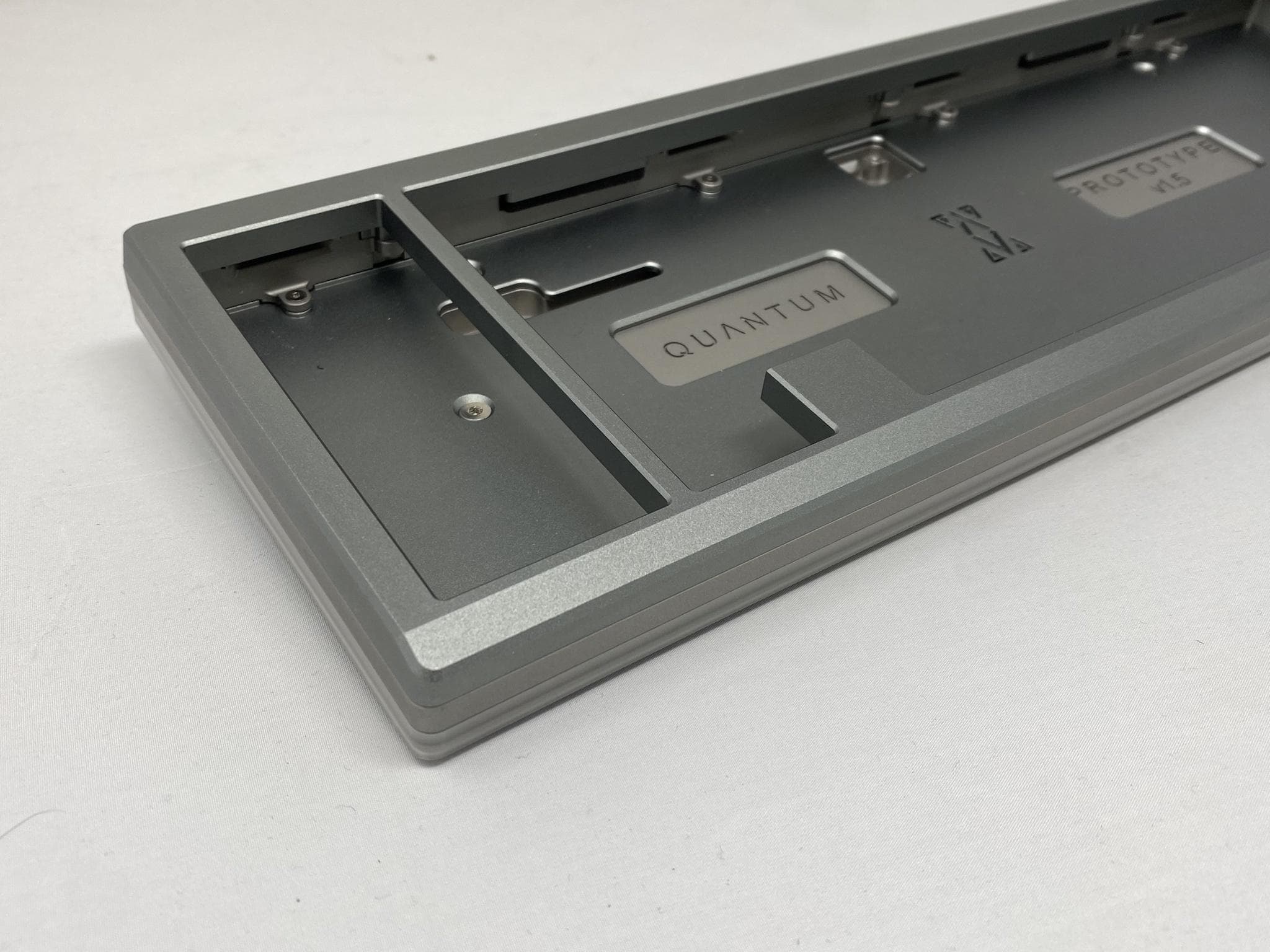

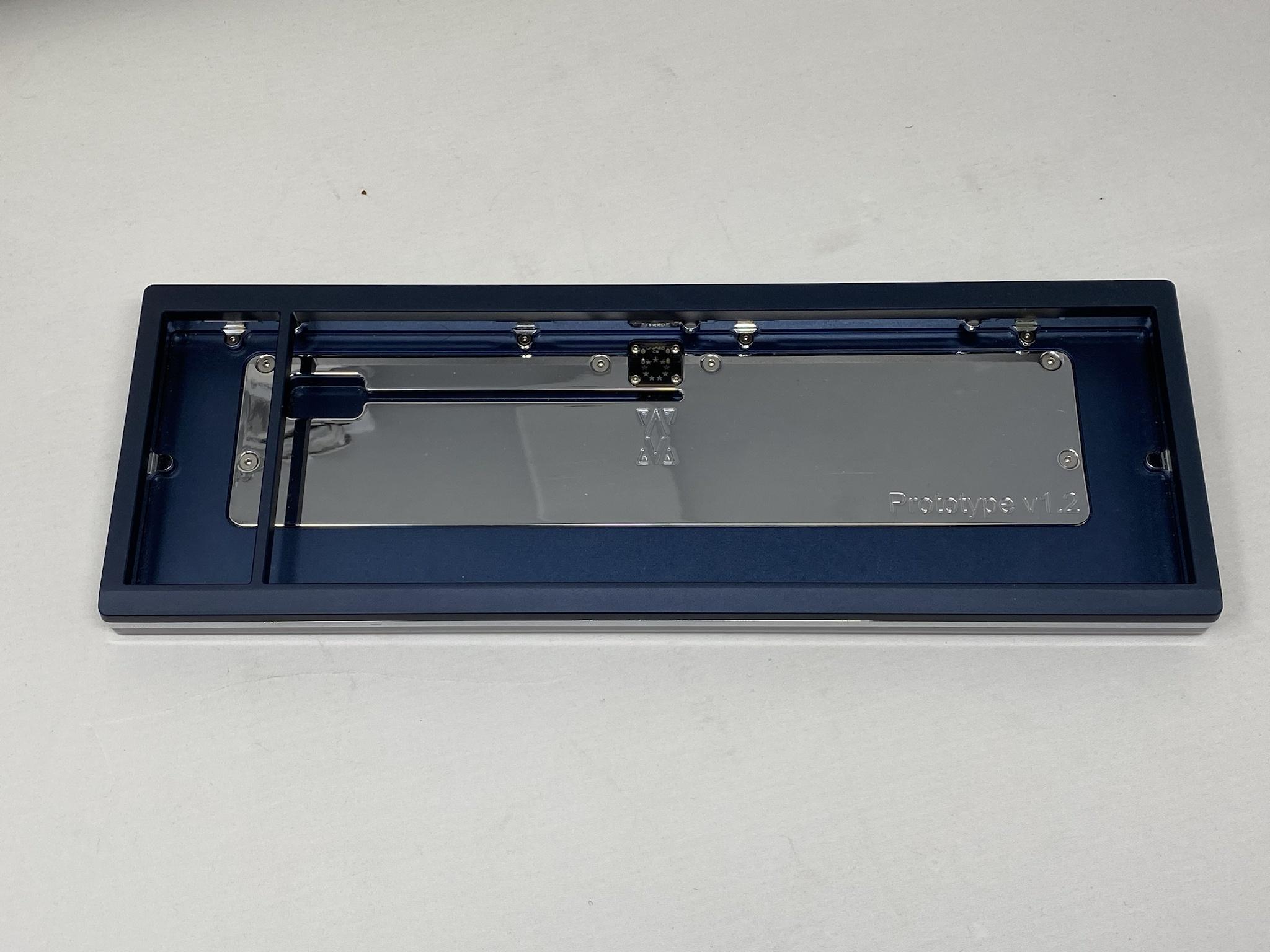

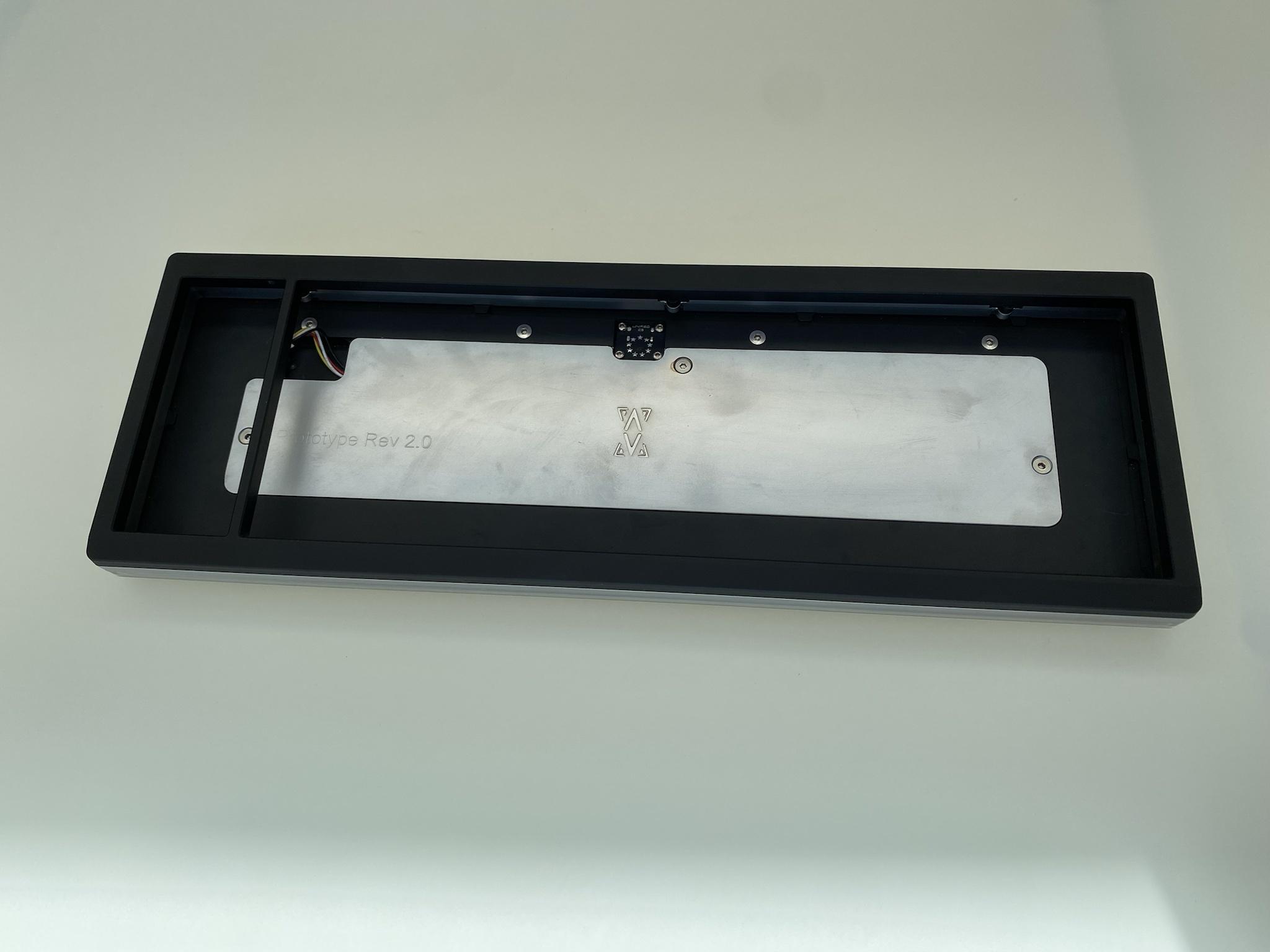

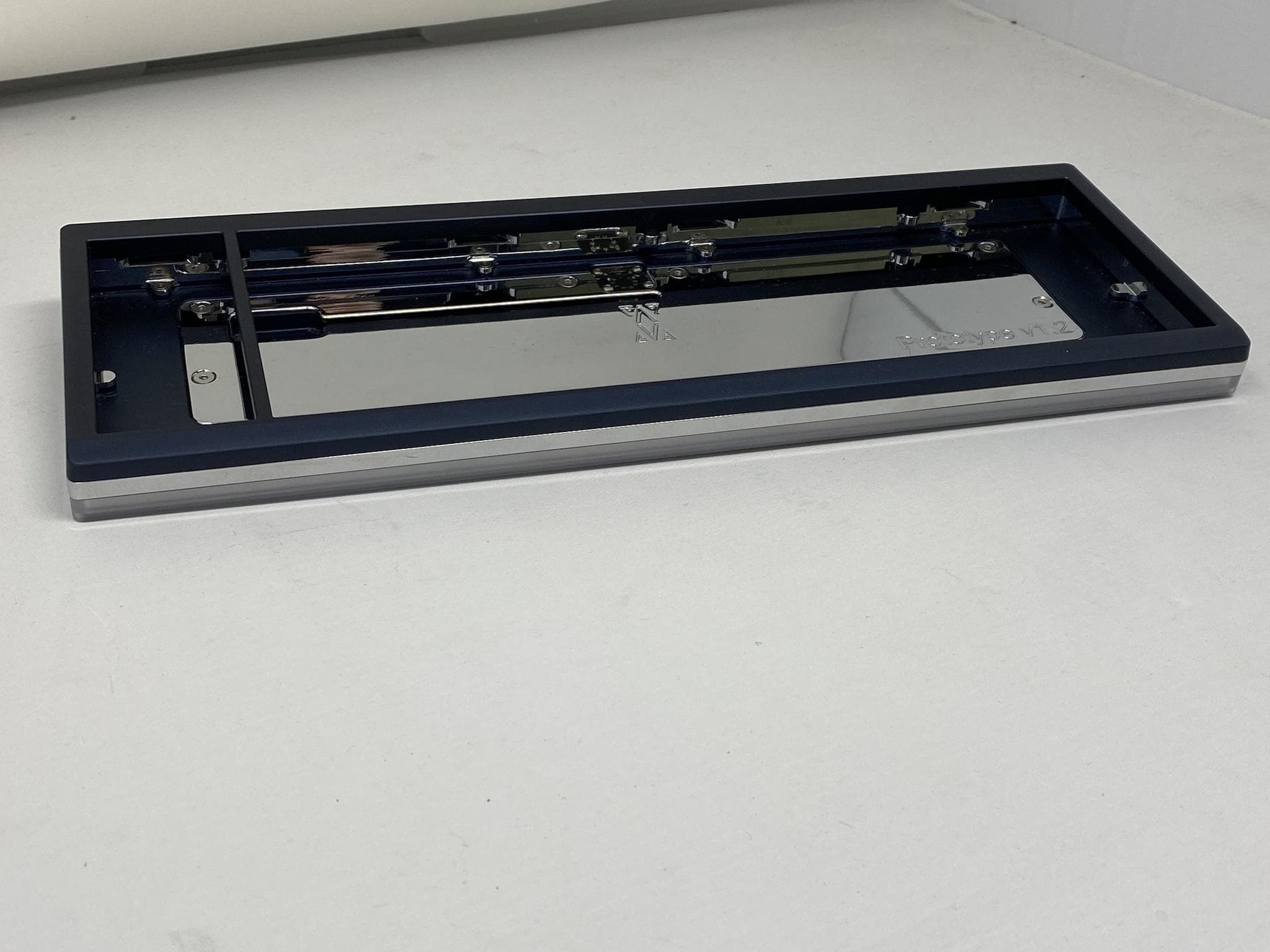

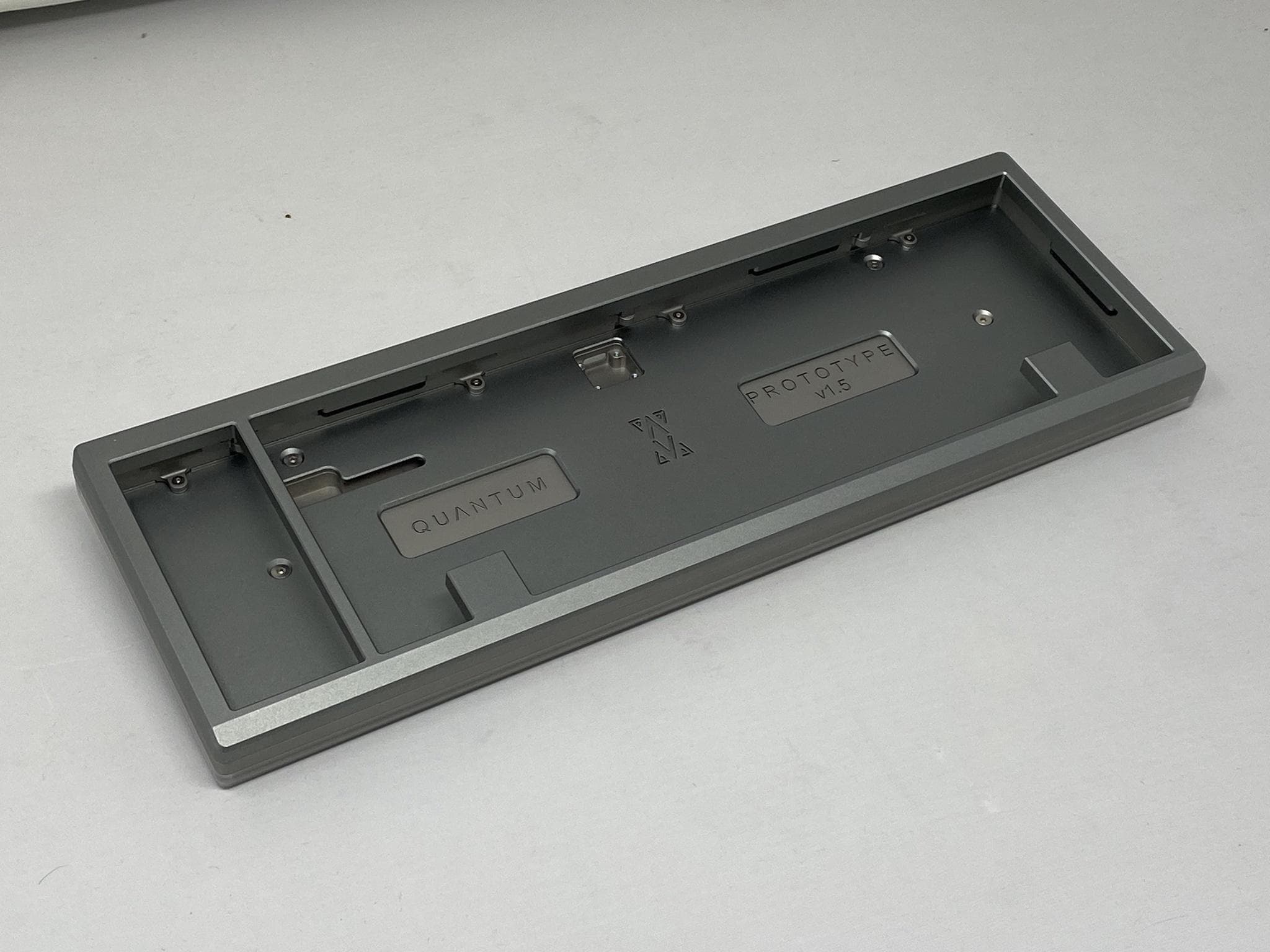

Prototypes:
Expand for prototype photos
More
FAQ:
Are the O-Rings standard?
No, the O-Rings are custom sized. Additional hardnesses and extras will be available.
