RAMUNE60 - TRUE HHKB / GB SEPTEMBER 15TH

Introduction

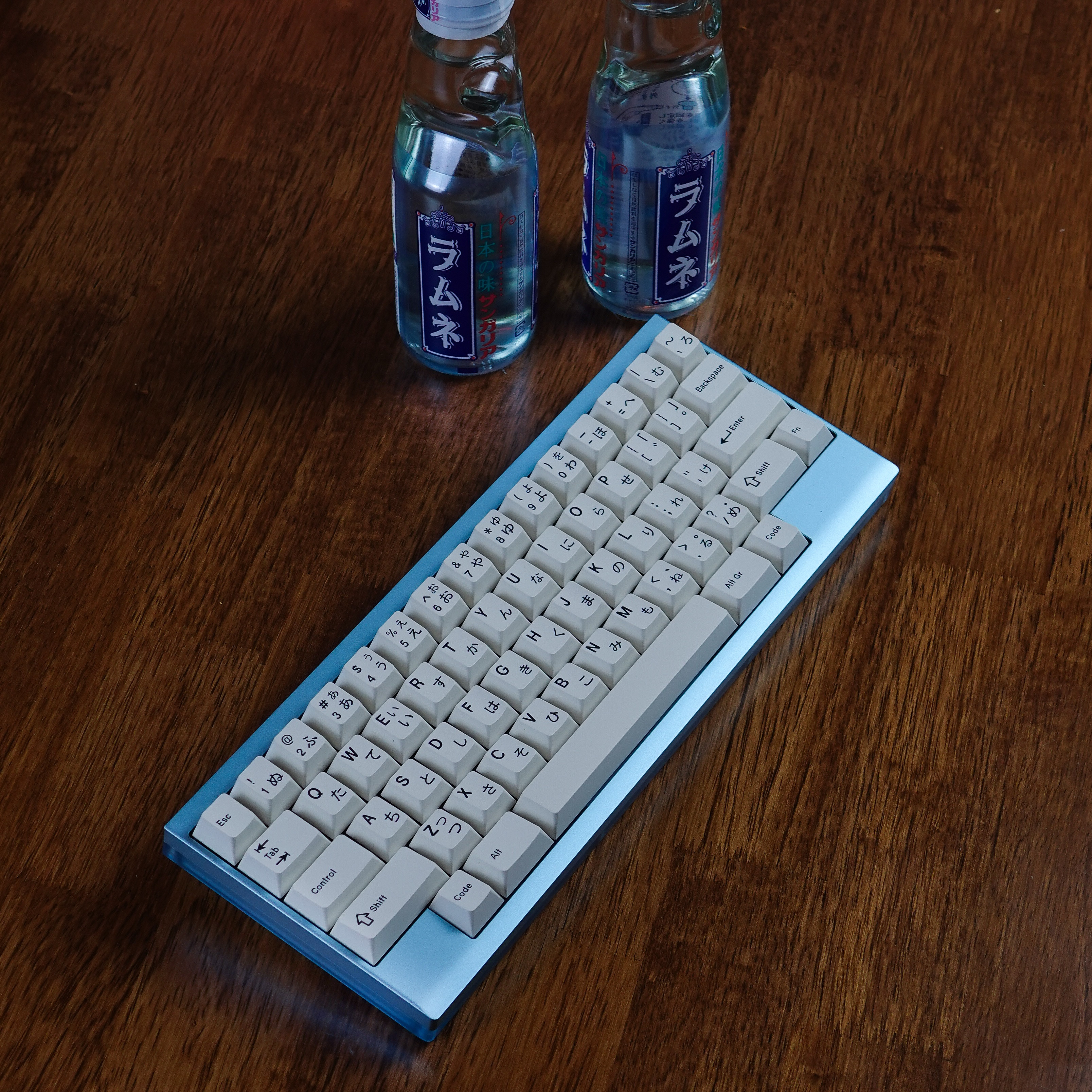

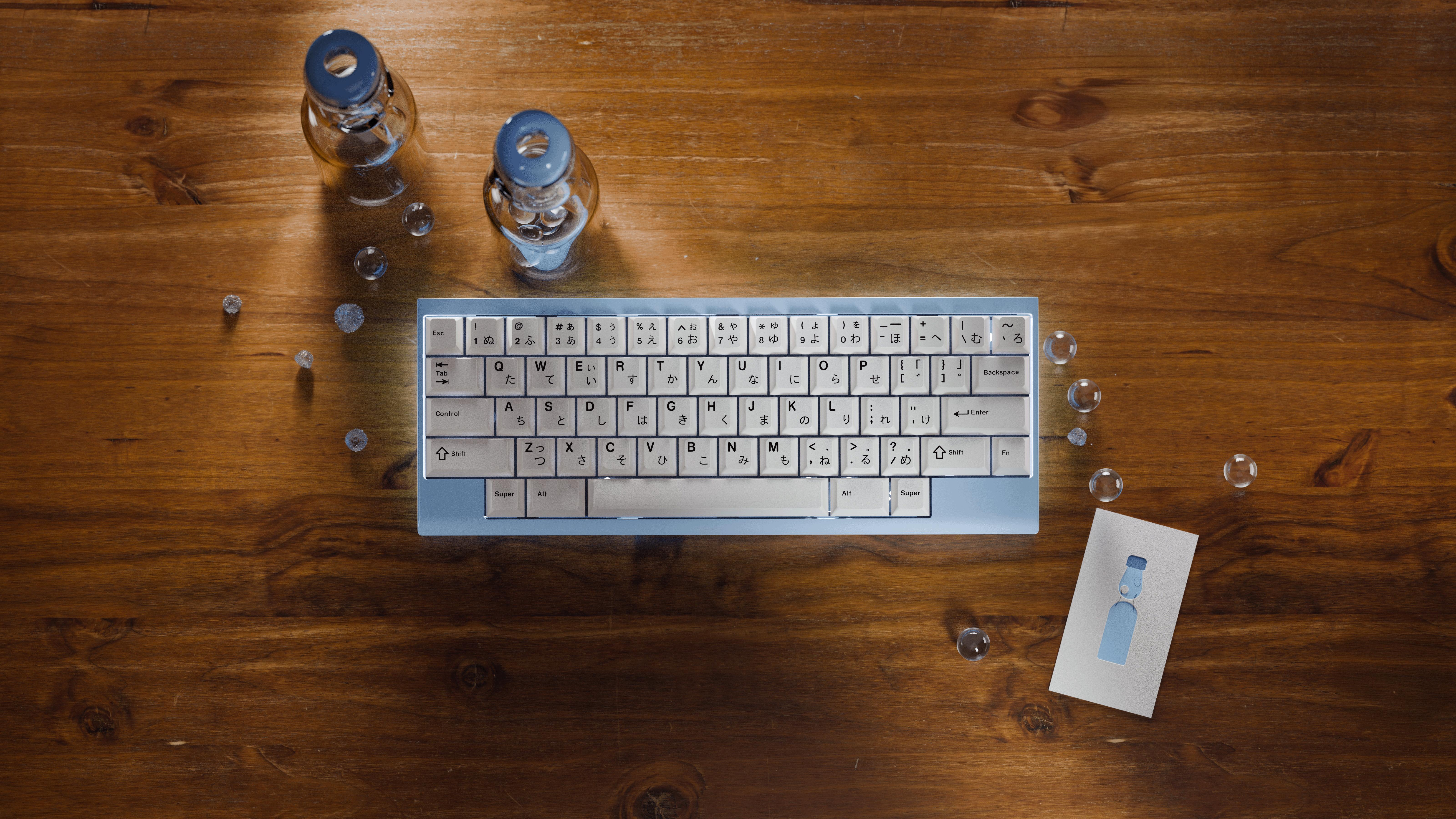

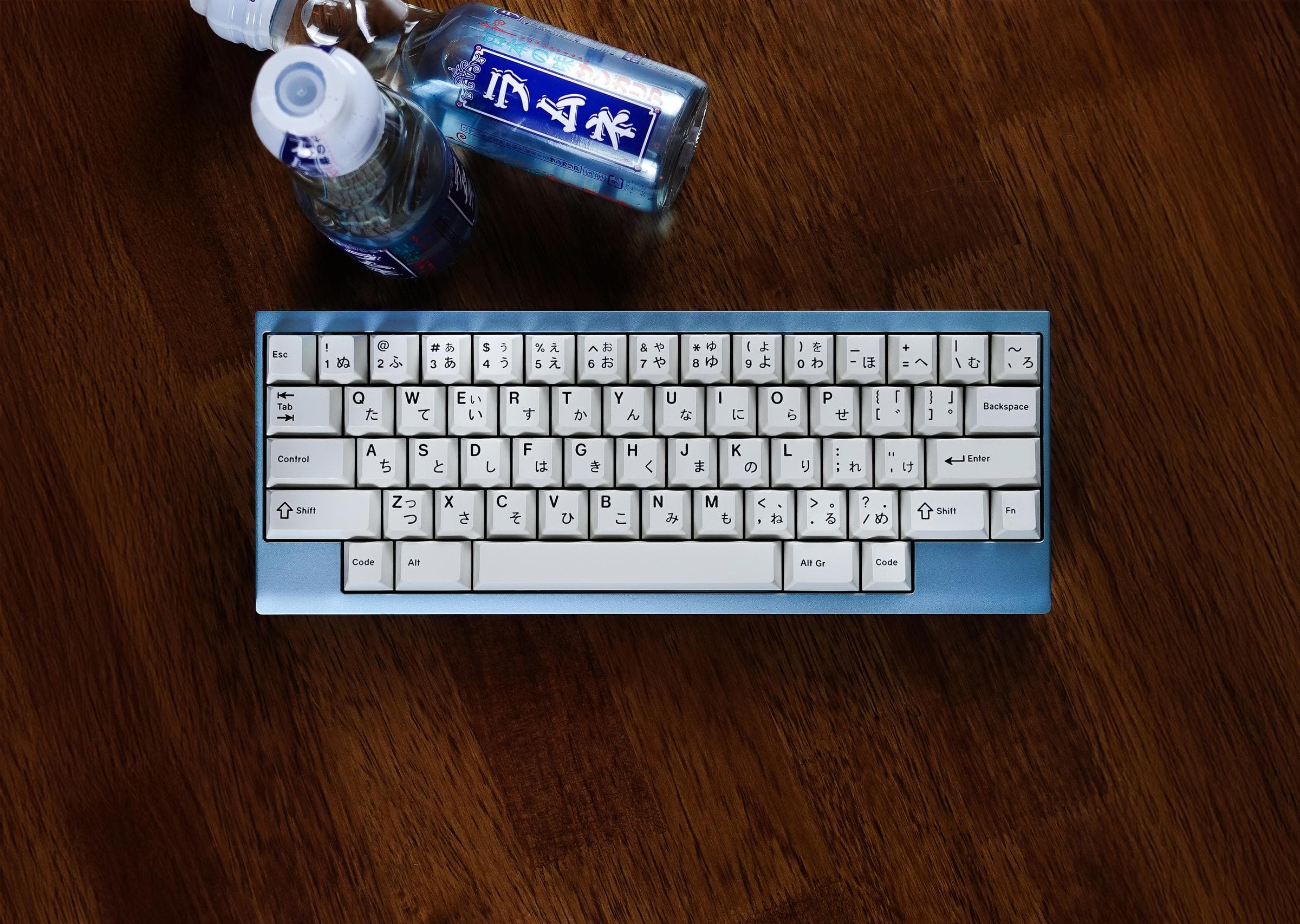

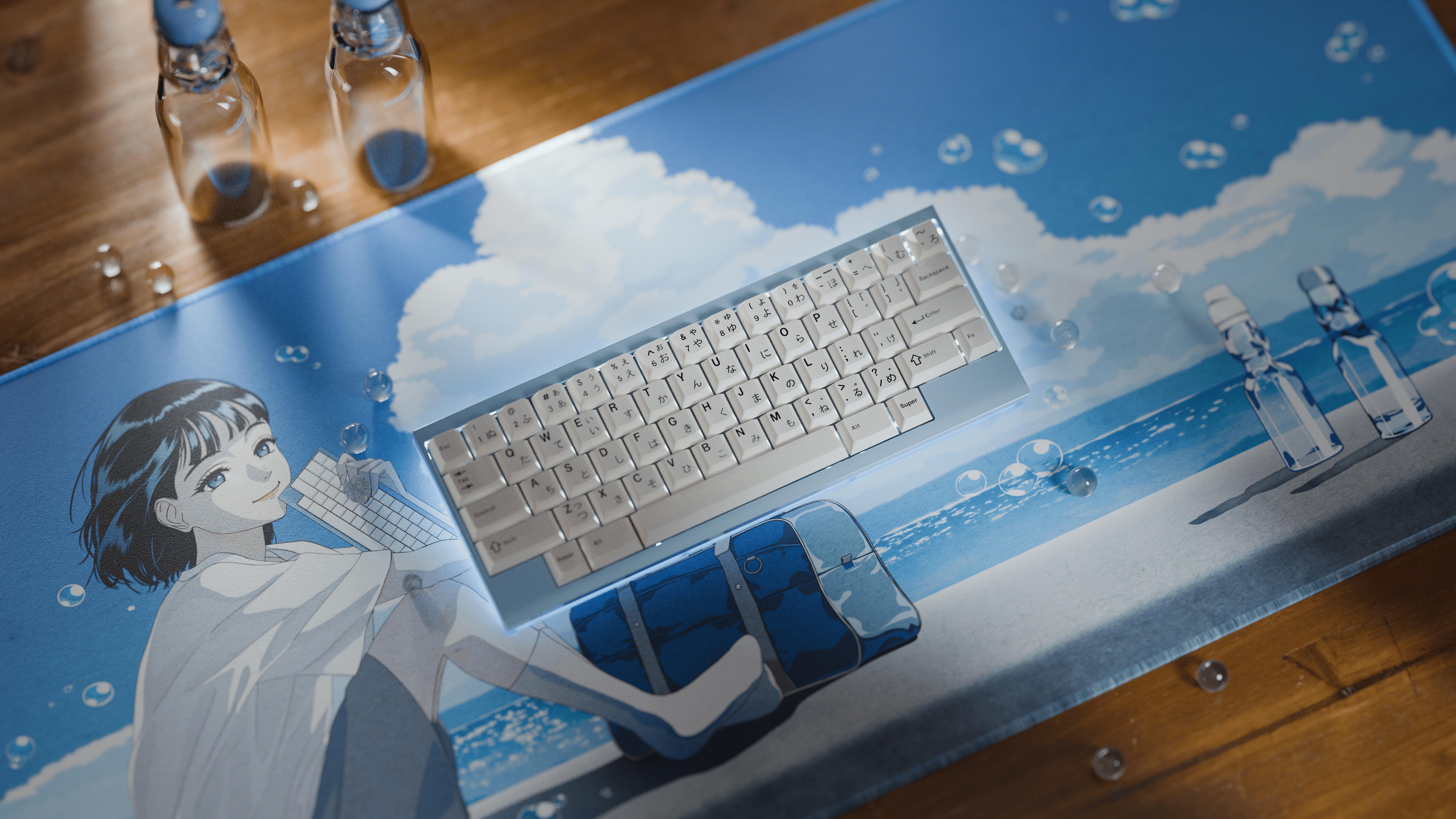

The Ramune60 is a playful 60% gasket-mount keyboard.
Inspired by the Japanese soda Ramune, it combines a classic overall shape design with modern elements.
It offers three layouts (True HHKB, WKL, and WK) and comes in standard colors, a Kuro Edition, and a special collaborative colorway with GMK Gurokawa
—five case color options in total.

Ramune60’s inspiration

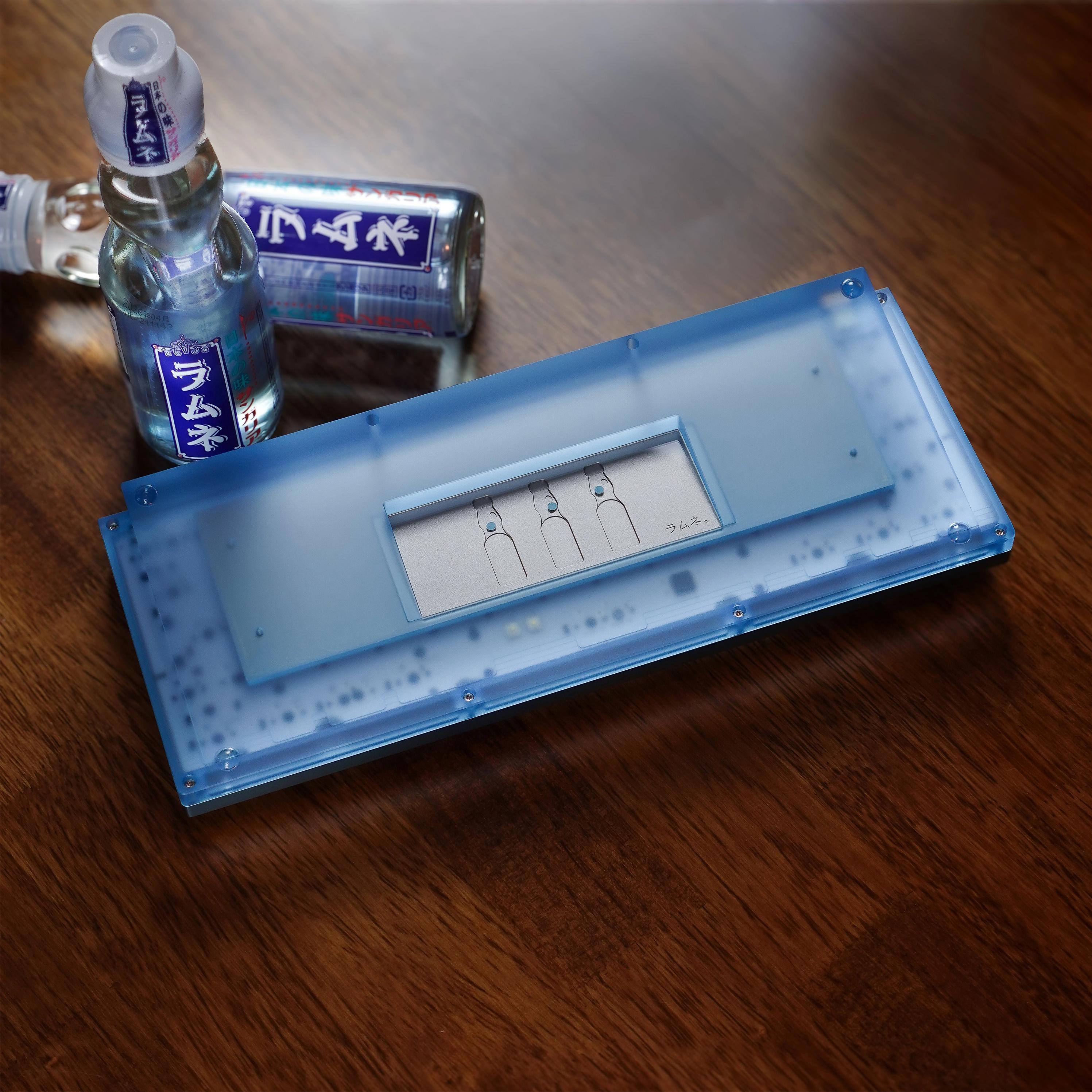

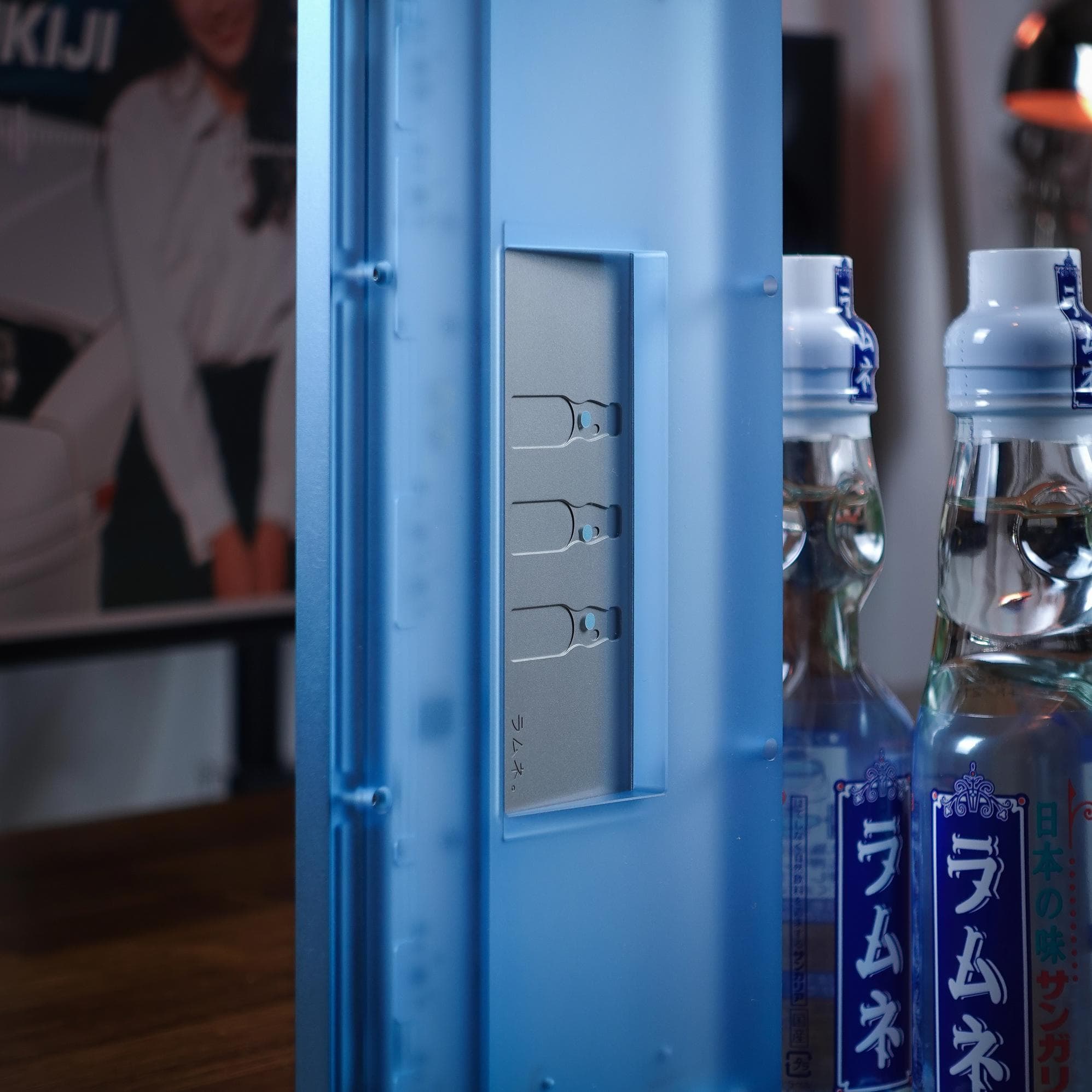

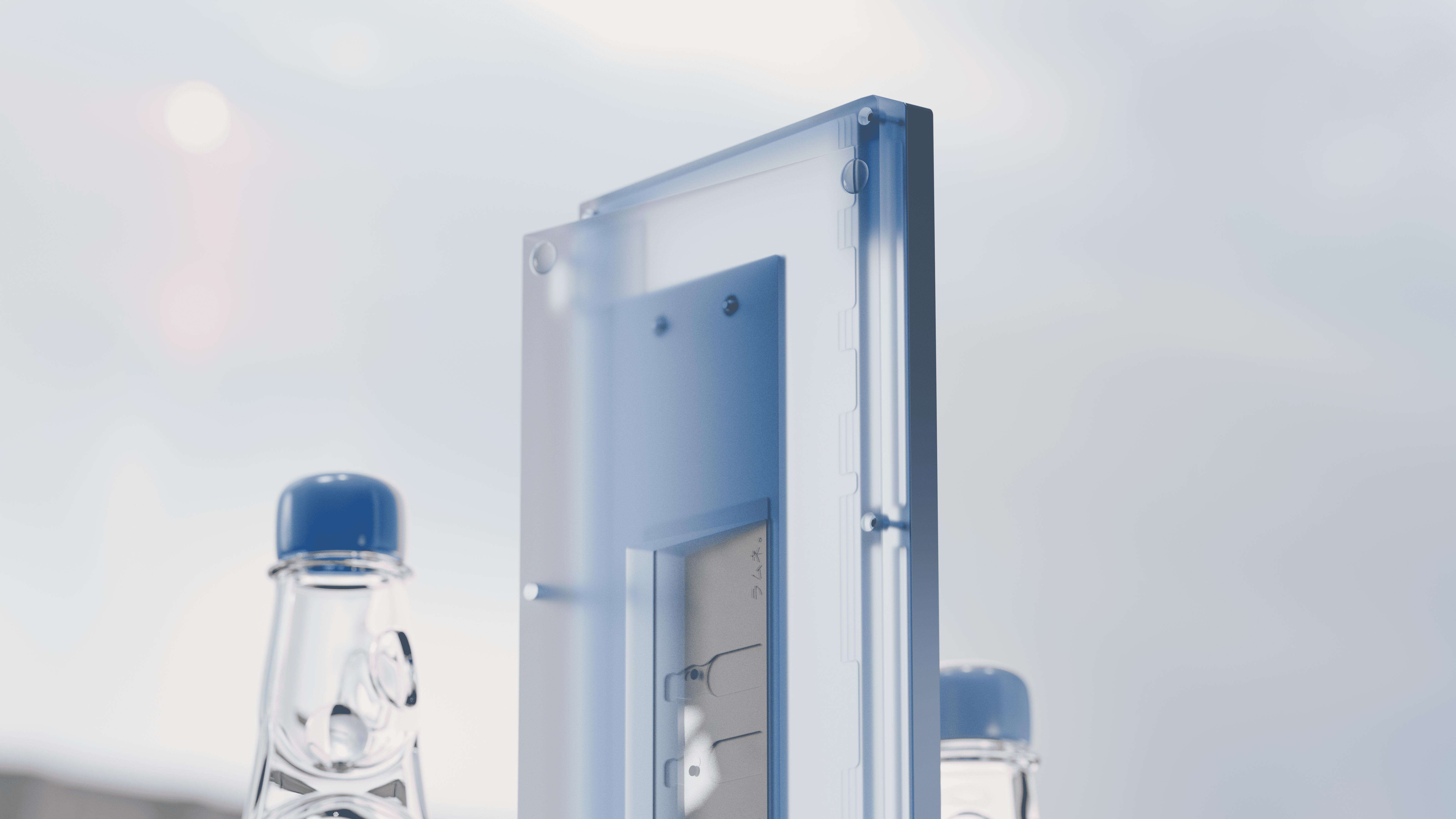

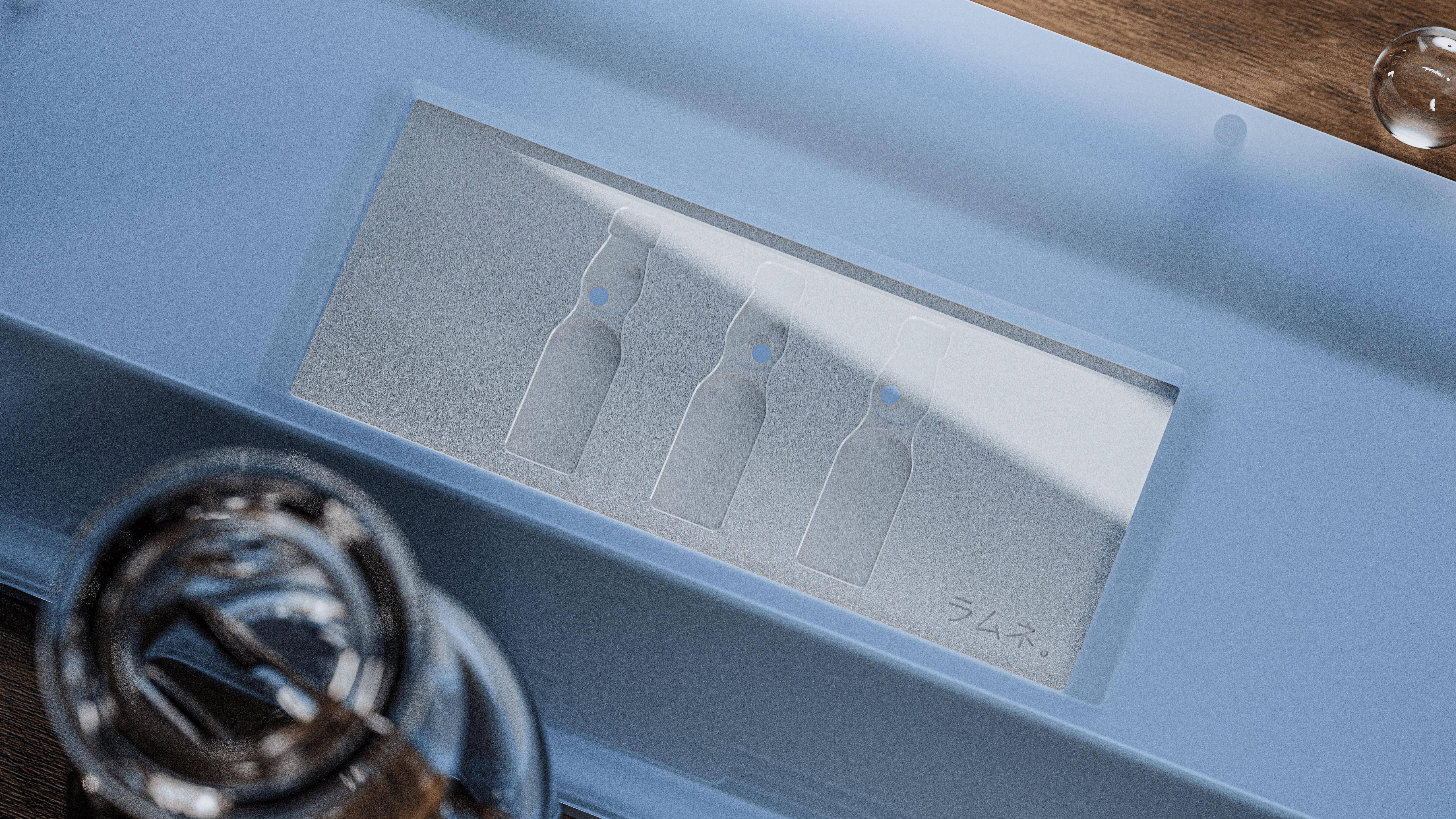

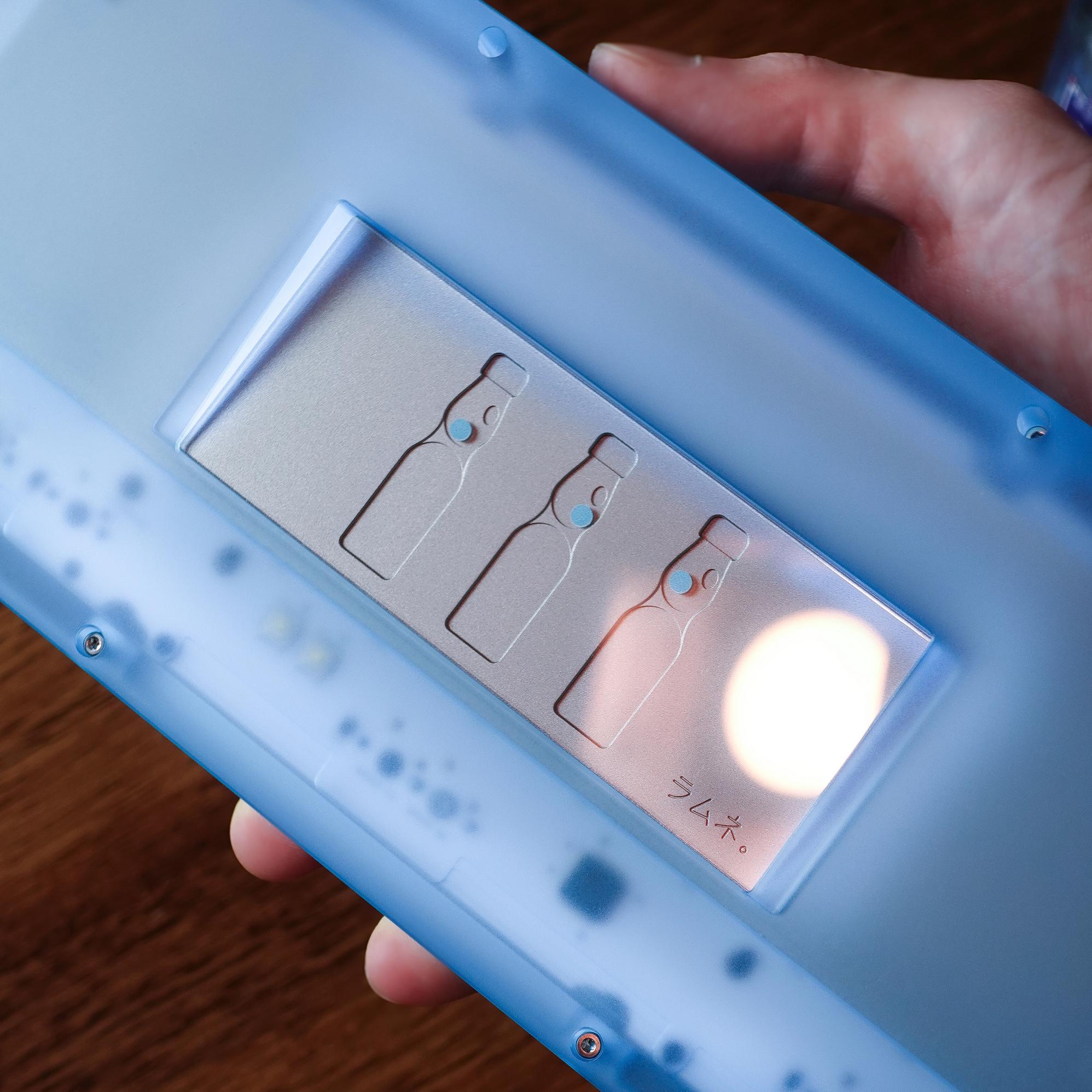

The design of this keyboard was inspired by Ramune, the iconic Japanese soda known for its playful charm and distinctive glass bottle.
With its clear lower half filled with fizzy soda, opaque top cap, and signature glass marble sealed inside,
the Ramune bottle serves as a direct motif for the keyboard’s form and color palette.

This keyboard captures the refreshing character of Ramune through both its aesthetics and sound.

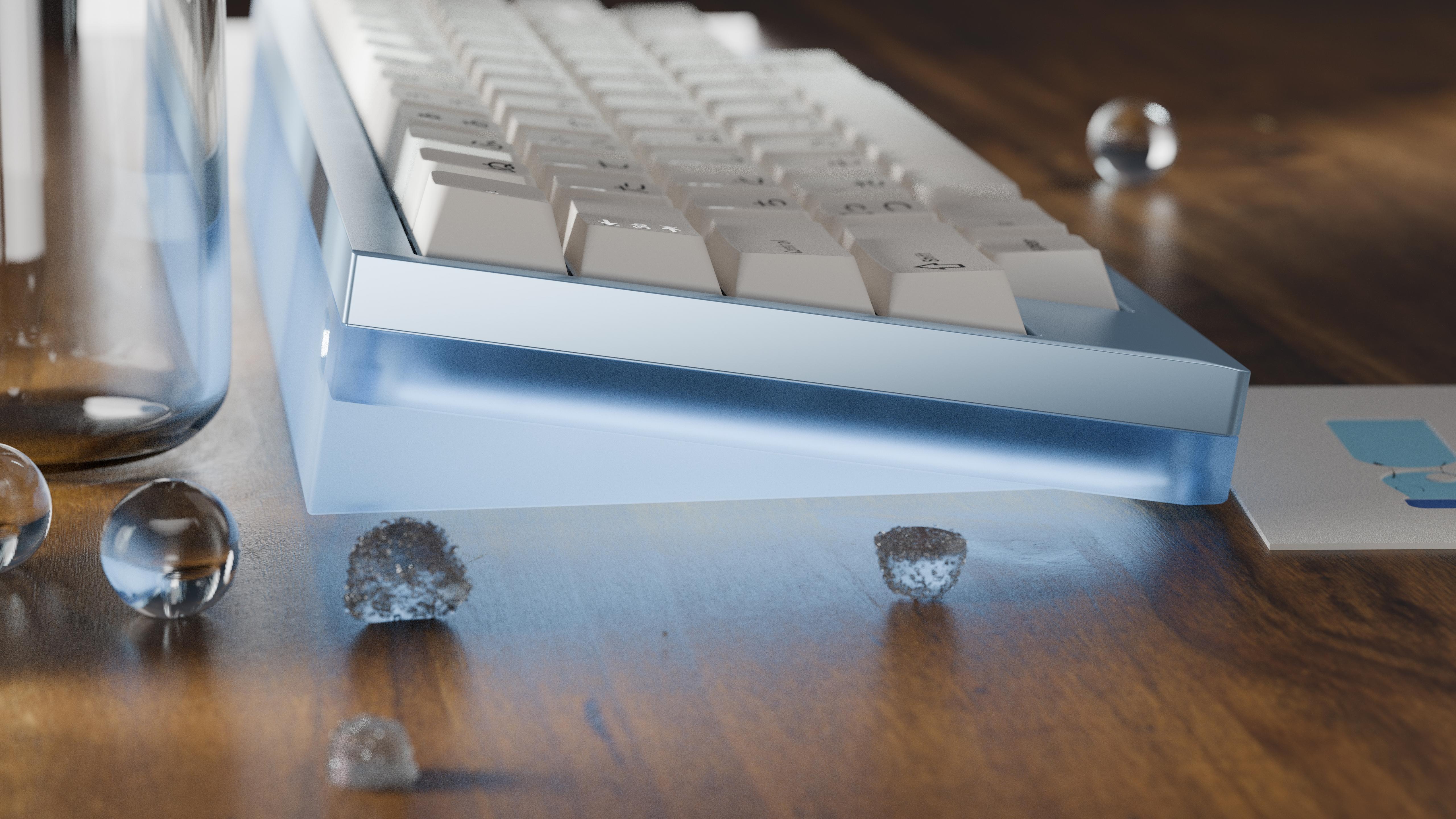

The low-profile case enhances usability while perfectly matching the light and breezy concept.
Additionally, a carefully tested and tuned Poron gasket delivers a crisp and clear typing sound that complements the overall design.

Specifications

Layout Support:
True HHKB (Solder, Hotswap)
WKL (Solder, Hotswap, Venom60HE 7u)
WK (Solder, Hotswap, Venom60HE 6.25u / 7u, Venom60MX 6.25U)

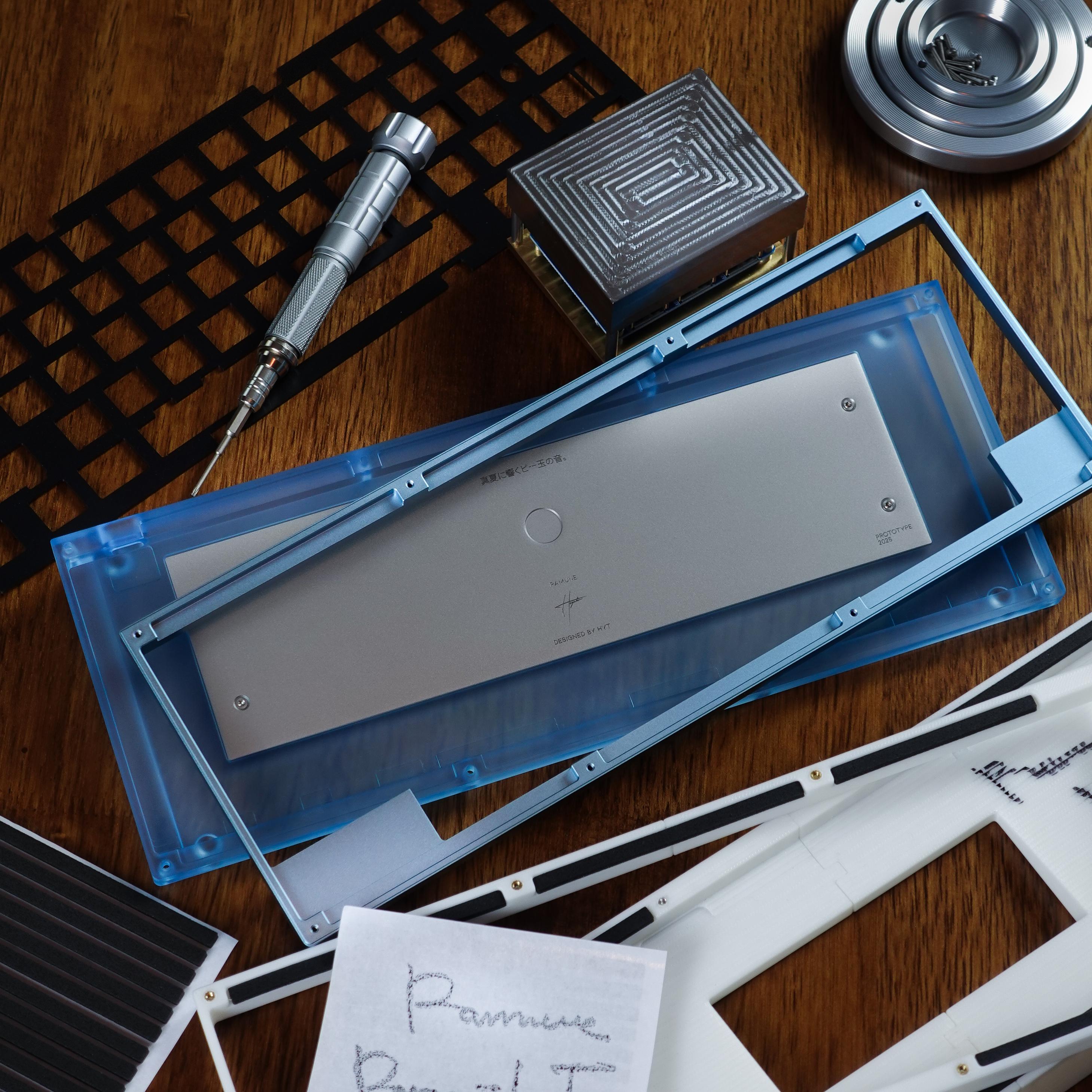

Materials:
Top Case: A6063 aluminum

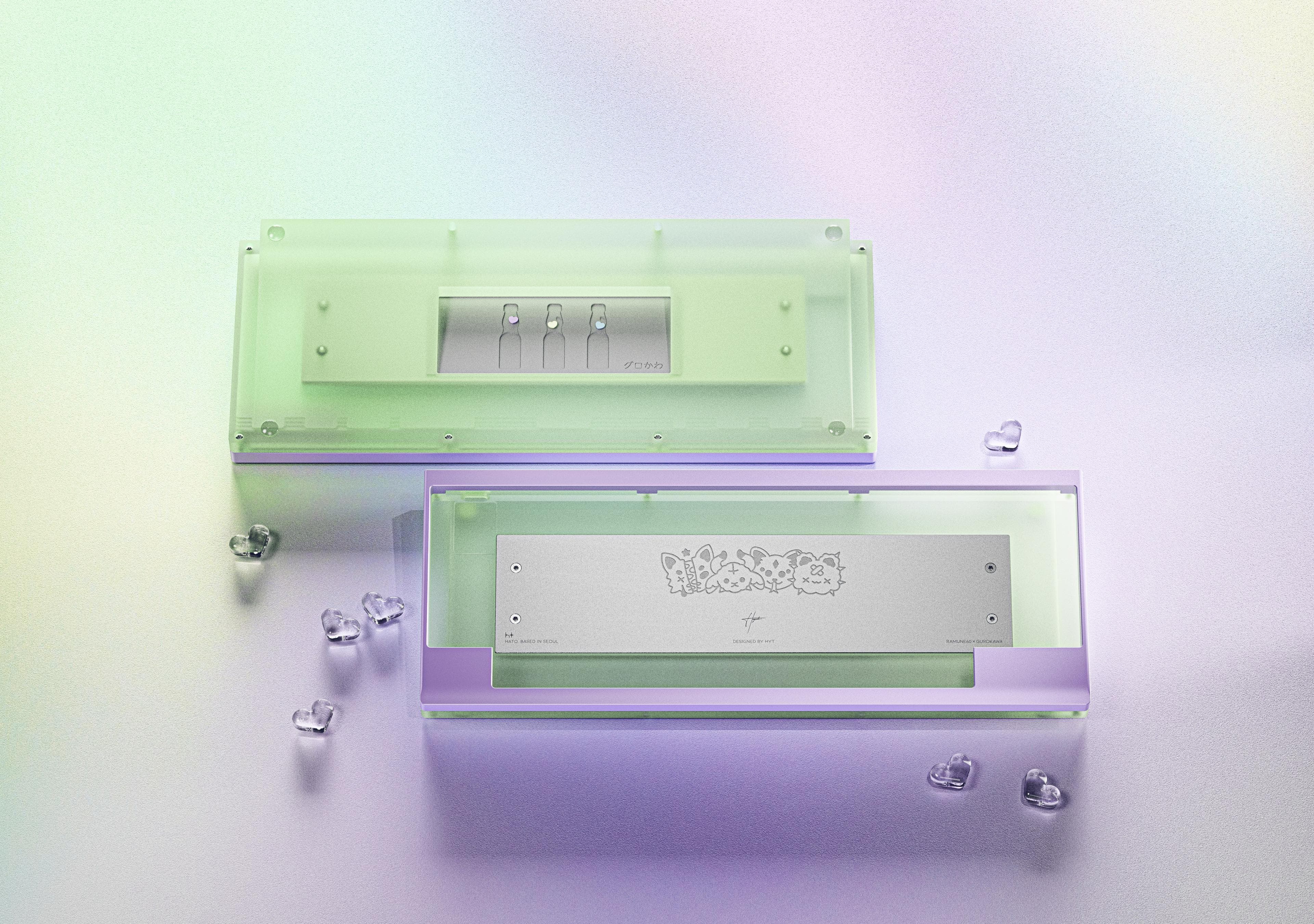

Bottom Case: PC, Acrylic, PEI

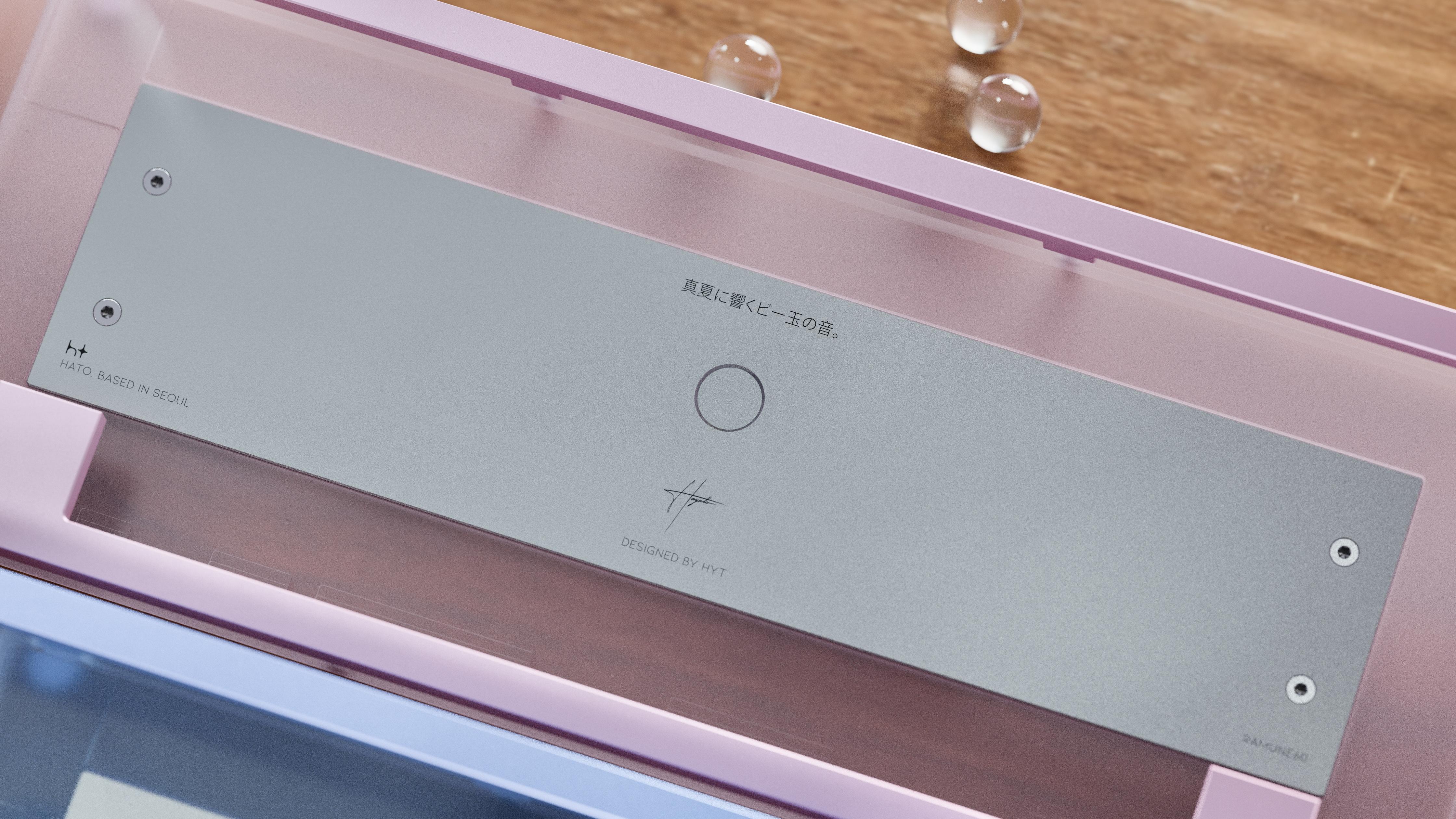

Weight: 304 SS with Bead Blasted

Typing Angle: 9 degrees

Front Height: 16.65 mm

Weight (Built): Approximately 1.1 kg

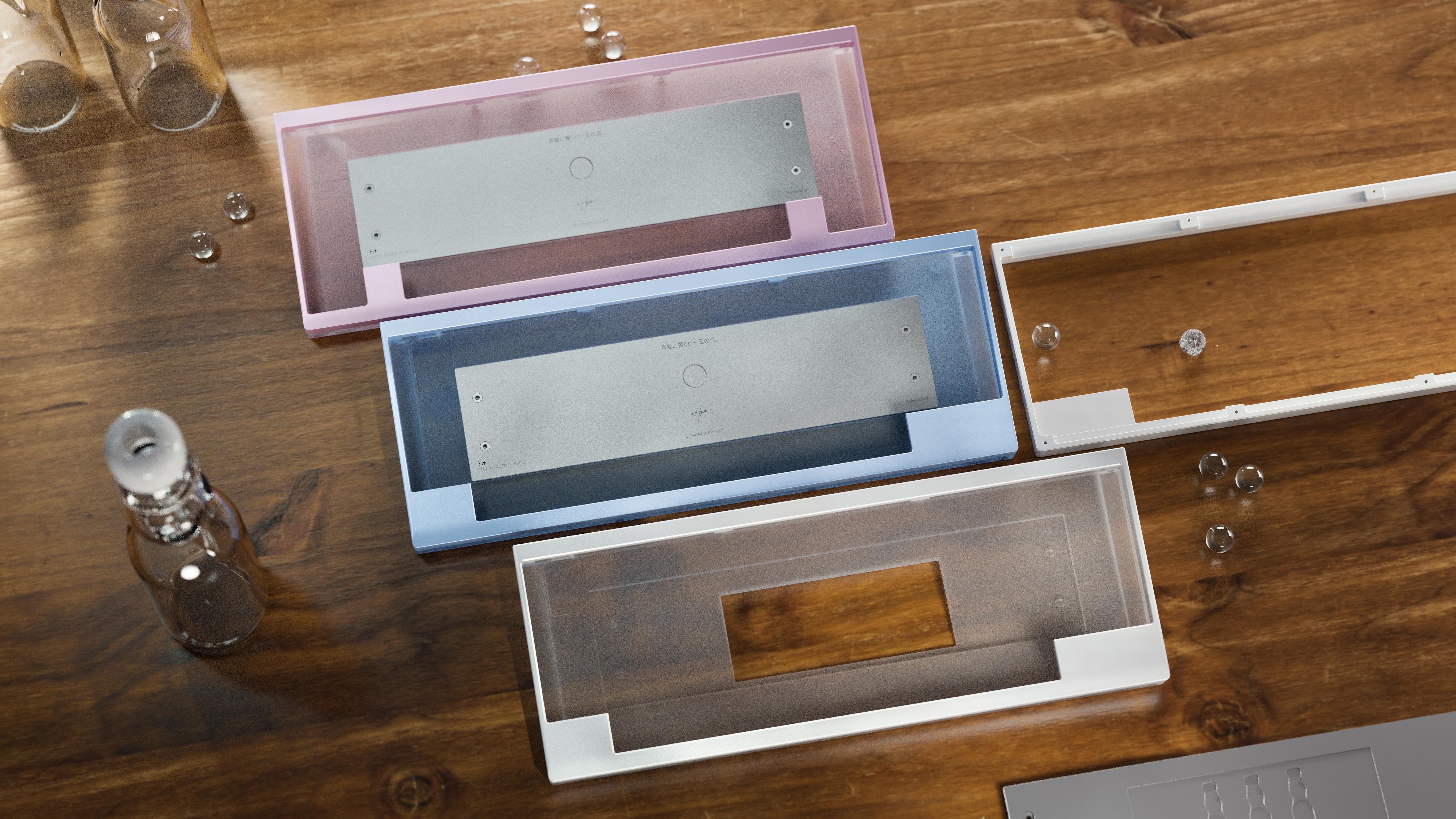

Case Colors:

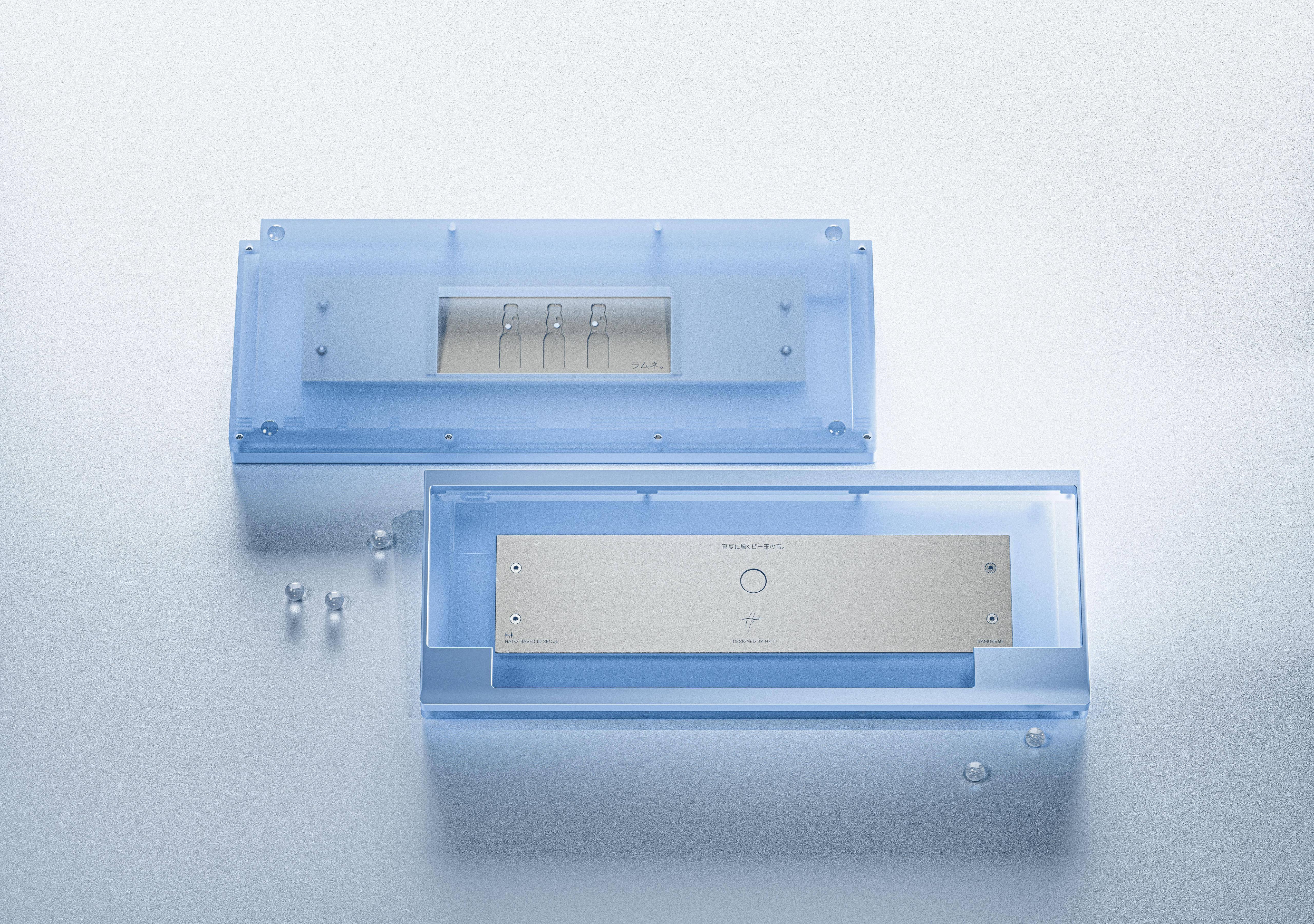

Blue / Dyed PC

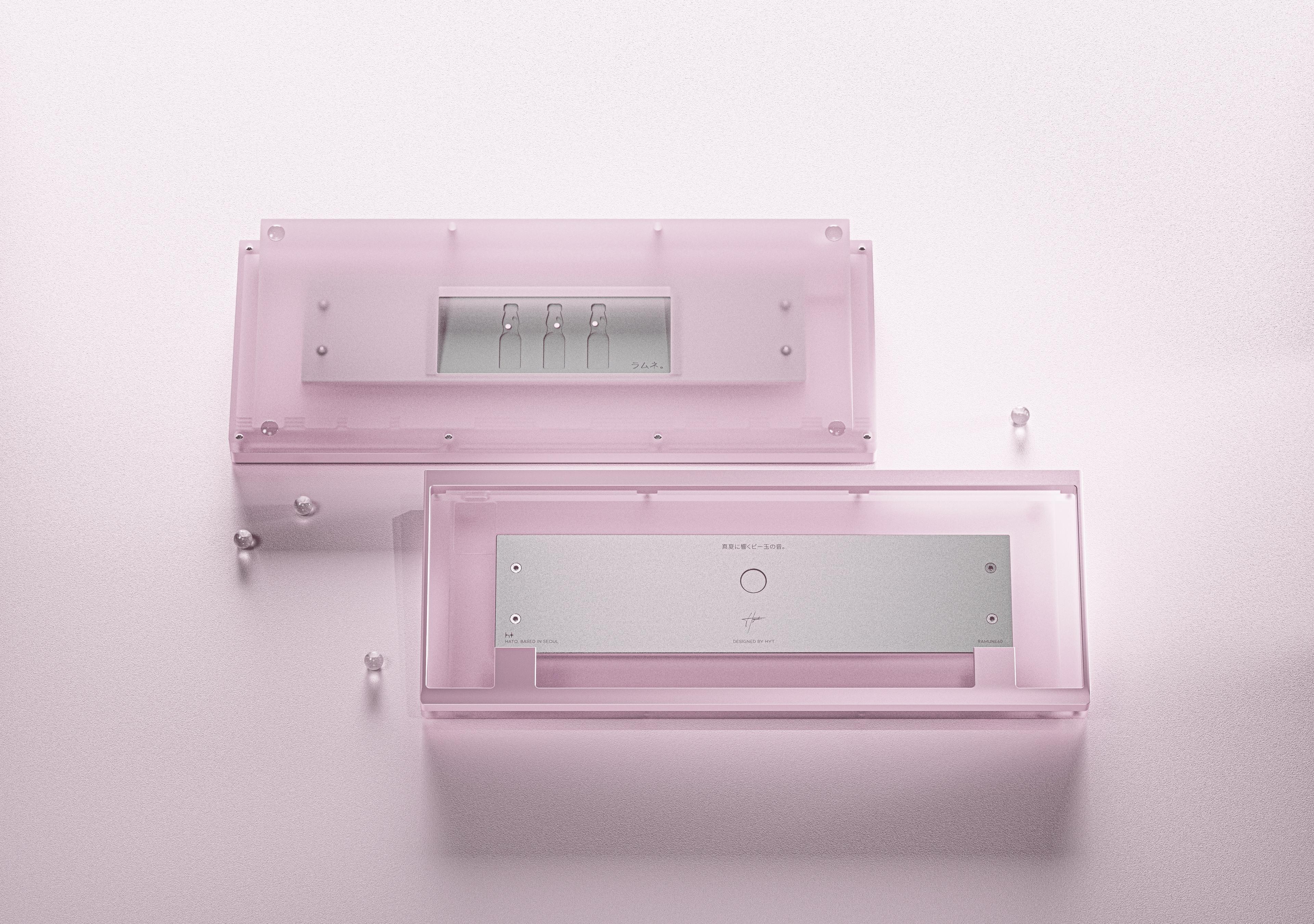

Pink / Dyed PC

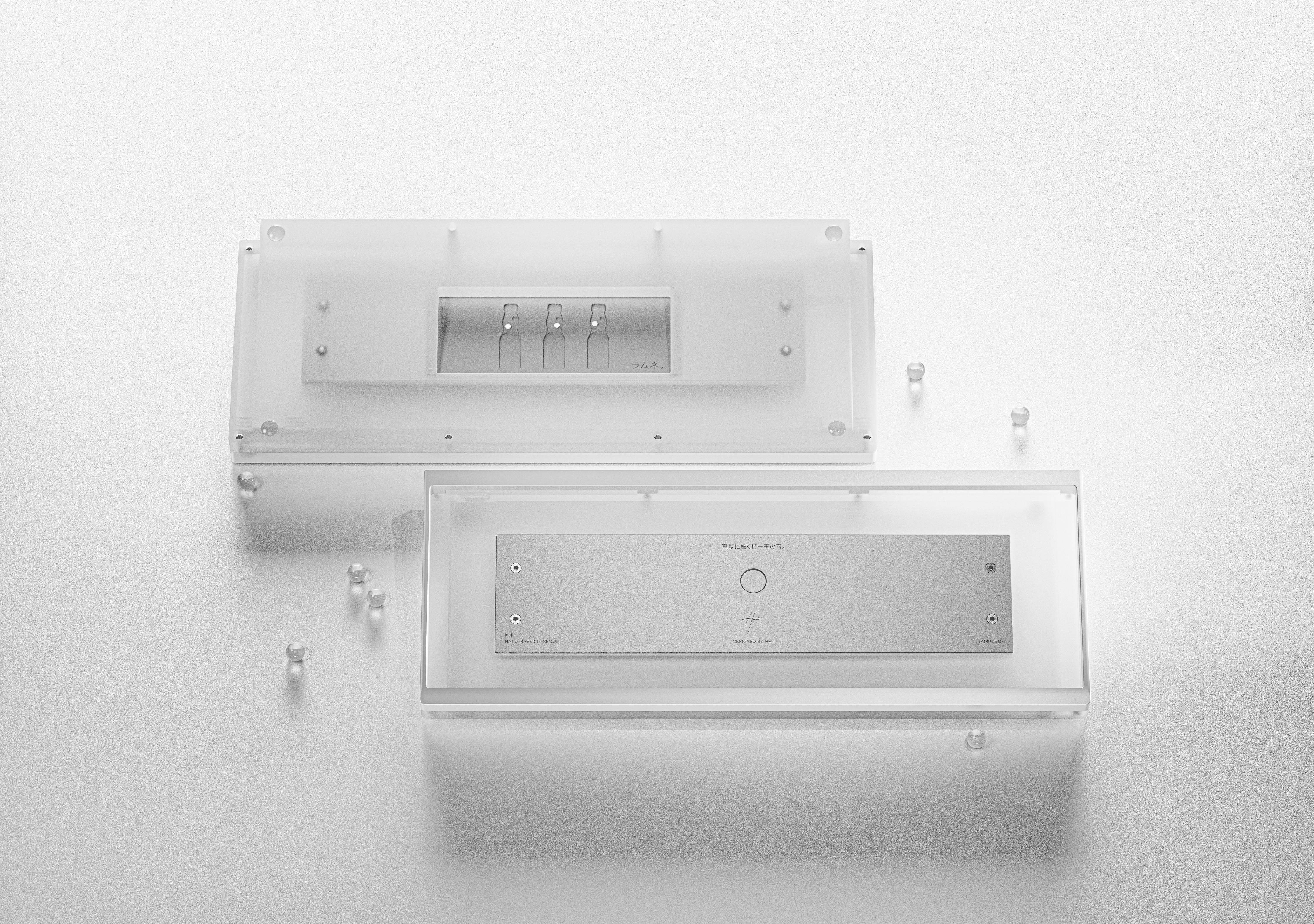

Silver / Acrylic

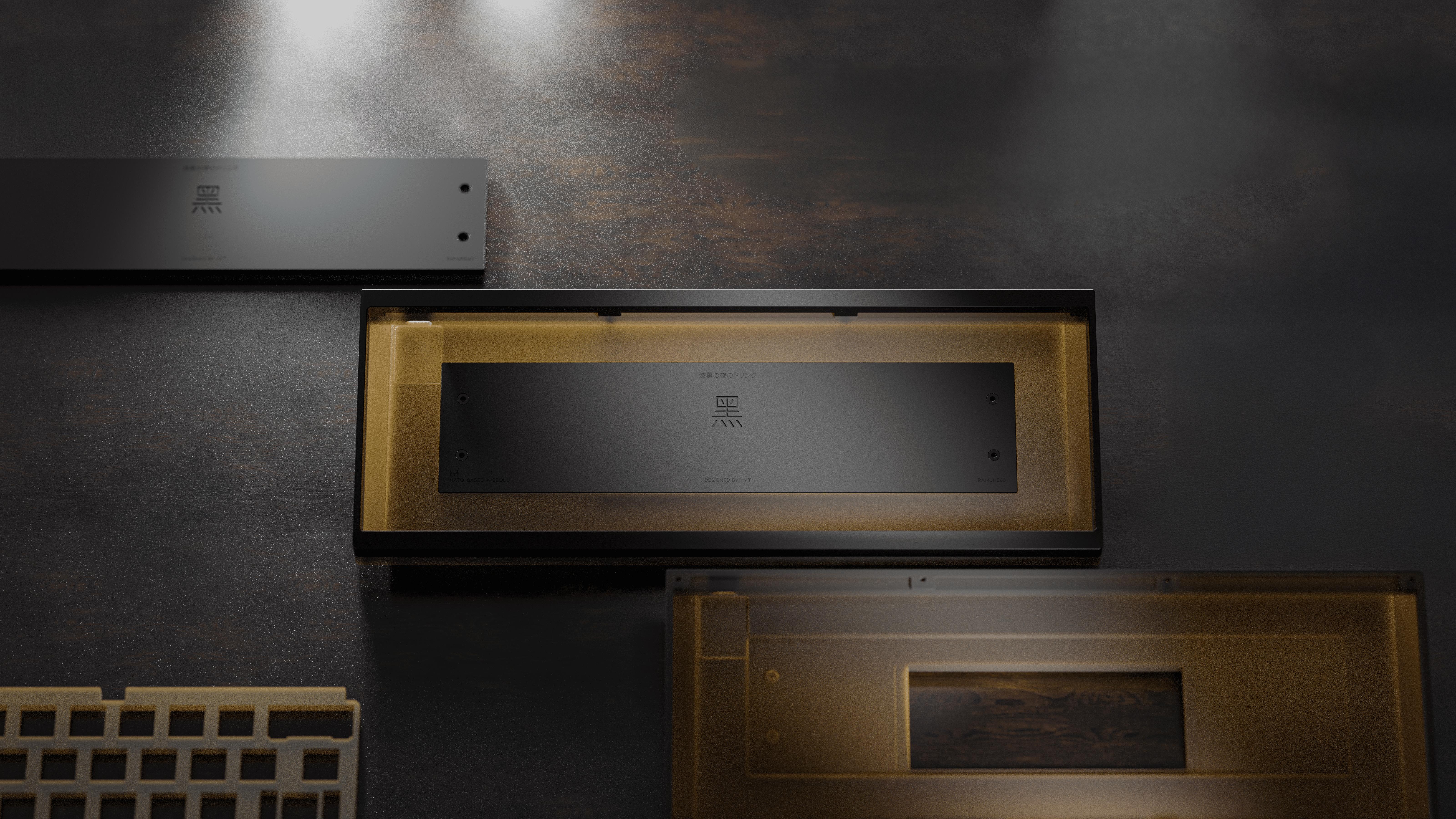

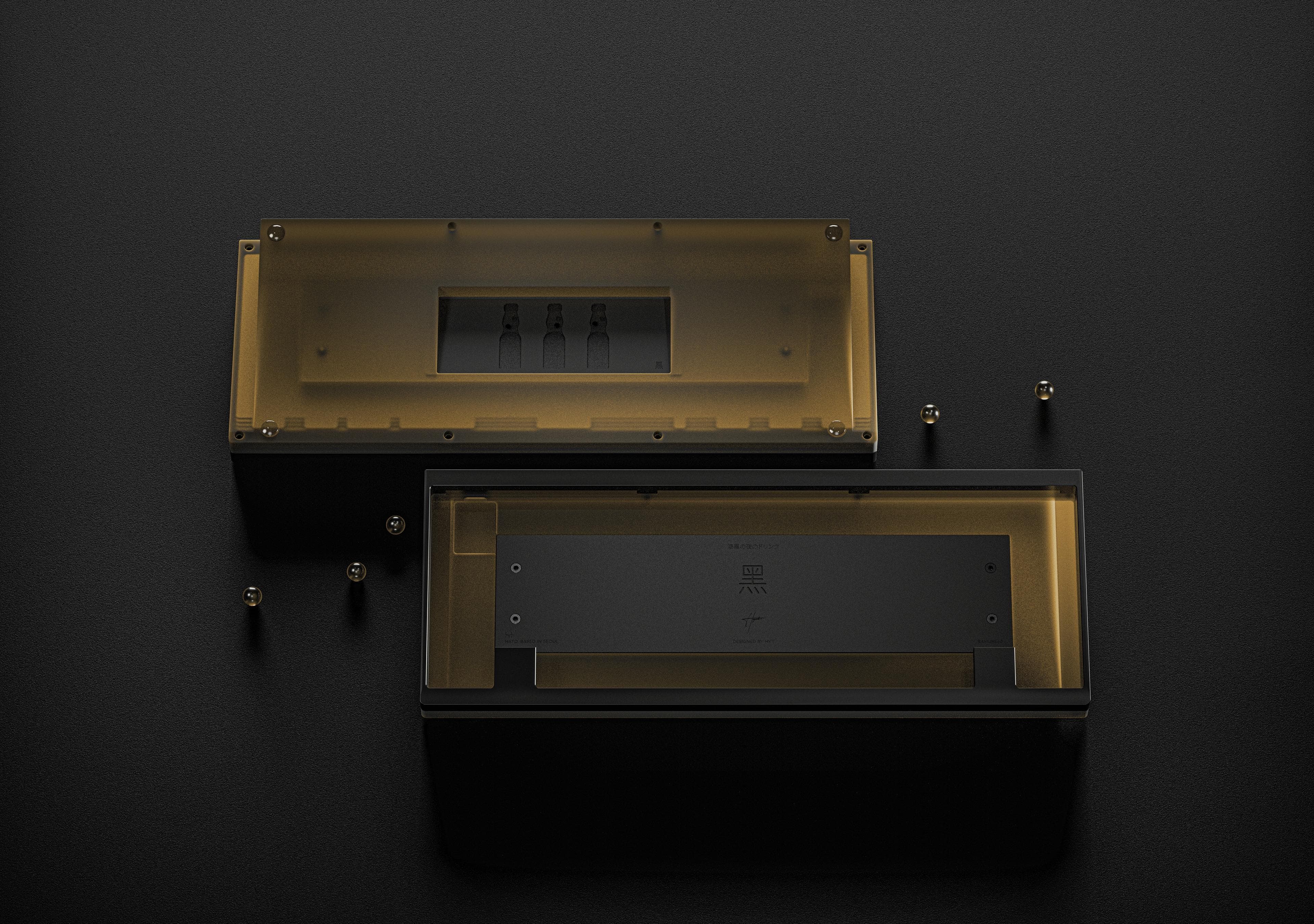

Black / PEI, Kuro Edition
Gurokawa / Dyed PC, GMK Gurokawa Collab

Weight:
Bead Blasted SS (Base option)
Bead Blasted SS with Black Coated (Kuro Edition)

PCB:
Solder / Hotswap with RGB Underglow (QMK / VIA compatible)
VENOM60HE RGB (Hall Effect)
VENOM60MX Hotswap 8Khz (QMK / VIA compatible)

Plate:
PP (Base Option), Aluminium, PC, PEI

Gasket
Poron LE-20 Black, 2.5mm
GTC30 White, 3.0mm

Feet
3M SJ5302 Bumpon

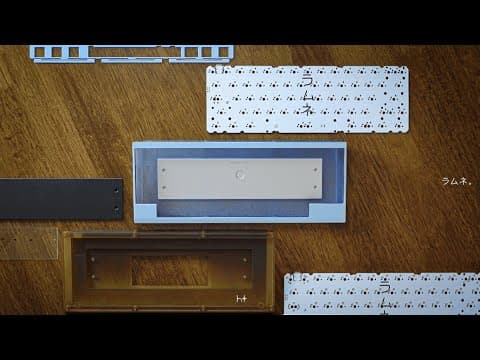

Kit contents

Top Case x 1
Bottom Case x 1
Weight x 1
Acryl Panel x 1
PP Plate x 1
Solder PCB x 1
Poron Gasket x 1
3M Feet x 2
Carrying case x 1
Screws and Screw Driver
ID Card

Layout

Solderable, Hotswappable PCB
-2u Backspace, Split Backspace
-Normal CapsLock, Stepped CapsLock
-2.75 Right Shift, Split Right Shift
-7u Tsangan, 6u True HHKB

VENOM60MX Hotswap 8Khz PCB
-Poker Layout, 6.25u

VENOM60HE 6.25U RGB PCB
-Poker Layout, 6.25u

VENOM60HE 7U RGB PCB
-2u Backspace, Split Backspace
-Normal CapsLock
-Split Right Shift
-7u Tsangan

Vendors

Lead Vendor, KR: Geonworks
US: Divinikeys
CA: Minokeys
EU: Delta Key Co
OCE: KeebznCables
SG: Ktechs
MY: MechaMY
CN: TypistClub
UK: Prototypist
TH: Aiglatson Studio
