Interest CheckKeyboards

RedBeard4X - Ergo 40% DIY Kit

by MechWild

geekhackenriched

0 followers0 bookmarks0 comments

Description

MechWild Discord

IC Form

The RB4X is an ergonomic board with columnal stagger and will be sold as a DIY kit. It is powered by a Black Pill development board (similar to the way you would use a pro micro on other boards, such as the MurphPad).

The case is a new type of sandwich case that our designer Sillyworld has dubbed the "RedBeard" case style. This style will be utilized in other low-profile projects in the future, as well.

The RedBeard case setup is simply an FR4 sandwich with a single acrylic mid-layer. This style is unique because of how compressed it all is thanks to the utilization of soldered standoffs to the bottom plate. This allows the board to sit completely flat on the typing surface if desired and creates a very sturdy product that minimizes exposure of sensitive electronics.

Prototype

The current prototype uses a 32x128 OLED. We have already changed the design so the final product will use a 64x128 OLED.

The design goals of the RB4X hit a couple different points:

Have a sturdy resilient low profile case design that doesn't compromise on aesthetics.
To provide a cost effective way to have a board that feels comfortable to use for Stenography
Accomplish the goal for #2 in a way that doesn't compromise its ability to be used for QWERTY typists as well.
Utilize the more cost effective black pill
Have a status OLED to show what typing mode/layer/options you have set
Support MX and Choc (low profile) switches
Accomplish the goal for #6 in a way that doesn't compromise its ability to be used for stenography

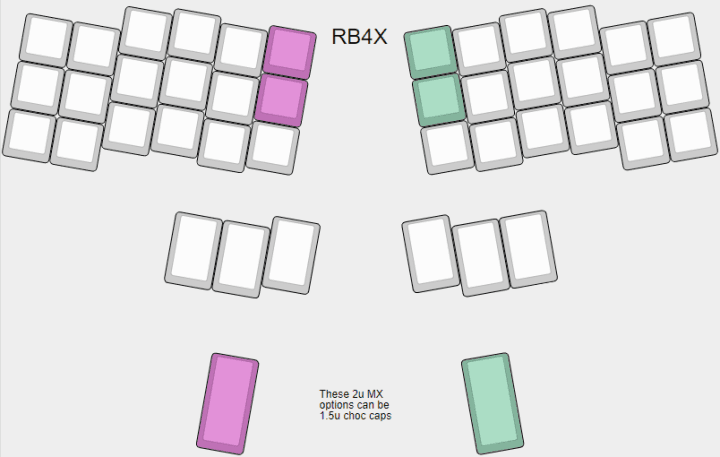

Layouts

The base kit has a goal price of 45 USD for the GB. The price will be reevaluated when it is put in stock.

The base kit includes:

1x Black Pill dev board
1x PCB
1x Bottom plate
2x Acrylic mid plates (they are halved vertically)
45x Diodes (42 are needed for the kit)
8x SMD RGB LEDs
1x 64x128 OLED
1x I2C EEPROM
10x SMD Standoffs
10x Screws
4x Rubber Bumpons

IC Form again.

Thanks for checking out this IC!

Timeline

Interest Check

Jun 3, 2021

Gallery

RedBeard4X - Ergo 40% DIY Kit image 1
