[Round 1 done] ISO & ANSI 60% mountplates

Information about round 1:
What are we waiting for?
Nothing. Time for round two! This went relatively smoothly.



Shipping list(not updated, everyone has got their plate except TheAnyDay who will recieve a replacement in round two.:



Community interaction











Questions

If you have any concerns regarding the group buy, please post in this thread or PM me.
You pay plate(s), shipping and 3% Paypal fee.

One of the first 50 orders were chosen to get a set of Gateron Blacks to fill their plate
Here is the draw video:Picture


Plate layout files: ANSI plate, ISO plate
Keyboard Layout editor: ISO layout, ANSI layout

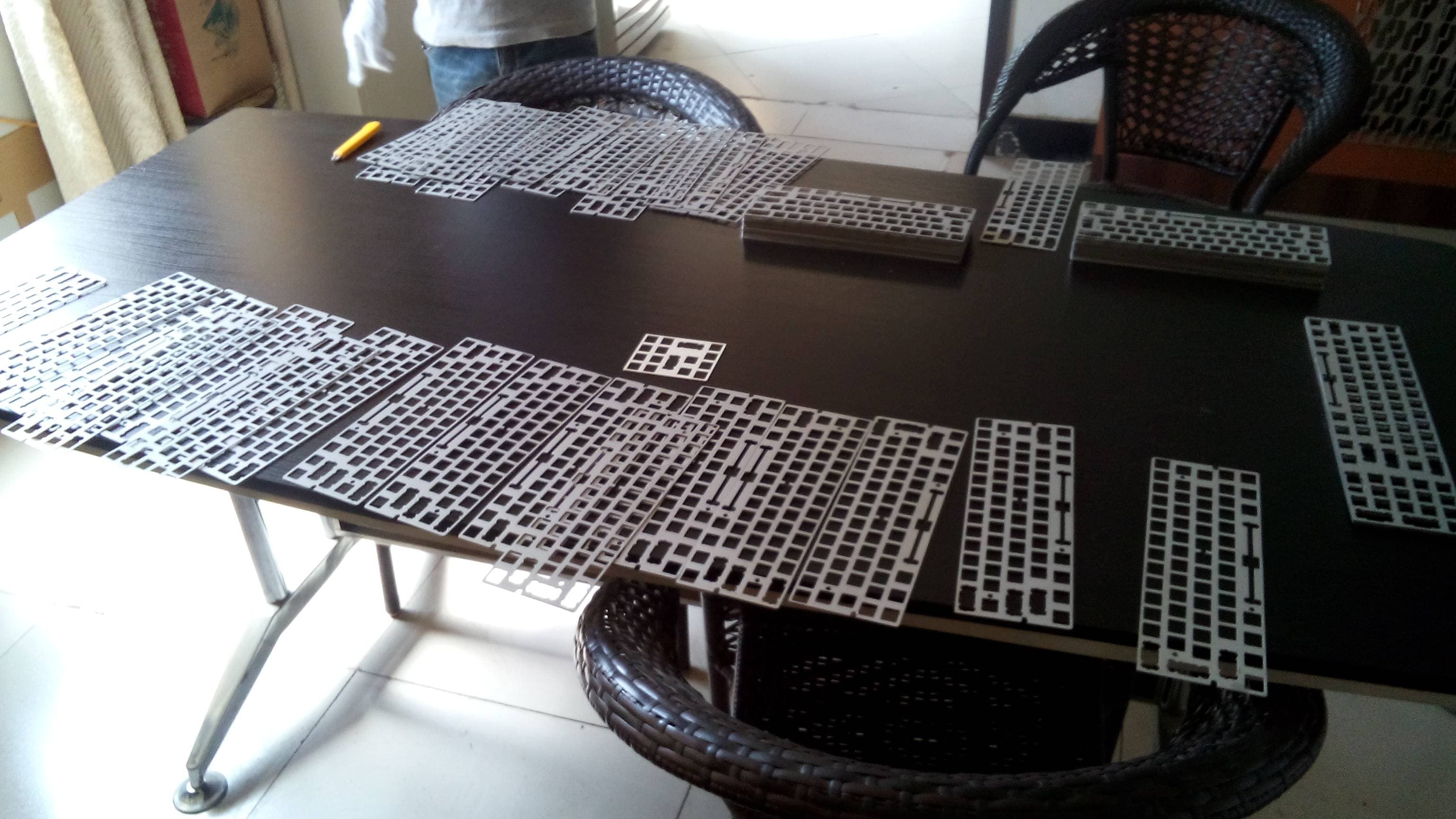

Click here for pictures of the samples in China
Packaging materialSamples in China

• Features:

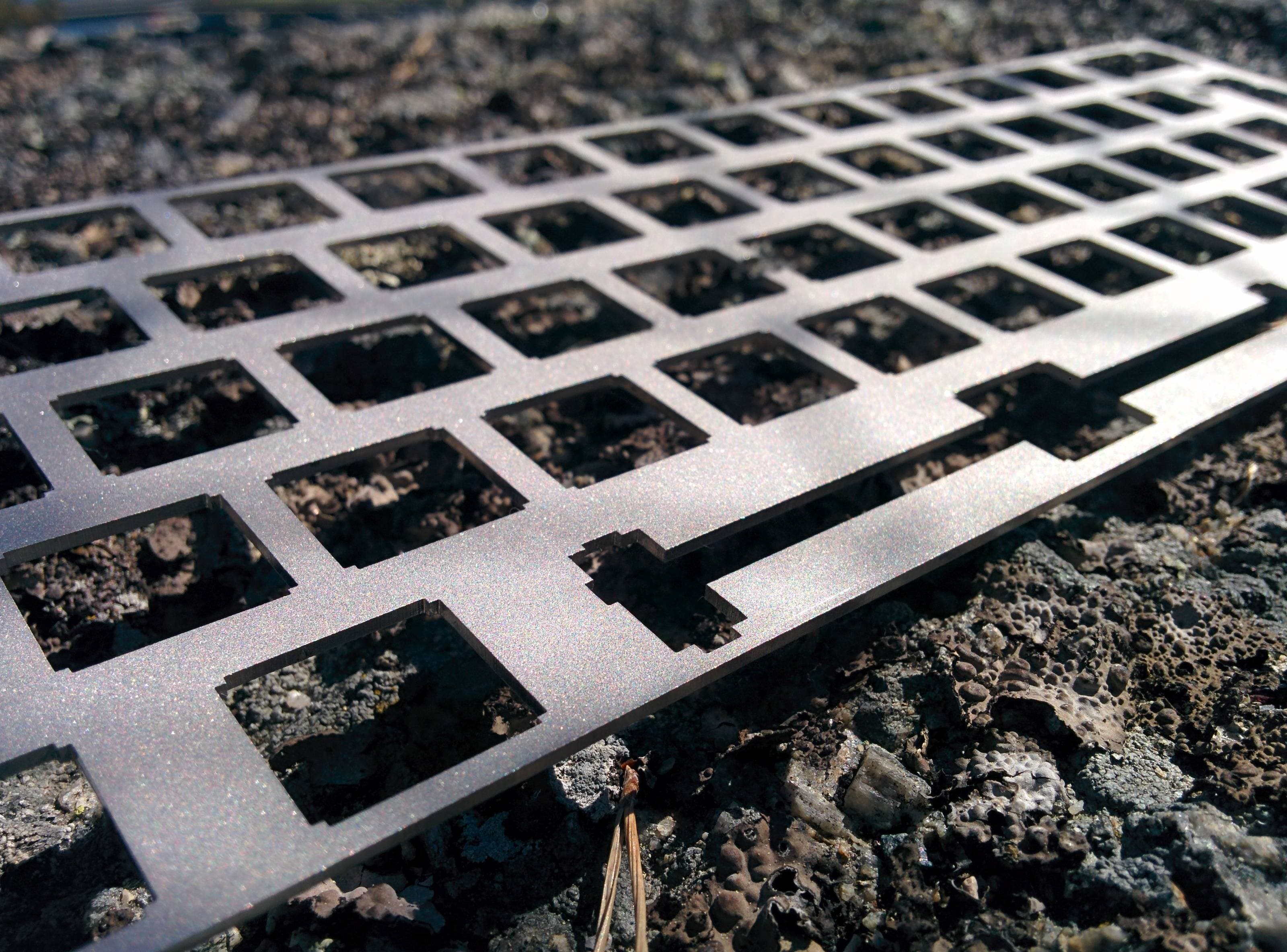

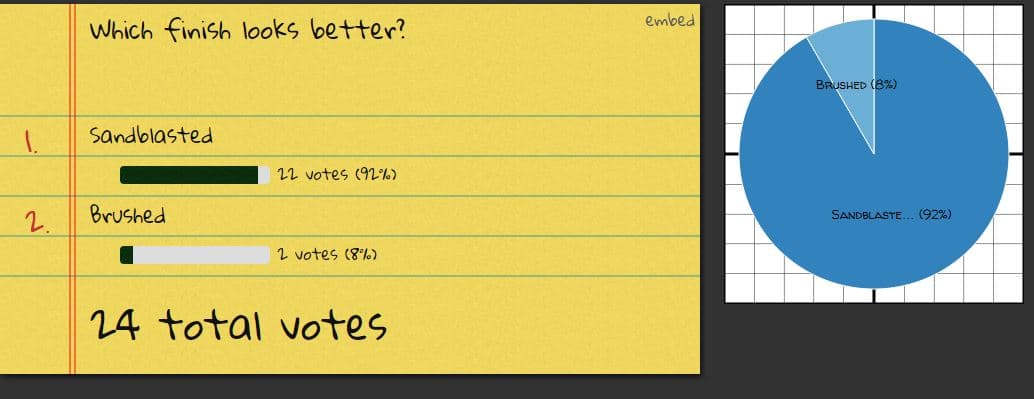

  Finish [✔ by me
  More

  ]

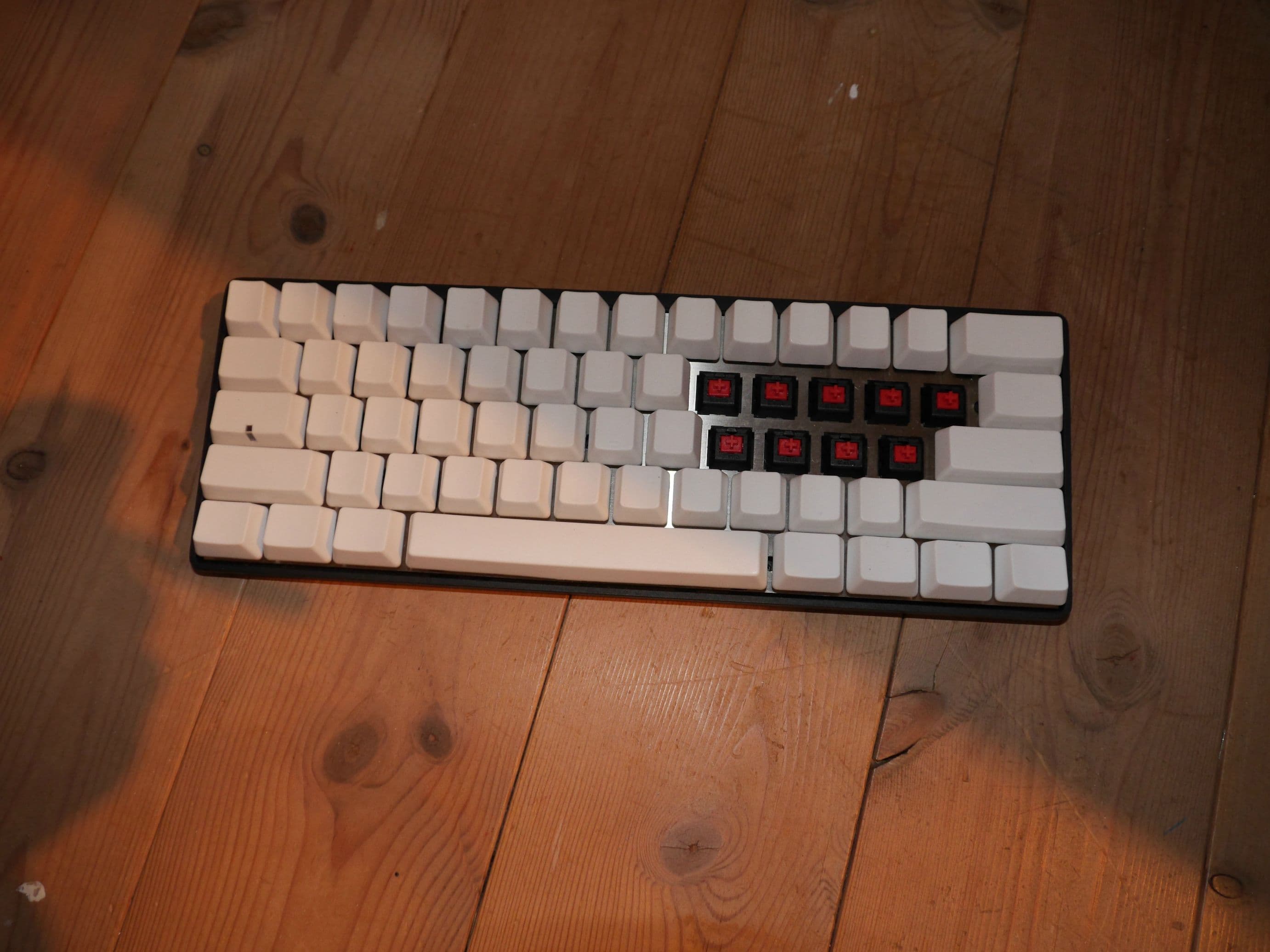

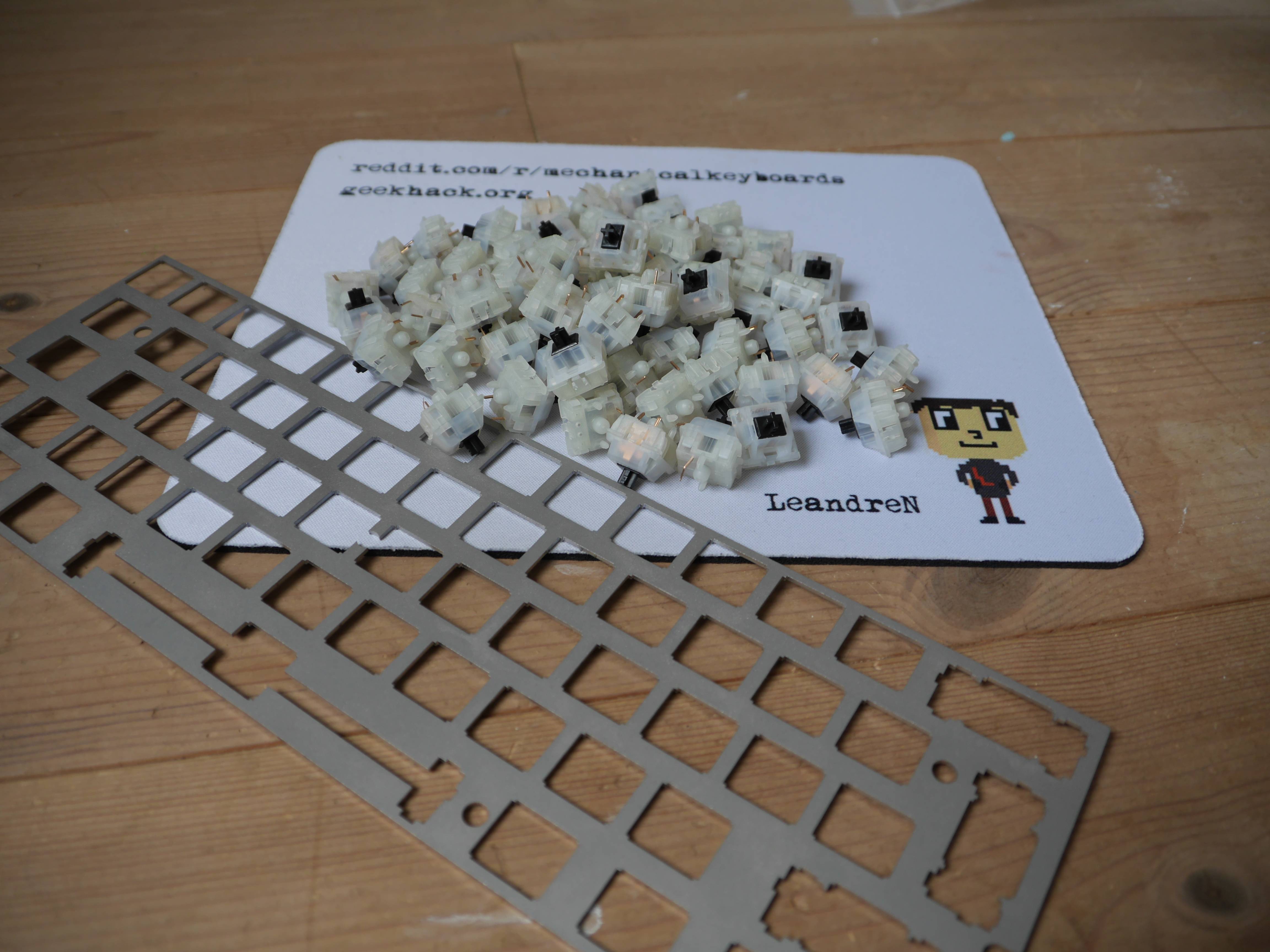

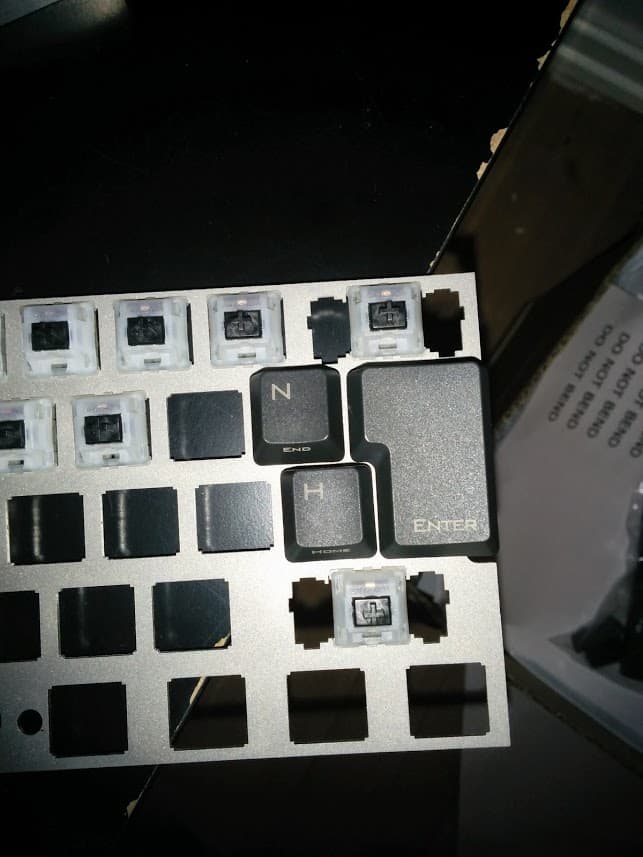

  Fit [ ✔ by me, Cherry and Gaterons switches are lose, but not wobbly, you may want to glue if you have thight keycaps and/or you want to remove them often. Kailh fits thightly. ALPS switches fit, but not thightly, not tested with multiple switches or stabilisers.
  More

  ]

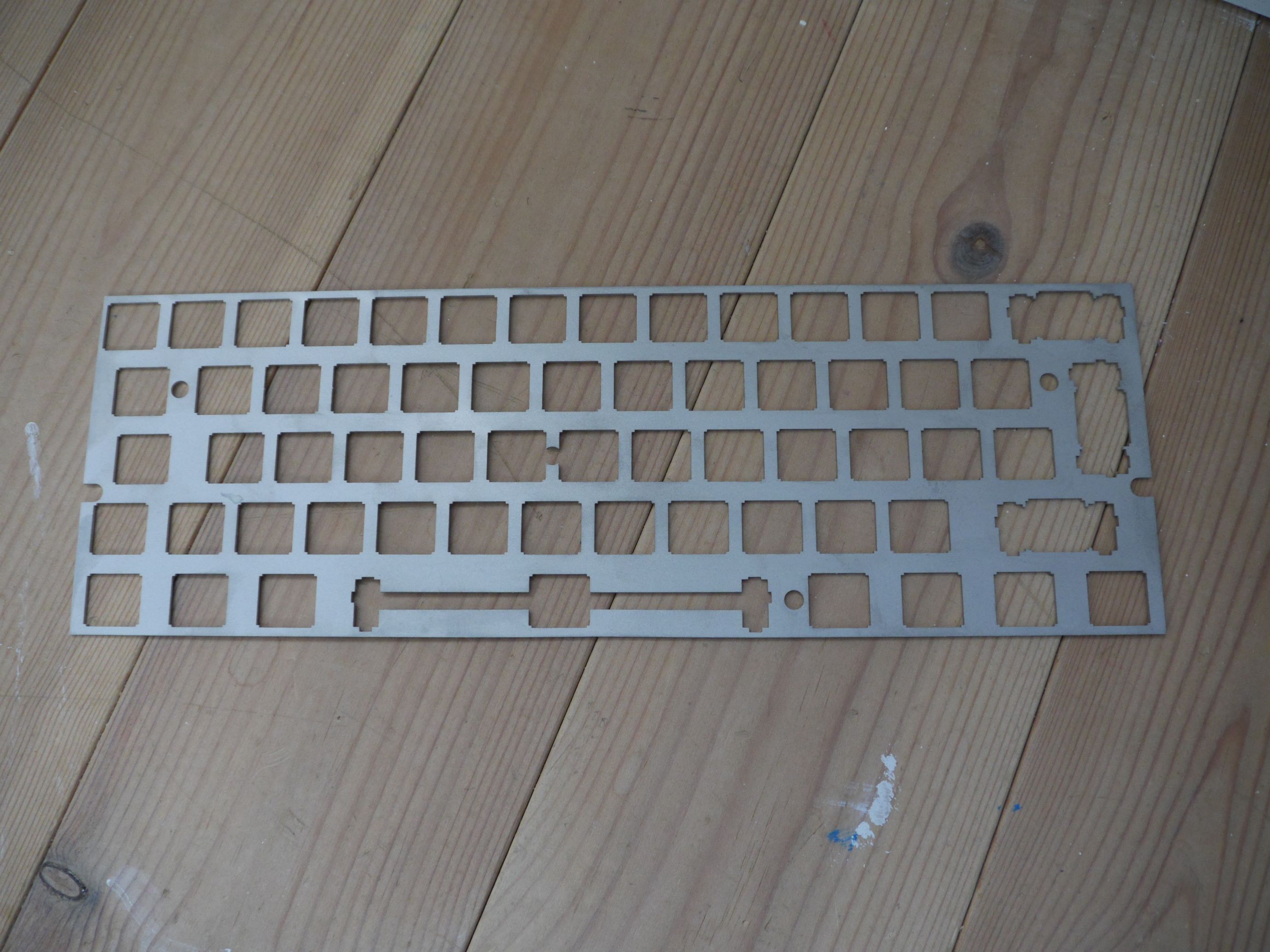

  Layout ISO [✔]
  More


  Layout ANSI [✔
  More

  ]

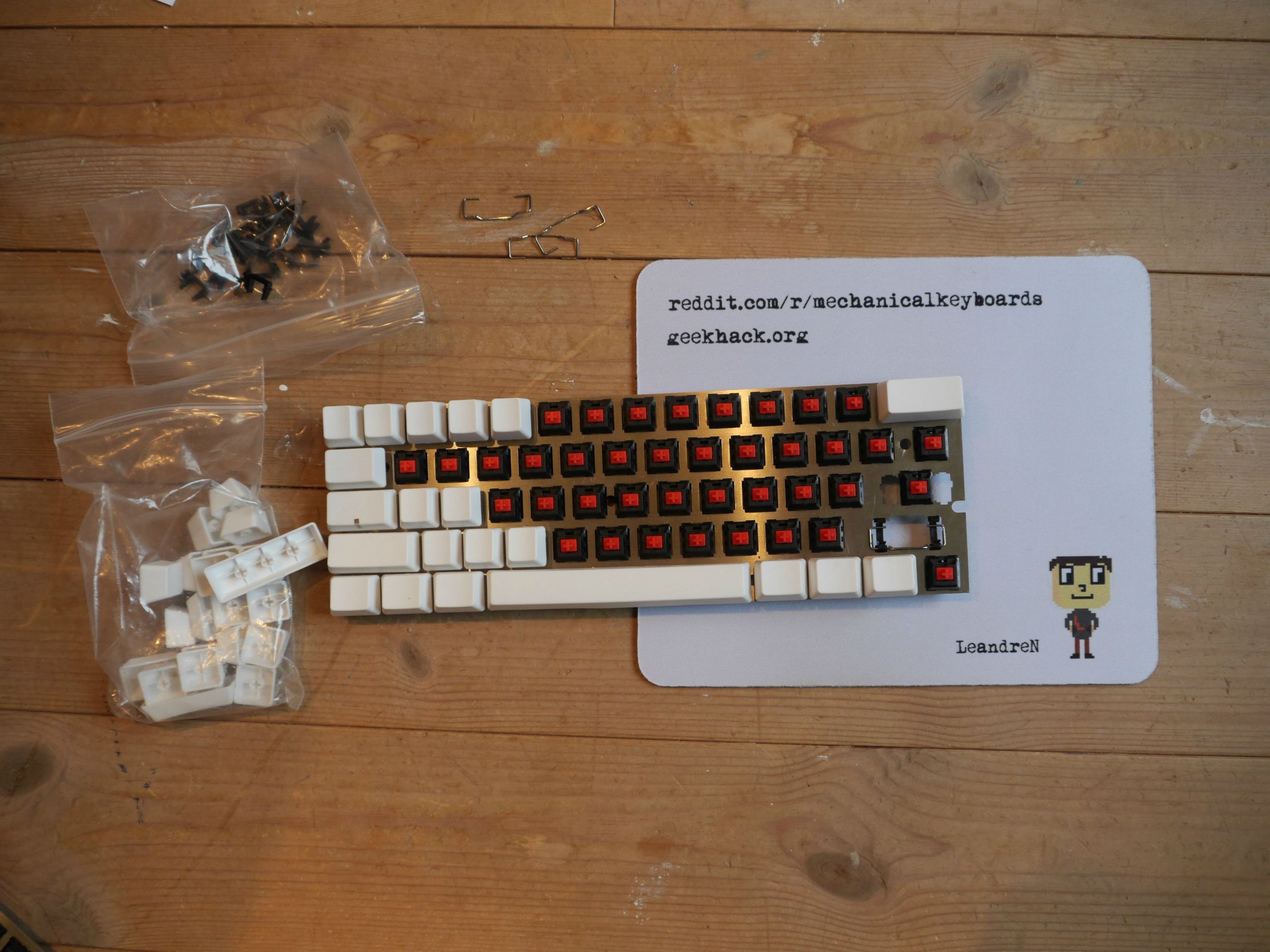

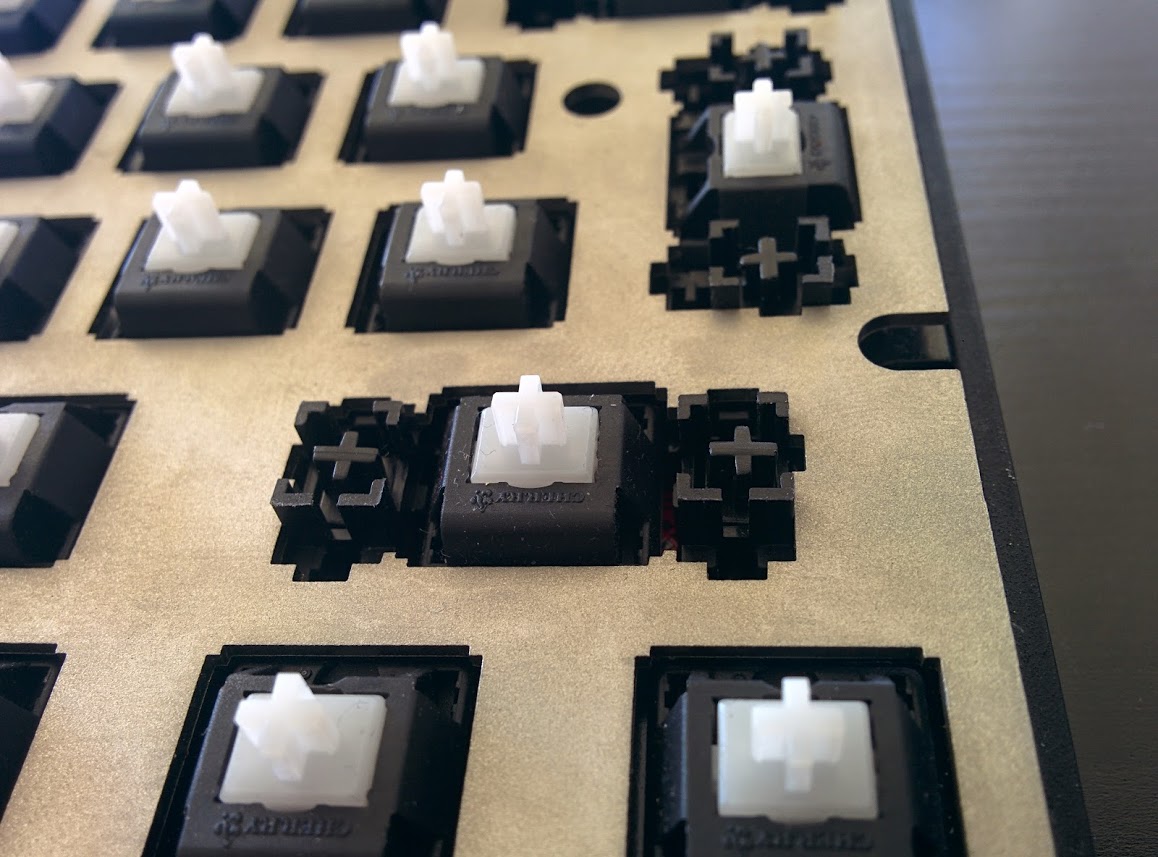

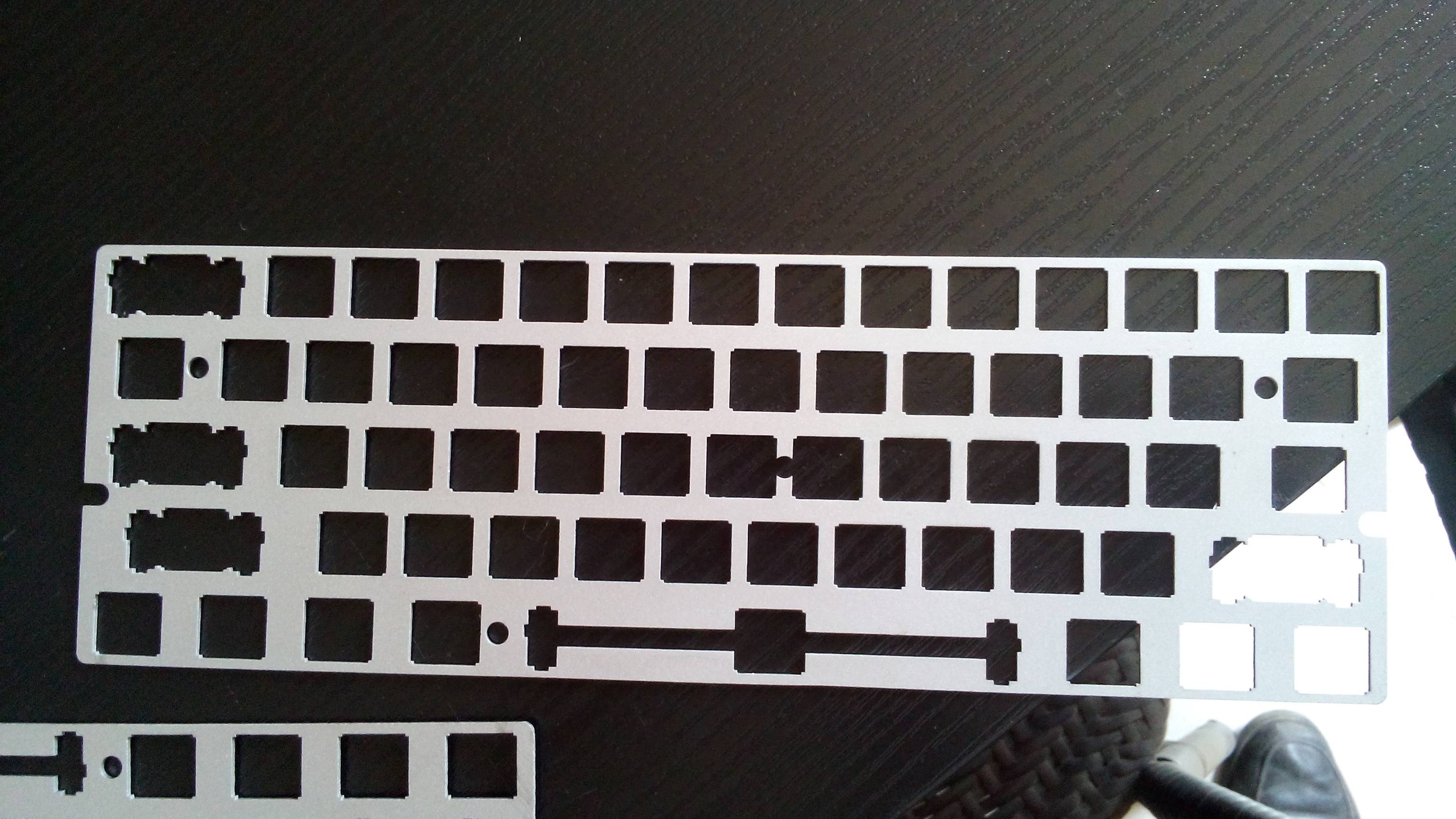

  Plate Cherry Stabilisers [✔ by SwillKB ✔ by me, This is the plate on top off Pok3r plate:
  More

  ]

  PCB Cherry Stabilisers [✔ by SwillKB. This plate on top off Pok3r plate:
  More

  ]

  Costar Stabilizers [✗ in sample, hopefully ✔ in final edition(no gurantee, but new fix by awesome Swill) ]

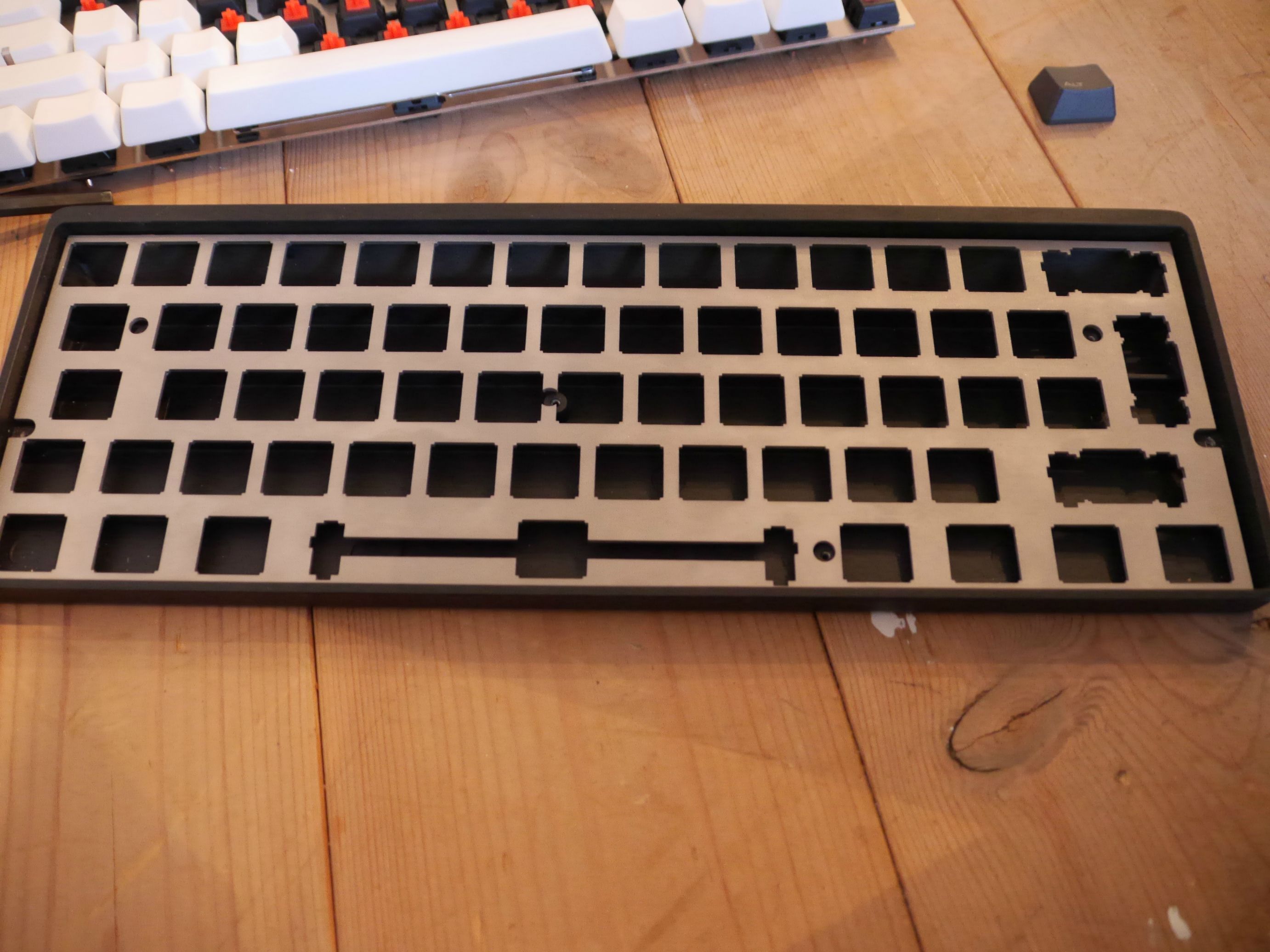

  60% Case (Pok3r cast aluminium case) [✔ mountholes allign nicely, need PCB or spacers to mount properly, validated by me
  More

  ]

  About the mount holes from SwillKB:

  This is the default and recommended switch cutout. It balances features with affordability since it is less expensive to cut than any of the other openable cutouts. This opening allows for MX switches to be opened without desoldering and is also Alps compatible.



Prices:

10 plates ordered, per 26$, 24€

20 plates ordered, per 23$, 21€

50 plates ordered, per 20$, 18€ <------- We are here

100 plates ordered, per 17$, 16€

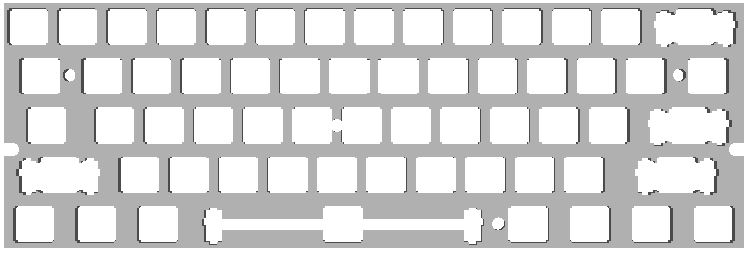

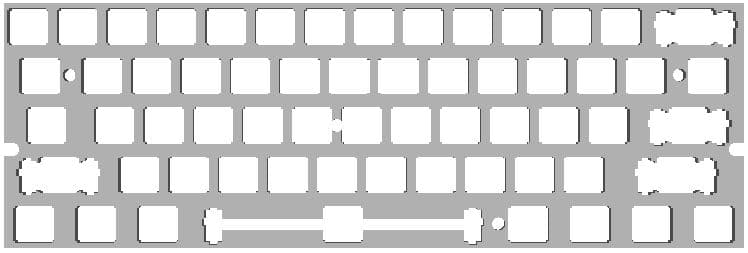

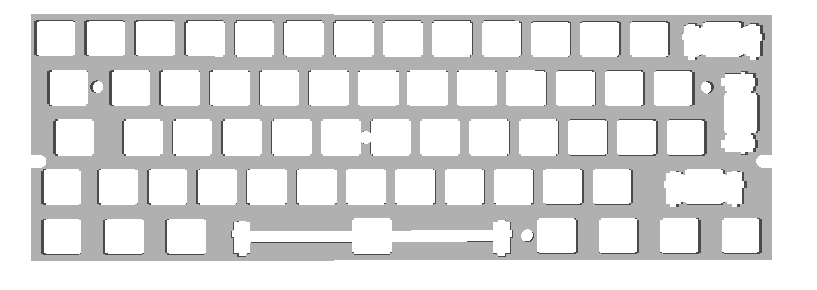

ANSI(without the rounded corners the plate will have)

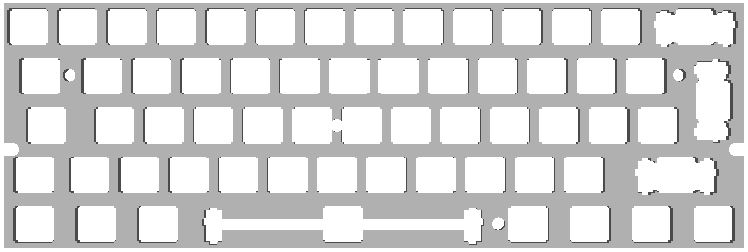

ISO(without the rounded corners the plate will have)


I will do more of this in the future, so please stay tuned!
There will be some plate leftovers on sale after the group buy is done for an increased price.

Thanks for showing interest, i probably forgot something, post any questions under!
