saevus cor65XT - Oct. 7 to Oct. 30

Update: GB Info and Vendors!
The time has finally come! We are ready to announce the GB! There will be an official Group Buy thread tomorrow.
Start Date: October 7th
End Date: October 30th
Limit: Uncapped
Delivery: 4-6 months depending on number of units sold. Will update here at least monthly.
Colors: Light Blue, Deep Navy, Lilac, Vibrant Red, Rose Gold, Silver, E-white, E-black
Tops: WK and WKL
PCB: Solder (allows for plateless), Hotswap (no plateless)

Base Price and Kit

• $500 USD
• Top and Bottom case (Anodized Aluminum, WK or WKL)
• Stainless Steel Weight (sandblasted)
• Copper Badge
• Brass Internal Weight
• PCB (solder or hotswap)
• Daughterboard
• JST cable
• Gaskets
• Bumpon feet
• PC Plate
• Extra hardware

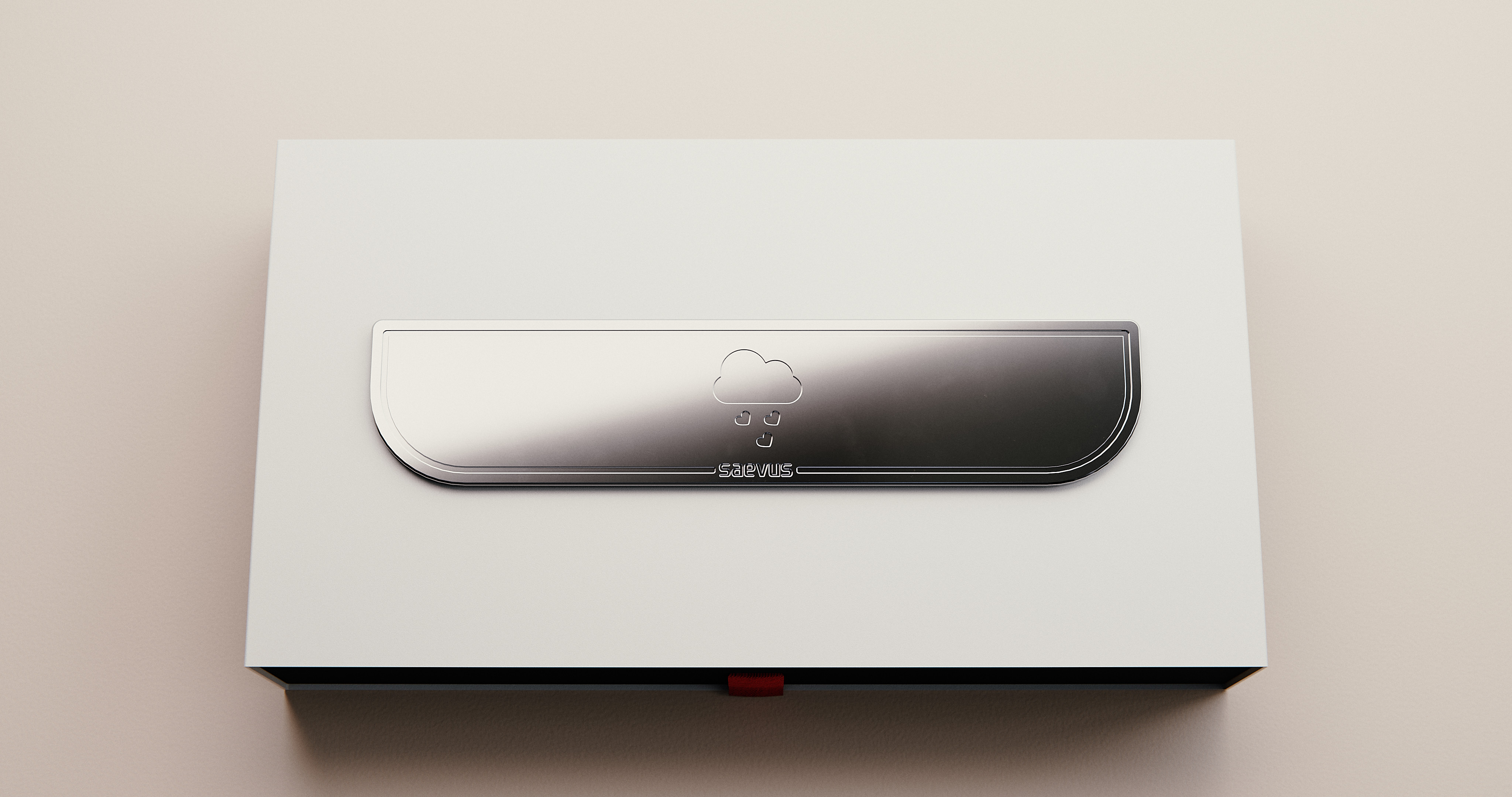

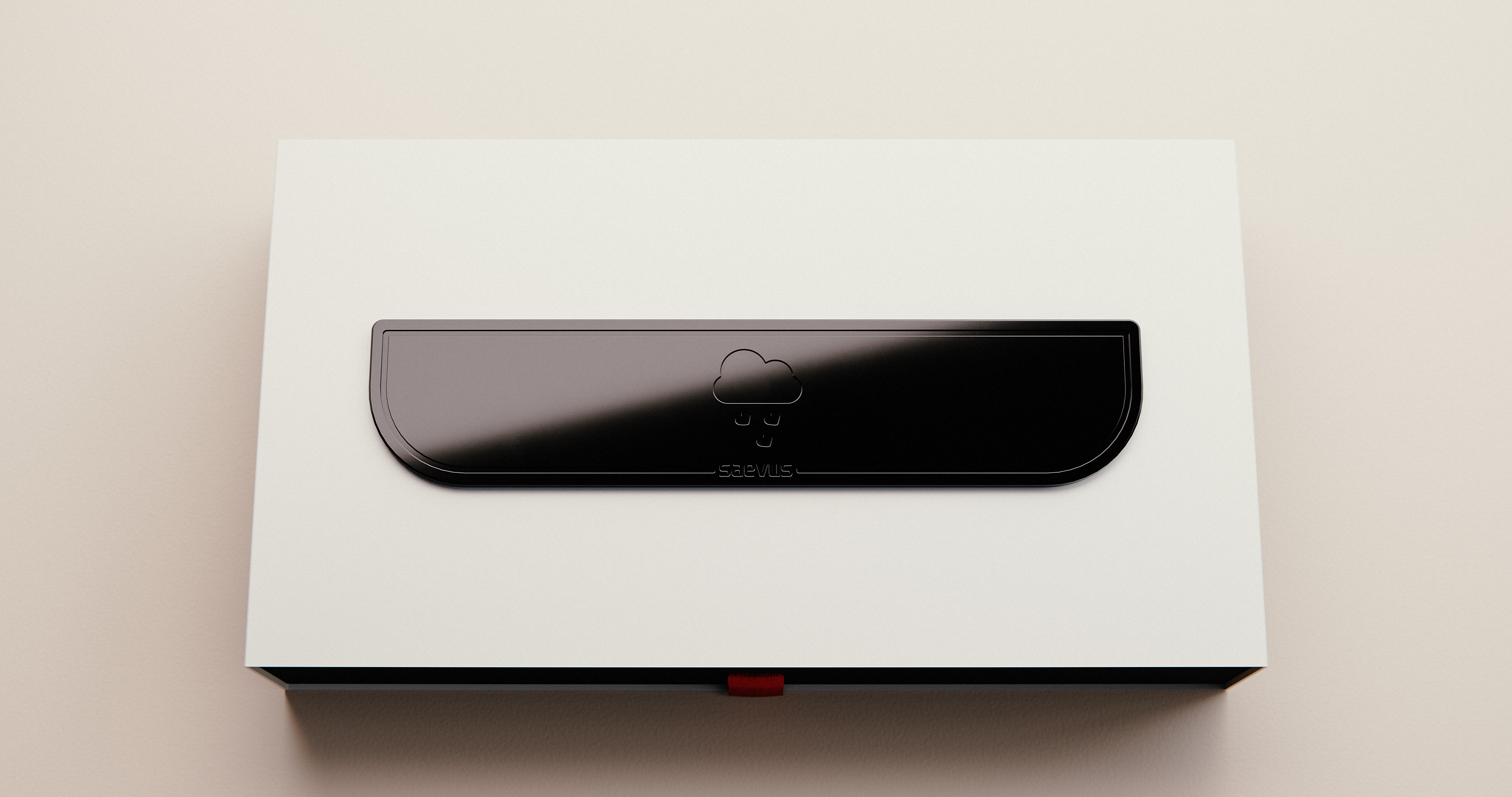

• Modular Carrying Case
• Microfiber Cloth
• Poron Case Foam

Extras

• Extra Badge (3 PVD Options, all polished SS - Black, Rainbow, Silver)
• PCB (Hotswap or Solder, will include gaskets)
• Daughterboard and JST
• Alu Plate
• PC Plate
• POM Plate

Regional Vendors
NA: https://mechsandco.com/
CA: https://www.ashkeebs.com/
EU: https://mykeyboard.eu/
UK: https://prototypist.net/
AU: https://prestigekeys.com.au/
Asia: https://swagkeys.com/

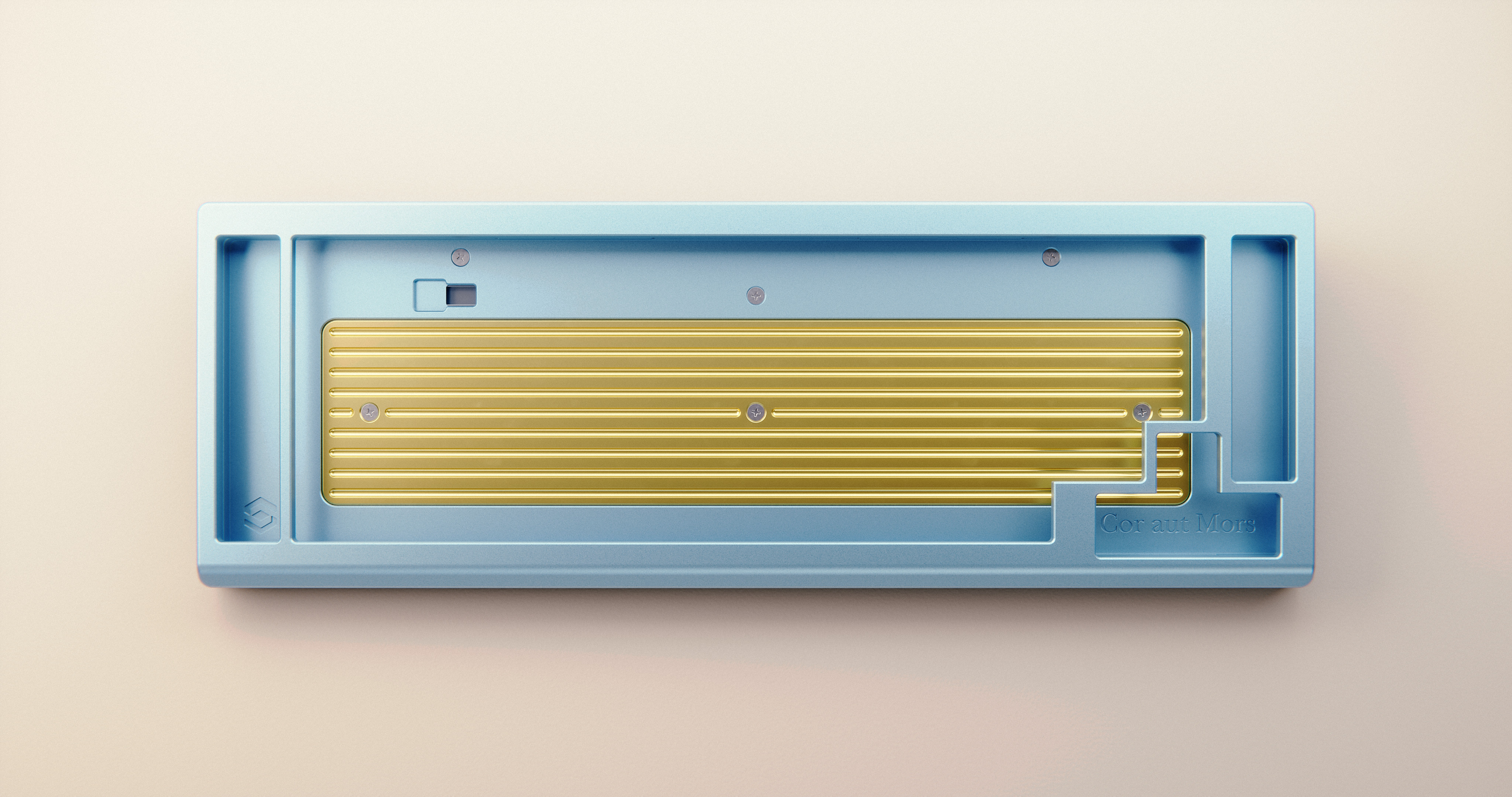

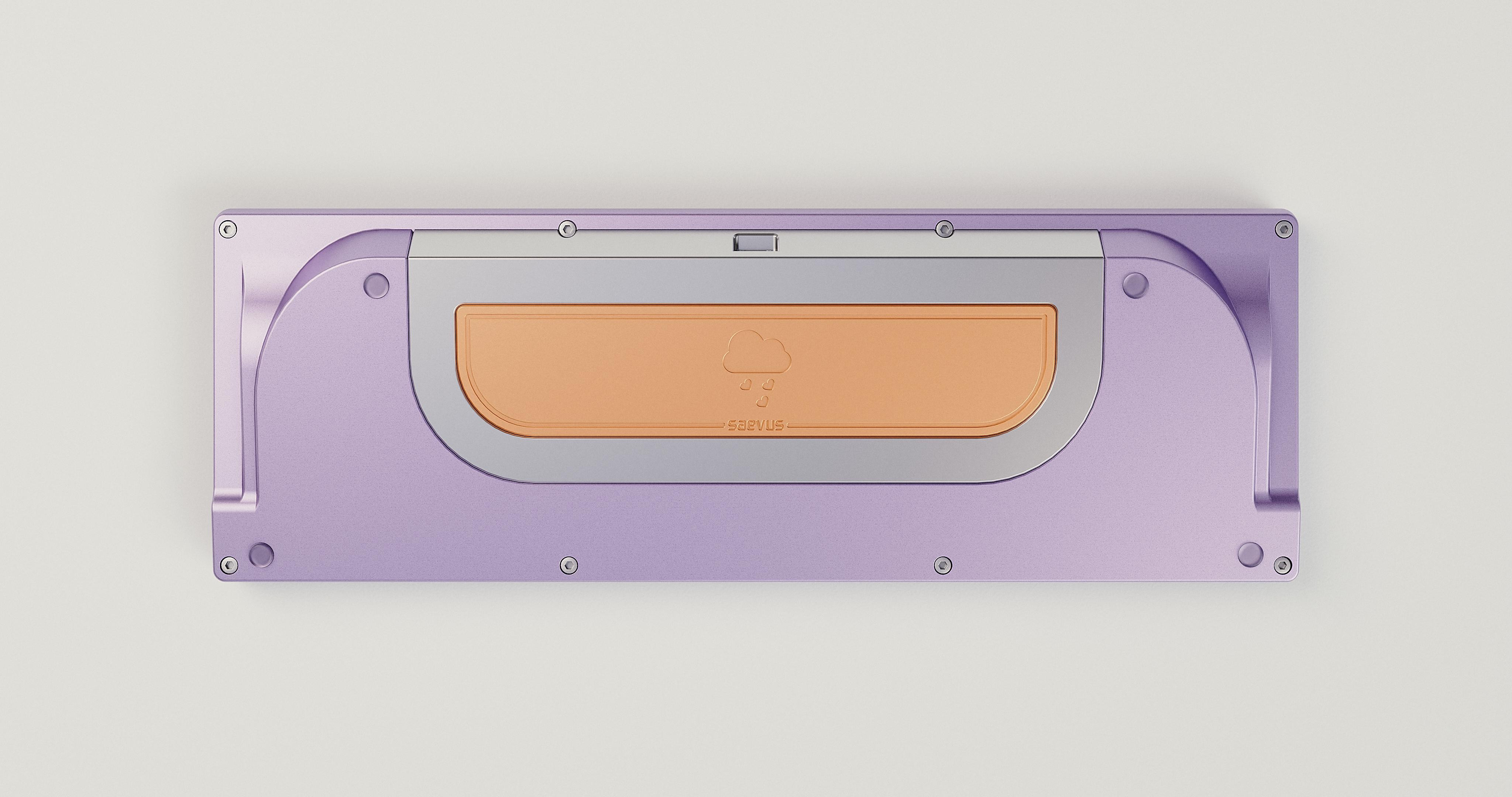

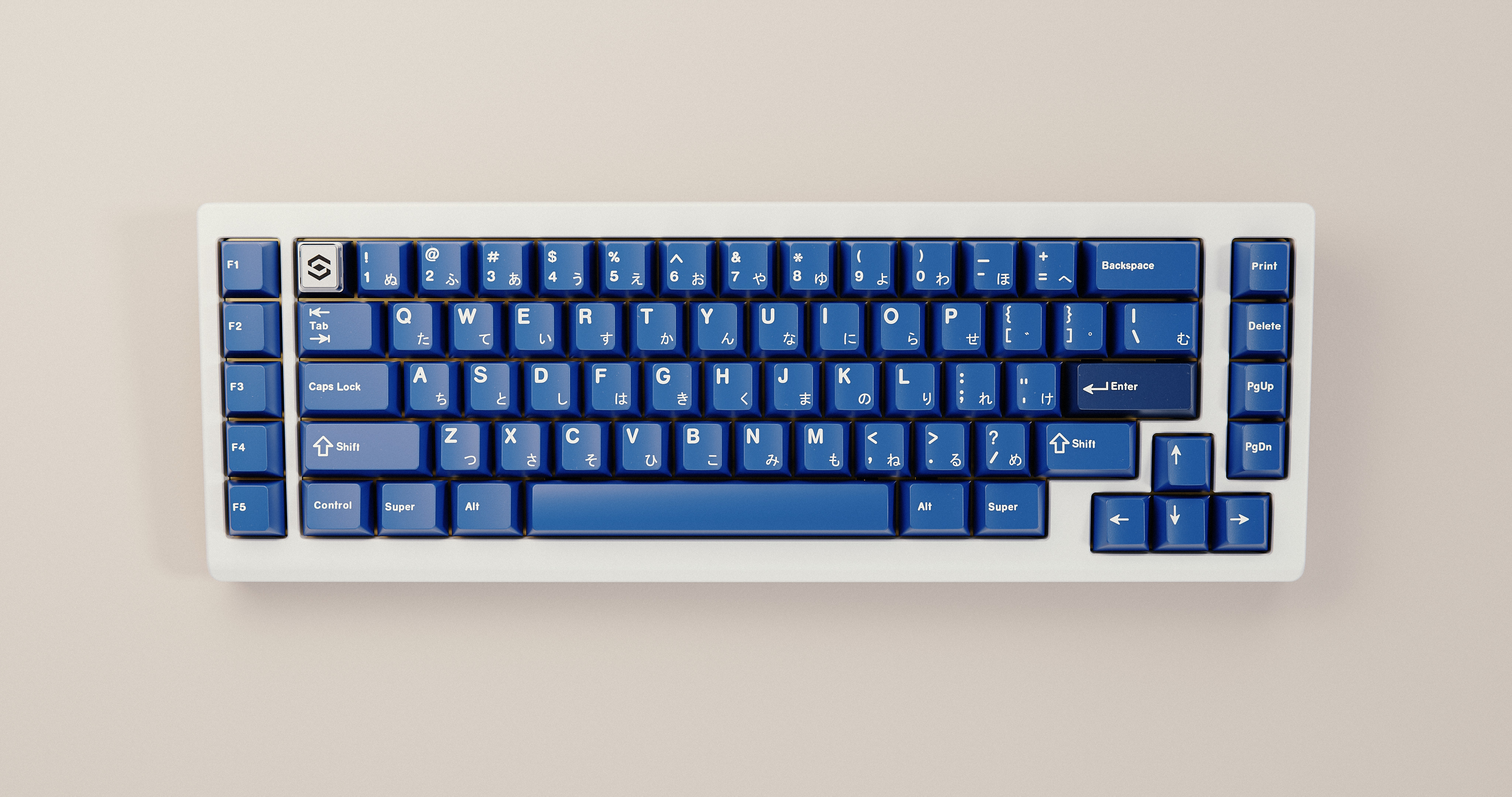

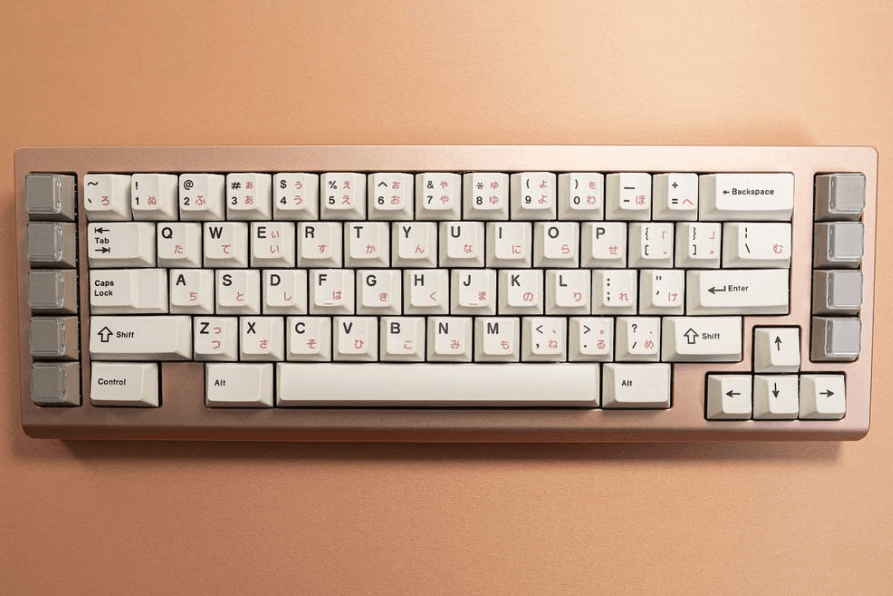

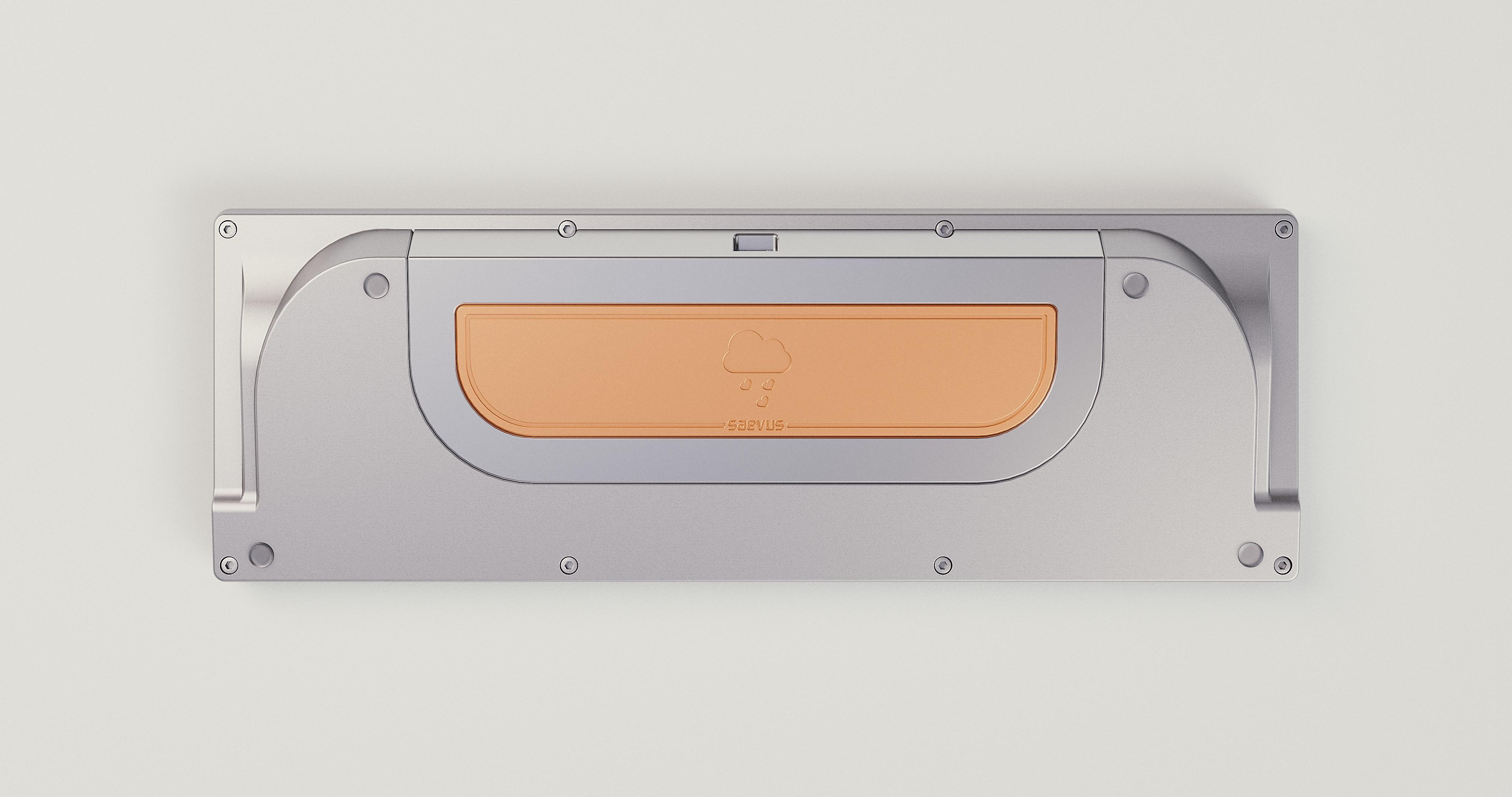

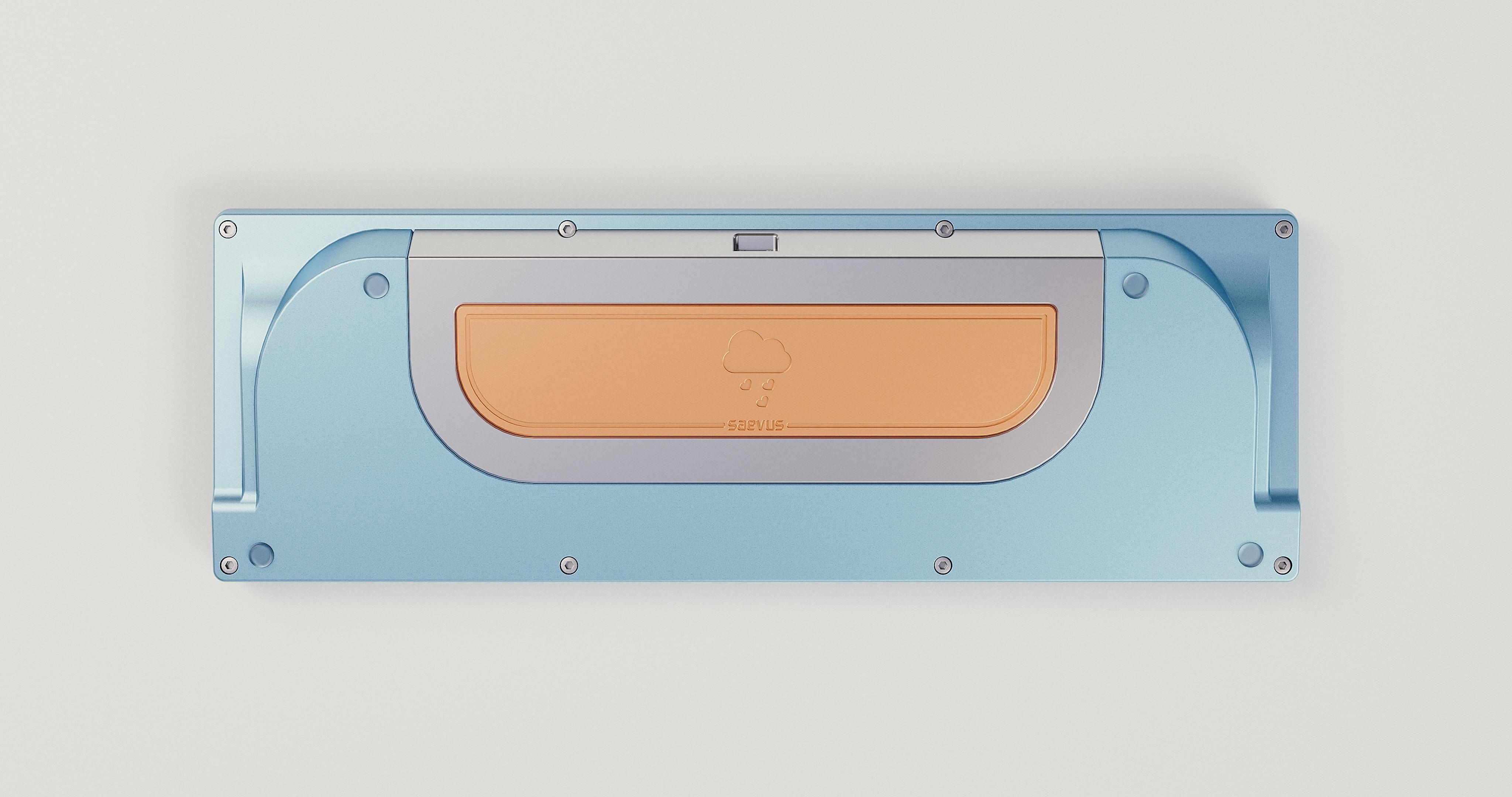

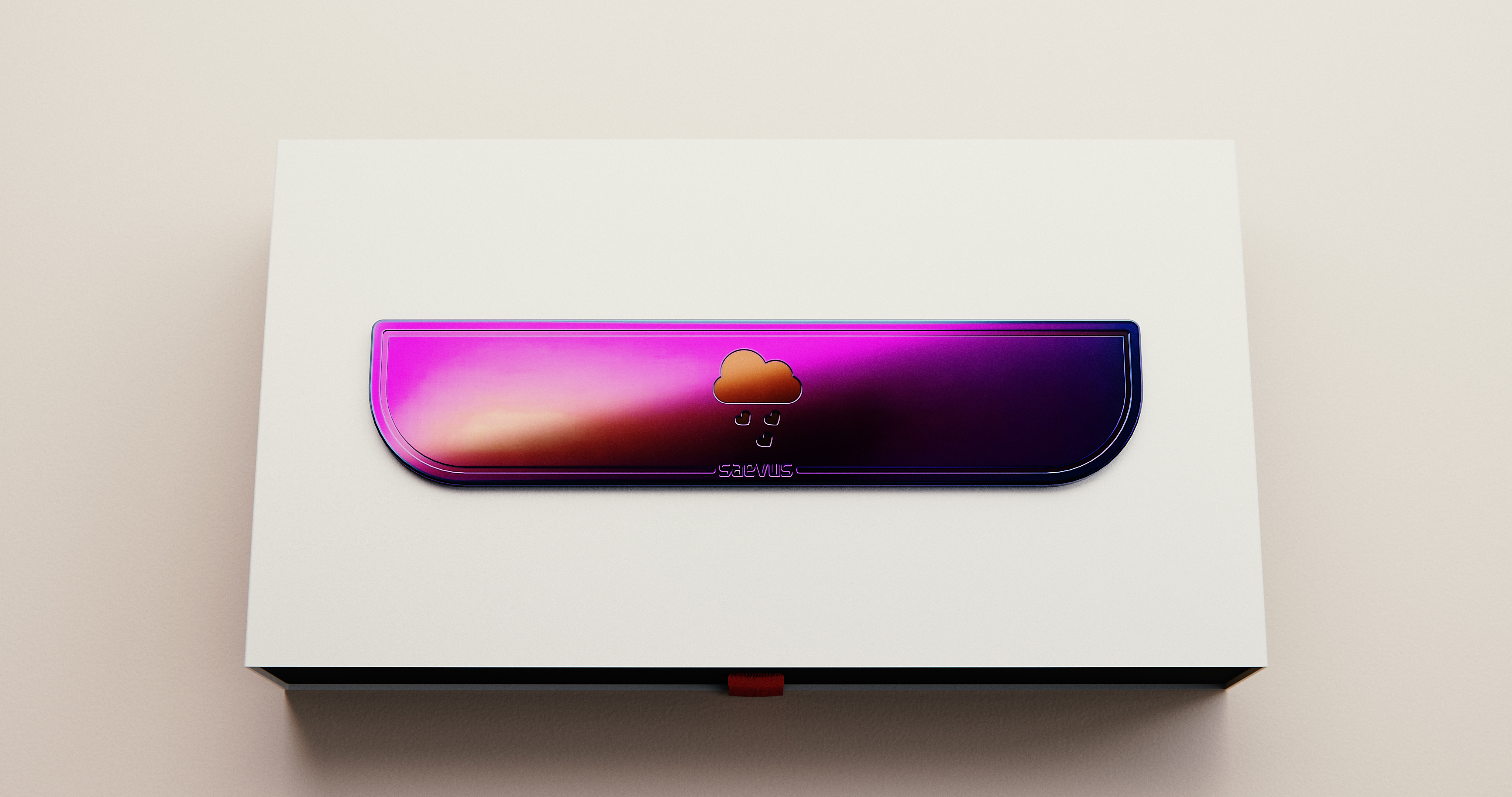

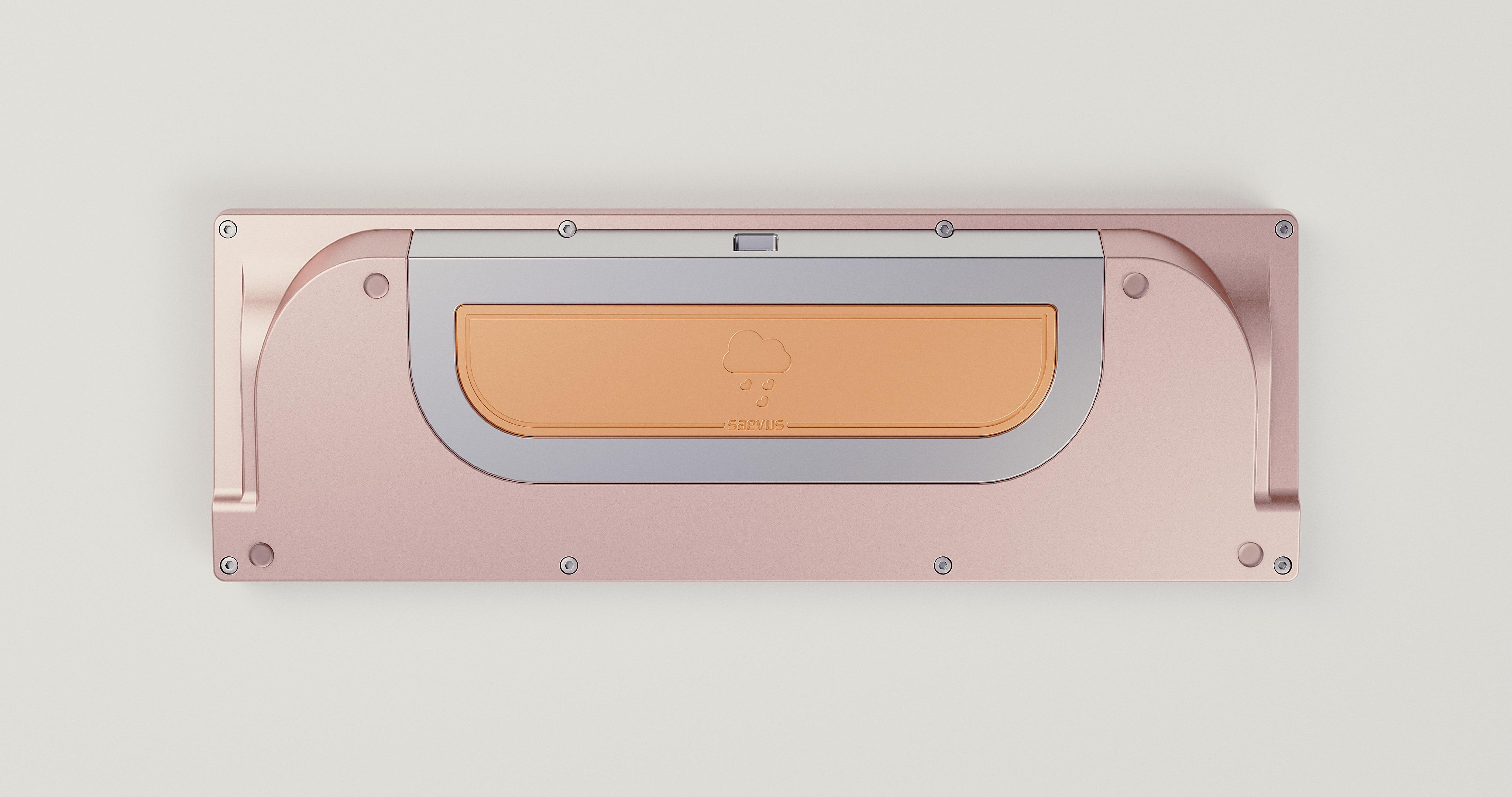

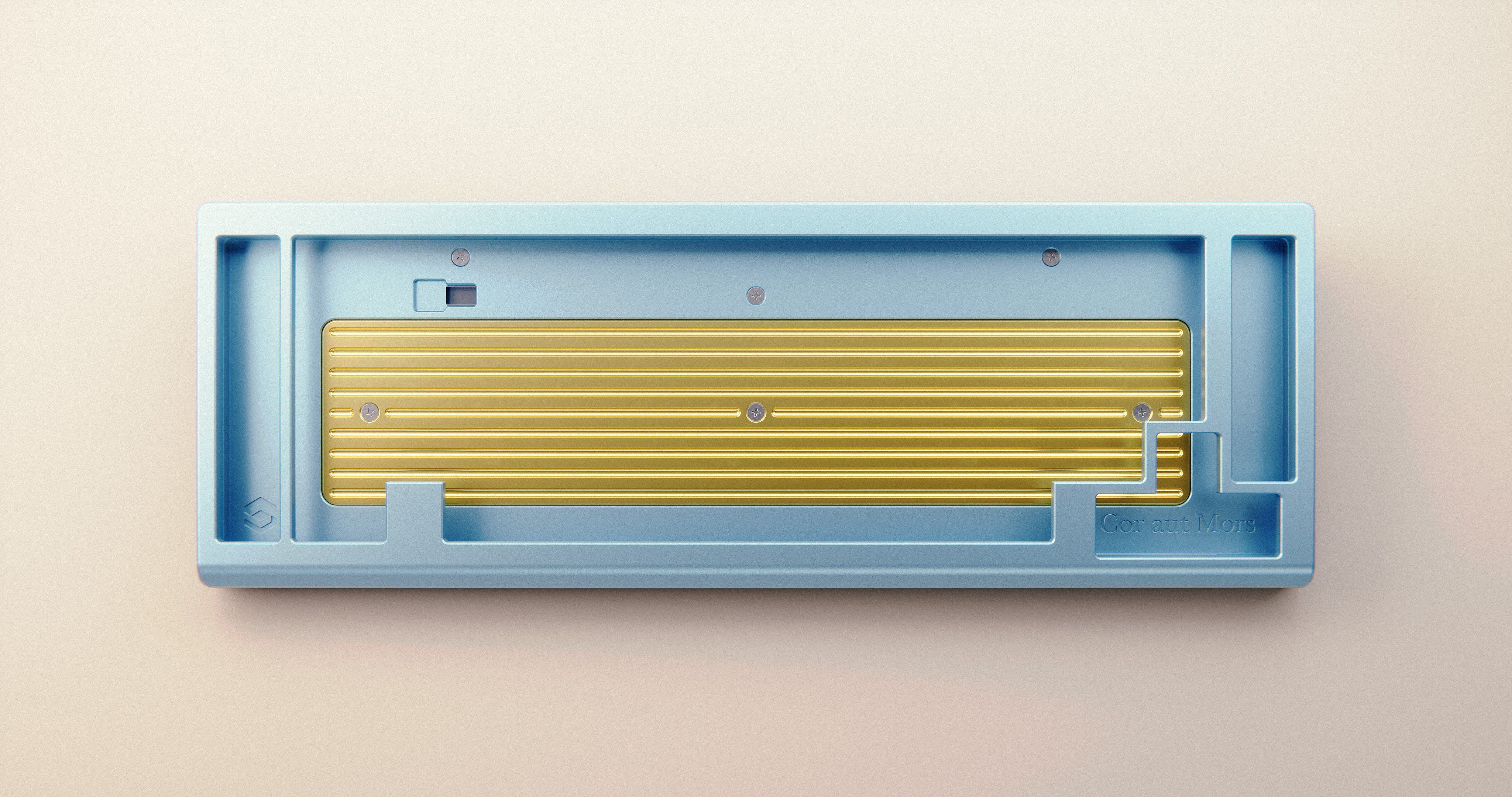

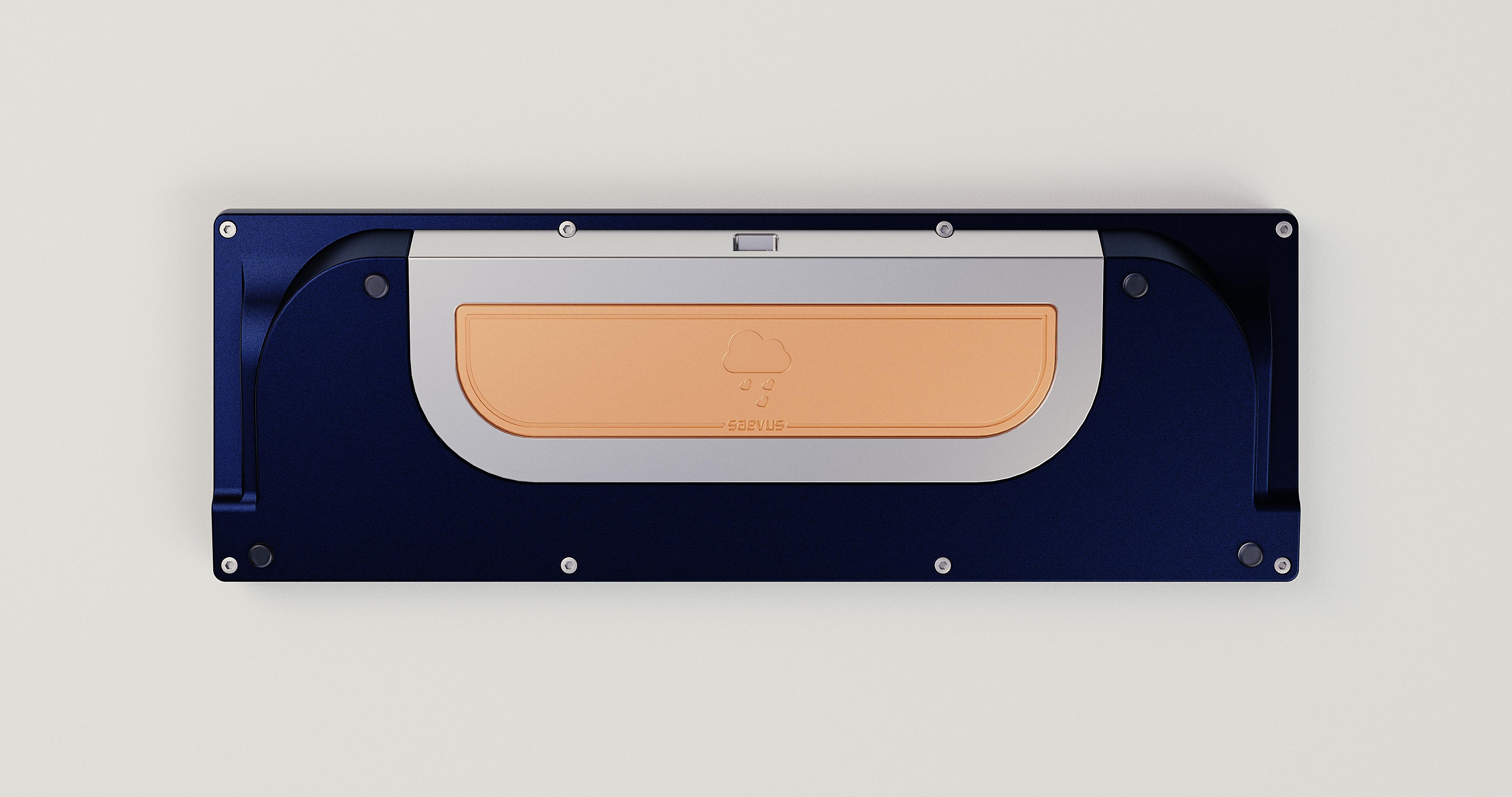

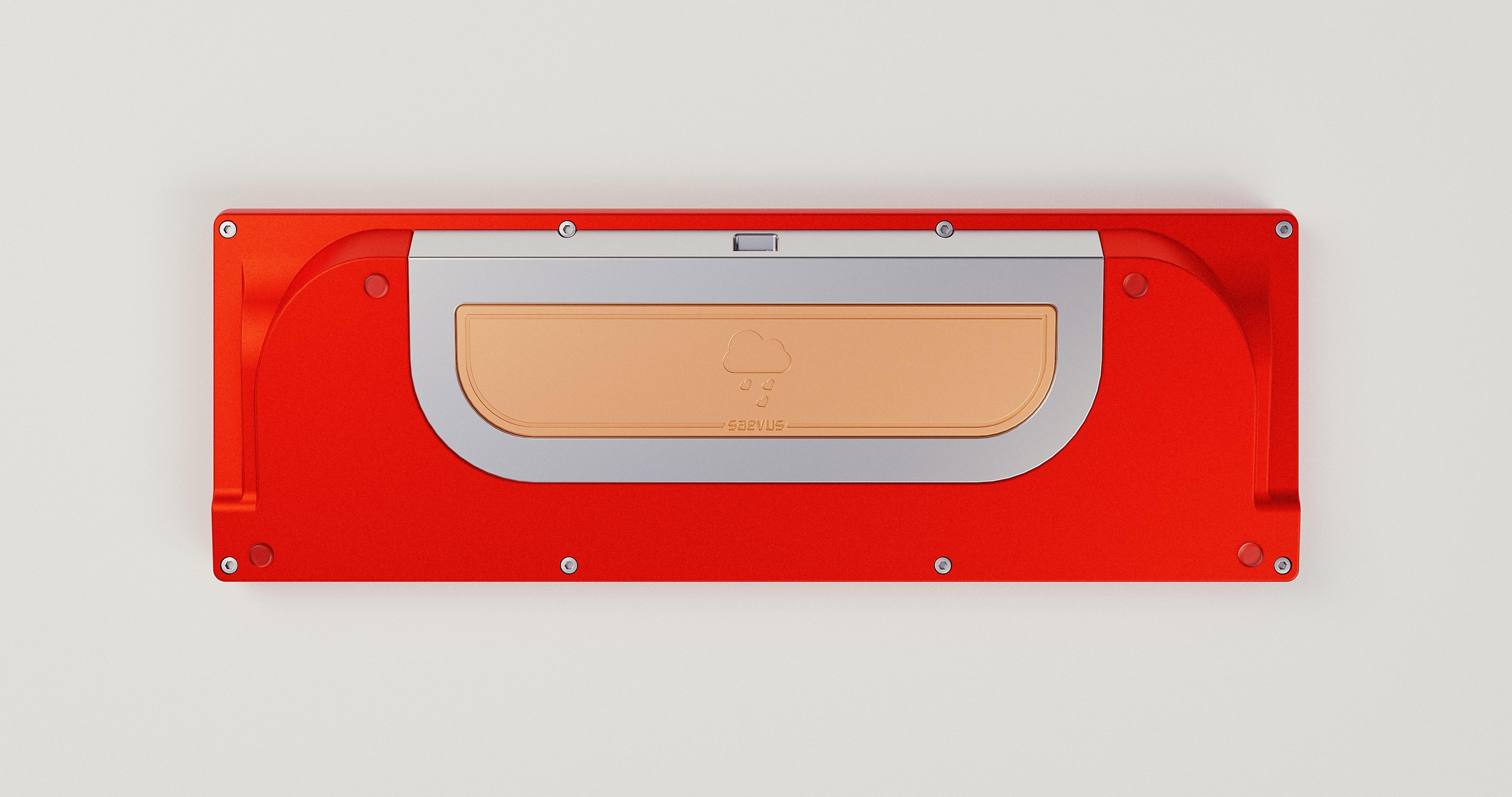

Renders all thanks to Mark-The-Weeb!

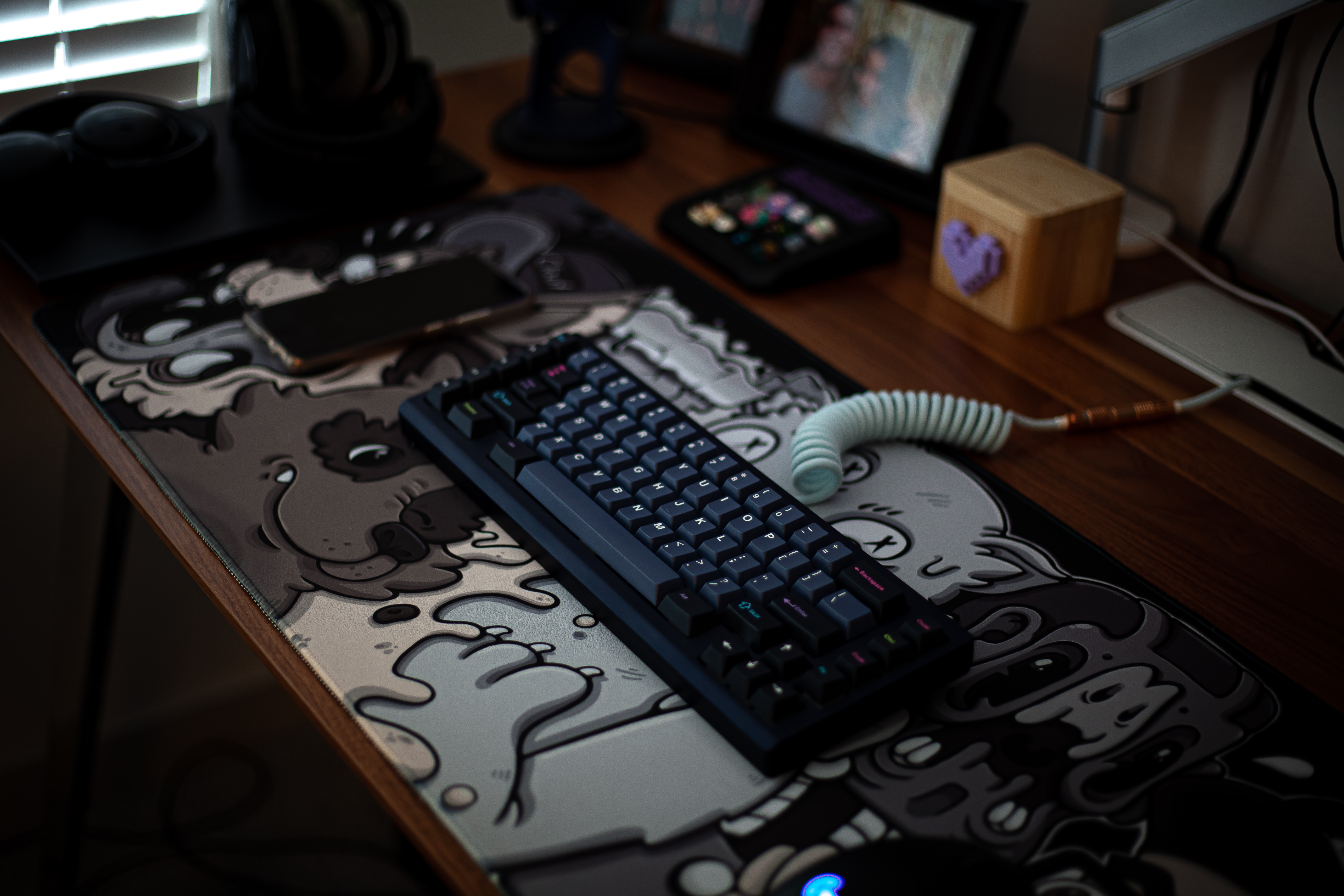

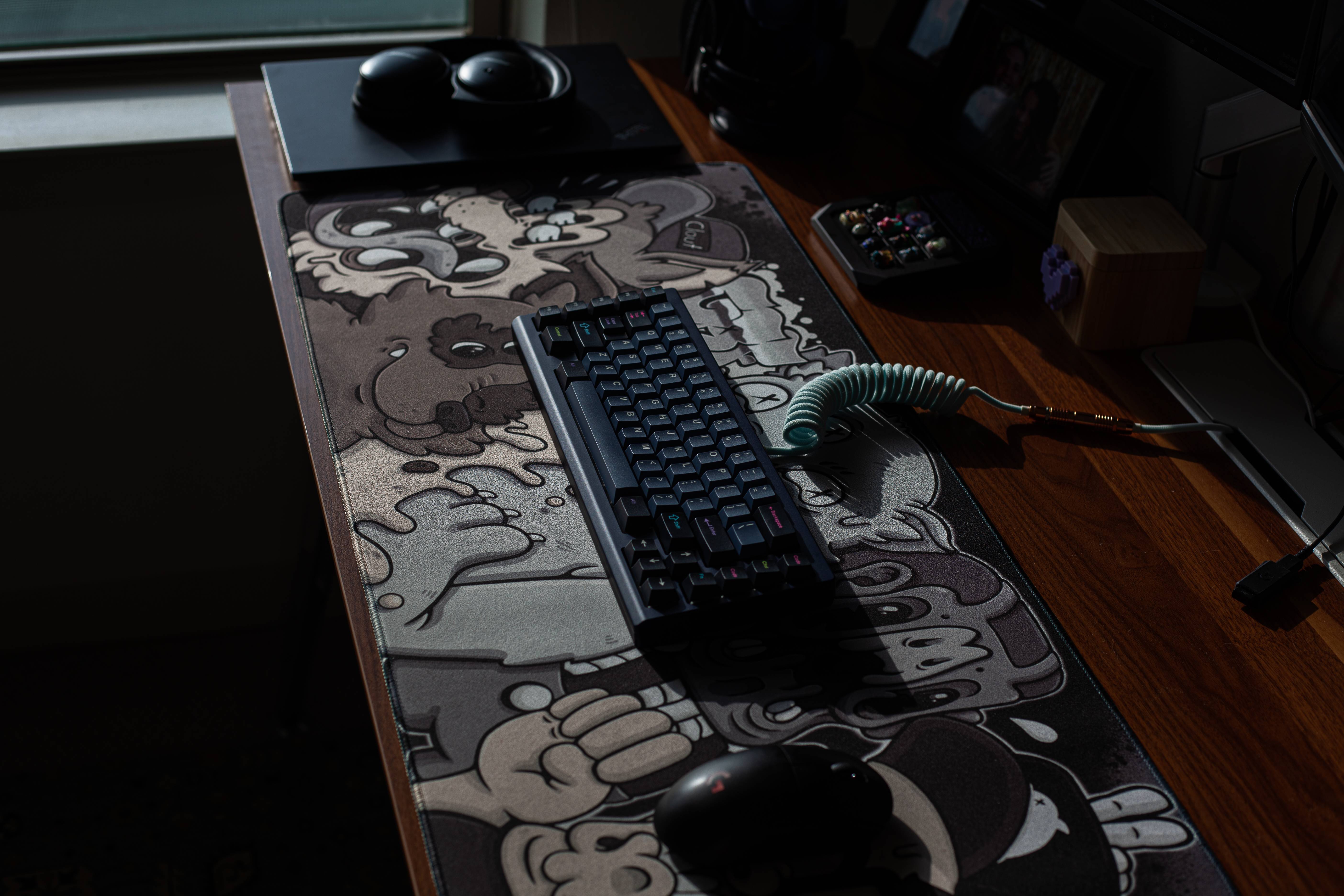

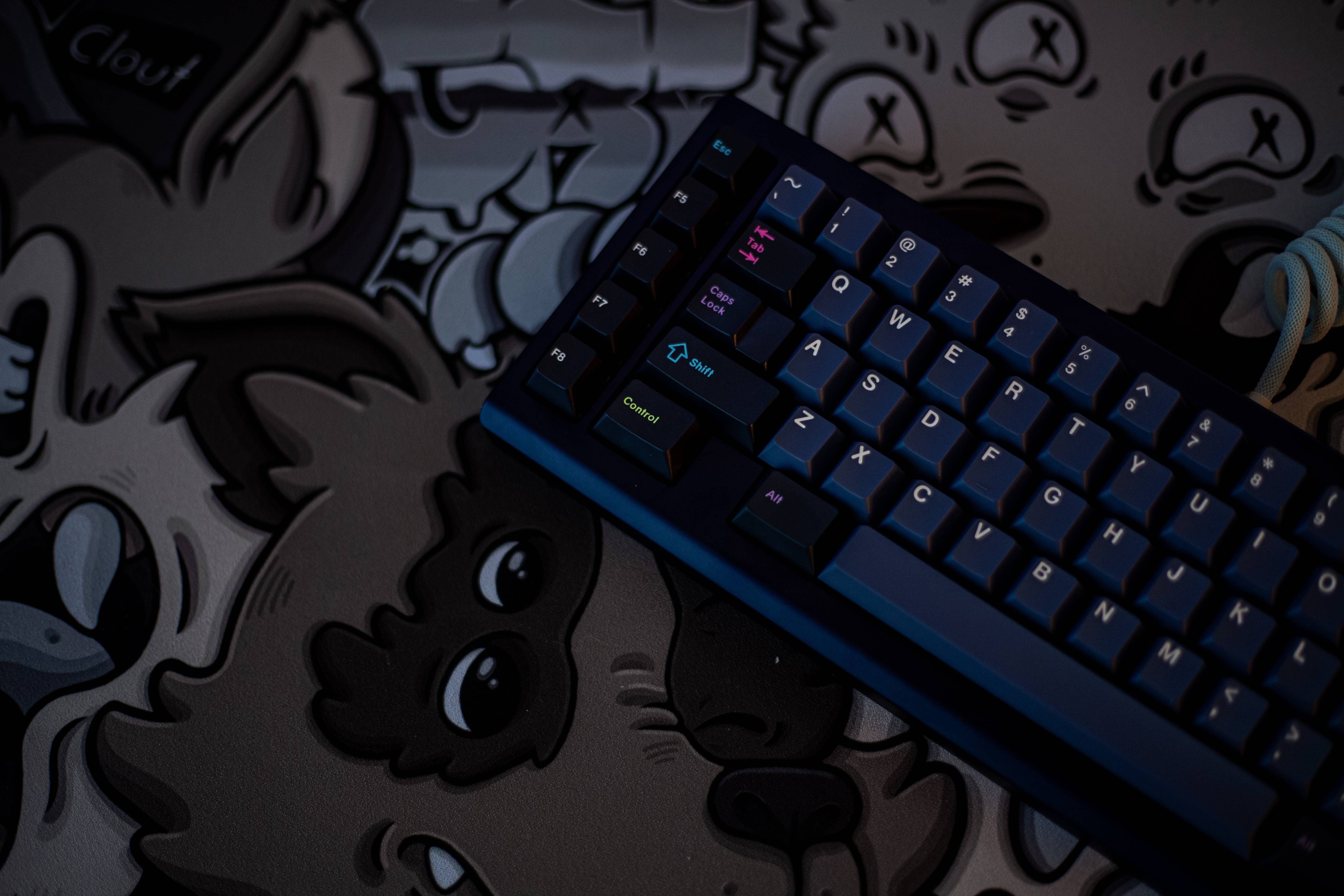

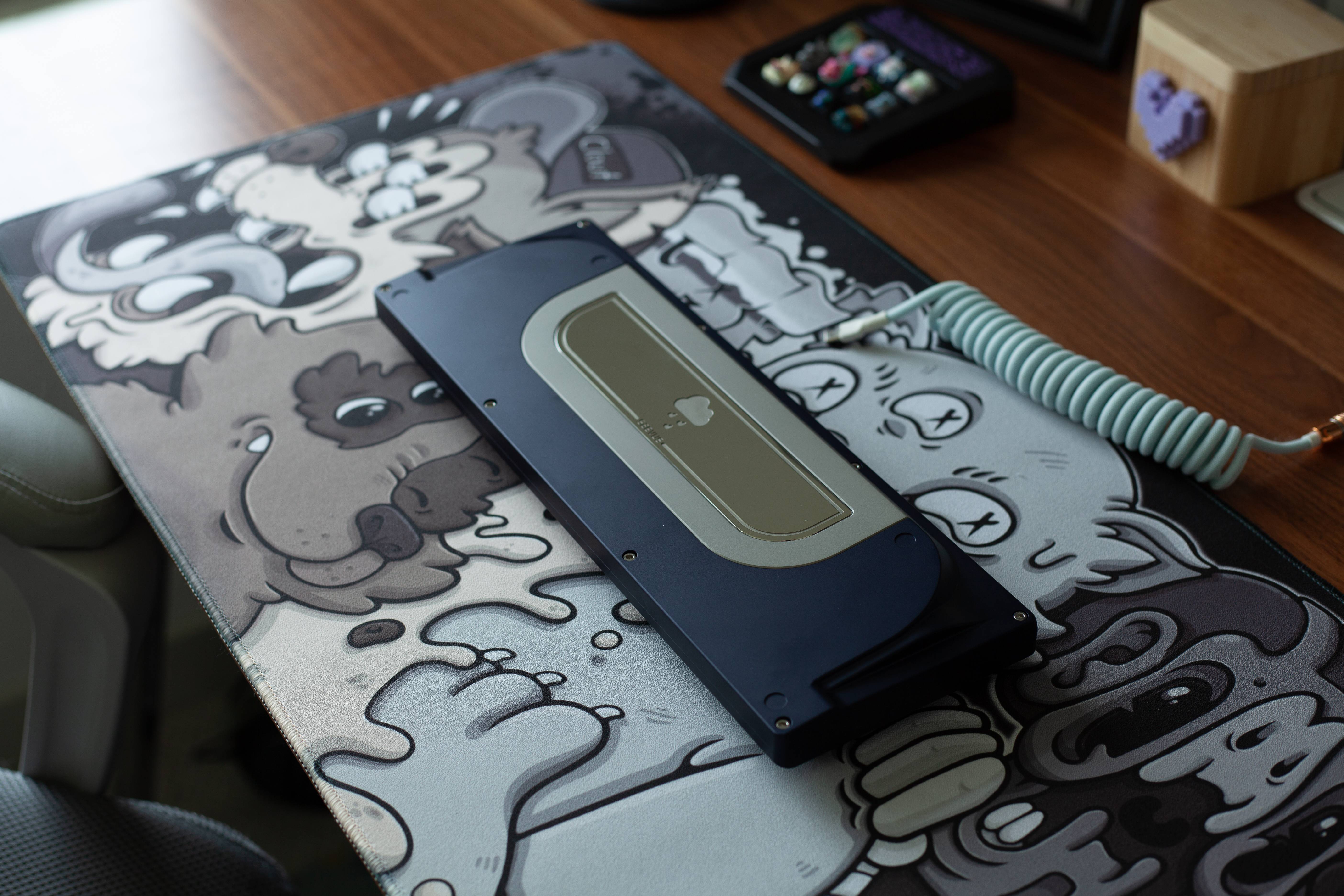

Non-render Images
xxw IG short

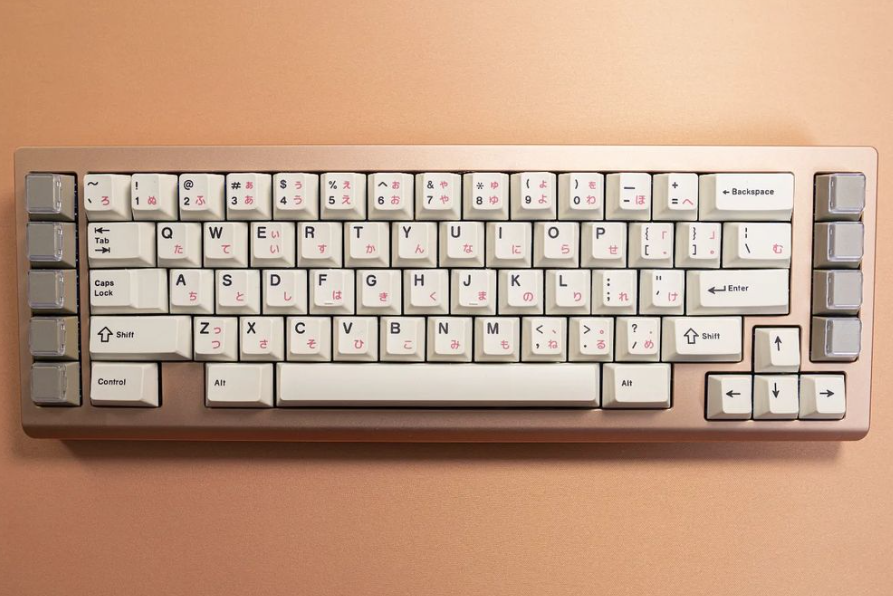

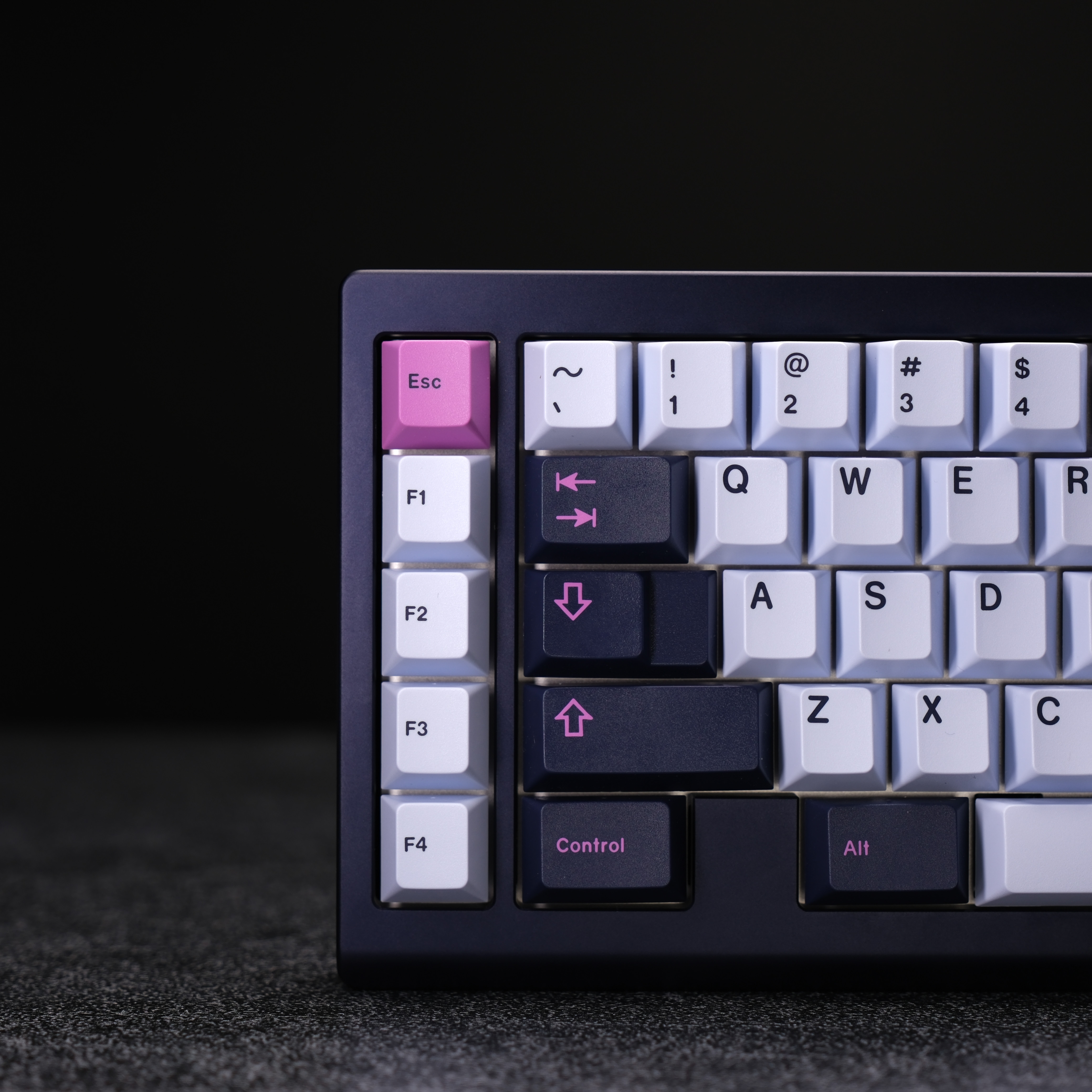

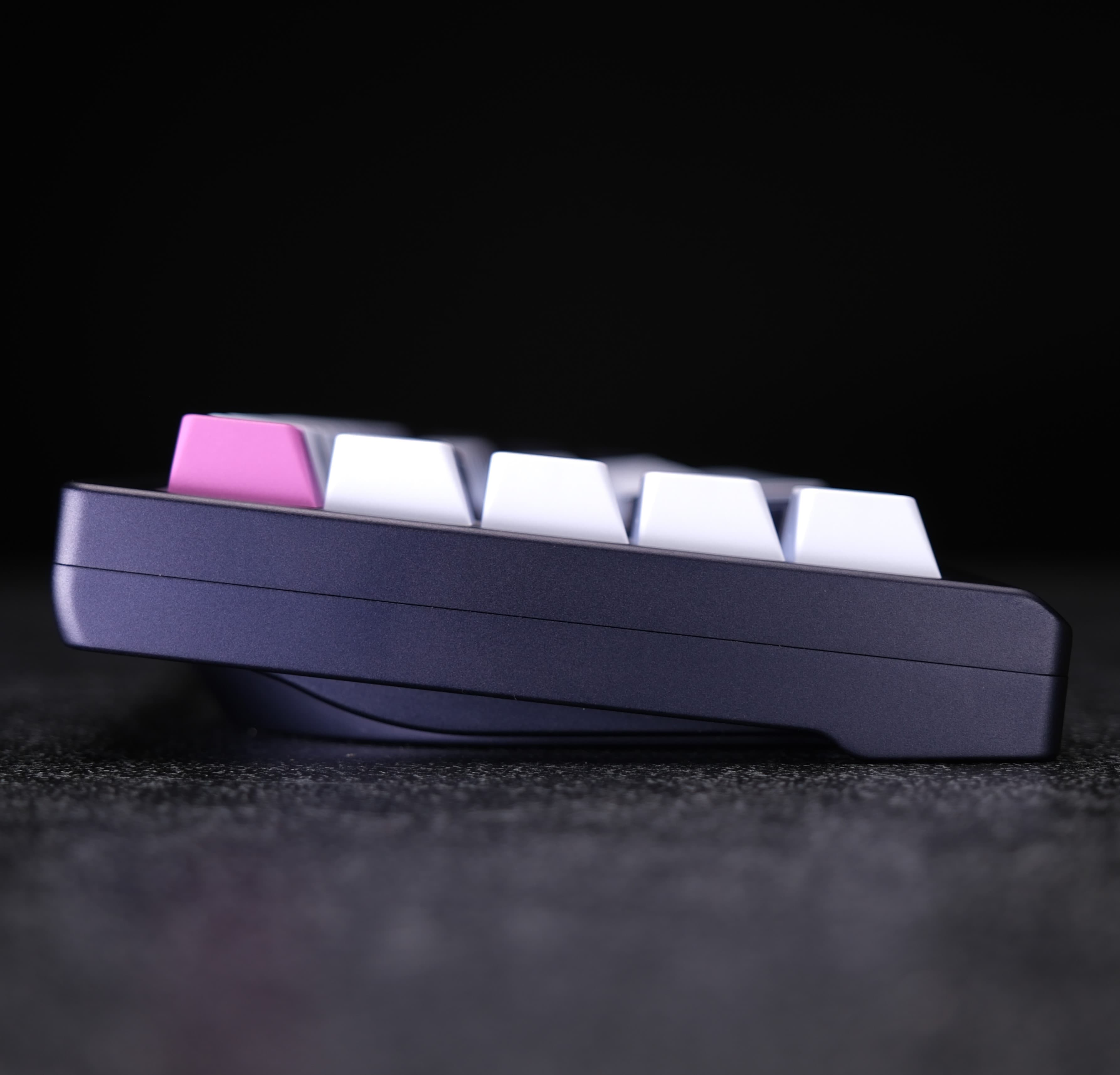

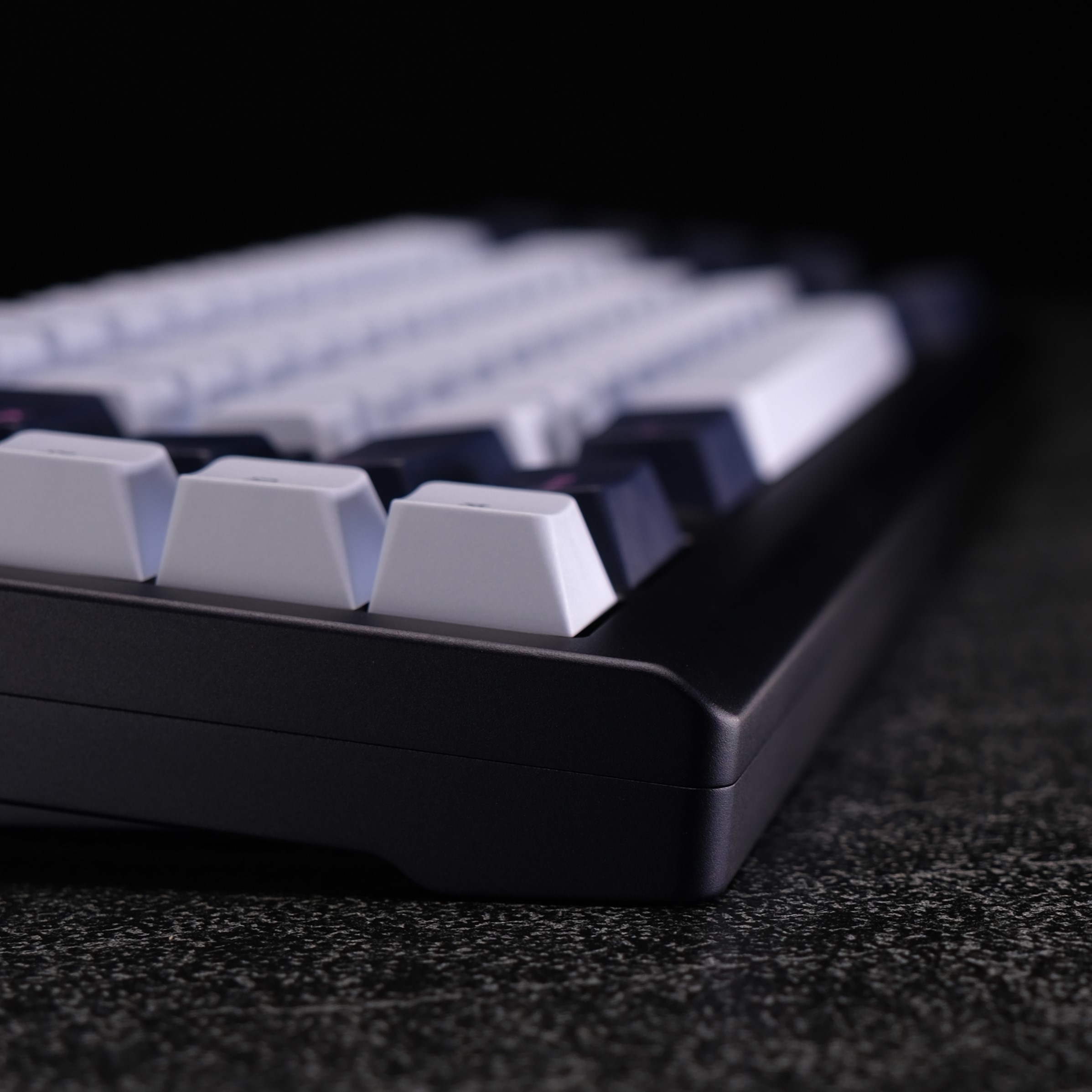

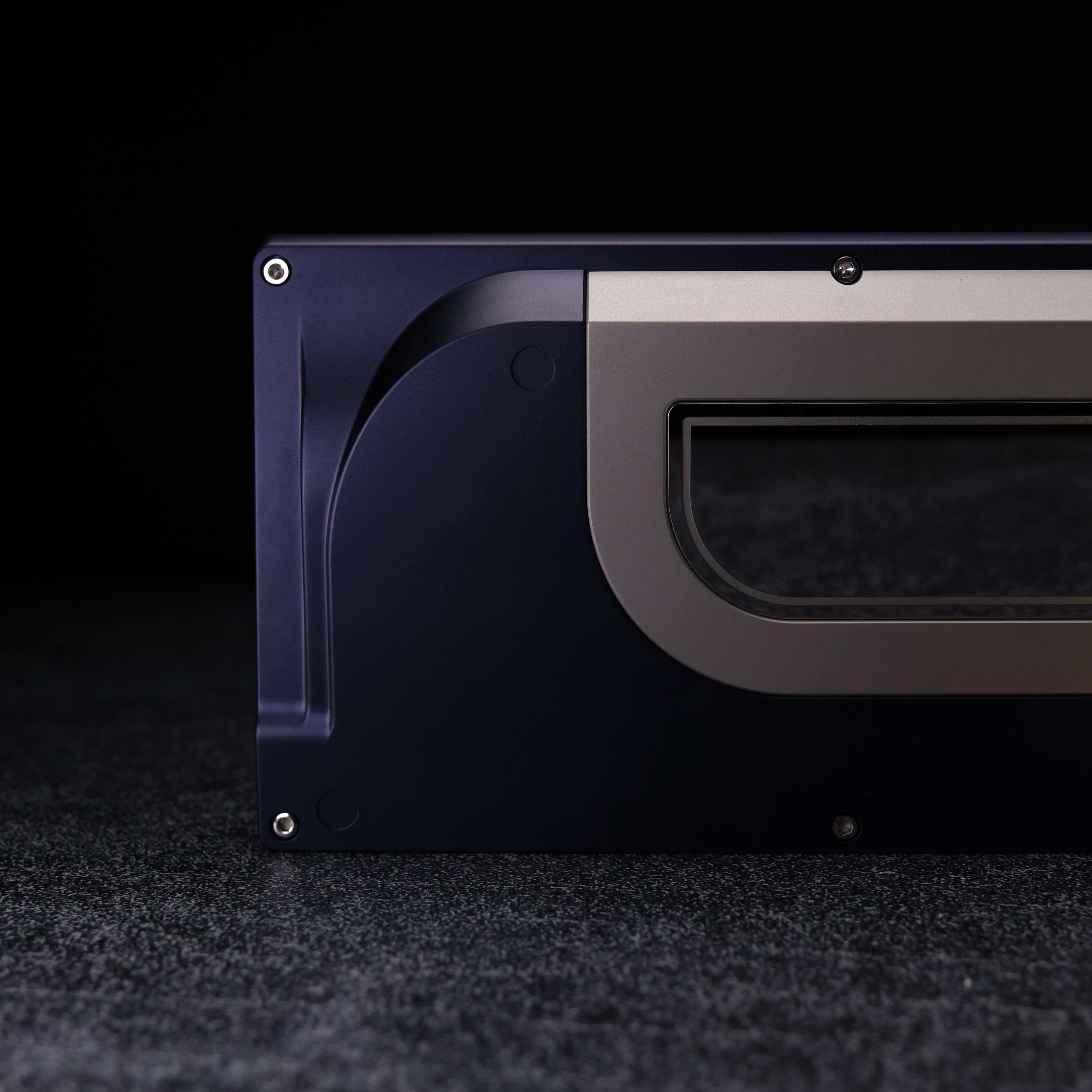

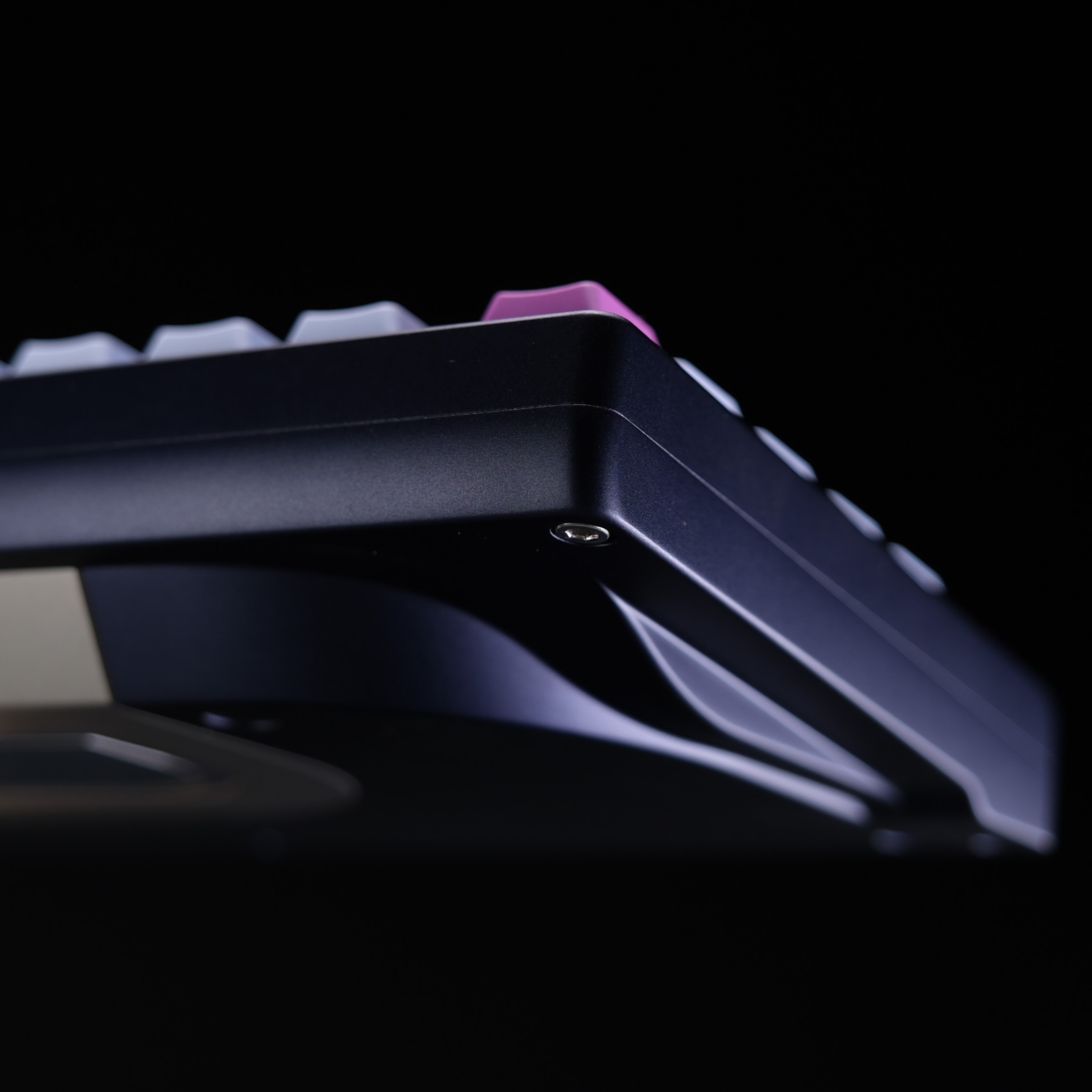

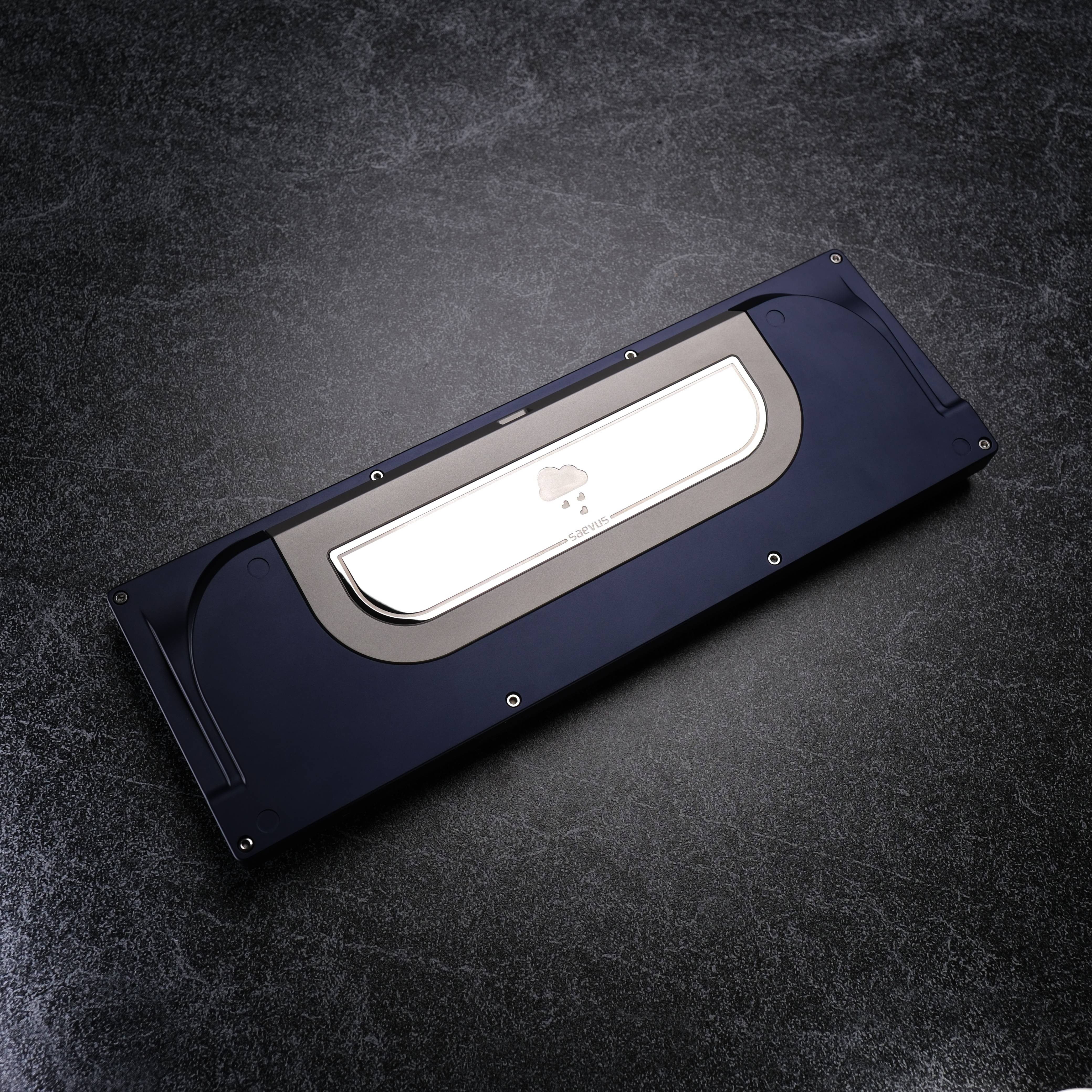

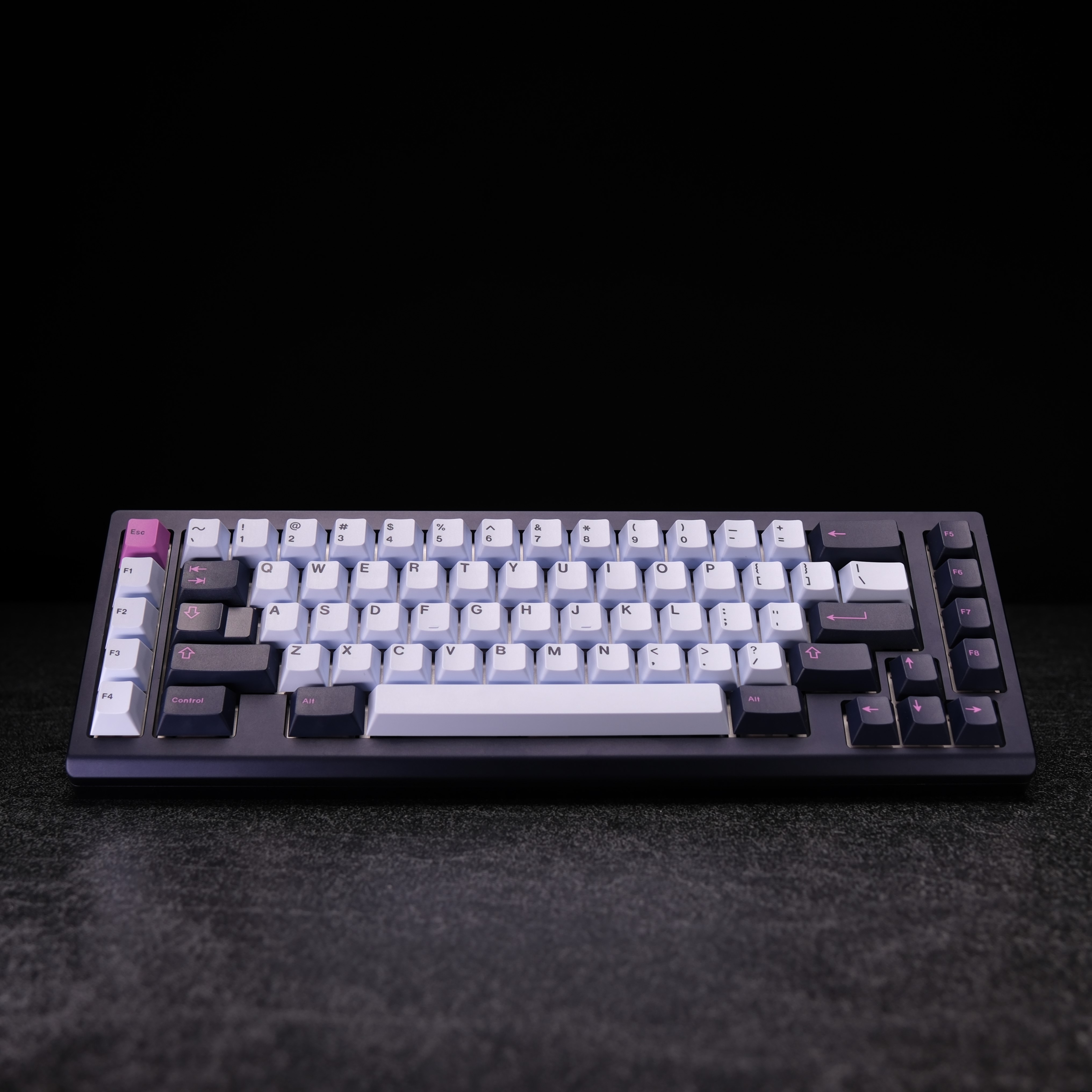

Clackbait Images - THESE ARE REAL, NOT RENDERS











Typing Tests:


2x builds - SP-Star Meteor White on PC, Plateless Popu

Zaku on PC (scuffed camera mic)

Plateless CJs

Potato Phone Camera Recording, but still a typing test with adjustments to mounting

CaptainSterling content next week.
Dutchmasterw content as soon as replacement parts and additional prototypes arrive (2ish weeks).

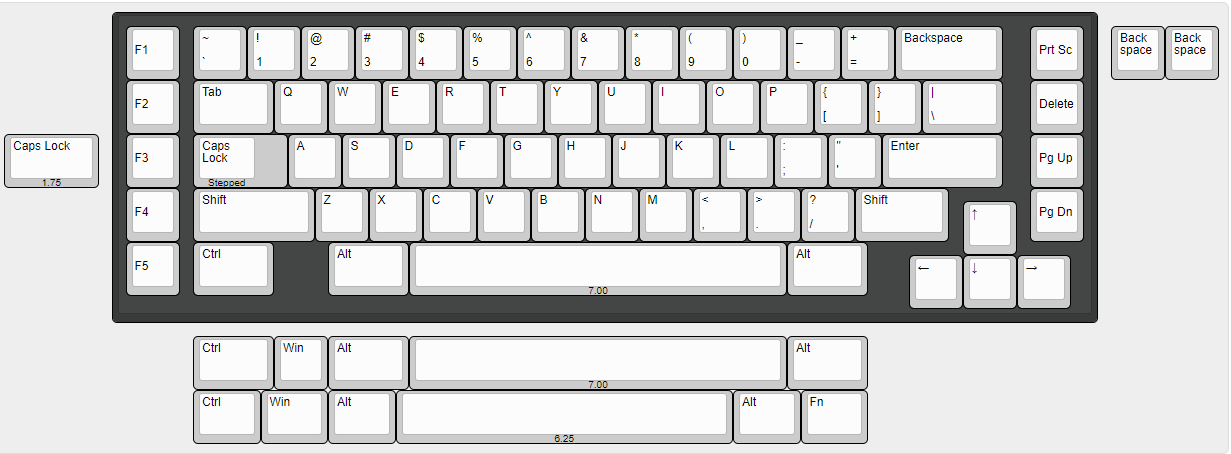

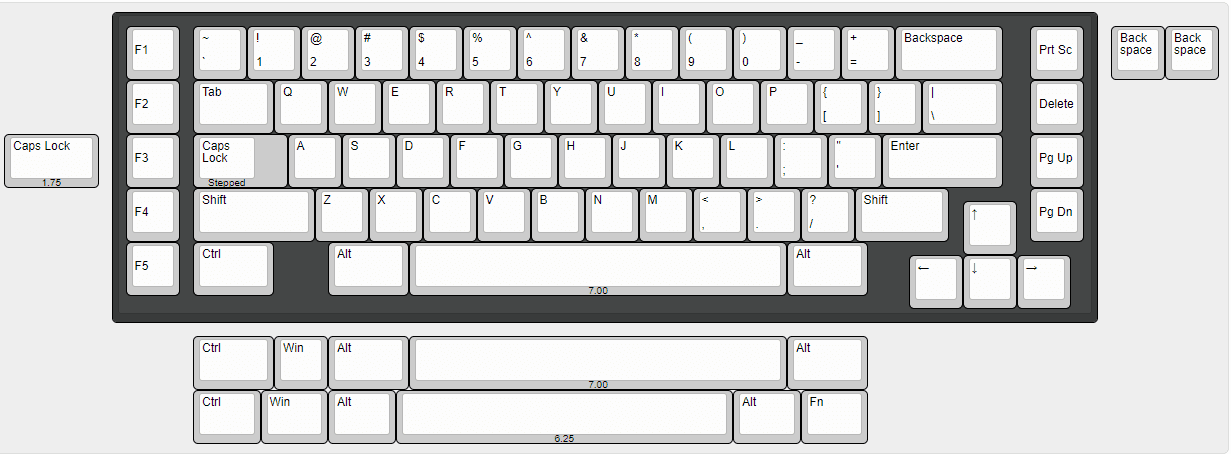

Supported Layouts





Specs

• WK and WKL (prototypes in WKL because... it's superior duh )
• 6063 Aluminum

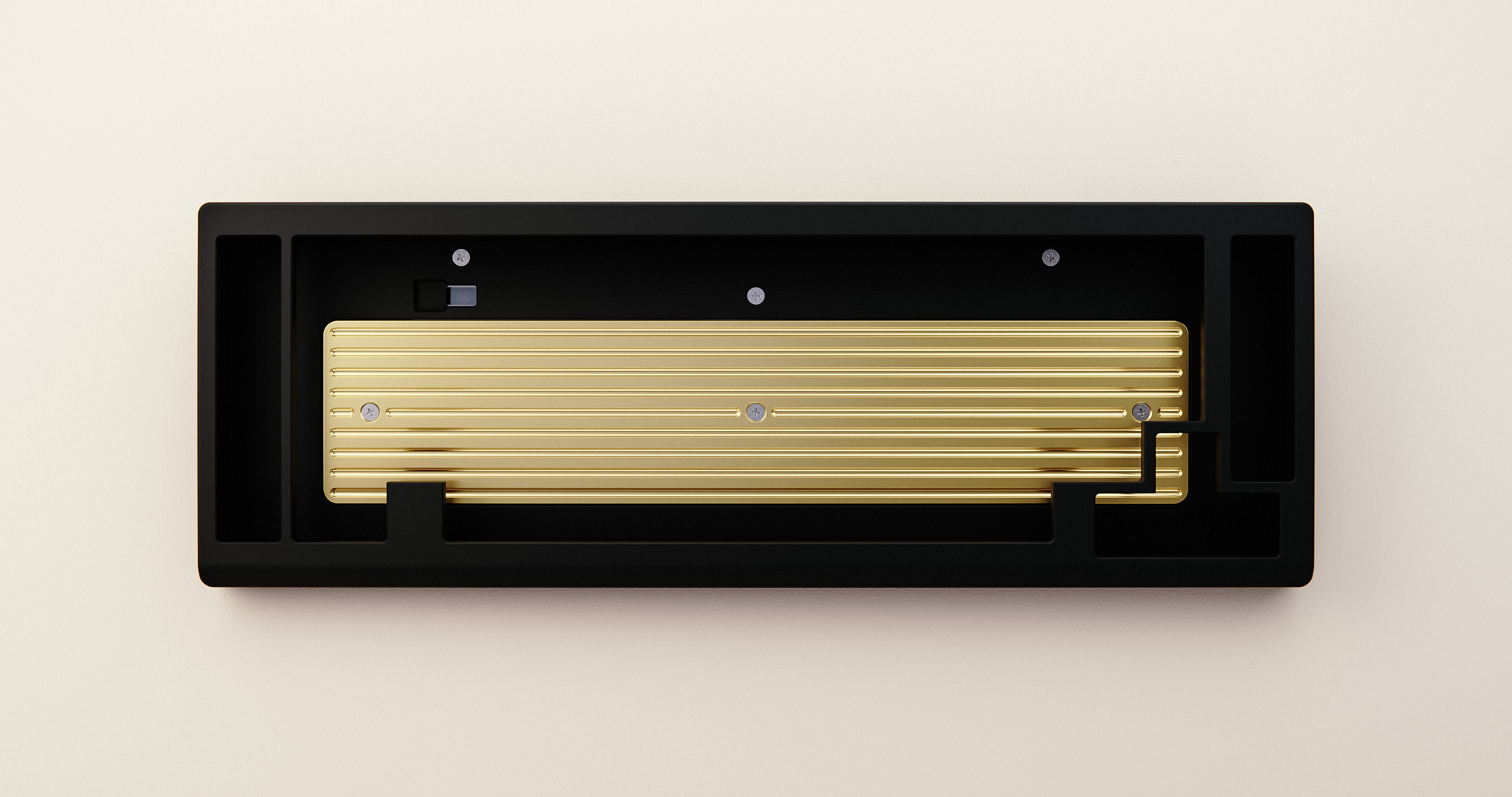

• Internal Weight - Brass
• External Weight - SS

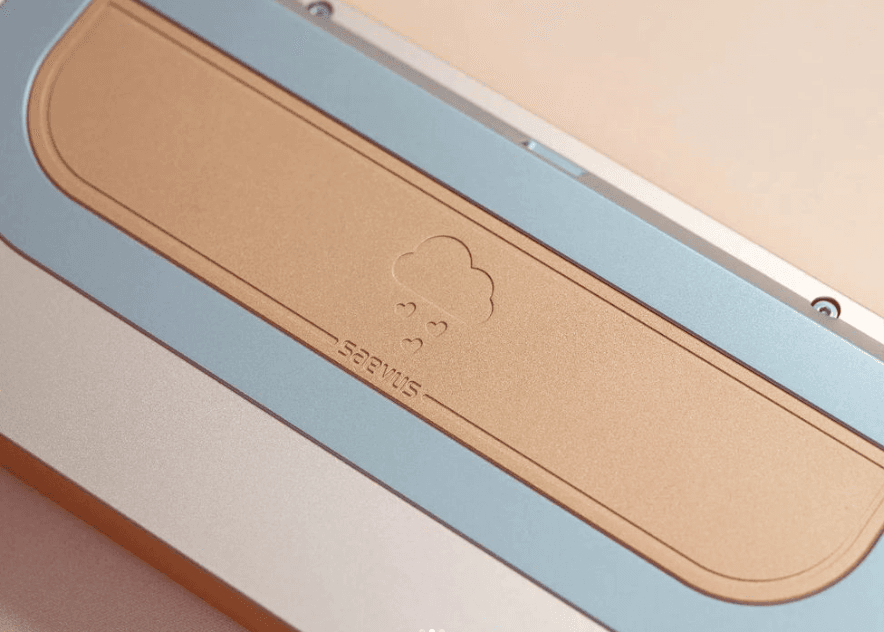

• External Badge - Copper, PVD Polished SS (Rainbow, Black, Silver)
• Blasting Grit 150
• 6.5° typing angle
• 20.6 mm Front Height
• Cherry lip
• PCB Gasket Mount (Plateless build option on solder PCB)
• PCB Image
• QMK and VIA compatible PCB
• Centered USB-C via Unified Daughterboard

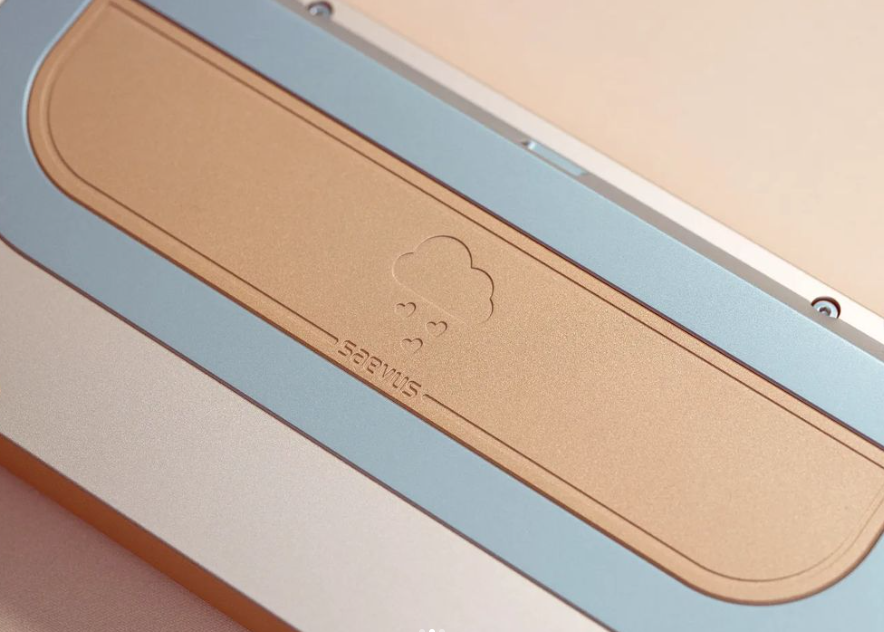

• Internal Engravings
• saevus logo on left
• Cor aut Mors - Heart or Death - on right
• Unassembled Weight - 2016g (4 lbs 7 oz)

Discord

saevus Instagram

Personal IG (some keeb stuff)



**Update**
Changelog from prototype to final unit.

• Removed mounting point directly under PCB. I am doing final testing with 4 mounting points on top and bottom instead of 3.
• Adding 1 piece of poron case foam to the kit. I think the board sounds really nice without it, but it does improve the board sound slightly.
• Working on securing horizontal alignment. Right now there is a small bit of space from left to right, so will build in tabs to secure this spacing.
