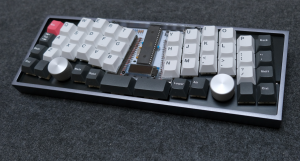

DIY 4x12 ergonomic columnar stagger keyboard PCB that fits 60% cases.
- Ergonomic columnar stagger
- Support for many (most?) tray mount 60% cases
- Aggressive stagger for optimal pinky comfort
- Corne/Reviung-like thumb key cluster
- MX Hotswap sockets
- Knob positions allows for actuation with thumbs without the fingers leaving the home row
- Mostly through-hole construction for easy DIY construction
- Optional RGB Underglow
- Optional support for up to 3 encoders (up to one each side and one in the centre)
- Optional support for OLED instead of an encoder in the central position
More details here:
https://github.com/godders/scientistPrototype gallery:
https://imgur.com/a/xrHWU2OLayout tester (PDF):
https://github.com/godders/scientist/raw/main/tester/scientist-layout-tester.pdfKits are expected to cost between £20-£40 (about €24-€48, $25-$50) plus shipping from the UK, depending on what the default kit ends up containing (which depends on IC feedback!). Kits will definitely include at minimum a PCB and plate, an ATMega32a with a preflashed bootloader and all the necessary components for a basic build.
IC form: https://forms.gle/eDNBZQhNKfCj61LX9Thank you!
