Southpaw Extended 65% - 100% Shipped - Cleaning up

Southpaw Extended 65%. Six months in the making, we're finally at the group buy stage. NA orders go through me, EU orders go through candykeys, and asia orders go through KP. Links below

North America: switchplate.co
European Union: candykeys.com
Asia and Oceania: https://item.taobao.com/item.htm?id=561011231718
For non-Chinese speaking customers in the Asia and Oceania region, Order through the NA website. Orders will be shipped directly to you from china and you will be billed for shipping separately. Check post on second page for estimates and instructions

FORMS FOR EXTRAS HERE: https://goo.gl/forms/zFdTVwHD8Pjqf1rp2 Extras are FCFS. Wednesday June 20th 12:00am PST

PROGRAMMING GUIDE HERE: https://geekhack.org/index.php?topic=92344.msg2625784#msg2625784

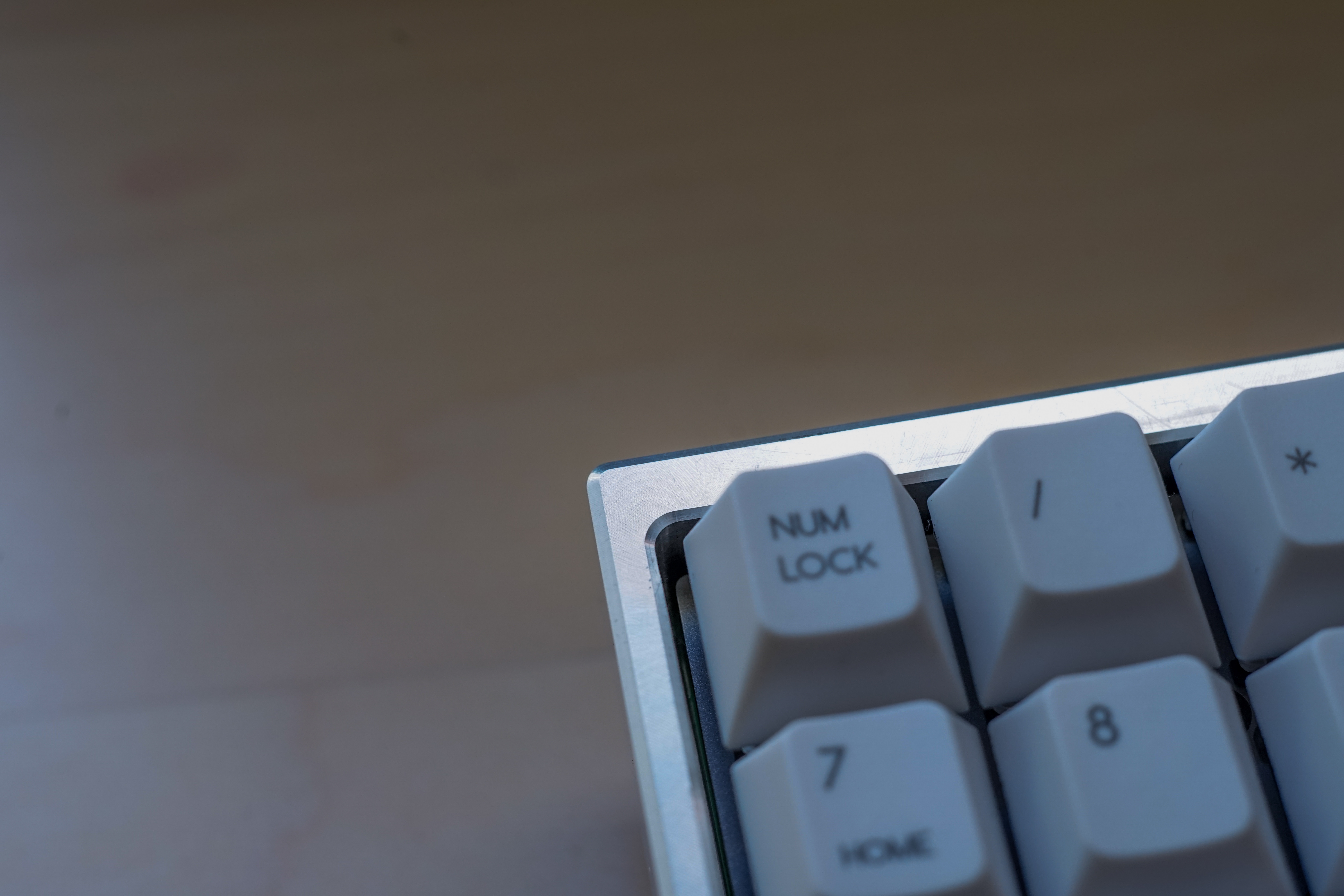

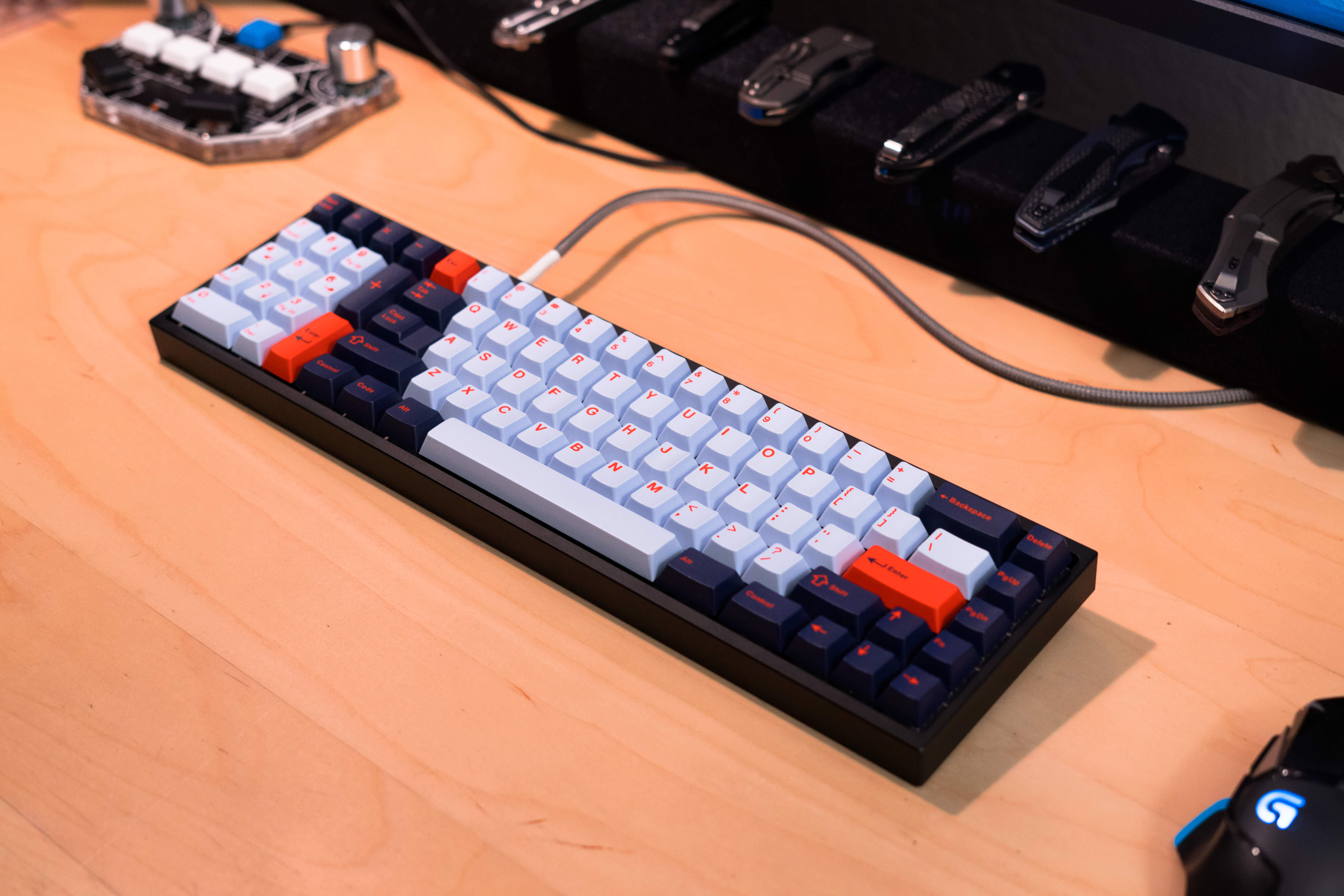

An Alps+MX 65% board with a left hand number pad. Designed for maximum workspace fluidity, with centered alphanumerics and a full number pad without the compromise of pushing the mouse outwards. Full ISO support with flexible layout options that include a left handed arrow cluster, split backspace, and a full 4x5 macropad in the place of the numpad. Case options with pricing that spans across the board.

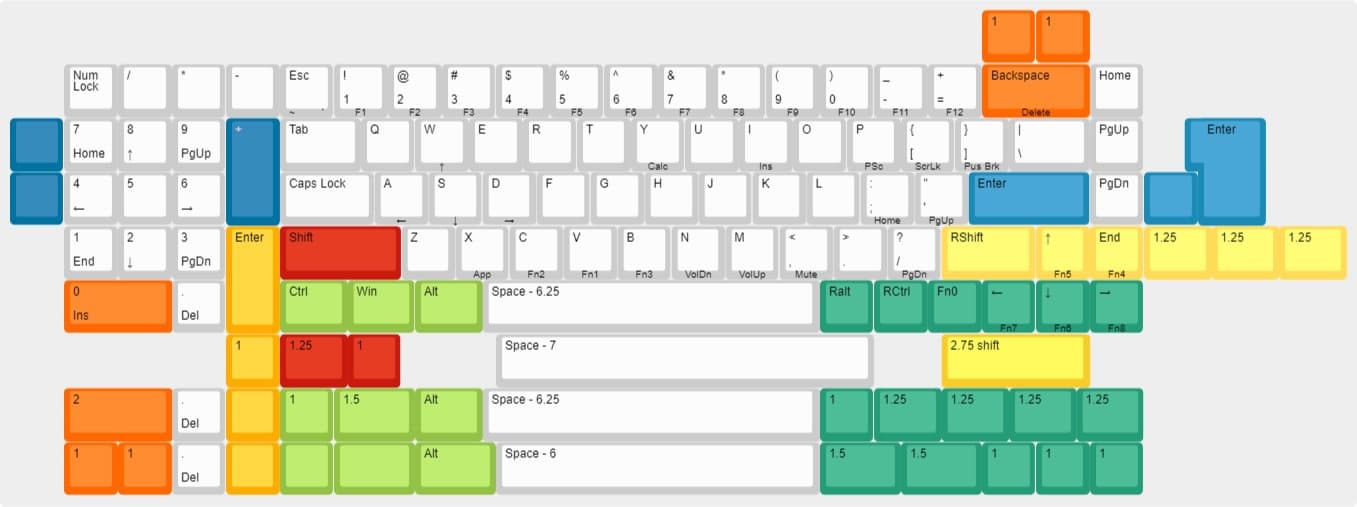

Layouts below. PCB Mounted Stabs only. For those with alps concerns, I'm working on an insert for PCB Mount cherry stabs that work with alps keycaps. Hopefully those will be done before this ships and I can throw some in.

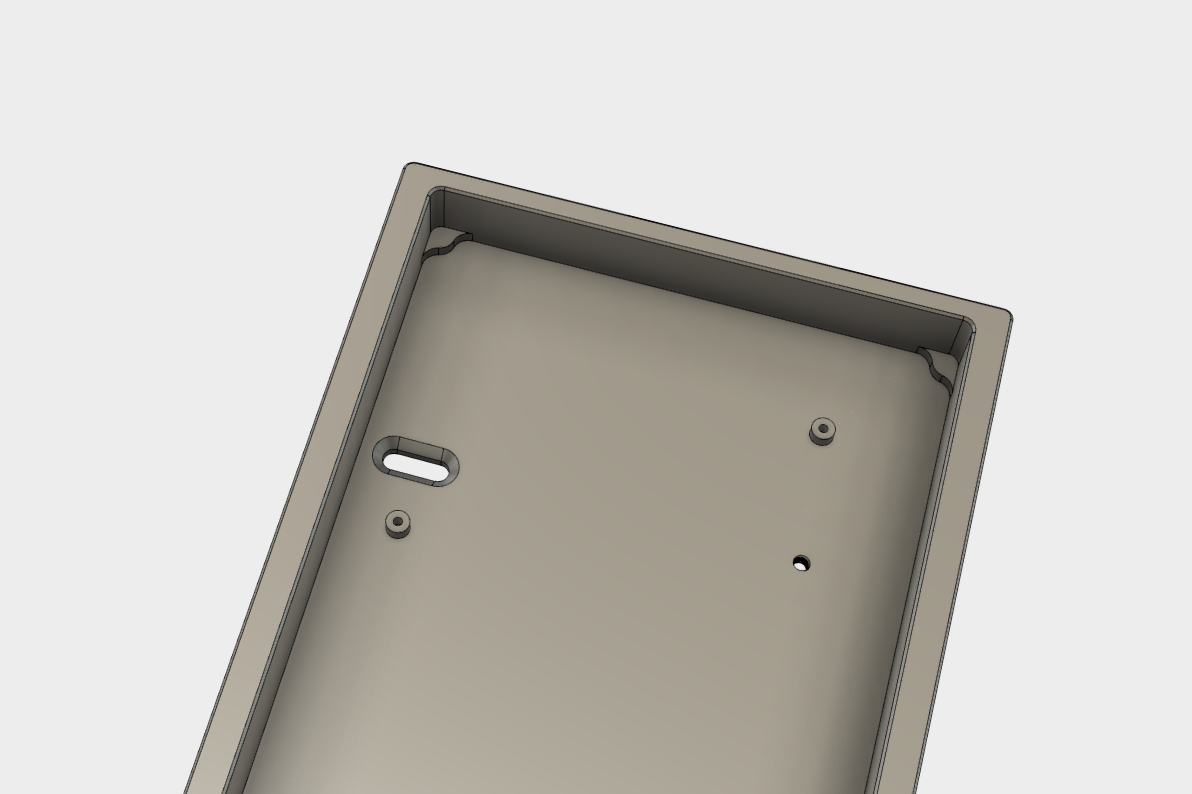

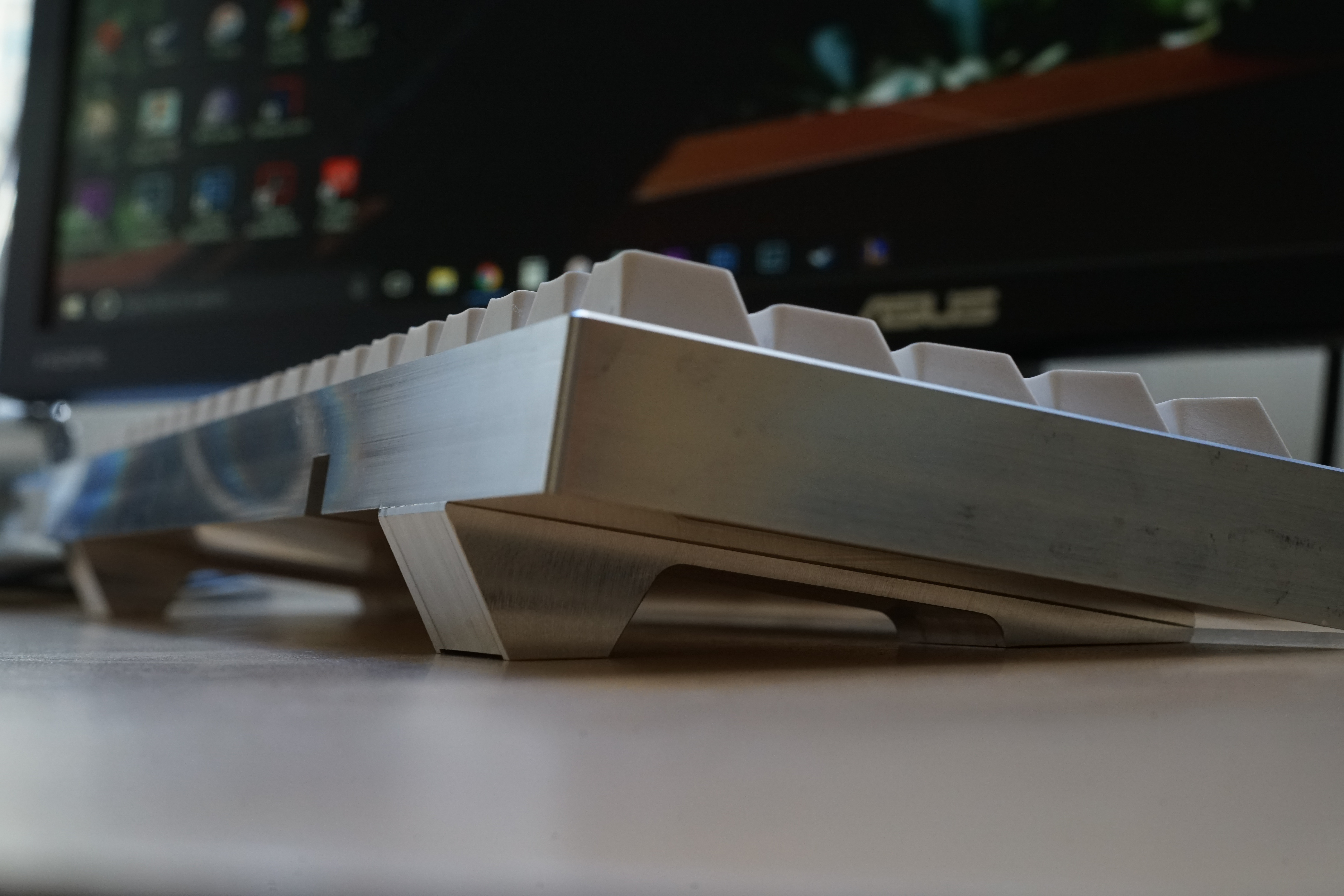

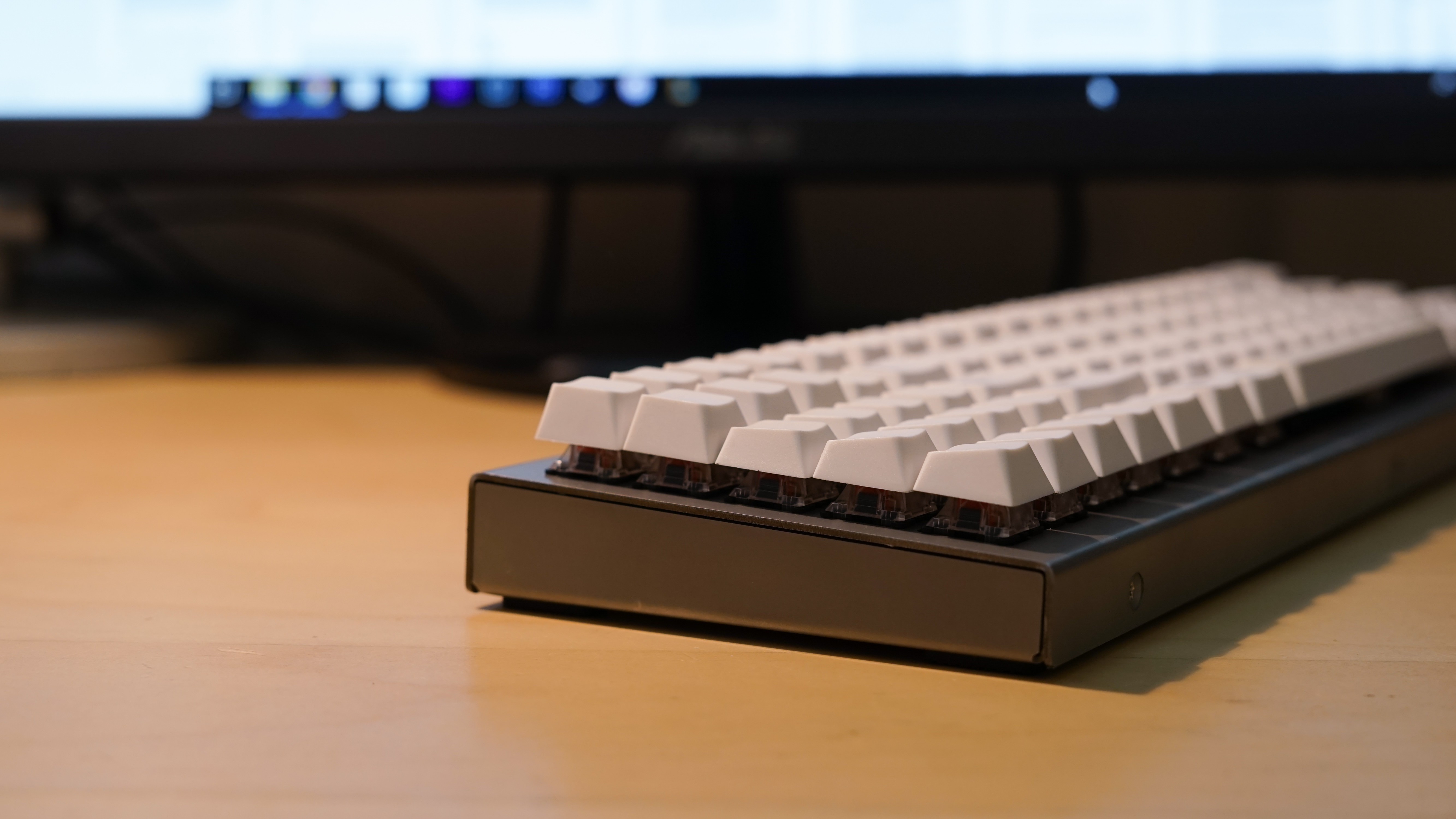

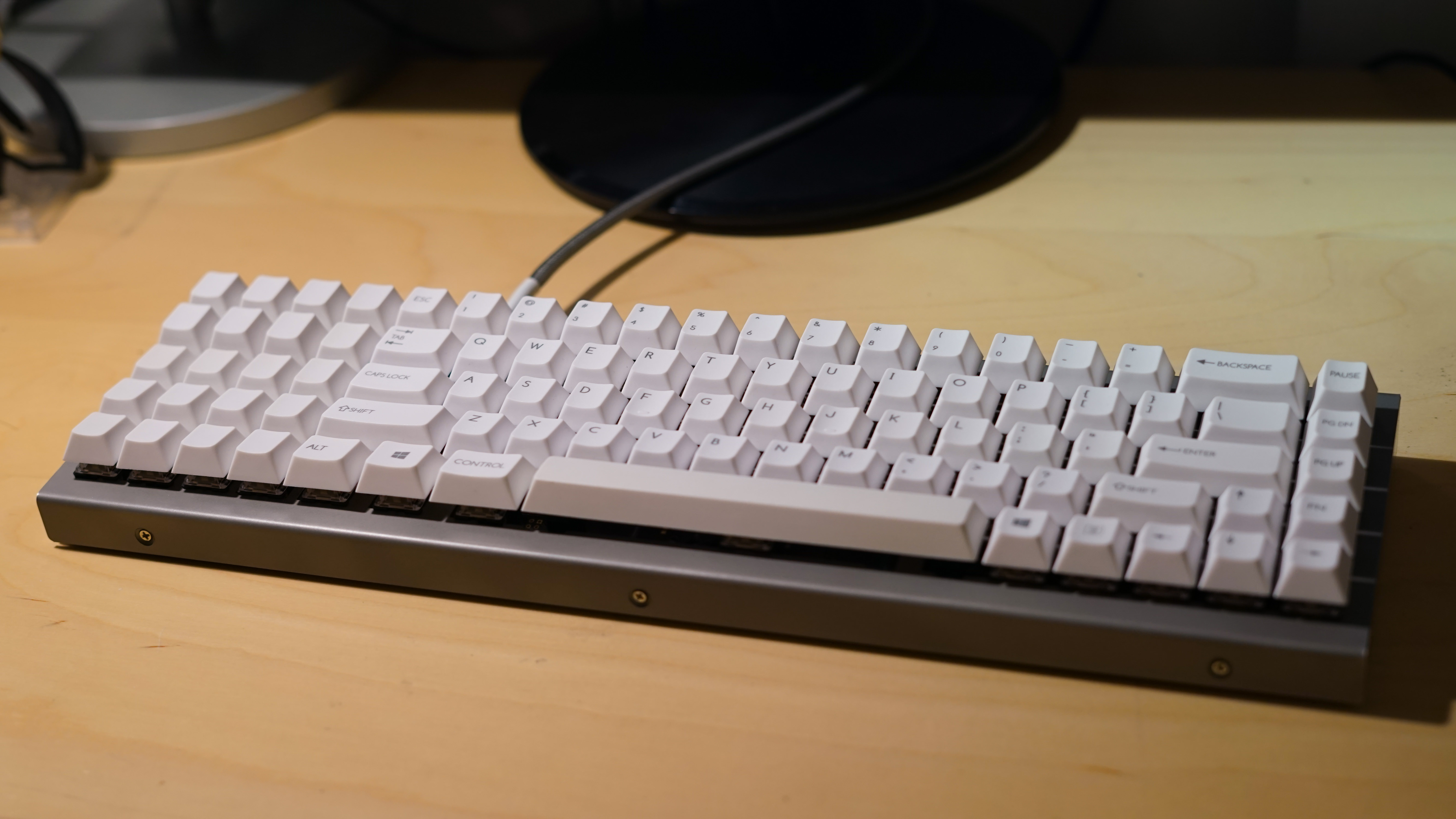

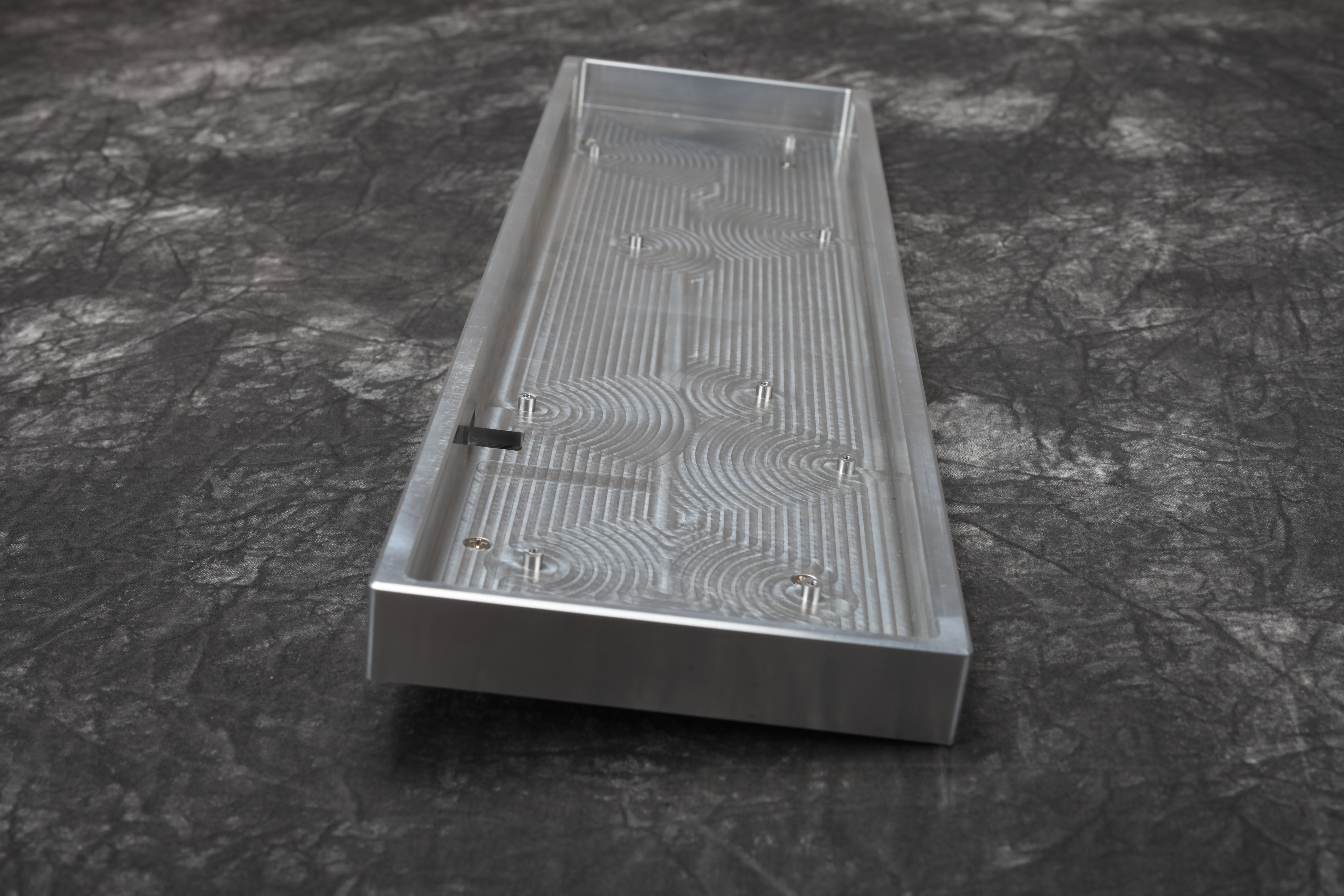

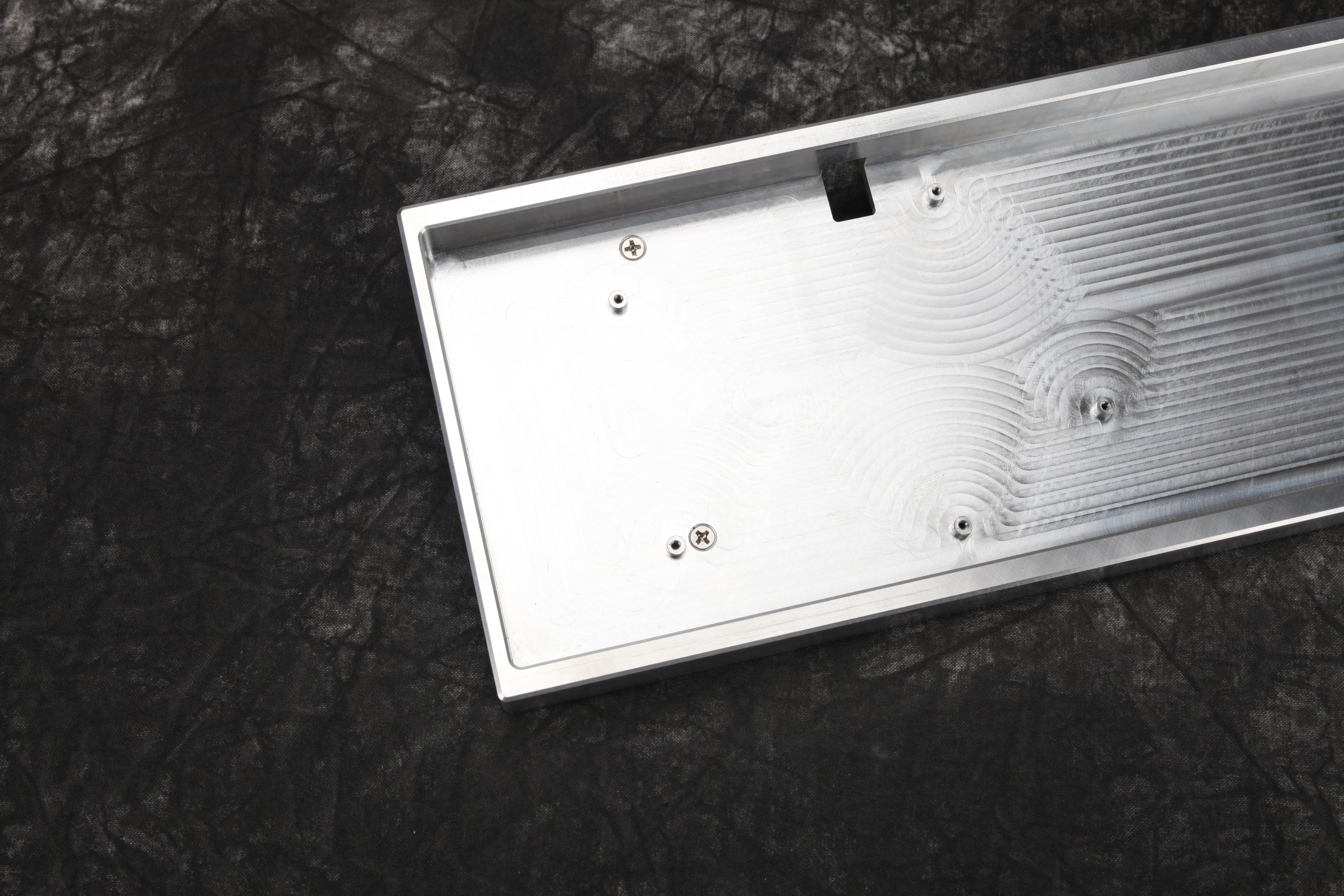

Aluminum Case - Complete Kits starting at $210.00. Inc. both risers; 4 and 9 degrees.





Revisions:

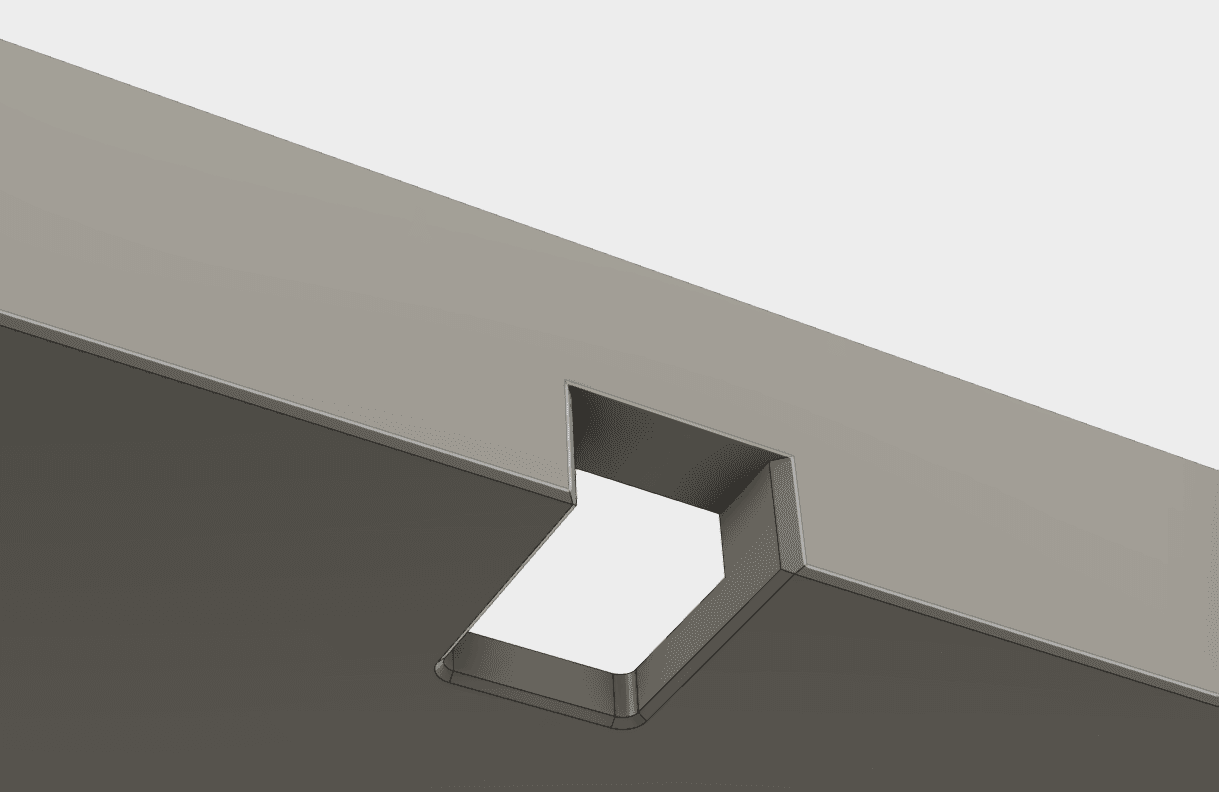

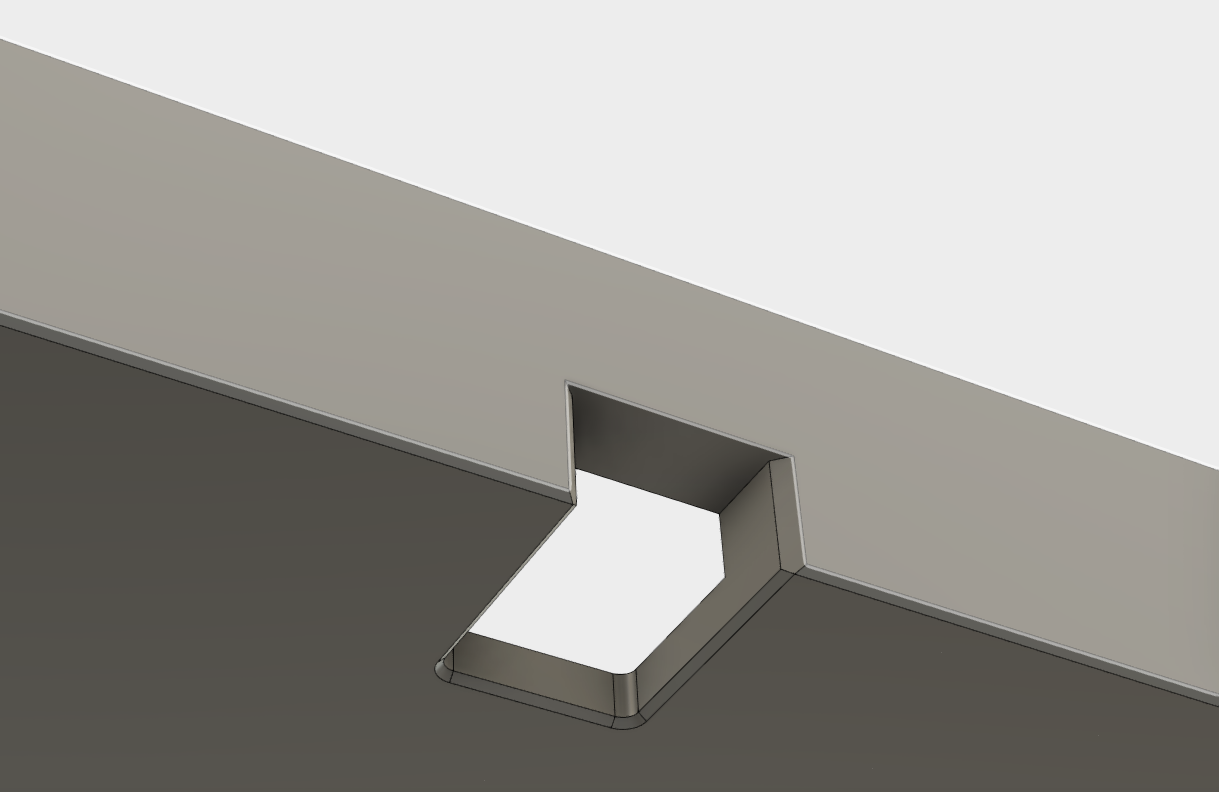

USB opening revised to take all USB cables


Matching chamfer added to bottom edge


Support tabs milled into the corners of the case

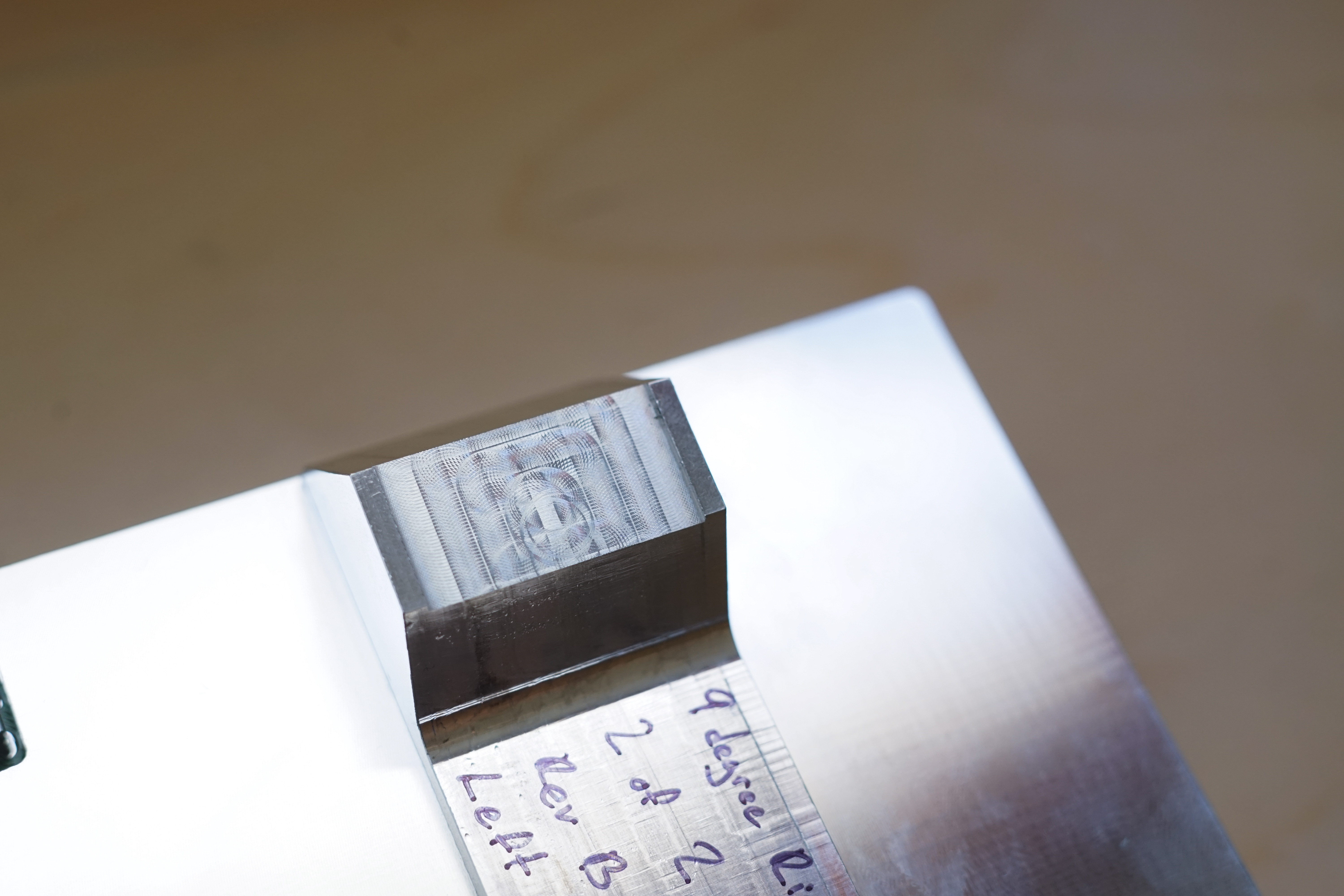

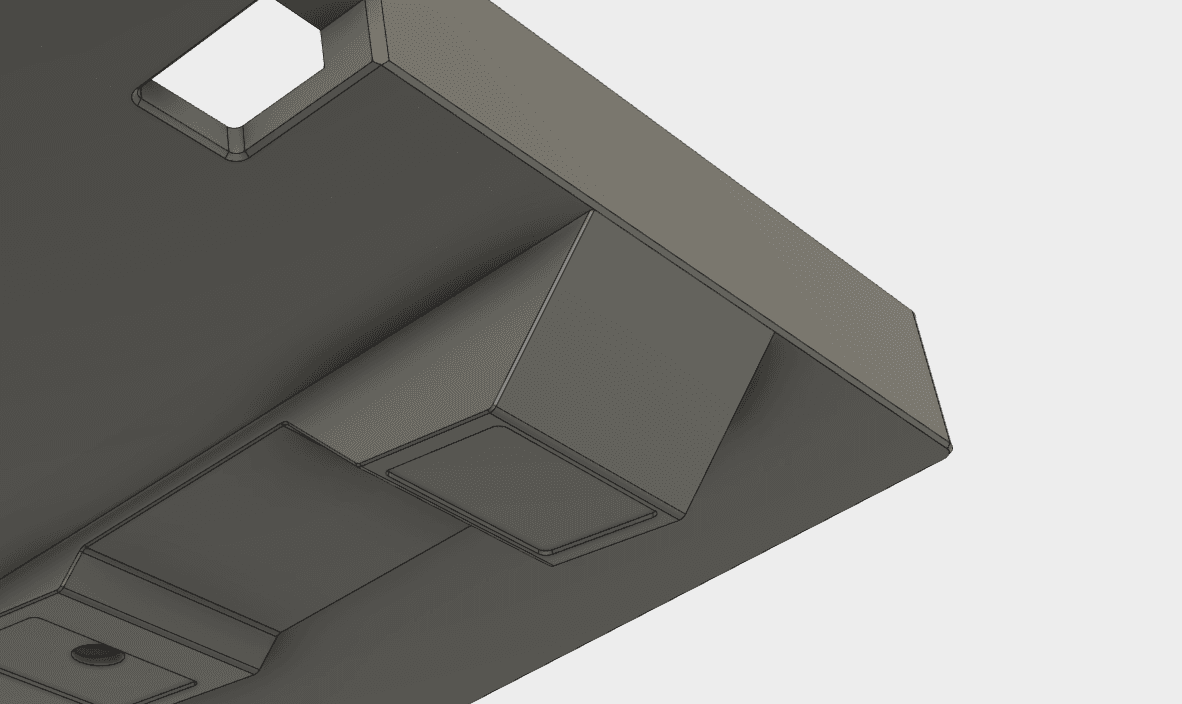

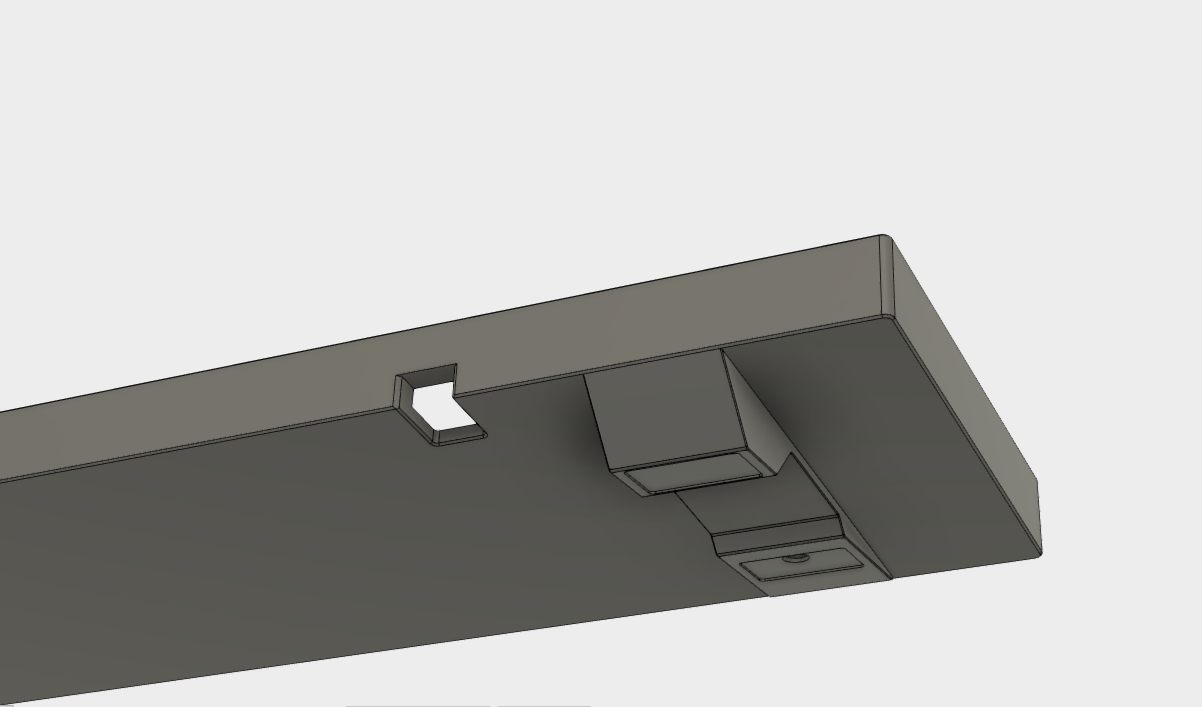

Rear leg of 9 degree riser redesigned for new rubber pads

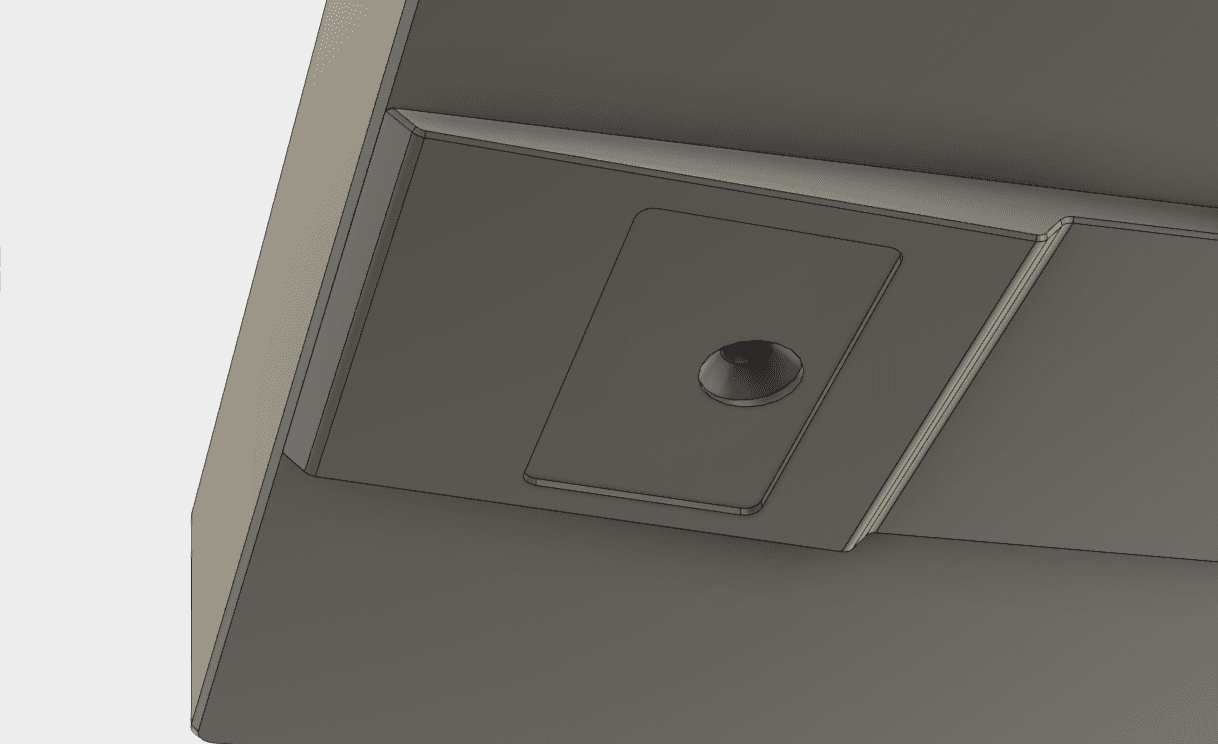

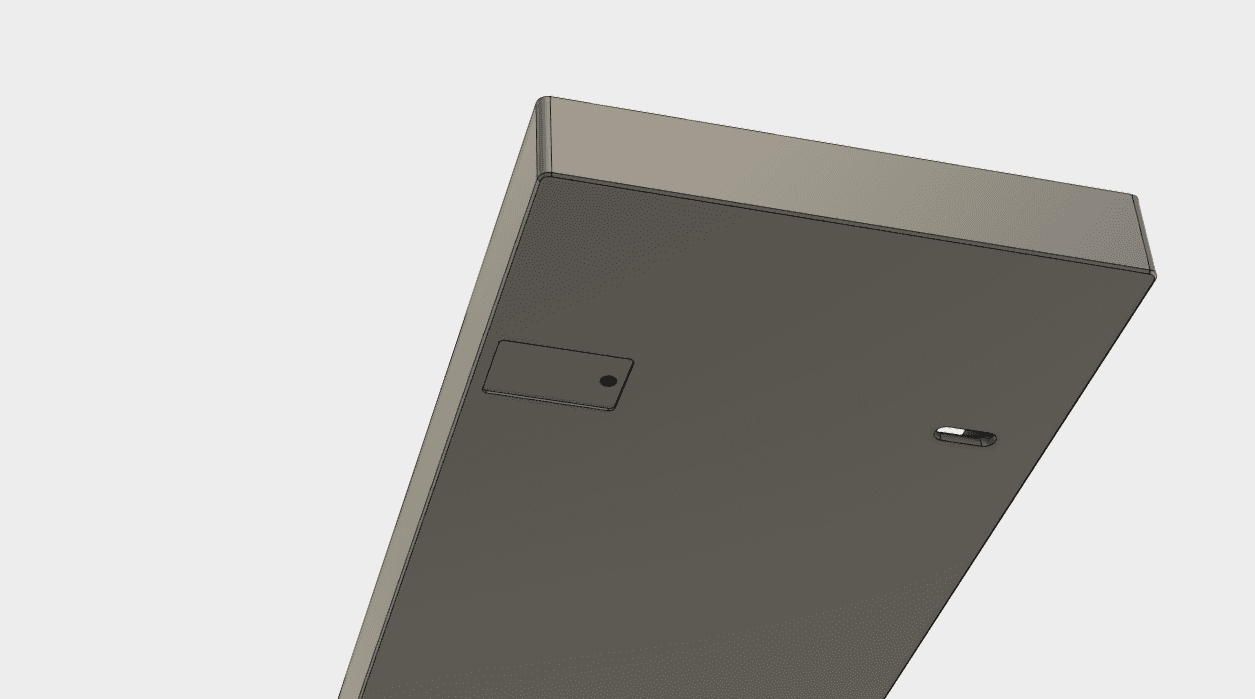

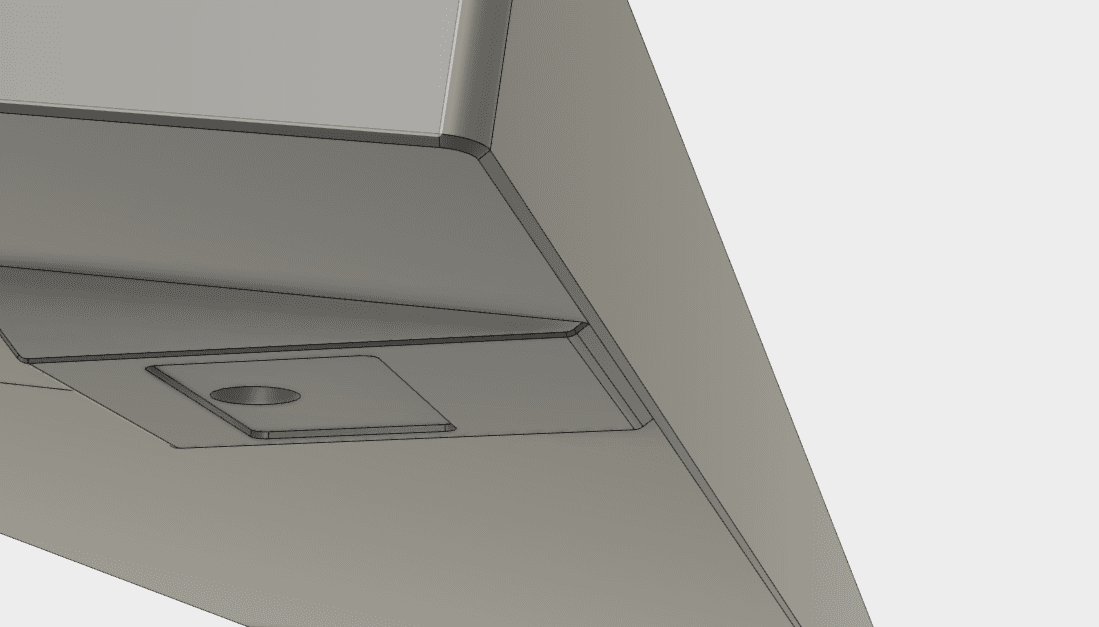

Bottom of case milled for rubber pad recess for use with cone feet


Both 4 and 9 degree risers now sit flush with the chamfer on the edge of the case

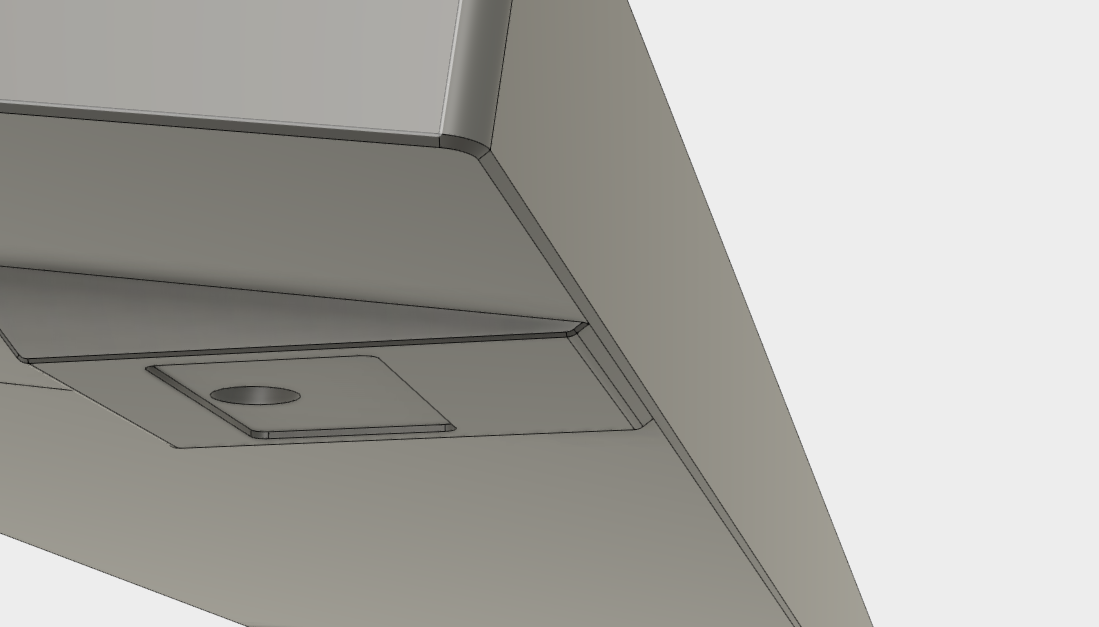

Both risers now have the front mount thread in from the bottom. This was done as there was not enough material on the risers to form strong enough threads if threaded from the top




Note that rubber feet for the keyboard will be included. They will most likely be the translucent thin material as opposed to the thicker crosshatched black material.

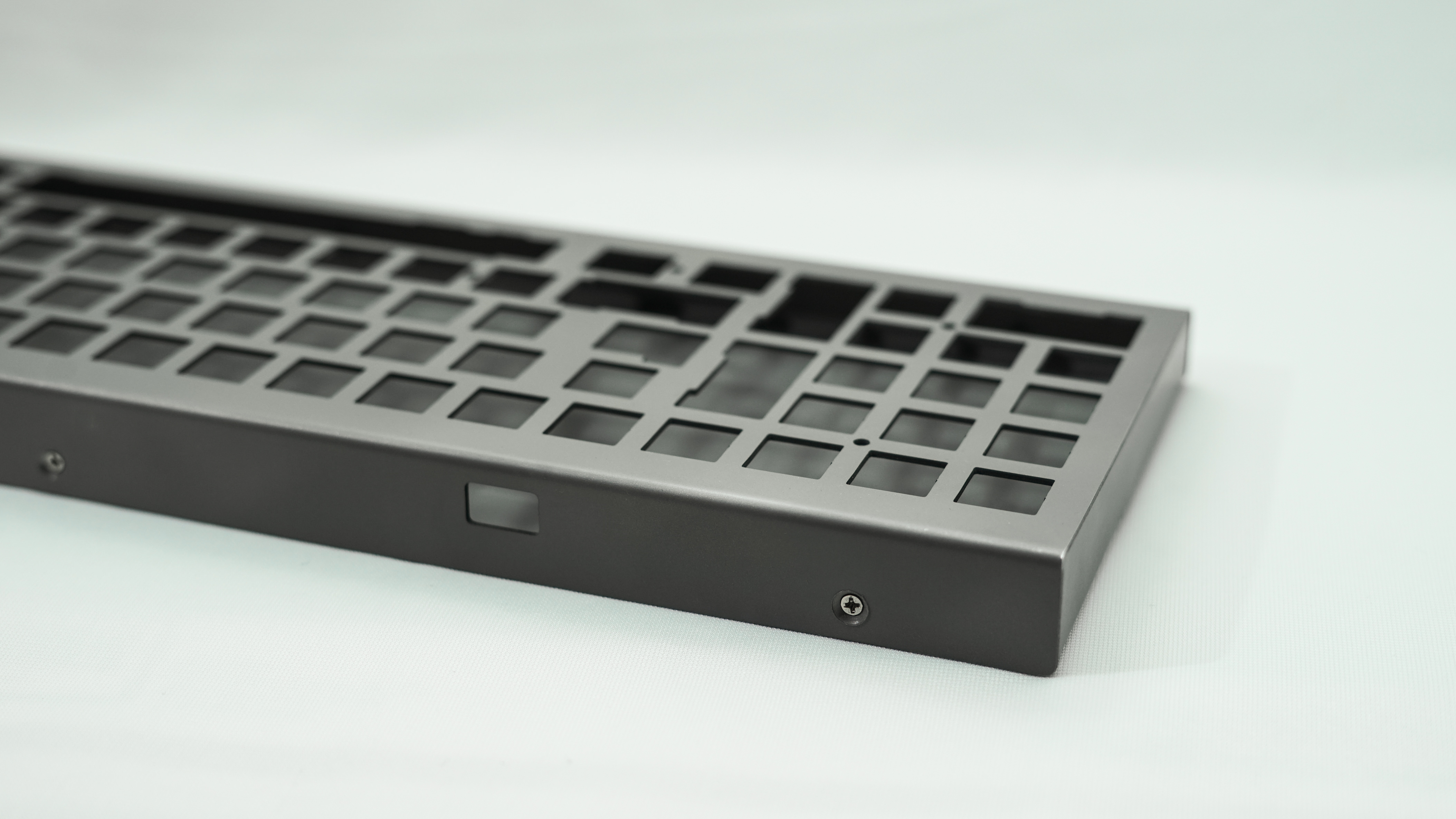

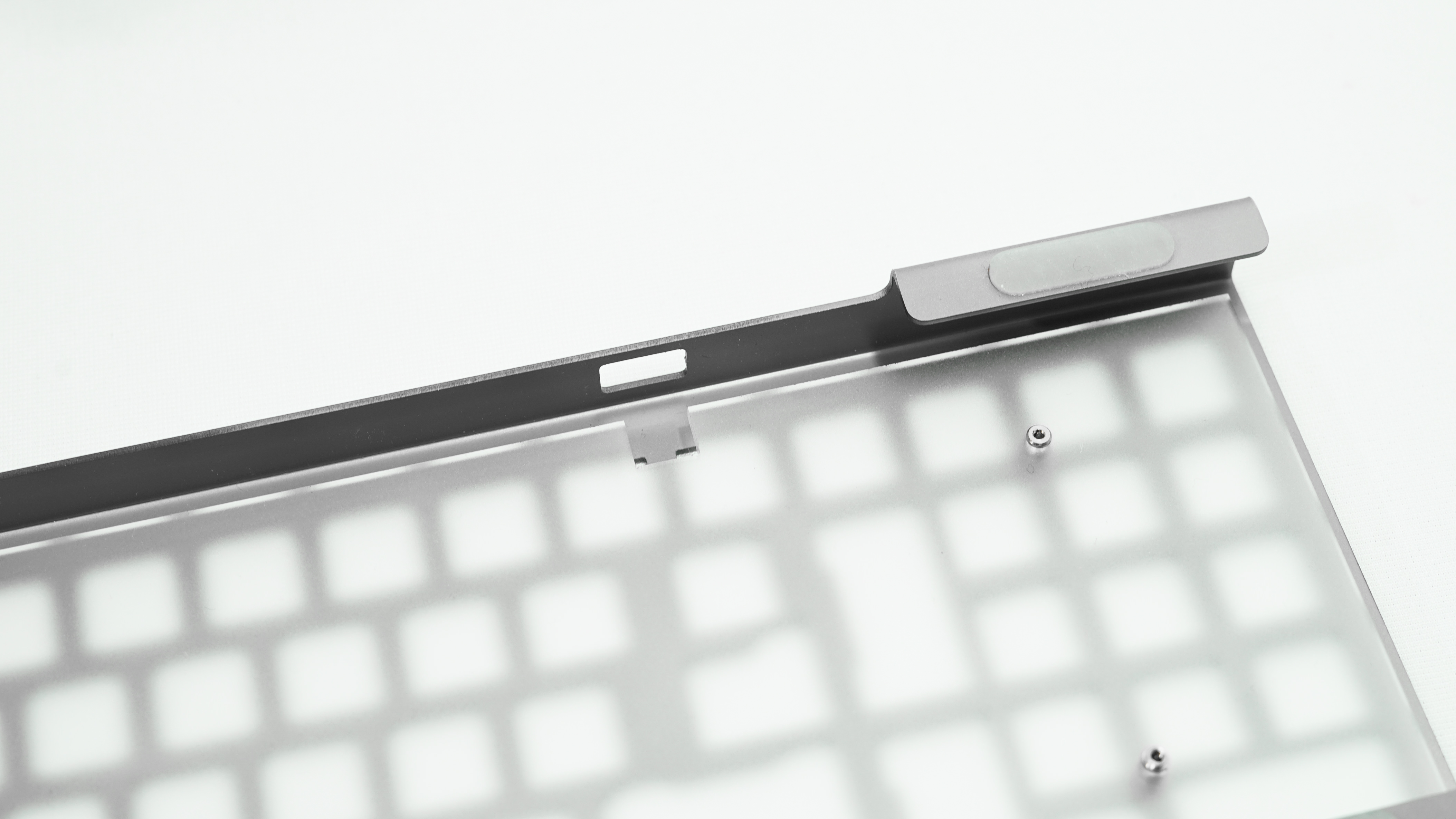

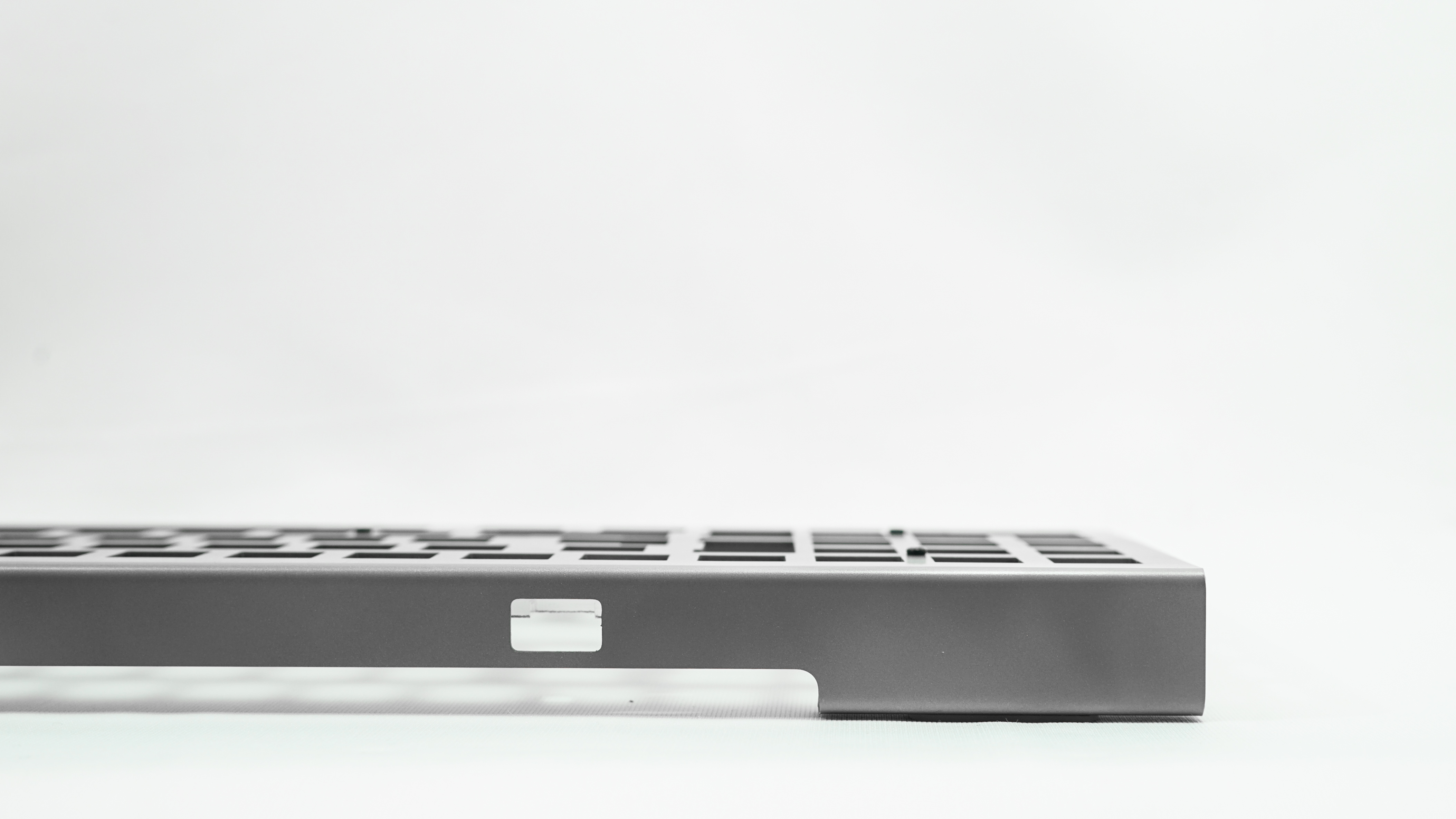

Integrated Case - Complete Kits for $107.50









Revisions:
- Drilled/Slotted for cone feet to give a 10ish degree angle
- Holes for diffuser removed

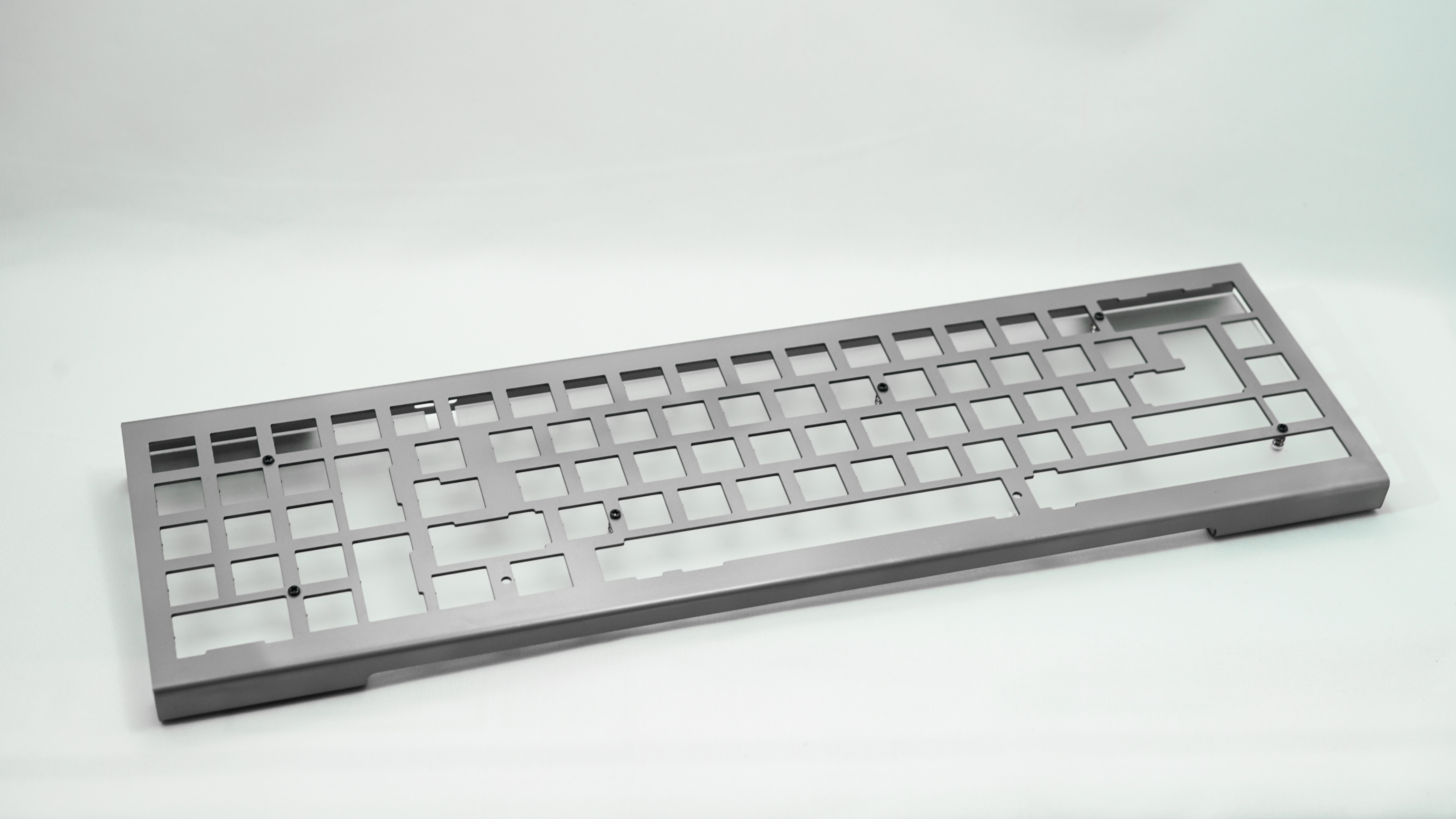

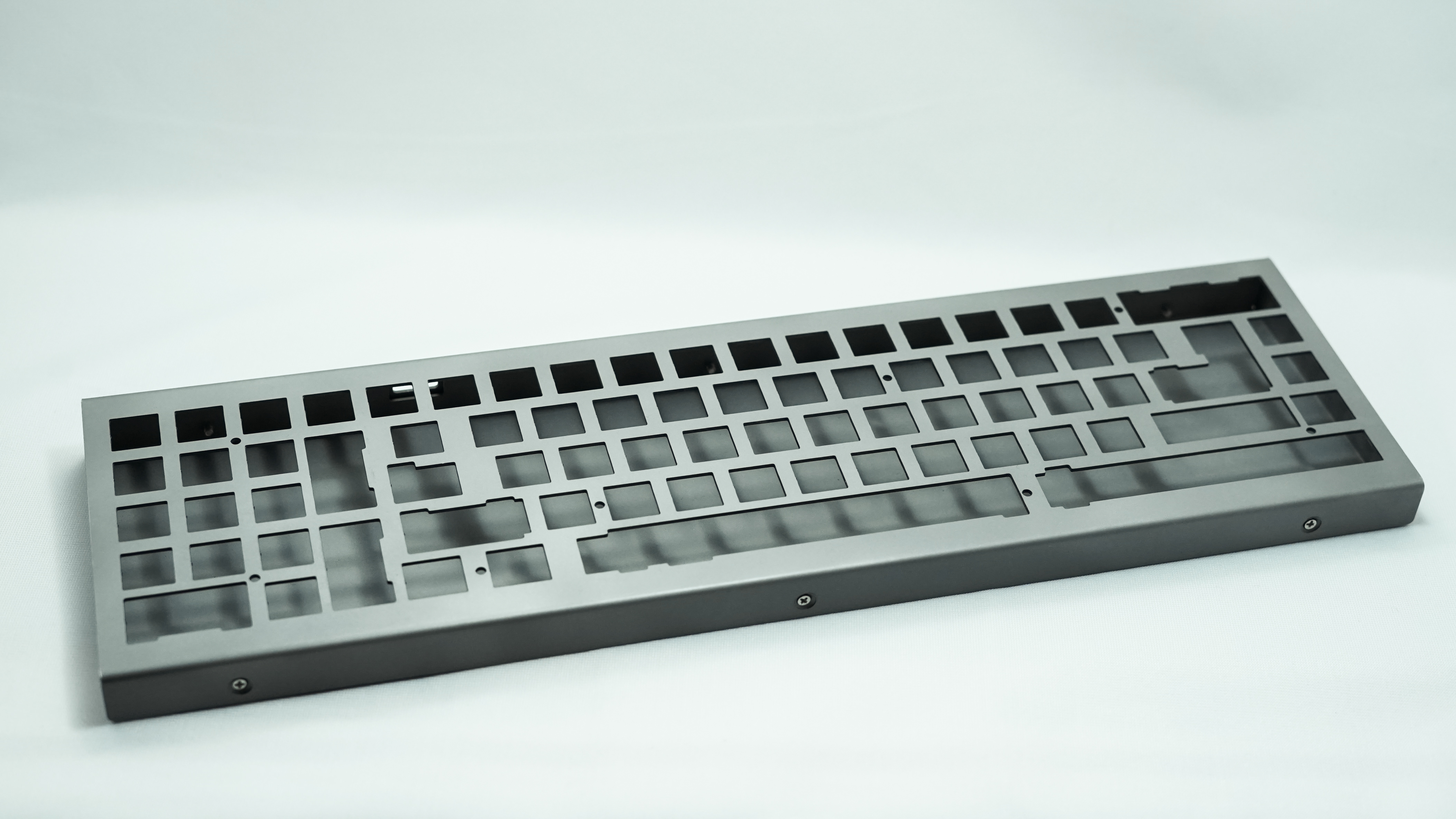

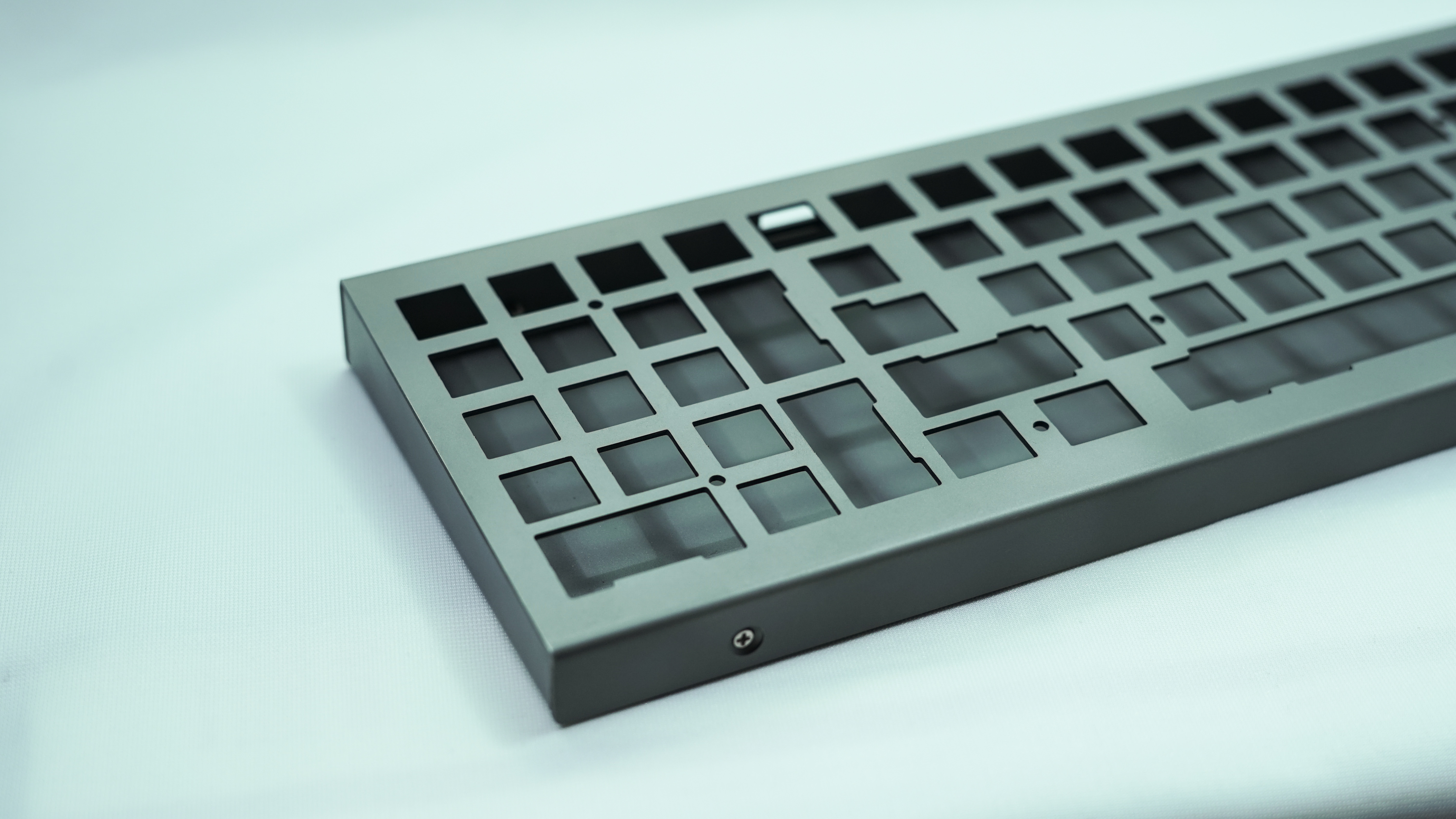

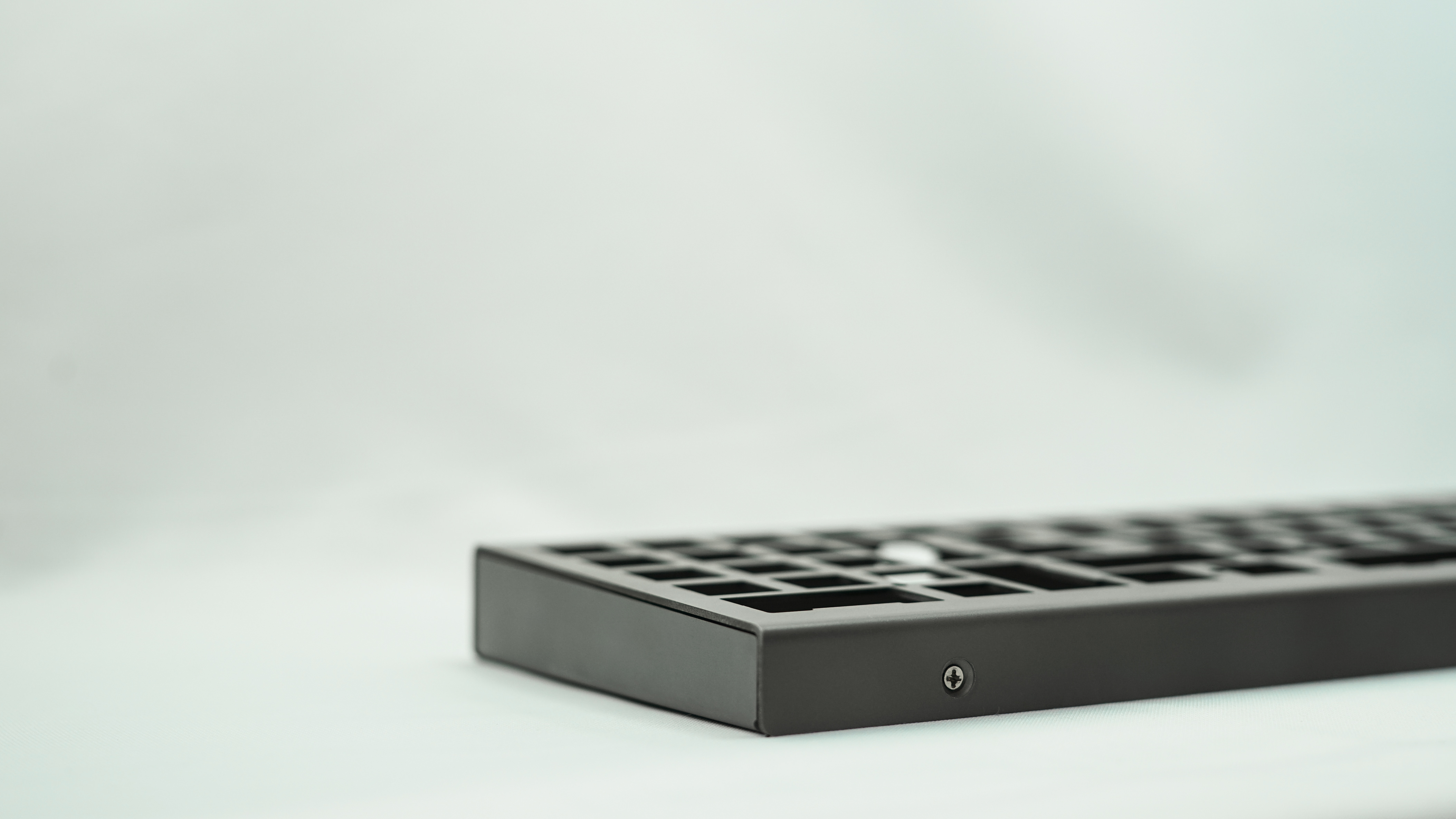

Bent Plate - Complete Kits for $91.50.

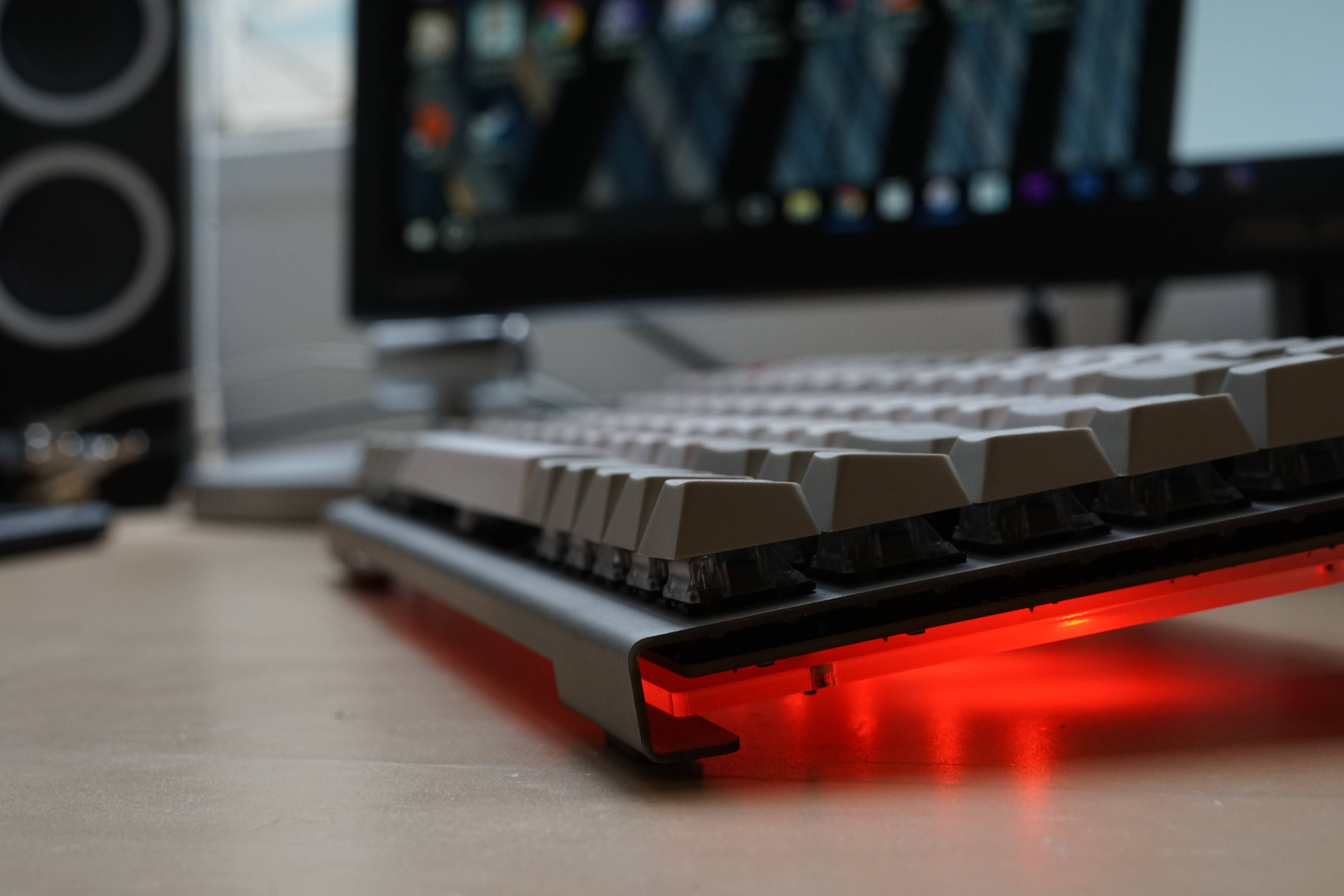

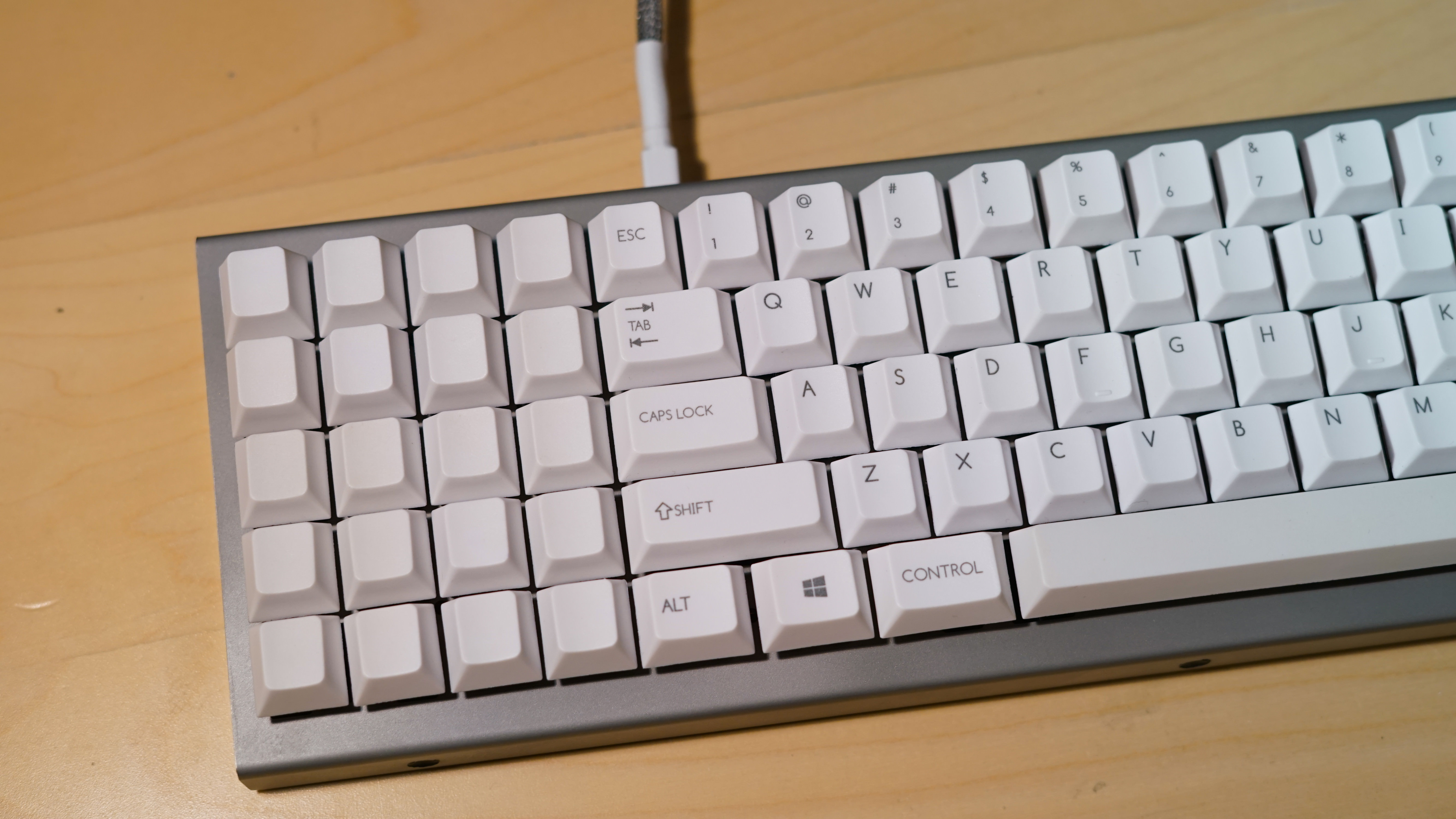

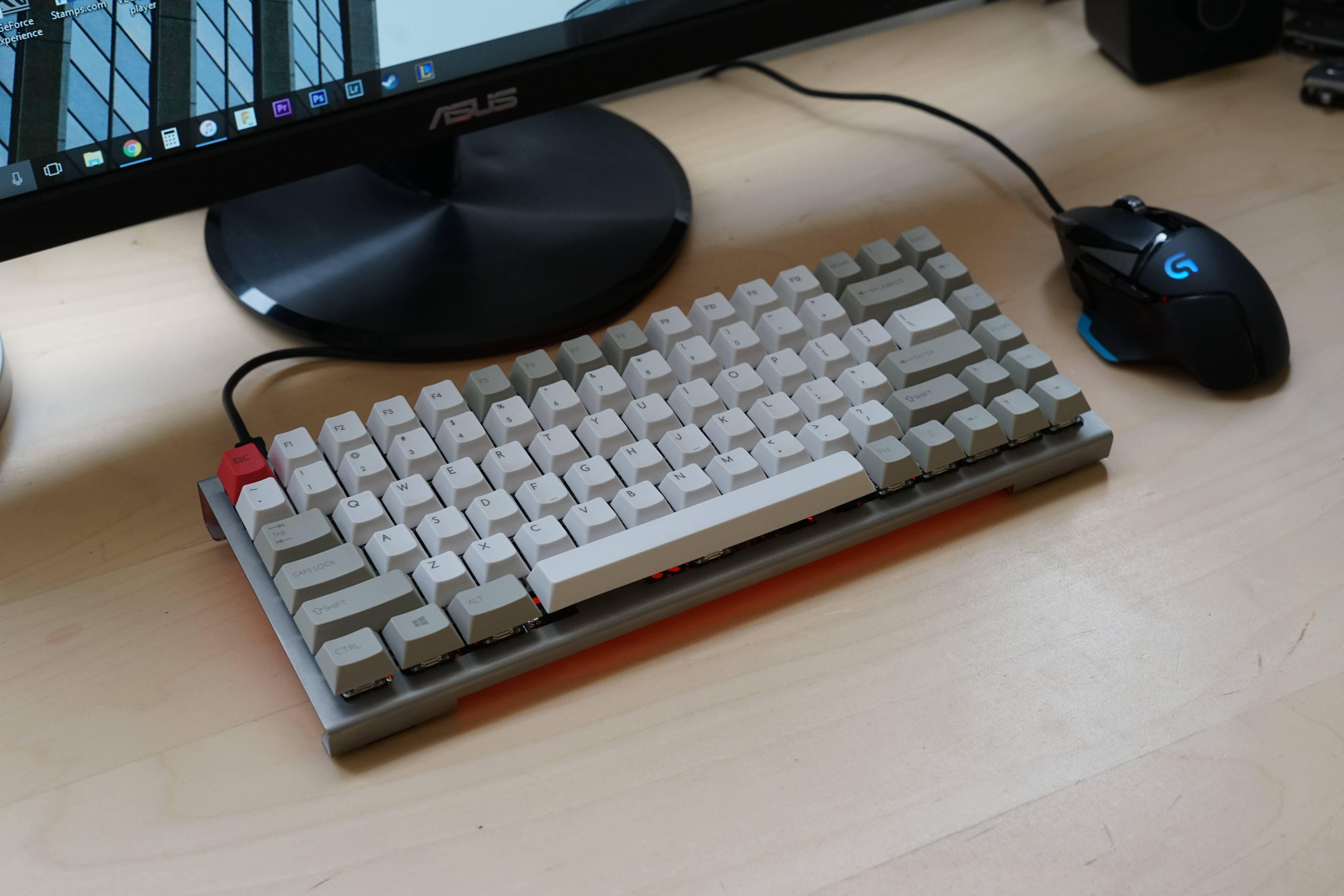

Builds into something like this: (75% board as an example)

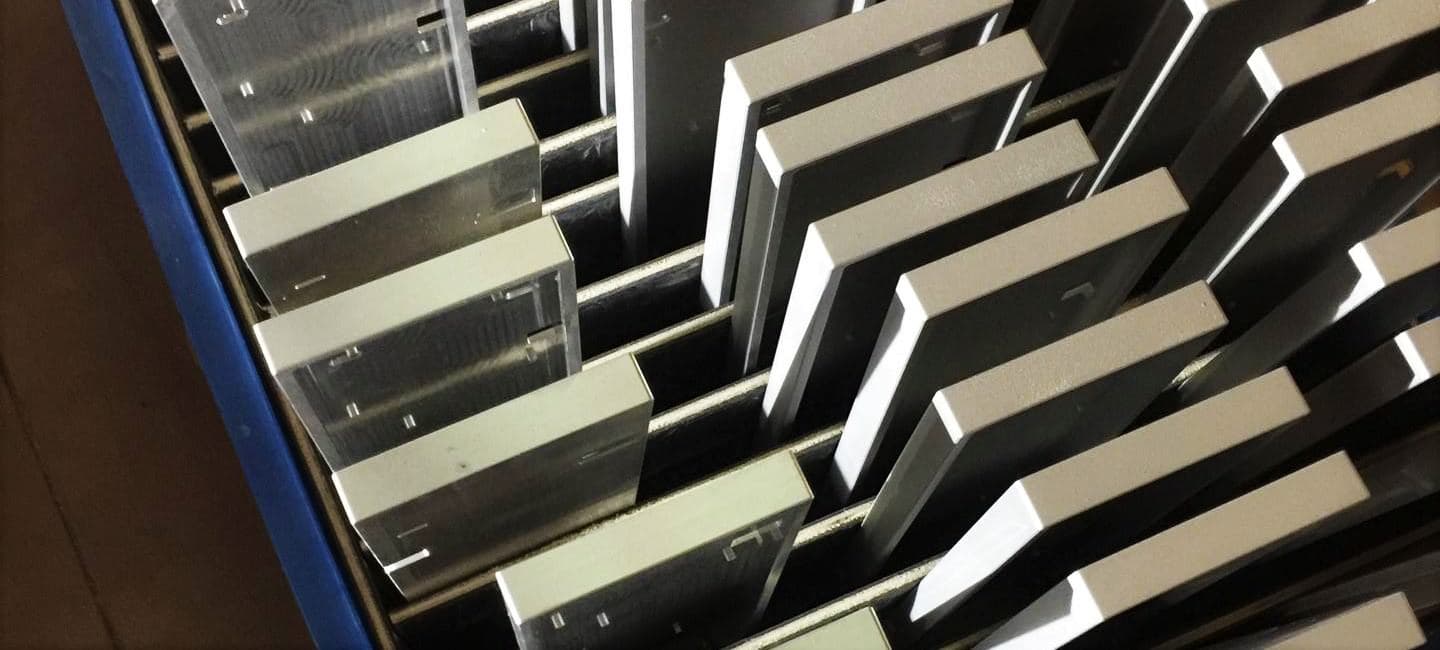

Timeline looks to be around 6-9 weeks for production with a week in between a sorting/shipping time of 1-4 weeks.

Primary target is 100 units which is MOQ for the PCB. Interest check yields around 225 responses so everything looks good so far.

MOQ, and all other details listed on the main GB page on switchplate.co
